Cisco XFP-10GZR-OC192LR, XFP-10GER-192IR+, XFP10GLR192SR-RGD, XFP-10GLR-OC192SR, DWDM-XFP-xxjcx Installation Notes

...

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Revised: February 3, 2012

Product Numbers:

XFP-10G-MM-SR= XFP-10GLR-OC192SR= XFP10GLR-192SR-L= XFP-10GER-OC192IR= XFP-10GER-192IR+= XFP10GER-192IR-L= XFP-10GZR-OC192LR= DWDM-XFP-xx.xx= DWDM-XFP-C= XFP10GLR192SR-RGD= XFP10GER192IR-RGD= XFP10GZR192LR-RGD=

This installation note provides the installation instructions for the 10-Gigabit XFP transceiver modules, which are hot-swappable input/output (I/O) devices that plug into a 10-Gigabit port. The XFP transceiver modules connect the system module port with a fiber-optic network.

This document contains these sections:

• Overview, page 2

• Safety, page 11

• Required Tools, page 17

• Installing the 10-Gigabit XFP Transceiver Module, page 17

• Removing the 10-Gigabit XFP Transceiver Module, page 19

• Translated Safety Warnings, page 21

• Related Documentation, page 26

• Obtaining Documentation and Submitting a Service Request, page 27

Americas Headquarters: Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Overview

144375

Overview

The 10-Gigabit XFP transceiver module is a hot-swappable I/O device that plugs into 10-Gigabit ports. (See Figure 1.) The XFP transceiver module connects the electrical circuitry of the system with the optical network.

Figure 1 10-Gigabit XFP Transceiver Module

1 Transmit optical bore 4 Bail clasp (locked position) 2 Receive optical bore 5 Dust plug 3 Transceiver socket connector 6 Bail clasp (unlocked position)

The different XFP transceiver module types are listed in Table 1 and Table 2.

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Table 1 10-Gigabit XFP Transceiver Modules

Overview

XFP Transceiver Module

Description

Product Number

XFP-10G-MM-SR= Cisco 10GBASE-SR XFP transceiver module for MMF, 850-nm

wavelength, dual LC connector

XFP-10GLR-OC192SR= XFP10GLR-192SR-L=

Cisco multirate XFP transceiver module for 10GBASE-LR Ethernet and OC-192/STM-64 short-reach (SR-1) Packet-over-SONET/SDH (POS) applications, SMF, dual LC connector

XFP10GLR192SR-RGD= Cisco multirate XFP transceiver module for 10GBASE-LR Ethernet and

OC-192/STM-64 short-reach (SR-1) Packet-over-SONET/SDH (POS) applications, SMF, dual LC connector, industrial temperature range

XFP-10GER-OC192IR= XFP-10GER-192IR+= XFP10GER-192IR-L=

Cisco multirate XFP transceiver module for 10GBASE-ER Ethernet and OC-192/STM-64 intermediate-reach (IR-2) Packet-over-SONET/SDH (POS) applications, SMF, dual LC connector

XFP10GER192IR-RGD= Cisco multirate XFP transceiver module for 10GBASE-ER Ethernet and

OC-192/STM-64 intermediate-reach (IR-2) Packet-over-SONET/SDH (POS) applications, SMF, dual LC connector, industrial temperature range

XFP-10GZR-OC192LR= Cisco multirate XFP transceiver module for 10GBASE-LR Ethernet and

OC-192/STM-64 long-reach Packet-over-SONET/SDH (POS) applications, SMF, dual LC connector

XFP10GZR192LR-RGD= Cisco multirate XFP transceiver module for 10GBASE-LR Ethernet and

OC-192/STM-64 long-reach Packet-over-SONET/SDH (POS) applications, SMF, dual LC connector, industrial temperature range

Table 2 10-Gigabit Dense-Wavelength Division-Multiplexing (DWDM) XFP Transceiver

Modules

Transceiver Module Product Number

Description ITU

Channel

DWDM-XFP-60.61= 10GBASE-DWDM 1560.61 nm XFP (100-GHz ITU grid) 21

DWDM-XFP-59.79= 10GBASE-DWDM 1559.79 nm XFP (100-GHz ITU grid) 22

DWDM-XFP-58.98= 10GBASE-DWDM 1558.98 nm XFP (100-GHz ITU grid) 23

DWDM-XFP-58.17= 10GBASE-DWDM 1558.17 nm XFP (100-GHz ITU grid) 24

DWDM-XFP-56.55= 10GBASE-DWDM 1556.55 nm XFP (100-GHz ITU grid) 26

DWDM-XFP-55.75= 10GBASE-DWDM 1555.75 nm XFP (100-GHz ITU grid) 27

DWDM-XFP-54.94= 10GBASE-DWDM 1554.94 nm XFP (100-GHz ITU grid) 28

DWDM-XFP-54.13= 10GBASE-DWDM 1554.13 nm XFP (100-GHz ITU grid) 29

DWDM-XFP-52.52= 10GBASE-DWDM 1552.52 nm XFP (100-GHz ITU grid) 31

DWDM-XFP-51.72= 10GBASE-DWDM 1551.72 nm XFP (100-GHz ITU grid) 32

DWDM-XFP-50.92= 10GBASE-DWDM 1550.92 nm XFP (100-GHz ITU grid) 33

DWDM-XFP-50.12= 10GBASE-DWDM 1550.12 nm XFP (100-GHz ITU grid) 34

DWDM-XFP-48.51= 10GBASE-DWDM 1548.51 nm XFP (100-GHz ITU grid) 36

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Overview

Table 2 10-Gigabit Dense-Wavelength Division-Multiplexing (DWDM) XFP Transceiver

Modules (continued)

Transceiver Module Product Number

Description ITU

Channel

DWDM-XFP-47.72= 10GBASE-DWDM 1547.72 nm XFP (100-GHz ITU grid) 37

DWDM-XFP-46.92= 10GBASE-DWDM 1546.92 nm XFP (100-GHz ITU grid) 38

DWDM-XFP-46.12= 10GBASE-DWDM 1546.12 nm XFP (100-GHz ITU grid) 39

DWDM-XFP-44.53= 10GBASE-DWDM 1544.53 nm XFP (100-GHz ITU grid) 41

DWDM-XFP-43.73= 10GBASE-DWDM 1543.73 nm XFP (100-GHz ITU grid) 42

DWDM-XFP-42.94= 10GBASE-DWDM 1542.94 nm XFP (100-GHz ITU grid) 43

DWDM-XFP-42.14= 10GBASE-DWDM 1542.14 nm XFP (100-GHz ITU grid) 44

DWDM-XFP-40.56= 10GBASE-DWDM 1540.56 nm XFP (100-GHz ITU grid) 46

DWDM-XFP-39.77= 10GBASE-DWDM 1539.77 nm XFP (100-GHz ITU grid) 47

DWDM-XFP-38.98= 10GBASE-DWDM 1538.98 nm XFP (100-GHz ITU grid) 48

DWDM-XFP-38.19= 10GBASE-DWDM 1538.19 nm XFP (100-GHz ITU grid) 49

DWDM-XFP-36.61= 10GBASE-DWDM 1536.61 nm XFP (100-GHz ITU grid) 51

DWDM-XFP-35.82= 10GBASE-DWDM 1535.82 nm XFP (100-GHz ITU grid) 52

DWDM-XFP-35.04= 10GBASE-DWDM 1535.04 nm XFP (100-GHz ITU grid) 53

DWDM-XFP-34.25= 10GBASE-DWDM 1534.25 nm XFP (100-GHz ITU grid) 54

DWDM-XFP-32.68= 10GBASE-DWDM 1532.68 nm XFP (100-GHz ITU grid) 56

DWDM-XFP-31.90= 10GBASE-DWDM 1531.90 nm XFP (100-GHz ITU grid) 57

DWDM-XFP-31.12= 10GBASE-DWDM 1531.12 nm XFP (100-GHz ITU grid) 58

DWDM-XFP-30.33= 10GBASE-DWDM 1530.33 nm XFP (100-GHz ITU grid) 59

DWDM-XFP-C= 10GBASE-DWDM tuneable XFP (50-GHz ITU grid) See

Tabl e 3

Note The dual LC connector on the XFP transceivers support network interface cables with either Physical

Contact (PC) or Ultra-Physical Contact (UPC) polished face types. The dual LC connectors on the XFP transceivers do not support network interface cables with an Angle Polished Connector (APC) polished face type.

Tabl e 3 lists the 80 DWDM ITU 50-GHz channels available to the tuneable XFP transceiver modules.

Table 3 ITU 50-GHz Center Wavelengths and Channel Numbering

Channel ID Frequency

(THz)

Wavelength (nm)

80 195.9 1530.33 79 195.85 1530.72

78 195.8 1531.12 77 195.75 1531.51

76 195.7 1531.90 75 195.65 1532.29

74 195.6 1532.68 73 195.55 1533.07

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Channel ID Frequency

(THz)

Wavelength (nm)

OL-24246-01

Table 3 ITU 50-GHz Center Wavelengths and Channel Numbering (continued)

Overview

Channel ID Frequency

(THz)

Wavelength (nm)

Channel ID Frequency

(THz)

Wavelength (nm)

72 195.5 1533.47 71 195.45 1533.86

70 195.4 1534.25 69 195.35 1534.64

68 195.3 1535.04 67 195.25 1535.43

66 195.2 1535.82 65 195.15 1536.22

64 195.1 1536.61 63 195.05 1537.00

62 195.0 1537.40 61 194.95 1537.79

60 194.9 1538.19 59 194.85 1538.58

58 194.8 1538.98 57 194.75 1539.37

56 194.7 1539.77 55 194.65 1540.16

54 194.6 1540.56 53 194.55 1540.95

52 194.5 1541.35 51 194.45 1541.75

50 194.4 1542.14 49 194.35 1542.54

48 194.3 1542.94 47 194.25 1543.33

46 194.2 1543.73 45 194.15 1544.13

44 194.1 1544.53 43 194.05 1544.92

42 194.0 1545.32 41 193.95 154572

40 193.9 1546.12 39 193.85 1546.52

38 193.8 1546.92 37 193.75 1547.32

36 193.7 1547.72 35 193.65 1548.11

34 193.6 1548.51 33 193.55 1548.91

32 193.5 1549.32 31 193.45 1549.72

30 193.4 1550.12 29 193.35 1550.52

28 193.3 1550.92 27 193.25 1551.32

26 193.2 1551.72 25 193.15 1552.12

24 193.1 1552.52 23 193.05 1552.93

22 193.0 1553.33 21 192.95 1553.73

20 192.9 1554.13 19 192.85 1554.54

18 192.8 1554.94 17 192.75 1555.34

16 192.7 1555.75 15 192.65 1556.15

14 192.6 1556.55 13 192.55 1556.96

12 192.5 1557.36 11 192.45 1557.77

10 192.4 1558.17 9 192.35 1558.58

8 192.3 1558.98 7 192.25 1559.39

6 192.2 1559.79 5 192.15 1560.20

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Overview

Table 3 ITU 50-GHz Center Wavelengths and Channel Numbering (continued)

Channel ID Frequency

(THz)

Wavelength (nm)

Channel ID Frequency

(THz)

Wavelength (nm)

4 192.1 1560.61 3 192.05 1561.01

2 192.0 1561.42 1 191.95 1561.83

Tabl e 4 lists the port cabling specifications for the 10-Gigabit XFP transceiver modules.

Table 4 XFP Transceiver Port Cabling Specifications

XFP Product Number Nominal

Wavelength (nm)

XFP-10G-MM-SR= 850 MMF 62.5

XFP-10GLR-OC192SR=

1310 SMF G.652 — 10 km (6.2 miles)

Cable Type Core Size

(microns)

62.5

50.0

Modal Bandwidth (MHz/km)

160 200 400 500 2000

XFP10GLR-192SR-L= XFP10GLR192SR-RGD=

XFP-10GER-OC192IR=

1550 SMF G.652 — 40 km (24.86 miles) XFP-10GER-192IR+= XFP10GER-192IR-L= XFP10GER192IR-RGD=

XFP-10GZR-OC192LR=

1550 SMF G.652 — 80 km (49.70 miles) XFP10GZR192LR-RGD=

DWDM-XFP-xx.xx= See Tabl e 2

SMF G.652 — 80 km (49.70 miles)

on page 3

DWDM-XFP-C= See Tabl e 3

SMF G.652 — 80 km (49.70 miles)

on page 4

Maximum Cabling Distance

26 m (85.3 ft) 33 m (108.3 ft) 66 m (216.5 ft) 82 m (269 ft) 300 m (984.3 ft)

10-Gigabit Ethernet

2 km (1.24 miles) OC-192/STM-64 SR1

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Tabl e 5 lists the XFP transceiver modules optical transmit and receive specifications.

Table 5 XFP Transceiver Optical Transmit and Receive Specifications

Overview

XFP Product Number Transceiver Operating Mode Transmit Power

(dBm)

XFP-10G-MM-SR= 10GBASE-SR, 850-nm MMF

(10.3125-Gbps line rate)

XFP-10GLR-OC192SR= XFP10GLR-192SR-L= XFP10GLR192SR-RGD=

10GBASE-LR, 1310-nm SMF

(10.3125-Gbps line rate)

OC-192/STM-64 SR1, 1310-nm SMF

–1.0 (Max) –7.3 (Min)

+0.5 (Max) –8.2 (Min)

–1.0 (Max) –6.0 (Min)

(9.95328-Gbps line rate)

XFP-10GER-OC192IR= XFP-10GER-192IR+= XFP10GER-192IR-L=

10GBASE-ER, 1550-nm SMF

(10.3125-Gbps line rate)

+4.0 (Max) –4.7 (Min)

XFP10GER192IR-RGD=

OC-192/STM-64 IR2, 1550-nm SMF

+2.0 (Max) –1.0 (Min)

(9.95328-Gbps line rate)

XFP-10GZR-OC192LR= XFP10GZR192LR-RGD=

10GBASE-ZR, 1550-nm SMF

(10.3125-Gbps line rate)

+4.0 (Max) 0 (Min)

OC-192/STM-64 LR2, 1550-nm SMF

(9.95328-Gbps line rate)

Receive Power (dBm)

–1.2 (Max) –9.9 (Min)

+0.5 (Max) –14.4 (Min)

–1.0 (Max) –11.0 (Min)

–1.0 (Max) –15.8 (Min)

+2.0 (Max) –14.0 (Min

–7.0 (Max) –24 (Min)

Transmit and Receive Wavelength (nm)

840 to 860 (TX and RX)

1260 to 1355 (TX) 1260 to 1565 (RX)

1290 to 1330 (TX) 1260 to 1565 (RX)

1530 to 1565 (TX) 1260 to 1565 (RX)

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Overview

Tabl e 6 lists the optical specifications of the DWDM XFP transceiver modules.

Table 6 DWDM XFP Optical Transmit and Receive Specifications

Parameter Symbol Minimum Typical Maximum Units Notes and Conditions

Transmitter

Spectral Width — — — 0.2 nm Full width, –20 dB from maximum, with

resolution bandwidth (RBW) = 0.01 nm

Transmitter

—x

– 100

+ 100 pm See Tabl e 2 for center wavelengths center wavelength

Side-mode

SMSR 30 — — dB —

suppression ratio

Transmitter

OMI 9 — — dB —

extinction ratio

Transmitter optical output

Pout –1.0 — 3.0 dBm Average power coupled into single-mode

fiber

power

Receiver

Receiver optical

— 1530— 1565nm —

input wavelength

Receiver damage

—— —4.0 dBm—

threshold

Dispersion

— –500— 1600ps/nm—

tolerance

Power-Limited Performance (measured at optical signal-to-noise ratio [OSNR] of 30 dB at 0.1-nm RBW)

Optical input power

Dispersion power penalty

Pin –23.0 — –7.0 dBm Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

— — — 3 dB Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

Noise-Limited Performance (measured at OSNR of 24 dB at 0.1-nm RBW)

Optical input power

Dispersion OSNR penalty

1. x is the center wavelength. The center wavelength can vary ±100 picometers (pm).

Pin –18.0 — –7.0 dB Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

— — — 3 dB Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Overview

Tabl e 7 and Tab le 8 list the optical specifications of the tuneable DWDM XFP transceiver modules

(DWDM-XFP-C=).

Table 7 Tuneable DWDM XFP Optical Transmit and Receive Specifications

Parameter Symbol Minimum Typical Maximum Units Notes and Conditions

Transmitter

Spectral Width — — — 0.2 nm Full width, –20 dB from maximum, with

resolution bandwidth (RBW) = 0.01 nm.

Transmitter

—x

– 25

+ 25 pm See Tab le 2 for center wavelengths. center wavelength

Side-mode

SMSR 30 — — dB —

suppression ratio

Transmitter

OMI 9 — — dB —

extinction ratio

Transmitter optical output

Pout 0.0 — 3.0 dBm Average power coupled into single-mode

fiber

power

Receiver

Receiver optical

— 1530— 1565nm —

input wavelength

Receiver damage

—— —4.0 dBm—

threshold

Dispersion

— –500— 1600ps/nm—

tolerance

Power-Limited Performance (measured at optical signal-to-noise ratio [OSNR] of 30 dB at 0.1-nm RBW)

Optical input power

Dispersion power penalty

Pin –23.0 — –7.0 dBm Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

— — — 3 dB Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

Noise-Limited Performance (measured at OSNR of 24 dB at 0.1-nm RBW)

Optical input power

Dispersion OSNR penalty

1. x is the center wavelength. The center wavelength can vary ±25 picometers (pm).

Pin –18.0 — –7.0 dB Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

— — — 3 dB Measured at a bit error rate (BER) = 1E–12

with an IEEE 802.3 test pattern

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Overview

Table 8 Receiver Power Performance

Units Range Notes and Conditions

Long Wavelength Performances C Band, No-FEC Applications, Power-Limited

Input power range dBm –7 to –24 At BER = 1E–12

applicable at 9.9 G and 10.3 G,

30-dB OSNR (0.1-nm RBW)

Input power range dBm –7 to –22 At BER = 1E–12

(–500 to +1600 ps/nm) applicable at 9.9 G and 10.3 G, 30-dB OSNR (0.1-nm RBW)

Long Wavelength Performances C Band, No-FEC Applications, Noise-Limited

Input power range dBm –7 to –22 At BER = 1E–12

applicable at 9.9 G and 10.3 G, 26-dB OSNR (0.1-nm RBW)

Input power range dBm –7 to –20 At BER = 1E–12

(–500 to +1600 ps/nm) applicable at 9.9 G and 10.3 G, 30-dB OSNR (0.1-nm RBW)

Long Wavelength Performances C Band FEC Applications Noise-Limited

Input power range dBm –7 to –18 At BER PREFEC < 1E–5 applicable at 10.7 G and

11.1 G, 15.5-dB OSNR (0.1-nm RBW)

Input power range dBm –7 to –18 At BER PREFEC < 1E–5 (–500 to +1000 ps/nm)

applicable at 10.7 G and 11.1 G, 17-dB OSNR (0.1-nm RBW)

Long Wavelength Performances C Band E-FEC Applications Power-Limited

Input power range dBm –7 to –27 At BER PREFEC < 7E–4 applicable at 10.7 G and

11.1 G, 26-dB OSNR (0.1-nm RBW)

Input power range dBm –7 to –26 At BER PREFEC < 7E–4 (–500 to +1300 ps/nm)

applicable at 10.7 G and 11.1 G, 26-dB OSNR (0.1-nm RBW)

Long Wavelength Performances C Band E-FEC Applications Noise-Limited

Input power range dBm –7 to –20 At BER PREFEC < 7E–4 applicable at 10.7G and

11.1G, 12 dB OSNR (0.1-nm RBW)

Input power range dBm –7 to –20 At BER PREFEC < 7E–4 (–500 to +1300 ps/nm)

applicable at 10.7 G and 11.1 G, 14-dB OSNR (0.1-nm RBW)

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Safety

Safety warnings appear throughout this publication in procedures that may harm you if performed incorrectly or are ignored. A warning symbol precedes each warning statement.

Statement 1071—Warning Definition

Safety

Warning

Waarschuwing

Varoitus

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

Attention

OL-24246-01

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Safety

Warnung

Avvertenza

Advarsel

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.

Aviso

¡Advertencia!

TA VARE PÅ DISSE INSTRUKSJONENE

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Safety

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.

SPARA DESSA ANVISNINGAR

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Safety

Aviso

Advarsel

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Safety

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Safety

Warning

Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.

Class 1 laser product.

Statement 1008

Statement 70

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure.

Statement 1057

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Required Tools

You will need these tools to install the 10-Gigabit XFP transceiver modules:

• Wrist strap or other personal grounding device to prevent ESD occurrences.

• Antistatic mat or antistatic foam to set the transceiver on.

• Fiber-optic end-face cleaning tools and inspection equipment. For complete information on

inspecting and cleaning fiber-optic connections, see the white-paper document at this URL:

http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186a0080254eba.shtm l

Installing the 10-Gigabit XFP Transceiver Module

Caution The XFP transceiver module is a static-sensitive device. Always use an ESD wrist strap or similar

individual grounding device when handling XFP transceiver modules or coming into contact with system modules.

Required Tools

To install an XFP transceiver module, follow these steps:

Step 1 Remove the XFP transceiver module from its protective packaging.

Note Do not remove the optical bore dust plugs until directed to do so later in the procedure.

Step 2 Check the label on the XFP transceiver module body to verify that you have the correct model for your

network.

Step 3 Position the XFP transceiver module in front of the XFP socket opening on the line card. Slide the XFP

transceiver module part of the way into the transceiver socket on the line card front panel.

Step 4 Remove the optical bore dust plug from the XFP transceiver module. Step 5 Pivot the bail clasp up so that it is parallel with the transceiver module body. (See Figure 2, top view.) Step 6 Continue sliding the XFP transceiver module into the socket until the XFP transceiver module is mated

with the socket connector.

Step 7 Latch the XFP transceiver module in the transceiver socket by pivoting the bail clasp down so that the

bail clasp is perpendicular to the transceiver body. (See Figure 2, bottom view.)

Caution If the latch is not fully engaged, you may accidently disconnect the XFP transceiver module.

Step 8 Immediately reinstall the dust plug in the XFP transceiver module optical bores. Do not remove the dust

plug until you are ready to attach the network interface cable.

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Installing the 10-Gigabit XFP Transceiver Module

LINK

ACTIVE

TIVE

LIN

LINK

CTIVE

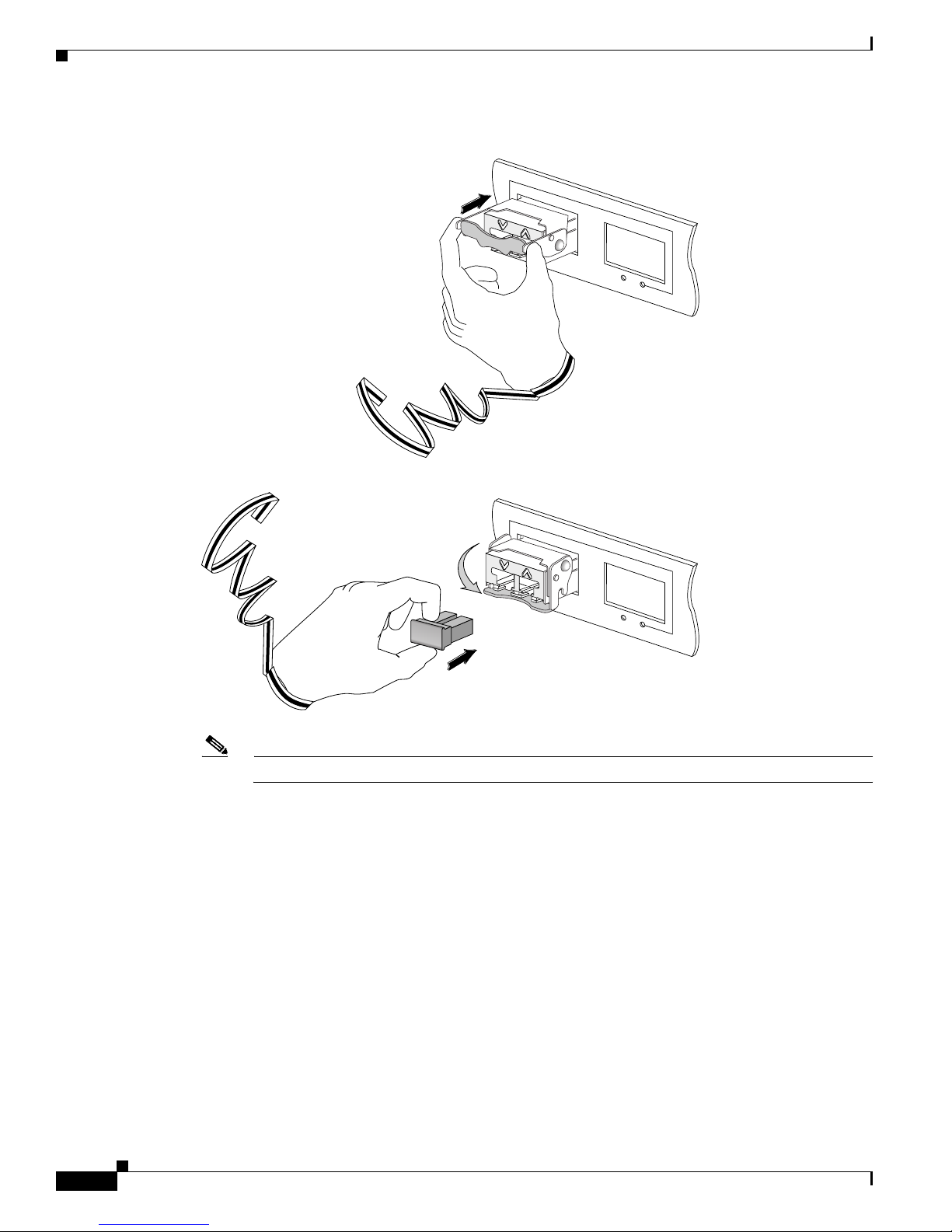

Figure 2 Installing the 10-Gigabit XFP Transceiver Module

Note 10-Gigabit XFP transceiver modules are keyed to prevent incorrect insertion.

Before removing the dust plugs and making any optical connections, follow these guidelines:

–

Keep the protective dust plugs installed in the unplugged fiber-optic cable connectors and the transceiver optical bores until you are ready to make a connection.

–

Inspect and clean the LC connector end faces just before you make any connections. See the Tip on this page for a pointer to a fiber-optic inspection and cleaning white paper.

–

Grasp the LC connector only by the housing to plug or unplug a fiber-optic cable.

a. Remove the dust plugs from the optical network interface cable LC connectors. Save the dust plugs

for future use.

b. Inspect and clean the LC connector’s fiber-optic end faces. See the Tip on this page for a pointer to

a fiber-optic inspection and cleaning white paper.

Tip For complete information on inspecting and cleaning fiber-optic connections, see this URL:

http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186a0080254eba.s html

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Removing the 10-Gigabit XFP Transceiver Module

LIN

LINK

TIVE

ACTIV

144377

Network interface

cable

LC connector

XFP transceiver

c. Remove the dust plugs from the XFP transceiver module optical bores. d. Immediately attach the network interface cable LC connectors to the XFP transceiver module. (See

Figure 3.)

Figure 3 Cabling a 10-Gigabit XFP Transceiver Module

Removing the 10-Gigabit XFP Transceiver Module

Caution The XFP transceiver module is a static-sensitive device. Always use an ESD wrist strap or similar

individual grounding device when handling XFP transceiver modules or coming into contact with modules.

If you are removing an XFP transceiver, follow these steps:

Step 1 Disconnect the network interface cable from the XFP transceiver module connectors. Immediately

reinstall the dust plug in the fiber-optic cable LC connector.

Step 2 Pivot the XFP transceiver module bail clasp up to release the XFP transceiver module from the socket.

(See Figure 4, top view.)

Step 3 Slide the XFP transceiver module out of the socket. Pivot the bail clasp down and immediately install

the dust plug in the XFP transceiver module optical bores. (See Figure 4, bottom view.)

Step 4 Immediately place the XFP transceiver module in an antistatic bag.

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Removing the 10-Gigabit XFP Transceiver Module

LINK

ACTIVE

LINK

ACTIVE

Figure 4 Removing the 10-Gigabit XFP Transceiver Module

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Translated Safety Warnings

This section repeats in multiple languages the basic warnings that appear in this document.

Statement 70—Invisible Laser Radiation Warning

Translated Safety Warnings

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

Advarsel

Aviso

Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.

Omdat er onzichtbare laserstraling uit de opening van de poort geëmitteerd kan worden wanneer er geen kabel aangesloten is, dient men om blootstelling aan laserstraling te vermijden niet in de open openingen te kijken.

Kun porttiin ei ole kytketty kaapelia, portin aukosta voi vuotaa näkymätöntä lasersäteilyä. Älä katso avoimiin aukkoihin, jotta et altistu säteilylle.

Etant donné qu’un rayonnement laser invisible peut être émis par l’ouverture du port quand aucun câble n’est connecté, ne pas regarder dans les ouvertures béantes afin d’éviter tout risque d’exposition au rayonnement laser.

Aus der Öffnung des Ports kann unsichtbare Laserstrahlung austreten, wenn kein Kabel angeschlossen ist. Kontakt mit Laserstrahlung vermeiden und nicht in offene Öffnungen blicken.

Poiché quando nessun cavo è collegato alla porta, da quest’ultima potrebbe essere emessa radiazione laser invisibile, evitare l’esposizione a tale radiazione e non fissare con gli occhi porte a cui non siano collegati cavi.

Usynlige laserstråler kan sendes ut fra åpningen på utgangen når ingen kabel er tilkoblet. Unngå utsettelse for laserstråling og se ikke inn i åpninger som ikke er tildekket.

Evite uma exposição à radiação laser e não olhe através de aberturas expostas, porque poderá ocorrer emissão de radiação laser invisível a partir da abertura da porta, quando não estiver qualquer cabo conectado.

¡Advertencia!

Varning!

OL-24246-01

Cuando no esté conectado ningún cable, pueden emitirse radiaciones láser invisibles por el orificio del puerto. Evitar la exposición a radiaciones láser y no mirar fijamente los orificios abiertos.

Osynliga laserstrålar kan sändas ut från öppningen i porten när ingen kabel är ansluten. Undvik exponering för laserstrålning och titta inte in i ej täckta öppningar.

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Translated Safety Warnings

Statement 1008—Class 1 Laser Product

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

Advarsel

Aviso

¡Advertencia!

Varning!

Class 1 laser product.

Klasse-1 laser produkt.

Luokan 1 lasertuote.

Produit laser de classe 1.

Laserprodukt der Klasse 1.

Prodotto laser di Classe 1.

Laserprodukt av klasse 1.

Produto laser de classe 1.

Producto láser Clase I.

Laserprodukt av klass 1.

Aviso

Advarsel

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Produto a laser de classe 1.

Klasse 1 laserprodukt.

OL-24246-01

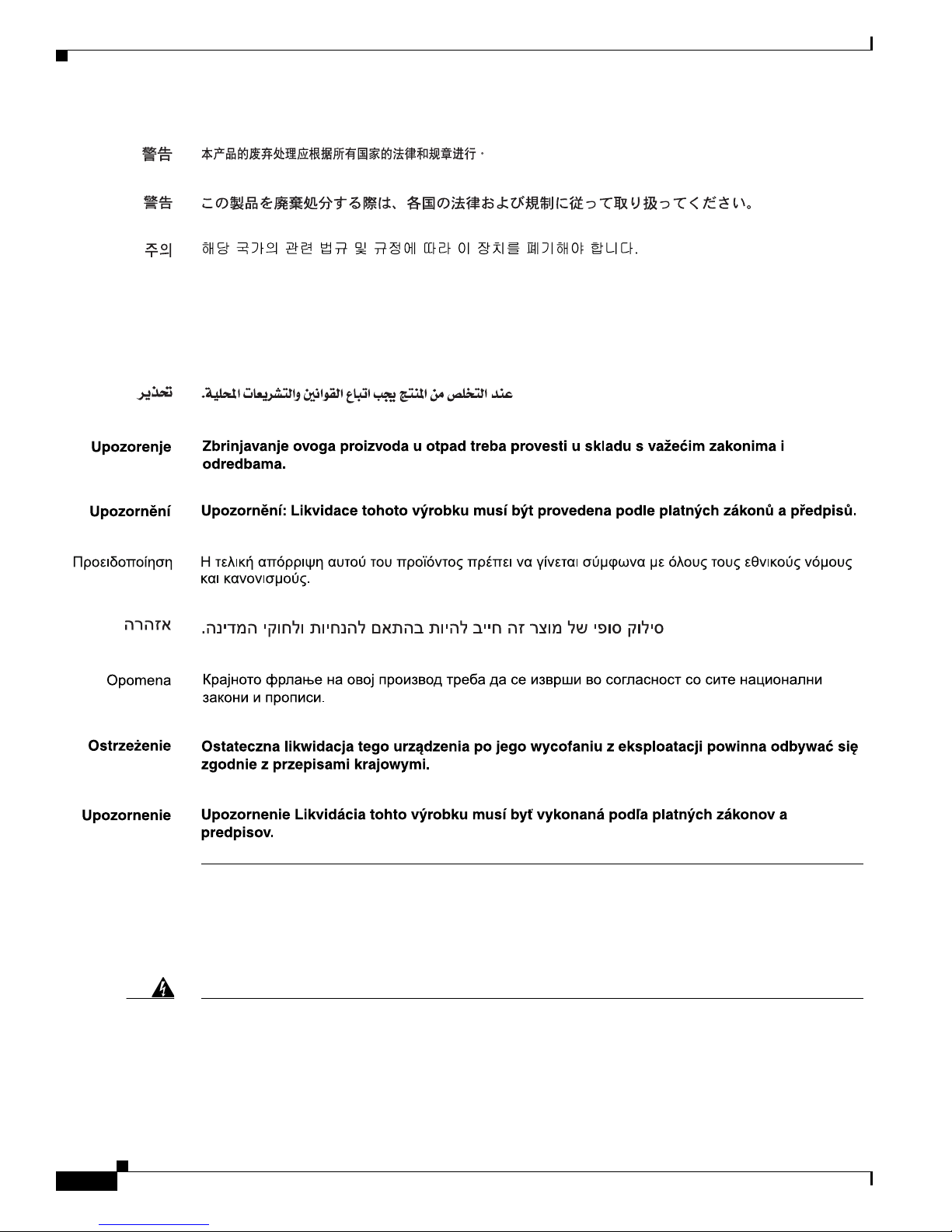

Statement 1040—Product Disposal

Translated Safety Warnings

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

Advarsel

Aviso

¡Advertencia!

Varning!

Ultimate disposal of this product should be handled according to all national laws and regulations.

Het uiteindelijke wegruimen van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

Tämä tuote on hävitettävä kansallisten lakien ja määräysten mukaisesti.

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

Lo smaltimento di questo prodotto deve essere eseguito secondo le leggi e regolazioni locali.

Endelig kassering av dette produktet skal være i henhold til alle relevante nasjonale lover og bestemmelser.

Deitar fora este produto em conformidade com todas as leis e regulamentos nacionais.

Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

Vid deponering hanteras produkten enligt gällande lagar och bestämmelser.

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Translated Safety Warnings

Aviso

Advarsel

O descarte definitivo deste produto deve estar de acordo com todas as leis e regulamentações nacionais.

Endelig bortskaffelse af dette produkt skal ske i henhold til gældende love og regler.

Statement 1057—Hazardous Radiation Exposure

Warning

Waarschuwing

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure.

Het gebruik van regelaars of bijstellingen of het uitvoeren van procedures anders dan opgegeven kan leiden tot blootstelling aan gevaarlijke straling.

OL-24246-01

Translated Safety Warnings

Varoitus

Attention

Warnung

Avvertenza

Advarsel

Aviso

¡Advertencia!

Varning!

Säätimien tai säätöjen käyttö ja toimenpiteiden suorittaminen ohjeista poikkeavalla tavalla voi altistaa vaaralliselle säteilylle.

L’utilisation de commandes, de réglages ou de procédures autres que ceux spécifiés peut entraîner une exposition dangereuse à des radiations.

Die Verwendung von nicht spezifizierten Steuerelementen, Einstellungen oder Verfahrensweisen kann eine gefährliche Strahlenexposition zur Folge haben.

L’adozione di controlli, regolazioni o procedure diverse da quelle specificate può comportare il pericolo di esposizione a radiazioni.

Bruk av kontroller eller justeringer eller utførelse av prosedyrer som ikke er spesifiserte, kan resultere i farlig strålingseksponering.

O uso de controles, ajustes ou desempenho de procedimentos diferentes dos especificados pode resultar em exposição prejudicial de radiação.

La aplicación de controles, ajustes y procedimientos distintos a los especificados puede comportar una exposición peligrosa a la radiación.

Om andra kontroller eller justeringar än de angivna används, eller om andra processer än de angivna genomförs, kan skadlig strålning avges.

Aviso

O uso de controles, ajustes ou procedimentos diferentes daqueles especificados pode resultar em exposição perigosa à radiação.

Advarsel

Brug af kontrolfunktioner, justeringer, eller udførelse af procedurer andre end de, der er angivet, kan resultere i udsættelse for farlig bestråling.

OL-24246-01

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

Cisco XFP-10GZR-OC192LR, XFP-10GER-192IR+, XFP10GLR192SR-RGD, XFP-10GLR-OC192SR, DWDM-XFP-xxjcx Installation Notes

Specifications and Main Features

Frequently Asked Questions

User Manual
