Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Revised: January 20, 2012

Contents

Product Numbers:

XENPAK-10GB-LW= XENPAK-10GB-ER= XENPAK-10GB-ER+= XENPAK-10GB-ZR=

XENPAK-10GB-LX4= XENPAK-10GB-CX4= DWDM-XENPAK-xx.xx=

This installation note provides instructions for installing the 10-Gigabit XENPAK transceiver modules. The XENPAK transceiver connects the electrical circuitry of the switch or router with the optical or copper network.

This document contains these sections:

• Overview, page 2

• Safety, page 6

• Required Tools, page 13

• Installing the XENPAK Transceiver, page 13

• Removing the XENPAK Transceiver, page 15

• Translated Safety Warnings, page 17

• Related Documentation, page 24

XENPAK-10GB-SR= XENPAK-10GB-LR= XENPAK-10GB-LR+=

• Obtaining Documentation and Submitting a Service Request, page 24

Americas Headquarters: Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Overview

99376

Overview

The 10-Gigabit Ethernet XENPAK transceivers are a hot-swappable I/O devices that plug into 10-Gigabit Ethernet module ports. (See Figure 1.) The XENPAK transceivers are available in either optical or copper interfaces.

Figure 1 XENPAK Transceiver

1 Captive installation screw 3 Transmit optical bore 2 Optical bore dust plug 4 Receive optical bore

The different types of XENPAK are described in Table 1 and Table 2.

Table 1 XENPAK Transceiver Modules

XENPAK Transceiver Product Number Description

XENPAK-10GB-SR= Cisco 10GBASE-SR XENPAK transceiver module for MMF, 850 nm

wavelength, SC connector

XENPAK-10GB-LR= Cisco 10GBASE-LR XENPAK transceiver module for SMF, 1310 nm

wavelength, SC connector

XENPAK-10GB-LR+= Cisco 10GBASE-LR+ XENPAK transceiver module for SMF, 1310 nm

wavelength, SC connector (supports DOM)

XENPAK-10GB-LW= Cisco 10GBASE-LW XENPAK transceiver module for SMF, 1310 nm

wavelength, SC connector

XENPAK-10GB-ER= Cisco 10GBASE-ER XENPAK transceiver module for SMF, 1550 nm

wavelength, SC connector

XENPAK-10GB-ER+= Cisco 10GBASE-ER+ XENPAK transceiver module for SMF, 1550 nm

wavelength, SC connector (supports DOM)

XENPAK-10GB-ZR= Cisco 10GBASE-ZR XENPAK transceiver module for SMF, 1550 nm

wavelength, SC connector

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Overview

Table 1 XENPAK Transceiver Modules (continued)

XENPAK Transceiver Product Number Description

XENPAK-10GB-LX4= Cisco 10GBASE-LX4 XENPAK transceiver module for MMF, 1310 nm

wavelength, SC connector

XENPAK-10GB-LRM= Cisco 10GBASE-LRM XENPAK transceiver module for MMF, 1310 nm

wavelength dual SC connector

XENPAK-10GB-CX4= Cisco 10GBASE-CX4 XENPAK transceiver module for CX4 cable,

copper, InfiniBand 4x connectors for the following cable assemblies:

• CAB-INF-28G-1=—1 m cable for 10GBASE-CX4

• CAB-INF-28G-5=—5 m cable for 10GBASE-CX4

• CAB-INF-28G-10=—10 m cable for 10GBASE-CX4

• CAB-INF-26G-15=—15 m cable for 10GBASE-CX4

Table 2 lists the part numbers and band or channel assignments for DWDM XENPAK transceiver

modules.

Table 2 DWDM XENPAK Transceiver Modules

Product Number Description ITU Channel

DWDM-XENPAK-60.61= 10GBASE-DWDM 1560.61 nm XENPAK (100-GHz ITU grid) 21

DWDM-XENPAK-59.79= 10GBASE-DWDM 1559.79 nm XENPAK (100-GHz ITU grid) 22

DWDM-XENPAK-58.98= 10GBASE-DWDM 1558.98 nm XENPAK (100-GHz ITU grid) 23

DWDM-XENPAK-58.17= 10GBASE-DWDM 1558.17 nm XENPAK (100-GHz ITU grid) 24

DWDM-XENPAK-56.55= 10GBASE-DWDM 1556.55 nm XENPAK (100-GHz ITU grid) 26

DWDM-XENPAK-55.75= 10GBASE-DWDM 1555.75 nm XENPAK (100-GHz ITU grid) 27

DWDM-XENPAK-54.94= 10GBASE-DWDM 1554.94 nm XENPAK (100-GHz ITU grid) 28

DWDM-XENPAK-54.13= 10GBASE-DWDM 1554.13 nm XENPAK (100-GHz ITU grid) 29

DWDM-XENPAK-52.52= 10GBASE-DWDM 1552.52 nm XENPAK (100-GHz ITU grid) 31

DWDM-XENPAK-51.72= 10GBASE-DWDM 1551.72 nm XENPAK (100-GHz ITU grid) 32

DWDM-XENPAK-50.92= 10GBASE-DWDM 1550.92 nm XENPAK (100-GHz ITU grid) 33

DWDM-XENPAK-50.12= 10GBASE-DWDM 1550.12 nm XENPAK (100-GHz ITU grid) 34

DWDM-XENPAK-48.51= 10GBASE-DWDM 1548.51 nm XENPAK (100-GHz ITU grid) 36

DWDM-XENPAK-47.72= 10GBASE-DWDM 1547.72 nm XENPAK (100-GHz ITU grid) 37

DWDM-XENPAK-46.92= 10GBASE-DWDM 1546.92 nm XENPAK (100-GHz ITU grid) 38

DWDM-XENPAK-46.12= 10GBASE-DWDM 1546.12 nm XENPAK (100-GHz ITU grid) 39

DWDM-XENPAK-44.53= 10GBASE-DWDM 1544.53 nm XENPAK (100-GHz ITU grid) 41

DWDM-XENPAK-43.73= 10GBASE-DWDM 1543.73 nm XENPAK (100-GHz ITU grid) 42

DWDM-XENPAK-42.94= 10GBASE-DWDM 1542.94 nm XENPAK (100-GHz ITU grid) 43

DWDM-XENPAK-42.14= 10GBASE-DWDM 1542.14 nm XENPAK (100-GHz ITU grid) 44

DWDM-XENPAK-40.56= 10GBASE-DWDM 1540.56 nm XENPAK (100-GHz ITU grid) 46

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Overview

Table 2 DWDM XENPAK Transceiver Modules (continued)

Product Number Description ITU Channel

DWDM-XENPAK-39.77= 10GBASE-DWDM 1539.77 nm XENPAK (100-GHz ITU grid) 47

DWDM-XENPAK-38.98= 10GBASE-DWDM 1538.98 nm XENPAK (100-GHz ITU grid) 48

DWDM-XENPAK-38.19= 10GBASE-DWDM 1538.19 nm XENPAK (100-GHz ITU grid) 49

DWDM-XENPAK-36.61= 10GBASE-DWDM 1536.61 nm XENPAK (100-GHz ITU grid) 51

DWDM-XENPAK-35.82= 10GBASE-DWDM 1535.82 nm XENPAK (100-GHz ITU grid) 52

DWDM-XENPAK-35.04= 10GBASE-DWDM 1535.04 nm XENPAK (100-GHz ITU grid) 53

DWDM-XENPAK-34.25= 10GBASE-DWDM 1534.25 nm XENPAK (100-GHz ITU grid) 54

DWDM-XENPAK-32.68= 10GBASE-DWDM 1532.68 nm XENPAK (100-GHz ITU grid) 56

DWDM-XENPAK-31.90= 10GBASE-DWDM 1531.90 nm XENPAK (100-GHz ITU grid) 57

DWDM-XENPAK-31.12= 10GBASE-DWDM 1531.12 nm XENPAK (100-GHz ITU grid) 58

DWDM-XENPAK-30.33= 10GBASE-DWDM 1530.33 nm XENPAK (100-GHz ITU grid) 59

Note The dual SC connectors on the optical XENPAK transceivers support network interface cables with

either Physical Contact (PC) or Ultra-Physical Contact (UPC) polished face types. The dual SC connectors on the optical XENPAK transceivers do not support network interface cables with an Angle Polished Connector (APC) polished face type.

The XENPAK transceiver connects the electrical circuitry of the module with the optical or copper network. Table 3 lists the 10-Gigabit XENPAK port cabling specifications. Table 4 lists the optical transmit and receive specifications for most XENPAK transceivers.

Table 3 10-Gigabit XENPAK Port Cabling Specifications

Modal

Wavelength

XENPAK Product Number

(nm) Cable Type

XENPAK-10GB-SR 850 MMF 62.5

XENPAK-10GB-LR

1310 SMF G.652 fiber — 10 km (6.21 mi)

Core Size (microns)

62.5

50.0

Bandwidth (MHz/km)

160 200 400 500 2000

Maximum Cabling Distance

26 m (85.3 ft) 33 m (108.3 ft) 66 m (216.5 ft) 82 m (269 ft) 300 m (984.3 ft)

XENPAK-10GB-LR+ XENPAK-10GB-LW

XENPAK-10GB-ER

1550 SMF G.652 fiber — 40 km (24.86 mi)

XENPAK-10GB-ER+

XENPAK-10GB-ZR 1550 SMF G.652 fiber — 80 km (49.72 mi)

DWDM-XENPAK-xx.xx See Ta ble 2

SMF G.652 fiber — 80 km (49.72 mi)

on page 3

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Overview

Table 3 10-Gigabit XENPAK Port Cabling Specifications (continued)

Modal

Wavelength

XENPAK Product Number

(nm) Cable Type

XENPAK-10GB-LX4 1310 MMF 62.5

Core Size (microns)

50.0

Bandwidth (MHz/km)

500 400 500

Maximum Cabling Distance

300 m (984.3 ft) 240 m (787.4 ft) 300 m (984.3 ft)

XENPAK-10GB-CX4 — CX4 (copper) — — 15 m (49.2 ft)

XENPAK-10GB-LRM 1310 MMF 62.5

50.0

1. Minimum cabling distance for optical XENPAK transceivers is 2 meters according to the IEEE 802.3ae standard.

2. Requires a 5 dB 1550 nm fixed loss attenuator for distances less than 20 km.

3. Links longer than 30 km are considered engineered links; meaning that for distances up to 30 km, no special link design rules need to be considered. Link distances beyond 30 km require that you verify the cable characteristics, especially the cable’s loss value.

4. When shorter distances of SMF are used, an inline optical attenuator (11 dB) must be used to avoid overloading and damaging the receiver.

500 400 500

220 m (722 feet) 100 m (328 feet) 220 m (722 feet)

Table 4 XENPAK Transceiver Optical Transmit and Receive Specifications

XENPAK Product Number Type

XENPAK-10GB-SR 10GBASE-SR, 850 nm

MMF

XENPAK-10GB-LR XENPAK-10GB-LR+

10GBASE-LR 1310 nm SMF

XENPAK-10GB-LW 10GBASE-LR 1310 nm

SMF

XENPAK-10GB-ER XENPAK-10GB-ER+

10GBASE-ER 1550 nm SMF

XENPAK-10GB-ZR 10GBASE-ZR 1550 nm

SMF

XENPAK-10GB-LX4 10GBASE-LX4 WWDM

1300 nm MMF

XENPAK-10GB-LRM 10GBASE-LR, 1310-nm

MMF

Transmit Power (dBm)

–1.0 (Max)

–7.3 (Min)

+0.5 (Max)

–8.2 (Min)

+0.5 (Max)

–8.2 (Min)

+4 (Max)

–4.7 (Min)

+4 (Max)

0 (Min)

–0.5 per lane (Max)

-6.75 per lane in OMA (Min)

0.5 (Max)

–6.5 (Min)

Receive Power (dBm)

–1.2 (Max)

–9.9 (Min)

+0.5 (Max)

–14.4 (Min)

+0.5 (Max)

–14.4 (Min)

–1.0 (Max)

–15.8 (Min)

–7 (Max)

–24 (Min)

–0.5 (Max)

–14.25 per lane in OMA

0.5 (Max)

-8.4 (Min average) and

-6.4 (Min in OMA)

1. Optical Modulation Amplitude (OMA) sensitivity

(Min)

Transmit and Receive Wavelength (nm)

840 to 860

1260 to 1355

1530 to 1565

Four lanes; overall range: 1269 to 1356

1260 to 1355

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Safety

Table 5 DWDM XENPAK Transceiver Optical Transmit and Receive Specifications

Notes and

Parameter Symbol Minimum Typical Maximum Units

Conditions

Transmitter

Spectral Width — — 0.2 m Full width, -20 dB

from maximum, with resolution bandwidth (RBW) =

0.01 nm

Transmitter Center Wav eleng t h

— x–100 x x+100 pm Refer to Table 2 on

page 3 for center

wavelengths.

Side-Mode

SMSR 30 — — dB —

Suppression Ratio

Transmitter

OMI 9 — — dB —

Extinction Ratio

Transmitter Optical Output Power

P-out –1.0 — 3.0 dBm Average power

coupled into single-mode fiber.

Receiver

Receiver Optical

— 1530 — 1565 nm —

Input Wavelength

Receiver Damage

—— —–1 dBm —

Threshold

Dispersion Tolerance — –500 1600 ps/nm —

Power-Limited Performance (measured at optical signal-to-noise ratio [OSNR] of 30 dB at 0.1-nm RBW)

Optical Input Power Pin –24.0 –7.0 dBm

Dispersion Power

—— —3 dB

Penalty

Noise-Limited Performance (measured at OSNR of 23 dB at 0.1-nm RBW)

Optical Input Power Pin –17.0 –7.0 dBm

Dispersion OSNR

—— —3 dB

Penalty

1. At bit error rate (BER) = 10e-12 with an IEEE802.3 test pattern.

Safety

Safety warnings appear throughout this publication in procedures that may harm you if performed incorrectly or are ignored. A warning symbol precedes each warning statement.

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Statement 1071—Warning Definition

Safety

Warning

Waarschuwing

Varoitus

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.

78-15665-07

Attention

SÄILYTÄ NÄMÄ OHJEET

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Safety

Warnung

Avvertenza

Advarsel

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.

Aviso

¡Advertencia!

TA VARE PÅ DISSE INSTRUKSJONENE

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Safety

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.

SPARA DESSA ANVISNINGAR

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Safety

Aviso

Advarsel

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.

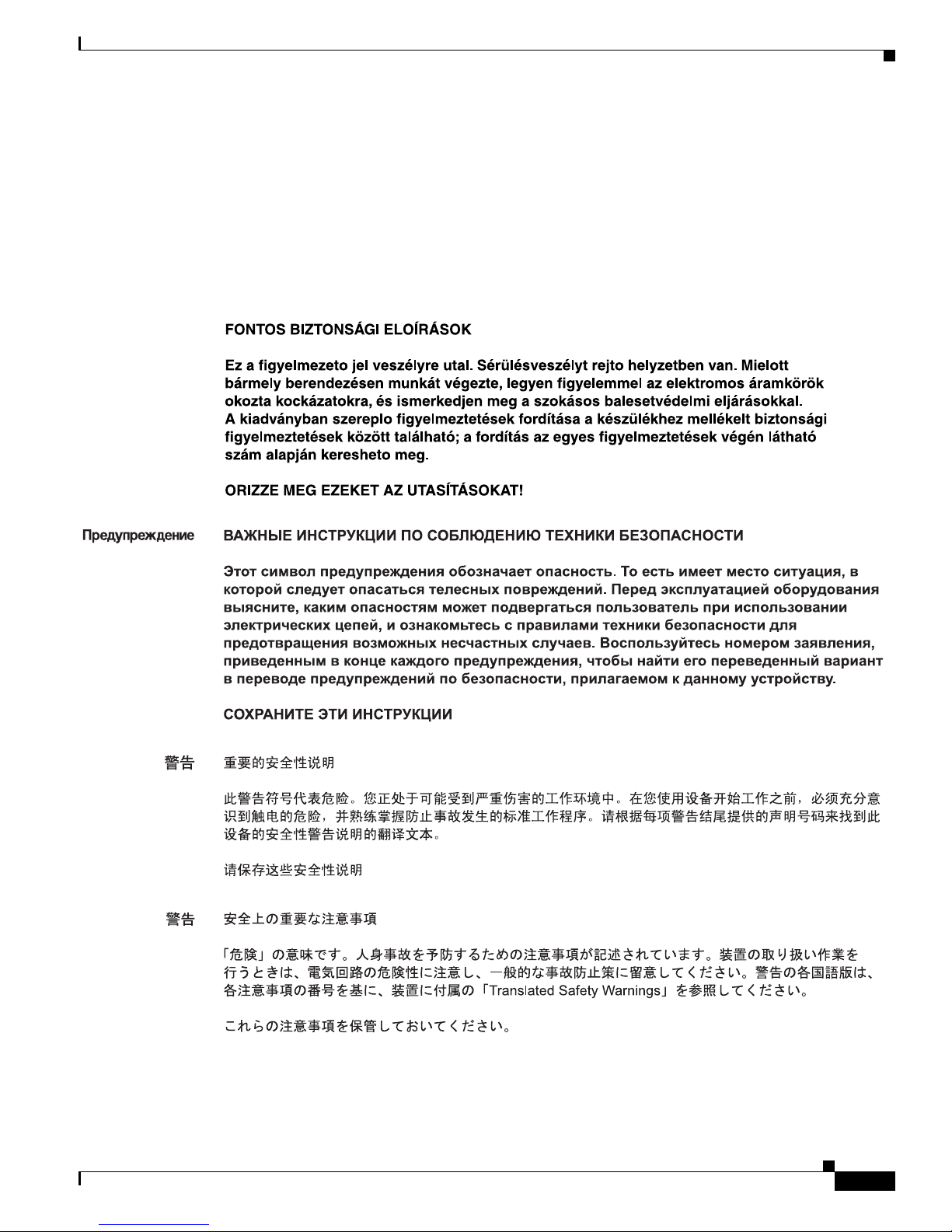

GUARDE ESTAS INSTRUÇÕES

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Safety

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Safety

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Class 1 laser product.

Statement 1008

Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.

Statement 70

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure.

Statement 1057

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Required Tools

You will need these tools to install the XENPAK transceiver module:

• Small flat-blade screwdriver to loosen or tighten the XENPAK transceiver captive installation

screws.

• Wrist strap or other personal grounding device to prevent (Min) dischage (ESD) occurrences.

• Antistatic mat or antistatic foam to set the XENPAK transceiver on.

• Fiber-optic end-face cleaning tools and inspection equipment. For complete information on

inspecting and cleaning fiber-optic connections, refer to the white paper at this URL:

http://www.cisco.com/en/US/tech/tk482/tk607/technologies_white_paper09186a0080254eba.shtml

Installing the XENPAK Transceiver

Caution The 10-Gigabit XENPAK transceiver is a static-sensitive device. Always use an ESD wrist strap or

similar individual grounding device when handling the XENPAK transceivers or coming into contact with the modules.

Required Tools

To install a 10-Gigabit XENPAK transceiver, follow these steps:

Step 1 Remove the 10-Gigabit Ethernet XENPAK transceiver from its protective packaging.

Note Do not remove the optical bore dust plugs until directed to do so later in the procedure.

Step 2 Check the label on the 10-Gigabit Ethernet XENPAK transceiver body to verify that you have the correct

model for your network. Refer to Tab l e 2 to verify that the product number matches the desired band and channel.

Step 3 Align the XENPAK transceiver with the opening in the module faceplate, and slide the XENPAK

transceiver into the opening until the XENPAK transceiver faceplate is in contact with the module faceplate. (See Figure 2.) This step ensures that the XENPAK transceiver is fully seated in the module socket.

Step 4 Tighten the two captive installation screws to secure the XENPAK transceiver in the socket. Avoid

cross-threading or overtightening the captive screws.

Caution Any optical signal greater than -1 dB can damage the DWDM XENPAK transceiver. The maximum

sensitivity for the DWDM XENPAK receiver is -7 dB. You must use a 10 dB attenuator on short fiber-optic cable runs to prevent damage to the DWDM XENPAK transceiver and to guarantee the specified performance.

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Installing the XENPAK Transceiver

99377

LINK

Captive installation

screws

Optical bore

dust plugs

Figure 2 Installing the XENPAK Transceiver Module

Note Before removing the dust plugs and making any optical connections, observe the following guidelines:

• Always keep the protective dust plugs on the unplugged fiber-optic cable connectors and the

transceiver optical bores until you are ready to make a connection.

• Always inspect and clean the SC connector end-faces just before making any connections. Refer to

the Tip on this page for a pointer to a fiber-optic inspection and cleaning white paper.

• Always grasp the SC connector housing to plug or unplug a fiber-optic cable.

Step 5 Remove the dust plugs from the network interface cable SC connectors. Save the dust plugs for future

use.

Step 6 Inspect and clean the SC connector’s fiber-optic end-faces. Refer to the Tip below for a pointer to a

fiber-optic inspection and cleaning white paper.

Tip For complete information on inspecting and cleaning fiber-optic connections, refer to the white paper at

this URL:

http://www.cisco.com/en/US/tech/tk482/tk607/technologies_white_paper09186a0080254eba.shtml

Step 7 Remove the dust plugs from the 10-Gigabit XENPAK transceiver optical bores. Save the dust plugs for

future use.

Step 8 Immediately attach the network interface cable SC connectors to the 10-Gigabit XENPAK transceiver.

(See Figure 3 for cabling an optical interface XENPAK transceiver.) (See Figure 4 for cabling a CX4 copper XENPAK transceiver.)

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Figure 3 Cabling an Optical XENPAK Transceiver Module

LINK

ACTIVE

Network interface

cable

SC connector

XENPAK

4X InfiniBand

connector

CAB-INF-28G-5

XENPAK-10GB-CX4

Figure 4 Cabling a CX4 (Copper) XENPAK Transceiver Module

Removing the XENPAK Transceiver

Caution The 10-Gigabit XENPAK transceiver is a static-sensitive device. Always use an ESD wrist strap or

similar individual grounding device when handling the XENPAK transceivers or coming into contact with the modules.

If you are removing a 10-Gigabit XENPAK transceiver, follow these steps:

Step 1 Disconnect the network fiber-optic cable from the 10-Gigabit XENPAK transceiver connectors.

Immediately reinstall the dust plugs in the XENPAK transceiver optical bores and the fiber-optic cable

Step 2 Loosen the two captive installation screws that secure the XENPAK to the module.

78-15665-07

SC connectors.

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Removing the XENPAK Transceiver

LINK

Captive installation

screws

Optical bore

dust plugs

Step 3 Slide the XENPAK transceiver out of the module socket. (See Figure 5.) Immediately place the

XENPAK transceiver in an antistatic bag.

Figure 5 Removing a XENPAK Transceiver Module

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Translated Safety Warnings

This section repeats in multiple languages the basic warnings that appear in this document.

Statement 1008—Class 1 Laser Product

Translated Safety Warnings

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

Advarsel

Aviso

¡Advertencia!

Varning!

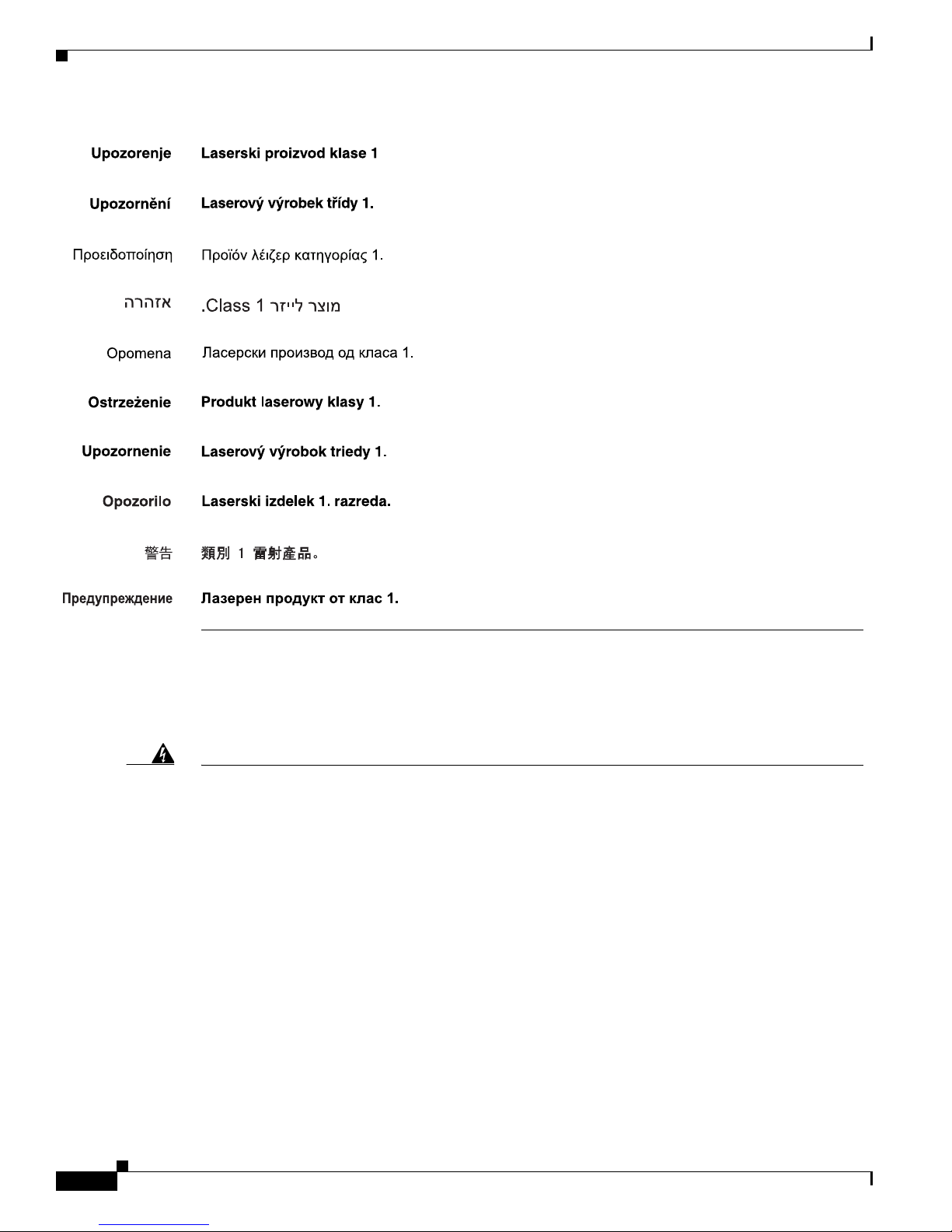

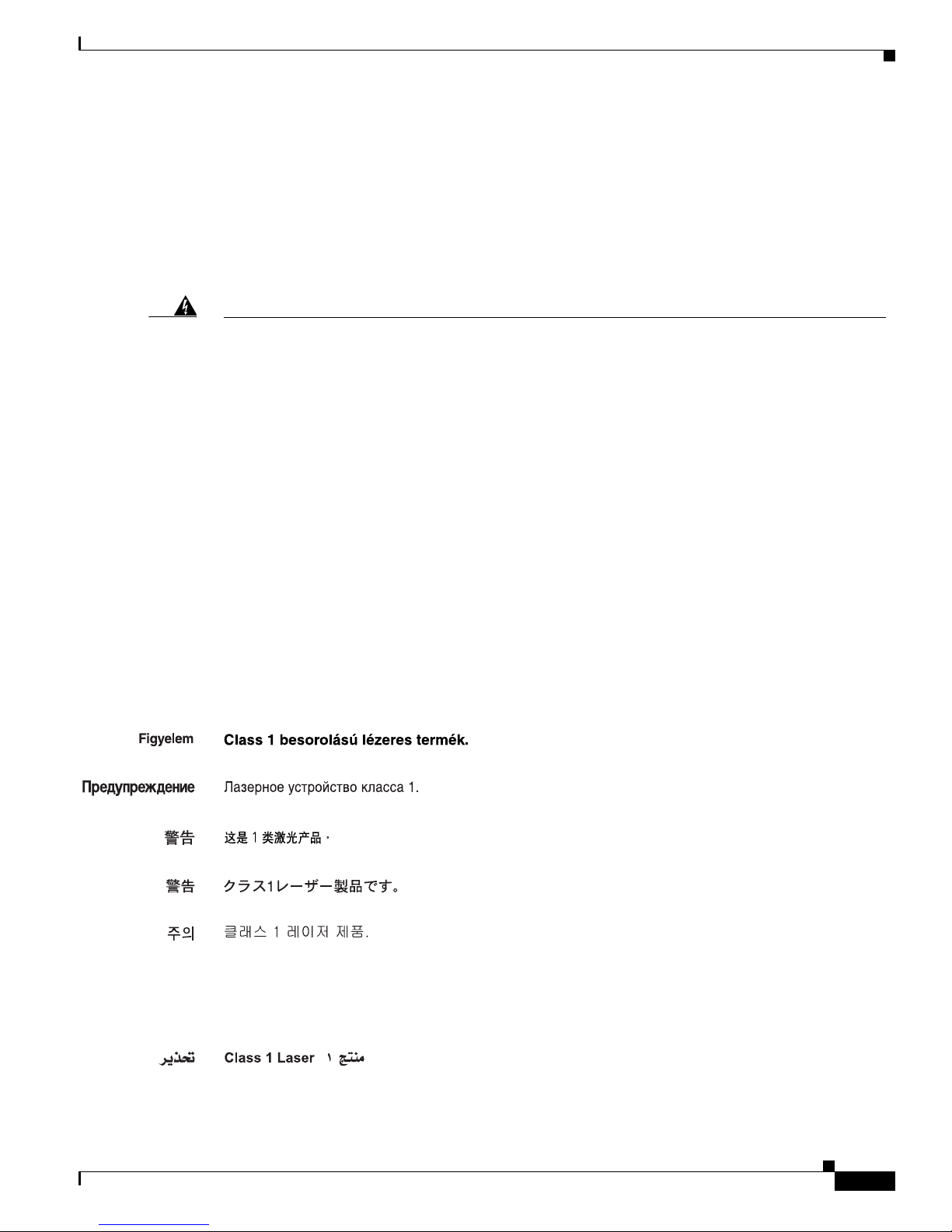

Class 1 laser product.

Klasse-1 laser produkt.

Luokan 1 lasertuote.

Produit laser de classe 1.

Laserprodukt der Klasse 1.

Prodotto laser di Classe 1.

Laserprodukt av klasse 1.

Produto laser de classe 1.

Producto láser Clase I.

Laserprodukt av klass 1.

Aviso

Advarsel

78-15665-07

Produto a laser de classe 1.

Klasse 1 laserprodukt.

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Translated Safety Warnings

Statement 1030—Equipment Installation

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

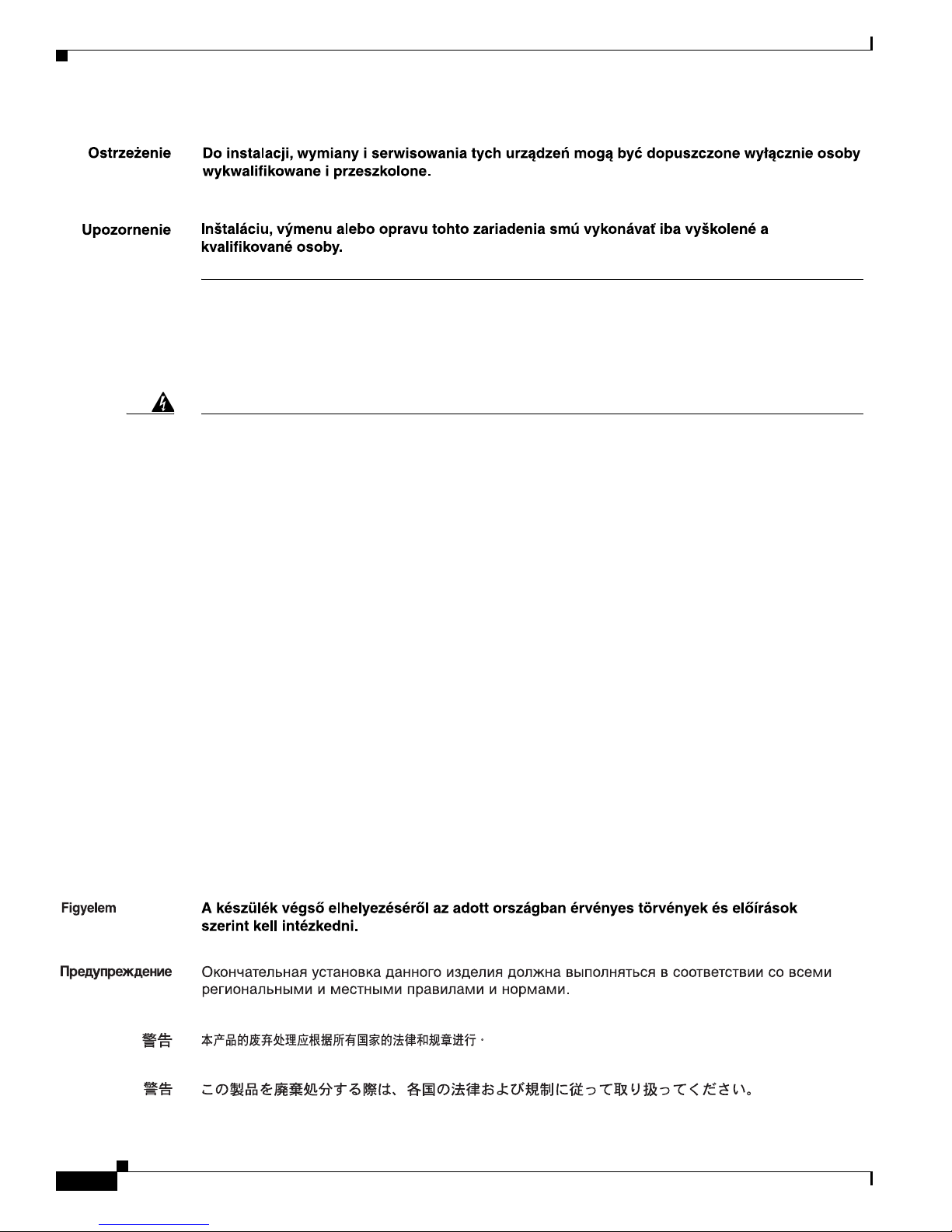

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door bevoegd geschoold personeel.

Tämän laitteen saa asentaa, vaihtaa tai huoltaa ainoastaan koulutettu ja laitteen tunteva henkilökunta.

Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés.

Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

Questo apparato può essere installato, sostituito o mantenuto unicamente da un personale competente.

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Translated Safety Warnings

Advarsel

Aviso

¡Advertencia!

Varning!

Bare opplært og kvalifisert personell skal foreta installasjoner, utskiftninger eller service på dette utstyret.

Apenas pessoal treinado e qualificado deve ser autorizado a instalar, substituir ou fazer a revisão deste equipamento.

Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo.

Endast utbildad och kvalificerad personal bör få tillåtelse att installera, byta ut eller reparera denna utrustning.

Aviso

Advarsel

Somente uma equipe treinada e qualificada tem permissão para instalar, substituir ou dar manutenção a este equipamento.

Kun uddannede personer må installere, udskifte komponenter i eller servicere dette udstyr.

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Translated Safety Warnings

Statement 1040—Product Disposal

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

Advarsel

Aviso

¡Advertencia!

Varning!

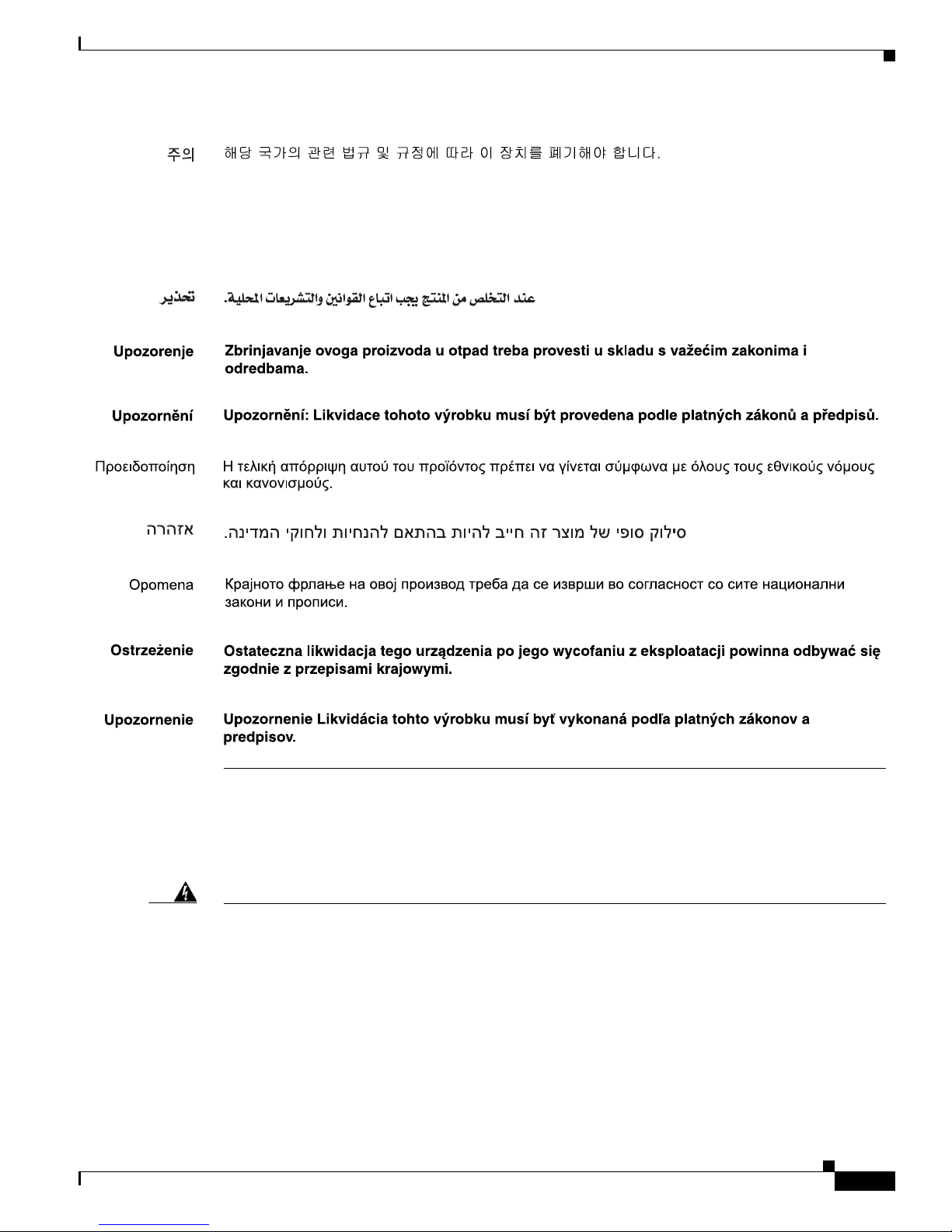

Ultimate disposal of this product should be handled according to all national laws and regulations.

Het uiteindelijke wegruimen van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

Tämä tuote on hävitettävä kansallisten lakien ja määräysten mukaisesti.

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

Lo smaltimento di questo prodotto deve essere eseguito secondo le leggi e regolazioni locali.

Endelig kassering av dette produktet skal være i henhold til alle relevante nasjonale lover og bestemmelser.

Deitar fora este produto em conformidade com todas as leis e regulamentos nacionais.

Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

Vid deponering hanteras produkten enligt gällande lagar och bestämmelser.

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Translated Safety Warnings

Aviso

Advarsel

O descarte definitivo deste produto deve estar de acordo com todas as leis e regulamentações nacionais.

Endelig bortskaffelse af dette produkt skal ske i henhold til gældende love og regler.

Statement 1057—Hazardous Radiation Exposure

Warning

Waarschuwing

Varoitus

78-15665-07

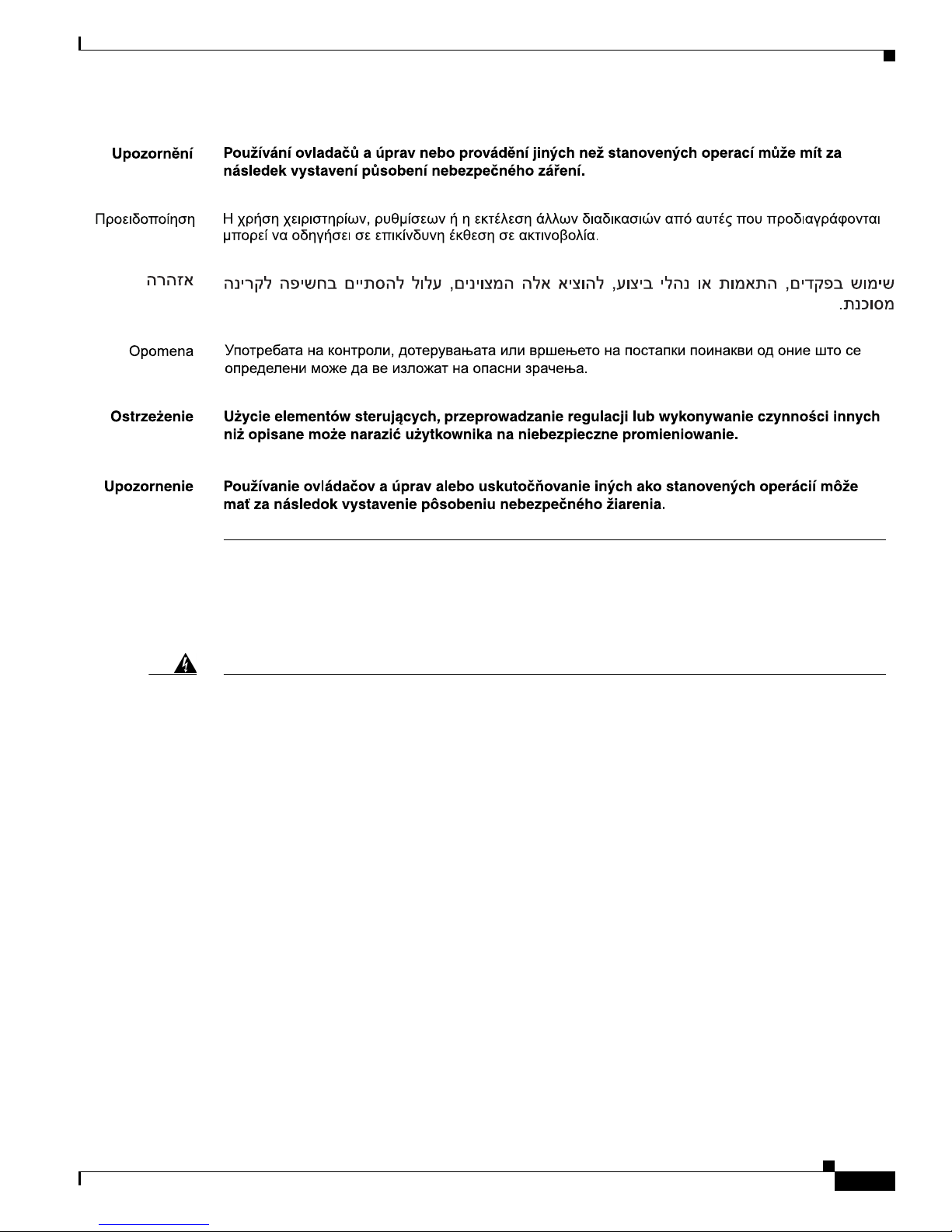

Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure.

Het gebruik van regelaars of bijstellingen of het uitvoeren van procedures anders dan opgegeven kan leiden tot blootstelling aan gevaarlijke straling.

Säätimien tai säätöjen käyttö ja toimenpiteiden suorittaminen ohjeista poikkeavalla tavalla voi altistaa vaaralliselle säteilylle.

Statement 1057

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Translated Safety Warnings

Attention

Warnung

Avvertenza

Advarsel

Aviso

¡Advertencia!

Varning!

L’utilisation de commandes, de réglages ou de procédures autres que ceux spécifiés peut entraîner une exposition dangereuse à des radiations.

Die Verwendung von nicht spezifizierten Steuerelementen, Einstellungen oder Verfahrensweisen kann eine gefährliche Strahlenexposition zur Folge haben.

L’adozione di controlli, regolazioni o procedure diverse da quelle specificate può comportare il pericolo di esposizione a radiazioni.

Bruk av kontroller eller justeringer eller utførelse av prosedyrer som ikke er spesifiserte, kan resultere i farlig strålingseksponering.

O uso de controles, ajustes ou desempenho de procedimentos diferentes dos especificados pode resultar em exposição prejudicial de radiação.

La aplicación de controles, ajustes y procedimientos distintos a los especificados puede comportar una exposición peligrosa a la radiación.

Om andra kontroller eller justeringar än de angivna används, eller om andra processer än de angivna genomförs, kan skadlig strålning avges.

Aviso

O uso de controles, ajustes ou procedimentos diferentes daqueles especificados pode resultar em exposição perigosa à radiação.

Advarsel

Brug af kontrolfunktioner, justeringer, eller udførelse af procedurer andre end de, der er angivet, kan resultere i udsættelse for farlig bestråling.

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

78-15665-07

Translated Safety Warnings

Statement 70—Invisible Laser Radiation Warning

Warning

Waarschuwing

Varoitus

Attention

Warnung

Avvertenza

Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.

Omdat er onzichtbare laserstraling uit de opening van de poort geëmitteerd kan worden wanneer er geen kabel aangesloten is, dient men om blootstelling aan laserstraling te vermijden niet in de open openingen te kijken.

Kun porttiin ei ole kytketty kaapelia, portin aukosta voi vuotaa näkymätöntä lasersäteilyä. Älä katso avoimiin aukkoihin, jotta et altistu säteilylle.

Etant donné qu’un rayonnement laser invisible peut être émis par l’ouverture du port quand aucun câble n’est connecté, ne pas regarder dans les ouvertures béantes afin d’éviter tout risque d’exposition au rayonnement laser.

Aus der Öffnung des Ports kann unsichtbare Laserstrahlung austreten, wenn kein Kabel angeschlossen ist. Kontakt mit Laserstrahlung vermeiden und nicht in offene Öffnungen blicken.

Poiché quando nessun cavo è collegato alla porta, da quest’ultima potrebbe essere emessa radiazione laser invisibile, evitare l’esposizione a tale radiazione e non fissare con gli occhi porte a cui non siano collegati cavi.

78-15665-07

Cisco 10-Gigabit Ethernet XENPAK Transceiver Modules Installation Note

Cisco XENPAK-10GB-LW, XENPAK-10GB-ZR, XENPAK-10GB-LR, XENPAK-10GB-SR, XENPAK-10GB-ER+ Installation Notes

Specifications and Main Features

Frequently Asked Questions

User Manual
