Cisco 110 Series Unmanaged Switches
Quick Start Guide
Unbox
239954
2 110 Series Unmanaged Switches
Rack-mount (Optional) - Size 1
2
3
1
101
mm
50
mm
44.45
mm
Lorem ipsum
110 Series Unmanaged Switches 3
Rack-mount (Optional) - Size 2
2
3
1
21.3
mm
70
mm
43.2
mm
4 110 Series Unmanaged Switches
Rack-mounting SG110-24 and SG110-24HP
2
3
1
21.3
mm
65
mm
44.45
mm
110 Series Unmanaged Switches 5
Rack-mounting SG112-24
1
44.45
mm
101.6
mm
mm
65
3
2
6 110 Series Unmanaged Switches
Safety Instructions for Rack Mounting
Safety Instructions - Rack
Mount
110 Series Unmanaged Switches 7
The following or similar rack-mount instructions are included with the installation instructions.
A) Elevated Operating Ambient - If installed in a closed or multi-rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should
be given to installing the equipment in an environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in the rack should be such that the amount of air
flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous
condition is not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing these
concerns.
E) Reliable Earthing - Reliable Earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch current (e.g.
use of power strips).”
Wall-mount (Optional)
X.XXX.XX
X.XX=
SG110D-05, SF110D-05 1.7 in/43 mm
SF110D-08/08HP/16/16HP, SG110D-08/08HP 2.5 in/63 mm
SF110-16/24, SG110-16/16HP 3.7 in/94 mm
8 110 Series Unmanaged Switches
Wall-mount if needed (continued)
1
2
4
3
SF110D-05/08, SG110D-05, SF110D-16/16HP
1=0.3 in/7.6 mm 2=0.6 in/15 mm 3=0.17 in/4.3 mm 4=0.6 in/15.7 mm
SF110D-08HP, SG110D-08/08HP
1=0.3 in/7.7 mm 2=0.85 in/21.8 mm 3=0.25 in/6.5 mm 4=0.68 in/17.4 mm
SF110-16/24, SG110-16/16HP
1=0.31 in/8 mm 2=0.87 in/22.2 mm 3=0.27 in/6.8 mm 4=0.62 in/17.6 mm
Wall Mount - Placement Options
110 Series Unmanaged Switches 9

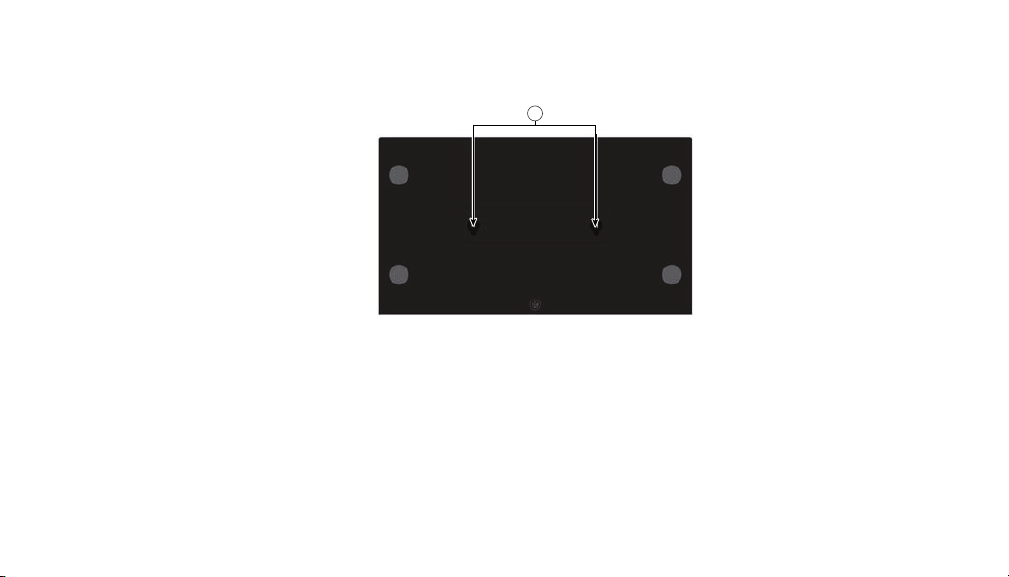

To install the switch, either set it on its four rubber pads and place it on a flat surface, or mount it on a wall using the wallmount slots on the bottom panel of the switch.
1
391490
To use the wall mount option, follow these steps:
Step 1 : Attach two screws to the wall such that the wall-mount slots of the switch lineup with the two screws.
SF110D-05 - The screws should be 1.7 in (43 mm) apart.
SF110D-08 - The screws should be 2.5 in (63.5 mm) apart.
SF110D-16 - The screws should be 2.5 in (63.5 mm) apart.
The wall-mount slots are two criss-cross slots on the bottom panel of the switch.
Step 2: Maneuver the switch to insert the screws into the two wall-mount slots.
10 110 Series Unmanaged Switches
Power On Switch
110 Series Unmanaged Switches 11
Attach Devices
239958
12 110 Series Unmanaged Switches
Ambient Temperature Ratings
Switch Model Temperature Range
SF110D-05 32o to 122o F (0o to 50o C)
SF110D-08 32
SF110D-08HP 32
SF110-16 32
SF110D-16 32
SF110D-16HP 32
SF110-24 32
SF112-24 32
SG110D-05 32
SG110D-08 32
SG110D-08HP 32
SG110-16 32
SG110-16HP 32
SG110-24 32
110 Series Unmanaged Switches 13
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
o
to 122o F (0o to 50o C)
Switch Model Temperature Range
SG110-24HP 32o to 113o F (0o to 45o C)
SG112-24 32
o
to 122o F (0o to 50o C)
Physical Cable Diagnostics
The 110 Series Unmanaged Switches have built-in diagnostics for cables which can detect cable issues upon connection to
the port. It provides network integrity and can detect loops within the network when storm conditions are discovered. For
best detection accuracy, please use a minimum cable length of 10 meters (~30 feet).
Cable Diagnostic Output
• Physical cable fault enables amber LED continuously
• Loop detection will enable periodic amber LED blinking
Procedure
STEP 1 Ensure that the switch is powered on..
STEP 2 With the suspected cable connected to the switch, look at the pertinent interface’s LED outputs. A solid amber
LED indicates a cable fault or open end. A blinking amber LED indicates a loop.
14 110 Series Unmanaged Switches
For More Information
110 Series Unmanaged Switches:
www.cisco.com/go/110switches
Regulatory, Compliance, and Safety Information:
www.cisco.com/go/110switches
Click on the Resources tab, and scroll down to Technical Documentation.
End User License Agreement:
www.cisco.com/go/eula
Warranty Information:
www.cisco-warrantyfinder.com
EU lot 26 related test result
www.cisco.com/go/eu-lot26-results
