Data Sheet
Cisco 1000 Series Integrated Services Routers
Cisco® 1100 Series Integrated Services Routers (ISRs) with Cisco IOS® XE
Software combine Internet access, comprehensive security, and wireless services
(LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, highperformance device. The routers are easy to deploy and manage, with cutting-edge,
scalable, multicore separate data and control plane capabilities.
The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises
Equipment (CPE) in enterprise branch offices, in service provider managed
environments as well as smaller form factor.
Note: Not all 1100 series SKU variants are available in every region with different
technologies (check on CCW pricelist for your region).
Figure 1. Cisco 1100 Product Family Series
Figure 2. Cisco 1100-8P ISR with LTE Advanced, Back and Front View
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 15
Business need
Features/description
Lightweight, compact size with low
power consumption
●
Can be deployed in many different environments where space, heat dissipation, and low power
consumption are critical factors (Including Cisco Pluggable smaller form factor technology).
High performance to run concurrent
services
●
High performance allows customers to take advantage of broadband network speeds while running
secure, concurrent data, voice, video, and wireless services.
High availability and business
continuity
●
Redundant WAN connections for failover protection and load balancing.
●
Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot
Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).
Consistent, high application
performance levels
●
The router can run multiple services simultaneously with minimal performance degradation.
Risk mitigation with multilevel
security
●
Network perimeter security with integrated application inspection firewall.
●
Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and
Advanced Encryption Standard (AES) encryption.
●
High-performance VPNs: DMVPN, FlexVPN, GETVPN.
●
Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using
passive monitoring, extraction of relevant data elements, and supervised machine learning with
cloud-based global visibility.
●
Cisco Umbrella™ is a cloud security platform that provides the first line of defense against threats on
the internet wherever users go.
●
Security hardware acceleration.
●
Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.
Unified control of wired and
wireless networks from a common
console for streamlined operations
●
Simplifies and centralizes configuration and management of wireless and wireline devices. Supports
WLAN services without requiring a wireless LAN controller.
●
Supports Mobility Express for WLAN-enabled routers.
Remote configuration and
management to keep local IT staff
lean
●
Supports separate console/auxiliary and USB ports. Can be configured to work with optional USB
token.
●
Supports TR-069.
Figure 3. Cisco 1100-4P ISR with DSL, Back and Front View
Figure 4. Cisco 1101-4P and 1101-4PLTEP with LTE Advanced Pluggable
Primary Features and Benefits
Table 1. Business Benefits
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 15
Business need
Features/description
Performance
●
Throughput
●
Service reliability
●
ISR 1100 can provide encrypted traffic performance greater than 350 Mbps.
●
A distributed multicore architecture with the dedicated control plane and service plane.
●
Remote installation of application-aware services that run identically to their counterparts in dedicated
appliances (Future roadmap).
Lower WAN expenditures
●
Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
●
Smaller form factor and Cisco Pluggable technology provide additional protection investment and
flexibility.
Pay as you grow: IPsec
performance upgrade model
●
Router IPsec capacity can be increased with a remote performance-on-demand license upgrade
(no hardware upgrade) for exceptional savings and CapEx budget management.
IT consolidation, space savings,
and improved Total Cost of
Ownership (TCO)
●
Single converged branch platform integrates routing, switching, security, and performance
management capabilities.
Business continuity and increased
resiliency
●
The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints
(Not available on C1101 smaller form factor series).
Architectural feature
Benefits/description
Multicore processors
●
High-performance multicore processors support high-speed WAN connections. The data plane uses a
flow processor that delivers Application-Specific Integrated Circuit (ASIC)-like performance that does not
degrade as services are added.
Embedded IPsec VPN hardware
acceleration
●
Increases scalability when combined with an optional Cisco IOS XE Software Security license, enables
WAN link security and VPN services.
Integrated Gigabit Ethernet
ports
●
Provides up to 10 built-in 10/100/1000 Ethernet ports for WAN or LAN (1100-8P: 2 WAN and 8 LAN ports
and 1100-4P: 2 WAN and 4 LAN ports).
●
All platforms have one 10/100/1000 Ethernet port that can support Small Form-Factor Pluggable (SFP)based connectivity in addition to RJ-45 connections, enabling fiber or copper connectivity.
●
Depending on the platform, PoE/PoE+ can be enabled on Gigabit Ethernet interfaces (4 PoE or 2 PoE+
ports on the 1100-8P and 2 PoE or 1 PoE+ ports on the 1100-4P), to provide power to external devices
such as video endpoints and 802.11ac access points (Not available on C1101 smaller form factor series).
●
Smaller form factor 1101-4P with Cisco Pluggable technology option.
●
An additional dedicated Gigabit Ethernet port is provided for device management.
USB-based console access
●
A mini type B USB console port supports management connectivity when traditional serial ports are not
available. Traditional console and auxiliary ports are also available.
Optional integrated power
supply for distribution of PoE
●
An optional upgrade to the internal power supply provides inline power (802.3af-compliant PoE or
802.3at-compliant PoE+) to integrated switch modules based on the external power supply selected and
MUST be order upfront with system.
●
PoE conversion capability provides an additional layer of fault tolerance (Not available on C1101 smaller
form factor series).
Flash memory support
●
The 1100 Series ISRs ship with a fixed 4GB flash memory.
●
USB type A 2.0 ports provide capabilities for convenient storage.
DRAM ● The 1100 Series comes with 4 GB fixed DRAM.
Operational phase
Application
Description
Device staging and
configuration
WebUI ● A GUI-based device-management tool for Cisco IOS and Cisco IOS XE Software-
based access routers. This tool simplifies routing, firewall, VPN, unified
communications, and WAN and LAN configuration through easy-to-use wizards.
Networkwide deployment,
configuration, monitoring,
and troubleshooting
Cisco Prime®
Infrastructure
●
Offers comprehensive lifecycle management of wired and wireless access, campus,
and branch-office networks; rich visibility into end-user connectivity; and application
performance assurance.
●
Provides wired lifecycle functions such as inventory, configuration, and image
management; automated deployment; compliance reporting; integrated best practices;
and reporting.
Platform Architecture and Capabilities
Table 2. Architectural Highlights
Table 3. Network Management Solutions
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 15
Operational phase
Application
Description
Context-aware security
configuration and
monitoring
Cisco Prime Security
Manager
●
Management tool for configuring and managing context-aware security. The application
supports both single- and multidevice manager form factors.
●
Provides the ability to write and enforce granular context-aware security policies.
Digitalized applications to
become inherently
network-aware and
Application Policy
Infrastructure Controller
Enterprise Module
Cisco Digital
Network Architecture
(DNA-C) with APICEM
●
DNA centers around a network infrastructure that is not only fully programmable and
open to third–party innovation, but can also fully and seamlessly integrates the cloud as
an infrastructure component.
●
The DNA controller factilitatest simple, automated and programmatic deployment of
network services. It brings the notion of user–and application–aware policies into the
foreground of network operations.
●
With DNA, the network can provide continuous feedback to simplify and optimize
network operations.
●
Automate network configuration and setup APIC-EM is a central part of Cisco Digital
Network Architecture. It delivers software-defined networking to the enterprise branch,
campus, and WAN.
Feature
Description
Cisco IOS Embedded Event Manager (EEM)
●
A distributed and customized approach to event detection and recovery.
●
Offers the ability to monitor events and take informational, corrective, or any desired
EEM action when the monitored events occur or when a threshold is reached.
Cisco IOS XE IP Service-Level Agreements
(IP SLAs)
●
Helps assure the performance of new business-critical IP applications as well as IP
services that use data and voice in an IP network.
Simple Network Management Protocol (SNMP),
Remote Monitoring (RMON), syslog, NetFlow,
IP Flow Information Export (IPFix)
●
Network monitoring and accounting tools. Enhanced 3G MIB with 4G MIB extension.
LTE network management and diagnostics
●
In-band and out-of-band management using Telnet (Cisco IOS XE Software
Command-Line Interface [CLI]) and SNMP, including MIB II and other extensions.
●
Industry-standard LTE diagnostics and monitoring tools (Qualcomm CDMA Air
Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM]).
Feature
Description
Protocols
IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path
First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP
Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management
Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), PIM Source-Specific
Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol, Encapsulated Remote
Switched Port Analyzer (ERSPAN), Cisco IOS IP Service-Level Agreements (IPSLA), Call Home, Cisco IOS
Embedded Event Manager (EEM), Internet Key Exchange (IKE), Access Control Lists (ACL), Ethernet Virtual
Connections (EVC), Dynamic Host Configuration Protocol (DHCP), Frame Relay (FR), DNS, Locator ID
Separation Protocol (LISP), Hot Standby Router Protocol (HSRP), RADIUS, Authentication, Authorization, and
Accounting (AAA), Application Visibility and Control (AVC), Distance Vector Multicast Routing Protocol
(DVMRP), IPv4-to-IPv6 Multicast, Multiprotocol Label Switching (MPLS), Layer 2 and Layer 3 VPN, IPsec,
Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE 802.1ag, and
IEEE 802.3ah.
Encapsulations
Generic Routing Encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Pointto-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data
Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE).
Traffic management
Quality of Service (QoS), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection
(WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based
Application Recognition (NBAR).
Cryptographic algorithms
Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes).
Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384,
SHA-512.
Table 4. Embedded Management Capabilities
Table 5. Software Features and Protocols
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 15
Model
WAN
Wi-Fi
LAN switch
Integrated
USB 3.0
AUX/console
Pluggable
GE
GE/SFP
combo
ADSL2/VDSL2+ or
G.FAST
LTE
Advanced
(CAT6)
802.1
1ac
GE
PoE or PoE+
C1101-4P
1
NA
NA
NA
NA 4 NA
NA
Yes (No AUX)
NA
C1111-8P
1 1 NA
NA
NA 8 4 2 Yes
NA
C1111-4P
1 1 NA
NA
NA 4 2 1 Yes
NA
C1112-8P
NA 1 1 G.FAST
(Annex B)
NA
NA 8 4 2 Yes
NA
C1113-8P
NA 1 1 G.FAST
(Annex A)
NA
NA 8 4 2 Yes
NA
C1113-8PM
NA 1 1 G.FAST
(Annex M)
NA
NA 8 4 2 Yes
NA
C1116-4P
NA 1 1 VA-DSL
(Annex B/J)
NA
NA 4 2 1 Yes
NA
C1117-4P
NA 1 1 VA-DSL
(Annex A)
NA
NA 4 2 1 Yes
NA
C1117-4PM
NA 1 1 VA-DSL
(Annex M)
NA
NA 4 2 1 Yes
NA
C1101-4PLTEP
1
NA
NA
NA
NA 4 NA
NA
Yes (No AUX)
Yes (All)
C1111-8PLTEEA
1 1 NA
1 EMEAR &
North America
NA 8 4 2 Yes
NA
C1111-8PLTELA
1 1 NA
1 LATAM &
APAC
NA 8 4 2 Yes
NA
C1111-4PLTEEA
1 1 NA
1 EMEAR &
North America
NA 4 2 1 Yes
NA
C1111-4PLTELA
1 1 NA
1 LATAM &
APAC
NA 4 2 1 Yes
NA
C1112-8PLTEEA
NA 1 1 G.FAST
(Annex B)
1 EMEAR &
North America
NA 8 4 2 Yes
NA
C1113-8PLTEEA
NA 1 1 G.FAST
(Annex A)
1 EMEAR &
North America
NA 8 4 2 Yes
NA
C1113-8PLTELA
NA 1 1 G.FAST
(Annex A)
1 LATAM &
APAC
NA 8 4 2 Yes
NA
C11138PMLTEEA
NA 1 1 G.FAST
(Annex M)
1 EMEAR &
North America
NA 8 4 2 Yes
NA
C1116-4PLTEEA
NA 1 1 ADSL2/VDSL2+
(Annex B/J)
1 EMEAR &
North America
NA 4 2 1 Yes
NA
C1117-4PLTEEA
NA 1 1 ADSL2/VDSL2+
(Annex A)
1 EMEAR &
North America
NA 4 2 1 Yes
NA
C1117-4PLTELA
NA 1 1 ADSL2/VDSL2+
(Annex A)
1 LATAM &
APAC
NA 4 2 1 Yes
NA
C11174PMLTEEA
NA 1 1 ADSL2/VDSL2+
(Annex M)
1 EMEAR &
North America
NA 4 2 1 Yes
NA
Product Specifications
Table 6. Cisco 1100 Series ISRs DSL and LTE SKUs
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 15
Model
WAN
Wi-Fi
LAN switch
Integrated
USB 3.0
AUX/console
GE
GE/SFP
combo
ADSL2/VDSL2+
LTE Advanced
(CAT6)
802.11ac
GE
PoE or PoE+
C1111-8PWY*
1 1 NA
NA
2X2 MIMO
8 4 2
Yes
C1111-4PWX**
1 1 NA
NA
2X2 MIMO
4 2 1
Yes
C1112-8PWE
NA 1 1 G.FAST
(Annex B)
NA
2X2 MIMO
8 4 2
Yes
C1113-8PWA
NA 1 1 G.FAST
(Annex A)
NA
2X2 MIMO
8 4 2
Yes
C1113-8PWB
NA 1 1 G.FAST
(Annex A)
NA
2X2 MIMO
8 4 2
Yes
C1113-8PWE
NA 1 1 G.FAST
(Annex A)
NA
2X2 MIMO
8 4 2
Yes
C1113-8PWZ
NA 1 1 G.FAST
(Annex A)
NA
2X2 MIMO
8 4 2
Yes
C1113-8PMWE
NA 1 1 G.FAST
(Annex M)
NA
2X2 MIMO
8 4 2
Yes
C1116-4PWE
1 1 1 ADSL2/VDSL2+
(ISDN) Annex B/J
NA
2X2 MIMO
4 2 1
Yes
C1117-4PWE
1 1 1 ADSL2/VDSL2+
(POTS) Annex A
NA
2X2 MIMO
4 2 1
Yes
C1117-4PWA
1 1 1 ADSL2/VDSL2+
(POTS) Annex A
NA
2X2 MIMO
4 2 1
Yes
C1117-4PWZ
1 1 1 ADSL2/VDSL2+
(POTS) Annex A
NA
2X2 MIMO
4 2 1
Yes
C1117-4PMWE
1 1 1 ADSL2/VDSL2+
(POTS) Annex M
NA
2X2 MIMO
4 2 1
Yes
Model
WAN
Wi-Fi
LAN switch
Integrated
USB 3.0
AUX/console
GE
GE/SFP
combo
ADSL2/VDSL2+
LTE Advanced
(CAT6)
802.11ac
GE
PoE or PoE+
Pluggable
C1111-8PLTEEAWX*
1 1 NA
1 EMEAR & North
America
2X2 MIMO
8 4 2
Yes
NA
C1111-8PLTELAWY**
1 1 NA
1 LATAM &
APAC
2X2 MIMO
8 4 2
Yes
NA
C1112-8PLTEAWE
NA 1 1 G.FAST
(Annex B)
1 EMEAR & North
America
2X2 MIMO
8 4 2
Yes
NA
C1113-8PLTEEAWA
NA 1 1 G.FAST
(Annex A)
1 EMEAR & North
America
2X2 MIMO
8 4 2
Yes
NA
C1113-8PLTEEAWB
NA 1 1 G.FAST
(Annex A)
1 EMEAR & North
America
2X2 MIMO
8 4 2
Yes
NA
C1113-8PLTEEAWE
NA 1 1 G.FAST
(Annex A)
1 EMEAR & North
America
2X2 MIMO
8 4 2
Yes
NA
C1113-8PLTELAWZ
NA 1 1 G.FAST
(Annex A)
1 LATAM &
APAC
2X2 MIMO
8 4 2
Yes
NA
Table 7. Cisco 1100 Series ISRs DSL and Wi-Fi SKUs
*
WiFi domain WY; Y = A, B, E, F, H, N, Q, R, Z
**
WiFi domain WX; X = A, B, D, E, F, H, N, Q, R, Z
Cisco WLAN Country Compliance Lookup
https://www.cisco.com/c/dam/assets/prod/wireless/wireless-compliance-tool/index.html
Table 8. Cisco 1100 Series ISRs LTE, Wi-Fi, and DSL SKUs
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 15
Model
WAN
Wi-Fi
LAN switch
Integrated
USB 3.0
AUX/console
GE
GE/SFP
combo
ADSL2/VDSL2+
LTE Advanced
(CAT6)
802.11ac
GE
PoE or PoE+
Pluggable
C1116-4PLTEEAWE
NA 1 1
ADSL2/VDSL2+
(ISDN) Annex
B/J
1 EMEAR & North
America
2X2 MIMO
4 2 1
Yes
NA
C1117-4PMLTEEA
NA 1 1
ADSL2/VDSL2+
(POTS) Annex
M
1 EMEAR & North
America
2X2 MIMO
4 2 1
Yes
NA
C1117-4PLTEEAWE
NA 1 1
ADSL2/VDSL2+
(POTS) Annex A
1 EMEAR & North
America
2X2 MIMO
4 2 1
Yes
NA
C1117-4PLTEEAWA
NA 1 1
ADSL2/VDSL2+
(POTS) Annex A
1 EMEAR & North
America
2X2 MIMO
4 2 1
Yes
NA
C1117-4PLTELAWZ
NA 1 1
ADSL2/VDSL2+
(POTS) Annex A
1 LATAM &
APAC
2X2 MIMO
4 2 1
Yes
NA
C1117-4PMLTEEAWE
NA 1 1
ADSL2/VDSL2+
(POTS) Annex
M
1 EMEAR & North
America
2X2 MIMO
4 2 1
Yes
NA
C1101-4PLTEPWX*
1
NA
NA
NA
2X2 MIMO
4
NA
NA
Yes (No AUX)
Yes (All)
Region or theater
Cisco LTE 2.5 for P-LTE-VZ
Cisco LTE 2.5 for P-LTE-US
Cisco LTE 2.5 for P-LTE-GB
Bands
LTE bands 4, 13.
FDD LTE 700 MHz (band 13),
1700 MHz and 2100 MHz
(band 4 AWS).
LTE bands 2, 4, 5, 12.
FDD LTE 700 MHz (band 17), 700
MHz (band 12), 850 MHz (band 5
CLR), 1700 MHz and 2100 MHz
(band 4 AWS).
LTE bands 1, 3, 7, 8, 20, 28.
FDD LTE 700 MHz (band 28), 800
MHz (band 20), 900 MHz (band 8),
1800 MHz (band 3), 2100 MHz
(band 1), and 2600 MHz (band 7).
Theoretical Category 4
download/upload speeds
150 Mbps/50 Mbps
150 Mbps/50 Mbps
150 Mbps/50 Mbps
United States
●
Verizon
●
ATT and T-Mobile
Europe
●
C1111-8PLTEEAWX*
*
WiFi domain WX; X = A, B, E, R
C1111-8PLTELAWY**
**
WiFi domain WY; Y = D, F, H, N, Q, Z
C1101-4PLTEPWX*
*
WiFi domain WX; X = A, B, D, E, Z
Cisco WLAN Country Compliance Lookup
https://www.cisco.com/c/dam/assets/prod/wireless/wireless-compliance-tool/index.html
System Specifications
Table 9. LTE (3GPP Category 4) Pluggable Bands Supported
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 15
Region or theater
Cisco LTE Advanced 3.0 Pluggable P-LTEA-EA
Cisco LTE Advanced 3.0 Pluggable P-LTEA-LA
Bands
LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41.
FDD LTE 700 MHz (band 12), 700 MHz (band 29),
800 MHz (band 20), 850 MHz (band 5 CLR), 850
MHz (band 26 Low), 900 MHz (band 8), 1800 MHz
(band 3), 1900 MHz (band 2), 1900 MHz (PCS band
25), 1700 MHz and 2100 MHz (band 4 AWS), 2100
MHz (band 1), 2300 MHz (band 30), or 2600 MHz
(band 7).
TDD LTE 2500 MHz (band 41).
Carrier aggregation band combinations:
1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29);
7+(7,20); 12+30, 5+30, and 41+41.
LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41.
FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850
MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500
MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1),
or 2600 MHz (band 7).
TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500
MHz (band 41), or 2600 MHz (band 38).
Carrier aggregation band combinations:
1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38,
39+39,40+40, and 41+41.
Theoretical Category 6
download/upload speeds
300 Mbps/50 Mbps
300 Mbps/50 Mbps
United States
●
Europe
●
Canada
●
Australia
●
India
●
Region or theater
Cisco LTE Advanced 3.0 LTEEA (Category 6)
Cisco LTE Advanced 3.0 LTELA (Category 6)
Bands
LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41.
FDD LTE 700 MHz (band 12), 700 MHz (band 29),
800 MHz (band 20), 850 MHz (band 5 CLR), 850
MHz (band 26 Low), 900 MHz (band 8), 1800 MHz
(band 3), 1900 MHz (band 2), 1900 MHz (PCS band
25), 1700 MHz and 2100 MHz (band 4 AWS), 2100
MHz (band 1), 2300 MHz (band 30), or 2600 MHz
(band 7).
TDD LTE 2500 MHz (band 41).
Carrier aggregation band combinations:
1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29);
7+(7,20); 12+30, 5+30, and 41+41.
LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41.
FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850
MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500
MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1),
or 2600 MHz (band 7).
TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500
MHz (band 41), or 2600 MHz (band 38).
Carrier aggregation band combinations:
1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38,
39+39,40+40, and 41+41.
Theoretical Category 6
download/upload speeds
300 Mbps/50 Mbps
300 Mbps/50 Mbps
United States
●
Europe ●
Canada ●
Middle East with specific
LTE bands/frequencies
●
Australia
●
Japan
●
China
●
India
●
Southeast Asia
●
Latin America
● Dependent upon specific operators supporting the LTE
bands listed above.
South Korea
●
Table 10. LTE Advanced (3GPP Category 6) Pluggable Bands Supported (with Dying Gasp)
Table 11. LTE Advanced Bands Supported
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 9 of 15
Item
Specification
LTE modem form factor
●
Embedded (included with the router).
●
Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1101
series support starting with IOS XE 16.8.1 Software image or later.
●
Cisco LTE Advanced 3.0 LTEEA (CAT6) and Pluggable P-LTEA-EA SKU: FW-7455-LTE-VZ
(Verizon) or FW-7455-LTE-AT (ATT) or FW-7455-LTE-ST (Sprint) or FW-7455-LTE-BE (Bell) or
FW-7455-LTE-RO (Rogers) or FW-7455-LTE-TE (Telus) or FW-7455-LTE-GN (generic for TMobile, Europe, and Middle East) selection option.
●
Cisco LTE Advanced 3.0 LTELA (CAT6) and Pluggable P-LTEA-LA SKU: FW-7430-LTE-AU
(Australia) or FW-7430-LTE-JN (Japan) or FW-7430-LTE-GN (generic) selection option.
Important LTE features
●
Automatic switch failover between primary and backup link.
●
Multichannel-Interface-Processor (MIP) profile configuration.
●
Remotely initiated data callback using voice.or Short Message Service (SMS).
●
Remote firmware upgrade over LTE.
●
SIM lock and unlock capabilities.
Dual SIM support
●
High reliability, and cellular multihoming support for dual micro (3FF) SIMs card socket; compliant
with ISO-7816-2 (SIM mechanical), Auto SIM carrier capability with correct firmware selection
(Fast SIM failover).
SMS and GPS
●
GPS antenna: SMA connector (separate active GPS antenna with SMA option).
●
Send and receive SMS (maximum 160 characters).
●
Standalone GPS and assisted GPS (AGPS); needs line of sight.
Modem information
Modem form factor: M.2 EM7455 or M.2 EM7430 series for Cisco LTE Advanced 3.0., WP7600
series for Cisco LTE 2.5.
Wireless technologies supported
(performance and throughput)
Cisco LTE Advanced 3.0 LTEEA and LTELA (Refer to above Table 9: LTE Advanced Bands
Supported)
Backward compatibility:
●
UMTS and HSPA+.
●
DC-HSPA+ speed download with Category 24 (42 Mbps) and upload up to Category 8
(11.5 Mbps). LTELA supports DC-HSPA+ band 1, 5, 6, 8, 9, 19. LTEEA supports DC-HSPA+ band
1, 2, 3, 4, 5, 8.
●
TD-SCDMA 39 (LTELA China Mobile supports).
Cisco LTE 2.5 (Refer to Table 10: LTE Bands Supported)
Backward compatibility:
●
P-LTE-US: HSPA+ (Band 2, 4, 5).
●
P-LTE-GB: UMTS, HSPA+ (Band 1, 8), EDGE, GSM, GPRS (900/1800).
Included antenna
●
Two multiband swivel-mount dipole antennas (LTE-ANTM-D) are included with all Cisco LTE
Advanced 3.0 Pluggables and 1100 Series routers. Two multiband swivel-mount dipole antennas
(LTE-ANTM-SMA-D) are included with all Cisco LTE 2.5 Pluggables 1101 and 1109 Series
routers.
For –N antenna and cable installation guidance, view the Connected Grid Antennas Installation Guide.
Carrier support
●
For a list of carriers that offer services on the Cisco 1100 Series LTE Advanced 3.0, please visit
the Wireless Carrier Partners page.
Feature
Specification
Memory (default and maximum)
DRAM: 4 GB
Flash: 4 GB
Console ● Micro USB console (USB 3.0).
Mini-USB port (reserved)
●
Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and
Spirent UDM) (USB 3.0).
WLAN interfaces
●
Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple
802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MUMIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a
time, typically referred to as Single-User MIMO (SU-MIMO).
●
802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SUMIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than
competing access points.
Table 12. Cisco LTE Advanced 3.0 (3GPP Category 6) Specifications
Table 13. Cisco 1100 Series ISRs System Specifications
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 10 of 15
Feature
Specification
●
Flexible deployment through the Mobility Express solution is ideal for small to medium-sized
deployments. Easy setup allows the 1100 Series (similar to 1815i) to be deployed on networks
without a physical controller.
●
For more information, view the Cisco Aironet 1815i Access Point Data Sheet.
Maximum clients
●
Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per
access point.
Authentication and security
●
AES for Wi-Fi Protected Access 2 (WPA2).
●
802.1X, RADIUS AAA.
●
802.11r and 802.11i.
802.11ac
●
2x2 SU-MIMO/MU-MIMO with two spatial streams.
●
Maximal Ratio Combining (MRC).
●
20-, 40-, and 80-MHz channels.
●
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).
●
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
●
802.11 Dynamic Frequency Selection (DFS).
●
Cyclic Shift Diversity (CSD) support.
Software
●
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5
(8.7 for 1101 series) MR1 or later.
DSL interfaces
C1116 & C1117
●
Dying gasp.
●
ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.
●
VDSL2 Vectoring.
●
ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+).
●
ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+).
C1112 & C1113
●
G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+
and VDSL2.
●
ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.
●
ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, and 106b.
Inline PoE
●
Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access
points; 802.3af-compliant PoE or 802.3at-compliant PoE+.
External power supply
Product power specifications:
C111X Series
●
AC input voltage: Universal 100 to 240 VAC.
●
Frequency: 50 to 60 Hz.
●
Maximum output power: 66W (default).
●
Output voltages: 12 VDC.
●
Optional PoE and PoE+:
◦ Single 150W power supply required for Cisco 1100-8P series router
◦ Single 115W power supply required for Cisco 1100-4P series router
●
External output voltage: 48 VDC.
C1101-4PLTEPWX Series:
●
AC input voltage: Universal 100 to 240 VAC.
●
Frequency: 50 to 60 Hz.
●
Maximum output power: 66W (default).
●
Output voltages: 12 VDC.
C1101-4P and C1101-4PLTEP Series:
●
AC input voltage: Universal 100 to 240 VAC.
●
Frequency: 50 to 60 Hz.
●
Maximum output power: 30W (default).
●
Output voltages: 12 VDC.
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 11 of 15
Feature
Specification
USB 3.0 ● USB devices supported:
◦ USB eTokens and USB flash memory
●
Note: Devices USB 3.0 supports to be connected externally. View the
USB Device Support Data Sheet.
LEDs ● WWAN (green/amber).
●
SIM status (green/amber).
●
Received signal strength indication (RSSI) bar (green).
●
3G/LTE service (green/amber).
●
GPS (green/amber).
●
Speed and link for Gigabit Ethernet WAN port (green).
●
Speed and link for all Fast Ethernet LAN ports (green).
Physical dimensions
(H x W x D)
C111X Series
●
1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).
●
1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).
C1101-4PLTEP and C1101-4PLTEPWX Series
●
1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).
C1101-4P Series
●
1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models).
Pluggable
●
.85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm).
Weight
C111X Series
●
1.94 lb to 4.59 lb (1.94kg to 2.08 kg).
●
4.50 lb (2.04 kg) with LTE Advanced.
●
4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio.
●
4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio.
C1101-4PLTEPWX Series
●
3.34 lb (1.51kg).
C1101-4PLTEP Series
●
3.78 lb (1.71kg).
C1101-4P Series
●
1.89 lb (1.76kg).
Pluggable
●
EM74XX .44 lb (.20kg).
●
WP76XX .40 lb (.18kg).
Standard safety certifications
●
UL 60950-1.and EN 60950-1.
●
CAN/CSA C22.2 No. 60950-1.
●
CB to IEC 60950-1, 2nd edition with all group differences and national deviations.
EMC emissions
●
EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
EMC immunity
●
EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6,
EN61000-4-11), and EN300-386.
Radio immunity
●
EN301 489-1, EN 301 489-7, and EN301 489-24.
Cellular radio
●
EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.
Environmental operating range
●
Nonoperating temperature: -4° to 149°F (-0° to 65°C).
●
Nonoperating humidity: 5% to 95% relative humidity (noncondensing).
●
Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).
●
Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C).
●
Operating humidity: 10% to 85% relative humidity (noncondensing).
●
Operating altitude: 0 to 10,000 ft (0 to 3000 m).
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 12 of 15
Part number
Bundles
Features
SL-1100-8P-IPB
IP Base (default)
Routing protocols, ACL, NAT, QoS, BFD, VRF Lite, IP SLA Responder.
SL-1100-8P-APP(=)
SL-1100-4P-APP(=)
Application Experience (APP)
IP Base + advanced networking protocols: L2TPv3, MPLS.
Application Experience: PfRv3, NBAR2, AVC, IPSLA Initiator.
Hybrid Cloud Connectivity: LISP, Virtual Private LAN Services (VPLS), Ethernet
over MPLS.
SL-1100-8P-SEC(=)
SL-1100-8P-SECNPE(=)
SL-1100-4P-SEC(=)
SL-1100-4P-SECNPE(=)
Security (SEC)
IP Base + Advanced Security: Zone-based firewall, IPsec VPN, Dynamic
Multipoint VPN (DMVPN), FlexVPN, GETVPN.
Provides up to 50 Mbps IPsec performance.
FL-VPERF-4P-100(=)
FL-VPERF-8P-200(=)
IPSec Performance (VPERF)
IPsec Performance: Additional 100 Mbps for ISR 1100-4P and 200 Mbps for ISR
1100-8P.
FL-1100-8P-HSEC(=)
FL-1100-4P-HSEC(=)
IPSec HSEC
IPSEC HSEC License for Cisco ISR 1100 8P and ISR 1100 4P. Support with IOS
XE 16.7.1 or later releases.
C1F1PISR1100S8PK9
C1F1PISR1100S4PK9
Cisco One S/W Bundle
APP, SEC, PRIME licenses (SL-1100-8P-IPB, C1-SL-1100-8P-APP, C1-SL1100-8P-SEC or C1-SL-1100-8P-SECNPE, C1-PI-LFAS-ISR-K9,
C1F1VISR1100S8P-01, C1-SL-1100-PAK) or (SL-1100-4P-IPB, C1-SL-1100-4PAPP, C1-SL-1100-4P-SEC or C1-SL-1100-4P-SECNPE, C1-PI-LFAS-ISR-K9,
C1F1VISR1100S4P-01, C1-SL-1100-PAK).
Cisco IOS Software Licensing and Packaging
Universal Cisco IOS XE Image
A single Cisco IOS XE Universal image encompassing all functions is delivered with the platform. Advanced
features can be enabled simply by activating a software license on the Universal image. Technology packages and
feature licenses, enabled through right-to-use licenses, simplify software delivery and decrease the operational
costs of deploying new features.

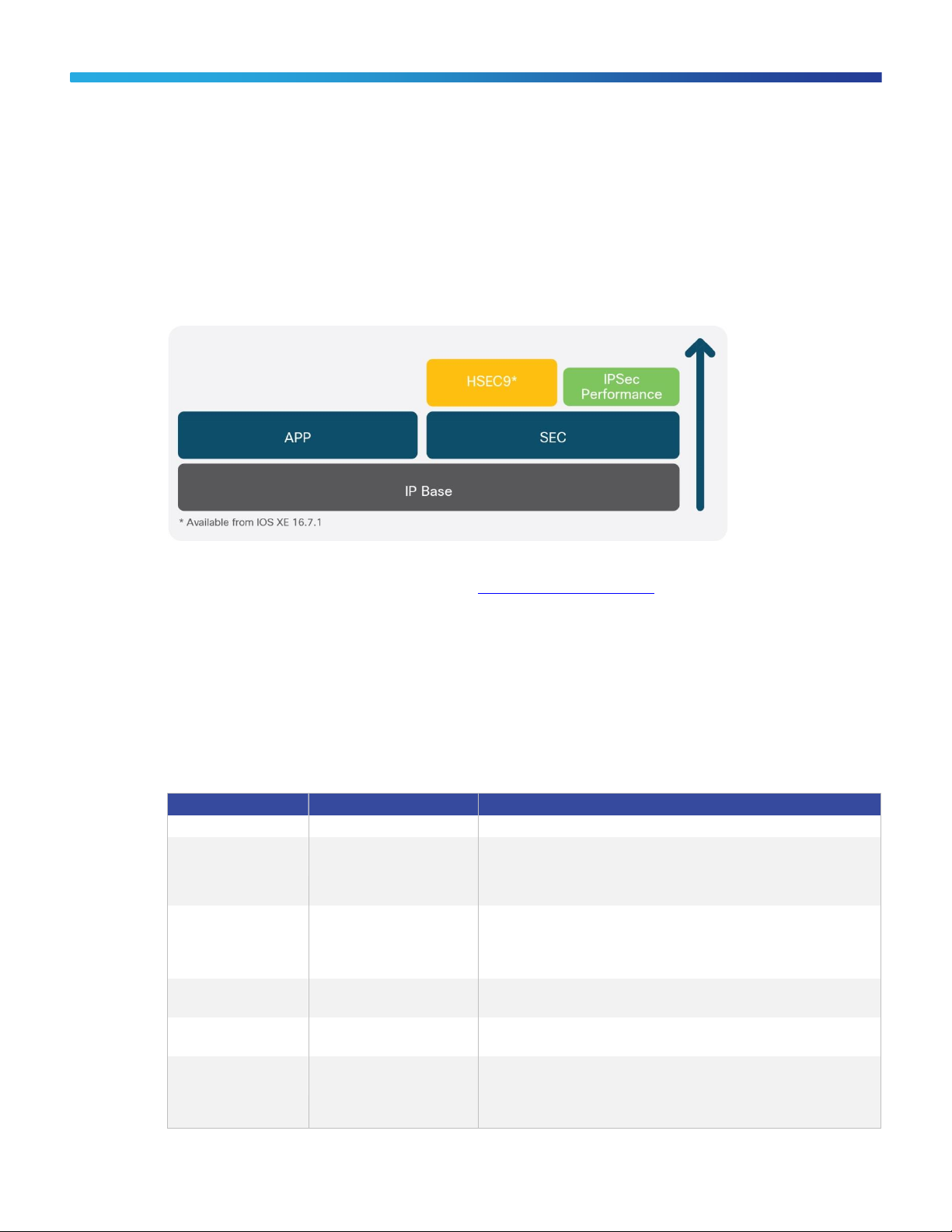

Four major technology licenses are available on the Cisco 1100 Series; these licenses can be activated through
the Cisco software activation process identified at https://www.cisco.com/go/sa. The following licenses are
available:
●
IP Base: This technology package is available as the default.
●
Application Experience (APP): This license includes data and application performance features.
●
Security (SEC) or Security with No Payload Encryption (SEC-NPE): This license includes features for
securing network infrastructure.
●
IP Security (IPSEC): This license includes features that improve IP security performance multifold.
Table 14. Cisco 1100 Series Licenses
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 13 of 15
Product part number
Description
Router software images
SISR1100UK9-166(=)
SISR1100NPEUK9-166(=)
SISR1100UK9-167(=)
SISR1100NPEUK9-167(=)
SISR1100UK9-168(=)
SISR1100NPEUK9-168(=)
Cisco 1100 ISR Universal Image and Non-Pay load Encryptions Image.
Access point software images
AIR-AP1815-K9-ME-8-5-110-
0.tar
Cisco 111X Series AP delivers industry-leading wireless performance with support for the latest Wi-Fi standard,
IEEE’s 802.11ac Wave 2 and Mobility Express.
AIR-AP1815-K9-ME-8-7-110-
0.tar
Cisco 1101 Series AP delivers industry-leading wireless performance with support for the latest Wi-Fi standard,
IEEE’s 802.11ac Wave 2 and Mobility Express.
DSL firmware options
A2pvbF039t.d26d
Annex A & M.
B2pv6F039g1.d26d
Annex B & J.
A2pvfbH043j
G.FAST Annex A & M.
B2pvfbH043j
G.FAST Annex B.
Umbrella Security Services
UMB-PROFESSIONAL
Cisco Umbrella Professional.
UMB-INSIGHTS-K9
Cisco Umbrella Insights.
UMB-PLATFORM-K9
Cisco Umbrella Platform.
Power over Ethernet options (module MUST order upfront with system)
ISR-1100-POE2
1100-4P with 115W PSU (2 PoE or 1 PoE+).
ISR-1100-POE4
1100-8P with 125W PSU (4 PoE or 2 PoE+). Ship with 150W starting May, 2018.
Rack mount kit and RJ Console Adapter
ACS-1100-RM-19(=)
Rack-mount kit for all 111X Series ISRs.
CAB-CON-USBRJ45(=)
Micro USB to RJ5 Console Adapter (Only for 1101 series).
Small Form-Factor Pluggable
ISR 1100 8P
ISR 1100 4P
Description
GLC-EX-SMD
Yes
Yes
1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.
GLC-LH-SM
Yes
Yes
GE SFP, LC connector LX/LH transceiver.
GLC-LH-SMD
Yes
Yes
GE SFP, LC connector LX/LH transceiver; with DOM.
GLC-SX-MM
Yes
Yes
GE SFP, LC connector SX transceiver.
GLC-SX-MMD
Yes
Yes
GE SFP, LC connector SX transceiver; with DOM.
GLC-ZX-SM
Yes
Yes
1000BASE-ZX SFP.
GLC-ZX-SMD
Yes
Yes
1000BASE-ZX SFP; with DOM.
GLC-FE-100FX
Yes
Yes
100BASE-FX SFP for FE port.
GLC-FE-100LX
Yes
Yes
100BASE-LX SFP for FE port.
GLC-FE-100ZX
Yes
Yes
100BASE-ZX SFP (80km).
GLC-FE-100EX
Yes
Yes
100BASE-EX SFP (40km).
GLC-FE-100BX-D
Yes
Yes
100BASE-BX10-D SFP.
GLC-FE-100BX-U
Yes
Yes
100BASE-BX10-U SFP.
GLC-GE-100FX
Yes
Yes
100FX SFP on GE ports.
Table 15. Product Part Numbers and Software Images
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 14 of 15
Small Form-Factor Pluggable
ISR 1100 8P
ISR 1100 4P
Description
GLC-BX80-D-I
Yes
Yes
1000BASE-BX80 SFP, 1570NM.
GLC-BX80-U-I
Yes
Yes
1000BASE-BX80 SFP, 1490NM.
GLC-BX40-D-I
Yes
Yes
1000BASE-BX40 SFP, 1550NM.
GLC-BX40-U-I
Yes
Yes
1000BASE-BX40 SFP, 1310NM.
GLC-BX-D
Yes
Yes
1000BASE-BX SFP, 1490NM.
GLC-BX-U
Yes
Yes
1000BASE-BX SFP, 1310NM.
GLC-TE
Yes
Yes
10/100/1000BASE-T.
GLC-T
Yes
Yes
10/100/1000BASE-T.
SFP-GE-S
Yes
Yes
1000BASE-SX SFP transceiver module for MMF, 850-nm
wavelength, extended operating temperature range and DOM
support, dual LC/PC connector.
SFP-GE-T
Yes
Yes
10/100/1000BASE-T SFP (NEBS 3 ESD).
For additional information and details about Cisco IOS Software licensing and packaging on the Cisco 1100 Series,
please visit:
https://www.cisco.com/c/en/us/support/routers/1100-series-integrated-services-routers-isr/products-licensinginformation-listing.html
For the Cisco 1100 ISR Hardware and Software Installation Guide, Go to:
https://www.cisco.com/c/en/us/support/routers/1100-series-integrated-services-routers-isr/products-installationguides-list.html
https://www.cisco.com/c/en/us/support/routers/1100-series-integrated-services-routers-isr/products-installationand-configuration-guides-list.html
Cisco and Partner Services
Services from Cisco and our certified partners can help you reduce the cost and complexity of branch-office
deployments. Cisco Smart Net Total Care™ technical support for the Cisco 1100 Series ISRs is available on a onetime or annual contract basis. Support options range from help-desk assistance to proactive, onsite consultation.
For more information, visit https://www.cisco.com/go/services.
Ordering Information
To place an order, visit the Cisco Ordering Home Page. To download software, visit the Cisco Software Center.
For More Information
For more information about the Cisco 1100 Series ISRs, visit https://www.cisco.com/go/1100 or contact your local
Cisco account representative.
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 15 of 15
Printed in USA C78-739512-05 05/18
Cisco Capital
Financing to Help You Achieve Your Objectives
Cisco Capital can help you acquire the technology you need to achieve your objectives and stay competitive. We
can help you reduce CapEx. Accelerate your growth. Optimize your investment dollars and ROI. Cisco Capital
financing gives you flexibility in acquiring hardware, software, services, and complementary third-party equipment.
And there’s just one predictable payment. Cisco Capital is available in more than 100 countries. Learn more.
Loading...
