Last Modified: 2018-06-24
Americas Headquarters
Cisco Systems, Inc. 170 West Tasman Drive
San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000
800 553-NETS (6387) Fax: 408 527-0883
© 2017–2018 Cisco Systems, Inc. All rights reserved.
C H A P T E R 1
C H A P T E R 2
C O N T E N T S
Overview of Cisco 1100 Series Integrated Services Routers 1
About Cisco 1100 Series Integrated Service Routers 1
Chassis Views |
2 |
|
|
|
|
LED Indicators |
5 |
|
|
|
|
Reset Button 11 |
|
|
|
|
|
Power Supply |
11 |
|
|
|
|
Slots and Interfaces 11 |
|
|
|
|
|
About Slots, Subslots, and Port Numbering 11 |
|||||
Specifications of Cisco 1100 Series Integrated Services Routers 12 |
|||||
Periodic Inspection and Cleaning |
12 |
|
|||
Prepare for Router Installation |
13 |
|
|
||
Safety Recommendations |
13 |
|
|
|
|
Safety With Electricity |
13 |
|
|
|
|
Prevent Electrostatic Discharge Damage 14 |
|||||
General Site Requirements |
15 |
|
|
||
Site Selection Guidelines |
16 |
|
|
||
Rack Requirements 16 |
|
|
|
|
|

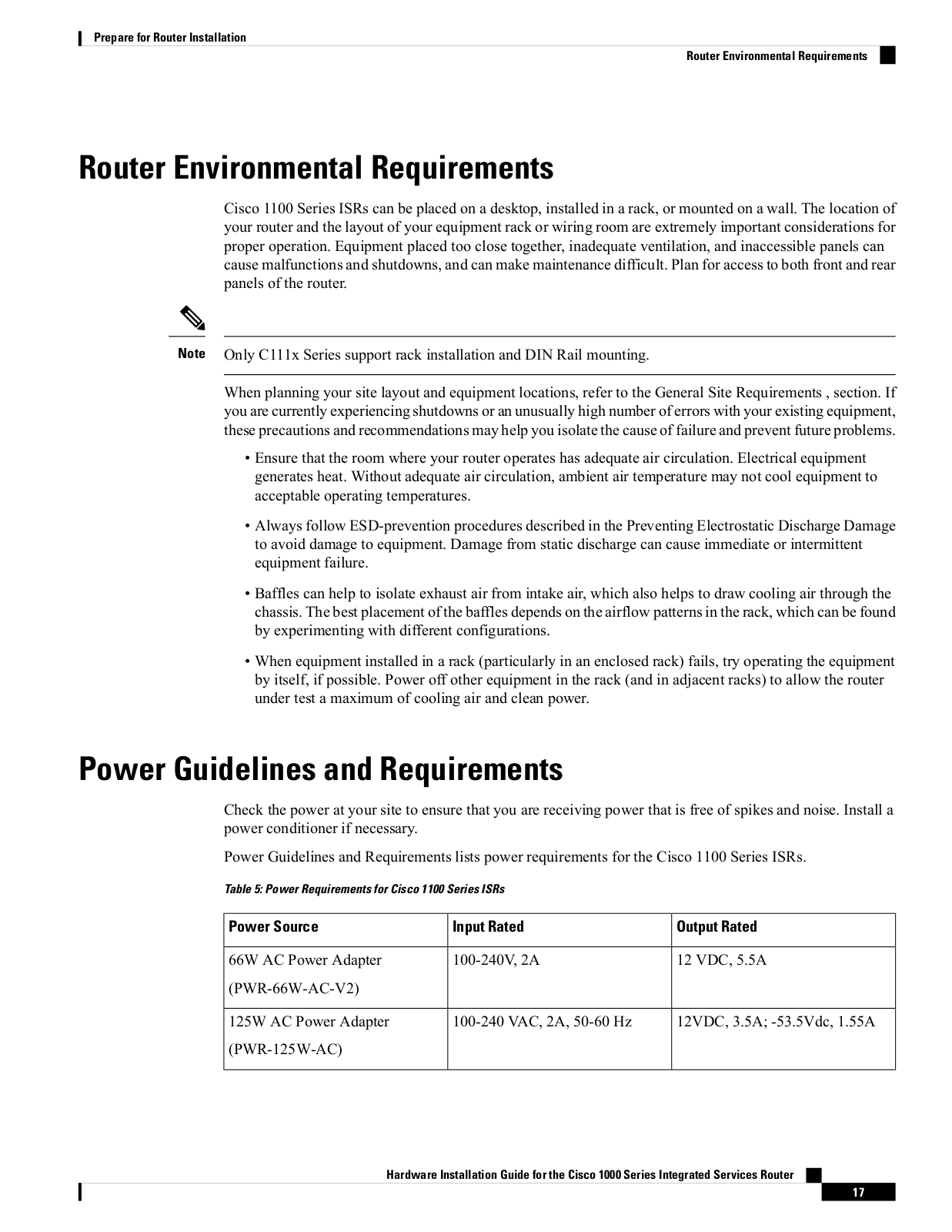

Router Environmental Requirements |
17 |
||||
Power Guidelines and Requirements |
17 |
||||
Network Cabling Specifications |
18 |
|
|||
Console Port Connections |
18 |
|
|
||
EIA/TIA-232 |
18 |
|
|
|
|
USB Serial Console |
18 |
|
|
|
|
Console Port Considerations |
19 |
|
|||
Preparing for Network Connections |
19 |
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
iii
Contents
Ethernet Connections 19
|
|
Required Tools and Equipment for Installation and Maintenance 20 |
|||||||
C H A P T E R |
3 |
Install and Connect the Router |
21 |
|
|
|
|||
|
|
Unpack the Router 21 |
|
|
|
|
|
||
|
|
Set up Router on Desktop, Rack, or Wall |
21 |
|
|||||
|
|
Rack Mount |
22 |
|
|
|
|
|
|
|
|
Attach the Brackets |
22 |
|
|
|
|
||
|
|
Mount the Router |
|
23 |
|
|
|
|
|
|
|
Wall Mount |
23 |
|
|
|
|
|
|
|
|
Wall Mount Using Key-hole Slots 24 |
|
||||||
|
|
Wall Mount Using DIN Rail Brackets |
29 |
|
|||||
|
|
Chassis Grounding |
30 |
|
|
|
|
||
|
|
Connect Power Cable |
31 |
|
|
|
|
||
|
|
Connect the Router to a Console |
32 |
|
|
||||
|
|
Connect to the Serial Port with Microsoft Windows 33 |
|||||||
|
|
Connect to the Console Port with Mac OS X |
33 |
||||||
|
|
Connect to the Console Port with Linux |
34 |
|
|||||
|
|
Connect WAN and LAN Interfaces 34 |
|
|
|||||
|
|
Ports and Cabling |
35 |
|
|
|
|
|
|
|
|
Connection Procedures and Precautions |
36 |
|
|||||
|
|
Configure the Router at Startup |
36 |
|
|
||||
C H A P T E R |
4 |
Install and Upgrade Internal Modules and FRUs |
37 |
||||||
|
|
Access Internal Modules |
37 |
|
|
|
|||
|
|
Replace the Chassis Cover |
37 |
|
|
|
|||
|
|
Remove the Cover |
37 |
|
|
|
|
||
|
|
Replace the Cover |
38 |
|
|
|
|
Locate Internal and External Slots for Modules 39
Install the Universal POE Splitter 39
LTE Pluggable Module 40
Insert a Micro-SIM Card 42
Remove and Replace the 1GB Flash Token Memory Stick 43
Remove and Replace the Cisco 1100 Series ISRs Power Supplies 43
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
iv
Contents
|
|
Install and Remove SFP Modules 44 |
|
|
Remove the SFP Modules 44 |
C H A P T E R |
5 |
ROM Monitor Overview and Basic Procedures 45 |
|
|
ROM Monitor Overview 45 |
C H A P T E R |
6 |
FCC Supplier Declaration of Conformity 47 |
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
v
Contents
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
vi
C H A P T E R 1
Overview of Cisco 1100 Series Integrated
Services Routers
Cisco 1100 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software are high-performance devices that are easy to deploy and manage. The routers combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0, Wireless WAN and Wireless LAN).
•About Cisco 1100 Series Integrated Service Routers, on page 1
•Periodic Inspection and Cleaning, on page 12
The Cisco 1100 series Integrated Services Routers are the next generation, IOS XE based, multi core, branch routers. They are available in both fixed and modular form factors. The Cisco 1100 series is best suited for small and midsize businesses, enterprise branches and as customer premises equipment in managed services environments.
Table 1: Base models of the Cisco 1100 series ISR
Feature |
C111x-8P |
Front panel switch |
8 |
ports |
|
WAN ports |
2 (1 Combo |
|
RJ-45/SFP + 1 |
|
RJ-45) |
C111x-4P |
C1101-4PLTEPWx |
C1101-4P |
4 |
4 |
4 |
2 (1 Combo |
1 RJ-45 |
1 RJ-45 |
RJ-45/SFP + 1 |
|
|
RJ-45) |
|
|
Console port |
Serial RJ-45, Micro |
Serial RJ-45, Micro |
Micro USB |
Micro USB |
|
USB |
USB |
|
|
(Optional) POE |
4PoE/2PoE+ |
2 POE/1 POE+ |
None |
None |
(Optional)WLAN |
802.11ac WAVE 2 |
802.11ac WAVE 2 |
802.11ac WAVE 2 |
None |
|
|
|
(C1101-4PLTEPWx) |
|
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
1
Overview of Cisco 1100 Series Integrated Services Routers
Feature |
C111x-8P |
C111x-4P |
C1101-4PLTEPWx |
C1101-4P |
LTE (optional) |
4G LTE-Advanced |
4G LTE-Advanced |
4G pluggable LTE |
None |
|
(CAT6) with carrier |
(CAT6) with carrier |
(CAT 4) and |
|
|
aggregation |
aggregation |
pluggable LTE |
|
|
|
|
Advanced (CAT 6) |
|
|
|
|
with carrier |
|
|
|
|
aggregation |
|
DSL (optional) |
G.FAST, VDSL2 |
VDSL2 and |
None |
None |
|
and ADSL2/2+ |
ADSL2/2+ |
|
|
Note Multiple variations of the models are available based on LTE/WLAN/DSL/Ethernet options on the routers.
For more information on the features and specifications of Cisco 1100 Series Integrated Services Routers (ISRs), refer to the Cisco 1000 Series Integrated Services Routers Solution Overview document and Cisco 1000 Series Integrated Services Routers datasheet.
Chassis Views
This section contains front and back panel views of the Cisco 1100 Series ISR-showing locations of the power and signal interfaces, interface slots, status indicators, and chassis identification labels.
Figure 1: Cisco 111x Series - Bezel View
1 |
Status |
2 |
VPN |
3 |
WiFi |
4 |
GPS |
5 |
LTE Signal Intensity |
6 |
LTE Data/SIM |
7 |
Illuminated Cisco Logo |
|
|
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
2
Overview of Cisco 1100 Series Integrated Services Routers
Chassis Views
Figure 2: Cisco 111x-8P - I/O View
1 |
LTEAntennas – Mainand |
2 |
Ethernet Switch |
|
Diversity |
|
|
3 |
GPS Connection |
4 |
CLEI Label |
5 |
Serial Number |
6 |
Grounding |
7 |
Reset Button |
8 |
Power Switch |
9 |
4-pin Power Connector |
10 |
GE 0/0/1 |
11 |
GE 0/0/0 - RJ45 |
12 |
GE 0/0/0 - SFP |
13 |
USB3.0 |
14 |
Lower slot0 |
|
|
|
Upper slot1 |
15 |
LTE Provisioning Port |
16 |
RJ45 / Micro USB |
|
|
|
Console |
17 |
DSL |
18 |
Kensington Lock Slot |
19 |
Product Identification |
|
|
|
Number (PID) |
|
|
Note FormoreinformationontheResetButton,refertotheResetOverviewsectioninthe ISR1000SeriesIntegrated
Services Routers.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
3
Overview of Cisco 1100 Series Integrated Services Routers
Chassis Views
Figure 3: Cisco 1101-4P ISR - Front View
1 |
Non-illuminated Cisco Logo |
Figure 4: Cisco 1101-4P ISR - I/O View
1 |
Kensington Lock Slot |
2 |
Grounding |
3 |
Power Switch |
4 |
4-pin Power Connector |
5 |
Reset Button |
6 |
LAN: 0-4 |
7 |
GE WAN |
8 |
Micro USB Console |
9 |
USB3.0 |
|
|
Figure 5: Cisco 1101-4PLTEP-Bezel View
1 |
Non-illuminated Cisco |
|
logo |
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
4
Overview of Cisco 1100 Series Integrated Services Routers
Figure 6: Cisco 1101-4PLTEP - I/O View
1 |
Power Switch |
2 |
4-pin Power Connector |
3 |
Reset Button |
4 |
LAN:0-4 |
5 |
GE WAN |
6 |
Micro-USB console Port |
7 |
USB 3.0 |
8 |
Pluggable |
9 |
Grounding |
10 |
Kensington Lock Slot |
LED Indicators
The following figures and table summarizes the LED indicators that are located in the bezel or chassis of the C111x series.
Figure 7: LED Indicators - Bezel Side
1 |
Status |
2 |
VPN |
3 |
WLAN |
4 |
GPS |
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
5
Overview of Cisco 1100 Series Integrated Services Routers
LED Indicators
5 |
LTE RSSI/Mode |
6 |
LTE DATA/SIM |
7 |
Cisco Logo |
|
|
Figure 8: LED Indicators - I/O Side
1 |
GE WAN Ports: 0-7 |
2 |
PoE LED |
|
(0,2,4,6 at the top and |
|
|
|
1,3,5,7 at the bottom) |
|
|
3 |
GE1 LED |
4 |
GE0 LED |
5 |
USB LED |
6 |
RJ-45 Console LED |
7 |
USB Console |
8 |
Micro USB Console LED |
9 |
CD LED |
10 |
DSL |
11 |
DATA LED |
|
|
The following table summarizes the LED indicators that are located in the bezel or chassis of the C111x series.
Table 2: LED Indicators for C111x |
|
|
|
Port |
LED Color |
Description |
Control Source |
Cisco Logo |
Blue |
Illuminated Cisco logo. |
Bezel side |
|
|
Indicates router power is |
|
|
|
good. |
|
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
6
Overview of Cisco 1100 Series Integrated Services Routers
LED Indicators
Port |
LED Color |
Description |
Control Source |
STATUS |
Green and Amber |
Steady Green - System |
Bezel side. All models. |
(System Status) |
|
operates normally. |
|
|
|
|
|
|
|
Off—System is not out of |
|
|
|
resetorBIOSimageisnot |
|
|
|
loadable. |
|
|
|
Blinking Amber — |
|
|
|
BIOS/Rommon is |
|
|
|
booting. |
|
Steady Amber — BIOS/Rommon has completed booting, and the system is at the Rommon prompt or booting the platform software.
VPN OK |
Green |
Off—No tunnel. |
Bezel side |
|
|
Steady On— At least one |
|
|
|
tunnel is up. |
|
LTE RSSI/Mode |
Green and Amber |
No LEDs On—No |
Bezel Side |
|
|
Service |
|
|
|
1 LED On— RSSI is |
|
|
|
under -100dBm. |
|
|
|
2 LEDs On— Low RSSI, |
|
|
|
-99dbm <> -90dBm. |
|
|
|
3 LEDs On— Medium |
|
|
|
RSSI -89dBm <> |
|
|
|
-70dBm. |
|
|
|
4 LEDs On— High RSSI, |
|
|
|
> -69dBm. |
|
|
|
Green— LTE |
|
|
|
Amber— 3G |
|
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
7
Overview of Cisco 1100 Series Integrated Services Routers
LED Indicators
Port |
LED Color |
GPS |
Green |
WLAN |
Green, Red, and Amber |
Ethernet Switch GE LAN Green
Ports, Non-PoE
Ethernet Switch GE LAN Green and Amber Ports, with PoE
GE WAN Ports |
Green |
Description |
Control Source |
On - GPS coordinates are Bezel Side acquired.
Off - GPS is disabled, GPS is enabled without GPS mode and NMEA configuration, or GPS is acquiring.
Green— Standalone GPS |
|
Off— GPSnotconfigured |
|
On— GPS configured |
|
Green— Normal |
Bezel side |
operating condition with |
|
at least one wireless client |
|
association. |
|
Red—Ethernet link is not |
|
operational or Ethernet |
|
failure. |
|
Amber—Software |
|
upgrade is in progress. |
|
Off— No link |
I/O side |
Steady On— link |
|
Blink— TXD/RXD data |
|
Off— No link, no device |
I/O side |
powered, PD denied |
|
power, power delivery |
|
faultPoEadministratively |
|
disabled. |
|
Green Steady On— link; |
|
if PoE device, power is |
|
enabled. |
|
GreenBlink—TXD/RXD |
|
data |
|
Amber - PoE Fault |
|
Off— No link |
I/O side |
Steady On— link
Blink— TXD/RXD data
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
8
Overview of Cisco 1100 Series Integrated Services Routers
LED Indicators
Port |
LED Color |
Description |
Control Source |
DSL CD |
Green |
Off— Shut |
I/O Side |
|
|
Green Blink— Training, |
|
|
|
or no shut and cable |
|
|
|
disconnected. |
|
|
|
Green Steady On— |
|
|
|
Trained |
|
PoE OK |
Green |
Green Steady On— |
I/O Side |
|
|
-53.5VPoEpowersupply |
|
|
|
connectedandallpowered |
|
|
|
port operating normally. |
|
|
|
Off — No -53.5V PoE |
|
|
|
power supply connected |
|
|
|
to router. |
|
DSL Data |
Green |
Off— No Data Activity |
I/O Side |
|
|
Green Blink— TX/RX |
|
|
|
Data |
|
Console/AUX |
Green and Amber |
Green On— Console |
I/O side |
|
|
enabled. |
|
|
|
Amber On— AUX |
|
|
|
enabled. |
|
USB Console |
Green |
Off— No USB device |
I/O side |
|
|
discovered. |
|
|
|
On— USB device |
|
|
|
discovered. |
|
USB |
Green |
Off: No USB device |
I/O Side |
|
|
discovered. |
|
|
|
On: USB device |
|
|
|
discovered. |
|
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
9
Overview of Cisco 1100 Series Integrated Services Routers
LED Indicators
Table 3: LED Indicators for C1101-X |
|
|
|
LED |
Color |
Description |
Control Source |
Power |
Green+Amber |
System Power Status |
I/O |
|
|
Off: No Power |
|
|
|
GreenSteadyOn:Normal |
|
|
|
operation |
|
|
|
Green Blink: Boot up |
|
|
|
phase or in ROMMON |
|
|
|
mode |
|
|
|
Amber Steady on Or |
|
|
|
Blink: Some issues with |
|
|
|
the system. |
|
VPN OK |
Green |
VPN Status |
I/O |
|
|
Off: No tunnel |
|
|
|
Steady on:At least one |
|
|
|
tunnel is up |
|
Ethernet Switch GE LAN |
Green |
Link Activity |
I/O |
Ports |
|
Off: No link |
|
|
|
|
|
|
|
Steady on: Link |
|
|
|
Blink: TXD/RXD Data |
|
GE WAN Ports |
Green |
Link Activity |
I/O |
|
|
Off: No link |
|
|
|
Steady on: Link |
|
|
|
Blink: TXD/RXD Data |
|
LTE DATA/SIM |
Green and Amber |
Single LTE Modem (one |
Bezel Side |
(C1101-4PLTEPWz |
|
modem with SIM |
|
|
switch-over capability). |
|
|
C1101-4PLTEP/C1101-4PLTEPWx) |
|
|
|
|
Off: Modem not up or |
|
|
|
|
|
|
|
|
modem up and no SIM. |
|
|
|
Amber Steady On: |
|
|
|
Modem up, SIM installed |
|
|
|
but not active. |
|
|
|
Green Blink: LTE data |
|
|
|
activity. |
|
WLAN |
3-color LED: Green, Red |
WLAN Functions |
I/O |
(C1101-4PLTEPWx) |
and Amber |
|
|
|
|
|
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
10
Overview of Cisco 1100 Series Integrated Services Routers
LED |
Color |
Description |
Control Source |
USB Console |
Green |
USB Console Status |
I/O |
|
|
OFF: USB console is not |
|
|
|
active. |
|
|
|
ON: USB console is |
|
|
|
active. |
|
USB 3.0 |
Green |
USB 3.0 Status |
I/O |
|
|
OFF: No USB device is |
|
|
|
connected. |
|
|
|
ON: USB device is |
|
|
|
commected. |
|
Reset Button
The actuation of the Reset button is only recognized during ROMMON boot, that is, as the router comes to the ROMMON prompt.
The Reset button does not require much force to be actuated. The Reset button should be actuated only with a small implement such as the tip of a pen or a paper clip. When the Reset button is pressed at startup, the system LED turns green.
For more information, see the "Reset Overview" section of the Cisco 1100 Software Configuration Guide.
Cisco 111x Series ISRs support PoE and PoE+ power to endpoints. The product power specifications are as follows:
•AC input voltage: Universal 100 to 240 VAC
•Frequency: 50 to 60 Hz
•Maximum output power: Up to 66W for non-PoE supply and up to 125W for PoE supply
•Optional PoE and PoE+
•Output voltage: +12VDC for system power and -53.5VDC for PoE power
The Cisco 1100 series designates its interfaces using a 3-tuple notation that lists the slot, sub slot and port in the format slot/sub-slot/port. The slot number is reserved for the mother board, which is "0". Each interface type is allocated a sub slot and the port number is a unique port on the interface.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
11
