Cisco Systems BTS-TP1 User Manual

Ripwave™ Base Station

Installation & Commissioning Guide

Part Number 40-00047-00

Revision D, Version 1.0

February 28, 2003

Proprietary

All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected by

copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved.

Ripwave Base Station I&C Guide Navini Networks, Inc.

About This Document

Purpose

This document provides a Navini-certified Installation & Commissioning Technician with instructions to properly install the Base Transceiver Station, Radio Frequency Subsystem, and cabling; and to test and commission the Base Station after installation.

Revision History

Date Revision/Version Authors Editors Comments

2001 A/1.0 J. Price

C. Keltner A. Chua P. Blain J. Coulson D. Karina K. Sharp L. Hoffman

4.02 B/v1.0 Same N/A Preliminary

8.30.02 C/1.0 Same N/A Prepare for release 1.16

9.3.02 C/1.0 Same S. Redfoot Review comments from class 8.30.02

9.27.02 C/1.0 Same Same Preliminary Commercial Release 1.18

10.18.02 C/1.0 Same Same Feedback on forms and specifications

2.7.03 D/1.0 Same Same Combined all Base Station I&C into one

2.28.03 D/1.0 Same Same Standard Release 1.19

N/A Draft

manual; Preliminary 1.19

Contacts

Contact Navini Networks Technical Support during normal business hours: Monday through Friday 8:30 a.m. to 5:30 p.m. Central Time. You can also submit questions or comments by web or email at any time.

Corporate Headquarters: (972) 852-4200 Technical Support: 1-866-RIPWAVE Web Address: www.navini.com / select Technical Support E-mail: techsupport@navini.com

Navini Networks, Inc. 2240 Campbell Creek Blvd. Suite 110 Richardson, Texas 75082 USA

2 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Permissions, Trademarks & Distribution

Copyright© February 2003, Navini Networks, Inc. All information contained herein and disclosed by this document is the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc.

Navini Networks, Internet at the Speed of Thought, zero-install, unwired by Navini, the Navini Networks logo, and Ripwave are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners.

Nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind.

Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of Navini Networks, Inc.

Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. Any unauthorized usage is strictly prohibited without the express written permission of Navini Networks, Inc.

Navini Networks, Inc. 2240 Campbell Creek Boulevard Suite 110 Richardson, Texas 75082 USA

Part #40-00047-00 Rev D v1.0 3 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

TABLE OF CONTENTS

ABOUT THIS DOCUMENT.............................................................................................................. 2

PERMISSIONS, TRADEMARKS & DISTRIBUTION............................................................................ 3

SAFETY ........................................................................................................................................ 6

REGULATORY INFORMATION........................................................................................................ 8

BATTERY CAUTION & PROCEDURES ............................................................................................9

GLOSSARY OF TERMS & ABBREVIATIONS.................................................................................. 10

CHAPTER 1: OVERVIEW ......................................................................................................17

RIPWAVE DESCRIPTION .............................................................................................................. 17

PROCEDURAL DOCUMENTS & FORMS ........................................................................................18

I&C PROCESS FLOWCHART........................................................................................................ 19

BASE STATION COMPONENTS..................................................................................................... 29

GENERAL SPECIFICATIONS .........................................................................................................33

BASE STATION SPECIFICATIONS ................................................................................................. 34

MATERIALS SPECIFICATIONS...................................................................................................... 36

CHAPTER 2: INSTALLATION .............................................................................................. 39

PRE-INSTALLATION ....................................................................................................................39

INSTALL POWER & GROUNDING ................................................................................................ 42

INSTALL CABLES ........................................................................................................................ 45

INSTALL THE BTS ......................................................................................................................50

INSTALL GPS ANTENNAS........................................................................................................... 55

INSTALL THE RFS....................................................................................................................... 58

VERIFY INSTALLED CIRCUIT CARDS .......................................................................................... 69

BASE STATION INSTALLATION CERTIFICATION .......................................................................... 70

CHAPTER 3: COMMISSIONING ..........................................................................................71

REVIEW CUSTOMER NETWORK PLANS ....................................................................................... 71

INSTALL EMS SERVER............................................................................................................... 71

VERIFY CABLE CONNECTIONS ................................................................................................... 72

CONFIGURE & POWER UP THE BTS ........................................................................................... 73

CALIBRATE THE BASE STATION ................................................................................................. 96

VERIFY THE CALIBRATION ....................................................................................................... 100

EXPORT BTS DATA.................................................................................................................. 110

PERFORM LOCAL CPE TESTS................................................................................................... 111

INSTALL & TEST CUSTOMER EMS OPERATIONS ..................................................................... 116

PERFORM CALIBRATION USING CUSTOMER’S EMS ................................................................. 116

VERIFY SYSTEM PERFORMANCE .............................................................................................. 117

VERIFY SYSTEM OPERATION WITH MULTIPLE CPE’S ............................................................. 118

BACK UP EMS DATABASE....................................................................................................... 118

CUSTOMER ACCEPTANCE ......................................................................................................... 118

4 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

APPENDIX A: ORDERING DOCUMENTATION & FORMS .........................................119

APPENDIX B: SITE CANDIDATE EVALUATION FORM.............................................. 121

APPENDIX C: RFS SYSTEM TEST (CABLE SWEEPS) .................................................. 133

APPENDIX D: BASE STATION INSTALLATION CERTIFICATION .......................... 151

APPENDIX E: CONFIGURATION FORMS....................................................................... 154

APPENDIX F: BASE STATION CALIBRATION VERIFICATION* .............................175

APPENDIX G: DRIVE STUDY .............................................................................................183

APPENDIX H: LOCATION (FTP) TESTS ..........................................................................188

APPENDIX I: CUSTOMER ACCEPTANCE ......................................................................195

APPENDIX J: OUTDOOR ENCLOSURES ......................................................................... 197

APPENDIX K: INSTALL CONNECTORS ON CABLES .................................................. 213

APPENDIX L: CHASSIS ALARMS...................................................................................... 215

APPENDIX M: ANTENNA DRAWINGS............................................................................. 217

APPENDIX N: RECTIFIER/BBU SPECIFICATIONS ......................................................219

APPENDIX O: SAMPLE BILL OF MATERIALS (BOM)................................................. 227

APPENDIX P: SAMPLE BASE STATION DRAWING ..................................................... 231

APPENDIX Q: SAMPLE STATEMENT OF WORK .........................................................233

APPENDIX R: SAMPLE RESPONSIBILITY ASSIGNMENT MATRIX (RAM)........... 237

LIST OF EXHIBITS................................................................................................................. 245

LIST OF FIGURES ..................................................................................................................247

LIST OF TABLES ....................................................................................................................249

`

Part #40-00047-00 Rev D v1.0 5 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Safety

To optimize safety and expedite installation and service, read this document thoroughly. Follow all warnings, cautions, and instructions marked on the equipment and included in this document.

To aid in the prevention of injury and damage to property, cautionary symbols have been placed in this document to alert the reader to known potentially hazardous situations, or hazards to equipment or procedures. The symbols are placed before the information to which they apply. However, any situation that involves heavy equipment and electricity can become hazardous, and caution and safety should be practiced at all times when installing, servicing, or operating the equipment.

Caution Symbol - possible equipment or property damage

Warning Symbol - could cause personal injury or otherwise be hazardous to your health

Navini Networks, Inc., expressly requires that when using Navini electronic equipment always follow the basic safety precautions to reduce the risk of electrical shock, fire, and injury to people and/or property.

1. Follow all warnings and instructions that come with the equipment.

2. Do not use the equipment while you are in a bathtub, shower, pool, or spa. Exposure of the equipment to water could cause severe electrical shock or serious damage to the equipment.

3. Do not allow any type of liquid to come in contact with the equipment. Unplug the equipment from the power source before cleaning. Use a damp cloth for cleaning. Do not use any soaps or liquid cleaners.

4. Follow all airport and FAA regulations when using the equipment on or near aircraft.

5. Only operate the equipment from the type of power source(s) indicated in this manual (110 VAC or Navini supplied battery). Any other type of input power source may cause damage to the equipment.

6. Power the equipment using only the battery or the AC adapter cable provided, and in accordance with the instructions specified in the User Guide.

7. Do not use a frayed or damaged power cord. Do not place the power cord where it can be stepped on or tripped over.

8. Do not touch wires where the insulation is frayed or worn unless the equipment has been disconnected from its power source.

9. Do not overload wall outlets, power strips, or extension cords. This can cause serious electrical shock or fire.

10. Do not place the equipment on an unstable surface. It can fall and cause injury or damage to the equipment.

6 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

11. Do not disassemble the equipment. Removing covers exposes dangerous voltages or other risks and also voids the warranty. Incorrect reassembly can cause equipment damage or electrical shock. Only an authorized repair technician should service this product.

12. Do not expose the equipment to extreme hot or cold temperatures.

13. Do not use the equipment under the following conditions:

• When the equipment has been exposed to water or moisture.

• When the equipment has been damaged.

• When the power cord is damaged or frayed.

• When the equipment does not operate properly or shows a distinct

change in performance.

Part #40-00047-00 Rev D v1.0 7 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

E

Regulatory Information

FCC Notice

WARNING! This device is a Radio Frequency transmitter. It is required to comply with FCC RF exposure requirements for transmitting devices. A minimum separation distance of 8 inches (20 cm) or more must be maintained between the antenna and all persons during device operations to ensure compliance with the FCC’s rules for Radio Frequency Exposure. If this minimum distance cannot be maintained, exposure to RF levels that exceed the FCC’s limits may result.

FCC Compliance and Advisory Statement

This equipment has been tested and found to comply with the limits for a class B digital device, Pursuant to Part 15 of the FCC rules. The operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna; (2) Increase the separation between the equipment and the receiver; (3) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected; (4) Consult the dealer or an experienced radio/TV technician for additional suggestions.

INFORMATION TO USER

This device has been authorized as a radio frequency transmitter under the appropriate rules of the Federal Communications Commission. Any changes or modifications not expressly approved by Navini Networks could void the user’s authority to operate the equipment.

FOR HOME OR OFFICE US

Tested To Comply

With FCC Standards

8 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Battery Caution & Procedures

WARNING! To reduce risk of injury or fire, follow these instructions when handling the battery.

1. Risk of explosion is possible if the battery is replaced with one not supplied by Navini Networks.

2. Do not dispose of the battery in a fire. It may explode. Check with the local codes for battery disposal guidelines.

3. Do not open or mutilate the battery. The battery contains substances that are toxic, corrosive, or harmful to humans. If battery substances come in contact with the skin, seek medical help immediately.

4. Do not attempt to recharge the battery by any means except per the instructions in this manual.

5. Remove the battery from the equipment if the equipment is not going to be used for a long period of time. The battery could leak and cause damage to the equipment.

6. Exercise care when handling the battery to prevent shorting the battery with conducting materials such as bracelets, rings, and keys.

7. Store the battery pack in a dry place, 0 to +40 degrees Celsius.

8. Dispose of used batteries according to environmental guidelines.

Part #40-00047-00 Rev D v1.0 9 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

N

Glossary of Terms & Abbreviations

Term Stands For.... Meaning

802.11

ACC

ACK

AP

ARP

ASYNCH

ATM

BB BCC

BS

BTS

BW

BYTE CAM

CC

802.11 Standard An IEEE LAN standard for wireless Ethernet replacement technology in the ISM band. Runs at up to 10 Mbps.

Access Channel or Access Code Channel Acknowledge Positive message sent by a protocol to acknowledge reception

Access Point Wireless LAN transceiver that acts as a center point of an all-

Address Resolution Protocol The function of the ARP is to match higher-level network IP

Asynchronous

Asynchronous Transfer Mode Transporting a broad range of user data at irregular intervals

Broadband RF system with constant data rate of 1.5 Mbps or higher. Broadcast Code (or Control) Channel Base Station

Base Transceiver Station The Ripwave BTS is a two-shelf rack that holds the RF

Bandwidth Frequency spectrum usable for data transfers. It describes the

Byte 8 bits Configuration & Alarm Manager An EMS functionality that is handled through a Graphical User

1

Communications Controller or

2

Cross-check

AKA, Paging Channel. The signal path that tells a mobile to prepare for an incoming call.

of a transmitted packet

wireless network or as a connection point between wireless and wired networks.

addresses with the physical hardware address of a piece of equipment.

ot occurring at regular intervals, as in data piped over a

network

over network facilities

A channel of data transmitted by one entity and received by many devices.

etwork Access equipment and software that transmits and receives, as well as processes, voice or data calls from mobile units to network connections. A Ripwave Base Station consists of the Base Transceiver Station (BTS) and the Radio Frequency Subsystem (RFS), or antenna, plus a Global Positioning System (GPS) antenna for timing.

modules and digital circuit cards that interpret radio signals into computer language and sends messages to and from the local or wide area network. It functions between the RFS and the EMS to handle the signaling.

maximum data rate that a signal can attain on the medium without encountering significant loss of power. Usually expressed in bits per second (digital) or Hertz (analog).

Interface for purposes of configuring elements in the system and handling other OAM requirements.

1

A type of circuit card that resides in the Digital shelf of the Ripwave BTS. It handles all interfaces between BTS and network. perform an automated sanity check of the datafill.

2

An EMS functionality that allows the system to

10 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Term Stands For.... Meaning

CD

CDMA

CD-ROM

CHP

CLEC

CLI

CORBA

CPE

dB dBd

dBi

DHCP

DiffServ

DIR

DL

DNS

DS-1

DSL

1

Compact Disk or 2Change Directory1An optical disk capable of storing large amounts of data (700x

floppy disk). It can be inserted into most pc’s and “read” to load files onto a computer “C” language that tells the computer to go to a different location in the computer’s memory.

Code Division Multiple Access Digital cellular technology that uses a spread-spectrum

technique where individual conversations are encoded with a random digital sequence. Increases capacity and speed of communications messages between mobile units over other types of wireless networks.

Compact Disk - Read Only Memory See “CD.” If a CD is not Read Only, computers can write data

to it with that capability.

Channel Processor Card A card in the digital shelf of the BTS that performs the first

stage of signal processing for up to 4 antennae. One Navini 2.4 GHz BTS has 8 antennae. The card performs digital-to-analog conversion (DAC) and analog-to-digital conversion (ADC) for up to 10 carriers.

Competitive Local Exchange Carrier A telephone company that competes with an incumbent Local

Exchange Carrier (LEC).

Command Line Interface A text-based programming language through which a user

communicates with an operating system or an application.

Common Object Request Broker Agent

Customer Premise Equipment Communications equipment that resides at the customer’s

Decibel Unit of measurement for sound. Decibel/Dipole A ratio, measured in decibels, of the effective gain of an

Decibel/Isotropic A ratio, measured in decibels, of the effective gain of an

Dynamic Host Configuration Protocol Differentiated Service Different Quality of Service (QoS) descriptions for different

Directory A special kind of file used to organize other files into a

DownLink In this case, data messages transmitted from the BTS to the

Domain Name Server TCP/IP networking term that is a protocol for matching objects

Digital Signal - 1 Also “T1” or “E1”. Digital transmission equipment that can

Digital Subscriber Line A type of service whereby users gain access to the Internet

A standard for Network Management Systems that allows integration with NMS regardless of programming language or Operating System.

location.

antenna compared to a dipole antenna (2 horizontal rods in line with each other). The greater the dBd value the higher the gain and therefore the more acute the angle of coverage.

antenna compared to an isotropic antenna (measured along axes in all directions). The greater the dBi value the higher the gain and therefore the more acute the angle of coverage. A protocol for dynamically assigning IP addresses to devices on a network.

types of traffic, i.e., voice, video, email. The DiffServ table is where each level of QoS is defined. Equivalent to Class of Service (COS) in POTS.

hierarchical structure.

CPE.

to network (IP) addresses.

handle up to 1.544 Mbps.

through high-speed data networks.

2

A software programming term in

Part #40-00047-00 Rev D v1.0 11 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Term Stands For.... Meaning

DSP

EID

EMS

ERP

FCC

FE

FTP

Gain

Gb GB GHz

GPS

GUI

HW Hz I&C

IEC

IF

IMA

IP

ISP Kb KB KHz

Digital Signal Processor Compressing or manipulating analog signals to digital signals

and vice-versa.

Equipment Identifier Field in EMS for assigning IP address or name to individual

pieces of equipment for purposes of configuring the system.

Element Management System An application that allows the user to define and manipulate

managed objects as a system within an overall network.

Effective Radiated Power The actual power in Watts radiated from a transmitter’s

antenna.

Federal Communications Commission

Far End A relative term that refers to the receiving element in a

File Transfer Protocol A TCP/IP method consisting of a client and server and used to

Gain Ratio of the output amplitude of a signal to the input amplitude

Gigabit One billion (1,000,000,000) bits. Gigabyte One billion (1,000,000,000) bytes. Gigahertz One billion (1,000,000,000) hertz - cycles per second. Ultra

Global Positioning System A constellation of 24 well-spaced satellites that orbit the earth

Graphical User Interface A graphic rather than purely text based user interface to a

Hardware Physical, tangible equipment Hertz 1 cycle per second. Installation & Commissioning Term used to describe the procedures of physically installing

Inter-exchange Carrier Also IXC. Public switching network service provider (carrier)

Interface Card Card on the digital shelf of the Ripwave BTS that takes the

Inverse Multiplexing over ATM A method of building dynamic routes of 2 or more T1’s to

Internet Protocol A TCP/IP protocol used to route data from its source to its

Internet Service Provider A company that provides access to the Internet. Kilobit 1,024 bits Kilobyte 1,024 bytes Kilohertz 1,000 hertz.

United States government regulatory agency that supervises, licenses and otherwise controls electronic and electromagnetic transmission standards.

network, as opposed to the near-end element that is transmitting data.

transfer files between two or more sites or elements in a network.

of a signal, expressed in decibels (dB).

high frequency (UHF) signals, including microwave signals.

and enable users with GPS antennas to pinpoint their exact geographical position.

computer or computing system.

technical equipment then powering up the equipment to make sure it will operate (to put it “into commission”).

that connects across and between local exchange carriers (LEC).

analog signal from the Channel Processor card (CHP) and converts it to a baseband signal before sending it on to the RF modules for transmission (forward link), and vice-versa (reverse link).

increase bandwidth so that PVC’s can share the IMA resources, as needed, for data transmissions.

destination.

12 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

N

Term Stands For.... Meaning

L1

L2

L3

LAN

LCP

LED

LLC

LOS

MAC

Mb MB Mbps MDM

MHz

MIB

MMDS

NE

NLOS

Layer 1 Physical Layer. Part of the OSI rules and standards for network

management. L1 describes the physical layer, or electrical and mechanical port-to-port connections, in the network.

Layer 2 Data Link Layer. Part of the OSI rules and standards for network

management. L2 describes the data link layer where data is set up and torn down in a specific format (frames), through the overall network. Also responsible for detecting and correcting errors by requesting retransmission.

Layer 3

Local Area Network A data network of interconnected computers, servers, printers,

Link Control Protocol Basis of the Point-to-Point Protocol (PPP) scheme for negotiating

Light-emitting Diode An electronic device that lights up when electricity passes

Logical Link Controller A protocol that governs the transition of frames between data

Line-of-sight Describes laser, microwave, RF, and infrared transmission

Media Access Control Protocol that governs access to a network in order to transmit

Megabit One million (1,000,000) bits. Megabyte One million bytes. Literally - 1,048,576 bytes. Megabits Per Second Transmission speed at rate of one million bytes per second. Modem Card A card in the Navini BTS that converts digital signals into analog

Megahertz One million (1,000,000) hertz - cycles per second. Normally used

Management Information Base A collection of managed objects used in SNMP-based networks.

Multipoint Multi-channel Distribution Service

1

Near-end or 2Network Element 1The transmitting end, versus the receiving end, of a signal

on Line-of-site Describes laser, microwave, RF, and infrared transmission

etwork Layer. Part of the OSI rules and standards for network management. L3 describes the network addressing that gets data to its destination within the network, i.e., IP addressing.

and other peripherals that communicate at high speeds over short distances, usually within the same building. Also allows for sharing of resources.

and establishing connections.

through it. Often used to indicate equipment or system state.

stations regardless of how the medium is shared. It’s the upper sub-layer that further defines the Media Access Control (MAC) protocol. It provides the basis for an unacknowledged connectionless service on a LAN - i.e., error correction, multiplexing, broadcasting.

systems that require no obstruction in a direct path between the transmitter and the receiver.

data between nodes. In a wireless LAN, the MAC is the radio controller protocol (L2).

so the signals can be transmitted over telephone lines, and viceversa. Modem stands for modulator/demodulator.

to refer to how fast a microprocessor can execute instructions.

MIB’s carry information in a standard format so external tools can analyze network management and performance. Fixed wireless, high-speed local service that operates at 2.1 - 2.7 GHz. Speed 10 Mbps. Originally conceived for cable TV service.

transmission.

systems that can penetrate obstructions in the path between the transmitter and the receiver.

2

A router, switch, or hub in an ISDN network.

Part #40-00047-00 Rev D v1.0 13 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

N

Term Stands For.... Meaning

NMS

NOC

OAM

OS

OSI

PC

PCB

PDU

Ping

PPPoE

Propagation

PSK

PSN

PSTN

QAM

QoS

etwork Management System A product that helps manage a network generally hosted on a

well-equipped computer such as an engineering workstation. The system tracks network statistics and resources.

etwork Operations Center A centralized point, much like a traffic control tower, where

technicians or engineers can monitor network activity, alarms, and statistics, as well as make network configuration and other changes dynamically. For Internet, the NOC is often a hub for ISP services.

Operation, Administration, Maintenance

Operating System A software program that manages the basic operation of a

Open Systems Interconnection An ISO model for worldwide communications that defines 7

Personal Computer Any IBM-compatible computer, so named because IBM’s first

Printed Circuit Board A hardware module that holds electronic circuitry and usually

Packet Data Unit or Protocol Data Unit Ping Generalized term from sonar science, where a short sound burst

Point-to-point Protocol Over Ethernet Propagation To spread out and affect a greater area; travel through space, as

Phase Shift Keying Digital transmission term that means an angle modulation where

Packet Switched Network A network in which data is transferred in units called packets.

Public Switched Telephone

etwork

Quadrature Amplitude ModulationA bandwidth conservation process routinely used in modems.

Quality of Service A guaranteed throughput for critical network applications, such

A set of network management functions. Also describes the human-machine interface tasks - i.e., to operate the system, to administer the system, and to maintain the system.

computer. Most Operating Systems are either based on

layers of network protocol: L1 Physical Layer; L2 Data Link Layer; L3 Network Layer; L4 Transport Layer; L5 Session Layer; L6 Presentation Layer; L7 Application Layer.

commercial end user computer was called a PC.

fits into a larger frame where the various PCB’s are interconnected electronically. A data packet. Refers to that which is exchanged between peerlayer entities. Contains header, data, and trailer information.

is sent out and an echo or “ping” is received. Used to determine if signals or packets have been dropped, duplicated, or reordered. A protocol that allows dial-up Internet connections. Includes the Link Control Protocol as well as Network Control Protocols.

in radio waves.

the phase of the carrier varies in relation to a reference or former phase. An encoded shift. Each change of phase carries one bit of information, where the bit rate equals the modulation rate.

Packets can be routed individually and reassembled to form a complete message at the definition. Typically used in the same context as POTS. Analogous to a network of major highways originally built by a single organization but added to and expanded by multiple organizations. AKA, backbone networks.

Creates higher throughput but decreased coverage area.

as Voice over IP. Term primarily used in an ATM environment. Five classes of service: Class 1 Video; Class 2 Audio; Class 3 Data Connection.

14 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

b

N

Term Stands For.... Meaning

RAM RF

RFS RSSI

Rx

S-CDMA

SMDS

SMS

SNMP

SNR

SO/HO

SSI SW SYN

SYNCH

TCC

TCP

TCP/IP

Random Access Memory Computer memory that can be accessed randomly. Radio Frequency A portion of the electromagnetic spectrum in the frequency

range between audio and infrared: 100 KHz to 20 GHz. RF measurements are expressed in Hz (unit for measuring frequency); MHz = 1 Million Hz; GHz = 1 Billing Hz.

Radio Frequency Subsystem A term for the antenna portion of the base station.

Receiver Signal Strength Indicator A term that describes the measure of the signal strength in

kilohertz or gigahertz between the transmission and the receiving end.

Receive An abbreviated way of expressing the term, receive, as in to

receive a transmission.

Synchronous Code Division Multiple Access Switched Multi-megabit Data Service

1

Short Message Service or

2

Systems Management Server

Wireless technology based on data being transferred at a fixed rate using Code Division Multiple Access algorithms. Connectionless service for MAN/WAN based on 53-

yte packets that target the interconnection of different LAN’s into a public switched network at speeds higher than T1.

1

A protocol that allows mobile users to send text-based messages from one device to another. The text appears on a device’s screen and may be a maximum 160 characters in length.

2

A Windows

T process that allows a network administrator to inventory all hardware and software on the network, then perform software distribution over the LAN.

Simple Network Management Protocol

Standard management request-reply protocol for managing TCP/IP networks. A device is said to be SNMP compatible if it can be monitored or controlled using SNMP messages.

Signal-to-noise Ratio Related to RSSI, a measurement of the intended signal being

transmitted against the other entities that can interfere with the signal.

Small Office/Home Office Small, remote office with a MAN or WAN connection back to a

larger corporate network and/or the Internet.

Signal Strength Indicator See “RSSI”. Software Computer instructions or data. Synthesizer Card A circuit card in the Navini BTS digital shelf that provides a

local oscillator and system clock with a single calibration transceiver. The card is used to calibrate the Base Station so that no external spectrum analyzer or signal generator is required.

Synchronous Digital packets or signals that are sent at the same, precisely

1

Traffic Channel or 2Transmission

Control Code

clocked fixed rate of speed.

1

A portion of a radio channel used to enable transmission of one direction of a digitized voice conversation (as opposed to the Voice Channel).

2

A way of segregating traffic in order to define

controlled communities of interest among subscribers.

Transport Control Protocol A standardized transport protocol between IP-based network

nodes that allows two hosts to establish a connection and exchange streams of data. TCP operates on top of Internet Protocols and handles the multiplexing of sessions, error recovery, reliability and flow; it guarantees packets are delivered in the same order in which they were sent.

Transport Control Protocol/Internet Protocol

A set of protocols that allows cooperating computers to share resources across the network. TCP provides the reliability in the transmission, while IP provides connectionless packet service.

Part #40-00047-00 Rev D v1.0 15 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Term Stands For.... Meaning

TDD

TFFS

TTL

Tx

UL

USB

VCC

VCI

VCL Vector

VPC

VP

VPI

VPL

WAN

Time Division Duplex A digital transmission method that combines signals from

multiple sources and allows a single channel to alternately carry data in each direction of a link.

True Flash File System Memory in a computing device that does not lose its information

when powered off. Available as a SIMM or PCMCIA card, it usually stores router Operating System (OS) software. Can be easily updated.

Time-to-live A field in the Internet Protocol that specifies how many more

hops a packet can travel before being discarded or returned.

Transmit To send by wire or other medium electronically or through air

via electromagnetic waves to a receiving communications device.

UpLink Describes the direction of signal flow being sent from a

subscriber to a network system, as in from a mobile device (CPE) to a base station.

Universal Serial Bus An external bus standard for plug-and-play interfaces between a

computer and add-on devices, such as a mouse, modem, keyboard, etc. One USB port can connect up to 127 devices.

Virtual Channel Circuit AKA, Virtual Channel Connection or Virtual Circuit Connection.

A logical circuit made up of Virtual Channel Links, which carry data between two end points in an ATM network.

Virtual Channel Identifier A 16-bit value in the ATM cell header that provides a unique

identifier for the Virtual Channel that carries that particular cell.

Virtual Channel Link A connection between two ATM devices. Vector A quantity representative of both magnitude and direction

(energy + orientation in space)

Virtual Private Channel AKA, Virtual Path Connection. A grouping of Virtual Channel

Connectors, which share one or more contiguous VPL’s.

Virtual Path A set of Virtual Channels grouped together between cross-points

(i.e., switches).

Virtual Path Identifier An 8-bit value in the cell header that identifies the VP as well as

the VC to which the cell belongs. The VPI + VCI identify the next destination of a cell as it passes through a series of ATM switches.

Virtual Path Link A group of unidirectional VCL’s with the same end points in a

Virtual Path. Grouping VCL’s into VPL’s reduces the number of connections to be managed. One or more VPL’s makes up a

1

Wide Area Network or

2

Wireless Access Network

VPC.

1

A communications network that spans geographically separate areas and which provide long-haul services. Examples of internetworked connections are frame relay, SMDS, and X.25 protocols. access to the Internet, as opposed to being part of the actual Internet devices or software.

2

General term for any product primarily used to gain

16 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Chapter 1: Overview

Ripwave Description

A Ripwave system has three main components: the Customer Premise Equipment (CPE); the Base Station; and the Element Management System (EMS). The Base Station performs the CPE registration and call processing, and provides the interface between the backhaul network and the EMS. It is made up of the Base Transceiver Station (BTS) and the Radio Frequency Subsystem (RFS) (Figure 1). This manual provides the guidelines and instructions for installing and commissioning (I&C) the Base Station.

Figure 1: Base Station Installation With Panel Antenna

OPTION 2

OPTION 2 OUTDOOR BTS

OUTDOOR BTS

24VDC @ 60A

ETHERNET

ETHERNET TELCO

TELCO

SELF SUPPORTING

SELF SUPPORTING GUIDE

GUIDE

GUIDE ANTENNA TOWER

ANTENNA TOWER

PSX

GROUND BAR

CABINET

GND

LIGHTNING

ROD

ANTENNA

BRACK

GROUND

ET

BAR

RF CABLES

CABLE

HANGERS

GPS

CABLE

ENTRY

CABLE

LADDER

GROUND

BAR

PANEL

ANTENNA

PSX-ME

SURGE

PROTECTOR

24VDC

24VDC @ 60A

@ 60A

ETHERNET

/ TELCO

CABINET

GND

Note: The illustration shows both

Note: The illustration shows both an outdoor and an indoor BTS,

an outdoor and an indoor BTS, but only one panel antenna. In

but only one panel antenna. In reality, each BTS requires

reality, each BTS requires its own panel.

its own panel.

SHELTER / HUT

OVERHEAD

OPTION 1

INDOOR BTS

NAVINI

PSX

BTS

OVERHEAD

CABLE LADDER

GROUND BAR

Part #40-00047-00 Rev D v1.0 17 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Procedural Documents & Forms

You will refer to other Ripwave documents, procedures, and forms in the process of installing and commissioning the Base Station. They are listed in Appendix A of this manual. The product documentation is provided on the Ripwave Standard Documentation CD (Table 1). As well, the EMS manuals can be viewed on-line through the EMS Server and Client applications.

Table 1: Ripwave Standard Documentation CD

Order Number 95-00116-00 Component or

Part Number

EMS Overview Manual 40-00016-03 MSWord/.pdf EMS Software Installation 40-00017-00 MS Word/.pdf EMS Administration Guide 40-00031-00 MS Word/.pdf Ripwave Configuration Guide 40-00016-01 MS Word/.pdf EMS CLI Reference Manual 40-00016-02 MS Word/.pdf Ripwave Alarm Resolution Reference Manual 40-00033-00 MS Word/.pdf Ripwave Base Station Operations & Maintenance Guide 00-00046-00 MS Word/.pdf Ripwave RFS Configuration Quick Guide 40-00067-00 MS Word/.pdf EMS Diagnostic Tools Guide 40-00032-00 MS Word/.pdf Ripwave Modem Quick Installation Guide 40-00112-00 MS Word/.pdf English 40-00098-00 MS Word/.pdf Spanish 40-00096-00 MS Word/.pdf Ripwave Modem User Guide 40-00111-00 MS Word/.pdf English 40-00097-00 MS Word/.pdf Spanish 40-00099-00 MS Word/.pdf Ripwave Modem Software Update Tool Guide 40-00066-00 MS Word/.pdf

A separate CD specifically created for personnel involved with installation and commissioning of the Ripwave system, called “VAR I&C Documentation”, may be ordered by authorized business partners and customers. The CD includes detailed procedures and electronic forms that are used during the I&C process. Table 2 contains a partial listing of the files on this CD, while

Appendix A provides the complete list. The I&C forms found on the CD are referenced

throughout this manual, and copies are included in the appendices.

Table 2: VAR I&C Documentation CD

Order Number 95-00017-00 Part Number Format

RFS Omni & Panel Data Sheets 44-00037/38-00 Excel (includes drawings) Site Candidate Evaluation Form 40-00091-00 Excel Spreadsheet RFS System Test Form 40-00093-00 Excel Spreadsheet Base Station Calibration Verification Form 40-00059-00 Excel Spreadsheet Drive Study Survey Form 40-00076-00 Excel Spreadsheet Location (FTP) Test Form 40-00077-00 Excel Spreadsheet Customer Acceptance Form 40-00117-00 MS Word Document BTS Outdoor Selection Guide 44-00035-00 MS Word Document Rectifier/Battery Backup Specification 44-00036-00 MS Word Document

Format

18 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

I&C Process Flowchart

To put the I&C activities in the context of overall system deployment, Figure 2 provides a ‘flow’ of the key activities that are performed prior to and during the installation and commissioning of the Ripwave Base Station. Post-I&C, the system that has been installed and commissioned goes through Acceptance Testing against the customer’s objectives for that site. Once customer signoff on the site is achieved, the customer becomes fully responsible for operating the system.

Different job holders may perform various portions of these activities and not necessarily all of the activities. In fact, Marketing and Engineering personnel typically handle the earlier tasks, while installation may be a stand-alone function. Commissioning may or may not be handled by the same people who designed or installed the site. Regardless of who does them, these key activities have to be accomplished for successful deployment:

• Site Engineering

• Installation

• Commissioning

• Acceptance Testing and sign-off

Prior to installation, Navini and the customer formulate a Project Plan and Responsibility Assignment Matrix (RAM) to clarify who will do what to complete the I&C activities. If requested by the customer, Navini may provide personnel, procedures, forms, and/or tools required to install and commission the Base Station equipment. They may also provide special commissioning software programs, computers, and any other special test equipment required.

As part of the I&C duties, all testing results are recorded and kept for the customer to review and approve. These test results include the cable sweeps, the BTS Calibration Verification, RF System Tests, Drive Study, Line-of-Sight (LOS) FTP tests, and Non-Line-of-Sight (NLOS) FTP test results. The I&C Supervisor provides site tracking and weekly status reports. All of these tasks can be negotiated with the customer.

If Navini Networks is hired by a customer to provide Installation & Commissioning Services, involvement and some actual deliverables are still required by the customer. For example, the customer will need to review or perhaps even explain their Site Design Specifications, approve Logistics Plans, provide shipping information, approve the Network Architecture Plan, etc.

As part of a successful hand-off from Navini to the customer, it is usually necessary for Navini to provide some product training to customer personnel who will support the Base Station operation on-going. Customers may opt to take on a Train-the-Trainer program, in which case Navini certifies the customer’s instructors who then provide staff training thereafter.

Part #40-00047-00 Rev D v1.0 19 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Figure 2: I&C Process Flowchart

Site Engineering

1-Complete Project Plan

for customer

2-Generate coverage

prediction map

3-Conduct site survey

& complete the Site

Candidate Evaluation Form.

Complete the Interference

Analysis/CPE Site Survey

Tool.

Appendix B:

Appendix B: Site Candidate

Site Candidate Evaluation Form

Evaluation Form

4-Acquire chosen customer

site information

5-Perform Network

Architecture design

6-Develop Bill of Materials

(BOM)

Sample BoM provided

Sample BoM provided in Appendix P

in Appendix P

7-Acquire materials

8-Confirm customer

backhaul & EMS Server

backhaul & EMS Server Hardware & FTP Server

Hardware & FTP Server

are installed & operational

End

Click here to link to Appendix B or to Appendix P.

20 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Figure 2: I&C Process Flowchart, cont’d.

Installation

1-From shipping containers received at

customer site, gather Manufacturing’s inventory

sheet & test data collected from the BTS & RFS

equipment shipped. Verify all equipment arrived,

the test data is available, & serial numbers match

paperwork. Keep as part of customer site records.

2-Install all system buss

bars & surge protectors

3-Install & sweep RF

cables. Record results on

RFS System Test Form.

4-Install & sweep

GPS cables

Appendix C:

Appendix C: RFS System

RFS System Test Form

Test Form

5-Test & install

data/power cable

6- If required, install

BTS mounting rack

7-Install BTS chassis

8-Install & verify

BTS & RFS grounding

A

Click here to link to Appendix C

.

Part #40-00047-00 Rev D v1.0 21 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Figure 2: I&C Process Flowchart, cont’d.

Click here to link to Appendix D.

11-Sweep the RFS. Record the results

and the RFS serial numbers on the RFS

13-Sweep installed RFS & cables to verify

connections & cable loss. Record results on

14-Verify digital cards & PA cards are

15-Record serial numbers & version

numbers of digital & PA cards on the Base

Station Installation Certification Form.

16-If required in Responsibility Assignment

Matrix (RAM), test the backhaul to the

9-Install & verify DC

input power source to BTS

10-Install GPS antennas

System Test Form.

12-Install RFS & surge protectors.

Connect 9 RF cables & data/power

cable to the RFS.

RFS System Test Form.

installed & seated properly.

customer demarcation point.

A

B

Appendix D:

Appendix D: Base Station

Base Station Installation

Installation Certification

Certification Form

Form

22 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Figure 2: I&C Process Flowchart, cont’d.

17-Provide printed package of measured

results & equipment inventory to

customer on-site.

18-Go over results using forms &` get

18-Go over results using forms &` get customer sign-off on Installation using

customer sign-off on Installation using Base Station Site Installation Form.

Base Station Site Installation Form.

B

End

Part #40-00047-00 Rev D v1.0 23 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Figure 2: I&C Process Flowchart, cont’d.

Commissioning

1-Review customer network plans

(i.e., T1 vs. Ethernet)

2-Are you using

4-Enter the RFS configuration

4-Enter the RFS configuration by running the RFS script that

by running the RFS script that

shipped with the antenna eqpt.

2-Are you using

the customer

EMS Server

?

Yes

3b-Install & configure* the

customer EMS Server &

Client. Connect to the BTS.

No

3a-Install & configure* the Test

EMS Server & Client. Connect

to the BTS.

*Appendix E:

*Appendix E: Configuration

Configuration Data Forms

Data Forms

5-Verify all cables are

connected

6-Power up BTS & reconfigure Boot

Line configuration data through the

serial port.

7-After BTS has been powered up

at least 15 minutes, perform

3 calibrations.

8-Pass

calibration

?

Yes

A

No

9a-Perform system

troubleshooting procedures.

Click here to link to Appendix E.

24 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Figure 2: I&C Process Flowchart, cont’d.

A

9b-Perform Base Station calibration

Verify and record measurements on the

Base Station Calibration Verification Form.

10-Pass

No

calibration

verification

?

No

11a-Perform system

troubleshooting procedures

Appendix F:

Appendix F: Base Station

Base Station Calibration

Calibration Verification

Verification Form

Form

Yes

11b-Perform local “wireline”

Yes

CPE test

12-Wireline

CPE test

pass

?

Yes

No

13-Perform local over-the-air

(OTA) CPE test

14-OTA

CPE test

pass

?

No

Yes

B

Click here to link to Appendix F.

Part #40-00047-00 Rev D v1.0 25 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Figure 2: I&C Process Flowchart, cont’d.

B

15-’Test’

EMS used

?

No

C

Yes

16-Install & configure the

customer EMS Server & Client.

Connect to the BTS.

Yes

17-Verify EMS Server

& BTS connectivity.

18-Perform calibration. Ensure

successful results 3 times.

D

26 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Figure 2: I&C Process Flowchart, cont’d.

D

*NOTE: Step 19 is performed

*NOTE: Step 19 is performed only if no RF plot is available.

only if no RF plot is available.

C

19*-Validate that the GPS & constellation

debugger are installed & operational on

the Drive Study computer. Perform

preliminary Drive Study. Record results

on the Drive Study Form.

Appendix G:

Appendix G: Drive Study

Drive Study Form

Form

Appendix H:

20-Perform preliminary LOS Location

(FTP) testing. Perform 3 uploads & 3

downloads at 3 locations. Record results on

the FTP Test Form.

Appendix H: FTP Test

FTP Test Form

Form

21-Perform preliminary NLOS Location

(FTP) testing. Perform 3 uploads & 3

downloads at 3 locations. Record results on

the FTP Test Form.

22-Send all preliminary test results

to Navini Technical Support

for evaluation.

23-Results

adequate

?

Yes

24a-Adjust RF parameters &

No

troubleshoot. Go back to

Step 17, Perform calibration.

E

Click here to link to Appendix G. Click here to link to Appendix H.

Part #40-00047-00 Rev D v1.0 27 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Figure 2: I&C Process Flowchart, cont’d.

E

24b-Perform full Drive Study, & record

results on the Drive Study Form.

This is used for tuning the model.

25-Perform full LOS Location

(FTP) testing. Record results.

26-Perform full NLOS Location

(FTP) testing. Record results.

27-Send test results to

Tech Support

28-Verify system operation with

multiple CPE devices.

29-Back up the EMS database

30-Gather all required documents &

30-Gather all required documents & forms to create a delivery package

forms to create a delivery package for the customer sign-off & for the

for the customer sign-off & for the Navini Technical Support database.

Navini Technical Support database.

31-Participate in customer sign-off

of Customer Acceptance Form.

End

Appendix I:

Appendix I: Customer

Customer Acceptance

Acceptance Form

Form

Click here to link to Appendix I.

28 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Base Station Components

Base Transceiver Station (BTS)

The BTS consists of the RF Power Amplifiers (PA’s), the digital circuit cards, the backplane, and the mechanical enclosure or housing. It performs the signal processing and RF transmission for the system. There are two types of chassis: Combo and Split. The Combo Chassis is used primarily with 2.4 GHz systems. The Split Chasses is used for all other (2.3, 2.5, 2.6 GHz) systems (Figure 3).

The chassis is compartmentalized into two sections - the RF shelf and the Digital shelf. The BTS connects to the network using a 10/100 Base-T Ethernet connection or up to 8 T1 interfaces. Up to three BTS assemblies can be installed per system, depending on the configuration.

Figure 3: BTS Chassis

RF Shelf

(Power Amplifiers)

Digital Shelf

(Circuit Cards)

Combo Chassis Split Chassis

Part #40-00047-00 Rev D v1.0 29 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Radio Frequency Subsystem (RFS)

The Radio Frequency Subsystem (RFS) is mounted on a transmission tower or building rooftop. It transmits and receives data to and from the Ripwave Customer Premise Equipment (CPE) using a digital beamforming transmission technique. The RFS may be either a panel antenna or an omni antenna (Figure 4).

An RFS panel transmits in a directional mode, covering a transmit angle of 120 degrees. The antenna can be used as a single mode antenna, or it can be used in a group of two or three sectored antennas, covering 240 and 360 degrees respectively. Each panel requires a BTS to operate. For example, in a tri-sectored cell with 3 panels, you would need 3 BTS’s. The omni antenna provides omni-directional coverage of 360 degrees.

An RFS panel or omni contains eight (8) antenna elements, cavity filters, and, optionally, low noise amplifiers (LNA). For downtilt, the omni must be situated as it comes from the factory. A panel’s downtilt can be adjusted at the site. The higher up the antenna is placed, the more downtilt it typically required.

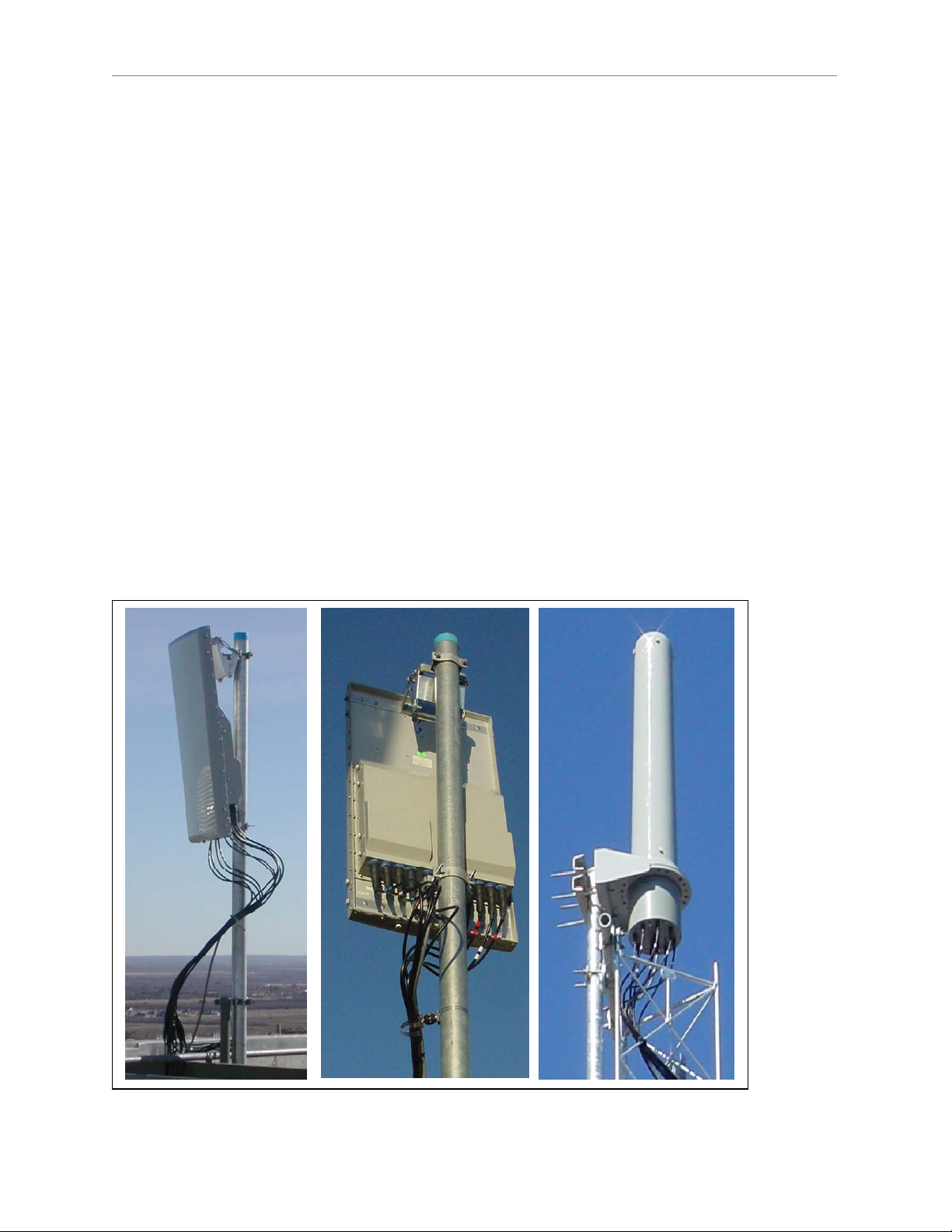

Figure 4: RFS

Panel (Front)

OmniPanel (Back)

30 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Global Positioning System (GPS)

One or two Global Positioning System (GPS) antennas are used with each Base Station. A GPS antenna works with a constellation of satellites that orbit the earth, and it provides the ability to pinpoint geographical locations. The two types of GPS antennas that may be ordered with a Ripwave Base Station are the VIC 100 and the Motorola Timing 2000 (Figure 5).

Figure 5: GPS Antennas

VIC 100 GPS

Motorola Timing

Motorola Timing 2000 GPS

2000 GPS

Part #40-00047-00 Rev D v1.0 31 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Mounting Racks & Enclosures

The BTS can be installed indoors or outdoors in industry standard 19- or 23-inch racks. Rack adapters are needed to mount the equipment in a standard 23-inch rack. For outdoor BTS’s, the customer can supply any standard enclosure from a multitude of vendors. Appendix J offers suggestions for outdoor BTS enclosures. Figure 6 shows 3 BTS’s installed indoors.

Figure 6: Indoor BTS

Data/Power Cable Lightning Arrestors Across TopData/Power Cable Lightning Arrestors Across Top

32 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

General Specifications

Input Power

The BTS requires +21 to 28 VDC power supply rated at 60 amps. Installers are referred to industry standards for power supply installations.

Humidity

The operating environment of the BTS must control relative humidity to 5% to 95% RH, noncondensing.

Heat Dissipation

The combo BTS chassis, under normal operating conditions, will dissipate a maximum of 1000 Watts or 3415 BTU’s. The split chassis will dissipate a maximum of 1500 watts.

Airflow

Fresh air intake for the BTS chassis is along the lower front vertical panel. Exhaust is out of the upper rear of the chassis. The I&C crew must ensure there are no obstacles to airflow present in these areas. Exhaust air from other equipment should not mix with the BTS fresh air intake.

Accessibility

The BTS is intended for installation and use only in a restricted access location.

Part #40-00047-00 Rev D v1.0 33 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

(

Base Station Specifications

Current Ripwave operating frequencies include those shown in Table 3. Testing on other frequencies is underway and soon will be commercially available.

Table 3: Operating Frequencies

Model Frequency Range Operating Band Chassis

2.3 GHz

2.4 GHz

2.5 GHz

2.6 GHz

2.305 GHz to 2.359 GHz WCS

2.40 GHz - 2.473 GHz ISM

2.50 GHz - 2.595 GHz MMDS/ITFS

2.602 GHz – 2.637 GHz MMDS/ITFS

Split Combo Split Split

The Ripwave Base Station can be in a combo chassis or split chassis system. The split chassis is for MMDS bands only; it is not available for 2.4 GHz systems. The specifications for the combo and split chassis are shown in Tables 4 and 5.

Table 4: Combo Chassis System (ISM Systems)

Antenna Downtilt:

Antenna Gain: Antenna Options: Backhaul Interfaces:

Bandwidth Allocation: Baseband Modulation: Beamforming Gain: Configurations: DC Power Consumption: Duplex Format: Mechanical Dimensions:

Multiple Access Schemes: Operational Frequency Band: Operational Temperature: Polarization: Power Control: Regulatory: Reliability/Availability: RF Channel Bandwidth: RF Output Power (per channel): Sensitivity: Serviceability: Spreading Spectrum Scheme: Storage Temperature: System Features:

2 & 4 degree options for Omni-directional; Mechanical for 120 degree Sectored 12dBi Omni-directional, 17 dBi for 120-degree Sectored Omni-directional or 120-degree Sectored 10/100 BaseT Ethernet or ATM over T1; up to (8) T1’s with or without IMA, long haul support Dynamic Uplink QAM4 18dB Omni-directional or Sectored; Indoor or Outdoor 21VDC to 28VDC @ 40 amps; 1000 watts Time Division Duplexing (TDD) 30’’x19’’x14’’ for indoor BTS (single cell/sector), 60“x15”diameter for omni RFS antenna, 46”x23” sectored RFS antenna Multi-carrier Beamforming Synchronized (MCBS) CDMA See Table 3 0 to +50 degrees C (indoor); -40 to +50 degrees C (outdoor) Vertical Forward & reverse, open & closed loop UL 1950, FCC part 15 Load-sharing 6MHz 5 watts max

-114 dBm/single channel (NF of 5dB) Field replaceable cards, EMS remote reset Direct Sequence Spreading (DSS)

-40 to +70 degrees C Reed Soloman forward error correction

FEC), congestion control, automatic

34 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

repeat request (ARQ), extensive GoS/QoS mechanisms

System Throughput: Up/down Link Duplex: Upgradeability: Weight:

12 Mbps (fully loaded max raw data rate downstream + upstream) Symmetrical TDD Software downloads 100 lbs (indoor BTS), 64 lbs (RFS antenna)

Table 5: Split Chassis System (MMDS & WCS Systems)

Antenna Downtilt:

Antenna Gain: Antenna Options: Backhaul Interfaces:

Bandwidth Allocation: Baseband Modulation: Beamforming Gain: Configurations: DC Power Consumption: DC Power Interface: Duplex Format: Humidity: Mechanical Dimensions:

Multiple Access Schemes: Operational Frequency Band: Operational Temperature: Polarization: Power Control: Regulatory: Reliability/Availability: RF Channel Bandwidth: RF Output Power (per channel): Sensitivity: Serviceability: Spreading Spectrum Scheme: Storage Temperature: System Features:

System Throughput: Up/down Link Duplex:

Upgradeability: Weight:

2 & 4 degree options for Omni-directional; Mechanical for 120 degree Sectored 12dBi Omni-directional, 17 dBi for 120-degree Sectored Omni-directional or 120-degree Sectored 10/100 BaseT Ethernet or ATM over T1; up to (8) T1’s with or without IMA, long haul support Dynamic Uplink QAM4 18dB RFS Omni-directional or Sectored. 1 BTS per antenna. 21VDC to 28VDC; 1353 Watts typical, 1500 Watts maximum 2 - ¼” lugs for +24V DC and 24V return. Time Division Duplexing (TDD) 0 to 95% non-condensing Digital: H19.2” X W19.0” X D12.9” (add ~1.3” to D with modules installed). RF: H14.0” X W19.0” XD15.2” (add ~1.5” to D with modules installed). Multi-carrier Beamforming Synchronized (MCBS) CDMA See Table 3 0 to +50 degrees C (indoor); -40 to +50 degrees C (outdoor) Vertical Forward & reverse, open & closed loop UL 1950, FCC part 15 Load-sharing 6MHz 5 watts max

-114 dBm/single channel (NF of 5dB) Field replaceable cards, EMS remote reset; Front and rear access required Direct Sequence Spreading (DSS)

-40 to +70 degrees C Reed Soloman forward error correction (FEC), congestion control, automatic repeat request (ARQ), extensive GoS/QoS mechanisms 12 Mbps (fully loaded max raw data rate downstream + upstream) Symmetrical or Asymmetrical TDD with a maximum of 3:1 ratio for down/up allocations Software downloads Digital Shelf 35 lbs + RF Shelf 82 lbs.

Part #40-00047-00 Rev D v1.0 35 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

N

Materials Specifications

The Base Station installation requires general materials and parts for installation. In Table 6 is a partial list of the items that may be used for a typical installation of the Ripwave Base Station. A more complete list is provided in Appendix O. The quantity and use of materials will vary depending on the specific installation. The lists in Table 6 and in Appendix O are based on a 150-foot site.

Table 6: Materials Specifications

Base Station General Materials Requirements List

BTS Install Kit 96-05000-00 Description Supplier Rqd Qty

GROUNDING

Lightning Rod Lightning Rod - 8' MTS

Ground Rod Tinned copper ground rod, 5/8" x 8' MTS

Ground Wire # 2 Stranded green ground wire MTS 50 Ft

Ground Wire # 6 AWG Stranded Green Wire LOCKE 50 Ft

Ground Buss Bar (Tower) Ground buss bar kit, 1/4" x 2-1/2" x 12-1/2" MTS 1 Kit

Ground Buss Bar (Shelter) Copper Gnd buss bar, 1/4" x 4", drilled to 5/8" ALT 1 Kit

Ground Lug #6, One Hole T&B 3 Pcs

Ground Lug #6, Two Hole T&B 6 Pcs

Ground Lug #2, Two Hole T&B 2 Pcs

Grounding Kit (1/2"), LMR600 STD Ground kit, LMR-600, 5' x 3/8" 2 hole lug MTS 27 Kits

Grounding Kit (3/8"), LMR400 STD Ground kit, LMR-400, 5' x 3/8" 2 hole lug MTS 2 Kits

Grounding Kit (1/2"), RF-1/2" Ground Kit, RF-1/2", 2 hole lug

Universal Grounding kits Universal grounding kit, 3' with 3/8" 2 hole lug MTS

ANTENNA SYSTEM

RFS Antenna Omni Antenna

RFS Surge Protector RFS surge protector POLYPHASER 9 Pcs

RFS Antenna Mount Omni Antenna Mount MTS 1 Kit

Weatherproofing kits Universal weatherproofing kit, Large MTS 2 Kits

RFS Antenna Power Cable RFFE Power/Data Main Cable assembly Probity 1 Kit

RFS Antenna Jumper Cable RFFE Power/Data Jumper cable, 10 Feet. Probity 1 Kit

Mounting Clamps Crossover Clamp, 1.5" x 3.5" OD MTS 1 Kit

Mounting Clamps Pipe to pipe clamps, kit of 2 MTS 1 Kit

MAIN FEEDER

RFS Cable LMR 600, 1/2" coaxial cable HUTTON/TIMES 1350 Ft

RFS Type N Male Connectors EZ600 N type, Male connectors HUTTON/TIMES 36 Pcs

Hoisting Grips Pre-laced Hoisting Grip, 1/2" MTS 10 Pcs

Cushion Hangers 1/2" Cushion hanger assembly, 5H, 1/2", kit of 5 MTS 12 kits

Cushion Hangers 3/8" Cushion hanger assembly, 6H, 3/8" for LMR400 MTS

Angle Adapter Adapter, Galvanized, Angle kit of 10 MTS

Cross Cushion Hanger Mounts Cross cushion hanger mount, kit of 5 MTS 6 Kits

Universal Hanger 1/2" Hanger, Universal, Snap-In, 1/2", kit of 10

Support Blocks Mini Coax Support Blocks, kit of 10 MTS 2 Kits

RFS Connector

MALE, N TYPE, 3/8 INCH

MALE, N TYPE, 5/8 INCH

MALE, N TYPE, 1/2 INCH

MALE, N TYPE, 7/8 INCH

K Cables

avini

K Cables

36 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

N

RFS Connector

Weatherproofing

RFS Cable

FEMALE, N TYPE, 5/8 INCH

FEMALE, N TYPE, 7/8 INCH

STRAIGHT PLUG, EZ PIN, FEMALE (LMR400) HUTTON/TIMES

RIGHT ANGLE, EZ PIN, MALE (LMR400) HUTTON/TIMES

RIGHT ANGLE, SOLDER PIN, MALE (LMR400) HUTTON/TIMES

STRAIGHT, SOLDER PIN,MALE (LMR400) HUTTON/TIMES

Sealing Compound, Coax Cable Connector

CABLE, COAX, RF, CORRUGATED, 3/8 INCH

CABLE, COAX, RF, CORRUGATED, 5/8 INCH

CABLE, COAX, RF, CORRUGATED, 1/2 INCH

CABLE, COAX, RF, CORRUGATED, 7/8 INCH

K Cables

GPS SYSTEM

GPS Antenna GPS Antenna, N-type Female Motorola 2 Pcs

GPS Surge Protector GPS surge protector, Redundant POLYPHASER 2 Pcs

GPS Surge Protector GPS surge protector, Non-redundant POLYPHASER 1 Pc

GPS Cable LMR400, 3/8" coaxial cable HUTTON/TIMES 200 Ft

GPS Type N Male Connectors EZ400 N type, Male connectors HUTTON/TIMES 8 Pcs

ENTRY PORT SYSTEM

Goose Neck - J type Hood entry TBD

Feed Thru Entry Panel TBD

Boot Assembly Kits Boot Assembly Kit, 4" w/ 4 holes (LMR 600) MTS 4 Kits

BTS SYSTEM

Ripwave 2400 BTS

avini

BTS Surge Protector BTS surge protector POLYPHASER 9 Pcs

24 VDC Power Supply Argus 1 Unit

DC Power Wire # 6 AWG, Stranded, RED Wire

DC Power Wire # 6 AWG, Stranded, BLACK Wire

BREAKER 24 VDC, 60A Distribution Breaker Argus

ROUTER CISCO 2600 Dual 10/100 ENET, WIC/NM Slots CISCO

SERIAL WAN Serial Interface WAN Card, One Port CISCO

T1-IMA MODULE Multiport T1/E1 Network Module with IMA CISCO

Air conditioning TBD

110 VAC Power Outlets TBD

Telco / Ethernet Connectors RJ45 TBD

MISCELLANEOUS

Expanding Foam Sealer TBD

Bolts (Ground) Bolt, Hex, 1/4-20 x 1.000 LG, SSPA QUESTRON

uts (Ground)

ut, Reg, Hex, Cres, 1/4-20UNC QUESTRON

Flat Washer (Ground) Wash, Flat, Cres, #6 T-B-Reg .156x.438x.040 QUESTRON

Lock Washer (Ground) Wash, Lock. Split, Cres 1/4, Reg .252x.487x.062 QUESTRON

Star Washer (Ground)

Star Washer (BTS Chassis Ground)

ut (BTS, Power/Data Surge P)

Equipment Open Rack

Wash, Star, 1/4

Wash, Star, #10

ut, Hex, #10-24

Rack, 19" x 72" with 1/4" x 1" holes

QUESTRON

CHATSWORTH

Tie wraps TBD

Split Bolt #2/0 TBD

Uni-Struts TBD

Anchor/Expansion Bolts TBD

Cable Ladder TBD

Part #40-00047-00 Rev D v1.0 37 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

38 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Chapter 2: Installation

Pre-installation

As was shown in Figure 2, prior to installation a number of planning activities take place. The installation itself takes only about 2 days. The I&C crew usually is not involved with all the preinstallation activities. Of these, they are likely to be most involved in the Site Candidate Evaluation.

Project Plan

A Project Plan is a document that lays out the work to be done, the objectives of the project, the schedule, resources required, and so forth. If Navini is performing the I&C activities, a Project Manager is assigned. The Project Manager prepares the Project Plan and shares it with the Navini and customer teams.

Coverage Prediction Map

Early in the planning of deployment of Ripwave Base Station equipment, an RF Engineer will go through the process of studying the RF environment of the candidate sites that the customer has identified. Readings are taken and analyzed at each site in order to predict what range of coverage can be expected from installing a Base Station at the site. Coverage predictions account for both Base Station performance as well as Marketing objectives with the service itself. The customer accomplishes the latter as part of the decisions concerning site selection.

Site Candidate Evaluation

Often Technicians will be very comfortable with either the networking side or the wireless side of the system, but not usually both. To evaluate a potential install site, a form is used to ensure all aspects of the site have been considered. Information is recorded on the form. Since each site is unique, the form helps to ensure nothing is taken for granted or assumed about the installation site for the Ripwave equipment. A copy of this form may be found in Appendix B places to capture the logistics of the site, tower or rooftop mount possibilities, GPS coordinates, type of antenna to be installed, whether or not an outdoor enclosure is provided, power availability, distance between connection points, ventilation, a place for drawings from every angle, etc. It is from this information that the site will be designed, then installed to plan.

. It includes

Part #40-00047-00 Rev D v1.0 39 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Interference Analysis

The RF Engineer(s) also analyzes existing interference from other sources, and takes that into account when creating the coverage prediction map. In addition to coverage, though, the interference analysis also helps to predict the quality of service, the power requirements to get above the noise floor, and other expectations regarding the site. This study will help Navini and the customer decide which type of system (frequency) and antenna (panel or omni) will provide the best results.

Network Architecture Plan

The IP Networking community involved in the project, both from Navini and the customer, work together to analyze and plan how the Ripwave system will be integrated into the customer’s network. Of course, they are looking for efficient operation of the system and seamless integration. They have to plan the traffic routing, IP addressing, protocol compatibility, and so forth.

Bill of Materials

Someone has to generate the Bill of Materials (BoM) - the actual equipment order to be manufactured and shipped to the installation site. Navini can provide part numbers and ordering information, as well as recommendations and other details that will assist customers in the correct placement of orders. There is a sample Bill of Materials in Appendix O.

Backhaul Connections

The Backhaul connections for the Ripwave Base Station consist of up to two (2) Ethernet cable connections with RJ-45 connectors for each BTS installed, OR, up to eight (8) T1 connections with RJ-48 connectors for each BTS. The quantity of each connection will depend on the site requirements. These connections need to be made available before installation begins.

Power Requirements for the Base Station

The input power source will be determined during the site survey. The DC power source needs to be an independent hard-wired circuit of 21VDC to 28VDC with a 50-amp breaker for the Combo Chassis and a 70-amp breaker for the Split Chassis. The power plant return bus must be connected to an earth ground connection similar to the Base Station chassis. Insulated #6 AWG cable is recommended. The combo chassis system generates up to 1000 Watts, and the split chassis system generates up to 1500 Watts maximum; however, 1353 Watts is typical.

40 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Ground Requirements for the Base Station

The Base Station requires an earth ground connection. This ground should exhibit a maximum of five ohms across true ground.

NOTE: The installation procedures, which begin next, follow the same order as shown in the I&C Flowchart in Figure 2.

An example of a Base Station drawing for a particular site is provided in Appendix P. An example of a written Statement of Work (SOW) and Responsibility Assignment Matrix (RAM) for installation and commissioning are provided in Appendices Q and R. This type of document may be used in negotiating work between companies and contractor services.

Part #40-00047-00 Rev D v1.0 41 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Install Power & Grounding

System Ground Buss Bar & Surge Protectors

The Base Station system ground buss bar and data/power cable surge protectors are mounted on the wall adjacent to the BTS rack or enclosure. They should be mounted per accepted telecom standards and procedures.

Step 1. Mount the data/power cable surge protectors (Figure 7) with the label ‘lines’ toward

the RFS and the label ‘BTS’ toward the BTS.

Step 2. Apply a thin coat of anti-oxidant joint compound to both sides of the system ground

buss bar to ensure proper connection between it and the surge protectors.

Figure 7: Data/Power Cable Surge Protector

To install the eight (8) antenna and one (1) cal cable surge protectors (Figure 8), and the one (1) or two (2) Global Positioning System (GPS) surge protectors (Figure 9) in the system ground buss bar, follow the steps below.

1. Install the rubber gasket into the groove in the surge protector.

2. Install the surge protector in the system ground buss bar with the surge side toward the antenna and the protected side toward the BTS.

3. Install the star washer and nut on the top of the surge protector. Torque the nut to 140-150 inch-pounds.

4. When finished, the mounted surge protectors in the buss bar will appear as in Figure 10.

42 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Figure 8: Antenna & Cal Cable Surge Protector

Figure 9: GPS Cable Surge Protector

Figure 10: Surge Protectors in Buss Bar

Part #40-00047-00 Rev D v1.0 43 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Antenna Ground Buss Bar

You should install the Antenna Ground Buss Bar on the mounting structure per accepted telecom standards and procedures (Figure 11). The location is decided on during the site survey and should be close to the RFS. Two or more buss bars may be installed per system.

Figure 11: Buss Bars

Antenna Buss BarBTS Buss Bar Antenna Buss BarBTS Buss Bar

System Ground Wiring

A minimum #6 stranded copper, green-coated wire and grounding hardware are used for ground connections. Install the system ground as a single-point connection between the system ground buss bars, the data/power surge protector, the BTS chassis, the BTS mounting rack, and the RFS antenna. Connect the system ground to earth ground. Apply anti-oxidant joint compound to all connections. Tighten all connections until secure.

44 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Install Cables

All cable connections are made using standard RF coaxial cable. The Navini Networks standard for cable connections from the GPS to the BTS is LMR 400, 3/8-inch coaxial cable. Other types of cable that are comparable may be used. Using Tables 7 and 8, determine the size and type of cable to be used in the installation of the Base Station.

Table 7: Active & Passive RFS Loss / Operating Parameters

PA Max

Output Power [dBm]

2.3 +38 +37 3.0 6.0 0 3.2 1.7 20 35 -95 -75

2.4 +37 N/A 4.0 9.5 0 3.2 1.7 10 25 -85 -65 -05

2.4 +37 N/A 3.0 4.5 0 3.2 1.7 18 30 -95 -70 -01

2.5 +39 +38 3.0 6.0 0 3.2 1.7 20 35 -95 -75

2.6

+39 +38 3.0 6.0 0 3.2 1.7 20 35 -95 -75

EF GH

2.6

+37 +35 3.0 4.5 0 3.2 1.7 20 35 -95 -75 -05

EF

* Channel filter for 2.5/2.6 or Block Filter for 2.3 has 1.0 +/- 0.2 dB Insertion Loss * Channel filter for 2.6 EF Combo is 1.8 +/- 0.2 dB including cable to backplane.

Table 8: Cable Attenuation in dB per 100 Feet

Cable Type 2 ¼″

Frequency/Size 2.350 1.980 2000 MHz 0.994 1.11 2400 MHz N/A 1.24 2500 MHz N/A 1.27 2600 MHz N/A 1.3 Weight lbs/ft 1.22 0.82 Bend Radius inches

BTS Max Output power with

CAL Cable Min

Loss *Filter [dBm]

1

LDF

5/8″

12-50

LDF 750A

24 20

LMR 1700

1.670

1.5

1.7

1.71

1.8

0.74

13.5

CAL Cable Max Loss

1 ¼″ LDF 650A

1.550

1.42

1.5

1.53

1.57

0.63 15

RF Cable Min Loss [dB]

LMR 1200

1.200

1.99

2.2

2.26

2.3

0.45

6.5

Active RFS Loss Typ [dB]

7/8″ LDF 550A

1.090

1.82

2.02

2.07

2.12

0.33 10

LMR 900

0.870

2.64

2.9 3

3.1

0.27 3

Passive RFS Loss Typ [dB]

5/8″ LDF

4.550A

0.865 0.630

2.27 3.25

2.52 3.63

2.58 3.70

2.64 3.78

0.15 0.15 8 5

TX Pwr to Ant Min [dBm]

½ ″ LDF 450A

TX Pwr to Ant Max [dBm]

LMR 600

0.590

3.9

4.3

4.42

4.5

0.13

1.5

½ ″ Super flex FSJ 450B

0.520

5.09

5.67

5.8

5.94

0.14 3

RX Power to Ant Min [dBm]

LMR 500

0.500

4.84

5.4

5.48

5.6

0.1

1.25

RX Power to Ant Max [dBm]

3/8″ LDF 250A

0.440

5.17

5.67

5.91

0.08

3.75

Notes

SYN

LMR 400

0.405 6

6.6

6.8

6.9

0.07 1

Part #40-00047-00 Rev D v1.0 45 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Cable Preparation

The cable run is determined during the site survey. Note that the length of the cables may need to be slightly different, depending on the position of the buss bar relative to the BTS.

• Cut nine (9) pieces of cable for the main feeder cables to connect the nine RFS

connectors to the surge protectors on the system ground buss bar. Leave enough extra length for the service loop below the RFS and for connection to the surge protectors.

• Cut eight (8) pieces of cable for the jumper cables to connect the surge protectors on the

system ground buss bar to the eight (8) RF input connectors on the back of the BTS. Leave enough extra cable length for service.

• Cut one (1) piece of cable for the jumper cable to connect the surge protector on the

system ground buss bar to the CAL connector on the back of the BTS. Leave enough extra cable length for service.

• Cut a piece of LMR 400 cable to connect each of the GPS antennas to the surge

protectors on the system ground buss bar. Leave enough extra cable length for service. The maximum length of the LMR 400 cable for the GPS antenna is 100 feet.

• Cut a piece of LMR 400 cable to connect the surge protectors on the system ground buss

bar to each GPS connector on the back of the BTS. Leave enough extra cable length for service. If there is more than one BTS co-located in the installation, two GPS antennas can serve all BTS’s in the installation.

• The cable from the GPS antenna (after it goes through the surge protector) is connected

to the antenna input of the GPS distribution amplifier (Figure 12). The output ports of the GPS distribution amplifier are connected to the GPS inputs of the BTS. The GPS distribution amplifier is powered by the GPS antenna input. The drawing in Figure 13 depicts the placement of the shared GPS resources among three BTS’s.

Figure 12: GPS Distribution Amplifier

46 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

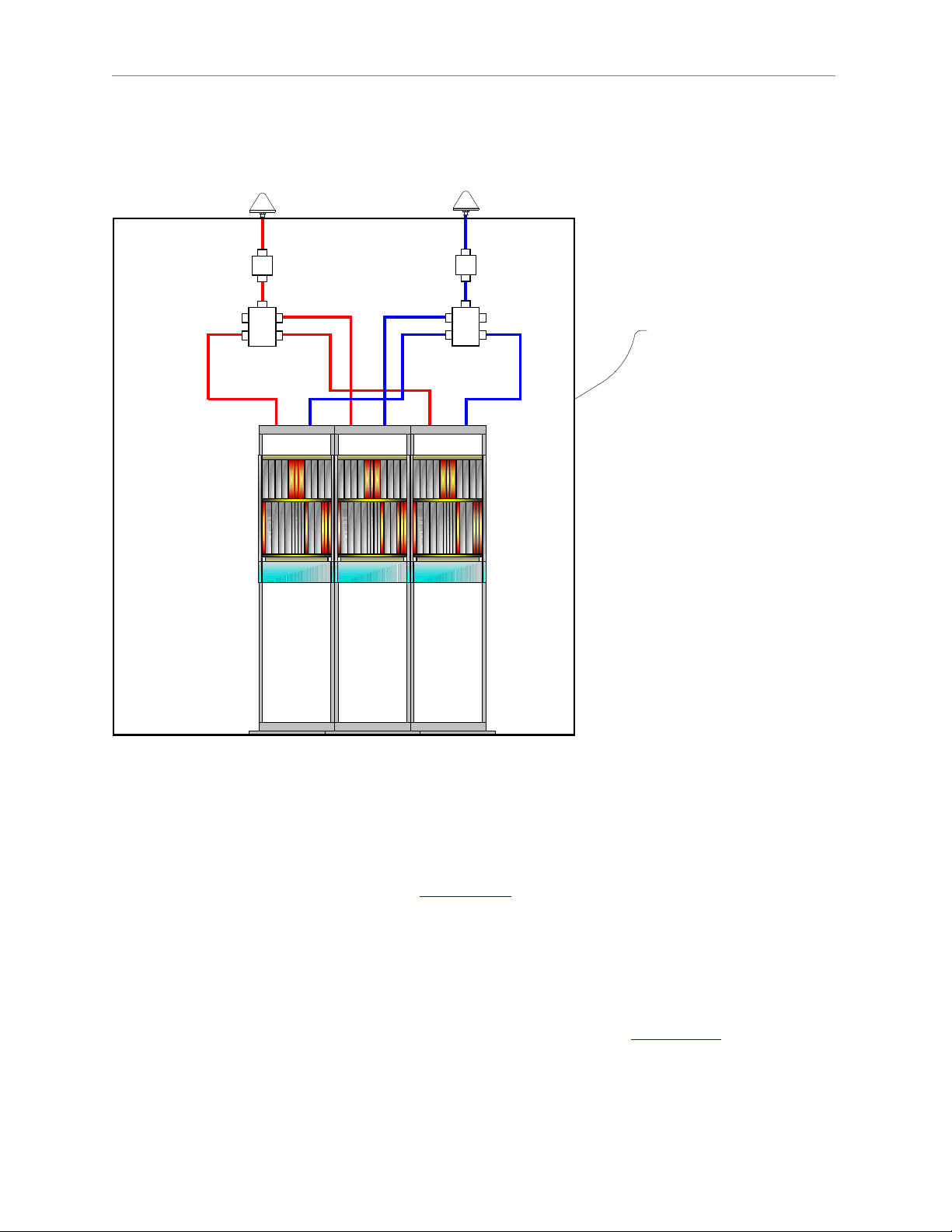

Figure 13: Depiction of GPS Distribution Amplifier

GPS 1

GPS 2

Polyphaser

Distribution Amp

SHELTER

BTS 1

BTS 2

BTS 3

Install Connectors on Cables

Install connectors on both ends of each cable. For LMR 600 cables, install EZ-600 N-type male connectors. For LMR 400 cables, install EZ-400 N-type male connectors. Steps for installing both types of connectors can be found in Appendix K. For reference, Appendix L also provides a list of vendors who can make cables.

Sweep Individual Cables

Sweep each individual cable, the RFS (8) and CAL main feeder and jumper cables, to check for line loss. Follow the instructions for sweeping the cables provided in Appendix C, entering the results in the RFS System Test Form. Check continuity of the data/power cable. When finished, cover the cable connectors for protection until they are connected to the RFS or GPS.

Part #40-00047-00 Rev D v1.0 47 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Connectorize & Run Cables

Connect all of the RF cables to the surge protectors in the system ground buss bar. An example of a buss bar connection is shown in Figure 14. Ensure that the proper cable is connected to the proper surge protector. Connect the power/data cable to its surge protector. Also connect all the jumper cables to the surge protectors that will attach to the BTS. Do not connect these cables to the BTS at this time. Torque all the cable connectors to the surge protectors on the system ground buss bar to 20-24 inch-pounds.

Figure 14: Buss Bar Connections

Route all of the cables – RFS (8), CAL, DATA/POWER and GPS (1 or 2) - between the system ground buss bar and the RFS, and GPS mounting sites. If running the cables up a tower, use a hoisting grip to lift the cables (Figures 15 and 16).

RFS 1 - 4 RFS 5 - 8CAL

GPS 1 GPS 2

48 Part #40-00047-00 Rev D v1.0

February 28, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Figure 15 : Omni Cable Routing

Calibration CableCalibration Cable

RF CablesRF Cables

Data/Power CableData/Power Cable

Figure 16: Panel Cable Routing

RF Cables

Data/Power

Data/Power Cable

Cable

Calibration Cable

Part #40-00047-00 Rev D v1.0 49 February 28, 2003

Ripwave Base Station I&C Guide Navini Networks, Inc.

Install the BTS

Install Mounting Rack or Enclosure

The BTS mounting rack (Figure 17) or enclosure is to be installed in compliance with applicable portions of the National Electrical Code (NEC), articles 800 and 810. You will need to adhere to local installation standards, as well as Navini Networks standards and procedures. Refer to

Appendix J

Figure 17: BTS Mounting Rack

for guidelines on outdoor BTS enclosures.

50 Part #40-00047-00 Rev D v1.0

February 28, 2003
