Cisco 827 and SOHO 77 Routers Hardware Installation Guide

Customer Order Number: DOC-786854=

Text Part Number: 78-6854-03

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Pac ke t , PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, StrataView Plus, TeleRouter, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0502R)

iii

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Preface v

Audience v

Organization v

Conventions v

Related Documentation

In addition to this Cisco 827 Routers and SOHO 77 Hardware Installation Guide, the documentation for the Cisco 827 routers includes the following:

• Cisco 820 Series and SOHO Series Router Cabling and Setup Quick Start Guide

• Cisco 827 Routers Software Configuration Guide

• Cisco 827 Routers Release Notes

• Software Enhancements for the Cisco 800 Routers and SOHO Routers

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Documentation DVD

Cisco documentation and additional literature are available in a Documentation DVD package, which may have shipped with your product. The Documentation DVD is updated regularly and may be more current than printed documentation. The Documentation DVD package is available as a single unit.

Registered Cisco.com users (Cisco direct customers) can order a Cisco Documentation DVD (product number DOC-DOCDVD=) from the Ordering tool or Cisco Marketplace.

¡Atención!

Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes.

Varning!

Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador.

viii

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Preface

Documentation Feedback

Cisco Ordering tool:

http://www.cisco.com/en/US/partner/ordering/

Cisco Marketplace:

http://www.cisco.com/go/marketplace/

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

• Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from

the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/

• Nonregistered Cisco.com users can order documentation through a local account representative by

calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 1 800 553-NETS (6387).

Documentation Feedback

You can send comments about technical documentation to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:

Cisco Systems Attn: Customer Document Ordering 170 West Tasman Drive San Jose, CA 95134-9883

We appreciate your comments.

Cisco Product Security Overview

Cisco provides a free online Security Vulnerability Policy portal at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

From this site, you can perform these tasks:

• Report security vulnerabilities in Cisco products.

• Obtain assistance with security incidents that involve Cisco products.

• Register to receive security information from Cisco.

A current list of security advisories and notices for Cisco products is available at this URL:

http://www.cisco.com/go/psirt

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Preface

Obtaining Technical Assistance

If you prefer to see advisories and notices as they are updated in real time, you can access a Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:

http://www.cisco.com/en/US/products/products_psirt_rss_feed.html

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you might have identified a vulnerability in a Cisco product, contact PSIRT:

• Emergencies— security-alert@cisco.com

• Nonemergencies— psirt@cisco.com

Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to encrypt any sensitive

information that you send to Cisco. PSIRT can work from encrypted information that is compatible with PGP versions 2.x through 8.x.

Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one that has the most recent creation date in this public key server list:

http://pgp.mit.edu:11371/pks/lookup?search=psirt%40cisco.com&op=index&exact=on

In an emergency, you can also reach PSIRT by telephone:

• 1 877 228-7302

• 1 408 525-6532

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, Cisco Technical Support provides 24-hour-a-day, award-winning technical assistance. The Cisco Technical Support Website on Cisco.com features extensive online support resources. In addition, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not hold a valid Cisco service contract, contact your reseller.

Cisco Technical Support Website

The Cisco Technical Support Website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, 365 days a year, at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Preface

Obtaining Technical Assistance

Note Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting

a web or phone request for service. You can access the CPI tool from the Cisco Technical Support Website by clicking the Too l s & R e sou r c es link under Documentation & Tools. Choose Cisco Product

Identification Tool from the Alphabetical Index drop-down list, or click the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by product ID

or model name; by tree view; or for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco TAC engineer. The TAC Service Request Tool is located at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco TAC engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227) EMEA: +32 2 704 55 55 USA: 1 800 553-2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.

Severity 1 (S1)—Your network is “down,” or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Preface

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online and printed sources.

• Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit

Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

• Cisco Press publishes a wide range of general networking, training and certification titles. Both new

and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:

http://www.ciscopress.com

• Pack et magazine is the Cisco Systems technical user magazine for maximizing Internet and

networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/packet

• iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies

learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

• Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering

professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

• World-class networking training is available from Cisco. You can view current offerings at

this URL:

http://www.cisco.com/en/US/learning/index.html

xii

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Preface

Obtaining Additional Publications and Information

CHA P TER

1-1

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Product Overview

The Cisco 827 and SOHO 77 routers can connect a corporate telecommuter or small office to an Internet service provider (ISP) over asymmetric digital subscriber line (ADSL) lines to the following types of networks:

• Corporate LANs

• Internet

The routers are capable of bridging and multiprotocol routing between LAN and WAN ports.

1-2

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Features

Table 1-1 summarizes the features of the Cisco 827 series and SOHO 77 series routers.

Router Overview

Table 1-2 tells how many Ethernet and telephone ports each Cisco 827 router and SOHO 77 router has.

Table 1-1 Cisco 827 and SOHO 77 Routers Features Summary

Feature Routers Description

10BASE-T Ethernet port(s)

All Provides connection to 10BASE-T (10-Mbps) Ethernet

networks. Compatible with 10/100-Mbps devices.

ADSL port All Provides connection to ADSL network.

Telephone ports Cisco 827-4V Provides connection to telephone or fax machine

connected to telephone services through ADSL line.

Flash memory

• Cisco 827-4V

• Cisco 827H

• Cisco 827

• SOHO 77H

• SOHO 77

• 12 MB of Flash memory.

• 8 MB of Flash memory.

Dynamic RAM (DRAM)

• Cisco 827-4V

• Cisco 827H

• Cisco 827

• SOHO 77H

• SOHO 77

• 16 MB of DRAM and 8-MB DIMM card.

• 16 MB of DRAM. Supports 4-,8-, or 16-MB DIMMS.

• 16 MB of DRAM.

Ease of installation All Color-coded ports and cables to reduce the chance of

error.

Cisco IOS software All Supports Cisco IOS software.

Cisco Router Web Setup

All Provides a web-based software tool for basic

configurations.

Console port All Provides connection to terminal or PC for

troubleshooting and for software configuration using command-line interface.

Cable lockable

• Cisco 827-4V

• Cisco 827

• SOHO 77

Provides complementary feature for physically securing router.

Locking power connector

All Locks power connector in place.

Wall-mounting feature All Brackets on router bottom provide for mounting the

router on a wall or vertical surface.

1-3

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Router Overview

Front Panels

Figure 1-1 through Figure 1-3 show the front panels of the Cisco 827 routers.

Figure 1-1 Cisco 827-4V Front Panel

Figure 1-2 Cisco 827H Front Panel

Figure 1-3 Cisco 827 Front Panel

Figure 1-4 and Figure 1-5 show the front panels of the SOHO 77 routers.

Table 1-2 Router Ports

Router Ethernet Ports Telephone Ports

Cisco 827-4V 1 4

Cisco 827H 4 0

Cisco 827 1 0

SOHO 77H 4 0

SOHO 77 1 0

PHONE

1 - 2 - 3 - 4

ADSL

ETHERNET

TXD

RXD

TXD

CISCO 800

SERIES

65611

ADSL

ETHERNET

TXD

RXD

TXD

CISCO 800

SERIES

65574

ADSL

ETHERNET

TXD

RXD

TXD

CISCO 800

SERIES

65612

1-4

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Router Overview

Figure 1-4 SOHO 77H Front Panel

Figure 1-5 SOHO 77 Front Panel

Back Panels

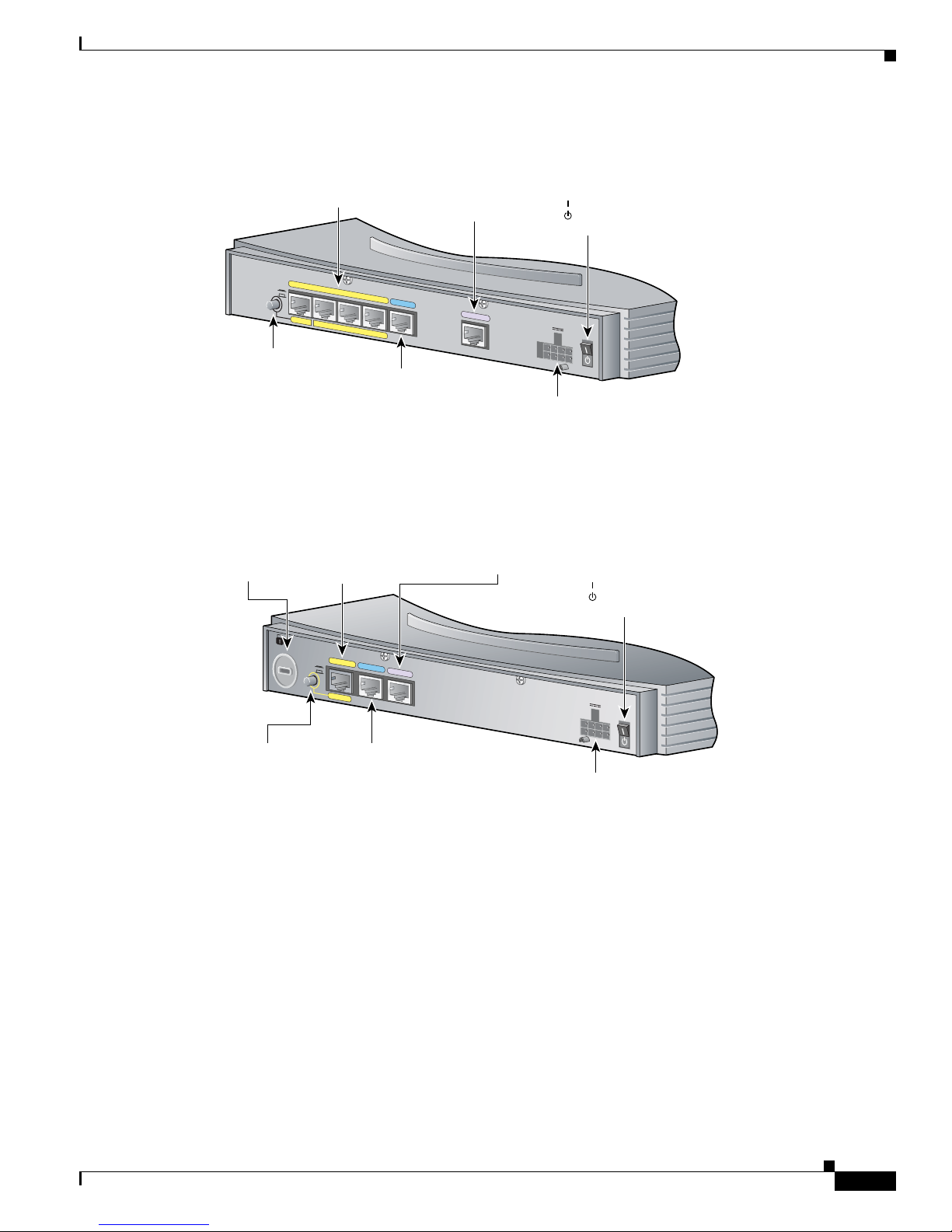

Figure 1-6 through Figure 1-8 show the back panels of the Cisco 827 routers.

Figure 1-6 Cisco 827-4V Back Panel

ETHERNET

RXD

TXD

CISCO SOHO

SERIES

65731

ADSL

ETHERNET

TXD

RXD

TXD

CISCO SOHO

SERIES

65732

ETHERNET

TO HUB TO PC

+5,+12,-12,-24,-71 VDC

CONSOLE

Model Cisco 827-4V

ADSL

PHONE

143

65566

TO HUB/TO PC button

Determines cable type for Ethernet device connection.

Console port

Connects to PC or terminal

Cable lock

Physically secures router

Ethernet port

Connects to Ethernet network device

ADSL port

Connects to external wall jack

Power switch

= On. = Standby or no power output

Locking power connector

Connects to power supply

1-5

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Router Overview

Figure 1-7 Cisco 827H Back Panel

Figure 1-8 Cisco 827 Back Panel

Figure 1-9 and Figure 1-10 show the back panels of the SOHO 77 routers.

ETHERNET 10 BASE T

TO HUB TO PC

+5 VDC

Cisco 827H

ADSL

CONSOLE

65573

TO HUB/TO PC button

(for Ethernet 4 port) Determines cable type for Ethernet device connection

Console port

Connects to PC or terminal

Ethernet ports

Connect to Ethernet network devices

ADSL port

Connects to External wall jack

Locking power connector

Connects to power supply

Power switch

= On. = Standby or no power output

ETHERNET

TO HUB TO PC

+5,+12,-12,-24,-71 VDC

CONSOLE

Model Cisco 827

ADSL

65565

TO HUB/TO PC button

Determines cable type for Ethernet device connection.

Console port

Connects to PC or terminal

Cable lock

Physically secures router

Ethernet port

Connects to Ethernet network device

ADSL port

Connects to external wall jack

Power switch

= On. = Standby or no power output

Locking power connector

Connects to power supply

1-6

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Router Overview

Figure 1-9 SOHO 77H Back Panel

Figure 1-10 SOHO 77 Back Panel

LEDs

Table 1-3 summarizes the functions of the LEDs on the Cisco 827-4V router.

ETHERNET 10 BASE T

TO HUB TO PC

+5 VDC

Cisco SOHO 77H

ADSL

CONSOLE

65734

TO HUB/TO PC button

(for Ethernet 4 port) Determines cable type for Ethernet device connection

Console port

Connects to PC or terminal

Ethernet ports

Connect to Ethernet network devices

ADSL port

Connects to External wall jack

Locking power connector

Connects to power supply

Power switch

= On. = Standby or no power output

ETHERNET

TO HUB TO PC

+5,+12,-12,-24,-71 VDC

CONSOLE

Model Cisco SOHO 77

ADSL

65733

TO HUB/TO PC button

Determines cable type for Ethernet device connection.

Console port

Connects to PC or terminal

Cable lock

Physically secures router

Ethernet port

Connects to Ethernet network device

ADSL port

Connects to external wall jack

Power switch

= On. = Standby or no power output

Locking power connector

Connects to power supply

Table 1-3 LED Functions on Cisco 827-4V Router

LED Color Function

OK LED Green On when power is supplied to the router and when the router

completes the self-test procedure and begins operating.

PHONE 1, 2, 3, 4 Green On when basic telephone service is in use.

1-7

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Router Overview

Table 1-4 summarizes the function of the LEDs on the Cisco 827H router and the SOHO 77H router.

Table 1-5 summarizes the function of the LEDs on the Cisco 827 router and SOHO 77 router.

ADSL CD Green On when the ADSL device is physically connected. Blinks when the

connection has a problem. See Chapter 3, “Troubleshooting.”

ADSL RXD Green Blinks when an ADSL port receives data.

ADSL TXD Green Blinks when an ADSL port sends data.

ETHERNET 1 Green On when Ethernet device is connected. Blinks when the connection

has a problem. See Chapter 3, “Troubleshooting.”

ETHERNET RXD Green Blinks when an Ethernet port receives a packet.

ETHERNET TXD Green Blinks when an Ethernet port sends a packet.

Table 1-3 LED Functions on Cisco 827-4V Router (continued)

LED Color Function

Table 1-4 Functions of LEDs on the Cisco 827H Router and SOHO 77H Router

LED Color Function

OK LED Green On when power is supplied to the router and when the router

completes the self-test procedure and begins operating.

ADSL CD Green On when the ADSL device is physically connected. Blinks when the

connection has a problem. See Chapter 3, “Troubleshooting.”

ADSL RXD Green Blinks when the ADSL port receives data.

ADSL TXD Green Blinks when the ADSL port sends data.

ETHERNET 1, 2, 3, 4 Green On when Ethernet device is connected. Blinks when the connection

has a problem. See Chapter 3, “Troubleshooting.”

ETHERNET RXD Green Blinks when an Ethernet port receives a packet.

ETHERNET TXD Green Blinks when an Ethernet port sends a packet.

Table 1-5 LED Functions on Cisco 827 Router and SOHO 77 Router

LED Color Function

OK LED Green On when power is supplied to the router and when the router

completes the self-test procedure and begins operating.

ADSL CD Green On when the ADSL device is physically connected. Blinks when the

connection has a problem. See Chapter 3, “Troubleshooting.”

ADSL RXD Green Blinks when an ADSL port receives data.

ADSL TXD Green Blinks when an ADSL port sends data.

ETHERNET 1 Green On when Ethernet device is connected. Blinks when the connection

has a problem. See Chapter 3, “Troubleshooting.”

ETHERNET RXD Green Blinks when an Ethernet port receives a packet.

ETHERNET TXD Green Blinks when an Ethernet port sends a packet.

1-8

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 1 Product Overview

Router Overview

CHA P TER

2-1

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Installation

This chapter provides information on the following topics:

• Preparing for Installation

• Preventing Router Damage

• Mounting the Router

• Installing the Router

• Using the Router LEDs to Check Links

• Configuring the Router

2-2

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Preparing for Installation

This section provides information on safety, mounting the router, and unpacking the contents of the router box.

Safety

This section provides safety warnings and electrostatic and router damage information for the Cisco 827 routers and SOHO 77 routers.

Warnings

Before installing the router, read the following warnings:

Warning

Only trained and qualified personnel should be allowed to install or replace this equipment.

Warning

Read the installation instructions before you connect the system to its power source.

Warning

Before working on a system that has a standby/off switch, turn the power to standby and unplug the power cord.

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.

Warning

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Warning

If the symbol of suitability with an overlaid cross ( ) appears above a port, you must not connect the port to a public network that follows the European Union standards. Connecting the port to this type of public network can cause severe injury or damage your router.

2-3

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Preparing for Installation

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) is a transfer of electrostatic charge between bodies of different electrostatic potentials, such as an operator and a piece of electrical equipment. It occurs when electronic components are improperly handled, and it can damage equipment and impair electrical circuitry. Electrostatic discharge is more likely to occur with the combination of synthetic fibers and dry atmosphere.

Always use the following ESD-prevention procedures when removing and replacing components:

Step 1 Wear an ESD-preventive wrist strap that you provide, ensuring that it makes good skin contact.

Caution To properly guard against ESD damage and shocks, the wrist strap and cord must operate effectively.

Always observe the warnings in the preceding section, “Safety.”

Step 2 Do not touch any exposed contact pins or connector shells of interface ports that do not have a cable

attached.

If cables are connected at one end only, do not touch the exposed pins at the unconnected end of the cable.

Note This device is intended for use in residential and commercial environments only.

Caution Periodically check the resistance value of the antistatic strap, which should be between 1 and 10

megohms (Mohms).

Unpacking the Box

Table 2-1 lists the items that come with your router. All these items are in the accessory kit that is inside

the box that your router came in. If any of the items is missing or damaged, contact your customer service representative.

Table 2-1 Router Box Contents

•

Power cord (black)

• Desktop power supply

• Console cable, RJ-45-to-DB-9 (light blue)

• ADSL cable (lavender)

• Ethernet cable (yellow)

• Product documentation

2-4

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Preventing Router Damage

To prepare for installation, follow these steps:

Step 1 Obtain the ADSL line.

Step 2 Remove the yellow Ethernet cable, light blue console cable, lavender ADSL cable, product

documentation, and Cisco 800 Documentation CD-ROM from the Open Me First bag. Remove the desktop power supply and the black power cord from the accessory kit. Gather the Ethernet devices to be connected to the router: hub, server, workstation, or PC.

Step 3 If you plan to connect an analog telephone or fax machine, gather these devices. You must also provide

the telephone cable to connect each device (this cable is usually provided with the device).

Step 4 If you plan to configure the software using a terminal or PC connected to the router, provide the terminal

or PC.

Step 5 If you plan to use the cable lock feature available on the Cisco 827, SOHO 77, and Cisco 827-4V routers,

you must provide a Kensington or equivalent locking cable.

Preventing Router Damage

Follow these guidelines when connecting devices to your router:

• Connect the color-coded cables supplied by Cisco Systems to the color-coded ports on the back

panel.

• If you must supply your own cable, see Appendix A, “Specifications and Cables,” for cabling

specifications. If this appendix does not provide specifications for a particular cable, we strongly recommend ordering the cable from Cisco Systems.

• If the symbol of suitability ( ) appears above a port, you can connect the port directly to a public

network that follows the European Union standards.

Warning

2-5

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Mounting the Router

You can mount the router on one of the following surfaces:

• Table or other horizontal surface

• Wall or other vertical surface

Mounting on a Table

Do not cover or obstruct the router vents, which are located on the sides of the router.

Mounting on a Wall

You can mount the router on a wall or other vertical surface by using the molded mounting brackets on the bottom of the router and two number-six, 3/4-in. (M3.5 x 20 mm) screws. You must provide the screws. Figure 2-1 shows the mounting brackets.

Figure 2-1 Wall-Mounting Brackets (Bottom of Router)

Caution If you are mounting the router on drywall, use two hollow wall-anchors

(1/8-in. with 5/16-in. drill bit, or M3 with 8-mm drill bit) to secure the screws. If the screws are not properly anchored, the strain of the network cable connections could pull the router from the wall.

The following requirements must be met when you mount the router:

• Because the LEDs are used as status and problem indicators, the LEDs on the front panel must face

upward and be easily visible.

• The back panel must face downward to reduce strain on the cable connections.

• The power supply must rest on a horizontal surface, such as the floor or a table. If the power supply

is not supported, strain on the power supply cable could cause it to disconnect from the connector on the router back panel.

ounting bracket

Mounting bracket

Front panel of router

7 in. (19.35 cm)

Bottom

of router

11671

2-6

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

To mount the router, follow the steps in Figure 2-2. The last page of this manual provides a template for measuring the distance between the screws.

Figure 2-2 Mounting Router on a Wall

Installing the Router

To install the router, you need to perform the following tasks in the following order:

1. Connect the Ethernet devices to the router.

2. Connect the ADSL line.

3. Connect an optional analog telephone or fax machine.

7 in. (19.35 cm)

30102

Wall-mount screw

Wall-mount

screw

Wall

Mounting brackets

1. Secure two screws 7 in. (19.35 cm) apart in a wall and in. (0.32 cm) from the wall.

2. Hang router on screws.

3. Place power supply on horizontal surface.

Maximum distance 6 ft (1.8 m)

Screw

in. (0.32 cm)

Wall

RXD-

ETHE

RNET

PHONE

RXD-

TXD

ADSL

Front panel

2-7

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

4. Connect a terminal or PC to the router for software configuration using the command-line interface

(CLI) or for troubleshooting.

5. Connect the router to the power source.

6. Verify the links using the router LEDs.

Connect Ethernet Devices

Table 2-2 lists the Ethernet devices you can connect to Cisco 827, Cisco 827-4V, and SOHO 77 routers;

the connections for each device; and the settings of the router TO HUB/TO PC button (the default setting is IN).

Table 2-2 Ethernet Device Connections for Cisco 827, Cisco 827-4V, and SOHO 77 Routers

Network Device Connected To Router Router Port

Ethernet Cable Ty pe

1. Cisco provides a yellow straight-through cable. You provide crossover or additional straight-through cables. For details on cables, see Appendix A, “Specifications and Cables.”

Router HUB/NO HUB Button Setting

Network Device Button Setting

2. Hub vendors choose different names for the button that controls the cable selection. This table uses the Cisco 1528 Micro Hub 10/100 with an MDI/MDI-X button as an example. Determine the button name and setting for your particular hub. Refer to your hub documentation for details.

Hub with equivalent to router TO HUB/TO PC button

ETHERNET port 1 Straight-through IN MDI (IN)

Hub with equivalent to router TO HUB/TO PC button

ETHERNET port 1 Straight-through OUT MDI-X (OUT)

Hub without equivalent to router TO HUB/TO PC button

ETHERNET port 1 Straight-through OUT MDI-X (OUT)

Server, PC, or workstation

ETHERNET port 1 Straight-through OUT –

2-8

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Table 2-3 lists the Ethernet devices you can connect to Cisco 827H and SOHO 77H routers, the

connections for each device, and the settings of the router TO HUB/TO PC button (the default setting is IN).

Table 2-3 Ethernet Device Connections for Cisco 827H and SOHO 77H Routers

Network Device Connected to Router Router Port

Ethernet Cable Ty pe

1. Cisco provides a yellow straight-through cable. You provide crossover or additional straight-through cables. For cable specifications, see Appendix A, “Specifications and Cables.”

Router TO HUB/TO PC Button Setting

Network Device Button Setting

Hub with equivalent to router TO HUB/TO PC button

ETHERNET port 4 Straight-through IN MDI (IN)

Hub with equivalent to router TO HUB/TO PC button

ETHERNET port 4 Straight-through OUT MDI-X

(OUT)

Hub without equivalent to router TO HUB/TO PC button

ETHERNET port 4 Straight-through OUT MDI-X

(OUT)

Server, PC, or workstation

ETHERNET port 4 Straight-through OUT –

Hub with equivalent to router TO HUB/TO PC button

ETHERNET port 1, 2, 3 Crossover N/A MDI (IN)

Hub with equivalent to router TO HUB/TO PC button

ETHERNET port 1, 2, 3 Straight-through N/A MDI-X

(OUT)

Hub without equivalent to router TO HUB/TO PC button

ETHERNET port 1, 2, 3 Crossover N/A MDI-X

(OUT)

Server, PC, or workstation

ETHERNET port 1, 2, 3 Straight-through N/A –

2-9

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Connecting Hubs

Before connecting a hub to the router, see Ta b le 2-2 to determine how to set the router TO HUB/TO PC button. To connect a hub to the router, follow the steps in Figure 2-3.

Figure 2-3 Connecting a Hub to the Router

To verify the hub connection, check that the port’s Ethernet LED on the front panel is on after you complete the router installation.

ETHERNET

SPEED

LED

100BaseTX

SOLID

10BaseT BLINK

3X 4X

MDI

MDI-X

E T

T O

N S

O LE

Model Cisco 827-4V

S L

T O H

B T O

+5 V

E T HE

E T

10B

E T

Cisco 827 H

A DS

N SO

4. If applicable, check setting of hub equivalent of router TO HUB/TO PC.

3. Connect other end of cable to hub.

2. Connect yellow cable to ETHERNET 4 port on router.

Cisco 1528 Micro Hub 10/100

74117

1. Set TO HUB/TO PC button.

Cisco 827, 827-4V and SOHO 77

Cisco 827H and SOHO 77H

2-10

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Connecting a Server, PC, or Workstation

Before connecting a server, PC, or workstation to the router, see Table 2-2 on page 2-7 to determine how to set the router TO HUB/TO PC button.

To connect a server, PC, or workstation to the router, follow the steps in Figure 2-4 on page 2-10.

Figure 2-4 Connecting a Server, PC, or Workstation to the Router

To verify the connection, check that the Ethernet 1 LED is on after you complete the router installation.

E TH

E R

T O

UB T O P

+5,+1

2,-12,-2

4,-71 V

O N

odel Cisco 827-4V

S L

T O

+5 V

E TH

R N

ET 10B

A SE

Cisco 827 H

O LE

3. Connect other end of cable to server, PC, or workstation.

74116

2. Connect yellow cable to ETHERNET 4 port on router.

1. Set TO HUB/TO PC button.

Cisco 827, 827-4V and SOHO 77

Cisco 827H and SOHO 77H

2-11

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Connect an ADSL Line

The procedure for connecting an ADSL line depends on the router and, in some cases, on the location.

Figure 2-5 shows how to connect the ADSL line to a cable wall jack. (Figure 2-5 depicts a Cisco 827-4V

router, but the process is the same for Cisco 827, Cisco 827H, SOHO 77, and SOHO 77H routers.)

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Figure 2-5 Connecting an ADSL Line to a Wall Jack

ETHERNET

TO HUB TO PC

+5,+12,-12,-24,-71 VDC

CONSOLE

odel Cisco 827-4V

ADSL

PHONE

2. Connect other end of cable to wall jack.

1. Connect lavender cable to ADSL port on router.

65560

2-12

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Connect an Analog Telephone or Fax Machine (Cisco 827-4V Routers Only)

You can connect as many as four devices such as analog push button telephones or fax machines to a Cisco 827-4V router. Each device is connected to basic telephone services through the color-coded gray phone ports.

To connect an analog telephone or fax machine, follow the steps in Figure 2-6. You must provide the telephone cable for connecting each device. The telephone cable is usually provided with the device.

Figure 2-6 Connecting an Analog Telephone or Fax Machine

Warning

This equipment contains a ring signal generator (ringer), which is a source of hazardous voltage. Do not touch the RJ-11 (phone) port wires (conductors), the conductors of a cable connected to the RJ-11 port, or the associated circuit-board when the ringer is active. The ringer is activated (indicated by a clicking sound) by an incoming call.

Caution Do not connect the router telephone ports to the telephone wall jack. These ports are not meant for direct

connection to a public network. This connection can damage your router.

The gray phone ports are RJ-11 connectors. If you are outside North America, you must buy and attach adapters that allow telephones or fax machines to be connected to these RJ-11 connectors. In some countries, these adapters need additional electronics so that the telephones or fax machines will work properly with the router phone ports. For example, in the United Kingdom, you must buy an adapter that also provides a master socket, which causes incoming calls to ring the connected devices. For information on recommended master sockets, see Tabl e 2-4 .

ETHERN

HUB

+5,+12,-12,-24,-71 VDC

NSOLE

Model Cisco 827-4V

DSL

PHONE

1. Connect telephone cable to gray PHONE port 1, 2, 3, or 4. If you are connecting only one device, use PHONE port 1.

2. Connect other end of cable to telephone or fax machine.

Analog telephone

65561

2-13

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Connect a Terminal or PC to the Router’s Console Port (Optional)

You can connect either a terminal or a PC to the router’s console port. You can use the terminal or PC for configuring the software via the command line interface (CLI) or for troubleshooting. To connect a terminal or PC, follow the steps in Figure 2-7. (Figure 2-7 depicts a Cisco 827-4V, but the process applies to connecting all Cisco 827 series routers and SOHO 77 series routers.)

Note Unless you are an experienced network administrator, it is recommended that you use the Cisco Router

Web Setup software to configure the router. Use of this software is described in the “Using Cisco Router

Web Setup to Configure the Router” section on page 2-16.

Figure 2-7 Connecting a Terminal or PC

If you have experience configuring Cisco routers and prefer to use the CLI, refer to the Cisco 827 Router Software Configuration Guide for instructions on configuring the router.

Table 2-4 Recommended Vendors for Master Sockets Required for United Kingdom

Vendor Name Product Name For More Information

RS Components Avro Pacific Telephone Ring

Adapter (part number 303-2000)

http://www.rswww.com/

Tandy Export Adapter (part number

2797057)

http://www.tandy.co.uk/

5,+

,-12

,-24

,-7

Model Cisco 827-4V

1. Connect light blue cable to CONSOLE port.

65562

2. Connect DB-9 connector to terminal or PC.

Cisco 827-4V router

2-14

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Installing the Router

Connect the AC Adapter

To connect the power supply, follow the steps in Figure 2-8. (Figure 2-8 depicts a Cisco 827-4V router, but the process is the same for the Cisco 827, Cisco 827H, SOHO 77, and SOHO 77H routers.)

Warning

The device is designed to work with TN power systems.

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 16A international) is used on the phase conductors (all current-carrying conductors).

Warning

This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use.

Figure 2-8 Connecting the AC Adapter

Note Be sure to use the power supply that was shipped with your router. Although you may be able to connect

another Cisco power supply to your router, that power supply may not provide all the features that the power supply that shipped with your router does.

65558

ETHERNET

TO HUB TO PC

+5,+12,-12,-24,-71 VDC

CONSOLE

Model Cisco 827-4V

ADSL

PHONE

4. Connect power cord to electrical outlet.

3. Connect power cord to power supply.

2. Connect power supply cable.

5. Press power switch to on ( ).

1. Press power switch to standby ( ).

Desktop power supply

2-15

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Using the Router LEDs to Check Links

Use the LEDs on the front of the router to check the links between the router and attached Ethernet devices or telephones. Use Tab l e 2- 5 to verify the link status of devices attached to Cisco 827, Cisco 827-4V, and SOHO 77 routers.

Use Table 2-6 to verify the link status of devices attached to Cisco 827H and SOHO 77H routers.

Table 2-5 LED Patterns for CIsco 827, Cisco 827-4V and SOHO 77 Routers

Power/Link LEDs to Check Normal Patterns

Power OK On

To hub, server, PC, or workstation

ETHERNET 1, ETHERNET RXD, and ETHERNET TXD

• ETHERNET 1 is on when the Ethernet is

physically connected.

• ETHERNET RXD blinks when an Ethernet

port receives an Ethernet packet.

• ETHERNET TXD blinks when an Ethernet

port sends an Ethernet packet.

To analog telephone or fax machine

(827-4V only)

PHONE 1, PHONE 2, PHONE 3, PHONE 4

1. You can also pick up the handset and listen for a dial tone.

On when telephone or fax machine is in use.

Table 2-6 LED Patterns for Cisco 827H and SOHO 77H Routers

Power/Link LEDs to Check Normal Patterns

Power OK On

To hub, server, PC, or workstation

ETHERNET 1, 2, 3, or 4; ETHERNET RXD; and ETHERNET TXD

• ETHERNET LED is on when the Ethernet is

physically connected to the appropriate port.

• RXD LED blinks when an Ethernet port

receives an Ethernet packet.

• TXD LED blinks when an Ethernet port

sends an Ethernet packet.

2-16

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Configuring the Router

When you have finished installing the router, you must configure the router software. First, check PC configurations to ensure that all PCs will be able to communicate with the router. Then configure the router software using the web interface.

Checking the PC Configuration

Each PC that is connected to the router must be configured to use the Transmission Control Protocol/Internet Protocol (TCP/IP) and to obtain its IP address automatically. Follow these steps to configure each PC that is running Microsoft Windows NT or Microsoft Windows 95 or 98. If the PC is running a different version of Microsoft Windows, refer to the documentation that came with the PC.

Step 1 Start the PC, and open the Control Panel.

Step 2 Click the Network icon to display the Network window.

Step 3 Verify that TCP/IP has been added and associated with the Ethernet adapter. TCP/IP is shown as a cable

icon in the Configuration window on Microsoft Windows 95 and 98; it is shown as a cable icon in the Protocol window on Microsoft Windows NT. If the icon is not visible, click Add, and add the Microsoft TCP/IP protocol.

Step 4 To verify that the PC is configured to obtain an IP address automatically, click the TCP/IP cable icon,

and select the IP address tab in the TCP/IP Properties window. Check Obtain an IP address from a DHCP server if it is not checked. The IP address and Subnet mask fields should be greyed out.

Step 5 Click OK to accept all changes and exit this window, and click OK in the Network window.

Step 6 To reboot the PC, click Yes if you are prompted.

For more information on how to configure TCP/IP, refer to the Cisco Router Web Setup Troubleshooting Guide, which is available on the Cisco 800 and SOHO Series Product Documentation CD.

Using Cisco Router Web Setup to Configure the Router

Cisco strongly recommends that inexperienced network administrators use the Cisco Router Web Setup application that has been installed on the router. To use this application, complete the following steps:

Step 1 Start, or restart, one of the PCs connected to the router through ETHERNET port 1, 2, 3, or 4.

Step 2 Open a web browser. Make sure that your browser is set to work in online mode.

• In Internet Explorer, click the File menu, and verify that the work offline option is unchecked.

• In Netscape, the default selection in the File menu is set to work online.

Step 3 Type in the universal resource locator (URL) http://10.10.10.1. The CRWS home page will appear in

one or two minutes.

2-17

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Configuring the Router

Tip If the CRWS home page does not appear when you enter the URL http://10.10.10.1, test the connection

between the PC and the router by doing the following:

1. Check that the OK LED on the router is on, and check the cable connection between the router and

the PC. Be sure that the TO HUB/TO PC button is in the correct position. The button is in the correct position if the LED for the port on the front of the router is on.

2. If the CRWS home page still does not appear, verify that the web browser’s “work offline” option

is disabled.

3. If the web page still does not appear, verify that your PC is automatically configured to receive an

IP address. Follow the instructions in the Cisco Router Web Setup Troubleshooting Guide, which is available on the Cisco 800 and SOHO Series Product Documentation CD.

4. If the PC is configured to automatically receive an IP address, but the web page still does not appear,

select Start/Run, type winipcfg in the Run window, and examine the address in the IP address field. The address should be in the format 10.10.10.X, in which X is a number that is equal or greater than 2; for example, 10.10.10.2, or 10.10.10.3. If the IP address is not in this format, verify that an Ethernet adapter name is visible in the Adapter field. If there is no name in the field, return to Step 3 in “Checking the PC Configuration," add TCP to the list of protocols. Then return to “Using Cisco

Router Web Setup to Configure the Router, page 2-16," and complete the procedure.

Step 4 If you have no special configuration requirements, click the Router Setup link on the home page, and

then click Easy Setup. (This may appear as Quick Setup on some models.) Then, enter the user name and password provided to you by your Internet service provider, and click Apply.

Step 5 If you need to configure special features such as Network Address Translation (NAT), click the

appropriate links on the home page, and complete the configuration screens.

Step 6 Click the Password link on the home page, and set a password for the router.

Step 7 Click the Tes t Co n nec t ion link on the home page, and allow the connection to be tested.

Step 8 Select Start/Run, and type winipcfg in the Open field of the Run window. When the IP Config window

appears, click Release to release the PC’s IP address. Then click Renew to renew the PC’s IP address.

Alternatively, open the Run window and enter ipconfig /release to release the PC’s IP address.Then enter ipconfig /renew to renew the IP address of the PC.

Step 9 Open a web browser on the PC, and connect to a website.

The router installation is complete when you have connected to a website.

2-18

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 2 Installation

Configuring the Router

CHA P TER

3-1

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Troubleshooting

This chapter describes symptoms of problems that could occur with the Cisco 827 or SOHO 77 routers, identifies the likely underlying problems, and provides steps for solving the problems. The problems are grouped into the following areas:

• Problems during first startup

• Problems after the router has been up and running

For more information about problems that could occur with the software, refer to the Cisco 827 Routers Software Configuration Guide.

Before You Call Your Cisco Reseller

Some of the solutions in this chapter instruct you to contact your Cisco reseller. Before you contact your reseller, make sure you have the following information available:

• Router model and serial number (on the back panel)

• Maintenance agreement or warranty information

• Date you received the router

• Brief description of the problem

• Brief description of the steps you have taken to solve the problem

Problems During First Startup

Table 3-1 lists problems that could occur the first time you turn on the power switch.

3-2

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 3 Troubleshooting

Problems During First Startup

Table 3-1 Problems During First Startup

Symptom Problem Solutions

All LEDs, including OK LED, are off.

No power to router. Perform the following steps:

1. Make sure that the power switch is set to ON.

2. Make sure that all connections to and from the power

supply are secure.

3. Make sure that the power outlet has power.

4. If the problem continues, the power supply might be

faulty. Contact your Cisco reseller.

No connection to Ethernet device. (Ethernet 1 LED is off.)

• A cable-related

problem:

–

Improperly connected cable.

–

Damaged cable.

Perform the following steps:

1. To make sure that you have cabled the device

correctly, see Figure 2-3 or Figure 2-4 in Chapter 2,

“Installation.”

2. Make sure that the connectors at both ends of the

cable are securely seated.

3. Make sure that the cable is not physically damaged.

If it is damaged, order another cable from Cisco or replace it with a similar cable.

• Improperly set

router TO HUB/TO PC button or hub equivalent of TO HUB/TO PC button.

• To make sure that you have set buttons correctly, see

Table 2-2 on page 2-7 if you are installing a

Cisco 827, Cisco 827-4V, or SOHO 77 router. See

Table 2-3 on page 2-8 if you are installing a Cisco

827H or SOHO 77H router.

No connection to ADSL link. (The CD LED on the front panel is off for a long time.)

• Wrong cable. • To make sure that you are using the correct cable,

refer to Appendix A, “Specifications and Cables.”

• Improperly

connected cable.

• To make sure that you have connected the ADSL

cable properly, see Figure 2-5 in Chapter 2,

“Installation.”

• Make sure that the connectors at both ends of the

cable are securely seated.

3-3

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 3 Troubleshooting

Problems After Router Is Running

Table 3-2 lists problems that could occur after the router has been up and running.

Table 3-2 Problems After Router Is Running

Symptom Problem Solutions

Problems with Ethernet connection. (ETHERNET 1, 2, 3, or 4 LED is off.)

• A cable-related

problem:

–

Disconnected cable.

–

Damaged cable.

Perform the following steps:

1. Make sure that the connectors at both

ends of the cable are secure.

2. Make sure that the cable is not

physically damaged. If it is damaged, order another cable from Cisco Systems or replace it with a similar cable.

Connection to the ADSL line is intermittent or lost. (The CD LED on the front panel is off.)

• A cable-related

problem:

–

Disconnected cable.

–

Damaged cable.

• Make sure that the connectors at both

ends of the cable are secure.

• Make sure that the cable is not

physically damaged. If it is damaged, order another cable from Cisco Systems or replace it with a similar cable.

• Problem with

ADSL line or WAN service.

• Contact your ADSL line or WAN

service provider to determine whether there is a problem with the ADSL or WAN service.

3-4

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Chapter 3 Troubleshooting

Problems After Router Is Running

A-1

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

APPENDIX

Specifications and Cables

This appendix provides system, port, and cabling specifications for the Cisco 827 routers.

System Specifications

Table A-1 outlines the system specifications for the routers.

Table A-1 System Specifications

Description Design Specification

Physical Dimensions

Dimensions (H x W x D) 2.0 x 9.7 x 8.5 in. (5.1 x 24.6 x 21.6 cm)

Weight (does not include desktop power supply)

• Cisco 827-4V router: 1.5 lb. (0.68 kg)

• Cisco 827H router: 1.48 lb. (0.67 kg)

• Cisco 827 router: 1.48 lb. (0.67 kg)

Environmental Operating Ranges

Nonoperating temperature –4 to 149°F (–20 to 65°C)

Nonoperating humidity 5 to 95%, relative humidity

Nonoperating altitude 0 to 15,000 ft (4570 m)

Operating temperature 32 to 104°F (0 to 40°C)

Operating humidity 10 to 85% relative humidity

Operating altitude 0 to 10,000 ft (3000 m)

Router Power (Cisco 827, 827-4V, and SOHO 77)

AC input voltage 100 to 250 VAC

Frequency 50 to 60 Hz

Power consumption 29W

Router Power (Cisco 827H and SOHO 77H)

AC input voltage 100 to 240 VAC

Frequency 50 to 60 Hz

Power consumption 15W

A-2

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Appendix A Specifications and Cables

Port Connector Pinouts

For information on regulatory compliance, refer to the Regulatory Compliance and Safety Information for Cisco 827 Routers document that shipped with your router.

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Port Connector Pinouts

This section provides pinouts for the following connectors:

• Ethernet—See Table A-2.

• Console (for connecting a terminal or PC)—See Table A- 3.

• Telephone—See Ta b l e A-4.

• ADSL—See Tab l e A- 5

• Power—See Tab le A-6 and Tab le A-7 .

Table A-2 shows the Ethernet connector pinouts for the Cisco 827-4V, Cisco 827, Cisco 827H,

SOHO 77, and SOHO 77H routers.

Table A-3 shows the Ethernet connector pinouts for the Cisco 827-4V, Cisco 827, Cisco 827H,

SOHO 77, and SOHO 77H routers.

Telephone Port Power (Cisco 827-4V)

Voltage -24V and -71V

Table A-1 System Specifications (continued)

Description Design Specification

Table A-2 Ethernet Connector Pinouts (RJ-45)

Function (TO HUB/TO PC Button – IN Position)

Function (TO HUB/TO PC Button – OUT Position)

1TX+ RX+

2TX– RX–

3RX+ TX+

4 Unused Unused

5 Unused Unused

6RX– TX–

7 Unused Unused

8 Unused Unused

A-3

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Appendix A Specifications and Cables

Port Connector Pinouts

Table A-3 Console Connector Pinouts (RJ-45)

Pin Function

1RTS

2DTR

3TXD

4GND

5GND

6RXD

7DSR

8CTS

A-4

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Appendix A Specifications and Cables

Port Connector Pinouts

The console port is configured as a data communications equipment (DCE) device. The default parameters for the console port are as follows:

• 9600 baud

• Eight data bits

• No parity

• One stop bit

Table A-4 shows telephone connector pinouts for the Cisco 827-4V router.

Table A-5 shows ADSL connector pinouts for the Cisco 827-4V, Cisco 827, Cisco 827H, SOHO 77, and

SOHO 77H routers.

Table A-4 Cisco 827-4V Router Telephone Connector Pinouts (RJ-11)

Pin Function

1Unused

2Tip

3Ring

4Unused

Table A-5 ADSL Connector Pinouts (RJ-11)

Pin Function

1 Loopback to pin 6

2Unused

3Tip

4Ring

5Unused

6 Loopback to pin 1

A-5

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Appendix A Specifications and Cables

Cabling Specifications

Table A-6 shows the power connector pinouts for the Cisco 827, Cisco 827-4V, and SOHO 77 routers.

Table A-7 shows the power connector pinouts for the Cisco 827H and SOHO 77H routers.

Cabling Specifications

This section provides specifications for the following Ethernet cables, which you might need to provide:

• Straight-through cables

• Crossover cables

This section also provides information on Ethernet and telephone cable distance limitations. (Telephone cable connects a device to a telephone port.)

Ethernet Cable Specifications

Table A-8 lists the specifications for straight-through and crossover Ethernet cables.

Table A-6 Cisco 827, Cisco 827-4V, and SOHO 77 Power Connector Pinouts

Pin Function

1ROF

2RTN

3+12

4 –12

5+5

6RTN

7 –71

8 –24

Table A-7 Cisco 827H and SOHO 77H Power Connector Pinouts

Pin Function

1ROF

2RTN

3AC_Lost

4Unused

5+5VF

6RTN

7Unused

8Unused

A-6

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

Appendix A Specifications and Cables

Cabling Specifications

Maximum Cable Distances

Table A-9 provides the maximum distances of Ethernet and telephone cables that you can use to connect

equipment to the router.

Table A-8 Ethernet Cable Specifications

Type Category Shielding

10BASE-T Category 3 or 5 Shielded twisted-pair (STP)

10BASE-T – Unshielded twisted-pair (UTP)

Table A-9 Maximum Cable Distances

Cable Maximum Distance

Ethernet cables 328 ft (100 m)

Telephone cable 500 ft (152 m)

IN-1

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

INDEX

Numerics

10BASE-T Ethernet ports 1-2

accessory kit 2-3

AC input voltage (table) A-1

adapter, included 2-3

ADSL 1-2

ADSL line, connecting (figure) 2-11

ADSL port (figure) 1-3, 1-4

altitude specifications (table) A-1

analog telephone, connecting 2-12

Asymmetric digital subscriber line

See ADSL

back panels (figures) 1-4

brackets (figure) 2-5

cable lock (figure) 1-4, 1-5, 1-6

cables

and router damage

2-4

Ethernet, types 2-7, 2-8

included with router 2-3

cabling

distances, maximum (table)

A-6

specifications (table) A-5

caution statements defined v

Cisco Router Web Setup 2-16

console port 1-2

console port (figure) 1-4, 1-5, 1-6

conventions, note, caution, and warning v

DRAM 1-2

dynamic RAM

See DRAM

electrostatic damage, preventing 2-3

ETHERNET 1 LED 2-15

Ethernet cable

specifications

A-6

types 2-7, 2-8

Ethernet devices, connecting 2-7

Ethernet LEDs 2-15

Ethernet port (figure) 1-3, 1-4

ETHERNET RXD LED 2-15

ETHERNET TXD LED 2-15

European Union standards 2-4

fax machine, connecting 2-12

feature summary 1-2

Flash memory 1-2

frequency specifications A-1

front panels (figure) 1-3

Index

IN-2

Cisco 827 and SOHO 77 Routers Hardware Installation Guide

78-6854-03

HUB/NO HUB button settings 2-7

hubs, connecting 2-9

humidity specifications A-1

installation

preparing for

2-1

verifying 2-15

LED functions

Cisco 827-4V router

1-6

Cisco 827H router 1-7

Cisco 827 router 1-7

Cisco 827H - Router - EN, 827 Hardware Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
