This chapter describes how to install the ASA 5505 adaptive security appliance.
This chapter includes the following sections:
• Verifying the Package Contents, page 4-1
• PoE Ports and Devices, page 4-3
• Installing the Chassis, page 4-3
• Connecting to Network Interfaces, page 4-4
• Powering on the ASA 5505, page 4-5

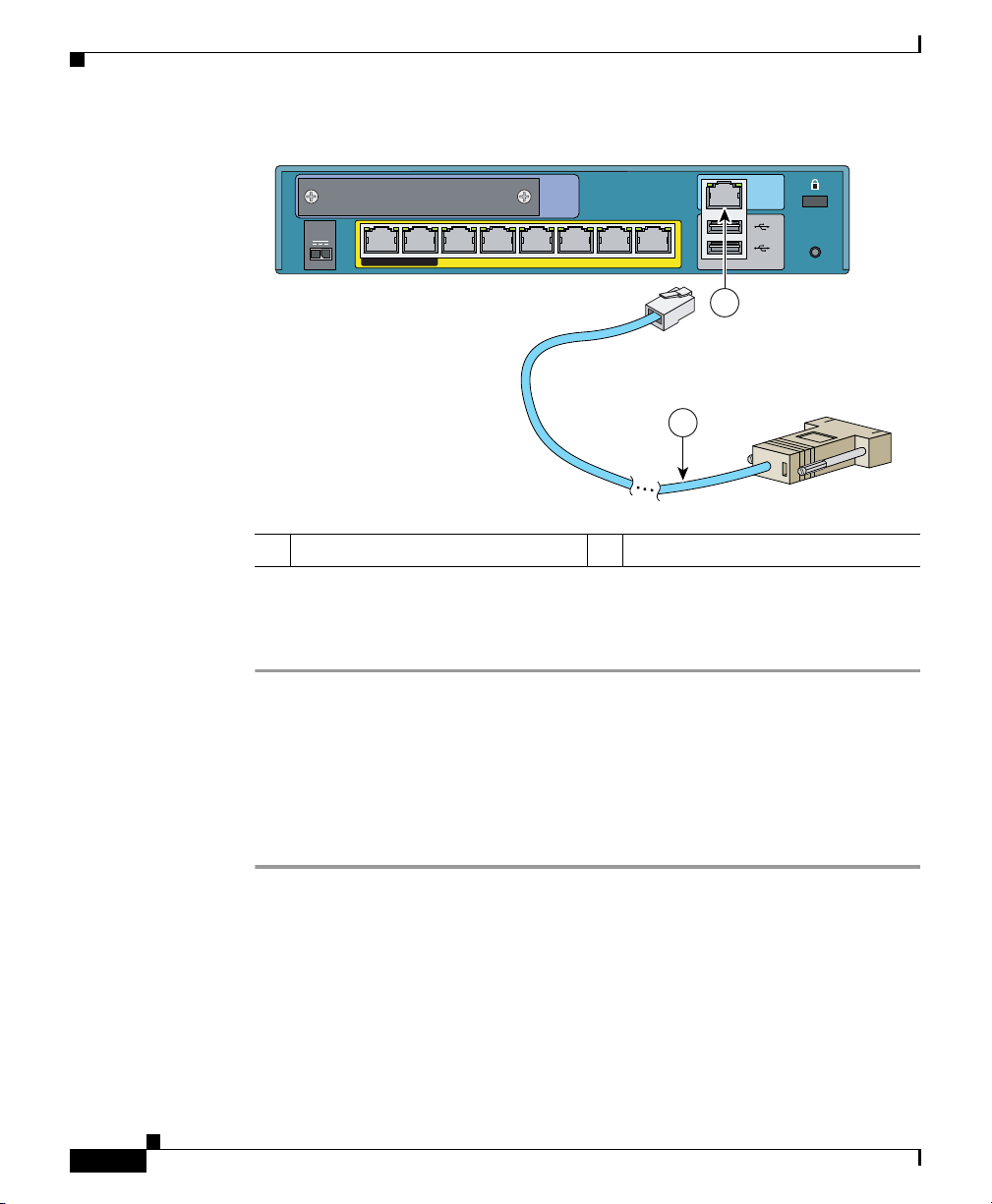

• Setting Up a PC for System Administration, page 4-6
• Optional Procedures, page 4-7

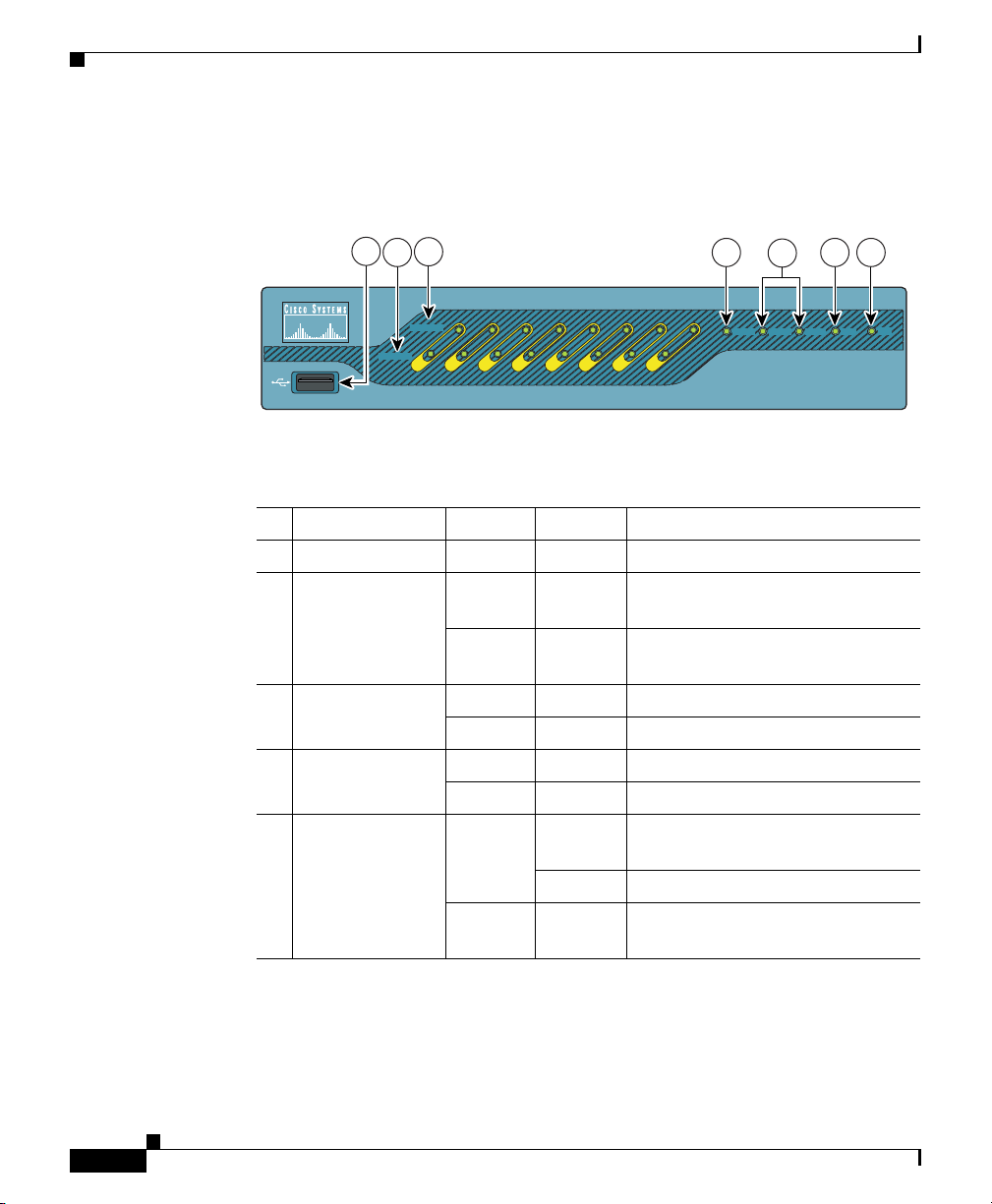

• Ports and LEDs, page 4-9
• What to Do Next, page 4-13
Verifying the Package Contents
Verify the contents of the packing box to ensure that you have received all items necessary to install your
Cisco ASA 5505 adaptive security appliance, as shown in Figure 4-1.
ASA 5505 Getting Started Guide
78-18003-02
4-1
Verifying the Package Contents
Figure 4-1Contents of ASA 5505 Package
Chapter 4 Installing the ASA 5505
POW
ER
48
VDC
7
POWER over ETHERNET
6
5
43
Cisco ASA 5505
Power supply adapter
Cable
(US shown)
Cisco ASA 5505
Product CD
Security
Services
Card Slot
Firewall
C
O
N
SO
LE
2
1
0
1
2
R
ES
E
T
Blue console cable
Yellow Ethernet cable
Cisco ASA 5505
Regulatory
Compliance
and Safety
Information
Getting Started
Guide
4-2
Documentation
ASA 5505 Getting Started Guide
78-18003-02
Chapter 4 Installing the ASA 5505
PoE Ports and Devices
On the ASA 5505, switch ports Ethernet 0/6 and Ethernet 0/7 support PoE devices
that are compliant with the IEEE 802.3af standard, such as IP phones and wireless
access points. If you install a non-PoE device or do not connect to these switch
ports, the adaptive security appliance does not supply power to the ports and the
device must be powered on its own.
These ports are the only ports that can provide power for IP phones or other PoE
devices. However, these ports are not restricted to that use. They can also be used
as Ethernet switch ports, like the Ethernet switch ports numbered 0 through 5. If
a PoE device is not attached, power is not supplied to the port.
When connecting PoE devices, use the following guidelines:
• Use straight-through cable only. Using crossover cable does not enable the
ASA 5505 to provide power to the PoE ports.
• Do not disable auto-negotiation (force speed and duplex) on E0/6 and E0/7
when using them to connect PoE devices. If auto-negotiation is disabled, the
ASA 5505 does not recognize that a PoE device is attached. In this case,
power is not provided to the port.
PoE Ports and Devices
NoteBe careful when connecting a Cisco PoE device to a non-PoE switch
port (E0/0 through E0/5). If auto-negotiation is disabled for that
switch port, a network loopback might occur with some Cisco
Powered Device (PD) models.
• Cisco IP Phone 7970 is always in low-power mode when drawing power from
the ASA 5505.
Installing the Chassis
To install the ASA 5505, perform the following steps:
Step 1Place the chassis on a flat, stable surface. The chassis is not rack mountable.
Step 2Connect Port 0 to the public network (that is, the Internet):
a. Use a yellow Ethernet cable to connect the device to a switch or hub.
78-18003-02
ASA 5505 Getting Started Guide
4-3
Connecting to Network Interfaces
b. Use one of the yellow Ethernet cables to connect the device to a
cable/DSL/ISDN modem.
NoteBy default, switch port 0 is the outside port.
Step 3Connect your network devices with an Ethernet cable to one of the remaining
seven switched ports (numbered 1 through 7).
If you are connecting any Power over Ethernet (PoE) devices, connect them to one
of the switch ports that support PoE (ports numbered 6 and 7).
Connecting to Network Interfaces
To connect to a network interface, perform the following steps:
Step 1Locate an RJ-45 to RJ-45 Ethernet cable.
Step 2Connect one end of the Ethernet cable to an Ethernet port (ports 0 through 7) as
shown in Figure 4-2. (Typically Ethernet port 0 is used to connect to an Internet
router.)
Chapter 4 Installing the ASA 5505
4-4
ASA 5505 Getting Started Guide
78-18003-02
Chapter 4 Installing the ASA 5505
Figure 4-2Connecting to an Ethernet Interface
POWER
Powering on the ASA 5505
Security
Services
Card Slot
VDC
48
7
POWER over ETHERNET
6
54 3210
Console
2
1
RESET
153761
1
2
1Ethernet switch ports2Ethernet cable
Step 3
Connect the other end of the Ethernet cable to a device, such as a router, desktop
computer, or printer.
Powering on the ASA 5505
To power on the ASA 5505, perform the following steps:
Step 1Connect the power supply with the power cable.
Step 2Connect the small, rectangular connector of the power supply cable to the power
connector on the rear panel.
Step 3Connect the AC power connector of the power supply input cable to an electrical
outlet.
78-18003-02
ASA 5505 Getting Started Guide
4-5
