Cisco 3520 Datasheet

Data Sheet

Cisco Video Surveillance 3520 IP Camera

Product Overview

The Cisco® Video Surveillance 3520 IP Camera is a high-definition, full-functioned video endpoint with industryleading image quality and processing power. The camera is capable of resolutions up to 1280 x 800 at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.

Figure 1 shows the Cisco Video Surveillance 3520 IP Camera.

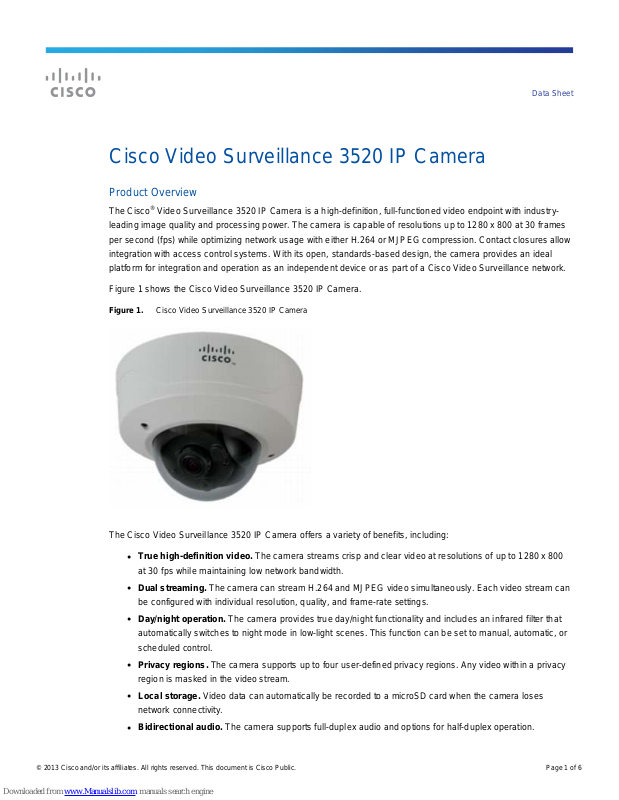

Figure 1. Cisco Video Surveillance 3520 IP Camera

The Cisco Video Surveillance 3520 IP Camera offers a variety of benefits, including:

●

True high-definition video. The camera streams crisp and clear video at resolutions of up to 1280 x 800 at 30 fps while maintaining low network bandwidth.

●

Dual streaming. The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.

●

Day/night operation. The camera provides true day/night functionality and includes an infrared filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.

●

Privacy regions. The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.

●

Local storage. Video data can automatically be recorded to a microSD card when the camera loses network connectivity.

●

Bidirectional audio. The camera supports full-duplex audio and options for half-duplex operation.

●

Flexible power options. The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.

●

Medianet support. The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.

Features

Table 1 describes the features of the Cisco Video Surveillance 3520 IP Camera.

Table 1. Cisco Video Surveillance 3520 IP Camera Features

Item Specification

Imaging device 1/4-in. progressive-scan CMOS Image control Automatic white balance (AWB), automatic gain control (AGC), automatic exposure shutter (AES), and

Wide dynamic range Approximately 69 dB Minimum illumination

Lens 3-9 mm

Field of view 66.09° to 25.03° (horizontal)

Camera angle adjustment Pan: 350°

Video compression H.264 and MJPEG Audio compression G.711 A-Law, G.711 U-Law, G.726 Resolution and frame rate (H.264) Refer to Tables 2 and 3 Resolution and frame rate (MJPEG) Refer to Tables 2 and 3

Video streaming

Protocols Dynamic Host Control Protocol (DHCP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS),

Quality of service (QoS) Differentiated services code point (DSCP) marking and class of service (CoS) marking Power 12 VDC or 24 VAC through optional external power supply, available separately

Power consumption (max) DC: 3.6W

auto and manual iris

●

Color mode: F1.4 @ 0.4 lux

●

Black and white mode: F1.2 @ 0.2 lux

DC-Iris

40.66° to 15.77° (vertical)

78.36° to 28.83° (diagonal)

Tilt: 80° Rotate: 350°

MJPEG is supported as the secondary stream only

●

Single-stream H.264 up to 1280 x 800 @ 30 fps

●

Dual-stream H.264 and MJPEG

●

H.264: Primary stream programmable up to 1280 x 800 @ 30 fps

●

MJPEG: Secondary stream programmable up to 1024 x 576 @ 15 fps

Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP), Secure Real-Time Transport Protocol (SRTP), Cisco Discovery Protocol, Bonjour, Simple Network Management Protocol (SNMP), and Secure Shell (SSH)

PoE (802.3af)

AC: 5.1W PoE: 5.28W

Table 2 lists the video stream support for the Cisco Video Surveillance 3520 IP Camera.

Table 2. Cisco Video Surveillance 3520 IP Camera Video Stream Support

`Primary (H.264) Maximum fps Secondary (H.264 or MJPEG) Maximum fps

1280 x 800 30 1024 x 576

960 x 544 640 x 368

1280 x 720 30 1024 x 576

960 x 544 640 x 368

1024 x 576 30 1024 x 576

960 x 544 640 x 368

960 x 544 30 960 x 544

640 x 368

640 x 368 30 640 x 368 15

15

Table 3 lists the video stream support for the Cisco Video Surveillance 3520 IP Camera for 4:3 aspect ratios.

Table 3. Cisco Video Surveillance 3520 IP Camera Video Stream Support for 4:3 Aspect Ratios

Primary (H.264) Maximum fps Secondary (H.264 or MJPEG) Maximum fps

720 x 480/576 30/25 720 x 480/576

704 x 480/576 352 x 240/288

704 x 480/576 30/25 704 x 480/576

352 x 240/288

352 x 240/288 30/25 352 x 240/288 15

15

Connectors

Table 4 describes the connectivity and connectors of the Cisco Video Surveillance 3520 IP Camera.

Table 4. Cisco Video Surveillance 3520 IP Camera Connectors

Item Specification

Network connectivity 100 BASE-TX Ethernet with RJ-45 connector Alarm input One logic level programmable Alarm output* One logic level programmable Storage MicroSD card slot Audio

Power input Terminal block

*Not supported when the camera is used with Cisco Video Surveillance Manager.

●

3.5-mm audio jack: Audio input for optional external microphone and audio output for optional external speaker supported through cable adapter

●

Two-way (full- and half-duplex), one-way, or audio off

Software

Table 5 describes the primary features of the Cisco Video Surveillance 3520 IP Camera software.

Table 5. Cisco Video Surveillance 3520 IP Camera Primary Software Features

Item Specification

Activity detection User-definable alerts with configurable sensitivities and thresholds, e-mail alert, and HTTP notifications Video format NTSC and PAL Image settings Configurable brightness, sharpness, contrast, saturation, and white balance Overlay capabilities Time, date, and text Selectable bit rate Support for constant bit rate or variable bit rate IP filtering Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings Discovery Cisco Discovery Protocol, Bonjour Zero-Configuration discovery Configuration

●

Browser-based using Internet Explorer 8 and later

●

Two levels of user access with password protection

Specifications

Table 6 provides mechanical specifications of the Cisco Video Surveillance 3520 IP Camera.

Table 6. Cisco Video Surveillance 3520 IP Camera Mechanical Specifications

Item Specification

Housing Aluminum LEDs Power and activity Dimensions (D x H) 6.9 x 4.5 in. (174 x 115 mm) Weight 1708 g Certifications Safety:

●

UL60950-1 2nd edition

●

CSA22.2-No.60950-1

●

IEC/EN60950-1 2nd edition

●

IEC/EN60825

Operating temperature 32 to 122°F (0 to 50°C)

EMC-Requirements:

●

CISPR22 Class B

●

ICES-003

●

EN55022

●

EN55024

●

EN61000-3-2/-3-3 Class A

●

VCCI Class B

●

KN22 Class B

●

KN24

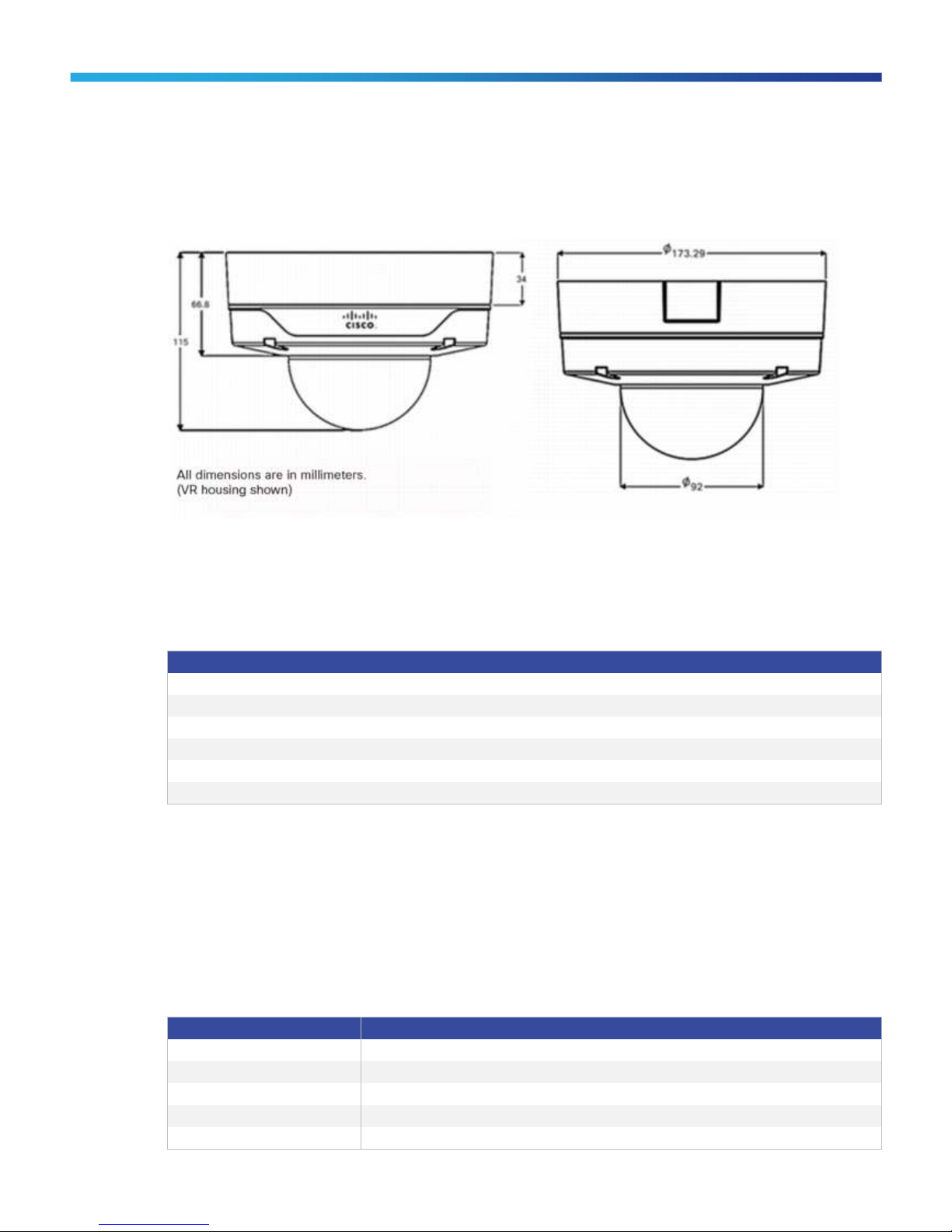

Figure 2 shows the dimensions of the Cisco Video Surveillance 3520 IP Camera.

Figure 2. Cisco Video Surveillance 3520 IP Camera Dimensions

Package Contents

Table 7 describes the items that ship with the Cisco Video Surveillance 3520 IP Camera.

Table 7. Package Contents

Item

Cisco Video Surveillance 3520 IP Camera Installation template and alignment sticker Screwdriver Screws and anchors Documentation reference card Regulatory documentation

Availability

The Cisco Video Surveillance 3520 IP Camera is available through Cisco Authorized Technology Provider (ATP) Partners.

Ordering Information

Table 8 lists the part numbers for the Cisco Video Surveillance 3520 IP Camera and accessories.

Table 8. Ordering Information

Part Number Description

CIVS-IPC-3520 Cisco Video Surveillance IP Dome Body, Indoor, 1-MP DN, IO CIVS-6KA-FLSHMNT Indoor Flush Mount Housing CIVS-6KA-FLSHD-S Indoor Smoked Flush Dome CIVS-6KA-FLSHD-C Indoor Clear Flush Dome CIVS-6KA-VRCNDBS VR Conduit Base

Part Number Description

CIVS-6KA-VRD-S Smoked Vandal-Resistant Dome CIVS-6KA-VRD-C Clear Vandal-Resistant Dome CIVS-6KA-INSURF-S Indoor Surface Mount with Smoked Dome CIVS-6KA-INSURF-C Indoor Surface Mount with Clear Dome CIVS-IPCA-PWR12V 12 VDC Power Supply CIVS-AVCABLE Audio Video Cable for 35xx, 6k, and 7k Series IP Cameras

Using the Camera with Cisco Video Surveillance Manager

Features that are marked with an asterisk (*) are not supported when using the camera with Cisco Video Surveillance Manager. Please refer to the release notes for Cisco Video Surveillance Manager 6.3 for more information:

http://www.cisco.com/en/US/docs/security/physical_security/video_surveillance/network/vsm/release_notes/6_3/vs m_rn_63.html

Services and Support

Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. This approach allows you to:

●

Reduce deployment costs by identifying the features that will best meet your business requirements

●

Accelerate migration by assessing the readiness of your network to support the system and by developing a sound design

●

Support smooth implementation through effective planning and expert installation, configuration, and integration

●

Increase operational efficiency and extend the value of your investment with award-winning technical support

For more information about Cisco services, visit

http://www.cisco.com/go/services.

For More Information

For more information about the Cisco Video Surveillance 3520 IP Camera, please visit

http://www.cisco.com/go/videosurveillance or contact your local account representative.

Printed in USA C78-728706-00 06/13
