CHA PTER

Overview of Cisco 1800 Series Routers (Modular)

Cisco 1800 series integrated services routers (ISR) (modular) are modular routers with LAN and WAN connections that can be configured by means of interchangeable interface cards and advanced integration modules (AIMs). The modular design of the routers provides flexibility, allowing you to configure or reconfigure your router according to your needs.

The Cisco 1841 router is a data-only device for desktop use.

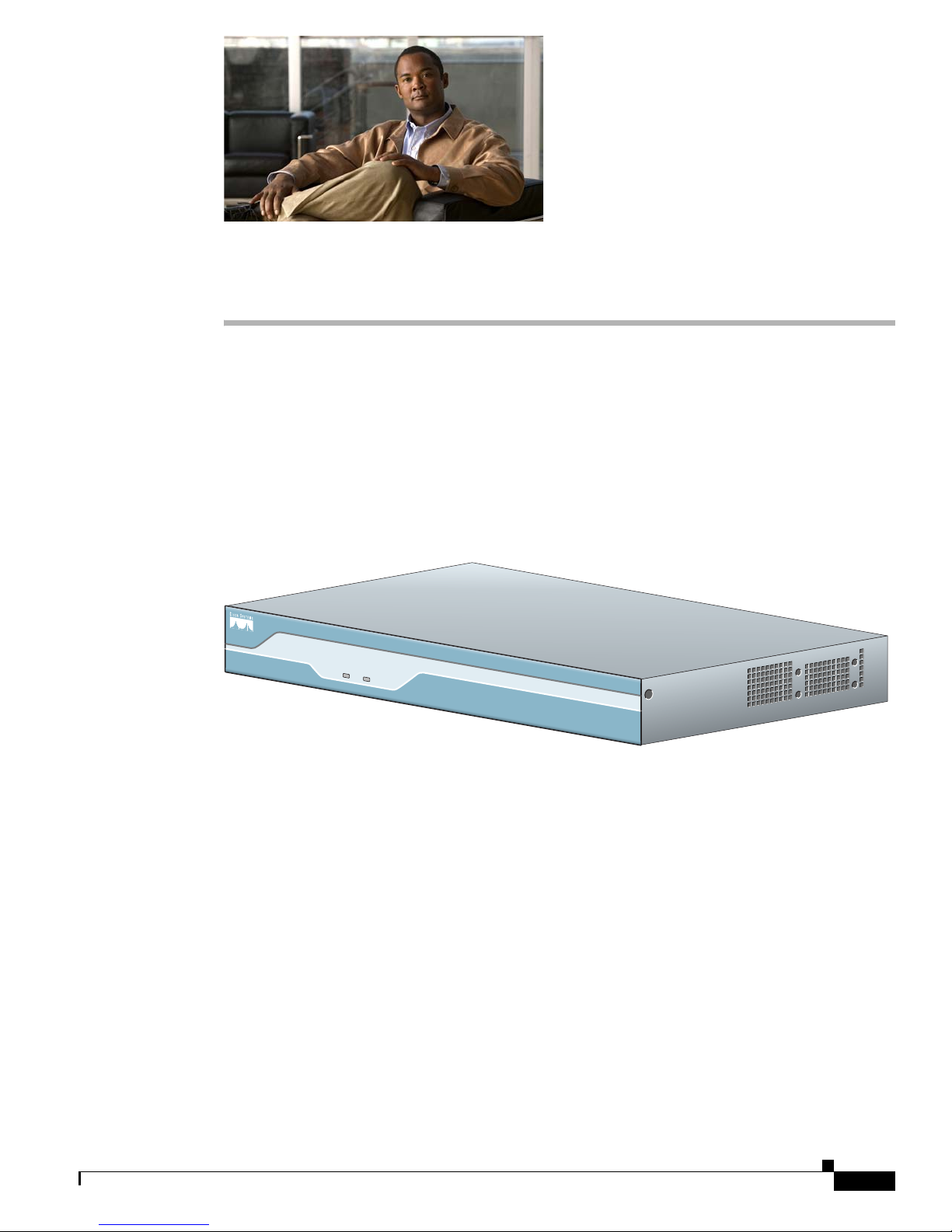

Figure 2-1 shows the Cisco 1841 router.

Figure 2-1 The Cisco 1841 Router

Cisco 1800

Series

OL-5876-03

122331

The Cisco 1861 ISR, which is part of the Cisco 1800 series ISR family, is a unified communications solution for small- to medium-sized businesses and enterprise small branch offices that provides voice, data, voice-mail, automated attendant, video, and security capabilities while integrating with existing desktop applications such as calendar, e-mail, and customer relationship management (CRM) programs and with built-in security. It has the following core components:

• Integrated Cisco Unified Communications Manager Express or Survivable Remote Site Telephony

for call processing for up to 12 users

• Optional Cisco Unity Express for voice messaging and automated attendant

• Integrated LAN switching with Power over Ethernet (POE) expandable via Cisco Catalyst Switches

• Optional support for a range of WAN interface cards

Figure 2-2 and Figure 2-3 show the Cisco 1861 ISR.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-1

Hardware Features

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

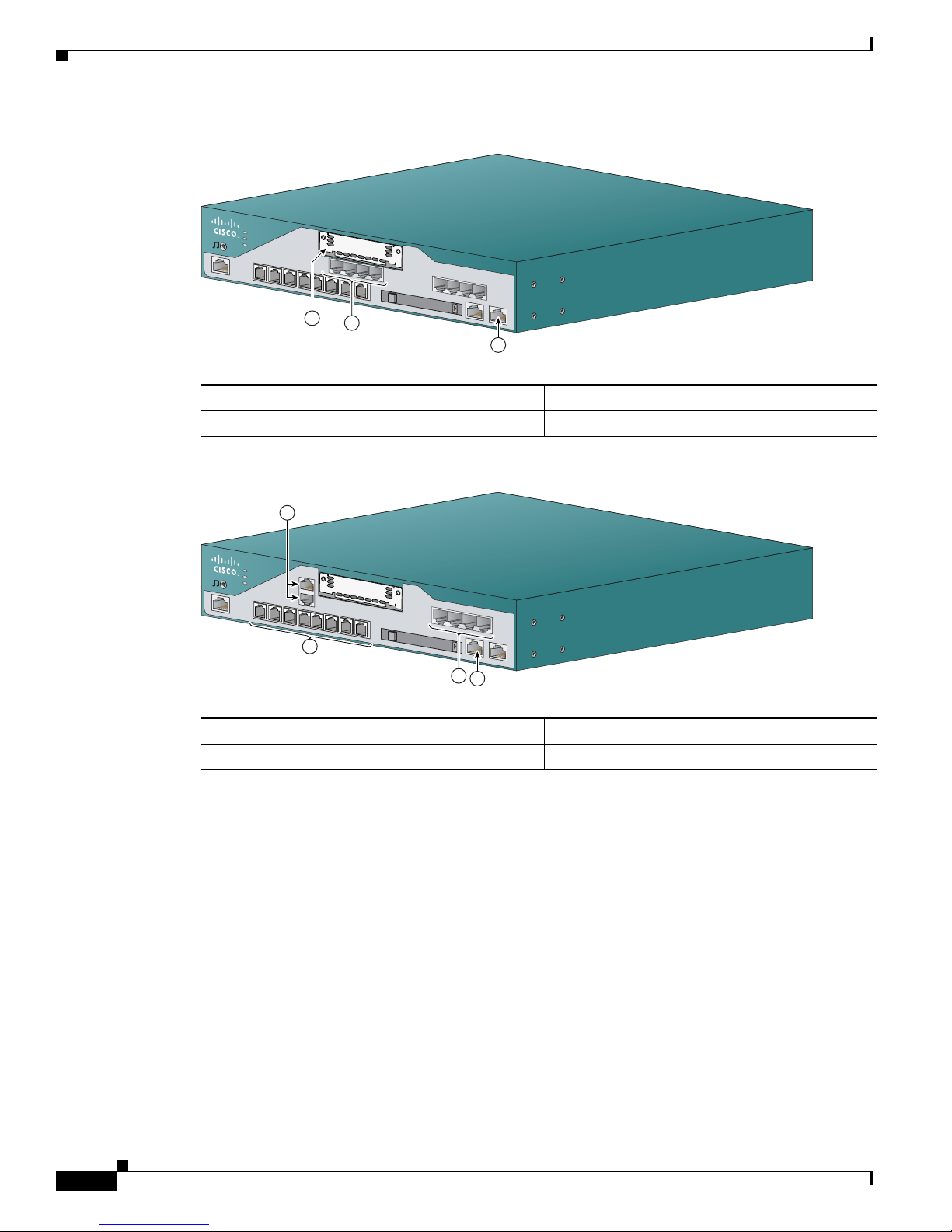

Figure 2-2 The Cisco 1861 Integrated Services Router with FXO Ports

1 WAN slot 3 Expansion switch port 2 FXO ports

Figure 2-3 The Cisco 1861 Integrated Services Router with BRI Ports

231626

rie

0 0

231625

1 BRI ports 3 FXS ports 2 Power over Ethernet (PoE) ports 4 Fast Ethernet (FE) port

This chapter describes the features and specifications of the router and includes the following sections:

• Hardware Features, page 2-2

• Chassis Views, page 2-8

• Interface Numbering, page 2-9

• Interface Numbering on the 1861 Integrated Services Router, page 2-10

• Specifications, page 2-11

• Regulatory Compliance, page 2-11

Hardware Features

This section describes the basic features of Cisco 1800 series routers. It contains the following:

• Product Serial Number Location, page 2-3

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-2

OL-5876-03

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

• Interfaces, page 2-3

• Removable and Interchangeable Modules, page 2-5

• Memory, page 2-5

• LED Indicators, page 2-6

• Chassis Ventilation, page 2-7

• Real-Time Clock, page 2-7

• Chassis Security, page 2-8

Product Serial Number Location

The serial number label for the Cisco 1841 router and the Cisco 1861 ISR is located on the rear of the chassis, underneath interface card slot 0. (See

Figure 2-4 Serial Number Location

Hardware Features

Figure 2-4.)

Cisco Product Identification Tool

The Cisco Product Identification (CPI) tool provides detailed illustrations and descriptions showing where to locate serial number labels on Cisco products. It includes the following features:

• Search option allows browsing for models using a tree-structured product hierarchy.

• Search field on the final results page makes it easier to look up multiple products.

• End-of-sale products are clearly identified in results lists.

The tool streamlines the process of locating serial number labels and identifying products. Serial number information expedites the entitlement process and is important for access to support services.

The Cisco Product Identification tool can be accessed at the following URL:

http://tools.cisco.com/Support/CPI/index.do

S N

: A

A A

N N N

N X

X X

SN: AAANNNNXXXX

CISCO 1841

1 0

4 0

/ 6 0

122334

Interfaces

This section summarizes the interfaces available on the Cisco 1800 series routers.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-3

Hardware Features

Interfaces on the Cisco 1841 Router

The following interfaces exist on the Cisco 1841 router:

• Two Fast Ethernet ports (RJ-45 connectors)

• High-speed console and auxiliary ports, up to 115.2 kbps each (RJ-45 connectors)

• One USB port (version 1.1), intended for future use

Interfaces on the Cisco 1861 Integrated Services Router

The Cisco 1861 Integrated Services Router comes with various possible configurations, based on built-in ports and other hardware features of the Cisco 1861 Integrated Services Router and organized by model.

Table 2-1 lists the labels and descriptions for the WAN, LAN, voice interface card (VIC), and other

interfaces, along with the values for these interfaces in the preconfigured router software configuration.

Note In Table 2-1, all slots/ports are numbered right to left, unless otherwise noted.

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Ta b l e 2-1 Cisco 1861 Integrated Services Router: Interfaces

Description Label Value in Software Configuration

Console/Aux port CONSOLE —

Fast Ethernet 10/100 expansion

EXPANSION FastEthernet0/1/8

port

Fast Ethernet 10/100 WAN port WA N FastEthernet0/0

Fast Ethernet 10/100 Power over Ethernet (PoE) ports

FXS (Foreign Exchange Station) ports

FXO (Foreign Exchange Office) ports

Power over Ethernet, and ACT

0 LNK to ACT 7 LNK

FXS, and 0-3

FXO, and 0-3

FastEthernet0/1/0 to 0/1/7

port 0/0/0 to 0/0/3

port 0/1/0 to 0/1/3

ISDN BRI ports B0 - B1 Top-to-bottom, port 0/1/0 to

0/1/1

VLAN number for data network — Vlan1

VLAN number for voice network — Vlan100

Music-on-Hold (MoH) port voice-port 0/4/0

Compact Flash slot COMPACT FLASH flash

(Factory Option) VIC: BRI* VIC2-2BRI-NT/TE

port 0/2/0 to 0/2/1

and 0-1

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-4

OL-5876-03

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Table 2-1 Cisco 1861 Integrated Services Router: Interfaces

Description Label Value in Software Configuration

(Factory Option) VIC: FXO* VIC2-2FXO and 0-1

(Factory Option) VIC: FXS* VIC3-2FXS/DID and 0-1

VIC2-4FXO and 0-3

Hardware Features

port 0/2/0 to 0/2/1

port 0/2/0 to 0/2/3

port 0/2/0 to 0/2/1

VIC-4FXS/DID and 0-3

VIC3-4FXS/DID and 0-3

* Only one optional VIC can be factory installed in a Cisco 1861 Integrated Services Router.

Removable and Interchangeable Modules

Various optional modules can be installed in the router to provide specific capabilities. These modules can be installed either by inserting them into slots on the chassis, or by opening the chassis and plugging them into connectors inside the chassis.

• Flash memory and interface cards fit into slots on the chassis and can be installed or removed

without opening the chassis.

There are three types of interface cards for the 1800 series modular routers:

–

WAN interface cards (WICs)

–

Voice WAN interface cards (VWICs—in data mode only on the Cisco 1841)

–

High-speed WAN interface cards (HWICs)

• The following components plug into connectors inside the chassis and can be installed or removed

only by opening the chassis:

–

Advanced integration module (AIM)

port 0/2/0 to 0/2/3

Memory

OL-5876-03

–

Synchronous dynamic RAM (SDRAM) small-outline dual in-line memory module (SODIMM)

Table 2-2 summarizes the optional modules:

Ta b l e 2-2 Summary of Cisco 1800 Series Removable and Interchangeable Modules

Model CompactFlash Memory Interface Cards AIMs SDRAM SODIMM

Cisco 1841 1 2 single-wide cards 1 1

Cisco 1800 series routers contain the following types of memory:

• SDRAM—Serves two functions. It stores the running configuration and routing tables, and it is used

for packet buffering by the network interfaces. Cisco

• Flash memory—Stores the operating system software image, configuration files, and log files. It is

IOS software executes from SDRAM.

implemented in an external CompactFlash memory card.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-5

Hardware Features

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

• Boot/NVRAM—Serves two functions. It stores the ROM monitor, which allows you to boot an

operating system software image from flash memory. It also stores the system configuration file and the virtual configuration register.

Table 2-3 lists the memory specifications for Cisco 1800 series routers.

Ta b l e 2-3 Router Memory Specifications for the Cisco 1841 Router

Description Specification

SDRAM 128 MB, expandable to 384 MB; default is 128 MB

Flash memory 32, 64, or 128 MB; default is 32MB

Boot/NVRAM 2/4 MB flash memory

Note SDRAM and the flash memory are user-upgradable, but the boot/NVRAM is permanently soldered to

the router’s motherboard and is not upgradable.

LED Indicators

Ta b l e 2-4 Router Memory Specifications for the Cisco 1861 ISR

Description Specification

DRAM 512 MB

Flash memory 128 MB

Table 2-5 summarizes the LED indicators for the Cisco 1841 router that are located in the router bezel

or chassis, but not in the interface cards.

For descriptions of the LEDs in the interface cards, see Cisco Interface Card Installation Guide.

Ta b l e 2-5 Summary of Cisco 1800 Series LED Indicators

LED Color Description Location:

SYS PWR Green Router has successfully booted and the software is functional.

Front

This LED blinks while booting or in the ROM monitor.

SYS ACT Green Blinking when any packets are transmitted or received on any

Front

WAN or LAN, or when monitoring system activity.

CF Green On when flash mem ory is busy. Do not remove the C ompactFlash

Back

memory card when this light is on.

FDX (FE 0/0) Green On indicates full-duplex operation. Off indicates half-duplex

Back

operation.

100 (FE 0/0) Green On indicates a 100-Mbps link. Off indicates a 10-Mbps link. Back

Link (FE 0/0) Green On when the router is correctly connected to a local Ethernet

Back

LAN through Ethernet port 0.

FDX (FE 0/1) Green On indicates full-duplex operation. Off indicates half-duplex

Back

operation.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-6

OL-5876-03

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Table 2-5 Summary of Cisco 1800 Series LED Indicators (continued)

LED Color Description Location:

100 (FE 0/1) Green On indicates a 100-Mbps link. Off indicates a 10-Mbps link. Back

Link (FE 0/1) Green On when the router is correctly connected to a local Ethernet

AIM Green On indicates presence of an AIM in the internal AIM slot. Back

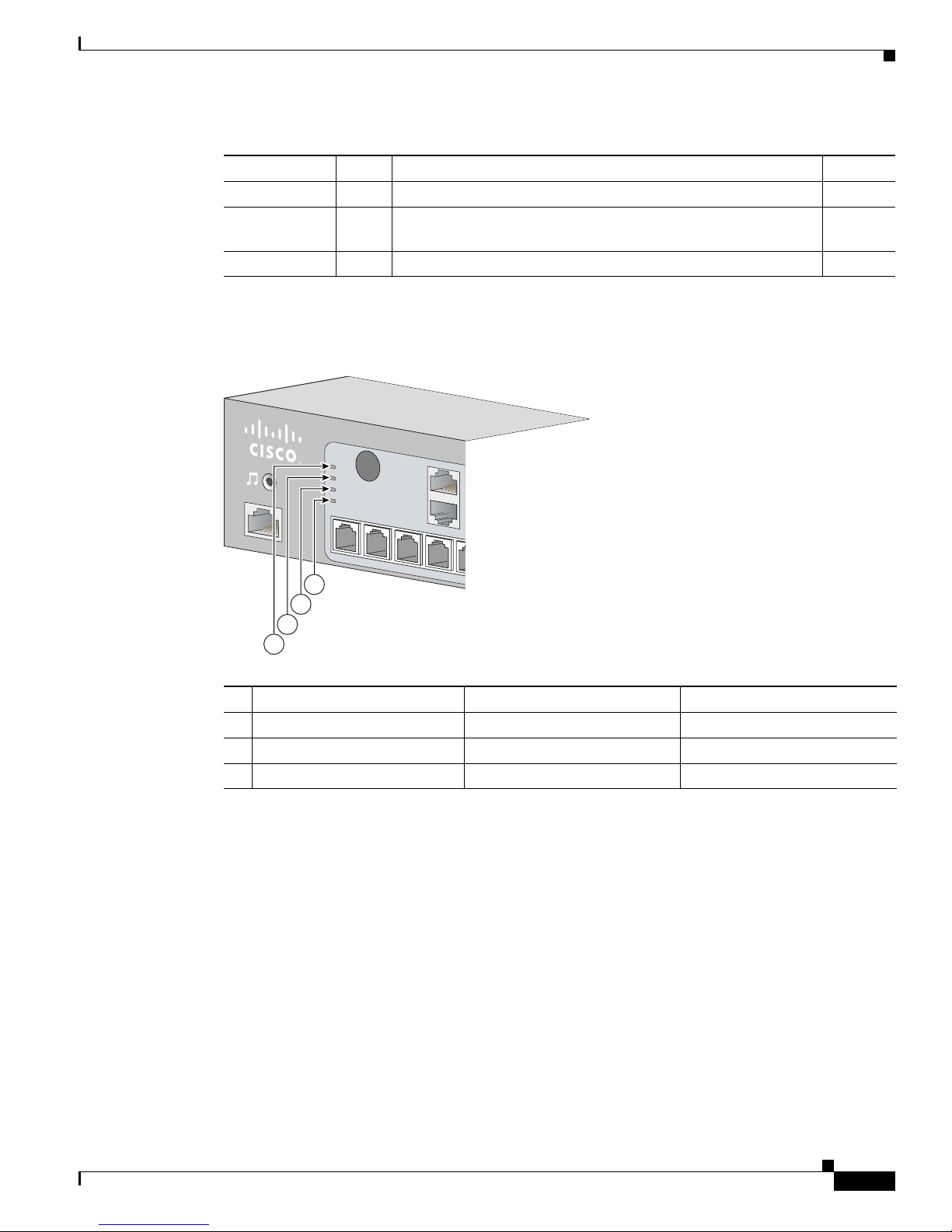

Figure 2-5 summarizes the LED indicators for the Cisco 1861 ISR that are located in the router bezel.

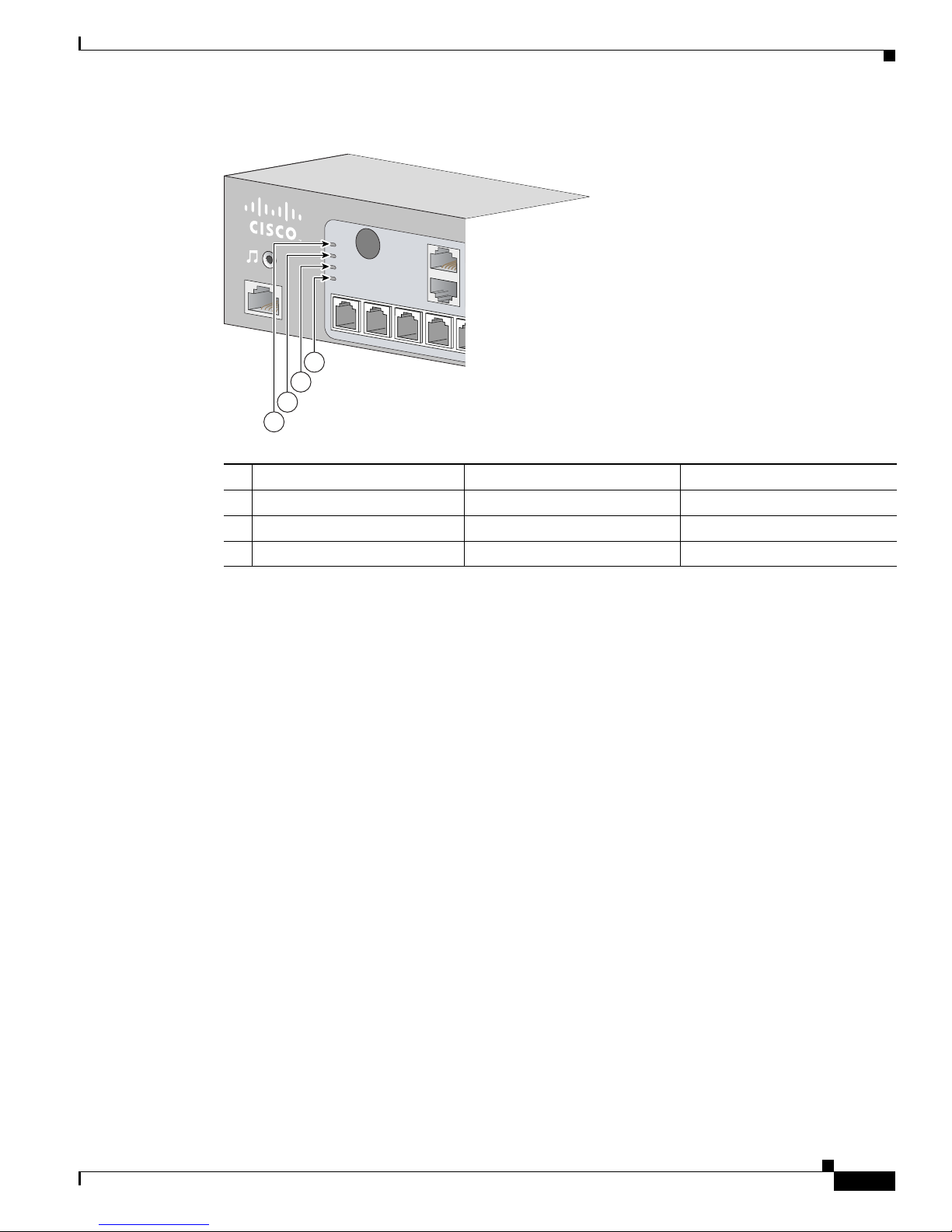

Figure 2-5 LEDs on the Front Panel of the Cisco 1861 Integrated Services Router

Hardware Features

Back

LAN through Ethernet port 1.

1 SYS Solid green Online 2 POE Solid green Connected 3 VM Solid green Online 4 WLAN Blinking green Connected

Chassis Ventilation

An internal three-speed fan provides chassis cooling. An onboard temperature sensor controls the fan speed. The fan is always on when power is applied to the router. Under most conditions, the fan operates at the slowest speed to conserve power and reduce fan noise. It operates at the higher speeds when necessary under conditions of higher ambient temperature.

SYS

POE

WLAN

230870

Real-Time Clock

An internal real-time clock with battery backup provides the system software with time of day on system power up. This allows the system to verify the validity of a certification authority (CA) certificate. The backup battery is a socketed lithium battery. This battery lasts the life of the router under the operating environmental conditions specified for the router, and is not field replaceable.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-7

Chassis Views

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Note If the lithium battery in a Cisco 1841 router should fail, the router must be returned to Cisco for repair.

Do not replace the battery yourself. Although the battery is not intended to be field replaceable, the safety agencies require the following warning be included in this document.

Warning

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Chassis Security

The chassis of the Cisco 1841 router is constructed with a KensingtonTM security slot on the back panel. It can be secured to a desktop or other surface by using Kensington

Chassis Views

This section contains views of the front and rear panels of Cisco 1841 router, showing the locations of the power and signal interfaces, the interface card slots, and the status indicators.

Figure 2-6 shows the front panel of a Cisco 1841 router. Figure 2-7 shows the back panel.

Figure 2-6 Front Panel of the Cisco 1841 Router

Statement 1015

lockdown equipment.

Cisco 1800

SYS

ACT

PWR

Series

122329

2-8

1 2

1 System Power (SYS PWR) LED 2 System Activity (SYS ACT) LED

Figure 2-7 Back Panel of the Cisco 1841 Router

FDX

100

LINK

FDX

100

LINK

FE 0/1 CONSOLE

FE 0/0 AUX

125

DO NOT REMOVE DURING NETWORK OPERATION

CF AIM

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

100-240 VAC-

1 A

50/60 Hz

122330

SLOT 0SLOT 1

CISCO 1841

OL-5876-03

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

1 Input power connection 8 CompactFlash memory card slot 2 On/Off switch 9 CompactFlash (CF) LED 3 Slot 0 (WIC, VWIC—data only, or HWIC) 10 AIM LED 4 Console port 11 USB port 5 Fast Ethernet ports and LEDs 12 Aux port 6 KensingtonTM security slot 13 Chassis ground connection 7 Slot 1 (WIC, VWIC—data only, or HWIC)

Interface Numbering

Each individual interface (port) on a Cisco 1841 router is identified by a number. A Cisco 1841 router contains the following wide-area network (WAN) and local-area network (LAN) interface types:

• Two onboard Fast Ethernet LAN interfaces

• Two slots in which you can install WICs, VWICs (data only), and HWICs.

Interface Numbering

The numbering format for the slots is interface-type 0/slot-number/interface-number. Tabl e 2-6 summarizes the interface numbering.

Ta b l e 2-6 Interface Numbering

Slot Number Slot Type Slot Numbering Range Example

Onboard Ports Fast Ethernet 0/0 and 0/1 interface fastethernet 0/0

Slot 0 HWIC/WIC/VWIC

0/0/0 to 0/0/3 interface serial 0/0/0

line async 0/0/0

Slot 1 HWIC/WIC/VWIC

0/1/0 to 0/1/3 interface serial 0/1/0

line async 0/1/0

1. The interfaces listed are examples only; other possible interface types are not listed.

2. VWICs are data-only in a Cisco 1841 router.

Note On the Cisco 1841 router, the numbering format for configuring an async interface is 0/slot/port. To

configure the line associated with an async interface, simply use the interface number to specify the async line. For example, line 0/0/0 specifies the line associated with interface serial 0/0/0 on a WIC-2A/S in slot 0. Similarly, line 0/1/1 specifies the line associated with interface async 0/1/1 on a WIC-2AM in slot 1.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-9

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Interface Numbering on the 1861 Integrated Services Router

Each interface (port) on a Cisco 1861 ISR is identified by a number. The Cisco 1861 router contains the following WANLAN interface types:

• One onboard Fast Ethernet LAN interface (FastEthernet0/0)

• One onboard Ethernet switch

• One fixed VIC slot with 4 FXS ports

• One fixed VIC slot with 4 FXO or 2 BRI ports

• One modular HWIC/WIC/VWIC slot

The numbering format for the slots is interface-type 0/slot-number/port-number. Tabl e 2-7 summarizes the interface numbering.

Ta b l e 2-7 Interface Numbering

Slot Number Slot Type Slot Numbering Range Example

Onboard Ports Fast Ethernet 0/0 interface fastethernet 0/0

Onboad Slot 1 Fast Ethernet Switch 0/1/0 to 0/1/7 interface fastethernet 0/1/0

Fixed HWIC slot 0 FXS 0/0/0 to 0/0/3 voice-port 0/0/0/

Fixed HWIC slot 1 FXO 0/1/0 to 0/1/3 voice-port 0/1/0

BRI 0/1/0 to 0/1/1

Modular HWIC Slot HWIC/WIC/VWIC 0/3/0 to 0/3/x, where x

interface serial 0/0/0 depends on the card-type.

1. The interfaces listed are examples only; other possible interface types are not listed.

Note On the Cisco 1861 ISR, the numbering format for configuring an asynchronous, or async, interface is

0/slot/port. To configure the line associated with an async interface, simply use the interface number to specify the async line. For example, line 0/0/0 specifies the line associated with interface serial 0/0/0 on a WIC-2A/S in slot 0. Similarly, line 0/1/1 specifies the line associated with interface async 0/1/1 on a WIC-2AM in slot 1.

Note If you have specified the use of a private line automatic ringdown (PLAR) off-premises extension (OPX)

connection mode for an FXO voice port (with loop resistance less than 8000 Ohm), you must ensure that the soft-offhook option is enabled on the port.

This option allows a stepped offhook resistance during seizure, which avoids overloading the circuit during offhook in the event that ringing voltage is present on the circuit at the same time as the trunk seizure. The stepped offhook resistance is initially set to 800 Ohms, then adjusts to 50 Ohms when ringing voltage is not present.

To enable the soft-offhook command on the port, and to access the connection command with plar opx syntax, see Cisco Command Lookup Tool.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-10

OL-5876-03

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Specifications

Table 2-8 lists the specifications for Cisco 1800 series routers.

Ta b l e 2-8 1841 Router Specifications

Description Specification

Dimensions without rubber feet (H x W x D)

Weight (no modules installed) 6.1 lb. (2.77 kg)

Input voltage, AC power supply Frequency

Power consumption 20 W maximum for an unloaded unit.

Console and auxiliary ports RJ-45 connectors

Operating humidity 5 to 95%, noncondensing

Operating temperature 32 to 104°F (0 to 40°C)

Nonoperating temperature shock –13 to 158°F (–25 to 70°C) at 9° F (5° C)/minute minimum

Noise level Normal operating temperature (< 78° F or 26° C): 34 dBa

Regulatory compliance For detailed regulatory compliance information, see

Electromagnetic compatibility FCC Part 15 Class A.

Safety compliance UL 60950; CSA 60950; IEC 60950; EN 60950; AS/NZS 3260;

Specifications

1.73 x 13.5 x 10.8 in. (4.4 x 34.3 x 27.4 cm)

With rubber feet, height is 1.87 in. (4.75 cm)

100 to 240 VAC, autoranging 47 to 63 Hz

With two WICs and an AIM installed, power consumption will be less than 50 W.

From (78° F or 26° C) through (104° F or 40° C): 37 dBa >104° F or 40° C: 42 dBa

Regulatory Compliance and Safety Information for Cisco 1840 Routers, which accompanies the router.

NOM-019-SCFI-1998.

Regulatory Compliance

For compliance information, see Regulatory Compliance and Safety Information for Cisco 1840 Routers document that accompanies the router.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-11

Regulatory Compliance

Chapter 2 Overview of Cisco 1800 Series Routers (Modular)

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

2-12

OL-5876-03

CHA PTER

Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

This chapter describes the site requirements and equipment needed to install your Cisco 1800 series integrated services router (modular). It includes the following sections:

• Safety Recommendations, page 3-1

• General Site Requirements, page 3-3

• Installation Checklist, page 3-4

• Site Log, page 3-5

• Inspecting the Router, page 3-6

• Required Tools and Equipment for Installation and Maintenance, page 3-7

Note To see translations of the warnings that appear in this publication, see Regulatory Compliance and Safety

Information for Cisco 1840 Routers.

Safety Recommendations

Follow these guidelines to ensure general safety:

• Keep the chassis area clear and dust-free during and after installation.

• If you remove the chassis cover, put it in a safe place.

• Keep tools and chassis components away from walk areas.

• Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf, and roll up

your sleeves.

• Wear safety glasses when working under conditions that might be hazardous to your eyes.

• Do not perform any action that creates a hazard to people or makes the equipment unsafe.

Warning

OL-5876-03

Read the installation instructions before connecting the system to the power source.

Statement 1004

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-1

Safety Recommendations

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

1029

Warning

To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the handles on modules (such as power supplies, fans, or cards); these types of handles are not designed to support the weight of the unit.

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Warning

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Safety with Electricity

Follow these guidelines when working on equipment powered by electricity.

Statement

Statement 1032

Statement 1046

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Statement 1001

Read the installation instructions before connecting the system to the power source.

Statement 1004

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

• Locate the emergency power-off switch in the room in which you are working. Then, if an electrical

Statement 1046

accident occurs, you can quickly turn off the power.

• Disconnect all power before doing the following:

–

Installing or removing a chassis

–

Working near power supplies

–

Removing the top cover of a chassis

• Look carefully for possible hazards in your work area, such as moist floors, ungrounded power

extension cables, frayed power cords, and missing safety grounds.

• Do not work alone if hazardous conditions exist.

• Never assume that power is disconnected from a circuit. Always check.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-2

OL-5876-03

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

• Never open the enclosure of the router’s internal power supply.

• If an electrical accident occurs, proceed as follows:

–

Use caution; do not become a victim yourself.

–

Turn off power to the device.

–

If possible, send another person to get medical aid. Otherwise, assess the victim’s condition and then call for help.

–

Determine whether the person needs rescue breathing or external cardiac compressions; then take appropriate action.

In addition, use the following guidelines when working with any equipment that is disconnected from a power source, but is still connected to telephone wiring or other network cabling:

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is specifically designed for it.

• Never touch uninsulated telephone wires or terminals unless the telephone line is disconnected at

the network interface.

• Use caution when installing or modifying telephone lines.

General Site Requirements

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD can occur if electronic printed circuit cards are improperly handled and can cause complete or intermittent failures. Always follow ESD prevention procedures when removing and replacing modules:

• Ensure that the router chassis is electrically connected to earth ground.

• Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to

an unpainted surface of the chassis frame to channel unwanted ESD voltages safely to ground. To guard against ESD damage and shocks, the wrist strap and cord must operate effectively.

• If no wrist strap is available, ground yourself by touching a metal part of the chassis.

Caution For the safety of your equipment, periodically check the resistance value of the antistatic strap. It should

be between 1 and 10 megohms (Mohm).

General Site Requirements

This section describes the requirements that your site must meet for safe installation and operation of your router. Ensure that the site is properly prepared before beginning installation. If you are experiencing shutdowns or unusually high errors with your existing equipment, this section can also help you isolate the cause of failures and prevent future problems.

Power Supply Considerations

Check the power at your site to ensure that you are receiving “clean” power (free of spikes and noise). Install a power conditioner if necessary.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-3

Installation Checklist

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

Warning

The device is designed for connection to TN and IT power systems.

The AC power supply includes the following features:

• Autoselects either 110 V or 220 V operation.

• All units include a 6-foot (1.8-meter) electrical power cord. (A label near the power cord indicates

the correct voltage, frequency, current draw, and power dissipation for the unit.)

Site Environment

The location of your router is an extremely important consideration for proper operation. Equipment placed too close together-, or with inadequate ventilation-, or with inaccessible panels, can cause malfunctions and shutdowns, and can also make maintenance difficult. Plan for access to both front and back panels of the router.

When planning your site layout and equipment locations, remember the precautions described in the

“Site Configuration” section on page 3-4 to help avoid equipment failures and reduce the possibility of

environmentally caused shutdowns. If you are currently experiencing shutdowns or an unusually high number of errors with your existing equipment, these precautions may help you isolate the cause of the failures and prevent future problems.

Site Configuration

Statement 1007

The following precautions will help you plan an acceptable operating environment for your router and will help you avoid environmentally caused equipment failures:

• Make sure that the room where your router operates has adequate circulation. Electrical equipment

generates heat. Without adequate circulation, ambient air temperature may not cool equipment to acceptable operating temperatures.

• Always follow the ESD-prevention procedures described in the “Preventing Electrostatic Discharge

Damage” section on page 3-3 to avoid damage to equipment. Damage from static discharge can

cause immediate or intermittent equipment failure.

• Make sure that the chassis cover and module back panels are secure. All empty interface card slots

must have filler panels installed. The chassis is designed to allow cooling air to flow within it, through specially designed cooling slots. A chassis with uncovered openings creates air leaks, which may interrupt and reduce the flow of air across internal components.

Installation Checklist

The sample installation checklist lists items and procedures for installing a new router. Make a copy of this checklist, and mark each item when you complete it. Include a copy of the checklist for each router in your Site Log (described in the

“Site Log” section on page 3-5).

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-4

OL-5876-03

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

Installation Checklist for Site_____________________________________________

Router Name_______________________________________________________

Tas k Verified by Date

Installation Checklist copied

Background information placed in Site Log

Site power voltages verified

Installation site power check completed

Required tools available

Additional equipment available

Router received

Router quick start guide received

Cisco 1861 Integrated Services Router Quick Start Guide

document received

Product registration card received

Cisco.com contact information label received

Chassis components verified

Initial electrical connections established

ASCII terminal (for local configuration) or modem

Signal distance limits verified

Startup sequence steps completed

Initial operation verified

Software image verified

(for remote configuration) available

Site Log

The Site Log is a record of all actions related to the router. Keep it in an accessible place near the chassis so that anyone who performs tasks has easy access to it. Use the Installation Checklist to verify steps in installation and maintenance of the router. Site Log entries might include the following information:

• Installation progress—Make a copy of the Installation Checklist, and insert it into the Site Log.

Record the pertinent information as each procedure is completed.

• Upgrade and maintenance procedures—Use the Site Log as a record of ongoing router maintenance

and expansion history. A Site Log might include the following events:

–

Installation of network modules

–

Removal or replacement of network modules and other upgrades

–

Configuration changes

–

Maintenance schedules and requirements

–

Maintenance procedures performed

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-5

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

Inspecting the Router

–

Intermittent problems

–

Comments and notes

Inspecting the Router

Do not unpack the router until you are ready to install it. If the final installation site will not be ready for some time, keep the chassis in its shipping container to prevent accidental damage. When you are ready to install the router, proceed with unpacking it.

Items in the Box for the Cisco 1841 Router

The router, cables, publications, and any optional equipment that you ordered may be shipped in more than one container. When you unpack the containers, check the packing list to ensure that you have received all the following items:

• Router

• 6-foot (1.8-meter) power cord

• Ground lug

• RJ-45-to-DB-9 console cable

• DB-9-to-DB-25 modem adapter

• Cisco 1800 Series Integrated Services Routers (Modular) Quick Start Guide

• Regulatory Compliance and Safety Information for Cisco 1840 Routers

• Cisco Router and Security Device Manager (SDM) Quick Start Guide

• Cisco.com card

• Product registration card

Inspect all items for shipping damage. If anything appears to be damaged, or if you encounter problems installing or configuring your router, contact customer service.

Items in the Box for the Cisco 1861 Integrated Services Router

The following items ship with the Cisco 1861 Integrated Services Router:

• Accessory kit containing:

–

Rubber feet for desktop installation

–

RJ-45-to-RJ-45 Ethernet cable

–

Light blue RJ-45-to-DB9 console cable

–

Wall-mount bracket for power supply

–

Quick Start Guide for Cisco 1861 Integrated Services Router (this guide)

–

Regulatory Compliance and Safety Information Roadmap

A separate rack-mount kit can be ordered which includes the following:

–

Power supply bracket

–

Rack-mount brackets for chassis

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-6

OL-5876-03

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

Required Tools and Equipment for Installation and Maintenance

–

Assembly hardware (screws)

–

Installing Components for Cisco 1861 Integrated Services Router

Inspect all items for shipping damage. If anything appears to be damaged, or if you encounter problems installing or configuring your router, contact customer service.

Items not Included in the Box for the Cisco 1861 Integrated Services Router

You may need individual items in this list which are not shipped in the box:

• Cisco Unified IP phones

• Cables for connecting phones

• Cable for connecting external audio device to the 3.5-mm MoH port

• Cables for WAN interfaces, voice interfaces, or additional LAN interfaces

• PC with Microsoft Internet Explorer 6.0 or later, for using web-based system management tools

Required Tools and Equipment for Installation and Maintenance

You need the following tools and equipment for installing and upgrading the router and its components:

• ESD-preventive cord and wrist strap

• Number 2 Phillips screwdriver

• Flat-blade screwdrivers: small, 3/16-inch (0.48 centimeter) and medium, 1/4-inch (0.63 centimeter)

–

For installing or removing modules

–

For removing the cover if you are upgrading memory or other components

• Wire crimper

• AWG 14 wire for connecting the router chassis to earth ground

In addition, depending on the type of modules you plan to use, you might need the following equipment to connect a port to an external network:

• Cables for connection to WAN and LAN ports (dependent on configuration)

Note For more information on cable specifications, see the online document Cisco Modular

Access Router Cable Specifications, which is located on Cisco.com.

• Ethernet hub or PC with a network interface card for connection to Ethernet (LAN) ports

• Console terminal (an ASCII terminal or a PC running terminal emulation software) configured for

9600 baud, 8 data bits, no parity, and 1 stop bit

• Modem for connection to the auxiliary port for remote administrative access

• Data service unit (DSU) or channel service unit/data service unit (CSU/DSU) as appropriate for

serial interfaces

• External CSU for any CT1/PRI modules without a built-in CSU

NT1 device for ISDN BRI S/T interfaces (if not supplied by your service provider)

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-7

Chapter 3 Preinstallation Requirements and Planning for Cisco 1800 Series Routers (Modular)

Required Tools and Equipment for Installation and Maintenance

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

3-8

OL-5876-03

CHA PTER

Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

This chapter tells how to physically set up Cisco 1800 series integrated services routers (ISR) (modular). It contains the following sections:

• Setting Up the Chassis, page 4-3

• Installing the Chassis Ground Connection, page 4-11

Cisco 1800 series routers are normally shipped with a complement of components that can be upgraded or replaced to expand and enhance the router’s functionality. These components either are inserted internally into the router or are plugged into slots in the router chassis.

Note To see translations of the warnings that appear in this publication, see Regulatory Compliance and Safety

Information for Cisco 1840 Routers.

Internal Components

The router’s internal components include the following:

• SDRAM

• Advanced integration module (AIM)

If you need to remove or upgrade either of these items, follow the procedures given in the “Installing

and Upgrading Internal Modules in Cisco 1800 Series Routers (Modular)” document.

Plug-In Components

The following components plug into the router chassis:

• WAN interface cards (WICs)

• Voice/WAN interface cards (VWICs), data mode only

• High-speed WICs (HWICs)

• CompactFlash memory card

If you need to remove or install WICs, VWICs, or HWICs, follow the procedures in the “Installing

Interface Cards in Cisco 1800 Series Routers (Modular)” document.

If you need to remove or upgrade the CompactFlash memory card, follow the procedure in the

“Installing and Replacing CompactFlash Memory Cards on Cisco 1800 Series Routers (Modular)”

document.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-1

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Interfaces on the Cisco 1861 Integrated Services Router

Table 4-1 lists the labels and descriptions for the WAN, LAN, voice interface card (VIC), and other

interfaces, along with the values for these interfaces in the preconfigured router software configuration.

Note In Table 4-1, all slots/ports are numbered right to left, unless otherwise noted.

Ta b l e 4-1 Cisco 1861 Integrated Services Router: Interfaces

Description Label Value in Software Configuration

Console/Aux port CONSOLE —

Fast Ethernet 10/100 expansion port

Fast Ethernet 10/100 WAN port WA N FastEthernet0/0

Fast Ethernet 10/100 Power over Ethernet (PoE) ports

FXS (Foreign Exchange Station) ports

FXO (Foreign Exchange Office) ports

ISDN BRI ports B0 - B1 Top-to-bottom, port 0/1/0 to

VLAN number for data network — Vlan1

VLAN number for voice network — Vlan100

Music-on-Hold (MoH) port voice-port 0/4/0

EXPANSION FastEthernet0/1/8

Power over Ethernet, and ACT

0 LNK to ACT 7 LNK

FXS, and

FastEthernet0/1/0 to 0/1/7

port 0/0/0 to 0/0/3

0-3

FXO, and

port 0/1/0 to 0/1/3

0-3

0/1/1

4-2

Compact Flash slot COMPACT FLASH flash

(Factory Option) VIC: BRI* VIC2-2BRI-NT/TE

and 0-1

(Factory Option) VIC: FXO* VIC2-2FXO and 0-1

VIC2-4FXO and 0-3

(Factory Option) VIC: FXS* VIC3-2FXS/DID and 0-1

VIC-4FXS/DID and 0-3

VIC3-4FXS/DID and 0-3

* Only one optional VIC can be factory installed in a Cisco 1861 Integrated Services Router.

** The label on the front panel is build-specific. Functionality is unaffected.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

port 0/2/0 to 0/2/1

port 0/2/0 to 0/2/3

port 0/2/0 to 0/2/1

port 0/2/0 to 0/2/3

OL-5876-03

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Setting Up the Chassis

The Cisco 1841 router and the Cisco 1861 ISR can be installed on a desktop, and can also be mounted on a wall. Select the setup that best meets the needs of your network. These setups are described in the following sections:

• Setting the Chassis on a Desktop, page 4-3

• Rack-Mounting a Cisco 1800 Series Modular-Configuration Router, page 4-3

• Wall-Mounting the Chassis, page 4-6

Caution The front panel bezel must not be removed from the Cisco 1841 router. It is part of the product's

enclosure, and must be left in place to prevent damage from foreign objects entering the router, to provide a shield from internal electromagnetic interference (EMI), and to direct the flow of cooling air properly through the chassis.

Setting the Chassis on a Desktop

Setting Up the Chassis

You can place Cisco 1841 routers on a desktop or shelf. The Cisco 1841 router is shipped with the rubber feet attached to the chassis to provide space for air circulation.

To install a chassis on a desktop, table, or other flat surface, place the unit upside-down on a flat surface. Attach the four rubber pads to the recessed areas on the bottom of the unit. Place the unit on a desktop.

Warning

Caution Do not place anything on top of the router that weighs more than 10 lbs (4.5 kg). Excessive weight on

Caution The Cisco 1861 Integrated Services Router installation must allow unrestricted airflow for cooling. For

top of the router could damage the chassis.

placing the platform on a desktop, keep at least 1 in. (2.54 cm) of clear space beside the cooling inlet and exhaust vents.

Statement 1032

Rack-Mounting a Cisco 1800 Series Modular-Configuration Router

If you are planning to rack-mount the router, rack-mount it before you make the network and power connections. If you need to install any internal modules, such as an expansion DIMM or an inline power supply card, install these prior to rack-mounting.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-3

Setting Up the Chassis

Note To install a Cisco 1800 series modular-configuration router in a 19-inch rack, use the brackets included

Note Brackets for 23-inch equipment racks are not available for Cisco 1800 series modular-configuration

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

in the optional rack-mount kit (SKU: ACS-1841-RM-19=).All Cisco 1841 chassis shipping since Q4FY06 are rack-mountable. Cisco 1841 chassis with the following starting serial numbers have the rack-mount screw holes: FTX1009W0Z3 (United States), FCZ100812UR (Europe, Middle East, and Africa), and FHK100653JL (Asia Pacific).

routers.

Figure 4-1 shows the brackets.

Figure 4-1 Rack-Mounting Brackets

Attaching Rack-Mount Brackets

Use four of the supplied number-8 Phillips flat-head screws to attach each bracket to the router.

Figure 4-2 shows how to attach the brackets to the sides of the router with the back panel forward.

Figure 4-2 Attaching Rack-Mounting Brackets to a Cisco 1800 Series Modular-Configuration

CISCO 1841

Router

100-240 VAC-

1 A

50/60 Hz

95769

127162

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-4

OL-5876-03

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Installing the Router in a Rack

After you attach the brackets to the router chassis, use the screws provided with the rack to install the chassis in the rack. (See the lower screws while you insert the upper pair of screws.

Tip The screw slots in the brackets are spaced to line up with every second pair of screw holes in the rack.

When the correct screw holes are used, the small threaded holes in the brackets line up with unused screw holes in the rack. If the small holes do not line up with the rack holes, you must raise or lower the brackets to the next rack hole.

Figure 4-3.) Start with the lower pair of screws first, and rest the brackets on

Setting Up the Chassis

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in

Warning

the rack.

Take care when connecting units to the supply circuit so that wiring is not overloaded.

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 50°C (122°F).

Statement 1006

Statement 1018

Statement 1047

Caution Be sure to leave space above and below each router in a rack, to allow for cooling air circulation.

Figure 4-3 Mounting the Chassis in a Rack (Typical)

OL-5876-03

CISCO 1841

-2

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

127168

4-5

Setting Up the Chassis

6.00 inches

Chassis Grounding

After the router has been installed, you must connect the chassis to a reliable earth ground. For the chassis ground connection procedure, see the

Router” section on page 4-8.

Wall-Mounting the Chassis

The Cisco 1841 router and the Cisco 1861 ISR can be mounted on a wall.

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

“Wall-Mounting the Cisco 1861 Integrated Services

Warning

This unit is intended to be mounted on a wall. Please read the wall mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

Wall-Mounting the Cisco 1841 Router

To mount the Cisco 1841 router on a wall, use two number six, 3/4-inch screws and the mounting features on the bottom of the router. You must provide the screws. We recommend using pan-head or round-head screws.

The wall-mounting features on the router are shown in Figure 4-4.

Figure 4-4 Wall-Mounting Features on the Cisco 1841 Router

6.00 inches

Statement 248

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-6

103162

OL-5876-03

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

1 Wall-mounting features

To mount the router on a wall or other surface, follow these steps:

Step 1 Install the two screws 6.00 in. (15.2 cm) horizontally apart on a wall or other vertical surface.

The screws should protrude 0.25 in. (0.6 cm) from the surface of the wall.

Step 2 Remove the rubber feet from the router. Step 3 Hang the router on the screws, front panel down. This is the appropriate orientation for safe use. See

Figure 4-5.

Figure 4-5 Wall-Mounting the Cisco 1841 Router

Setting Up the Chassis

1 Wall 3 Router 2 Mounting screws

103163

Caution If you install the screws in drywall, use hollow-wall anchors (1/8 in. (31.75 cm) by 5/16 in. (79.38 cm))

to secure the screws. If the screws are not properly anchored, the strain of the cables connected to the router back panel could pull the router from the wall.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-7

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Setting Up the Chassis

Wall-Mounting the Cisco 1861 Integrated Services Router

The Cisco 1861 Integrated Services Router has two keyholes on the bottom of the chassis for mounting the unit on a wall or other vertical surface. The power supply is mounted to the wall by using the wall-mount bracket.

Figure 4-6 shows the bottom of the Cisco 1861 Integrated Services Router and the locations of the

wall-mount holes.

Figure 4-6 Wall-Mount Holes on Bottom of Cisco 1861 Integrated Services Router

8.318 in. (21.127 cm)

242657

1 Front panel 2 Mounting-screw holes

To mount the router on a wall or other surface, follow these steps:

Step 1 Align the mounting-screw holes with a wall stud, or use wall anchors.

a. For attaching to a wall stud, use two #10 wood screws (round- or pan-head) with #10 washers, or

two #10 washer-head screws. The screws must be long enough to penetrate at least 3/4 in. (20 mm) into the supporting wood or into a metal wall stud.

b. For hollow-wall mounting, the wall must be at least 1/2 in. (12.7 mm) thick. Use two wall anchors

with washers. The wall anchors and washers must be a size suitable for the wall to which they are mounted.

Step 2 Position the chassis on the wall.

a. Orient the front and back of the chassis vertically. b. The unit must be oriented with the front panel (TNV connection side) facing up and the connection

to the power cord facing down.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-8

OL-5876-03

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Step 3 Align the mounting-screw holes with a wall stud, or use wall anchors.

a. For attaching to a wall stud, use two #10 wood screws (round- or pan-head) with #10 washers, or

two #10 washer-head screws. The screws must be long enough to penetrate at least 3/4 inch (20 mm) into supporting wood or into a metal wall stud.

b. For hollow-wall mounting, the wall must be at least 1/2 in. (12.7 mm) thick. Use two wall anchors

with washers. Wall anchors and washers must be a size suitable for the wall to which they are mounted.

Figure 4-7 shows the wall-mount bracket for the power supply and the mounting-screw holes on the back

of the bracket.

Figure 4-7 Wall-Mount Bracket for Power Supply

242658

Setting Up the Chassis

Step 4 Position the power supply in the bracket.

a. Orient the front and back of the power supply vertically. b. Position the end nearest the power cable at the top.

Rack-Mounting the Cisco 1861 Integrated Services Router

To attach the brackets to the Cisco 1861 Integrated Services Router, perform the following steps.

Caution Do not overtorque the screws. The recommended torque is 6 to 8 in-lb (0.7 to 0.9 N-m).

Step 1 Attach the mounting brackets to the Cisco 1861 Integrated Services Router chassis as shown in

Figure 4-8, using the screws provided. Use four screws on each side. Use a number 2 Phillips screwdriver

to install the bracket screws on both sides of the chassis.

Figure 4-8 Attaching Rack-Mount Brackets to the Cisco 1861 Integrated Services Router

V I

C 4 F

/ D

I D

I N

0 0

OL-5876-03

242684

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-9

Setting Up the Chassis

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Figure 4-9 shows the brackets in the rack-mount kit for the power supply.

Figure 4-9 Brackets for Rack-Mounting Power Supply

242659

1 Wall-mount bracket 2 Rack-mount bracket

Step 2 Position the power supply in the wall-mount bracket.

a. Orient the front and back of the power supply vertically. b. Position the end nearest the power cable at the top.

Step 3 Assemble the brackets for rack-mounting the power supply as shown in Figure 4-10, using the four

screws provided. Use a number 2 Phillips screwdriver to install the bracket screws.

Figure 4-10 Assembling Rack-Mount Kit for the Power Supply

242661

To mount the chassis and power supply, use two screws for each side (supplied with the rack) to attach the Cisco

1861 ISR with rack-mount brackets, then attach the power supply with rack-mount bracket to a 19-in. rack. Start the lower pair of screws first, resting the brackets on the lower screws while you insert the upper pair of screws.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-10

OL-5876-03

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Installing the Chassis Ground Connection

Warning

Caution Chassis installation must allow unrestricted airflow for chassis cooling.

Tip The screw slots in the brackets are spaced to line up with every second pair of screw holes in the rack.

-- This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

-- When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.

-- If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

Statement 1006

Installing the Chassis Ground Connection

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

Installing the Chassis Ground Connection on the Cisco 1841 Router

You must connect the chassis to a reliable earth ground, using a ground lug and size 14 AWG (2 mm2) wire. To install the ground connection for a Cisco 1800 series router, follow these steps:

Step 1 Strip one end of the ground wire to expose approximately 0.75 in. (20 mm) of conductor. Step 2 Crimp the 14 AWG green ground wire to a UL Listed/CSA certified ring terminal that is suitably sized

for the number 6 ground screw provided on the rear panel of the router. The crimping tool should be one that is recommended by the ring lug terminal manufacturer.

Step 3 Attach the ring terminal to the chassis. The attachment points for the Cisco 1841 router are shown in

Figure 4-11. Use a number 2 Phillips screwdriver and the screw supplied with the ground lug. Tighten

the screw to a torque of 8 to 10 in-lb. (0.9 to 1.1 N-m).

Statement 1024

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-11

Installing the Chassis Ground Connection

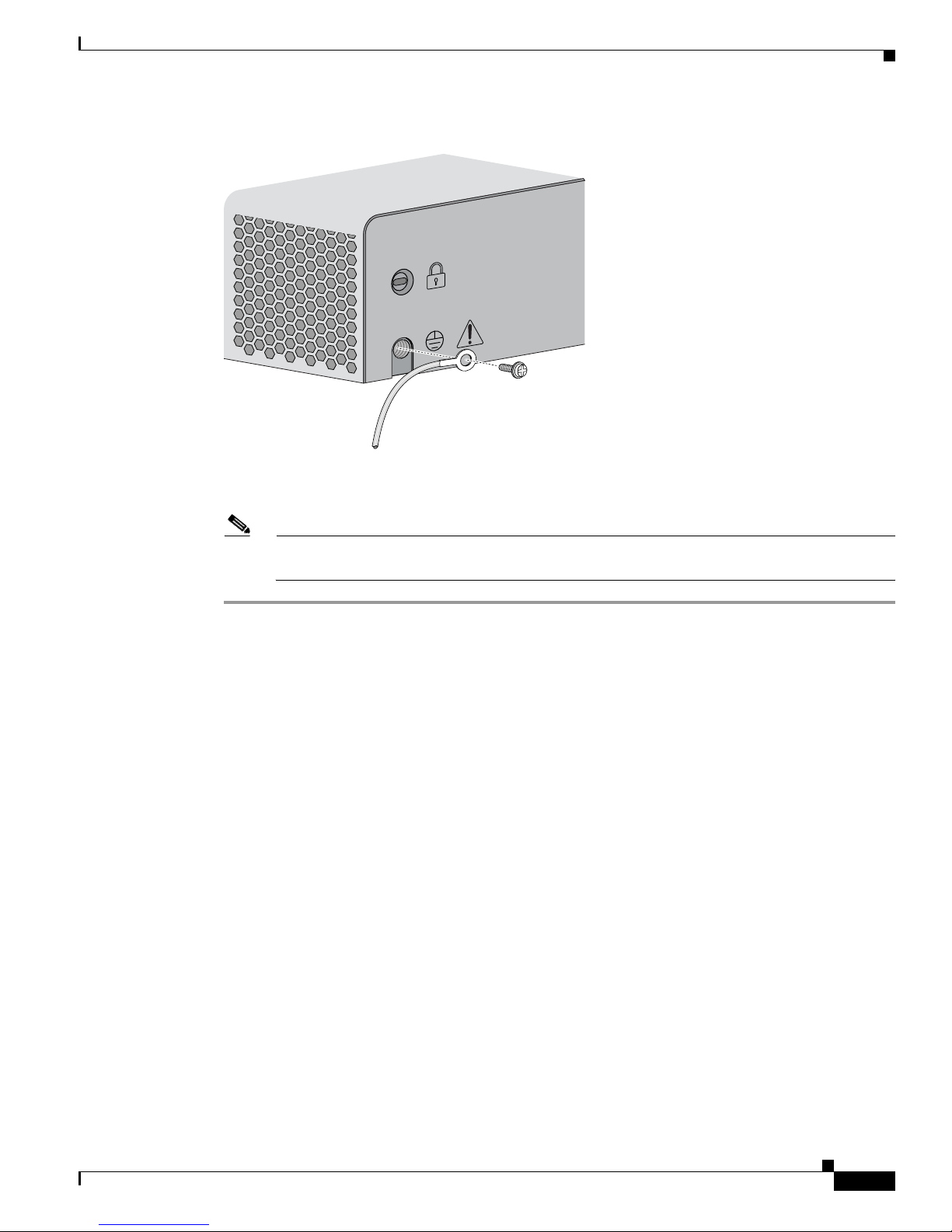

Figure 4-11 Chassis Ground Connection on the Cisco 1841 Router

Step 4 Connect the other end of the ground wire to a known good electrical ground point. Consult with a

licensed electrician if you have any questions about the suitability of the ground connection.

After the router is installed and properly grounded, you can connect the WAN and LAN cables as required for your installation. For cable connection procedures, see

Cisco 1800 Series Routers (Modular)”.

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

CISCO 1841

Ring terminal

attachment

1 0

5 0

117083

“Cable Connection Procedures for

Installing the Chassis Ground Connection on the Cisco 1861 Integrated Services Router

You must connect the chassis to a reliable earth ground; the ground wire must be installed in accordance with local electrical safety standards.

For NEC-compliant grounding, use size 14 AWG (2 mm) or larger copper wire and an appropriate user-supplied ring terminal with an inner diameter of 1/4 in. (5 to 7 mm).

Note The Cisco 1861 Integrated Services Router is not NEBS-compliant.

Warning

Step 1 Strip one end of the ground wire to the length required for the ground lug or terminal.

Step 2 Crimp the ground wire to the ground lug or ring terminal, using a crimp tool of the appropriate size.

This equipment needs to be grounded. Use a green and yellow 14 AWG ground wire to connect the host to earth ground during normal use.

Statement 190

To connect the chassis to a reliable earth ground, perform the following steps:

• For the ground lug, approximately 0.75 in. (20 mm)

• For the user-provided ring terminal, as required

Step 3 Attach the ground lug or ring terminal to the chassis as shown in Figure 4-12. Tighten the screws to a

torque of 8-10 in-lb (0.9-1.1 N-m).

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-12

OL-5876-03

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Figure 4-12 Attaching the Ground Wire to the Chassis

Installing the Chassis Ground Connection

230868

Step 4 Connect the other end of the ground wire to a known reliable earth ground point.

Note If there is any doubt as to the reliability of the ground point, contact a licensed electrician for

assistance.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-13

Installing the Chassis Ground Connection

Chapter 4 Chassis Installation Procedures for Cisco 1800 Series Routers (Modular)

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

4-14

OL-5876-03

CHA PTER

Cable Information and Specifications for Cisco 1800 Series Routers (Modular)

This chapter gives cable information and specifications for the console port, auxiliary port, and network ports on your Cisco 1800 series integrated services router (modular). It contains the following sections:

• Console and Auxiliary Port Considerations, page 5-1

• Preparing to Connect to a Network, page 5-2

For cable connection procedures, see “Cable Connection Procedures for Cisco 1800 Series Routers

(Modular)”.

Console and Auxiliary Port Considerations

The router includes an asynchronous serial console port and an auxiliary port. The console and auxiliary ports provide access to the router either locally using a console terminal connected to the console port, or remotely, using a modem connected to the auxiliary port. This section provides important cabling information to consider before connecting the router to a console terminal or modem.

The main difference between the console and auxiliary ports is that the auxiliary port supports flow control, whereas the console port does not. Flow control paces the transmission of data between a sending device and a receiving device. Flow control ensures that the receiving device can absorb the data sent to it before the sending device sends more. When the buffers on the receiving device are full, a message is sent to the sending device to suspend transmission until the data in the buffers has been processed. Because the auxiliary port supports flow control, it is ideally suited for use with the high-speed transmissions of a modem. Console terminals send data at slower speeds than modems; therefore, the console port is ideally suited for use with console terminals.

Console Port Connections

The router has an EIA/TIA-232 asynchronous serial console port (RJ-45). Depending on the cable and the adapter used, this port will appear as a data terminal equipment (DTE) or data communications equipment (DCE) device at the end of the cable.

For connection to a PC running terminal emulation software, your router is provided with an RJ-45-to-DB-9 cable.

To connect the router to an ASCII terminal, use the RJ-45-to-DB-9 cable and a DB-9-to-DB-25 adapter (provided).

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

5-1

Preparing to Connect to a Network

The default parameters for the console port are 9600 baud, 8 data bits, no parity, and 1 stop bit. The console port does not support mode control.

For cable and port pinouts, see Cisco Modular Access Router Cable Specifications.

Auxiliary Port Connections

The router has an EIA/TIA-232 asynchronous serial auxiliary port (RJ-45) that supports flow control. Depending on the cable and the adapter used, this port will appear as a DTE or DCE device at the end of the cable.

For connection to a modem, your router is provided with an RJ-45-to-DB-9 cable and a DB-9-to-DB-25 adapter.

For detailed information about connecting devices to the auxiliary port, see the “Connecting to the

Auxiliary Port” section on page 6-4 of the “Cable Connection Procedures for Cisco 1800 Series Routers (Modular)” chapter.

For cable and port pinouts, see the Cisco Modular Access Router Cable Specifications document.

Chapter 5 Cable Information and Specifications for Cisco 1800 Series Routers (Modular)

Preparing to Connect to a Network

When setting up your router, consider distance limitations and potential electromagnetic interference (EMI) as defined by the applicable local and international regulations.

The following sections describe network connection considerations for several types of network interfaces:

• Ethernet Connections, page 5-2

• Serial Connections, page 5-3

• ISDN BRI Connections, page 5-5

• CSU/DSU Connections, page 5-5

See the following online documents for more information about network connections and interfaces:

• Cisco Interface Cards Installation Guide

• Cisco Modular Access Router Cable Specifications

Warning

Ethernet Connections

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

The IEEE has established Ethernet as standard IEEE 802.3. The Cisco 1800 series Ethernet implementations are as follows:

• 100BASE-T—2-pair Category 5 or unshielded twisted-pair (UTP) straight-through RJ-45 cable.

The maximum segment distance is 328

• 10BASE-T—Ethernet on UTP cable. The maximum segment distance is 328 feet (100 meters). UTP

cables look like the wiring used for ordinary telephones; however, UTP cables meet certain electrical standards that telephone cables might not meet.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

5-2

feet (100 meters).

OL-5876-03

Chapter 5 Cable Information and Specifications for Cisco 1800 Series Routers (Modular)

See Cisco Modular Access Router Cable Specifications for information about Ethernet cables, connectors, and pinouts.

Serial Connections

Serial connections are provided by serial WAN interface cards (WICs). For more information on WICs, see

Installing Cisco Interface Cards in Cisco Access Routers.

Before you connect a device to a serial port, you need to know the following:

• Type of device—data terminal equipment (DTE) or data communications equipment (DCE)—that

you are connecting to the synchronous serial interface

• Type of connector—male or female—that is required for connecting to the device

• Signaling standard that is required by the device

Configuring Serial Connections

The serial ports on the serial WICs use DB-60 connectors. Serial ports can be configured as DTEs or DCEs, depending on the serial cable used.

Preparing to Connect to a Network

Serial DTE or DCE Devices

A device that communicates over a synchronous serial interface is either a DTE or DCE device. A DCE device provides a clock signal that paces the communications between the device and the router. A DTE device does not provide a clock signal. DTE devices usually connect to DCE devices. The documentation for the device should indicate whether it is a DTE or DCE device. (Some devices have a jumper that allows you to select either DTE mode or DCE mode.)

Ta b l e 5-1 Typical DTE and DCE Devices

Device Type Gender Typical Devices

DTE Male

DCE Female

1. If pins protrude from the base of the connector, the connector is male.

2. If the connector has holes to accept pins, the connector is female.

Signaling Standards Supported

The synchronous serial ports available for the router support the following signaling standards: EIA/TIA-232, EIA/TIA-449, V.35, X.21, and EIA-530. You can order a Cisco DB-60 shielded serial transition cable that has the appropriate connector for the standard you specify. The documentation for the device that you want to connect should indicate the standard used for that device. The router end of the shielded serial transition cable has a DB-60 connector, which connects to the DB-60 port on a serial WIC. The other end of the serial transition cable is available with a connector appropriate for the standard that you specify.

Table 5-1 lists typical DTE and DCE devices.

• Termin a l

• PC

• Modem

• CSU/DSU

• Multiplexer

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

5-3

Preparing to Connect to a Network

The synchronous serial port can be configured as DTE or DCE, depending on the attached cable (except EIA-530, which is DTE only). To order a shielded cable, contact customer service. See the

Documentation and Submitting a Service Request” section on page 1-15.

Note All serial ports configured as DTE require external clocking from a channel service unit/data service unit

(CSU/DSU) or other DCE device.

Although we do not recommend manufacturing your own serial cables (because of the small size of the pins on the DB-60 serial connector), cable pinouts are provided in

Specifications.

Distance Limitations

Serial signals can travel a limited distance at any given bit rate; generally, the slower the data rate, the greater the distance. All serial signals are subject to distance limits, beyond which a signal is significantly degraded or completely lost.

Table 5-2 lists the recommended maximum speeds and distances for each serial interface type; however,

you might get good results at speeds and distances greater than those listed, if you understand the electrical problems that might arise and can compensate for them. For instance, the recommended maximum rate for V.35 is 2

Chapter 5 Cable Information and Specifications for Cisco 1800 Series Routers (Modular)

“Obtaining

Cisco Modular Access Router Cable

Mbps, but 4 Mbps is commonly used.

Ta b l e 5-2 Serial Signal Transmission Speeds and Distances

Distance for Distance for EIA/TIA-232

EIA/TIA-449, X.21, V.35,

and EIA-530

Rate (bps) Feet Meters Feet Meters

2400 200 60 4100 1250

4800 100 30 2050 625

9600 50 15 1025 312

19200 25 7.6 513 156

38400 12 3.7 256 78

56000 8.6 2.6 102 31

1544000 (T1) — — 50 15

Balanced drivers allow EIA/TIA-449 signals to travel greater distances than EIA/TIA-232 signals. Typically, EIA/TIA-449 and EIA-530 can support a 2-Mbps rate, and V.35 can support a 4-Mbps rate.

Asynchronous/Synchronous Serial Module Baud Rates

The following baud-rate limitations apply to the slow-speed serial interfaces in the asynchronous/synchronous serial modules:

• Asynchronous interface—Maximum baud rate is 115.2 kbps.

• Synchronous interface—Maximum baud rate is 128 kbps, full-duplex.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

5-4

OL-5876-03

Chapter 5 Cable Information and Specifications for Cisco 1800 Series Routers (Modular)

ISDN BRI Connections

The BRI WICs provide ISDN and BRI connections. BRI WICs are available with either an S/T interface that requires an external Network Termination 1 (NT1), or a U interface that has a built-in NT1. You can install the BRI WICs in any available WIC slots in the chassis.

Preparing to Connect to a Network

Warning

The ISDN connection is regarded as a source of voltage that should be inaccessible to user contact. Do not attempt to tamper with or open any public telephone operator (PTO)-provided equipment or connection hardware. Any hardwired connection (other than by a nonremovable, connect-one-time-only plug) must be made only by PTO staff or suitably trained engineers.

Statement 23

Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first.

Statement 1026

Use a BRI cable (not included) to connect the BRI WIC directly to an ISDN. Table 5-3 lists the specifications for ISDN BRI cables. For information about pinouts, see Cisco Modular Access Router

Cable Specifications.

Ta b l e 5-3 ISDN BRI Cable Specifications

Specification High-Capacitance Cable Low-Capacitance Cable

Resistance (at 96 kHz) 160 ohms/km 160 ohms/km

Capacitance (at 1 kHz) 120 nF1/km

30 nF/km

Impedance (at 96 kHz) 75 ohms 150 ohms

Wire diameter 0.024 in. (0.6 mm) 0.024 in. (0.6 mm)

Distance limitation 32.8 ft (10 m) 32.8 ft (10 m)

1. nF = nanofarad.

For more information on BRI WICs, see Installing Cisco Interface Cards in Cisco Access Routers.

CSU/DSU Connections

CSU/DSU WICs are available that provide switched 56-kbps connections, or full or fractionalized T1 connections.

For more information on CSU/DSU WICs, see Installing Cisco Interface Cards in Cisco Access Routers.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

5-5

Preparing to Connect to a Network

Chapter 5 Cable Information and Specifications for Cisco 1800 Series Routers (Modular)

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

5-6

OL-5876-03

CHA PTER

Cable Connection Procedures for Cisco 1800 Series Routers (Modular)

This chapter describes how to connect your Cisco 1800 series integrated services router (modular) to a power source and to networks and external devices. It includes the following sections:

• Power Connections, page 6-1

• Connecting WAN and LAN Cables, page 6-2

• Connecting to a Console Terminal or Modem, page 6-3

For cable information and specifications, see the “Cable Information and Specifications for Cisco 1800

Series Routers (Modular)” document.

Note To see translations of the warnings that appear in this publication, see the Regulatory Compliance and

Safety Information for Cisco 1840 Routers.

Power Connections

Warning

Note The installation must comply with all required electrical codes applicable at the installation site.

Note The input voltage tolerance limits for AC power are 85 and 264 VAC.

Warning

OL-5876-03

Read the installation instructions before connecting the system to the power source.

Connect your router to a 15 A, 120 VAC (10 A, 240 VAC) circuit with overcurrent protection.

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 15A, 120VAC (10A, 240VAC).

Statement 1004.

Statement 1005

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

6-1

Chapter 6 Cable Connection Procedures for Cisco 1800 Series Routers (Modular)

Connecting WAN and LAN Cables

This section describes how to connect the WAN and LAN interface cables. It includes the following:

• Ports and Cabling, page 6-2

• Connection Procedures and Precautions, page 6-3

Note One or two Ethernet cables are typically provided with the router. You can order additional network

connection cables and transceivers from Cisco. For ordering information, contact Cisco customer service. For cable pinouts, see Cisco Modular Access Router Cable Specifications.

Warning

Do not work on the system, or connect or disconnect cables during periods of lightning activity.

Statement 1001

Ports and Cabling

Table 6-1 summarizes some typical WAN and LAN connections for Cisco 1800 series routers.

The connections summarized in Ta ble 6-1 are also described in detail in the following documents:

• Cisco Modular Access Router Cable Specifications

• Cisco Interface Cards Installation Guide

Ta b l e 6-1 WAN and LAN Connections

Port or Connection Port Type, Color

Fast Ethernet (FE) RJ-45, yellow Ethernet hub Crossover to connect to a

T1/E1 WAN RJ-48C T1 or E1 network or

Cisco serial (1T) 60-pin D-sub, blue CSU/DSU and serial

Cisco Smart serial (2T)

Cisco Smart compact connector, blue

Connected to: Cable

router

Straight-through to connect to a switch

RJ-48 T1/E1

CSU/DSU

straight-through (Crossover to connect ot a PBX or any other equipment)

Cisco serial transition cable

network or equipment

CSU/DSU and serial network or equipment

For WIC-2T and WIC-2A/S only

that matches the signaling protocol (EIA/TIA-232, EIA/TIA-449, V.35, X.21, or EIA/TIA-530) and the serial port operating mode (DTE or DCE)

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

6-2

See Cisco Modular Access

Router Cable Specifications

for information about selecting these cables.

OL-5876-03

Chapter 6 Cable Connection Procedures for Cisco 1800 Series Routers (Modular)

Table 6-1 WAN and LAN Connections (continued)

Connecting to a Console Terminal or Modem

Port or Connection Port Type, Color

DSL RJ-11C/RJ-14C Network demarcation

BRI S/T WAN

RJ-45, orange NT1 device or PINX

(external NT12)

BRI U WAN (built-in NT1)

RJ-49C/CA-A11, orange

Analog modem RJ-11 PSTN RJ-11 straight-through

56/64-kbps

8-pin modular RJ-48S interface RJ-48 straight-through

CSU/DSU

1. The color codes are specific to cables shipped by Cisco.

2. NT1 = Network Termination 1.

3. PINX = Private integrated network exchange.

Connection Procedures and Precautions

Connect each WAN and LAN cable to the appropriate connector on the chassis or interface card.

• Position the cables carefully, so that they do not put strain on the connectors.

Connected to: Cable

RJ-11 straight-through for device for service provider’s DSL interface

2-wire

RJ-14 straight-through for

4-wire

RJ-45 straight-through

ISDN network RJ-49 straight-through

• Organize the cables in bundles so that cables do not intertwine.

• Inspect the cables to make sure that the routing and bend radiuses are satisfactory. Reposition the

cables, if necessary.

• Install cable ties in accordance with your site requirements.

For cable pinouts, see Cisco Modular Access Router Cable Specifications.

Connecting to a Console Terminal or Modem

Your router has asynchronous serial console and auxiliary ports. These ports provide administrative access to your router either locally (with a console terminal or PC) or remotely (with a modem).

Cisco provides the following cables and adapters for connecting your router to a console terminal, PC, or modem:

• One console cable (RJ-45-to-DB-9, blue)

• One modem adapter (DB-9-to-DB-25)

This section describes how to connect a console terminal or PC to the console port and how to connect a modem to the auxiliary port.

For information about cable pinouts, see Cisco Modular Access Router Cable Specifications.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

6-3

Connecting to a Console Terminal or Modem

Connecting to the Console Port

To configure the router through the Cisco IOS CLI, you must connect the router console port to a terminal or PC. The cable required for this connection is included with the router.

The PC must have HyperTerminal or similar terminal emulation software installed. The software should be configured with the following parameters: 9600 control. See Cisco information about using Cisco

To connect the router to a terminal or PC, follow these steps:

Step 1 Connect the end of the light blue console cable with the RJ-45 connector to the light blue console port

on the router, as shown in

Figure 6-1 Connecting the Console Cable to the Router

1800 series router software configuration documents on Cisco.com for detailed

Chapter 6 Cable Connection Procedures for Cisco 1800 Series Routers (Modular)

baud, 8 data bits, no parity, 1 stop bit, and no mode

IOS software for configuring the router.

Figure 6-1.

CISCO 1841

100-240 VAC-

1 A

50/60 Hz

1 Light blue console port 3 To PC or terminal

2 Light blue console cable

Step 2 Connect the end of the cable with the DB-9 connector to the terminal or PC. If your terminal or PC has

a console port that does not accommodate a DB-9 connector, you must provide an appropriate adapter for that port. (A DB-9-to-DB-25 adapter is provided with your router.)

Note Because mode control is not possible on the console port, we do not recommend connecting modems to

the console port. Modems should always be connected to the auxiliary port.

122332

Connecting to the Auxiliary Port

When a modem is connected to the auxiliary port, a remote user can dial in to the router and configure it. Use the light blue console cable and the DB-9-to-DB-25 connector adapter that came in the router accessory kit.

To connect a modem to the router, follow these steps:

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

6-4

OL-5876-03

Chapter 6 Cable Connection Procedures for Cisco 1800 Series Routers (Modular)

Step 1 Connect the RJ-45 end of the adapter cable to the black AUX port on the router. (See Figure 6-2.)

Figure 6-2 Connecting a Modem to the Router

Connecting to a Console Terminal or Modem

CISCO 1841

100-240 VAC-

1 A

50/60 Hz

1 Aux port (RJ-45) 3 DB-9-to-DB-25 modem adapter

2 Light blue console cable 4 Modem

Step 2 Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter. Step 3 Connect the DB-25 end of the modem adapter to the modem. Step 4 Make sure that your modem and the router auxiliary port are configured for the same transmission speed

(up to 115200 bps is supported) and for mode control with data carrier detect (DCD) and data terminal ready (DTR) operations.

122333

Connecting Power to the Cisco 1861 Integrated Services Router

To connect the power supply to the Cisco 1861 Integrated Services Router, perform the following steps:

Step 1 Connect the AC power cord to the the power supply. Step 2 Connect the power interface cable to the power connector port on the back of the Cisco 1861 Integrated

Services Router.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

6-5

Connecting to a Console Terminal or Modem

Chapter 6 Cable Connection Procedures for Cisco 1800 Series Routers (Modular)

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

6-6

OL-5876-03

CHA PTER

Power-Up Procedures for Cisco 1800 Series Routers (Modular)

This chapter describes how to power up Cisco 1800 series integrated services routers (modular) and perform an initial configuration to provide network access. It includes the following sections:

Powering Up Cisco 1800 Series Routers, page 7-1

Verifying the LED Indicators on the 1841 Router, page 7-4

Verifying the Hardware Configuration, page 7-5

Initial Configuration of the Router, page 7-5

Software Components of the Cisco 1861 Integrated Services Router, page 7-7

Note To see translations of the warnings that appear in this publication, see the Regulatory Compliance and

Safety Information for Cisco 1840 Routers.

Note The Cisco 1861 Integrated Services Router supports a maximum of 12 user licenses based on different

models.

Powering Up Cisco 1800 Series Routers

Warning

Caution To ensure adequate cooling, never operate the router unless the unit is completely closed.

OL-5876-03

The plug-socket combination must be accessible at all times because it serves as the main disconnecting device.

Statement 1029.

Statement 1019

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-1

Powering Up Cisco 1800 Series Routers

This section covers the following topics:

• Checklist for Power Up, page 7-2

• LED Indicators, page 7-2

• Power-Up Procedure, page 7-2

Checklist for Power Up

You may power up the Cisco router if the following steps have been completed:

• Mount and ground the chassis securely.

• Connect the power and interface cables.

• Make sure that the external CompactFlash memory card is properly seated into its slot. For

installation instructions, see

Series Routers (Modular)”.

• Connect a PC to the router’s console port.

• Start HyperTerminal or a similar terminal emulation program on your PC. Select the appropriate PC

COM port. Set the terminal emulation program configuration for 9600 no flow control, and no parity.

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

“Installing and Replacing CompactFlash Memory Cards on Cisco 1800

baud, 8 data bits, 1 stop bit,

Note For initial power up, we recommend a direct console connection. After the intial configuration is

completed, a remote modem connection can be used for router management.

Caution To ensure adequate cooling, never operate the router unless the cover and all modules and cover plates

are installed.

Caution To prevent damage to the ejector mechanism, the ejector button next to the CompactFlash memory card

must remain fully seated when not being used to eject a CompactFlash memory card.

LED Indicators

The meanings of the LED indicators for Cisco 1800 series routers are summarized in Ta ble 2-5. For more detailed information about the LEDs, see Chapter 8, “Troubleshooting Cisco 1800 Series Routers

(Modular).”

Power-Up Procedure

To power up your Cisco router and verify that it completes its initialization and self-test, follow this procedure. When you have completed the procedure you may begin configuring the router.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-2

OL-5876-03

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

If you encounter problems when you power up the router, see Chapter 8, “Troubleshooting Cisco 1800

Series Routers (Modular).” For information about the ROM monitor and the bootstrap program, see the

“Using the ROM Monitor” section of the Cisco 1800 Series Router Software Configuration. For

information about the configuration register, see the“Changing the Configuration Register Settings” section of Cisco 1800 Series Router Software Configuration.

Note To view the boot sequence through a terminal session, you must have a console connection to the Cisco

router before the router powers up.

To power up the router, perform the following steps:

Step 1 Make sure that your PC is powered up and connected as described in the “Checklist for Power Up”

section on page 7-2.

Step 2 Move the power switch to the ON position.

The following indications appear:

• The green SYS PWR LED on the front of the chassis comes on.

• The fan operates.

The LEDs on the chassis come on (although not necessarily at the same time), and some LEDs may go off again. The actual LED activity depends on your installation.

Powering Up Cisco 1800 Series Routers

If you encounter problems when you power up the router, see “Troubleshooting Cisco 1800 Series

Routers (Modular)”

Startup messages appear in your terminal emulation program window.

Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are

interpreted as the first command typed when the messages stop, which might cause the router to power off and start over. It takes a few minutes for the messages to stop.

The startup messages vary, depending on the software installed on your router.

• If the startup messages end with the following lines, you know that the Cisco Router and Security

Device Manager (SDM) software is installed on the router.

yourname con0 is now available

Press RETURN to get started!

For instructions on configuring your router by using SDM, see Cisco Router and Security Device

Manager (SDM) Quick Start Guide.

Note Because SDM is installed on your router by default, we recommend using SDM to perform the

initial configuration.

• If the startup messages end with the following lines, the router is ready for initial configuration using

the setup facility (system configuration dialog) or the command-line interface (CLI). Enter yes to continue with the setup facility; enter no to continue with the CLI.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-3

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

Verifying the LED Indicators on the 1841 Router

--- System Configuration Dialog ---

At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'.

Would you like to enter the initial configuration dialog? [yes/no]:

Note If the rommon 1> prompt appears, your system has booted in ROM monitor mode. For

information about the ROM monitor and the bootstrap program, see the

Monitor” section in Cisco 1800 Series Router Software Configuration.

Verifying the LED Indicators on the 1841 Router

Verify that you have correctly installed the router by checking the LEDs shown in Ta ble 7-1.

Ta b l e 7-1 LED Indicators

“Using the ROM

LED Color Status

SYS PWR Green Router has successfully booted up and the software is functional. Slow,

steady blinking when system is booting or in the ROM monitor.

SYS ACT Green Blinking when packets are transmitted or received on any WAN or LAN

interface, or when monitoring system activity.

CF Blinking

green

Flash memory is busy. Do not remove the CompactFlash memory card when this light is on.

Verifying the LED Indicators on the 1861 Integrated Services Router

Verify that you have correctly installed the router by checking the LEDs shown in Figure 7-1.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-4

OL-5876-03

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

Figure 7-1 LEDs on the Front Panel of the Cisco 1861 Integrated Services Router

Verifying the Hardware Configuration

SYS

POE

WLAN

1 SYS Solid green Online 2 POE Solid green Connected 3 VM Solid green Online 4 WLAN Blinking green Connected

Verifying the Hardware Configuration

Verify the router hardware configuration by using the following commands:

• show version—Displays the system hardware version, the installed software version, the names and

sources of configuration files, the boot images, and the amount of installed DRAM and flash memory.

230870

• show diag—Lists and displays diagnostic information about the installed controllers and interface

processors. Typical examples are interface cards (VWICs, WICs, HWICs), and advanced integration modules (AIMs).

Initial Configuration of the Router

This section covers the following topics:

• Initial Configuration, page 7-5

• Verifying the Initial Configuration, page 7-6

• Completing the Configuration, page 7-6

Initial Configuration

You can configure your router by using one of the following tools:

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

OL-5876-03

7-5

Initial Configuration of the Router

• Cisco Router and Security Device Manager—See the “Cisco Router and Security Device Manager”

section on page 7-6

• Setup command facility—See the “Initial Configuration Using the Setup Command Facility” section

in the Cisco 1800 Series Integrated Services Routers (Modular) Quick Start Guide.

• Command-line interface (CLI)—See the “Initial Configuration Using Cisco CLI—Manual

Configuration” section in the Cisco 1800 Series Integrated Services Routers (Modular) Quick Start Guide.

Cisco Router and Security Device Manager

If the Cisco Router and Security Device Manager (SDM) has been installed on your router, the following messages appear at the end of the startup sequence:

yourname con0 is now available

Press RETURN to get started.

For instructions on configuring your router by using SDM, see the Cisco Router and Security Device

Manager (SDM) Quick Start Guide. To use SDM, you can download the latest version of SDM and

instructions for installing it on your router:

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

http://www.cisco.com/pcgi-bin/tablebuild.pl/sdm

To obtain the SDM quick start guide, SDM release notes, and other SDM documentation, go to

www.cisco.com/go/sdm.

Verifying the Initial Configuration

Verify that the new interfaces are operating correctly by performing the following tests:

• Enter the show interfaces command to verify that the interfaces are operating correctly and that the

interfaces and line protocol are in the correct state—up or down.

• Enter the show ip interface brief command to display a summary status of the interfaces configured

for IP.

• Enter the show configuration command to verify that you configured the correct hostname and

password.

When you have completed and verified the initial configuration, your Cisco router is ready to be configured for specific functions. See the information about locating documentation for advanced configuration procedures.

Completing the Configuration

When you have completed and verified the initial configuration, your Cisco router is ready to be configured for specific functions. For advanced configuration procedures, use either SDM or the CLI.

“Completing the Configuration” section on page 7-6 for

For configuration procedures using SDM, see Cisco Router and Security Device Manager (SDM) Quick

Start Guide.

For configuration procedures using the CLI, see Cisco 1800 Series Router Software Configuration. The software configuration documents include information about the following topics:

• Basic software configuration

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-6

OL-5876-03

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

Powering up the Cisco 1861 Integrated Services Router

• Feature documentation

• Troubleshooting and maintenance

• Cisco 1800 series cards and modules

Powering up the Cisco 1861 Integrated Services Router

To power up the Cisco 1861 Integrated Services Router, perform the following steps:

Step 1 Verify that the AC power cord is connected to the power supply. Step 2 Power up the power supply and the Cisco 1861 ISR, by connecting the power cord plug to a grounded

AC outlet.

Note There is no external Power On/Off switch on the power supply.

Step 3 Verify the LED indicators on the front panel of the Cisco 1861 Integrated Services Router, as required.

See

Figure 7-1.

Software Components of the Cisco 1861 Integrated Services Router

The Cisco 1861 Integrated Services Router is shipped with a factory-installed software configuration for a basic IP telephony system that enables phone users to make and receive calls using the preconfigured numbers on their IP phones within minutes after connecting the Cisco 1861 Integrated Services Router to the Ethernet and their IP phones to the platform. the Cisco 1861 Integrated Services Router.

Ta b l e 7-2 Cisco 1861 Integrated Services Router Software Components

Software Component Description Benefits

Cisco Unified Communications Manager Express (Cisco Unified CME)

Cisco Unity Express Provides voice mail and

Entry-level call processing system that provides a wide range of IP telephony features for small to medium-sized business customers and autonomous small enterprise branch offices.

automated attendant services specifically designed for the small and medium-sized branch office environment.

Table 7-2 summarizes the software components of

All files and configurations for IP phones are stored internally on the Cisco 1861 Integrated Services Router for a cost-effective, highly reliable, IP communications solution.

Users can easily and conveniently manage their voice messages and greetings with intuitive telephone prompts and a straightforward web-based GUI that allows simple administration

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-7

Software Components of the Cisco 1861 Integrated Services Router

Table 7-2 Cisco 1861 Integrated Services Router Software Components (continued)

Software Component Description Benefits

Security Protects against

information theft, virus outbreaks, and application abuse, whether from known or unknown threats, internal or external sources.

Cisco IOS Firewall Protects customer

networks against network and application layer attacks, viruses, and worms, and at the same time provides effective control on various application traffic flowing through the network.

Cisco Secure VPN Carries private data over a

public network and extends remote access to users over a shared infrastructure.

Chapter 7 Power-Up Procedures for Cisco 1800 Series Routers (Modular)

Integrated for a robust array of security features.

Help businesses guarantee network uptime and security.

Most cost-effective method to provide increased VPN throughput with minimal effect on processing.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

7-8

OL-5876-03

CHA PTER

Troubleshooting Cisco 1800 Series Routers (Modular)

If you encounter problems with your Cisco 1800 series integrated services router (ISR) (modular), the information in this chapter can help you isolate problems in the router or eliminate the router as the source of the problem.

This chapter contains the following sections:

• Problem Solving, page 8-1

• Reading LEDs, page 8-4

• System Messages, page 8-5

• Recovering a Lost Password, page 8-6

• More Troubleshooting Help, page 8-6

Note To troubleshoot interface cards, see Overview of Cisco Interface Cards for Cisco Access Routers.

If you cannot locate the source of the problem, contact a Cisco customer service representative for information on how to proceed. For technical support information, see the

and Submitting a Service Request” section on page 1-15. Before you call, have the following

information ready:

• Chassis type and serial number

• Maintenance agreement or warranty information

• Type of software and version number

• Date you received the router

• Brief description of the problem

• Brief explanation of the steps you have taken to isolate the problem

Problem Solving

The key to problem solving is to isolate the problem to a specific subsystem by comparing what the router is doing to what it should be doing.

The LEDs on the router aid you in determining router performance and operation. The LEDs are described in the

“Obtaining Documentation

“Reading LEDs” section on page 8-4.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

8-1

Chapter 8 Troubleshooting Cisco 1800 Series Routers (Modular)

Problem Solving

When solving problems, consider the following router subsystems:

• Power and cooling systems—External power source, power cable, router power supply, circuit

breaker, and router fan. Also check for inadequate ventilation or air circulation.

• Interface cards—LEDs on the interface cards help identify a failure.

• Cables—External cables that connect the router to the network.

Troubleshooting the Power and Cooling Systems

Both the system LED and the fans can help you troubleshoot a power problem. Check the following items to help isolate the problem:

Normal Indications

With the power switch on, the normal indications are:

• SYS PWR LED on green and continuous

• Fan operating

Fault Indications

Check the following symptoms to locate or eliminate faults in the power and cooling systems:

• With the power switch on, is the SYS PWR LED on?

–

If the LED is green and continuous, the router is receiving power and is functional.

–

If the LED is off, check the power source and power cable.

• With the power switch on and the SYS PWR LED on and green, does the fan operate?

–

If no, check the fan.

–

If yes, the power system is functioning.

• With the power switch on and the SYS PWR LED off, does the fan operate?

–

If yes, the router is receiving power. The fan is connected directly to the DC outputs of the power supply.

–

If no, check the power source and power cable.

• Does the router shut down after being on a short time?

–

Check for an environmentally induced shutdown. See the next section, “Environmental

Reporting Features, page 8-3.”

–

Check the environmental site requirements in the “General Site Requirements” section on

page 3-3.

–

Check for a power supply failure by inspecting the SYS PWR LED on the front panel. If it is green, the power supply is functional.

• Router partially boots, but LEDs do not go on.

–

Check for a power supply failure by inspecting the SYS PWR LED on the front panel of the router. If the SYS PWR LED is blinking or continuously green, the power supply is functional.

–

If the SYS PWR LED is not on, see “Cisco One-Year Limited Hardware Warranty Terms”

section on page 1-14.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

8-2

OL-5876-03

Chapter 8 Troubleshooting Cisco 1800 Series Routers (Modular)

Environmental Reporting Features

If the router is operating at an abnormally high temperature, consider the following causes:

• Fan failure

• Air conditioner failure in the room

• Air blockage to cooling vents

Take steps to correct the problem. See the “Site Environment” section on page 3-4.

Troubleshooting Cables, Connections, and Interface Cards

Network problems can be caused by cables, cable connections, or interface cards, or by external devices such as a modem, transceiver, hub, wall jack, WAN interface, or terminal. Check for the following symptoms to help isolate the problem.

• Card is not recognized by the router.

–

Make sure that the card is firmly seated in its slot.

–

Check the LEDs on the card. Each card has its own set of LEDs.

Problem Solving

–

Make sure that you have a version of Cisco IOS software that supports the card.

• Card is recognized, but interface ports do not initialize.

–

Make sure that the card is firmly seated in its slot.

–

Check external cable connections.

–

Make sure that you have a version of Cisco IOS software that supports the card. Check the software requirements for the affected card, which can be found in the configuration note for the card.

• Router does not boot properly, or constantly or intermittently reboots.

–

Make sure that the card is firmly seated in its slot.

–

Check the router chassis or software.

• Router boots, but the console screen is frozen.

–

Check the external console connection.

–

Verify that the parameters for your terminal are set as follows:

(a) The same data rate as configured for the router (9600 baud is the default)

(b) 8 data bits

(d) No parity generated or checked

• Router powers on and boots only when a particular card is removed.

–

Check the card. See the “Cisco One-Year Limited Hardware Warranty Terms” section on

page 1-14 and the “Obtaining Documentation and Submitting a Service Request” section on page 15 of the “Introduction to Cisco 1800 Series Routers (Modular) Hardware

Documentation” document for warranty and customer service contact information.

• Router powers on and boots only when a particular cable is disconnected.

OL-5876-03

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

8-3

Reading LEDs

The LEDs on the router enable you to determine router performance and operation. The System Power (SYS PWR) LED and the System Activity (SYS ACT) LED are on the front panel; all the other LEDs are on the back panel.

Ta b l e 8-1 LED Indicators on Cisco 1800 Series Routers

LED Indicator State Meaning

SYS PWR Off No output is coming from the

Chapter 8 Troubleshooting Cisco 1800 Series Routers (Modular)

–

There may be a problem with the card or cable. See the “Cisco One-Year Limited Hardware

Warranty Terms” and the “Obtaining Documentation and Submitting a Service Request”

sections of the “Introduction to Cisco 1800 Series Routers (Modular) Hardware

Documentation” document for warranty and customer service contact information.

Possible Causes and Corrective Actions

Power is not switched on at the

internal power supply.

router.

Solid green Router is receiving power, and

the internal power supply is functional.

Blinking green

SYS ACT Off No packet transfers are

Blinking System is actively transferring

During bootup, router is booting up normally.

After bootup, router is operating in ROM monitor mode.

occurring.

packets and monitoring internal activity

Power is not available from the source.

Faulty input power wires or connections are missing.

Failed power supply in the router. To replace the internal power supply, call your Cisco technical support representative.

Normal indication. No action is required.

See the router rebooting and ROM monitor information in the Cisco 1800 series software configuration documentation.

Interface card connections are not functional.

Router is not configured properly. Check configuration, and make corrections as necessary.

Normal indication. No action is required.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

8-4

OL-5876-03

Chapter 8 Troubleshooting Cisco 1800 Series Routers (Modular)

Table 8-1 LED Indicators on Cisco 1800 Series Routers (continued)

LED Indicator State Meaning

CF (CompactFlash Busy)

Off The CompactFlash memory

Blinking green

card is not being accessed.

The CompactFlash memory card is being accessed.

System Messages

Possible Causes and Corrective Actions

Normal indication. No action is required. It is okay to remove the CompactFlash memory card if the CF LED remains off.

Normal indication. No action is required.

Caution Do not remove the

CompactFlash memory card while it is being accessed.

FDX Off Fast Ethernet port next to the

LED is operating in half-duplex mode.

Solid green Fast Ethernet port next to the

LED is operating in full-duplex mode.

100 Off Fast Ethernet port next to the

LED is operating at 10 Mbps.

Solid green Fast Ethernet port next to the

LED is operating at 100 Mbps.

Link Off Fast Ethernet link is not

established at the Ethernet port next to the LED.

Solid green FastEthernet link is established

at the Ethernet port next to the LED.

AIM

(Advanced integration module)

Off No AIM is installed. Indication is for information only.

Solid green AIM is recognized by the

router and is initialized.

Indication is for information only.

Ethernet is not active or is not connected. Check Ethernet connections.

Router is not configured properly. Check configuration, and make corrections as necessary.

Normal indication. No action is required.

System Messages

This section describes system error and recovery messages that may appear when a Cisco 1800 series router is operated. The Cisco IOS software displays system error and recovery messages on an external device console terminal screen. (For more information, see the

on page 6-4.)

OL-5876-03

“Connecting to the Console Port” section

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

8-5

Recovering a Lost Password

The terminal should display one of the following prompts:

Router> (indicates the user EXEC command mode)

Router# (indicates the privileged EXEC command mode)

The Cisco IOS software checks the system condition once every 30 seconds. If a condition still exists, the error message is displayed again; if the error condition has cleared, a recovery message is displayed.

Table 8-2 describes some of the most common system error and recovery messages.

Ta b l e 8-2 System Messages

Error Message Explanantion

%ENVMON-3-FAN_OK: Fan <fan-number> functional now

%ENVMON-3-FAN_FAIL: Fan <fan-number> is malfunctioning

%CFG-3-CARD_NOT_SUPPORTED: Slot <n>. <Card identification from cookie, including at least card type, version, revision, and serial number>

%CFG-6-UNKNOWN_AIM: AIM module in AIM slot <n> is not supported by this IOS image. Card info: <all TLV PEP data from cookie>

Chapter 8 Troubleshooting Cisco 1800 Series Routers (Modular)

The cooling fan within the chassis is working.

The cooling fan within the chassis is not working.

The card found is not recognized or is not supported in the specified slot.

This Cisco IOS image does not have the driver code for the AIM discovered in AIM slot.

Recovering a Lost Password

You can recover a lost enable password, but an enable secret password is encrypted and is not recoverable. If you lose an enable secret password that is configured on your router, you can replace it with a new enable secret password.

For password recovery and replacement procedures, see the Password Recovery Procedures.

More Troubleshooting Help

For online troubleshooting help, go to the TAC Case Collection Tool and Troubleshooting Assistant.

You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Cisco 1800 Series Routers (Modular) Hardware Installation Guide

8-6

OL-5876-03

CHA PTER

Installing Interface Cards in Cisco 1800 Series Routers (Modular)

Cisco Interface Cards Installation Guide

The Cisco Interface Cards Installation Guide contains the procedures for installing the various types of interface cards in external chassis slots. Interface cards supported by the Cisco 1800 series integrated services routers (modular) include the following types:

• Voice-WAN interface cards (VWICs)—data only on the Cisco 1841 router

• WAN interface cards (WICs)

• High-speed WAN interface cards (HWICs)

You can view the Cisco Interface Cards Installation Guide on Cisco.com.

Cisco 1841 - 3G Bundle Router Hardware Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
