About This Guide

This section describes the objectives, intended audience, and organization of this document. The conventions used to convey instructions and information are also included.
Cisco documentation and additional literature are available in a CD-ROM package that ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more up to date than printed documentation. To order additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The C D-ROM package is available as a single package or through an annual subscription. You can also access Cisco documentation on the World Wide Web at URL http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

Document Objectives

This installation and configuration guide explains the hardware installation and basic configuration pro cedures for a Cisco 12008 rout er . It contains procedur es for instal ling the hardware, creating a basic configuration file, and starting the router. After completing the installation and basic configuration procedures, you use appropriate companion publications to more completely configure your system.

Audience

In using this document, you are expected to be familiar with Cisco routers or equivalent hardware and cabling, electronic circuitry, and wiring practices. Also, experience as an electronic or electromechanical technician is beneficial.
About This Guide xiii

Document Organization

Document Organization
This document is organized as follows:
Chapter 1, “Product Overview,” introduces the Cisco 12008 router and describes the
system’s components.
Chapter 2, “Preparing for Installation,” outlines the safety considerations that you
should observe and the tools required during installation of your Cisco 12008 router. Also, this chapter provides an overview of the installation process and presents the procedures you should perform before actually installing the router.
Chapter 3, “Installing a Cisco 12008,” presents instructions for installing the hardware
and connecting the external network interface cables.
Chapter 4, “Observing System Startup and Performing a Basic Configuration,” presents
simple procedures for completing a bas ic system configuration and checki ng and saving the configuration to system memory.
Chapter 5, “Troubleshooting the Installation,” presents guidelines for troubleshooting
the Cisco 1 2008 hardware installation.
Chapter 6, “Running Diagnostics on the Cisco 12008,” tells y ou how to load and run the
Cisco 12008 field diagnostics.
Chapter 7, “Maintaining the Cisco 12008,” presents simple maintenance procedures
that you might need to perform after installing the Cisco 12008. Also included in this chapter are remov al an d replacemen t p roced ures f or the field-replaceable units (FRUs) available for the Cisco 12008.
Appendix A, “Unpacking and Repacking the Cisco 12008,” presents instructions for
repackaging the Cisco 12008 router should it need to be transported to another site.
xiv
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide

Document Conventions

The conventions used in this document are described in the following sections.

Conventions Used in Command Descriptions

The following conventions are used for command descriptions:
Examples containing system prompts denote interactive sessions. Such examples
indicate that you should enter commands at the system prompt. The system prompt indicates the current level of the EXEC command interpreter. For
example, the prompt
router# indicates that you are at the privileged EXEC level.
Access to the privileged EXEC level requires a password. Refer to the section entitled “If Y ou Need More Configuration Information” in Chapter 4 for additional information.
Commands and keywords are in boldface font.
Arguments for which you supply values are in italic font.
Elements enclosed in square brackets ([ ]) are optional.
router> indicates that you are at the user EXEC lev el; the prompt
Document Conventions
Alternative, but required, key words are grouped in br aces ({ }) and separated b y vertical
bars (|).
The symbol ^ represents the key labeled Control. For example, the ke y combination ^Z
means that you should hold down the Control key while pressing the Z key.
About This Guide xv
Document Conventions

Conventions Used in Examples

The following conventions are used in examples:
Terminal sessions and sample console screen displays are in screen font.
Information that you enter is in boldface screen font.
Nonprinting characters, such as passwords, are in angle brackets (< >).
Default responses to system prompts are enclosed in square brackets ([ ]).
An exclamation point (!) at the beginning of a line indicates a comment line.

Conventions Used for Special Notices

The following conventions are used to alert you to hazardous conditions that may exist in the workplace or to instruct you to proceed with care to avoid equipment damage or personal injury:
Caution Means reader be careful. You should avoid any action that might result in
equipment damage or loss of data.
Note Means reader take note. Notes contain helpful suggestions or references to
information not contained in this document.
Timesaver Means the described action saves time. You can save time by performing the
action described in the paragraph.
Warning This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing acciden ts. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.
xvi
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Document Conventions
Waarschuwing Dit waarschuwingssymbool betekent gevaar . U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.
Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa
ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löyd ä t laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).
Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant causer des blessur es o u des do mmag es corpo rels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous a vec les procédures coura mment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d’avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Confo rmit é aux règlements et consignes de sécurité) qui accompagne cet appareil.
Warnung Dieses Warnsymbol bedeutet Gefahr. Sie befinden s ich in einer Situation, die zu
einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen v erb un denen Gefah ren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.
Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe
causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corr ente delle p ratiche st andar d per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna q uesto dispositiv o.
About This Gu ide xvii

Obtaining Documentation

Advarsel Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til
personskade. Før du u tfører arbeid på utstyr , må du vare o ppmerksom på de faremome ntene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.
Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá
causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize­se com os perigos relacionados co m circu itos eléctricos , e com qu aisqu er p ráticas comu ns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.
¡Advertencia! Este símbolo de aviso significa peligro. Existe riesgo para su integridad
física. Antes de manipular cu alquier equipo, cons iderar los riesgos qu e entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de pre vención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.
Varning! Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan
leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsin formation), vilket medföl jer denna anordning.
Obtaining Documentation

World Wide Web

You can access the most current Cisco documentation on the World Wide Web at http:// www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.
xviii
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide

Documentation CD-ROM

Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM is updated monthly. Th erefore, it is probably more current than printed documentation. The CD-ROM package is available as a single unit or as an annual subscription.

Ordering Documentation

Registered CCO users can order the Documentation CD-ROM and other Cisco Product documentation through our online Subscription Services at http://www.cisco.com/cgi-bin/ subcat/kaojump.cgi.
Nonregistered CCO users can order documentation thro ugh a local accou nt representative by calling Cisco’s corporate headquarters (California, USA) at 408 526-4000 or, in North America, call 800 553-NETS (6387).

Obtaining Technical Assistance

Cisco provides Cisco Connection Online (CCO) as a starting point for all techn ical assistance. Warranty or maintenance contract customers can use the Technical Assistance Center. All customers can submit technical feedback on Cisco documentation using the web, e-mail, a self-addressed stamped response card in cluded in man y prin ted docs, or b y sending mail to Cisco.
Obtaining T echnical Assistance

Cisco Connection Online

Cisco continues to revolutionize how business is done on the Internet. Cisco Connection Online is the foundation of a suite of interactive, networked services that provides immediate, open access to Cisco information and resources at anytime, from anywhere in the world. This highly integrated Internet application is a powerful, easy-to-use tool for doing business w ith Cisco.
CCO’s broad range of features and services helps customers and partners to streamline business processes and improve productivity. Through CCO, you will find information about Cisco and our networking solutions, services, and programs. In addition, you can
About This Guide xix
Obtaining T echnical Assistance
resolve technical issues with online support services, do wnload and test software pa ckages, and order Cisco learning materials and merchandise. Valuable online skill assessment, training, and certification programs are also available.
Customers and partners can self-register on CCO to obtain additional personalized information and services. Registered users may order products, check on the status of an order and view benefits specific to their relationships with Cisco.
You can access CCO in the following ways:
WWW: www.cisco.com
Telnet: cco.cisco.com
Modem using standard connection rates and the following terminal settings:
VT100 emulation; 8 data bits; no parity; and 1 stop bit.
From North America , call 408 526-8070From Europe, call 33164464082
You can e-mail questions about using CCO to cco-team@cisco.com.

Technical Assistance Center

The Cisco Technical Assistance Center (TAC) is available to warranty or maintenance contract customers who need technical assistance with a Cisco product that is under warranty or covered by a maintenance contract.
To display the TAC web site that includes links to technical support information an d software upgrades and for requesting TAC support, use www.cisco.com/techsupport.
To contact by e-mail, use one of the following:
Language E-mail Addres s
English tac@cisco.com Hanzi (Chinese) chinese-tac@cisco.com Kanji (Japanese) japan-tac@cisco.com Hangul (Korean) korea-tac@cisco.com
xx
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Language E-mail Addres s
Spanish tac@cisco.com Thai thai-tac@cisco.com
In North America, TAC can be reached at 800 553-2447 or 408 526-7209. For other telephone numbers and TAC e-mail addresses worldwide, consult the following web site: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.

Documentation Feedback

If you are reading Cisco product docu mentation on the World Wide Web, you can submit technical comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to send it to Cisco.
You can e-mail your comments to bug-doc@cisco.com. To submit your comments by mail, for your convenience many documents contain a
response card behind the front cover. Otherwise, you can mail your comments to the following addr ess :
Obtaining T echnical Assistance
Cisco Systems , In c. Document Resource Connection 170 West Tasman Drive San Jose, CA 95134-9883
We appreciate and value your comments.
About This Guide xxi
Obtaining T echnical Assistance
xxii
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
CHAPTER

Product Overview

This chapter presents an overview of the Cisco 12008 Gigabit Switch Router. The following sections are included in this chapter:
Cisco’s Next Generation of Routers
Features of the Cisco 12008 Router
Overview of the Cisco 12008
Router Enclosure
Cable-Manage ment System
Card Cage Fan Tray
Power Supply Fan Tray
1
AC-Input and DC-Input Power Supplies
Upper Card Cage and Associated Components
Air Filter Assembly
Lower Card Cage and Associated Components
Power Distribution System in the Cisco 12008
Cisco 12008 Environmental Monitoring Facility
System Specifications
Agency Approvals
Product Overview 1-1

Cisco’s Next Generation of Routers

Cisco’s Next Generation of Ro uters
Cisco Systems’ new family of Internet switching and routing products, referred to collectively as the Cisco 12000 Series Gigabit Switch Routers, consists of the following models:
Cisco 12016 Gigabit Switch Router—A 16-slot, carrier-class platform that supports
Internet protocol (IP) switching capacity of up to 160Gbps.
Cisco 12012 Gigabit Switc h Router—A 12-slot version t hat support s IP datagram
switching capacities ranging from 15 to 60 Gb ps.
Cisco 12008 Gigabit Switc h Router—An 8-slot version t hat supports IP datagram
switching capacities ranging from 10 to 40 Gbps. The Cisco 12008 is the subject of this document.
The architecture of the Cisco 12000 Series Gigabit Switch R outers p rovides the following networking capabilities and features:
Scalable bandwidth—Supports high-speed transm ission of IP datagrams through use of
Cisco 12000 series line cards. The network interf aces reside on the line cards, providing connectivity between the router’s switch fabric and external networks.
Scalable performance—Supports multi-gigabit bandwidth switching capacities ranging
from 5 to 60 Gbps, providing high-performance support for IP-based networks and wide-area networks (WANs).
1-2
Scalable services—Supports sophisticated congestion management, multicast services,
and quality-of-service (QOS) features.
Carrier-class design—Supports extensive SONET/Synchrononous Digital Hierarchy
(SDH) integration; supports a hot-swapping capability for field-replaceable units (FRUs).
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
The networking capabilities and features of the Cisco 12000 series of routers make them ideally suited to meet the needs of the following classes of users:
Int ernet service providers (ISPs)
Carriers providing Internet services and utilities
Competitive access providers (CAPs)
Enterprise wide-area network (WAN) backbones
Metropolitan-area network (MAN) backbones

Features of the Cisco 12008 Router

The Cisco 12008 router incorporates a hi gh-speed s witching f abric that provides high data­handling capacities for IP-based local- and wide-area networks. Figure 1-1 is a front view of the Cisco 12008 router.
All of the router’s major components and FRUs are accessible from the front of the router enclosure, making the router easy to install, configure, and maintain.
Features of the Cisco 12008 Router
Product Overview 1-3
Features of the Cisco 12008 Router

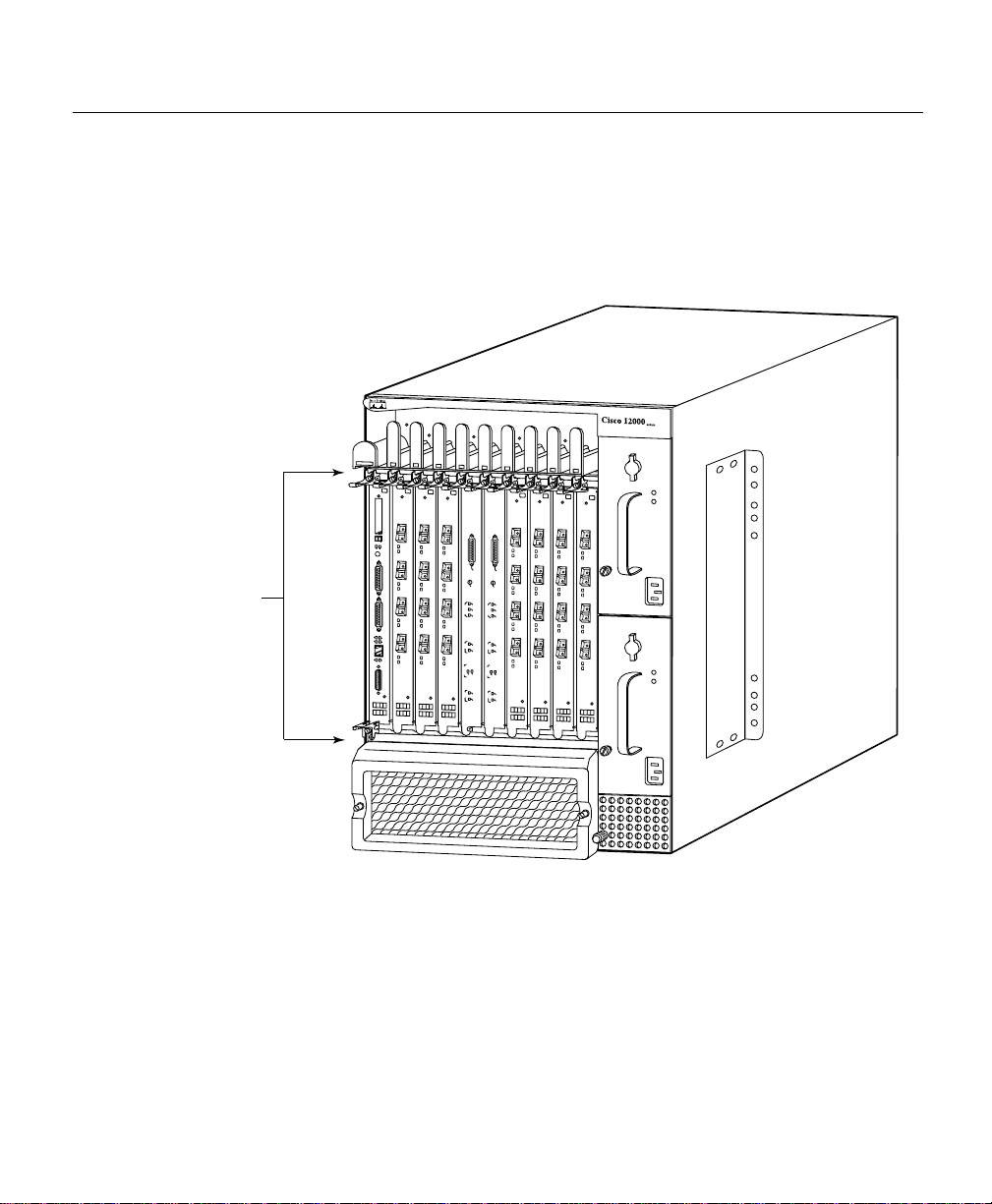

Figure 1-1 Cisco 12008 Gigabit Switch Router
E
JE
C T
S
S
L
L
O
O
T-0
T
­1
R E
A
S
U
E T
X
C
O
N
S
O
L
E
L IN
K
C O
T
X
R X
M
II
R J
GIGABIT ROUTE PROCESSOR
L L
-4 5
Alarm
ACO
/LT
Alarm
C
ritic
a
M
l
s
a
jo
r
M
in
o
r
C S
F
a
C
il
E n
a
b
le
d
F
a
n F
a
il
P
LIN
W
R
E
S
C
AR
PL
Y
D
S F
F
a
C
il
E n
a
b
le
d
CSC-8
Alarm
ACO
/LT
Alarm
C
ritic
al
M
s
a
jo
r
M
in
o
r
C S
F
ail
C
E n
a
b
le
d
F
a
n F
a
il
P
L
W
IN
R
EC
S
A
P
R
L
Y
D
S F
F
a
C
il
E n
a
ble
d
CSC-8
H7689
1-4
The Cisco 12008 supports the following features:
Online insertion and removal (OIR) capability—This feature allows you to insert or
remove the following router components: Power supplies—One AC-input power supply or one DC-input power supply is a
required router component. You can remove or replace a power supply, without disrupting system operatio ns , on ly i f a seco nd ( redundant) unit of the same type i s installed in the system.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Features of the Cisco 12008 Router
The power supplies of bo th types are hot-swappable, lo ad-sharing units. In a system equipped with two A C-input power supplie s or two DC-input po wer supplies, i f one of the units fails or if the power source for one of the units fails, the surviving power supply continues to operate to sustain normal router operations.
Note The Cisco 12008 does not support a mixture of AC-input and DC-input power
supplies.
Cisco 12 000 s eries l ine cardsAny line card s upported by the Cisco 12008 router
can be inserted into or removed from the router with no disruption to system operations.
However, the functio ns performed by the removed card are lost to the system temporarily until the card is either reinstalled or replaced by a like (and identically configured) line card.
Route Processor (RP)—As a requir ed router component, an R P can be remov ed and
replaced, but you must power down the router before doing so. An RP must be installed and operational at all times fo r normal sy st em oper a tio ns
to be sustained.
Clock and scheduler card (CSC)—Also a required component, a CSC can be
removed and replaced, without disrupting normal system operations, only if a second (redundant) CSC is installed in the system.
One CSC must be present and operational at all times to maintain normal system operations.
Switch fabric card (SFC)—An optional set of three SFCs can be installed in the
router at any time to provide additional switch fabric to the router. These cards increase the data handling capacity of the router.
Any one or all of th e SFCs can be remov ed and rep laced at any time without system operations being disrupted or the router being powered down.
For the length of time that any SFC is not functional, its switch fabric is lost to the router as a potential data path for the routers data han dling and switchi ng functions.
Product Overview 1-5

Overview of the Cisco 12008

Separately orderable document s called conf igur ation notes or replacement instructions are available for each of the FRUs described previously. These documents provide installation, removal, replacement, and configuration instructions for the FRUs.
Environmental monitoring system—Th e maintenance bus (MBus) facility of the Cisco
12008 functions as an environmental monitoring system for the router, enabling the router to monitor itself and alert site personnel to adverse electrical events or environmental conditions.
MBus software running in the RP, in combination with LEDs on the CSC faceplate, keep site personnel informed regarding the operational state of the router.
By signaling alarm conditions, such as component overheating or out-of-tolerance voltages, the router enables you to resolve adverse environmental conditions before operational limits are exceeded, thus preventing the router from shutting down.
The MBus facility of the router is described in greater detail in the section entitled
Cisco 12008 Environmental Monitoring Facility on page 74.
Downloadable softwareThis feature allows you to remotely load new operational
software into Flash memory on the RP without physically accessing the router. Thus, you can quickly, easily, and reliably perform software upgrades at any time.
Overview of the Cisco 12008
The Cisco 12008 is a modular system consisting of the elements shown in Figure 1-2. The following sections describe the major elements of the Cisco 12008 in greater detail.
1-6
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-2 Major Components of the Cisco 12008
Router enclosure
Cable-management tray
CSCs
E JE
C T
S
S
L
L
O
O
T
T
-0
-1
R
E S
A
E
U
T
Upper
card cage
RP
Line cards (Quad OC-3 POS Shown)
ESD
connection
socket
X
C
O
N
S
O
L
E
L
IN K
C
O
T
L
X
L
R
X
M II
R
J-4 5
GIGABIT ROUTE PROCESSOR
Alarm
Alarm
AC
ACO/LT
O/LT
Alarms
Alarms
C
C
r
i
r
t
i
i
t
c
i
c
a
a
M
l
M
l
a
a
j
o
j
o
r
r
M
M
i
n
i
n
o
o
r
r
C
C
S
F
S
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
F
F
a
a
n
n
F
F
a
a
i
l
i
P
LIN
l
P
LIN
W
W
R
E
R
E
SP
C
S
C
A
A
R
PL
LY
R
D
Y
D
S
S
F
F
F
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
CSC-8
CSC-8
Overview of the Cisco 12008
H7691
Air filter assembly
(lower card cage behind air
filter assembly contains card
cage fan tray and SFCs)
AC- or DC-input power supplies (AC-input power supplies shown)
Power supply
fan tray
Product Overview 1-7
Overview of the Cisco 12008

Router Enclosure

The outer shell of the Cisco 12008 is a rigid, sheet metal structure with the following dimensions:
Width17.4 inches (44.6 cm)
Depth21.2 inches (54.4 cm)
Height 24.8 inches (63.6 cm)
This enclosure, which houses all of the router’s internal components, can be mounted in a telco rack or a four-post equipment rack, or the enclosure can be used as a freestanding unit.
The design of the enclosure permits front accessibility of all router components. All router components plug into a backplane that provides operating power for the components and interconnects them with each other.
The backplane, which is covered by a sheet metal panel that helps to completely enclose the rear of the router, incorporates a nonvolatile random access memory (NVRAM) module that stores the backplane serial number for identification an d revision control purposes. The contents of the NVRAM module are accessible from any line card slot.

Cable-Management System

The cable-management system provides an orderly and convenient way for you to manage the network interface cables running to and fr om the receiv e and trans mit ports of installed line cards.
Consisting of a cable-management tray and a vertical cable-management bracket (one bracket for each installed line card), the cable-management system (see Figure 1-3) secures the network interface cables neatly in place. The cable management system helps to optimize optical cable performance by eliminating any kinks or sharp bends in the cables. Extreme curvatures in optical cables tend to degrade their performance.
The elements of the cable-management system are shown in Figure 1-3 and described briefly in the following sections:
Cable-management tray—This tray is attached to the router enclosure above the upper
card cage.
1-8
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
The cable management tray enables you to route the line card interface cab les to or from the system through the left side o f the tray , k eeping the cables or ganized, out of the w ay , and free of kinks or sharp bends.
You direct the cables down to the individual ports on each line card, gauging cable length appropriately to minimize slack in the cable before co nnecting it to a gi v en port.
Figure 1-3 Cable-Management System
cable-management
Horizontal
tray
Captive screw
Vertical cable­management bracket
Captive screw
ESD socket
E J
E C
T
S
S
L
L
O
O
T
T
-0
-1
R E
A
S
U
E
T
X
C
O
N
S
O
L
E
L
IN K
C
O
T
L
X
L
R
X
M II
R
J
-4 5
GIGABIT ROUTE PROCESSOR
Line card
Alarm
Alarm
ACO/LT
AC
O/LT
Alarms
Alarms
C
C
r
i
r
t
i
i
t
c
i
c
a
a
M
l
M
l
a
a
j
o
j
o
r
r
M
M
i
n
i
n
o
o
r
r
C
C
S
F
S
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
F
F
a
a
n
n
F
F
a
a
i
l
i
P
L
l
P
LIN
W
IN
W
R
EC
R
E
S
S
C
A
P
A
R
PL
LY
R
D
Y
D
S
S
F
F
F
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
CSC-8
CSC-8
H7705
Product Overview 1-9
Overview of the Cisco 12008
Vertical cable-management bracket (one per line card)—This bracket is attached to a
line card by means of captive installation screws at the top and bottom of the bracket. Once an interface cable is connected to its intended line card port, you loop the cable
through the cable keeper clip nearest the port of connection and seat the cable in the bottom of the bracket raceway.
Thus, the vertical cable-management bracket enables you to neatly “dress” all the interface cables in place as you connect them to the individual line card ports.
Later, when you remove o r replace a line card, yo u need only disconnect th e cables from the individual line card ports (leaving the cables intact within the vertical cable­management bracket) and detach the bracket from the line card to be replaced.
When you install the new line card, you mer ely reattach the ver tical cable-management bracket to the new line card and reconnect the interface cables to the appropriate line card port(s).

Card Cage Fan Tray

The card cage fan tray is located in the lower card cage behind the air filter assembly (see Figure 1-2). This fan tray maintains the operating temperature of the routers electronic circuitry within an acceptable range.
1-10
Designed for simplicity, the card cage fan tray incorporates six fans mounted on a sheet metal carrier. The assemb ly also contains associated wiring and a connector in the back of the unit that enables it to draw operating power through the backplane from a DC-DC converter on the CSC.
Guide rails in the sides of the lower card cage facilitate insertion and removal of the fan tray assembly, which is secured in place by means of a captive installation screw on each side of the metal carrier.
Under normal operating conditions, the v ariable-speed fans in the card cage fa n tray operate at a reduced rate to
Conserve power
Reduce noise
Minimize fan wear
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
If an overtemperature condition or a fan failure is detected within the router, the master MBus module on the RP directs t he MBus module on the clock and scheduler ca rd (C SC ) to increase the operating voltage being delivered to the fan tray, causing the card cage fans to run at “maximum” speed. This increases the volume of cooling air flowing through the router.
If the increased fan speed does not alleviate the overtemperature condition in the affected board, the M Bus module o n the board shuts down the boards power supply, taking the board offline to protect it from thermal damage.
The MBus facility of the Cisco 12008 router is described in greater detail in the section entitled Cisco 12008 Environmental Monitoring Facility on page 74.

Power Supply Fan T ray

The power supply fan tray is in the bottom of the power supply bays (see Figure 1-2). This fan tray maintains the temperature of the installed power supply(ies) within an acceptable range.
Also designed for simplicity, the power supply fan tray incorporates four fans mounted on a sheet metal carrier. The fan tray assembly contains associated wiring and a connector in the back of the unit that enables it to draw operating power through the backplane from a DC-DC converter on the CSC.
Overview of the Cisco 12008
A captive installation screw mounted on the fan tray faceplate and guide rails in the sides of the power supply bay facilitate insertion and removal of the unit. Once the unit is inserted, you secure it in place by tightening the captive installation screw clockwise.
Similar to the card cage fan tray, the power supply fan tray is closely tied to the router’s overall environmental monitoring system. If an overheating condition or a fan failure is detected within the router, the voltage being deli vered to the power supply fans b y the CSC is also increased, thereby causing the power supply fans to run at maximum speed to increase the volume of cooling passing through the power supply bays.
Product Overview 1-11
Overview of the Cisco 12008

AC-Input and DC-Input Power Supplies

The Cisco 12008 router can be configured to operate with AC source power or DC source power. Yo u can i ns tall one or two A C -i np ut p ower supplies or o ne o r t wo DC-input power supplies in the power supply bays located in the right side of the router enclosure (see Figure 1-2).
A single power supply of either type is the standard router configuration. In such a configuration, it is recommended that you install the power supply in the lower bay.
Y ou can install a second (optional and redundant) po wer supply of the same typ e for backup purposes.
Caution A vacant power supply bay must be covered with a blank filler panel to ensure
proper flow of cooling air through the power supply bays and to satisfy EMI compliance requirements.
Note You cannot use an AC-input power supply in conjunction with a DC-input power
supply . Instal led po wer supplies m ust always be of the sa me type. Further more, you shou ld not install two power supplies of either type unless you intend to actively use both units. In other words, you should not power the router with a single power supply while using the other bay to temporarily or indefinitely “store” an inert unit. Doing so will disrupt the normal flow of cooling air through the router enclosure.
1-12
Figure 1-4 shows an AC-input power supply; Figure 1-5 shows a DC-input power supply.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-4 AC-Input Power Supply
0
INPUT
0K
OUTPUT
FAIL
Overview of the Cisco 12008
H10033
Product Overview 1-13
Overview of the Cisco 12008
Figure 1-5 DC-Input Power Supply
THIS UNIT TO BE INSTALLED
IN A RESTRICTED ACCESS AREA IN ACCORDANCE WITH THE NEC OR THE AUTHORITY HAVING JURISDICTION
TER MIN ALS MA Y BE EN ER GIZ
Carrying handle
ED.
BER UHR EN DER ANS CHL USS E DEN HAU PTS CHA LTER
CAUTION
T
H
IS
U
N
IT
M
A
Y
H
A
V
E
M
O
R
E
T
H
A
N
O
N
E
P
O
W
E
R
S
U
P
P
L
Y
C
O
N
N
E
C
T
IO
N
.
A
L
L
C
O
N
N
E
C
T
IO
N
S
N
E
E
D
T
O
B
E
R
E
M
O
V
E
D
T
O
D
E
-E
N
E
R
G
IZ
E
T
H
E
U
N
IT
INPUT
OUTPUT
.
0K
FAIL
C
O
M
N
C
NO
0
H10032
Operating Modes of the Power Supplies
The AC-input and DC-input power supplies operate in either of two modes:
Standalone mode—In this configuration, only one power supply is installed in one of
the two available power supply bays. To remove or replace a single power supply, you must first power down the system.
1-14
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Plastic safety shield
Redundan t (1+1) mode —In this configuration, two power supplies are installed in the
power supply bays, sharing the load current to provide required DC operating voltages to the backplane. If one of the units fails, the surviving power supply takes over to maintain normal system operations.
The online insertion and removal (OIR) capability of the router enables you to add or remove a redundant power supply without introducing noise in the DC operating voltages being supplied to the backplane.
Features of the Power Supplies
The AC-input and DC-input power supplies incorporate the following features:
Onboard maintenance bus (MBus ) mo dule —The MBus modu le on the po wer supp ly is
a microprocessor-based subassembly that links the power supply to the router’s environmental monitoring system.
The environmental monitoring system includes identical MBus modules on all of the router circuit boards, including the RP. This system enables you to perform router functions and to respond to alarm conditions (such as overtemperature or overvoltage conditions).
An alarm condition in the router causes the MBus module on the CSC to illuminate an appropriate LED on the card faceplate, providing a visible notification of the alarm condition.
Overview of the Cisco 12008
Blind mating connector at the back of the unit—Supplies DC operating voltages to the
backplane for distribution to the router’s electronic and electrical components.
OIR capability—Enables a second AC-in put power supply t o be installed in or remov ed
from the router without disrupting normal system operations.
Temperature sensor—Measures the ambient air temperature of the power supply.
Product Overview 1-15
Overview of the Cisco 12008
Characteristics of the Power Supplies
The AC-input and the DC-input power supplies have the following characteristics:
Width of power supply body—3.5 inches (8.97 cm)
Width of power supply faceplate4.0 inches (10.26 cm)
Height10 inches (25.64 cm)
Depth17.6 inches (45.13 cm)
Weight (AC-input power supply)—17 lb (7.73 kg)
Weight (DC-input power supply)14 lb (6.36 kg)
Power factor corrector (PFC)Applicable only to the AC-input power supply, the PFC
enables the power supply to accept source AC voltages with the following characteristics: voltages ranging from 180 to 264 VAC, single phase, 47 to 63 Hz.
AC-Input Power Supply Faceplate
This section describes the functional elements built into the faceplate of the AC-input power supply (se e Figure 1-6).
1-16
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Rotary power switch
Overview of the Cisco 12008
Figure 1-6 AC-Input Power Supply Faceplate
Carrying handle
tive installation screw
CAUTION
THIS UNIT MAY HAVE MORE THAN ONE POWER SUPPLY CONNECTION. ALL CONNECTIONS NEED TO BE REMOVED TO DE-ENERGIZE THE UNIT.
ACHTUNG
DIESE EINHEIT HAT MEHR ALS EINEN NETZTEIL-ANSCHLUSS: ALLE VERBINDUNGEN MUSSEN ABGEZOGEN WERDEN, DAMIT DIE EINHEIT NICHT UNTER SPANNUNG STEHT.
INPUT 200-240V 10 A 50/60 HZ 2000 W
AC INPUT
0K
OUTPUT
FAIL
~
LEDs
AC receptacle with bail latch
H10031
Product Overview 1-17
Overview of the Cisco 12008
Rotary Power Switch
The rotary power switch on the power supply faceplate (see Figure 1-6) applies a source AC vo ltage to the po wer s upply. This switch also actuates an onboard circuit breaker an d a latching mechanism that prevents the power supply from being inserted into or removed from the power supply bay when the switch is in the ON (1) position.
When you rotate the rotary power switch 90 degrees to the ON position, the following DC operating voltages are supplied to the backplane:
+5.2 VDC
48 VDC
Source AC Input Connector
The source AC receptacle on the power supply faceplate (see Figure 1-6) enables an external A C po wer sour ce to be conn ected to the po wer supply. This connector is equipped with a latch that prevents accidental or unintended removal of the AC power cord.
The power specifications for the A C-input po wer supplies, as well as the source A C power cables available for use with the Cisco 12008 router, are described in Chapter 2 in the section entitled AC-Powered Systems.
1-18
AC-Input Power Supply LEDs
The AC-input po wer s upply faceplate inco rporates two LEDs (s ee Figure 1-6) that provide the following status indications:
AC INPUT OK—When the rotary power switch is turned ON, this green LED goes on,
indicating that source AC power has been applied and that it is within the specified operating range. If this LED does not go on when the rotary power switch is turned ON, it indicates that source AC power is not within the specified operating range or that the LED is faulty.
OUTPUT FAIL—When the rotary power switch is turned on, this LED goes on
momentarily; it should then go off and remain so. If it does not go off, it indicates that the +5.2 VDC or –48 VDC being supplied to the backplane is not within tolerance.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
DC-Input Power Supply Faceplate
This section describes the functional elements built into the faceplate of the DC-input power supply (se e Figure 1-7).
Overview of the Cisco 12008
Product Overview 1-19
Overview of the Cisco 12008
Figure 1-7 DC-Input Power Supply Faceplate
Rotary power switch
Carrying handle
Captive installation screw
Standoff
THIS UNIT TO BE INSTALLED
IN A RESTRICTED ACCESS AREA IN ACCORDANCE WITH THE NEC OR THE AUTHORITY HAVING JURISDICTION
CAUTION
TERMINALS MAY BE ENERGIZED. TURN OFF POWER SOURCE CIRCUIT BREAKER AND REMOVE POWER SUPPLY BEFORE ACCESSING TERMINALS.
ACHTUNG
ANSCHLUSSE KONNEN UNTER SPANNUNG STEHEN. VOR DEM BERUHREN DER ANSCHLUSSE DEN HAUPTSCHALTER ABSCHALTEN UND DAS NETZTEIL ENTRERNEN
CAUTION
THIS UNIT MAY HAVE MORE THAN ONE POWER SUPPLY CONNECTION. ALL CONNECTIONS NEED TO BE REMOVED TO DE-ENERGIZE THE UNIT.
INPUT
0K
OUTPUT
FAIL
COM
NC
NO
LEDs
Grounding posts
Ground sign
Standoff
Circuit breaker alarm terminal block
Source DC lugs (2)
Source DC lugs (2)
Knurled thumbscrew
1-20
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
CAUTION:
USE COPPER CONDUCTORS ONLY
ATTENTION:
N'UTILISEZ QUE DES CONDUCTEURS EN CUIRVE
INPUT:
-48/-60V 39 A 1580 VA
H10030
Overview of the Cisco 12008
Rotary Power Switch
The rotary power switch on the DC-input pow er supply performs the same functions as those described in the section entitled Rotary Power Switch on page 18 for the AC-input power supply.
Circuit Breaker Alarm Terminal Block
The onboard power supply circuit breaker actuated by the rotary power switch on the DC­input power supply incorporates an auxiliary switch that is mechanically linked to (but electrically isolated from) the power supply circuit breaker.
When the power supply circuit breaker is tripped by an overcurrent condition in the power supply, this auxiliary switch mov es in unison, sending a signal to the circuit breaker alarm terminal block on the power supply faceplate (see Figure 1-7).
To remotely sense when the power supply circuit breaker has been tripped during an overcurrent condition, you can attach an external alarm-monitoring facility to the alarm terminal block. When the power supply circuit breaker is tripped, power is no longer delivered to the back plane and the router ceas es to operate. Hence, if you have attached an external alarm monitoring facility to the alarm terminal block, site personnel can be instantly alerted to this serious fault condition.
T ypically , an external alarm -monitoring system incorporates a light panel (visible alarm) or a klaxon (audible alarm) as the means for alerting site personnel to an alarm condition.
To reset the alarm contacts on the alarm terminal block, you must turn the rotary power switch on the power supply OFF and then ON again, much as you would reset any circuit breaker.
Note Any time you manually actuate the rotary power switch, such as when powering
down the router, the contacts on the alarm terminal block remain unaffected. Hence, activation of the contacts on the alarm terminal block occurs only during a power supply overcurrent condition. In other words, these contacts are used to provide an immediate, overt indication of a power supply fault condition; they are not used to merely indicate that a circuit breaker has been turned off manually.
Product Overview 1-21
Overview of the Cisco 12008
The three contacts on the alarm terminal block are labeled as follows:
COM (Common)—This contact is common to both the Normally Open (NO) and the
Normally Closed (NC) contacts.
NO (Normally Open)—These contacts on the alarm terminal block are open as long as
no overcurrent condition is detected in the power supply. When the power supply circuit breaker is tripped during an overcurrent condition, these contacts are closed.
NC (Normally Closed)—These contacts on the alarm terminal block ar e closed as long
as no overcurrent condition is detected in the power supply. When the power supply circuit breaker is tripped during an overcurrent condition, these contacts are open.
Table 1-1 summarizes the status of the contacts on the alarm terminal block during an overcurrent condition in the power supply.
Table 1-1 Circuit Breaker Status Indicated by the Alarm Terminal Block Circuit Breaker Position NC Contact NO Contact
OFF (tripped) Open Closed ON Closed Open
1-22
If you decide to use an external alarm-monitoring facility in conjunction with the alarm terminal block, note that the contacts on the alarm terminal block ha v e a rating o f 60 VDC at 1A maximum.
Source DC Input Connectors
The faceplate of the DC-input power supply incorporates three sets of terminals for connecting source DC power to the power supply (see Figure 1-7). From top to bottom, these terminals are identified as follows:
Ground
+ (positive)
• – (negative)
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
The power specifications for the DC-input power supplies, as well as the specifications of the source DC power cables for use with the Cis co 12008 router, are presented in the section entitled DC-Powered Systems on page 16 in Chapter 2.
DC-Input Power Supply LEDs
The DC-input power supply faceplate incorporates two LEDs (see Figure 1-7) that provide the following status indications:
INPUT OK—When the rotary power switch is turned ON, this green LED goes on
immediately, indicating that source DC power is applied and that it is within the specified operating range (–40.5 VDC to –75 VDC). If this LED does not go on when the rotary power switch is turned ON, the source DC power being applied to the power supply is not within the normal operating range or the LED is faulty.
OUTPUT FAIL—When the rotary power switch is turned on, this LED goes on
momentarily; it should then go off and remain so. If it does not go off, it indicates that the +5.2 VDC or –48 VDC being supplied to the backplane is not within tolerance.

Upper Card Cage and Associated Components

The upper card cage (see Figure 1-8) contains ten slots that accommodate the following types of cards in the quantities indicated:
Overview of the Cisco 12008
One Route Processor (RP)—A RP is a standard and required router componen t; the RP
must be present and operational at all times. It is recommended that you install the RP in the left-most slot (slot 0) in the upper card cage.
Either one or two clock and scheduler cards (CSCs)—One CSC is a standard and
required router component; one CSC must be present and op erational in the router at all times. For redundancy, you can install a second CSC for use as a backup.
T wo dedicated slot s in the middle of the upper card ca ge (CSC0 and CSC1) are reserv ed for the CSCs. Because the backplane connector of a CSC differs significantly from all other card types, you cannot install a CSC in any other slot.
Cisco 12000 series line cards—From one to seven line cards of different types can be
installed in the line card sl ots in the upper cag e (slots 0 through 3 and slots 4 th rough 7).
Product Overview 1-23
Overview of the Cisco 12008
Although you can install a line card in slot 0, the recommended con ven tion is for the RP to occupy this slot.
Figure 1-8 Upper Card Cage of the Cisco 12008 Router
Upper
card
cage
E J
E C T
S
S
L
L
O
O
T
T
-0
-1
R
E
A
S
U
E
T
X
C
O
N
S
O
L
E
L IN
K
C
O
T
L
X
R
X
M
II
R
J
-4
GIGABIT ROUTE PROCESSOR
A
A
larm
larm
AC
ACO/LT
O/LT
Alarm
Alarm
C
C
r
i
r
t
i
i
t
c
i
c
a
a
M
l
s
M
l
s
a
a
j
o
j
o
r
r
M
M
i
n
i
n
o
o
r
L
5
r
C
C
S
F
S
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
F
F
a
a
n
n
F
F
a
a
i
l
i
P
L
l
P
L
W
IN
W
IN
R
E
R
E
S
C
S
C
A
PL
A
R
P
RD
Y
LY
D
S
S
F
F
F
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
CSC-8
CSC-8
H7690
1-24
A minimally configured Cisco 12008 contains the following cards in the upper card cage:
One RP
One CSC
One Cisco 12000 series line card of any type
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
A Cisco 12008 that is configured for full redundancy contains the following cards in the upper card cage:
Two RPs
Two CSCs
As many as six Cisco 12000 series line cards of any type and any combination
The following sections briefly describe the card s that you can use to populate the upper card cage.
Gigabit Route Processor
Each Cisco 12008 GSR has one main system (or route) processor . The rou te processor (RP) processes the network routing protocols and distributes updates to the Cisco Express Forwarding (CEF) tables on the line cards. The RP also performs general maintenance functions, such as diagnostics, console support, and line card monitoring.
Two types of RPs are available for the Cisco 12008 GSR:
Gigabit Route Processor (GRP)
Performance Route Processor (PRP)
Overview of the Cisco 12008
When not explicitly specified, this document uses the term route processor (RP) to indicate either the GRP or the PRP.
Note If you install a second, redundant RP, it must be of the same type as the primary RP.
This section describes the GRP and includes the following information:
Memory components
System status LEDs
Soft reset switch
Personal Computer Memory Card Industry Association (PCMCIA) slots, which are
used to transmit data to or from Flash memory cards
Product Overview 1-25
Overview of the Cisco 12008
As ynchronous serial ports
Ethernet port
If you have a PRP, see the Performance Route Processor section. The faceplate of the GRP is shown in Figure 1-9.
Figure 1-9 GRP Faceplate (Horizontal Orientation Shown)
It is recommended that you install the GRP in the left-most slot (slot 0) in the upper card cage. Howev er, you need not abide b y this recommendation. You can install the GRP in any upper card cage slot, except for the two slots in the middle in the upper card cage (CSC0 and CSC1), which are reserved for the CSCs.
The GRP performs the following functions:
EJECT
COLL
RX
SLOT-1
RESET
SLOT-0
AUX
CONSOLE
LINK
RJ-45
TX
MII
GIGABIT ROUTE PROCESSOR
H10548
1-26
Downloading the Cisco IOS software to all of the installed lin e cards at power up
Providing a console (terminal) port for router configuration
Providing an auxiliary port for other external equipment (such as modems)
Providing an IEEE 802.3, 10/100-megabits-per -second (Mbps) Ethern et port for Telnet
functionality
Running routing protocols
Building and distributing routing tables to line cards
Providing general system maintenance functions
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
The GRP communicates with the line cards either through the switch fabric or through a maintenance bus (MBus). The switch fabric connection is the main data path for routing table distribution as well as for packets that are sent between the line cards and the GRP. The MBus connection allows the GRP to dow nload a system bootstrap image, collect or load diagnostic information, and perform general, internal system maintenance operations. The GRP plugs into any slot in the upper card cag e in the Cisco 12008 ex cept the rightmost slot, which is reserved for the alarm card.
The GRP contains the following components:
IDT R5000 Reduced Instruction Set Computing (RISC) processor used for the CPU.
The CPU runs at an external bus clock speed of 100 MHz and an internal clock speed of 200 MHz.
Up to 256 megabytes (MB) of parity-protected, extended data output (EDO) dynamic
random-access memory (DRAM) on two, 60-nanosecond (ns), dual in-line memory modules (DIMMs); 64 MB of DRAM is the minimum shipping configuration.
512 kilobytes (KB) of static random-access memory (SRAM) for secondary CPU cache
memory functions (SRAM is not user configurable or field upgradeable).
512 KB of NVRAM (NVRAM is not user configurable or field upgradeable).
Most of the additional memory components used by the system, including onboard
Flash memory (8-MB) and up to two PCMCIA-based Flash memory cards. The default GRP PCMCIA Flash memory is 20 megabytes (MB).
Air-temperature sensors for environmental monitoring.
The Cisco IOS software images th at run the Cisco 120 08 reside in Flash mem ory, which is located on the GRP in the form of a single in-line memory module (SIMM), and on up to two Personal Computer Memory Card International Association (PCMCIA) cards (called Flash memory cards) that insert in the two PCMCIA slots (slot 0 and slot 1) on the front of the GRP. (See Figure 1-9.) Storing the Cisco IOS images in Flash memory enables you to download and boot from upgraded Cisco IOS images remotely or from software images resident in GRP Flash memory.
Note EIA/TIA-232 was previously known as recommended standard RS-232 before its
acceptance as a standard by the Electronic Industries Association (EIA) and the Telecommunications Industry Association (TIA).
Product Overview 1-27
Overview of the Cisco 12008
The Cisco 12008 supports downloadable system software for most Cisco IOS software upgrades, enabling you to remotely download, store, and boot from a new Cisco IOS software image.
GRP Memory Components
Table 1-2 lists the memory components on the GRP. Figure 1-10 shows the location of the two DRAM SIMMs and the Flash SIMM on the GRP.
Table 1-2 GRP Memory Components Memory Type Memory Size Quantity Description
DRAM 641 to 256 MB
SRAM 512 KB (fixed)
NVRAM 512 KB (fixed)
Flash memory
4
SIMM Flash memory
(card)
Flash boot ROM 512 KB 1 Flash EPROM for the ROM monitor
1. 64 MB of DRAM is the default DR AM configuration for the GRP.
2. SRAM is not user configurable or field upgradeable.
3. NVRAM is not user configurable or field upgradeable.
4. The SIMM socket is wired according to Ciscos own design and does not accept industry-standard 80-pin Flash SIMMs.
5. 20-MB Flash memory card is the default shipping configura tion for the Cisco 12008.
6. A Type 1 or Type 2 PCMCIA c ard can be used in eithe r PCMCIA slot.
1 or 2 64- or 128-MB DIMMs (based on
DRAM required) for main Cisco IOS software functions
2
SRAM for secondary CPU cache memory functions
3
MVRAM for the system configuratio n file
8 MB 1 Contains Cisco IOS software images and
other user-defined files on the GRP
5
20 MB
1 or 2 Contains Cisco IOS software images and
other user-defined files on up to two PCMCIA-based Flash memory cards
6
program boot image
1-28
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-10 Locations of GRP Memory
Backplane connector
Overview of the Cisco 12008
Bank 2 DRAM DIMMs Bank 1
PCMCIA slots
slot 0: bottom
slot 1: top
U42
U39
U17
T
C
-1
T
T
E
E
J
O
S
E
L
E
S
R
-0
T
O
L
S
X
U
A
Auxiliary port
Console port
5
L
L
J-4
O
X
R
C
R
II
K
X
T
M
IN
L
Ethernet interface
(RJ-45 or MII)
Flash SIMM
H10547
GIGABIT ROUTE PROCESSOR
Alphanumeric
LED displays
Product Overview 1-29
Overview of the Cisco 12008
DRAM
The extended data output (EDO) dynamic random-access memory (DRAM) on the GRP stores routing tables, protocols, and network accounting applications, and runs the Cisco IOS software. The standard (default) GRP DRAM configuration is 64 megabytes (MB) of EDO DRAM, which you can increase up to 256 MB through DRAM upgrades. The Cisco IOS software runs from within GRP DRAM.
T wo DRAM DIMM sock ets are incorporated into the GRP, as shown in Figure 1-10. These sockets, labeled U39 (P4 DRAM bank 1) and U42 (P4 DRAM bank 2), enable you to configure DRAM in increments ranging from 64 MB to 256 MB. Table 1-3 lists the available upgrade configurations for DRAM on the GRP.
Table 1-3 DRAM Configurations Total DRAM Product Numbers DRAM Sockets Number of DIMMs
1
64 MB 128 MB MEM-GRP/LC-64(=) U39 (bank 1) and
128 MB MEM-GRP/LC-12 8(=) U39 (bank 1) 1 128-MB DI MM 256 MB MEM-GRP/LC-25 6(=) U39 (bank 1) and
1. 64 MB is the standard (defaul t) DRAM configuration for the GRP.
MEM-GRP/LC-64(=) U39 (bank 1) 1 64-MB DIMM
2 64-MB DIMMs
U42 (bank 2)
2 128-MB DIMMs
U42 (bank 2)
1-30
Caution
To prevent memory problems, DRAM DIMMs must be 3.3 V, 60-nanosecond (ns) devices. Do not attempt to install memory devices in the DIMM sockets that do not meet these requirements.
SRAM
SRAM provides secondary CPU cache memory. The standard GRP configuration is 512 KB. Its principle function is to act as a staging area for routing tables update information to and from the lin e cards. SRAM is not user config urable or field-up gradeable.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
NVRAM
The system configuration, software configuration register settings, and environmental monitoring logs are contained in the 512-KB NVRAM, which is backed up with built-in lithium batteries that retain the contents for a minimum of five years. NVRAM is not user configurable or field-upgradeable.
Caution Before you replace the GRP in the system, back up the r unning conf iguration to
a Triv ial File Transfer Protocol (TFTP) f ile server or an installed Flash memory card so you can retrieve it later. If the configuration is not saved, the entire configuration will be lost inside the NVRAM on the removed GRPand you will have to reenter the entire configuration manually. This procedure is not necessary if you are temporarily removing a GRP; lithium batteries retain the configur ation in memory u ntil you replace the GR P in the system.
Flash Memory
Both the onboard and PCMCIA card-based Flas h memory allow you to remotely load and store multiple Cisco IOS software and microcode images. You can download a ne w image over the network or from a local server and then add the new image to Flash memory or replace the existing files. You can then boot the routers either manually or automatically from any of the stored images. Flash memory also functions as a TFTP serv er to allow other servers to boot remotely from stored images or to copy them into their own Flash memory.
System Status LEDs
This section describes the two types of system status LEDs used on the GRP: the LED indicators and the alphanumeric LED displays.
The GRP has the following eight LED indicators:
Two PCMCIA activity LEDs (one per PCMCIA slot): these LEDs light when the
slot is accessed. The LEDs receive power from the switched slot voltage.
Four RJ-45 Ethernet por t LEDs: these LEDs are used in conjunction with the RJ-45
Ethernet connector. When the MII Ethernet port is in use, the LEDs are disabled. The LEDs indicate link activity, collision detection, data transmission, and data reception.
Product Overview 1-31
Overview of the Cisco 12008
Two RJ-45 or MII Ethernet port select LEDs: these LEDs , when on, identify which
one of the two Ethernet connections you selected. When the RJ-45 port is selected, its LED is on and the MII LED is off. When the MII port is selected, its LED is on and the RJ-45 LED is off.
The alphanumeric displays are organized as two rows of four characters each. The
displays content is controlled by the MBus module software. The displays content is controlled by the GRPs MBus module sof tware. Both rows of the display are powered by the MBus module.
These alphanumeric displays provide information about the following:
System status messages that are displayed during the boot processSystem status messages that are displayed after the boot process is complete
During the boot process, the alphanumeric LED displays are controlled directly by the MBus. After the boot process, they are controlled by the Cisco IOS software (via the MBus), and display messages designated by the Cisco IOS software.
The following levels of system operation are displayed:
Status of the GRPSystem error messages
1-32
User-defined status/error messages
Note A complete, descriptive list of all system and er ror messages is located in the Cisco
IOS System Error Messages publications.
Soft Reset Switch
A soft reset switch is provided on the GRP faceplate to enable you to reset the software running on the R5000 RISC processor of the GRP. You access this switch through a small aperture in the GRP faceplate. To activate the switch, you can press a ball-point pen or similar pointed instrument into the opening.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Caution To prevent system problems or loss of data , use the so ft reset switch only at the
advice of Cisco service personnel.
PCMCIA Slots
The GRP has two PCMCIA slots av ailable. Either slot can supp ort a Flash memory card or an input/output (I/O) de vice as long as the d evice requires only +5 VDC. The GRP supp orts T ype 1 and T ype 2 de vices; it does not s upport +3.3 VDC PCMCIA de vices. Each PCMCIA slot has an ejector button for ejecting a PCMCIA card from the slot.
Asynchronous Serial Ports
Two asynchronous serial ports are provided on the GRP faceplatea console port and an auxiliary port. These ports enable you to connect external devices that you can use to monitor and manage the system.
Console port—The console port is an Electronics Industries Association/
Telecommunications Industry Association (EIA/TIA)-232 female receptacle that provides a data circuit-terminating equipmen t (DCE) interface for con necting a console terminal.
Auxiliary port—The auxiliary port is an EIA/TIA-232 male plug that provides a data
terminal equipment (DTE) interface. This auxiliary port supports flow control and is often used to connect a modem, a channel service unit (CSU), or other optional equipment for Telnet management.
Ethernet Port
The GRP has one Ethernet port that you can access using either of the following co nnection types:
RJ-45 receptacle: an 8-pin, media dependent interface (MDI) that supports an IEEE
802.3 10BaseT (10 Mbps) or an IEEE 802.3u 100BaseTX (100 Mbps) Ethernet connection.
MII receptacle: a 40-pin, media independent interface (MII) that provides additional
flexibility for making Ethernet connections. The pinout of this standard 40-pin receptacle is defined by the IEEE 802.3u standard.
Product Overview 1-33
Overview of the Cisco 12008
Note The RJ-45 and MII receptacles on the GRP faceplate represent two physical
connection options for one Ethernet interface; therefore, you can use either the MDI RJ-45 connection or the MII connection, but not both simultaneously.
Performance Route Processor
Each Cisco 12012 GSR has one main system (or route) processor . The rou te processor (RP) processes the network routing protocols and distributes updates to the Cisco Express Forwarding (CEF) tables on the line cards. The RP also performs general maintenance functions, such as diagnostics, console support, and line card monitoring.
Two types of RPs are available for the Cisco 12012 GSR:
Gigabit Route Processor (GRP)
Performance Route Processor (PRP)
When not explicitly specified, this document uses the term route processor (RP) to indicate either the GRP or the PRP.
1-34
Note If you install a second, redundant RP, it must be of the same type as the primary RP.
The section describes the Performance Route Processor (PRP) and includes the following information:
PRP Memory Components
System Status LEDs
Soft Reset Switch
PCMCIA Slots
Asynchronous Serial Ports
Ethernet Port
If you have a GRP, see the Gigabit Route Processor section.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Figure 1-11 shows the front panel view of the PRP.
Figure 1-11 Performance Route Processor (Front Panel View, Horizontal
Orientation Shown)
EJECT
ETH 1ETH 0 AUX
SLOT-1 SLOT-0
M
I
R
P
RX TX
EN
Y
R
A
LINK
EN
Y
R
A
IM
R
P
LINK
CONSOLE
RX TX
RESET
PERFORMANCE ROUTE PROCESSOR 1 (PRP-1)
The PRP is available as Product Number PRP-1=, which includes one PRP with 512 MB of synchronous dynamic random-access memory (SDRAM) and one 64-MB advanced technology attachment (ATA) Flash disk.
The primary functions of the PRP are as follows:
Downloading the Cisco IOS software to all of the installed lin e cards at power up
Providing a console (terminal) port for router configuration
Providing an auxiliary port for other external equipment (such as modems)
Providing two IEEE 802.3, 10/100-megabits-per-second (Mbps) Ethernet ports for
Telnet functionality
Running routing protocols
Building and distributing routing tables to line cards
Providing general system maintenance functions
Communicating with line cards either through the switch fabric or through the
maintenance bus (MBus) The MBus connection allows the PRP to do wnload a system bootstrap image, collect or
load diagnostic information, and perform general, internal system maintenance operations. The switch fabric connection is the main data path for routing table distribution as well as for packets that are sent between line cards and the PRP.
75041
The PRP contains the following components:
Motorola PowerPC 7450 central processing unit (CPU). The CPU runs at an external
bus clock speed of 133 MHz and an internal clock speed of 667 MHz.
Product Overview 1-35
Overview of the Cisco 12008
Up to 2 GB of SDRAM on two PC133-compliant, dual in-line memory modules
(DIMMs). 512 MB of SDRAM is the default shipping configuration. SDRAM is field replaceable.
Two MB of SRAM for secondary CPU cache memory functions. SRAM is not user
configurable or field replaceable.
Two MB of NVRAM. NVRAM is not user configurable or field replaceable.
Additional memory components used by the system, including o nbo ard Flash memory
and up to two Flash memory cards.
Air-temperature sensors for environmental monitoring.
The Cisco IOS software images that run the Cisco 12000 s eries Internet Ro uter system are stored in Flash memory. Two types of Flash memory ship with the PRP:
1 Onboard Flash mem ory — Ships as a single in-line memory module (SIMM). This
Flash memory contains the Cisco IOS boot image (bootflash) and is not field replaceable.
2 Flash disk— The PRP ships with a Flash disk that can be installed in either Flash disk
slot. (See Figure 1-12.) The Flash disk contains the Cisco IOS software image.
Storing the Cisco IOS images in Flash memory enables you to download and boot from upgraded Cisco IOS software images remotely, or from software images that reside in PRP Flash memory.
1-36
Cisco 12000 series I nternet Routers su pport do wnl oadable sys tem softw are for mos t Cisco IOS software upgrades. T his enables you to remote ly download, s tore, and boot from a ne w Cisco IOS software image. The Cisco IOS software runs from within the PRPs SDRAM.
Figure 1-12 shows the locations of the various hardware components on the PRP.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-12 PRP (Horizontal Orientation)
1
2
Overview of the Cisco 12008
3
T
C
E
J
E
SLOT-1
SLOT-0
IM
R
4
P
5 7 8 109
ETH 1ETH 0 AUX
RX
TX
EN
EN
Y
Y
R
R
A
A
IM
R
P
LINK
LINK
6
CONSOLE
RX
TX
R
E
S
E
T
PERFORMANCE ROUTE PROCESSOR 1 (PRP-1)
75042
Product Overview 1-37
Overview of the Cisco 12008
1 Backplane connector 6 Ethernet ports 2 Flash SIMM (Socket number P3) 7 Auxiliary port 3 SDRAM DIMMs
8 Console port
Bank 1 - Socket number U15 Bank 2 - Socket number U18
4 Ejector lever 9 Handle 5 Flash disk slots (covered) 10 Display LEDs
PRP Memory Components
Table 1-4 lists the memory components on the PRP.
Table 1-4 PRP Memory Components
Type Size Quantity Description
SDRAM
SRAM NVRAM Flash
memory
Flash boot ROM
1. Default SDRAM configuration is 512 MB. Bank 1 (U15) must be populated first. You can use one or both ban ks to
2. SRAM is not user configurable or field replaceable.
3. NVRAM is not user configurable or field replaceable.
4. Flash memory SIMM is not user configurable or field replac ea bl e.
5. ATA Flash disks and Type I and Type II linear Flash memory cards are supported. See the
1
512 MB, 1 GB, or 2 GB
2
2 MB (fixed) Secondary CPU cache memory functions
3
2 MB (fixed) 1 System configuration files, register settings, and logs 64 MB SIMM
1 or 2 512-MB and 1-GB DIMMs (based on desi re d SD R A M
configuration) for main Cisco IOS software functions
4
1 Cisco IOS boot image (bootflash), crash information, and other
user-defined files
Flash disks
5
1 or 2 Cisco IOS software images, system configuration files, and other
user-defined files on up to two Flash disks
512 KB 1 Flash EPROM for the ROM monitor program boot image
configure SDRAM combinations of 512 MB, 1 GB, or 2 GB. 1.5-GB configurations are not support ed .
Flash Memory for Flash disk informatio n.
1-38
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Note If a single DIMM module is installed, it must be placed in bank 1 (U15).
SDRAM
SDRAM stores routing tables, protocols, and network accounting applications, and runs the Cisco IOS software. The default PRP configuration includes 512 MB of error checking and correction (ECC) SDRAM. DIMM upgrades of 512 MB and 1 GB are available. You cannot mix memory sizes. If two DIMMS are installed, they must be the same memory size.
Caution Cisco Systems strongly recommends t hat you use only Cisco-app roved memory.
To prevent memory problems, SDRAM DIMMs must be +3.3VDC, PC133-compliant devices. Do not attempt to install other devices in the DIMM sockets.
SRAM
SRAM provides 2 MB of parity-protected, secondary CPU cache memory. Its principal function is to act as a staging area f or rout ing table up dates and fo r informatio n sent to and received from line cards. SRAM is not user configurable and cannot be upgraded in the field.
NVRAM
NVRAM provides 2 MB of m emory for system conf igu ration f iles, software con f iguration register settings, and environmental monitoring logs. This information is backed up with built-in lithium batteries that retain the contents for a minimum of 5 years. NVRAM is not user configurable and cannot be upgraded in the field.
Flash Memory
Flash memory allows you to remotely load and store multiple Cisco IOS software and microcode images. You can download a new image o ver the network or from a local serv er and then add the new image to Flash memory or replace the e xisting files. Y o u then can boot the routers either manually or automatically from any of the stored images.
Product Overview 1-39
Overview of the Cisco 12008
Flash memory also functions as a Trivial File Transfer Protocol (TFTP) server to allow other servers to boot remotely from stored images or to copy them into their own Flash memory . The onboard Flash memory ( called bootflash) contains the Cisco IOS boot image, and the Flash disk contains the Cisco IOS softwa re image . A 64-MB ATA Flash disk ships by default with the PRP. Table 1-5 lists the supported Flash disk sizes and their Cisco product numbers.
Table 1-5 Supported Flash Disk Sizes and Product Numbers Flash Disk Size
2
64 MB 128 MB MEM-12KRP-FD128= 1 GB MEM-12KRP-FD1G=
1. Standard Type 1 and Type 2 linear Flash memory ca rds al so are supported,
although they may not have the capacity to m ee t the requirements of yo ur configuration.
2. 64-MB ATA Flash disk is the defau lt shipp ing con fig ura tion.
1
Product Number
MEM-12KRP-FD64=
1-40
System Status LEDs
The sections describes the two types of system status LEDs used on the PRP: LED indicators and alphanumeric LED displays.
The device or port activity indicators consist of the following functional groups:
Two Flash disk activity LEDs (labeled SLOT-0 and SLOT-1)—1 LED per Flash disk
slot: these go on when the slot is accessed.
Four RJ-45 Ethernet port LEDs (labeled LINK, EN, TX, and RX): used in con junction
with each of the RJ-45 Ethernet connectors. Each connector includes a set of 4 LEDs that indicate link activity (LINK), port enabled (EN), data transmission (TX), and data reception (RX).
Two Ethernet connection LEDs (labeled PRIMARY): these two LEDs, when on,
identify which of the two Ethernet connections is selected. Since both ports are supported on the PRP, the LED on port ETH0 is always on. The ETH1 LED goes on when it is selected.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
The alphanumeric display LEDs are or ganized as two rows of four characters each and are located at one end of the card. These LEDs provide system status and error messages that are displayed during and after the boot process. The b oot process and the content di splayed are controlled by the PRPs MBus module software.
At the end of the boot process, the LEDs are controlled by the Cisco IOS softwa re (via the MBus), and the content displayed is designated by the Cisco IOS software.
The alphanumeric display LEDs provide information about the following:
Status of the PRP
System error messages
User-defined status and error messages
Note A complete, descriptive list of all system and er ror messages is located in the Cisco
IOS System Error Messages publications.
Soft Reset Switch
The soft reset switch causes a nonmaskable interrupt (NMI) and places the PRP in ROM monitor mode. When the PRP enters ROM monitor mode, its behavior depends on the setting of the PRP software configuration register. (For more information on the software configuration re gister , refer to the Conf iguring the Soft ware Confi guration Regi ster section in Chapter 4) For example, when the boot f ield of the softw are conf iguration re gister is set to 0x0, and you press the NMI switch, the PRP remains at the ROM monitor prompt (
rommon>) and waits for a user command to boot the system manually. But if the boot field
is set to 0x1, the system automatically boots the first IOS image found in the onboard Flash memory SIMM on the PRP.
Caution The soft reset (NMI) switch is not a mechanism for resetting the PRP and
reloading the IOS image. It is intended for software development use. To prevent system problems or loss of data, use the soft reset switch only on the advice of Cisco service personnel.
Product Overview 1-41
Overview of the Cisco 12008
Access to the soft reset switch is through a small opening in the PRP faceplate. To press the switch, you must insert a paper clip or similar small pointed object into the opening.
Flash Disk Slots
The PRP includes two Flash disk (PCMCIA) slots. Either slot can support an ATA Flash disk or a Type 1 or Type 2 linear Flash memory card. The PRP ships by default with one 64-MB ATA Flash disk.
Note The PRP only supports +5VDC Flash disk devices. It does not support +3.3VDC
PCMCIA devices.
All combinations of different Flash devices are supported by the PRP. You can use ATA Flash disks, T ype 1 or Type 2 linear Flash memory cards, or a combination of the two. Each Flash disk slot has an ejector button for ejecting a card from the slot.
Note T ype 1 and Type 2 linear Flash memory cards may not hav e the capacity to m eet the
requirements of your configuration.
1-42
Asynchronous Serial Ports
The PRP has two asynchronous serial ports, the console and auxiliary ports. These allow you to connect external serial devices to monitor and manage the system. Both ports use RJ-45 receptacles.
The console port provides a data circuit-terminating equipment (DCE) interface for connecting a console terminal. The auxiliary port provides a data terminal equipment (DTE) interface and supports flow contr ol. It is often used to connect a mod em, a channel service unit (CSU), or other optional equipment for Telnet management.
Ethernet Ports
The PRP includes two Ethernet ports, both using an 8 -pin RJ-45 receptacle fo r either IEEE
802.3 10BASE-T (10 Mbps) or IEEE 802.3u 100BASE-TX (100 Mbps) connections.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Note The transmission speed of the Ethernet ports is auto-sensing by default and is user
configurable.
Switch F abric of the Cisco 12008
The heart of the Cisco 12008 is the switch fabric circuitry, which provides synchronized gigabit speed interconnections between the line cards and the RP. The switch fabric circuitry for the router is incorporated into two cards:
Clock and scheduler card (CSC)—One CSC installed in the upper card cage is a
standard (required) router component. The CSC represents on e plane of switch fabric in the router. This card is described in greater detail in the section entitled Clock and Scheduler Card.
Switch fabric card (SFC)—You can install a set of three optional SFCs in the lower card
cage to increase its switching (data-handling) capacity). Each SFC card represents one plane of switch fabric in the router. This card is described in greater detail in the section entitled Switch Fabric Cards.
To achieve a fully redundant switch fabric with a switching capacity of 40 Gbps, you can install two CSCs and three SFCs in the router; the second CSC provides redundancy of CSC functions, as well as redundant switch fabric in the event of CSC or SFC failure.
Overview of the Cisco 12008
Each CSC or SFC supports an OC-12 swi tching rate for t he router (622 Mbps). By adding the set of three optional SFC cards, you can increase the switching capacity of the router to an OC-48 rate (2.4 Gbps).
Table 1-6 lists the switch fabric bandwidth and the switch card configurations needed to support an OC-12 switching rate or an OC-48 switching rate.
Product Overview 1-43
Overview of the Cisco 12008
Table 1-6 Switch Fabric Configurations Switch Fabric
Bandwidth
OC-12 nonred un da nt 1 OC-12 redundant 2 0 2 OC-48 nonred un da nt 1 3 4 OC-48 redundant 2 3 5
1. A CSC is a required router component.
A minimally configured router (one with a single CSC and no SFCs) supports an OC-12 data rate, but provides no redundanc y of CSC f unctions. Adding a second CSC to a system, as well as the three optional SFCs, has the following effects:
Number of CSCs
1
Number of SFCs
01
Planes of Switch Fabric
Increases the routers bandwidt h from an OC-12 rate to an OC-48 ra te.
Increases the number of planes of switch fabric available to the router from one to fi v e
(with the fifth serving as a redundant plane in the event of failure of a CSC or SFC.
Provides full redundancy of CSC functions, such as the following:
System clocking Resource allocationScheduling
Provides full redundancy in the routers fan power and alarm functions.
Clock and Scheduler Card
The CSC is a multi-function circuit board that can be installed in one or both of two reserved slots (CSC0 and CSC1) in the middle of the upper card cage (see Figure 1-2). The standard router configuration requires one CSC in either slot CSC0 or slot CSC1. If you configure your router with a single CSC, it is recommended that you install it in CSC1.
Each CSC is mounted on its own card carrier and incorporates an onboard power supply that takes the –48 VDC supplied by the backplane and converts it into the 3.3 VDC operating voltage required by the card’s electronics.
1-44
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
As a multi-function board, the CSC provides the following system services:
Provides one plane of switch fabric for the router (see the section below entitled “Switch
Fabric in the Cisco 12008”).
Serves as a switch fabric controller card for the router (see the section below entitled
Switch Fabric Controller Functions of the CSC”).
Serves as an alarm monitoring facility for the router (see the section below entitled
Housekeeping and Alarm Monitoring Functions of the CSC”).
Provides onboard power for its own electronic circuitry, as well as power and control
functions for the fan trays (see the section below entitled Board Power and Fan Tray Power Functions of the CSC).
These functions are described in the following sections.
Switch F abric in the Cisco 12008
A switch plane in the router consists of one OC-12-rate crossbar in the backplane that enables each line card slot in the router to be connected logically to every other line card slot. Line cards installed in any combination of slots in the upper card cage can communicate with each other by means of the router’s switch fabric.
The switch fabric of the router constitutes the totality of the possible data paths that can be established through the router. The magnitude of the routers switch fabric (and, hence, its data- carrying capacity) is related directly to the number of switch planes that are made available to the router for data-handling purposes. By installing a second CSC and/or the optional set of three SFCs in the router, you can increase the number of switch planes present in the router , thereby increasing the magn itude of the router’s overall switch fa bric.
Table 1-7 outlines the possible configurations of CSCs and SFCs and t he r outer s w itch i ng capacity that results from these configurations.
Product Overview 1-45
Overview of the Cisco 12008
Table 1-7 Switch Planes Provided by Switch Cards
Switch Card T yp e Availability
One CSC Standard 1 A single CSC supports an OC-12 data rate
Second CSC Optional 1 A second CSC supports an OC-12 data
Three SFCs Optional 3 The optional set of three SFCs enables the
1. Router equipped wit h one CSC and three SFCs.
2. Router equipped with two CSCs and three SFCs.
Number of Switch Planes Description
for the router, but provides no redundancy in the router’s switch fabric.
rate for the router and also provides a redundant plane of switch fabric. If one of the CSCs fails, a fault recovery cutover to the surviving CSC occurs, not only to maintain the router’s OC-12 data rate, but also to preserve the system services peculiar to the CSC.
router to support an OC-48 data rate. In an OC-48 rate
1
in the switch fabric. However, if a switch plane failure occurs in a fully-redundant system, a CSC can take over the functions of either a failed CSC or a failed SFC, not only to maintain the routers OC-48 data rate, but also to preserv e the e ssential CSC system services.
system, no redundancy exists
2
1-46
Switch Fabric Controller Functions of the CSC
In addition to providing one plane of switch fabric for the router, the CSC provides numerous other functions and services essential to router operations. Figure 1-13 illustrates the primary functional elements of the CSC.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-13 Block Diagram of the CSC
Clock and scheduler card (CSC)
Overview of the Cisco 12008
Alarm
functions
Board power
Master clock/
frame synch
generator
Central
switch
allocator
Single plane switch
fabric
module
Mbus
Fan
power
Request/grant
Switch data
Fabric control
Fan
trays
1
Line cards
and RP
cards
0
1
7
Clock
SFC
cards
0
1
2
CSC
card
(redundant)
H11724
2
The major functions of each element of the CSC are summarized briefly in the following paragraphs.
Mast er clock generator—This function on the CSC provides a clock source to the RP,
all installed switch cards (including the SFCs and a redundant CSC), and all installed line cards. The master clock generator synchronizes the transfer of data through the router’s switch fabric.
Product Overview 1-47
Overview of the Cisco 12008
In a redundant CSC conf igur ation, th e pha se o f the master clock generator on one card is synchronized with that of the other card. If either clock drifts, the master clock generators on both cards remain tightly aligned.
Should one of the CSCs fail, the phase lock between the two master clock sources is aborted within nanoseconds, enabling the surviving CSC clock to remain stable and take over master clock duties.
Frame synchronization generator—This function on th e CSC prov ides a peri odic signal
to the line cards and switch cards to control data flow. In a redundant CSC configuration, either CSC can adopt the frame synchronization
phase of the other to ensure ph ase a lignment. The lin e card s can s witc h between fr ame synchronization masters without disruption.
If the frame synchronization function on one CSC fails, cuto ver to the surviving frame synchronization generator on the other card occurs within nanoseconds, sustaining system operations.
Central switch allocator and scheduler—This function on the CSC allocates switching
resources to line cards and schedules (arbitrates) the flow of data through the router’s switch fabric.
Switch arbitration begins with a set of requests from line cards to send data through the router’s switch fabric. The scheduler plans a set of paths through the switch fabric to carry as much data as possible per unit of time. At the next available time unit, the request to send data is granted, and the data is sent to its destinat ion. The ne xt rou nd of switch arbitration (scheduling) then begins.
1-48
The scheduler also sends switch fabric control information to each switch plane to create appropriate data paths through the switch fabric. When the new data paths are configured into the switch fabric, data begins to flow toward the destination line card(s).
The central switch allocator and scheduler accepts data transport requests from all line cards (including the RP), generates grants (accepted data transport requests), and d rives all planes of the router’s switch fabric.
Single pl ane switch fabric—The CSCs single-plane switch fabric provides an OC-12
rate of switching capacity for the router . T his switch fabric plane operates under control of the CSC’s central switch allocator and scheduler.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
This single switch plane of the CSC can be used alone in a minimum router configuration, or it can be used in combination with another CSC and the three optional SFCs for full switching redundancy. In the latter case, the per line-card slot bandwidth of the router is increased from an OC-12 rate to an OC-48 rate, and the second CSC provides redundan cy .
If any one switch plane fails in a fully redundant switch fabric, the failed plane is shut down, and the routers full data bandwidth is carried b y the su rviving planes. The fault recovery cutover to another viable switch plane typically occurs without loss of data, because the data path defect is detected while redundancy information is still available, thus enabling error packets to be repaired on the fly.
Housekeeping and Alarm Monitoring Functions of the CSC
The section describes the following housekeeping and alarm monitoring facilities built into the CSC:
MBus module— The MBus module on the CSC is a microprocess or-based subas sembly
that provides housekeeping services required during router power up and initialization. It also supports the alarm monitoring LEDs on the CSC faceplate, as described in the following section.
The MBus module on the CSC operates partly autonomously and partly under the control of the master MBus module on the RP.
A failed MBus module on the CSC is detected by an MBus polling algorithm running in the background on the RP.
A failed MBus module detected by this polling algorithm in a redundant CSC configuration causes the master MBus module to execute an a dministr a tive cutover to the MBus module on the surviving CSC. This cutover is accomplished with no disruption of normal system operatio ns.
Alarm monitoring and status functi ons—The CSC supports the routers alarm and status
monitoring functions. These functions are described in the following paragraphs. Figure 1-14 shows the location of the alarm contact conn ector and the v arious LEDs on the CSC faceplate through which the system accomplishes its alarm monitoring and status reporting functions.
Product Overview 1-49
Overview of the Cisco 12008

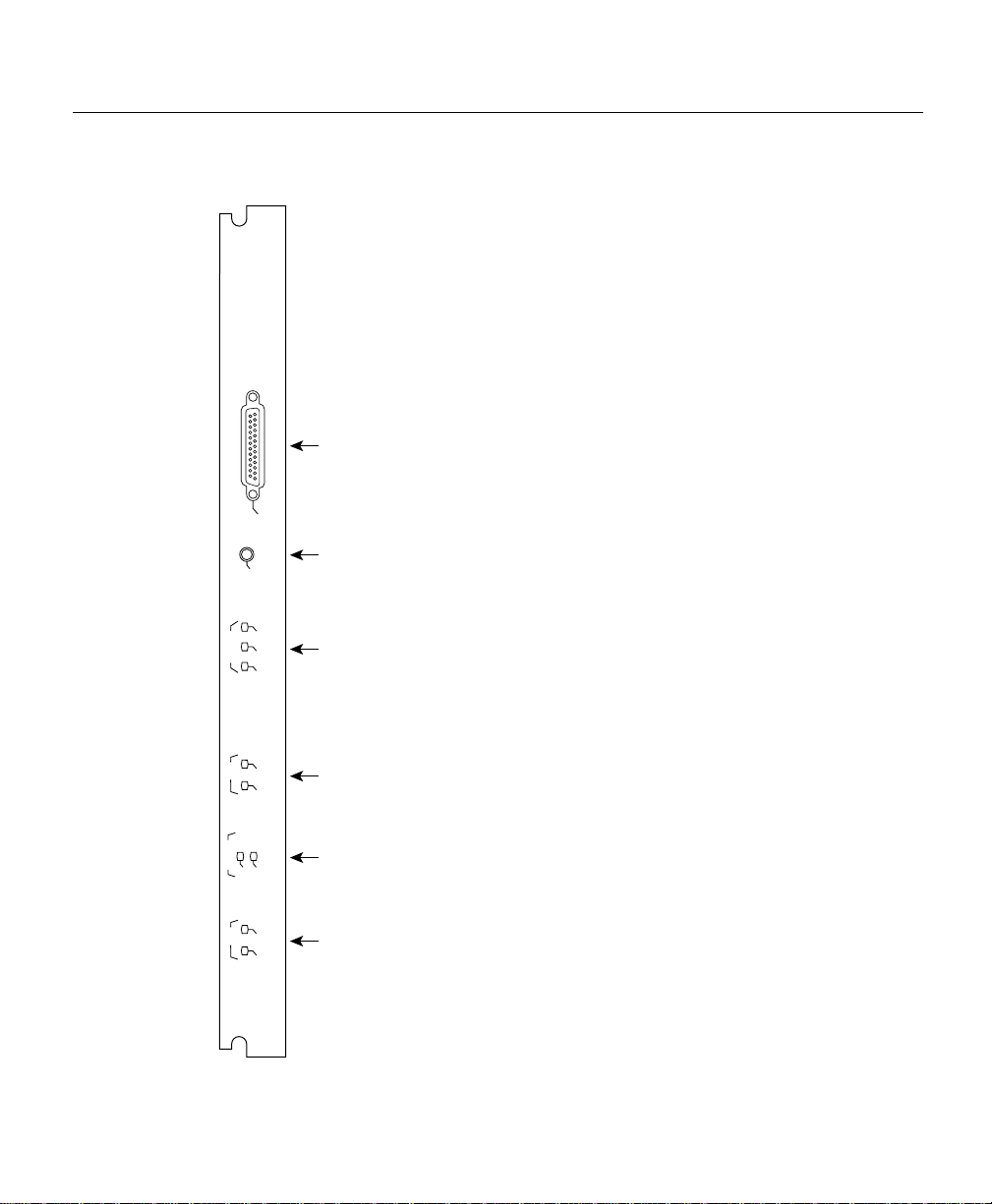

Figure 1-14 CSC Alarm Monitoring Facilities
Alarm
DB-25 alarm contact connector
A larm
s
CSC
Fan Fail
LINECARD
SFC
CSC-8
ACO/LT
Critical Major Minor
Fail Enabled
PWR SPLY
Fail Enabled
Alarm cutoff/lamp test button
System alarm LEDs
Status LEDs for the CSC
Status LEDs for each fan tray
Status LEDs for SFCs
H7701
1-50
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
DB-25 alarm contact connectorA female DB-25 D-sub connector incorporated
into the CSC faceplate enables you to attach an external alarm monitoring facility to the router, thus supporting a telco style of handling alarm conditions in the router.
The alarm signals sent to this DB-25 connector are identical in function to those sent to the system LEDs on the CSC faceplate (see the following section entitled System Alarm LEDS).
Any alarm condition in the router that activates one of the system alarm LEDs on the CSC faceplate also energizes an appropriate CSC relay , causing a corresponding signal to be sent to the DB-25 connector. If an external alarm monitoring facility is attached to the DB-25 connector, this signal activates the appropriate external audible or visible alarm.
An external audible alarm can be reset by clearing the condition that caused the alarm or by pressing the alarm cutoff reset/lamp test (ACO/LT) button on the CSC faceplate (see the following discussion about the A CO/LT button). A visual alarm, however, can be reset only by resolving the problem that caused the alarm condition.
Only safety extra-low voltage (SELV) external alarm circuits can be connected to the DB-25 connector.
One external closure sense line, enabling the router to monitor an external event,
such as the opening of a cabinet door or the activation of an alarm in associated equipment.
Alarm cutoff reset/lamp test (ACO/LT) buttonIf you equip your system with an
external alarm monitoring facility, a visible indication can be provided, and/or an audible alarm can be sounded, to immediately notify site personnel of an alarm condition in the router.
An audible alarm generated by the system continues to sound until you either clear the alarm condition itself or press the ACO/LT button to silence the alarm. Merely pressing this button does not resolve the alarm condition.
You can test the operability of the LEDs on the CSC(s), the SFC(s), and the power supply(ies), by pressing the ACO/LT button at any time. Doing so causes the LEDs on all these router components to remain lit as long as you hold down the button. However, the LEDs on the SFCs are visible only when the air filter assembly is removed.
Product Overview 1-51
Overview of the Cisco 12008
In a system equipped with two CSCs, pressing the ACO/LT button on one CSC is equivalent to pressing this button on either CSC or both CSCs.
System alarm LEDs—Three system LEDs, labeled critical, major, and minor, are
incorporated into the CSC faceplate (see Figure 1-14) to signal the existence of alarm conditions detected in the router by the systems environmental monitoring circuitry.
During an alarm condition, one of these LEDs goes on to indicate the se verity of the detected fault. During a critical alarm, the top LED (Critical) on the CSC faceplate indicates red; similarly , during a major alarm, the middle LED (Major) on the CSC faceplate also indicates red, signifying an alarm condition of lesser severity; finally , during a minor system alarm, the bottom LED (Minor) indicates am ber, signifying an alarm condition of least severity.
At the same time that one of these LEDs goes on to signal the alarm event, an associated alarm relay on the CSC is closed, sending a co rrespon ding s ignal to the DB-25 alarm contact connector on the CSC faceplate.
An alarm condition detected in a redundant CSC configuration causes the appropriate relays on both CSCs to close, activating the visible and audible alarm functions of the DB-25 connector on each card.
1-52
When the fault condition is resolved, MBus software running in the GRP automatically clears the fault indication by communicating with the master MBus module, which, in turn, communicates with the MBus module on each circuit board.
CSC Status LEDs—Two LEDs on the CSC faceplate, the top one labeled FAIL and
the bottom one labeled ENABLED, indicate the operational status of the CSC.
FAN FAIL Status LEDs for each fan trayTwo side-by-side LEDs on the CSC
faceplate indicate the operational status of the fan trays. The LINECARD LED on the left pertains to the card cage fan tray, and the PWR
SPLY LED on the right pertains to the power supply fan tray.
SFC Status LEDs—Two LEDs at the bottom of the CSC faceplate, the top one
labeled FAIL and the bottom one labeled ENABLED, indicate the operational status of the SFCs in the lower card cage (behind the air filter assembly).
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
If the FAIL LED goes on, it indicates that one of the three SFCs in the lower card cage has failed. To determine which of the SFCs has failed, you must remove the air filter assembly and examine the status of the LEDs on each SFC.
Two side-by-side LEDS behind a vertical tab near the center of the SFC (see Figure 1-15) indicate the operational status of the card.
Figure 1-15 Status LEDs on an SFC
Overview of the Cisco 12008
Left LED
(OK)
Status LEDs
Right LED (FAIL)
H11366
Board Po wer and Fan Tray Power Functions of the CSC
DC-DC converters on the CSC provide power for its o wn circuitry , as well as po wer for the fan trays. These functions are described briefly in the following sections.
Board power—A DC-DC converter on the CSC takes the –48 VDC being delivered to
the card from the backplane and converts it into the +3.3 VDC required to drive the cards electronic circuity.
No redundancy is built into the CSC for the +3.3 VDC operating voltage; if the DC-DC converter fails to deliver this voltage, the card shuts down, at which time the redundant CSC, if installed, takes over to maintain normal system operations.
However , in a nonredundant CSC configuration, the failure of the installed CSC causes the entire system to shut down.
Product Overview 1-53
Overview of the Cisco 12008
Fan tra y power —The Cisco 12008 router contains two fan trays (see Figure 1-2).
Control of fan power is initiated at system startup, with the fans running at a slow rate for normal operations. Such operation minimizes fan noise, wear, and power consumpti on. A DC-DC converter on the CSC provides +20 VDC for slow fan operation and +25 VDC for fast fan operation when an overtemperature condition is sensed in the router.
Periodically, the master MBus module on the GRP polls the MBus module on each circuit board to determine whether router components are cool enough to warrant keeping the fans runn ing at their minimum rate. If t hey are not, the master MBus module directs the MBus module on the CSC to increase the operating voltage being delivered to the fan trays, causing the fans to run faster, thus increasing the volume of air being circulated through the router.
Each fan is monitored separately for failure. A failed fan is not shut off in the usual sense; rather, a current-limiting feature in the faulty fan prevents it from interfering with the operation of other fans.
On failure of a fan in either the card cage fan tray or the p ower s upply fan tray, the CSC increases the voltage being delivered to the surviving fans, causing them to run faster to compensate for the failed fan.
Cisco 12000 Series Line Cards
The Cisco 12008 comes equipped with the number and type of line cards that you or dered already installed. Up to sev en Cisco 12 000 series line cards can be installed in the router to support a variety of physical network media.
The line cards can be installed in upper card cage slots 0 through 3 and slots 4 through 7. Note, however, that it is recommended that the GRP be installed in slot 0. Line cards interface to each other and the GRP through the routers switch fabric.
The following types of line cards are available for use with the Cisco 12008:
Quad OC-3c/STM-1c POS4 ports
OC-12c/STM-4c POS1 port
OC -12c/STM-4c ATM—1 port
1-54
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
These cards provide the interfaces to the router’s external physical media. They exchange packet data with each other by way of the router’s switch fabric.
Caution Any unoccupied slot in the upper card cage must have a blank filler panel
installed for EMI compliance and to ensure proper air flow through the router enclosure.
A vertical cable-management bracket attached to the f aceplate of each line card enables you to neatly arrange the network interface cables for connection to the individual ports on the line card. The cable-management system is described in detail in the section entitled Cable-Management System on page 8.
The online insertion and removal (OIR) capability of the Cisco 12008 enables you to remove and replace a line card while the system remains powered up and operational.
The Cisco 12000 series line cards available for use with the Cisco 12008 router are described briefly in the following sections.
Quad OC-3c/STM-1c POS Line Card
The Quad OC-3c/STM-1c POS line card provides the Cisco 12008 router with four independent Packet-Over-SONET (POS) ports on a single card. The card interfaces with the routers switch fabric and provides four OC-3c/STM-1c SC-duplex SONET connections. These connections are concatenated, which provides for increased effi ciency by eliminating the need to partition the bandwidth.
Figure 1-16 shows a high-lev el block diagram of the Quad OC-3c /STM-1c POS l ine card; Figure 1-17 shows a front view of the card.
Product Overview 1-55
Overview of the Cisco 12008
Figure 1-16 Block Diagram of the Quad OC-3c/STM-1c POS Line Card
Input
interfaces
Output
interfaces
Packet
receive
(Rx)
Forwarding
processor
Packet
transmit
(Tx)
Reassembly
Segmen-
tation
Burst
buffer
L3 switching
accelerator
Burst
buffer
Buffer
memory
queuing
queuing
Buffer
memory
Silicon
agent
Silicon
agent
MBus
module
Switch
interface
fabric
MBus interface
Switch fabric
H11726
1-56
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-17 Quad OC-3c/STM-1c POS Line Card
Overview of the Cisco 12008
Single Mode
0
ACTIVE CARRIER RX PKT
1
ACTIVE CARRIER RX PKT
2
ACTIVE CARRIER RX PKT
3
ACTIVE CARRIER RX PKT
Q OC-3/STM-1 SM IR POS
Ejector lever
Port 0
Status LEDs
Port 1
Port 2
Port 3
Multimode
0
ACTIVE CARRIER RX PKT
1
ACTIVE CARRIER RX PKT
2
ACTIVE CARRIER RX PKT
3
ACTIVE CARRIER RX PKT
Q OC-3/STM-1 MM POS
160-pin backplane signal connector
Alphanumeric
LED display
Ejector lever
Front view Rear view
H10781
Product Overview 1-57
Overview of the Cisco 12008
Each Quad OC-3c/STM-1c POS line card incorporates the following major components:
Transceivers—The single-mode intermediate reach transceiver provides a full-duplex,
155-Mbps, 1300-nm, laser-based SONET/SDH-compliant interface. The multimode transceiver provides a full-duplex, 155-Mbps, 1300-nm, LED-based SONET/SDH compliant interface.
The SONET specification for fiber-optic transmission defines two types of fiber: single mode and multimode. Signals can travel farther through single mode fiber than through multimode fiber.
The maximum distance for single-mode installations is determined by the amount of light loss in the fiber path. Good quality single-mode fiber with very few splices can carry an OC-3c/STM-1c signal 9.3 miles (15 km) or more; good quality miltimode fiber can carry a signal up to 1.3 miles (2 km).
Burst buffers—The Quad-OC3c/STM-1c contains fou r 128-KB burst b uffers. The b urst
buffer pre vents the dropping of packets during instantaneous increases in the number of back-to-back small packets being transmitted at OC-3 line rates.
Burst buffers are used to achieve high throughput while smoothing out the arriving packet burst for the Layer 3 switch processor.
Buffer memory—The silicon queuing engine controls the placement of IP packets in
buffer memor y as well as their removal from buffer memory. The default packet buf fer memory is 32 MB, which includes 16 MB of receive (Rx) b uffers and 16 MB of transmit (Tx) buffers.
1-58
The buffer memory can be config ured to support up to 64 MB of recei v e buf fers and up to 64-MB of transmit buf fers. The b uf fers can support delays comparable to the longest round trip delays measured in the Internet at OC-3c/STM-1c line rates.
Layer 2 switching accelerator—The Layer 2 switching accelerator assists the
forwarding processor. It is a specially designed application-specific integrated circuit (ASIC) that optimizes access to the Layer 2 and Layer 3 information within each packet. At very high line rates, this access process must be executed as rapidly as possible, which is why an ASIC is dedicated to the process.
Forwarding processor—A forwarding processor makes forwarding decisions based on
the information in the Cisco Ex press Forw arding (CEF) table and the Layer 2 and Layer 3 information in the packet. The GRP constantly upd ates forwarding in formation in the forwarding table based on the latest information in the routing table.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Once the forwarding decision has been made, the silicon queuing engine is notified by the forwarding processor , and the silicon queuing en gine places the packet in the p roper queue.
This partitioning between the Layer 2 switching accelerator and the forwarding processor blends the high throughput of hardware-accelerated forwarding with the flexibility of software-based routing.
Silicon queuing engine—Each line card has two silicon queuing engines: receive and
transmit. The receive engine moves packets from the burst buffer to the switch fabric, and the transmit engine moves packets from the switch fabr ic to the transmit interf ace.
When an incoming IP packet is clocked into the silicon queuing engine, the packet’s integrity is verified by a check of the CRC. Next, the silicon queuing engine transfers the IP packet to buffer memory and tells the Layer 3 switching accelerator the location of the IP packet.
Simultaneously, the silicon queuing engine is receiv in g forwarding information from the forwarding processor. The forwarding processor tells the s ilicon queuing engine the virtual output queue where the IP packet is to be placed.
Each virtual output queue represents an output destination (d estination line card ). Th is placement of the IP packets in a virtual output queue is based on the decision made by the forwarding processor. There is one virtual output queue for each line card, plus a dedicated virtual output queue for multicast service.
The transmit silicon queuing engine moves the packet from the switch fabric to the transmit buffer, and then to the transmit interface.
Switch fabric interface—The switch fabr ic interface is the same 1.2 5-Gbps, full-duple x
data path to the switching fabric that is used by the GRP. Once a packet is in the proper queue, the switch fabric interface issues a request to the master clock scheduler on the CSC. The scheduler issues a grant and transfers the packet across the switching fabric.
Maintenance bus (MBus) module—A maintenance bus (MBus) module on the line card
responds to requests from the mast er MBus modul e on the GRP. The MBus module on the line card reports temperature and voltage information to the master MBus module. In addition, the MBus module on the line card contains the ID-EEPR OM, which stor es the serial number, hardware revision level, and other information about the card.
Product Overview 1-59
Overview of the Cisco 12008
Cisco Express Forwarding (CEF) memory tabl e—Each line card maintains CEF tables.
These tables, derived from routing tables maintained by the GRP, are used by the line card processor in making forwarding decisions.
Large networks may req uire more DRAM t o support lar ge CE F tables. F or infor mation on adding memory to a line card, see the document entitled Cisco 12000 Series Giga bit Switch Router Memory Replacement Instructions.
OC-12c/STM-4c POS Line Card
The OC-12c/STM-4c POS line card provides the Cisco 12008 with a single 622-Mbps Packet-Over-SONET ( POS) interface. The card provides one OC-12c/STM-4cc SC duplex single-mode or multimode SONET/SDH connectio n. This conn ectio n is concatenated, which provides for increased efficiency b y eliminating the need to partition the bandwidth.
Figure 1-18 shows a high-level block diagram of the OC-12c/STM-4c POS line card; Figure 1-19 shows a front view of the card.
1-60
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Figure 1-18 Block Diagram of the OC-12c/STM-4c POS Line Card
Input
interface
Output
interface
Packet receive
(Rx)
Forwarding
processor
Packet
transmit
(Tx)
Burst
buffer
L3 switching accelerator
Burst
buffer
Buffer
memory
queuing
queuing
Buffer
memory
Silicon engine
Silicon engine
MBus
module
Switch
fabric
interface
MBus interface
Switch fabric
H11725
Product Overview 1-61
Overview of the Cisco 12008
Figure 1-19 OC-12c/STM-4c POS Line Card
Single-mode Multimode
Ejector lever
0
ACTIVE CARRIER RX PKT
OC-12/STM-4 SM IR POS
Port 0
Status LEDs
0
ACTIVE CARRIER RX PKT
OC-12/STM-4 MM POS
Alphanumeric
LED display
Ejector lever
Front view Rear view
160-pin backplane signal connector
H10782
1-62
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Each OC-12c/STM-4c POS line card incorporates the following primary components: Each Quad OC-3c/STM-1c POS line card incorporates the following major components:
Transceivers—The single-mode intermediate reach transceiver provides a full-duplex,
155-Mbps, 1300-nm, laser-based SONET/SDH-compliant interface. The multimode transceiver provides a full-duplex, 155-Mbps, 1300-nm, LED-based SONET/SDH compliant interface.
The SONET specification for fiber-optic transmission defines two types of fiber: single mode and multimode. Signals can travel farther through single mode fiber than through multimode fiber.
The maximum distance for single-mode installations is determined by the amount of light loss in the fiber path. Good quality single-mode fiber with very few splices can carry an OC-3c/STM-1c signal 9.3 miles (15 km) or more; good quality miltimode fiber can carry a signal up to 1640 feet (500 m).
Burst buffers—The burst buffer (512 KB) prevents the dropping of packets during
instantaneous increases in the number of back-to-back small packets being trans mitted at OC-12c/STM-4c line rates. Burst buffers are used to achieve high throughput while smoothing out the arriving packet burst for the Layer 3 switch processor.
Buffer memory—The silicon queuing engine controls the placement of IP packets in
buffer memor y as well as their removal from buffer memory. The default packet buf fer memory is 32 MB, which includes 16 MB of receive (Rx) b uffers and 16 MB of transmit (Tx) buffers.
The buffer memory can be config ured to support up to 64 MB of recei v e buf fers and up to 64 MB of transmit buffers. The buffers can support delays compar able to the lo ngest round trip delays measured in the Internet at OC-12c/STM-4c line rates
Layer 2 switching accelerator—The Layer 2 switching accelerator assists the
forwarding processor. It is a specially designed application-specific integrated circuit (ASIC) that optimizes access to the Layer 2 and Layer 3 information within each packet. At very high line rates, this access process must be executed as rapidly as possible, which is why an ASIC is dedicated to the process.
Forwarding processor—A forwarding processor makes forwarding decisions based on
the information in the Cisco Ex press Forw arding (CEF) table and the Layer 2 and Layer 3 information in the packet. The GRP constantly upd ates forwarding in formation in the forwarding table, based on the latest information in the routing table.
Product Overview 1-63
Overview of the Cisco 12008
Once the forwarding processor makes a forwarding decision, it notifies the silicon queuing engine, and the silicon queuing engine places the packet in the proper queue.
This partitioning between the Layer 2 switching accelerator and the forwarding processor blends the high throughput of hardware-accelerated forwarding with the flexibility of software-based routing.
Silicon queuing engine—Each line card has two silicon queuing engines: receive and
transmit. The receive engine moves packets from the burst buffer to the switch fabric, and the transmit engine moves packets from the switch fabric to the transmit interface.
When an incoming IP packet is clocked into the silicon queuing engine, packet integrity is verified by a CRC check. Next, the silicon queuing engine transfers the IP packet to buffer memory and tells the Layer 3 switching accelerator the location of the IP packet. Simultaneously, the silicon queuing engine is receiv in g forwarding information from the forwarding processor. The forwarding processor tells the s ilicon queuing engine the virtual output queue where the IP packet is to be placed.
Each virtual output queue represents an output destination (d estination line card ). Th is placement of the IP packets in a virtual output queue is based on the decision made by the forwarding processor. There is one virtual output queue for each line card, plus a dedicated virtual output queue for multicast service.
1-64
The transmit silicon queuing engine moves the packet from the switch fabric to the transmit buffer, and then to the transmit interface.
Switch fabric interface—The switch fabric interface is the same 1.25-Gbaud, full-
duplex data path to the switching fabric that is used by the GRP. Once a packet is in the proper queue, the switch fabric interface issues a request to the master clock scheduler on the CSC. The scheduler issues a grant and transfers the packet across the switching fabric.
Maintenance bus (MBus) module—A maintenance bus (MBus) module on the line card
responds to requests from the mast er MBus modul e on the GRP. The MBus module on the line card reports temperature and voltage information to the GRP master MBus module.
In addition, the MBus module on the line card contains the ID-EEPR OM, which stor es the serial number, hardware revision level, and other information about the card.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Cisco Express Forwarding (CEF) memory tabl e—Each line card maintains CEF tables.
These tables, derived from routing tables maintained by the GRP, are used by the line card processor to make forwarding decisions.
Large networks may req uire more DRAM t o support lar ge CE F tables. F or infor mation on adding memory to a line card, see the document entitled Cisco 12000 Series Giga bit
Switch Router Memory Replacement Instructions.
OC-12c/STM-4c ATM Line Card
The OC-12c/STM-4c ATM line card provides the Cisco 12008 with a 622-Mbps ATM interface. The card interfaces to the router’s switch fabric, supports from 10 to 40 Gbps, and provides one OC-12c/STM-4c SC duplex single-mode or multimode SONET/SDH connection. This connection is concatenated, which provides for increased efficiency by eliminating the need to partition the bandwidth.
Figure 1-20 shows a high-level block diagram of the OC-12c/STM-4c ATM line card; Figure 1-21 shows a front view of the card.
Figure 1-20 Block Diagram of the OC-12c/STM-4c ATM Line Card
Input
interface
Output
interface
Packet
receive
(Rx)
Forwarding
processor
Packet
transmit
(Tx)
Reassembly
Segmen-
tation
Burst buffer
L3 switching
accelerator
Burst buffer
Buffer
memory
queuing
queuing
Buffer
memory
Silicon engine
Silicon engine
MBus
module
Switch
fabric
interface
MBus interface
H7695
Product Overview 1-65
Switch fabric
Overview of the Cisco 12008
Figure 1-21 Front View of OC-12c/STM-4c ATM Line Card
Single-mode Multimode
Ejector lever
0
ACTIVE CARRIER RX CELL
Port 0
Status LEDs
0
ACTIVE CARRIER RX CELL
160-pin backplane signal
OC-12/STM-4 SM IR ATM
OC-12/STM-4 MM ATM
connector
Alphanumeric
LED display
Ejector lever
H10783
Front view Rear view
1-66
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Overview of the Cisco 12008
Each OC-12c/STM-4c ATM line card incorporates the following primary components:
Reassembly and segmentation—The transceivers support packet reassembly
(converting ATM cells to packets) and segmentation (con verting packets to ATM cells). The transceivers can hand le up to 4000 simultaneous reassemblies (based on an average packet size of 280 bytes). In addition, the reassembly application-specific integrated circuit (ASIC) and the segmentation ASIC support up to 15,000 active virtual circuits.
The SONET specification for fiber-optic transmission defines two types of fiber: single mode and multimode. Signals can travel farther through single mode fiber than through multimode fiber.
The maximum distance for single-mode installations is determined by the amount of light loss in the fiber path. Good quality single-mode fiber with very few splices can carry an OC-3c/STM-1c signal 9.3 miles (15 km) or more; good quality miltimode fiber can carry a signal up to 1640 feet (500 m).
Burst buffers—The burst buffer (4 MB) prevents the dropping of packets during
instantaneous increases in the number of back-to-back small packets being trans mitted at OC-12 line rates. Burst buffers provide high throughput while smoothing out the arriving packet burst for the Layer 3 switch processor.
Buffer memory—The silicon queuing engine controls the placement of IP packets in
buffer memor y as well as their removal from buffer memory. The default packet buf fer memory is 32 MB, which includes 16 MB of receive (Rx) b uffers and 16 MB of transmit (Tx) buffers. The buffer memory can be configured to support up to 64 MB of receive buffers and 64 MB of transmit bu ffers. The buf fers can support delays comparable to the longest round trip delays measured in the Internet at OC-3/STM-1 line rates.
Layer 2 switching accelerator—The Layer 2 switching accelerator assists the
forwarding processor. It is a specially designed application-specific integrated circuit (ASIC) that optimizes access to the Layer 2 and Layer 3 information within each packet. At very high line rates, this access process must be executed as rapidly as possible, which is why an ASIC is dedicated to the process.
Forwarding processor—A forwarding processor makes forwarding decisions based on
information in the Cisco Express Forwarding (CEF) table and the Layer 2 and Layer 3 information in the packet. The GRP constantly updates forwarding information in the forwarding table based on the latest information in the routing table.
Product Overview 1-67
Overview of the Cisco 12008
Once the forwarding decision has been made, the silicon queuing engine is notified by the forwarding processor , and the silicon queuing en gine places the packet in the p roper queue.
This partitioning between the Layer 2 switching accelerator and the forwarding processor blends the high throughput of hardware-accelerated forwarding with the flexibility of software-based routing.
Silicon queuing engine—Each line card has two silicon queuing engines: receive and
transmit. The receive engine moves packets from the burst buffer to the switch fabric, and the transmit engine moves packets from the switch fabric to the transmit interface.
When an incoming IP packet is clocked into the silicon queuing engine, the packet’s integrity is verified by a CRC check. Next, the silicon queuing engine transfers the IP packet to buffe r memor y and tells the Layer3 switching accelerator the location of the IP packet. Simultaneously, the silicon queuing engine is receiving forwarding information from the forwarding processor, while the forwarding processor is telling the silicon queuing engine where the IP packet is to be placed in the virtual output queue.
Each virtual output queue represents an output destination (destination line card). Placement of the IP packets in a virtual output queue is based on the decision made by the forwarding processor. There is one virtual output queue for each line card, plus a dedicated virtual output queue for multicast service.
1-68
The transmit silicon queuing engine moves the packet from the switch fabric to the transmit buffer, and then to the transmit interface.
Switch fabric interface—The switch fabr ic interface is the same 1.2 5-Gbps, full-duple x
data path to the switching fabric that is used by the GRP. Once a packet is in the proper queue, the switch fabric interface issues a request to the master clock scheduler on the CSC. The scheduler issues a grant and transfers the packet across the switching fabric.
Maintenance bus (MBus) module—An MBus module on the line card responds to
requests from the master MBus modu le on the GRP. The line card MBus module reports temperature and voltage information to the master MBus module.
In addition, the MBus module on the line card contains the ID-EEPR OM, which stor es the serial number, hardware revision level, and other information about the card.
Cisco Express Forwarding (CEF) memory tabl e—Each line card maintains CEF tables.
These tables, derived from routing tables maintained by the GRP, are used by the line card processor to make forwarding decisions.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Large networks may req uire more DRAM t o support lar ge CE F tables. F or infor mation on adding memory to a line card, see the document entitled Cisco 12000 Series Giga bit Switch Router Memory Replacement Instructions.

Air Filter Assembly

The Cisco 12008 is equipped wi th a removable air filter that is mounted directly to the router enclosure in front of the lower card cage (see Figure 1-22).
Although the Cisco 1 2008 will run without an air filter, the air filter should always be present and maintained properly, especially in dirty or dusty environments.
The air filter assembly serves the following purposes:
Filters the ambient air being draw into the router by the card cage fan tray.
Prevents EMI radiation from being emitted into the routers environment.
A metal honeycomb structure built into the air filter assembly provides EMI containment.
You are advised to inspect and clean the air filter at least once a month (or more often in a dusty environment).
Overview of the Cisco 12008
Procedures for vacuuming and replacing the air filter are contained in the section entitled Cleaning the Air Filter in Chapter 7.

Lower Card Cage and Associated Compon ents

The lower card cage, located directly behind the air filter assembly (see Figure 1-22), houses the card cage fan tray and an optional set of three switch fabric cards (SFCs).
The dimensional characteristics of the SFCs differ markedly from those of the circuit boards in the upper card cage. Three dedicated slots, numbered SFC0, SFC1, an d SFC2 as you face the lower card cage, are provided to house the SFCs.
Product Overview 1-69
Overview of the Cisco 12008
Switch Fabric Cards
The SFCs increase the switching capacity of the Cisco 12008. By adding three SFCs to a router equipped with a single CSC, yo u increase the band width of each line card slo t in the router from an OC-12 rate to an OC-48 rate.
By adding three SFCs to a router equipped with two CSCs, you not only increase the bandwidth of each line car d s lot to an OC-4 8 rat e, but you also pro v id e a fifth (redundant) switch plane so that the router’s OC-48 data rate can be maintained even if a switch plane should fail.
In a router with full switch plane redundancy (that is, a router with five available switch planes), fiv e parallel 1.25 Gbaud serial data streams can be transmitted across the backplane to and from the router’s line cards. However, only four of the data streams are required for data transmission purposes; the fifth data stream carries erro r correction in formation. If an error occurs on one of the parallel data streams, data in error can be reco v ered throu gh use of the four remaining correct data streams.
You need not install the optional SFCs in a router that uses line cards having an aggregate bandwidth rate of OC-12 or less. In such a system, a single CSC can provide sufficient bandwidth to accomplish all the router’s switching and routing functions. Thus, a minimally configured router does not require the optional switching capacity provided by the SFCs. To increase the switching capacity of the Cisco 1 2008 to the full OC-48 rate, however, you must install the three optional SFCs.
1-70
Each SFC is mounted on its own card carrier and incorporates an onboard power supply that takes the –48 VDC supplied by the backplane and converts it into the 3.3 VDC operating voltage required by the card.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Figure 1-22 Components in the Lower Card Cage
ESD socket
Card cage fan tray
Lower card cage
Switch fabric cards (SFCs)
E JE
S
S
L
LO
O
T
T
-0 R
E
A
S
U
E T
X
C
O
N
S
O
L
E
L IN
K
C
O T X
R
X
M II
R
GIGABIT ROUTE PROCESSOR
Overview of the Cisco 12008
C T
­1
L L
J
-4 5
Alarm
Alarm
AC
ACO
O/LT
/LT
Alarms
Alarms
C
C
r
i
r
t
i
i
t
c
i
c
a
a
M
l
M
l
a
a
j
o
j
o
r
r
M
M
i
n
i
n
o
o
r
r
C
C
S
F
S
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
F
F
a
a
n
n
F
F
a
a
i
l
i
P
LIN
l
P
L
W
W
IN
R
E
R
EC
S
C
S
AR
P
A
P
LY
R
L
D
Y
D
S
S
F
F
F
F
a
C
a
C
i
l
i
l
E
E
n
n
a
a
b
b
l
e
l
e
d
d
CSC-8
CSC-8
H7693
1
SFC0
2
SFC1
Air filter assembly
SFC2
Product Overview 1-71

Power Distribution System in the Cisco 12008

The switching fabric of the SFC is identical to that of the CSC. However, the SFCs do not perform any of the system services native to the CSC (see the section entitled Clock and Scheduler Card on page 44). The SFC merely augments the switching capacity of the router.
Power Distribution System in the Cisco 12008
In the Cisco 12008, source AC or source DC power is converted by the installed power supply(ies) into the +5 VDC and –48 VDC required for router operation. These voltages are delivered to the backplane through the blind mating Elcon connector at the rear of the power supply enclosure. The backplane then distributes these operating voltages to all of the installed components in the system (see Figure 1-23).
The +5 VDC is fed to the MBus mo dule on each installed card, and the –48 V DC is f e d to a DC-DC converter on each card.
The DC-DC converter on each card operates under control of the card’s MBus module. When directed by the GRP or system software during normal system startup, the DC-DC converter on each card is activated to convert the –48 VDC from the backplane into the voltages required to power the card’s electronic circuitry.
The card cage fan tray and the power supply fan tray derive their operating pow er from a DC-DC converter on the CSC. This converter takes the –48 VDC from the backplane and converts it into the +24 VDC operating voltage required by the fan trays.
1-72
If an overtemperature condition is sensed anywhere within the router, or if any one of the fans fails in either the card cage fan tray or the power supply fan tray, the DC-DC converter on the CSC increases the voltage being delivered to the fan trays. This causes the fans to run at maximum speed to increase the volume of cooling air flowing through the router. Once the overtemperature condition is resolved, the fans revert to their normal operating speed.
Because the fans must operate continuously to prevent thermal damage to router components, they cannot be turned off by software.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
Power Distribution System in the Cisco 12008
Figure 1-23 Power Distribution System in the Cisco 12008
RP
Ð48 VDC
converter
DC/DC
+5 VDC
+3.3 VDC
+5.2 VDC
MBus
module
Line cards
DC/DC
MBus
module
CSC card(s)
DC/DC
converter
MBus
module
+5 VDC
+3.3 VDC
+3.3 VDC
+24 VDC
Power supply
fan tray
Card cage
fan tray
Backplane
Ð48 VDC
converter
+5.2 VDC
Ð48 VDC
+5.2 VDC
SFC cards
Ð48 VDC
+5.2 VDC
DC/DC
converter
MBus
module
+3.3 VDC
Backplane
Source voltage AC-input power supply
+5.2 VDC Ð48 VDC
AC or DC
power
supply(ies)
(180 VAC to 264 VAC)
or
Source voltage DC-input power supply (Ð48 VDC to Ð60 VDC)
Minimum power supply configuration: One AC-input power supply or one DC-input power supply Maximum power supply configuration: Two AC-input power supplies or two DC-input power supplies
H7686
Product Overview 1-73

Cisco 12008 Environmental Monitoring Facility

Cisco 12008 Environmental Monitoring Facility
An environmental monitoring facility, called the maintenance bus (MBus), supports a variety of functions essential to router operations. These functions include the following:
System discovery (enabling the router to identify installed components)
Booting software images
Supporting console traffic, logging functions, and diagnostic functions
Monitoring the operational health of the router and reporting error conditions
The MBus facility in the router is interconnected by means of the backplane to the following components:
GRP
Line cards
CSCs
SFCs
Power supplies
Each of the components listed here contains an onboard MBus module that incorporates two separate transceivers (A and B). Each transceiver has a separate etch ( commu nication path) through the backplane. Consequently , all the MBus modules in the system ar e reliably interconnected to each other by mean s of redun dant b usses. This redund ancy enhances the reliablity of the entire environmental monitoring system.
1-74
The MBus module on each component is power ed by +5.2 VDC that it receives through the backplane from the power supply . A single MBus firmw are image executes on all the MBus modules present in the system.
The master MBus module on the GRP monitors all the alarm conditions detected by the MBus modules in the other components of the system. The master MBus module then determines an appropriate response to the alarm condition.
The MBus modules on installed components perform the following functions:
Power-up/down control—When power is applied t o the router , the MBus module on the
GRP and the CSC immediately receive +5.2 VDC through the backplane from the power supply, causing each card to supply power to its circuitry.
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide

System Specifications

The MBus modules on other installed components then power up on command from the master MBus agent on the GRP.
Device discovery—The GRP determines the system configuration by means of the
MBus facility. A message is sent from the master GRP MBus agent, requesting that all installed
components identify themselv es. Each return resp onse includes slot number, card type, and component type.
Downloading software—A line card ROM monitor is loaded into Flash ROM on the
card during the manufacturing process. This image, which can be field upgraded, if necessary, boots software to the line card by means of the MBus facility.
Because the MBus is slow relative to the switch fabric, only enough code is initially downloaded to the line card to enable it to access the router’s switch fabric.
This initial code includes a line card fabric downloader that functions as a secondary bootstrap program to qu ick ly complete the do wn loadi n g o f t he Cis c o IOS imag e t o th e line card by means of the router’s high-speed switch fabric.
Diagnostics—The MBus facility enables field diagnostics to be run on the GRP and the
line cards, whether the router is in service (running diagnostics on an individual card without taking the router of fl ine) or out of serv ice (taking t he entire router do wn to run diagnostics).
Environmental monitoring and alarm functions—The environmental monitoring
functions of the MBus system include the following:
Voltage and temperature monitoring for the routers installed compo nentsFan failure sensing for the card cage fan tray and the power supply fan tray
System Specifications
Table 1-8 lists the physical specifications of the Cisco 12008. Table 1-9 outlines the electr ical specifications of the AC-input power supply; Table 1-10
outlines similar specifications for the DC-input power supply. Table 1-11 lists the environmental specifications of the Cisco 12008.
Product Overview 1-75
System Specifications
Table 1-8 Physical Specifications of the Cisco 12008 Description Value
Chassis height 24.8 inches (63.6 cm) Chassis width 17.4 inches (44.6 cm)
Chassis depth 21.2 inches (54.4 cm), including cable-
W eight, maximum configuration 180 lb (81.7 kg) with two DC-input power
Weight, minimum co nfiguration 127 lb (57.7 kg) Weight, shippi ng pallet 44 lb (20 kg) Weight, total system, on pallet 231 lb (104.9 kg) Weight, base chassi s w it h backplane 50 lb (22.7 kg) Weight, card cage fan tray 12 lb (5.4 kg) Weight, power supply fan tray 2 lb (0.9 kg) Weight, AC-input power supply 17 lb (7.7 kg) Weight, DC-inpu t power supply 14 lb (6.4 kg) Weight, line card 8 lb (3.6 kg) Weight, GRP 8 lb (3.6 kg) Weight, CSC 7 lb (3.2 kg) Weight, SFC 2 lb (0.9 k g)
19.1 inches ( 48.5 c m), inc luding mountin g flanges
management sy s t e m
supplies 187 lb (84.9 kg ) wi t h two AC -input pow er
supplies
1-76
Cisco 12008 Gigabit Switch Router Installation and Configuration Guide
System Specifications
Table 1-9 Electrical Specifications of the AC-Input Power Supply Power Suppl y
Type
AC Input power Maximum: 2000W
AC Input voltage Nominal: 200 VAC to 240 VAC, single phase
AC Input curren t 9.5A @ 200 VAC AC Line frequency 47 to 63 Hz AC Output power Maximum: 1560W
Table 1-10 Electrical Specifications of the DC-Input Power Supply Power Suppl y
Type
DC Input power Maximum: 1580W
DC Input voltage Nominal: –48 VDC (United S tates)
DC Input current 33 .75A maximum @ –48 VDC
DC Output power Maximum: 1542W
Electrical Characteristic Value
200 VAC to 240 VAC @ 10A
Tolerance limits: 180 VAC to 264 VAC
–48 VDC @ 33.7A +5 VDC @ 20.8A)
Electrical Characteristic Value
–40.5 VDC to –75 VDC @ 39A to 21A
Tolerance limits: –40.5 VDC to –56 VDC Nominal: –60 VDC (International) Tolerance limits: –58 VDC to –75 VDC
27A maximum @ –60 VDC Internal circuit breaker is rated at 40A
–48 VDC @ 33.7A +5 VDC @ 20.8A
Product Overview 1-77

Agency Approvals

Table 1-11 Environmental Specifications of the Cisco 12008 Description Value
Temperature Operating: 32° to 104° F (0° to 40° C)
Nonoperating: –4° to 149° F (–20° C to 65° C)
Humidity Noncondensing, operating: 10 to 90%
Noncondensing , no no pe r a tin g: 5 to 95%
Altitude Operating: 0 to 10,000 ft (0 to 3048 m)
Nonoperating: 0 to 30,000 ft (0 to 9144 m) Heat dissipation 6,000 Btu/hr maximum Acoustic Noise 69 dbA maximum Shock Operating: 5 to 500 Hz, 0.5 g
Nonoperating: 5 to 10 0 Hz , 1 g (0 .1 oct /min);
100 to 500 Hz, 1.5g (0 .2 oct/min);
500 to 1000 Hz, 1.5 g (0.2 oct/min)
1. g = gravity.
2. oct/min = octave per minu te .
1
(0.1 oct/min2)
Agency Approvals
In addition to meeting GR-63-CORE and GR-1089-COR E specifications, the Cis co 12008 meets the requirements of the agencies listed in Table 1-12.
