INSTRUCTION MANUAL
(M187B01-03-18A)
Multifunctional Energy Meter
CEM-C6

SAFETY PRECAUTIONS
DISCLAIMER
CIRCUTOR, SA reserves the right to make modi cations to the device or the unit speci ca-
tions set out in this instruction manual without prior notice.
CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device
speci cations and the most updated manuals.
www.circutor.com
CIRCUTOR, recommends using the original cables and accessories that are
supplied with the device.
DANGER
Warns of a risk, which could result in personal injury or material damage.
ATTENTION
Indicates that special attention should be paid to a speci c point.
Follow the warnings described in this manual with the symbols shown below.
If you must handle the unit for its installation, start-up or maintenance, the following
should be taken into consideration:
Incorrect handling or installation of the unit may result in injury to personnel as well as damage
to the unit. In particular, handling with voltages applied may result in electric shock, which may
cause death or serious injury to personnel. Defective installation or maintenance may also
lead to the risk of re.
Read the manual carefully prior to connecting the unit. Follow all installation and maintenance
instructions throughout the unit’s working life. Pay special attention to the installation standards of the National Electrical Code.
Refer to the instruction manual before using the unit
In this manual, if the instructions marked with this symbol are not respected or carried out correctly, it can
result in injury or damage to the unit and /or installations.
CIRCUTOR, SA reserves the right to modify features or the product manual without prior noti cation.
3
Instruction Manual
CEM-C6

CONTENTS
SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������3
DISCLAIMER ���������������������������������������������������������������������������������������������������������������������������������������������������������� 3
CONTENTS ������������������������������������������������������������������������������������������������������������������������������������������������������������� 4
REVISION LOG �������������������������������������������������������������������������������������������������������������������������������������������������������5
SYMBOLS ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 5
1�- VERIFICATION UPON RECEPTION ����������������������������������������������������������������������������������������������������������������� 6
2�- PRODUCT DESCRIPTION �������������������������������������������������������������������������������������������������������������������������������� 6
3�- DEVICE INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������� 7
3�1�- PRELIMINARY RECOMMENDATIONS �����������������������������������������������������������������������������������������������������7
3�2�- INSTALLATION ������������������������������������������������������������������������������������������������������������������������������������������8
3�3�- DEVICE TERMINALS ��������������������������������������������������������������������������������������������������������������������������������� 9
3�4�- CONNECTION DIAGRAM �������������������������������������������������������������������������������������������������������������������������� 9
4�- OPERATION ��������������������������������������������������������������������������������������������������������������������������������������������������� 10
4�1�- KEYBOARD FUNCTIONS ����������������������������������������������������������������������������������������������������������������������� 10
4�2�- DISPLAY �������������������������������������������������������������������������������������������������������������������������������������������������� 10
4�3�- LED INDICATORS ����������������������������������������������������������������������������������������������������������������������������������� 10
5�- DISPLAY ��������������������������������������������������������������������������������������������������������������������������������������������������������� 11
6�- RS-485 COMMUNICATIONS ��������������������������������������������������������������������������������������������������������������������������� 12
6�1�- MODBUS PROTOCOL ����������������������������������������������������������������������������������������������������������������������������12
6�1�1� READING EXAMPLE : Function 0x03� ������������������������������������������������������������������������������������������� 12
6�2�- MODBUS COMMANDS ����������������������������������������������������������������������������������������������������������������������������13
7�- TECHNICAL FEATURES �������������������������������������������������������������������������������������������������������������������������������� 15
8�- MAINTENANCE AND TECHNICAL SERVICE ������������������������������������������������������������������������������������������������ 17
9�- GUARANTEE ���������������������������������������������������������������������������������������������������������������������������������������������������17
10�- CE CERTIFICATE ������������������������������������������������������������������������������������������������������������������������������������������ 18
Note: The images of the devices are solely for the purpose of illustration and may differ from
the original device.
4
CEM-C6
Instruction Manual

REVISION LOG
Table 1: Revision log�
Date Revision Description
12/17 M187B01-03-17A Initial Version
04/18 M187B01-03-17A
Changes in the following sections:
3.2. - 6.- 7.
SYMBOLS
Table 2: Symbols�
Symbol Description
In compliance with the relevant European directive.
Device covered by European directive 2012/19/EC. At the end of its useful life, do not
leave the unit in a household waste container. Follow local regulations
on electronic equipment recycling.
~
AC current
5
Instruction Manual
CEM-C6

1�- VERIFICATION UPON RECEPTION
Check the following points upon receiving the device:
a) The device meets the specications described in your order.
b) The device has not suffered any damage during transport.
c) Perform an external visual inspection of the unit prior to switching it on.
d) Check that it has been delivered with the following:
- An installation guide,
If any problem is noticed upon reception, immediately contact the transport
company and/or CIRCUTOR's after-sales service.

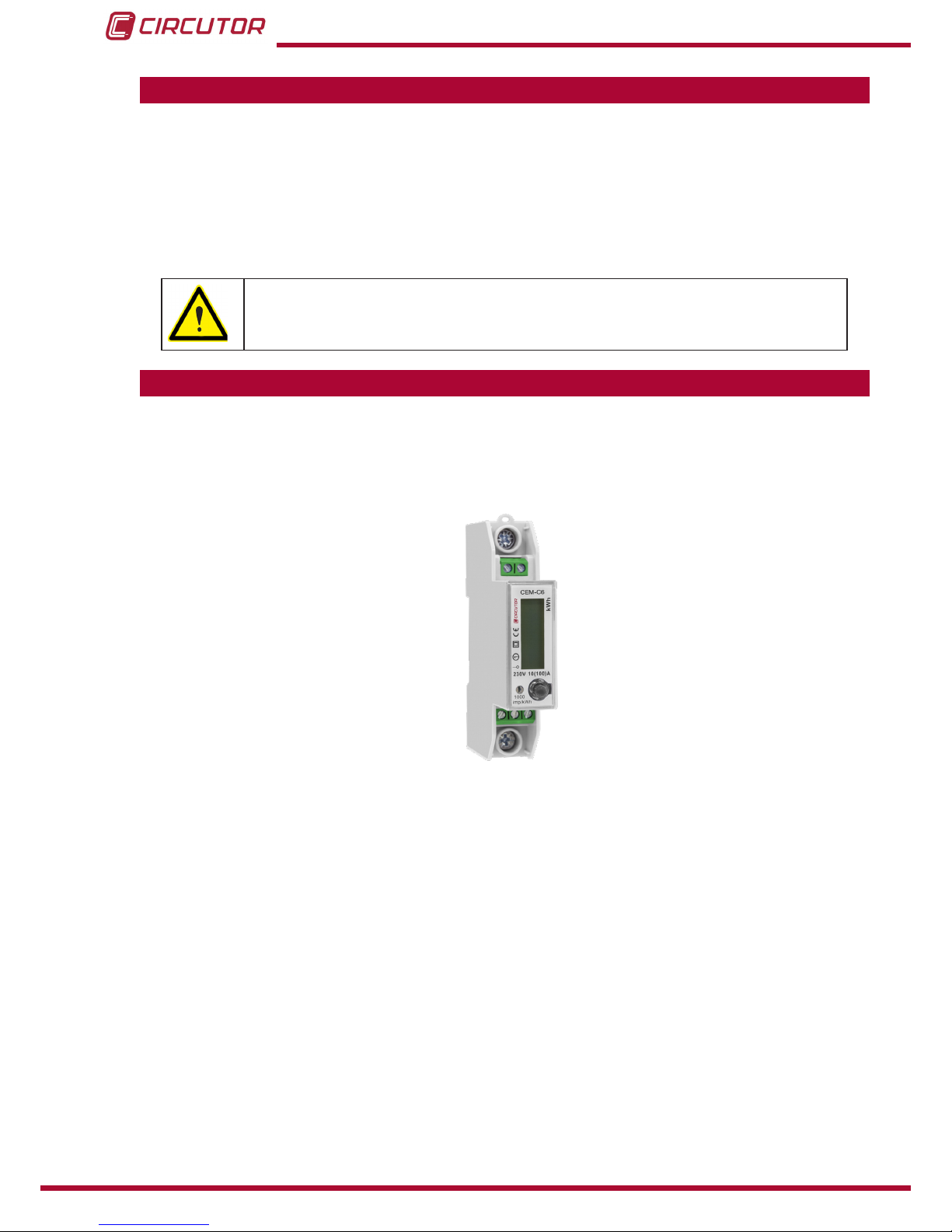

2�- PRODUCT DESCRIPTION
The CEM-C6 static single-phase energy meter measures class 1, with multifunction, RS-485
communications and DIN rail standard installations. It is the ideal solution for residential and
commercial installations.
The device features:
- The meter can read these data during the denite time period and analysis the quality
and load condition of user’s grid.
- DIN rail standard installation size.
- Only 18 mm wide, can up to 100A.
- RS-485 communication, protocol: IEC1107 or Modbus-TRU Mode.
- Multi-tariff function� The user can set time period through RS-485 communication,
then the meter will measure the energy of each different time period.
- Meter has 3.6V Lithium battery, which is used to support multy-tariff function. And the
precision of RTC is better that 0.5s/day.
- Blue LCD backlight allows the meter to be read in low light conditions.
- Accurately measure fordward and reverse energy.
6
CEM-C6
Instruction Manual

3�- DEVICE INSTALLATION
3.1.- PRELIMINARY RECOMMENDATIONS
In order to use the device safely, it is critical that individuals who handle it follow
the safety measures set out in the standards of the country where it is being used,
use the necessary personal protective equipment, and pay attention to the various warnings indicated in this instruction manual.
The CEM-C6 device must be installed by authorised and qualied staff.
The measuring systems switched off before handling, altering the connections or replacing the
device. It is dangerous to handle the unit while it is powered.
Also, it is critical to keep the cables in perfect condition in order to avoid accidents, personal
injury and damage to installations.
The manufacturer of the device is not responsible for any damage resulting from failure by the
user or installer to observe the warnings and/or recommendations set out in this manual, nor for
damage resulting from the use of non-original products or accessories or those made by other
manufacturers.
If an anomaly or malfunction is detected in the device, do not use the device to take any measurements.
Inspect the work area before taking any measurements. Do not take measurements in dangerous areas or where there is a risk of explosion.
Disconnect the device from the power supply before maintaining, repairing or
handling the device's connections.
Please contact the after-sales service if you suspect that there is an operational
fault in the device.
7
Instruction Manual
CEM-C6
