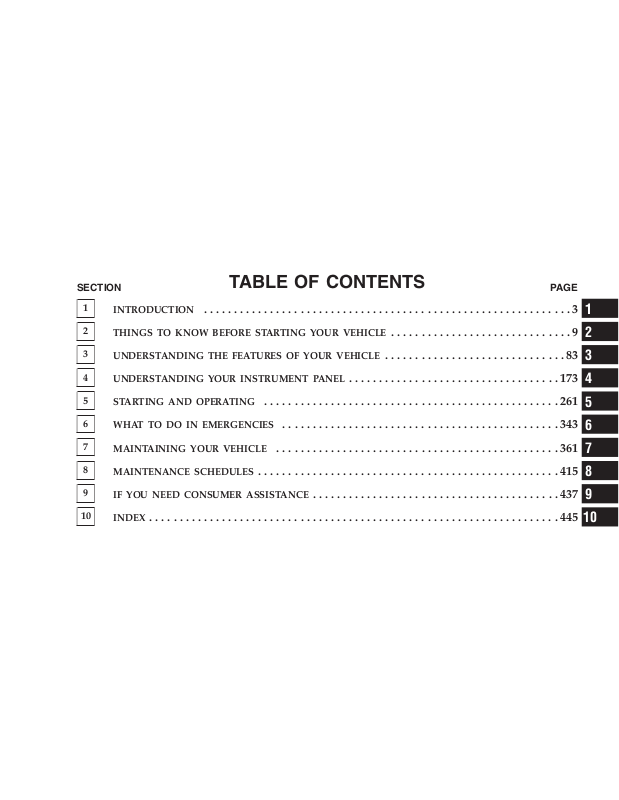

TABLE OF CONTENTS

.............................................................3

..............................9

..............................83

...................................173

.................................................261

..............................................343

...............................................361

..................................................415

.........................................437

1

2

3

4

5

6

7

8

9

10

INDEX

....................................................................445

10

CONTENTS

INTRODUCTION

1

䡵 Introduction ........................... 4

䡵 How To Use This Manual ..................4

䡵 Warnings And Cautions ................... 6

䡵 Vehicle Identification Number ............... 6

䡵 Vehicle Modifications / Alterations ........... 7

4 INTRODUCTION

INTRODUCTION

This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instruc­tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.

NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.

When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained techni­cians and genuine Mopar威 parts, and is interested in
your satisfaction.

WARNING!

Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm. In addition,
certain fluids contained in vehicles and certain prod­ucts of component wear contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.

HOW TO USE THIS MANUAL

Consult the table of contents to determine which section
contains the information you desire.

The detailed index, at the rear of this manual, contains a
complete listing of all subjects.

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner’s manual:

INTRODUCTION 5

1

6 INTRODUCTION

WARNINGS AND CAUTIONS

This manual contains WARNINGS against operating
procedures which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.

VEHICLE IDENTIFICATION NUMBER

The vehicle identification number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Auto­mobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration and title.

VIN Location

NOTE: It is illegal to remove the VIN.

VEHICLE MODIFICATIONS / ALTERATIONS

WARNING!

Any modifications or alterations to this vehicle
could seriously affect its roadworthiness and safety
and may lead to an accident resulting in serious
injury or death.

INTRODUCTION 7

1

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CONTENTS

䡵 A Word About Your Keys ..................12

▫ Ignition Key Removal ...................12

▫ Key-In-Ignition Reminder ................14

▫ Locking Doors With The Key ..............14

䡵 Steering Wheel Lock — If Equipped ..........14

▫ If You Wish To Manually Lock The Steering

Wheel ..............................14

▫ To Release The Steering Wheel Lock .........14

▫ Automatic Transaxle Ignition Interlock System . .15

2

䡵 Sentry Key — If Equipped .................15

▫ Shaft Lock Module (Vehicles Equipped With

Premium Security System) — If Equipped .....16

▫ Replacement Keys ......................16

▫ Customer Key Programming ..............17

▫ General Information ....................18

䡵 Security Alarm System — If Equipped .........18

▫ Rearming Of The System — If Equipped ......18

▫ To Arm The System .....................18

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫ To Disarm The System ...................19

▫ Security System Manual Override ...........19

䡵 Illuminated Entry System ..................20

䡵 Remote Keyless Entry .....................20

▫ To Unlock The Doors And Liftgate ..........21

▫ To Lock The Doors And Liftgate ............22

▫ To Open/Close Power Liftgate — If Equipped . .23

▫ Flash Lights On Lock/Unlock .............23

▫ Using The Panic Alarm ..................24

▫ Programming Additional Transmitters ........25

▫ Battery Replacement ....................25

䡵 Door Locks ............................27

▫ Manual Door Locks .....................27

▫ Power Door Locks .....................28

▫ Child Protection Door Lock ...............31

䡵 Windows .............................33

▫ Power Windows .......................33

䡵 Liftgate ...............................35

▫ Power Liftgate — If Equipped .............37

䡵 Occupant Restraints ......................40

▫ Lap/Shoulder Belts .....................41

▫ Lap/Shoulder Belt Untwisting Procedure .....47

▫ Seat Belt Pretensioners ...................47

▫ Enhanced Seat Belt Use Reminder System

(BeltAlert) — Driver Front Seat Only ........48

▫ Seat Belts And Pregnant Women ............49

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

▫ Seat Belt Extender ......................49

▫ Driver And Front Passenger Supplemental

Restraint System - Airbag ................50

▫ Event Data Recorder (EDR) ...............65

▫ Child Restraint ........................67

䡵 Engine Break-In Recommendations ...........79

䡵 Safety Tips ............................79

▫ Exhaust Gas ..........................79

▫ Safety Checks You Should Make Inside

The Vehicle ..........................80

▫ Periodic Safety Checks You Should Make

Outside The Vehicle ....................81

2

12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS

The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.

Three Button Key

Ignition Key Removal

Automatic Transaxle

Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.

Ignition Key Positions

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

NOTE: If you try to remove the key before you place the
lever in PARK, the key may become trapped temporarily
in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.

NOTE: The power window switches, radio, power
outlets, and removable console (if equipped), will remain
active for up to 45 seconds after the ignition switch has
been turned off. Opening a vehicle front door will cancel
this feature.

WARNING!

Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows,
other controls, or move the vehicle.

CAUTION!

An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.

2

14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key-In-Ignition Reminder

If you open the driver’s door and the key is in the ignition
switch, a chime will sound to remind you to remove the
key.

Locking Doors With The Key

You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.

STEERING WHEEL LOCK — IF EQUIPPED

Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with­out the ignition key. If the steering wheel is moved no
more than 1/2 turn in either direction and the key is not
in the ignition switch, the steering wheel will lock.

If You Wish To Manually Lock The Steering
Wheel:

With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.

To Release The Steering Wheel Lock:

Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.

NOTE: If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

Automatic Transaxle Ignition Interlock System

This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ACC, or ON positions, and
the brake pedal is depressed.

SENTRY KEY — IF EQUIPPED

The Sentry Key Immobilizer System prevents unautho­rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro­grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two (2)
seconds if someone uses an invalid key to start the
engine.

NOTE: A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition lock cylinder for that vehicle.

During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three (3) seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to start the engine. Either of
these conditions will result in the engine being shut off
after two (2) seconds.

If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser­viced as soon as possible.

2

16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Shaft Lock Module (Vehicles Equipped with
Premium Security System) — If Equipped

The shaft lock module is located inside the steering
column. The module works in conjunction with the
Sentry Key to prevent the steering shaft from rotating if
someone inserts an invalid ignition key into the ignition
lock cylinder in the instrument panel.

NOTE:

•

The Sentry Key Immobilizer System is not compatible
with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.

•

Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder equipped components on the
same keychain will not cause a key-related (transpon­der) fault unless the additional part is physically held
against the ignition key being used when starting the

vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.

All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.

Replacement Keys

NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it can
not be programmed to any other vehicle.

At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
consists of programming a blank key to the vehicle
electronics. A blank key is one which has never been
programmed and needs to be cut.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to the
dealer.

Customer Key Programming

You can program new sentry keys to the system if you
have two valid sentry keys by performing the following
procedure:

1. Cut the additional Sentry Key Transponder blank(s) to
match the ignition switch lock cylinder key code.

2. Insert the first valid key into the ignition switch and
turn the ignition switch ON for at least 3 seconds but no
longer than 15 seconds. Turn the ignition switch OFF and
remove the first key.

3. Insert the second valid key and turn the ignition
switch ON within 15 seconds. After ten seconds a chime
will sound and the Theft Alarm Light will begin to flash.
Turn the ignition switch OFF and remove the second key.

4. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds a single chime will sound. The Theft Alarm Light
will stop flashing, turn on for 3 seconds; then turn off.

The new Sentry Key has been programmed. The Keyless

Entry Transmitter will also be programmed during this
procedure. Repeat this procedure to program up to a

total of 8 keys. If you do not have a programmed sentry
key, contact your dealer for details.

NOTE: If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro­grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.

2

18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

General Information

The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

•

This device may not cause harmful interference.

•

This device must accept any interference that may be
received, including interference that may cause undes­ired operation.

SECURITY ALARM SYSTEM — IF EQUIPPED

This system monitors the vehicle doors and ignition for
unauthorized operation. When the alarm is activated, the
system provides both audible and visual signals. For the
first 3 minutes the horn will sound and the headlights
and security telltale will flash repeatedly. For an addi­tional 15 minutes only the headlights and security telltale
will flash. The engine will run only if a valid Sentry Key
is used to start the vehicle. Use of the Sentry Key will
disable the alarm.

Rearming of the System — If Equipped

The security system will rearm itself after the 15 addi­tional minutes of headlights and security telltale flashing,
if the system has not been disabled. If the condition
which initiated the alarm is still present, the system will
ignore that condition and monitor the remaining doors
and ignition.

To Arm the System:

The alarm will set when you use the power door locks, or
use the Keyless Entry transmitter to lock the doors. After
all the doors are locked and closed the SECURITY light in
the instrument cluster will flash rapidly to signal that the
system is arming. The security light in the instrument
panel cluster will flash rapidly for about 16 seconds to
indicate that the alarm is being set. After the alarm is set,
the security light will flash at a slower rate to indicate
that the system is armed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

NOTE: If the SECURITY light stays on continuously
during vehicle operation, have the system checked by
your dealer.

To Disarm the System:

Use the Keyless Entry transmitter to unlock the door. If
something has triggered the system in your absence, the
horn will sound three times when you unlock the doors
and the security lamp will flash for 30 seconds. Check the
vehicle for tampering.

The Security system will also disarm, if the vehicle is
started with a programmed Sentry Key. If an unpro­grammed Sentry Key is used to start a vehicle, the engine
will run for 2 seconds and then the security alarm will be
initiated. To exit alarming mode, press the transmitter
Unlock button, or start the vehicle with a programmed
Sentry Key.

The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the transmitter, the alarm
will sound when you pull the door handle to exit. The
door will be locked but the Security Alarm will not arm.

Tamper Alert

If the horn sounds 3 times when you unlock a front door
using either a key or the Keyless Entry Transmitter, the
alarm has been activated. Check the vehicle for tamper­ing.

Security System Manual Override

The system will not arm if you lock the doors using the
manual door lock plunger.

2

20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ILLUMINATED ENTRY SYSTEM

The courtesy lights will turn on when you use the keyless
entry transmitter or open the doors.

The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned on.

NOTE:

•

The front courtesy overhead console, door courtesy
and liftgate lights do not turn on if the dimmer control
is in the interior lights ON position (extreme top
position).

•

The illuminated entry system will not operate if the
dimmer control is in the “defeat” position (extreme
downward position).

REMOTE KEYLESS ENTRY

This system allows you to lock or unlock the doors and
liftgate, and activate the panic alarm from distances up to
about 23 feet (7 meters) using a hand held radio trans­mitter. The transmitter need not be pointed at the vehicle
to activate the system.

NOTE: Inserting the key into the ignition switch dis­ables all buttons on that transmitter; however, the but­tons on the remaining transmitters will continue to work.
Shifting the vehicle out of PARK disables all transmitter
buttons for all keys.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

Two (2) transmitters may be supplied with the vehicle.
Vehicles built without the powered options will be
equipped from the factory with three button transmitters
and those built with power options will be equipped
with six button transmitters.

Keyless Entry Transmitter

To unlock the doors and liftgate:

Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door, or twice to unlock all
doors and liftgate. When the UNLOCK button is pressed,
the illuminated entry will initiate and the parking lights
will flash on twice.

Remote Unlock Driver’s Door 1st

The system can be programmed to unlock all the doors or
driver’s door only upon the first UNLOCK button press
by using the following procedure:

•

On electronic vehicle information center (EVIC)
equipped vehicles refer to “Remote Unlock Driver’s
Door 1st?” under “Use Factory Settings?” in the EVIC
section of this manual.

2

22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•

On non EVIC – equipped vehicles perform the follow­ing steps:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the UNLOCK button on your key fob.

3. Continue to hold the UNLOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the LOCK button. Release both buttons at the same
time.

4. This will allow you to unlock all doors on the first
press of the UNLOCK button.

5. To reactivate the feature, repeat this procedure.

6. If the programming procedure was unsuccessful see
your authorized dealer for programming assistance.

To lock the doors and liftgate:

Press and release the LOCK button on the transmitter to
lock all doors. If the ignition is OFF, when the doors are
locked, the parking lights will flash on once and the horn
will chirp once.

Sound Horn On Lock

Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chip once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” feature can be
turned on or off by using the following procedure:

•

On electronic vehicle information center (EVIC)
equipped vehicles refer to “Sound Horn On Lock?”
under “Use Factory Settings?” in the EVIC section of
this manual.

•

On non EVIC – equipped vehicles perform the follow­ing steps:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the LOCK button on your key fob.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

To Open/Close Power Liftgate — If Equipped

Press the LIFTGATE button twice within five seconds to
open/close the power liftgate. The liftgate will beep for 2
seconds and then open/close. If the button is pushed
while the liftgate is being power closed, the liftgate will
reverse to the full open position.

2

3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.

4. To reactivate the feature, repeat this procedure.

5. If the programming procedure was unsuccessful see
your authorized dealer for programming assistance.

If the liftgate is locked and is not equipped with a
powered liftgate, pressing the button will result in the
liftgate becoming unlocked for 30 seconds allowing you
to manually access the liftgate area. The liftgate will
re-lock automatically within 10 seconds once the liftgate
is closed.

Flash Lights On Lock/Unlock

The Flash Lights With Lock or Unlock feature can be
turned on or off.

24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•

On electronic vehicle information center (EVIC)
equipped vehicles refer to “Flash Lights On Lock/
Unlock?” under “Use Factory Settings?” in the EVIC
section of this manual.

•

On non EVIC - equipped vehicles perform the follow­ing steps:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the LOCK button on your key fob.

3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the UNLOCK button. Release both buttons at the
same time.

4. To reactivate the feature, repeat this procedure.

5. If the programming procedure was unsuccessful see
your authorized dealer for programming assistance.

Using The Panic Alarm:

To activate the Panic mode while the ignition is OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.

To cancel the Panic mode press and release the PANIC
button on the transmitter a second time. Panic mode will
automatically cancel after 3 minutes or if the vehicle is
started and exceeds 15 mph. During the Panic Mode, the
door locks and remote keyless entry systems will func­tion normally. Panic mode will not disarm the security
system on vehicles so equipped.

NOTE: When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.

Programming Additional Transmitters

Refer to SENTRY KEY “Customer Key Programming.”

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

NOTE: If you do not have a programmed transmitter,
contact your authorized dealer for assistance.

Battery Replacement

The recommended replacement battery is CR2032 bat­tery.

NOTE: Do not touch the battery terminals that are on
the back housing or the printed circuit board.

1. With the transmitter buttons facing down, use a small
screwdriver or similar flat object to pry the two halves of
the transmitter apart. Make sure not to damage the
rubber gasket during removal.

2

Separating Transmitter Halves

26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.

3. To reassemble the transmitter case, snap the two
halves together. Make sure there is an even “gap” be­tween the two halves. Test transmitter operation.

General Information

This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

•

This device may not cause harmful interference.

•

This device must accept any interference received,
including interference that may cause undesired op­eration.

NOTE: Changes or modifications not expressly ap­proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your Remote Keyless Entry transmitter fails to operate
from a normal distance, check for these two conditions.

1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

DOOR LOCKS

Manual Door Locks

Lock the doors by pushing up on the lock knob on each
door trim panel.

Door Lock Plunger

If the lock knob is up when you shut the door, the door
will lock. Therefore, make sure the keys are not inside the
vehicle before closing the door.

WARNING!

•

For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.

•

When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per­sonal injuries and death.

2

28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Power Door Locks

A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.

Power Door Lock Switch

If you press the power door lock switch while the key is
in the ignition, and any front door is open, the power

locks will not operate. This prevents you from acciden­tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
chime will sound if the key is in the ignition and a door
is open, as a reminder to remove the key.

Auto Door Locks — If Equipped

The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:

1. The Automatic Door Locks feature is enabled.

2. The transmission is in gear.

3. All doors are closed.

4. The throttle is pressed.

5. The vehicle speed is above 15 mph (24 km/h).

6. The doors were not previously locked using the power
door lock switch or remote keyless entry transmitter.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

If desired, the “Auto Door Locks?” feature can be turned
on or off by using the following procedure:

•

On electronic vehicle information center (EVIC)
equipped vehicles refer to “Auto Door Locks?” under
“Use Factory Settings?” in the EVIC section of this
manual.

•

On non EVIC - equipped vehicles perform the follow­ing steps:

Auto Door Locks Programming

1. Enter your vehicle and close all doors.

2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).

3. Place the key into the ignition.

4. Within 15 seconds cycle the key from the LOCK
position to the ON/RUN position a minimum of four
times; ending in the LOCK position (Do not start the
engine).

5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.

6. A single chime will be heard to indicate the feature has
been disabled.

7. To reactivate this feature, repeat the above steps.

8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.

Auto Unlock On Exit — If Equipped

This feature unlocks all of the doors of the vehicle when
any door is opened. This will occur only after the vehicle
has been driven (shifted out of Park with all doors
closed) and then shifted back into the Park position.

2

30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

This feature will not operate if there is any manual
operation of the power door locks (Lock or Unlock). If
desired, the “Auto Unlock On Exit?” feature can be
turned on or off by using the following procedure:

•

On electronic vehicle information center (EVIC)
equipped vehicles refer to “Auto Unlock On Exit?”
under “Use Factory Settings?” in the EVIC section of
this manual.

•

On non EVIC - equipped vehicles perform the follow­ing steps:

Auto Unlock On Exit Programming

1. Enter your vehicle and close all doors.

2. Fasten your seat belt (fastening the seat belt will cancel
any chimes that may be confusing during this program­ming procedure).

3. Insert the key into the ignition.

4. Within 15 seconds, cycle the key from the LOCK
position to the ON/RUN position a minimum of four
times ending in the LOCK position (do not start the
engine).

5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.

6. A single chime will sound to indicate the feature has
been changed.

7. Repeat the above steps to alternate the availability of
this feature.

8. If a chime is not heard, program mode was canceled
before the feature could be changed. If necessary repeat
the above procedure.

NOTE: Use the Auto Door Locks and Auto Unlock
features in accordance with local laws.

Child Protection Door Lock

To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a child
protection door lock system.

NOTE: When the child lock system is engaged, the door
can be opened only by using the outside door handle
even though the inside door lock is in the unlocked
position.

To Engage the Child Protection Door Lock

1. Open the rear door.

2. Insert the tip of the vehicle’s ignition key (or any
similar item) into the child lock control and slide it
upward.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

2

Child Lock Control

3. Repeat Steps 1 and 2 to engage the Child Protection
Door Lock on the opposite rear door.

NOTE: After engaging the child protection door lock
system, always test the door from the inside to make
certain it is in the desired position.

32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: For emergency exit with the system engaged,
move the door lock knob to the UNLOCK position, roll
down the window and open the door with the outside
door handle.

WARNING!

Avoid trapping anyone in the vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.

To Disengage the Child Protection Door Lock

1. Open the rear door.

2. Insert the tip of the vehicle’s ignition key (or any
similar item) into the child lock control and slide it
downward.

3. Repeat Steps 1 and 2 to disengage the Child Protection
Door Lock on the opposite rear door.

NOTE: After disengaging the child protection door lock
system, always test the door from the inside to make
certain it is in the desired position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

WINDOWS

Power Windows

The window controls on the driver’s door control all the
door windows. The switches will operate only when the
ignition switch is in the ON or ACCESSORY position.

Power Window Switches

The window lock switch on the driver’s door allows you
to disable the window controls on the passenger doors.
When the lock switch is pressed the window controls on
the passenger doors will not illuminate and the passen­ger windows will be disabled.

Auto Down Feature

All the power window switches have an auto down
feature. Press the window switch to the second detent,
release, and the window will go down automatically.

To open the window part way, press the window switch
to the first detent and release it when you want the
window to stop.

The power window switches remain active for up to 45
seconds after the ignition switch has been turned off.
Opening either front door will cancel this feature.

2

34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The time is customer programmable through the Elec­tronic Vehicle Information Center (EVIC). Refer to
“Power Accessory Delay?” under “Personal Settings
(Customer Programmable Features)” in Section 4 of this
manual for details.

Auto Up Feature with Anti–Pinch Protection — If
Equipped

Lift the window switch to the second detent, release, and
the window will go up automatically.

To stop the window from going all the way up during the
auto-up operation, push down on the switch briefly.

To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.

NOTE: If the window runs into any obstacle during
auto-closure, it will reverse direction and then stop.
Remove the obstacle and use the window switch again to
close the window.

NOTE: Any impact due to rough road conditions may
trigger the auto reverse function unexpectedly during
auto-closure. If this happens, pull the switch lightly to the
first detent and hold to close window manually.

WARNING!

There is no anti-pinch protection when the window
is almost closed. To avoid personal injury be sure to
clear your arms, hands, fingers and all objects from
the window path before closing.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

Reset

Any time the vehicle battery is disconnected, or goes
dead, the auto-up function will be disabled. To reactivate
the auto-up feature, perform the following steps after
vehicle power is restored:

1. Pull the window switch up to close window com­pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

2. Push the window switch down firmly to the second
detent to open the window completely and continue to
hold the switch down for an additional two seconds after
the window is fully open.

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain

open or partially open positions. This is a normal occur­rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting.

LIFTGATE

NOTE: The key that is used to start the vehicle is also
used to lock or unlock the doors and open the liftgate.

To open the liftgate, insert the key into the lock and turn
to the right. On vehicles equipped with power locks the
liftgate can also be unlocked using the remote keyless
entry or by activating the power door lock switches
located on the front doors.

2

36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Once unlocked, on vehicles equipped with power locks,
the liftgate can be opened or closed without using the
key. To open the liftgate, depress the liftgate release
switch located on the underside of the license plate bar
and pull the liftgate open with one fluid motion.

Liftgate Release Handle

The liftgate will not manually open if the vehicle is in
gear or the vehicle speed is above 0 mph (0 km/h).

NOTE:

•

In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open
the liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift­gate trim panel.

•

If the liftgate is locked and is not equipped with a
powered liftgate, pressing the button on the remote
keyless entry transmitter will result in the liftgate
becoming unlocked for 30 seconds allowing you to
manually access the liftgate area. The liftgate will
re-lock automatically within 10 seconds once the lift­gate is closed.

Power Liftgate — If Equipped

The power liftgate may be opened manually or by using
the button on the remote keyless entry transmitter. Press
the button on the remote keyless entry transmitter twice
within five seconds, to open the power liftgate. Once the
liftgate is fully open, pressing the button twice within
five seconds a second time will close the liftgate.

The power liftgate may also be opened by pressing the
button located on the overhead console.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

2

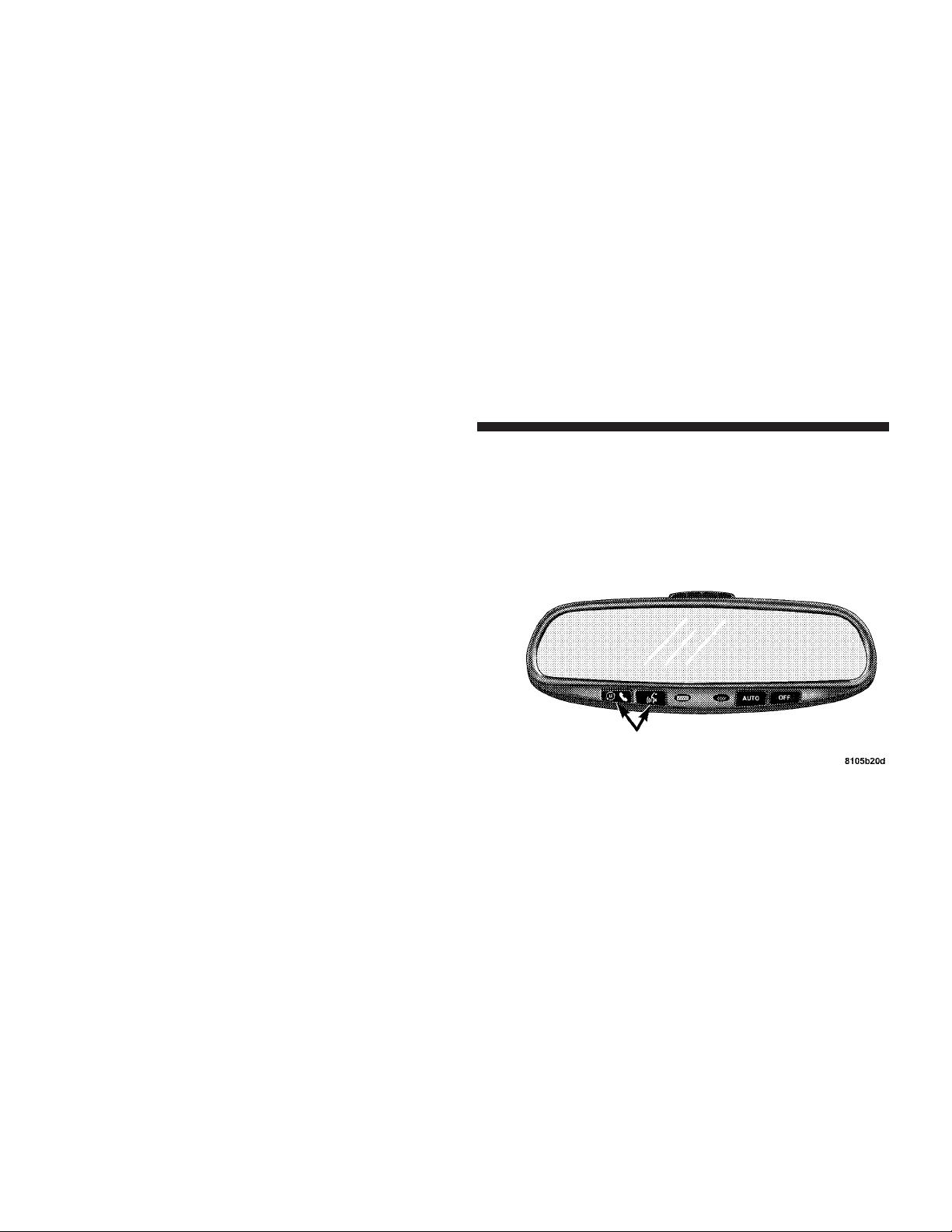

Power Liftgate Button

38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

When the remote button is pressed the “Lamp Flash”
feature is enabled the tail lights will flash to signal that
the liftgate is opening or closing. A beeping signal will
sound two seconds before the liftgate starts to open or
close.

WARNING!

During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.

NOTE:

•

If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.

•

There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.

•

The power liftgate must be in the full open position for
any of the close buttons to operate. If the liftgate is not
fully open, press the open button to fully open the
liftgate and then press close.

•

If the liftgate release switch is activated while the
power liftgate is closing, the liftgate will reverse to the
full open position.

•

The power liftgate switches will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).

•

The power liftgate will not operate in temperatures
below ⫺12°F(⫺24° C) or temperatures above 143° F
(62° C). Be sure to remove any build-up of snow or ice
from the liftgate before pressing any of the power
liftgate switches.

•

If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39

WARNING!

•

Driving with the liftgate open can allow poison­ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.

•

If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera­ture, it may be necessary to assist the props when
opening the liftgate in cold weather.

2

40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

OCCUPANT RESTRAINTS

Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger, and if
equipped, left and right window bags for the driver and
passengers seated next to a window and a driver inflat­able knee blocker. If you will be carrying children too
small for adult-size seat belts, your seat belts or the
LATCH feature (refer to the Child Restraint section in this
manual), can be used to hold infant and child restraint
systems.

Passenger Airbag Disabled Light

NOTE: The front airbags have a multi stage inflator

design. This allows the airbag to have different rates of
inflation that are based on collision severity.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.

WARNING!

In a collision, you and your passengers can suffer
much greater injuries if you are not properly buck­led up. You can strike the interior of your vehicle or
other passengers, or you can be thrown out of the
vehicle. Always be sure you and others in your
vehicle are buckled up properly.

Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.

Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.

Lap/Shoulder Belts

All the seats in your vehicle are equipped with Lap/
Shoulder Belts.

The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of your striking the inside of the
vehicle or being thrown out.

2

42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

•

It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.

•

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.

•

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

WARNING!

•

Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.

•

Wearing your belt in the wrong place could make
your injuries in a collision much worse. You
might suffer internal injuries, or you could even
slide out of part of the belt. Follow these instruc­tions to wear your seat belt safely and to keep
your passengers safe, too.

•

Two people should never be belted into a single
seat belt. People belted together can crash into one
another in a collision, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

2. The seat belt latch plate is near the seatback of the
front seats and next to your arm in the rear seats. Grasp
the latch plate and pull out the belt. Slide the latch plate
up the webbing as far as necessary to allow the belt to go
around your lap.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43

2

Latch Plate

44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click”.

Latch Plate To Buckle

WARNING!

• A belt that is buckled into the wrong buckle will not
protect you properly. The lap portion could ride too high
on your body, possibly causing internal injuries. Always
buckle your belt into the buckle nearest you.

• A belt that is too loose will not protect you as well. In a
sudden stop you could move too far forward, increasing
the possibility of injury. Wear your seat belt snugly.

• A belt that is worn under your arm is very dangerous.
Your body could strike the inside surfaces of the vehicle
in a collision, increasing head and neck injury. A belt
worn under the arm can cause internal injuries. Ribs
aren’t as strong as shoulder bones. Wear the belt over
your shoulder so that your strongest bones will take the
force in a collision.

• A shoulder belt placed behind you will not protect you
from injury during a collision. You are more likely to hit
your head in a collision if you do not wear your shoulder
belt. The lap and shoulder belt are meant to be used
together.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45

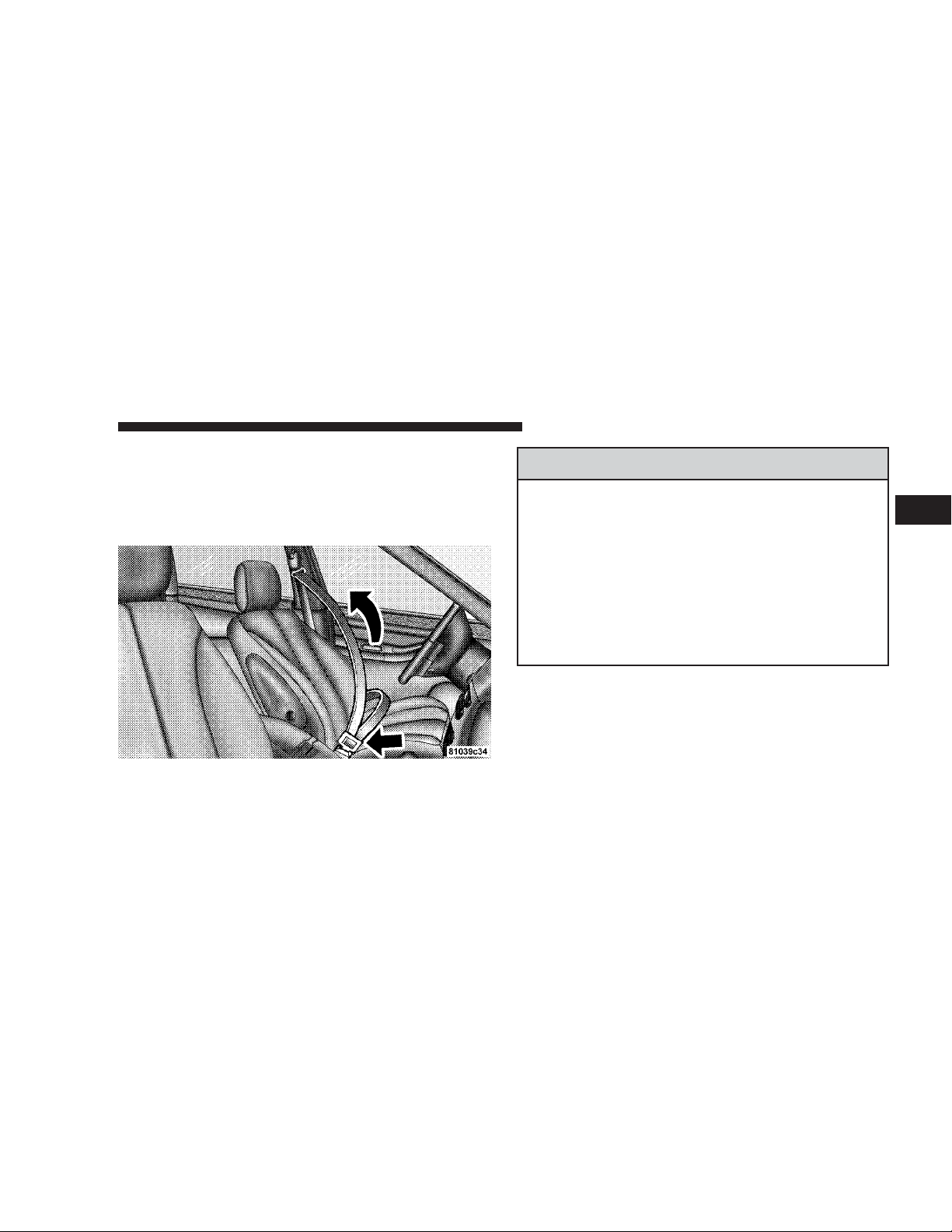

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in a collision.

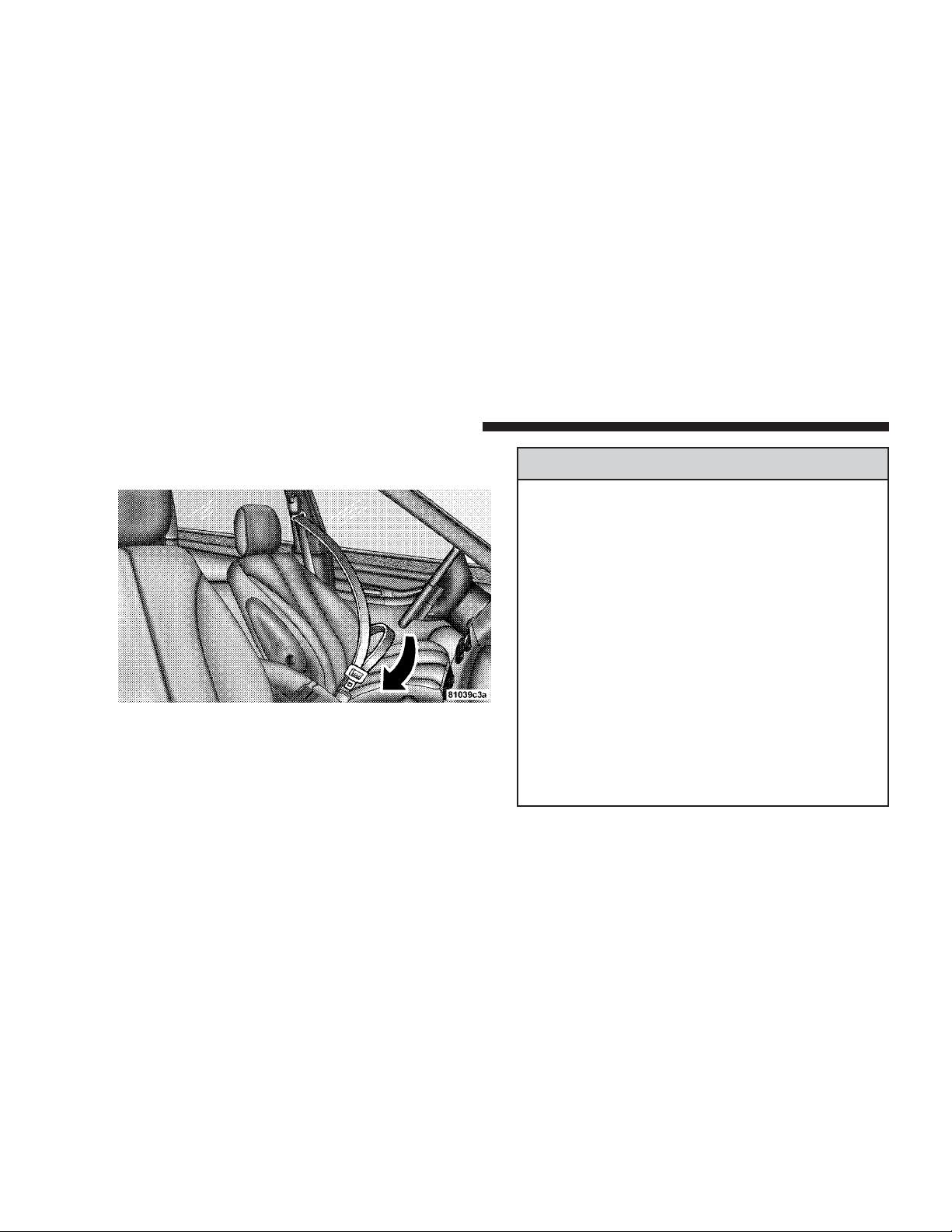

Removing Slack From Belt

WARNING!

• A lap belt worn too high can increase the risk of
internal injury in a collision. The belt forces won’t
be at the strong hip and pelvic bones, but across your
abdomen. Always wear the lap belt as low as pos­sible and keep it snug.

• A twisted belt can’t do its job as well. In a collision
it could even cut into you. Be sure the belt is straight.
If you can’t straighten a belt in your vehicle, take it
to your dealer and have it fixed.

5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.

6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.

2

46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

A frayed or torn belt could rip apart in a collision
and leave you with no protection. Inspect the belt
system periodically, checking for cuts, frays, or loose
parts. Damaged parts must be replaced immediately.
Do not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (bent retractor, torn webbing,
etc.).

Adjustable Upper Shoulder Belt Anchorage

In the front seats, the shoulder belt anchorage can be
adjusted upward or downward to help position the belt
away from your neck. Press the button to release the
anchorage, and then move it up or down to the position
that serves you best.

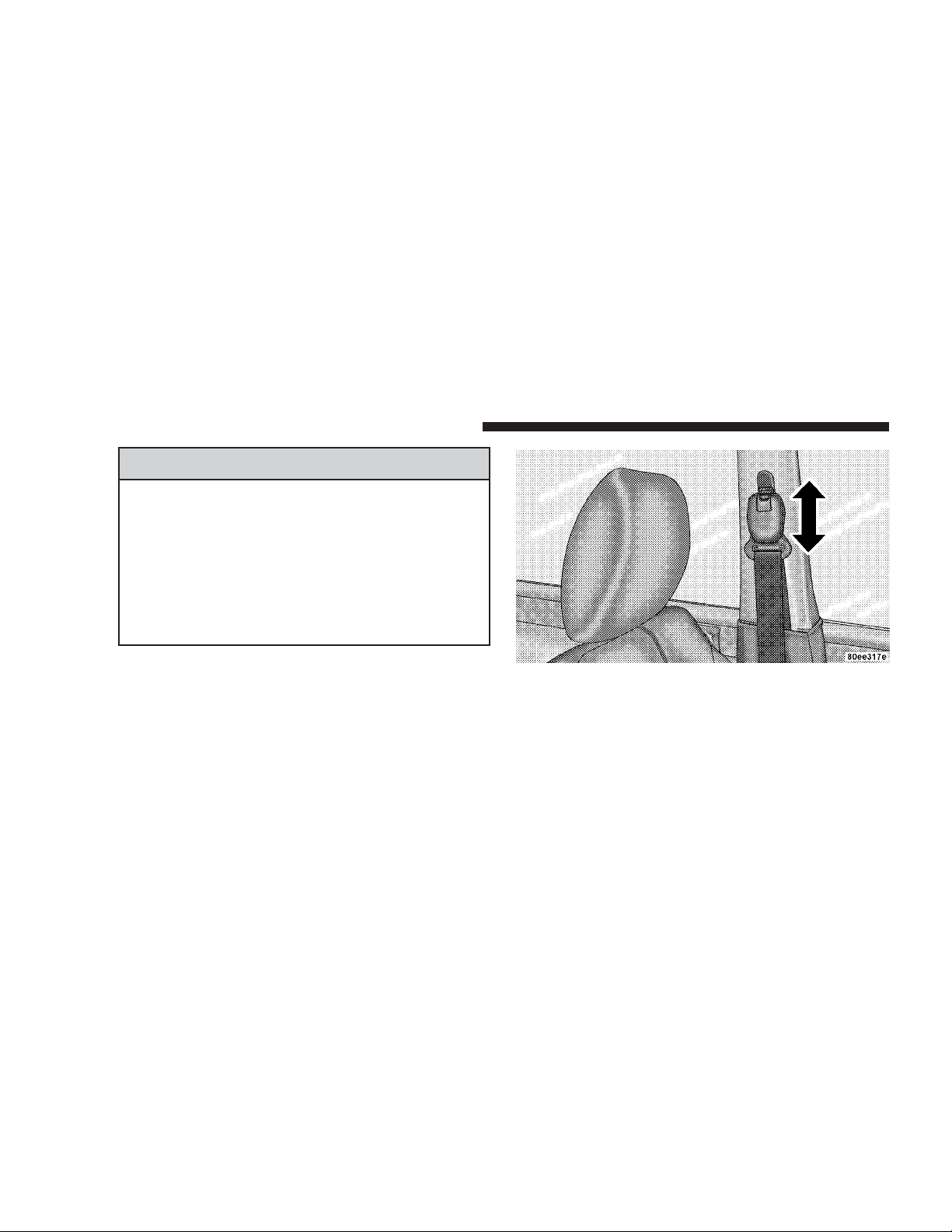

Adjusting Upper Shoulder Belt

As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you’ll prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47

Lap/Shoulder Belt Untwisting Procedure

Use the following procedure to untwist a twisted lap/
shoulder belt.

1. Position the latch plate as close as possible to the
anchor point.

2. At about 6 to 12 inches (15 to 30 cm) above the latch
plate, grasp and twist the belt webbing 180° to create a
fold that begins immediately above the latch plate.

3. Slide the latch plate upward over the folded webbing.
The folded webbing must enter the slot at the top of the
latch plate.

4. Continue to slide the latch plate up until it clears the
folded webbing.

Seat Belt Pretensioners

The seat belt buckles for both front seating positions are
equipped with pretensioning devices that are designed to
remove slack from the seat belt in the event of a collision.
These devices improve the performance of the seat belt
by assuring that the belt is tight about the occupant early
in a collision. Pretensioners are designed to work for all
size occupants.

NOTE: These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.

The pretensioners are triggered by the front airbag con­trol module (see Airbag Section). Like the front airbags,
the pretensioners are single use items. After a collision
that is severe enough to deploy the airbags and preten­sioners, both must be replaced.

2

48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Enhanced Seat Belt Use Reminder System
(BeltAlert) — Driver Front Seat Only

If the occupied driver’s seat belt has not been buckled
within 60 seconds of starting the vehicle and if the vehicle
speed is greater than 5 mph (8 km/h), the Enhanced
Warning System (BeltAlert) will alert the driver to buckle
their seat belt. The driver should also instruct all other
occupants to buckle their seat belts. Once the warning is
triggered, the Enhanced Warning System (BeltAlert) will
continue to chime and flash the Seat Belt Warning Light
for 96 seconds or until the driver’s seat belt is buckled.

The Enhanced Warning System (BeltAlert) will be reacti­vated if the driver’s seat belt is unbuckled for more than
10 seconds and the vehicle speed is greater than 5 mph (8
km/h).

Belt Alert Programming

The Enhanced Warning System (BeltAlert) can be en­abled or disabled by your authorized dealer or by
following these steps:

NOTE: The following steps must occur within the first
60 seconds of the ignition switch being turned to the
ON/RUN position. DaimlerChrysler does not recom­mend deactivating the Enhanced Warning System
(BeltAlert).

1. Turn the ignition switch to the OFF/LOCK position,
and buckle the driver’s seat belt.

2. Turn the ignition switch to the ON/RUN position
(engine does not need to be running), and wait for the
Seat Belt Warning Light to turn off.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49

3. Within 60 seconds of turning the ignition switch to the
ON/RUN position, unbuckle and then re-buckle the
driver’s seat belt at least three times within 10 seconds,
ending with the seat belt buckled.

NOTE: Watch for the Seat Belt Warning Light to turn on
while unbuckling and off while re-buckling the seat belt.
It may be necessary to retract the seat belt each time,
while unbuckling and re-buckling the seat belt.

4. Turn the ignition switch to the OFF/LOCK position. A
single chime will sound to signify that you have success­fully completed the programming.

The Enhanced Warning System (BeltAlert) can be reacti­vated by repeating this procedure.

NOTE: Although the Enhanced Warning System
(BeltAlert) has been deactivated, the Seat Belt Warning
Light will continue to illuminate while the driver’s or
front passenger’s seat belt remains unbuckled.

Seat Belts and Pregnant Women

We recommend that pregnant women use the seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.

Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.

Seat Belt Extender

If a seat belt is too short, even when fully extended and
when the adjustable upper shoulder belt anchorage (if
equipped) is in its lowest position, your dealer can
provide you with a seat belt extender. This extender
should be used only if the existing belt is not long
enough. When it is not required, remove the extender
and stow it.

2

50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use
when the lap belt is not long enough when it is worn
low and snug, and in the recommended seating
positions. Remove and store the extender when not
needed.

Driver and Front Passenger Supplemental
Restraint System - Airbag

This vehicle has airbags for both the driver and front
passenger as a supplement to the seat belt restraint
systems. The driver’s front airbag is mounted in the
center of the steering wheel. The passenger’s front airbag
is mounted in the instrument panel, above the glove
compartment. The words SRS AIRBAG are embossed on
the airbag covers.

Front Airbag Components

NOTE: The front airbags are certified to the Federal

regulations that allow less forceful deployment in low
speed collisions.

The front airbags have a multi stage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity and occupant size.

Also, the front passenger airbag is certified to the Federal
regulations that define Occupant Classification (Refer to
“Occupant Classification System” in this section).

This vehicle may also be equipped with a driver inflat­able knee blocker located on the instrument panel below
the steering column.

This vehicle may also be equipped with left and right
window bags to protect the driver and passengers sitting
next to a window. If the vehicle is equipped with window
bags, they are located above the side windows. Their
covers are also labeled SRS AIRBAG.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51

2

Side Airbag Location

NOTE: Airbag covers may not be obvious in the interior

trim; but they will open to allow airbag deployment.

52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

•

Do not put anything on or around the airbag covers
or attempt to manually open them. You may damage
the airbags and you could be injured because the
airbags are not there to protect you. These protec­tive covers for the airbag cushions are designed to
open only when the airbags are inflating.

•

If your vehicle is equipped with left and right
window bags, do not stack luggage or other cargo up
high enough to block the location of the side curtain
airbag. The area where the side curtain airbag is
located should remain free from any obstructions.

•

If your vehicle is equipped with left and right
window bags, do not have any accessory items
installed which will alter the roof, including adding
a sunroof to your vehicle. Do not add roof racks that
require permanent attachments (bolts or screws) for
installation on the vehicle roof. Do not drill into the
roof of the vehicle for any reason.

NOTE: Do not use a clothing bar mounted to the coat

hooks in this vehicle. A clothing bar will impede the
proper performance of the window bags.

Front airbags, along with seat belts, and front seat belt
buckle pretensioners, work with the instrument panel
knee blockers to provide improved protection for the
driver and front passenger. Left and right window bags
also work with seat belts to improve occupant protection.

The seat belts are designed to protect you in many types
of collisions. The front airbags deploy in moderate to
severe frontal collisions.

NOTE: The passenger front airbag may not deploy even
when the driver front airbag has if the Occupant Classi­fication System (refer to “Occupant Classification Sys­tem” in this section) has determined the seat is empty or
is occupied by a child.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53

If your vehicle is equipped, the window bag on the crash
side of the vehicle is triggered in moderate to severe side
collisions. But even in collisions where the airbags inflate,
you need the seat belts to keep you in the right position
for the airbags to protect you properly.

Here are some simple steps you can take to minimize the
risk of harm from a deploying airbag.

1. Children 12 years old and under should always ride

buckled up in a rear seat.

Infants in rear facing child restraints should NEVER ride
in the front seat of a vehicle with a passenger front airbag.
An airbag deployment can cause severe injury or death to
infants in that position.

Children that are not big enough to properly wear the
vehicle seat belt (refer to section on Child Restraint)
should be secured in the rear seat, in a child restraint or
belt-positioning booster seat appropriate for the size and
age of the child. Older children who do not use a child
restraint or belt-positioning booster seat should ride
properly buckled up in the rear seat. Never allow chil­dren to slide the shoulder belt behind them or under their
arm.

If a child from 1 to 12 years old must ride in the front
passenger seat because the vehicle is crowded, move the
seat as far back as possible, and use the proper child
restraint. Refer to the section on Child Restraint.

2

54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

You should read the instructions provided with your
child restraint to make sure that you are using it properly.

2. All occupants should wear their lap and shoulder

belts properly.

3. The driver and front passenger seats should be
moved back as far as practical to allow the front airbags
room to inflate.

4. If your vehicle has left and right window bags, do
not lean against the door, airbags will inflate forcefully
into the space between you and the door.

WARNING!

•

Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you
have airbags.

•

Being too close to the steering wheel or instru­ment panel during front airbag deployment could
cause serious injury. Airbags need room to inflate.
Sit back, comfortably extending your arms to
reach the steering wheel or instrument panel.

•

If the vehicle has left and right window bags, they
also need room to inflate. Do not lean against the
door or window. Sit upright in the center of the
seat.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55

Airbag System Components

The airbag system consists of the following:

•

Occupant Restraint Controller (ORC)

•

AIRBAG Light

•

Driver Airbag

•

Front Passenger Airbag

•

Supplemental Side Curtain Airbags (If Equipped)

•

Front Impact Sensors

•

Side Impact Sensors (If Equipped)

•

Steering Wheel and Column

•

Instrument Panel

•

Interconnecting Wiring

•

Seat Belt Reminder Light

•

Knee Impact Bolster

•

Driver Inflatable Knee Blocker

•

Front Passenger Seat Occupant Classification System
(OCS) — If Equipped

−

Occupant Classification Module

−

Passenger Airbag Disabled (PAD) Indicator Light

−

Interconnecting Wiring

−

Bladder Assembly

−

Belt Tension Sensor

•

Front Seat Belt Buckle Pretensioners

2

56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

How The Airbag System Works

The Occupant Restraint Controller (ORC) determines

•

if a frontal collision is severe enough to require the
airbags to inflate. Based on the level of collision
severity, the front control module determines the
proper rate of inflation. The front airbag inflators are
designed to provide different rates of airbag inflation.

•

The ORC may modify the rate of inflation based on the
occupant size provided by the Occupant Classification
Module.

•

The ORC will not detect side, roll over, or rear impacts.

•

The ORC monitors the readiness of the electronic parts
of the system whenever the ignition switch is in the
START or RUN positions. These include all of the
items listed above except the steering wheel and

column, instrument panel and passenger knee bol­sters. If the key is in the OFF position, in the ACC
position, or not in the ignition, the airbags are not on
and will not inflate.

•

Also, the ORC turns on the AIRBAG warn­ing light and PAD indicator light in the
center of the instrument panel for 6 to 8
seconds for a self-check when the ignition is

first turned on. After the self-check, the AIRBAG
warning light will turn off. The PAD indicator light
will function normally (Refer to “Passenger Airbag
Disable (PAD) Indicator Light” in this section). If the
ORC detects a malfunction in any part of the system, it
turns on the AIRBAG warning light either momen­tarily or continuously. A single chime will sound if the
light comes on again after initial start up.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57

WARNING!

Ignoring the AIRBAG warning light in your instru­ment panel could mean you won’t have the airbags
to protect you in a collision. If the light does not
come on, stays on after you start the vehicle, or if it
comes on as you drive, have the airbag system
checked right away.

•

The Driver and Passenger Airbag/Inflator Units are
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC and
impact sensors detects a collision requiring the air­bags, it signals the inflator units. A large quantity of
nontoxic gas is generated to inflate the front airbags.
Different airbag inflation rates may be possible based
on collision severity and occupant size. The steering
wheel hub trim cover and the upper right side of the
instrument panel separate and fold out of the way as

the airbags inflate to their full size. The airbags fully
inflate in about 50–70 milliseconds. This is about half
of the time it takes to blink your eyes. The airbags then
quickly deflate while helping to restrain the driver and
front passenger.

The driver’s and passenger’s front airbag gas is vented
through the airbag material towards the instrument
panel. In this way the airbags do not interfere with
your control of the vehicle.

•

The Side Impact SRS Window Bags are designed to
activate only in certain side collisions. When the ORC
and the side impact sensors (with side impact option)
detects a collision requiring the window bags to
inflate, it signals the inflators on the crash side of the
vehicle. A quantity of nontoxic gas is generated to
inflate the window bag. The inflating window bag
pushes the outside edge of the headliner out of the
way and covers the window. The airbag inflates in

2

58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

about 30 milliseconds (about one quarter of the time it
takes to blink your eyes) with enough force to injure
you if you are not belted and seated properly, or if
items are positioned in the area where the window bag
inflates. This especially applies to children. The win-

1

dow bag is only about 3

⁄2inches (9 cm) thick when it

is inflated.

•

When the ORC and the impact sensors detect a
collision requiring the Driver Inflatable Knee
Blocker, it signals the inflator unit. A quantity of
nontoxic gas is generated to inflate the Driver Inflat­able Knee Blocker. The Driver Inflatable Knee Blocker
inflates rearward towards the driver’s knees to help
protect the knees and position you for the best inter­action with the front airbag. The Driver Inflatable
Knee Blocker fully inflates in about 50 milliseconds,
this is only about half of the time it takes you to blink
your eyes. It then quickly deflates while helping to
protect the driver’s knees.

•

The Knee Impact Bolsters help protect the knees, and
position everyone for the best interaction with the
front airbag.

•

If your vehicle contains a Passenger Airbag Disable
indicator light, it will be equipped with the Occupant
Classification System (OCS). The OCS system will
classify an occupant into a size category based on
sensor readings from within the seat cushion. Occu­pants should try to remain in a normally seated
position. If the occupant’s weight is transferred to
another object in the vehicle (i.e. feet on the dash­board), the OCS may not be able to properly approxi­mate occupant size. Furthermore, the occupant size
may appear to increase or decrease due to objects
hanging on the seat, other passengers pushing on the
seat, or objects lodged underneath the seat.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59

If there is a rapid change in temperature or humidity,
the OCS may not be able to properly approximate
occupant size. If your seat including your trim cover
and cushion needs to be serviced in any way (includ­ing removal or loosening/tightening of seat attach­ment bolts), take the vehicle to your authorized dealer.
Only manufacturer approved seat accessories may be
used.

If there is a fault present in the system, the AIRBAG
warning light will illuminate indicating that you should
take the vehicle to an authorized dealer. In the presence
of an occupant in the passenger seat, if both the PAD
indicator light and AIRBAG warning light are illumi­nated the airbag will be disabled.

The ORC will not allow front airbag deployment in the
event of a collision for occupants classified into the
empty or child size categories. The PAD indicator light
will illuminate indicating that the Passenger Airbag is

OFF when the OCS has determined that the occupant size
category is a child. Also, when the seat is empty or an
object that weighs less than a predetermined threshold is
placed on the seat, the light will remain OFF. (The PAD
indicator light is an amber light located on the center of
the instrument panel above the climate controls.)

Passenger Airbag Disabled Light

2

60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

For almost all sizes of properly seated adults, the airbag
will be enabled in the event of a collision. For small
teenagers and some small adults, depending on size, the
airbag may or may not be enabled in the event of a
collision. Both drivers and passengers should always use
the PAD indicator light as an indication if the front
passenger is properly positioned or not. If the PAD
indicator light comes on when an adult is in the passen­ger seat, have the passenger re-position themselves in the
seat until the light goes out.

Remember, if the PAD indicator light is illuminated the
passenger front airbag will not inflate. For almost all
properly installed child restraints, the “PAD Indicator
Light” will be illuminated indicating that the front pas­senger airbag is turned off and will not inflate. If the
“PAD Indicator Light” is not illuminated, DO NOT
assume the airbag is turned off and move the child

restraint to the rear seat. A deploying passenger airbag
can cause death or serious injury to a child in a rear
facing infant seat.

NOTE: Even though this vehicle is equipped with an
Occupant Classification System, children 12 years and
under should always ride buckled up in a rear seat in an
appropriate child restraint.

•

The Occupant Classification Module (OCM) is lo­cated beneath the front passenger seat. The OCM
classifies the occupant into one of three size categories
based on the input from the Bladder Assembly and
Belt Tension Sensor. The size categories include empty,
child, and adult. The OCM sends the Occupant Clas­sification to the ORC to identify if a front passenger
airbag is allowed. If a fault is present, the AIRBAG
warning light is illuminated.

•

The Passenger Airbag Disabled (PAD) Indicator
Light indicates to the driver and passenger when the

airbag is turned OFF in the presence of a properly
seated occupant. When the PAD indicator light is
illuminated, the airbag is OFF. Also, when the Occu­pant Classification System (OCS) detects either an
empty seat of a weight less than the predetermined
occupant threshold, the ORC will not illuminate the
PAD indicator light even though the airbag is turned
off. When the OCS detects an adult the PAD indicator
light will be off, and the airbag will be enabled.

•

The Belt Tension Sensor (BTS) is located at the
outboard passenger lap belt anchor. The BTS generates
a signal based on outboard lap belt tension. This signal
is sent to the OCM to ensure that the resultant bladder
pressure increase due to applied lap belt tension does
not cause a small occupant to be classified as a larger
occupant.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61

•

The Bladder Assembly is located beneath the seat
cushion foam. The pressure sensor sends a signal to
the OCM.

The front passenger seat assembly contains critical com­ponents that affect the front passenger airbag deploy­ment. Correctly functioning front passenger seat compo­nents are critical for the Occupant Classification System
(OCS) to properly classify the front passenger and calcu­late the proper airbag deployment. Do not make any
modifications to the front passenger seat components,
assembly, or to the seat cover.

2

62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Unapproved modifications or service procedures to
the front passenger seat assembly, its related compo­nents, or seat cover may inadvertently change the
airbag deployment in case of a frontal crash. This
could result in death or serious injury to the front
seat passenger if the vehicle is involved in an acci­dent. A modified vehicle may not comply with
required Federal Motor Vehicle Safety Standards
(FMVSS).

The following requirements must be strictly adhered to:

•

Do not modify the front passenger seat assembly or
components in any way.

•

Do not modify the front seat center console or center
position seat in any way.

•

Do not use prior or future model year seat covers not
designated for the specific model being repaired. Al­ways use the correct seat cover specified for the
vehicle.

•

Do not replace the seat cover with an aftermarket seat
cover.

•

Do not add a secondary seat cover other than those
approved by DaimlerChrysler/Mopar.

•

At no time should any supplemental restraint system
(SRS) component or SRS related component or fas­tener be modified or replaced with any part except
those which are approved by DaimlerChrysler/
Mopar.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63

If A Deployment Occurs

The airbag system is designed to deploy the airbags
when the ORC and impact sensors detect a moderate-to­severe collision, to help restrain the vehicle passengers,
and then immediately deflate.

NOTE: A collision that is not severe enough to need
airbag protection will not activate the system. This does
not mean something is wrong with the airbag system.

If you do have a collision which deploys the airbags, any
or all of the following may occur:

•

The nylon airbag material may sometimes cause abra­sions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.

However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.

•

As the airbags deflate you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the nontoxic gas used for airbag
inflation. These airborne particles may irritate the skin,
eyes, nose, or throat. If you have skin or eye irritation,
rinse the area with cool water. For nose or throat
irritation, move to fresh air. If the irritation continues,
see your doctor. If these particles settle on your
clothing, follow the garment manufacturer’s instruc­tions for cleaning.

•

It is not advisable to drive your vehicle after the
airbags have deployed. If you are involved in another
collision, the airbags will not be in place to protect you.

2

64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Deployed airbags, front seat belt buckle pretension­ers and driver inflatable knee blocker cannot protect
you in another collision. Have the airbags, front seat
belt buckle pretensioners and driver inflatable knee
blocker replaced by an authorized dealer as soon as
possible. Also, have the Occupant Classification
System serviced as well.

Enhanced Accident Response

If the airbags and seat belt pretensioners deploy after an
impact and the electrical system remains functional,
vehicles equipped with power door locks will unlock
automatically. In addition, approximately 10 seconds
after the vehicle has stopped moving, the interior lights
will illuminate until the ignition switch is turned off.

Maintaining Your Airbag System

WARNING!

•

Modifications to any part of the airbag system could cause
it to fail when you need it. You could be injured because
the airbags are not there to protect you. Do not modify the
components or wiring, including adding any kind of
badges or stickers to the steering wheel hub trim cover or
the upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure, or frame.

•

Do not attempt to modify any part of your advanced airbag
system. The airbag may inflate accidentally or may not
function properly if modifications are made. Take your
vehicle to an authorized dealer for any advanced airbag
system service. If your seat including your trim cover and
cushion needs to be serviced in any way (including re­moval or loosening/tightening of seat attachment bolts),
take the vehicle to your authorized dealer. Only manufac­turer approved seat accessories may be used. If it is
necessary to modify an advanced airbag system for per­sons with disabilities, contact your authorized dealer.

WARNING!

•

You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee bolsters.

•

It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.

Airbag Light

You will want to have the airbags ready to
inflate for your protection in a collision. While
the airbag system is designed to be mainte­nance free, if any of the following occurs, have

an authorized dealer service the system immediately.

•

The AIRBAG light does not come on or flickers during
the 6 to 8 seconds when the ignition switch is first
turned on.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65

•

The light remains on or flickers after the 6 to 8 second
interval.

•

The light flickers or comes on and remains on while
driving.

NOTE: If the speedometer, tachometer or any engine
related gauges are not working, the airbag control mod­ule may also be disabled. The airbags may not be ready
to inflate for your protection. Promptly check fuse block
for blown fuses. Refer to the label located on the inside of
the fuse block cover for the proper airbag fuses. See your
dealer if the fuse is good.

Event Data Recorder (EDR)

In the event of an airbag deployment, your vehicle is
designed to record up to 2-seconds of specific vehicle
data parameters (see list below) in an event data recorder
prior to the moment of airbag deployment. Please note
that such data are ONLY recorded if an airbag deploys,
and are otherwise unavailable. In conjunction with other

2

66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

data gathered during a complete accident investigation,
the electronic data may be used by DaimlerChrysler
Corporation and others to learn more about the possible
causes of crashes and associated injuries in order to
assess and improve vehicle performance. In addition to
crash investigations initiated by DaimlerChrysler Corpo­ration, such investigations may be requested by custom­ers, insurance carriers, government officials, and profes­sional crash researchers, such as those associated with
universities, and with hospital and insurance organiza­tions.

In the event that an investigation is undertaken by
DaimlerChrysler Corporation (regardless of initiative),
the company or its designated representative will first
obtain permission of the appropriate custodial entity for
the vehicle (usually the vehicle owner or lessee) before
accessing the electronic data stored, unless ordered to
download data by a court with legal jurisdiction (i.e.,
pursuant to a warrant). A copy of the data will be

provided to the custodial entity upon request. General
data that does not identify particular vehicles or crashes
may be released for incorporation in aggregate crash
databases, such as those maintained by the US govern­ment and various states. Data of a potentially sensitive
nature, such as would identify a particular driver, ve­hicle, or crash, will be treated confidentially. Confidential
data will not be disclosed by DaimlerChrysler Corpora­tion to any third party except when:

1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved

2. Used in defense of litigation involving a
DaimlerChrysler Corporation product

3. Requested by police under a legal warrant

4. Otherwise required by law

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67

Data Parameters that May Be Recorded:

•

Diagnostic trouble code(s) and warning lamp status
for electronically-controlled safety systems, including
the airbag system

•

Airbag disable lamp status (if equipped)

•

⬙Time⬙ of airbag deployment (in terms of ignition
cycles and vehicle mileage)

•

Airbag deployment level (if applicable)

•

Seat belt status

•

Brake status (service and parking brakes)

•

Accelerator status (including vehicle speed)

•

Engine control status (including engine speed)

•

Cruise control status

•

Traction/stability control status

Child Restraint

Everyone in your vehicle needs to be buckled up at all
times — babies and children, too. Every state in the
United States and all Canadian provinces require that
small children ride in proper restraint systems. This is the
law, and you can be prosecuted for ignoring it.

Children 12 years and under should ride properly buck­led up in a seat appropriate for their age and size.
According to crash statistics, children are safer when
properly restrained in the rear seats, rather than in the
front.

2

68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

In a collision, an unrestrained child, even a tiny
baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap
could become so great that you could not hold the
child, no matter how strong you are. The child and
others could be badly injured. Any child riding in
your vehicle should be in a proper restraint for the
child’s size.

Infants and Child Restraints

There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat owner’s manual to ensure you have the right seat for
your child. Use the restraint that is correct for your child.

•

Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and ⬙convertible⬙ child seats. Both types of
child restraints are held in the vehicle by the lap/
shoulder belt or the LATCH child restraint anchorage
system. Refer to “Lower Anchors and Tether for CHil­dren (LATCH)” later in this section.

•

The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). ⬙Convertible⬙ child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69

•

Rearward-facing child seats must NEVER be used in
the front seat of a vehicle with a front passenger
airbag. An airbag deployment could cause severe
injury or death to infants in this position.

Older Children and Child Restraints

Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who weigh 20 to 40 lbs (9 to 18 kg) and who are older
than one year. These child seats are also held in the
vehicle by the lap/shoulder belt or the LATCH child
restraint anchorage system. Refer to “Lower Anchors and
Tether for CHildren (LATCH)” later in this section.

The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
the vehicle’s seat belts properly. If the child can not sit
with knees bent over the vehicles seat cushion while the

child’s back is against the seat back, they should use a
belt-positioning booster seat. The child and booster seat
are held in the vehicle by the lap/shoulder belt.

Children Too Large For Booster Seats

Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback, should use the lap/shoulder belt in a rear seat.

•

Make sure that the child is upright in the seat.

•

The lap portion should be low on the hips and as snug
as possible.

•

Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.

•

If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. If this doesn’t
help, move the child to the center rear seating position

2

70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

and use the lap belt. Never allow a child to put the
shoulder belt under an arm or behind their back.

NOTE: For additional information, refer to
www.seatcheck.org or call 1-866-SEATCHECK.

WARNING!

•

Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex­actly when installing an infant or child restraint.

•

A rearward facing child restraint should only be
used in a rear seat. A rearward facing child re­straint in the front seat may be struck by a
deploying passenger airbag which may cause se­vere or fatal injury to the infant.

Here are some tips on getting the most out of your child
restraint:

•

Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it, before you buy it.

•

The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.

•

Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.

The passenger seat belts are equipped with cinching
latch plates, which are designed to keep the lap
portion tight around the child restraint so that it is not
necessary to use a locking clip. Pulling up on the

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71

shoulder portion of the lap/shoulder belt will tighten
the belt. The cinching latch plate will keep the belt
tight, however, any seat belt system will loosen with
time, so check the belt occasionally and pull it tight if
necessary.

•

In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
from the buckle and twist the short buckle end of the
belt several times to shorten it. Insert the latch plate
into the buckle with the release button facing out.

•

If the belt still can’t be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the buckle
around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.

•

Buckle the child into the seat according to the child
restraint manufacturer’s directions.

•

When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.
Don’t leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seatbacks and
cause serious personal injury.

Lower Anchors and Tether for CHildren (LATCH)

Each vehicle is equipped with two child restraint anchor­age systems called LATCH, which stands for Lower
Anchors and Tether for CHildren. The LATCH child
restraint anchorage systems are installed on second-row
seats only. LATCH child restraint anchorage systems are
not provided on the six passenger third row seats.

2

72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Six passenger vehicles are equipped with second row
fold & tumble seats with lower anchorages that can
accommodate rigid mount or flexible webbing-mounted
LATCH-compatible child seats. The third row seating
positions are not equipped with lower anchorages. How­ever, the third row driver side seating position is
equipped with a tether anchor. If you are installing
LATCH-compatible child restraints in any third row
seating position, you must use the vehicle’s seat belt.

Fold & Tumble Seat Latch Anchorages

Five passenger vehicles are equipped with a second row
bench seat only. The two outboard seating positions have
lower anchorages that can accommodate rigid mount or
flexible webbing-mounted LATCH-compatible child
seats. The center seating position of the bench seat can
also accommodate a flexible webbing-mounted LATCH­compatible child seat by using the inboard lower anchors
of the two outboard seating positions. A rigid mount seat
can only be installed at this seating location by using the
vehicle’s seat belt. Regardless of the specific type of lower
attachment, NEVER install LATCH-compatible child
seats such that two child seats share a common lower
anchorage. If you are installing LATCH-compatible child
restraints in adjacent rear seating positions, you can use
the LATCH anchors or the vehicle’s seat belt for the
outboard position, but you must use the vehicle’s seat
belt at the center position.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73

2

Bench Seat LATCH Anchors

The lower anchor bars of the LATCH System are located
where the seat back meets the seat cushion. The tether
anchors are located on the rear surface of the seat. Child
restraint systems designed to be compatible with the
vehicles LATCH System are now available. LATCH child
restraints make installation into the vehicle simple and

74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

convenient. When using the LATCH System, always
follow the child restraint manufacturer’s installation in­structions.

NOTE: If your child restraint seat is not LATCH com­patible, install the restraint using the vehicle seat belts.

Tether Anchors

There are tether strap anchorages behind all second row
seating positions and for six passenger vehicles on the
driver’s side third row seating position. The tether an­chors are located in the rear surface of the seat. When
using the tether anchorages in the second row fold &
tumble seating positions and in the outboard second row
bench seating positions, ensure that the strap is routed
over the top of the seatback and under the head restraint
between the head restraint posts.

Fold & Tumble Seat Tether Strap Routing

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75

When the tether anchorage is used in the center second
row bench seating position or on the third row seating
position, where equipped, the strap should be positioned
straight over the top of the seatback.

Bench Seat Tether Strap Routing

When the tether anchorage is used in the third row
seating position, the strap should be positioned straight
over the top of the seatback.

2

Third Row Tether Strap Routing

76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.

Automatic-Locking Retractor (ALR)

The center seating position on vehicles equipped with a
second row bench seat is equipped with an Automatic­Locking Retractor (ALR). Pull the belt from the retractor
until there is enough to allow you to pass through the
child restraint and slide the latch plate into the buckle.
Then pull on the belt until it is all removed from the
retractor. Allow the belt to return into the retractor,
pulling on the excess webbing to tighten the lap portion
about the child restraint. Follow the instructions of the
child restraint manufacturer.

NOTE: To reset this feature you must let all of the belt
webbing return into the retractor. You will not be able to
pull out more webbing until all of the webbing has been
returned back into the retractor.

Installing A Child Restraint

We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Many,
but not all, restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector and a means for adjusting the tension in the
strap. Forward-facing toddler restraints and some
rearward-facing infant restraints will also be equipped
with a tether strap, a hook and means for adjusting the
tension in the strap.

In general, you will first loosen the adjusters on the lower
straps and tether straps so that you can more easily attach
the hook or connector to the lower anchorages and tether

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77

anchorages. Then tighten all three straps as you push the
child restraint rearward and downward into the seat.

Child restraint systems having attachments designed to
connect to the lower anchorages are now available. Child
restraints having tether straps and hooks for connection
to the seatback tether anchorage have been available for
some time. In fact, many child restraint manufacturer’s
will provide add-on tether strap kits for some of their
older products.

Because the lower anchorages are to be introduced to
passenger carrying vehicles over a period of years, child
restraint systems having attachments for those anchor­ages will continue to have features for installation in
vehicles using the lap or lap/shoulder belt. They will also
have tether straps, and you are urged to take advantage
of all of the available attachments provided with your
child restraint in any vehicle.

NOTE: When using the LATCH attaching system to
install a child restraint, please ensure that all seat belts
not being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through the
child restraint belt path and then buckle it. This should
stow the seat belt out of the reach of an inquisitive child.
Remind all children in the vehicle that the seat belts are
not toys and should not be played with, and never leave
your child unattended in the vehicle.

Not all child restraint systems will be installed as we
have described here. Again, carefully follow the instruc­tions that come with the child restraint system.

2

78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

Children Too Large For Booster Seats

Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback, should use the lap/shoulder belt in a rear seat.

•

Make sure that the child is upright in the seat.

•

The lap portion should be low on the hips and as snug
as possible.

•

Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.

•

If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.

Transporting Pets

Airbags deploying in the front seat could harm your pet.
An unrestrained pet could be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.

Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine in
your new vehicle.

Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or 55
mph (80 or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.
Wide open throttle acceleration in low gear can be
detrimental and should be avoided.

The engine oil installed in the engine at the factory is a
high quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
The recommended viscosity and quality grades are
shown in Section 7 of this manual. NON-DETERGENT
OR STRAIGHT MINERAL OILS MUST NEVER BE
USED.

A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty.

SAFETY TIPS

Exhaust Gas

WARNING!

Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow the safety tips below.

Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.

2

80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.

WARNING!

If you are required to drive with the deck lid/liftgate
open, make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.

Safety Checks You Should Make Inside The
Vehicle

Seat Belts

Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (bent retractor, torn
webbing, etc. If there is any question regarding belt or
retractor condition, replace the belt.

Airbag Light

The light should come on and remain on for 6 to 8
seconds as a bulb check when the ignition switch is first
turned ON. If the LED is not lit during starting, have it
checked. If the light stays on or comes on while driving,
have the system checked by an authorized dealer.

Defroster

Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81

Periodic Safety Checks You Should Make Outside
The Vehicle

Tires

Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect tread and sidewall for cuts or
cracks. Check wheel nuts for tightness, and tires (includ­ing spare) for proper pressure.

Lights

Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.

Fluid Leaks

Check area under vehicle after overnight parking for fuel,
engine coolant, oil or other fluid leaks. Also, if gasoline
fumes are detected or fuel, power steering fluid, trans­mission fluid or brake fluid leaks are suspected, the cause
should be located and corrected immediately.

2

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CONTENTS

䡵 Mirrors ...............................88

▫ Heated Remote Control Mirrors ............91

3

▫ Inside Day / Night Mirror ................88

▫ Automatic Dimming Mirror — If Equipped ....88

▫ Driver’s Side Outside Mirror Auto Dimmer —

If Equipped ..........................89

▫ Exterior Mirrors Folding Feature ...........89

▫ Outside Mirror — Driver’s Side ............89

▫ Outside Mirror — Passenger’s Side ..........90

▫ Power Remote-Control Mirrors .............90

▫ Illuminated Vanity Mirrors ................91

䡵 Hands–Free Communication (UConnect™) —

If Equipped ............................91

▫ Operations ...........................93

▫ Phone Call Features ....................99

▫ UConnect™ System Features .............102

▫ Advanced Phone Connectivity ............106

▫ Things You Should Know About Your

UConnect™ System ....................108

84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

䡵 Seats ................................114

▫ 10–Way Driver’s Power Seat — If Equipped . . 114

▫ 8–Way Driver’s Power Seat — If Equipped . . . 115

▫ 4–Way Passenger’s Power Seat ............115

▫ Adjustable Head Restraints ..............115

▫ Heated Seats — If Equipped .............116

▫ Second Row Manual Seat Recliner —

If Equipped .........................118

▫ Second Row Manual Seat Adjuster —

If Equipped .........................119

▫ Second Row Bench Seating — If Equipped . . . 120

▫ Second Row Fold & Tumble Seats —

If Equipped .........................121

▫ Third Row Easy Exit — If Equipped ........122

▫ Third Row Seating — If Equipped .........124

▫ Load Floor — If Equipped ...............125

▫ Plastic Grocery Bag Retainer .............126

䡵 Driver Memory Seat — If Equipped .........127

▫ Easy Exit Seat (Available With Memory

Seat Only) ..........................130

▫ Tilt Mirrors In Reverse (Available With Memory

Seat Only) — If Equipped ...............131

䡵 To Open And Close The Hood .............131

䡵 Lights ...............................133

▫ Overhead Console Map/Reading Lights .....133

▫ Interior Lights .......................134

▫ Multi-Function Lever ...................134

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

▫ Headlights, Parking Lights, Instrument Panel

Lights .............................135

▫ Automatic Headlights ..................136

▫ Daytime Running Lights (Canada Only) .....136

▫ Lights-On Reminder ...................136

▫ Headlight Time Delay ..................136

▫ Fog Lights — If Equipped ...............137

▫ Turn Signals .........................137

▫ Highbeam/Lowbeam Select Switch .........138

▫ Passing Light ........................138

䡵 Windshield Wipers And Washers ...........138

▫ Windshield Washers ...................138

▫ Mist Feature .........................139

▫ Windshield Wiper Operation .............139

▫ Intermittent Wiper System ...............139

▫ Rear Window Wiper/Washer .............139

䡵 Tilt Steering Column ....................141

䡵 Electronic Stability Program (ESP) /

Traction Control Switch (TCS) — If Equipped . . . 141

䡵 Rear Park Assist System — If Equipped .......143

䡵 Rear Camera — If Equipped ...............146

䡵 Adjustable Pedals — If Equipped ...........148

䡵 Electronic Speed Control ..................150

▫ To Activate ..........................150

▫ To Set At A Desired Speed ...............151

▫ To Deactivate ........................151

3

86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫ To Resume Speed .....................151

▫ To Vary The Speed Setting ...............151

▫ To Accelerate For Passing ...............152

䡵 Overhead Console — If Equipped ...........153

▫ Courtesy/Reading Lights ................153

▫ Sunglasses Storage ....................153

䡵 Garage Door Opener — If Equipped .........154

▫ Programming HomeLink ................155

▫ Canadian Programming/Gate Programming . . 158

▫ Using HomeLink .....................159

▫ Erasing HomeLink Buttons ..............159

▫ Reprogramming a Single HomeLink Button . . . 159

▫ Security ............................160

䡵 Power Sunroof — If Equipped .............160

▫ Express Open Feature ..................161

▫ Wind Buffeting .......................163

▫ Sunroof Maintenance ...................163

䡵 Electrical Power Outlets ..................163

▫ Electrical Outlet Use With Engine Off .......164

䡵 Cupholders ...........................165

▫ Front Seat Cupholders ..................165

▫ Second Row Seat Cupholders .............165

▫ Third Row Seat Cupholders — If Equipped . . .166

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

䡵 Storage ..............................166

▫ Console Features ......................166

▫ Rear Cargo Storage Bin — If Equipped ......166

Retractable Cargo Area Cover — If Equipped

▫

. . 167

▫ Cargo Tie-Down Hooks .................168

䡵 Roof Luggage Rack — If Equipped ..........169

䡵 Load Leveling System ...................172

3

88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS

Inside Day / Night Mirror

Adjust the mirror to center on the view through the rear
window. A two point pivot system allows for horizontal
and vertical adjustment of the mirror.

MANUAL REARVIEW MIRROR

Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).

Automatic Dimming Mirror — If Equipped

When using this feature the mirror will automatically
adjust for annoying headlight glare from vehicles behind
you. You can turn the feature on or off by pressing the
button at the base of the mirror. A light will illuminate to
indicate when this feature is on.

Automatic Dimming Mirror

CAUTION!

To avoid damage to the mirror during cleaning,
never spray any cleaning solution directly onto the
mirror. Apply the solution onto a clean cloth and
wipe the mirror clean.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

Driver’s Side Outside Mirror Auto Dimmer — If
Equipped

This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn this feature
on or off by pressing the button at the base of the
Rearview Mirror.

Exterior Mirrors Folding Feature

All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions; full forward, full rearward, and
normal.

Outside Mirror — Driver’s Side

Adjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.

3

90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirror — Passenger’s Side

Adjust the convex outside mirror so you can just see the
side of your vehicle in the portion of the mirror closest to
the vehicle. This type of mirror will give a much wider
view to the rear, and especially of the lane next to your
vehicle.

WARNING!

Vehicles and other objects seen in the right side
convex mirror will look smaller and farther away
than they really are. Relying too much on your right
side mirror could cause you to collide with another
vehicle or other object.

Use your inside mirror when judging the size or
distance of a vehicle seen in this convex mirror.

Power Remote-Control Mirrors

Use the mirror select switch, located on the driver’s door
trim panel above the power window switches, to adjust
the view obtained in the outside mirrors.

Power Mirror Switches

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

Press the rocker switch to the L or R for Left or Right
mirror selection. Use the center off position to guard
against accidentally moving a mirror position.

Select a mirror and press one of the four arrows for the
direction you want the mirror to move.

Power mirror preselected positions can be controlled by
the optional Driver Memory Seat Feature. Refer to
“Driver Memory Seat” in section 3 of this manual.

Heated Remote Control Mirrors

These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the Rear Window
Defrost.

Illuminated Vanity Mirrors

An illuminated vanity mirror is on the sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights turn on automatically.
Closing the mirror cover turns off the lights.

Sun Visor Extension

The sun visors may be pulled out to provide extended
coverage of the side glass.

HANDS–FREE COMMUNICATION (UConnect™) —
IF EQUIPPED

UConnect™ is a voice-activated, hands-free, in- vehicle
communications system. UConnect™ allows you to dial
a phone number with your cellular phone using simple
voice commands (e.g., ⬙Call” ѧ “Mike” ѧ”Work⬙ or ⬙Dial”
ѧ “248-555-1212⬙). Your cellular phone’s audio is trans­mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect™ system.

NOTE: The UConnect™ system use requires a cellular
phone equipped with the Bluetooth ⬙Hands-Free Profile,⬙
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.

3

92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UConnect™ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s micro­phone for private conversation.

The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32-name phonebook accessible only in that
language. This system is driven through your Blue­tooth™ Hands-Free profile cellular phone. UConnect™
features Bluetooth™ technology - the global standard
that enables different electronic devices to connect to
each other without wires or a docking station, so UCon­nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used

with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).

The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.

UConnect™ Switches

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

The UConnect™ system can be used with any Hands­Free Profile certified Bluetooth™ cellular phone. See
www.chrysler.com/uconnect for supported phones. If
your cellular phone supports a different profile (e.g.,
Headset Profile), you may not be able to use any UCon­nect™ features. Refer to your cellular service provider or
the phone manufacturer for details.

The UConnect™ system is fully integrated with the
vehicle’s audio system. The volume of the UConnect™
system can be adjusted either from the radio volume
control knob, or from the steering wheel radio control
(right switch), if so equipped.

The radio display will be used for visual prompts from
the UConnect™ system such as ⬙CELL⬙ or caller ID on
certain radios.

Operations

Voice commands can be used to operate the UConnect™
system and to navigate through the UConnect™ menu
structure. Voice commands are required after most
UConnect™ system prompts. You will be prompted for a
specific command and then guided through the available
options.

•

Prior to giving a voice command, one must wait for
the voice on beep, which follows the ⬙Ready⬙ prompt
or another prompt.

•

For certain operations, compound commands can be
used. For example, instead of saying ⬙Setup⬙ and then
⬙Phone Pairing,⬙ the following compound command
can be said: ⬙Setup Phone Pairing.⬙

•

For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it. For

3

94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

example, you can use the combined form voice com­mand ⬙Phonebook New Entry,⬙ or you can break the
combined form command into two voice commands:
⬙Phonebook⬙ and ⬙New Entry.⬙ Please remember, the
UConnect™ system works best when you talk in a
normal conversational tone, as if speaking to some one
sitting eight feet away from you.

Voice Command Tree

Refer to “Voice Tree” at the end of this section.

Help Command

If you need assistance at any prompt, or if you want to
know your options are at any prompt, say ⬙Help⬙ follow­ing the voice on beep. The UConnect™ system will play
all the options at any prompt if you ask for help.

To activate the UConnect™ system from idle, simply
press the ’Phone’ button and follow audible prompts for
directions. All UConnect™ system sessions begin with a
press of the ’Phone’ button on the mirror.

Cancel Command

At any prompt, after the voice on beep, you can say
⬙Cancel⬙ and you will be returned to the main menu.
However, in a few instances the system will take you
back to the previous menu.

Pair (Link) UConnect™ System to a Cellular Phone

To begin using your UConnect™ system, you must pair
your compatible Bluetooth™ enabled cellular phone.

NOTE: The UConnect™ system use requires a cellular
phone equipped with the Bluetooth ⬙Hands-Free Profile,⬙
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.

To complete the pairing process, you will need to refer­ence your cellular phone owner’s manual. One of the
following vehicle specific websites may also provide
detailed instructions for pairing with the brand of phone
that you have:

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

NOTE:

•

www.chrysler.com/uconnect

•

www.dodge.com/uconnect

•

www.jeep.com/uconnect

The following are general phone to UConnect™ System
pairing instructions:

•

Press the ’Phone’ button to begin.

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Setup Phone Pairing⬙ and follow the audible prompts.

•

When prompted, after the voice on beep, say ⬙Pair a
Phone⬙ and follow the audible prompts.

•

You will be asked to say a four-digit pin number,
which you will later need to enter into your cellular.
You can enter any four-digit pin number. You will not
need to remember this pin number after the initial
pairing process.

•

For identification purposes, you will be prompted to
give the UConnect™ system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.

•

You will then be asked to give your cellular phone a
priority level between 1 and 7, 1 being the highest
priority. You can pair up to seven cellular phones to
your UConnect™ system. However, at any given time,
only one cellular phone can be in use, connected to
your UConnect™ System. The priority allows the
UConnect™ system to know which cellular phone to
use if multiple cellular phones are in the vehicle at the
same time. For example, if priority 3 and priority 5
phones are present in the vehicle, the UConnect™
system will use the priority 3 cellular phone when you
make a call. You can select to use a lower priority
cellular phone at any time (refer to ⬙Advanced Phone
Connectivity⬙).

3

96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Call/Dial by Saying a Number

Press the ’Phone’ button to begin.

•

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Dial.⬙

•

System will prompt you to say the number you want
call.

•

For example, you can say ⬙234-567-8901.⬙

•

The UConnect™ system will confirm the phone num­ber and then dial. The number will appear in the
display of certain radios.

Call/Dial by Saying a Name

Press the “Phone” button to begin.

•

•

After the ⬙Ready⬙ prompt and the following beep, say
“Dial” or Call.⬙

•

System will prompt you to say the name of the person
you want call.

•

After the ⬙Ready⬙ prompt and the following beep, say
the name of the person you want to call. For example,
you can say ⬙John Doe,⬙ where John Doe is a previ­ously stored name entry in the UConnect™ phone­book. Refer to ⬙Add Names to Your UConnect™
Phonebook,⬙ to learn how to store a name in the
phonebook.

•

The UConnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.

Add Names to Your UConnect™ Phonebook

NOTE: Adding names to phonebook is recommended

when vehicle is not in motion.

•

Press the “Phone” button to begin.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook New Entry.⬙

•

When prompted, say the name of the new entry. Use of
long names helps the voice recognition and is recom­mended. For example, say ⬙Robert Smith⬙ or ⬙Robert⬙
instead of ⬙Bob.⬙

•

When prompted, enter the number designation (e.g.,
⬙Home,⬙⬙Work,⬙⬙Mobile,⬙ or ⬙Pager⬙). This will allow
you to store multiple numbers for each phonebook
entry, if desired.

•

When prompted, recite the phone number for the
phonebook entry that you are adding.

After you are finished adding an entry into the phone­book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.

The UConnect™ system will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language.

Edit Entries in the UConnect™ Phonebook

NOTE: Editing phonebook entries is recommended

when vehicle is not in motion.

•

Press the ’Phone’ button to begin.

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook Edit.⬙

•

You will then be asked for the name of the phonebook
entry that you wish to edit.

•

Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.

3

98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•

When prompted, recite the new phone number for the
phonebook entry that you are editing.

After you are finished editing an entry in the phonebook,
you will be given the opportunities to edit another entry
in the phonebook, call the number you just edited, or
return to the main menu.

⬙Phonebook Edit⬙ can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add John Doe’s
work number later using the ⬙Phonebook Edit⬙ feature.

Delete Entries in the UConnect™ Phonebook

NOTE: Editing phonebook entries is recommended

when vehicle is not in motion.

•

Press the ’Phone’ button to begin.

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook Delete.⬙

•

After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say ⬙List
Names⬙ to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the ⬙Voice Recognition⬙ button
while the UConnect™ system is playing the desired
entry and say ⬙Delete.⬙

•

After you enter the name, the UConnect™ system will
ask you which designation you wish to delete, home,
work, mobile, or pager. Say the designation you wish
to delete.

•

Note that only the phonebook entry in the current
language is deleted.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

After confirmation, the phonebook entries will be de­leted. Note that only the phonebook in the current
language is deleted.

Delete All Entries in the UConnect™ Phonebook

•

Press the ’Phone’ button to begin.

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook Erase All.⬙

•

The UConnect™ system will ask you to verify that you
wish to delete all the entries from the phonebook.

•

After confirmation, the phonebook entries will be
deleted.

List All Names in the UConnect™ Phonebook

•

Press the ’Phone’ button to begin.

•

After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook List Names.⬙

•

The UConnect™ system will play the names of all the
phonebook entries.

•

To call one of the names in the list, press the ⬙Voice
Recognition’ button during the playing of the desired
name, and then say ⬙Call.⬙ NOTE: the user can also
exercise ⬙Edit⬙ or ⬙Delete⬙ operations at this point.

•

The UConnect™ system will then prompt you as to
number designation you wish to call.

•

The selected number will be dialed.

Phone Call Features

The following features can be accessed through the
UConnect™ system if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnect™ system. Check with
your cellular service provider for the features that you
have.

3

100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Answer or Reject an Incoming Call - No Call
Currently in Progress

When you receive a call on your cellular phone, the
UConnect™ system will interrupt the vehicle audio
system, if on, and will ask if you would like to answer the
call. To reject the call, press and hold the ’Phone’ button
until you hear a single beep indicating that the incoming
call was rejected.

Answer or Reject an Incoming Call - Call
Currently in Progress

If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your cell
phone. Press the ’Phone’ button to place the current call
on hold and answer the incoming call. NOTE: The
UConnect™ system compatible phones in market today
do not support rejecting an incoming call when another
call is in progress. Therefore, the user can only either
answer an incoming call or ignore it.

Making a Second Call while Current Call in
Progress

To make a second call while you are currently in a call,
press the ’Voice Recognition’ button and say ⬙Dial⬙ or
⬙Call⬙ followed by the phone number or phonebook entry
you wish to call. The first call will be on hold while the
second call is in progress. To go back to the first call, refer
to ⬙Toggling Between Calls.⬙ To combine two calls, refer
to ⬙Conference Call.⬙

Place/Retrieve a Call from Hold

To put a call on hold, press the ⬘Phone’ button until you
hear a single beep. This indicates that the call is on hold.
To bring the call back from hold, press and hold the
⬘Phone’ button until you hear a single beep.
