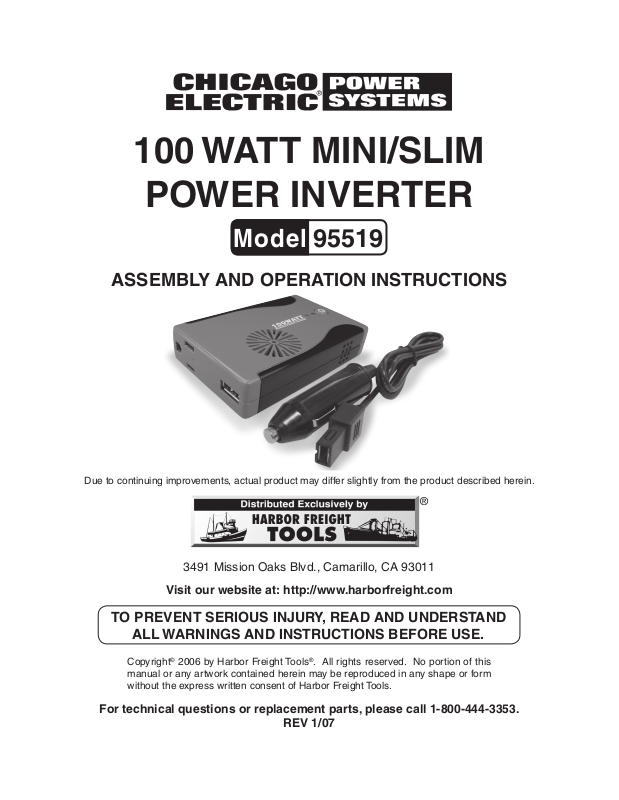

Chicago Electric 95519 User Manual

100 WATT MINI/SLIM

Model

95519

Model

95519

POWER INVERTER

ASSEMBLY AND OPERATION INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND

ALL WARNINGS AND INSTRUCTIONS BEFORE USE.

Copyright© 2006 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

REV 1/07

SPECIFICATIONS

Continuous Output Power 100 Watts Peak Power 200 Watts Input Voltage 13.8 Volts DC Output Voltage 115 Volts AC @ 60 Hz Automatic Shutdown At 10.2 Volts DC AC Receptacle One 3-Prong, Grounding Outlet USB Port Output 5 Volt/250 mA DC (500 mA Maximum) Maximum Efﬁciency Approximately 80% with Full Load Power Connector Type 16 AWG x 2C x 24” Long Wire/Lighter Plug with F10A/250V Fuse Power Switch Type Clear Push-Button with 3-Way LED:

Thermal Shutdown <149° F Accessories Carrying Case Dimensions 4” W x 2-9/16”L x 7/8” T Unit Weight 0.4 Pound

You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Keep this manual and invoice in a safe and dry place for future reference.

Green LED Indicates 12 Volt DC Power to Unit Green LED Indicates AC Power Output is Active Red LED Indicates Overheating, Electrical Problem

SAVE THIS MANUAL

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, ﬁre, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

Keep your work area clean and well lit. Cluttered benches and dark areas invite

accidents.

Do not operate power equipment in explosive atmospheres, such as in the

presence of ﬂammable liquids, gases, or dust. Power equipment creates sparks

which may ignite the dust or fumes.

ELECTRICAL SAFETY

Never remove the grounding prong of a power tool or appliance or modify the

plug in any way. Do not use any adapter plugs with this product. If the tool or

SKU 95519 For technical questions, please call 1-800-444-3353 PAGE 2

appliance should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user.

Double insulated tools and appliances are equipped with a polarized plug

(one blade is wider than the other). This plug will ﬁt in a polarized outlet only

one way. If the plug does not ﬁt fully in the outlet, reverse the plug. Do not

change the plug in any way. Double insulation eliminates the need for the three

wire grounded power cord and grounded power supply system.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges,

and refrigerators. There is an increased risk of electric shock if your body is

grounded.

Do not expose power tools and appliances to rain or wet conditions. Water

entering a power tool or appliance will increase the risk of electric shock.

Stay alert. Watch what you are doing, and use common sense when operat-

ing this product. Do not use this product while tired or under the inﬂuence

of drugs, alcohol, or medication. A moment of inattention while operating this

product may result in serious personal injury.

PERSONAL SAFETY

Use safety equipment. Always wear ANSI-approved safety impact goggles when

using this product.

TOOL USE AND CARE

Do not force this product. Use the correct product for your application. The

correct product will do the job better and safer at the rate for which it is designed.

Do not use the Inverter if the Power Switch does not turn it on or off. Any

product that cannot be controlled with the Power Switch is dangerous and must be

replaced.

Turn off the Inverter and unplug it from its Power Cord before making any ad-

justments, changing accessories, or storing a tool or appliance. Such preven-

tive safety measures reduce the risk of starting the tool or appliance accidentally.

Store the Inverter out of reach of children and other untrained persons. This

product may be dangerous in the hands of untrained users.

Maintain this product with care. Keep the Inverter clean and dry. Properly main-

tained power equipment are less likely to bind and are easier to control. Do not use

this product if damaged. Tag a damaged Inverter “Do not use” until repaired.

Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect this product’s operation. If damaged,

SKU 95519 For technical questions, please call 1-800-444-3353 PAGE 3
