CHERRY JD-9100GB-2 Datasheet

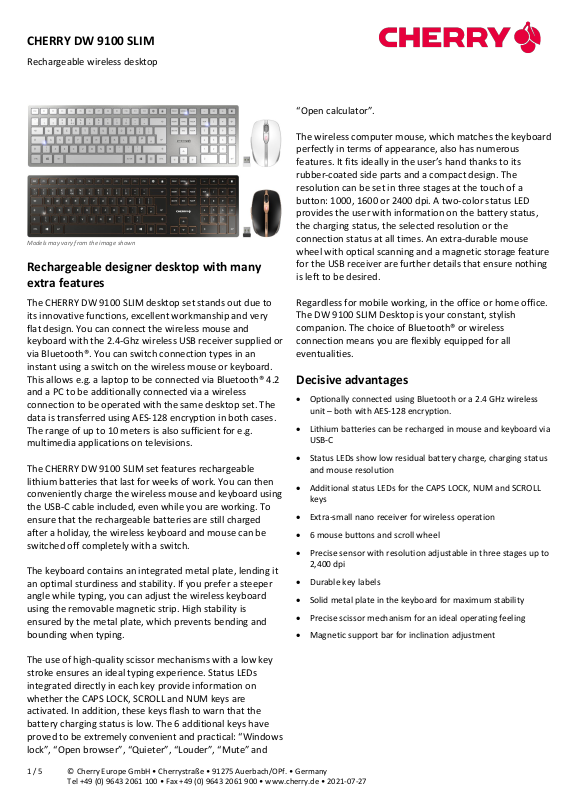

CHERRY DW 9100 SLIM

Rechargeable wireless desktop

Models may vary from the image shown

Rechargeable designer desktop with many extra features

The CHERRY DW 9100 SLIM desktop set stands out due to
its innovative functions, excellent workmanship and very
flat design. You can connect the wireless mouse and
keyboard with the 2.4-Ghz wireless USB receiver supplied or
via Bluetooth®. You can switch connection types in an
instant using a switch on the wireless mouse or keyboard.
This allows e.g. a laptop to be connected via Bluetooth® 4.2
and a PC to be additionally connected via a wireless
connection to be operated with the same desktop set. The
data is transferred using AES-128 encryption in both cases.
The range of up to 10 meters is also sufficient for e.g.
multimedia applications on televisions.

The CHERRY DW 9100 SLIM set features rechargeable
lithium batteries that last for weeks of work. You can then
conveniently charge the wireless mouse and keyboard using
the USB-C cable included, even while you are working. To
ensure that the rechargeable batteries are still charged
after a holiday, the wireless keyboard and mouse can be
switched off completely with a switch.

The keyboard contains an integrated metal plate, lending it
an optimal sturdiness and stability. If you prefer a steeper
angle while typing, you can adjust the wireless keyboard
using the removable magnetic strip. High stability is
ensured by the metal plate, which prevents bending and
bounding when typing.

The use of high-quality scissor mechanisms with a low key
stroke ensures an ideal typing experience. Status LEDs
integrated directly in each key provide information on
whether the CAPS LOCK, SCROLL and NUM keys are
activated. In addition, these keys flash to warn that the
battery charging status is low. The 6 additional keys have
proved to be extremely convenient and practical: “Windows
lock”, “Open browser”, “Quieter”, “Louder”, “Mute” and

“Open calculator”.

The wireless computer mouse, which matches the keyboard
perfectly in terms of appearance, also has numerous
features. It fits ideally in the user’s hand thanks to its
rubber-coated side parts and a compact design. The
resolution can be set in three stages at the touch of a
button: 1000, 1600 or 2400 dpi. A two-color status LED
provides the user with information on the battery status,
the charging status, the selected resolution or the
connection status at all times. An extra-durable mouse
wheel with optical scanning and a magnetic storage feature
for the USB receiver are further details that ensure nothing
is left to be desired.

Regardless for mobile working, in the office or home office.
The DW 9100 SLIM Desktop is your constant, stylish
companion. The choice of Bluetooth® or wireless
connection means you are flexibly equipped for all
eventualities.

Decisive advantages

• Optionally connected using Bluetooth or a 2.4 GHz wireless
unit – both with AES-128 encryption.

• Lithium batteries can be recharged in mouse and keyboard via
USB-C

• Status LEDs show low residual battery charge, charging status
and mouse resolution

• Additional status LEDs for the CAPS LOCK, NUM and SCROLL
keys

• Extra-small nano receiver for wireless operation

• 6 mouse buttons and scroll wheel

• Precise sensor with resolution adjustable in three stages up to

2,400 dpi

• Durable key labels

• Solid metal plate in the keyboard for maximum stability

• Precise scissor mechanism for an ideal operating feeling

• Magnetic support bar for inclination adjustment

1 / 5 © Cherry Europe GmbH • Cherrystraße • 91275 Auerbach/OPf. • Germany
Tel [phone] • Fax [phone] • www.cherry.de • 2021-07-27

CHERRY DW 9100 SLIM

Rechargeable wireless desktop

Technical specifications

Layout (country or language):

Depends on product, see “Models” table

Housing color:

Depends on product, see “Models” table

Key color:

Depends on product, see “Models” table

Weight (product):

Keyboard: approx. 675 g (incl. battery + magnetic bar)
Mouse: approx. 90 g (incl. battery)
Receiver: approx. 2 g
Cable: approx. 25 g
Transport pouch: approx. 10 g

Total weight (with packaging):

approx. 1,000 g

Transmission range:

approx. 10 m

Frequency range:

2,400 GHz - 2,4835 GHz

Storage temperature:

–15 °C to 60 °C, max. 85% humidity

Operating temperature:

0 °C to 40 °C, max. 85% humidity

Power input:

Keyboard: typically 5 mA
Mouse: typically 5 mA
Receiver: typically 25 mA

Connection:

Wireless, optionally via 2.4 GHz wireless (using USB wireless
receiver) or Bluetooth® 4.0 – both with AES-128 encryption

Connection sockets:

• USB-C socket for charging cable

Reliability:

MTBF > 80,000 hours

Product approvals:

• CE

• FCC

• WHQL Win 10 64-bit

• Bluetooth® SIG licensing

System requirements:

• For connection using Bluetooth®: Device compatible with min.
Bluetooth® 4.0 (low energy)

• For connection via USB: Free USB port (type A), Windows 7, 8
or 10

Scope of delivery:

• Keyboard

• Mouse

• Fabric pouch for mouse

• Nano USB receiver

• Magnetic support bar

• USB-A/USB-C charging cable

• Operating instructions

Product dimensions:

Keyboard: approx. 440 x 130 x 15 mm
Mouse: approx. 99 x 62.5 x 33.5 mm
Receiver: approx. 19 x 14.5 x 6.5 mm
Support bar: approx. 423 x 13.5 x 13.7 mm
Charging cable: approx. 120 cm

Packaging dimensions:

approx. 528 x 166.5 x 42mm

Mouse:

• Scanning: Optical (sensor: Pixart)

• Resolution: 1,000 dpi / 1,600 dpi / 2,400 dpi (switchable).

• Number of keys: 6

• Function buttons: right-click, left-click, scroll wheel, browser

forward, browser back, DPI switching

• Mouse wheel design: Scroll wheel with key function

• Design: Symmetrical

• Power supply: rechargeable lithium-ion battery with 550 mAh

(permanently installed)

• Status display: Bluetooth connection, wireless and battery
charge status (bi-color LED)

• Housing color: Depends on product, see “Models” table

• Key color: Depends on product, see “Models” table

Keyboard:

• Design: Chiclet layout with numeric keypad

• Key technology: SX

• Service life of standard key > 10 million strokes

• Magnetic support bar for inclination adjustment

• Power supply: rechargeable lithium-ion battery with 650 mAh

(permanently installed)

• Status display: Caps lock, Scroll and Num Lock key, battery
status (via LED in keys) Bluetooth connection, wireless and
battery charge status (bi-color LED)

• Number of keys: Depends on product, see table

• Number of additional keys: 6

• Additional key functions: Windows lock, open browser,

volume down, volume up, mute, calculator

Packaging unit:

Number of products in outer package 10
