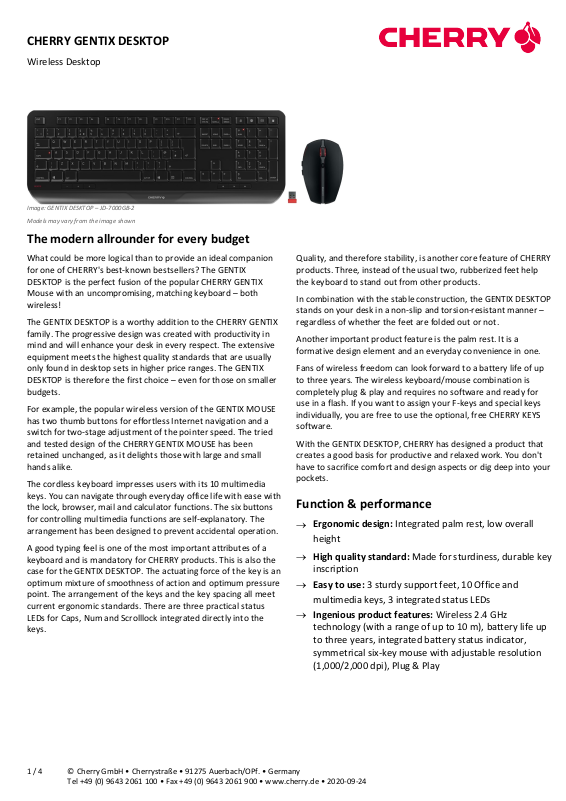

CHERRY GENTIX DESKTOP

Wireless Desktop

Image: GENTIX DESKTOP – JD-7000GB-2

Models may vary from the image shown

The modern allrounder for every budget

What could be more logical than to provide an ideal companion for one of CHERRY's best-known bestsellers? The GENTIX DESKTOP is the perfect fusion of the popular CHERRY GENTIX Mouse with an uncompromising, matching keyboard – both wireless!

The GENTIX DESKTOP is a worthy addition to the CHERRY GENTIX
family. The progressive design was created with productivity in
mind and will enhance your desk in every respect. The extensive
equipment meets the highest quality standards that are usually
only found in desktop sets in higher price ranges. The GENTIX
DESKTOP is therefore the first choice – even for those on smaller
budgets.

For example, the popular wireless version of the GENTIX MOUSE
has two thumb buttons for effortless Internet navigation and a
switch for two-stage adjustment of the pointer speed. The tried
and tested design of the CHERRY GENTIX MOUSE has been
retained unchanged, as it delights those with large and small
hands alike.

The cordless keyboard impresses users with its 10 multimedia
keys. You can navigate through everyday office life with ease with
the lock, browser, mail and calculator functions. The six buttons
for controlling multimedia functions are self-explanatory. The
arrangement has been designed to prevent accidental operation.

A good typing feel is one of the most important attributes of a
keyboard and is mandatory for CHERRY products. This is also the
case for the GENTIX DESKTOP. The actuating force of the key is an
optimum mixture of smoothness of action and optimum pressure
point. The arrangement of the keys and the key spacing all meet
current ergonomic standards. There are three practical status
LEDs for Caps, Num and Scrolllock integrated directly into the
keys.

Quality, and therefore stability, is another core feature of CHERRY products. Three, instead of the usual two, rubberized feet help the keyboard to stand out from other products.

In combination with the stable construction, the GENTIX DESKTOP stands on your desk in a non-slip and torsion-resistant manner – regardless of whether the feet are folded out or not.

Another important product feature is the palm rest. It is a formative design element and an everyday convenience in one.

Fans of wireless freedom can look forward to a battery life of up
to three years. The wireless keyboard/mouse combination is
completely plug & play and requires no software and ready for
use in a flash. If you want to assign your F-keys and special keys
individually, you are free to use the optional, free CHERRY KEYS
software.

With the GENTIX DESKTOP, CHERRY has designed a product that creates a good basis for productive and relaxed work. You don't have to sacrifice comfort and design aspects or dig deep into your pockets.

Function & performance

Ergonomic design: Integrated palm rest, low overall

→

height

High quality standard: Made for sturdiness, durable key

→

inscription

Easy to use: 3 sturdy support feet, 10 Office and

→

multimedia keys, 3 integrated status LEDs

→ Ingenious product features: Wireless 2.4 GHz

technology (with a range of up to 10 m), battery life up
to three years, integrated battery status indicator,
symmetrical six-key mouse with adjustable resolution
(1,000/2,000 dpi), Plug & Play

1 / 4 © Cherry GmbH • Cherrystraße • 91275 Auerbach/OPf. • Germany
Tel [phone] • Fax [phone] • www.cherry.de • 2020-09-24

CHERRY GENTIX DESKTOP

Wireless Desktop

Technical Data

Layout (country or language):

Product dependant, see table "Models"

Weight (product):

Keyboard: approx. 875 g (with Battery)
Mouse: approx. 92 g (with Battery)
Receiver: approx. 2 g

Total weight (with packaging):

approx. 1.336 g

Transmission range:

approx. 10 m

Frequency range:

2.400 GHz - 2.4835 GHz

Effective radiated power:

Max. 10 mW (EIRP)

Storage temperature:

-20 °C to 60 °C max. 85% humidity

Operating temperature:

0 °C to 40 °C max 85% humidity

Current consumption:

Keyboard: typ. 6 mA
Mouse: typ. 4,3 mA
Receiver: typ. 26 mA

Interface:

USB

Reliability:

MTBF > 80.000 hours

Product approvals:

• CE

• FCC

• cTÜVus

• WHQL Win 10 64-bit

System requirements:

USB connection (Typ A)
Windows 8 or 10

Delivery volume:

• Keyboard

• Mouse

• Batteries for Keyboard (2 x AAA) and Mouse (2 x AAA)

• Nano-USB-Receiver

• Manual

• Warranty

Dimensions product:

Keyboard: approx. 456 x 170 x 21 mm
Mouse: approx. 111 x 69 x 35 mm
Receiver: approx. 19 x 14 x 6 mm

Dimensions Packaging:

Single carton: approx. 545 x 205 x 45 mm
Master carton: approx. 560 x 490 x 230 mm

Mouse:

• Design: Symmetrical

• Colour: black

• Scanning: Optical Sensor (PixArt)

• Resolution: 1000 dpi / 2000 dpi (adjustable)

• Number of hotkeys: 6

• Function hotkeys: button Right/Left-click, Scroll wheel;

Browser for; Browser back, DPI-switch

• Mouse wheel design: Scroll wheel with key function

• Status LED: DPI, battery status

Keyboard:

• Fullsize layout with number pad

• Colour: black

• Service life, standard key: > 10 million key operations

• Anti-slip feet: 6 Pieces

• Status-LED: Caps Look, scroll- and Num-key, Battery status (via

Status LED in the scroll key)

• Number of additional keys: 10

• Additional keys function: Windows Lock, Browser, E-Mail

program, Calculator, Volume up, Mute, Volume down,
Previous title, Next title, Play/pause

• Number of Keys: Product dependant, see table "Models"

Packaging Unit:

Number of products in the master carton: 10
Number of master packages per pallet: 12
