Techno Strobe 168
User Manual
16 pgs2.12 Mb0

CHAUVET DJ Techno Strobe 168 User Manual

Download
Page 1
User Manual
Page 2
TABLE OF CONTENTS
1. Before You Begin ...........................................................................................................3
Claims ................................................................................................................................................. 3
2. Introduction ....................................................................................................................5
3. Setup ...............................................................................................................................7
Fuse Replacem ent ............................................................................................................................... 7
Power Linking ...................................................................................................................................... 8
Orientation ........................................................................................................................................... 9
Rigging ................................................................................................................................................ 9
4. Operation ......................................................................................................................10
Starting Address ................................................................................................................................ 10
DIP Switch Reference Guide .............................................................................................................. 11
2-Channel .......................................................................................................................................... 12
Sound-Active Mode ............................................................................................................................ 12
Strobe Mode ...................................................................................................................................... 12
Full On Mode ..................................................................................................................................... 12
Master/Slave Mode ............................................................................................................................ 13
5. Technical Information ..................................................................................................14
6. Technical Specifications ..............................................................................................15
Pag e 2 of 16 Techno Strobe™ 168 User Manual (Rev. 2)
Page 3
What Is
Included
Unpacking
Instructions
and check the container to make sure all the
ng components or parts, damage not related to shipping,
Text
[10]
A DIP switch to be configured
1~512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Symbols
Critical installation, configuration, or operation information. Not
damage to the product, or cause harm to the operator.
Disclaimer
are subject to change
ity for any errors or
1. BEFORE YOU BEGIN
Claims
Conventions
• Techno Strobe™ 168
• Power Cord
Carefully unpack the product immediately parts are in the package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not CHAUVET®. Failure to report damage to the carrier imm ediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missi or concealed damage, file a claim with CHAUVET® withi n 7 days of delivery.
Convention Meaning
Symbol Meaning
• Warranty Card
• Quick Reference Guide
The information and specifications contained in this User Manual without notice. CHAUVET® assumes no responsibility or liabil omissions, and reserves the right to revise or recreate this manual at any time. Download the latest version from www.chauvetlighting.com.
© Copyright 2013 CHAUVET®. All rights reserved.
Electronically published by CHAUVET® in the United States of America.
Author Date Editor Updated
A. Leon 10/25/12 S. Diaz 1/28/13
following these instructions may make the product not work, cause
Important installation or configuration information. The product may not function correctly if this inform ation is not used.
Useful information.
Techno Strobe™ 168 User Manual (Rev. 2) Pag e 3 of 16
Page 4
Product at a
Safety Notes
• Always make sure that the voltage of the outlet to which you are connecting the
Glance
Use on Dimmer
Outdoor Use
Sound-Active
DMX
Master/Slave
These notes include important information about the mounting, usage, and maintenance of this product; read before using the product.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing
the fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a
safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
product is within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Make sure to repl ace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket.
• The maximum ambient temperature (Ta) is 104° F (40° C). Do not operate the product at higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Contact the nearest authorized technical assistance center.
• This product is not intended for permanent installation.
Auto Programs
Auto-ranging Power Supply
Replaceable Fuse
User-Serviceable
Duty Cycle
• Keep this User Manual for future use. If you sell the product to another user, be sure to give this docum ent to the next owner.
Pag e 4 of 16 Techno Strobe™ 168 User Manual (Rev. 2)
Page 5
2. INTRODUCTION
Overview
DMX In
Back Panel View
DMX Out
DIP Switches
Power Out
Power In
Fuse Holder
Techno Strobe™ 168 User Manual (Rev. 2) Pag e 5 of 16
Intensity
Adjustment Knob
Speed
Adjustment
Knob
Page 6
Dimensions
Pag e 6 of 16 Techno Strobe™ 168 User Manual (Rev. 2)
Page 7
AC Power
ranging power supply and it can work with an
breaker or fuse). Make
an appropriate electrical ground to avoid the risk of
a rheostat (variable resistor) or dimmer circuit, even
Fuse
Installed fuse (held by plastic clip)
Spare fuse holder
(inside safety cap)
Safety cap
3. SETUP
The Techno Strobe™ 168 has an auto­input voltage range of 100~240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s average current draw under normal conditions.
Always connect the product to a protected circuit (circuit sure the product has electrocution or fire.
Never connect the product to if the rheostat or dimmer channel serves only as a 0~100% switch.
Replacement
Disconnect the product from power before replacing the fuse.
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder.
5. Replace with a fuse of the exact sam e type and rating.
6. Insert the fuse holder back in place and reconnect power.
A spare fuse is not included; however, the safety cap has room for a spare.
Always replace a blown fuse with another of the same type and rating.
Techno Strobe™ 168 User Manual (Rev. 2) Pag e 7 of 16
Page 8

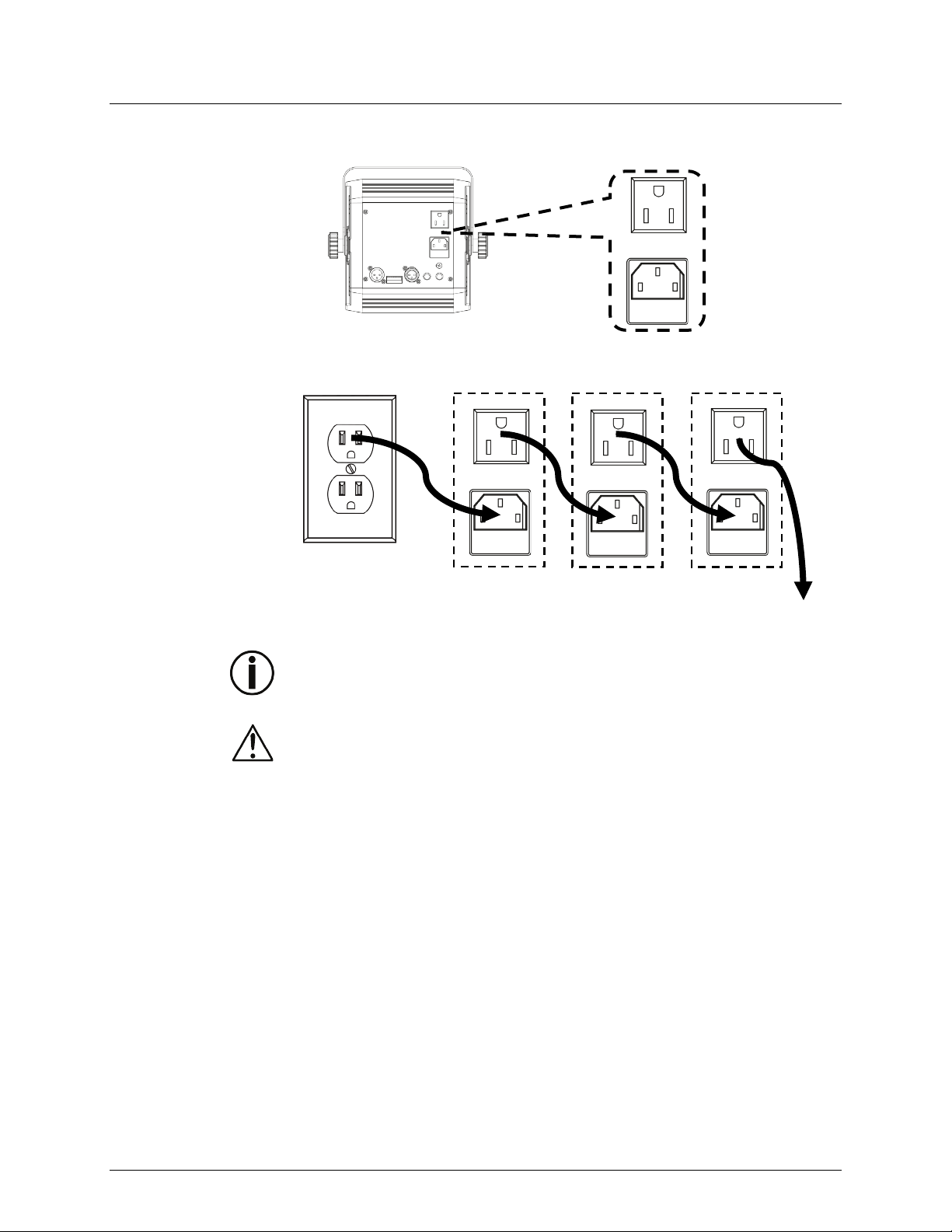

Power Linking
ower Linking
The power linking diagram shown above corresponds to the North American
in other markets, you must
consult with the local CHAUVET® distributor as power linking connectors and
1st Product
2nd Product
3rd Product
Additional
Products
The product provides power linking via the Edison/IEC outlet located in the back of the unit.
P
Diagram
You can power link up to 34 Techno Strobe™ 168 units on 120 VAC or up to 57 Techno Strobe™ 168 units on 230 VAC.
version of the product ONLY! If using the product
requirements may differ in your country or region.
Pag e 8 of 16 Techno Strobe™ 168 User Manual (Rev. 2)
Page 9
Mounting
, read and follow the safety recommendations indicated in
Rigging
Mount the
appropriate
surface mounting.
Before mounting the product the Safety Notes.
Orientation
The Techno Strobe™ 168 may be mounted in any position; however, make sure adequate ventilation is provided around the product.
• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
• Make sure that the structure or surface onto which you are mounting the product can support the product’s weight (see the Technical Specifications).
• When mounting the product overhead, always use a safety cable. product securely to a rigging point, such as an elevated platform or a truss.
• When rigging the product onto a truss, you should use a mounting clamp of appropriate weight capacity. The bracket has 13-mm holes, which are for this purpose.
• When power linking multiple products, you must always consider the length of the power linking cable and mount the products close enough for the cable to reach.
• The bracket adjustment knobs allow for directional adjustm ent when aiming the product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.
• The mounting bracket also serves as floor supports/allow for When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
Mounting
Clamp
Safety
Cable
Mounting
Bracket
Mounting
Diagram
Bracket
Adjustment
Knob
Techno Strobe™ 168 User Manual (Rev. 2) Pag e 9 of 16
Page 10
Configuration
starting address that is too high, you could
starting address
Starting Address
until the
position matches the desired address
Starting Address
4. OPERATION
(DMX)
Set the product in DMX mode to control with a DMX controller.
1. Connect the product to a suitable power outlet.
2. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product.
Starting Address
Settings
Examples
When selecting a starting DMX address, always consider the num ber of DMX channels the selected DMX mode uses. If you choose a restrict the access to some of the product’s channels.
The Techno Strobe™ 168 uses up to 2 DMX channels in its 2-channel personality DMX mode, which defines the highest configurable address to 511. The DMX is configured through the DIP switches located on the back panel.
If unfamiliar with DMX or DIP switches, download the DMX Primer from
www.chauvetlighting.com.
DIP Switch 1 2 3 4 5 6 7 8 9
Value 1 2 4 8 16 32 64 128 256
Select the desired starting address by setting DIP switches [1]~[9] to On or Off sum of the value of the DIP switches in the On number.
Refer to the exam ples below for more information.
1. To select DMX address 1, set DIP switch [1] to On.
2. To select DMX address 64, set DIP switch [7] to On.
3. To select DMX address 31, set DIP switches [1], [2], [3], [4], and [5] to On.
(1 + 2 + 4 + 8 + 16 = 31)
