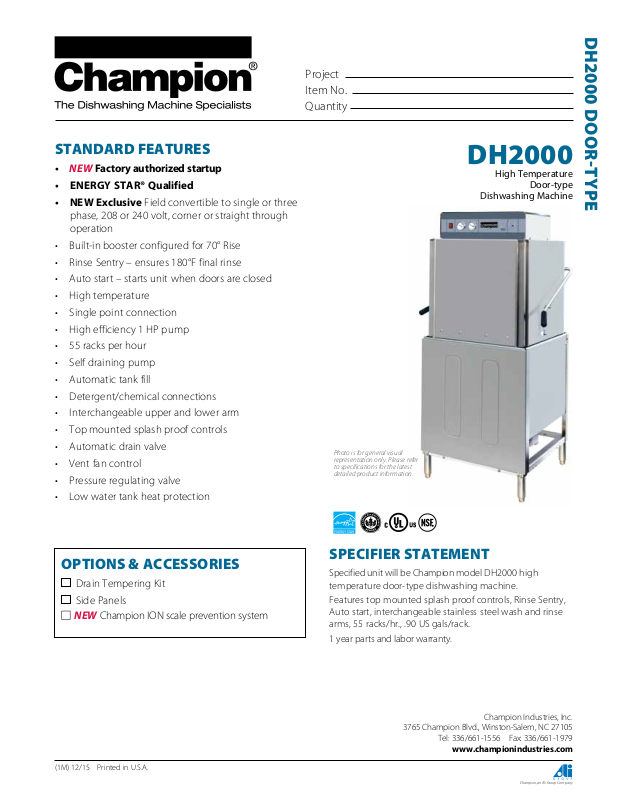

Champion DH2000 User Manual
Project
Item No.
Quantity
DH2000 DOOR-TYPE
STANDARD FEATURES
• NEW Factory authorized startup
• ENERGY STAR® Qualified
• NEW Exclusive Field convertible to single or three
phase, 208 or 240 volt, corner or straight through
operation
• Built-in booster configured for 70° Rise
• Rinse Sentry – ensures 180°F final rinse
• Auto start – starts unit when doors are closed
• High temperature
• Single point connection
• High efficiency 1 HP pump
• 55 racks per hour
• Self draining pump
• Automatic tank fill
• Detergent/chemical connections
• Interchangeable upper and lower arm
• Top mounted splash proof controls
• Automatic drain valve
• Vent fan control
• Pressure regulating valve
• Low water tank heat protection
Photo is for general visual
representation only. Please refer
to specifications for the latest
detailed product information.
DH2000
High Temperature
Door-type
Dishwashing Machine
OPTIONS & ACCESSORIES
Drain Tempering Kit
Side Panels
NEW Champion ION scale prevention system
(1M) 12/15 Printed in U.S.A.
SPECIFIER STATEMENT
Specified unit will be Champion model DH2000 high
temperature door-type dishwashing machine.
Features top mounted splash proof controls, Rinse Sentry,
Auto start, interchangeable stainless steel wash and rinse
arms, 55 racks/hr., .90 US gals/rack.
1 year parts and labor warranty.
Champion Industries, Inc.
3765 Champion Blvd., Winston-Salem, NC 27105
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
Champion, an Ali Group Company
DH2000
Typical Table Construction
7-1/4"
21-3/8"
Top View
1
2
2
2
3
3
3
Typical Table Construction
63-3/4"
57-1/4"
38"
33-3/4"
4-1/2"
19-3/4"
2-1/2"
6" Min
6" [152]Min
6" Min
7-1/4"
7-7/8"
25-3/8"
25-3/8"
31-7/8"
28-3/8"
30"
1-1/2" Roll
1-1/8"
7-1/4"
21-3/8"
Front view
Top View
1
2
2
3
3
Typical Table Construction
63-3/4"
57-1/4"
38"
33-3/4"
4-1/2"
19-3/4"
2-1/2"
6" Min
7-1/4"
7-7/8"
31-7/8"
28-3/8"
7-1/4"
21-3/8"
Top View
2
3
Typical Table Construction
63-3/4"
6" Min
7-1/4"
7-7/8"
31-7/8"
28-3/8"
1-1/2" Roll
7-1/4"
21-3/8"
2
3
Typical Table Construction
6" Min
7-1/4"
7-7/8"
25-3/8"
31-7/8"
28-3/8"
30"
1-1/2" Roll
1-1/8"
7-1/4"
21-3/8"
High Temperature
Door-type
Dishwashing Machine
DH2000 DOOR-TYPE
Shipping weight crated: 300 lbs.
2
59-1/8"
1
18-3/4"
3
6-5/8"
12-7/8"
3
3
2
6" Min
7-7/8"
Corner Configuration
2
6" Min
3
Utilities
1 Water
3/4" NPT Flow pressure 20-25 PSI
Hot water 140°F (82°C)
2 Electrical 70° Booster
A. 208-220/60/1 (See Box)
B. 208-220/60/3 (See Box)
31-7/8"
Straight Through
3 Drain
A. 2" OD Connection
Gravity flow, 15 GRM max flow
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., 3765 Champion Blvd., NC 27105 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
‘USGBC’ and related logo is a trademark owned by the U.S. Green Building Council and is used by permission.
6" [152]Min
25-3/8"
7-1/4"
28-3/8"
2
2-1/2"
57-1/4"
4-1/2"
1
19-3/4"
3
38"
33-3/4"
Front View Door ClearanceSide View
30"
1-1/2" Roll
21-3/8"
1-1/8"
Typical Table Construction
Machine and Electric 40°F/70°F
OR 70°F Rise Booster
Voltage
208/60/1 65 80 80
240/60/1 75 80 80
208/60/3 40 50 50
240/60/3 45 50 50
Warning: Plumbing, electrical connections should be
made by qualified personnel who will observe all the
applicable plumbing, sanitary and safety codes and
the National Electrical Code.
Rated
Amps
Min.
Supply Ckt.
Conductor
Ampacity
Max.
Overcurrent
Protective
Device
Dimensions shown in inches
17-5/8"
7-1/4"
20-5/8"
SPECIFICATIONS
Capacities
Racks per hr. (NSF rated) 55
Wash tank (gal.) 9.5
Motor horsepower
Water consumption
Gal. per hr. (max. use) 49.5
Gal. per rack 0.9
Temperature °F
Wash 150
Rinse 180
Heating
Tank heat, electric 5.2 kW
Electric Booster 7.5 kW
Time cycle in seconds
Wash 40
Dwell 1
Rinse 12
Sanitary Dwell 7
Total cycle 60
76"
54-1/8"
1 HP
