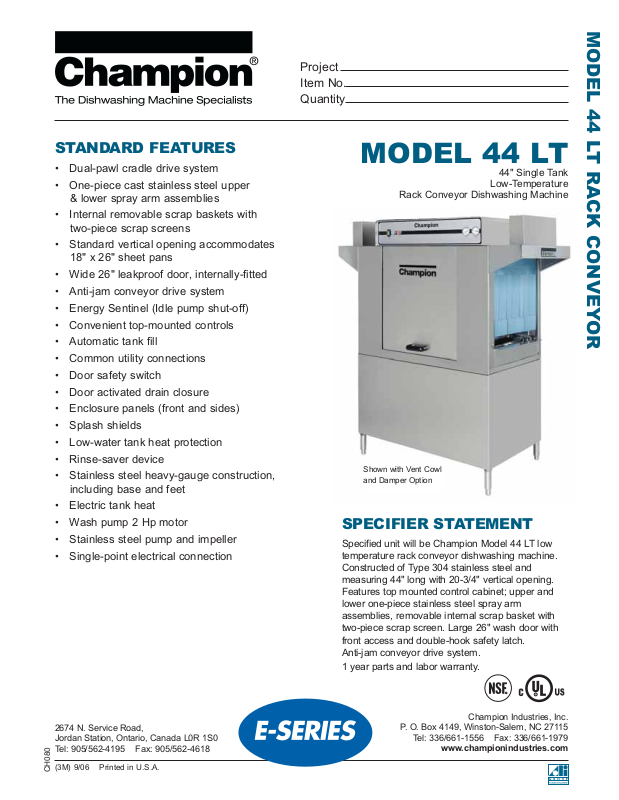

Champion 44 LT User Manual
Project
Item No.
Quantity
MODEL 44 LT RACK CONVEYOR
STANDARD FEATURES
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap baskets with
two-piece scrap screens
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 26" leakproof door, internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Wash pump 2 Hp motor
• Stainless steel pump and impeller
• Single-point electrical connection
MODEL 44 LT
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 44 LT low
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and
measuring 44" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm
assemblies, removable internal scrap basket with
two-piece scrap screen. Large 26" wash door with
front access and double-hook safety latch.
Anti-jam conveyor drive system.
1 year parts and labor warranty.
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
(3M) 9/06 Printed in U.S.A.
CH080
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 44 LT
www.championindustries.com
Wall-of-Water Spray Pattern
Built-in Scrap Basket
Large Heating Element
Two-Piece Scrap Screen
One-Piece Cast Stainless
Steel Spray Assembly
EFFICIENT NEW
SPRAY SYSTEM DESIGN
To make the E-Series more efficient and
more forgiving we designed a new spray
arm system that includes:
• Wall-of-water spray pattern via
stainless steel fluted directional
spray jets for quick and efficient
washing
• Easily removable spray arm
assembly for ease of cleaning
• Stainless steel pump housing
and impeller
• Larger tanks hold more water for
better washing results
