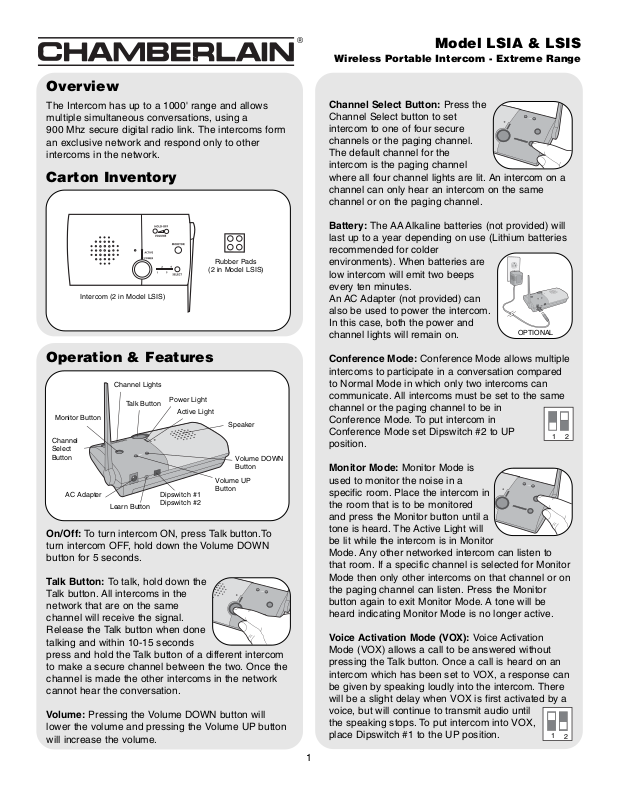

Chamberlain LSIS, LSIA User Manual

Carton Inventory

Overview

The Intercom has up to a 1000' range and allows multiple simultaneous conversations, using a 900 Mhz secure digital radio link. The intercoms form an exclusive network and respond only to other intercoms in the network.

Intercom (2 in Model LSIS)

Rubber Pads

(2 in Model LSIS)

Operation & Features

Channel Select Button: Press the Channel Select button to set intercom to one of four secure channels or the paging channel. The default channel for the intercom is the paging channel where all four channel lights are lit. An intercom on a channel can only hear an intercom on the same channel or on the paging channel.

Battery: The AA Alkaline batteries (not provided) will last up to a year depending on use (Lithium batteries recommended for colder environments). When batteries are low intercom will emit two beeps every ten minutes. An AC Adapter (not provided) can also be used to power the intercom. In this case, both the power and channel lights will remain on.

Conference Mode: Conference Mode allows multiple intercoms to participate in a conversation compared to Normal Mode in which only two intercoms can communicate. All intercoms must be set to the same channel or the paging channel to be in Conference Mode. To put intercom in Conference Mode set Dipswitch #2 to UP position.

Monitor Mode: Monitor Mode is used to monitor the noise in a specific room. Place the intercom in the room that is to be monitored and press the Monitor button until a tone is heard. The Active Light will be lit while the intercom is in Monitor Mode. Any other networked intercom can listen to that room. If a specific channel is selected for Monitor Mode then only other intercoms on that channel or on the paging channel can listen. Press the Monitor button again to exit Monitor Mode. A tone will be heard indicating Monitor Mode is no longer active.

Voice Activation Mode (VOX): Voice Activation Mode (VOX) allows a call to be answered without pressing the Talk button. Once a call is heard on an intercom which has been set to VOX, a response can be given by speaking loudly into the intercom. There will be a slight delay when VOX is first activated by a voice, but will continue to transmit audio until the speaking stops. To put intercom into VOX, place Dipswitch #1 to the UP position.

On/Off: To turn intercom ON, press Talk button.To turn intercom OFF, hold down the Volume DOWN button for 5 seconds.

Talk Button: To talk, hold down the Talk button. All intercoms in the network that are on the same channel will receive the signal. Release the Talk button when done talking and within 10-15 seconds press and hold the Talk button of a different intercom to make a secure channel between the two. Once the channel is made the other intercoms in the network cannot hear the conversation.

Volume: Pressing the Volume DOWN button will lower the volume and pressing the Volume UP button will increase the volume.

Volume UP Button

Talk Button

Learn Button

Dipswitch #1 Dipswitch #2

AC Adapter

Model LSIA & LSIS

Wireless Portable Intercom - Extreme Range

OPTIONAL

Channel Select Button

Channel Lights

Power Light

Active Light

Volume DOWN Button

Monitor Button

Speaker

Assemble Intercom

Step 1

Step 2

Install 4 AA Alkaline batteries (not provided). (Lithium batteries recommended for colder environments.)

Programming Intercom

Adhere rubber pads to bottom. Repeat Steps 1 and 2 for any additional intercoms.

The intercom must be programmed to at least one other intercom to become a network or it can be programmed into an existing network.

Create New Network

Press the Learn button on the new intercom until a beep is heard. Within 10 seconds put the second intercom into Learn Mode (refer to the following table).

Add to an Existing Network

Press the Learn button on the new intercom until a beep is heard. Within 10 seconds put any networked intercom into Learn Mode (refer to table below).

Press and release the Talk button to verify network is complete.

INTERCOM LEARN MODE

Press the Learn button until a beep is heard.

Press and hold both buttons for 5 seconds.

Each intercom will emit a tone when programmed into network. Repeat for any additional intercoms.

NOTE: Do not program new intercoms to each other before adding them to the network or they will form a separate network and the memory will need to be cleared.

INTERCOM LEARN MODE

Press the Learn button until a beep is heard.

Press and hold both buttons for 5 seconds.
