GARAGE DOOR OPENER
Model HD800D 1/2 HP
For Residential Use Only
Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless The Protector System® is connected and properly aligned.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the front panel of your opener.
TABLE OF CONTENTS |
|
Introduction |
2-7 |
Safety symbol and signal word review ............................... |
2 |
Preparing your garage door................................................ |
3 |
Tools needed....................................................................... |
3 |
Planning .......................................................................... |
4-5 |
Carton inventory.................................................................. |
6 |
Hardware inventory............................................................. |
7 |
Assembly |
8-11 |
Assemble the rail and install the trolley .............................. |
8 |
Fasten the rail to the motor unit.......................................... |
9 |
Install the idler pulley .......................................................... |
9 |
Install the belt and attach the belt cap retainer................. |
10 |
Set the tension .................................................................. |
11 |
Installation |
11-26 |
Installation safety instructions ........................................... |
11 |
Determine the header bracket location............................. |
12 |
Install the header bracket ................................................. |
13 |
Attach the rail to the header bracket................................. |
14 |
Position the opener ........................................................... |
15 |
Hang the opener ............................................................... |
16 |
Install the door control ...................................................... |
17 |
Install the lights ................................................................. |
18 |
Attach the emergency release rope and handle............... |
18 |
Electrical requirements ..................................................... |
19 |
Install The Protector System® ...................................... |
20-22 |
Fasten the door bracket............................................... |
23-24 |
Connect the door arm to the trolley ............................. |
25-26 |
Adjustment |
27-29 |
Program the travel limits ................................................... |
27 |
Setting the force................................................................ |
28 |
Test the safety reversal system ........................................ |
29 |
Test The Protector System® .............................................. |
29 |
Operation |
30-36 |
Operation safety instructions ............................................ |
30 |
Using your garage door opener ........................................ |
30 |
Using the wall-mounted door control ................................ |
31 |
To open the door manually ............................................... |
31 |
Battery backup unit ...................................................... |
32-33 |
Care of your garage door opener ..................................... |
34 |
Having a problem?............................................................ |
35 |
Diagnostic chart ................................................................ |
36 |
Programming |
37-38 |
To add or reprogram a hand-held remote control............. |
37 |
To erase all codes from motor unit memory ..................... |
37 |
3-Button remotes .............................................................. |
37 |
To add, reprogram or change |
|
a Keyless Entry PIN.......................................................... |
38 |
Repair Parts |
39-40 |
Rail assembly parts........................................................... |
39 |
Installation parts................................................................ |
39 |
Motor unit assembly parts................................................. |
40 |
Accessories |
41 |
Operator Notes |
42-43 |
Repair Parts and Service |
44 |
Warranty |
44 |
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.
Electrical
When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.
2
Before you begin:
•Disable locks.
•Remove any ropes connected to garage door.
•Complete the following test to make sure your garage door is balanced and is not sticking or binding:
1.Lift the door about halfway as shown. Release the door. If balanced, it should stay in place, supported entirely by its springs.
2.Raise and lower the door to see if there is any binding or sticking.
If your door binds, sticks, or is out of balance, call a trained door systems technician.
Sectional Door |
One-Piece Door
To prevent possible SERIOUS INJURY or DEATH:
•ALWAYS call a trained door systems technician if garage door binds, sticks or is out of balance. An unbalanced garage door may not reverse when required.
•NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension.
•Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.
To prevent damage to garage door and opener:
•ALWAYS disable locks BEFORE installing and operating the opener.
•ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.
During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.
Carpenter's
Level (optional) |
1 |
2 |
|
|
Tape Measure
Drill Bits
Drill 3/16", 5/16"
and 5/32"
Stepladder |
Sockets and Wrench |
|
1/2", 5/8", 7/16", 9/16" |
||
|
||
|
and 1/4" |
Pencil
Hack Saw
Claw Hammer
Wire Cutters
Screwdriver
Pliers
Adjustable End Wrench
3
Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.
Depending on your requirements, there are several installation steps which may call for materials or hardware not included in the carton.
•Installation Step 1 – Look at the wall or ceiling above the garage door. The header bracket must be securely fastened to structural supports.
•Installation Step 5 – Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware may be required.
•Installation Step 10 – Depending upon garage construction, extension brackets or wood blocks may be needed to install sensors.
•Installation Step 10 – Alternate floor mounting of the safety reversing sensor will require hardware not provided.
•Do you have an access door in addition to the garage door? If not, Model 7702CB Emergency Key Release is required. See Accessories page.
•Look at the garage door where it meets the floor. Any gap between the floor and the bottom of the door must not exceed 1/4" (6 mm). Otherwise, the safety reversal system may not work properly. See Adjustment Step 3. Floor or door should be repaired.

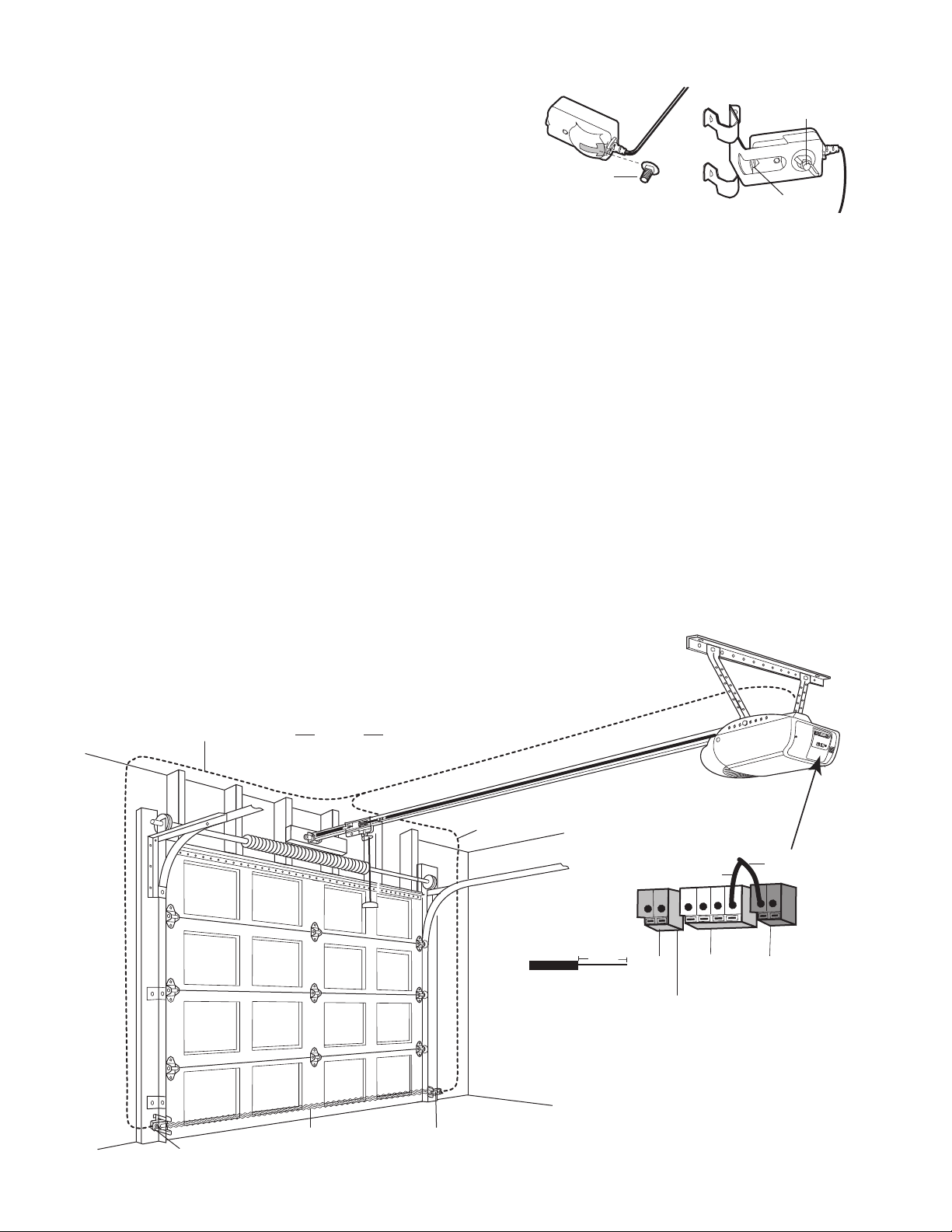

SECTIONAL DOOR INSTALLATIONS
•Do you have a steel, aluminum, fiberglass or glass panel door? If so, horizontal and vertical reinforcement is required (Installation Step 11).
•The opener should be installed above the center of the door. If there is a torsion spring or center bearing plate in the way of the header bracket, it may be installed within 4 feet (1.22 m) to the left or right of the door center. See Installation Steps 1 and 11.
•If your door is more than 7 feet (2.13 m) high, see rail extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION |
FINISHED CEILING |
|
|
||
|
Support bracket & |
|
Horizontal and vertical reinforcement |
fastening hardware |
|
is required. |
||
is needed for lightweight garage doors |
||
See page 16. |
||
(fiberglass, steel, aluminum, door with |
||
|
||
glass panels, etc.). See page 23 for details. |
|
|
|
Rail |
|
Header Wall |
|
|
|
Motor Unit |
|
|
Extension Spring |
|
|
OR |
|
|
Torsion Spring |
Vertical |
— |
|
Centerline |
— |
|
of Garage |
||
— |
||
Door |
||
|
||
|
— — — |
|
|
— — |
|
Gap between floor |
|
Safety Reversing |
and bottom of door |
|
must not exceed 1/4" (6 mm). |
||
Sensor |
||
|
Wall-
mounted
Door Access Door Control
Safety Reversing
Sensor
|
Header |
|
CLOSED POSITION |
|
|
|
|
|
Bracket |
Trolley |
Trolley |
|
|
Stop Bolt |
|
|
Garage |
|
|
|
Door |
|
Belt |
|
Spring |
|
|
|
|
Straight |
|
|
|
Door |
Emergency Release |
|
|
Rope & Handle |
|
|
|
Arm |
|
|
|
|
|
Header |
|
Curved |
|
|
Door |
|
|
Wall |
|
Arm |
|
Garage |
Door |
|
|
Bracket |
|
||
Door |
|
||
|
|
|
4
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require reinforcement. If your door is lightweight, refer to the information relating to sectional doors in Installation Step 11.
•Depending on your door’s construction, you may need additional mounting hardware for the door bracket (Step 11).
Without a properly working safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
•The gap between the bottom of the garage door and the floor MUST NOT exceed 1/4" (6 mm). Otherwise, the safety reversal system may not work properly.
•The floor or the garage door MUST be repaired to eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK |
|
|
|
||
|
|
FINISHED CEILING |
|
|
|
|
|
Support bracket |
|
|
|
|
|
& fastening |
|
|
|
|
|
hardware is required. |
|
|
|
|
|
See page 16. |
|
|
|
|
Header Wall |
|
|
|
|
|
|
Rail |
Motor Unit |
|
|
|
|
|
|
|
|
|
|
Wall-mounted |
|
|
|
|
|
Door Control |
|
|
|
|
|
Access |
|
|
|
|
|
Door |
|
CLOSED POSITION |
|
|
|
|
Trolley Stop Bolt |
|
|
|
|
|
|
Belt Trolley |
|
|
|
|
Header |
Rail |
|
|
|
|
Bracket |
|
|
|
|
|
|
|
|
|
|
Safety Reversing |
Door Bracket |
|
Emergency |
|
|
|
|
Release |
|
|
|
Sensor |
|
|
|
|
Gap between floor |
|
|
Rope & Handle |
|
|
|
|
|
||
|
and bottom of door must not exceed 1/4" (6 mm). |
|
Straight |
Curved |
|
Safety Reversing |
|
Door |
|||
|
|
|
Door |
||
Sensor |
|
|
|
Arm |
|
|
|
|
Arm |
||
|
|
Header |
|
|
|
|
|
Garage |
|
||
|
|
Wall |
|
||
|
|
Door |
|
|
|
|
|
|
|
|
ONE-PIECE DOOR WITH TRACK |
CLOSED POSITION
|
Trolley Stop Bolt |
Belt |
Trolley |
||
Access |
|
|
|
|
|
Door |
Header |
Curved |
|
||
Header |
|
||||
Bracket |
Door Arm |
Rail |
|||
Wall |
|||||
|
|
|
|
||
|
Door |
|
|
Emergency |
|
|
Bracket |
Straight |
Release |
||
|
Garage |
Door |
Rope & |
||
|
Handle |
||||
|
Arm |
||||
|
Door |
|
|
||
|
|
|
|
|
|
Safety |
|
|
Gap between floor |
Reversing |
|
|
Sensor |
||
|
and bottom of door |
||
Safety |
|
||
must not exceed 1/4" (6 mm). |
|||
Reversing Sensor |
|||
|
|
5

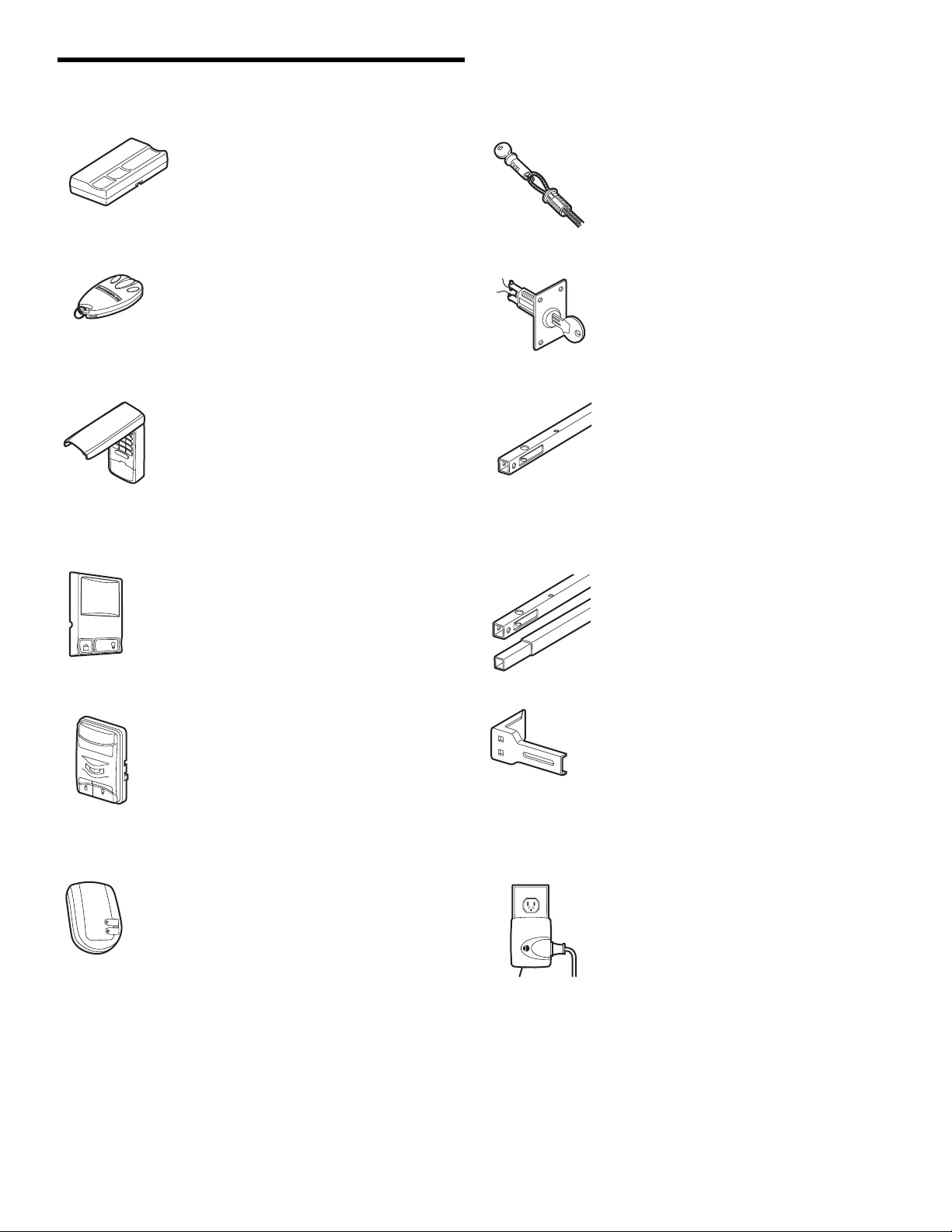

Your garage door opener is packaged in one carton which contains the motor unit and all parts illustrated below. Accessories will depend on the model purchased. If anything is missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for assembly and installation is shown on the next page. Save the carton and packing material until installation and adjustment is complete.
LOCK
LIGHT
Motion Detecting
Door Control Panel
Battery Backup Unit
Belt Cap Retainer
Motor Unit with Light Lens
Idler Pulley
Rail
Front (header)
Section
Header Bracket
Remote Control
Transmitter Visor Clip
SECURITY ®
3-Button Remote Control (2)
Trolley
Rail
Center/Back
Sections
"U" Bracket
Belt
Curved Door
Arm Section
Door Bracket
2-Conductor Bell Wire
White & White/Red
|
|
The Protector System® |
Safety Labels |
|
Safety Sensor |
||||
(2) Safety Reversing Sensors |
||||
Bracket (2) |
and |
|||
(1 Sending Eye and 1 Receiving Eye) |
||||
|
|
Literature |
||
|
|
with 2-Conductor White & White/Black |
||
|
|
|
||
|
|
Bell Wire attached |
|
SECURITY ®
Keyless Entry
Hanging Bracket
Straight Door
Arm Section
6
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
Spring/Trolley Nut (1) |
Lock Nut |
Lock Washer |
Nut |
1/4"-20 (2) |
3/8" (1) |
3/8" (1) |
Bolt 1/4"-20x1-3/4" (2)
Master |
|
Link (2) |
Idler Bolt (1) |
Trolley Threaded Shaft (1)
|
|
INSTALLATION HARDWARE |
|
|
|
Carriage Bolt |
Wing Nut |
Ring |
Nut 5/16"-18 (8) |
Handle |
|
1/4"-20x1/2" (2) |
1/4"-20 (2) |
Fastener (3) |
|
|
|
Lag Screw |
|
Hex Bolt |
|
|
Insulated |
5/16"-9x1-5/8" (2) |
5/16"-18x7/8" (4) |
Lock Washer |
5/16" (7) |
Staples (30) |
|
Lag Screw |
|
Screw |
|
Screw 6-32x1" (2) |
|
5/16"-18x1-7/8" (2) |
6ABx1-1/4" (2) |
|
|||
|
|
|
|
|
Rope |
Self-Threading Screw |
|
|
|
Spacer (2) |
|
1/4"-14x5/8" (2) |
Drywall Anchors (2) |
|
|
||
|
|
|
|||
Clevis Pin |
|
Clevis Pin |
|
Clevis Pin |
|
5/16"x1-1/2" (1) |
|
5/16"x1" (1) |
|
5/16"x1-1/4" (1) |
|
|
|
7 |
|
|
|
ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
The front rail has a cut out “window” at the door end (see illustration). The hole above this window is larger on the top of the rail than on the bottom. A smaller hole 3-1/2" (8.9 cm) away is close to the rail edge. Rotate the back rail so it has a similar hole close to the opposite edge, about 4-3/4" (12 cm) from the far end.
1.Remove the straight door arm and hanging bracket packaged inside the front rail and set aside for Installation Step 5 and 12. NOTE: To prevent INJURY while unpacking the rail carefully remove the straight door arm stored within the rail section.
2.Align the rail sections on a flat surface as shown and slide the tapered ends into the larger ones. Tabs along the side will lock into place.
To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the rail.
3.Place the motor unit on packing material to protect the cover, and rest the back end of the rail on top. For convenience, put a support under the front end of the rail.
4.As a temporary trolley stop, insert a screwdriver into the hole 10" from the front end of the rail, as shown.
5.Check to be sure there are 4 plastic wear pads inside the inner trolley. If they became loose during shipping, check all packing material. Snap them back into position as shown.
6.Slide the trolley assembly along the rail from the back end to the screwdriver.
Trolley
Tapered
End
|
KEEP LARGER |
Tapered |
|
End |
|
|
HOLE ON TOP |
|
|
|
|
|
FRONT RAIL |
|
|
(TOP) |
Back Rails |
|
|
|
|
|
(TO MOTOR UNIT) |
|
|
Tapered |
|
|
End |
|
|
Outer Trolley |
|
Tapered |
|
|
End |
|
|
Screwdriver |
|
|
Tabs |
Inner Trolley |
|
|
|
Window |
|
|
Cut-Out |
Front Rail |
|
|
|
|
Idler |
(TO DOOR) |
|
Pulley |
|
|
Hole |
|
Wear Pads |
|
|
8
ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
•Insert a 1/4"-20x1-3/4" bolt into the cover protection bolt hole on the back end of the rail as shown. Tighten securely with a 1/4"-20 lock nut. Do NOT overtighten.
•Remove the two bolts from the top of the motor unit.
•Place the “U” bracket, flat side down, on the motor unit and align the bracket holes with the bolt holes. Fasten with the previously removed bolts.
•Align the rail assembly with the top of the motor unit. Slide the rail end onto the “U” bracket, all the way to the stops that protrude on the top and sides of the bracket.
HARDWARE SHOWN ACTUAL SIZE
|
Lock Nut |
Bolt 1/4"-20x1-3/4" |
1/4"-20 |
ASSEMBLY STEP 3
Install the Idler Pulley
•Lay the belt beside the rail, as shown. Grasp the end with the hooked trolley connector and pass approximately 12" (30 cm) of belt through the window. Keep the ribbed side toward the rail, and allow it to hang until Assembly Step 5.
•Remove the tape from the idler pulley. The inside center should be pre-greased. If dry, regrease to ensure proper operation.
•Place the idler pulley into the window as shown.
•Insert the idler bolt from the top through the rail and pulley. Tighten with a 3/8" lock washer and nut underneath the rail until the lock washer is compressed.
•Rotate the pulley to be sure it spins freely.
•Insert a 1/4"-20x1-3/4" bolt into the trolley stop hole in the front of the rail as shown. Tighten securely with a 1/4"-20 lock nut.
To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of the opener.
Motor Unit
Sprocket
Bolts
"U" Bracket
Bolt
Cover
Protection
Bolt Hole
Foam Packaging
SLIDE RAIL TO STOPS
Lock Nut ON TOP AND SIDES
OF BRACKET
Bolt
|
|
Rail |
|
|
Pulley |
|
|
|
Nut Washer |
|
|
|
Screwdriver |
|
|
|
|
Bolt |
|
|
|
Trolley |
|
|
|
Stop Hole |
|
|
|
Grease |
|
|
|
Inside Pulley |
|
Lock Washer |
|
Idler Pulley |
|
|
|
|
|
3/8" |
|
|
|
|
Nut 3/8" |
|
|
|
Trolley |
|
|
|
Connector |
Idler |
Lock |
|
|
||
|
|
Pulley |
Nut |
HARDWARE SHOWN ACTUAL SIZE
Idler Bolt |
Bolt 1/4"-20x1-3/4" |
Lock Nut 1/4"-20 |
Nut 3/8" |
Lock Washer 3/8" |
9
ASSEMBLY STEP 4 |
|
|
|
|
|
|
|||
Install the Belt |
|
|
||
To avoid possible SERIOUS INJURY to fingers from moving |
||||
and Attach the Belt Cap Retainer |
garage door opener: |
|||
1. Pull the belt around the idler pulley and toward the |
• ALWAYS keep hand clear of sprocket while operating opener. |
|||
• Securely attach sprocket cover BEFORE operating. |
||||
trolley. The ribbed side must contact the pulley. |
||||
|
|
|||
|
|
|
|
2.Hook the trolley connector into the retaining slot on the trolley as shown.
3.With the trolley against the screwdriver, dispense the remainder of the belt along the rail length toward the motor unit and around the sprocket. The sprocket teeth must engage the belt.
4.Check to make sure the belt is not twisted and the FLAT side of the trolley threaded shaft is facing the rail. Connect the trolley threaded shaft with the master link, as illustrated:
•Push pins of master link bar through holes in end of belt and trolley threaded shaft.
•Push master link cap over pins and past pin notches.
•Slide clip-on spring over cap and onto pin notches
|
until both pins are securely locked in place. |
HARDWARE SHOWN ACTUAL SIZE |
5. |
Insert the trolley threaded shaft through the hole in the |
|
|
trolley. Be sure the belt is not twisted and the FLAT |
|
|
side faces the rail. |
|
6. |
Hold the belt at the trolley shaft as you thread the |
Hex Screw 8x3/8" |
|
spring nut by hand onto the shaft until finger tight |
Spring/Trolley Nut |
|
against the trolley. Do not use any tools. |
|
7.Remove the screwdriver.
8.Position the belt cap retainer over the motor unit
sprocket as shown and fasten to the mounting plate |
|
|
|
|
with 8x3/8" hex screws provided. |
Master Link |
|
|
|
|
|
|
|
|
|
Clip-On Spring |
|
|
|
|
Master Link Cap |
|
|
|
|
|
|
|
Pin |
|
|
|
|
Notch |
|
|
|
Trolley |
Master |
|
|
|
Threaded |
Link Bar |
|
|
|
Shaft |
|
|
|
|
Hole |
|
|
|
Retaining |
|
|
|
Trolley |
Slot |
Hex Screws |
|
|
|
8x3/8" |
|
|
|
Connector |
|
||
|
|
|
||
|
|
|
|
Belt Cap |
Idler Pulley |
|
|
|
Retainer |
|
|
|
|
Motor Unit |
|
|
|
|
Sprocket |
|
|
|
|
Mounting |
|
|
|
|
Plate |
Spring Nut |
|
|
|
|
10
ASSEMBLY STEP 5
Set the Tension
•Insert a screwdriver tip into one of the nut ring slots and brace it firmly against the trolley.
•Place a 7/16" open end wrench on the square end. Rotate the nut about 1/4 turn until the spring releases and snaps the nut ring against the trolley.
This sets the spring to optimum belt tension.
You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section.
Nut Ring Slot
Square End
|
|
Trolley |
Square |
|
|
End |
Nut Ring |
Nut Ring |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BEFORE |
|
|
|
|
|
|
AFTER RELEASE |
|
|||||||
|
|
|
|
|
|||||||||||||
|
|
|
1" |
|
|
|
|
|
|
|
|
|
1-1/4" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
(2.5 cm) |
|
|
|
|
|
|
(3.18 cm) |
|
IMPORTANT INSTALLATION INSTRUCTIONS
WARNING
To reduce the risk of SEVERE INJURY or DEATH:
1.READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2.Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.
3.ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician BEFORE installing opener.
4.Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement.
5.Install garage door opener 7 feet (2.13 m) or more above floor.
6.Mount emergency release handle 6 feet (1.83 m) above floor.
7.NEVER connect garage door opener to power source until instructed to do so.
8.NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.
9.Install wall-mounted garage door control:
•within sight of the garage door.
•out of reach of children at minimum height of 5 feet (1.5 m).
•away from ALL moving parts of the door.
10.Place entrapment warning label on wall next to garage door control.
11.Place manual release/safety reverse test label in plain view on inside of garage door.
12.Upon completion of installation, test safety reversal system.
Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.
11

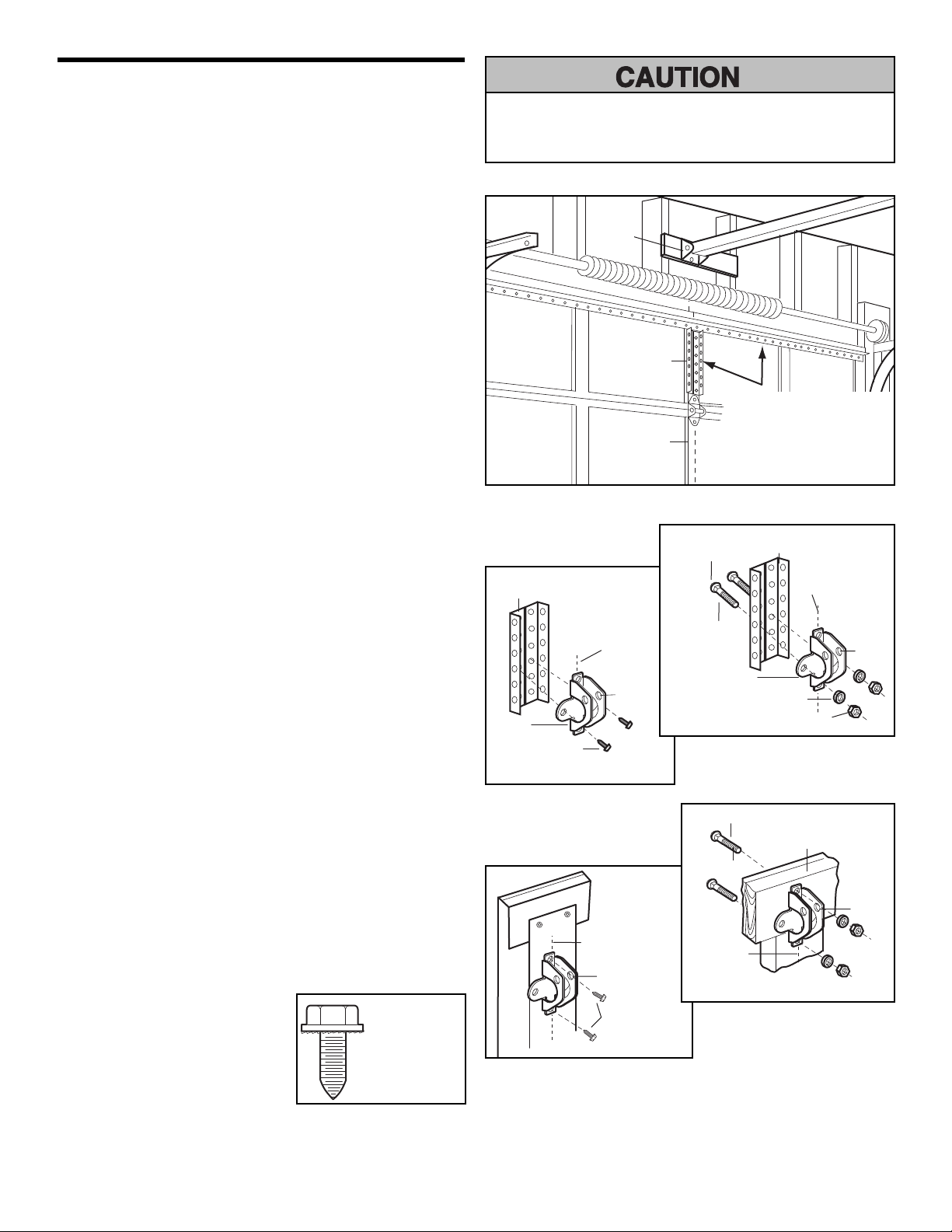

INSTALLATION STEP 1
Determine the Header Bracket
Location
To prevent possible SERIOUS INJURY or DEATH:
•Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.
•Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.
•NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, ALL of which are under EXTREME tension.
•ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might not reverse when required.
Installation procedures vary according to garage door types. Follow the instructions which apply to your door.
1.Close the door and mark the inside vertical centerline of the garage door.
2.Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet (1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 13) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm).)
If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 13.
3.Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall above the high point:
•2" (5 cm) above the high point for sectional door and one-piece door with track.
•8" (20 cm) above the high point for one-piece door without track.
This height will provide travel clearance for the top edge of the door.
NOTE: If the total number of inches exceeds the height available in your garage, use the maximum height possible, or refer to page 13 for ceiling installation.
Unfinished
Ceiling
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Header Wall |
2x4 |
Vertical Centerline
of Garage Door
2x4 Structural
Supports
Level (optional)
Header Wall |
|
|
|
2" (5 cm) |
Track |
Header Wall |
Track |
|
|
2" (5 cm) |
|
Highest Point |
|
|
|
of Travel |
|
Highest Point |
|
|
|
||
|
|
of Travel |
|
|
|
Door |
|
Door |
|
|
|
Sectional door with curved track |
One-piece door with horizontal track |
|
|
Header Wall |
|
Header Wall |
8" (20 cm) |
|
8" (20 cm) |
|
|
Highest |
Highest |
Door |
Point |
|
|
Point |
of Travel |
|
of Travel |
Door |
Jamb |
|
|
Hardware |
|
|
|
|
Pivot |
One-piece door without track: |
One-piece door without track: |
|
jamb hardware |
pivot hardware |
12
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).
•Mark the vertical set of bracket holes. Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
Lag Screw 5/16"-9x1-5/8"
Wall Mount
UP
Optional
Mounting Holes
|
Vertical |
|
|
Centerline |
|
|
of Garage Door |
|
Wall |
Lag Screws |
|
|
||
2x4 |
5/16"x9x1-5/8" |
|
Header |
||
Structural |
||
Bracket |
||
Support |
||
|
||
|
Door Spring |
Horizontal
Line
Garage
Door
Highest Point of
Garage Door Travel Vertical
Centerline
of Garage Door
CEILING HEADER BRACKET INSTALLATION
•Extend the vertical centerline onto the ceiling as shown.
•Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is pointing away from the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.
•Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.
Ceiling Mounting Holes
UP
Header
Bracket
6" (15 cm) Maximum
Door
Spring
Garage Door
– Finished Ceiling –
Vertical Centerline
of Garage Door
Lag Screws 5/16"x9x1-5/8"
Header Wall
Vertical
Centerline
of Garage Door
13
INSTALLATION STEP 3
Attach the Rail to the Header Bracket
NOTE: (Optional) With some existing installations, you may re-use the old header bracket with the two plastic spacers included in the hardware bag. Place the spacers inside the bracket on each side of the rail, as illustrated.
•Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.
•Position the rail bracket against the header bracket.
•Align the bracket holes and join with a clevis pin 5/16"x1-1/2" as shown.
•Insert a ring fastener to secure.
Header Wall
Header Bracket
Idler Pulley
Header |
Bracket |
Mounting |
Hole |
Existing |
Header Bracket |
Existing |
Clevis Pin |
Spacer |
Mounting |
Hole |
N WITH |
EXISTING |
INSTALLATIONS |
Garage |
Door |
Opener Carton or |
Temporary |
Support |
HARDWARE SHOWN ACTUAL SIZE
Clevis Pin 5/16"x1-1/2"
Ring Fastener
14
