The Chamberlain Group, Inc. 845 Larch Avenue, Elmhurst, Illinois 60126

MODEL ATS 211R

COMMERCIAL DOOR OPENER

For Residential and Light Duty Commercial Use

Install on Sectional Doors Only

OWNER'S MANUAL

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

is connected

and properly aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located on the operator cover.

L O

W H I

O H I

DOWN

FORCE

Page 2

Start by reviewing these important safety alert symbols

CONTENTS PAGE

A review of safety alert symbols..............................2

You'll need tools ......................................................3

Illustration of door installation .................................4

Opener carton inventory..........................................5

Hardware inventory .................................................5

Assembly Section – Pages 6 - 7

Fasten the rail to the opener..................................6

Attach the chain to the sprocket............................6

Install the rail support bracket................................6

Tighten the chain...................................................7

Installation Section – Pages 8 - 20

Installation instruction warnings.............................7

Determine the header bracket location..................8

Install the header bracket......................................9

Attach the rail to the header bracket....................10

Position the opener..............................................11

Hang the opener..................................................12

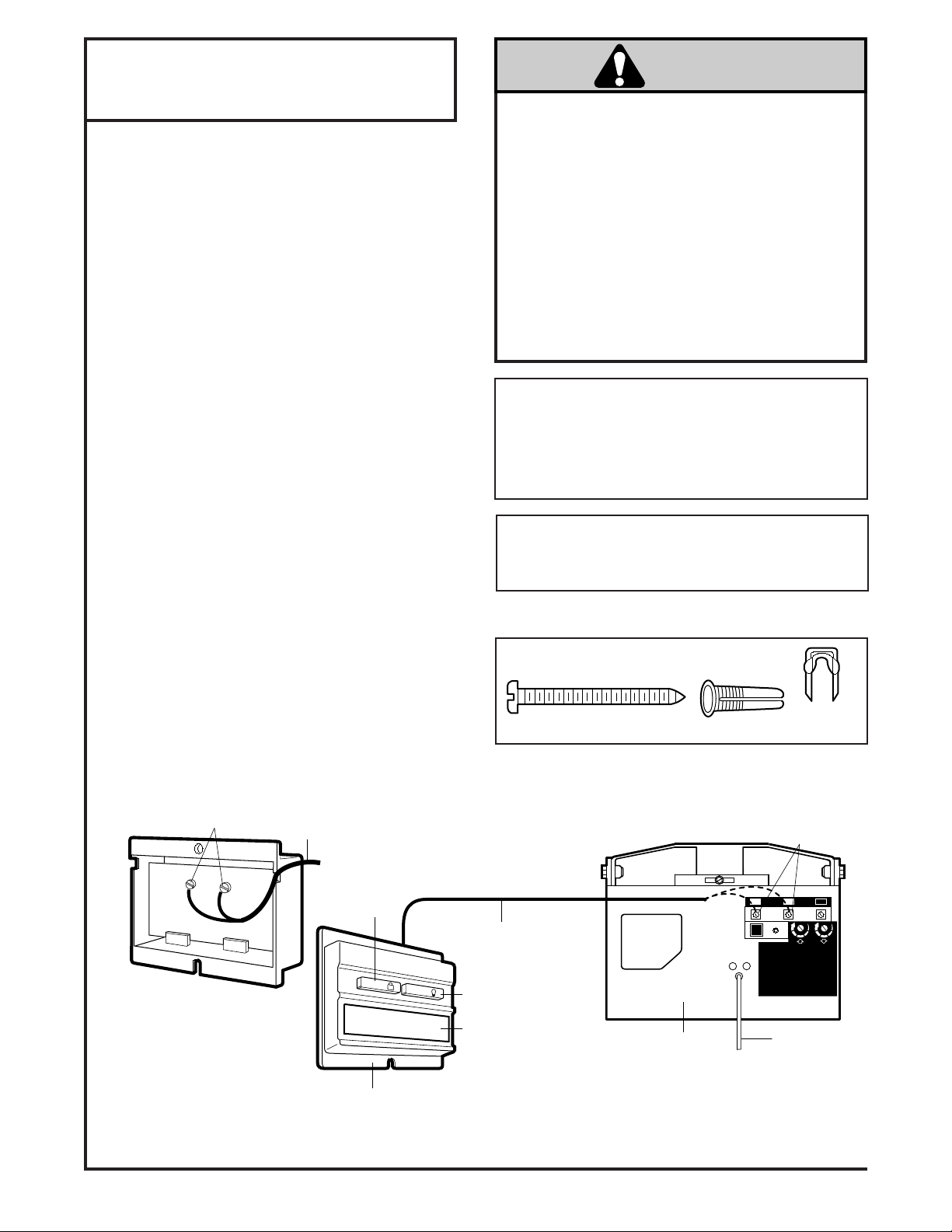

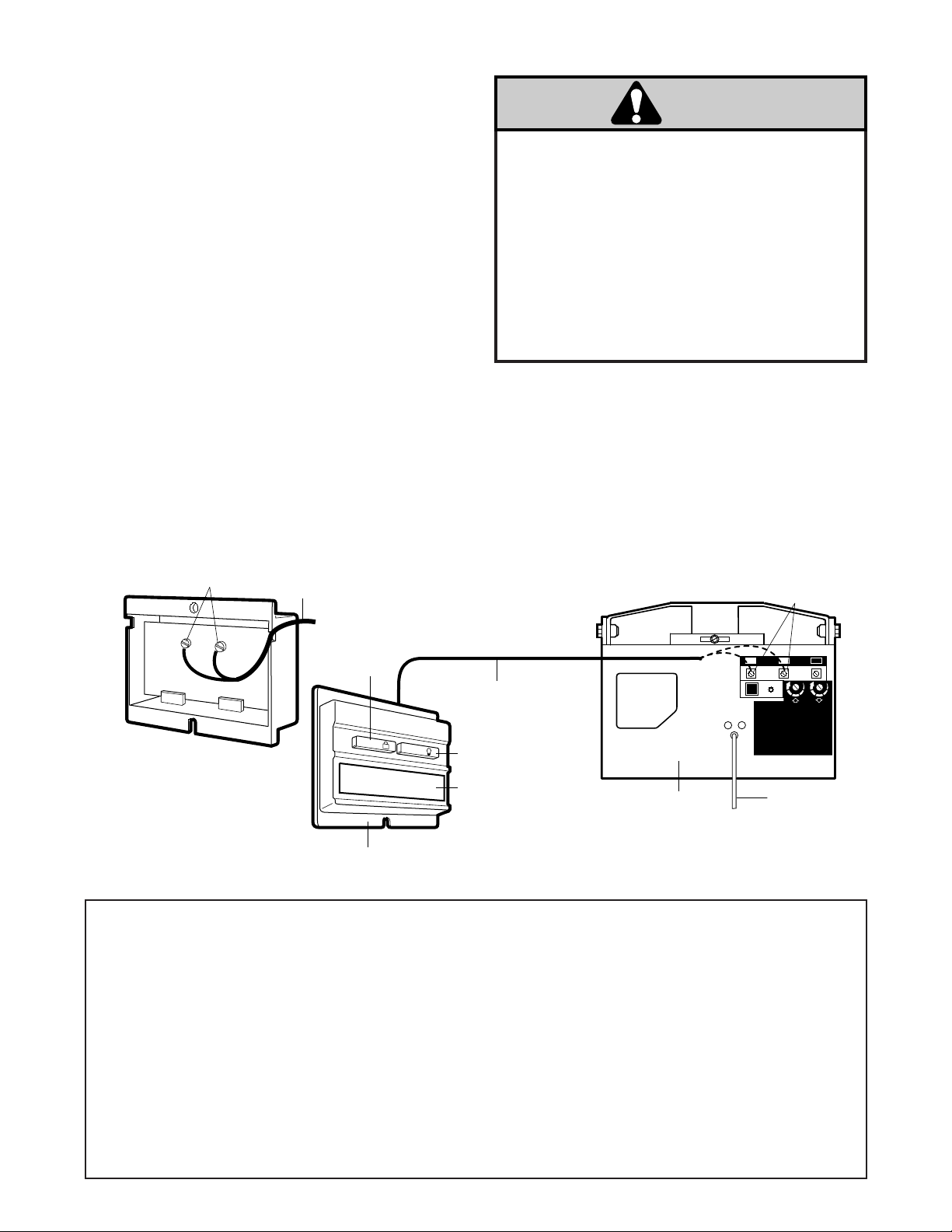

Install the door control.........................................13

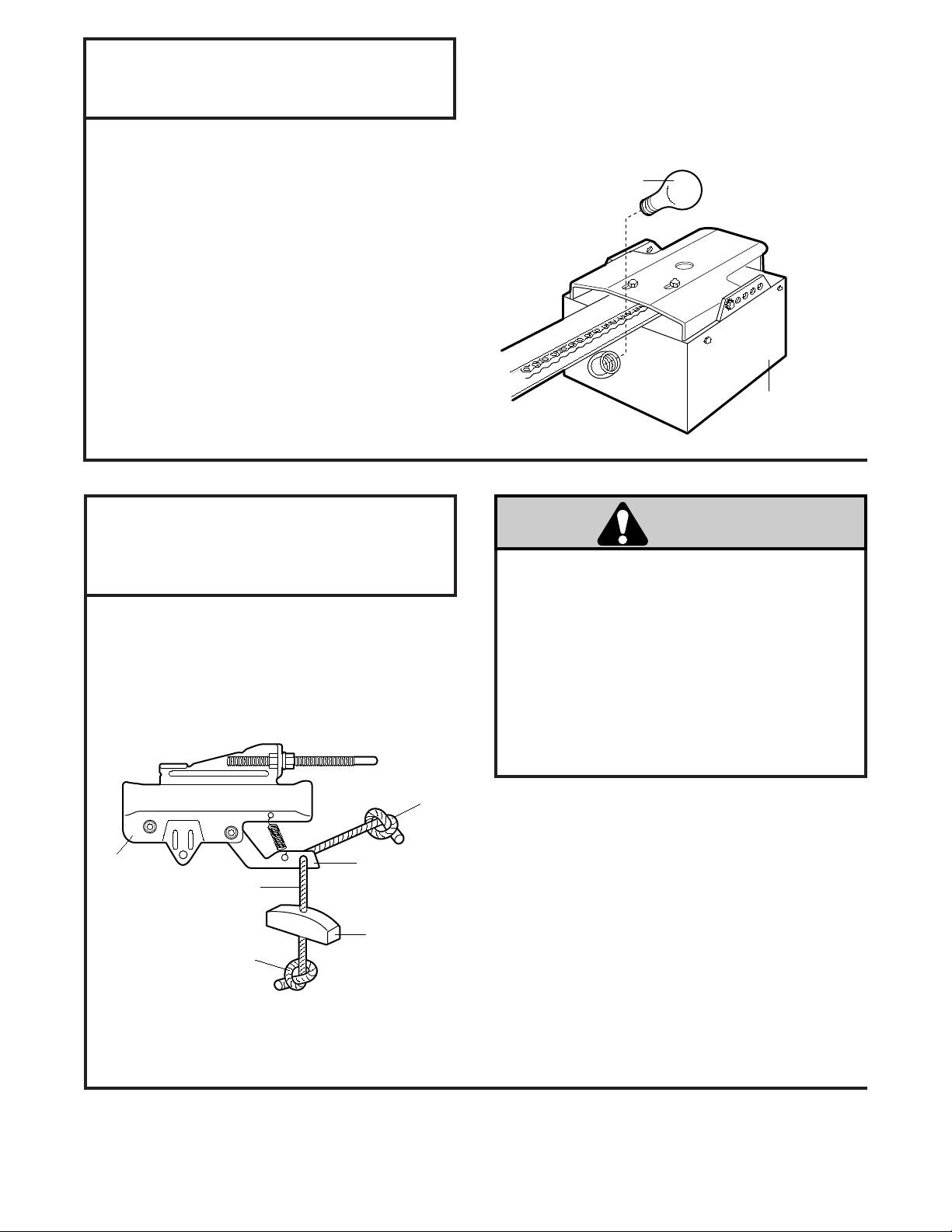

Install the light......................................................14

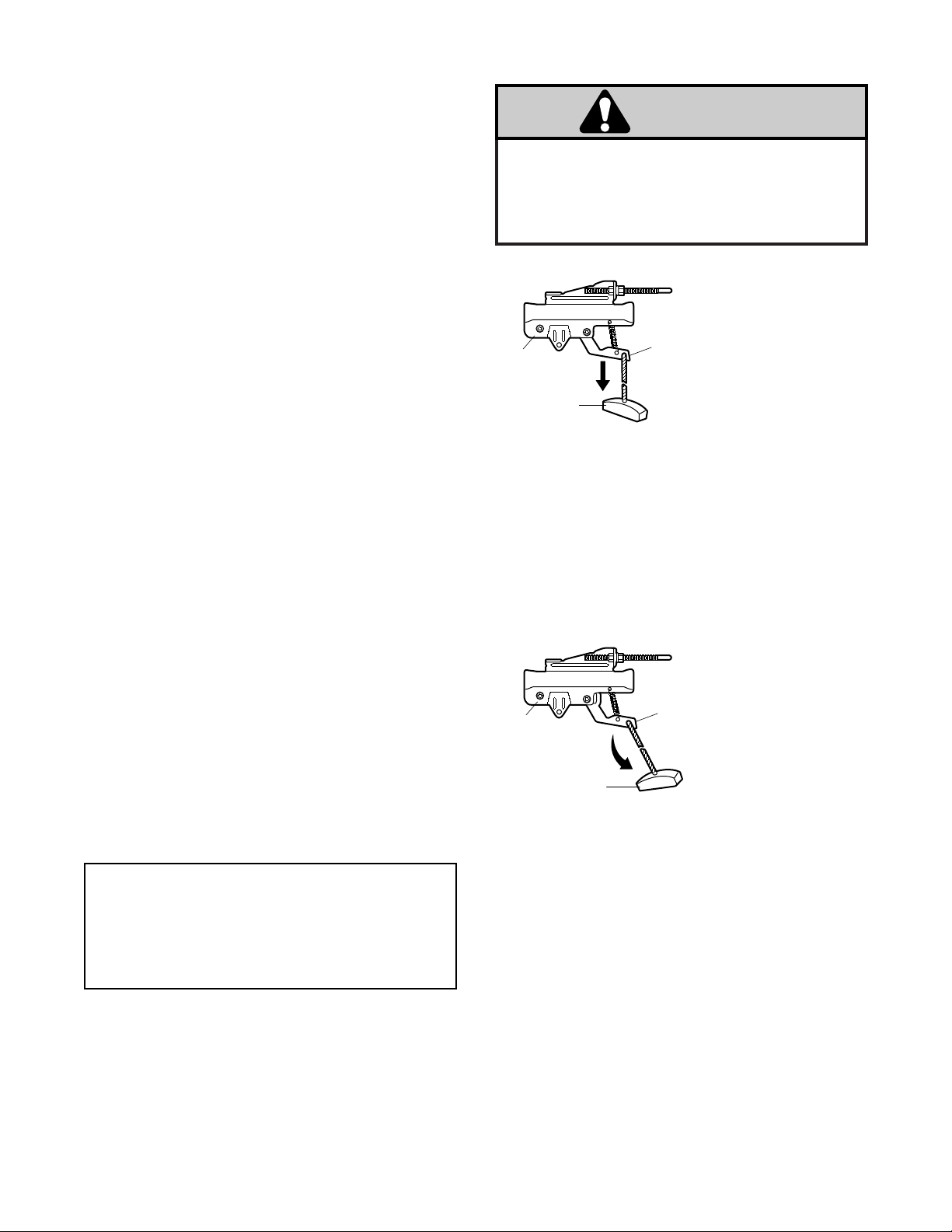

Attach manual release handle.............................14

Electrical requirements........................................15

The Protector System®.........................................16

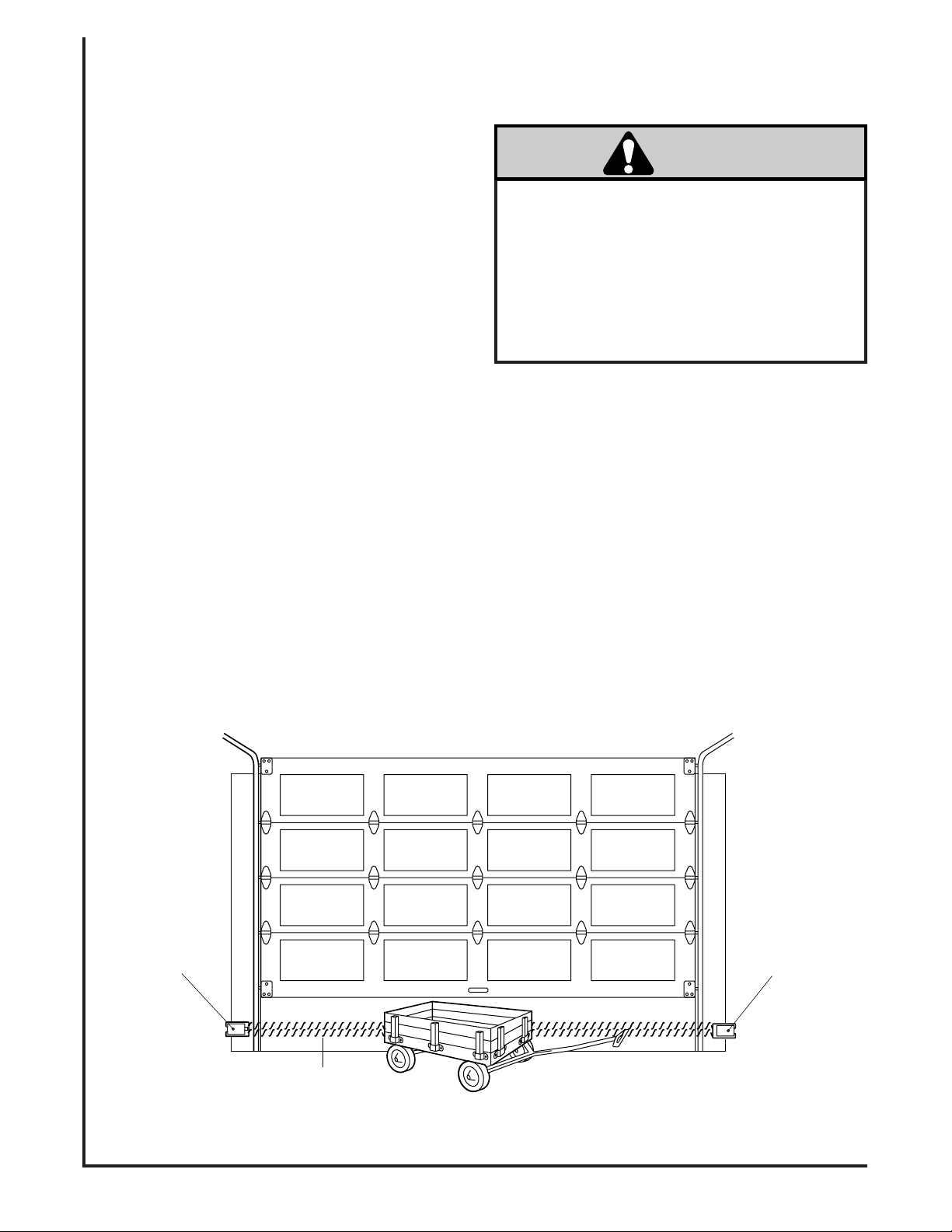

Install the safety reversing sensor..................17,18

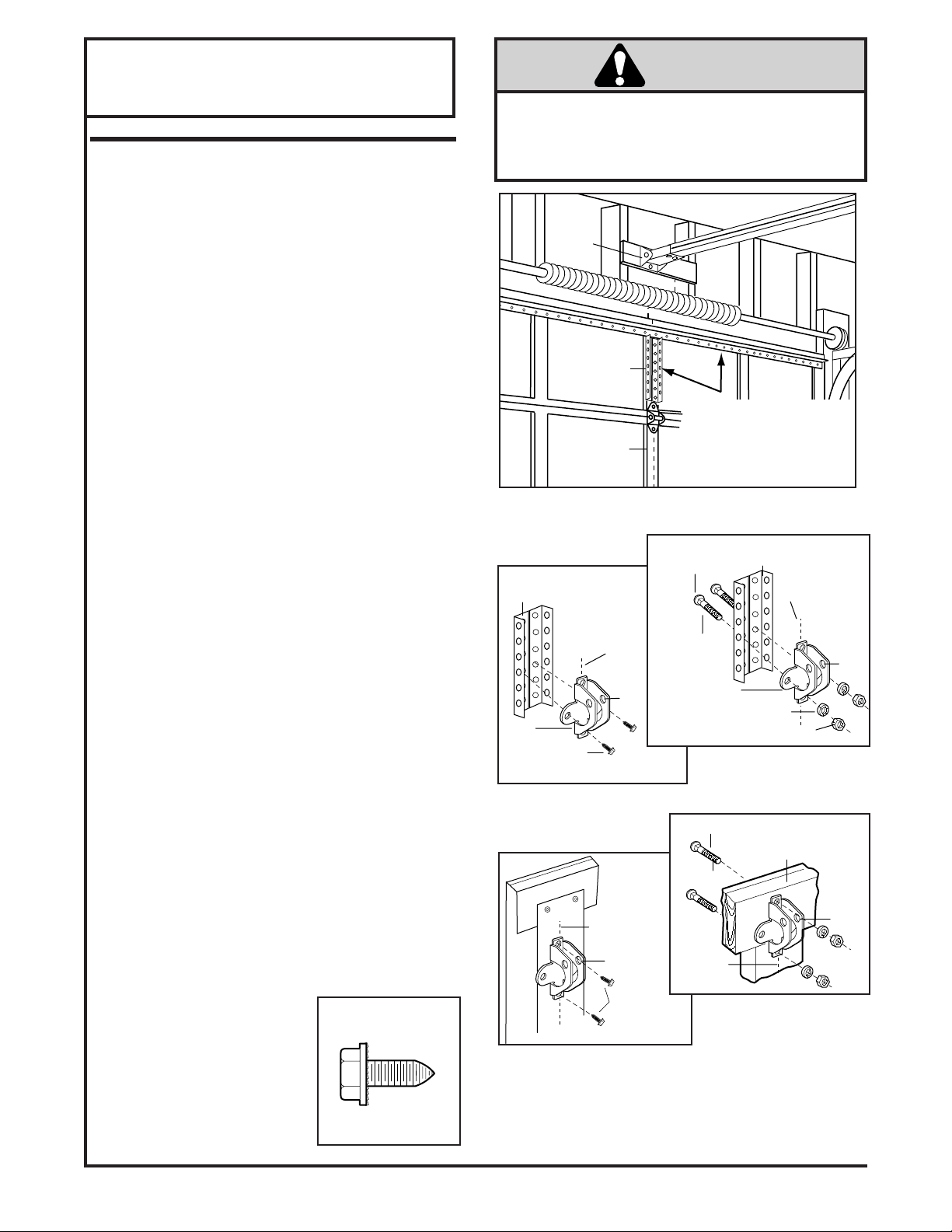

Fasten the door bracket and plate ......................19

CONTENTS PAGE

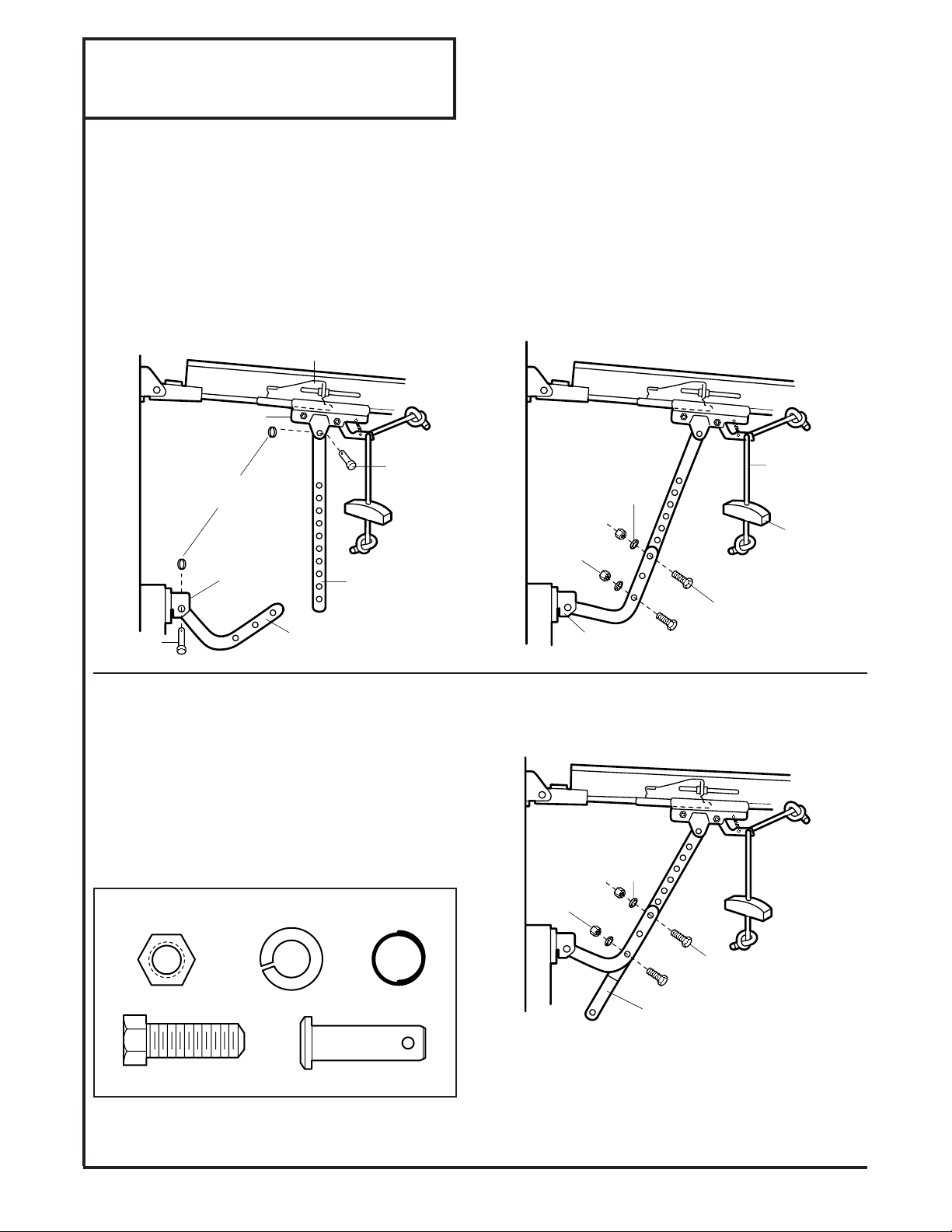

Connect the door arm to the trolley ....................20

Adjustment Section – Pages 21 - 23

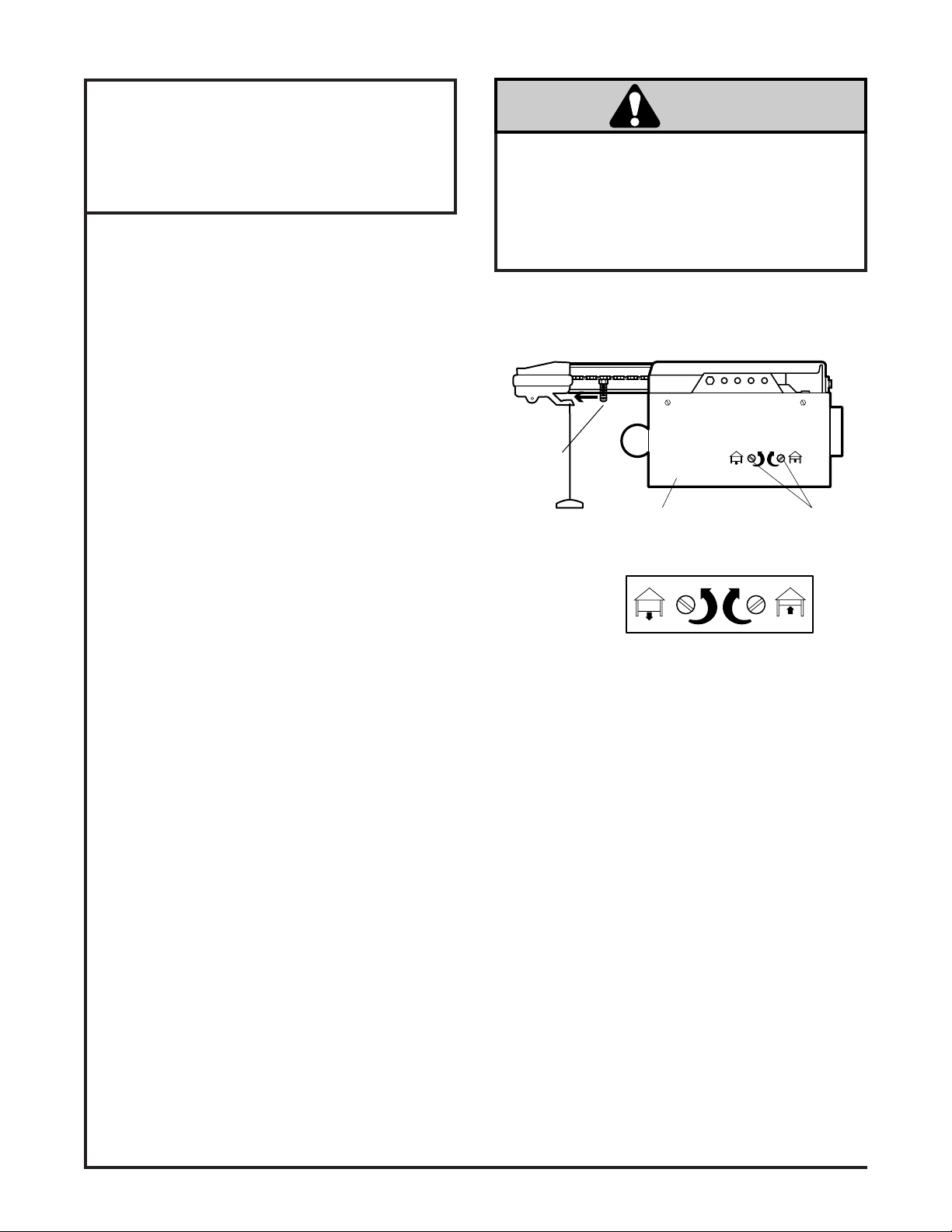

Travel limit adjustments.......................................21

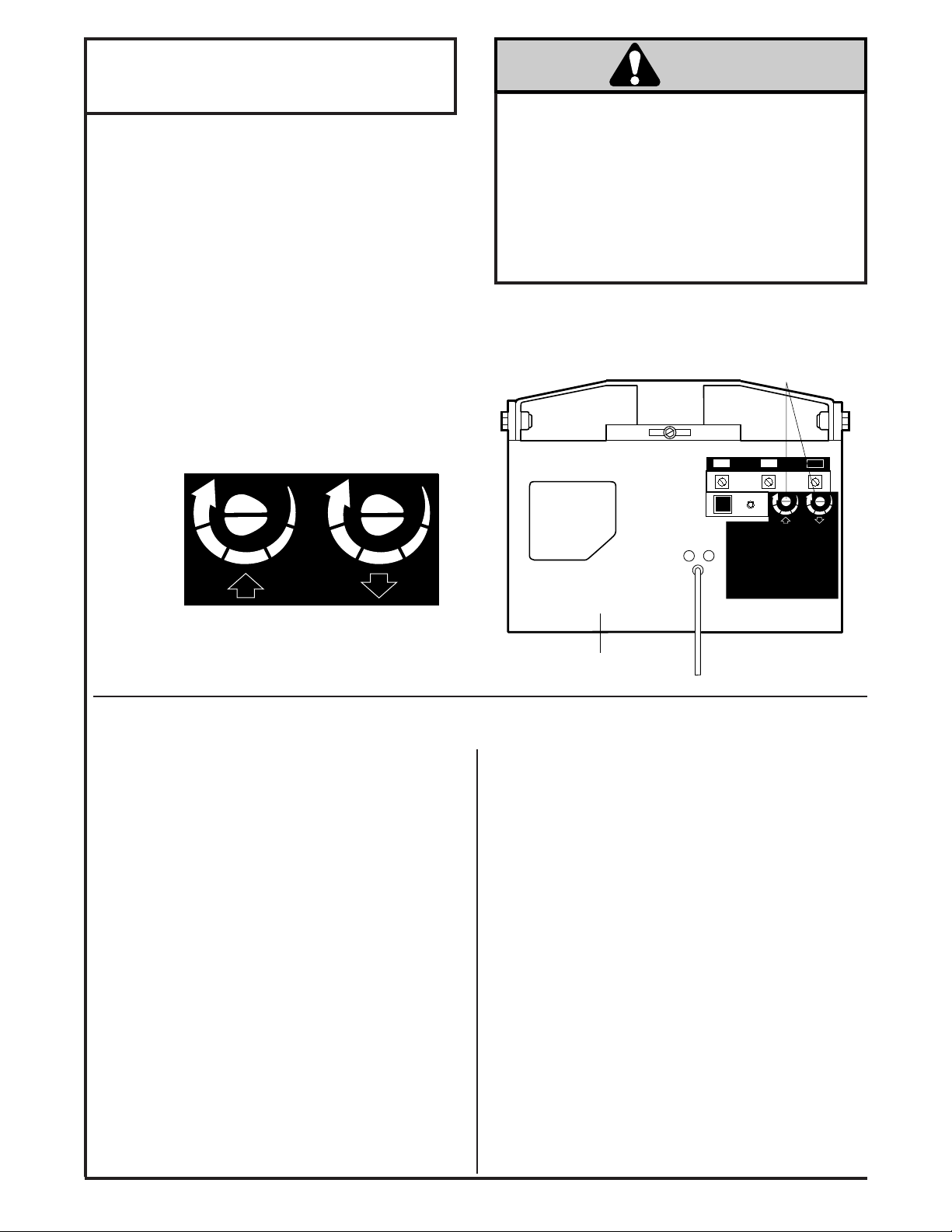

Force adjustments...............................................22

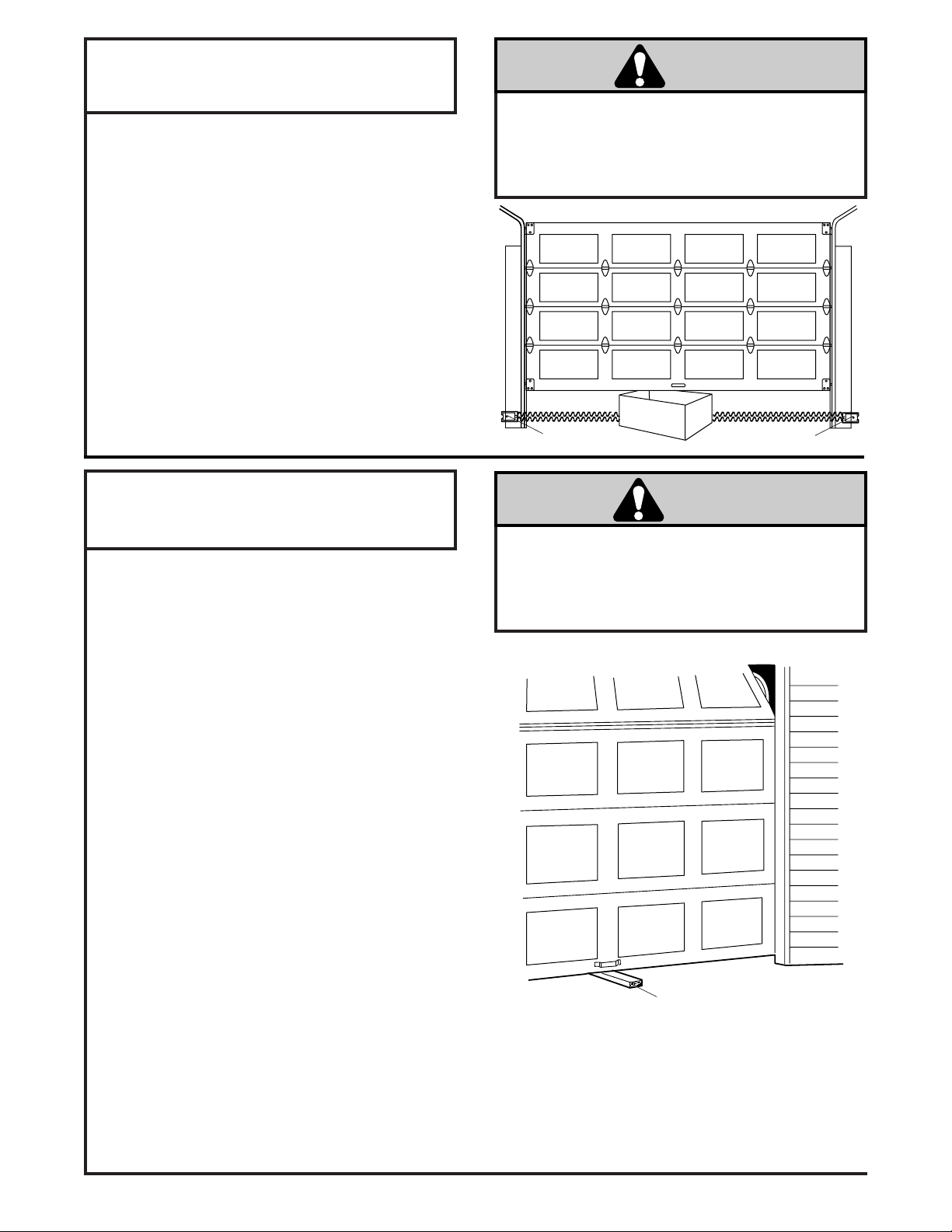

Test the Protector System®..................................23

Test the safety reverse system............................23

Operation safety instructions.................................24

Care of your opener...............................................24

Maintenance schedule...........................................24

Operation of your opener.......................................25

Operation of Optional Accessories:

Model 96LM Remote Control..............................26

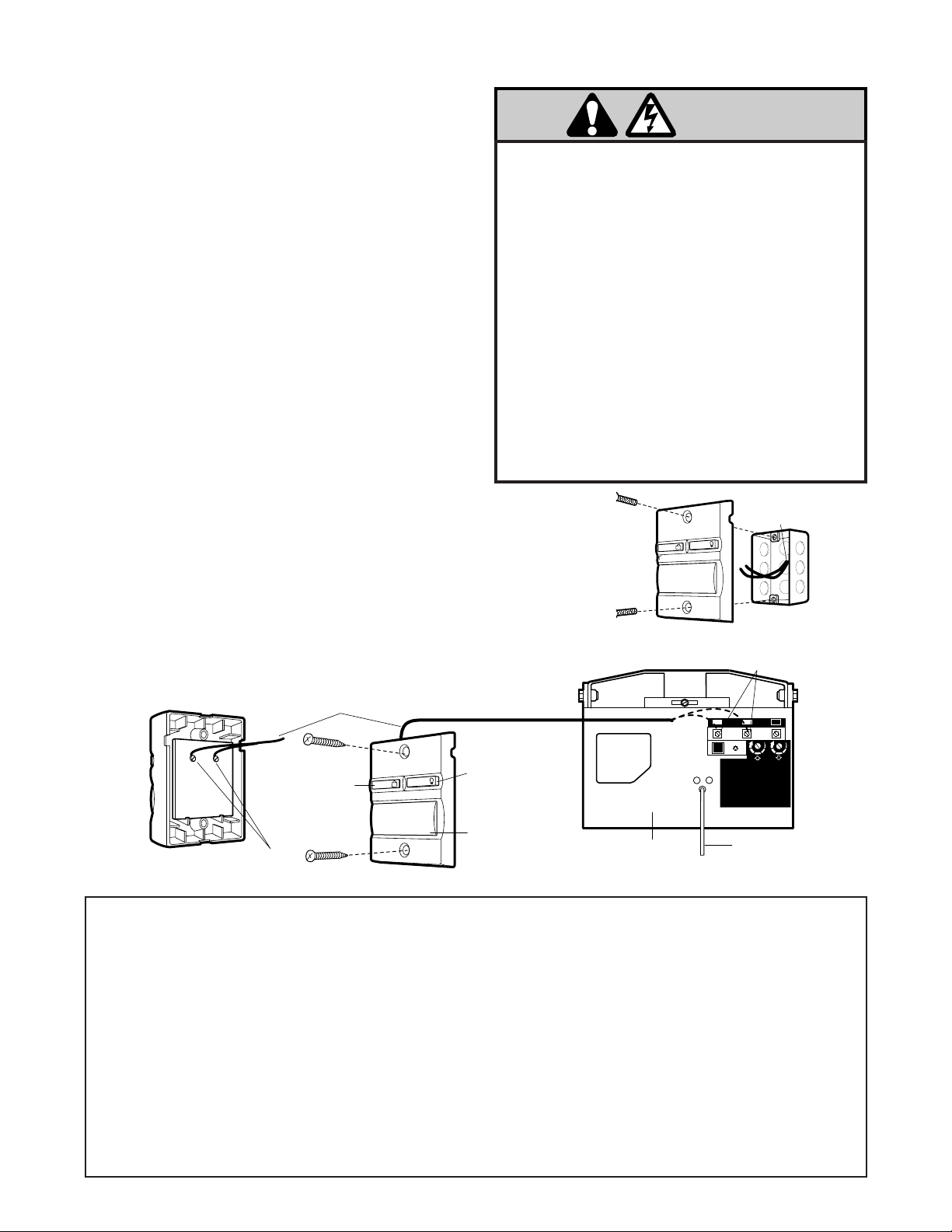

Model 58LM Door Control...................................27

Model 68LM Door Control...................................28

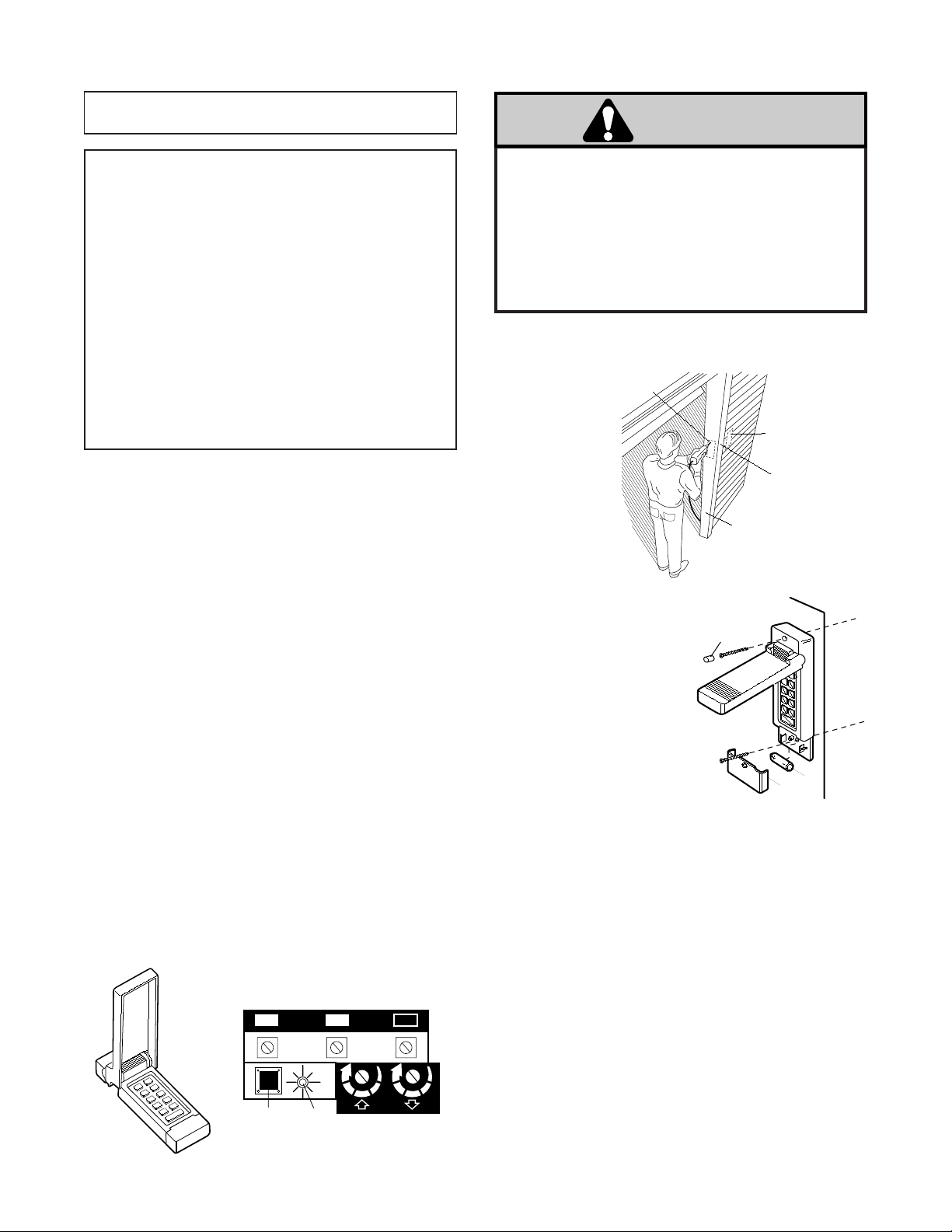

Model 67LM Keyless Entry.................................29

Having a problem?..........................................30, 31

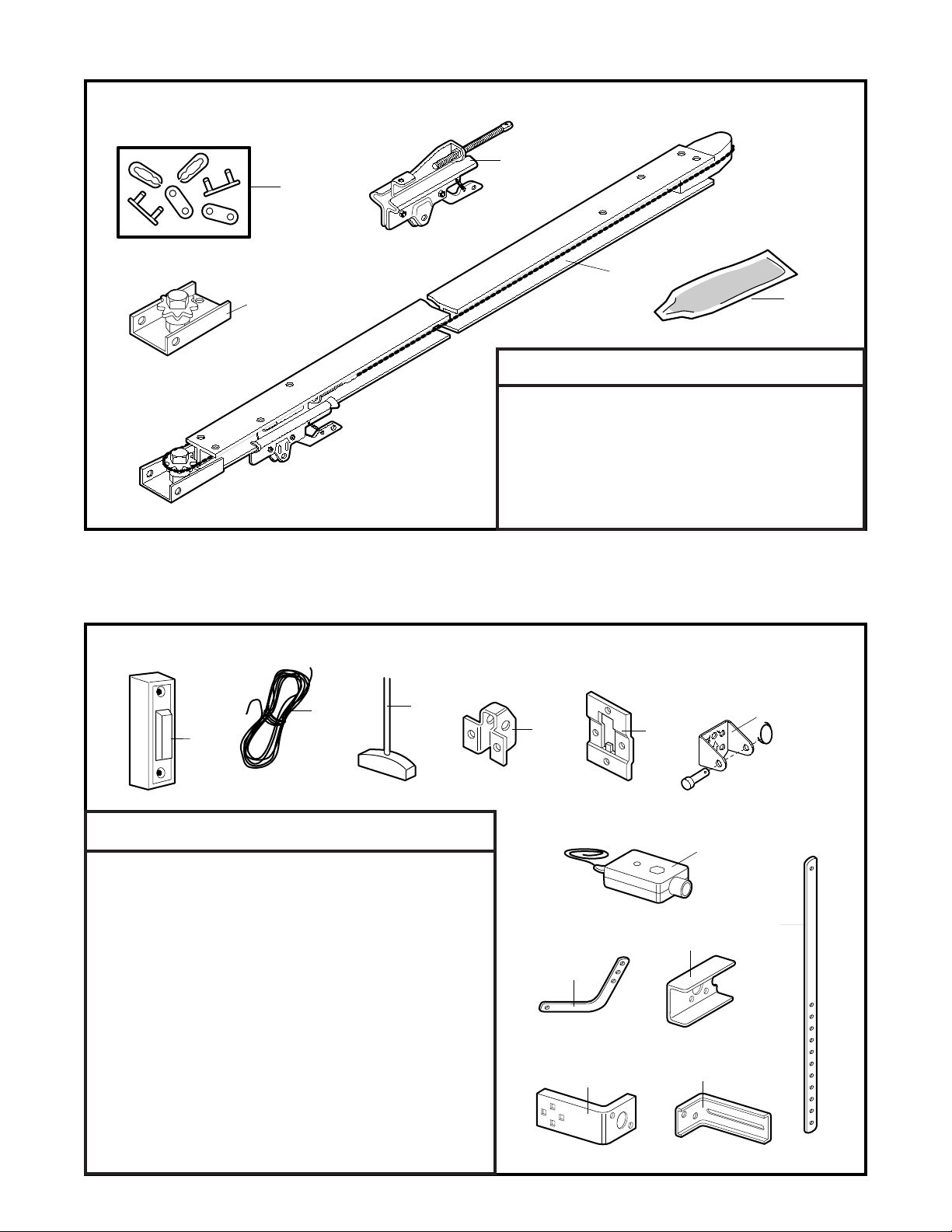

Repair parts, rail assembly ...................................32

Repair parts, installation .......................................32

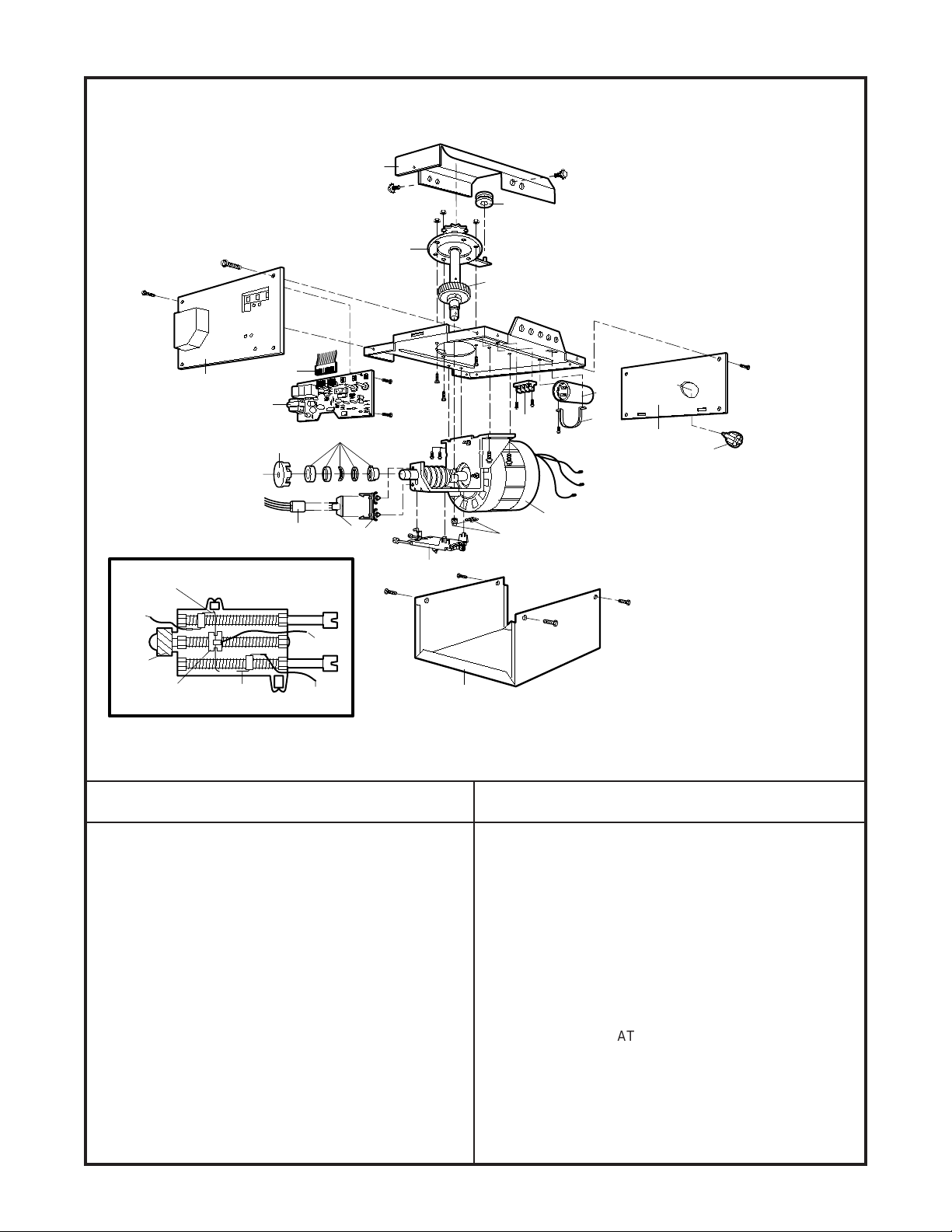

Repair parts, opener assembly.............................33

Accessories ..........................................................34

Index.....................................................................35

How to order repair parts......................................36

Warranty ...............................................................36

When you see these Safety Symbols on the following pages, they will alert you to the possibility of

serious injuries or death

if you do not comply with the corresponding instructions. The hazard may

come from something mechanical or from electric shock.

Read the instructions carefully.

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the corresponding instructions.

Read the instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the safety instructions contained in this manual.

Mechanical Electrical

WARNING

CAUTION

Page 3

An unbalanced garage door might not reverse when required and someone under the door could be seriously injured or killed.

If your garage door binds, sticks or is out of balance, call for professional garage door service.

Garage doors, door springs, cables, pulleys, brackets and their hardware, are under extreme tension and can cause serious injury or death.

Do not try to loosen, move or

adjust them yourself!

Ropes left on a garage door could cause someone to become entangled and killed.

Remove all ropes connected to the door before installing and operating the opener.

This product is for use on sectional garage doors only.

Serious personal injury could result from the use of this product on onepiece garage doors.

To avoid damage to the garage door and opener, disable locks before installing and operating the opener. Use a wood screw or nail to hold locks in the "open" (unlocked) position.

Operation at other than 120V 60 Hz will cause opener malfunction and damage.

Before you begin, complete the following test to make sure your door is balanced and is not sticking or binding:

• Lift the door about halfway as shown. Release the door. It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding or sticking.

Identify the type and height of your door, any special conditions that exist, and any additional materials that may be required by referring to the lists on page 4.

WARNING

You'll Need Tools

During assembly , installation and adjustment of the opener, instructions will call for hand tools shown below.

Carpenter's

Level

Drill

Stepladder

1/2" and 7/16" Sockets

and Wrench

Pencil

Tape Measure

3/16", 5/16" and

5/32" Drill Bits

Wire Cutters

Pliers

Screwdriver

Hack Saw

Claw Hammer

Adjustable End Wrench

CAUTION

Page 4

Safety Reversing Sensor

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 19 for details.

Support bracket &

fastening hardware

is required.

See page 12.

— — — — — — — —

Door Center

Header Wall

Safety

Reversing

Sensor

Floor must be level

across width of door

FINISHED CEILING

Extension Spring

Torsion Spring

Access Door

Slack in chain tension

is normal when

garage door is closed.

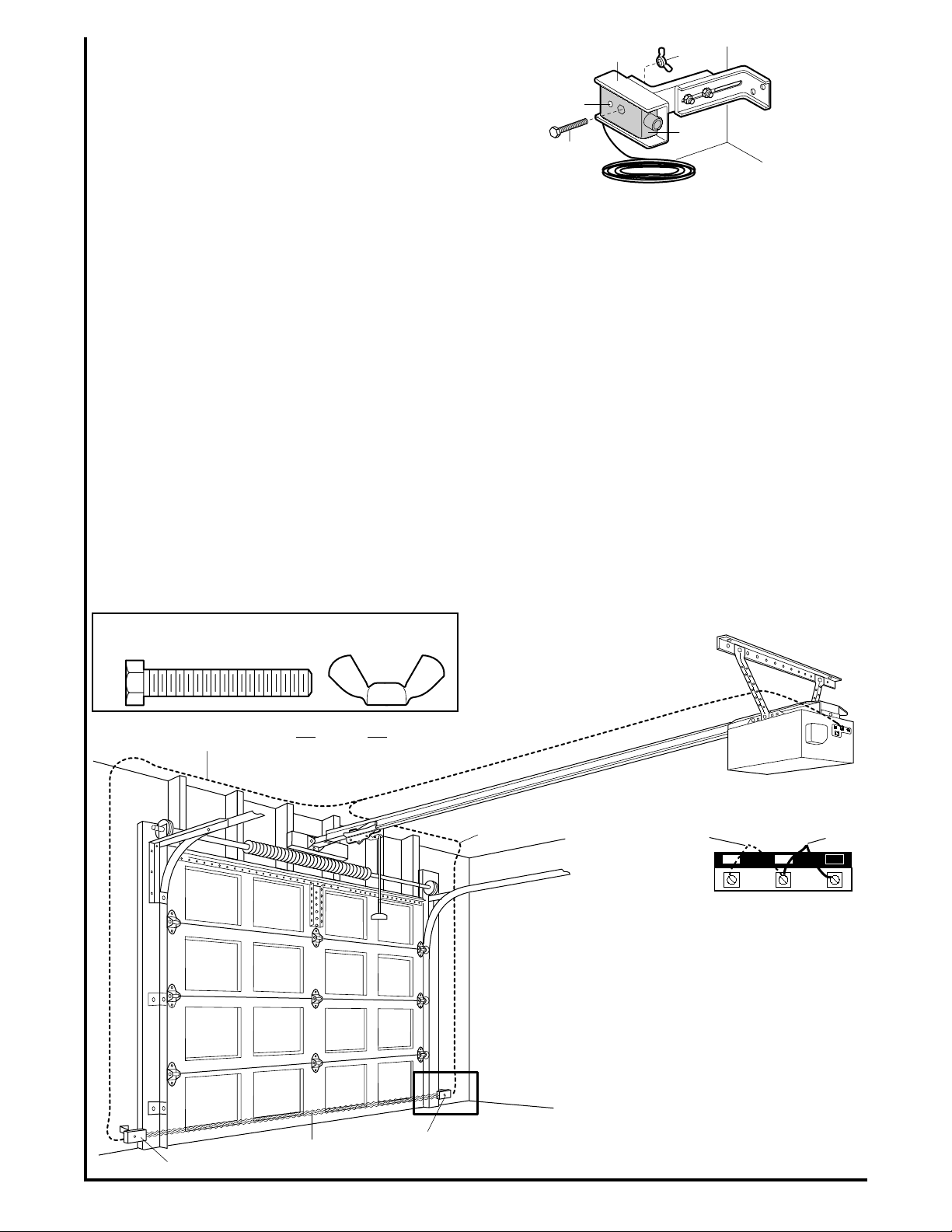

Based on your particular requirements, there are several installation steps which might call for materials and/or hardware not included in the carton.

• Step 1, page 8 - Look at the wall or ceiling above the garage door. The header bracket

must

securely fastened to structural supports.

• Step 5, page 12 - Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware may be required.

• Safety reversing sensor, page 16 - Depending upon garage construction, wood blocks may need to be fastened to mounting locations before sensors are installed.

• Step 10, page 17 - Alternate floor mounting of the safety reversing sensor will require hardware not provided.

• Step 11, page 19 - Do you have a steel, aluminum, fiberglass or glass panel door? If so, horizontal and vertical reinforcement is required.

• Look at the garage door where it meets the floor. It must close on the floor all the way across. Otherwise, the safety reverse system may not work properly. Floor or door should be repaired. See page 23.

• If your door is more than 7 feet high, see longer rails available on page 34.

Chain Pulley

Bracket

Header

Bracket

Trolley

Straight

Door

Arm

Manual

Release

Rope & Handle

Door Bracket

Garage

Door

Curved

Door Arm

Garage

Door

Spring

Header

Wall

Chain

Closed Position

Rail

• The opener can be installed within 2 feet to the left or right of the door center if there is a torsion spring or center bearing plate in the way of the header bracket or door bracket area.

If your door has extension springs, the opener must be installed in the center of the door.

See pages 8 and 19.

Do you have an access door in addition to the garage door? If not, Model 1702 Outside Quick Release is required. See page 34.

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Before you begin, survey your garage area. Do any of the following conditions apply to you?

Page 5

Opener Carton Inventory

Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and installation is listed below.

Assembly Hardware

5/16"-18x1/2" Washered Screw,

(2) (Mounted in Opener) 1/4"-20x5/8" Hex Screw (2) 1/4"-20x5/8" Lock Washer (2) #8-32x3/8" Screw (1) 5/16"-18x1/2" Washered Screw (2)

Installation Hardware

Hex Screw 5/16"-18x7/8" (4) Nut 5/16"-18 (4) Lock Washer 5/16" (4) Rail Grease Lag Screw 5/16"-9x1-5/8" (2) Lag Screw 5/16"-18x1-7/8" (2) Screw 6ABx1-1/2" (2) Handle Ring Fastener (3) Self-Threading Screw 1/4"-14x5/8" Insulated Staples (10) Dry Wall Anchors (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1" (2)

Rope

Hardware for Safety Reversing Sensor

Lag Screw 1/4x1-1/2" (4) Carriage Bolt 1/4"-20x1/2" (4) Lock Nut 1/4"-20 (4) Wing Nut (2) Hex Screw 1/4-20x1-1/2" (2) Screw #10-32x3/8" (4) Lock Nut #10x32 (4) Insulated Staples (20)

Hardware Inventory

CEILING MOUNT ONLY

Header Bracket with

Mounting Hardware

(Rail Support Bracket)

Rail Support

Bracket

Lighted Door

Control Button

Clevis Pin and Fastener

Straight

Door Arm

"C" Wrap (2)

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

Chain

Pulley Bracket

Safety Reversing Sensor

Mounting Bracket

Trolley

Door Bracket

Door Bracket Plate

With Slot (2)

Safety Labels

and

Literature

Rail

Styrofoam

Chain

Curved Door Arm

2 -Conductor Bell Wire

White & White/Red

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & White/Black Bell Wire

attached

Page 6

Chain

Spreader

Sprocket

Chain

USE ONLY THIS

TYPE AND SIZE

SCREW

Washered Screw

5/16"-18x1/2"

Opener

• Guide the chain over chain spreader and opener sprocket. If necessary, loosen the outer nut on the trolley to obtain more chain slack. Insert the second washered screw.

CAUTION! Use only the

screw previously removed from opener.

• Tighten both screws securely through the rail into the opener as shown.

1/4"-20x5/8" Hex Screws

with Lock Washers

Rail Support

Bracket

5/16"-18x1/2"

Washered Screw

5/16"-18x1/2"

Washered Screw

#8-32x3/8"

Screw

Opener

Side Flange

Opener

Back Flange

Washered Screw

5/16"-18x1/2"

Hex Screw

1/4"-20x5/8"

Screw

#8-32x3/8"

Lock Washer

Hardware Shown Actual Size

Assembly Section: Pages 6 – 7

• Place the opener on packing material to protect

the cover.

• Remove the (2) 5/16"-18x1/2" washered screws mounted in the top of the opener.

• Align rail at an angle with opener so one hole in rail and opener line up.

• Thread one of the washered screws part way in.

Use only these screws!

Use of any other screws

will cause serious damage to door opener.

• Cut tape from rail, chain and styrofoam.

• REMOVE STYROFOAM.

Assembly Step 1

Attach the Rail to the Opener

Assembly Step 2

Attach the Chain to the Sprocket & Install the Rail Support Bracket

To fasten rail, use only those screws mounted in the top of the opener. Any other screws will cause serious damage to the opener.

• Position the rail support bracket on the opener.

• Attach the bracket to the rail with 1/4"-20x5/8" hex screws and lock washers.

• Attach the bracket to the opener by inserting a 5/16"-18x1/2" washered screw through a hole in each side flange and a matching hole in the bracket. Complete the connection by inserting the #8-32x3/8" screw through the back flange and the hole in rail support.

Serious injury can result if fingers become entangled in moving opener sprocket. Attach rail support bracket securely. Never operate opener while you hand is near the opener sprocket.

CAUTION

Washered Screw

USE ONLY THIS

TYPE AND SIZE

SCREW

Rail

Chain

5/16"-18x1/2"

Opener

Rail

Hole

Styrofoam Packaging

WARNING

Page 7

• Spin the inner nut and lock washer down the threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown. As you turn the nut, keep the chain

from twisting.

• When the chain is approximately 1/2" above the base of the rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is either too loose or too tight.

When installation is complete, you may notice some chain droop with the door closed. This is normal. If the chain returns to the position shown when the door is open,

do not re-adjust the chain.

NOTE: During future maintenance,

ALWAYS

pull the manual release handle to disconnect trolley before adjusting chain.

Lock

Washer

To Tighten Outer Nut

Inner Nut

Trolley

Chain

Base of rail

1/2"

To Tighten

Inner Nut

Outer Nut

Assembly Step 3

Tighten the Chain

IMPORTANT INST ALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS

2. Install only on a properly balanced and lubricated garage door.

An improperly balanced door may

not reverse and could result in severe injury or death.

Repairs to cables, spring assemblies and

other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the manual release handle mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the control button and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch high object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose clothing can be caught in the mechanism of the garage door or the opener.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section:

WARNING

Page 8

• Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" above the high point. This height will provide travel clearance for the top edge of the door.

Header

Wall

Ceiling

Track

Highest Point

of Travel

Door

Proceed to Step 2, page 9.

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall

2x4 Structural

Supports

• Close the door and mark the inside vertical centerline of the garage door.

• Extend the line onto the header wall above the door.

Remember, you can fasten the header bracket within 2 feet to the left or right of the door center

only

if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (refer to page 9) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2".)

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown here.

Installation Section: Pages 8 – 20

Installation Step 1

Determine Header Bracket Location

If the header bracket is not rigidly fastened to a structural support on the header wall or ceiling, the safety reverse system may not work properly (see page 23).

The door might not reverse when required, and could cause serious injury or death.

The garage door springs, cables, pulleys, brackets and their hardware are under extreme tension.

Do not attempt to loosen, move or adjust them yourself. Serious personal injury or death could result.

Call for professional

garage door service.

WARNING

Page 9

Lag Screws

5/16"-9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional Wall

Mounting Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

CEILING MOUNT ONLY

Door

Spring

Header Bracket

2x4

Vertical

Center Line

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements.

Fasten the Header Bracket to the Wall

• Center the bracket on the vertical guideline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark either set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

Fasten the Header Bracket to the Ceiling

Installation Step 2

Install the Header Bracket

Hardware Shown Actual Size

Lag Screws

5/16"-9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

Finished

Ceiling

Header

Bracket

6" Maximum

Vertical

Center Line

Door

Spring

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

• Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

Lag Screw

5/16"-9x1-5/8"

Page 10

Header Bracket

Chain Pulley

Bracket

Temporary

Support

Header Wall

Garage

Door

Clevis Pin

5/16"x2-3/4 "

Ring Fastener

Header Bracket

Chain Pulley

Bracket

Rail

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

If the door spring is in the way you'll need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the chain pulley bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Installation Step 3

Attach the Rail to the Header Bracket

Hardware Shown Actual Size

Clevis Pin

5/16" x 2-3/4"

Ring Fastener

Page 11

Installation Step 4

Position the Opener

To prevent damage to steel, aluminum, fiberglass or glass panel doors, do not rest the opener on the door without using a 2x4.

CAUTION

• If the top panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect the inner and outer sections. The trolley can remain disconnected until Step 12 is completed.

A 2x4 laid flat is convenient for setting an ideal door-to-rail distance.

• Raise the opener onto a stepladder.

You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

Rail

2x4

Door

Stepladder

Trolley

Release Arm

Trolley

Page 12

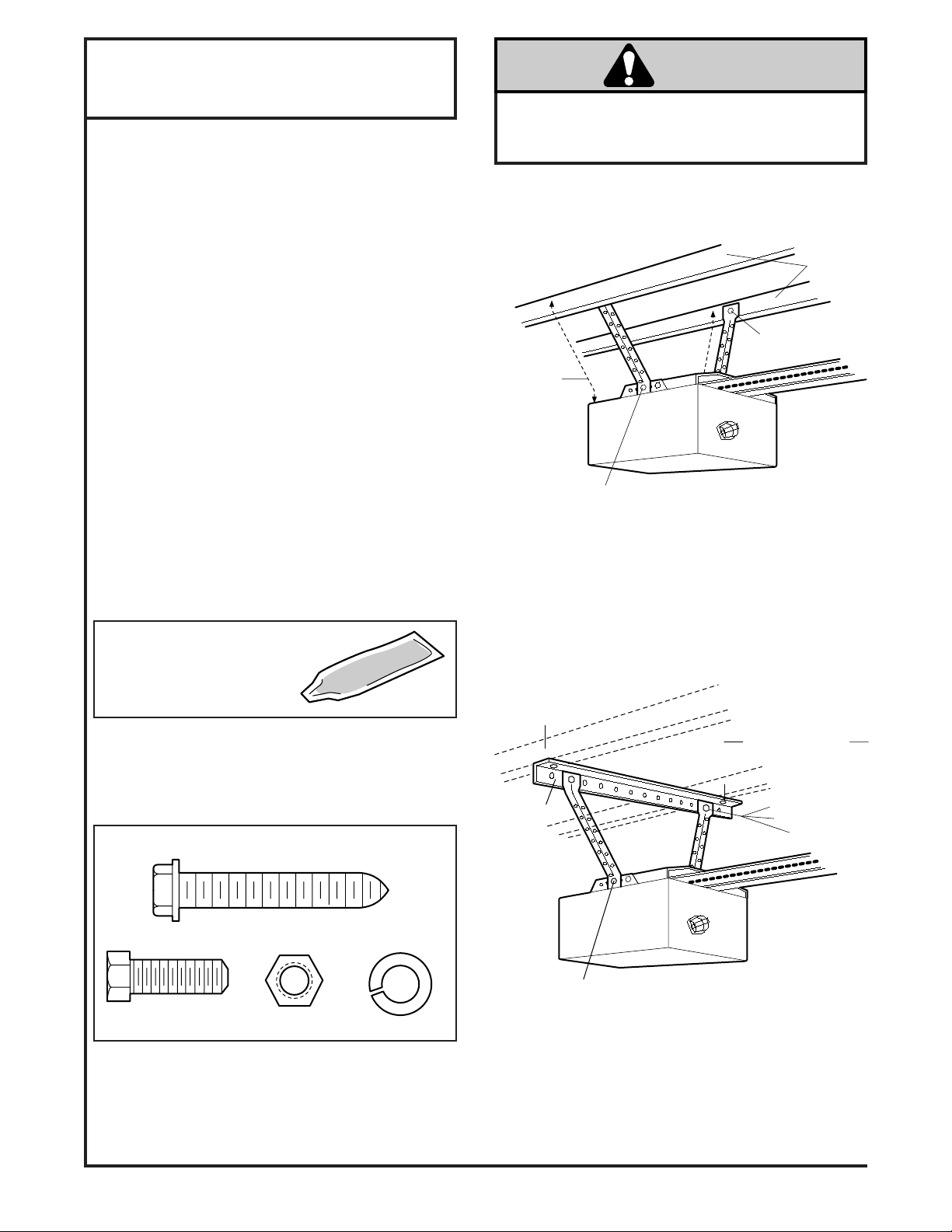

Installation Step 5

Hang the Opener

Two representative installations are shown. Yours may be different. Hanging brackets should

be angled, Figure 1, to provide rigid support. On finished ceilings, Figure 2, attach a sturdy metal bracket to structural supports in ceiling before installing the opener. The bracket and fastening hardware are not supplied.

• Measure the distance from

each

side of the opener

to the structural support.

• Cut both pieces of the hanging bracket to required lengths.

• Drill 3/16" pilot holes in the structural supports.

• Attach one end of each bracket to a support with 5/16"x1-7/8" lag screws.

• Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex screws, lock washers and nuts.

• Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

• Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

Grease the top and underside of the rail surface where the trolley slides. A tube of grease is supplied.

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Measure Distance

Lag Screws

5/16"x1-7/8"

Structural

Supports

Lag Screws

5/16"x1-7/8"

Bracket

(Not Supplied)

FINISHED CEILING

Hidden Support

(Not Supplied) 5/16"-18x7/8" Screw 5/16" Lock Washer 5/16"-18 Nut

5/16"-18x7/8" Screw 5/16" Lock Washer 5/16"-18 Nut

The opener could fall and injure someone if it is not properly secured.

Fasten the opener

securely to structural supports of the garage.

Hardware Shown Actual Size

Figure 1

Figure 2

RAIL GREASE

NO. 83A4

WARNING

Lag Screw

5/16"-18x1-7/8"

Hex Screw

5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

Page 13

Installation Step 6

Install the Door Control

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could close and cause serious injury or death.

Install the Door Control (or any additional push buttons) out of the reach of children and away from all moving parts of the door and door hardware,

but where the garage door is visible.

Do not allow children to operate the push button(s) or the remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly adjusted, you can see it clearly, and there are no obstructions to door travel.

• Strip 1/4" of insulation from one end of the bell wire; connect the wire to the two screw terminals on the back of the Door Control: white to 2 and white/red to 1.

• Locate the door control within sight of the door

at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware.

Fasten the Door Control Button securely with 6ABx1-1/2" screws. If installing into drywall, drill 5/32" holes and use the anchors provided.

• Run the bell wire up the wall and across the ceiling to the opener. Use insulated staples to secure the wire in several places. Be careful not to pierce the wire with a staple, thereby resulting in a short.

• Receiver terminal screws and the antenna are located on the back panel of the opener. Position the antenna wire as shown.

• Then connect the bell wire by color to the opener terminal screws: white to 2 and white/red to 1.

• Remember to affix the User Safety Instruction

label to the wall near the door control, and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

If the label adhesive will not adhere to your garage wall surface (or becomes loose with time), use tacks to secure the label alongside the door control. Page 25 explains how to operate the opener using the door control.

Do NOT connect the power and operate the opener at this time.

The trolley will travel to the

full

open

position but will not return to the

position until the sensor beam is connected and properly aligned. See Safety Reversing Sensor Instructions beginnning on page 16.

Outside Keylock Accessory Connections

To opener terminal screws:

White to 2 and white//red to 1

WARNING

2-Conductor

Bell Wire

Door Control

Push Bar

LIGHT

LOCK

Multi-Function

Door Control Panel

Light Button

Lock Button

-2

-1

Multi-Function

Door Control Panel

Terminal Screws

2-Conductor

Bell Wire

2 3

Opener

Terminal

Screws

Antenna

Back Panel

of Opener

RED-1

WHT-2

BLK-3

Dry Wall Anchors

Insulated

Staples

6ABx1-1/2" Screw

Lighted Door Control Button

Hardware Shown Actual Size

Page 14

Opener

75 Watt Max.

Light Bulb

Install the Light

• Install a 75 watt maximum light bulb in the socket. The light will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the light will turn OFF.

• If the bulb burns out prematurely due to vibration, replace with a "Garage Door Opener" bulb.

Installation Step 7

Install the Light

Installation Step 8

Attach the Manual Release Rope and Handle

Do not use the red handle to pull the door open or closed.

The rope knot could become

untied and you could fall.

Use the manual release only to disengage the trolley and, if possible, only when the door is closed.

Garage doors are heavy. If the door is open when the handle is pulled, the door could close inadvertently if it is not properly balanced. Serious injury may result to persons under the door. Make sure the doorway is clear of persons and obstructions before pulling handle when door is open.

• Thread one end of the rope through the hole in the

top of the red handle so "NOTICE" reads right side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above the floor. Secure with an overhand knot.

If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

Trolley

NOTICE

Overhand

Knot

Manual

Release Handle

Rope

Overhand

Knot

Trolley

Release Arm

WARNING

Page 15

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will

only

fit into a grounding

type outlet. If the plug doesn't fit into the outlet you have,

contact a qualified electrician to install the proper outlet.

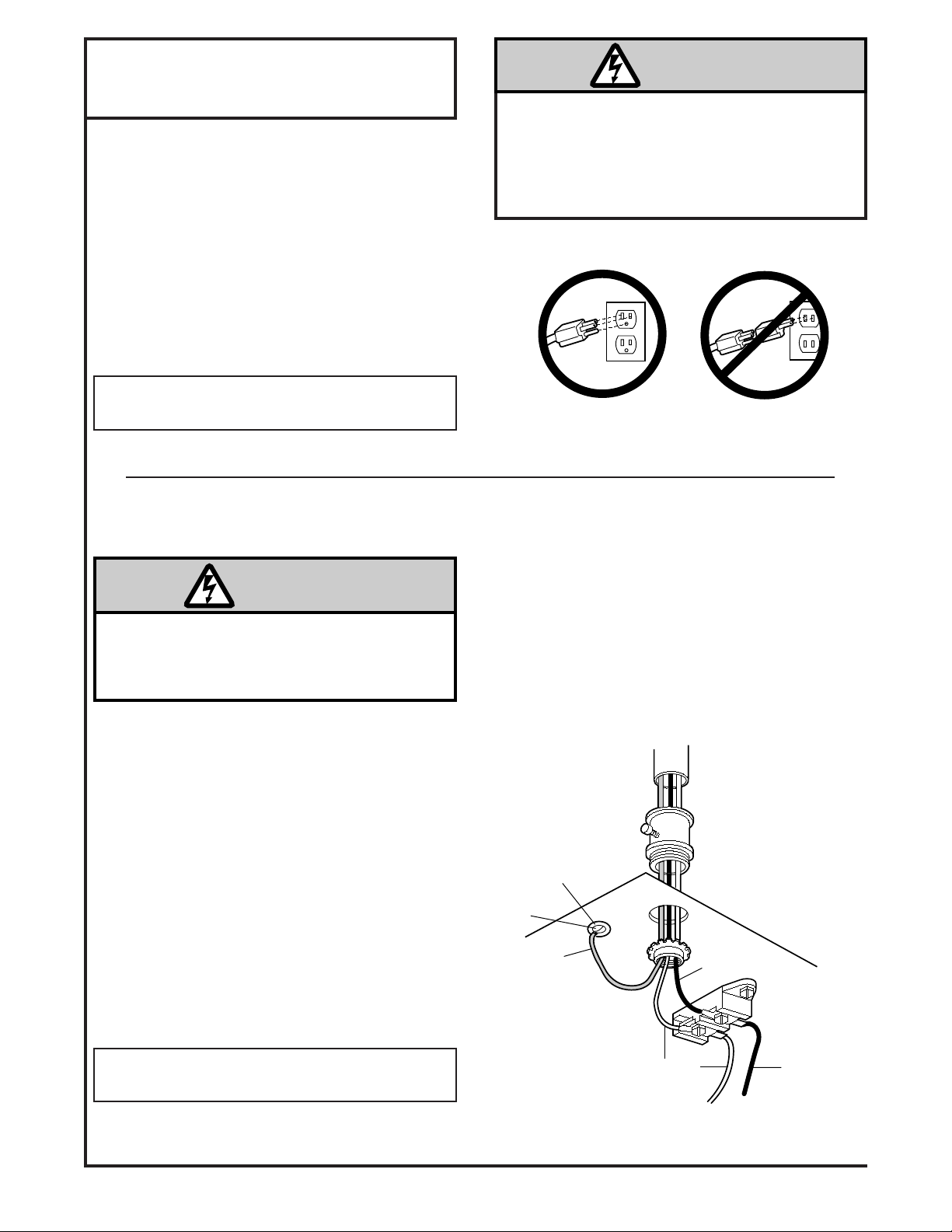

Installation Step 9

Electrical Requirements

To make a permanent connection through the 7/8" diameter hole in the top of the opener (according to local code):

• Remove the opener cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw.

The opener must be

grounded.

• Reinstall the cover.

To prevent electrocution or fire,

installation and wiring must be in compliance with local electrical and building codes.

Do NOT use an extension cord, 2-wire adapter, or change the plug in any way to make it fit your outlet.

Right

Wrong

To avoid installation difficulties,

do not run the opener at this time.

To avoid installation difficulties,

do not run the opener at this time.

If permanent wiring is required by your local code, refer to the following procedure:

To prevent electrocution, remove power from the garage door opener

and

from the circuit you plan to use for the permanent connection.

WARNING

Green

Ground

Screw

Ground Wire

Permanent wiring

connection

Ground Tab

Black

Wire

White Wire

Black

Wire

Page 16

Without a properly working safety reversing sensor, persons (particularly children) could be injured or killed by a closing garage door.

Read and follow all instructions. To protect small children, install the safety

reversing sensor so that the beam will be no higher than 4-6" above the garage floor.

Disconnect power to the garage door opener before installing the safety reversing sensor.

Invisible Light Beam

Protection Area

Sensor Beam

4-6" max.

above floor

Sensor Beam

4-6" max.

above floor

Facing the door from inside the garage

The Protector System

Information you'll need before you begin the installation of the safety reversing sensor.

The safety reversing sensor

must

be connected and aligned correctly before the garage door opener will move in the down direction. This is a required safety device and cannot be disabled.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to the receiving eye. The units can be installed on either side of the garage door as long as the sun never shines directly into the receiving eye lens.

Look at the label on the connector end of each case to identify the sensors.

The brackets must be connected and fastened so that the sending and receiving eyes face each other as shown.

If an obstruction breaks the light beam while the garage door is closing, the door will stop and reverse to full open position and the opener light will flash for 5 seconds.

The brackets

must

be securely fastened to a solid surface such as the studs on either side of the door, or add a piece of wood at each location if installing in masonry construction.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) can interrupt the beam while the door is closing. If it does, use a piece of wood to build out each sensor mounting location to the minimum depth required for light beam clearance.

WARNING

Page 17

1/4x1-1/2"

Lag Screw

#10-32x3/8"

Screw

1/4"-20

Lock Nut

#10x32

Lock Nut

Staples

1/4"-20x1/2"

Carriage Bolts

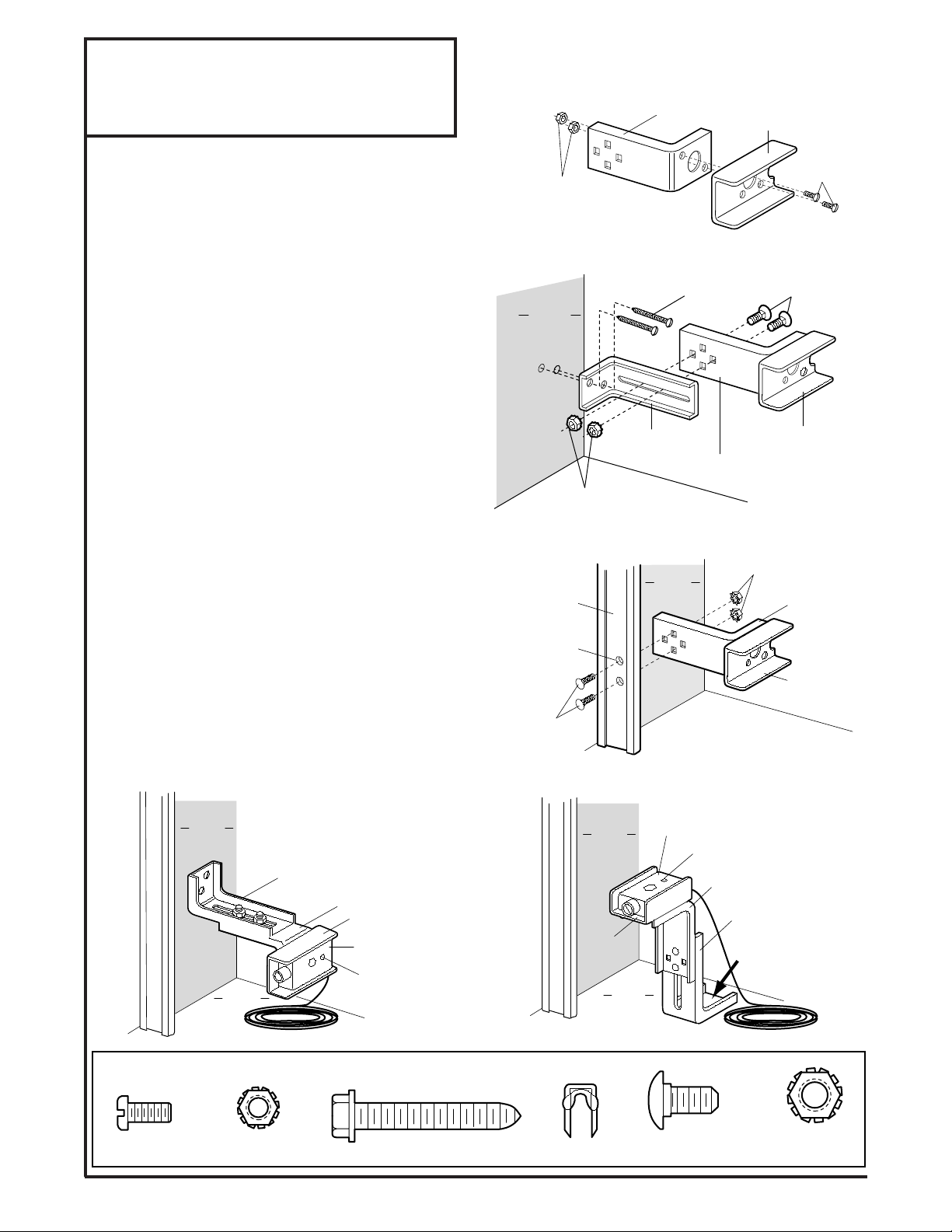

Installation Step 10

Install the Safety Reversing Sensor (Receiving and Sending Eyes)

Figures 1, 2 and 3 show recommended assembly of bracket(s) and "C" wrap based on the

wall

installation of the sensors on each side of the garage door as shown on page 16, or on the

garage door tracks

themselves.

Figures 4 amd 5 are variations which may fit your installation requirements better. Make sure the wraps

and brackets are aligned so the sensors will face each other across the garage door.

Garage

Wall or Door

Track Installation

1. Fasten the "C" wraps to the mounting brackets having

square holes, using the hardware shown in Figure 1.

Garage

Wall

Installation

2. Connect each assembly to a slotted bracket, using

the hardware shown in Figure 2. Note alignment of

brackets for left and right sides of the door.

3. Finger tighten the lock nuts.

4. Use bracket mounting holes as a template to locate

and drill (2) 3/16" diameter pilot holes on both sides of the garage door, 4"-6" above the floor

but not

exceeding 6"

(see warning on page 16).

5. Attach bracket assemblies with 1/4"x1-1/2" lag screws

as shown in Figure 2.

6. Adjust right and left side bracket assemblies to the

same distance out from mounting surface. Make sure all door hardware obstructions are cleared. Tighten the nuts securely.

Garage

Door

Track Installation

Discard slotted bracket. Drill 3/8" holes in each track and fasten securely with hardware as shown in Figure 3.

"C" Wrap

Inside

Garage

Wall

Mounting Bracket

with Square Holes

Garage

Floor

Mounting Bracket

with Slot

Alternate Wall Mount

Sensor

with wire

Indicator Light

Inside

Garage

Wall

Alternate Floor Mount

Mounting Bracket

with Slot

Attach with

concrete anchors

(not provided)

Mounting Bracket

with Square Holes

"C" Wrap

Sensor with wire

Garage

Floor

Hardware Shown Actual Size

Figure 1

Figure 2

Figure 3

Figure 5

Figure 4

Garage

Door Track

1/4-20x1/2"

Carriage Bolts

Garage WALL or DOOR Track Installation

Mounting Bracket

With Square Holes

"C" Wrap

#10-32

Lock Nuts

Garage WALL Installation

Inside

Garage

Wall

1/4x1-1/2"

Lag Screws

Mounting Bracket

with Slot

Mounting Bracket

with Square Holes

1/4"-20

Lock Nuts

1/4-20x1/2" Carriage Bolts

(with square shoulder)

Garage DOOR Track Installation

Inside

Garage

Wall

Drill 3/8"

Holes

1/4 " Lock Nuts

Mounting Bracket

with Square Holes

#10-32x3/8"

Screws

"C" Wrap

"C" Shaped

Wrap

Page 18

Invisible Light Beam

Protection Area

Sensor

Connect Wire to

Opener Terminals

Bell Wire

Finished

Ceiling

Sensor

Connections

Wall Control

Connections

(dotted line)

OPENER TERMINAL SCREWS

2 3

1/4-20 x 1-1/2"

Hex Bolt

"C" Wrap

Sensor

with Wire

Wing

Nut

Indicator

Light

1/4-20x1-1/2"

Hex Bolt

Wing Nut

Hardware Shown Actual Size

Figure 6

Figure 7

• Center each sensor unit in a "C" wrap with lenses

pointing toward each other across the door (see Figure 6).

• Secure sensors with the hardware shown. Finger

tighten the wing nut on the

receiving eye

to allow

for final adjustment. Securely tighten the

sending

eye

wing nut.

• Run the wires from both sensors to the opener

(see Figure 7). Use insulated staples to secure the wire to wall and ceiling.

• Strip 1/4" of insulation from each set of wires.

Separate white and white/black wires sufficiently to connect to the opener terminal screws: white to 2 and white/black to 3.

Aligning the Safety Sensors

• Plug in the opener. Green indicator lights in both

the sending and receiving eyes will

glow steadily

wiring connections and alignment are correct.

The

sending

eye indicator light will glow regardless of alignment or obstruction. If the indicator light is off, dim, or flickering in the

receiving eye

(and the invisible light beam path is not obstructed), alignment is required.

• Loosen the

sending

eye wing nut and re-adjust,

aiming directly at the receiving eye. Lock in place.

• Loosen the

receiving

eye wing nut and adjust sensor vertically and/or horizontally until it receives the sender’s beam. When the green indicator light

glows steadily,

tighten the wing nut.

Trouble Shooting

1. If the

sending eye

indicator light does not

glow

steadily

after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can occur under staples or at screw terminal connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2. If the sending eye indicator light

glows steadily

but

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3.If the receiving eye indicator light is dim, realign either sensor.

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener light will flash 10 times. (If bulb is not installed, 10 clicks are audible.) See page 16.

Page 19

Installation Step 11

Fasten Door Bracket & Plate

To prevent damage to steel, aluminum, fiberglass or glass panel doors, always reinforce the inside of the door both vertically and horizontally with an angle iron.

INSTALLATION STEP 11

Fasten the Door Bracket

A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to Step 12.

SECTIONAL DOORS

1.Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" below

the top edge of the door, OR directly below any structural support across the top of the door.

3.Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket

using the two 1/4"-14x5/8" self-threading screws. (Figure 2A)

• Alternately, use two 5/16" bolts, lock washers and

nuts (not provided). (Figure 2B)

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket

using the self-threading screws (Figure 3).

Wood Doors:

• Use top and bottom or side to side door bracket

holes. Drill 5/16" holes through the door and secure bracket with 5/16"x2" carriage bolt, lock washer and nuts (not provided). (Figure 4)

NOTE: The 1/4"-14x5/8" selfthreading screws are not intended for use on wood doors.

WARNING

Figure 1

Figure 2A

Figure 2B

Figure 3

Figure 4

HARDWARE SHOWN

ACTUAL SIZE

WARNING

Header Bracket

Vertical Reinforcement

Door Bracket

Self-Threading Screw 1/4"-14x5/8"

Door Bracket Location

Vertical Centerline

(Not Provided)

Self-Threading Screw 1/4"-14x5/8"

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED

FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC). (NOT PROVIDED)

Vertical Reinforcement

Vertical Centerline

Bolt 5/16"-18x2"

Door Bracket

Lock Washer 5/16"

Nut 5/16"-18

(Not Provided)

Bolt 5/16"x2"

Vertical Centerline

Inside Edge of Door or Reinforcement Board

Self-Threading Screw 1/4"-14x5/8"

Page 20

Installation Step 12

Connect Door Arm to Trolley

Make sure garage door is fully closed. Pull the manual release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2” as shown in Figures 1, 2 and 3.

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

Ring

Fastener

Door

Bracket

Clevis Pin

Curved

Door Arm

Straight

Door Arm

Clevis

Lock

Washers

5/16"

Nuts

5/16"-18

Door Bracket

Screws

5/16"-18x7/8"

Manual

Release

Handle

Rope

Inner Trolley

Outer Trolley

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Cut This End

Figure 3:

• If holes in curved arm are

above

holes in straight arm, disconnect straight arm. Cut about 6" from the solid end. Reconnect to trolley with

cut end

down

as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with screws, lock washers and nuts.

Proceed to Adjustment Step 1, page 21. Trolley will re-engage automatically when the opener is operated.

Figure 1:

• Fasten straight door arm section to outer trolley

with a clevis pin. Secure the connection with a ring fastener.

• Fasten curved section to the door bracket in the same way as shown.

Lockwasher 5/16"

Nut 5/16"-18

Ring Fastener

Hex Screw

5/16"-18x7/8"

Clevis Pin

5/16" x1"

Hardware Shown Actual Size

Figure 1 Figure 2

Figure 3

Hole Alignment Alternative

Page 21

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the Safety Reversing Sensors are completely installed.

Limit adjustment settings regulate the points at which the door will

stop

when moving up or down.

The door will

stop

in the

direction if anything

interferes with door travel. The door will

reverse

the

down

direction if anything interferes with the

door travel (including binding or unbalanced doors). To operate the opener, press the Door Control push

button. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary unless the reversing test fails (see page 23).

Adjustment procedures are outlined below. Run the

opener through a complete travel cycle after each adjustment.

Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to Adjustment Step 2. Use a screwdriver to make limit adjustments.

Limit

Adjustment

Screws

Adjustment Label

Left Side

Panel

Cover

Protection

Bolt

2-4"

How and When to Adjust the Limits

• If the door does not

open completely

but opens

at least

five feet:

Increase

travel. Turn the UP limit adjustment

screw clockwise. One turn equals 2" of travel.

NOTE: To prevent the trolley from hitting the cover protection bolt, keep a minimum distance of 2-4" between the trolley and the bolt.

• If door does not open at least 5 feet:

Adjust the UP (open) force as explained in Adjustment Step 2.

• If the door does not

close completely:

Increase

down

travel. Turn the DOWN limit adjustment screw counterclockwise. One turn equals 2" of travel.

If door still won't close completely and the trolley bumps into the pulley bracket (see page 4), try lengthening the door arm. (See page 20.)

If you have adjusted the door arm to the maximum length and the door still will not close completely, lower the header bracket. See Installation Steps 1 and 2, pages 8 and 9.

• If the opener

reverses

in fully closed position:

Decrease

down

travel. Turn the DOWN limit adjustment screw clockwise. One turn equals 2" of travel.

• If the door

reverses

when closing and there is

no visible interference to travel cycle:

If the opener light is flashing, the Safety Reversing Sensors are either not installed, misaligned, or obstructed. See Troubleshooting, page 18.

Test the door for binding: Pull the manual release handle. Manually open and close the door. If the door is binding, call for garage door service. If the door is not binding or unbalanced, adjust the DOWN (close) force. See Adjustment Step 2.

Adjustment Section: Pages 21 – 23

Improper adjustment of the travel limits could interfere with the proper operation of the safety reverse system.

The door might not reverse properly when required and could seriously injure or kill someone under it.

Test the safety reverse system following all adjustments to the travel limits. See page 23.

WARNING

Page 22

Adjustment Step 2

Adjust the Force

Too much force on the door will interfere with the proper operation of the safety reverse system.

The door might not reverse properly when required and could seriously injure or kill someone under it.

Do not increase the force beyond what is required to close the door. Do not use the force adjustments to compensate for a binding or sticking garage door. Test the safety reverse system following all adjustments to force levels. See page 23.

Adjustment Label

Force Adjustment

Controls

Back Panel of Opener

2 3

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse.

Reversal halfway through down travel does not guarantee reversal on a one-inch obstruction. See page 23.

If the door is hard to hold or doesn't reverse, decrease the DOWN (close) force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn't stop, decrease UP (open) force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door stops easily. After each adjustment, run the opener through a complete travel cycle.

If the door doesn't open

at least

5 feet

Increase UP (Open) force by turning the control clockwise. Make 10 degree turn adjustments until door opens completely. Re-adjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

If the door

reverses

during the down (close) cycle

and the opener lights aren't flashing

Increase DOWN (close) force by turning the control clockwise. Make 10 degree turn adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle. Do

not increase the force beyond the minimum amount required to close the door.

Force adjustment controls are located on the back panel of the opener. Force adjustment settings regulate the amount of power required to open and close the door.

The door will

stop

in the updirection if anything

interferes with its travel. The door will

reverse

in the

down

direction if anything interferes with its travel

(including binding or unbalanced doors). If the forces are set too light, door travel may be

interrupted by

nuisance reversals

in the

down

direction and

stops

in the

direction. Weather conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is 260 degrees, about 3/4 of a complete turn. Do not force controls beyond that point. Turn force adjustment controls with a screwdriver.

WARNING

Page 23

Adjustment Step 4

Test the Safety Reverse System

Test:

• Place a 2x4 laid flat on the floor, centered under

the garage door.

• Operate the door in the down direction.

The door

must reverse on striking the obstruction.

Adjustment:

If the door

stops

on the obstruction, it is not traveling

far enough in the down direction.

• Increase the DOWN limit by turning the DOWN

limit adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

Make sure limit adjustments do not force the door arm beyond a straight up and down position. See the illustration on page 20.

• When the door reverses on the 2x4, remove the

obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated adjustment attempts, call for professional garage door service.

GARAGE DOOR

2x4 Laid Flat

Failure to test and adjust the safety reverse system may result in serious injury or death to persons trapped by a closing garage door.

Repeat this test once a month and adjust as needed.

Adjustment Step 3

Test The Protector System

• Press the Door Control push button to open the

door.

• Place the opener carton in the path of the door.

• Press the Door Control push button to close the

door.

The door will not move more than an inch,

and the opener light will flash.

Professional service is required if the opener closes the door when the safety reversing sensor is obstructed.

The garage door opener will not close from a remote control transmitter if the indicator light in either sensor is

off

(alerting you to the fact

that the sensor is misaligned or obstructed).

The garage door can be closed by pressing and holding the Door Control push button until down travel is completed.

Safety Reversing Sensor

Without a properly working safety reversing sensor, persons (particularly children) could be seriously injured or killed if trapped by a closing garage door.

Repeat this test once a

month.

Important safety check Repeat Adjustment Steps 1, 2 and 4 after:

• Each adjustment of door arm length, force controls

or limit controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

WARNING

Page 24

Limit and Force Adjustment Control

Weather conditions may cause some minor changes in door operation requiring some re-adjustments, particularly during the first year of operation.

Pages 21 and 22 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (page 23) after any adjustment of limits or force.

Force Controls

Limit Controls

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to play with the opener. Keep a remote control in a location inaccessible to children.

3. Operate opener only when the door is in full view and free from any obstruction. Keep the door in sight until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

4. Check safety reversal system monthly. See page 23. The garage door

MUST

reverse on contact with a one-inch object (or a 2x4 board laid flat) placed on the floor. If an adjustment is made to either the force or the limit of travel, both adjustments may be needed and the safety reversal system

must

be checked.

Failure to properly adjust the opener may result in severe injury or death.

5. If possible, use the manual release only when the door is in a closed position. Caution should be taken whenever the disconnect cord is actuated with the door open.

Weak or broken springs may

cause the door to fall rapidly, causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY BALANCED. See page 3.

An improperly balanced door may not

reverse when required and could result in severe injury or death.

Repairs to cables, spring

assemblies and other hardware must be made by a professional garage door person.

7. Disconnect the electric power from the garage door opener before making any repairs or removing

the covers.

8. SAVE THESE INSTRUCTIONS.

Adjustment Label

(Located on the left side panel)

(Located on the back panel)

Do not exceed 8 complete cycles of door operation per hour in commercial applications.

Care of Your Opener

WARNING

Page 25

The lockout feature

prevents the trolley from reconnecting automatically. Pull the manual release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary. To disengage the lockout feature, pull the manual release handle straight down. The trolley will reconnect on the next UP or DOWN operation.

To open the door manually: The door

should be fully closed if possible. Pull down on the red manual release handle and lift the door manually. To reconnect the door to the opener, press the Door Control push button.

Activate the opener with any of the following:

•

The Door Control. Hold push button down until the

door starts to move.

•

A Remote Control Transmitter. Hold push button

down until the door starts to move.

•

The Outside Keylock or Keyless Entry.

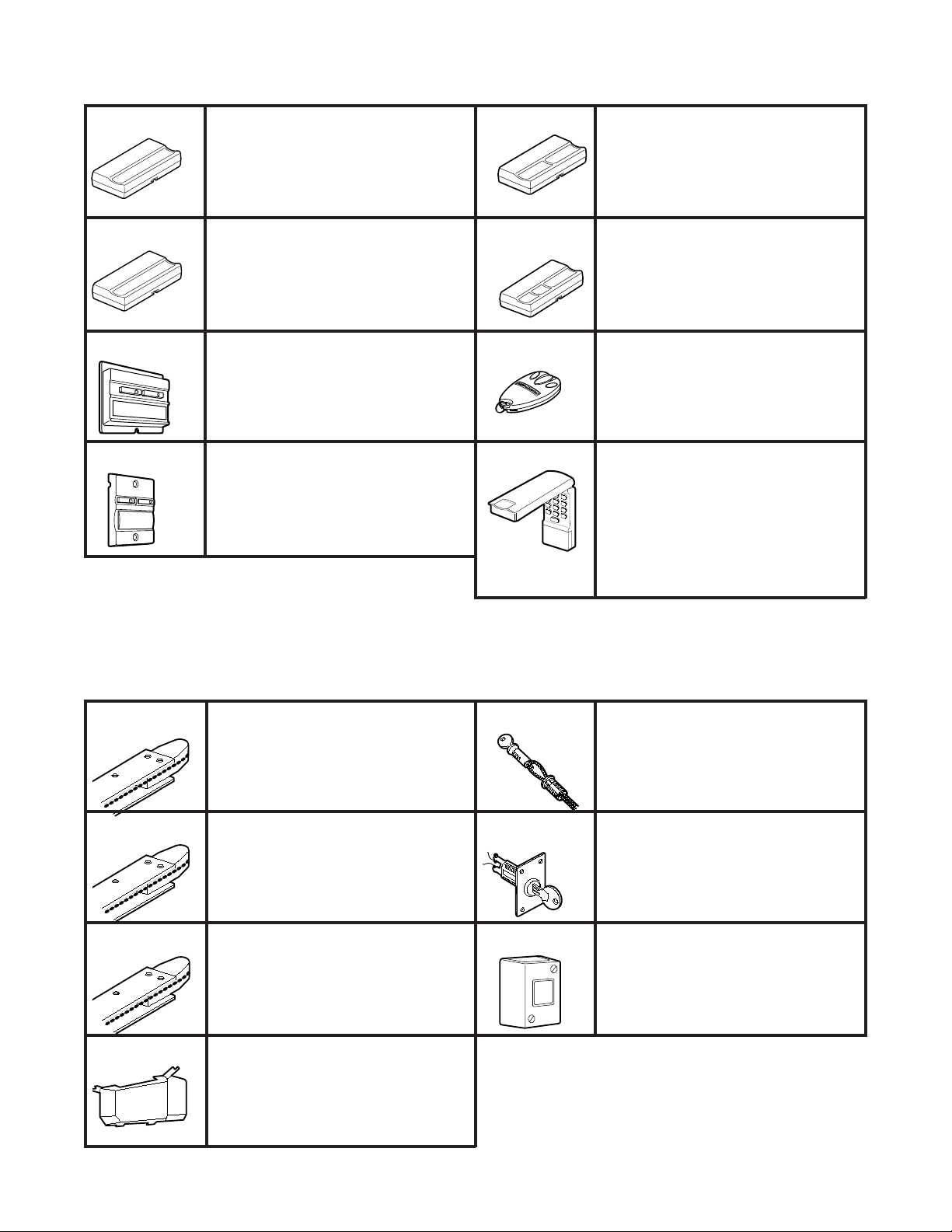

(See Accessories)

When the opener is activated with the safety reversing sensor installed and correctly aligned:

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle, and the opener light will blink for 5 seconds, when the invisible beam is broken. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is not aligned correctly, the door won't close from any remote control transmitter. However, you can close the door with the Door Control, the Outside Keylock, or Keyless Entry, if you activate them

until down travel

is complete.

If you release them too soon, the door

will

reverse.

The opener light will turn on under the following conditions: When the opener is initially plugged in; when the power is interrupted, when the opener is activated, and when someone walks through the open garage door. It will turn off automatically after 4-1/2 minutes. Bulb size is 75 watts maximum.

Trolley

Release

Arm

NOTICE

Manual Release Handle

(Pull Down & Back

Towards Opener)

Trolley

Release

Arm

NOTICE

Manual Release

Handle (Pull Down)

Lockout position

Manual disconnect

position

Weak or broken springs could allow an open door to fall (either rapidly or unexpectedly), resulting in serious injury, death or property damage.

If possible, use the manual release rope

and handle

only

when the door is fully closed.

Operation of Your Opener

Operation of the

Door Control Button

Press to open or close the door. Press again to

reverse

the door during the closing

cycle or to

stop

the door while it’s opening.

WARNING

Page 26

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could close and cause serious injury or death.

Do not allow children to operate the Door Control or remote control transmitter(s).

A moving garage door could injure or kill someone under it.

Activate the opener only when you can see the door clearly, it is free of obstructions, and is properly adjusted.

WARNING

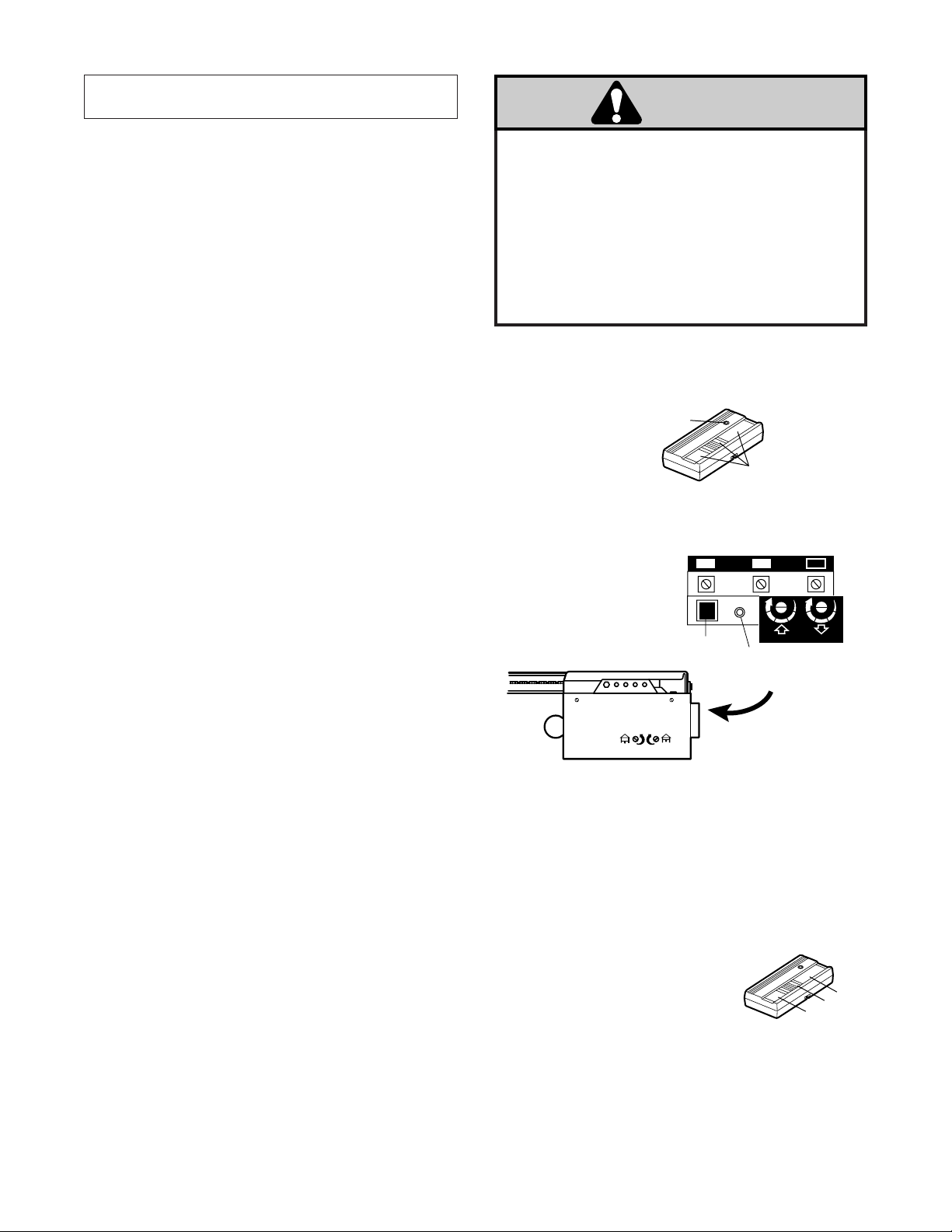

SECURITY✚ 3-Channel Remote Control Programming (OPTIONAL)

NOTICE: To comply with FCC/IC rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

The 90 Series remote control (with yellow battery test light) works only with door openers and light controls having an orange “Smart” button and a yellow indicator light.

Programming instructions are described and illustrated below. The additional push buttons can also activate other garage door openers and/or light controls. (Instructions for programming light products are included with those accessories.) See Accessories on page 34.

Your SECURITY✚ opener will operate with:

• several SECURITY✚ remote controls (with yellow indicator lights) utilizing up to 8 functions.

NOTE:

Open/Close/Stop operation counts as 1 function.

• one Keyless Entry System (with SECURITY✚ logo)

To Program the Opener to Accept

the Remote Control Code

Select a remote control push button to operate the opener. The

large

button is recommended for use with

a garage door opener.

1. Press and

hold

the selected remote control push

button. See Figure 1.

2. Press and release the “Smart” (learn) button on the opener panel, Figure 2. The indicator light on the panel will begin to blink and the opener light will

flash once.

Release the remote push button.

Now the opener will operate when that remote control button is pressed. Test it by pressing the remote button to see that the door goes up and down.

Adding a remote can also be done from the MultiFunction Door Control, as follows:

With the door closed,

press and hold a remote push

button.

2. Press and hold the Light button on the door control.

3. Press and hold the door control push bar.

4. After the opener light flashes, release all buttons.

Test by pressing the remote push button.

To Erase All Remote Control Codes

Press and hold the “Smart” button on the opener panel until the indicator light turns off (about 6 seconds). All transmitter codes are now erased. Then follow the steps above to re-program each remote control.

To Control the Opener Light

With SECURITY✚ transmitters, a remote push button can be programmed to operate the opener light without opening the door.

With the door closed,

press and hold the remote

button that you want to control the light.

2. Press and hold the Light button on the door control.

3. Press and hold the Lock button on the door control.

4. After the opener light flashes, release all buttons.

Test by pressing the remote push button. The opener light should turn on or off but the door should not move.

SECURITY✚

Garage Door Opener

BACK PANEL

"Smart" (learn)

Button

Indicator Light

Figure 2

Select a

push button

Yellow

Battery Indicator

Light

Model 96LM

SECURITY✚ Remote Control

Code programming instructions are also located on the opener panel.

Open/Close/Stop Operation

The SECURITY✚ remote control can be programmed to operate one door using all 3 buttons: the large button will only open the door, the middle button will only close the door, and the third button will stop the door’s movement. You may set up this feature as follows:

With the door closed,

press and hold

the large remote push button.

2. Press and hold the Lock button on the door control.

3. Press and hold the door control push bar.

When the opener light flashes, release all buttons. Test by pressing the large

(Open)

button on the remote. The door should open. Press it again while the door is open and nothing should happen. Press the middle

(Close)

button and the door should close. Press the

third

(Stop)

button while the door is moving and it

should stop immediately.

Open

Stop

Figure 1

Page 27

SECURITY✚ Multi-Function Door Control - Model 58LM (OPTIONAL)

Children operating or playing with a garage door opener can injure themselves or others.

The garage

door could close and cause serious injury or death.

Install the door control (or any additional push buttons) out of the reach of children and away from all moving parts of the door and door hardware,

but

where the garage door is visible.

Do not allow children to operate the push button(s) or the remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly adjusted, you can see it clearly, and there are no obstructions to door travel.

• Strip 1/4" of insulation from one end of the bell wire; connect the wire to the two screw terminals on the back of the door control panel as follows: white to 2 and white/red to 1. (NOTE: If “Lock” and “Light”

buttons do not function after completing installation, reverse the connections.)

• Locate the door control within sight of the door at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware.

Fasten the Door Control Panel securely with 6ABx1" screws. If installing into drywall, drill 5/32" holes and use the anchors provided.

• Connect the bell wire to the opener terminal screws as follows: white to 2 and white/red to 1.

WARNING

NOTICE: To ensure the proper functioning of your new

Garage Door Opener, please remove all old or previous push buttons/door control panels.

2-Conductor

Bell Wire

Door Control

Push Bar

LIGHT

LOCK

Multi-Function

Door Control Panel

Light Button

Lock Button

-2

-1

Multi-Function

Door Control Panel

Terminal Screws

2-Conductor

Bell Wire

2 3

Opener

Terminal

Screws

Antenna

Back Panel

of Opener

RED-1

WHT-2

BLK-3

The Door Control Push Bar: Press to open or close the door. Press again to

reverse

the door during the

closing cycle or to

stop

the door while it's opening.

Light Feature: Press the Light button. If the opener light is

off,

it will turn

on.

If the opener light is on, (even in the 4-1/2 minute automatic cycle) it will turn

off.

But if you use the Light button to turn the light

and then activate the opener, the light will turn

off

after 4-1/2 minutes. The Light Feature will not turn the opener light off

when the door is in motion.

Lock Feature: Designed to prevent operation of the door from portable remote controls. However, the door will

open

and

from the Door Control push bar and from the Keylock and the Keyless Entry Accessories.

To Activate:

Press and hold the Lock button for 2 seconds. The push bar indicator light will flash as long as the Lock is on.

To Turn Off:

Press and hold the Lock button again for 2 seconds. The indicator light will stop flashing. Normal operation will resume. The Lock feature will also turn off whenever the "Smart" button on the opener end panel is activated.

Operation of the Multi-Function Door Control Panel

Page 28

SECURITY✚ Multi-Function Door Control - Model 68LM (OPTIONAL)

The Door Control Push Bar: Press to open or close the door. Press again to

reverse

the door

during the closing cycle or to

stop

the door while

it's opening. Light Feature: Press the Light button. If the opener

light is

off,

it will turn

on.

If the opener light is on, (even in the 4-1/2 minute automatic cycle) it will turn

off.

But if you use the Light button to turn the light

and then activate the opener, the light will turn

off

after 4-1/2 minutes. The Light Feature will not turn the opener light off

when the door is in motion.

Lock Feature: Designed to prevent operation of the door from portable remote controls. However, the door will

open

and

from the Door Control push bar and from the Keylock and the Keyless Entry Accessories.

To Activate:

Press and hold the Lock button for 2 seconds. The push bar indicator light will flash as long as the Lock is on.

To Turn Off:

Press and hold the Lock button again for 2 seconds. The indicator light will stop flashing. Normal operation will resume. The Lock feature will also turn off whenever the “Smart" button on the opener end panel is activated.

Operation of the Multi-Function Door Control Panel

WARNING

2-Conductor

Bell Wire

Multi-Function

Door Control Panel

Terminal Screws

RED

WHITE

Door Control

Push Bar

Light Button

Lock

Button

LOCK

LIGHT

2 3

Opener

Terminal

Screws

Antenna

Back Panel

of Opener

RED-1

WHT-2

BLK-3

NOTE: To ensure the proper functioning of your new Garage Door Opener, remove all old or previous push buttons/door control panels.

Locate the door control within sight of the door at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware.

The multi-function door control panel is typically attached directly to the wall,

Figure 1

. For pre-wired installations (as in new home construction) it can be mounted to a standard single gang box,

Figure 2

• Strip 1/4" of insulation from one end of the bell wire;

connect the wire to the two screw terminals on the back of the door control panel as follows: white to 2 and white/red to 1. (NOTE: If “Lock” and “Light”

buttons do not function after completing installation, reverse the connections.)

•

For standard wall mount,

fasten the door control panel securely with 6ABx1-1/4" self-tapping screws. Run the bell wire up the wall and across the ceiling to the opener. Use insulated staples to secure the wire in several places. Be careful not to pierce the wire with a staple, thereby resulting in a short.

•

For pre-wired installations,

mount the door control to the gang box with the 6-32x1" machine screws provided.

• Connect the bell wire to the opener terminal screws as follows: white to 2 and white/red to 1.

DO NOT CONNECT TO LIVE ELECTRICAL WIRING. CONNECT ONLY TO 24 VOLT LOW VOLTAGE WIRES. CONNECTION TO LIVE WIRES OR HIGHER VOLTAGE MAY CAUSE SERIOUS INJURY FROM SHOCK, BURN OR ELECTROCUTION.

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could close and cause serious injury or death.

Install the door control (or any additional push buttons) out of the reach of children and away from all moving parts of the door and door hardware,

but where the garage door is visible.

Do not allow children to operate the push button(s) or the remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly adjusted, you can see it clearly, and there are no obstructions to door travel.

Figure 1

Standard Installation

Figure 2

Alternate Installation

24 Volt

2-Conductor

Bell Wire

LIGHT

LOCK

Page 29

SECURITY✚ Keyless Entry - Model 67LM (OPTIONAL)

Features

For use with any SECURITY✚ compatible garage door opener receiver.

Personalized Code: Up to 10,000 possible combinations. Code can be easily changed if desired.

Operation: 12 Volt power supply. Opener activates when 4-digit code and Enter button is pressed.

If wrong numbers are accidentally pressed, correction can be made immediately. The Enter button will transmit only the last four digits.

The Keypad will blink for 15 seconds after the code is transmitted. During that time the Enter button can be used to stop or reverse the door travel.

A temporary entry code can be added for visitors or service persons. This temporary code can be limited to a programmable number of hours or a programmable number of entries.

To comply with FCC/IC rules, adjustment or modification of receiver and/or transmitter is prohibited, except for changing the code setting and replacing the transmitter battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Installation

Choose a convenient location for installation. It should be at eye level, reachable by the shortest person who will use it, and within sight of the door. For a one-piece door, choose the optional location shown in the illustration to avoid injury as the door swings out.

Open the keypad cover and remove the battery compartment screw and cover. Take out the battery.

Hold keypad firmly with the cover half open so both top and bottom mounting holes are visible. Use a punch to mark each hole. Drill two 1/8" pilot holes. Fasten securely with screws provided.

Insert the plug provided into the top hole to cover the fastening screw. Reinstall the battery, matching the + and – markings on the battery compartment. Refasten the compartment cover.

Changing the Personal Entry Code

Press the four buttons for the present personal entry code, then press and hold the 0 button, then press Enter. The opener light will blink twice. Release the buttons. Press the new 4-digit code you have chosen, then press Enter. The opener light will blink once when the code has been learned. Test by pressing the new code, then press Enter. The door should move.

Door Jamb Edge

(Optional Location

for 1-Piece Door)

Keypad

Door Jamb Face

SECTIONAL DOOR ONLY

KEYPAD MUST BE INSTALLED

WITHIN SIGHT OF THE DOOR

Exterior Front Wall

1-Piece or

Sectional Door

Typical

Sectional Door

Installation

Setting the Personal Entry Code

We recommend that you program your personal code now, before you install the Keyless Entry. Then you can test the reception at the mounting location before you proceed further.

1.Choose a 4-digit personal entry code using the numbers from 0 to 9 (a number can be used more than once, for example, 4,0, 4,1.)

2. Press the four buttons for the code, then press and

hold

the Enter button. The indicator light on the

door opener panel will blink.

3. Press and release the “Smart” button on the door

opener panel. After the opener light blinks, release the Enter button.

Test by pressing the the code, then press Enter. The door should begin to move.

You may also program the Keyless Entry from the Multi-Function Door Control, as follows:

With the door closed,

enter the four digit code

desired, then press and hold Enter.

2. Press and hold the light button on the door control.

3. Press and hold the door control push bar.

4. After the opener light blinks, release all buttons.

Plug

Battery Cover

Battery

ABC

GHI

MNO

TUV

ENTER

DEF

JKL

PRS

WXY

Indicator

Light

Smart Button

Garage Door Opener Receiver

(With Smart Button)

Children operating or playing with a garage door opener can injure themselves or others.

The garage

door could close and cause serious injury or death.

Do not allow children to operate the door push button(s) or remote control(s).

A moving garage door could injure or kill someone under it.

Activate the opener only when you can see the door clearly, it is free of obstructions, and is properly adjusted.

WARNING

Page 30

1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

2. Have you disabled all door locks? Review installation instruction warnings on page 7.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the ground. Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait 15 minutes. Try again.

Having a Problem?

Situation Probable Cause & Solution

The opener doesn't operate from either the Door Control or the remote control:

Opener operates from the remote, but not from Door Control:

1. Is the door control lit? If not, remove the bell wire from the opener terminals. Short the red and white terminals by touching both terminals at the same time with a piece of wire. If the opener runs, check for a faulty wire connection at the door control, a short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Step 6, page 13.

The remote control has short range:

The garage door opens and closes by itself:

1. Be sure that all remote control push buttons and battery indicator lights are off.

2. Remove the bell wire from the door control terminals and operate from the remote only. If this solves the problem, the door control is faulty (replace), or there is an intermittent short on the wire between the door control and the opener.

3. Clear memory and reprogram all remote controls.

The door doesn't open completely:

1. If the door has been working properly but now doesn't open all the way, increase the

up force.

See page 22.

2. Is something obstructing the door? Remove the obstruction or repair the door.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn equals 2 inches of travel. See page 21.

Repeat the safety reverse test after the adjustment is complete.

The door stops but doesn't close completely:

Review the travel limits adjustment procedures on page 21.

Repeat the safety reverse test after any adjustment of door arm length, close force or down limit.

1. Check the battery test light. If the light is dim, replace the battery.

2. Change the location of the remote control in your car.

3. Check to be sure the antenna on the side or back panel of opener extends fully downward. Install Antenna Kit, Part No. 41A3504, to increase range.

4. Some installations may have shorter range due to a metal door, foil backed insulation, or metal garage siding.

Opener noise is disturbing in living quarters of home:

If operational noise is a problem because of proximity of the opener to the living quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to minimize vibration to the house and is easy to install.

The door operates from the Door Control, but not from the remote control:

1. Is the door push button flashing? If your model has the Lock feature, turn it

off.

2. Your opener needs to re-learn a remote control code. Refer to instructions on the opener panel.

3. Does the battery test light glow when the remote control push button is pressed? If not, replace the battery.

4. Program the receiver to match the remote control code.

5. Repeat the receiver programming procedure with all remote controls.

Page 31

The chain droops or sags:

It is normal for the chain to droop slightly in the closed door position. Use the manual release rope and handle to disconnect the trolley. If the chain returns to the normal height when the trolley is disengaged and the door reverses on a 2x4 laid flat, no adjustments are needed. (See page 7.)

Having a Problem?

(continued)

Situation Probable Cause & Solution

The door reverses for no apparent reason and opener light doesn't blink:

1. Is something obstructing the door? Pull the manual release handle. Operate the door

manually. If it is unbalanced or binding, call for professional garage door service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 22.

4. If door reverses in the

fully closed

position, decrease the travel limits (page 21).

Repeat safety reverse test after adjustments to force or travel limits. The need for occasional adjustment of the force and limit settings is normal. Weather conditions in particular can affect door travel.

The door reverses for no apparent reason and opener light blinks for 5 seconds after reversing:

The opener light:

. . . doesn't turn on:

Replace the light bulb (75 watts maximum). Use a

standard neck

garage door opener

bulb if regular bulb burns out.

. . . doesn't turn off:

Is the Light feature on? Turn it

off.

The opener strains or maximum force is needed to operate door:

The door may be out of balance or the springs are broken. Close the door and use the manual release to disconnect the trolley. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely by its springs. If it does not, disconnect the opener and call a professional garage door serviceman.

Do not increase the force to operate the opener.

The opener motor hums briefly, then won't work:

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked.

Disable

the door lock

. If the chain was removed and reinstalled, the motor may be out of phase. Remove the chain; cycle the motor to the down position. Observe the drive sprocket. When it turns in a clockwise direction and stops in the down position, reinstall the chain.

Repeat the safety reverse test after the adjustment is complete.

The opener won't operate due to power failure:

1. Use the manual release to disconnect the trolley. The door can be opened and closed manually. When the power is restored, press the Door Control push button and trolley will automatically reconnect (unless trolley is in lockout position.) See page 25.

2. The Outside Quick Release accessory (for use on garages with no service door) disconnects the trolley from outside the garage in case of power failure.

The door opens but won't close:

Check the safety reversing sensor. Remove any obstruction or align the receiving eye. See page 18.

1. If the opener light blinks, check the safety reversing sensor. See page 18.

2. If the opener light does not blink and it is a new installation, check the down force.

See Adjustment Step 2, page 22. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

Page 32

CEILING MOUNT ONLY

NOTICE

RAIL GREASE

NO. 83A4

Repair Parts

Rail Assembly Parts

Installation Parts

KEY PART NO. NO. DESCRIPTION

1 1A995 Master link kit 2 41A2780 Chain pulley bracket 3 41A3489 Complete trolley assembly 4 CD1008 8 Foot Rail Assembly

CD1010 10 Foot Rail Assembly CD1012 12 Foot Rail Assembly

5 83A4 Rail grease

KEY PART NO. NO. DESCRIPTION

1 41A4166 Door control push button 2 217A238 2-conductor bell wire, white & white/red 3 41A2828 Manual rope & handle assembly 4 12B374 Door bracket 5 12B380 Door bracket plate 6 41A4353 Header bracket w/clevis pin & fastener 7 41A4373A Safety sensor kit

(receiving and sending eyes) with 3' 2-conductor bell wire attached

8 178B35 Curved door arm section

9 12B483 C Wrap bracket 10 178B34 Straight door arm section 11 12B484 Square hole mounting bracket 12 12B485 Slotted mounting bracket

NOT SHOWN

41A3535 Installation hardware bag (see page 5). 41A4116 Safety sensor hardware

114A2296 Owner's manual

Page 33

Repair Parts

Opener Assembly Parts

Brown

Wire

(Down)

Contact

LIMIT SWITCH ASSY.

Grey Wire

Yellow

Wire

(Up)

Contact

Center Limit

Contact

Drive Gear

KEY PART NO. NO. DESCRIPTION

1 41C5069 Rail support bracket assembly kit 2 144B18 Pulley (Chain) 3 41C4470 Gear and sprocket assy.

Complete with:

Spring washer Thrust washer Retaining washer Bearing plate Roll pins (2) Drive gear and worm gear Helical gear w/retainer and grease Sprocket shaft plate with screws

4 41A2817 Drive/worm gear kit w/grease

Roll pins (2) 5 143D146 Front end panel 6 175B88M Light socket 7 30B432 Capacitor 8 12A461 Capacitor bracket 9 41A3150 Terminal block with screws

KEY PART NO. NO. DESCRIPTION

10 41D4509 Replacement motor & bracket

assembly Complete with: Motor, worm,

bracket, bearing assembly 11 41A4475 Cover 12 41A2818 Helical gear & retainer w/grease 13 41D3452 Limit switch assembly 14 41C4398A RPM sensor assembly 15 41C4246 Wire harness assembly w/plug 16 41A2826 Shaft bearing kit 17 41A2822A Interruptor cup assembly 18 41A5021-1CATS Receiver logic board assembly

Complete with: Logic board, end

panel with all labels

NOT SHOWN

41A2825 Opener assembly hardware kit

(includes screws not designated

by a number in illustration).

Page 34

LIGHT

LOCK

LIGHT

LOCK

Accessories Available for your Opener

Other Products For Your Opener

108D36

Model 59

Model 976LM

Model 1702

Outside Keylock:

Opens the garage door automatically from outside when remote control is not handy.

Outside Quick Release:

Required for a garage with NO access door.

10 foot Complete Rail and Chain Assembly:

To allow a 10 foot door to open fully.

Model CD1010

Model 58LM

Model 68LM

Multi-Function Door Control Panel:

Provides a Lock Feature which prevents operation of garage door opener from portable remotes and a Light Feature for constant light.

Multi-Function Door Control Panel:

For pre-wired installation to a standard single gang box, or mounted directly to the wall. Features same as 58LM.

12 foot Complete Rail and Chain Assembly:

To allow a 12 foot door to open fully.

Model CD1012

Light Lens Cover:

Attractive lens cover protects light bulbs and diffuses light to every corner of your garage.

NEMA 1 Push Button:

Heavy Duty Door Control Push Button (one button).

180C139

8 foot Complete Rail and Chain Assembly:

To allow an 8 foot door to open fully.

Model CD1008

SECURITY✚ 3-Channel Mini Remote Control:

With key ring and Velco fastening strip.

Model 970LM

Model 973LM SECURITY✚ 3-Channel

Remote Control:

Includes visor clip.

Model 971LM SECURITY✚ Single-Function

Remote Control:

Includes visor clip.

Model 972LM

SECURITY✚ 2-Channel Remote Control:

Includes visor clip.

SECURITY✚ Keyless Entry:

Enables homeowner to operate garage door opener from outside by entering code on specially designed keyboard. Also can add a temporary pass code for visitors or service persons. This temporary code can be limited to a programmable number of hours or entries.

Model 81LM “Smart” Remote Control:

Includes visor clip.

Page 35

Index

Access Door/Outside Quick Release Accessory..........................................................................................4, 34

Chain Tension..............................................................................................................................................4, 7, 31

Electrical Safety Warnings....................................................................................................................2, 7, 15, 24

Garage Door

Testing for balance, binding and sticking.............................................................................................3, 21, 22, 24

Determining high point of travel:............................................................................................................................8

Disabling existing locks......................................................................................................................................3, 7

Force Controls

Adjustment procedures.....................................................................................................................................22

Problems that might require force adjustments..........................................................................................30, 31

Safety warnings..........................................................................................................................................22, 24

Door hardware.........................................................................................................................3, 4, 7, 8, 13, 24, 25

Maintenance Instruction Label.........................................................................................................................7, 13

Reinforcement requirements ...........................................................................................................................4, 19

Removing all ropes............................................................................................................................................3, 7

Possible door damage.........................................................................................................................3, 11, 19, 25

Travel Limits

Adjustment Procedures ....................................................................................................................................21

Problems that might require Limit adjustments...........................................................................................30, 31

Safety Warnings .........................................................................................................................................21, 24

Manual Release Rope & Handle

Lockout Feature..................................................................................................................................................25

Manual Disconnect.......................................................................................................................................25, 31

Safety Warnings .................................................................................................................................7, 12, 24, 25

Opener Terminals

Door Control Connections ..................................................................................................................................13

Safety Reversing Sensor Connections...............................................................................................................18

Outside Keylock Accessory Connections...........................................................................................................13

Operational Noise

Sprocket noise......................................................................................................................................................7

Vibration noise (isolator kit) ................................................................................................................................26

Operation of Optional Accessories

Model 96LM Remote Control..............................................................................................................................26

Model 58LM Door Control...................................................................................................................................27

Model 68LM Door Control...................................................................................................................................28

Model 67LM Keyless Entry.................................................................................................................................29

Protector System®..........................................................................................................................................16, 23

Safety Reverse Test Procedure..........................................................................................................................23

Testing required............................................................................................................................7, 23, 24, 30, 31

Safety Reverse System Problems

Securing header bracket to wall .......................................................................................................................8, 9

Adjusting travel limits..........................................................................................................................................21

Applying excessive force on the door.................................................................................................................22

Buckling or uneven floor.....................................................................................................................................23

Safety Warnings.................................................................2, 6, 7, 8, 11, 12, 13, 14, 15, 16, 19, 21, 22, 23, 24, 25

User Instruction Label for garage wall ..........................................................................................................7, 13

Page 36

LIFTMASTER GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY

Chamberlain/LiftMaster warrants to the first retail purchaser of this product that it will be free from any defect in materials and/or workmanship for a period of twelve full months from the date of purchase. The product must be used in complete accordance with Lift-Master's instructions for installation, operation and care.

LIMITED WARRANTY ON MOTOR

Model ATS 211R: The motor is warranteed to be free from any defect in materials and/or workmanship for a period of 12 full months

(1 year) from the date of purchase. This warranty does not cover non-defect damage, damage caused by unreasonable use (including abuse, failure to provide

reasonable and necessary maintenance, or any alterations to the product), labor charges for dismantling or reinstalling of a repaired or replaced unit or replacement batteries.

If, during the warranty period, the product appears as though it may be defective, CALL OUR TOLL FREE SERVICE NUMBER BEFORE DISMANTLING IT (1-800-528-2806). If the product is then alleged to be defective, please send it pre-paid and insured to our Service Center to obtain warranty repair. You will be advised of shipping instructions when you call the number listed above.

Please be sure to include a brief description of the problem and a dated proof-of-purchase receipt with any product that is returned for warranty repair.

Product under warranty, which upon receipt by Chamberlain/LiftMaster is determined to be defective in materials and/or workmanship, will be repaired or replaced (Chamberlain's option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory rebuild parts at Chamberlain's option.

THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. SOME STATES MAY NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

All claims for consequential or incidental damages for breach of this warranty are excluded and in no event shall manufacturer's liability for breach of warranty, negligence, strict liability or breach of contract exceed the cost of the product covered herein, but the purchaser is entitled to the remedies expressly provided in this policy. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

No representative or person is authorized to assume for us any other liability in connection with the sale of this product. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

LIFTMASTER SERVICE IS

ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA AND NORTH AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS

NEAR AS YOUR TELEPHONE SIX DAYS A WEEK.

SIMPLY DIAL OUR TOLL FREE NUMBER:

1-800-528-2806

HOURS: (Mountain Std. Time)

6:00 A.M. TO 6:00 P.M. - Monday through Friday

7:00 A.M. TO 3:00 P.M. - Saturday

Closed Sunday

www.liftmaster.com

For professional installation, parts and service,

contact your local LIFTMASTER/ CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6020 S. Country Club Rd.

Tucson, Arizona 85706

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-2806

Chamberlain ATS211R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

OWNER'S MANUAL

CONTENTS PAGE

You'll Need Tools

Opener Carton Inventory

IMPORTANT INST ALLATION INSTRUCTIONS

Determine Header Bracket Location

Position the Opener

Hang the Opener

Install the Door Control

Install the Light

Electrical Requirements

The Protector System

Fasten Door Bracket & Plate

Connect Door Arm to Trolley

IMPORTANT SAFETY INSTRUCTIONS

Having a Problem?

Repair Parts

Rail Assembly Parts

Installation Parts

Opener Assembly Parts

Index
