Chamberlain 8100M User Manual

Download

Page 1

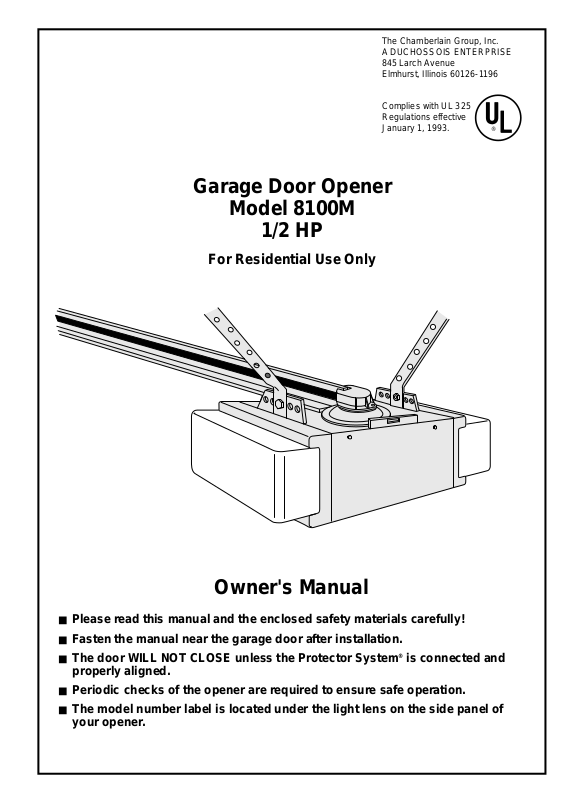

The Chamberlain Group, Inc. A DUCHOSSOIS ENTERPRISE 845 Larch Avenue Elmhurst, Illinois 60126-1196

Complies with UL 325 Regulations effective January 1, 1993.

Garage Door Opener

Model 8100M

1/2 HP

For Residential Use Only

Owner's Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

properly aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located under the light lens on the side panel of

your opener.

is connected and

Page 2

Contents Page

A review of safety alert symbols..................................2

You'll need tools...........................................................3

Safety information regarding garage door

locks and ropes..........................................................3

Testing your garage door for sticking,

binding and balance...................................................3

Illustration of sectional door installation ......................4

Illustration of one-piece door installation.....................5

Carton inventory...........................................................6

Hardware inventory......................................................7

Assembly section – pages 8 - 11

Assemble T-rail..........................................................8

Attach belt pulley bracket ..........................................8

Install trolley...............................................................9

Fasten T-rail to opener ..............................................9

Install belt.................................................................10

Set the belt tension..................................................10

Attach belt cap retainer............................................11

Installation section – pages 11 - 27

Installation safety instructions..................................11

Determine header bracket location

Sectional door........................................................12

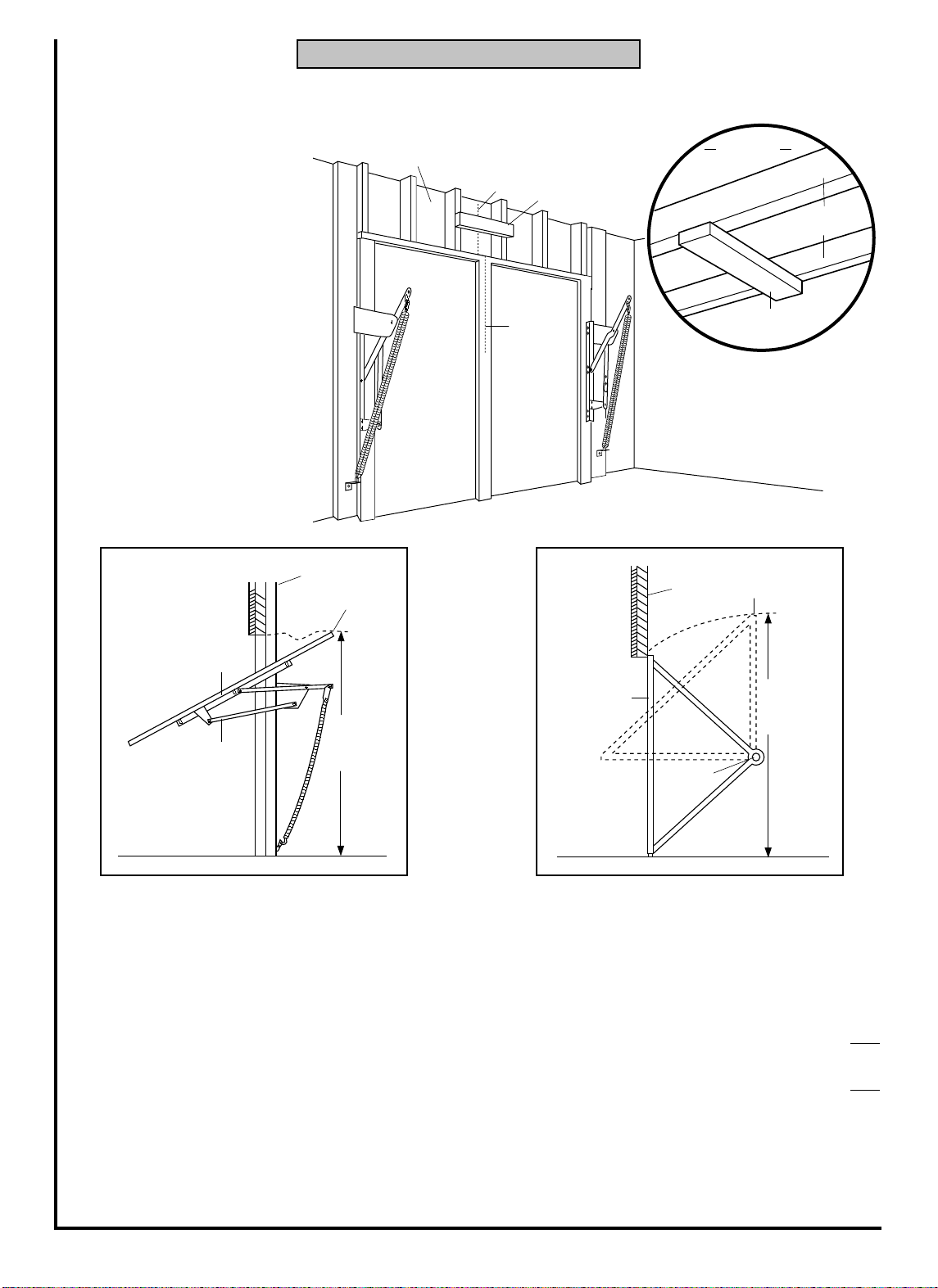

One-piece door......................................................13

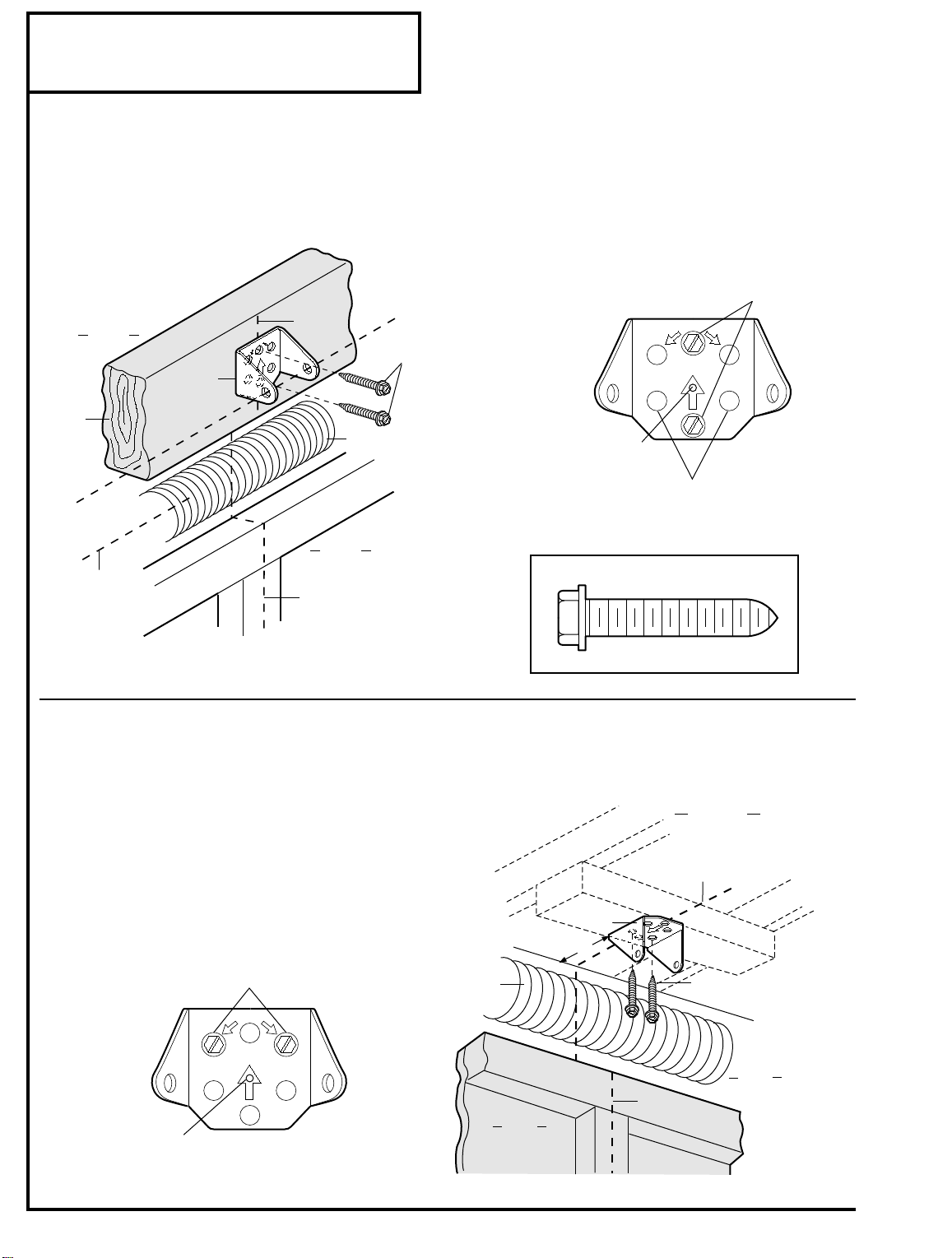

Install the header bracket........................................14

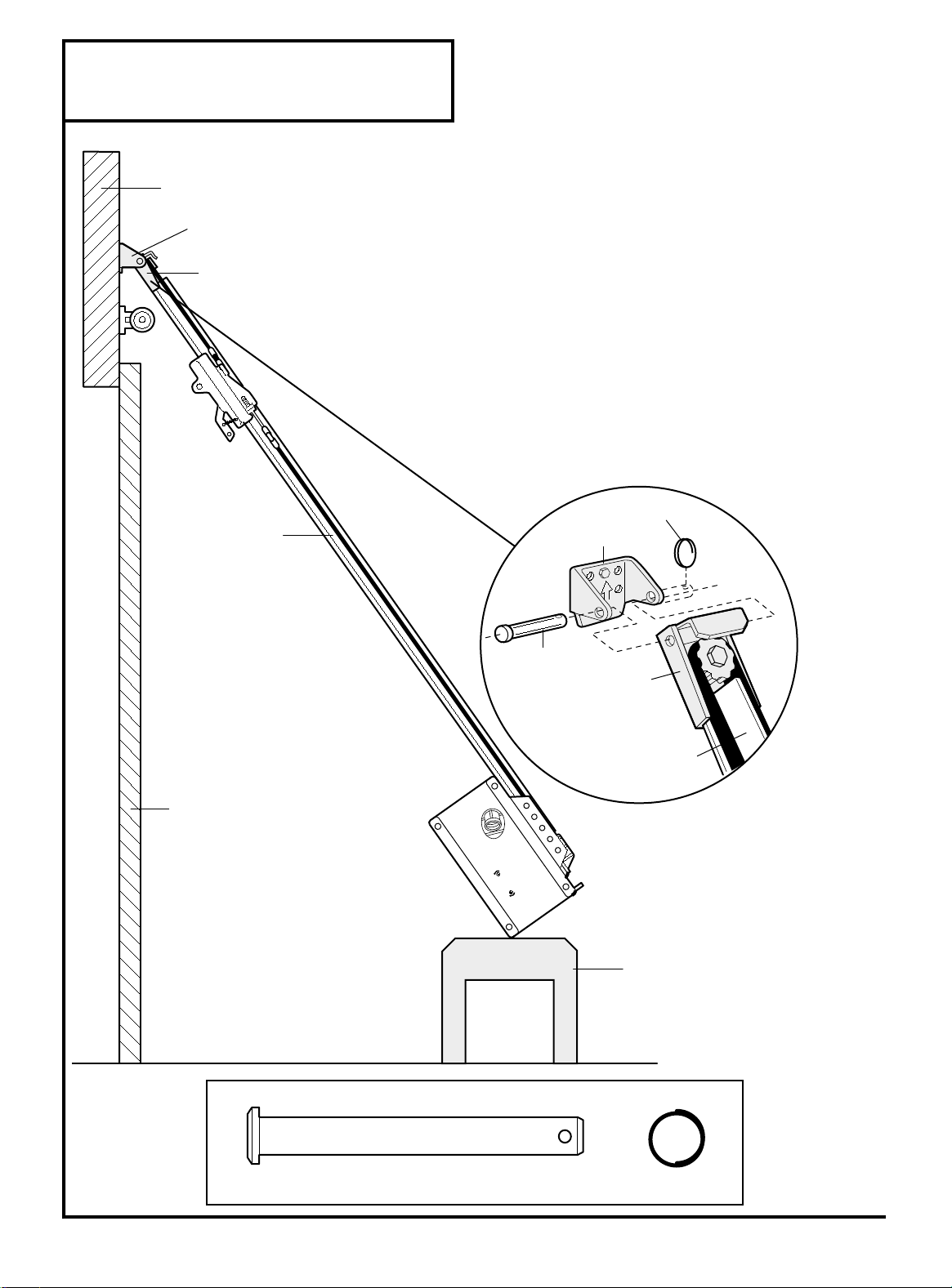

Attach the T-rail to header bracket..........................15

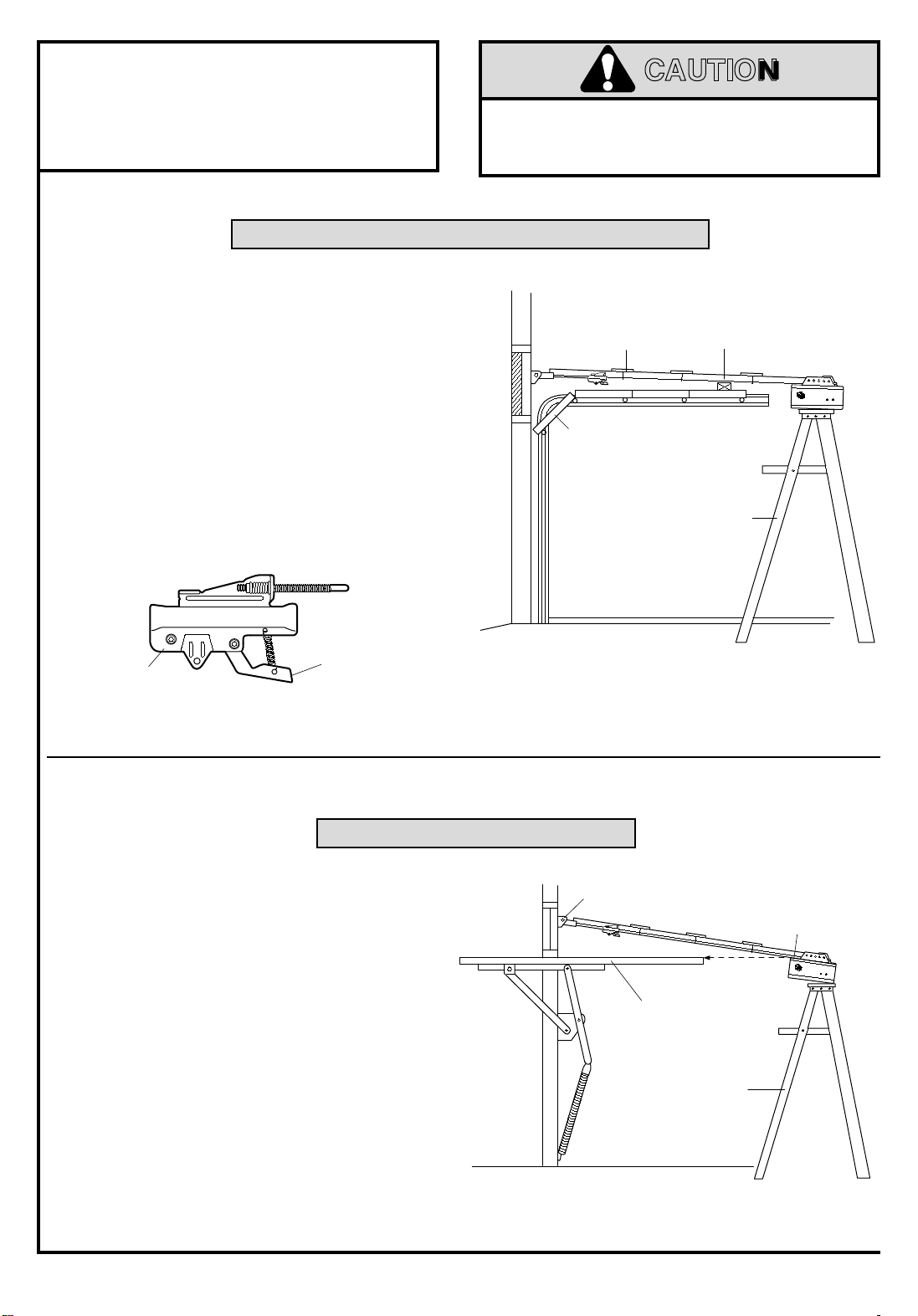

Position the opener..................................................16

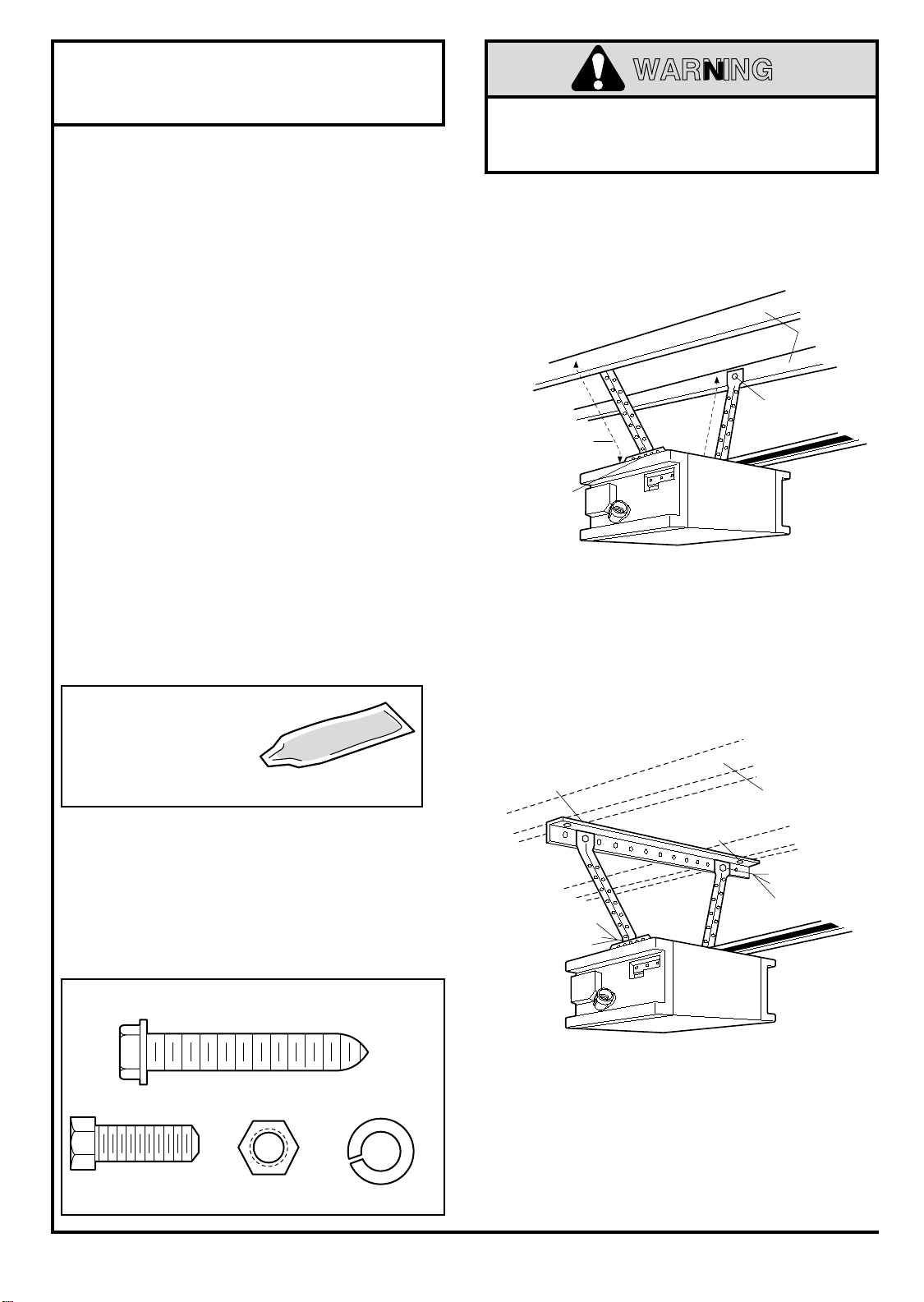

Hang the opener......................................................17

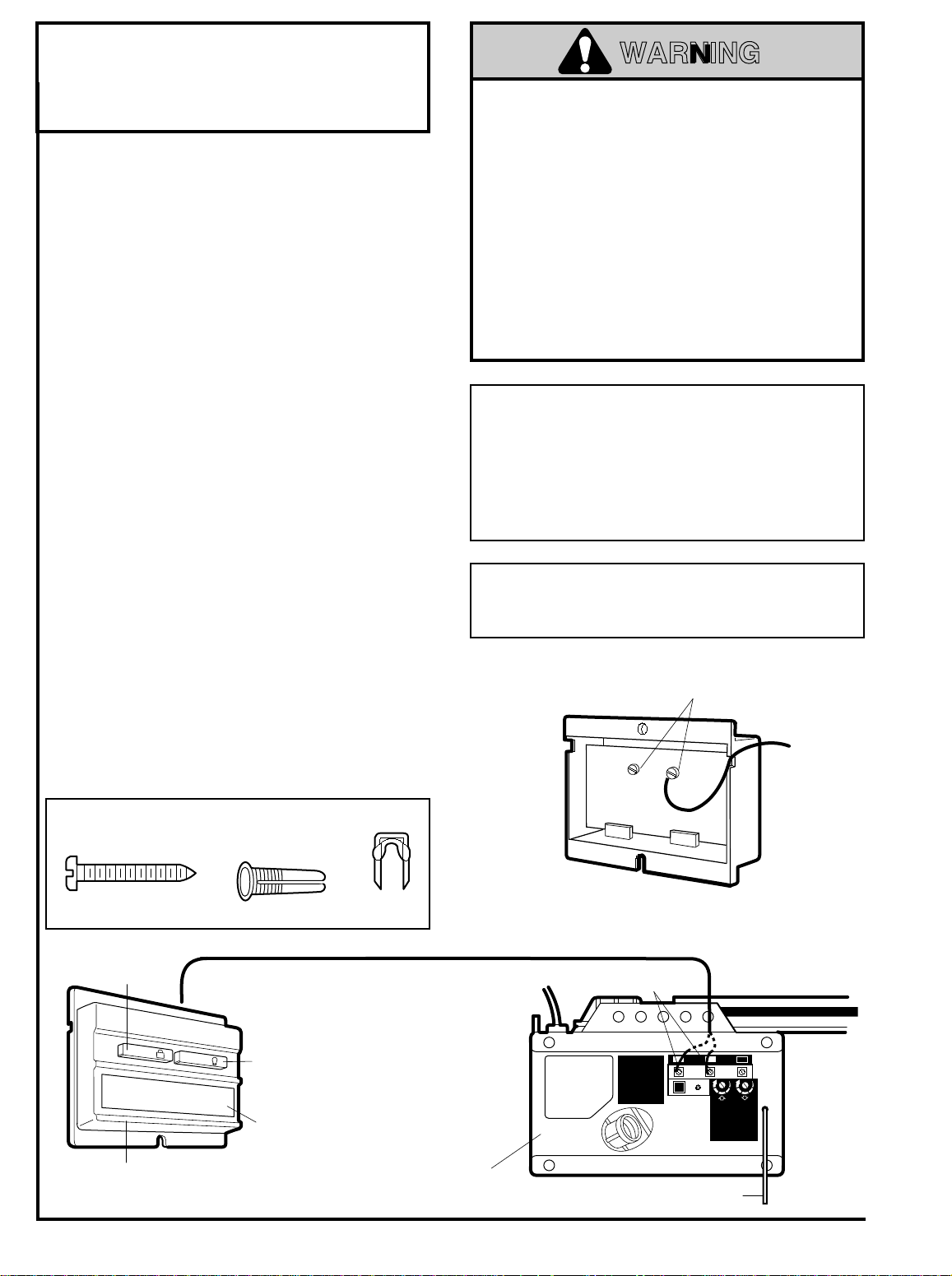

Install the multi-function door control panel ............18

Contents Page

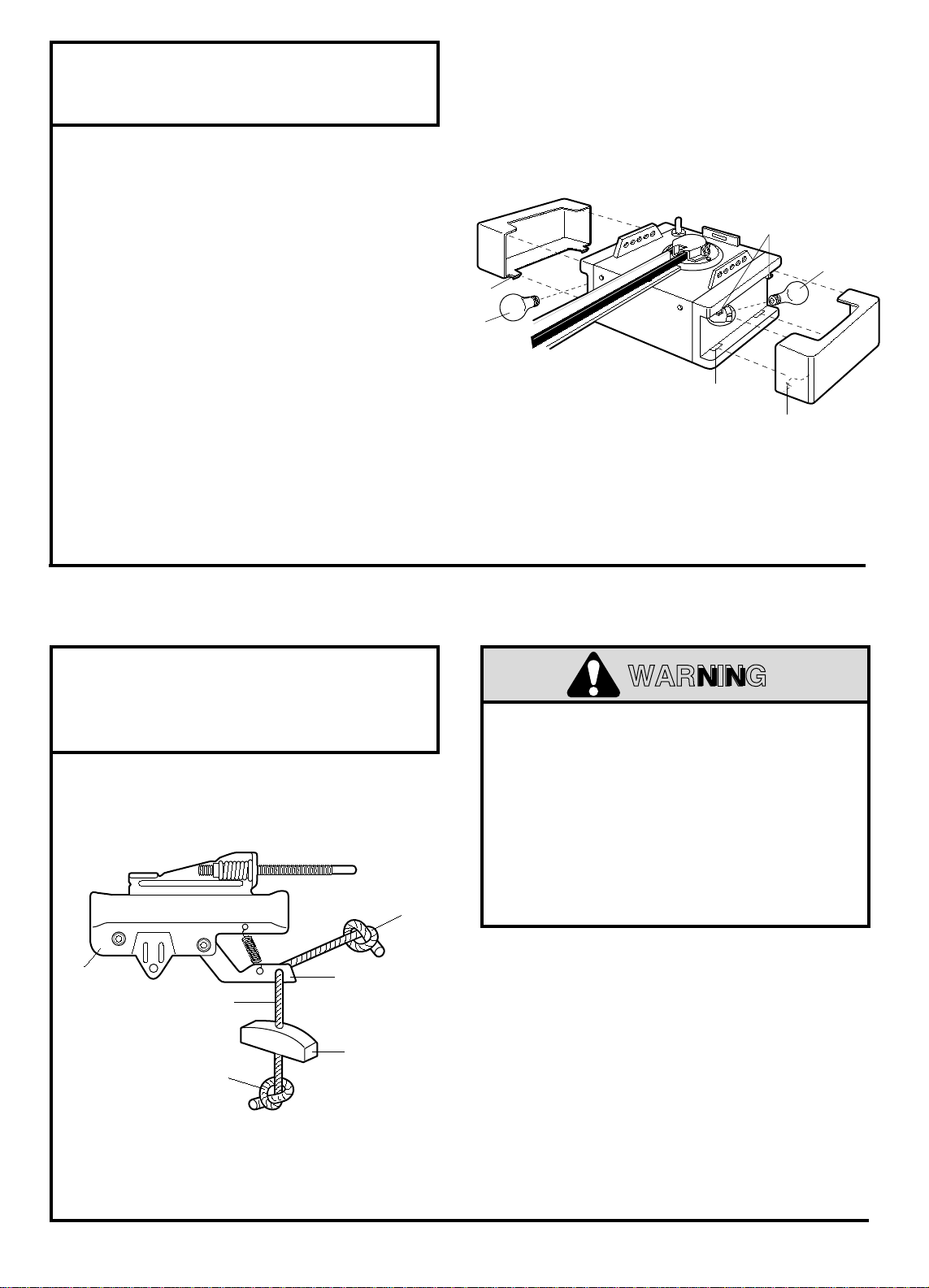

Install the lights and lenses......................................19

Attach manual release rope and handle..................19

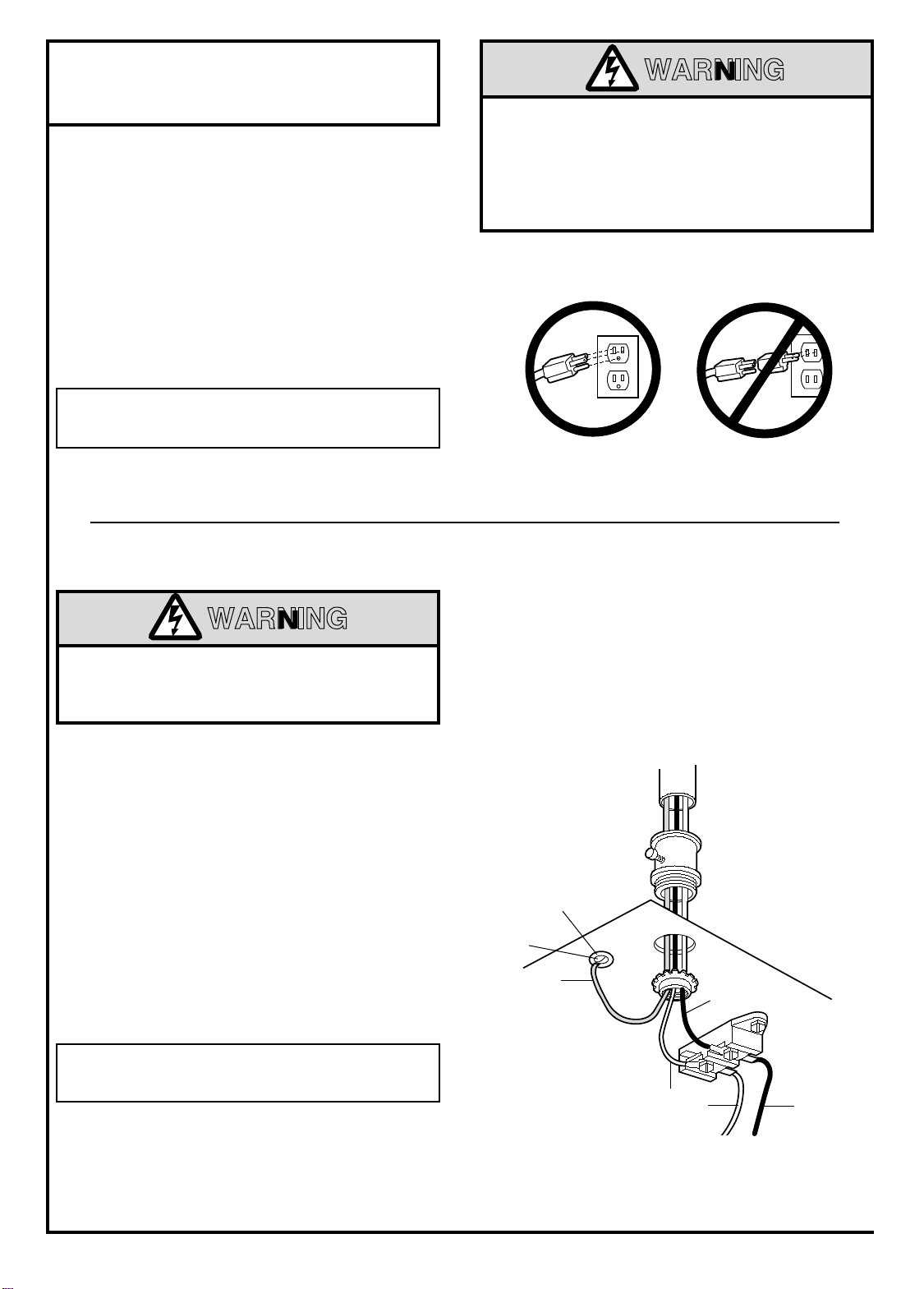

Electrical requirements.............................................20

The Protector System®.............................................21

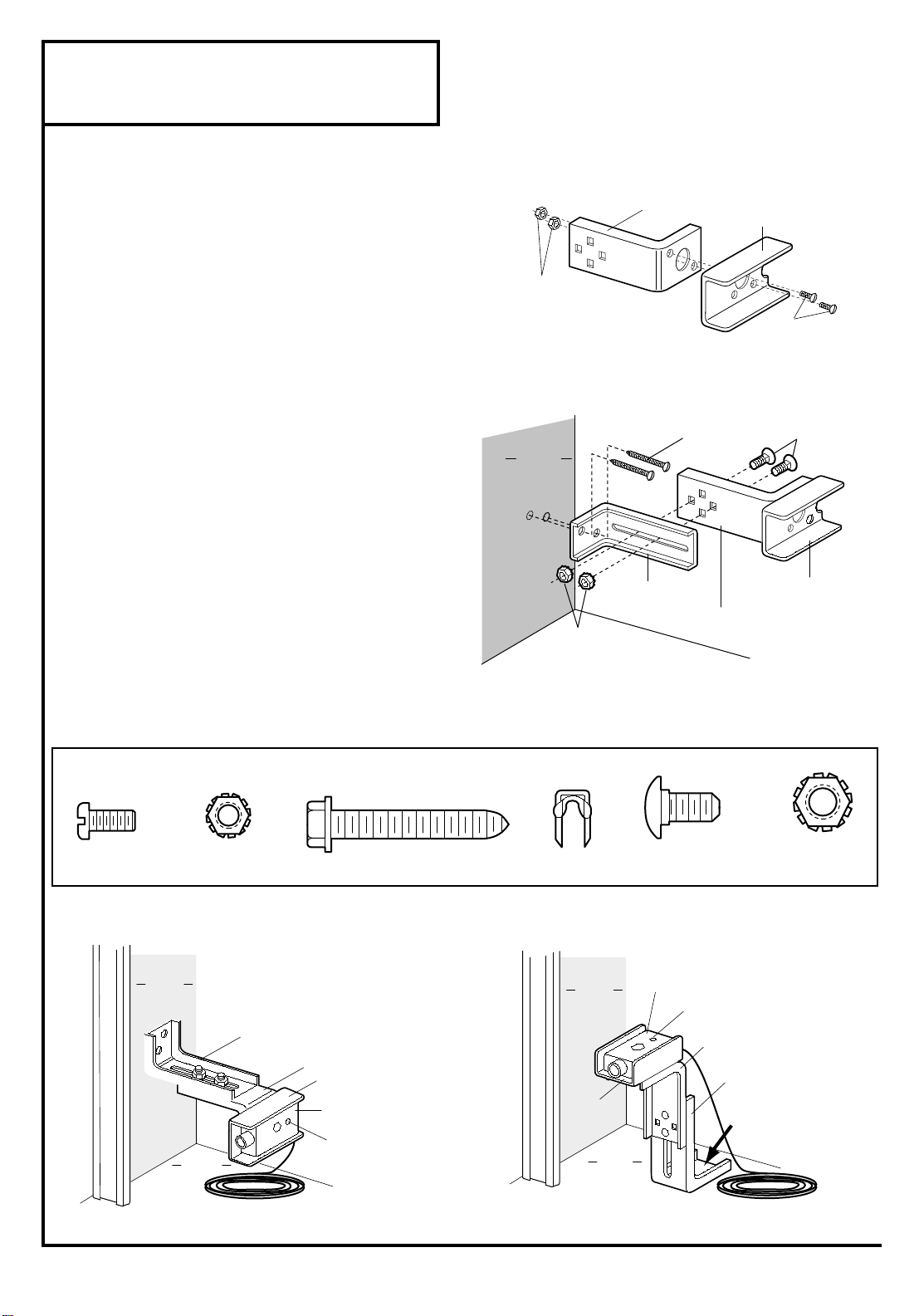

Install the safety reversing sensor.....................22, 23

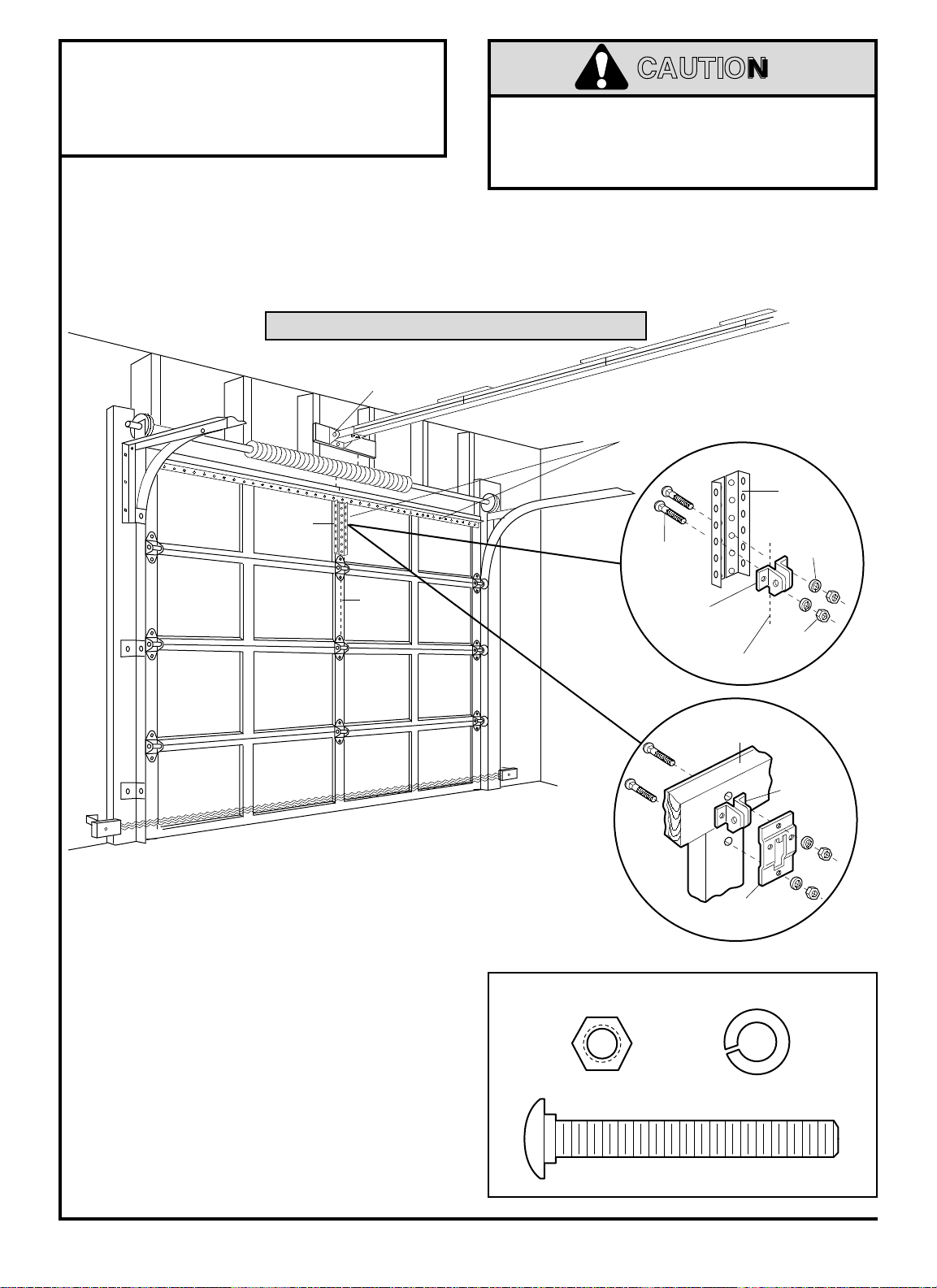

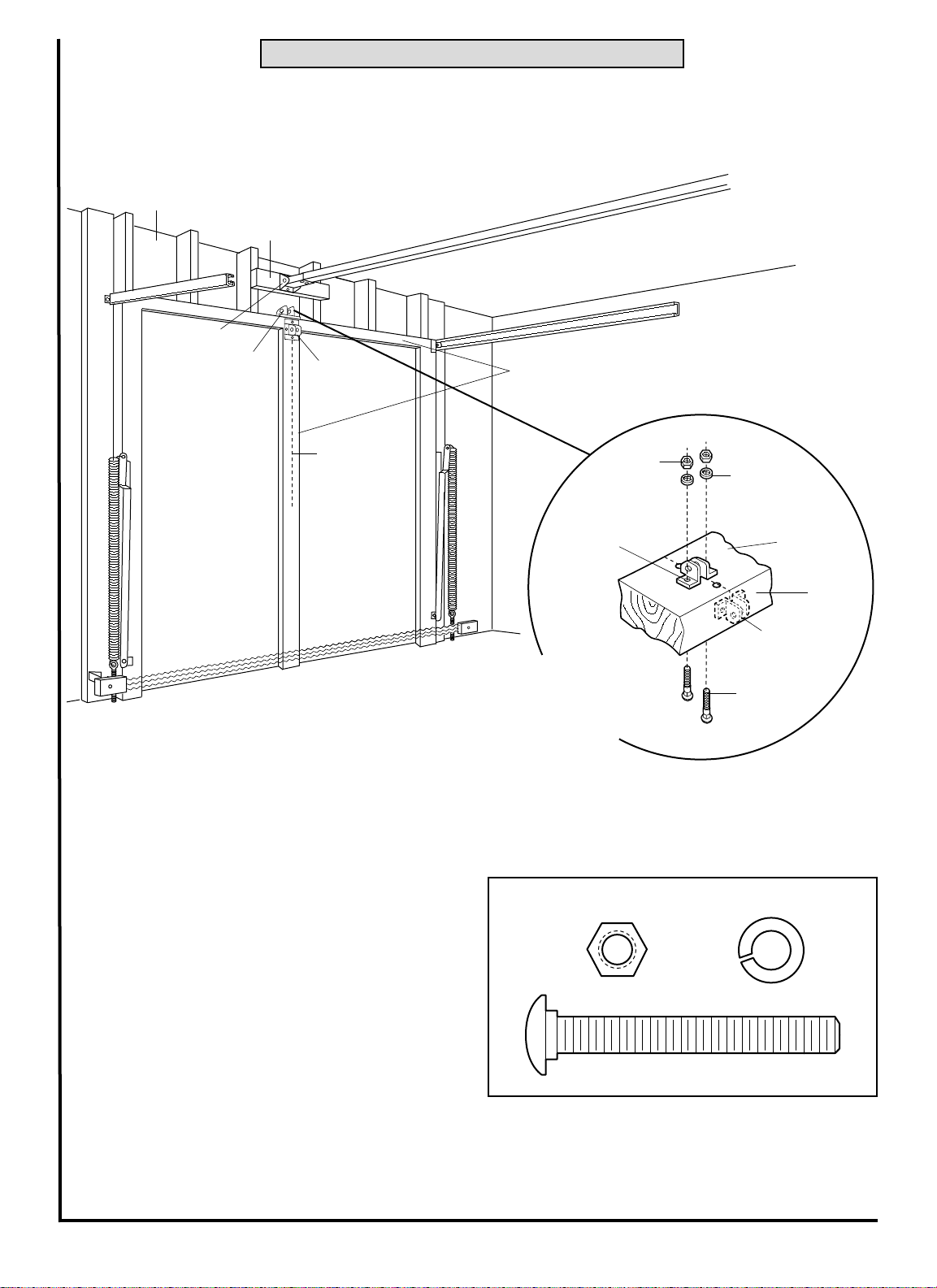

Fasten door bracket (sectional door).......................24

Fasten door bracket (one-piece door).....................25

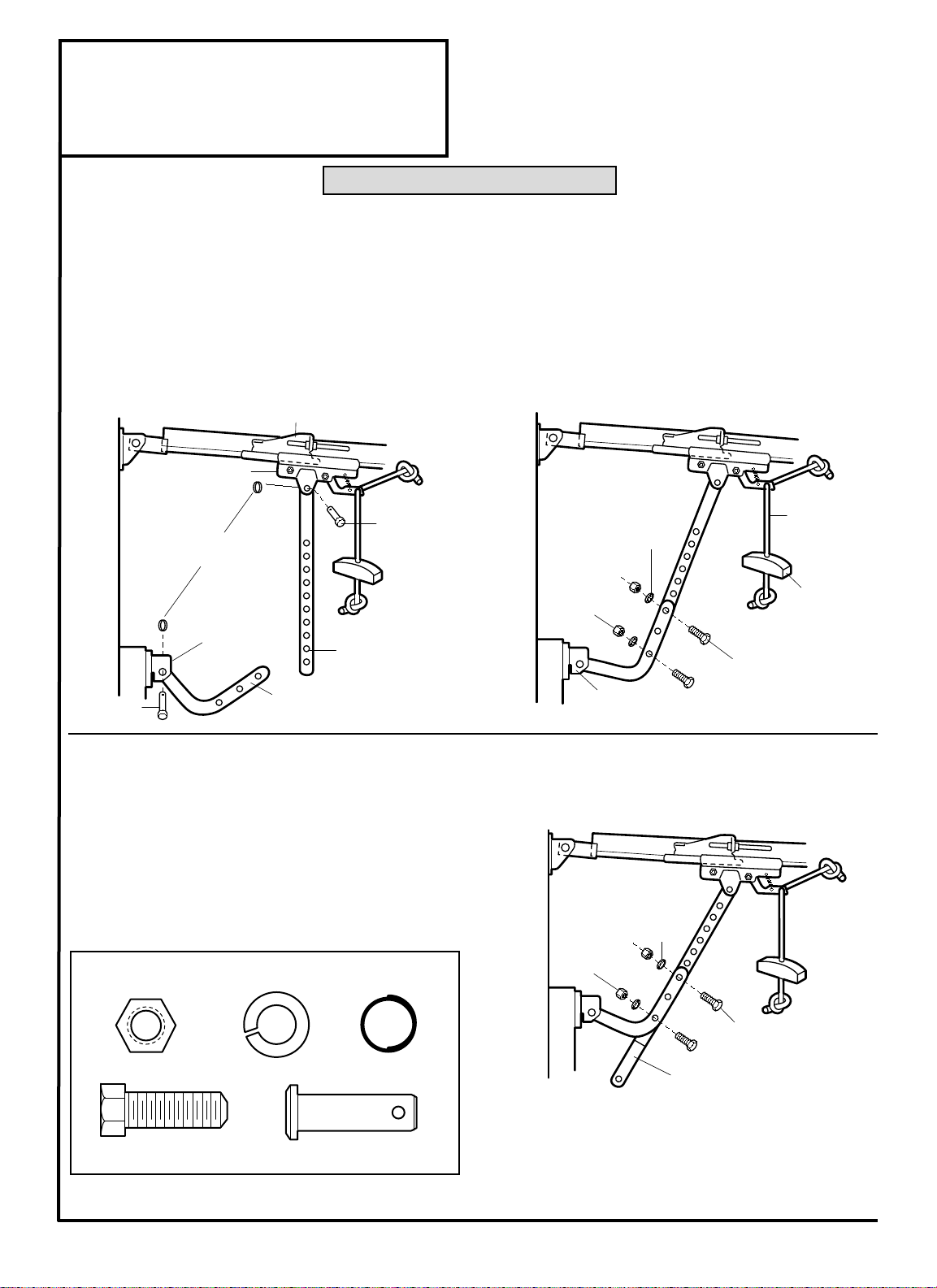

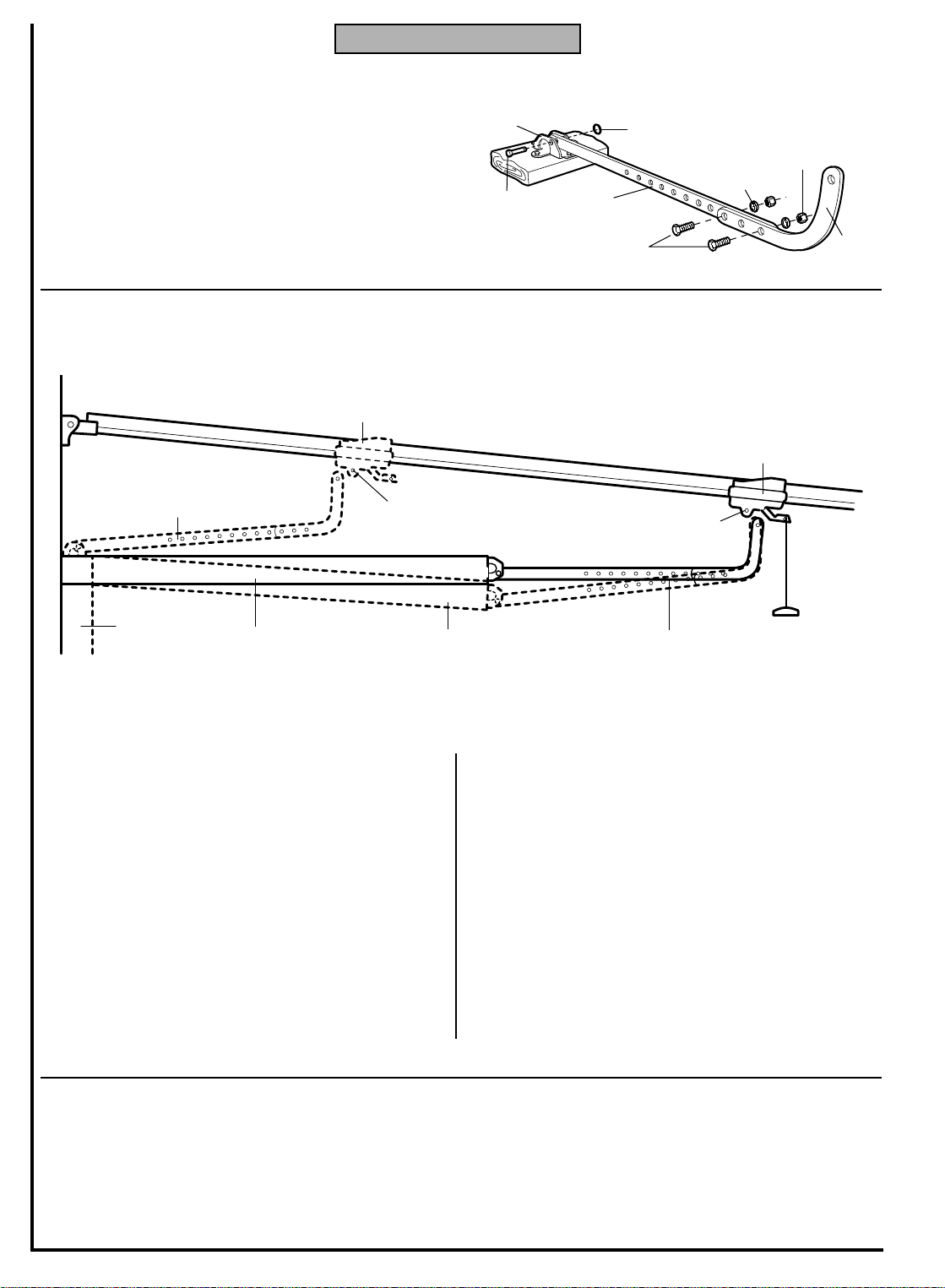

Connect door arm to trolley (sectional door) ...........26

Connect door arm to trolley (one-piece door)..........27

Adjustment section – pages 28 - 30

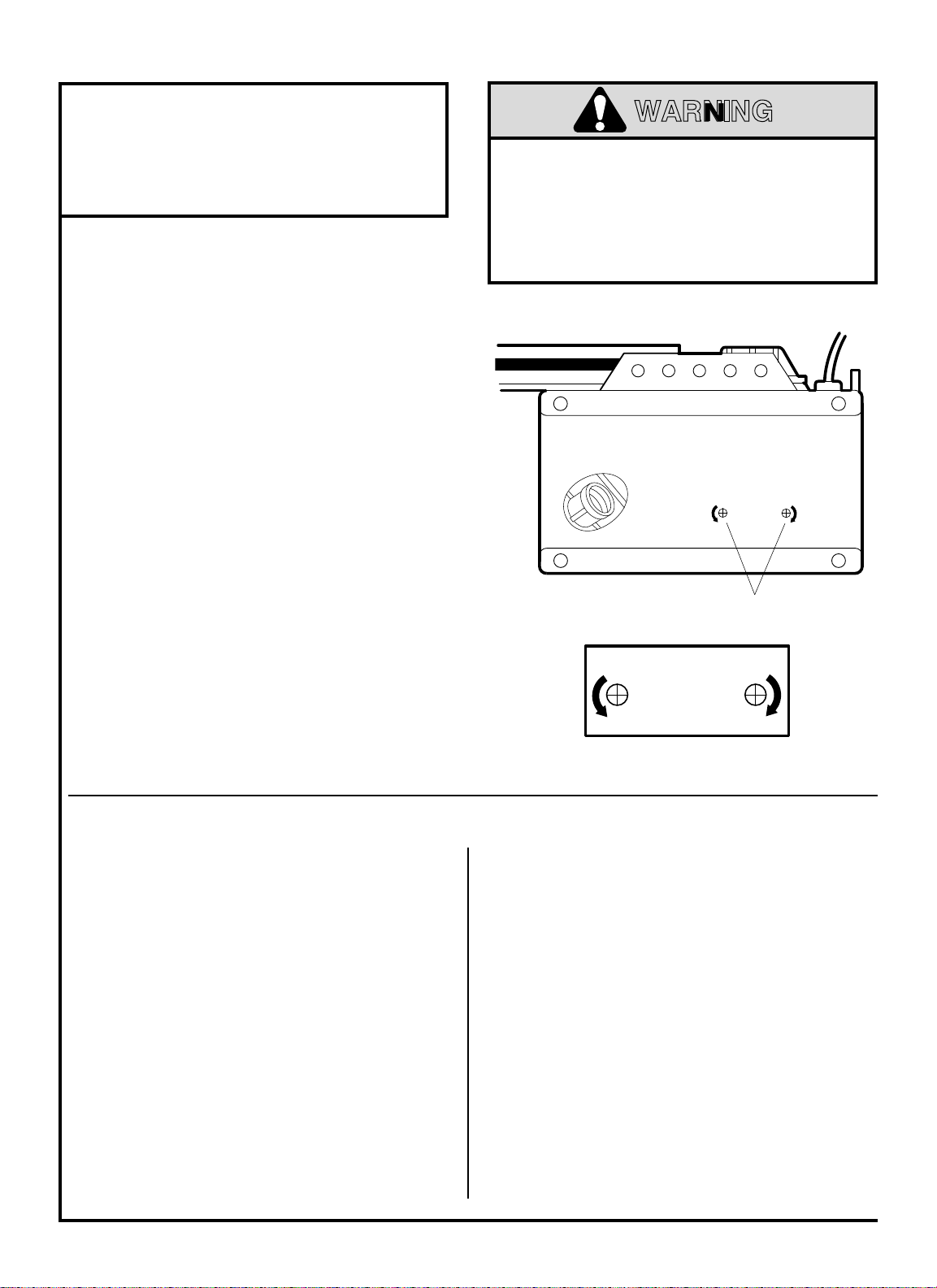

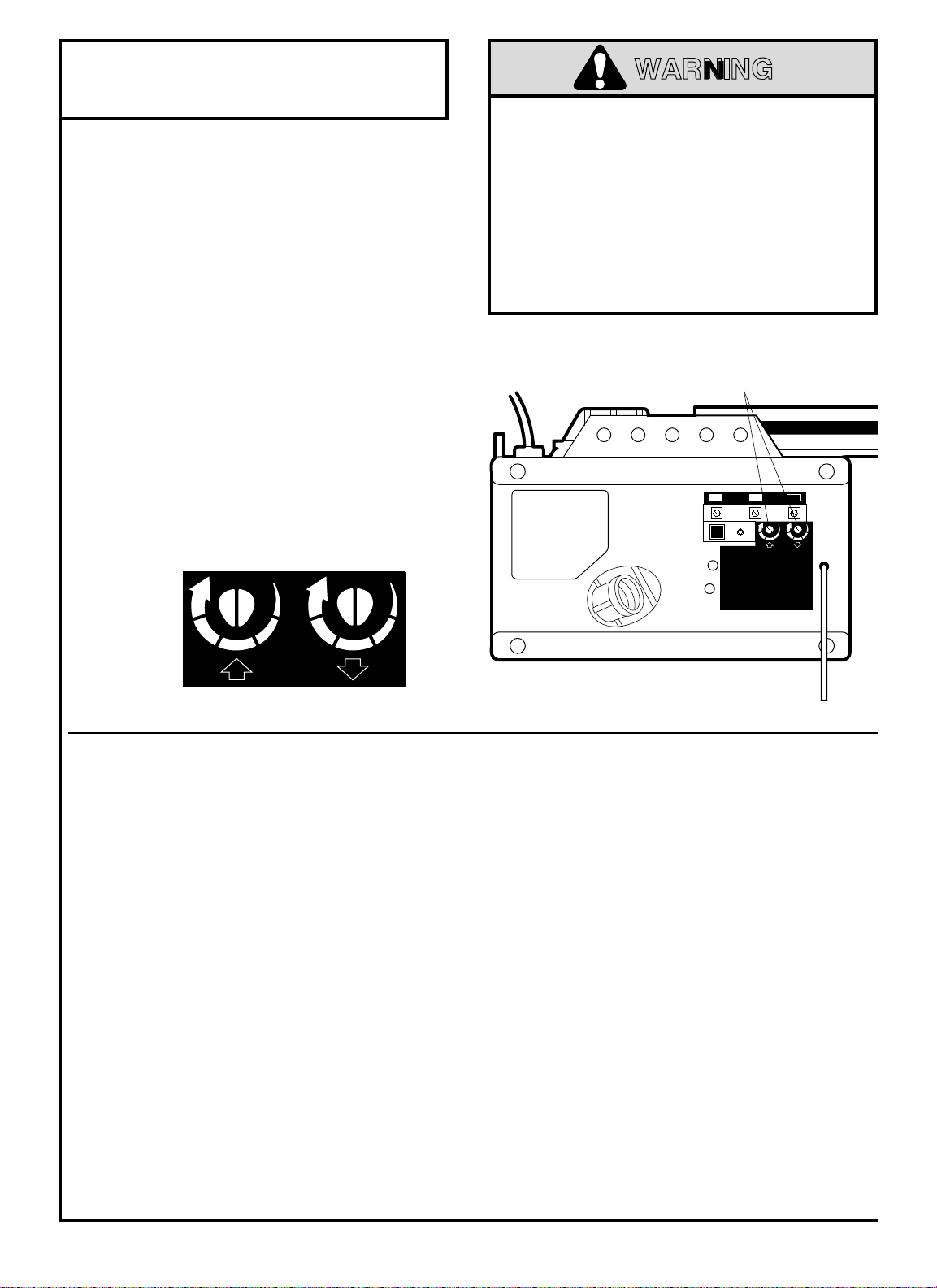

Travel limit adjustments ...........................................28

Force adjustments....................................................29

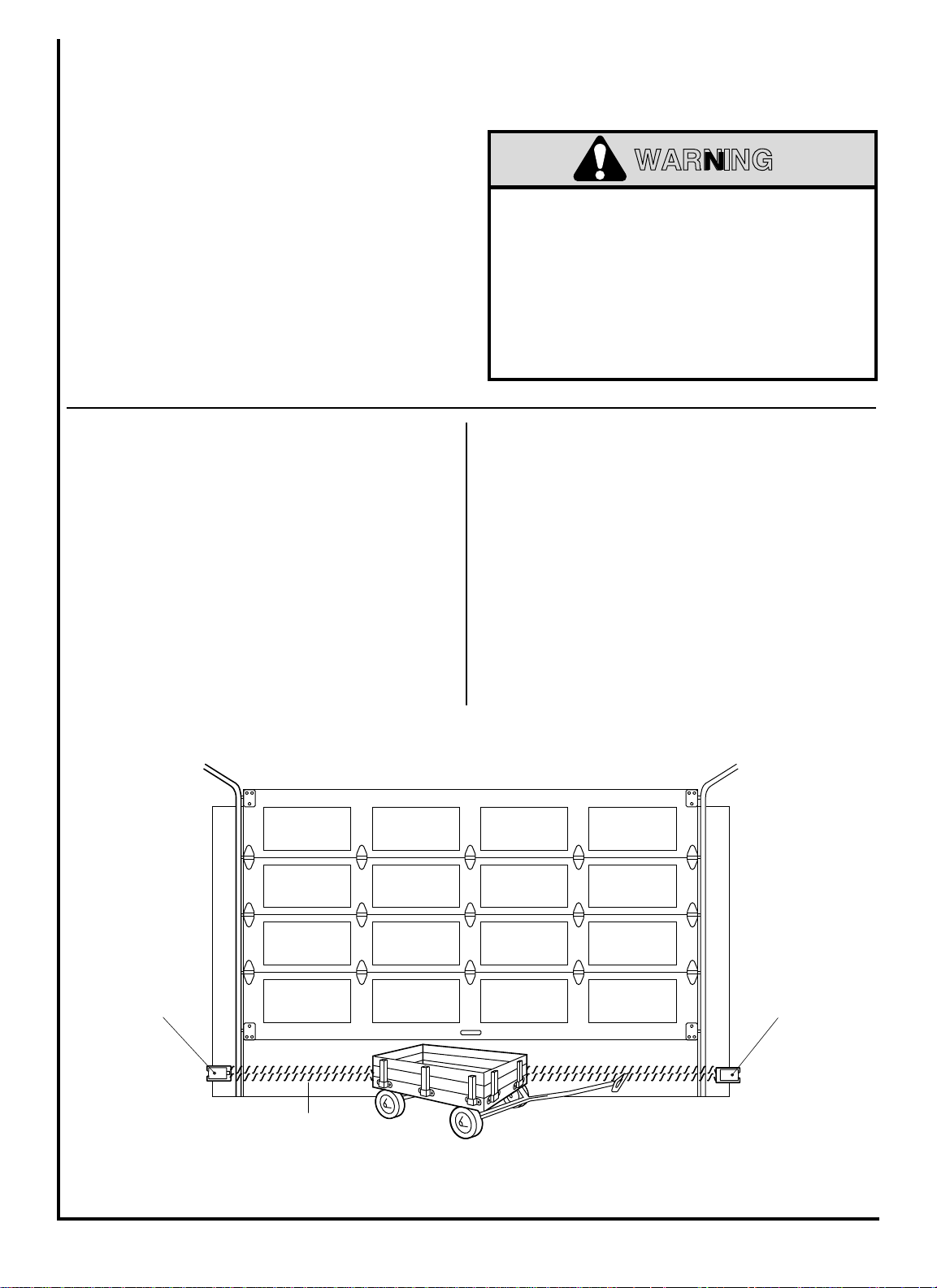

Test the Protector System®......................................30

Test the safety reverse system ...............................30

Operation safety instructions .....................................31

Care of your opener ...................................................31

Maintenance schedule...............................................31

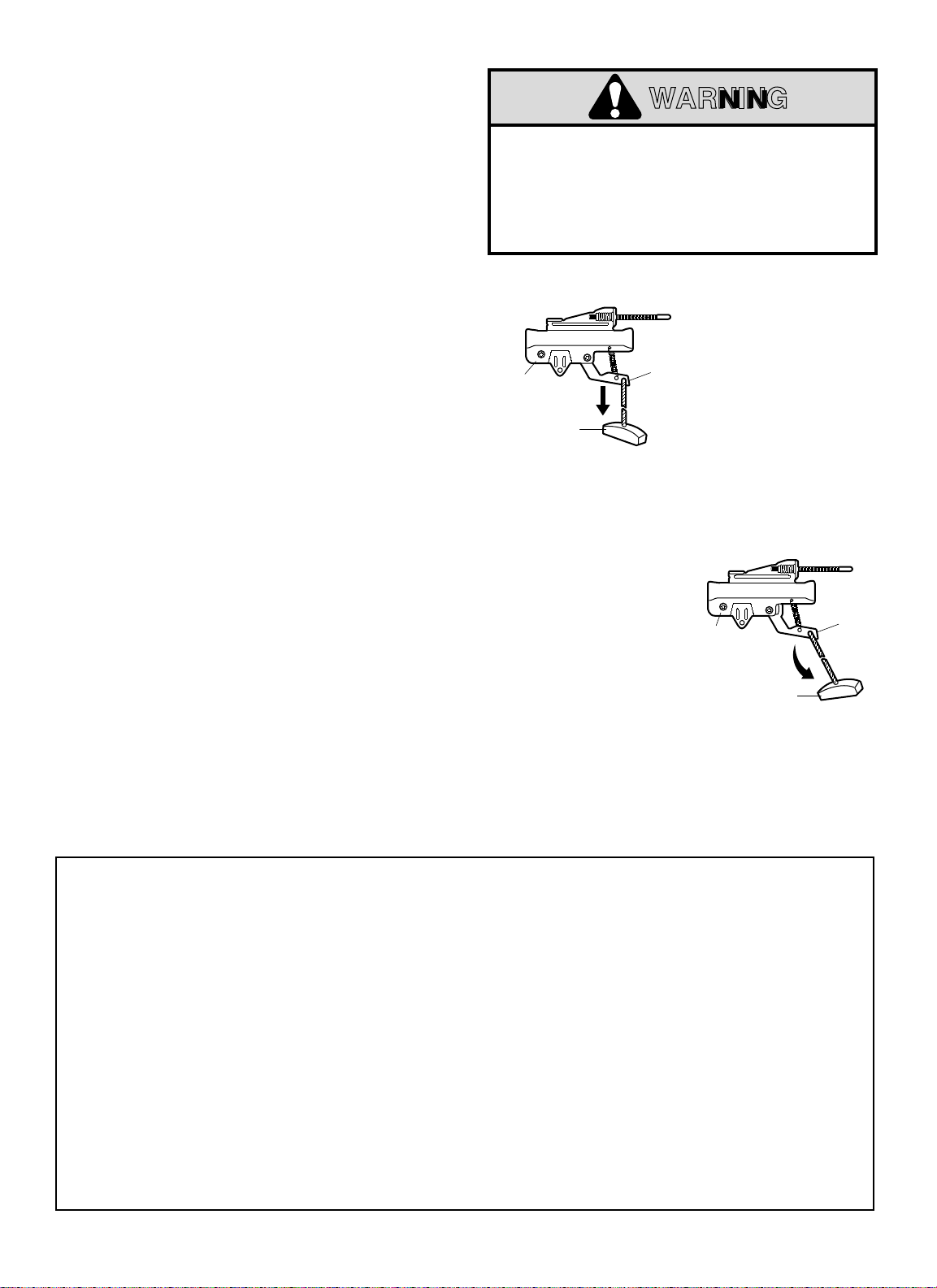

Operation of your opener...........................................32

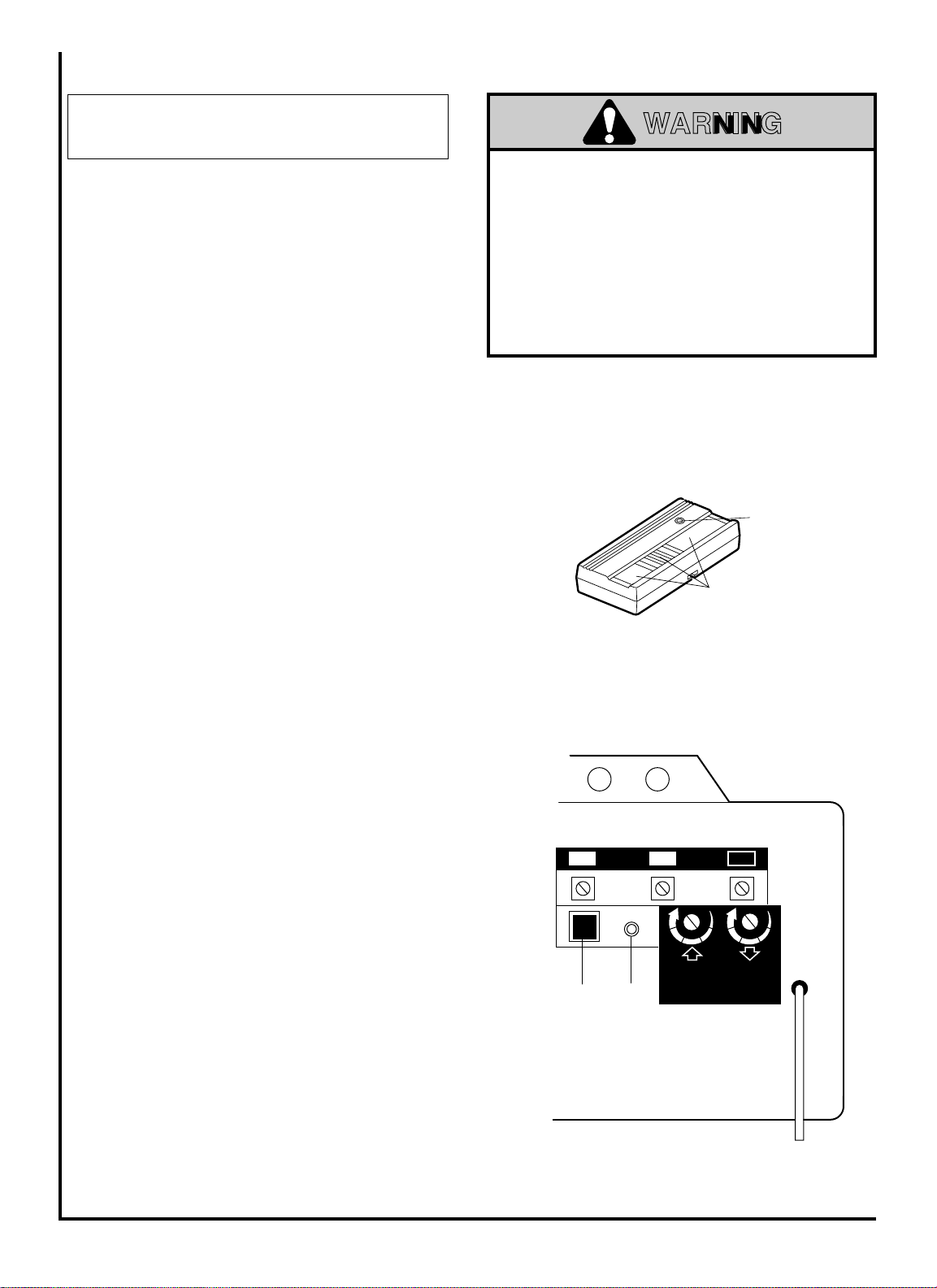

Receiver and remote control programming...............33

Having a problem?...............................................34, 35

Repair parts, rail assembly.........................................36

Repair parts, installation.............................................36

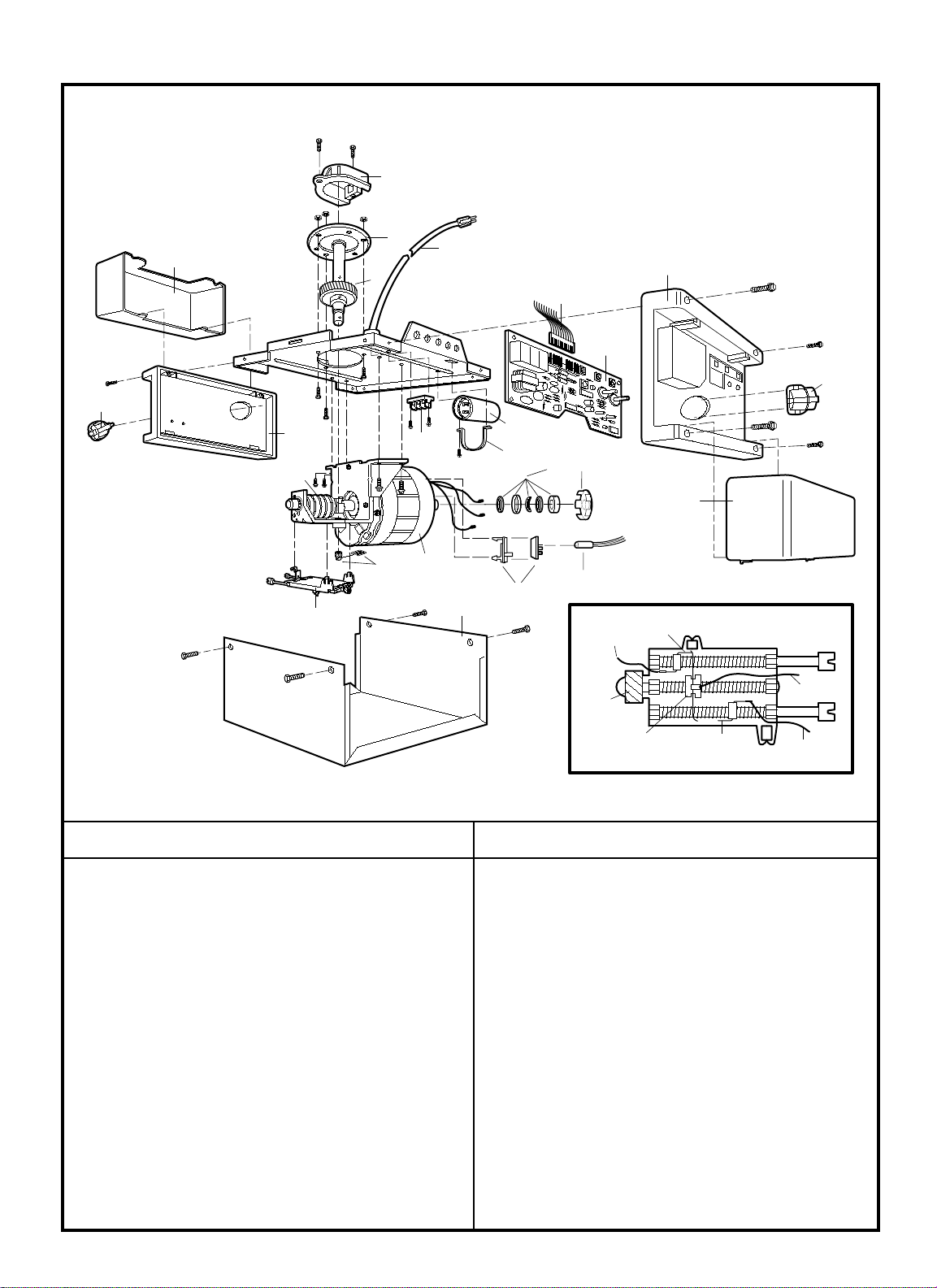

Repair parts, opener assembly..................................37

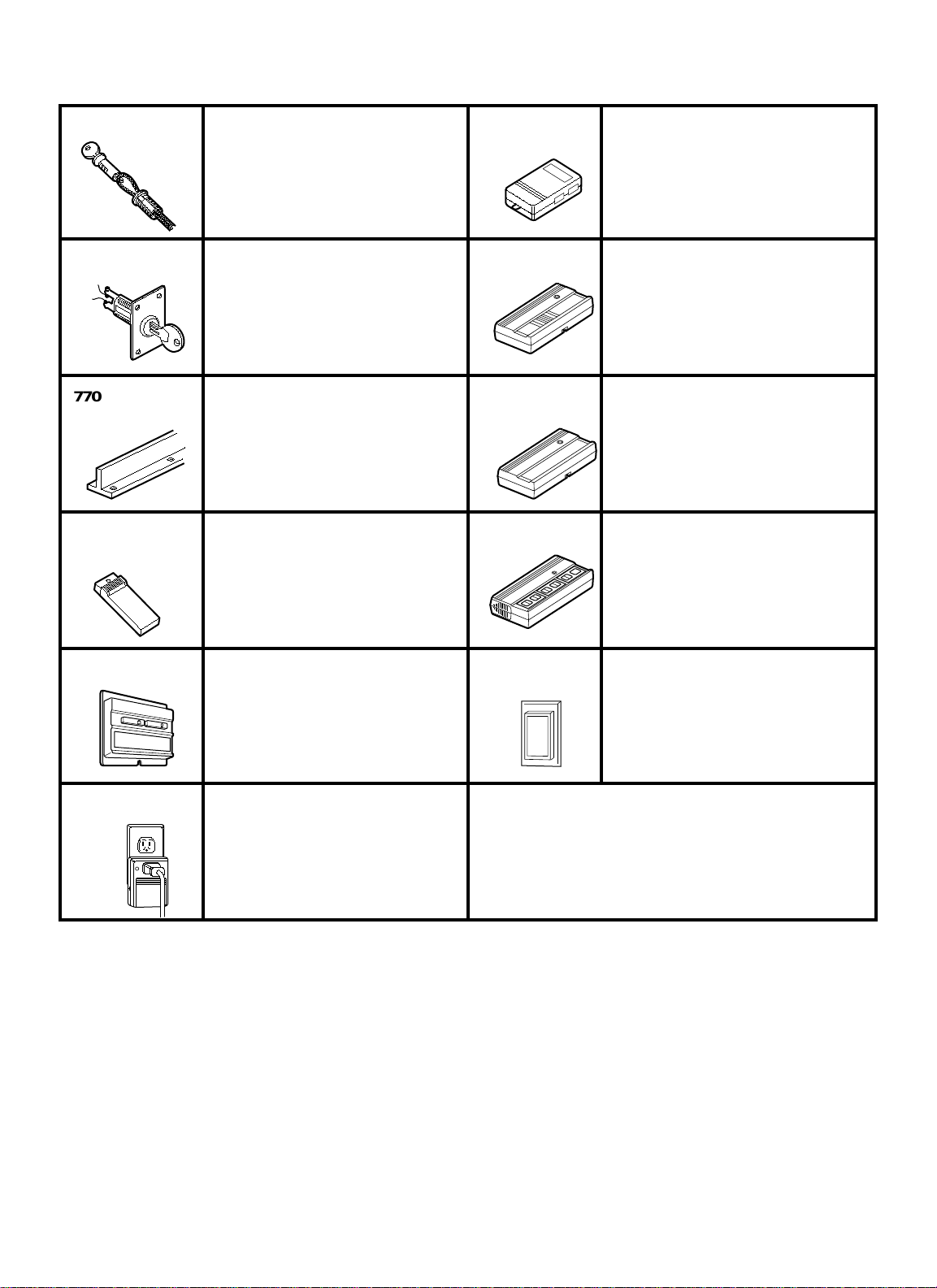

Accessories................................................................38

Index...........................................................................39

How to order repair parts ...........................................40

Warranty.....................................................................40

Start by reviewing these important safety alert symbols

When you see these Safety Symbols on the following pages, they will alert you to the possibility of

serious injury or death

come from something mechanical or from electric shock.

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the corresponding instructions.

Read the instructions carefully.

if you do not comply with the corresponding instructions. The hazard may

Read the instructions carefully.

WARNING

Mechanical Electrical

WARNING

CAUTION

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the safety instructions contained in this manual.

Page 3

You'll Need Tools

During assembly, installation and adjustment of the opener, instructions will call for hand tools shown below.

Pencil

Carpenter's

Level

Tape Measure

Hack Saw

Wire Cutters

Drill

Stepladder

1/2" and 7/16" Sockets

and Wrench

WARNING

An unbalanced garage door might not reverse when required and someone under the door could be seriously injured or killed.

If your garage door binds, sticks or is out of balance, call for professional garage door service.

pulleys, brackets and their hardware are under extreme tension and can cause serious injury or death.

them yourself!

Ropes left on a garage door could cause someone to become entangled and killed.

Remove all ropes connected to the door before installing and operating the opener.

Identify the type and height of your door and any special conditions that exist and any additional materials that may be required.

Garage doors, door springs, cables,

Do not try to loosen, move or adjust

3/16", 5/16" and

5/32" Drill Bits

To avoid damage to the garage door and opener, disable locks before installing and operating the opener. Use a wood screw or nail to hold locks in the "open" (unlocked) position.

Operation at other than 120V 60 Hz will cause opener malfunction and damage.

Before you begin, complete the following test to make sure your door is balanced, and is not sticking or binding:

• Lift the door about halfway as shown. Release the door. It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding or sticking.

Screwdriver

Claw Hammer

Pliers

Adjustable End Wrench

CAUTION

SECTIONAL DOOR

ONE-PIECE DOOR

Page 4

SECTIONAL Door Installation

Before you begin, survey your garage area to see whether any of the conditions below apply to your installation.

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 24 for details.

Header Wall

— — — — — — — —

FINISHED CEILING

Support bracket &

fastening hardware

is required.

See page 17.

Slack in belt tension

is normal when

garage door is closed.

Extension Spring

Torsion Spring

Door Center

Floor must be level

Safety Reversing Sensor

across width of door

Based on your particular requirements, there are several installation steps which might call for materials and/or hardware not included in the carton.

• Step 1, page 12 - Look at the wall or ceiling above the garage door. The header bracket

must

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware may be required.

• Safety reversing sensor, page 21 - Depending upon garage construction, wood blocks may need to be fastened to mounting locations before sensors are installed.

• Step 10, page 22 - Alternate floor mounting of the safety reversing sensor will require hardware not provided.

• Step 11, page 24 - Do you have a steel, aluminum, fiberglass or glass panel door? If so, horizontal and vertical reinforcement is required.

• Look at the garage door where it meets the floor.

It must close on the floor all the way across. Otherwise, the safety reverse system may not work properly. See page 30. Floor or door should

be repaired.

• If your door is more than 7 feet high, see longer rails available on page 38.

Access Door

Safety

Reversing

Sensor

Closed Position

Belt

Manual

Release

Rope & Handle

Header

Wall

Garage

Door

Header Bracket

Door Bracket

Belt Pulley

Bracket

Garage

Door

Spring

Trolley

Straight

Door

Arm

Curved

Door

Arm

• The opener can be installed within 2 feet of the left or right of the door center if there is a torsion spring or center bearing plate in the way of the header bracket or door bracket area.

If your door has extension springs, the opener must be installed in the center of the door.

See pages 12 and 24.

• Do you have an access door in addition to the garage door? If not, Model 7702CB Outside Quick Release is required. See page 38.

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Page 5

ONE-PIECE Door Installation

One-Piece Door without Track

Before you begin, survey your garage area to see whether any of the conditions below apply to your installation.

Slack in Belt Tension

is Normal When

Garage Door is Closed

Header

Wall

Access Door

Safety

Reversing

Safety

Reversing Sensor

Gap between floor and bottom

of door must not exceed 1/4".

Sensor

Based on your particular requirements, there are several installation steps which might call for materials and/or hardware not included in the carton.

• Step 1, page 13 - Look at the wall or ceiling above the garage door. The header bracket

must

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware (not supplied) may be required.

• Safety reversing sensor, page 21 - Depending on garage construction, wood blocks may need to be securely fastened to mounting locations before sensors are installed.

• Step 10, page 22 - Alternate floor mounting of the safety reversing sensor will require hardware that is not provided.

• Step 11, page 25 - Generally, a one-piece door does not require reinforcement. If your door is lightweight, you can refer to the information relating to sectional doors on page 24.

• Step 11, page 25 - Depending on your door's construction, you might need additional mounting hardware for the door bracket.

• Do you have an access door in addition to the garage door? If not, Model 7702CB Outside Quick Release is required. See page 38.

• The gap between the bottom of the garage

door and the floor cannot exceed 1/4". Otherwise, the safety reverse system may not work properly. See page 30. The floor or the door

should be repaired.

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 17.

Closed Position

Belt

T-rail

Straight

Door

Arm

Door

Curved

Door

Arm

Trolley

Manual

Release

Rope & Handle

Header

Wall

Belt

Pulley Bracket

Header Bracket

Door

Bracket

Garage

One-Piece Door with Track

Slack in Belt Tension

is Normal When

Garage Door is Closed

Access

Door

Safety

Reversing

Sensor

Floor must be level

across width of door

Closed Position

Header

Wall

Garage

Door

Belt

Pulley Bracket

Header Bracket

Door

Bracket

Belt

Curved

Door Arm

Straight

Door

Arm

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Reversing

Sensor

Trolley

Manual Release

Rope & Handle

T-rail

Page 6

Opener Carton Inventory

Your garage door opener is packaged in one carton which contains all parts illustrated below. If anything is missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and installation is shown on page 7.

LOCK

LIGHT

Multi-Function

Remote Control Transmitter

Keyless Entry

Light Lens

Belt Pulley

Bracket

Trolley

T-rail

End Section (2)

2-Conductor Bell Wire

T-rail

Center Section

(each) (2)

White & White/Red

Rail Brace (3)

Door Control Panel

CEILING MOUNT ONLY

Header Bracket

Multi-Function

Door Bracket

Plate

Belt

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

Hanging Brackets

(1 Sending Eye and 1 Receiving Eye)

2-Conductor White & White/Black Bell Wire

Belt Cap Retainer

"C" Wrap (2)

(2) Safety Reversing Sensors

with

attached

Curved Door

Arm Section

Straight Door

Arm Section

Safety Labels

and

Literature

Page 7

Lock Washer

5/16" (4)

Nut 5/16"-18 (6)

Clevis Pin

5/16"x2-3/4" (1)

NOTICE

Handle

Insulated

Staples (10)

Assembly Hardware

Installation Hardware

Dry Wall Anchors (2)

Clevis Pin

5/16"x1" (1)

Hex Screw

5/16"-18x7/8" (4)

Rope

Trolley Clip (1)

Lock Nut

1/4"-20x7/16" (12)

Nut

5/16"-18 (4)

Washered Screw 5/16"-18x1/2" (2)

(mounted in opener)

Carriage Bolt

5/16"-18x2-1/2" (2)

Carriage Bolt

1/4"-20x1/2" (12)

Master Link (2)

Ring 

Fastener (3)

Trolley

Threaded Shaft (1)

Screw

6ABx1" (2)

Lock Washer 5/16" (6)

Lag Screw

5/16"-9x1-5/8" (2)

Lock Nut

1/4"-20 (4)

Carriage Bolt

1/4"-20x1/2" (4)

Safety Reversing Sensor

Installation Hardware

Hex Screw

1/4-20x1-1/2" (2)

Screw

#10-32x3/8" (4)

Lock Nut

#10x32 (4)

Wing Nut (2)

Insulated

Staples (20)

RAIL GREASE

NO. 83A4

Rail Grease

Hex Screw

5/16"-18x7/8" (4)

Lag Screw

1/4x1-1/2" (4)

Spring Nut (1)

Lag Screw

5/16"-18x1-7/8" (2)

Clevis Pin

5/16"x1-1/4" (1)

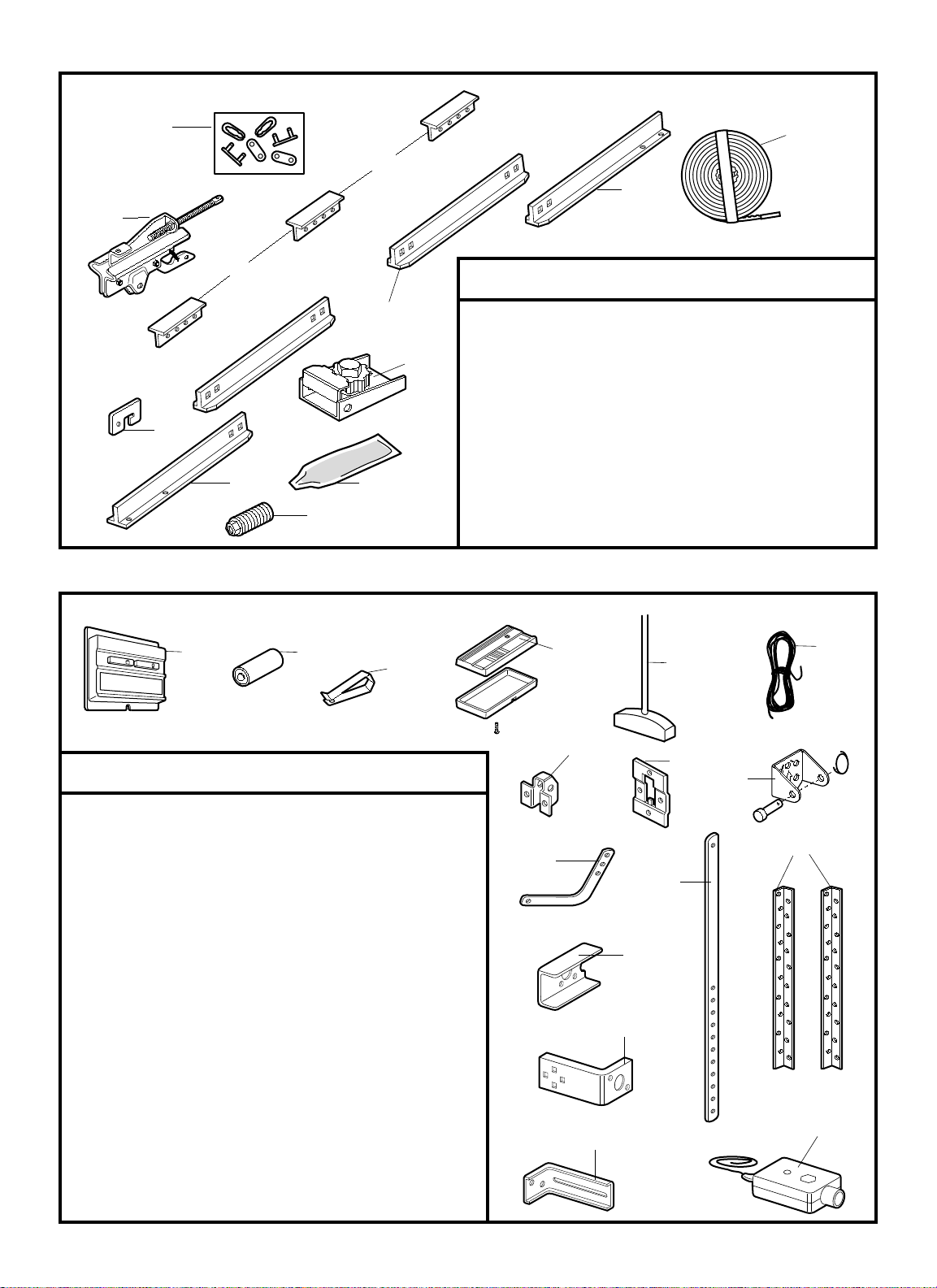

Group all hardware found in all packages contained in the rail and opener cartons into the three kits illustrated below.

Page 8

T-RAIL BACK

(TO OPENER)

T-RAIL FRONT

(TO DOOR)

Belt pulley bracket

attaches to FRONT

END of T-rail

T-rail

(End Section)

T-rail

(Center Section)

Carriage Bolt

1/4"-20x1/2"

T-rail

(End Section)

Square Carriage

Bolt Hole

1/4" Lock Nut

Bracket

Bracket & Rail Must Be Aligned

Lock Washer

5/16"

Nut

5/16"-18

Hex Screws

5/16"-18x7/8"

Belt Pulley

Bracket

Bracket & Rail Must Be Aligned

Lock Washer

5/16"

Nut

5/16"-18

Assembly Section: Pages 8 – 1 1

T o avoid installation difficulties, do not run the garage door opener until instructed to do so.

Assembly Step 1

Assemble the T-rail & Attach the Belt Pulley Bracket

• Align the 4 T-rail sections on a flat surface exactly as shown. Center sections are interchangeable. Front and back sections are also interchangeable for ease of assembly.

• Insert the carriage bolts so the square bolt necks seat in the square holes in the T-rail sections and pass through the round holes in the rail braces. Assemble lock nuts, ensure alignment and tighten.

If T-rail is not assembled exactly as shown, trolley will not travel smoothly along length of rail or it will hit against nuts.

Right

Wrong

Make sure bolt necks are seated in the square holes and rails are aligned before you tighten lock nuts. (See right and wrong views). Improper assembly can cause jerky trolley operation, noise and/or nuisance door reversals.

• Position the belt pulley bracket on the front end of the T-rail as shown. Fasten securely with the hardware shown.

Hardware Shown Actual Size

1/4"-20x7/16"

Hex Screw

5/16"-18x7/8"



Lock Nut

Carriage Bolt

Nut

5/16"-18

1/4"-20x1/2"

Lock Washer

5/16"

When tightening the screws, be sure to keep bracket parallel to the rail. Otherwise, the rail may bow when the opener

Right

Wrong

is operated.

Page 9

Assembly Step 2

Temporary Stop

Screwdriver

Trolley

Hex Screws

# 8 x 3/8"

Hex Screw

5/16"-18x7/8"

Trolley

Stop Hole

Lock Washer

5/16" Nut

5/16"-18

Install the Trolley on the T-rail

• As a temporary stop, insert a screwdriver into the

hole in the front end of the T-rail.

• Slide the trolley assembly along the rail to the screwdriver stop.

If trolley hits against any nuts on the T-rail, the bolts and nuts were attached from the wrong side and must be repositioned. Review Step 1.

Assembly Step 3

Faster the T-rail to the Opener

• Place the opener on packing material to protect

the cover. For convenience, put a support under the belt pulley bracket.

• Remove the (2) 5/16"-18x1/2" washered screws mounted in the top of the opener.

• Align the holes in the back section of the T-rail with the holes in the opener.

• Fasten the rail with the (2) washered screws previously removed. Tighten securely.

Remember to use only these screws!

screws will cause serious damage to the opener.

• Insert a 5/16"-18x7/8" hex screw into the trolley stop hole in the T-rail as shown. Tighten securely with a 5/16" lock washer and nut. This screw limits trolley travel in the UP direction.

Carriage Bolt

1/4"-20x1/2"

Nut

5/16"-18

Hex Screw

5/16"-18x7/8"

Lock Nut

Hardware Shown Actual Size

1/4"-20x7/16"

Any other

Lock Washer

5/16"

• Insert a 5/16"-18x7/8" hex screw into the trolley stop hole in the T-rail as shown. Tighten securely with a 5/16" lock washer and nut. This screw limits trolley travel in the DOWN direction.

CAUTION

To fasten rail, use only those screws mounted in the top of the opener. Any other screws will cause serious damage to the opener.

Washered Screw

5/16"-18x1/2"

Hex Screw

5/16"-18x7/8"

Trolley

Stop Hole

T-Rail

(Back Section)

Lock Washer

5/16"

Nut

5/16"-18

USE ONLY THIS TYPE AND SIZE

SCREW

Page 10

Assembly Step 4

Serious injury can result if fingers become entangled in moving opener sprocket. Attach belt cap retainer securely. Never operate opener while your hand is near the opener sprocket.

Nut

Ring

Trolley

Threaded 

Shaft

Nut Ring

Slots

Trolley

Square End

Opener

Sprocket

Opener Sprocket

• Drop the notched side of the trolley clip into the retaining slot on top of the trolley (see Figure 1).

• Grasp the clip connector at the end of the belt and slip it through the belt pulley bracket from behind, around the pulley and toward the trolley.

• Fasten the belt clip connector to the trolley clip with a master link:

a. Push pins of master link bar through holes in

trolley clip and belt clip connector.

b. Push master link cap over pins and

past pin notches.

c. Slide clip-on spring over cap and onto

pin notches until both pins are securely locked in place.

• With the trolley against the screwdriver, dispense the belt along the rail and around the opener sprocket. The sprocket teeth must engage the belt (Figure 2).

• Use the second master link to connect the belt to the flat end of the trolley threaded shaft (Figure 1).

Check to make sure the belt is not twisted.

• Remove the screwdriver.

Belt

Pulley

Slip Belt Clip 

Connector

through 

Pulley Bracket

from this direction

and attach 

to trolley clip

Trolley

Clip

Master Link

Clip-On Spring

Master

Link Cap

Trolley

Threaded Shaft

Master

Link Bar

Pin 

Notch

Pin 

Notch

Belt

Clip Connector

Figure 2

Figure 1

Figure 4

WARNING

• Insert a screwdriver tip into one of the nut ring slots and brace it firmly against the trolley. (Figure 4)

• Place a 7/16" open end wrench on the square end. Rotate about 1/4 turn until the spring releases and snaps the nut ring against the trolley (Figure 5).

This extends the spring for optimum belt tension.

• Insert the trolley threaded shaft through the hole in the trolley.

• Hold the belt at the trolley shaft to avoid twisting as you thread the spring/trolley nut by hand on the shaft until finger tight against the trolley (Figure 3).

Do not use any tools.

Belt Clip 

Connector

Belt Clip 

Connector

Trolley

Threaded

Shaft

Spring

Trolley Nut

Trolley

Nut Ring Trolley

Nut Ring

Trolley

1" 1-1/4"

BEFORE AFTER RELEASE

Figure 5Figure 3

Install the Belt & Set the Belt Tension

Page 11

Assembly Step 5

Attach the Belt Cap Retainer

To attach the belt cap retainer:

• Position the belt cap retainer over the opener

sprocket so the two holes in cap align with the two holes in mounting plate. Attach with 8x3/8" hex screws provided.

Hex Screws

#8x3/8"

Belt Cap Retainer

Opener Sprocket

Mounting Plate

Hardware Shown

Actual Size

Hex Screw

#8x3/8"

Belt

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section:

IMPORTANT INST ALLATION INSTRUCTIONS

WARNING

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Install only on a properly balanced and lubricated garage door.

may not reverse and could result in severe injury or death.

and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the manual release handle mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the control button and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch high object (or a 2x4 laid flat) on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose clothing can be caught in the mechanism of the garage door or the opener.

An improperly balanced door

Repairs to cables, spring assemblies

Page 12

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall

2x4

Structural

Supports

Installation Section: Pages 12 – 27

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

SECTIONAL Door and

ONE-PIECE Door With Track

WARNING

If the header bracket is not rigidly fastened to a structural support on the header wall or ceiling, the safety reverse system may not work properly (see page 30).

not reverse when required, and could cause serious injury or death.

The garage door springs, cables, pulleys, brackets and their hardware are under extreme tension.

Do not attempt to loosen, move or adjust them yourself. Serious personal injury or death could result.

garage door service.

• Close the door and mark the inside vertical centerline of the garage door.

• Extend the line onto the header wall above the door.

Remember, you can fasten the header bracket within 2 feet to the left or right of the door center a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (refer to page 14) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2".)

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag

The door might

Call for professional

only

• Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" above the high point. This height will provide travel clearance for the top edge of the door.

Proceed to Step 2, page 14.

Door

Ceiling

Header

Wall

Highest Point

of Travel

Sectional door

with curved track

Track

Header

Wall

Highest Point

of Travel

Door

One-piece door

with horizontal track

Track

Page 13

ONE-PIECE Door Without Track

Read the Safety Instructions on page 12. They also apply to doors without tracks.

• Close the door and mark the inside vertical centerline of your garage door. Extend the line onto the header wall above door.

If headroom clearance is minimal, you can install the header bracket on the ceiling. See page 14.

•

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown.

Header Wall

Highest Point

of Travel

Header Wall

Vertical

Centerline

2x4

Vertical Centerline of Garage Door

Unfinished

Ceiling

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Wall

Highest Point

of Travel

Header

Structural Supports

Door

Jamb

Hardware

Distance

One-piece door without track

jamb hardware

• Open your door to the highest point of travel as shown. Measure the distance from the top of the door to the floor. Subtract the actual height of the door. Add 8" to the remainder. (See Example.)

• Close the door and draw an intersecting horizontal line on the header wall at the determined height.

If the total number of inches exceeds the height available in your garage, use the maximum height possible, or refer to page 14 for ceiling installation.

Door

Distance

Pivot

One-piece door without track

pivot hardware

Example

Distance from top of door

(at highest point of travel) to floor...........................92"

Actual height of door.............................................-88"

Remainder................................................................4"

Add.........................................................................+8"

Bracket height on header wall..............................=12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 14.

Page 14

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional 

Wall Mounting

Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

CEILING MOUNT ONLY

Door

Spring

Header Bracket

2x4

Structural

Support

Vertical

Center

Line

• Center the bracket on the vertical guideline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark either set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

Fasten the Header Bracket to the Ceiling

Installation Step 2

Lag Screw

5/16"-9x1-5/8"

Hardware Shown Actual Size

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional 

Wall Mounting

Holes

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

CEILING MOUNT ONLY

Door

Spring

Header Bracket

2x4

Structural

Support

Vertical

Center

Line

Lag Screws

5/16"x9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

Finished

Ceiling

Header

Bracket

6" Maximum

Vertical

Center Line

Door

Spring

• Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements.

Fasten the Header Bracket to the Wall

Page 15

The Chamberlain Group, Inc.

Installation Step 3

Attach the T-rail to the Header Bracket

Header Wall

Header Bracket

Belt Pulley

Bracket

T-rail

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

If the door spring is in the way you'll need help.

Liftmaster Synchro Drive Attach Tee Rail to Header Brac 5/16/92

Have someone hold the opener securely on a temporary support to allow the T-rail to clear the spring.

• Position the belt pulley bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Ring Fastener

Header Bracket

Garage

Door

Clevis Pin

5/16"x2-3/4 "

INCREASE DOWN

TRAVEL

INCREASE

TRAVEL

UP

Hardware Shown Actual Size

Belt Pulley

Bracket

T-rail

Temporary

Support

Clevis Pin

5/16"x2-3/4"

Ring Fastener

Page 16

Installation Step 4

Position the Opener

Follow instructions which apply to your door type as illustrated.

SECTIONAL Door & ONE-PIECE Door with Track

A 2x4 laid flat is convenient for setting an ideal door-to-T-rail distance.

• Raise the opener onto a stepladder.

You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the T-rail.

If the top panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect the inner and outer sections. The trolley can remain disconnected until Step 12 is completed.

CAUTION

To prevent damage to steel, aluminum, fiberglass or glass panel doors, do not rest the opener on the door without using a 2x4.

T-rail

Door

2x4

Stepladder

Trolley

Release Arm

Trolley

ONE-PIECE Door without Track

• With the door fully open and parallel to the floor, measure the distance from the floor to the top of the door.

• Using a stepladder as a support, raise the opener to the same distance as the door from the floor (it will be at a slight angle as shown).

• The top of the door should be level with the top of the opener. Do not position the opener more than 2" above this point.

Header Bracket

Top of Opener

Top of Door

Stepladder

Page 17

Installation Step 5

Hang the Opener

Two representative installations are shown. Yours may be different. Hanging brackets should

be angled, Figure 1, to provide rigid support. On finished ceilings, Figure 2, attach a sturdy metal bracket to structural supports before installing the opener. The bracket and fastening hardware are not supplied.

• Measure the distance from to the structural support.

• Cut both pieces of the hanging bracket to required lengths.

• Drill 3/16" pilot holes in the structural supports.

• Attach one end of each bracket to a support with 5/16"x1-7/8" lag screws.

• Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex screws, lock washers and nuts.

• Check to make sure the T-rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

• Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

each

side of the opener

WARNING

The opener could fall and injure someone if it is not properly secured.

securely to structural supports of the garage.

Figure 1

Measure Distance

5/16"-18x7/8"

Hex Screws

5/16" Lock Washers

5/16"-18 Nuts

Fasten the opener

Structural

Supports

Lag Screws

5/16"x1-7/8"

Grease the top and underside of the rail surface where the trolley slides with rail grease.

Hardware Shown Actual Size

Lag Screw

5/16"-18x1-7/8"

RAIL GREASE

NO. 83A4



Figure 2

Bracket

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

— FINISHED CEILING —

Hidden  Support

Lag Screws

5/16"x1-7/8"

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Hex Screw

5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

Page 18

Opener

Terminal Screws

Antenna

Right Panel

of Opener

Multi-Function

Door Control Panel

Multi-Function

Door Control Panel

Terminal Screws

RED

WHITE

LIGHT

LOCK

Door Control

Button

Light Button

Lock Button

2 3

Installation Step 6

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could close and cause serious injury or death.

Install the door control (or any additional push buttons) out of the reach of children and away from all moving parts of the door and door hardware,

but

where the garage door is visible.

Do not allow children to operate the push button(s) or the remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly adjusted, you can see it clearly, and there are no obstructions to door travel.

• Strip 1/4" of insulation from one end of the bell wire; connect the wire to the two screw terminals on the back of the door control by color: white to 2 and white/red to 1.

• Locate the door control within sight of the door

at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware.

Fasten the Multi-Function Door Control securely with 6ABx1" screws. If installing into drywall, drill 5/32" holes and use the anchors provided.

• Run the bell wire up the wall and across the ceiling to the opener. Use insulated staples to secure the wire in several places. Be careful not to pierce the wire with a staple, thereby resulting in a short.

• Receiver terminal screws and the antenna are located on the right panel of the opener. Position the antenna wire as shown.

• Then connect the bell wire to the opener terminal screws: white to 2 and white/red to 1.

• Remember to affix the User Safety Instruction

label to the wall near the door control, and the Maintenance Instruction label in a prominent location on the inside of the garage door.

If the label adhesive will not adhere to your garage wall surface (or becomes lose with time) use tacks to secure the label alongside the door control.

Page 32 explains how to operate the opener using the lighted push button and the Lock & Light features available on the Multi-Function Door Control Panel.

Dry Wall Anchors

Insulated 

Staples

6AB x 1" Screw

Multi-Function Door Control

Hardware Shown Actual Size

Outside Keylock Accessory Connections

To opener terminal screws: white to 2; white/red to 1

WARNING

Do NOT connect the power and operate the opener at this time.

The trolley will travel to the

full

open

position but will not return to the

position until the sensor beam is

connected and properly aligned. See Safety Reversing Sensor Instructions

beginning on page 21.

Install the Multi-Function Door Control Panel

Page 19

Installation Step 7

Install the Lights and the Lenses

• Install a 75 watt maximum light bulb in each socket. The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the lights will turn OFF.

• If the bulbs burn out prematurely due to vibration, replace them with "Garage Door Opener" bulbs.

• Slide lenses into guides as shown. Snap bottom tabs into lens slots.

• For convenience, the lenses may be installed

after Adjustment Step 4 on page 30.

• Reverse the procedure to remove the lenses.

Lens

Guide

75 Watt Max.

Light Bulb

Lens Tab

75 Watt Max.

Light Bulb

Lens Slot

Lens Tab

Installation Step 8

Attach the Manual Release Rope and Handle

Trolley

Rope

NOTICE

Overhand

Knot

Trolley

Release Arm

Manual

Release Handle

Overhand

Knot

WARNING

Do not use the red handle to pull the door open or closed.

untied and you could fall.

release only to disengage the trolley and, if possible, only when the door is closed.

Garage doors are heavy. If the door is open when the handle is pulled, the door could close inadvertently if it is not properly balanced. Serious injury may result to persons under the door. Make sure the doorway is clear of persons and obstructions before pulling handle when door is open.

• Thread one end of the rope through the hole in the

top of the red handle so "NOTICE" reads right side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above the floor. Secure with an overhand knot .

If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

The rope knot could become

Use the manual

Page 20

Installation Step 9

Electrical Requirements

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will type outlet.

If the plug doesn't fit into the outlet you have, contact a qualified electrician to install the proper type outlet.

To avoid installation difficulties,

do not run the opener at this time.

only

fit into a grounding

WARNING

To prevent electrocution or fire,

and wiring must be in compliance with local electrical and building codes.

NOT

use an extension cord, 2-wire adapter, or change the plug in anyway to make it fit your outlet.

Right

installation

Wrong

If permanent wiring is required by your local code, refer to the following procedure:

WARNING

To prevent electrocution, remove power from the garage door opener you plan to use for the permanent connection.

• To make a permanent connection through the 7/8" diameter hole in the top of the opener (according to local code):

• Remove the opener cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw.

grounded.

• Reinstall the cover.

and

from the circuit

The opener must be

Ground Tab

Green Ground

Screw

Ground Wire

Permanent Wiring

Connection

Black

Wire

To avoid installation difficulties,

do not run the opener at this time.

White Wire

Black

Wire

Page 21

The Protector System

Information you'll need before you begin the installation of the safety reversing sensor.

The safety reversing sensor

must

be connected and aligned correctly before the garage door opener will move in the down direction. This is a required safety device and cannot be disabled.

Installation procedures are the same for sectional and one-piece doors.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to the receiving eye. The units can be installed on either side of the garage door as long as the sun never shines directly into the receiving eye lens.

Look at the label on the connector end of each case to identify the sensors.

The brackets must be connected and fastened so that the sending and receiving eyes face each other as shown in Figure 1.

If an obstruction breaks the light beam while the garage door is closing, the door will stop and reverse to full open position, and the opener lights will flash for 5 seconds.

WARNING

Without a properly working safety reversing sensor, persons (particularly children) could be injured or killed by a closing garage door.

Read and follow all instructions. To protect small children, install the safety

reversing sensor so that the beam will be no higher than 4"-6" above the garage floor.

Disconnect power to the garage door opener before installing the safety reversing sensor.

The brackets surface such as the studs on either side of the door, or add a piece of wood at each location if installing in masonry construction.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) can interrupt the beam while the door is closing. If it does, use a piece of wood to build out each sensor mounting location to the minimum depth required for light beam clearance.

must

be securely fastened to a solid

Sensor Beam

4-6" max.

above floor

Sensor Beam

4-6" max.

above floor

Invisible Light Beam

Protection Area

Figure 1: Facing the door from inside the garage

Page 22

Installation Step 10

Install the Safety Reversing Sensor

Figures 2 and 3 show assembly of brackets and "C" wrap based on the recommended installation of the sensors on each side of the garage door as shown on page 21.

However, Figures 4 and 5 are variations which may fit your installation requirements better. Make sure

the wraps and brackets are aligned so the sensors will face each other across the garage door.

• Fasten the "C" wraps to the mounting brackets

having square holes, using the hardware shown in Figure 2.

• Connect each assembly to a slotted bracket, using the hardware shown in Figure 3.

Note the alignment of the brackets for left and right sides of the door.

• Finger tighten the lock nuts.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on both sides of the garage door, 4"-6" above the floor

exceeding 6"

. (See warning on page 21.)

but not

• Attach bracket assemblies with 1/4"x1-1/2" lag screws as shown in Figure 3.

• Adjust right and left side bracket assemblies to the same distance out from the mounting surface. Make sure all door hardware obstructions are cleared. Tighten the nuts securely.

Figure 2

#10-32

Lock Nuts

Figure 3

Inside

Garage

Wall

1/4"-20

Lock Nuts

Mounting Bracket

With Square Holes

1/4x1-1/2"

Lag Screws

Mounting Bracket

with Slot

Mounting Bracket

with Square Holes

"C" Wrap

#10-32x3/8"

Screws

1/4-20x1/2" Carriage Bolts

(with square shoulder)

"C" Wrap

#10-32x3/8"

Screw

Figure 4

#10x32

Lock Nut



Alternate Wall Mount

Inside

Garage

Wall

Mounting Bracket

with Slot

Garage

Floor

Hardware Shown Actual Size

Mounting Bracket

with Square Holes

"C" Wrap

Sensor

with wire

Indicator Light

1/4x1-1/2" Lag Screw

Figure 5

Staples

Inside

Garage

"C" Wrap

1/4"-20x1/2"

Carriage Bolts



Alternate Floor Mount

Wall

Sensor with wire

Indicator Light

Garage

Floor

1/4"-20

Lock Nut



Mounting Bracket

with Square Holes

Mounting Bracket

with Slot

Attach with

concrete anchors

(not provided)

Page 23

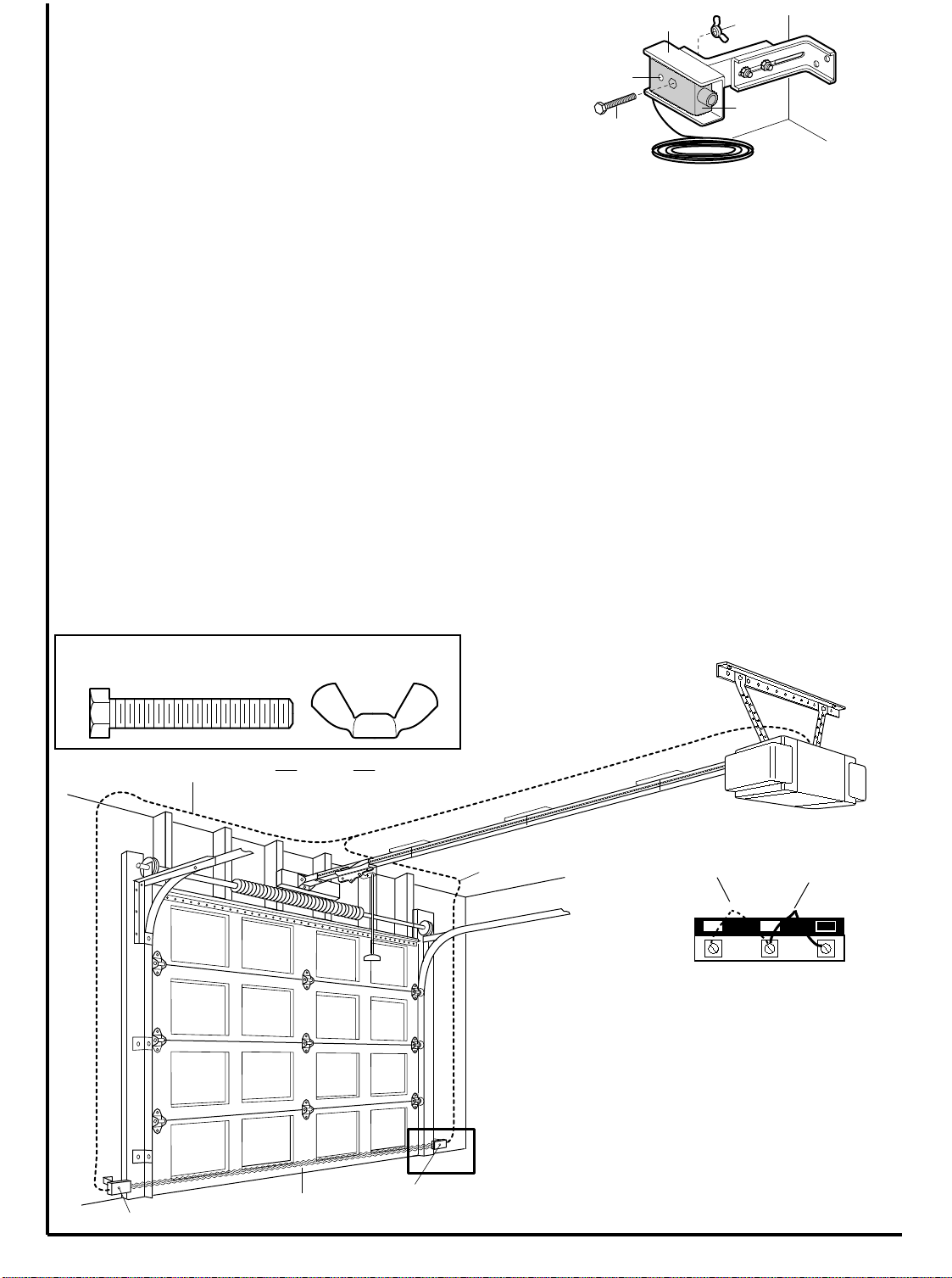

Invisible Light Beam

Protection Area

Sensor

Connect Wire to

Opener Terminals

Bell Wire

Finished

Ceiling

Figure 7

OPENER TERMINAL SCREWS

Sensor

Connections

Door Control Connections

(dotted line)

2 3

• Center each sensor unit in a "C" wrap with lenses

1/4-20 x 1-1/2"

Hex Bolt

"C" Wrap

Sensor

with Wire

Wing

Nut

Indicator

Light

1/4-20x1-1/2"

Hex Bolt

Wing Nut

pointing toward each other across the door (see Figure 6).

• Secure sensors with the hardware shown in Figure 7. Finger tighten the wing nut on the

receiving eye

Securely tighten the

to allow for final adjustment.

sending eye

wing nut.

• Run the wires from both sensors to the opener. Use insulated staples to secure the wire to the wall and ceiling.

• Strip 1/4" of insulation from each set of wires. Separate white and white/black wires sufficiently to connect to the opener terminal screws: white to 2 and white/black to 3.

Aligning the Safety Sensors

• Plug in the opener. Green indicator lights in both

the sending and receiving eyes will

glow steadily

wiring connections and alignment are correct.

The

sending

eye indicator light will glow regardless of alignment or obstruction. If the indicator light is off, dim, or flickering in the

receiving eye

(and the invisible light beam path is not obstructed), alignment is required.

• Loosen the

sending

eye wing nut and re-adjust,

aiming directly at the receiving eye. Lock in place.

• Loosen the

receiving

eye wing nut and adjust sensor vertically and/or horizontally until it receives the sender’s beam. When the green indicator light

glows steadily,

tighten the wing nut.

Figure 6

Trouble Shooting

1.If the

2.If the sending eye indicator light

3.If the receiving eye indicator light is dim, realign

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will flash 10 times. (If bulbs are not installed, 10 clicks are audible.) See page 21.

sending eye

steadily

after installation, check for:

indicator light does not

glow

• Electric power to the opener.

• A short in the white or white/black wires. These can occur under staples or at screw terminal connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

glows steadily

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

either sensor.

but

Hardware Shown Actual Size

Figure 7

Page 24

Installation Step 11

Vertical

Guideline

Door

Bracket

Nut

5/16"-18

Carriage Bolt

5/16"-18x2-1/2"

Lock Washer

5/16"

Vertical

Guideline

Door

Bracket

Location

Header

Bracket

Door

Bracket

Door Bracket

Plate

Inside Edge

of Door or

Reinforcement Board

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel, doors with glass panel, etc).

Vertical

Reinforcement

CAUTION

Fasten Door Bracket

Follow instructions which apply to your door type as illustrated below or on page 25.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a "U"-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

To prevent damage to steel, aluminum, fiberglass or glass panel doors, always reinforce the inside of the door both vertically and horizontally with an angle iron.

SECTIONAL Door Installation Procedure

Figure 1

• Center the door bracket on the previously marked vertical guideline used for the header bracket installation.

• Position the bracket on the face of the door within the following limits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes. Secure the bracket as shown in Figure 1 if there is vertical reinforcement.

If your installation doesn't require vertical reinforcement but does need top and bottom fastening holes for the door bracket, position the door plate over the door bracket as shown in Figure 2. Fasten securely with hardware shown in Figure 1.

Hardware Shown Actual Size

Nut 5/16"-18

Carriage Bolt

5/16"-18x2-1/2"

Figure 2

Lock Washer 5/16"

Page 25

Door

Bracket

Top of Door

(Inside Garage)



Carriage Bolt

5/16"-18x2-1/2"

Optional

Placement

Lock Washer

5/16"

Nut

5/16"-18

Horizontal and vertical

reinforcement is needed for

lightweight garage doors

(fiberglass, aluminum, steel, 

door with glass panel, etc.).

Header Wall

Vertical Centerline of Garage Door

– Finished Ceiling –

Optional

Placement

of Door

Bracket

Header

Bracket

Top Edge

of Door

2x4 Support

Door

Bracket

For a door with no exposed framing or for the optional installation, use 5/16"x1-1/2" lag screw (not supplied) to fasten door bracket. 

All ONE-PIECE Door Installation Procedure

Please read and comply with the warnings and reinforcement instructions on page 24. They apply to one-piece doors also.

• Center the bracket on the top of the door, in line with the header bracket as shown. Mark holes.

• Drill 5/16" pilot holes and fasten the door bracket with hardware supplied.

If the door has no exposed framing, drill 3/16" pilot holes and fasten the bracket with 5/16"x1-1/2" lag screws (not supplied) to the top of the door.

The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the dotted line optional placement drawing.) Drill 3/16" pilot holes and substitute 5/16"x1-1/2" lag screws (not supplied) to fasten the bracket to the door.

Hardware Shown Actual Size

Nut 5/16"-18

Lock Washer 5/16"

Carriage Bolt

5/16"-18x2-1/2"

Page 26

Installation Step 12

Connect Door Arm to Trolley

Follow instructions which apply to your door type as illustrated below and on page 27.

SECTIONAL Doors Only

Make sure garage door is fully closed. Pull the manual release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2” as shown in Figures 1, 2 and 3.

Figure 1:

• Fasten straight door arm section to outer trolley

with a clevis pin. Secure the connection with a ring fastener.

• Fasten curved section to the door bracket in the same way as shown.

Inner Trolley

Outer Trolley

Clevis

Straight

Figure 1 Figure 2

Clevis Pin

Ring 

Fastener

Door

Bracket

Door Arm

Curved

Door Arm

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Door Bracket

Rope

Manual

Release

Handle

Hole Alignment Alternative

Figure 3:

• If holes in curved arm are

above

holes in straight arm, disconnect straight arm. Cut about 6" from the solid end. Reconnect to trolley with

down

as shown.

cut end

• Bring arm sections together.

• Find two pairs of holes that line up and join with screws, lock washers and nuts.

Hardware Shown Actual Size

Nut 5/16"-18

Lock Washer 5/16"

Ring Fastener

Nuts

5/16"-18

Lock

Washers

5/16"

Screws

5/16"-18x7/8"

Cut This End

Figure 3

Hex Screw

5/16"-18x7/8"

Proceed to Adjustment Step 1, page 28. Trolley will re-engage automatically when the opener is operated.

Clevis Pin

5/16"x1"

Page 27

Door Arm to Trolley 1 pc

1/96

Nuts

5/16"-18

Lock

Washers

5/16"

Ring

Fastener

Straight

Arm

Screws

5/16"-18x7/8

Door

Bracket

Clevis Pin

5/16"x1-1/4"

Curved

Door Arm

Fully Open

Trolley

Door Arm

Connector Hole

Closed

Door

Open Door

Door with

Backward Slant

Door Arm

Connector Hole

Fully Closed

Trolley

Door Arm

All ONE-PIECE Doors

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a 2 or 3 hole overlap).

• With the door closed, connect the straight door arm section to the door bracket with the 5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted. Limit adjustment screws are located on the left side panel as shown on page 28. Follow adjustment procedures below.

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP limit

• Turn the UP limit adjustment screw counter-

clockwise 5-1/2 turns.

• Press the Door Control push bar. The trolley will

travel to the fully open position.

• Manually raise the door to the open position

(parallel to the floor), and lift the door arm to the trolley. The arm should touch the trolley just in back of the door arm connector hole. Refer to the fully open trolley/door arm positions in the illustration. If the arm does not extend far enough, adjust the limit further. One full turn equals 2" of trolley travel.

Closed Door Adjustment:

Decrease DOWN limit

• Turn the DOWN limit adjustment screw clockwise 5 complete turns.

• Press the Door Control push bar. The trolley will travel to the fully closed position.

• Manually close the door and lift the door arm to the trolley. The arm should touch the trolley just ahead of the door arm connector hole. Refer to the fully closed trolley/door arm positions in the illustration. If the arm is behind the connector hole, adjust the limit further. One full turn equals 2" of trolley travel.

Connect the door arm to the trolley:

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may

be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position as shown in the illustration, decrease the UP limit until the door is parallel to the floor.

Page 28

Adjustment Section: Pages 28 – 30

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the Safety Reversing Sensors are completely installed.

Limit adjustment settings regulate the points at which the door will

The door will interferes with door travel. The door will the

down

direction if anything interferes with the

door travel (including binding or unbalanced doors). To operate the opener, press the Door Control push

bar. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary unless the reversing test fails (see page 30).

stop

when moving up or down.

in the

direction if anything

reverse

WARNING

Improper adjustment of the travel limits will interfere with the proper operation of the safety reverse system.

reverse properly when required and could seriously injure or kill someone under it.

the safety reverse system following all adjustments to the travel limits. See page 30.

Left Side

Panel

The door might not

Test

INCREASE

UP

DOWN

TRAVEL

Adjustment procedures are outlined below. Run the opener through a complete travel cycle after each adjustment.

Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to Adjustment Step 2. Use a screwdriver to make limit adjustments.

How and When to Adjust the Limits

If the door does not but opens

Increase

at least

travel. Turn the UP limit adjustment

screw clockwise. One turn equals 2" of travel. If door does not open at least 5 feet: Adjust the

UP (open) force as explained in Adjustment Step 2.

If the door does not

Increase

down

adjustment screw counterclockwise. One turn equals 2" of travel.

If door still won't close completely, try lengthening the door arm, page 26.

If you have adjusted the door arm to the maximum length and the door still will not close completely, lower the header bracket. See Installation Step 1, pages 12 and 13.

open completely

five feet

close completely

travel. Turn the DOWN limit

Limit Adjustment Screws

If the opener

Decrease

down

INCREASE

DOWN

TRAVEL

Limit Adjustment Label

reverses

travel. Turn the DOWN limit

INCREASE

UP

TRAVEL

in fully closed position

adjustment screw clockwise. One turn equals 2" of travel.

If the door

reverses

when closing and

there is no visible interference to travel cycle

If the opener lights are flashing, the Safety Reversing Sensor is obstructed. Remove the obstruction.

Test the door for binding: Pull the manual release handle. Manually open and close the door. If the door is binding, call for garage door service. If the door is not binding or unbalanced, adjust the DOWN (close) force. See Adjustment Step 2.

Page 29

Adjustment Step 2

Adjust the Force

Force adjustment controls are located on the right panel of the opener. Force adjustment settings regulate the amount of power required to open and close the door.

The door will interferes with its travel. The door will

down

direction if anything interferes with its travel

(including binding or unbalanced doors). If the forces are set too light, door travel may be

interrupted by direction and conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is 260 degrees, about 3/4 of a complete turn. Do not force controls beyond that point. Turn force adjustment controls with a screwdriver.

stop

in the updirection if anything

nuisance reversals

stops

in the

direction. Weather

reverse

down

in the

WARNING

Too much force on the door will interfere with the proper operation of the safety reverse system.

when required and could seriously injure or kill someone under it.

force beyond the minimum amount required to close the door. Do not use the force adjustments to compensate for a binding or sticking garage door. Test the safety reverse system following all adjustments to force levels. See page 30.

The door might not reverse properly

Do not increase the

Force

Adjustment

Controls

Force Adjustment Label

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse.

travel does not guarantee reversal on a two-inch obstruction. See page 30.

hold or doesn't reverse, decrease the DOWN (close) force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn't stop, decrease UP (open) force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door stops easily. After each adjustment, run the opener through a complete travel cycle.

Reversal halfway through down

If the door is hard to

Right Panel

of Opener

If the door doesn't open

at least

5 feet

Increase UP (Open) force by turning the control clockwise. Make 10 degree turn adjustments until door opens completely. Re-adjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

If the door

reverses

during the down (close)

cycle and the opener lights aren't flashing

Increase DOWN (close) force by turning the control clockwise. Make 10 degree turn adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle. Do

not increase the force beyond the minimum amount required to close the door.

Page 30

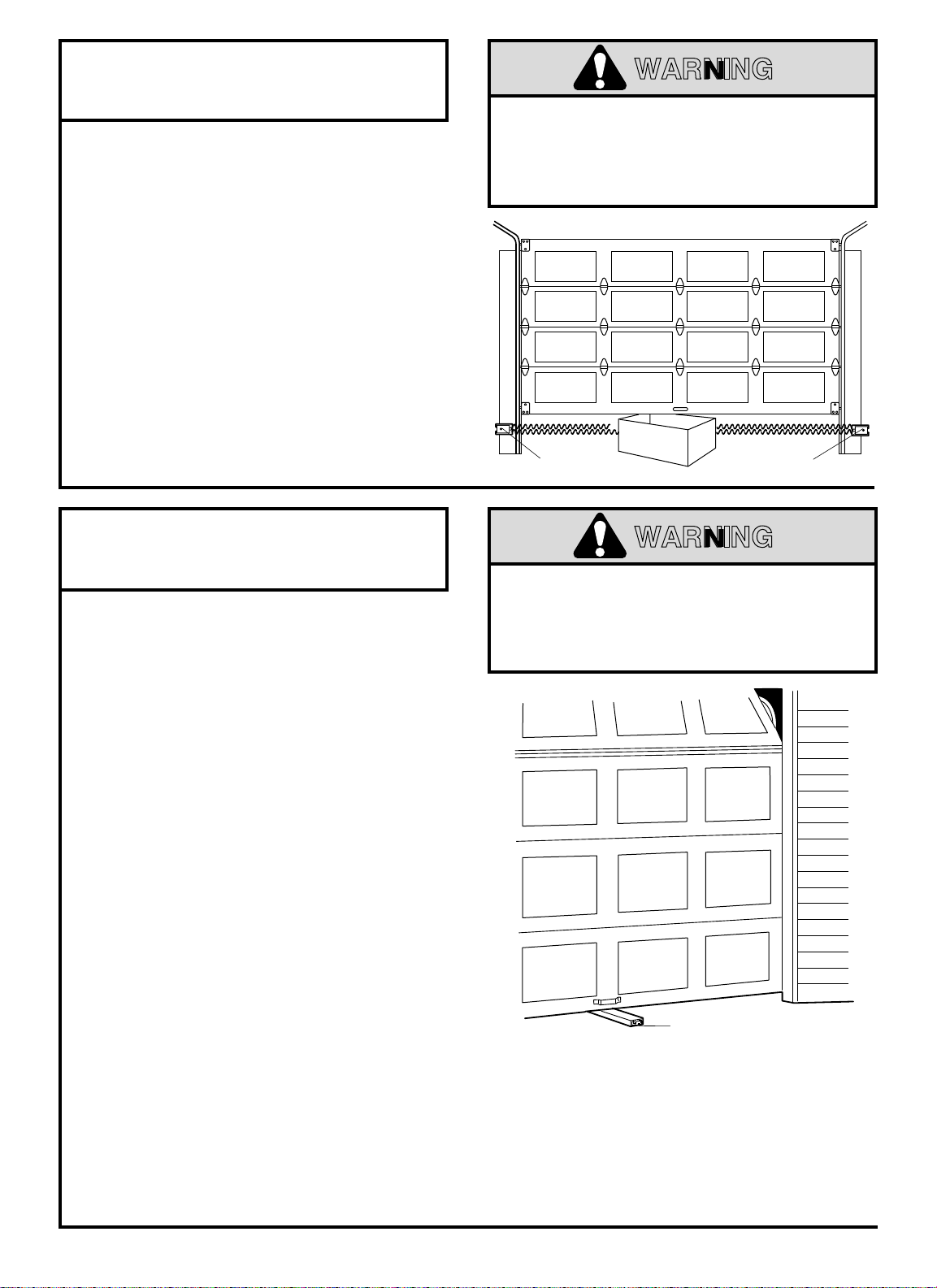

Adjustment Step 3

Test the Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door.

The door will not move more than an inch,

and the opener light(s) will flash.

Professional service is required if the opener closes the door when the safety reversing sensor is obstructed.

The garage door opener will not close from a remote if the indicator light in either sensor is

off

(alerting you to the fact that the sensor is

misaligned or obstructed).

The garage door can be closed by pressing and holding the Door Control push bar until down travel is completed.

WARNING

Without a properly working safety reversing sensor, persons (particularly children) could be seriously injured or killed if trapped by a closing garage door.

month.

Safety Reversing Sensor

Repeat this test once a

Safety Reversing Sensor

Adjustment Step 4

Test the Safety Reverse System

Test:

• Place a one-inch board (or a 2x4 laid flat) on the floor, centered under the garage door.

• Operate the door in the down direction.

must reverse on striking the obstruction.

Adjustment:

If the door far enough in the down direction.

• Increase the DOWN limit by turning the DOWN limit adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

On a sectional door, make sure limit adjustments do not force the door arm beyond a straight up and down position. See the illustration on page 26.

• When the door reverses on the one-inch board (or a 2x4 laid flat), remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated adjustment attempts, call for professional garage door service.

stops

on the obstruction, it is not traveling

The door

WARNING

Failure to test and adjust the safety reverse system may result in serious injury or death to persons trapped by a closing garage door.

Repeat this test once a month and adjust as needed.

GARAGE DOOR

One-Inch Board

(or a 2x4 Laid Flat)

Important safety check:

Repeat Adjustment Steps 1, 2 and 4 after:

• Each adjustment of door arm length, force controls or limit controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

Page 31

Weather conditions may cause some minor changes in door operation requiring some readjustments, particularly during the first year of operation.

Pages 28 and 29 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (page 30) after any adjustment of limits or force.

Care of Your Opener

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to play with the opener. Keep remote control in a location inaccessible to children.

3. Operate opener only when the door is in full view and free from any obstruction. Keep the door in sight until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

4. Check safety reversal system monthly. See page 30. The garage door

MUST

reverse on contact with a one-inch object (or a 2x4 board laid flat) placed on the floor. If an adjustment is made to either the force or limit of travel, both adjustments may be needed and the safety reversal system

must

checked.

Failure to properly adjust the opener may result in severe injury or death.

5. If possible, use the manual release only when the door is in a closed position. Caution should be taken whenever the disconnect cord is actuated with the door open.

Weak or broken springs may

cause the door to fall rapidly, causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY BALANCED. See page 3.

An improperly balanced door may not

reverse when required and could result in severe injury or death.

Repairs to cables, spring assemblies

and other hardware must be made by a professional garage door person.

7. Disconnect the electric power to the garage door opener before making any repairs or removing the covers.

8. SAVE THESE INSTRUCTIONS.

Limit Controls

INCREASE

DOWN

TRAVEL

Adjustment Label

(Located on the left side panel)

INCREASE

TRAVEL

Force Controls

Adjustment Label

(Located on the right panel)

Maintenance Schedule

Limit and Force Adjustment Controls

WARNING

The remote control transmitter:

The opener must learn the code of any new remote control. Page 33 explains how to program your garage door opener and how to erase all codes if required. Self service of your receiver and remote controls is not recommended. If service is needed, call the toll-free number listed on the back page.

The transmitter battery:

The green test light will glow and the opener will operate when the remote control is activated, as long as there is adequate battery power.

If the test light is

check the test light if transmission range decreases.

dim or off

, replace the battery. Also

The 12V battery should produce power for at least a year.

Dispose of your old battery properly.

Once a Month

Manually operate door. If it is unbalanced or

binding, call for professional garage door service.

Check to be sure door opens and closes fully.

Adjust limits and/or force if necessary. (See pages 28 and 29.)

Repeat the safety reverse test. Make any necessary adjustments. (See page 30.)

Oil door rollers, bearings and hinges.

The opener does not require additional lubrication. Do not grease the door tracks.

Once a Year

Page 32

Operation of Your Opener

Activate the opener with any of the following:

• The Remote Control Transmitter. Hold push

button down until the door starts to move.

• The Door Control. Hold push bar or button down until the door starts to move.

• The Outside Keylock or Keyless Entry. (See Accessories)

When the opener is activated with the safety reversing sensor installed and correctly aligned:

1. If open, the door will close. If closed, the door will open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle when the invisible beam is broken. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is not aligned correctly, the door won't close from any remote transmitter. You can close the door with the Door Control, the Outside Keylock, or Keyless Entry, however, if you activate them

until down travel is complete

them too soon, the door will The opener lights will

blink for 5 seconds

safety reversing sensor causes the door to reverse. Opener Lights will turn on under the following

conditions: When the opener is initially plugged in; when the power is interrupted; when the opener is activated. They will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature is activated. Bulb size is 75 watts maximum.

. If you release

reverse.

when the

WARNING

Weak or broken springs could allow an open door to fall (either rapidly or unexpectedly), resulting in serious injury, death or property damage.

rope and handle closed.

Trolley

Release Handle

(Pull Down)

Manual disconnect

The lockout feature

prevents the trolley from reconnecting automatically. Pull the manual release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary. To disengage the Lockout Feature, pull the manual release handle straight down. The trolley will reconnect on the next UP or DOWN operation.

If possible, use the manual release

only

when door is fully

To open the door manually:

The door should be

Trolley

Release Arm

fully closed if possible. Pull down on the manual release handle

Manual

NOTICE

and lift the door manually. To reconnect the door to the opener, press the Door Control push bar.

position

Trolley

Manual

Release Handle

(Pull Down & Back

Towards Opener)

Lockout position

Trolley

Release Arm

NOTICE

Operation of the Multi-Function Door Control Panel

Lighted Push Bar:

Press to open or close the door. Press again to

reverse

the door while it's opening.

Light Feature:

Press the Light button. If the opener light is turn on.

If the opener light is on, (even in the 4-1/2 minute automatic cycle) it will turn off.

But if you use the Light button to turn the light(s) on and then activate the opener, the light(s) will turn off after 4-1/2 minutes.

The Light feature will not control the opener lights when the door is in motion.

the door during the closing cycle or to

off

stop

, it will

Lock Feature:

Designed to prevent operation of the door from portable remote controls. However, the door will open and close from the Door Control push bar and from the Outside Keylock and the Keyless Entry Accessories.

To activate: Press and hold the Lock button for 2 seconds. The push bar indicator light will flash as long as the Lock is on.

To turn off: Press and hold the Lock button again for 2 seconds. The push bar indicator light will stop flashing. Normal operation will resume. The Lock feature will also turn off whenever the "Smart" button on the opener end panel is activated.

Page 33

Receiver & Remote Control Programming

NOTICE: To comply with FCC rules, adjustment or modification of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the transmitter battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Your garage door opener receiver and remote control have been set at the factory to a matching code. The opener will activate when the LARGE button on the remote(s) is pressed. The multifunction remote(s) can also activate additional garage door openers and/or light control models 874CB and 872CB.

Below are instructions for programming your opener to match the other buttons on your multi-function remote and any additional remotes you may purchase. See available accessories on page 38.

WARNING

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could close and cause serious injury or death.

to operate the door control(s) or remote control transmitter(s).

A moving garage door could injure or kill someone under it.

when you can see the door clearly, it is free of obstructions, and is properly adjusted.

Do not allow children

Activate the opener only

Your "Smart" garage door opener will operate with up to 4 "Smart" remote controls (with green indicator lights), a Keyless Entry System and code switch remote controls with red indicator lights.

To Add A Remote

Select a push button to operate the receiver, Figure 1.

1. Press and

hold

the remote push button.

2. Then press and release the "Smart" button on the right side panel of the opener, Figure 2. The opener lights will

flash once.

3. Release the remote push button.

Now the opener will operate when the remote control push button is pressed.

If you release the remote control push button before the opener lights flash, the opener will not accept the code.

To Change the Selected Push Button

On the Same Remote

If you decide to use a different remote control button than originally programmed into the opener, you need to erase

all

the learned codes and reprogram each remote used to operate the garage door opener.

Figure 1

Figure 2

Multi-Function Remote Control

Battery

Indicator Light

Select a Remote

Push Button

Garage Door Opener

(With "Smart" Button)

To Erase All Remote Control Codes

• Press and hold the "Smart" button on the opener

panel until the indicator light turns off (about 6 seconds).

All

the codes the opener has learned

will be erased.

• To reprogram, repeat Steps 1 – 3 for each remote

control in use.

Code programming instructions are also located on the opener panel.

"Smart"

Button

Indicator

Light

END PANEL

Page 34

Having a Problem?

Situation Probable Cause & Solution

The opener doesn't operate from either the door control or the remote control:

Opener operates from remote control, but not from door control:

The door operates from the door control, but not from the remote control:

1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

2. Have you disabled all door locks? Review installation instruction warnings on Page 11.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the ground. Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait 15 minutes. Try again.

1. Is the door control push bar lit? If not, Remove the bell wire from the opener terminal screws. Short the red and white terminals by touching both terminals at the same time with a piece of wire. If the opener runs, check for a faulty wire connection at the door control, a short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Step 6, page 18.

1. If your model has the Lock feature, turn it

2. Is the wall push button flashing? Your opener needs to re-learn a remote control code. Refer to instructions on the opener panel.

3. Does the battery test light glow when the remote control push button is pressed? If not, replace the battery.

4. Program the receiver to match the remote control code.

5. Repeat the receiver programming procedure with all remote controls.

off.

The remote control has short range:

Opener noise is disturbing in living quarters of home:

The garage door opens and closes by itself:

The door doesn't open completely:

1. Check the battery test light. If the light is dim, replace the battery.

2. Change the location of the remote control in your car.

3. Check to be sure the antenna on the side or back panel of the opener extends fully downward.

4. Some installations may have shorter range due to a metal door, foil backed

insulation, or metal garage siding.

If operational noise is a problem because of proximity of the opener to the living quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to minimize vibration to the house and is easy to install.

1. Be sure that all remote control push buttons and battery indicator lights are off.

2. Remove the bell wire from the door control terminals and operate from the remote control only. If this solves the problem, the door control is faulty (replace), or there is an intermittent short on the wire between the door control and the opener.

1. If the door has been working properly but now doesn't open all the way, increase the

up force.

2. Is something obstructing the door? Remove the obstruction or repair the door.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn equals 2 inches of travel. See page 28.

See page 29.

Repeat the safety reverse test after the adjustment is complete.

The door stops but doesn't close completely:

Review the travel limits adjustment procedures on page 28.

Repeat the safety reverse test after any adjustment of door arm length, close force or down limit.

Page 35

Having a Problem?

Situation Probable Cause & Solution

(continued)

The door opens but won't close:

The door reverses for no apparent reason and opener lights don't blink:

The door reverses for no apparent reason and opener light(s) blink for 5 seconds after reversing:

The opener lights…

1. If the opener lights blink, check the safety reversing sensor. See page 23

2. If the opener lights do not blink and it is a new installation, check the down force. See Adjustment Step 2, page 29. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

1. Is something obstructing the door? Pull the manual release handle. Operate the door

manually. If it is unbalanced or binding, call for professional garage door service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 29.

4. If door reverses in the

Repeat the safety reverse test after adjustments to force or travel limits. The need for occasional adjustment of the force and limit settings is normal. Weather conditions in particular can affect door travel.

Check the safety reversing sensor. Remove the obstruction or align the receiving eye. See page 23.

don't turn on:

Replace the light bulbs (75 watts maximum). Use a bulb if regular bulb burns out.

don't turn off:

Is the Light feature on? Turn it

fully closed

off.

position, decrease the travel limits (page 28).

standard neck

garage door opener

The opener strains or maximum force is needed to operate the door:

The opener motor hums briefly, then won't work:

The opener won't operate due to power failure:

The door may be out of balance or the springs are broken. Close the door and use the manual release rope and handle to disconnect the trolley. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely by its springs. If it does not, disconnect the opener and call for professional garage door service.

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked.

Disable the door lock

of phase. Remove the belt; cycle the motor to the down position. Observe the drive sprocket. When it turns in a clockwise direction and stops in the down position, reinstall the belt.

Repeat the safety reverse test after the adjustment is complete.

1. Use the manual release handle to disconnect the trolley. The door can be opened

and closed manually. When the power is restored, press the Door Control and trolley will automatically reconnect (unless trolley is in the lockout position, see page 32).

2. The Outside Quick Release accessory (for use on garages with no service door)

disconnects the trolley from outside the garage in case of power failure.

Do not increase the force to operate the opener.

. If the belt was removed and reinstalled, the motor may be out

Page 36

Rail Assembly Parts

Repair Parts

RAIL GREASE

NO. 83A4

KEY PART NO. NO. DESCRIPTION

1 1A995 Master link kit 2 41B3869-1 Complete trolley assembly 3 183B112 Rail braces (each) 4 183B111 T-rail – center sections (each) 5 183B113 T-rail – end sections (each) 6 41A3589 Full belt assembly 7 41A3588 Belt pulley bracket 8 83A4 Rail grease 9 41B4103 Tension assembly (Spring/Trolley Nut)

10 109B33 Trolley Clip

NOT SHOWN

41A2848 Rail assembly hardware kit (includes

hardware illustrated on page 7).

Installation Parts

LOCK

KEY PART NO. NO. DESCRIPTION

1 41A4251-7A Multi-function door control panel 2 10A14 12V battery 3 29C128 Transmitter visor clip 4 41A3888-11 Multi-function remote control

5 41A2828 Manual release rope & handle assembly 6 217A238 2-conductor bell wire – white & white/red 7 12B374-1 Door bracket 8 12B380-1 Door bracket plate

9 41A4353-1 Header bracket w/clevis pin & fastener 10 178B35 Curved door arm section 11 178B34 Straight door arm section 12 12B350 Hanging brackets 13 12B483 “C” wrap bracket 14 12B484 Square hole mounting bracket 15 12B485 Slotted hole mounting bracket 16 41A4373A Safety sensor kit (receiving and sending

41A4437-1 Installation hardware bag (includes 41A4116 Safety sensor hardware

114A1981 Owner's manual

LIGHT

housing & screw only (no circuit board)

eyes) with 3' 2-conductor bell wire attached

NOT SHOWN

hardware illustrated on page 7).

12VDC

CEILING MOUNT ONLY

NOTICE

Page 37

Opener Assembly Parts

Repair Parts

Brown

Wire

Drive

Gear

(Down)

Contact

Center Limit

Contact

LIMIT SWITCH ASSY.

(Up)

Contact

Grey

Wire

Yellow

Wire

KEY PART NO. NO. DESCRIPTION

1 41A4371 Belt cap retainer 2 41A4885 Gear and sprocket assy.,

Complete with:

Spring washer Thrust washer Retaining ring Bearing plate Roll pins (2) Drive gear and worm gear Helical gear w/retainer and grease

3 41A2817 Drive/worm gear kit w/grease

Roll pins (2) 4 41B4245 Line cord 5 41C4876 Wire harness assembly with plug 6 41A4252-6C Receiver logic board assembly

Complete with Logic board 7 41A4888 End panel w/all labels 8 175B88M Light socket 9 108D34 Lens

KEY PART NO. NO. DESCRIPTION

10 30B363 Capacitor – 1/2 h.p. 11 12A373 Capacitor bracket 12 41D3150 Terminal block w/screws 13 41C4842 Universal replacement motor &

bracket assembly, Complete with: Motor, worm, bracket,

bearing assembly, RPM sensor. 14 41A3583-6 Cover 15 41A2818 Helical gear & retainer w/grease 16 41D3452 Limit switch assembly 17 41C4398A RPM sensor assembly 18 41A2826 Shaft bearing kit 19 41A2822A Interrupter cup assembly 20 41A4889 End panel

NOT SHOWN

41A2825 Opener assembly hardware kit

(includes screws not designated by

a number in illustration.

Page 38

Accessories Available for your Opener

7702CB

760CB

7704CB

740CB

Outside Quick Release:

Required

for a garage with NO

access door.

Outside Keylock:

Opens the garage door automatically from outside when remote control is not handy.

8 foot Rail Extension Kit:

To allow an 8 foot door to open fully.

Keyless Entry:

Enables homeowner to operate garage door opener from outside by entering code on specially designed keyboard.

856CB

853CB

850CB

959CB

Multi-Function Mini Remote Control:

With key ring & Velcro fastening strip.

Multi-Function Standard Size Remote Control:

Includes visor clip.

Single-Function Standard Size Remote Control:

Includes visor clip.

Security Remote Control

Enables homeowner to operate

ENTER

garage door opener by entering

9 0

7 8

5 6

3 4

1 2

2, 3, 4, or 5 digit code from backlit keyboard. Includes visor clip.

945CB

874CB

Multi-Function Door Control Panel:

LOCK

LIGHT

Provides a Lock Feature which prevents operation of garage door

872CB

Wire-In Light Control:

Controls interior or exterior lights. Wires into the electrical box like a dimmer switch.

opener from portable remotes and a Light Feature for constant light.

Plug-In Light Control:

Controls interior lights. Plugs into a wall receptacle.

Page 39

Index

Access Door/Outside Quick Release Accessory............................................................................................4, 5

Electrical Safety Warnings........................................................................................................................2, 20, 31

Garage Door

Testing for balance, binding and sticking...................................................................................................3, 28, 31

Determining high point of travel:

Sectional door...................................................................................................................................................12

One-piece door.................................................................................................................................................13

Disabling existing locks....................................................................................................................................3, 11

Force Controls

Adjustment procedures.....................................................................................................................................29

Problems that might require force adjustments..........................................................................................34, 35

Safety warnings..........................................................................................................................................29, 31

Door hardware.....................................................................................................................3, 9, 11, 12, 18, 31, 32

Maintenance instruction label........................................................................................................................11, 28

Reinforcement requirements ...........................................................................................................................4, 24

Removing of all ropes......................................................................................................................................3, 11

Possible door damage...................................................................................................................................16, 24

Travel Limits

Adjustment procedures.....................................................................................................................................28

Problems that might require limit adjustments............................................................................................34, 35

Safety warnings..........................................................................................................................................28, 31

Manual Release Rope and Handle

Lockout feature...................................................................................................................................................32

Manual disconnect..............................................................................................................................................32

Safety warnings................................................................................................................................11, 19, 31, 32

Opener Terminals

Door control connections....................................................................................................................................18

Safety reversing sensor connections..................................................................................................................23

Outside Keylock Accessory connections............................................................................................................18

Operational Noise

Sprocket noise....................................................................................................................................................11

Vibration noise (isolator kit) ................................................................................................................................34

Protector System®..........................................................................................................................................21, 30

Receiver and Remote Controls

Programming the receiver ..................................................................................................................................33

Erasing all codes ................................................................................................................................................33

Activating other openers and/or light products ...................................................................................................33

Safety warning....................................................................................................................................................33

Problems with remote control operation.............................................................................................................34

Safety Reverse Test Procedure..........................................................................................................................30

Testing required................................................................................................................................11, 30, 34, 35

Safety reverse system problems

Securing header bracket to wall .......................................................................................................................12

Adjusting travel limits........................................................................................................................................28

Applying excessive force on the door...............................................................................................................29

Buckling or uneven floor.................................................................................................................................4, 5

Safety Warnings.........................................................2, 3, 9, 11, 12, 16, 18, 19, 20, 21, 24, 28, 29, 30, 31, 32, 33

User Instruction Label for Garage Wall.......................................................................................................11, 18

Page 40

CHAMBERLAIN SERVICE

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request, or parts will be shipped at prevailing prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE

THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Parts and Service Department

2301 N. Forbes Boulevard, Suite 104

Tucson, Arizona 85745

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-9131

CHAMBERLAIN GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase. The proper operation of this

product is dependent on your compliance with the Owner’s Manual instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this warranty in its entirety. Please note that the safety reverse system, in order to operate properly with your garage door, must be adjusted and periodically tested in accordance with the Owner’s Manual.

If, during the limited warranty period, it appears as though this product contains a defect which is covered by this limited warranty, call our toll free service number, before dismantling this product, at 1-800-528-9131. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call the toll free service number. Please include a br ief description of the problem and a dated proof-ofpurchase receipt with any product that is returned for warranty repair.

Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

THIS LIMITED WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, AND OF ANY OTHER OBLIGATIONS OR LIABILITY ON SELLER’S PART. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, OR ANY ALTERNATIONS TO THIS PRODUCT), LABOR CHARGES FOR DISMANTLING OR REINSTALLING A REPAIRED OR REPLACED UNIT, OR REPLACEMENT BATTERIES.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH THE USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

LIMITED WARRANTY ON MOTOR - MODEL 8100

The motor is fully warranted for the lifetime of the product to the first-time purchaser.

IS ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS

NEAR AS YOUR TELEPHONE SIX DAYS A WEEK.

SIMPLY DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

HOURS: (Mountain Std. Time)

6 A.M. to 6 P.M. Monday through Friday

7 A.M. to 3 P.M. Saturday

Closed Sunday

For professional installation, parts and service,

contact your local CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.
