The SOLO is a cost-effective entry level stand-alone proximity access control system for single access
point applications. By presenting a valid CENTURION proximity tag to the SOLO Reader it will activate or
release the access point door lock or operator and allow access.
The SOLO Reader is a robust, weatherproof unit that is mounted adjacent to the door or access point. It is
a fully integrated unit with the controller, read coil and output drives all contained inside the unit.
The SOLO model 50 can store up to 51 unique proximity tags of which two are Master Tags. Tags are
stored on the unit’s non-volatile memory in separate Memory Locations. The use of Memory Locations
allows for selective addition and deletion of tags as required.
Programming of the system is done using either of the Master Tags and the indicator lights on the front of
the Reader. To further simplify the installation of the SOLO Reader all parameters are pre-programmed
according to most application requirements.
Both audible and visual feedback is provided if a valid tag is presented. In addition, visual feedback is
given if the presented tag is invalid.
The SOLO's single output channel provides a potential-free Normally-Open or Normally-Closed contact
and can be configured as latching or pulsed. The pulsed time is adjustable in one second increments from
one second to four minutes.
The output can also be configured to operate with a CENTURION SMARTSWITCH II.
The SmartSwitch II is mounted directly at the door lock or gate motor to provide an even higher level of
security by preventing a would-be intruder from tampering with the door lock/gate trigger lines to gain
entry.
The SOLO provides a free-exit facility. This is typically where a pushbutton mounted on the inside of the
door or gate entrance is required to operate the access point. For added security, this feature can be
inhibited if not being used.
The SOLO provides an input for door/gate sensor that can be used to detect whether the access point has
been forced open or left open. The unit in turn provides an open collector output with pulse or latching
facility so that either or both of these alarm conditions can be relayed to a "third party" alarm system.
In addition, an optional tamper alert switch is available that can be connected to a "third party" alarm to
provide an early warning if the SOLO Reader is being forced open.
The access point left open alarm will only activate after the pre-warn time (internal buzzer) followed by the
access point left open time have expired. The pre-warn and access point left open times are programmable in one second increments from one second to four minutes.
Mounting of the SOLO is very simple as it can be flush mounted into a 100mm x 50mm light switch box or
surface mounted directly onto the wall. In addition, the unit can be purchased with an anti-knock shield,
providing better protection when surface mounting the unit externally or to a gooseneck.
Page 5
Product OverviewProduct OverviewProduct Overview
Page 6
Page 6
Physical
Supply Voltage
Standby Current
Maximum Current
Operating Temperature
Operating Humidity
Tag Frequency
Housing Material
Degree of Protection
Dimensions
Surface Mount
Flush Mount
Outputs/Inputs
Output channel
Relay rating
Open collector rating (CHD)
Door open/forced output (ALARM)
SmartSwitch II power output
Free-exit input
Door sense input
Anti-tamper switch
Operational
Tag capacity
Tag read range
Output relay pulse time (s)
Door open alarm delay time (s)
Door open pre-warn delay time (s)
Local Buzzer activation time (s)
door open alarm
Hold off time (s)
10 - 12V AC 12-15V DC
50mA
180mA
-20°C to 50°C
0-90% non condensing
13.56 MHz
ABS UV Stabilised
IP 55
129H x 90W x 29D
125H x 85W x 16D
Single output selectable as relay (NC or NO) or open collector
50V @ 3A non inductive (N/C, COM, N/O)
Maximum 50mA (positive connected to CHD+)
Maximum 50mA (positive connected to CHD+)
Maximum 200mA (CHD+)
Potential-free normally-open contact (FRX)
Potential-free normally-closed contact (DOOR SEN)
Potential-free normally-closed contact (Optional extra)
51 tags including Master/Admin
80 - 100mm
0 - 254 Adjustable in 1 second increments or Latch
0 - 254 Adjustable in 1 second increments or Infinite
0 - 254 Adjustable in 1 second increments or Infinite
0 - 254 Adjustable in 1 second increments or Infinite
0 - 255 Adjustable in 1 second increments
SpecificationsSpecificationsSpecifications
Page 7
Page 7
5mm
Masonry Bit
Silicon
Cable: 0.20mm²
LevelLevel
Tape Measure
Long Nose Pliers
Side Cutters
Star Screwdriver
0 and 1 point
Flat Screwdriver
- 2.5mm point
Jewellers Type
0.50mm²
0.75mm²
Drilling Machine
(hammer action)
Multi-Meter
Tools and Equipment RequiredTools and Equipment RequiredTools and Equipment Required
Page 8
Page 8
Fig 1. Quik Wiring Diagram
Quik Wiring DiagramQuik Wiring DiagramQuik Wiring Diagram
Power Supply
NB: Wire Link
must be fitted if
Door Sense
Facility is not
being used.
10-12V AC
Typical
12-15V DC
Potential
Free Contact
to operate
Gate Motor or
Traffic Barrier.
102 102
D C
M 7
85
200
D C
M 7
470R
470R
Jumper 1Jumper 1Jumper 1
Jumper 2Jumper 2Jumper 2
PSU for
Strike
Door
Strike
Alternatively
Typical
Connection
for Door Lock
Jumper 2Jumper 2Jumper 2
Read range will be
affected if not correctly set
Page 9
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Present and REMOVE each New Tag to
the SOLO Reader
Connect power to Reader
Power On
Repeat from step 3 as required
TOP GREEN LIGHT will flash
TOP ROW LIGHTS flash in sequence
Present and REMOVE the Master Tag
BUZZER will sound to indicate a successful
addition
Written InstructionsGraphical Instructions
Observe
Top
Lights
Max
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
3
1
4
2
5
6
Present &
Remove
New Tag
Present &
Remove
Master Tag
Tag added
to Memory
Location
xx
x
0 0 50
x
0 1 02 0 3 1 0
Quik Add - New Installation
Page 9
Please Note:
On power up the TOP ROW LIGHTS appear to chase each other. This indicates a Blank
Memory.
Tags will be added to the SOLO Reader sequentially from Memory Locations 00 to 50.
The first two Tags presented to the SOLO Reader will become the Master Tags in Memory
Locations 00 and 01.
It is recommended that the first Master Tag be kept in a safe and secure location.
The Master Tags should only be issued to those responsible for maintaining the SOLO Reader.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 10

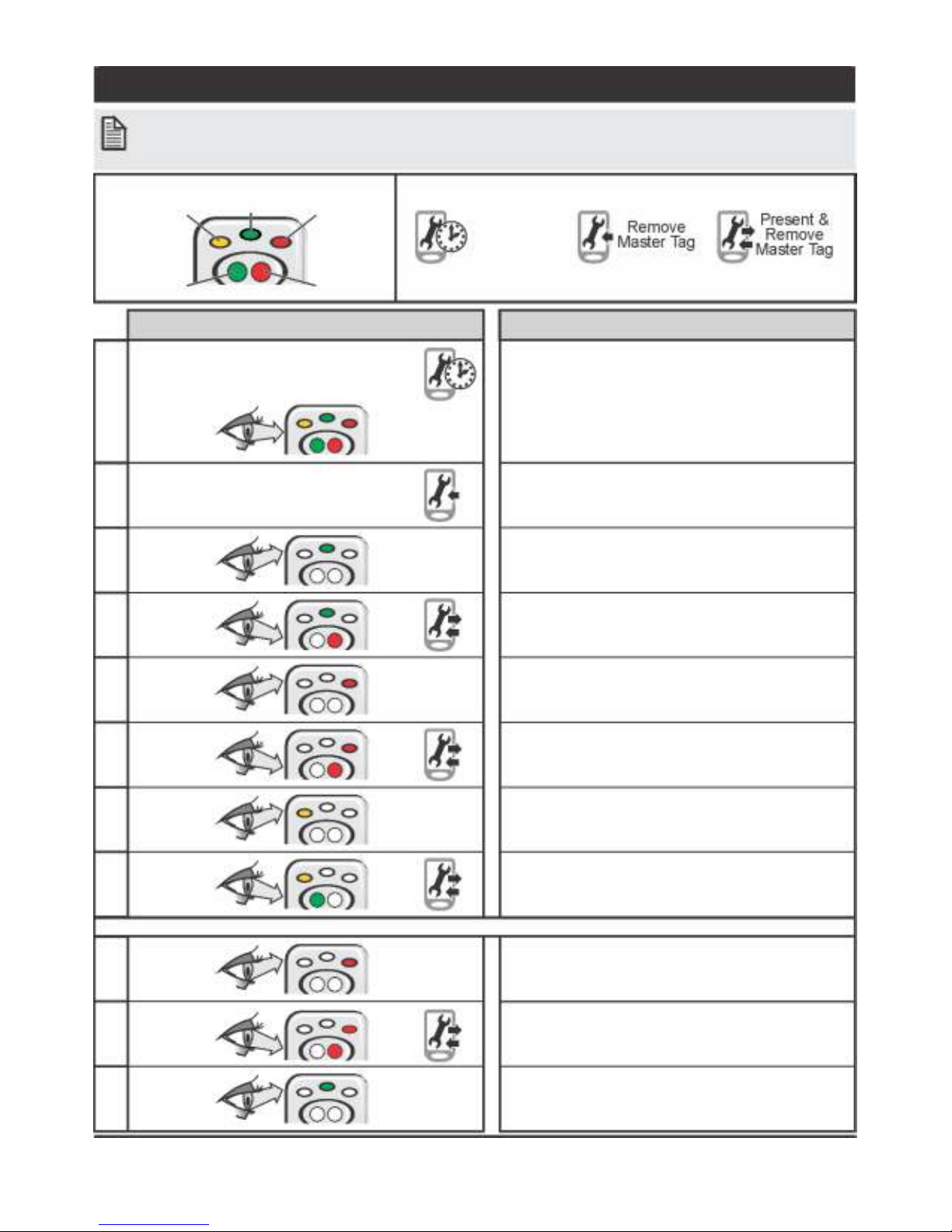

Present and HOLD either Master Tag until
all lights turn ON
Present and remove each new Tag
to the SOLO Reader
Observe
Lights
Observe
Top
Lights
Remove the Master Tag
Top green light will remain on
Written Instructions
TOP GREEN LIGHT will flash and the
BUZZER will sound to indicate a successful
addition.
Present &
Remove
Master Tag
Present &
Hold
Master Tag
Remove
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
Present &
Remove
New Tag
Tag added
to Memory
Location xx
x x
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Repeat from step 3 as required
Present and REMOVE the Master Tag
Max
6
7
0 0 500 1 02 0 3 1 0
Quik Add - Existing Installation
Page 10
Please Note:
Tags will be added sequentially to the empty Memory Locations of the SOLO Reader. Previous
Memory Locations will not be overwritten.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 11
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Quik Delete - All Tags
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Continue HOLDING
Wait for the buzzer to bleep three times
The TOP ROW LIGHTS appear to chase
each other; this indicates a Blank Memory.
Only BOTTOM GREEN LIGHT ON
Continue HOLDING
All the LIGHTS will begin to flash
Continue HOLDING
Present and HOLD the Master Tag
Written Instructions
Top red light will turn on
Remove the Master Tag
Present &
Remove
Master Tag
Present &
Hold
Master Tag
Remove
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
7
8
9
10
Page 11
Please Note:
This option will remove all tags from the SOLO Reader's memory but will not change any of the
Configuration Settings or Timer Values.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 12
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Continue HOLDING
Until ONLY the TOP RED LIGHT turns ON
Written Instructions
Present &
Hold
Master Tag
Graphical Instructions
Observe
Top
Lights
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 12
Quik Parameter - Factory Default
Please Note:
All Configuration Settings and Timer Values will be defaulted to factory settings.
No Tags will be removed from the SOLO Reader memory.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 13
Positioning the Reader
Mounting the Reader
Flush Mount
Po sit ion SOLO read er o n wall
adjacent to door. Mount at a height
that al lows for the comfo rt able
presenting of access tags. A height
of 1300mm is recommended.
Position the SOLO reader on wall
adjacent to entrance gate. Mount at a
height that allows for the comfortable
pr esentat ion of access t ags. A
height of 1300mm is recommended.
Alt ern ati vely mou nt th e SO LO
reader onto a gooseneck ensuring
that:
• The reader does not protrude too
far into the driveway
• The reader is not set too far back
and cannot easily be accessed
from a vehicle.
• The height allows for the presenting
of the tag to be comfortable from a
vehicle.
An anti-knock shield is available from
CENT U R ION to p rovide e xtra
protection to the SOLO reader.
Insert the reader mounting frame into
position in the backing box and
secure using the standard fixing
screws provided with the backing
box.
It is recommended that the cabling to
the reader extends at least 100mm
through the frame.
1A
1B
1C
The SOLO Prox reader is available in a flush mount kit and a surface mount kit.
When flush mounting, the reader adapts directly to a standard 100mm x 50mm (4" x 2") light switch
backing box which allows the unit to sit flat against the wall.
Alternatively, if no backing box has been provided the unit can be very simply surface mounted.
When mounting the reader onto a gooseneck with, or without, an anti-knock shield, the surface mount kit
will be used.
1F 2F
Page 13
1300mm1300mm1300mm
Installation of the SoloInstallation of the SoloInstallation of the Solo
Page 14
4
5
Clip the plastic spacers onto the
back of the mounting frame ensuring
that they are correctly orientated to
align with the mounting holes.
Slide apart the front and back of the
reader controller housing.
Place the mounting template located
in the centre of this document at the
required height ensuring that it is
vertical
Using a 5mm masonry bit, drill holes
in to t he wall fo r the rawl plu gs
provided in the kit.
Screw the frame lightly into position.
Make the necessary terminations
onto the controller. Refer to wiring
diagram on page 16.
Using th e slots provided in the
mounting holes, adjust the reader
base to be perfectly vertical.
Screw the frame firmly into position.
A
6
Route the cable over the cable entry
bulkhead (A) i n t h e h o u s i n g .
Additional slots can be cut out to
ac com mod ate further cab les if
necessary.
7
Fit a cable tie around the cable as
shown. When tightened this holds
the cable in position and prevents it
from being pulled out of the housing.
8
Tighten cable tie.
Surface Mount
Installation of the Reader (Flush or Surface Mount)
1S 2S 3S
Page 14
An additional cable-tie can be fitted
to better secure the cable.
B
Optional cable tie
B
8
Page 15
9
Sl ide the b ack cov er o nto the
controller housing.
14
To remove the outer cover, carefully
insert a screwdriver between the
c o v e r a n d t h e w a l l f r o m t h e
underneath and unclip.
11
Clip the top of the controller front
ho using into the top li p of th e
mounting frame (A), and fold down
into position ensuring the cable is not
caught (B).
12
Fas ten cont roll er h ousi ng i n to
position using the 2 x M4 PT screws
provided in the kit.
Optional cable tie
B
A
B
B
8
B
8
C
If the additional cable tie was used,
make certain that it is also tightened.
Ens ure J u mper s 1 an d 2 are
cor rec tly posi tio ned - ref er to
page 19.
Page 15
10
Ensure that it sits neatly against the
cable entry bulkhead securing the
cable. To prevent insect ingress use
either a grommet or a dab of silicon
to seal the cable entry point.
Jumper 2
Jumper 1
13
Clip the outer cover into position
making sure that it seats correctly
and is secure.
Page 16
Input to indicate door/access point forced or left open. Normally-open contact.
Common connected to CHD-
SmartSwitch II or remote relay - Control Signal selected by Jumper 1 in position 1
Supply to the SOLO reader can be AC or DC, Min 12V DC or 10V AC.
Input is not polarity sensitive.
Free-Exit, normally-open contact. Common connected to CHD-
External alarm output (open collector)
SmartSwitch II or remote relay - Positive (+V)
SmartSwitch II or remote relay - Negative (-V)
Potential-free output relay for door release/access point trigger selected by
Jumper 1 in position 2
Cabling
Terminal
Details of Terminals
Description
0.5mm²
0.2mm²
0.2mm²
0.2mm²
0.2mm²
0.2mm²
0.2mm²
0.75mm²
Table 1. Details of Terminals
The following figure shows the location of the terminal block on the SOLO controller, as well the
position of Jumper 1 and Jumper 2. Refer to page 19 for an explanation of these jumpers. The table
below details each terminal. In addition, wiring diagrams have been provided showing how to connect
all configurations of components to the SOLO system.
Identification of Terminals
Page 16
Fig 2. Identification of Terminals and Jumper Positions
Power Supply
NB: Wire Link
must be fitted if
Door Sense
Facility is not
being used.
10-12V AC
Typical
12-15V DC
PotentialFree Contact
to operate
Gate Motor or
Traffic Barrier.
Alternatively
Typical
Connection
for Door Lock
D C
M 7
85
200
D C
M 7
470R
470R
PSU for
Strike
Door
Strike
102 102
Jumper 2Jumper 2Jumper 2
Jumper 1Jumper 1Jumper 1
Wiring DiagramsWiring DiagramsWiring Diagrams
Jumper 2Jumper 2Jumper 2
Jumper Off
Masonry Mounting
Jumper On
Steel Mounting
Read range will be
affected if not correctly set
Page 17
Fig 4. Wiring Diagram for Door Lock Type 2
12V
Battery
RED
BLK
L
N
E
CP84SM
AC
Mains
Wire power to lock separately from the reader
102 102
D C
M 7
85
200
D C
M 7
470R
470R
Jumper 1Jumper 1Jumper 1
J
umper 2
J
umper 2
J
umper 2
NB: Wire Link
must be fitted if
door sense
facility is not
being used.
0.5mm²
cable
0.75mm²
cable
NB: All types of locks can be interfaced via SmartSwitch II for anti-tampering security.
NB: Fit appropriate emergency/fire-exit measures where applicable.
Page 17
Mag-Lock; Magnetic Door Lock
Fig 3. Wiring Diagram for Door Lock Type 1
12V
Battery
RED
BLK
L
N
E
CP84SM
AC
Mains
Solenoid - Electric Door Lock
Wire power to lock separately from the reader
D C
M 7
85
200
D C
M 7
470R
470R
Jumper 1Jumper 1Jumper 1
Jumper 2Jumper 2Jumper 2
NB: Wire Link
must be fitted if
door sense
facility is not
being used.
0.5mm²
cable
0.75mm²
cable
102 102
Entrance/exit
Door
*
*
Entrance/exit
Door
*
Page 18
D C
M 7
85
200
D C
M 7
470R
470R
COM
to
Power Supply
and/or
Battery Backup
TRG
Fig 5. Gate Operator/ Traffic Barrier
Gate Operator / Traffic Barrier
Page 18
Jumper 2
Jumper 2
Jumper 2
NB: Wire Link
must be fitted if
Door Sense
Facility is not
being used.
Jumper 1Jumper 1Jumper 1
102 102
Gate Operator / Traffic Barrier via SmartSwitch II
Fig 6. Gate Operator/ Traffic Barrier via SmartSwitch II with secure free-exit connection
COM
TRG
Normally-open pushbutton
*
*
Page 19
Free-Exit, Door Contact and External Alarm Wiring
Fig 7. Typical wiring for Free-Exit Pushbutton, Door Contact and External Alarm buzzer
Door Switch
(N/O
Contact)
Alarm
Buzzer
Free-Exit
push button
(N/O)
Page 19
Jumper 1 - Relay or SmartSwitch II enabled
Explanation of Jumpers
Jumper 2 - Wall or Steel Mounting
The single channel output of the SOLO can be configured to provide a potential-free contact either
normally-open or normally-closed to operate a door release or activate a gate motor or traffic barrier.
Alternatively the output can be configured to operate with a CENTURION SMARTSWITCH II. The
SMARTSWITCH II is mounted directly at the door lock or gate motor to provide an even higher level of
security by preventing a would-be intruder from tampering with the door lock/gate trigger lines to gain
entry.
JUMPER 1 is used to determine which facility is enabled.
The read range of the SOLO reader can be optimised whether it is being mounted onto a steel surface (ie.
inside the SOLO anti-knock shield or directly onto a steel post or pedestal) or wood / masonry surface
(wooden door frame or plastered/plain brick/stone wall*)
*flush mounting into a 4" x 2" light switch box would be regarded as mounting onto a masonry surface.
Jumper 2 is used to select between the two types of surface.
102 102
D C
M 7
85
200
D C
M 7
470R
470R
Page 20
On the front face of the SOLO Reader there are two
rows of indicator lights. These lights are used to
communicate/interface with the system user.
The top row consists of an Orange, Green and Red
light. The bottom row consists of a Green and Red light
only.
During normal operation the five lights indicate various
conditions, for example:
A flashing bottom Red light indicates that the SOLO
Reader is in normal run mode and providing access
control. A flashing bottom Green light indicates that the
SOLO Reader is in Auto-Learn Mode, etc.
For a detailed explanation of the various light
indications status please refer to Table 2 below.
Flashing bottom Red light
Flashing bottom Green light
Flashing top Green light
Flashing top Red light (1x)
Flashing top Red light (2x)
Flashing top Red light (3x)
Flashing top Orange light
Flashing top Orange and Red light
Normal Run Mode - Red light acts as a Beacon
Auto-Learn Mode - Green light acts as a Beacon
Relay configured as latching output
Power supply too low
Power supply within warning range
Power supply too high
SOLO Reader faulty - return to Authorised Distributor
SOLO Reader faulty - return to Authorised Distributor
Table 2. Explanation of Indicator Lights During Normal Run Mode
Fig 8 LED Indicators
Bottom Row
Top Row
Orange
Green
Green
Red
Red
In Programming Mode the five lights indicate Programming Menu Levels, Configuration Settings,
Timer Values, etc.
Page 20
Find Master Tags
It is important to note that the SOLO system can accommodate two MASTER tags used for administering
the unit. The primary MASTER tag is stored in memory location 00 and the secondary in 01.
If the MASTER tags have not been clearly marked it is very easy to identify them by presenting the tags
momentarily to the reader. Refer to the detailed instructions below.
Find User Tag Memory Location
If a user tag has not been recorded in the Memory Allocation and Parameter Settings form provided with
the kit, then it is very easy to identify this tag's memory location.
See the menu on page 23 for detailed instructions.
Overview of User InterfaceOverview of User InterfaceOverview of User Interface
Identification of TagsIdentification of TagsIdentification of Tags
Page 21
Present and REMOVE the Master Tag in
Memory Location 00
Present and REMOVE the Master Tag in
Memory Location 01
BOTTOM GREEN LIGHT and
BOTTOM GREEN LIGHT will turn
ON briefly
BOTTOM RED LIGHT will turn
ON briefly
Written InstructionsGraphical Instructions
Observe
Bottom
Lights
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
The SOLO Reader will remain in Normal RUN MODE if Master Tags are presented for less than 5
seconds.
Present &
Remove
Master Tag
in Memory
Location 00
Present &
Remove
Master Tag
in Memory
Location 01
0 0
0 0
Find Master Tags
Page 21
Please Note:
SOLO Reader remains in Normal Run Mode.
If either Master Tag is presented to the SOLO Reader for longer for than 5 seconds,
PROGRAM MODE will be entered.
Page 22
Page 22
Present and HOLD a User Tag to the
SOLO Reader
TOP GREEN LIGHT and
Note: Short Flash = 0
Count the number of flashes on the
TOP GREEN LIGHT to indicate TENS
Note: Short Flash = 0
Count the number of flashes on the
TOP RED LIGHT to indicate UNITS
Repeat from step 3 above to confirm counts
Remove the User Tag
Repeat the process for the other User Tags
Short Flash = 0
Flash = x (TENS)
Short Flash = 0
Flash = x (TENS)
TOP RED LIGHT will
FLASH individually
Written InstructionsGraphical Instructions
Observe
Top
Lights
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
6
x
5
Memory Location
Present &
Hold
USER TAG
x
x
Find User Tag Memory Location
The examples on page 22 refer specifically to how Step 3 and 4 above may be applied.
Please Note:
This procedure is for checking Memory Location of User Tags only
The SOLO Reader remains in Normal Run Mode
The Memory Location will be repeatedly shown for as long as the User Tag is presented to the
SOLO Reader.
Ensure that the Master Tag is not presented to the SOLO Reader for longer than 5 seconds or
Programme Mode will be entered.
The TOP RED LIGHT will flash momentarily if the presented Tag is not present in the SOLO
Page 23
Page 23
Written Instructions
Example: User Tag in Memory Location 03
Example: User Tag in Memory Location 30
Example: User Tag in Memory Location 36
Example: User Tag in Memory Location 49
Graphical Instructions
1
2
3
4
Short Flash = 0
(TENS)
Flash x 3
(TENS)
Flash x 3
(TENS)
Flash x 4
(TENS)
Flash x 3
(UNITS)
Short Flash=0
(UNITS)
Flash x 6
(UNITS)
Flash x 9
(UNITS)
0
3
3
4
3
0
6
9
TOP GREEN LIGHT will SHORT FLASH
to indicate 0 TENS
TOP GREEN LIGHT will FLASH 3 TIMES
to indicate 30
TOP GREEN LIGHT will FLASH 3 TIMES
to indicate 30
TOP GREEN LIGHT will FLASH 4 TIMES
to indicate 40
TOP RED LIGHT will FLASH 3 TIMES
to indicate 3 UNITS
TOP RED LIGHT will SHORT FLASH
to indicate 0 UNITS
TOP RED LIGHT will FLASH 6 TIMES
to indicate 6 UNITS
TOP RED LIGHT will FLASH 9 TIMES
to indicate 9 UNITS
EXAMPLE
How to find User Tag Memory Location
Page 24
Overview
The SOLO Reader is capable of storing a total of 51 Zap Tags in Memory Locations 00 to 50. Memory
Locations 00 and 01 are reserved for the two Master Tags, either of which is required for adding and
deleting Tags, and configuring the SOLO Reader.
It is important to note that the primary Master Tag (memory location 00) has greater access rights than the
secondary Master Tag (memory location 01). Only the primary Master Tag is capable of clearing the entire
memory back to factory defaults as well as clearing all memory locations. This is NOT possible with the
secondary Master Tag.
For this reason it is recommended that the primary MASTER Tag is kept in a safe and secure place, while
the secondary Master Tag is used for day to day administration and operation of the system.
The SOLO Reader allows tags to be added to the system in three ways:
1. Quik Add
This option will add new tags to the available Memory Locations sequentially, without displaying the actual
Memory Location. Refer to pages 9 and 10 for Quik Add Instructions.
2. Add Tag - SOLO Reader specified Memory Location
This option will add tags to available Memory Locations sequentially, while displaying the actual Memory
Location.
3. Add Tag - User Specified Memory Location
This option will add tags to available Memory Locations selected by the user.
To fully exploit the features of the SOLO system, it is necessary to keep an up-to-date record of each user,
and the Memory Location in which his/her tag is stored. The Memory Allocation and Parameter Setting
form included with this product, should be used to maintain this information. (Refer to the back of the QUIK
Installation Manual - pg 16 or print out page 84 of the electronic manual when you need to update the
form).
Page 24
Add Tag MenuAdd Tag MenuAdd Tag Menu
Page 25
Page 25
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Present &
Remove
Master Tag
Present &
Remove
New Tag
Present &
Hold
Master Tag
Remove
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
TOP GREEN LIGHT and
Note: Short Flash = 0
Count the number of flashes on the
TOP GREEN LIGHT to indicate TENS
Note: Short Flash = 0
Count the number of flashes on the
TOP RED LIGHT to indicate UNITS
Short Flash = 0
Flash = x (TENS)
Short Flash = 0
Flash = x (TENS)
TOP RED LIGHT will FLASH individually to
5
6
7
x
x
indicate next available memory location
Add Tag - SOLO Specified Memory Locations
Present and Remove New Tag to the
SOLO Reader
8
Please Note:
Tags will be added sequentially to the empty Memory Locations of the SOLO Reader. Previous
Memory Locations will not be overwritten.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 26
Page 26
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
12
To Exit
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
11
Present and remove the Master Tag
10
The buzzer will sound to indicate a successful
addition
Repeat from Step 5 above for further Tags
9
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Counting examples for Memory Locations may be found on page 25
Page 27
Page 27
EXAMPLE
How to use the LEDs to select Memory Locations
Written Instructions
Example: Value set to 03
Example: Value set to 30
Example: Value set to 36
Example: Value set to 49
Graphical Instructions
1
2
3
4
Short Flash = 0
(TENS)
Flash x 3
(TENS)
Flash x 3
(TENS)
Flash x 4
(TENS)
Flash x 3
(UNITS)
Short Flash=0
(UNITS)
Flash x 6
(UNITS)
Flash x 9
(UNITS)
0
3
3
4
3
0
6
9
TOP GREEN LIGHT will SHORT FLASH
to indicate 0 TENS
TOP GREEN LIGHT will FLASH 3 TIMES
to indicate 30
TOP GREEN LIGHT will FLASH 3 TIMES
to indicate 30
TOP GREEN LIGHT will FLASH 4 TIMES
to indicate 40
TOP RED LIGHT will FLASH 3 TIMES
to indicate 3 UNITS
TOP RED LIGHT will SHORT FLASH
to indicate 0 UNITS
TOP RED LIGHT will FLASH 6 TIMES
to indicate 6 UNITS
TOP RED LIGHT will FLASH 9 TIMES
to indicate 9 UNITS
Page 28
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Present &
Remove
Master Tag
Present &
Remove
New Tag
Present &
Hold
Master Tag
Remove
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
TOP GREEN LIGHT and
Note: Short Flash = 0
Count the number of flashes on the
TOP GREEN LIGHT to indicate TENS
Note: Short Flash = 0
Count the number of flashes on the
TOP RED LIGHT to indicate UNITS
Short Flash = 0
Flash = x (TENS)
Short Flash = 0
Flash = x (TENS)
TOP RED LIGHT will
FLASH individually to
5
6
7
x
x
indicate next available memory location
Add Tag - USER Specified Memory Locations
Page 28
Please Note:
Previous Memory Locations will not be overwritten.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 29
Only BOTTOM RED LIGHT ON
Present and HOLD the Master Tag
Present and HOLD the Master Tag
To select
Memory Location
On TOP RED LIGHT count number of
flashes required for UNITS value.
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
Short Flash=0
Only TOP RED LIGHT will remain ON
Remove Master Tag when required UNITS
value reached.
Remove Master Tag when required TENS
value reached.
8
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
To move forward to next
available Memory Location
Page 29
Page 30
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
12
To Exit
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
11
Present and remove the Master Tag
Present and remove New Tag
To add more tags repeat from step 8
above
Repeat from step 8 above
10
To ACCEPT Memory Location To CHANGE Memory Location
Page 30
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Counting examples for Memory Locations may be found on page 25
Confirm the Memory Location you have selected is Correct
9
(TENS) (UNITS)
Page 31
Overview
The SOLO Reader allows tags to be deleted from the system in four ways.
1. Quik Delete
This option erases all tags in memory. Please refer to QUIK Delete Menu on page 11 of this manual.
2. Delete Tag - via Memory Location
A benefit of the SOLO Reader is the ability to selectively delete user tags from the system. Provided that a
record has been kept of the memory location of the user whose tag is required to be deleted, by following
this procedure, this tag can be deleted without affecting any of the other tags in the system.
3. Delete Tag - via Tag
This option allows the user to remove specific tags from the system by presenting the tag itself.
4. Replacing a Master Tag
It is possible to replace a Master Tag provided that the other MASTER Tag is available.
The procedure that follows shows how to replace the secondary MASTER tag (memory location 01) if this
is lost. Apply the same procedure to replace the primary MASTER Tag (memory location 00) except at
STEP 11. Set the memory location to 00.
5. Complete Delete
This option erases all tags in memory, and resets the SOLO Reader to factory defaults.
Page 31
Delete Tag MenuDelete Tag MenuDelete Tag Menu
Page 32
Page 32
Delete Tag via Memory Location
(Tag not available)
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
7
TOP RED LIGHT will flash
Count the required number of UNITS
Short Flash = 0
TOP RED LIGHT will flash
Count the required number of UNITS
Short Flash = 0
9
8
Present and HOLD the Master Tag
Please Note:
Memory Location of Tag is required for this process
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 33
Page 33
Remove the Master Tag
Remove the Master Tag
TOP GREEN LIGHT will flash
Count the required number of TENS
Short Flash = 0
Selected Memory Location indicated by
TOP GREEN LIGHT (TENS) and
TOP RED LIGHT (UNITS)
10
11
12
13
14
Present and HOLD the Master Tag
(TENS) (UNITS)
x
x
To DELETE Memory Location
To EXIT
To CHANGE Memory Location
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Repeat from Step 8 above for further Tags
Repeat from Step 8 above for further Tags
15
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
16
17
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Counting examples for Memory Locations may be found on page 32
Page 34
Page 34
EXAMPLE
How to use the LEDs to select Memory Locations
Written Instructions
Example: Value set to 03
Example: Value set to 30
Example: Value set to 36
Example: Value set to 49
Graphical Instructions
1
2
3
4
Short Flash = 0
(TENS)
Flash x 3
(TENS)
Flash x 3
(TENS)
Flash x 4
(TENS)
Flash x 3
(UNITS)
Short Flash=0
(UNITS)
Flash x 6
(UNITS)
Flash x 9
(UNITS)
0
3
3
4
3
0
6
9
TOP GREEN LIGHT will SHORT FLASH
to indicate 0 TENS
TOP GREEN LIGHT will FLASH 3 TIMES
to indicate 30
TOP GREEN LIGHT will FLASH 3 TIMES
to indicate 30
TOP GREEN LIGHT will FLASH 4 TIMES
to indicate 40
TOP RED LIGHT will FLASH 3 TIMES
to indicate 3 UNITS
TOP RED LIGHT will SHORT FLASH
to indicate 0 UNITS
TOP RED LIGHT will FLASH 6 TIMES
to indicate 6 UNITS
TOP RED LIGHT will FLASH 9 TIMES
to indicate 9 UNITS
Page 35
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top red light will turn on
Present and remove User Tag
to be deleted.
Present &
Remove
Existing User Tag
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
7
8
Delete Tag
(Tag available)
Memory Location of deleted USER Tag
indicated by
TOP GREEN LIGHT (TENS) and
TOP RED LIGHT (UNITS)
9
(TENS)
(UNITS)
Page 35
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 36
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Present and remove the Master Tag
Repeat from Step 8 above for other Tags
as required
The SOLO Reader will enter normal RUN MODE
11
10
Page 36
Counting examples for Memory Locations may be found on page 32
Page 37
Present and HOLD Master Tag in
Memory Location 00 until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Present and HOLD the Master Tag
Written Instructions
Top red light will turn on
Top red light will turn on
TOP RED LIGHT will flash
Count the required number of UNITS (1)
Short Flash = 0
Present &
Remove
Master Tag
Present &
Hold
Master Tag
Remove
Master Tag
Master Tag
in Memory Location
00 (Primary)
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
8
7
9
0
0
0
0
Remove the Master Tag
10
0
Replacing Master Tag in Memory Location 01
(Secondary Master Tag)
0
0
0
0
0
0
0
Please Note:
Master Tag in Memory Location 00 must be used for this procedure.
To ABORT wait for ± 60 seconds for the SOLO to RESET
0 0
0 0
0
Page 37
Page 38
Page 38
Present and remove the Master Tag
Selected Memory Location 01 indicated by
TOP GREEN LIGHT Single Flash and
TOP RED LIGHT Short Flash
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
12
13
0 1
0 0
0 0
Short Flash = 0
(TENS)
Flash = 1
(UNITS)
11
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Please note that the primary Master Tag (memory location 00) has greater access rights than the
secondary Master Tag (memory location 01). Only the primary Master Tag is capable of clearing the
entire memory back to factory defaults as well as clearing all memory locations. This is NOT possible
with the secondary Master Tag.
Counting examples for Memory Locations may be found on page 32
Present and HOLD Master Tag in
Memory Location 00 until
all lights turn ON
Remove the Master Tag
Top green light will remain on
Present and remove the NEW Master Tag
16
17
18
19
0
0
0
0
0
0
0
0
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
15
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
14
Present and remove the Master Tag
TOP GREEN LIGHT will flash and the
BUZZER will sound to indicate a successful
addition.
20
Present and REMOVE either Master Tag
21
Page 39
Page 39
Present and HOLD Master Tag in
Memory Location 01 until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top red light will turn on
Top red light will remain on
Graphical Instructions
1
2
3
4
5
6
8
7
9
Present &
Remove
Master Tag
Present &
Hold
Master Tag
Remove
Master Tag
Master Tag
in Memory Location
01 (Secondary)
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Replacing Master Tag in Memory Location 00
(Primary Master Tag)
Please Note:
Master Tag in Memory Location 01 must be used for this procedure.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Present and remove the Master Tag
10
Page 40
Page 40
Selected Memory Location 00 indicated by
TOP GREEN LIGHT Short Flash and
TOP RED LIGHT Short Flash
Top lights will FLASH
Present and remove the NEW Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
11
12
13
14
0 0
Short Flash = 0
(TENS)
Short Flash = 0
(UNITS)
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 41
Present and HOLD Master Tag in
Memory Location 00 until
all lights turn ON
Observe
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top red light will turn on
Top red light will remain on
Present &
Remove
Master Tag
Present &
Hold
Master Tag
Remove
Master Tag
Master Tag
in Memory Location
00 (Primary)
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
4
5
6
8
7
9
Complete Delete
0 0
Page 41
Please Note:
Master Tag in Memory Location 00 must be used for this procedure.
All Tags will be deleted from the SOLO Reader.
All parameters will be restored to the Factory Default Settings.
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 42
Selected Memory Location 00 indicated by
TOP GREEN LIGHT Short Flash and
TOP RED LIGHT Short Flash
WAIT for all the lights to turn OFF
Only BOTTOM GREEN LIGHT ON
Present and HOLD the Master Tag
All the lights begin to Flash
Continue to HOLD the Master Tag
11
12
15
13
14
0 0
Short Flash = 0
(TENS)
Short Flash = 0
(UNITS)
Remove the Master Tag
All Tags are deleted. Top row lights will chase
each other.
Present and remove the Master Tag
10
Page 42
Page 43
Tag Buzzer
Free-Exit Input
Door Forced Alarm Output
Door Forced Alarm Buzzer
Door Open Alarm Output
Door Open Alarm Buzzer
SmartSwitch II
Overview
The Configuration Menu of the SOLO Reader allows for seven configuration options to be turned ON
or OFF individually as required for each installation. The Configuration Options have been Factory
preset to the most common settings.
1. Configuration Option 1 - TAG BUZZER
(Factory Default ON)
When a valid* Zap Tag is presented, the Tag Buzzer provides a brief audible indication that access has
been granted. The Tag Buzzer can be turned OFF if no audible indication is required.
2. Configuration Option 2 - FREE-EXIT (FRX)
(Factory Default ON)
The FREE EXIT (FRX) input allows activation of the reader without using a valid* Zap Tag. With the FRX
option turned ON, activating a "Push to Make" contact connected to the FRX input will cause the reader to
activate as if a valid* Zap Tag has been presented. (Refer to Figure 7 on page 19 for connection method.)
NOTE: In order to prevent unauthorised access, it is recommended that FRX be turned OFF if not
required.
3. Configuration Option 3 - DOOR FORCED ALARM OUTPUT
(Factory Default OFF)
If turned ON, the DOOR FORCED ALARM OUTPUT option activates the ALARM output immediately
†
when the access point being controlled by the SOLO Reader has been forced open . The ALARM terminal
provides a common ground Open Collector output capable of sinking a MAXIMUM current of 50mA at 17
volt DC, and can be connected to a third party alarm system, external siren, etc.
Please read the Timer Menu options relevant to Door Forced Alarm Time.
*A working Zap Tag that has been previously added to a Memory Location of the SOLO Reader
†
For the various alarm options to function correctly, the SOLO Reader must be powered, in proper
working order and have a normally-open switch connected. Refer to Fig 7 on page 19 for the
connection method.
ON
ON
OFF
OFF
OFF
OFF
OFF
CONFIGURATION FACTORY SETTINGS
Page 43
Table 3. Configuration Factory Settings
Configuration MenuConfiguration MenuConfiguration Menu
Page 44
4. Configuration Option 4 - DOOR FORCED ALARM BUZZER
(Factory Default OFF)
If turned ON, the DOOR FORCED ALARM BUZZER option activates the built-in buzzer when the access
†
point being controlled by the SOLO Reader has been forced open .
Please read the Timer Menu options relevant to Door Forced Alarm Time.
5. Configuration Option 5 - DOOR OPEN ALARM OUTPUT
(Factory Default OFF)
If turned ON, the Door Open Alarm Output option activates the ALARM output when the access point being
†
controlled by the SOLO Reader has been left open longer than the configurable door open time . The
ALARM terminal provides a common ground Open Collector output capable of sinking a MAXIMUM
current of 50mA at 17V DC, and can be connected to a third party alarm system, external siren, etc.
Please read the Timer Menu options relevant to Door Forced Open Alarm Time.
6. Configuration Option 6 - DOOR OPEN ALARM BUZZER
(Factory Default OFF)
If turned ON, the Door Open Alarm Buzzer option activates the built-in buzzer when the access point being
†
controlled by the SOLO Reader has been left open for longer than the configurable door open time .
Please read the Timer Menu options relevant to Door Open Time and Door Open Alarm Time.
7. Configuration Option 7 - SMARTSWITCH II
(Factory Default OFF)
Use of an optional SMARTWITCH II is recommended where extra security is needed to prevent
unauthorized operation of the access point. The SMARTSWITCH II will only operate correctly if the
SMARTSWITCH II option is turned on AND the relay selection jumper on the SOLO Reader is fitted to the
correct pins. Refer to Figure 1 on page 8 for the connection method.
Tips & Tricks
To change multiple options in the Configuration Menu DO NOT perform the last 2 instructions in the
various Configuration Menu Options.
Once you have performed the first instruction after turning ON or OFF the various options, you may
continue from step 9 for the next configurable option by matching up the light display.
Page 44
Page 45
Turning the TAG BUZZER ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
7
8
Page 45
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Top red light will turn on
9
10
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top red light will remain on
11
Page 46
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Bottom green light will flash
to indicate the TAG BUZZER is ON
Bottom red light will flash
to indicate the TAG BUZZER is OFF
12
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
Tips and tricks for SOLO Configuration Menu on page 44
13
14
15
To turn the BUZZER ON To turn the BUZZER OFF
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 46
Page 47
Page 48
NORMAL
PROGRAMMING
MODE
NORMAL MODE
For Tag Location, present & HOLD Tag
for ± 3 seconds
enter PROGRAMMING
MODE
ADVANCED USER MENU MAP
TURBO
PROGRAMMING
MODE
AUTO-LEARN
LIMITED
TIME
AUTO-LEARN
UNLIMITED
TIME
Page 49
Page 50
DRILL 5mm
DRILL 5mm
DO NOT ALLOW
CABLE ACCESS
THROUGH
THIS AREA
12
3 3
PREFERRED
CONDUIT
LOCATION
PREFERRED
CONDUIT
LOCATION
CONDUIT
LOCATION
CONDUIT
LOCATION
NOT
RECOMMENDED
NOT
RECOMMENDED
Page 51
MOUNTING TEMPLATE
This mounting template is to be used when
performing a surface mount installation.
(Remove template from book)
When planning where to locate the unit, it is
important to consider the cable entry position. Do
not allow cables to enter the unit through the centre
area as this will interfere with assembly of the unit
after installation.
Place the template in such a manner that conduit,
where provided, will be behind one of the four
preferred conduit locations shown alongside. If
conduit is not provided, surface mounted cabling
should be planned to enter the unit through one of
the four preferred locations indicated.
The conduit locations are indicated in order of
preference. Location 1 being the most preferable
cable entry location and location 3 being the least
preferable cable entry location.
Page 52
Page 53
QUIK ADD
ADD TAG
DELETE TAG
CONFIG
TIMERS
RELAY
DOOR OPEN
PRE-WARN
DOOR OPEN ALARM
DOOR FORCED
ALARM
HOLD OFF
TIME
TAG BUZZER
FRX
EXTERNAL ALARM
DOOR FORCED
EXTERNAL ALARM
DOOR FORCED
LOCAL ALARM
DOOR FORCED
EXTERNAL ALARM
DOOR OPEN
LOCAL ALARM
DOOR OPEN
SMARTSWITCH II
ON or OFF
Page 54
Page 55
Top green light will turn on
11
Turning the FREE-EXIT ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
7
8
9
10
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Page 47
Page 56
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Bottom green light will flash
to indicate the FREE EXIT is ON
Bottom red light will flash
to indicate the FREE EXIT is OFF
14
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
Tips and tricks for SOLO Configuration Menu on page 44
15
16
17
Top green light will remain on
12
13
To turn FREE-EXIT (FRX) ON To turn FREE-EXIT (FRX) OFF
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Page 48
Page 57
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Turning DOOR FORCED ALARM OUTPUT ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top red light will turn on
Graphical Instructions
1
2
3
4
5
6
7
8
9
10
Page 49
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Top green light will turn on
11
Page 58
Top green and
top red light will turn on
13
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top green and
top red light will remain on
14
15
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
12
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Bottom green light will flash
to indicate DOOR FORCED ALARM OUTPUT
is ON
Bottom red light will flash
to indicate DOOR FORCED ALARM OUTPUT
is OFF
16
Both BOTTOM GREEN LIGHT ON and
To turn DOOR
FORCED ALARM OUTPUT ON
To turn DOOR
FORCED ALARM OUTPUT OFF
BOTTOM RED LIGHT ON
17
Present and remove the Master Tag
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
18
19
The SOLO Reader will enter normal RUN MODE
Tips and tricks for SOLO Configuration Menu on page 44
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 50
Page 59
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Turning DOOR FORCED ALARM BUZZER ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top red light will turn on
Graphical Instructions
1
2
3
4
5
6
7
8
9
10
Page 51
Top green light will turn on
11
Page 60
Tips and tricks for SOLO Configuration Menu on page 44
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top orange light will remain on
16
17
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Top green and
top red light will turn on
Top orange light will turn on
13
14
15
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
12
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Bottom green light will flash
to indicate DOOR FORCED ALARM BUZZER
is ON
Bottom red light will flash
to indicate DOOR FORCED ALARM BUZZER
is OFF
18
To turn DOOR
FORCED ALARM BUZZER ON
To turn DOOR
FORCED ALARM BUZZER OFF
Page 52
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
19
20
21
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 61
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Turning DOOR OPEN ALARM OUTPUT ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top red light will turn on
Graphical Instructions
1
2
3
4
5
6
7
8
9
10
Page 53
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Top green light will turn on
11
Page 62
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Top green and
top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
12
13
14
15
16
17
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top orange and
top red light will remain on
18
19
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Bottom green light will flash
to indicate DOOR OPEN ALARM OUTPUT
is ON
Bottom red light will flash
to indicate DOOR OPEN ALARM OUTPUT
is OFF
20
To turn DOOR
OPEN ALARM OUTPUT ON
To turn DOOR
OPEN ALARM OUTPUT OFF
Page 54
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
21
Present and remove the Master Tag
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
22
Page 63
Present and remove the Master Tag
BOTTOM RED LIGHT ON
23
The SOLO Reader will enter normal RUN MODE
Tips and tricks for SOLO Configuration Menu on page 44
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 55
Page 64
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Turning DOOR OPEN ALARM BUZZER ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top red light will turn on
Graphical Instructions
1
2
3
4
5
6
7
8
9
10
Page 56
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Top green light will turn on
11
Page 65
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Top green and
top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Top orange light and
top green light will turn on
12
13
14
15
16
17
18
19
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top orange light and
top green light will remain on
20
21
Page 57
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT OFF
Present and remove the Master Tag
Bottom green light will flash
to indicate DOOR OPEN ALARM BUZZER
is ON
Bottom red light will flash
to indicate DOOR OPEN ALARM BUZZER
is OFF
22
To turn DOOR
OPEN ALARM BUZZER ON
To turn DOOR
OPEN ALARM BUZZER OFF
Page 66
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
23
24
25
The SOLO Reader will enter normal RUN MODE
Tips and tricks for SOLO Configuration Menu on page 44
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 58
Page 67
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Turning SMARTSWITCH II ON or OFF
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top red light will turn on
Graphical Instructions
1
2
3
4
5
6
7
8
9
10
Page 59
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Top green light will turn on
11
Page 68
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Top green and
top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Top orange and
top green light will turn on
12
13
14
15
16
17
18
19
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
20
Top orange,
top green and
top red light will turn on
21
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top orange,
top green and
top red light will remain on
22
23
Page 60
Page 69
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Bottom green light will flash
to indicate SMARTSWITCH II is ON
Bottom red light will flash
to indicate SMARTSWITCH II is OFF
24
25
26
27
To turn SMARTSWITCH II ON To turn SMARTSWITCH II OFF
The SOLO Reader will enter normal RUN MODE
Tips and tricks for SOLO Configuration Menu on page 44
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Page 61
Page 70
Relay Time
Door Open Time
Door Open Pre-warn Time
Door Open Alarm Time
Door Forced Alarm Time
Hold Off Time
Overview
The Timers Menu of the SOLO Reader allows five timer values to be changed individually as required for
each installation. The various Timer values have been factory preset to the most commonly used values.
1. Timer Option 1 - Relay Time
(Factory Default - 1 Second )
This is the time for which the onboard Relay, remote relay or SmartSwitch II will activate when a valid tag is
presented. The timer can be set to Pulsed, Latching or OFF, depending on its value.
See Table 5 for various settings.
2. Timer Option 2 - Door Open Time
(Factory Default - 5 Seconds)
This is the length of time for which the door is allowed to stay open BEFORE any warnings or alarms
†
occur .
See Table 5 for various settings.
3. Timer Option 3 - Door Open Pre-Warn Time
(Factory Default - 0 Seconds)
†
This is the length of time for which a warning will be issued BEFORE the Door Open Alarm is activated .
See Table 5 for various settings.
4. Timer Option 4 - Door Open Alarm
(Factory Default - 30 Seconds)
†
This is the length of time for which the Door Open Alarm will be active .
See Table 5 for various settings.
†
After a valid tag is presented and the door is opened, the Door Open Timer begins to count down. If the
door remains open after the Door Open Time has expired, the buzzer will begin to sound a warning tone for
the duration of the Door Open Pre-Warn Time. If the door still remains open after the Door Open Pre-Warn
Time has expired, the Door Open Alarm will activate. The alarm condition will remain activated for the
duration of the Door Open Alarm Time or reset if the door is closed.
1 Second
5 Seconds
0 Seconds
30 Seconds
Continuous/Latched
0 Seconds
FACTORY DEFAULT TIMER VALUES
Page 62
Table 4. Factory Default Timer Values
Timers MenuTimers MenuTimers Menu
Page 71
Page 63
5. Timer Option 5 - Door Forced Alarm
(Factory Default - Latched)
The Door Forced Alarm time controls the length of time for which the Door Forced Alarm activates.
See Table 5 below for various settings.
6. Timer Option 6 - Hold Off Time
(Factory Default - 0 Seconds)
The Hold Off time is only used when door status monitoring is required in conjuction with a pre-impulse
strike lock.
The Hold Off time is the time during which the door can be opened without triggering a door forced alarm.
Should the door be opened after the Hold off time expires then a door forced alarm will be generated.
Due to the characteristics of pre-impulse strikers this allows for a measure of security to be maintained.
Relay 0 - 255 No relay action Pulse duration Latched
Door Open Pre-Warn
0 - 255
Instantaneous progression
to door open alarm
Length of pre-warn
time
Continuous
pre-warn
no progression to
door open alarm
Door Open
0 - 255
Instantaneous progression
to door open pre-warn
Length of
door open time
Continuous
door open
no progression to
door open pre-warn
Door Open Alarm
0 - 255
No alarm Pulse duration
Continuous alarm/
latched
Door Forced Alarm
Hold Off Time
0 - 255
0 - 255
No alarm
No hold off
Pulse duration
Hold off duration
Continuous alarm/
latched
Hold off duration
TIMER VALUE SETTINGS
Timer
Effect of 0 Effect of 1-254 Effect of 255
Timer Range
1 second
increments
Table 5. Timer Value Settings
Page 72
Written Instructions
Example: Timer Value set to 5 Seconds
Example: Timer Value set to 50 Seconds
Example: Timer Value set to 250 Seconds
Example: Timer Value set to 193 Seconds
Example: Timer Value set to 18 Seconds
Graphical Instructions
1
2
3
5
4
Short Flash = 0
(HUNDREDS)
Short Flash = 0
(TENS)
Flash x5
(UNITS)
0 0
5
Short Flash = 0
(HUNDREDS)
Flash x 5
(TENS)
Short Flash = 0
(UNITS)
0
5
0
Flash x 2
(HUNDREDS)
Flash x 1
(HUNDREDS)
Flash x 5
(TENS)
Flash x 9
(TENS)
Short Flash = 0
(UNITS)
Flash X 3
(UNITS)
2
5
0
1
9 3
Short Flash = 0
(HUNDREDS)
Flash x 1
(TENS)
Flash x 8
(UNITS)
0
1
8
TOP GREEN LIGHT will SHORT FLASH
to indicate 0 TENS
TOP GREEN LIGHT will FLASH 5 TIMES
to indicate 5 TENS
TOP GREEN LIGHT will FLASH 1 TIME
to indicate 1 TEN
TOP GREEN LIGHT will FLASH 5 TIMES
to indicate 5 TENS
TOP GREEN LIGHT will FLASH 9 TIMES
to indicate 9 TENS
TOP ORANGE LIGHT will SHORT FLASH
to indicate 0 HUNDREDS
TOP ORANGE LIGHT will SHORT FLASH
to indicate 0 HUNDREDS
TOP ORANGE LIGHT will SHORT FLASH
to indicate 0 HUNDREDS
TOP ORANGE LIGHT will FLASH 2 TIMES
to indicate 2 HUNDREDS
TOP ORANGE LIGHT will FLASH 1 TIME
to indicate 1 HUNDRED
TOP RED LIGHT will FLASH 5 TIMES
to indicate 5 UNITS
TOP RED LIGHT will SHORT FLASH
to indicate 0 UNITS
TOP RED LIGHT will FLASH 8 TIMES
to indicate 8 UNITS
TOP RED LIGHT will SHORT FLASH
to indicate 0 UNITS
TOP RED LIGHT will FLASH 3 TIMES
to indicate 3 UNITS
Page 64
EXAMPLE
How to use the LEDs to set the various Timers
Page 73
Change Relay Time
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
10
7
8
9
Page 65
Please Note:
Time selectable in 1 second increments from 1 to 255 seconds.
For LATCHING RELAY select 255
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 74
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
19
Tens
Short Flash=0
The TOP GREEN LIGHT and
TOP RED LIGHT will remain ON
Remove Master Tag when required
TENS value reached.
Remove Master Tag when required
HUNDREDS reached.
20
24
21
Present and HOLD Master Tag
22
Short Flash=0
On TOP ORANGE LIGHT count number of
flashes required for HUNDREDS value.
23
Hundreds
Short Flash=0
Only BOTTOM GREEN LIGHT ON
Remove Master Tag when required UNITS
value reached
Present and HOLD Master Tag
Only the TOP RED LIGHT will remain ON
Only BOTTOM RED LIGHT ON
On TOP RED LIGHT count number of
flashes required for UNITS value.
Short Flash=0
Present and remove the Master Tag
Present and HOLD the Master Tag
Top red light will turn on
11
12
16
17
14
18
15
1313
Hundreds Tens
Units
Short Flash=0
Units
0 0
TOP GREEN LIGHT will FLASH
to indicate TENS
TOP ORANGE LIGHT will FLASH
to indicate HUNDREDS
TOP RED LIGHT will FLASH
to indicate UNITS
of CURRENT Relay Time
Page 66
Page 75
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Repeat from step 14 above
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
Examples for setting timer values may be found on page 64
26
27
28
To ACCEPT NEW TIME To CHANGE VALUE
Confirm time you have selected is correct.
TOP ORANGE LIGHT indicates HUNDREDS
TOP GREEN LIGHT indicates TENS
TOP RED LIGHT indicates UNITS
25
(HUNDREDS) (TENS) (UNITS)
x
x
x
Page 67
Page 76
Change Door Open Time
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
10
7
8
9
Page 68
Please Note:
Time selectable in 1 second increments from 1 to 255 seconds.
For INFINITE DOOR OPEN TIME select 255
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 77
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
21
Tens
Short Flash=0
The TOP GREEN LIGHT and
TOP RED LIGHT will remain ON
Remove Master Tag when required
TENS value reached.
22
23
Present and HOLD Master Tag
24
Only BOTTOM RED LIGHT ON
Only BOTTOM GREEN LIGHT ON
Remove Master Tag when required UNITS
value reached
Present and HOLD Master Tag
Only the TOP RED LIGHT will remain ON
Only BOTTOM RED LIGHT ON
On TOP RED LIGHT count number of
flashes required for UNITS value.
Short Flash=0
Present and remove the Master Tag
Present and remove the Master Tag
Present and HOLD the Master Tag
Top red light will turn on
Top green light will turn on
11
13
12
14
18
19
16
20
17
15
Hundreds Tens
Units
Short Flash=0
Units
0 0
TOP GREEN LIGHT will FLASH
to indicate TENS
TOP ORANGE LIGHT will FLASH
to indicate HUNDREDS
TOP RED LIGHT will FLASH
to indicate UNITS
of CURRENT Relay Time
Page 69
Page 78
Confirm time you have selected is correct.
TOP ORANGE LIGHT indicates HUNDREDS
TOP GREEN LIGHT indicates TENS
TOP RED LIGHT indicates UNITS
27
(HUNDREDS) (TENS) (UNITS)
x
x
x
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
28
29
30
To ACCEPT NEW TIME To CHANGE VALUE
Remove Master Tag when required
HUNDREDS reached.
26
Short Flash=0
On TOP ORANGE LIGHT count number of
flashes required for HUNDREDS value.
25
Hundreds
Short Flash=0
Page 70
Examples for setting timer values may be found on page 64
Repeat from step 16 above
Page 79
Change Door Open Pre-Warn Time
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
10
7
8
9
Page 71
Please Note:
Time selectable in 1 second increments from 1 to 255 seconds.
For INFINITE DOOR OPEN PRE-WARN TIME select 255
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 80
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
23
Tens
Short Flash=0
Remove Master Tag when required
TENS value reached.
24
Only BOTTOM RED LIGHT ON
Only BOTTOM RED LIGHT ON
Remove Master Tag when required UNITS
value reached
Present and HOLD Master Tag
Only the TOP RED LIGHT will remain ON
Only BOTTOM RED LIGHT ON
On TOP RED LIGHT count number of
flashes required for UNITS value.
Short Flash=0
Present and remove the Master Tag
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Present and HOLD the Master Tag
Top red light will turn on
Top green light will turn on
Top green and
Top red light will turn on
11
13
12
14
15
16
20
21
18
22
19
17
Hundreds Tens
Units
Short Flash=0
Units
0 0
TOP GREEN LIGHT will FLASH
to indicate TENS
TOP ORANGE LIGHT will FLASH
to indicate HUNDREDS
TOP RED LIGHT will FLASH
to indicate UNITS
of CURRENT Door Open Pre-Warn Time
Page 72
Page 81
Confirm time you have selected is correct.
TOP ORANGE LIGHT indicates HUNDREDS
TOP GREEN LIGHT indicates TENS
TOP RED LIGHT indicates UNITS
29
(HUNDREDS) (TENS) (UNITS)
x
x
x
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Repeat from step 18 above
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
30
31
32
To ACCEPT NEW TIME To CHANGE VALUE
Remove Master Tag when required
HUNDREDS reached.
28
Short Flash=0
On TOP ORANGE LIGHT count number of
flashes required for HUNDREDS value.
27
Hundreds
Short Flash=0
The TOP GREEN LIGHT and
TOP RED LIGHT will remain ON
25
26
Present and HOLD Master Tag
Page 73
Examples for setting timer values may be found on page 64
Page 82
Change Door Open Alarm Time
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
10
7
8
9
Page 74
Please Note:
Time selectable in 1 second increments from 1 to 255 seconds.
For LATCHED DOOR OPEN ALARM select 255
To ABORT wait for ± 60 seconds for the SOLO to RESET
Page 83
Only BOTTOM RED LIGHT ON
Only BOTTOM RED LIGHT ON
Remove Master Tag when required UNITS
value reached
Present and HOLD Master Tag
Only the TOP RED LIGHT will remain ON
Only BOTTOM RED LIGHT ON
On TOP RED LIGHT count number of
flashes required for UNITS value.
Short Flash=0
Present and remove the Master Tag
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Present and HOLD the Master Tag
Top red light will turn on
Top green light will turn on
Top green and
Top red light will turn on
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Top orange light will turn on
Hundreds Tens
Units
Short Flash=0
Units
0 0
TOP GREEN LIGHT will FLASH
to indicate TENS
TOP ORANGE LIGHT will FLASH
to indicate HUNDREDS
TOP RED LIGHT will FLASH
to indicate UNITS
of CURRENT Door Open Alarm Time
Page 75
Page 84
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
25
Tens
Short Flash=0
Remove Master Tag when required
TENS value reached.
26
Confirm time you have selected is correct.
TOP ORANGE LIGHT indicates HUNDREDS
TOP GREEN LIGHT indicates TENS
TOP RED LIGHT indicates UNITS
31
(HUNDREDS) (TENS) (UNITS)
x
x
x
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Repeat from step 20 above
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
32
33
34
To ACCEPT NEW TIME To CHANGE VALUE
Remove Master Tag when required
HUNDREDS reached.
30
Short Flash=0
On TOP ORANGE LIGHT count number of
flashes required for HUNDREDS value.
29
Hundreds
Short Flash=0
The TOP GREEN LIGHT and
TOP RED LIGHT will remain ON
27
28
Present and HOLD Master Tag
Page 76
Examples for setting Timer Values may be found on page 64
Page 85
Change Door Forced Alarm Time
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
10
7
8
9
Page 77
Please Note:
Time selectable in 1 second increments from 1 to 255 seconds.
For LATCHED DOOR FORCED ALARM select 255
Page 86
Only BOTTOM RED LIGHT ON
Only BOTTOM RED LIGHT ON
Remove Master Tag when required UNITS
value reached
On TOP RED LIGHT count number of
flashes required for UNITS value.
Short Flash=0
Present and remove the Master Tag
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Top red light will turn on
Top green light will turn on
Top green and
Top red light will turn on
Only BOTTOM RED LIGHT ON
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Top orange light will turn on
Top orange and
top red light will turn on
Hundreds Tens
Units
Short Flash=0
Units
0 0
TOP GREEN LIGHT will FLASH
to indicate TENS
TOP ORANGE LIGHT will FLASH
to indicate HUNDREDS
TOP RED LIGHT will FLASH
to indicate UNITS
of CURRENT Door Forced Alarm Time
Page 78
11
13
12
14
15
16
24
22
23
17
19
18
20
21
Page 87
Page 79
Present and HOLD Master Tag
Only the TOP RED LIGHT will remain ON
25
26
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
27
Tens
Short Flash=0
Remove Master Tag when required
TENS value reached.
28
Confirm time you have selected is correct.
TOP ORANGE LIGHT indicates HUNDREDS
TOP GREEN LIGHT indicates TENS
TOP RED LIGHT indicates UNITS
33
(HUNDREDS) (TENS) (UNITS)
x
x
x
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Repeat from step 22 above
34
To ACCEPT NEW TIME To CHANGE VALUE
Remove Master Tag when required
HUNDREDS reached.
32
Short Flash=0
On TOP ORANGE LIGHT count number of
flashes required for HUNDREDS value.
31
Hundreds
Short Flash=0
The TOP GREEN LIGHT and
TOP RED LIGHT will remain ON
29
30
Present and HOLD Master Tag
Page 88
Page 89
Change Hold Off Time
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Top
Lights
Observe
Bottom
Lights
Remove the Master Tag
Top green light will remain on
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Written Instructions
Top red light will turn on
Top orange light will turn on
Top orange and
top red light will turn on
Present &
Hold
Master Tag
Graphical Instructions
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
5
6
10
7
8
9
Page 81
Please Note:
Time selectable in 1 second increments from 1 to 255 seconds.
Page 90
Only BOTTOM RED LIGHT ON
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Only BOTTOM GREEN LIGHT ON
Top red light will turn on
Top green light will turn on
Top green and
Top red light will turn on
Only BOTTOM RED LIGHT ON
Only BOTTOM RED LIGHT ON
Present and remove the Master Tag
Present and remove the Master Tag
Present and remove the Master Tag
Top orange light will turn on
Top orange and
top red light will turn on
Top orange light and
top green light will turn on
Page 82
11
13
12
14
15
16
24
22
17
19
18
20
21
TOP GREEN LIGHT will FLASH
to indicate TENS
TOP ORANGE LIGHT will FLASH
to indicate HUNDREDS
TOP RED LIGHT will FLASH
to indicate UNITS
of CURRENT Door Forced Alarm Time
Only BOTTOM RED LIGHT ON
Present and HOLD the Master Tag
Page 91
Remove Master Tag when required UNITS
value reached
25
26
Page 83
Present and HOLD Master Tag
Only the TOP RED LIGHT will remain ON
27
28
Short Flash=0
On TOP GREEN LIGHT count number of
flashes required for TENS value.
29
Tens
Short Flash=0
Remove Master Tag when required
TENS value reached.
30
Confirm time you have selected is correct.
TOP ORANGE LIGHT indicates HUNDREDS
TOP GREEN LIGHT indicates TENS
TOP RED LIGHT indicates UNITS
35
(HUNDREDS) (TENS) (UNITS)
x
x
x
To CHANGE VALUE
Remove Master Tag when required
HUNDREDS reached.
34
Short Flash=0
On TOP ORANGE LIGHT count number of
flashes required for HUNDREDS value.
33
Hundreds
Short Flash=0
The TOP GREEN LIGHT and
TOP RED LIGHT will remain ON
31
32
Present and HOLD Master Tag
Only BOTTOM GREEN LIGHT ON
Present and remove the Master Tag
Repeat from step 24 above
36
To ACCEPT NEW TIME To CHANGE VALUE
Page 92
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
Present and remove the Master Tag
Both BOTTOM GREEN LIGHT ON and
BOTTOM RED LIGHT ON
The SOLO Reader will enter normal RUN MODE
37
38
Page 84
Page 93
TURBO MODE
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Remove the Master Tag
Written Instructions
Continue HOLDING
Top red light will turn on
Continue HOLDING
Top green light will turn on
Present &
Hold
Master Tag
Graphical Instructions
Observe
Top
Lights
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
1
2
3
4
The SOLO Reader is in Turbo Mode. Continue with Programming as required.
Page 85
TURBO MODE
Overview
The rate at which the system steps from one menu to the next while programming can be increased
selecting TURBO MODE. This is recommended for the installers that are familiar with the system and
would like to work more quickly through the programming process.
When exiting from programme mode the TURBO MODE rate is reset back to the standard rate.
Please Note:
To ABORT wait for ± 60 seconds for the SOLO to RESET
Special FunctionsSpecial FunctionsSpecial Functions
Page 94
Page 86
AUTO-LEARN
Overview
Should it be necessary to learn user tags, which are in circulation but not available in the system, the unit
can be programmed for AUTO-LEARN. When an unlearned tag is presented to the Reader, it will be
automatically learned into the next available memory location and simultaneously the associated door
lock or gate motor etc. operated.
For example if the memory has been erased, AUTO-LEARN is the simplest way of relearning all the tags in
circulation without having to get the tags back from the users.
The AUTO-LEARN function ensures that once a tag has been learned into the system it cannot be relearned, however the access point will be activated with the presentation of the tag.
To check the memory location of any particular tag that has been learned into the system use the
procedure explained on page 22 of this manual.
There are two modes of AUTO-LEARN
1. Limited Time:
The AUTO-LEARN will only remain in operation for a limited period of time (± 7 days) after which it will
become automatically DISABLED.
2. Unlimited Time:
The AUTO-LEARN function will remain in operation until disabled.
WARNING: Please note that during Auto-Learn operation any Zap Tag presented to the SOLO
Reader will be learned into memory. It is possible therefore that while in this mode,
an unauthorized user could gain access.
Page 95
Page 87
Auto-Learn: LIMITED TIME (± 7 days)
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Bottom
Lights
Continue HOLDING
Top Red Light will turn ON
Continue HOLDING
Top Green Light will turn ON
Continue HOLDING
Top Green Light will remain ON
Bottom Green Light will turn ON
Written Instructions
Remove the Master Tag
Graphical Instructions
Observe
Top
Lights
1
2
3
4
5
The BOTTOM GREEN LIGHT will flash to indicate that the SOLO Reader is in Auto-Learn Mode.
Please Note:
THIS PROCESS MUST BE COMPLETED IN FULL. DO NOT ABORT THIS
PROCEDURE.
Both Master Tags must be present in the SOLO Reader Memory.
Page 96
Auto-Learn: UNLIMITED TIME
Present and HOLD either Master Tag until
all lights turn ON
Observe
Lights
Observe
Bottom
Lights
Continue HOLDING
Top Red Light will turn ON
Continue HOLDING
Top Green Light will remain ON
Bottom Green Light will remain ON
Bottom Red Light will turn ON
Continue HOLDING
Top Green Light will turn ON
Continue HOLDING
Top Green Light will remain ON
Bottom Green Light will turn ON
Written Instructions
Remove the Master Tag
Graphical Instructions
Observe
Top
Lights
1
2
3
3
4
5
The BOTTOM GREEN LIGHT will flash to indicate that the SOLO Reader is in Auto-Learn Mode.
Present &
Hold
Master Tag
TOP
ORANGE
TOP
GREEN
TOP
RED
BOTTOM
RED
BOTTOM
GREEN
Page 88
Please Note:
THIS PROCESS MUST BE COMPLETED IN FULL. DO NOT ABORT THIS
PROCEDURE.
Both Master Tags must be present in the SOLO Reader Memory.
Page 97
Page 89
Auto-Learn: DISABLE
Present and HOLD either Master Tag until
all TOP lights turn ON
Observe
Lights
Remove the Master Tag
Written InstructionsGraphical Instructions
1
2
The BOTTOM RED LIGHT will flash to indicate that the SOLO Reader is now in Normal Run Mode
Page 98
Page 90
Memory
Location
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Relevant Information: Name, etc.
Memory Allocation & Memory Allocation &
Parameter Settings FormParameter Settings Form
Memory Allocation &
Parameter Settings Form
Page 99
Page 91
Memory
Location
Relevant Information: Name, etc.
Configuration Label Factory Defaults
User Settings
Tag Buzzer
Free-Exit
External Door Forced Alarm
Local Door Forced Alarm
External Door Open Alarm
Local Door Forced Alarm
SmartSwitch II
ON
ON
OFF
OFF
OFF
OFF
OFF
Timer Label
Factory Defaults User Settings
Relay Time
Door Open Time
Pre-Warn Time
Door Open Alarm Time
Door Forced Alarm Time
Hold Off Time
1
5
0
30
255 Latched
0
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Page 100
0.07.A.0054_22072013
www.centsys.com
Sharecall 0860-CENTURION (0860 236 887)
Head Office: +27 11 699 2400
Sharecall Technical Support 0861 003 123 or
+27 11 699 2481
from 07h00 to 18h00 (GMT+2)
(Sharecall numbers applicable when dialed from within South Africa only)
Loading...
