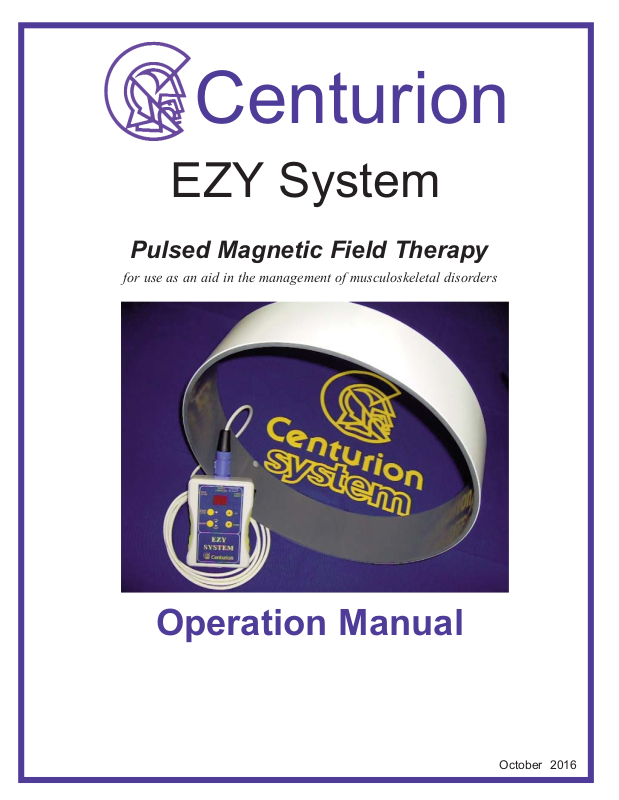

Centurion EZY System Operation Manual
October 2016
Operation Manual
for use as an aid in the management of musculoskeletal disorders
Pulsed Magnetic Field Therapy
EZY System
Centurion
EZY System
Table of Contents
1. System Information Page
1.1 Introduction………………………………………… 3
1.2 System Definitions, Symbols, Warnings,
Cautions and Notes………………………………… 4
1.3 Contraindications………………………………….. 4
2. Installation Instructions
2.1 System Contents………………………………….. 5
2.2 System Assembly…………………………………. 5
2.2.1 Connection of Power and Applied Part…………. 5
2.2.2 Positioning of the Coil…………………………... 7
3. Operating Instructions
3.1 The EZY System Controller……………..………… 9
3.2 EZY System Operation……………..……………... 11
3.3 Labeling and Marking……………………………. 11
4. Using Magnetic Field Therapy
4.1 Explaining Magnetic Field Therapy……………… 12
4.2 ABC’s of Magnetotherapy……………………….. 13
4.3 Protocol Information……………………………… 15
10/27/2016 EZY-System Manual Page 1
5. Maintenance
5.1 Cleaning and Inspection………………………….. 16
5.2 Service Instructions………………………………. 16
5.3 Warranty………………………………………….. 17
5.4 Service Policy…………………………………….. 17
5.5 Service Information………………………………. 17
6. Troubleshooting
6.1 General Operation Checkup……………………… 18
6.2 General Troubleshooting…………………………. 19
7. Technical Specifications
7.1 Regulatory Compliance…………………………… 20
7.2 Equipment Classifications………………………… 20
7.3 Electrical Specifications…………………………… 20
7.4 Physical specifications…………………………….. 20
8. Storage……………………………………………… 21
9. Shipping & Transportation……………………….. 21
10. Three Month Rental Program…………………… 21
11. Commonly Asked Questions……………………… 21
12. Contact Information……………………………… 22
10/27/2016 EZY-System Manual Page 2
1. SYSTEM INFORMATION
1.1 INTRODUCTION
The CENTURION MEDICAL CORPORATION has designed and manufactured Pulsating
Magnetic Field Therapy (or “PMF”)
Centurion’s equipment has been designed to fill the market needs of clinics and hospitals, as well
as the ever-expanding home market.
To ensure customer safety and equipment reliability, great care has been taken to design all of the
Centurion equipment to the highest available standards. Full quality control and complete product
testing are standard in our manufacturing process. Every unit produced is calibrated precisely, and
tested to meet exact criteria to guarantee trouble free operation.
Magnetic Field Therapy is a modality that has been evolving for nearly 100 years. Over the last
thirty years, serious research has been carried out to investigate and substantiate the claims that
have been made regarding the therapy. Now, through research being conducted worldwide by
colleges, clinics, and technicians, as well as thousands of anecdotal reports, we have arrived at
what we feel to be the optimum frequency, time and intensity levels for this modality.
The practical application of pulsating magnetic fields is achieved through the basic principles of
electromagnetism. That is, if a current is passed through a conductor, a magnetic field will be set
up in that conductor that is perpendicular to the conductor and, if combined with other
conductors, as is found in a coil structure, these fields are
current that is directed toward a particular coil structure, we can effectively control the field that
will be induced onto the coil. By further controlling the frequency of the current directed to the
coil, we can create a pulsing action that will continuously turn the field on and off. The pulse
frequencies are preset on the EZY-System to 4 intervals ranging from 2-30 Hertz. Session time
length may be varied in 10-minute increments ranging from 20-60 minutes (the normal maximum
time per session).
This manual will give you a much better understanding of the Centurion EZY-System, how to
properly use the therapy to achieve maximum benefits, and how to take care of the equipment so
that you can continue to enjoy the benefits for years to come.
NOTE: The settings suggested are intended to be a guide to help you achieve the best possible
results. Consult your physician for assistance in determining the proper settings for your
indications. This manual provides operating instructions for the Centurion EZY System, as well
as routine maintenance, safety and trouble-shooting instructions. Please read carefully before
using your Centurion system. Keep the manual for future reference and refer to it as often as
needed for safe and efficient use.
Also commonly referred to as PEMF (Pulsed Electro-Magnetic Field) Therapy
1
1
equipment for over 25 years. As an industry leader,
additive. By controlling the amount of
10/27/2016 EZY-System Manual Page 3
1.2 SYSTEM DEFINITIONS, SYMBOLS, WARNING, CAUTIONS AND NOTES
Please read this section thoroughly before operating your Centurion System. Included below are
definitions of terminology and symbols used in this manual and/or used on equipment markings,
operational warnings, cautions and notes for the safe operation of the Centurion EZY System.
DEFINITIONS
WARNING
Specific Information provided to the user to advise of situations where the misuse or
unlabelled use of the device could present potential harm to the user or patient and/or
could result in irreparable damage to the device or property. Also found on equipment to
alert reader to consult accompanying documents prior to operation.
CAUTION
Specific information provided to the user to prevent misuse of the device that may cause
it to malfunction.
NOTES
General information provided to the user to further explain or clarify the proper operation
of the device.
APPLIED PART
“Applied Part” is the term used to refer to the applicator that is used to provide the actual
session to the patient. (“Lightweight Coil”)
WARNINGS - GENERAL
Do not splash or expose electric parts of the system to water or moisture. Doing so
may permanently damage it and/or result in significant personal injury and
property damage.
NOTE:
musculoskeletal conditions.
Pulsating Magnetic Fields are used as an aid in the management of chronic pain and
1.3 CONTRAINDICATIONS
WARNING - Magnetic fields are produced when the modality is operational and
may interfere with Pacemakers and Electronic Stimulators.
WARNING - During the last trimester of Pregnancy, the therapy should not be used.
NOTE: Although the system is very simple and safe to use, it is always wise to
consult with a physician about any new indication
10/27/2016 EZY-System Manual Page 4
2. INSTALLATION INSTRUCTIONS
2.1 SYSTEM CONTENTS
Your Centurion EZY System comes packaged in one box. You will have the following
components included in your system:
1 – EZY System Handheld Controller
1 – EZY System Lightweight Coil
1 – Applied Part Cable
1 – Power Cord
1 – Power Adapter Assembly
1 – Operating Manual
1 – Test Magnet
2.2 SYSTEM ASSEMBLY
The Centurion EZY System is completely portable and can be moved wherever required.
2.2.1 CONNECTION OF POWER AND APPLIED PART

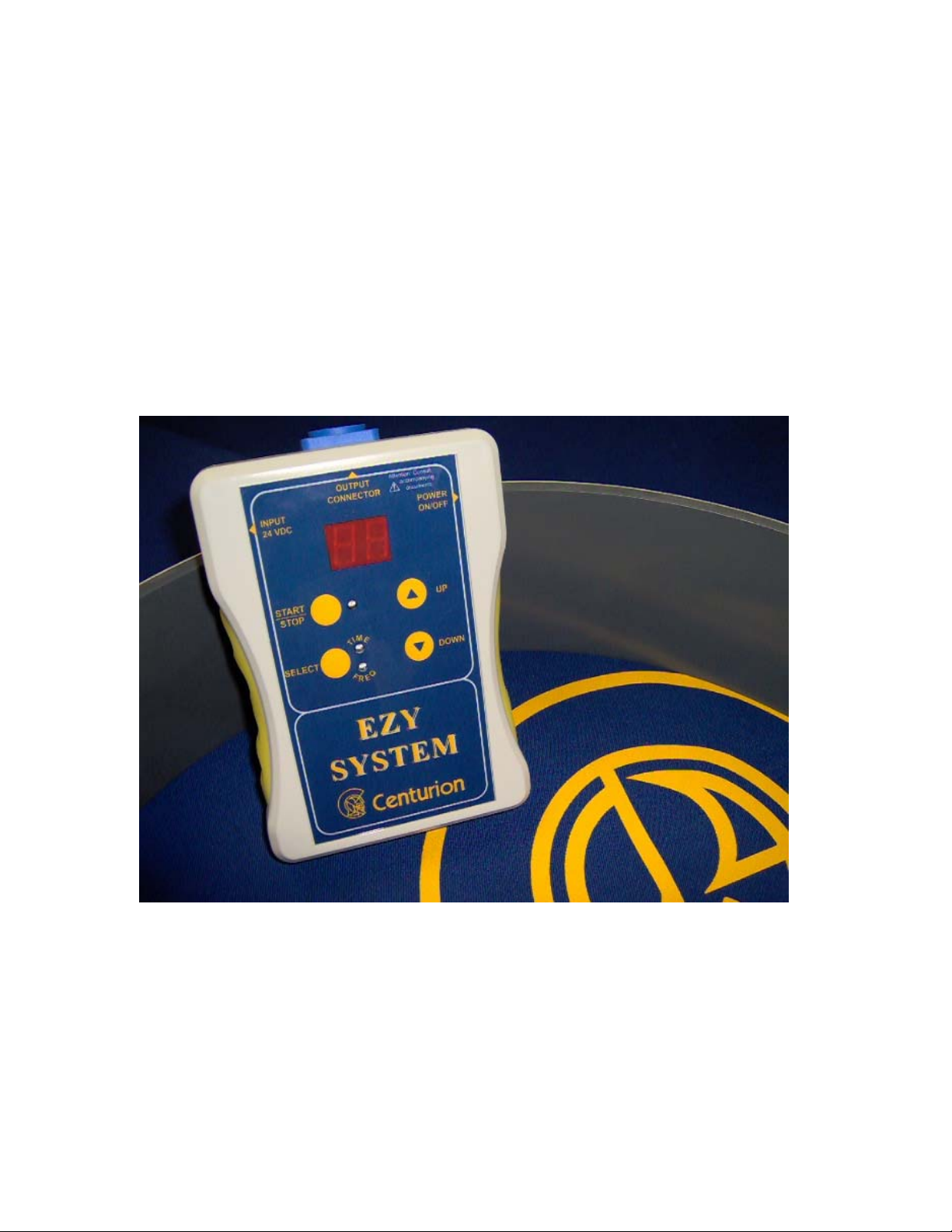

Figure #1: The EZY System Controller, Power Adapter and Applied Part
10/27/2016 EZY-System Manual Page 5
Referring to Figure #1, the EZY System is connected as follows:
POWER CORD
1) Insert the power cord (E) into the POWER INLET FILTER (D).
2) Plug the power cord (G) into the power receptacle.
Note: If the supplied power cord type does not match the receptacle type available in
your area, contact Centurion for the correct type.
CAUTION - Ensure that there is a power source nearby. Do not use extension cords
to power the system.
WARNING – Please ensure this equipment is energized from an electrical circuit
that is not shared with other devices. Failure to do so may introduce high frequency
interference causing the other devices not to work as intended.
WARNING - The safety of this equipment relies on a properly installed Earth
connection. Do not connect to an unearthed mains plug or socket. It is the
responsibility of the customer to ensure the mains supply in the installation
location is correctly earthed.
WARNING - Do not remove the ground pin from the power cord or bend it over or
use an extension cord that will allow the cord not to be connected to ground. Failure
to maintain a proper ground while operating the equipment may result in injury to the
operator and/or patient.
APPLIED PART - COIL

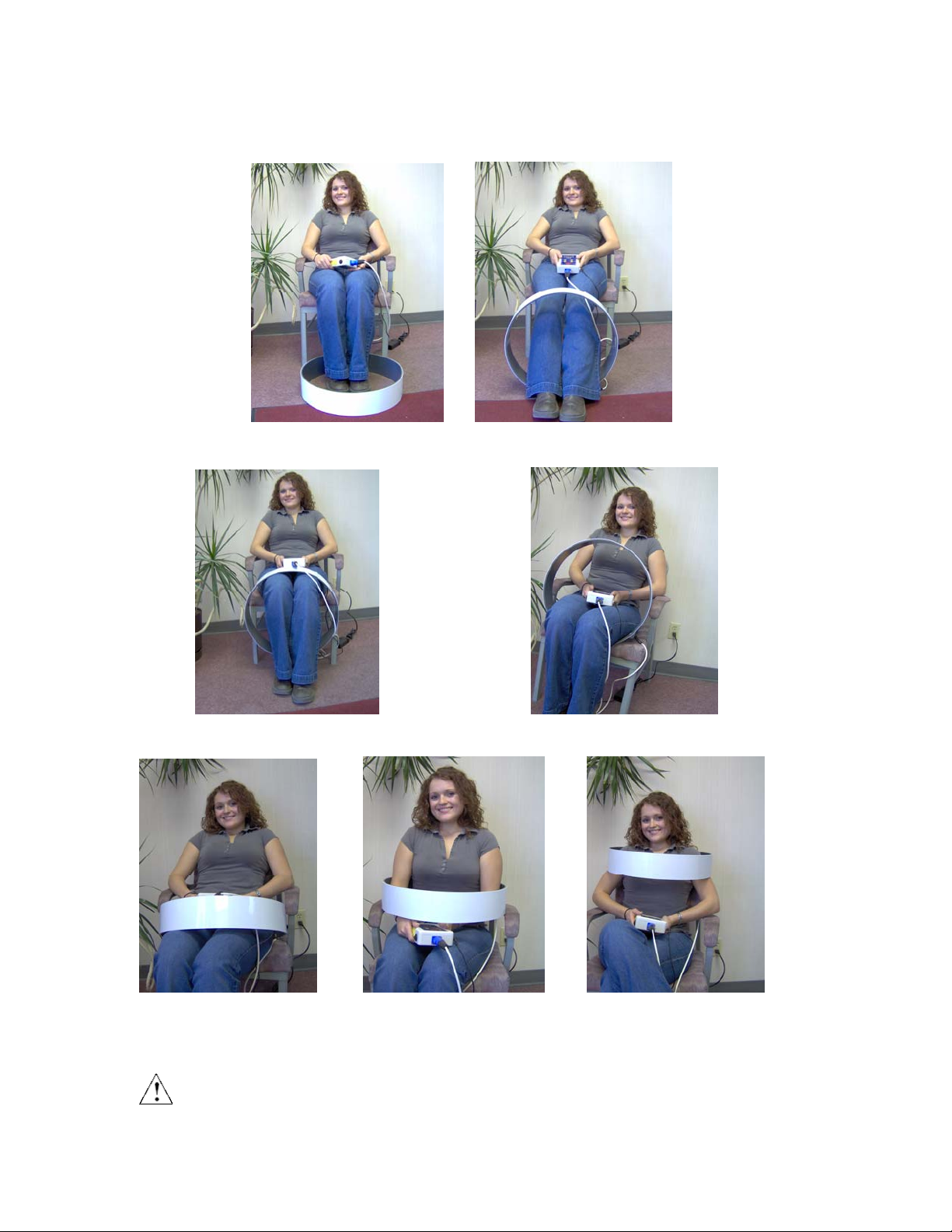

1) Position the EZY System COIL (a) in the general area of use (see 2.2.2
Positioning of Applied Part for suggested coil positions) and extract a use able
amount of cable from the cable-tied bundle.
2) Connect the blue OUTPUT CONNECTOR (b) end of the cable to the APPLIED
PART CONNECTOR OUTLET (c) on the EZY System handheld controller.
As shown in figure #2, insert the connector fully, and then turn clockwise. An
audible “click” sound indicates the connector is locked into place.

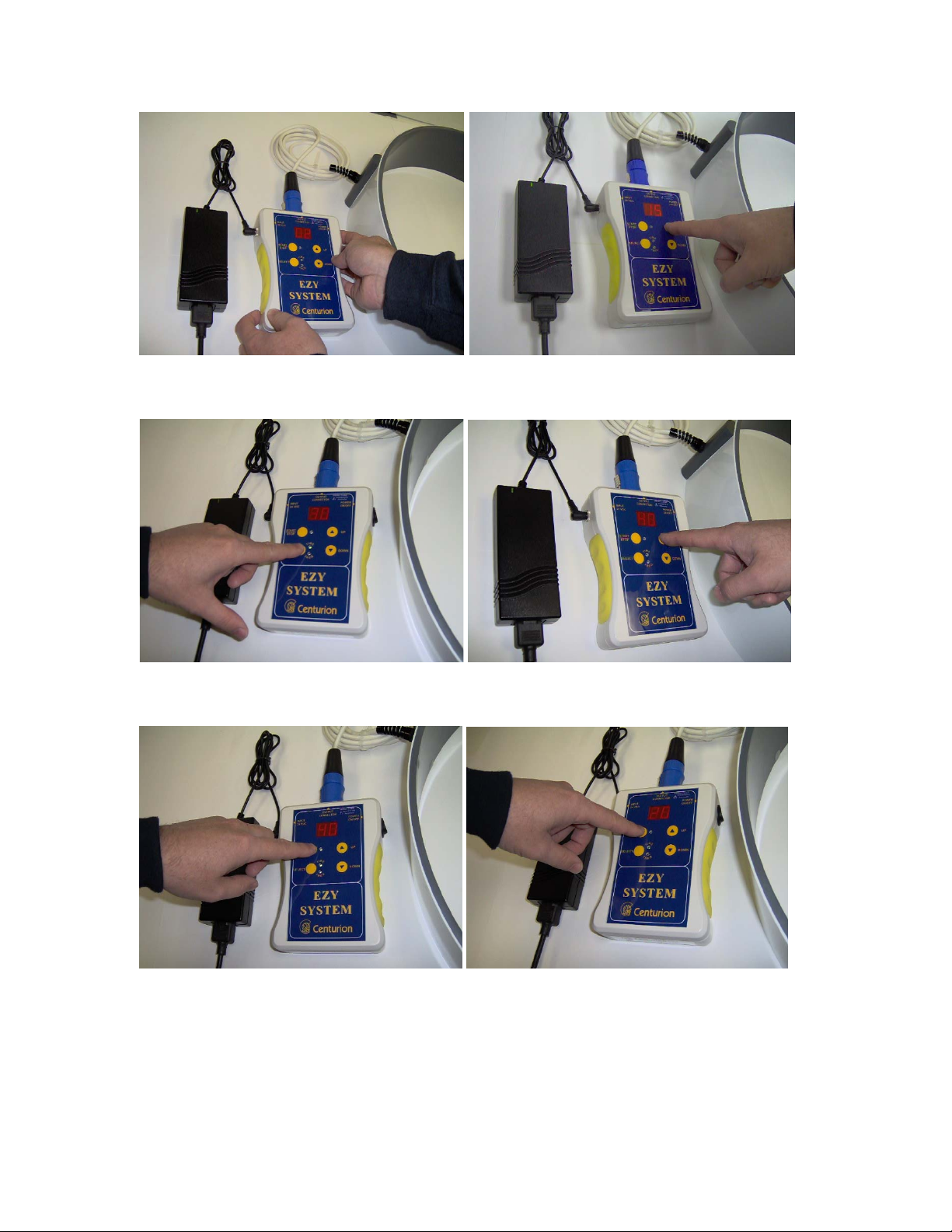

Figure #2: Connecting Output Connector to Handheld Controller
3) To release the connector, use your thumb to pull out the metal tab on the
connector while twisting the connector counter-clockwise. The cord may then be
separated from the controller by pulling back while grasping the connector.
Note: Retain the cable tie with your cord system to effectively manage any excess length
of cable.
10/27/2016 EZY-System Manual Page 6
