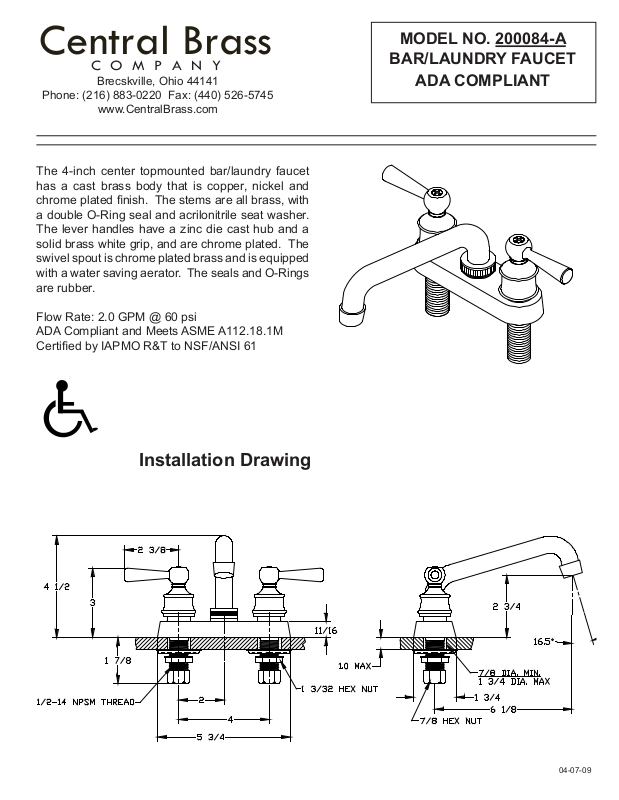

CENTRAL BRASS 200084-A User Manual

Central Brass

C O M P A N Y

MODEL NO. 200084-A

BAR/LAUNDRY FAUCET

Brecskville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The 4-inch center topmounted bar/laundry faucet
has a cast brass body that is copper, nickel and

chrome plated nish. The stems are all brass, with

a double O-Ring seal and acrilonitrile seat washer.
The lever handles have a zinc die cast hub and a
solid brass white grip, and are chrome plated. The
swivel spout is chrome plated brass and is equipped
with a water saving aerator. The seals and O-Rings
are rubber.

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M

Certied by IAPMO R&T to NSF/ANSI 61

ADA COMPLIANT

Installation Drawing

04-07-09

Central Brass

C O M P A N Y

MODEL NO. 200084-A

BAR/LAUNDRY FAUCET

Brecskville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

ADA COMPLIANT

Parts Breakdown

# Part # Description

1 4015-BAR Brass Coupling Nut

2 7133-AL Aluminum Locknut

3 54 Steel Crowfoot Washer

4 2103-B Brass Faucet Body

5 263-BC Bronze Seat

6 1028-Y Nylon Gasket

7 104 Brass Seat Washer Screw

8 901-WNN Seat Washer

9 453-FL Brass Left Thread O-Ring Stem

9 453-FR Brass Right Thread O-Ring Stem

10 1038-453 O-Ring

11 453-EWC Brass Left Thread O-Ring Bonnet

11 453-EWH Brass Right Thread O-Ring Bonnet

12 512-HUB-02 Hnadle Hub

13 SU-512-G-15 White Handle With O-Ring

14 1038-HDL O-Ring

15 107-F15/8 Brass Phillips Head Screw

16 1038-KN O-Ring

17 166-FN Stainless Steel Snap Ring

18 PF-782-D Brass Spout Nut

19 PF-2924 Brass Swivel Spout

20 30-M Female Aerator

21 SU-453-EL Left Thread O-Ring Stem Assembly

21 SU-453-ER Right Thread O-Ring Stem Assembly

04-07-09
