Page 1
MODEL NO. 201186-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The widespread lavatory faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The
center distance of the faucet can be adjusted from 6 to 24
inches. The stems are all brass with a double O-Ring seal
and acrilonitrile seat washer. The lever handles have a zinc
die cast hub and a solid brass white grip. The handles have a
polished chrome plated nish. The brass spout has a chrome
plated nish and is tted with a water saving aerator that limits
the ow rate. The O-Rings and seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Complied to ANSI/NSF 61 Section 9
ADA COMPLIANT

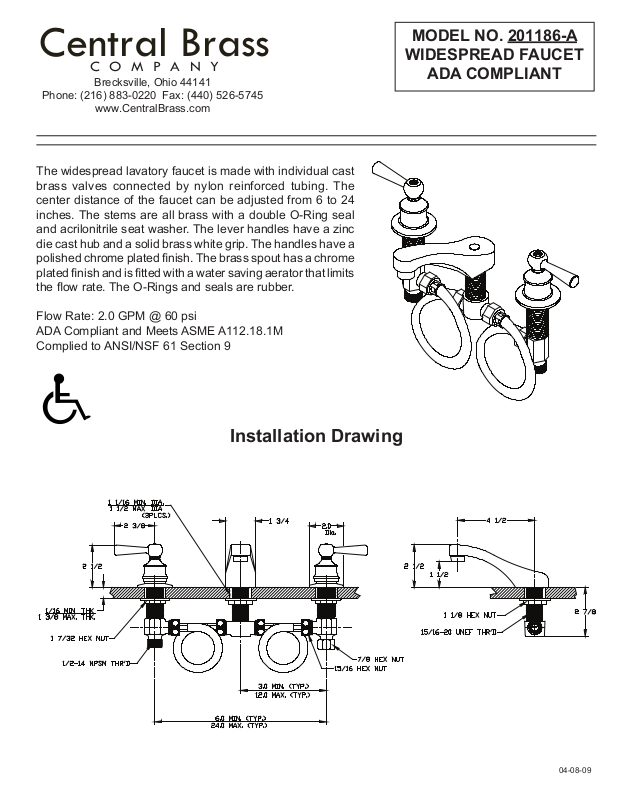

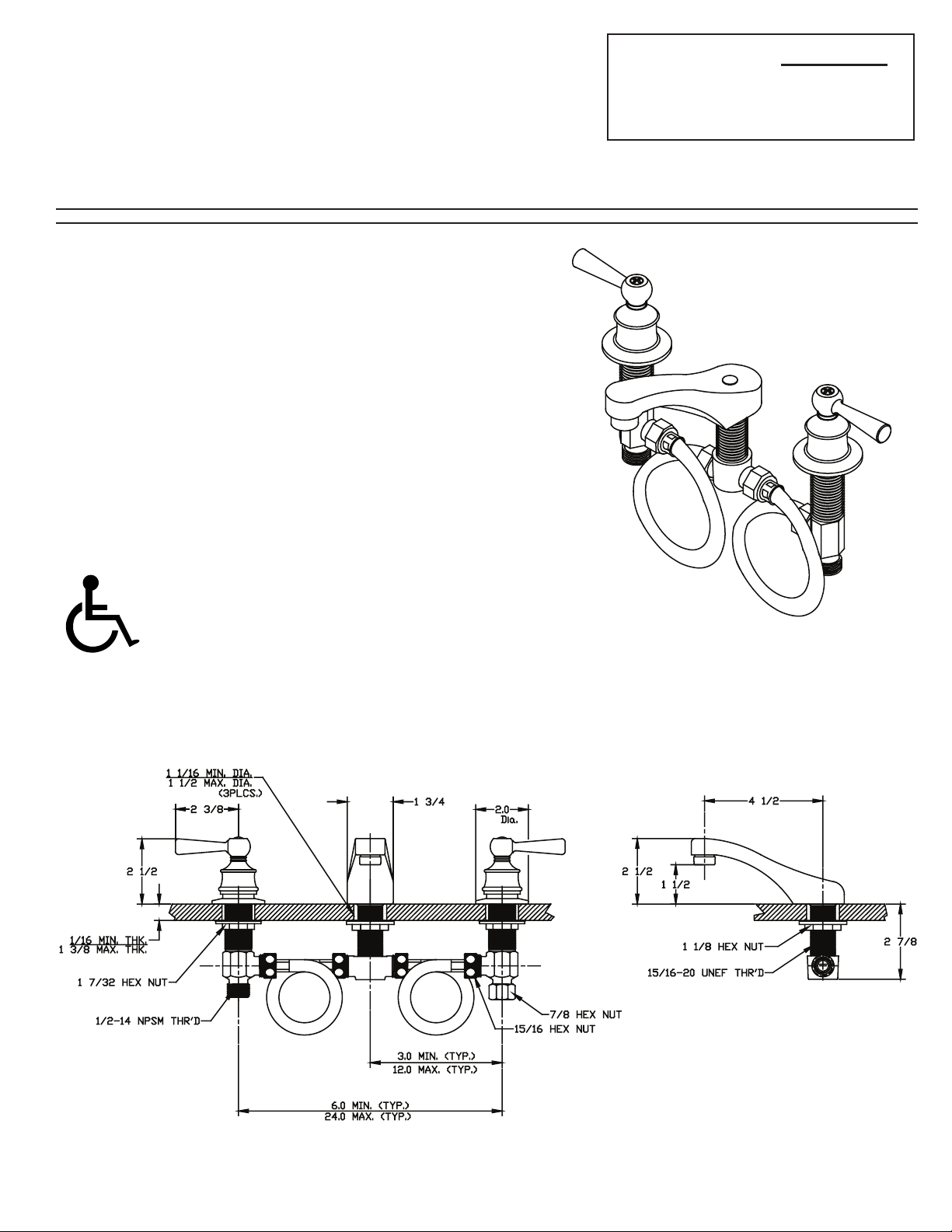

Installation Drawing
04-08-09
Page 2
MODEL NO. 201186-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

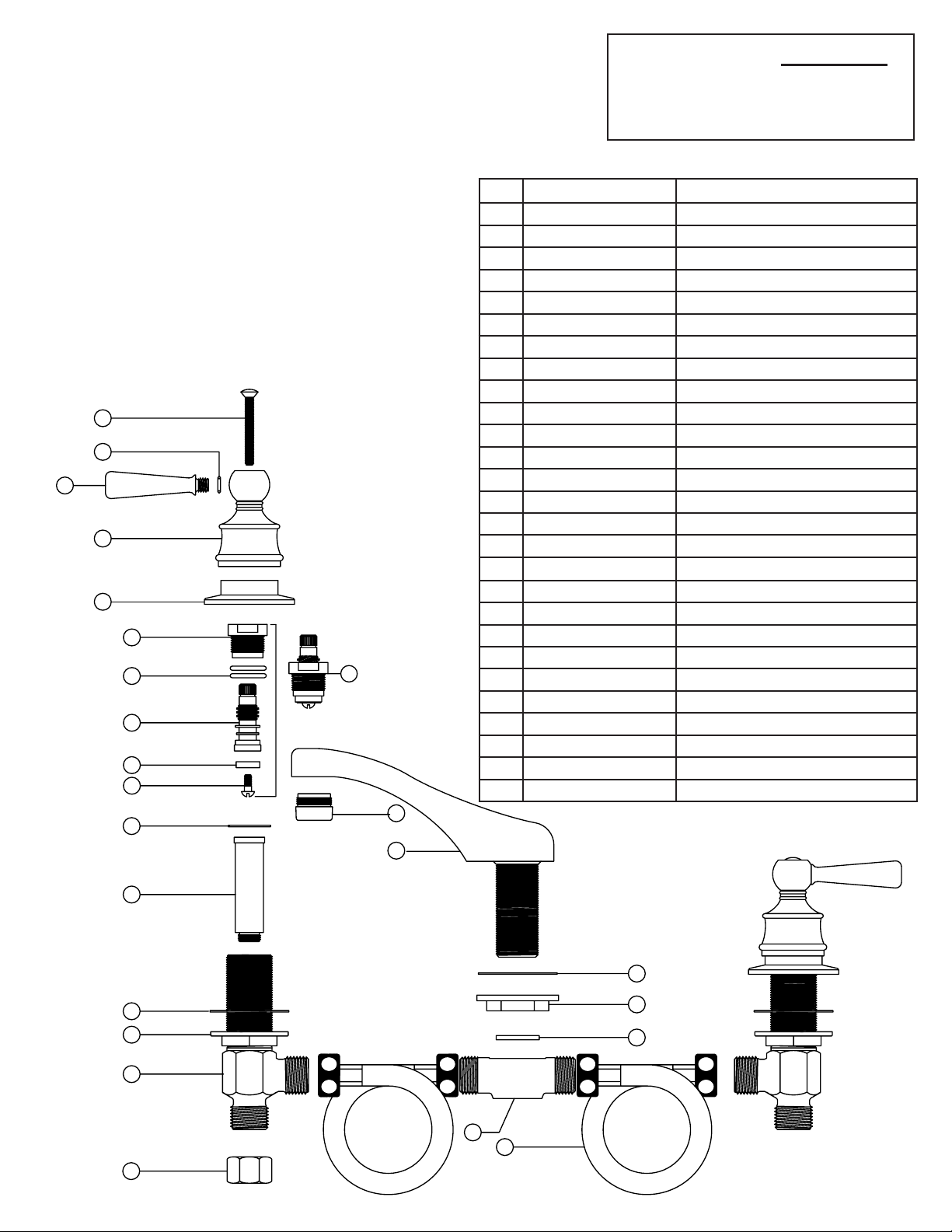

Parts Breakdown
The parts listed in the parts breakdown above may not be offered
separately as replacement parts. Please review the Replacement
Parts page for the authorized replacement parts that are available
for this item.
16
15
14
13
12
11
10
9
8
7
6
CEN RAL
CEN RAL
24
22
21
ADA COMPLIANT
# Part # Description
1 4015-BAR Brass Coupling Nut
2 2970-S Brass Corner Valve Body
3 53-AS Locknut
4 491-U Fiber Gasket
5 PGF-263-D Brass Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WNN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
10 1038-453 O-Ring
11 453-EWC Bras Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 524-B Escutcheon
13 512-HUB-02 Handle Hub
14 SU-512-G-15 White Handle With O-Ring
15 1038-HDL O-Ring
16 107-F15/8 Brass Phillips Head Screw
17 2003-B Brass Tee Body
19 944-N Washer
19 53-CZ Locknut
20 52-S Steel Washer
21 2090-B Brass Spout
22 30-L Male Aerator
23 312-10N Flexible Hose Connector
24 SU-453-EL Left Thread O-Ring Stem Assembly
24 SU-453-ER Right Thread O-Ring Stem Assembly
5
4
3
2
1
20
19
18
17
23
04-08-09
