MODEL NO. 200073-A-Q
2950 East 55th St. Cleveland, Ohio 44127
CONCEALED KITCHEN F AUCET
Phone: (216) 883-0220 Fax: (216) 883-0875
www.CentralBrass.com
The kitchen sink faucet has a cast brass body designed for
concealed ledge mounting on a stainless steel sink. The
quarter turn stems are all brass with a double O-Ring seal and
rubber seat washer . The lever handles have a zinc die cast
hub and a solid brass white grip, and are chrome plated. The
8-inch swivel “D” spout is brass with a chrome plated finish
and is fitted with a water saving aerator that limits the flow rate.
The faucet has a spray rinse attatchment that is connected with
a 48-inch long nylon hose.
Flow Rate: 2.2 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certified
ADA COMPLIANT
R
Certified to
ANSI/NSF 61/Section 9
Installation Drawing
1-15-03
MODEL NO. 200073-A-Q
2950 East 55th St. Cleveland, Ohio 44127
Phone: (216) 883-0220 Fax: (216) 883-0875
www.CentralBrass.com

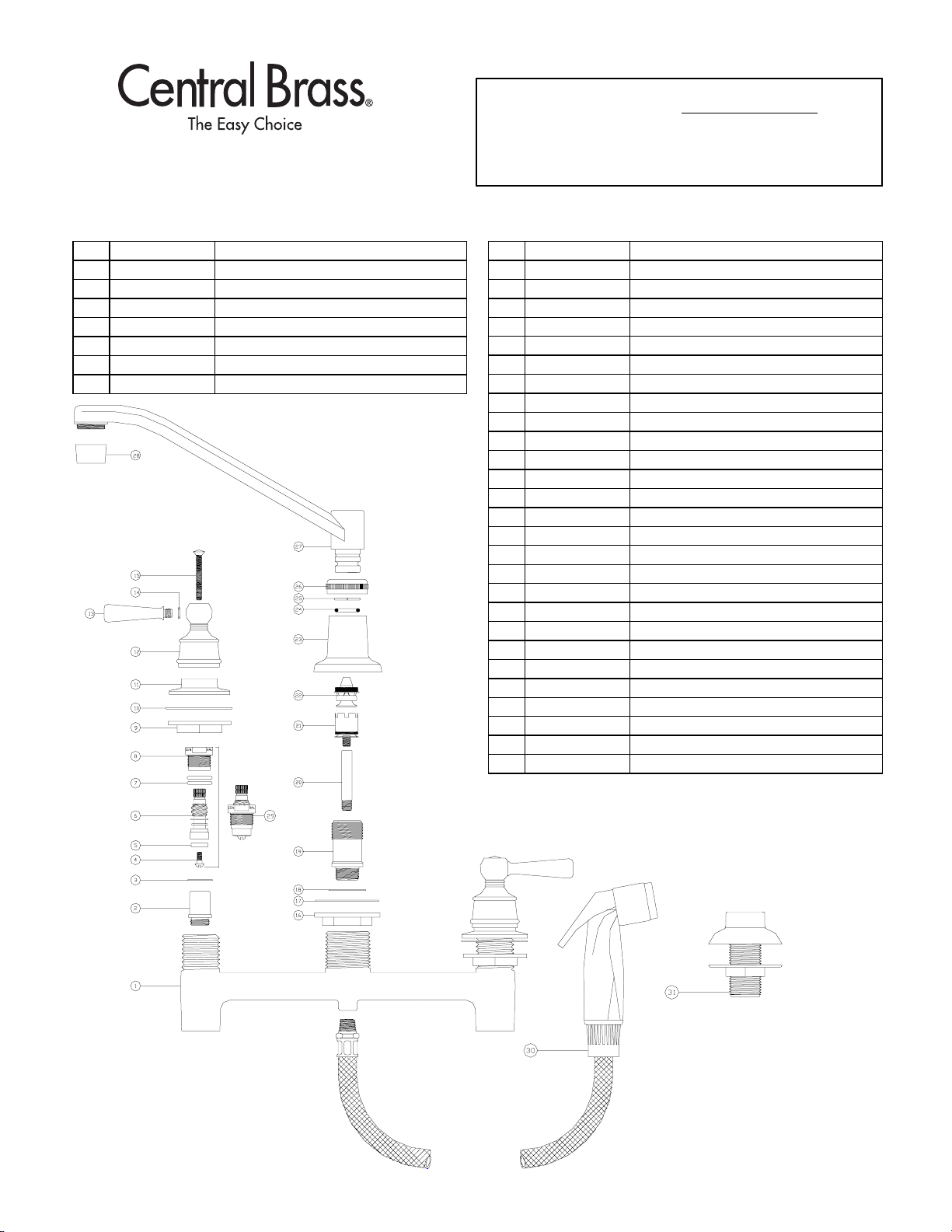

Parts Breakdown
# Part# Description
1 1959-JS Brass Faucet Body
2 PF-263-C Bra ss Seat
3 1028-Y Nylon Gasket
4 104 Brass Seat Washer Screw
5 901-WN Seat Washer
6 454-FL Brass Left Thread O-Ring Stem
6 454-FR Brass Right Thread O-Ring Stem
CONCEALED KITCHEN F AUCET
ADA COMPLIANT
# Part# Description
7 1038-453 O-Ring
8 454-EC Brass Left Thread O-Ring Bonnet
8 454-EH Brass Right Thread O-Ring Bonnet
953-AS Locknut
10 491-U Fiber Gasket
11 524-B Escutcheon
12 512-HUB-02 Handle Hub
13 SU-512-G-15 White Handle With O-Ring
14 1038-HDL O-Ring
15 107-F15/8 Brass Phillips Head Screw
16 53-BS Locknut
17 491-S Fiber Gasket
18 402-JN Washer
19 2985-J Brass Centerpiece
20 PF-166-JS Brass Diverter Tube Extension - RC
21 166-D Lower Diverter
22 166-E Upper Diverter
23 1012-N Escutcheon
24 1038-KN O-Ring
25 166-FN Stainless Steel Snap Ring
26 PF-782-D Brass Spout Nut
27 365-D Brass Swivel “D” Spout
28 30-M Female Aerator
29 SU-454-EL Left Thread O-Ring Stem Assembly
29 SU-454-ER Right Thread O-Ring Stem Assembly
30 166-A Hose & Spray
31 SU-2987-DA Hose Guide
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
