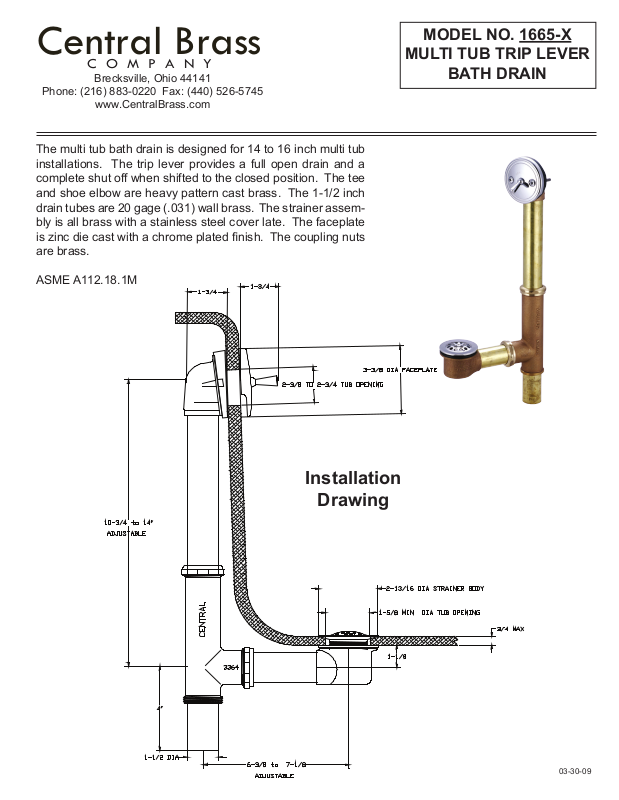

Central Brass 1665-X Installation Drawing

MODEL NO. 1665-X

Central Brass

C O M P A N Y

MULTI TUB TRIP LEVER

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The multi tub bath drain is designed for 14 to 16 inch multi tub
installations. The trip lever provides a full open drain and a
complete shut off when shifted to the closed position. The tee
and shoe elbow are heavy pattern cast brass. The 1-1/2 inch
drain tubes are 20 gage (.031) wall brass. The strainer assem­bly is all brass with a stainless steel cover late. The faceplate

is zinc die cast with a chrome plated nish. The coupling nuts

are brass.

ASME A112.18.1M

BATH DRAIN

Installation

Drawing

03-30-09

MODEL NO. 1665-X

Central Brass

C O M P A N Y

MULTI TUB TRIP LEVER

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

BATH DRAIN

Parts Breakdown

# Part # Description

1 PF-731-G 3” Brass Tailpiece

2 3364 Brass Tee Body

3 149-RP Slip Joint Washer

4 3008-X Brass Coupling Nut

5 PF-731-D 8-1/2” Brass Standpipe

6 3371 Brass Top Ell

7 3042-A Brass Plunger

8 61-LD Brass Linkage

9 1081-N Brass Hex Nut

10 61-LU Brass Clevis

11 222-D Brass Cotter Pin

12 PF-731-A 4-1/4” Brass Shoe Tube

13 991 Rubber Washer

14 3009-BRC Brass Strainer Body

15 218-F Stainless Steel Strainer

16 218-C Brass Phillips Head Screw

17 3026-B Brass Drain Shoe

18 990-L Washer

19 SU-83-AZ Trip Lever

20 127-AP21/4 Brass Phillips Head Screw

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.

03-30-09
