Central Brass 1645-S Installation Drawing

MODEL NO. 1645-S

Central Brass

C O M P A N Y

CENTRALIFT BATH DRAIN

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The centralift bath drain is designed for 14 to 16 inch side
outlet multi tub installations. The lift and turn stopper pro­vides a full open drain and a positive leak tight shut off with
an O-Ring seal. The tee and shoe elbow are heavy pattern
cast brass. The 1-1/2 inch drain tubes are 20 gage (.031)
wall brass. The strainer assembly is all brass with a polished

chrome plated nish. The O-Ring is rubber. The faceplate is
zinc die cast with a chrome plated nish. The coupling nuts
are zinc die cast with a brass plated nish.

ASME A112.18.1M

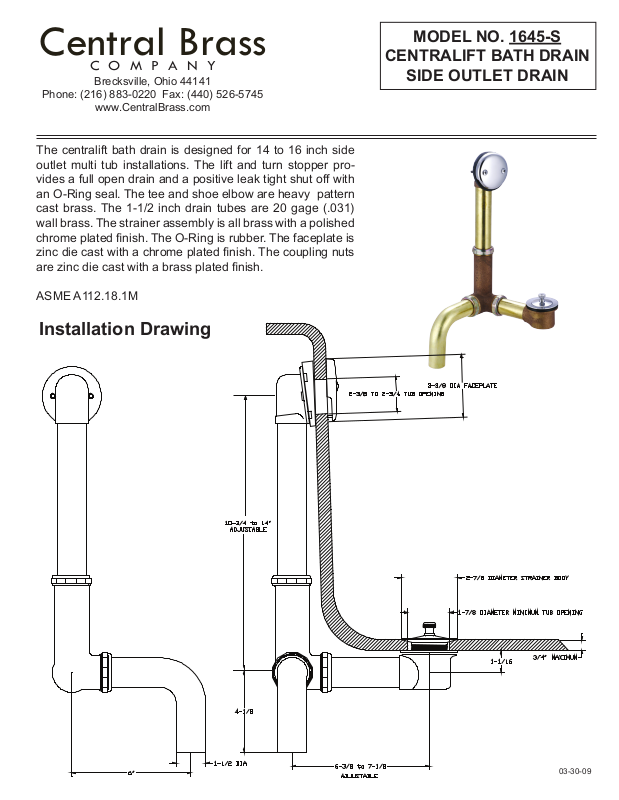

Installation Drawing

SIDE OUTLET DRAIN

03-30-09

MODEL NO. 1645-S

Central Brass

C O M P A N Y

CENTRALIFT BATH DRAIN

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

Parts Breakdown

SIDE OUTLET DRAIN

# Part # Description

1 3370 Brass Side Outlet Tee

2 149-RP Slip Join Washer

3 3008-BP Coupling Nut

4 PF-731-D 8-1/2” Brass Standpipe

5 3360-D Brass Top Ell

6 990-L Washer

7 83-ACZ Faceplate

8 127-AP21/4 Brass Phillips Head Screw

9 731-K Brass Bent Tube

10 PF-731-A 4-1-4” Brass Show Tube

11 991 Rubber Washer

12 166-Q Stainless Steel Snap Ring

13 3036-A Brass Strainer Body

14 85-DP Brass Pin

15 756-CB Brass Post

16 1038-W O-Ring

17 PF-3359-A Brass Plug

18 PF-94-F Brass Knob

19 103-PLCP Brass Phillips Head Screw

20 3026-B Brass Drain Shoe

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.

03-30-09
