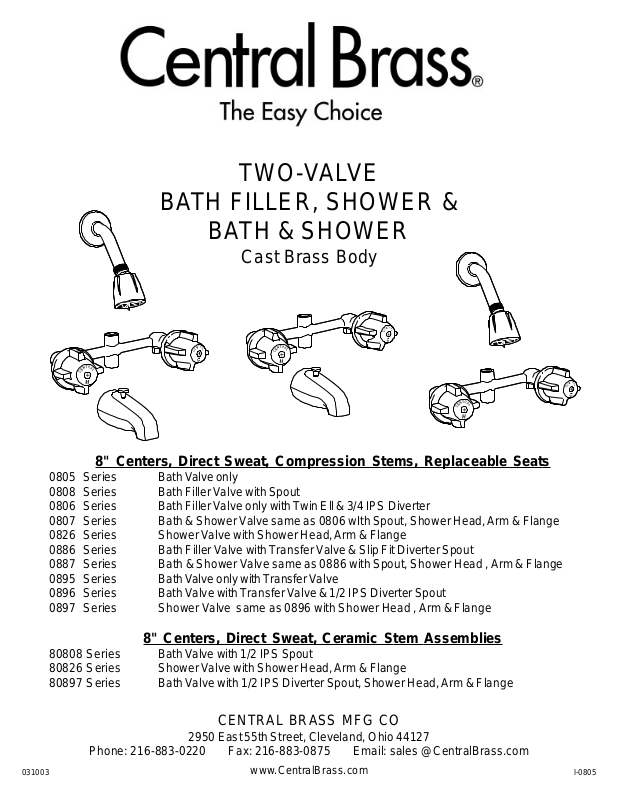

TWO-VALVE
BATH FILLER, SHOWER &
BATH & SHOWER
Cast Brass Body
8" Centers, Direct Sweat, Compression Stems, Replaceable Seats
0805 Series Bath V alve only
0808 Series Bath Filler Valve with Spout
0806 Series Bath Filler V alve only with T win Ell & 3/4 IPS Diverter
0807 Series Bath & Shower V alve same as 0806 wIth Spout, Shower Head, Arm & Flange
0826 Series Shower V alve with Shower Head, Arm & Flange
0886 Series Bath Filler V alve with T ransfer Valve & Slip Fit Diverter S pout
0887 Series Bath & Shower V alve same as 0886 with S pout, Shower Head , Arm & Flange
0895 Series Bath V alve only with Transfer V alve
0896 Series Bath V alve with Transfer V alve & 1/2 IPS Diverter S pout
0897 Series Shower Valve same as 0896 with Shower Head , Arm & Flange
8" Centers, Direct Sweat, Ceramic Stem Assemblies
80808 Series Bath V alve with 1/2 IPS Spout
80826 Series Shower V alve with Shower Head, Arm & Flange
80897 Series Bath V alve with 1/2 IPS Diverter Spout, Shower Head, Arm & Flange
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031003 I-0805
www.CentralBrass.com
Page 2
INSTALLATION INSTRUCTIONS
NOTE: Flush waterlines to remove debris
before installation.
Roughing In Instructions
1. Locate and install valve assembly as
shown.
2. Connect hot and cold supply lines.
3. Fabricate and install line for showerhead
and spout.
4. Anchor fittings to studs in proper location.
5. Test for operation and leakage before
finishing wall.
6. Install protectors on all exposed fittings.
Finishing Instructions
1. Remove fitting protectors.
2. Apply putty as required to prevent water
damage to wall.
3. Install finished trim.
4. T est for operation and leakage.
3/4 IPS Diverter Spout
CAUTION for
Compression Stem Assemblies
Soldered connections should be made with
valve stems OPEN. DO NOT overheat.
Let valve assembly cool after connection is
made before closing valve stems
WARNING for
Ceramic Stem Assemblies
Remove hot and cold stem units before
soldering. Failure to do so will result in
damage to ceramic stem units. Cool valve
assembly after solder connections are
completed before reinstalling ceramic stem
assemblies.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031003 I-0805
www.CentralBrass.com
Page 3
1/2 IPS Spout
80 - Silver Crown Handle Suffix
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031003 I-0805
www.CentralBrass.com
Page 4
1
D
A
*
5
2
*
3
4
6
23
24

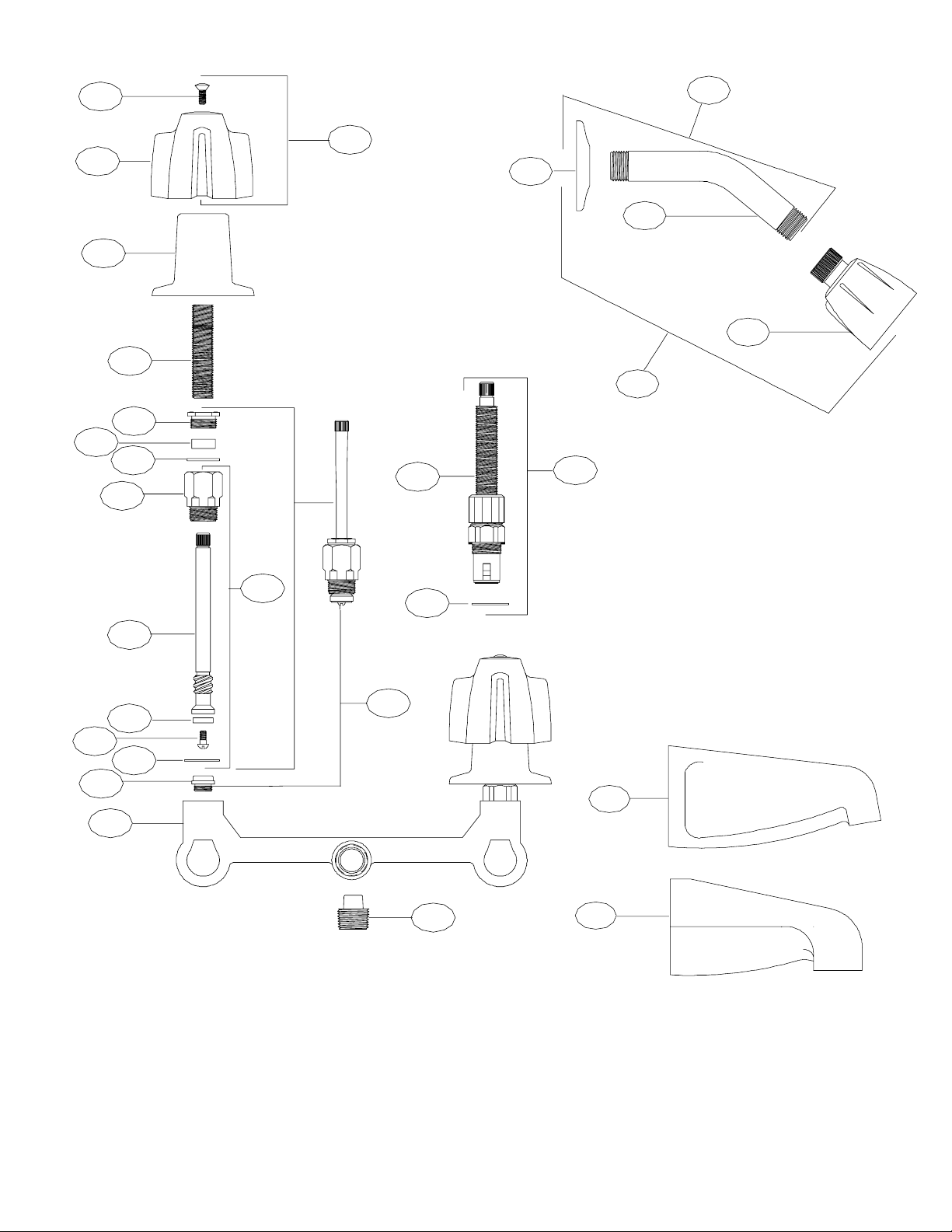

REPLACEMENT
PARTS
25
E
C
*
B
9
*
7
8
9
10
*
* These items are not offered individually and
must be purchased as a group or unit.
Please contact Central Brass for more information.
C
*
20
22
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031003 I-0805
www.CentralBrass.com
Page 5
REPLACEMENT P ARTS
# Part # Description
A G-508-C Large Canopy Handle indexed C with Screw (X107-F)
A G-508-H Large Canopy Handle indexed H with Screw (X107-F)
B G-1549-CT
C K-3-CT
C K-351-C Ceramic-disc Stem Cartridge Cold with Gasket (X1028-Y) for items 80808 & 80826
D 3007-6 6-inch Shower Arm (714-WT-02) & Flange (X1035-SS)
E G-3113-6 Shower Head (3034-1/2-02), 6-inch Shower Arm (714-WT-02) & Flange (X1035-SS)
1 X 107- F Handle Screw (25 pcs per pack)
2 521-B Escutcheon
3 X269-29/16 2 9/16 Long Nipple (10 pcs per pack)
4 X765-TA Packing Nut (6 pcs per pack) for items 0805, 0808 & 0826
5 X814-BA Packing (10 pcs per pack) for items 0805, 0808 & 0826
6 X4-L Packing Washer (6 pcs per pack) for items 0805, 0808 & 0826
7 X901-WNN Seat Washer (25 pcs per pack) for items 0805, 0808 & 0826
8 X104 Seat Washer Screw (25 pcs per pack) for items 0805, 0808 & 0826
9 X1028-Y Gasket (25 pcs per pack)
10 XPF-263-B Replacement Seat (4 pcs per pack) for items 0805, 0808 & 0826
20 3145-D ½ IPS Brass Spout for items 0808 & 80808 only
22 3154-Z Zamak Spout for items 0808-Z & 80808-Z only
23 X1035-SS Shower Arm Flange (10 pcs per pack)
24 714-WT-02 6-inch Shower Arm
25 3034-1/2-02 Shower Head 2.5 GPM
Stem & Bonnet Group with Seat Washer (X901-WN), Screw (X104) & Gasket (X1028-Y)
for items 0805, 0808 & 0826
Complete Stem Assembly with Gasket (X1028-Y) & Bronze Seat (X263-BC)
for items 0805, 0808 & 0826
If faucet has round handles (G-508) or (80 suffix) , use two Cold stem assemblies
If faucet has lever handles, use one Hot and one Cold stem assemblies
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031003 I-0805
www.CentralBrass.com
Page 6
OPTIONS & REPLACEMENT PARTS
Suffix
Number
80 A K-505-1C
Prefix
Number
8 C K-351-C Ceramic-disc Stem Cartridge Cold with Gasket (X1028-Y)
8 C K-351-H Ceramic-disc Stem Cartridge Hot with Gasket (X1028-Y)
Replaces
Item #
10 X263-BC
D 3007-8 8-inch Shower Arm (714-WT-02) & Flange (X1035-SS)
E G-3113-8
Replaces
Item #
Part Number Description
Silver Crown Acrylic Handles with Screw (X126-625B) &
indexed C metal button (G-503-M-02)
K-505-1H
X126-625B Handle Screw for Acrylic Handles suffix 80 (6 pcs per pack)
G-503-M-02 Metal indexed buttons C & H for Acrylic Handles suffix 80 (one pair per pack)
G-1548-ET Stem Extension with Screw (X105-F)
X105-F Screw for stem extension (4 pcs per pack)
Part Number Description
Only for
Silver Crown Acrylic Handles with Screw (X126-625B) &
indexed H metal button (G-503-M-02)
Bronze Replacement Seat (10 pcs per pack)
for items 0805, 0808 & 0826
Shower Head (3034-1/2-02), 8-inch Shower Arm (PF-714-WT8)
& Flange (X1035-SS)
80808 & 80826
If faucet has round handles (G-508) or (80 suffix) , use two Cold stem assemblies
If faucet has lever handles, use one Hot and one Cold stem assemblies
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031003 I-0805
www.CentralBrass.com
Page 7
CENTRAL BRASS
MAINTENANCE INSTRUCTIONS

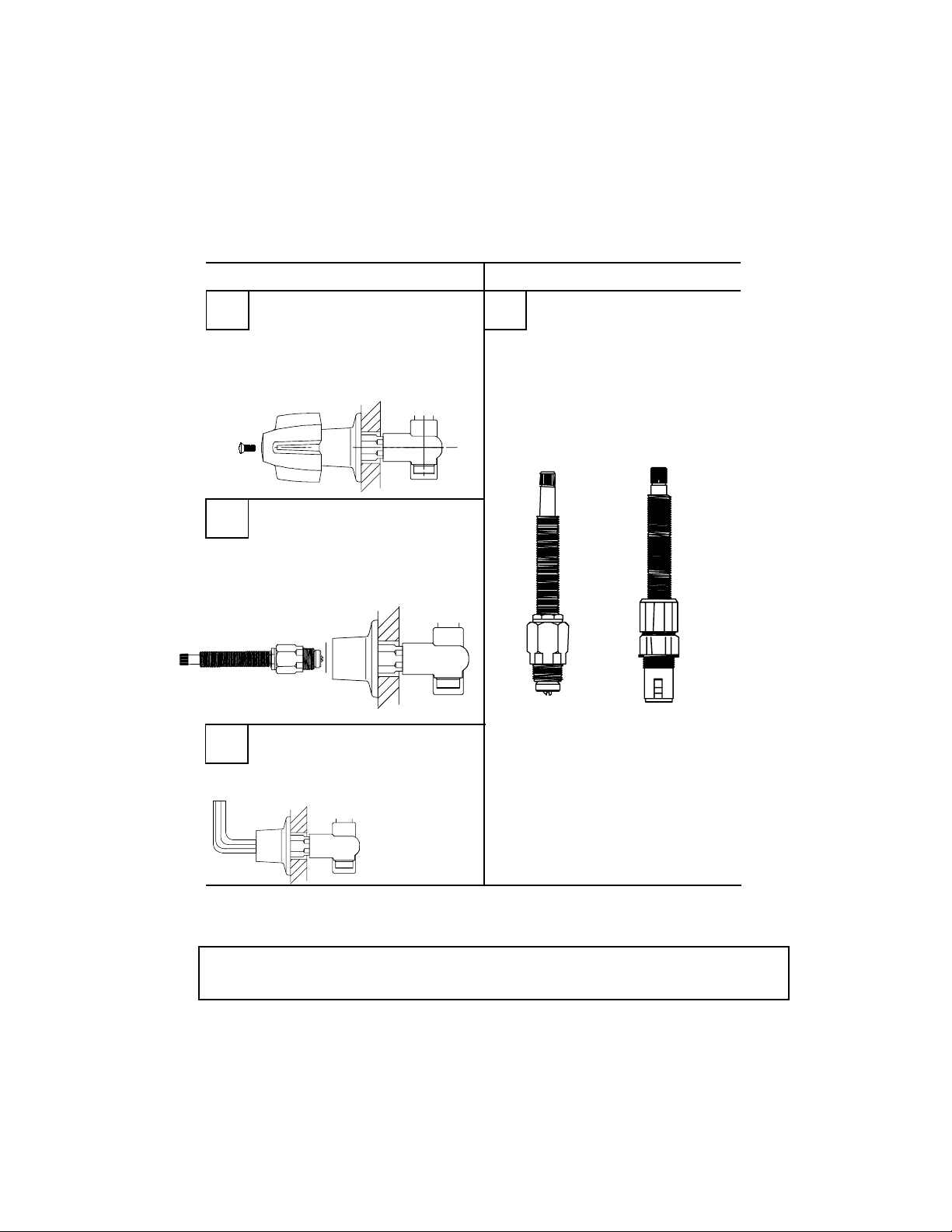

DISASSEMBLY
1
2
REMOVE HANDLE
1. Turn off water supply
2. Remove the handle
screw & handle
3. Unscrew the escutcheon
REMOVE STEM ASSEMBLY
1. Use adjustable wrench.
2. Turn stem to open position
3. Unscrew counterclockwise.
Remove stem unit.
REPLACEMENT
4
Use Only Central
Replacement Parts
K-3-CT
K-351-C
3
Use 5/16”
Allan Wrench
If faucet has round handles (70 or 80 suffixes) , use two Hot stem assemblies
If faucet has lever handles, use one Hot and one Cold stem assemblies
REMOVE SEA T
1. Insert 5/16" allen wrench
in seat.
2. Turn seat (counterclockwise)
to remove.
For Compression
stems only
NOTE: If replacing compression units with
ceramic units make sure PF-263-B seat is
removed from body before installing stem
units.
Replace components In reverse
order of disassembly
