0469 (Female Coupling Unions)
0469-C (Copper Sweat Unions)

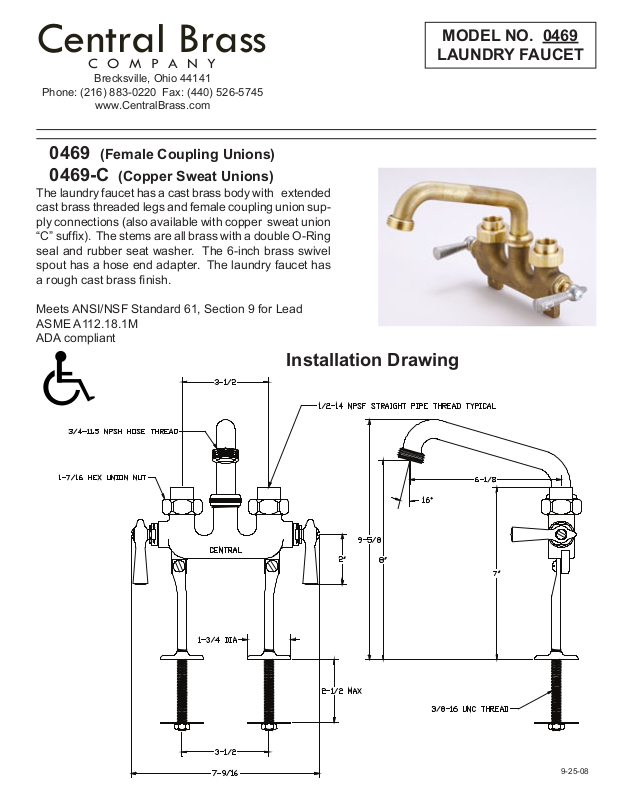

The laundry faucet has a cast brass body with extended
cast brass threaded legs and female coupling union supply connections (also available with copper sweat union
“C” sufx). The stems are all brass with a double O-Ring
seal and rubber seat washer. The 6-inch brass swivel
spout has a hose end adapter. The laundry faucet has
a rough cast brass nish.
Meets ANSI/NSF Standard 61, Section 9 for Lead
ASME A112.18.1M
ADA compliant
MODEL NO. 0469
LAUNDRY FAUCET
Installation Drawing
9-25-08
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Spout variations available
MODEL NO. 0469
LAUNDRY FAUCET
SU-2929-01
6-inch
5 - Sufx
6-inch Cast Brass Spout
with Hose End
9-25-08
Page 3
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

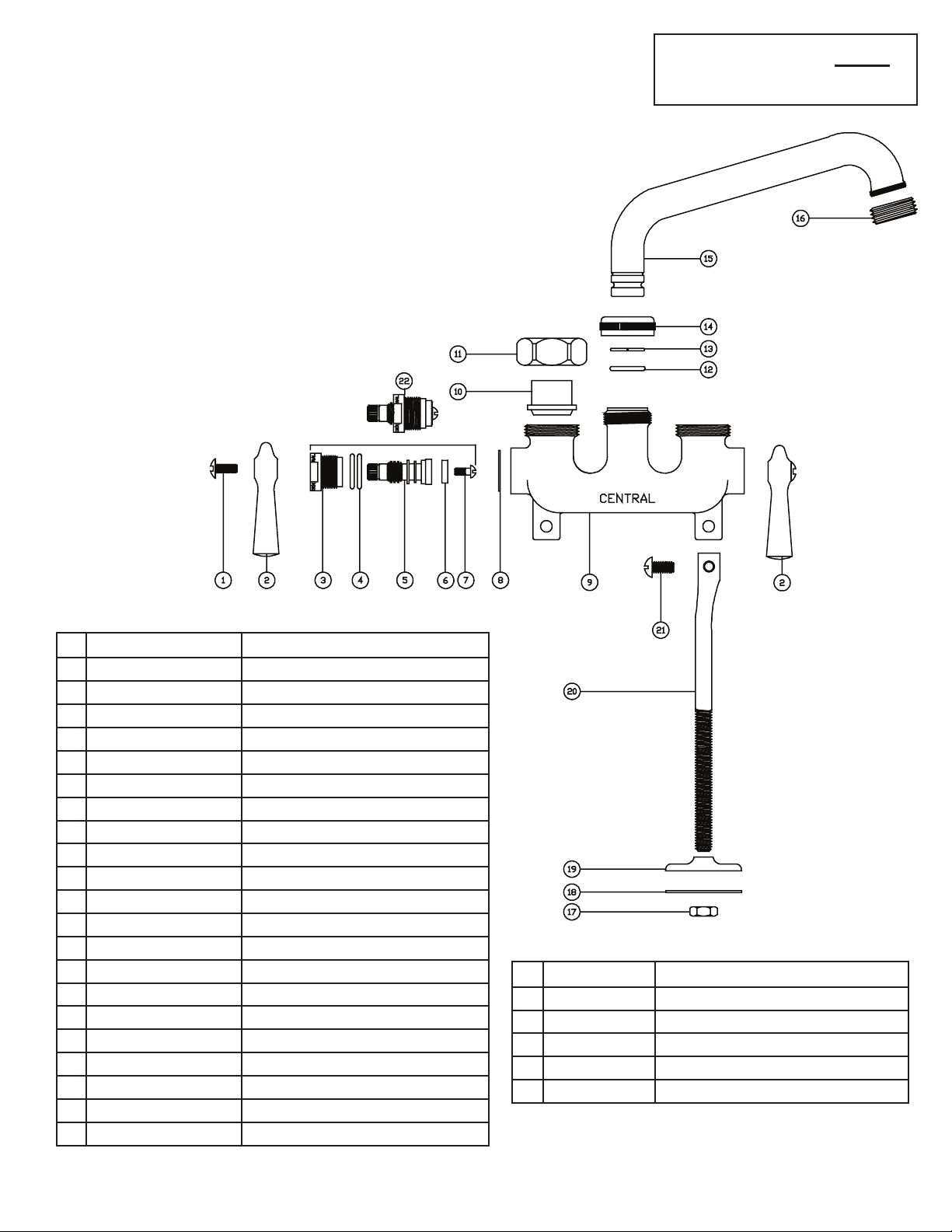

Parts Breakdown
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
MODEL NO. 0469
LAUNDRY FAUCET
# Part Description
1 126-S Steel Screw
2 520-AC Aluminum Handle Indexed “C”
2 520-AH Aluminum Handle Indexed “H”
3 453-EWC Brass Left Thread O-Ring Bonnet
3 453-EWH Brass Right Thread O-Ring Bonnet
4 1038-453 O-Ring
5 453-FL Brass Left Thread O-Ring Stem
5 453-FR Brass Right Thread O-Ring Stem
6 901-WNN Seat Washer
7 104 Brass Seat Washer Screw
8 1028-Y Nylon Gasket
9 7223 Brass Body
10 1875 Brass Union
11 1876-BB Brass Coupling
12 1038-KN O-Ring
13 166-FN Stainless Steel Snap Ring
14 782-D Brass Spout Nut
15 2904-01 Brass Swivel Spout
16 784-C Brass Hose Connector
17 207-D Steel Hex Nut
18 51-A Steel Washer
# Part Description
19 7255 Brass Flange
20 7234 Brass Leg
21 118 Brass Screw
22 SU-453-EL Left Thread O-Ring Stem Assembly
22 SU-453-ER Right Thread O-Ring Stem Assembly
9-25-08
