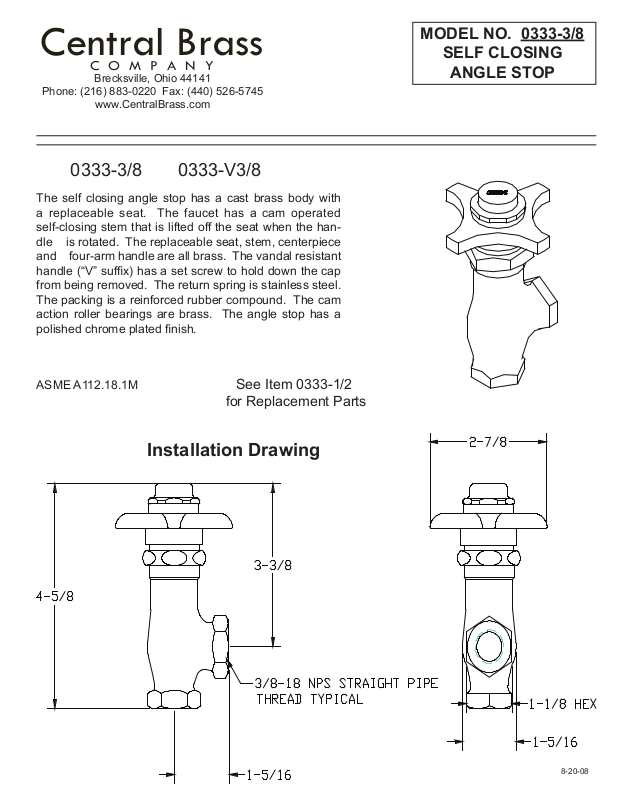

Page 1
MODEL NO. 0333-3/8
Central Brass
C O M P A N Y
SELF CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
0333-3/8 0333-V3/8
The self closing angle stop has a cast brass body with
a replaceable seat. The faucet has a cam operated
self-closing stem that is lifted off the seat when the handle is rotated. The replaceable seat, stem, centerpiece
and four-arm handle are all brass. The vandal resistant
handle (“V” sufx) has a set screw to hold down the cap
from being removed. The return spring is stainless steel.
The packing is a reinforced rubber compound. The cam
action roller bearings are brass. The angle stop has a
polished chrome plated nish.
ANGLE STOP
ASME A112.18.1M
See Item 0333-1/2
for Replacement Parts
Installation Drawing
8-20-08
Page 2
MODEL NO. 0333-3/8
Central Brass
C O M P A N Y
SELF CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
20
ANGLE STOP
Parts Breakdown
# Part # Description
1 7061 Brass Body
2 PF-59 Bras Seat
3 104-02 Brass Seat Washer Screw CP
4 904 Seat Washer
5 PD-7101-AF Brass Stem
6 1008-B Stainless Steel Spring
7 PF-70-F Brass Gland
8 70-D Stainless Steel Spring
9 PF-33-A Brass Washer
10 849-G Packing
11 433-AN Nylon Gasket
12 7106-F Brass Centerpiece
13 71 Brass Bearings
14 PF-6928-P Brass Handle
15 33-A Brass Washer
16 68-HX Brass Nut
17 PF-67-AC Celcon Samson Nut
18 69-C Celcon Sleeve
19 PF-7125 Brass Handle Cap
20 103-HSSS Set Screw
(for vandal-resistant handle)
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
8-20-08
