Page 1
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The 8-inch center topmounted kitchen faucet
has a cast brass body with replaceable seats.
The plastic body shell has a chrome plated nish. The compression stems are all brass with a
double O-Ring seal and rubber seat washer. The
canopy handles are zinc die cast with a chrome
plated nish. The 8-inch swivel “D” spout is brass
with a chrome plated nish and is tted with a
water saving aerator that limits the ow rate. The
O-Rings and seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certied
MODEL NO. 0148-A
KITCHEN TOPMOUNT

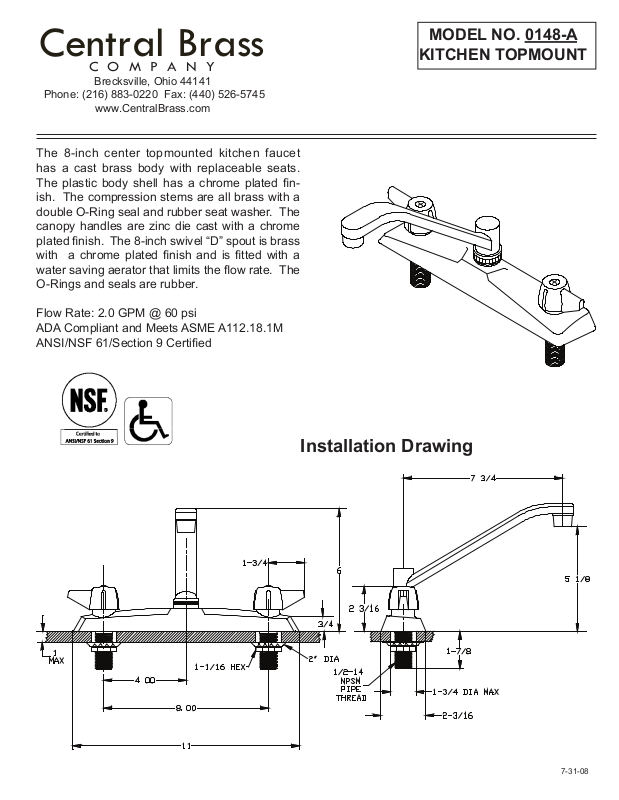

Installation Drawing
7-31-08
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
7"
2-1/2"
7-1/4"
6-45/64"
12
8-1/8"
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Handle variations available
MODEL NO. 0148-A
KITCHEN TOPMOUNT
Sufx Options
& Accessories
Wrist 4-inch
Elbow 6-inch
G-4147 (4-inch)
G-4149 (6-inch)
Faucets with lever, wrist or elbow handles with compression
or ceramic stem cartridges are
ADA compliant.
Spout variations available
A8 - Sufx
7 1/4-inch High-Rise Swivel Spout
SU-357-hSA
7 1/4-inch
Wall Mount
Spout Adaptor
Accessory
G-1748-88W
Cast Brass Spout
Extension
Accessory
SU-2775-R-02
7-inch
Drinking water products tested and certied by
NSF International to ANSI/NSF Standard 61,
Section 9. Each product required to meet the
standard proudly exhibits the NSF logo.
7-31-08
Page 3
MODEL NO. 0148-A
Central Brass
C O M P A N Y
KITCHEN TOPMOUNT
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
# Part # Description
1 4015-BARP Brass Coupling Nut
2 7133-AZ Zinc Dichromate Locknut
3 54 Steel Crowfoot Washer
4 393-BP Gasket
5 1952-R Brass Faucet Underbody
6 393-P Shell Cover Plate
7 263-BC Bronze Seat
8 1028-Y Nylon Gasket
9 104 Brass Seat Washer Screw
10 901-WNN Seat Washer
11 453-FL Brass Left Thread O-Ring Stem
# Part # Description
11 453-FR Brass Right Thread O-Ring Stem
12 1038-453 O-Ring
13 453-EWC Brass Left Thread O-Ring Bonnet
13 453-EWH Brass Right Thread O-Ring Bonnet
14 523-C Handle Indexed “C”
14 523-H Handle Indexed “H”
15 107-F Brass Phillips Head Screw
16 1038-KN O-Ring
17 166-FN Stainless Steel Snap Ring
18 PF-782-D Brasss Spout Nut
19 365-S Brass Swivel “D” Spout
20 30-M Female Aerator
21 SU-453-EL Left Thread O-Ring Stem Assembly
21 SU-453-ER Right Thread O-Ring Stem Assembly
Parts Breakdown
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
7-31-08
