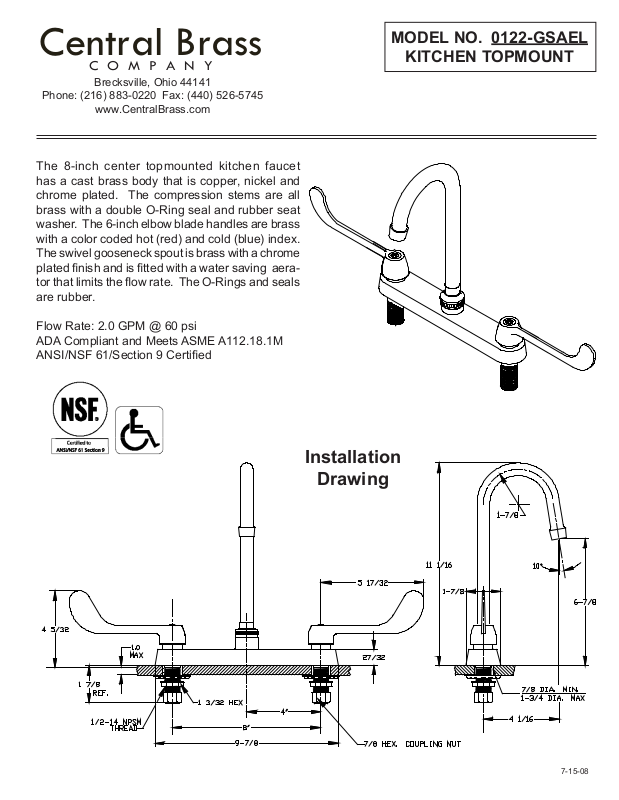

The 8-inch center topmounted kitchen faucet
has a cast brass body that is copper, nickel and
chrome plated. The compression stems are all
brass with a double O-Ring seal and rubber seat
washer. The 6-inch elbow blade handles are brass
with a color coded hot (red) and cold (blue) index.
The swivel gooseneck spout is brass with a chrome
plated nish and is tted with a water saving aerator that limits the ow rate. The O-Rings and seals
are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certied
MODEL NO. 0122-GSAEL
KITCHEN TOPMOUNT

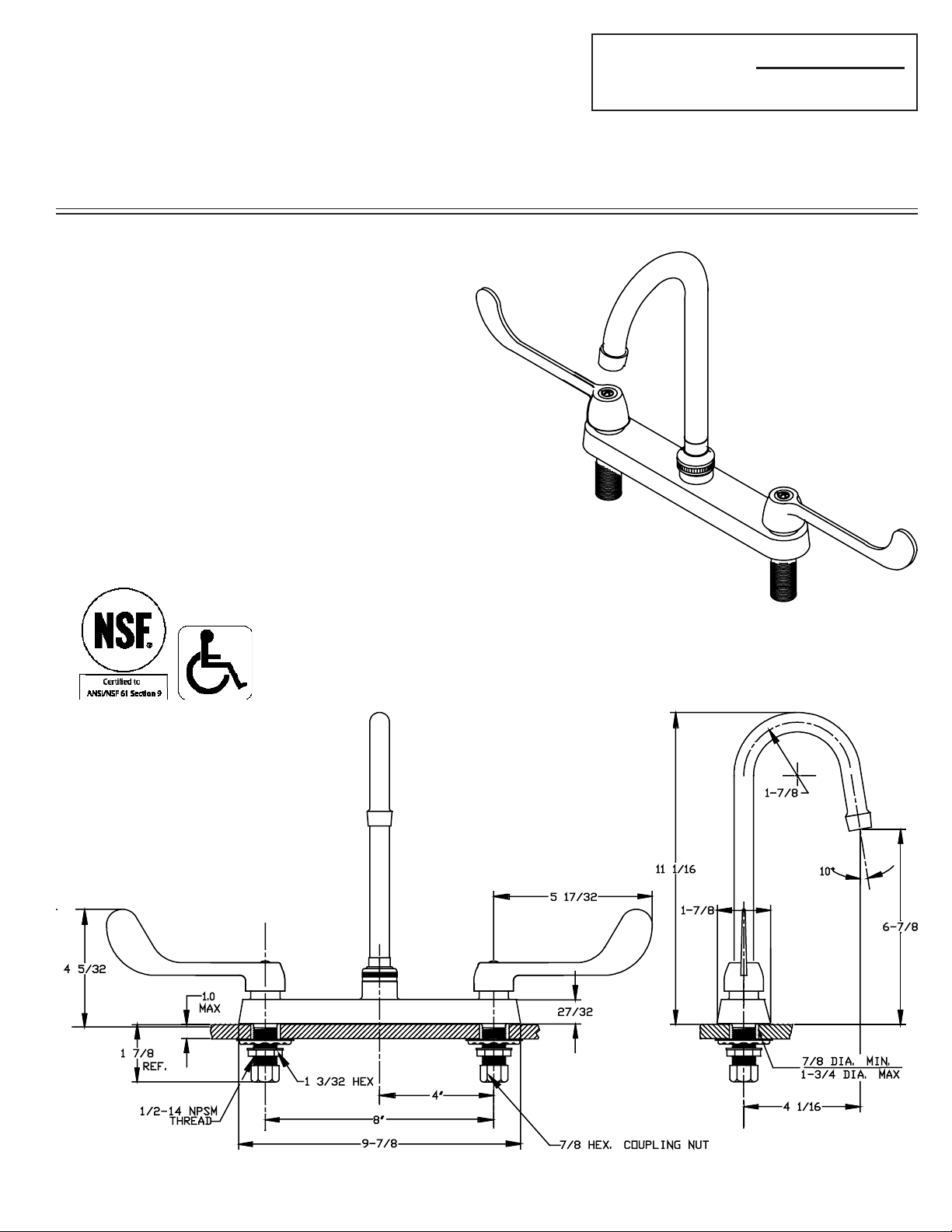

Installation
Drawing
7-15-08
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
MODEL NO. 0122-GSAEL
KITCHEN TOPMOUNT
# Part Description
1 4015-BARP Brass Coupling Nut
2 7133-AZ Zinc Dichromate Locknut
3 54 Steel Crowfoot Washer
4 1947 Brass Faucet Body
5 263-BC Bronze Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw

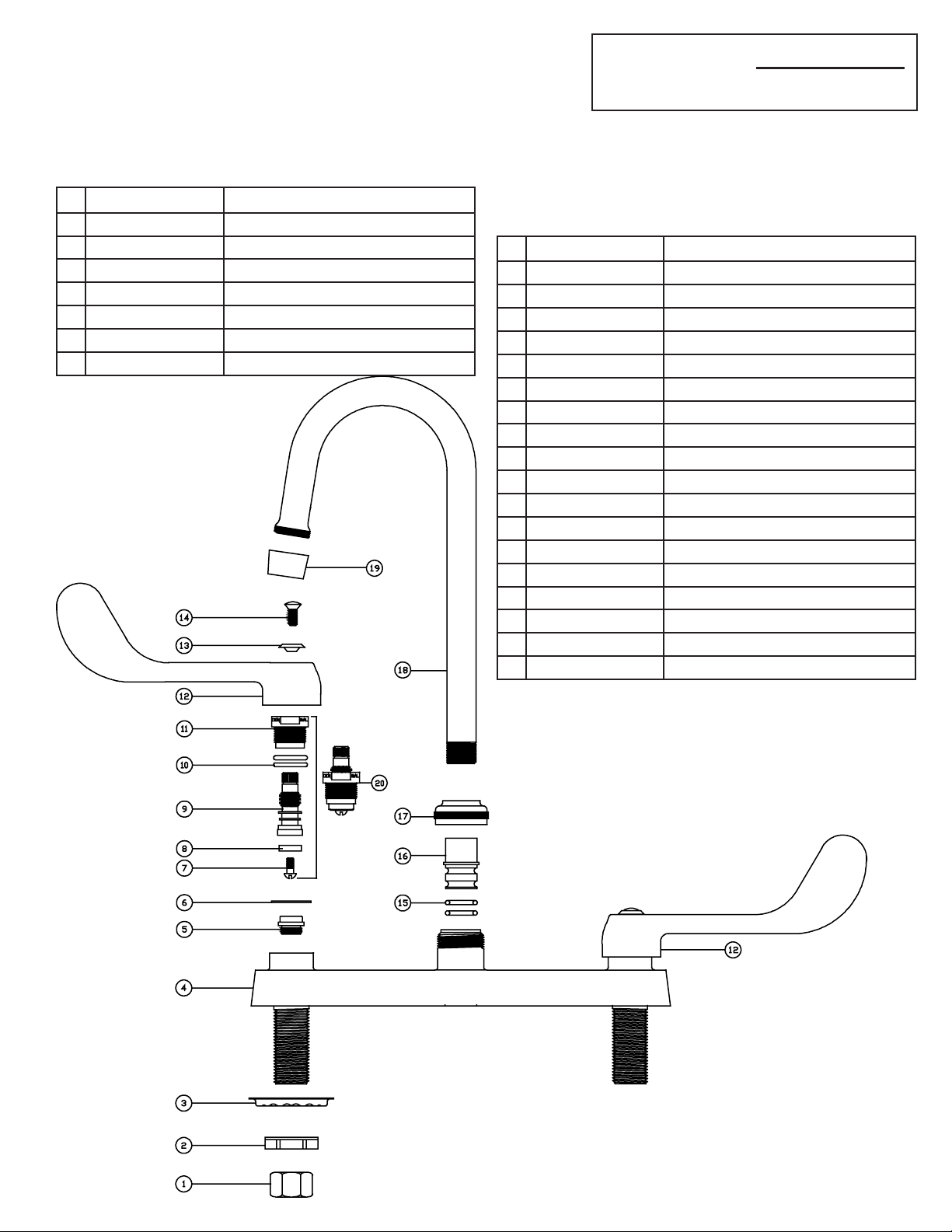

Parts Breakdown
# Part Description
8 901-WNN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
10 1038-453 O-Ring
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 4149-02-BLUE 6” Brass Handle
12 4149-02-RED ^” Brass Handle
13 107-FB Blue Plastic Index
13 107-FR Red Plastic Index
14 PF-107-FNP Brass Phillips Head Screw
15 1038-KN O-Ring
16 PF-741-DOA Brass Spout Adapter
17 PF-782-DES Brass Spout Nut
18 PF-157-GA-02 Brass Gooseneck Spout
19 30-M Female Aerator
20 SU-453-EL Left Thread O-Ring Stem Asssembly
20 SU-453-ER Right Thread O-Ring Stem Assembly
The parts listed in the parts breakdown above
may not be offered separately as replacement
parts. Please review the Replacement Parts
page for the authorized replacement parts that
are available for this item.
