CENTRAL BRASS 0045-A User Manual

Download

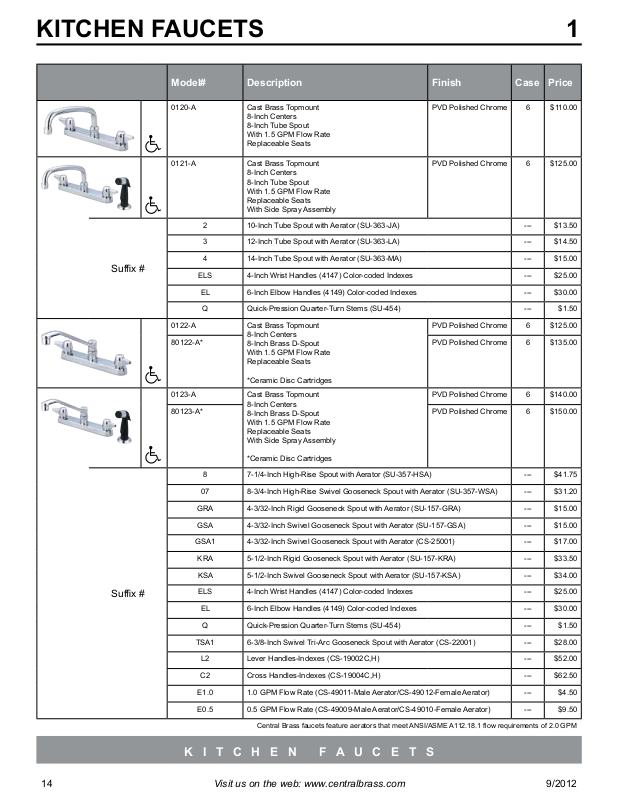

Page 1
Model# Description Finish Case Price
1KITCHEN FAUCETS
Sufx #
0120-A Cast Brass Topmount
0121-A Cast Brass Topmount
2 10-Inch Tube Spout with Aerator (SU-363-JA) --- $13.50
3 12-Inch Tube Spout with Aerator (SU-363-LA) --- $14.50
4 14-Inch Tube Spout with Aerator (SU-363-MA) --- $15.00
ELS 4-Inch Wrist Handles (4147) Color-coded Indexes --- $25.00
EL 6-Inch Elbow Handles (4149) Color-coded Indexes --- $30.00
Q Quick-Pression Quarter-Turn Stems (SU-454) --- $1.50
0122-A Cast Brass Topmount
80122-A* PVD Polished Chrome 6 $135.00
0123-A Cast Brass Topmount
80123-A* PVD Polished Chrome 6 $150.00
With 1.5 GPM Flow Rate
Replaceable Seats
With 1.5 GPM Flow Rate
Replaceable Seats
With Side Spray Assembly
With 1.5 GPM Flow Rate
Replaceable Seats
*Ceramic Disc Cartridges
With 1.5 GPM Flow Rate
Replaceable Seats
With Side Spray Assembly
PVD Polished Chrome 6 $110.00
PVD Polished Chrome 6 $125.00
PVD Polished Chrome 6 $125.00
PVD Polished Chrome 6 $140.00
Sufx #
*Ceramic Disc Cartridges
8 7-1/4-Inch High-Rise Spout with Aerator (SU-357-HSA) --- $41.75
07 8-3/4-Inch High-Rise Swivel Gooseneck Spout with Aerator (SU-357-WSA) --- $31.20
GRA 4-3/32-Inch Rigid Gooseneck Spout with Aerator (SU-157-GRA) --- $15.00
GSA 4-3/32-Inch Swivel Gooseneck Spout with Aerator (SU-157-GSA) --- $15.00
GSA1 4-3/32-Inch Swivel Gooseneck Spout with Aerator (CS-25001) --- $17.00
KRA 5-1/2-Inch Rigid Gooseneck Spout with Aerator (SU-157-KRA) --- $33.50
KSA 5-1/2-Inch Swivel Gooseneck Spout with Aerator (SU-157-KSA) --- $34.00
ELS 4-Inch Wrist Handles (4147) Color-coded Indexes --- $25.00
EL 6-Inch Elbow Handles (4149) Color-coded Indexes --- $30.00
Q Quick-Pression Quarter-Turn Stems (SU-454) --- $1.50
TSA1 6-3/8-Inch Swivel Tri-Arc Gooseneck Spout with Aerator (CS-22001) --- $28.00
L2 Lever Handles-Indexes (CS-19002C,H) --- $52.00
C2 Cross Handles-Indexes (CS-19004C,H) --- $62.50
E1.0 1.0 GPM Flow Rate (CS-49011-Male Aerator/CS-49012-Female Aerator) --- $4.50
E0.5 0.5 GPM Flow Rate (CS-49009-Male Aerator/CS-49010-Female Aerator) --- $9.50
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
14
KITCHEN FAUCETS
Visit us on the web: www.centralbrass.com
9/2012
Page 2
KITCHEN FAUCETS 1
Model# Description Finish Case Price
0122-GSAEL Cast Brass Topmount Kitchen Faucet
0122-GSAELS Cast Brass Topmount Kitchen Faucet
80122-GSAELS* PVD Polished Chrome 6 $175.00
80122-GRAELS Cast Brass Topmount Kitchen Faucet
80122-TSA1L2 Cast Brass Topmount Kitchen Faucet
Swivel Gooseneck Spout With 1.5 GPM Flow Rate 6-Inch Elbow Handles (4149) Color Coded indexes
Replaceable Seats
Swivel Gooseneck Spout With 1.5 GPM Flow Rate 4-Inch Wrist Handles (4147) Color Coded indexes
Replaceable Seats
*Ceramic Disc Cartridges
With 1.5 GPM Flow Rate 4-Inch Wrist Handles (4147) Color Coded indexes
Ceramic Disc Cartridges
8-Inch Centers
Cast Brass Body 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Lever Handles Ceramic Disc Cartridges
PVD Polished Chrome 6 $170.00
PVD Polished Chrome 6 $165.00
PVD Polished Chrome 6 $175.00
PVD Polished Chrome 6 $215.00
80123-TSA1L2 Cast Brass Topmount Kitchen Faucet
8-Inch Centers
Cast Brass Body 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Lever Handles With Side Spray Assembly Ceramic Disc Cartridges
80122-TSA1C2 Cast Brass Topmount Kitchen Faucet
8-Inch Centers
Cast Brass Body 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Cross Handles Ceramic Disc Cartridges
80123-TSA1C2 Cast Brass Topmount Kitchen Faucet
8-Inch Centers
Cast Brass Body 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Cross Handles With Side Spray Assembly Ceramic Disc Cartridges
PVD Polished Chrome 6 $230.00
PVD Polished Chrome 6 $225.50
PVD Polished Chrome 6 $240.50
9/2012
KITCHEN FAUCETS
Visit us on the web: www.centralbrass.com
15
Page 3
Model# Description Finish Case
1KITCHEN FAUCETS
0125-A Cast Brass Topmount Kitchen Faucet
With 1.5 GPM Flow Rate
Replaceable Seats
0126-A Cast Brass Topmount Kitchen Faucet
With 1.5 GPM Flow Rate
Replaceable Seats
With Side Spray Assembly
0127-A Cast Brass Topmount Kitchen Faucet
With 1.5 GPM Flow Rate
Replaceable Seats
0128-A Cast Brass Topmount Kitchen Faucet
With 1.5 GPM Flow Rate
Replaceable Seats
With Side Spray Assembly
0148-A Shell Topmount Kitchen Faucet
Cast Brass Underbody
With 1.5 GPM Flow Rate
Replaceable Seats
0149-A Shell Topmount Kitchen Faucet
Cast Brass Underbody
With 1.5 GPM Flow Rate
Replaceable Seats
With Side Spray Assembly
PVD Polished Chrome 6 $128.00
PVD Polished Chrome 6 $148.00
PVD Polished Chrome 6 $145.00
PVD Polished Chrome 6 $165.00
PVD Polished Chrome 6 $135.00
PVD Polished Chrome 6 $155.00
Sufx #
0146-A Shell Topmount Kitchen Faucet
Cast Brass Underbody
With 1.5 GPM Flow Rate
Replaceable Seats
0147-A Shell Topmount Kitchen Faucet
Cast Brass Underbody
With 1.5 GPM Flow Rate
Replaceable Seats
With Side Spray Assembly
2 10-Inch Tube Spout with Aerator (SU-363-JA) --- $13.50
3 12-Inch Tube Spout with Aerator (SU-363-LA) --- $14.50
4 14-Inch Tube Spout with Aerator (SU-363-MA) --- $15.00
8 7-1/4-Inch High-Rise Spout with Aerator (SU-357-HSA) --- $41.75
Applicable Products Meet California AB1953 / Vermont S152 Legislation
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
KITCHEN FAUCETS
PVD Polished Chrome 6 $115.00
PVD Polished Chrome 6 $135.00
16
Visit us on the web: www.centralbrass.com
9/2012
Page 4
Model# Description Finish Case Price
1KITCHEN FAUCETS
0072-A-Q Concealed Ledge Kitchen Faucet
With 1.5 GPM Flow Rate 1/2-14 NPS Female Threads on Inlets Quick-Pression Quarter-Turn Stems
Replaceable Seats Note: Mounting Thickness Cannot Exceed 1/8”
0073-A-Q Concealed Ledge Kitchen Faucet
With 1.5 GPM Flow Rate 1/2-14 NPS Female Threads on Inlets Quick-Pression Quarter-Turn Stems
Replaceable Seats
With Side Spray Assembly
Note: Mounting Thickness Cannot Exceed 1/8”
1172-A-Q Concealed Ledge Kitchen Faucet
Flexible Hose Connections 6 to 24-Inches
8-Inch Brass D-Spout
With 1.5 GPM Flow Rate 1/2-14 NPS Male Threads on Inlets Quick-Pression Quarter-Turn Stems
Replaceable Seats Note: Mounting Thickness Cannot Exceed 1-3/8”
1173-A-Q Concealed Ledge Kitchen Faucet
Flexible Hose Connections 6 to 24-Inches
8-Inch Brass D-Spout
With 1.5 GPM Flow Rate 1/2-14 NPS Male Threads on Inlets Quick-Pression Quarter-Turn Stems
Replaceable Seats
With Side Spray Assembly
Note: Mounting Thickness Cannot Exceed 1-3/8”
PVD Polished Chrome 6 $128.00
PVD Polished Chrome 6 $151.00
PVD Polished Chrome 6 $152.00
PVD Polished Chrome 6 $175.00
Sufx #
8 7-1/4-Inch High-Rise Spout with Aerator (SU-357-HSA) --- $41.75
07 8-3/4-Inch High-Rise Swivel Gooseneck Spout with Aerator (SU-357-WSA) --- $31.20
GRA 4-3/32-Inch Rigid Gooseneck Spout with Aerator (SU-157-GRA) --- $15.00
GSA 4-3/32-Inch Swivel Gooseneck Spout with Aerator (SU-157-GSA) --- $15.00
GSA1 4-3/32-Inch Swivel Gooseneck Spout with Aerator (CS-25001) --- $17.00
KRA 5-1/2-Inch Rigid Gooseneck Spout with Aerator (SU-157-KRA) --- $33.50
KSA 5-1/2-Inch Swivel Gooseneck Spout with Aerator (SU-157-KSA) --- $34.00
ELS 4-Inch Wrist Handles (4147) Color-coded Indexes --- $25.00
EL 6-Inch Elbow Handles (4149) Color-coded Indexes --- $30.00
TSA1 6-3/8-Inch Swivel Tri-Arc Gooseneck Spout with Aerator (CS-22001) --- $28.00
L1 Widespread Lever Handles-Indexes (CS-19001C,H) --- $57.50
C1 Widespread Cross Handles-Indexes (CS-19003C,H) --- $67.50
E1.0 1.0 GPM Flow Rate (CS-49011-Male Aerator/CS-49012-Female Aerator) --- $4.50
E0.5 0.5 GPM Flow Rate (CS-49009-Male Aerator/CS-49010-Female Aerator) --- $9.50
Applicable Products Meet California AB1953 / Vermont S152 Legislation
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
KITCHEN FAUCETS
9/2012
Visit us on the web: www.centralbrass.com
17
Page 5
KITCHEN FAUCETS 1
Model# Description Finish Case Price
0072-GSAEL-Q Cast Brass Concealed Ledge Kitchen Faucet
1/2-14 NPS Female Threads Swivel Gooseneck Spout With 1.5 GPM Flow Rate 6-Inch Elbow Handles (4149) Color-coded Indexes Quick-Pression Quarter-Turn Stems
Replaceable Seats Note: Mounting Thickness Cannot Exceed 1/8”
0072-GSAELS-Q Cast Brass Concealed Ledge Kitchen Faucet
8-Inch Centers
1/2-14 NPS Female Threads Swivel Gooseneck Spout With 1.5 GPM Flow Rate 4-Inch Wrist Handles (4147) Color Coded Indexes Quick-Pression Quarter-Turn Stems
Replaceable Seats Note: Mounting Thickness Cannot Exceed 1/8”
1172-GSAEL-Q Cast Brass Concealed Widespread Kitchen Faucet
Flexible Hose Connections 6 to 24-Inches 1/2-14 NPS Female Threads Swivel Gooseneck Spout With 1.5 GPM Flow Rate 6-Inch Elbow Handles (4149) Color Coded Indexes Quick-Pression Quarter-Turn Stems
Replaceable Seats Note: Mounting Thickness Cannot Exceed 1-3/8”
PVD Polished Chrome 6 $173.00
PVD Polished Chrome 6 $168.00
PVD Polished Chrome 6 $197.00
1172-GSAELS-Q Cast Brass Concealed Widespread Kitchen Faucet
Flexible Hose Connections 6 to 24-Inches 1/2-14 NPS Female Threads Swivel Gooseneck Spout With 1.5 GPM Flow Rate 4-Inch Wrist Handles (4147) Color Coded Indexes Quick-Pression Quarter-Turn Stems
Replaceable Seats Note: Mounting Thickness Cannot Exceed 1-3/8”
PVD Polished Chrome 6 $192.00
18
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
Applicable Products Meet California AB1953 / Vermont S152 Legislation
KITCHEN FAUCETS
Visit us on the web: www.centralbrass.com
9/2012
Page 6
Model# Description Finish Case Price
1KITCHEN FAUCETS
81172-TSA1L1 Concealed Kitchen Faucet
6 to 24-Inch Centers 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Lever Handles Ceramic Disc Cartridges Note: Mounting Thickness Cannot Exceed 1-3/8”
81173-TSA1L1 Concealed Kitchen Faucet
6 to 24-Inch Centers 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Lever Handles With Side Spray Assembly Ceramic Disc Cartridges Note: Mounting Thickness Cannot Exceed 1-3/8”
81172-TSA1C1 Concealed Kitchen Faucet
6 to 24-Inch Centers 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Cross Handles Ceramic Disc Cartridges Note: Mounting Thickness Cannot Exceed 1-3/8”
PVD Polished Chrome 6 $246.00
PVD Polished Chrome 6 $269.00
PVD Polished Chrome 6 $256.00
9/2012
81173-TSA1C1 Concealed Kitchen Faucet
6 to 24-Inch Centers 6-3/8-Inch Swivel Tri-Arc Spout With 1.5 GPM Flow Rate
Cross Handles With Side Spray Assembly Ceramic Disc Cartridges Note: Mounting Thickness Cannot Exceed 1-3/8”
Applicable Products Meet California AB1953 / Vermont S152 Legislation
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
KITCHEN FAUCETS
Visit us on the web: www.centralbrass.com
PVD Polished Chrome 6 $279.00
19
Page 7
Model# Description Finish Case Price
1KITCHEN FAUCETS
Sufx #
0045-A Ledge Sink Kitchen Faucet
0047-TA Wallmount Kitchen Faucet
80047-TA* PVD Polished Chrome 6 $129.00
0047-UA Wallmount Ktichen Faucet
80047-UA* PVD Polished Chrome 6 $129.00
0047-UA3 Wallmount Ktichen Faucet
80047-UA3* PVD Polished Chrome 6 $143.50
1 8-Inch Tube Spout with Aerator (SU-363-RA) --- $8.50
2 10-Inch Tube Spout with Aerator (SU-363-JA) --- $13.50
3 12-Inch Tube Spout with Aerators (SU-363-LA) --- $14.50
4 14-Inch Tube Spout with Aerators (SU-363-MA) --- $15.00
6 8-Inch Brass D-Spout with Aerator (SU-365-CA) --- $15.50
9 5-Inch Cast Brass Spout with Aerator (SU-2923-A) --- $20.40
GRA 4-3/32-Inch Rigid Gooseneck Spout with Aerator (SU-157-GRA) --- $15.00
GSA 4-3/32-Inch Swivel Gooseneck Spout with Aerator (SU-157-GSA) --- $15.00
GSA1 4-3/32-Inch Swivel Gooseneck Spout with Aerator (CS-25001) --- $17.00
KRA 5-1/2-Inch Rigid Gooseneck Spout with Aerator (SU-157-KRA) --- $33.50
KSA 5-1/2-Inch Swivel Gooseneck Spout with Aerator (SU-157-KSA) --- $34.00
H Hose Adapter (PF-784-C) --- $1.00
ELS 4-Inch Wrist Handles (4147) Color-coded Indexes --- $25.00
EL 6-Inch Elbow Handles (4149) Color-coded Indexes --- $30.00
S 1/2-14 NPS Female Inlet (SU-2806)
Q Quick-Pression Quarter-Turn Stems (SU-454) --- $1.50
E1.0 1.0 GPM Flow Rate (CS-49011-Male Aerator/CS-49012-Female Aerator) --- $4.50
E0.5 0.5 GPM Flow Rate (CS-49009-Male Aerator/CS-49010-Female Aerator) --- $9.50
1/2-14 NPS Female Elbow Inlet
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats
1/2-14 NPT Male Shank with Adjustable Flange
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats
*Ceramic Disc Cartridges
1/2-14 NPS Female Inlets
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats
*Ceramic Disc Cartridges
1/2-14 NPS Female Inlets
12-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats
*Ceramic Disc Cartridges
(Flanges Adjustable 6-1/2 to 9-1/2-Inch Centers)
PVD Polished Chrome 6 $220.00
PVD Polished Chrome 6 $119.00
PVD Polished Chrome 6 $119.00
PVD Polished Chrome 6 $133.50
--- $15.00
20
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
Applicable Products Meet California AB1953 / Vermont S152 Legislation
KITCHEN FAUCETS
Visit us on the web: www.centralbrass.com
9/2012
Page 8
KITCHEN FAUCETS 1
Model# Description Finish Case Price
0046-A Ledge Sink Kitchen Faucet
0048-TA Wallmount Kitchen Faucet
80048-TA* PVD Polished Chrome 6 $133.00
0048-UA Wallmount Kitchen Faucet
80048-UA* PVD Polished Chrome 6 $133.00
0048-UA3 Wallmount Kitchen Faucet
80048-UA3* PVD Polished Chrome 6 $147.50
1/2-14 NPS Female Elbow Inlet
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats Brass Soap Dish
1/2-14 NPT Male Shank with Adjustable Flange
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats Brass Soap Dish
*Ceramic Disc Cartridges
1/2-14 NPS Female Inlets
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats Brass Soap Dish
*Ceramic Disc Cartridges
1/2-14 NPS Female Inlets
6-Inch Tube Spout
With 1.5 GPM Flow Rate
Replaceable Seats Brass Soap Dish
PVD Polished Chrome 6 $228.00
PVD Polished Chrome 6 $123.00
PVD Polished Chrome 6 $123.00
PVD Polished Chrome 6 $137.50
Sufx #
*Ceramic Disc Cartridges
1 8-Inch Tube Spout with Aerator (SU-363-RA) --- $8.50
2 10-Inch Tube Spout with Aerator (SU-363-JA) --- $13.50
3 12-Inch Tube Spout with Aerator (SU-363-LA) --- $14.50
4 14-Inch Tube Spout with Aerator (SU-363-MA) --- $15.00
6 8-Inch Brass D-Spout with Aerator (SU-365-CA) --- $15.50
9 5-Inch Cast Brass Spout with Aerator (SU-2923-A) --- $20.40
H Hose Adapter (PF-784-C) --- $1.00
ELS 4-Inch Wrist Handles (4147) Color-coded Indexes --- $25.00
EL 6-Inch Elbow Handles (4149) Color-coded Indexes --- $30.00
S 1/2-14 NPS Female Inlet (SU-2806)
(Flanges Adjustable 6-1/2 to 9-1/2-Inch Centers)
Q Quick-Pression Quarter-Turn Stems (SU-454) --- $1.50
E1.0 1.0 GPM Flow Rate (CS-49011-Male Aerator/CS-49012-Female Aerator) --- $4.50
E0.5 0.5 GPM Flow Rate (CS-49009-Male Aerator/CS-49010-Female Aerator) --- $9.50
Applicable Products Meet California AB1953 / Vermont S152 Legislation
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
--- $15.00
9/2012
KITCHEN FAUCETS
Visit us on the web: www.centralbrass.com
21
Page 9
Model# Description Finish Case Price
1KITCHEN FAUCETS
0047-TGSAEL Cast Brass Wallmount Kitchen Faucet
1/2-14 NPT Male Shank 6-Inch Elbow Handles (4149) Color-coded Indexes Swivel Gooseneck Spout With 1.5 GPM Flow Rate
Replaceable Seats
0047-TGSAELS Cast Brass Wallmount Kitchen Faucet
1/2-14 NPT Male Shank 4-Inch Wrist Handles (4147) Color-coded Indexes Swivel Gooseneck Spout With 1.5 GPM Flow Rate
Replaceable Seats
0047-UGSAEL Cast Brass Wallmount Kitchen Faucet
1/2-14 NPS Female Inlets 6-Inch Elbow Handles (4149) Color-coded Indexes Swivel Gooseneck Spout With 1.5 GPM Flow Rate
Replaceable Seats
0047-UGSAELS Cast Brass Wallmount Kitchen Faucet
1/2-14 NPS Female Inlets 4-Inch Wrist Handles (4147) Color-coded Indexes Swivel Gooseneck Spout With 1.5 GPM Flow Rate
Replaceable Seats
PVD Polished Chrome 6 $164.00
PVD Polished Chrome 6 $159.00
PVD Polished Chrome 6 $164.00
PVD Polished Chrome 6 $159.00
Sufx #
GRA 4-3/32-Inch Rigid Gooseneck Spout with Aerator (SU-157-GRA) --- $15.00
S 1/2-14 NPS Female Inlet (SU-2806)
(Flanges Adjustable 6-1/2 to 9-1/2-Inch Centers)
Q Quick-Pression Quarter-Turn Stems (SU-454) --- $1.50
Applicable Products Meet California AB1953 / Vermont S152 Legislation
Central Brass faucets feature aerators that meet ANSI/ASME A112.18.1 ow requirements of 2.0 GPM
--- $15.00
KITCHEN FAUCETS
22
Visit us on the web: www.centralbrass.com
9/2012
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
