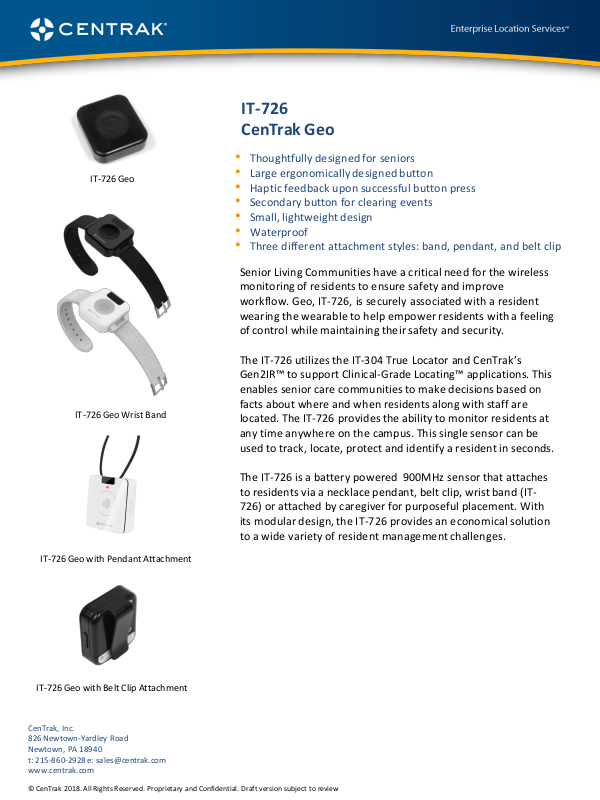

Centrak IT726 User Manual
© CenTrak 2015. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.
IT-726
CenTrak Geo
• Thoughtfully designed for seniors
• Large ergonomically designed button
• Haptic feedback upon successful button press
• Secondary button for clearing events
• Small, lightweight design
• Waterproof
• Three different attachment styles: band, pendant, and belt clip
Senior Living Communities have a critical need for the wireless
monitoring of residents to ensure safety and improve
workflow. Geo, IT-726, is securely associated with a resident
wearing the wearable to help empower residents with a feeling
of control while maintaining their safety and security.
The IT-726 utilizes the IT-304 True Locator and CenTrak’s
Gen2IR™ to support Clinical-Grade Locating™ applications. This
enables senior care communities to make decisions based on
facts about where and when residents along with staff are
located. The IT-726 provides the ability to monitor residents at
any time anywhere on the campus. This single sensor can be
used to track, locate, protect and identify a resident in seconds.
The IT-726 is a battery powered 900MHz sensor that attaches
to residents via a necklace pendant, belt clip, wrist band (IT-
726) or attached by caregiver for purposeful placement. With
its modular design, the IT-726 provides an economical solution
to a wide variety of resident management challenges.
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
© CenTrak 2018. All Rights Reserved. Proprietary and Confidential. Draft version subject to review
IT-726 Geo
IT-726 Geo Wrist Band
IT-726 Geo with Pendant Attachment
IT-726 Geo with Belt Clip Attachment
© CenTrak 2015. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.
Technical Specifications
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
IT-726 Geo
© CenTrak 2018. All Rights Reserved. Proprietary and Confidential. Draft version subject to review
Operation
FCC Operating Frequency (Americas) 905-918 MHz
CE Operating Range (Europe, Middle East) 868-870 MHz
FCC Operating Range (Australia/NZ) 920-926 MHz
Buttons Yes, 2
LED Indicator Yes
Gen2IR Sensor Yes
Low Frequency Sensor Yes
Report Rate Adjustable (90 seconds minimum)
Bracket Attachment
Dimensions
Case Length 1.65 in (41.8 mm)
Case Height (thickness) 0.54 in (13.7 mm)
Case Width 1.5 in (38.2 mm)
Case Weight (with battery) 0.81 oz (23g)
Construction ABS
Environmental/Cleaning
Operating Temperature (Tag) -10 °C to 75 °C
Storage Temperature (Tag) -25 °C to 75 °C (for best battery life store at
room temperature or below)
IP Rating IPX6
Power
Battery Type Lithium Manganese
Battery Replacement Yes
IT-726 Geo
IT-726 Geo Wrist Band
IT-726 Geo with Pendant Attachment
IT-726 Geo with Belt Clip Attachment
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device
may not cause harmful interference, and 2) this device must accept any interference received, including interference that may
cause undesired operation. Modi fying or tampering with the transceiver’s or receiver’s internal components c an cause a
malfunction, invalidate the warranty, and will void FCC authorization to
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’
utilisateur du dispositive doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible
de compromettre le fonctionnement du dispositif.
