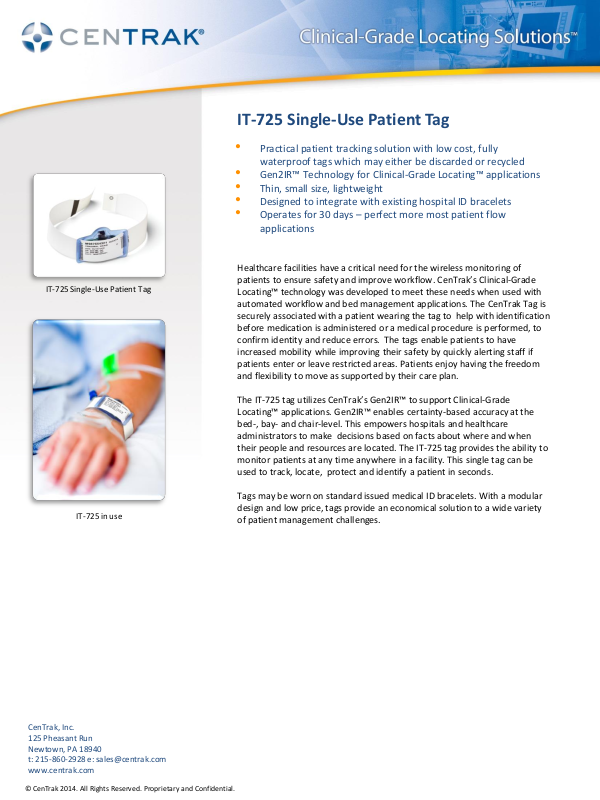

IT-725 Single-Use Patient Tag

IT-725 in use

IT-725 Single-Use Patient Tag

• Practical patient tracking solution with low cost, fully

waterproof tags which may either be discarded or recycled

• Gen2IR™ Technology for Clinical-Grade Locating™ applications

• Thin, small size, lightweight

• Designed to integrate with existing hospital ID bracelets

• Operates for 30 days – perfect more most patient flow

applications

Healthcare facilities have a critical need for the wireless monitoring of patients to ensure safety and improve workflow. CenTrak’s Clinical-Grade

Locating™ technology was developed to meet these needs when used with

automated workflow and bed management applications. The CenTrak Tag is securely associated with a patient wearing the tag to help with identification

before medication is administered or a medical procedure is performed, to

confirm identity and reduce errors. The tags enable patients to have increased mobility while improving their safety by quickly alerting staff if patients enter or leave restricted areas. Patients enjoy having the freedom and flexibility to move as supported by their care plan.

The IT-725 tag utilizes CenTrak’s Gen2IR™ to support Clinical-Grade Locating™ applications. Gen2IR™ enables certainty-based accuracy at the bed-, bay- and chair-level. This empowers hospitals and healthcare administrators to make decisions based on facts about where and when their people and resources are located. The IT-725 tag provides the ability to monitor patients at any time anywhere in a facility. This single tag can be used to track, locate, protect and identify a patient in seconds.

Tags may be worn on standard issued medical ID bracelets. With a modular design and low price, tags provide an economical solution to a wide variety of patient management challenges.

CenTrak, Inc. 125 Pheasant Run Newtown, PA 18940 t: 215-860-2928 e: sales@centrak.com www.centrak.com

IT-725 Single-Use Patient Tag

IT-725, IT-725P,IT725S Single-Use Patient Tag

Technical Specifications

Operation

FCC Operating Frequency Range 902-928 MHz (Model #IT-725)

CE Operating Frequency Range 868-870 MHz (Model #ITEU-725)

Group code & tag ID codes 8M code5

Outdoor transmission range > 300 feet

Average transmission power 2 uW (average)

Gen2IR sensor YES

Motion Sensor YES

Tag Dimensions

Case width 1.5 in (38.1 mm)

Case height 1.98 in (50.3 mm)

Case width 0.6 in (15 mm)

Case weight (with battery) 0.77 oz (21.8 g)

Construction Soft PVC

Environmental/Cleaning

IT-725 in use

This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful

CenTrak, Inc. 125 Pheasant Run Newtown, PA 18940 t: 215-860-2928 e: sales@centrak.com www.centrak.com

interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal c omponents can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.

L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

Operating Temperature 0 C to +70 C

Storage temperature -25 C to +80 C

Sealing Splash & Water resistant

Power

Battery type Lithium CR2032

Smart tag feature Low battery indication
