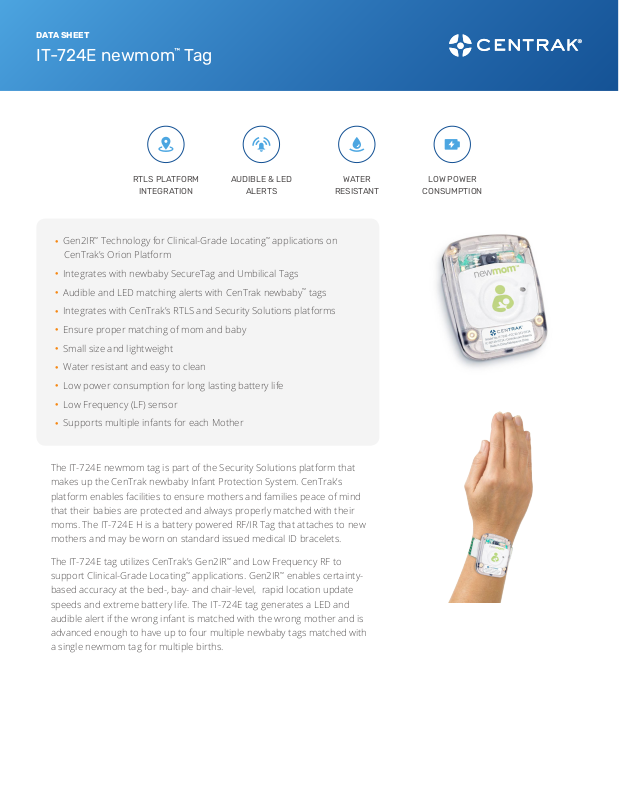

DATA SHEET
IT-724E newmom™ Tag
RTLS PLATFORM
INTEGRATION
•
Gen2IR™ Technology for Clinical-Grade Locating™ applications on
CenTrak’s Orion Platform
•
Integrates with newbaby SecureTag and Umbilical Tags
•
Audible and LED matching alerts with CenTrak newbaby™ tags
•
Integrates with CenTrak’s RTLS and Security Solutions platforms
•
Ensure proper matching of mom and baby
•
Small size and lightweight
•
Water resistant and easy to clean
•
Low power consumption for long lasting battery life
•
Low Frequency (LF) sensor
•
Supports multiple infants for each Mother
The IT-724E newmom tag is part of the Security Solutions platform that
makes up the CenTrak newbaby Infant Protection System. CenTrak’s
platform enables facilities to ensure mothers and families peace of mind
that their babies are protected and always properly matched with their
moms. The IT-724E H is a battery powered RF/IR Tag that attaches to new
mothers and may be worn on standard issued medical ID bracelets.
AUDIBLE & LED
ALERTS
WATER
RESISTANT
LOW POWER
CONSUMPTION
The IT-724E tag utilizes CenTrak’s Gen2IR™ and Low Frequency RF to
support Clinical-Grade Locating™ applications. Gen2IR™ enables certaintybased accuracy at the bed-, bay- and chair-level, rapid location update
speeds and extreme battery life. The IT-724E tag generates a LED and
audible alert if the wrong infant is matched with the wrong mother and is
advanced enough to have up to four multiple newbaby tags matched with
a single newmom tag for multiple births.
IT-724E newmom™ Tag
Technical Specifications
Operation
FCC Operating Frequency Range 902-928 MHz (Model #IT-723E)
CE Operating Frequency Range 868-870 MHz (Model #ITEU-723E)
Group code & tag ID codes 8M codes
Outdoor transmission range > 300 feet
Average transmission power 2 uW (average)
Gen2IR sensor YES
Low Frequency sensor YES, 125 KHz
LED remote activation, low battery
Smart tag features
indicator, Audible and LED matching
alerts
Motion Sensor YES
Tag Dimensions
Case width 1.5 in (38.1 mm)
Case height 1.98 in (50.3 mm)
Case width 0.6 in (15 mm)
Case weight (with battery) 0.77 oz (21.8 g)
Construction ABS & Poly Carbonate mixture
Attachment Options
Wrist Strap Model # ITA-754
Power
Battery type Lithium CR2430
Smart tag feature Low battery indication
Environmental/Cleaning
Operating
Temperature
Storage
temperature
Sealing
0 C to +70 C
-25 C to +80 C
Splash & Water
resistant
Wipe cleaning
method only.
Tag cleaning
method
See CenTrak
Tag Disinfection
Guide for
Instructions.
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the
warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique
reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Contact Us: www.centrak.com | marketing@centrak.com | 800-515-2928
© CenTrak 2019. All rights reserved. Enterprise Location Services™, Gen2IR™, Clinical-Grade Locating™, Security Solutions™,
and CenTrak® are registered trademarks of CenTrak Inc.
IT-724E 051019
