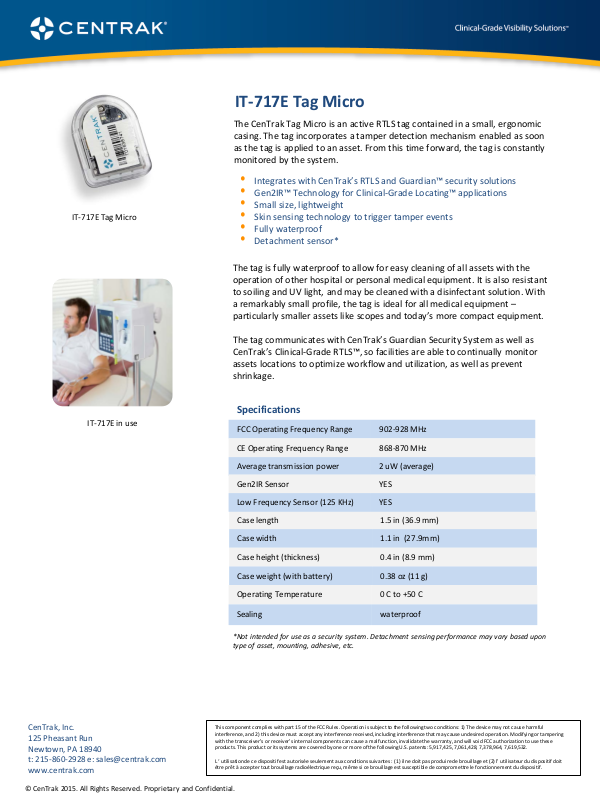

IT-717E Tag Micro

IT-717E in use

IT-717E Tag Micro

The CenTrak Tag Micro is an active RTLS tag contained in a small, ergonomic casing. The tag incorporates a tamper detection mechanism enabled as soon as the tag is applied to an asset. From this time forward, the tag is constantly monitored by the system.

• Integrates with CenTrak’s RTLS and Guardian™ security solutions

• Gen2IR™ Technology for Clinical-Grade Locating™ applications

• Small size, lightweight

• Skin sensing technology to trigger tamper events

• Fully waterproof

• Detachment sensor*

The tag is fully waterproof to allow for easy cleaning of all assets with the operation of other hospital or personal medical equipment. It is also resistant to soiling and UV light, and may be cleaned with a disinfectant solution. With a remarkably small profile, the tag is ideal for all medical equipment – particularly smaller assets like scopes and today’s more compact equipment.

The tag communicates with CenTrak’s Guardian Security System as well as CenTrak’s Clinical-Grade RTLS™, so facilities are able to continually monitor assets locations to optimize workflow and utilization, as well as prevent shrinkage.

Specifications

FCC Operating Frequency Range 902-928 MHz

CE Operating Frequency Range 868-870 MHz

Average transmission power 2 uW (average)

Gen2IR Sensor YES

Low Frequency Sensor (125 KHz) YES

Case length 1.5 in (36.9 mm)

Case width 1.1 in (27.9mm)

Case height (thickness) 0.4 in (8.9 mm)

Case weight (with battery) 0.38 oz (11 g)

Operating Temperature 0 C to +50 C

CenTrak, Inc. 125 Pheasant Run Newtown, PA 18940 t: 215-860-2928 e: sales@centrak.com www.centrak.com

This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.

L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouill age est susceptible de comprom ettre le fonctionnement du dispositif.

Sealing waterproof

*Not intended for use as a security system. Detachment sensing performance may vary based upon type of asset, mounting, adhesive, etc.
