CellarPro AH6500 User Manual

C O N G R A T U L A T I O N S !

Thank you for purchasing a new CellarPro cooling system.

Please take a minute to read through this Owner’s Manual before you
unpack, install and turn on your Cooling Unit.

Also please look through the boxes you receive with your Air Handler
shipment to make sure you have received the correct components you
ordered and that they are all functioning before the installation.

Box 1 – Cooling unit and Accessories

Box 2 – Duct Plates and Optional Humidifier

If you have any questions about your new cooling unit, it is likely that you will find
the answers in this Owner’s Manual. We also have more information
on our website, including the latest version of the Owner’s
Manual, at www.cellarpro.com/customerservice .

If you still have questions, please don’t hesitate to contact your dealer or
CellarPro directly. We can be reached during normal business hours at

707.794.8000. You also may contact us anytime via email at [email protected].

Contact Information:

CellarPro Cooling Systems

531 Mercantile Drive

Cotati, CA 94931

707.794.8000

Email: [email protected]

Website: www.cellarprocoolingsystems.com

Table of Contents

I. Specifications, Cut Sheets, and Cellar Construction 4

II. Installation Instructions 9

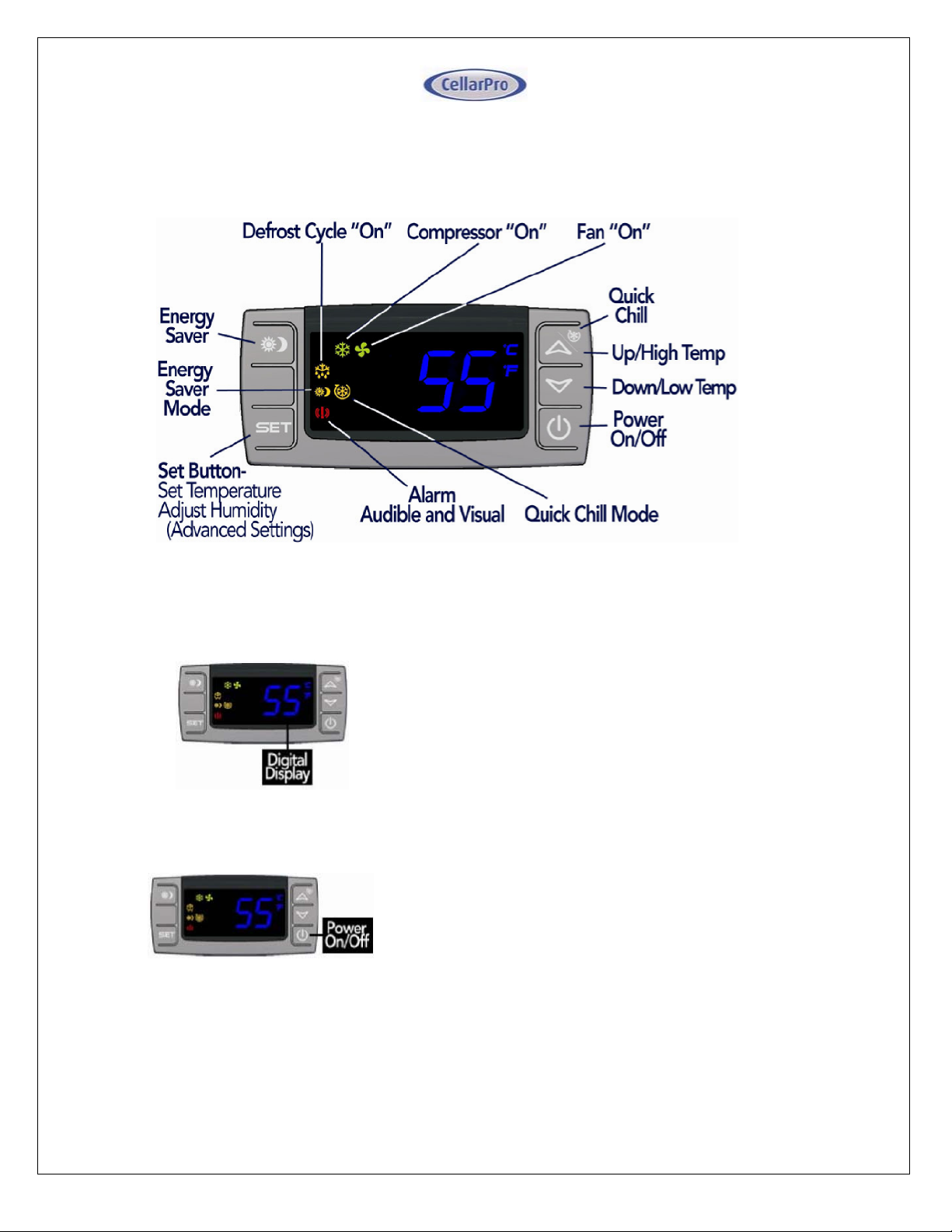

III. Operating Instructions 24

IV. Troubleshooting 33

V. Limited Warranty 39

VI. Support and Data Service Sheet (Split Configuration) 40

3

V

I. Specifications, Cut Sheets and Cellar Construction

The following tables will provide information on the dimensions of the unit and how best
to mount or locate the various models available.

Specifications

Horizontal Self Contained

No Humdifier With Humidifier

Dimensions

Model

WxDxH (inches)

AH6500 18.6 x 37.1 x 19.3 161 33.0 x 37.1 x 18.5 181
AH8500 18.6 x 37.1 x 19.3 170 33.0 x 37.1 x 18.5 190

No Humdifier With Humidifier

Dimensions

Model

WxDxH (inches)

AH6500 18.6 x 18.6 x 37.8 161 33.0 x 18.6 x 37.8 181
AH8500 18.6 x 18.6 x 37.8 170 33.0 x 18.6 x 37.8 190

Weight

(lbs)

Dimensions WxDxH

(inches)

ertical Self Contained

Weight

(lbs)

Dimensions WxDxH

(inches)

Weight

(lbs)

Weight

(lbs)

Split System Evaporator Module

No Humdifier With Humidifier

Model

Dimensions

WxDxH (inches)

Weight

(lbs)

Dimensions WxDxH

(inches)

Weight

(lbs)

AH6500S 18.6 x 18.6 x 19.3 60 33.0 x 18.6 x 19.3 80
AH8500S 18.6 x 18.6 x 19.3 60 33.0 x 18.6 x 19.3 80

Split System Condenser Module

Weight

Model

Dimensions WxDxH (inches)

(lbs)

AH6500S 18.6 x 18.6 x 19.3 111
AH8500S 18.6 x 18.6 x 19.3 120

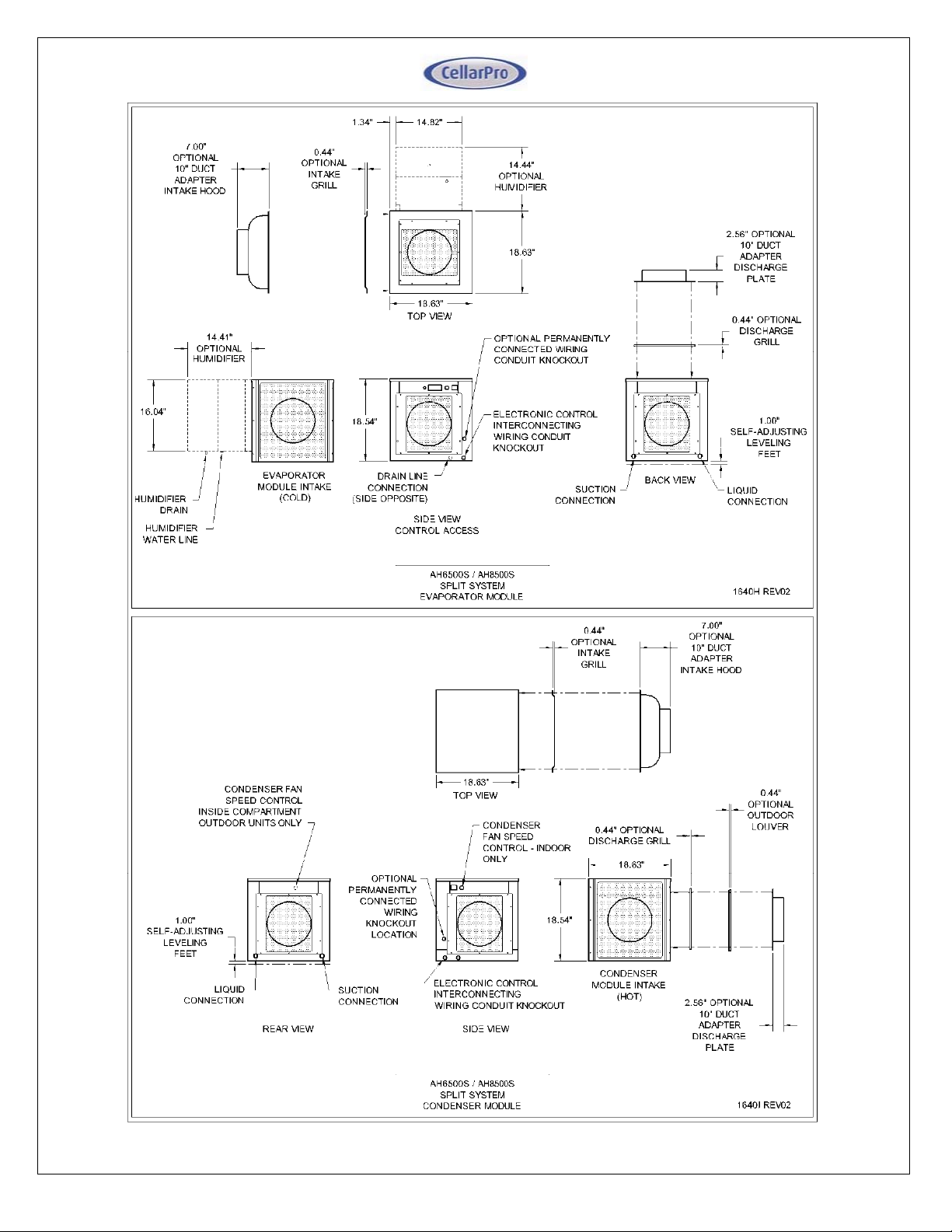

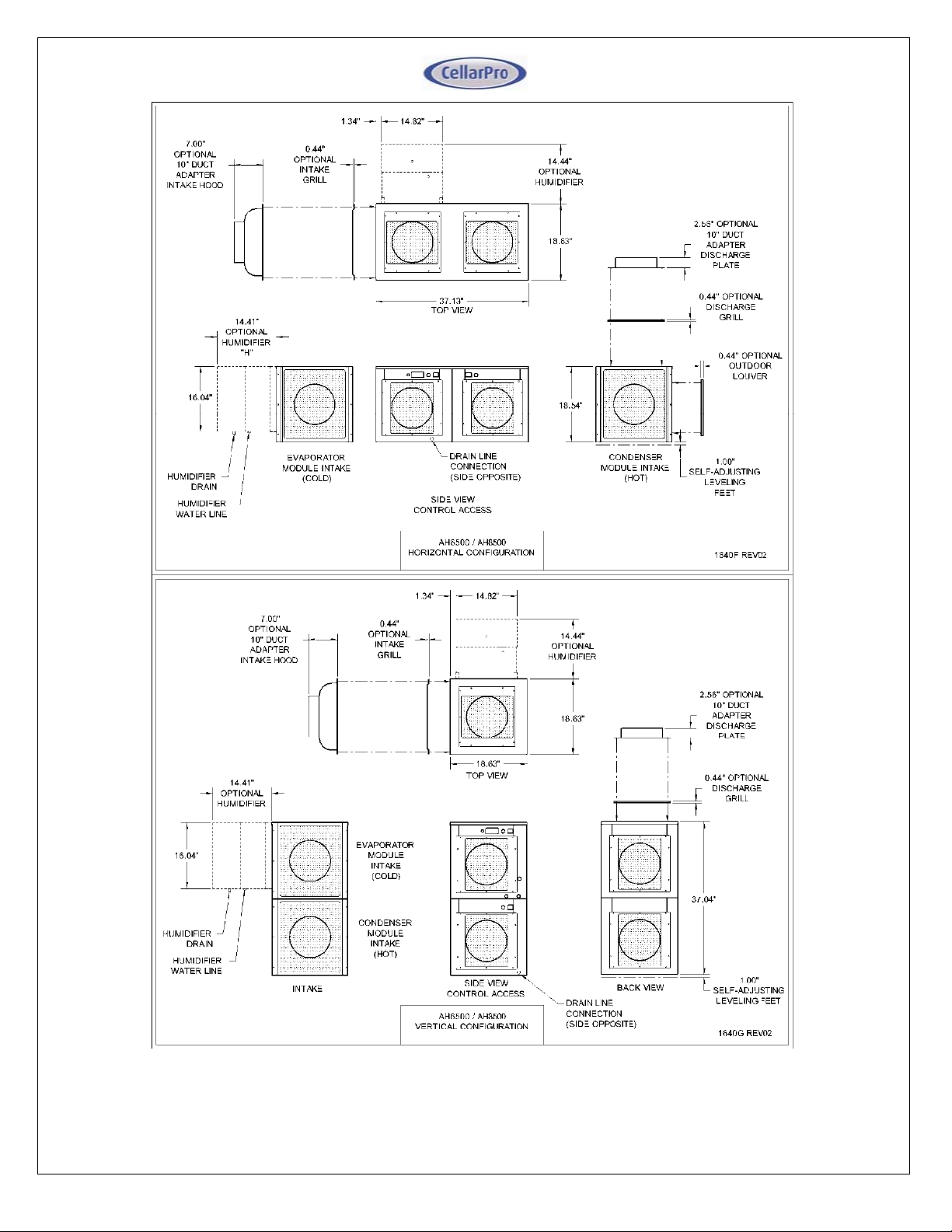

Cut Sheets

Note dimensions for mounting bolts and space required for installation.

4

5

6

Cellar Construction

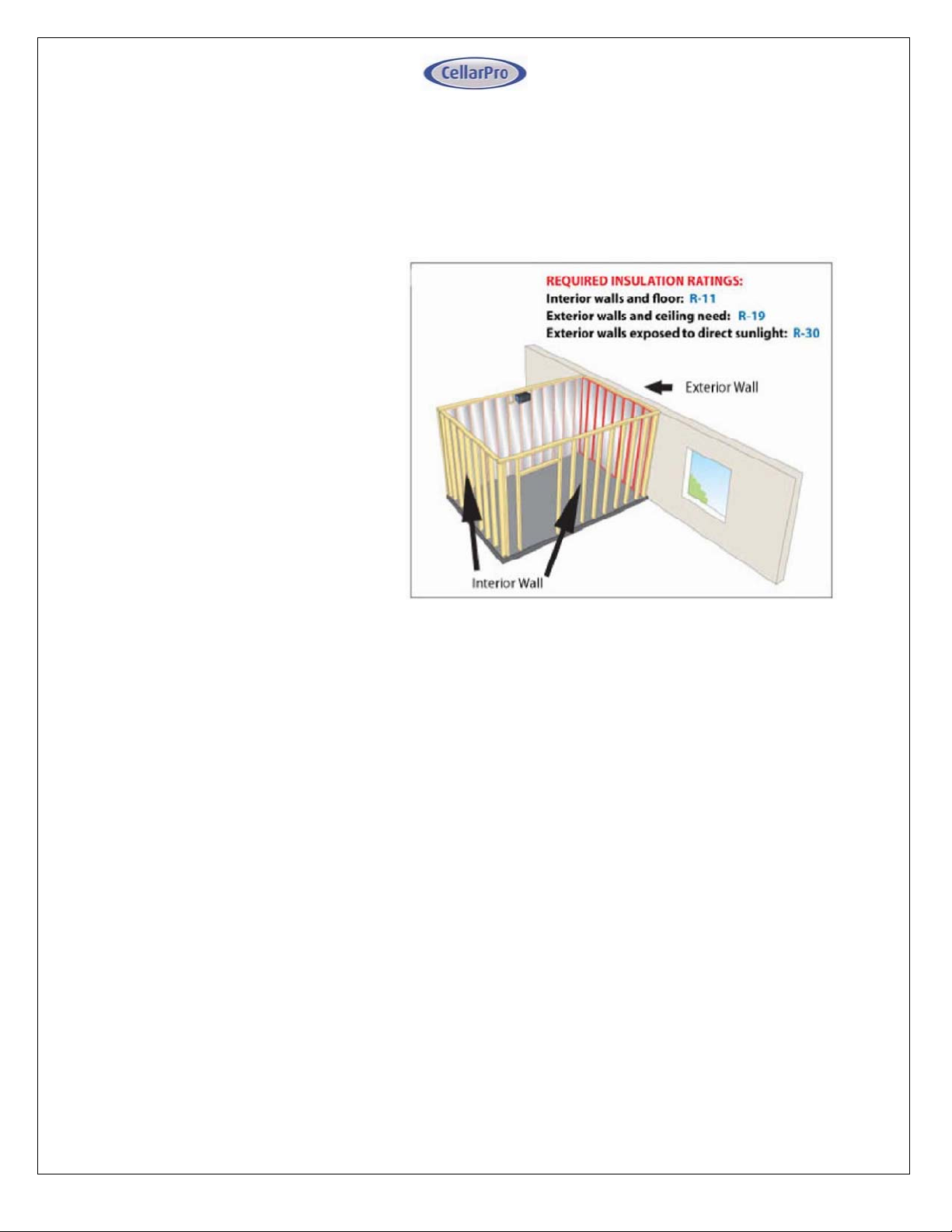

Insulation

CellarPro cooling units are designed to be installed inside wine cellars that have pro per
insulation, moisture barriers and an airtight seal from the environment outside the
cellar. Interior walls and floor
should have a minimum of R­11 insulation, and a vapor
barrier on the warm side of
the insulation. The ceiling
should have a minimum of
R-19 insulation and a vapor
barrier on the warm side of
the insulation. Doors also
should be insulated and
tightly sealed with weather­stripping around the
perimeter of the door.
Surface-mounted fixtures are
recommended over
recessed lighting, which can
allow air to leak into the
cellar.

It is important that all wall­joints, doors and windows, electrical outlets and/or switches, pipes, vents and light
fixtures be sealed to prevent air and moisture from entering the cellar. If there is a leak in
the cellar, the cooling unit will build up excess condensation.

The condensate drain line and optional humidifier drain line must be connected to a
suitable drain.

Fan Speeds

Your evaporator module fan speed setting will depend on the amount of ducting and
thermal load on the wine cellar, and the r esulting airflow and BTUH that is required
to cool and maintain your wine cellar at the desired temperature. Your condensing
module fan speed setting will depend on the condenser air intake temperature and the
amount of ducting, allowing for sufficient airflow to reject the heat absorbed by the cooling
system.

Ventilation

Adequate ventilation is critically important for the proper operation of your
CellarPro cooling unit, particularly on the condenser (hot) side of the cooling unit.

7

Condenser Air Exhaust/Intake.

Condensing units create significant hot air which
must be exhausted into an appropriately-sized space in order for the heat to
dissipate. If the space is constrained and/or too small, the heat will not dissipate.
In this event, the cooling unit will be forced to re-circulate its hot air exhaust and/or
the static pressure will back up the cooling unit. If this happens, th e cooling unit’s
ability to create cold air inside the cellar will be compromised. In addition, the
cooling unit must be installed so that, after its installation, the condenser coils are
accessible for periodic cleaning.

Evaporator Air Exhaust/Intake.

When the warm air from the cellar passes across
the evaporator coils, heat is removed from the air, and the resulting cold air is
exhausted into the cellar. On non-ducted installations, a minimu m clea rance of 12” is
required from all air intake and discharge locations to maintain proper airflow. Cold
air exhaust must be located at the highest point inside wine cellars, the cold air
exhaust eventually will drop to the bottom of the cellar. To ensure proper airflow and
reduce temperature stratification inside the cellar, the space in front of the cold air
discharge should be clear of any obstructions, including wine bottles, wine racks, etc.

Evaporator/Condensor Ducting.

CellarPro Air Handlers exhaust and return (hot
and cold side) can be ducted up to 50 equivalent feet (100' total equivalent feet
exhaust and return) with 10” diameter ducting. With our units we offer duct adaptors
and ducting that attach to either the evaporator or condenser module.

8

II. Installation Instructions

Configuration Options

The Air Handler comes in three basic configurations:

 Horizontal configuration - which can be installed inside or outside the cellar.

Additionally it can be installed through the wall with a portion of the unit in the cellar
and outside the cellar.

 Vertical configuration – this is the ‘stacked’ option which is a space saving approach.
 Split configuration – with the evaporator in the cellar (ductless) or outside (ducted)

and with the condenser either inside or outside the house or building.

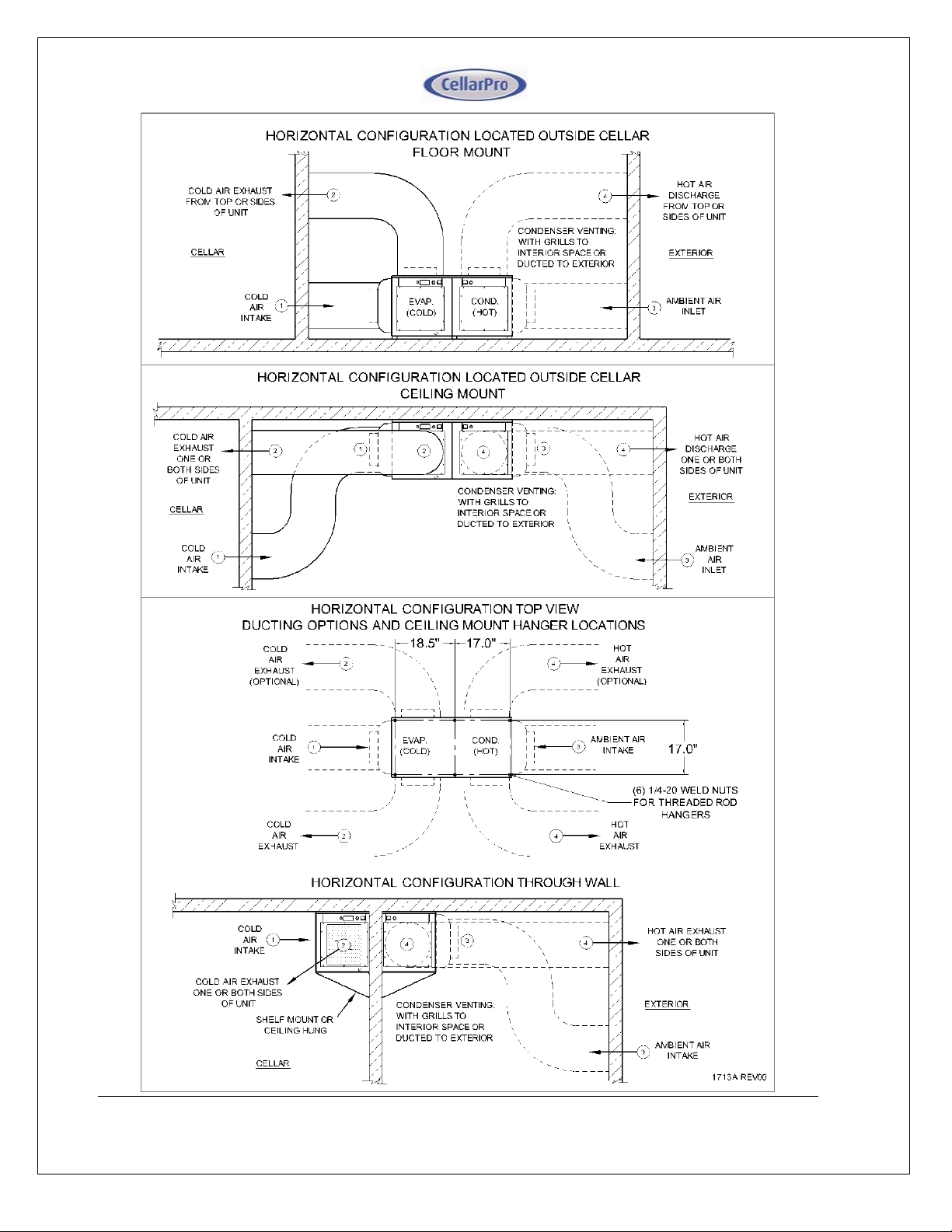

Horizontal Configuration.
Through wall: The unit is installed through the cellar wall with the evaporator module
inside the cellar, and the condenser module outside. The unit requires a mounting shelf,
sized to fit the width and depth of the unit and strong enough to support the weight of the
unit. The unit is secured to the mounting shelf using (4) 1/4-20 bolts secured to captive
nuts located in the bottom corners of the unit (note: the provided leveling feet must be
removed). The condenser can be provided with grills to vent the air, or duct adapters to
duct the intake, discharge, or both. The condenser module can also pass through the
cellar wall to an outdoor exposure by installing optional outdoor louvers to the intake and
discharge air panel openings.

Remote ducted: The unit is mounted remote to the cellar, and the evaporator module
intake and discharge air are ducted to the cellar. The condenser can be provided with
grills to vent the air, or duct adapters to duct the intake, discharge, or both. The
condenser module can also pass through an exterior wall to an outdoor exposure by
installing optional outdoor louvers to the intake and discharge air panel openings. The
unit may be floor mounted on the leveling feet provided, or flush to the floor with the
leveling feel removed. The unit may be ceiling hung using six 1/4-20 threaded rods (field
provided), attaching to captive nuts provided in the top corners and middle edges of the
unit.

Inside cellar: The unit can be mounted inside the cellar, provided that the condenser
intake and discharge are ducted to a suitably ventilated area outside the cellar.

9

10

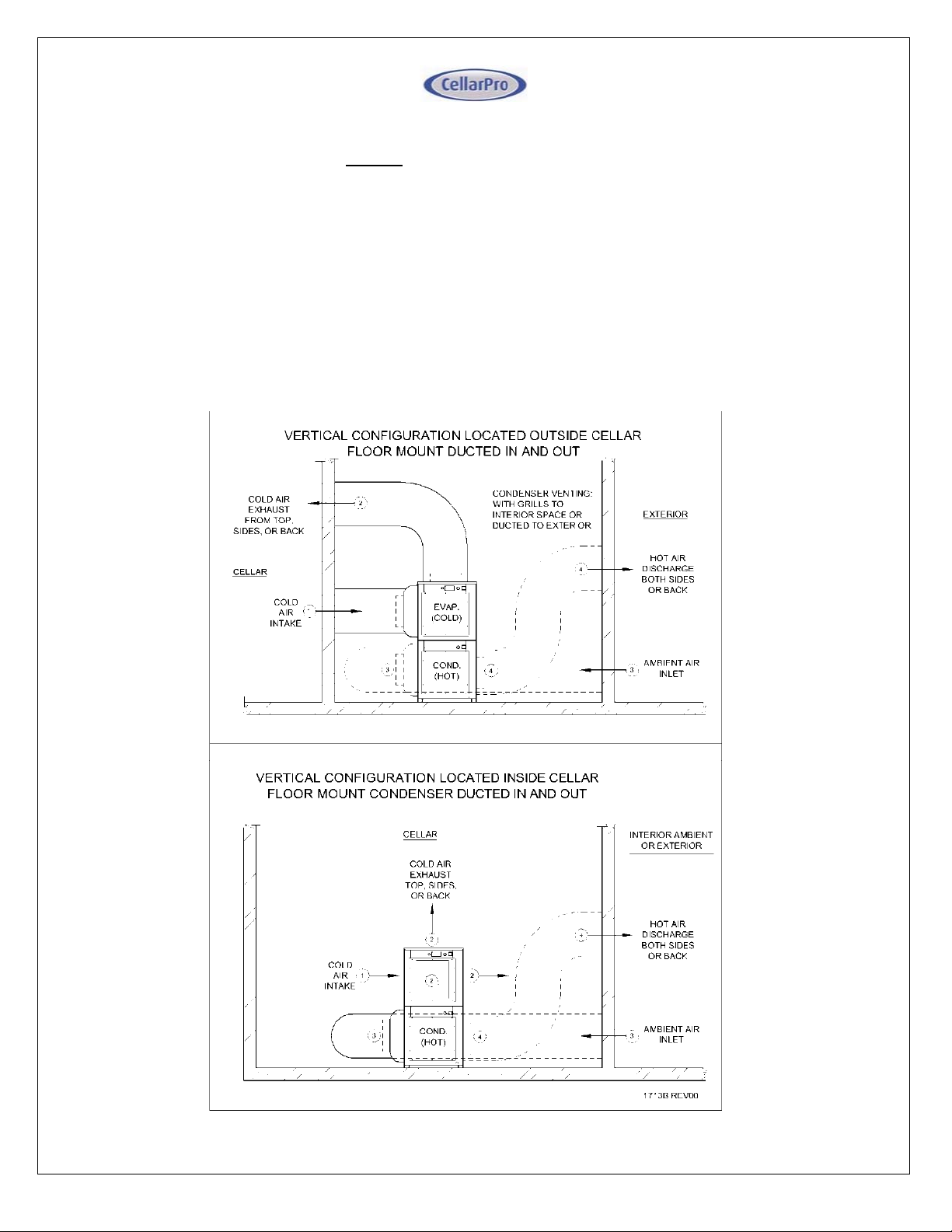

Vertical Configuration.
Through wall: Vertical units cannot be mounted in a through wall configuration.

Remote ducted: Vertical units can be mounted remotely with the evaporator intake and
discharge air are ducted to the cellar. The condenser can be configured with grills to
vent the air provided that the location is suitably ventilated, or with duct adapters for
ducting the intake, discharge, or both to a suitably ventilated area. The unit may be
floor mounted on the provided leveling feet, or flush to the floor with the leveling feel
removed. The unit cannot be ceiling hung, and cannot be installed outdoors.

Inside cellar: Vertical units can be located inside the cellar, with the condenser intake
and discharge ducted to a suitably ventilated area outside the cellar.

11

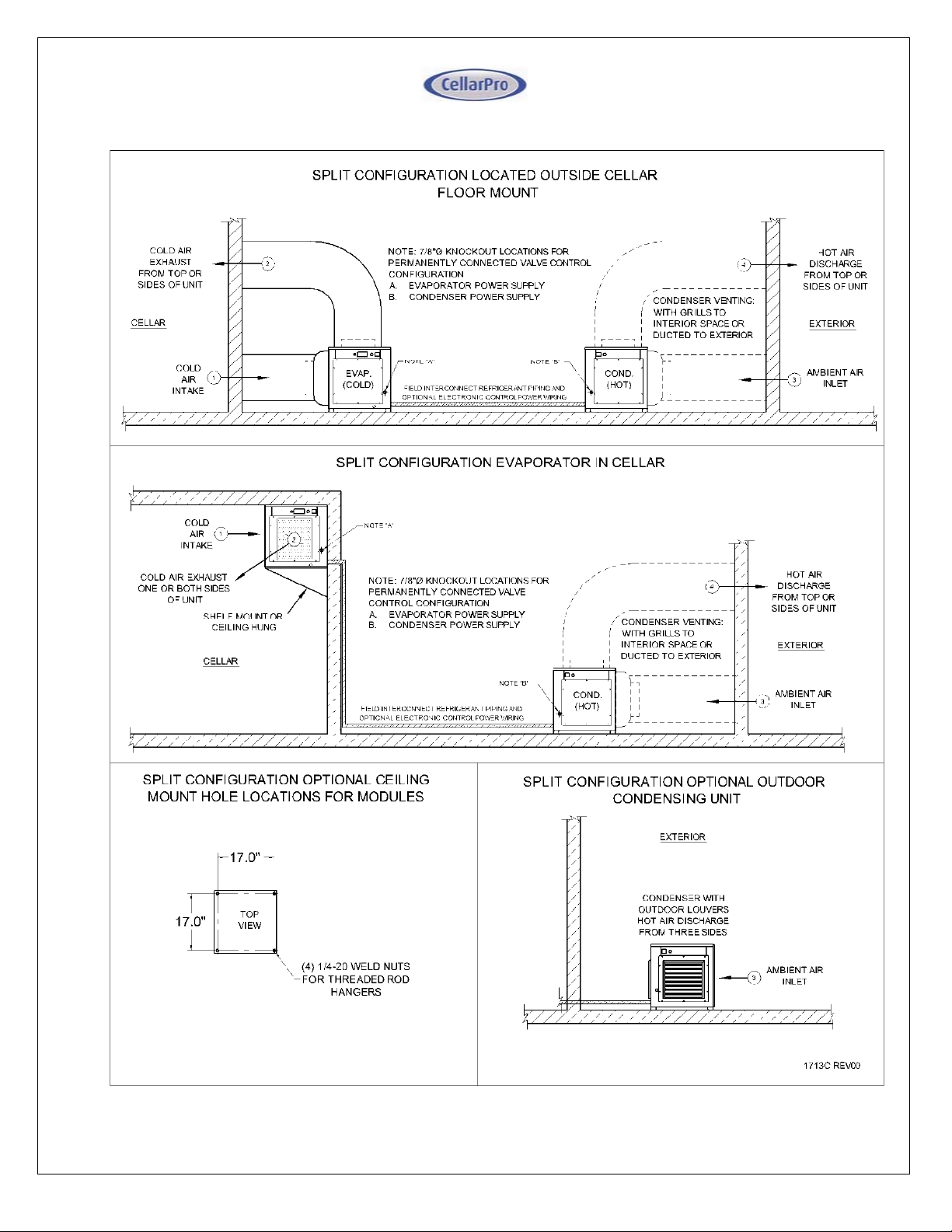

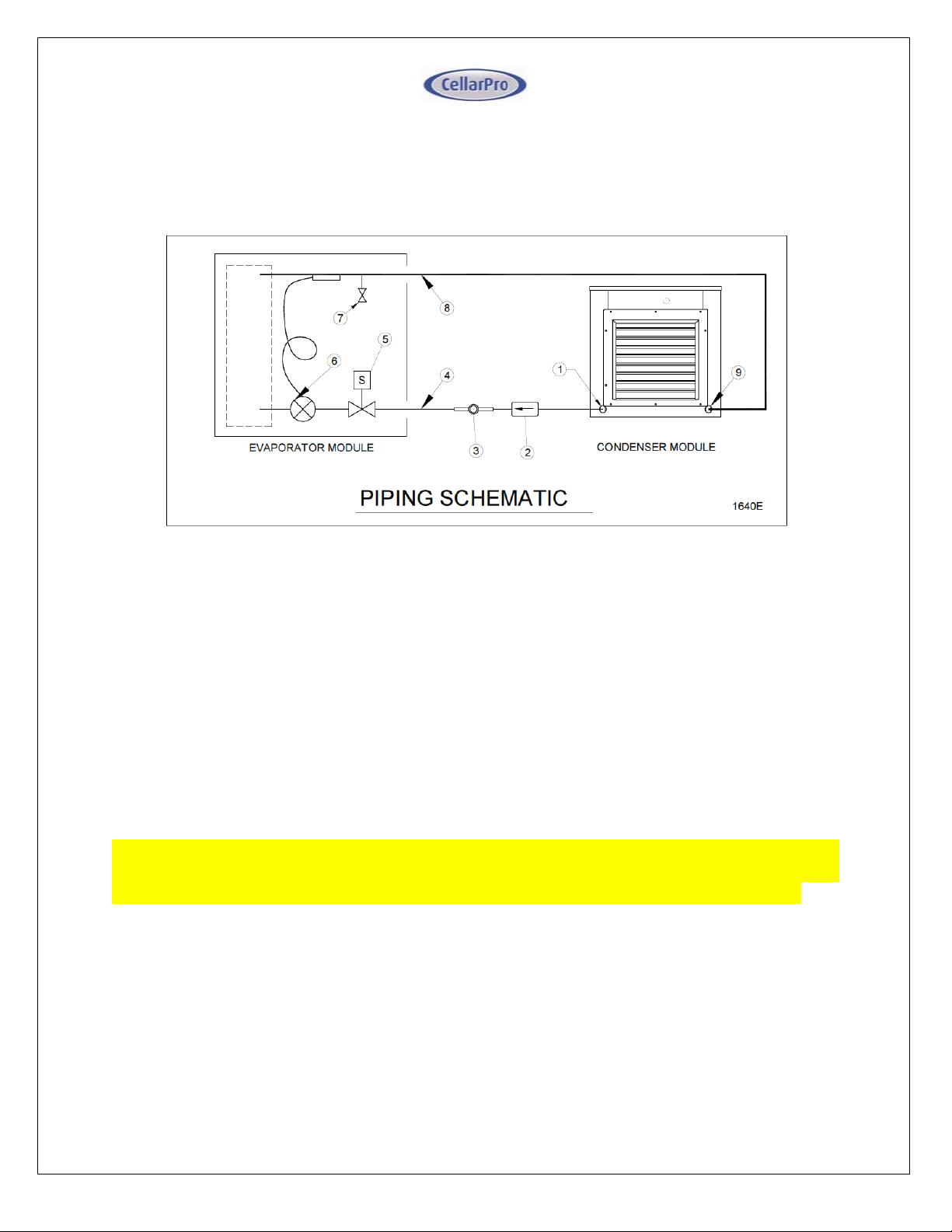

Split Configuration.

Models in the Split Configuration can be mounted as follows, with interconnecting wiring
and refrigerant piping field provided by an experienced Refrigeration contractor:

Remote ducted: The unit is mounted remote to the cellar, and the evaporator module
intake and discharge air are ducted to the cellar. The condenser can be provided with
grills to vent the air, or duct adapters to duct the intake, discharge, or both. The
condenser module can also be located outdoors by installing optional outdoor louvers to
the intake and discharge air panel openings. The separate modules may be floor
mounted on leveling feet, or flush to the floor with the leveling feel removed. Each
module may be ceiling hung using four 1/4-20 threaded rods per module (field
provided), attaching to captive nuts provided in the top corners of the module.

Inside cellar: The evaporator module can be mounted inside the cellar as follows:

 The module may be floor or shelf-mounted, or flush to the floor or shelf with the

leveling-feet removed. If shelf mounted, the evaporator module requires a
mounting shelf designed to support the weight of the module, and secured by
four 1/4-20 bolts secured to weld nuts located in the bottom corners.

 The module may be ceiling hung using f our 1/4-20 threaded rods (field provided),

attaching to captive nuts provided in the top corners of the module.

Condensing Units - Indoor

 Condensing units can be installed remotely from the cellar in an area protected

from direct exposure to moisture and sunlight.

 The area must have adequate ventilation to maintain a temperature of 110°F or

less.

 If the area does not have adequate ventilation, a vent fan should be added to

supply fresh air to the space.

 On units that are not ducted, a minimum of 12" of open air space is required in

front of the intake and discharge air panels.

Condensing Units - Outdoor

 Both the Horizontal and Split configurations can be installed with the Condenser

module located outdoors, with optional outdoor louvers installed in the air intake
and discharge positions.

 The unit is designed to operate in temperatures ranging from 0°F to 110°F.

Please note: Our compressor heater (ordered separately) is required for
temperatures below 40° F.

 A minimum of 12" of open air space is required in front of the intake and

discharge air panels.

 Knockouts are provided in the unit housing for field connection of conduit. The

conduit must be liquid tight and approved for outdoor use. Conduit fittings shall
be in accordance with UL 514B.

12

13

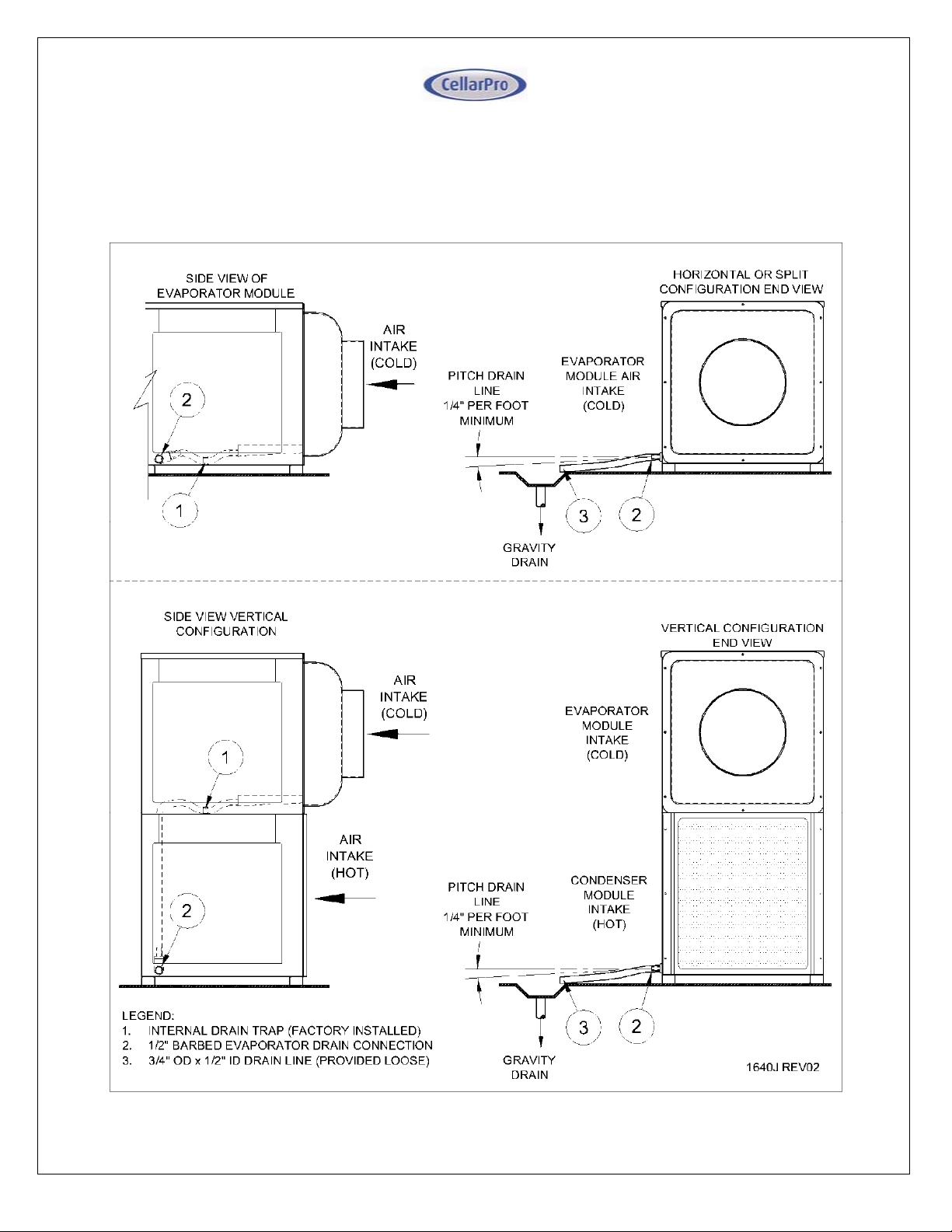

Condensate Drain Line – description and layout

The Air Handler has been designed to minimize the amount of condensation created when
cooling. The condensate that does form on the evaporator will gather in a tray and be
channeled to the drain, through a small trap, and then out through the side of the unit where
it exits via a barbed fitting.

14

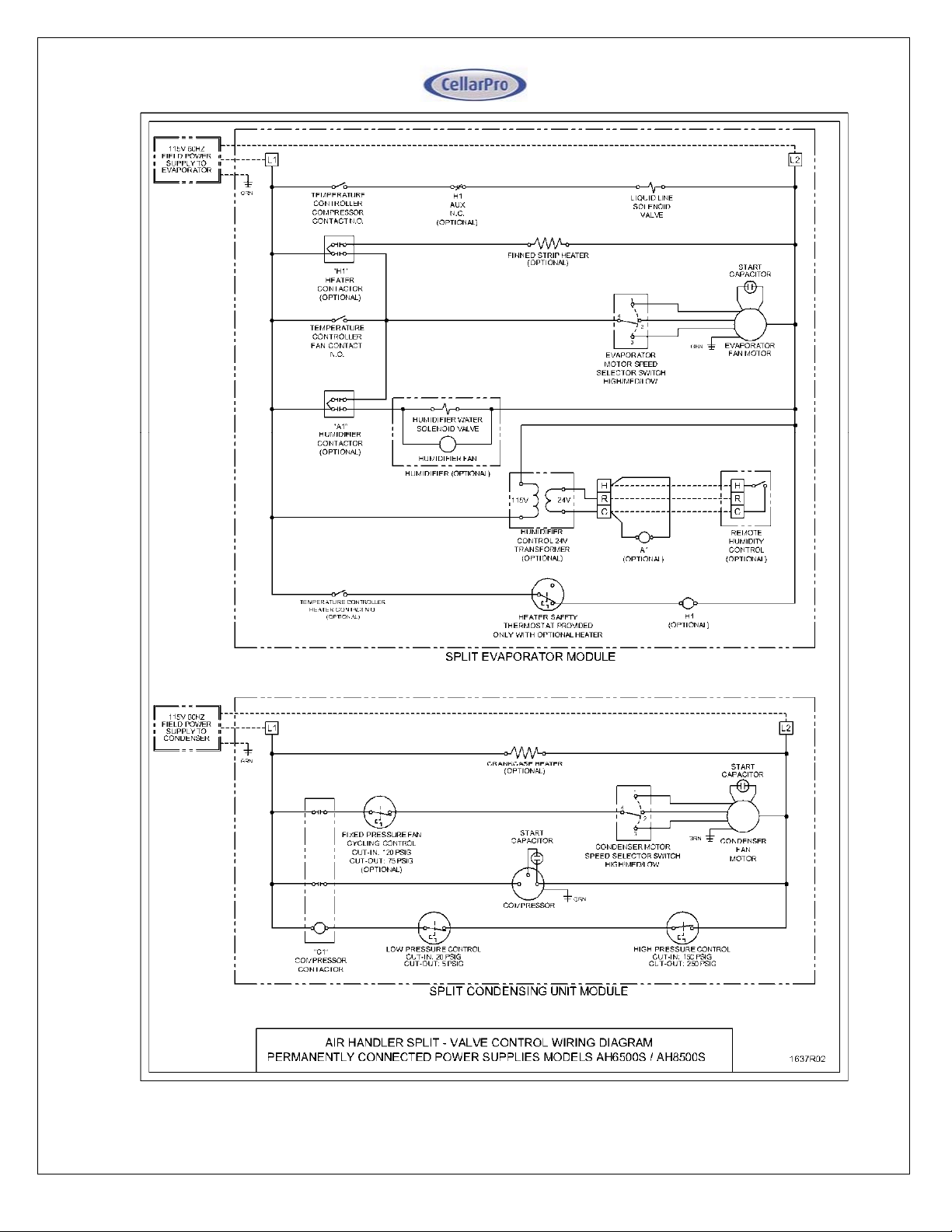

Power Supply Requirements

The Air Handler is a high performance cooling system and with significant power
requirements. Each of the two sections of the unit, evaporator and condenser, requires
its own power source or cord. The amps and watts for the configurations are listed
below.

AH6500 / AH6500S Cord Connected

Evaporator Module Condenser Module System
Amps
(FLA)

@ 115V /

60HZ

Standard 5.6 15 640 11.46 53.0 25 824
With Humidifier 6.6 15 755 11.46 53.0 25 824
With Heating 10.6 15 1220 11.46 53.0 25 824

Amps
(FLA)

@ 115V /

60HZ

Standard 5.6 15 640 11.4 54.5 25 958
With Humidifier 6.6 15 755 11.4 54.5 25 958
With Heating 10.6 15 1220 11.4 54.5 25 958

Breaker

Size

Evaporator Module Condenser Module System

Breaker

Size

Power

Input

Watts

Power

Input

Watts

Amps
(FLA)

@ 115V /

60HZ

AH8500 / AH8500S Cord Connected

Amps
(FLA)

@ 115V /

60HZ

Compressor

LRA

Compressor

LRA

Breaker

Size

Breaker

Size

Power

Input

Watts

Power

Input

Watts

Total

Power

Input

Watts

1464
1579
1579

Total

Power

Input

Watts

1598
1713
1713

AH6500S Permanently Connected

Evaporator Module Condenser Module System
Amps

(MCA)

@ 115V /

60HZ

Standard 3.5 15 320 17.1 53.0 25 1144
With Humidifier 4.5 15 435 17.1 53.0 25 1144
With Heating 11.3 15 1220 17.1 53.0 25 1144

Amps

(MCA)

@ 115V /

60HZ
Standard 3.5 15 320 16.9 54.5 25 1278
With Humidifier 4.5 15 435 16.9 54.5 25 1278
With Heating 11.3 15 1220 16.9 54.5 25 1278

Notes:

1. Electrical ratings are for evaporator and condenser fans set on high speed.

2. Two dedicated non-GFI power supply circuits are required, one for each module.

Breaker

Size

Evaporator Module Condenser Module System

Brea

Size

ker

Power

Input

Watts

Power

Input

Watts

Amps

(MCA)

@ 115V /

60HZ

AH8500S Permanently Connected

Amps

(MCA)

@ 115V /

60HZ

Compressor

LRA

Compressor

LRA

Breaker

Breaker

Size

Size

Power

Input

Watts

Power

Input

Watts

Total

Power

Input

Watts

1464
1579
1579

Total

Power

Input

Watts

1598
1713
1713

15

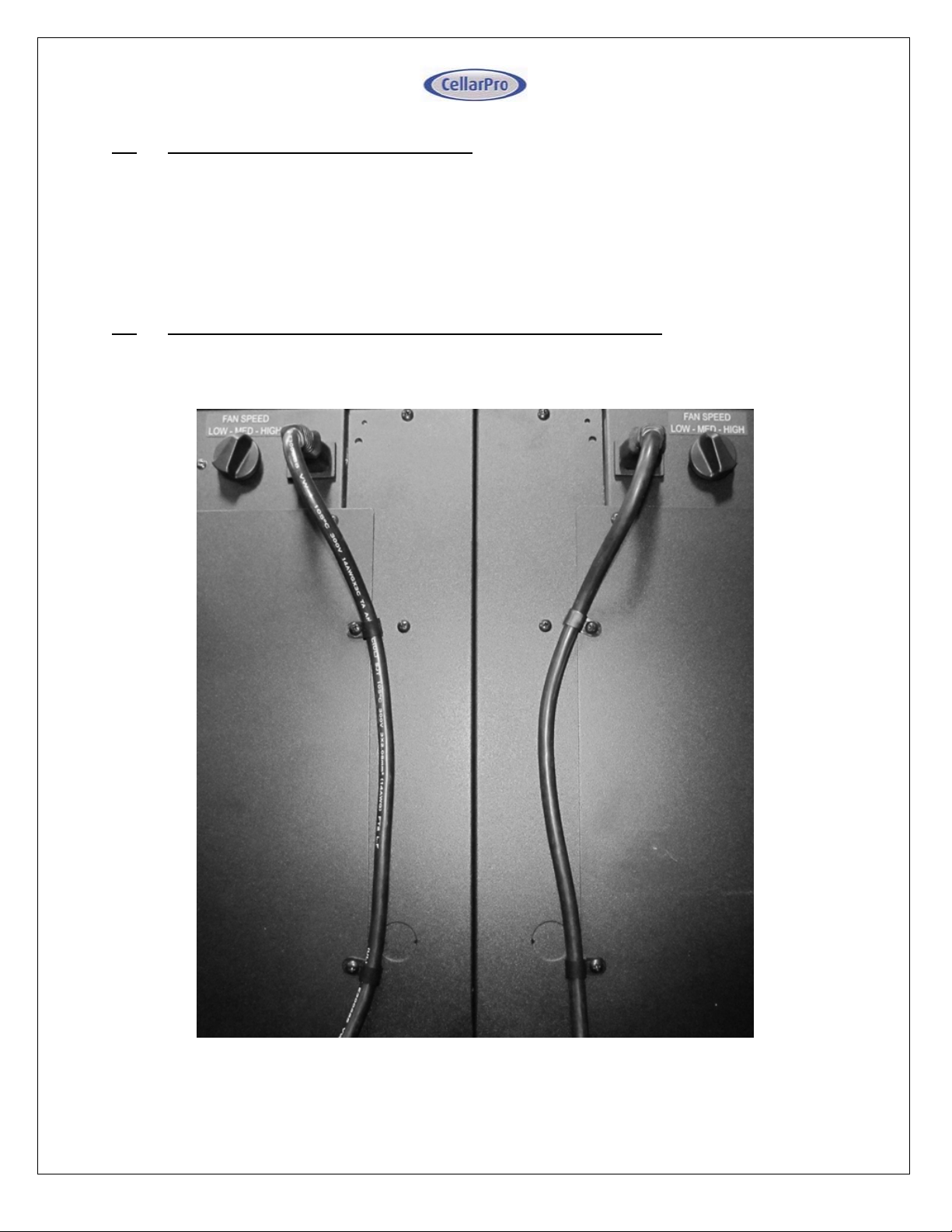

System Wiring - Self Contained Configuration / Cord Connected

Models in the Horizontal or Vertical configurations are provided with two power cords
for connection to two dedicated 115V/60HZ power receptacles. Each power
receptacle must be on a separate circuit breaker, sized by model and module
according to the electrical data table. Both power cords must be connected for the unit
to operate.

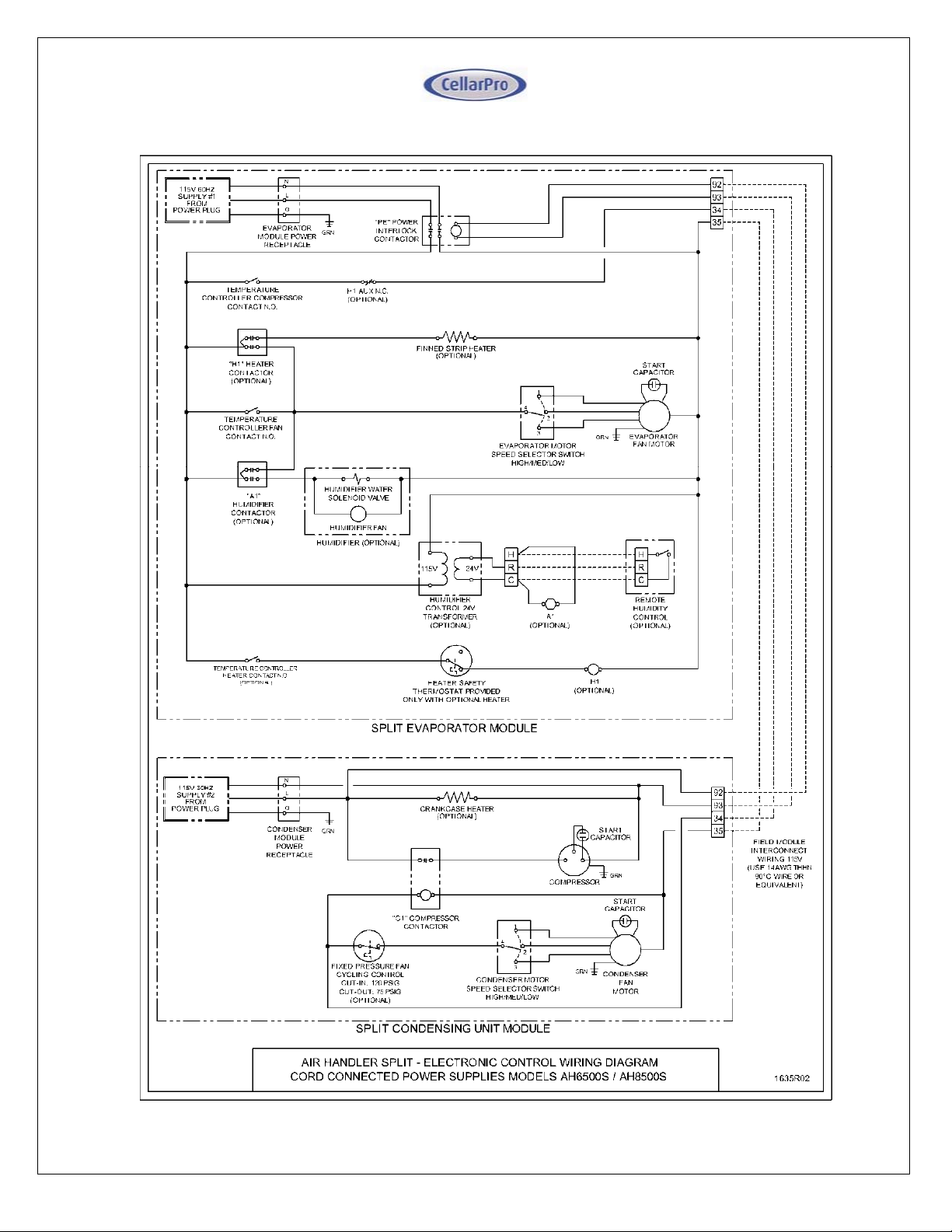

System Wiring - Split Configuration / Cord Connected (Electronic Control)

Models in the Split Cord Connected configuration are provided with two power cords
for connection to two dedicated 115V / 60HZ power receptacles. Each power
receptacle must be on a separate circuit breaker, sized by model and module
according to the electrical data table. Both power cords must be connected for the unit
to operate. Field power wiring is required to connect the evaporator module to the
condenser module as shown on diagram below this section. Marked field connection
terminal blocks are provided in each module for the interconnecting wiring. Wiring
should be 18AWG minimum, copper conductors only, enclosed in conduit in
accordance with code requirements for the installation.

System Wiring - Split Configuration / Permanently Connected (Valve Only)

Models in the Split Permanently Connected configuration must be field wired to two
dedicated 115V / 60HZ circuit breakers, sized by model and module according to the
electrical data table. Field power wiring for both the evaporator module and condenser
module is shown on the diagram below. Wiring must be sized to the load, copper
conductors only, and done in accordance with code requirements for the installation.

Under this configuration the Evaporator and Condenser modules are separately
powered, and the Condenser module turns on and off based on suction pressure, as
follows:

 The Evaporator module includes a factory installed liquid line solenoid valve

(LLSV), which is controlled by the Evaporator temperature controller. The
Condenser module is controlled by a low pressure switch which reacts to the suction
pressure and senses whether the LLSV is open or closed.

 When the Evaporator temperat ure set-point is reached and the Evaporator tu rns off,

the LLSV closes, causing the system to pump down until the low pressure switch
shuts off the Condenser module.

 When the Evaporator turns on, the LLSV opens, causing the suction pressure to

rise and activate the Condenser module.

Field power wiring is connected to both the Evaporator and Condenser module, no
interconnecting wiring is needed between the Evaporator and Condensing modules.

16

17

18

Installing Refrigeration Lines

The Evaporator and Condensing units should be piped according to the following pipi ng
schematic:

Piping Legend

1. The 3/8"ODS liquid service valve located on Condenser Module.

2. Hermetic liquid line filter drier (shipped loose). Install with the directional flow arro w as
shown.

3. Liquid line sight glass with moisture indicator (shipped loose).

4. Liquid line refrigeration piping in accordance with Line Sizing Chart.

5. Factory installed liquid line solenoid valve (normally closed) (Valve Control
configurations only).

6. Factory installed thermostatic expansion valve.

7. Factory installed suction service valve to use for setting expansion valve superheat.

8. Insulated suction line refrigeration piping in accordance with Line Sizing Chart.

9. 5/8"ODS suction service valve located on Condenser Module.

WHEN BRAZING COPPER TUBING TO THE SERVICE VALVES, USE 95/5
SOLDER AND SOLDERING FLUX. DO NOT USE SILVER SOLDER BECAUSE
IT REQUIRES HIGHER HEAT THAT WILL DAMAGE THE SERVICE VALVES.

Line Sizing Chart

Refer to the Line Sizing Chart below for selecting the appropriate tubing size for the
length of the piping run. Note that the recommended line size may not match the
connection ports on the Condensing unit and the Evaporator. Refrigeration grade fittings
must be supplied by the installing technician to make the necessary transitions.

Transitions should be made as close to the unit as possible

. Suction line routing

must be designed to ensure oil return to the Condensing unit.

19

Split System Line Sizing Chart

Suction Line Size by Length ("ODS)

Minimum

Liquid Line

Size ("ODS)

Up to 100

Model

AH6500S 3/8 1/2 1/2 5/8 5/8

AH8500S 3/8 5/8 5/8 5/8 7/8

feet

Suction Line

Insulation

Thickness

(in)

Up to 25 feet

Over 25 feet

up to 50 feet

Over 50 feet

up to 100 feet

Notes:

1) Line lengths are expressed in equivalent feet = actual run length + fitting allowances.

2) Chart includes allowances for Condensing Unit Service Valves, Filter Drier, and Sight Glass.

3) Use only dehydrated refrigeration service tubing and refrigeration grade fittings.

4) Install refrigeration piping in accordance w i th local codes and ASHRAE guidelines.

Evacuation, Leak Detection, and Chargi ng

Once the piping is installed, the following steps should be performed to ensure a dry
and leak-free system:

1. The Condensing unit is pre-charged with compressor oil. To avoid moisture
contamination of the oil, do not leave the service valves open to atmosphere for
more than 15 minutes.

2. Open the liquid and suction serv ice valves on the condensing unit.

3. Valve Control only: Supply power to the Evaporator only - DO NOT connect
power to the Condensing unit. Turn on the temperature controller, which
will energize and open the liquid line solenoid valve. Verify the solenoid is
po wer ed as ind ica ted by th e compressor icon ("snowflake") on the temperature
controller display.

4. Pressurize the system to a maximum of 150PSIG of dry nitrogen. Mark the pressure
and hold for a minimum of 1 hour. If the pressure holds, proceed to the next step,
otherwise locate and repair the leak and repeat this step.

5. Evacuate the system to a minimum of 500 microns.

If t he vacu um is achieved,

proceed to the next step, otherwise locate and repair the leak and repeat from step 4.

20

6.

Disconnect the vacuum pump, but leave the system under vacuum. Use a charging
scale to accurately weigh in the refrigerant. Charge liquid R-134a refrigerant through
the liquid service valve according to the charge pounds indicated in the "System R­134a Charge Guidelines" chart below. Additional refrigerant may need to be added,
as detailed in the next step. DO NOT USE REFRIGERANT WITH ADDITIVES.

7.

Warm the bottom shell of the compressor above the ambient temperature for 30
minutes to drive excess refrigerant out of the compressor oil. Connect power to the
Evaporator and Condensing unit, and activate the system. Check that the sight glass
is clear when the compressor is running. The condensing temperature must be
above 105°F (135.0 PSIG) when inspecting for a clear sight glass. In a low ambient
environment, it may be necessary to block off the condenser air intake to force the
condensing temperature higher. If the sight glass is not clear, slowly add vapor
refrigerant though the suction service valve.

8. With a clear sight glass, adjust the superheat on the thermostatic expansion valve to
10°F +/- 2°F, as measured at the suction access valve located in the Evaporator.

9. Once the superheat is adjusted, ensure the condenser face airflow is unrestricted
and allow the system to balance for 30 minutes.

10. Check the suction superheat at the compressor using the access port on the suction
service valve. A minimum superheat of 20°F is required at this location. If it is below
20°F, recheck the thermostatic expansion valve superheat and increase as
necessary to ensure a 20°F superheat at the compressor.

11. The fan cycling control (optional) is located in the Condenser Module and is non­adjustable. The condenser fan cuts-out at approximately 75 PSIG, and cuts-in at
120PSIG. Verify condenser fan operation at startup.

21

Installation Tips and Guidelines

 When brazing copper tubing to the service valves, use 95/5 solder and soldering

flux. Do not use silver solder because it requires higher heat that will damage the
service valves.

 Make sure all electrical connections are se cure.
 Inspect Evaporator and Condensing unit fans to confirm airflow. There

shouldn’t be any excessive vibration, noise or obstructions to airflow.

 Observe system pressures during charging and initial operation and keep note of

them as they will be required for the Service and Support Data Sheet which init iates
the warranty.

 Continue charging until system has sufficient refrigerant for proper operation.
 Do not overcharge or use refrigerant with additives.
 Remember that bubbles in a sight glass may be caused by a restriction as well

as a shortage of refrigerant.

 Do not leave unit unattended until the system has reached normal operating

conditions.

 Make sure all access valve caps are in place and tight.
 Make sure liquid and suction service valves are proper ly back-seated and tighten

valve packing if necessary.

 Make sure the condenser fan cuts-in at 120 PSIG and cuts-out at 75 PSIG.

22

Split

System R-134a Charge Guidelines

Weigh

in the R-134a refrigerant via the liquid service valve according to the chart below:

System R-134a Charge Guidelines

Actual Line

Length

(ft) 5 1015202530354045505560657075808590
AH6500S
AH8500S

Note:

1) Actual charge may vary - follow charging instructions detailed under Item 6 in the section titled

Evacuation, Leak Detection, and Charging

2) Lines sized according to Line Sizing Chart assuming actual line length plus 10 equivalent feet for
fitting losses

3.72 3.92 4.12 4.33 4.53 4.74 4.94 5.15 5.35 5.55 5.76 5.96 6.17 6.37 6.57 6.78 6.98 7.18

3.72 3.92 4.13 4.33 4.53 4.74 4.94 5.15 5.44 5.66 5.87 6.09 6.30 6.51 6.73 6.94 7.16 7.37

System Charge (lbs) by Split System Model

(above).

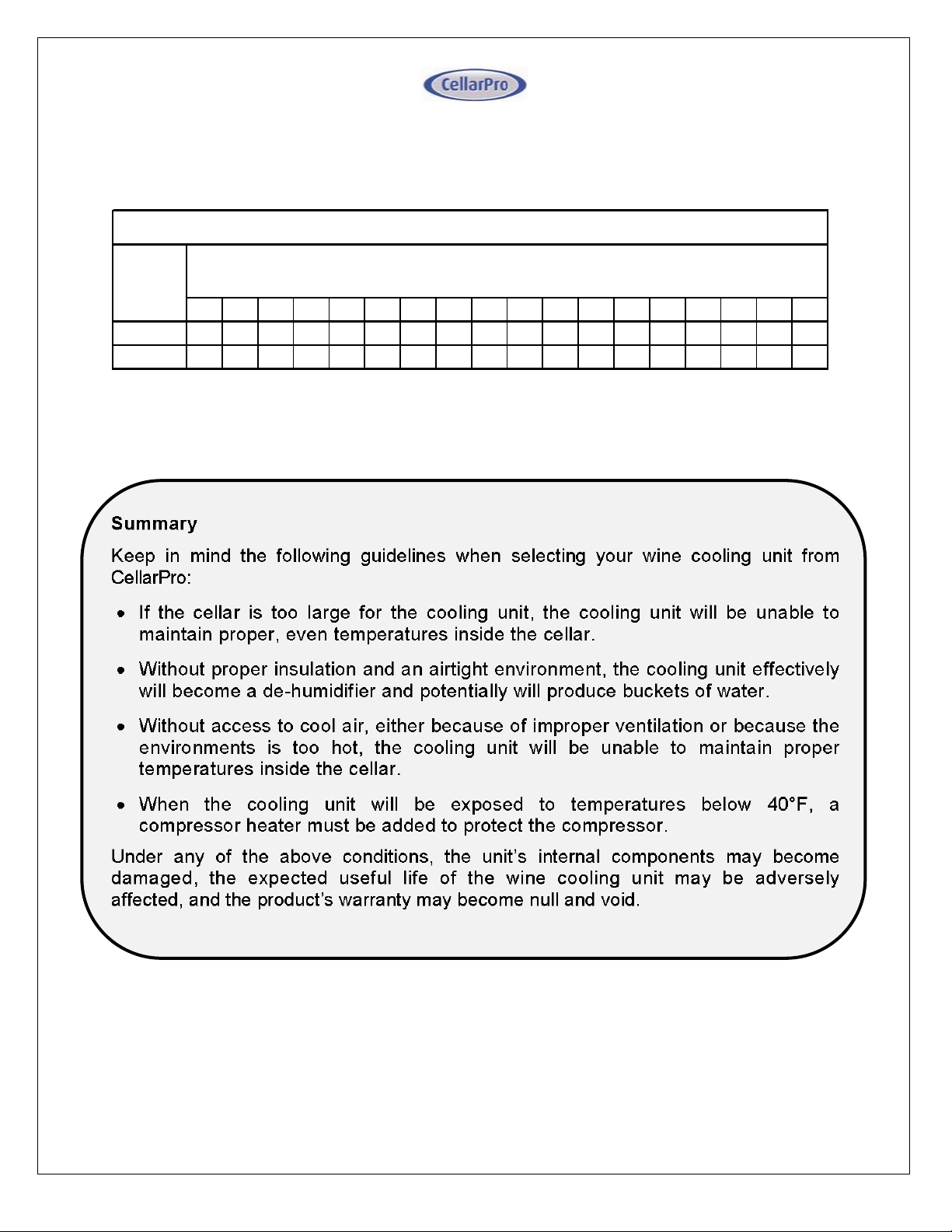

Summary

Keep in mind the following guidelines when selecting your wine cooling unit from
CellarPro:

 If the cellar is too large for the cooling unit, the cooling unit will be unable to

maintain proper, even temperatures inside the cellar.

 Without proper insulation and an airtight environment, the cooling unit effectively

will become a de-humidifier and potentially will produce bucket s of water.

 Without access to cool air, either because of improper ventilation or because the

environments is too hot, the cooling unit will be unable to maintain proper
temperatures inside the cellar.

 When the cooling unit will be exposed to temperatures below 40°F, a

compressor heater must be added to protect the compressor.

Under any of the above conditions, the unit’s internal components may become
damaged, the expected useful life of the wine cooling unit may be adversely
affected, and the product’s warranty may become null and void.

23

III. Operating Instructions

Overview

CellarPro cooling units are designed to maintain optimal conditions for wine storage an d
aging. These conditions include steady, cool temperatures, high humidity, minimal
vibration and light, and clean air. he settings on your CellarPro cooling unit have been
preset and optimized by the factory. Before changing any settings below, we
recommend waiting 14 days to allow the cooling unit to “break in.”

The cooling unit is designed to cool the cellar gently without stripping moisture out of th e
cellar environment. Therefore, it is not uncommon for the cooling unit to run nonstop
for up to a week initially, depending on the temperature inside the cellar, the s ize o f the
cellar, and the temperature of the ambient environment. Once the cellar has reached
equilibrium, it is normal for the cooling unit to run as much as 75 percent of the time.

CellarPro cooling units are designed to maintain optimal temperatures for

aging

fine wine. CellarPro cooling units are not designed to maintain temperatures for

serving

temperatures for white and sparkling wines.

CellarPro cooling units must be used, stored, moved and/or shipped in the
upright position.

should be turned upside down.

Temperature Control

CellarPro cooling units are designed to turn “on” when the air temperature passing over the
evaporator coils inside the cellar exceeds the

Temperature Differential,
Minimum Set Point

Temperature Differential is 4°F, the cooling unit will turn on when the
temperature rises above 62°F inside the cellar, and it will turn off when the
temperature falls below 58°F. In this example, the average temperature inside the
cellar will be 60° F.

Basic Operation

The cooling system is programmed with a 3-Minute Delay at Startup to protect its
internal components. The temperature inside the cellar can be increased or decreased
by changing the Minimum Set Point as described later in this chapter. If the cooling
un it runs to o much, you can raise the Minimum Set Point to reduce the cycle “on” time.
Most wine collectors store their wine in the range of 55 - 60° F. CellarPr o cooling units
are designed to maintain appropriat e le vel s of hu mid ity , ranging from 50 to 70 percent,
inside wine cellars. In order to increase or decrease humidity inside the cellar, the
setting can be changed as described in t he “Advanced Operation” section later in this
chapter.

wine, which tend to be much colder than storage tem peratures, especially s erv ing

Be careful when turning the unit on its side. The unit NEVER

Minimum Set Point

and turn “off” when the temperature drops below the

. For example, if the Minimum Set Point is 58°F and the

storing and

plus the

Fon

24

Humidifier (optional):

Recommended for installations where the ambient humidity is insufficient to maintain 50
to 70%RH inside the cellar. The humidity control is remote mounted with 10ft of
interconnecting wire inside the cellar. Refer to separate manual for detailed installation
and operating instructions for the humidifier and humidity controller.

Heating (optional):

The air handler can be configured with an electric air heater for installations where the
cellar may drop below the desired set point. The controller is factory programmed to
automatically activate the heater and the evaporator fan when the cellar temperature is
below the desired set point (parameter SET) minus the temperature differential
(parameter HY). For example, if the set point (Set) is 55 , and the differential (HY) is 4,
the heater will energize when the cellar temperature reaches 55 minus 4 = 51°F, and
turn off when the cellar reaches 55°F. Refrigeration will be activated when the cellar
temperature reaches 55 plus 4 = 59°F. If a tighter range is required, the HY should be
set to "2" for the heating season. If an optional bottle probe is used to maintain the
cellar temperature, the factory setting for HY is "1", and adjustment is not required.
There are two heating element options: 900W and 1800W. An application chart is
shown below to assist in selecting the correct wattage. For the majority of applications,
the 900W heater is recommended.

900W Heater Specifications 1800W Heater Specifications

Power Consumption 7.8 Amps @ 115V / 60Hz Power Consumption 15.7 Amps @ 115V / 60Hz

Fan Speed Total BTUH (including fan) Fan Speed Total BTUH (including fan)

High 4702 High 7774
Medium 4346 Medium 7417
Low 4218 Low 7290

Cellar Heating Load (BTUH) for 55°F Average Cellar Temperature

Humidification may be required to maintain cellar humidity levels >50%RH

Ambient Temperature / Insulation Type

Cellar

Dimensions

Nominal Size

(cuft)
1000 630 511 439 1574 1278 1098 2519 2045 1757 3464 2812 2416

1250 746 614 534 1864 1535 1335 2983 2456 2136 4102 3377 2937
1500 866 721 633 2164 1802 1582 3463 2883 2531 4761 3965 3481
1750 968 812 718 2419 2031 1795 3871 3250 2872 5323 4468 3949
2000 1103 934 832 2757 2336 2080 4412 3738 3328 6066 5139 4576
2250 1188 1011 904 2969 2528 2260 4751 4045 3617 6533 5562 4973
2500 1306 1119 1005 3264 2797 2513 5223 4475 4021 7182 6153 5528
2725 1398 1203 1085 3495 3007 2711 5591 4812 4338 7688 6616 5965
3025 1525 1320 1195 3813 3299 2987 6100 5279 4780 8388 7258 6572

Assumes all walls and ceiling are exposed to ambient temperature indicated. Floor is slab on grade.

R-12 R-19 R-30 R-12 R-19 R-30 R-12 R-19 R-30 R-12 R-19 R-30

45°F 30°F 15°F 0°F

= Shaded areas require 1800W heater option

25

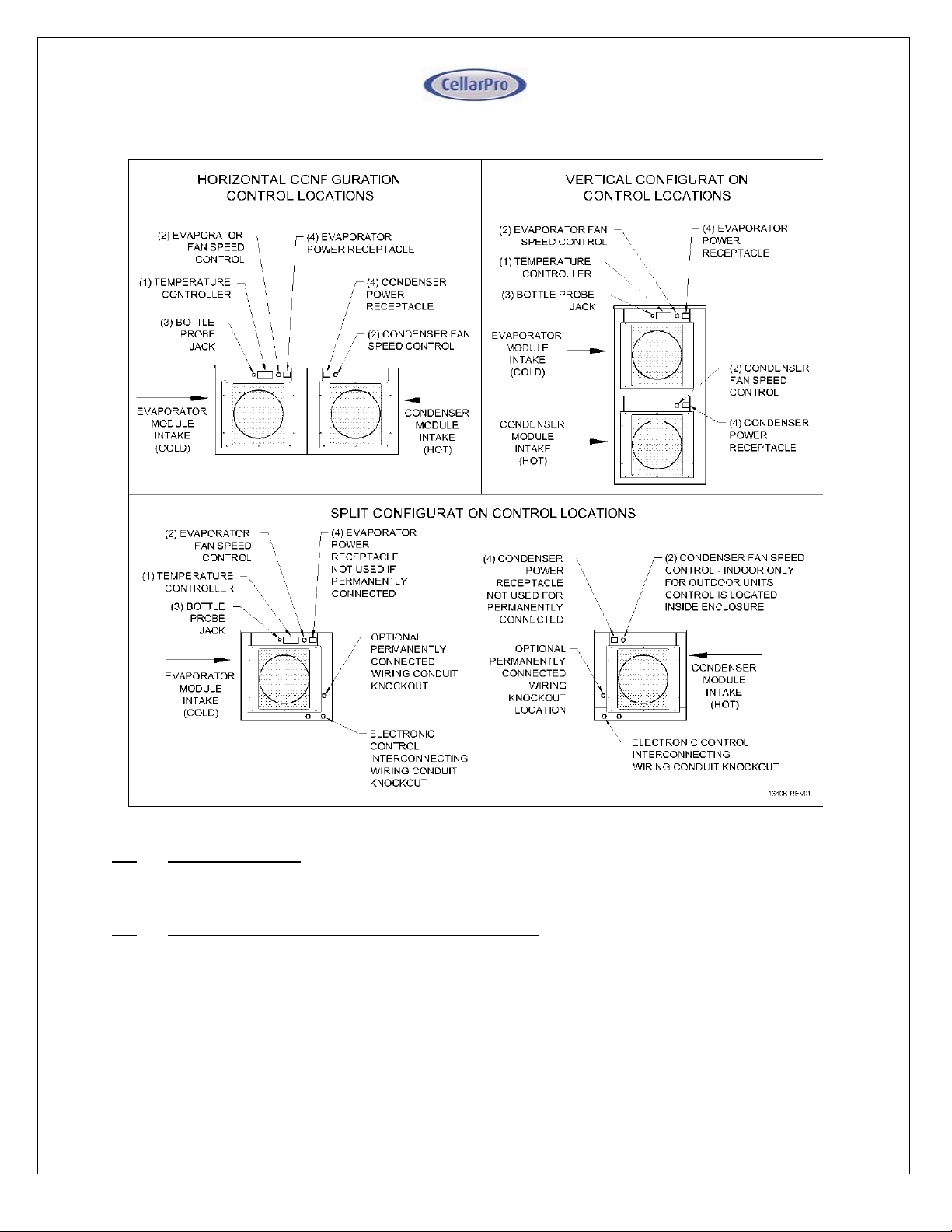

Control Locations by Configuration

(1) Control Panel:

Maintains desired cellar environment. Factory settings are
optimized for peak performance. Controller is described in detail in the following
section.

(2 ) Fan Speed Selector Switch (Low/Med/High):
condenser modules operate on 3 spee d sett ings: Low, Medium, and High. For optimum
sound and energy efficiency, select the lowest fan speed that will maintain the desired
cellar temperature. High speed is recommended for initial cellar pull down, extreme
temperat u re c ond i t io ns and ducted installations.

26

The fans on both the evaporator and

(3) Bottle Probe Jack (Bottle Probe):

A bottle probe is required if the evaporator
(cold side) is ducted. The bottle probe is designed to plug into the face of the cooling
unit and terminate inside the cellar measuring either air or liquid. Disconnecting the
probe will automatically return the control to air temperature. If used to measure air
temperatures, the differential (HY) on the cooling unit should be set to “4”. If used to
measure liquid temperature, the differential should be set to “1”. To change the
differential on the cooling unit, please refer to our “Advanced Operation” instructions
later in this section.

(4)

Power receptacles: Location for power cords to connect. The picture below
shows how to attach the power cords using the screw holes from the panel for the
clamps.

27

Control Panel Instructions

Digital Display

The temperature displayed on the control
indicates the real-time air temperature as
measured by Probe 1 (P1) located behind the
front grill of the cooling unit.

Power “On” / “Off”

Press “Power On/Off” to turn the unit on and off.
When the “Compressor On” indicator light is on,

the Compressor is running.
When the “Fan On” indicator light is on, the Fan

is running.
The cooling system is programmed with a 3-

Minute Delay at Startup to protect its internal
components.

28

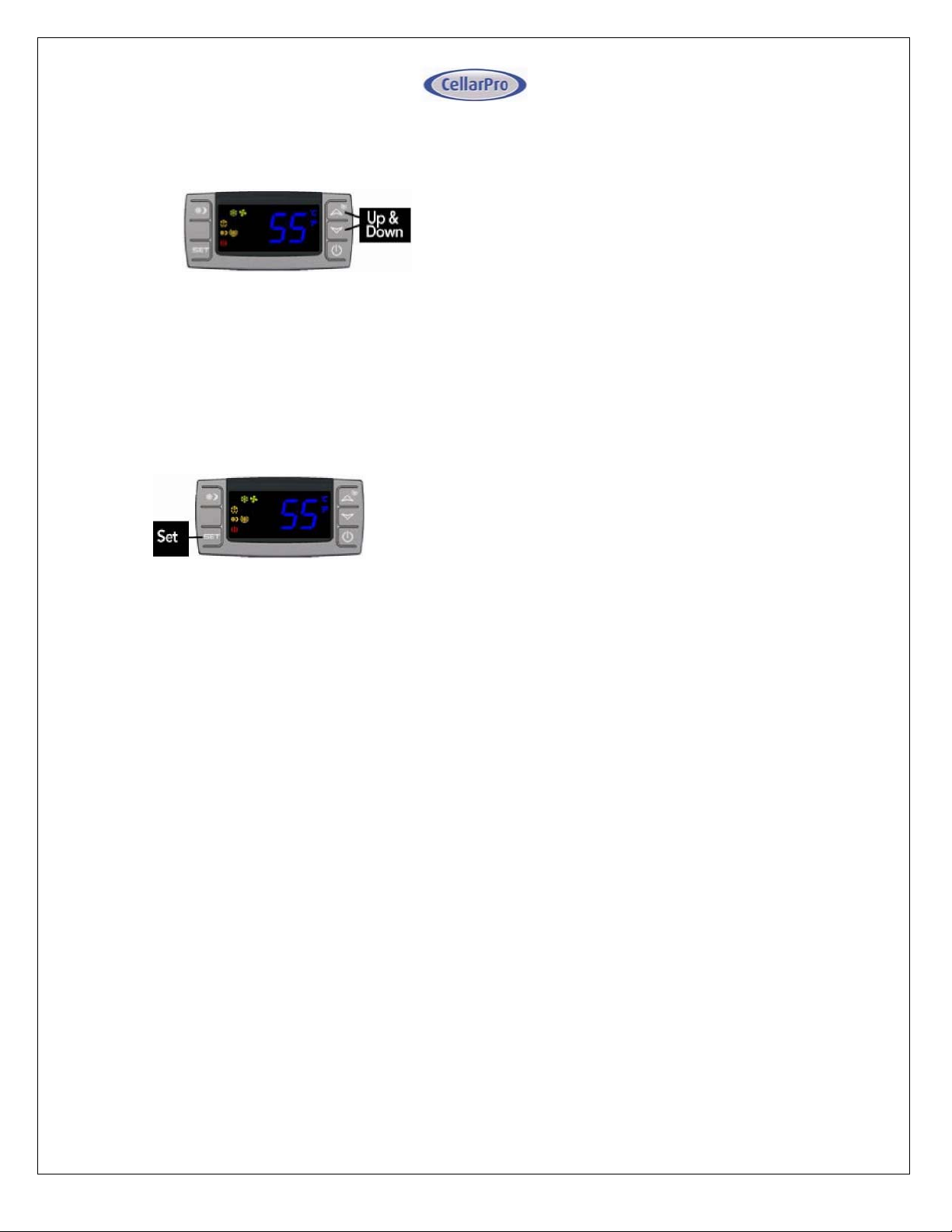

Up and Down Buttons

Set Button

To view the “High Temp” recorded by the cooling
unit, press the “Up” button once.

To view the “Low Temp” recorded by the cooling
unit, press the “Down” button once.

To reset the “High Temp” or “Low Temp”, press
the “Set” button for three seconds while “Hi” or
“Lo” is displayed. “RST” will blink three times to
indicate confirmation.

The cooling unit is factory preset with a Minimum
Set Point of 58°F and a Temperature Differential
of 4°F. This means that the cooling unit will turn
on when the display rises above 62°F (58°F +
4°F), and turn off when the display falls below
58°F. In this example, the average temperature
inside the cellar will be 60°F.

To view the Minimum Set Point, press the “Set”
button for one second.

To change the Minimum Set Point,

 Press the “Set” button for three seconds

until °F” blinks

 Press “Up” or “Down” button
 Press “Set” button to confirm

The “Set” temperature will blink three times to
indicate confirmation

The recommended Minimum Set Point range is
53 - 60°F. To change the Temperature
Differential, see “Advanced Operation” later in
this chapter.

29

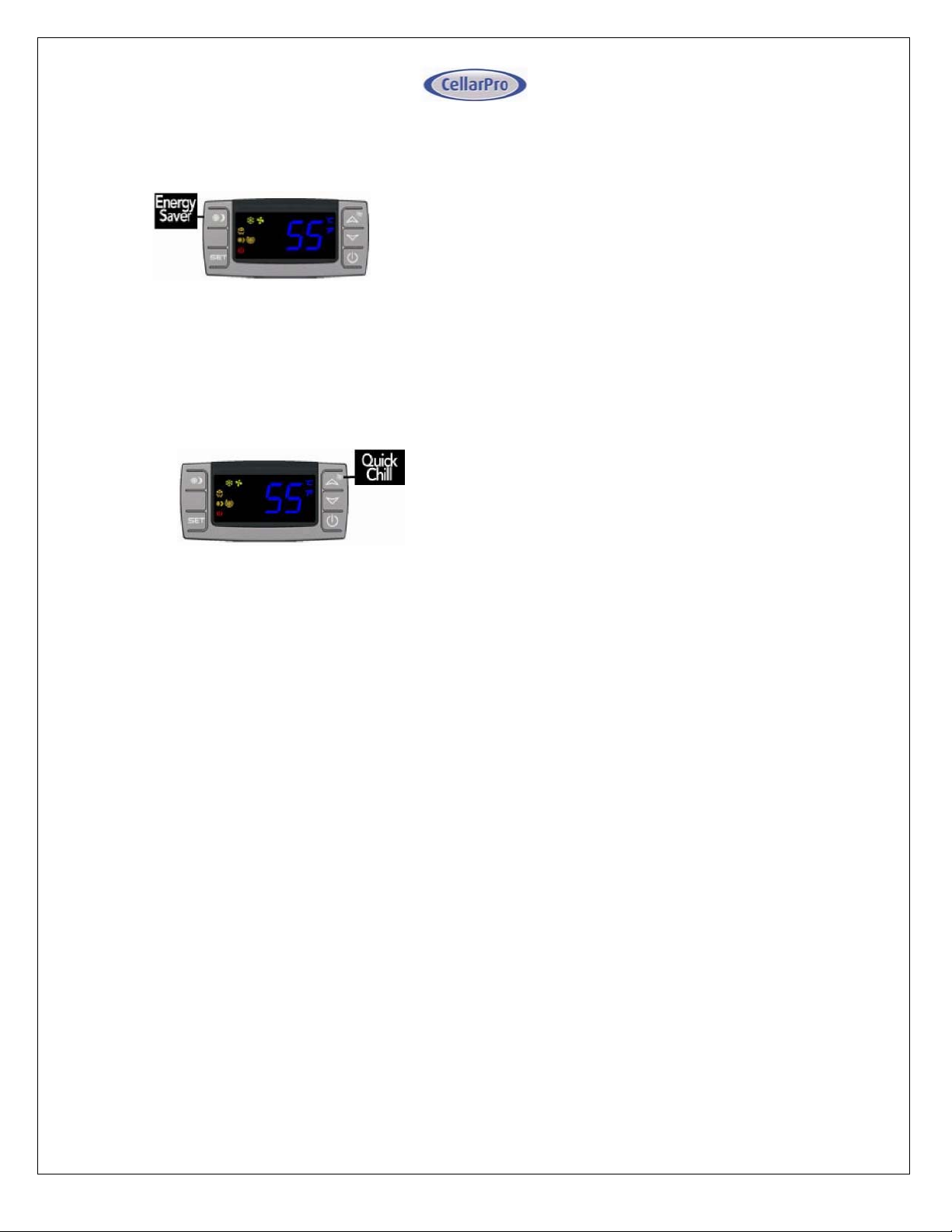

Energy Saver Button

Quick Chill Button

To activate and deactivate the “Energy
Saver” mode, press the “Energy Saver”
button.

The “Energy Saver” indicator light will turn
on when the cooling unit is in “Energy
Saver” mode.

In “Energy Saver” mode, the Minimum Set
Point increases 4°F and the Temperature
Differential is unchanged.

To activate the “Quick Chill” mode, press
the “Up” / “Quick Chill” button for three
seconds.

To deactivate “Quick Chill”, press “Quick
Chill” button for three seconds again.

The “Quick Chill” indicator light will turn on
when the cooling unit is in “Quick Chill”
mode.

In the “Quick Chill” mode, the cooling unit
will run continuously for 6 hours (or until
the intake temperature registers 50°F).
This mode is useful after loading “warm”
bottles in a cellar.

Maintenance

The condenser coils on the Condensing unit will collect dust, dirt and lint over time. If
the condenser coils become clogged, the cooling unit will not have proper airflow and
its performance and longevity will be compromised. The condenser coils themselves
also can be cleaned with a vacuum cleaner – ideally with a brush attachment to
loosen dust caught between the fins.

30

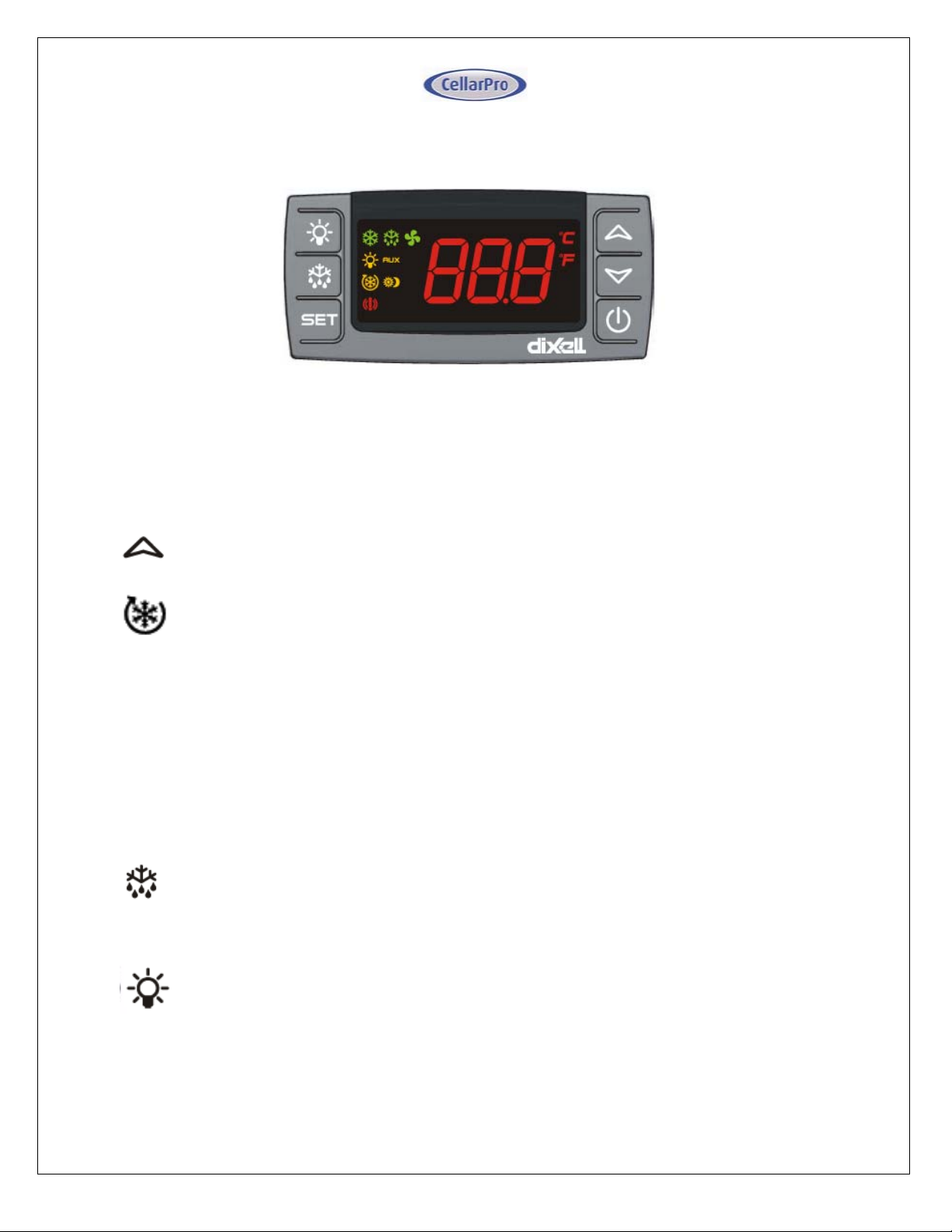

Remote Control / Display Instructions

Digital
Display

The temperature displayed on the control is red instead of blue.

Quick Chill
Button

Button

Icon

Auto
Defrost
Mode

Manual
Defrost

To activate the “Quick Chill” mode, press the “Up” button for three
seconds

To deactivate “Quick Chill”, press the “Up” button for three seconds
again

The “Quick Chill” indicator (Row 3) light will turn on when the cooling
unit is in “Quick Chill” mode,

In the “Quick Chill” mode, the cooling unit will run continuously for 6
hours (or until the unit reaches set point.). This mode is useful after
loading “warm” bottles in the cabinet.

The cooling unit has a factory default defrost cycle that initiates every
16 hours for 20 minutes. When the cooling unit is in auto-defrost
mode, the “Defrost” Indicator light (Top row) will turn on, and the
evaporator fan will run.

Hold the defrost button in for 3 seconds to initiate a manual defrost.
The “Defrost” Indicator light (Top row) will turn on for a 20 minute
defrost cycle.

Light

Energy
Saver

The light button function is disabled, however pressing it will turn
on/off the light indicator on the display (2nd row).

The remote display is not configured with an Energy Saver mode. The
set point can be raised manually for periods where energy savings is
desired.

31

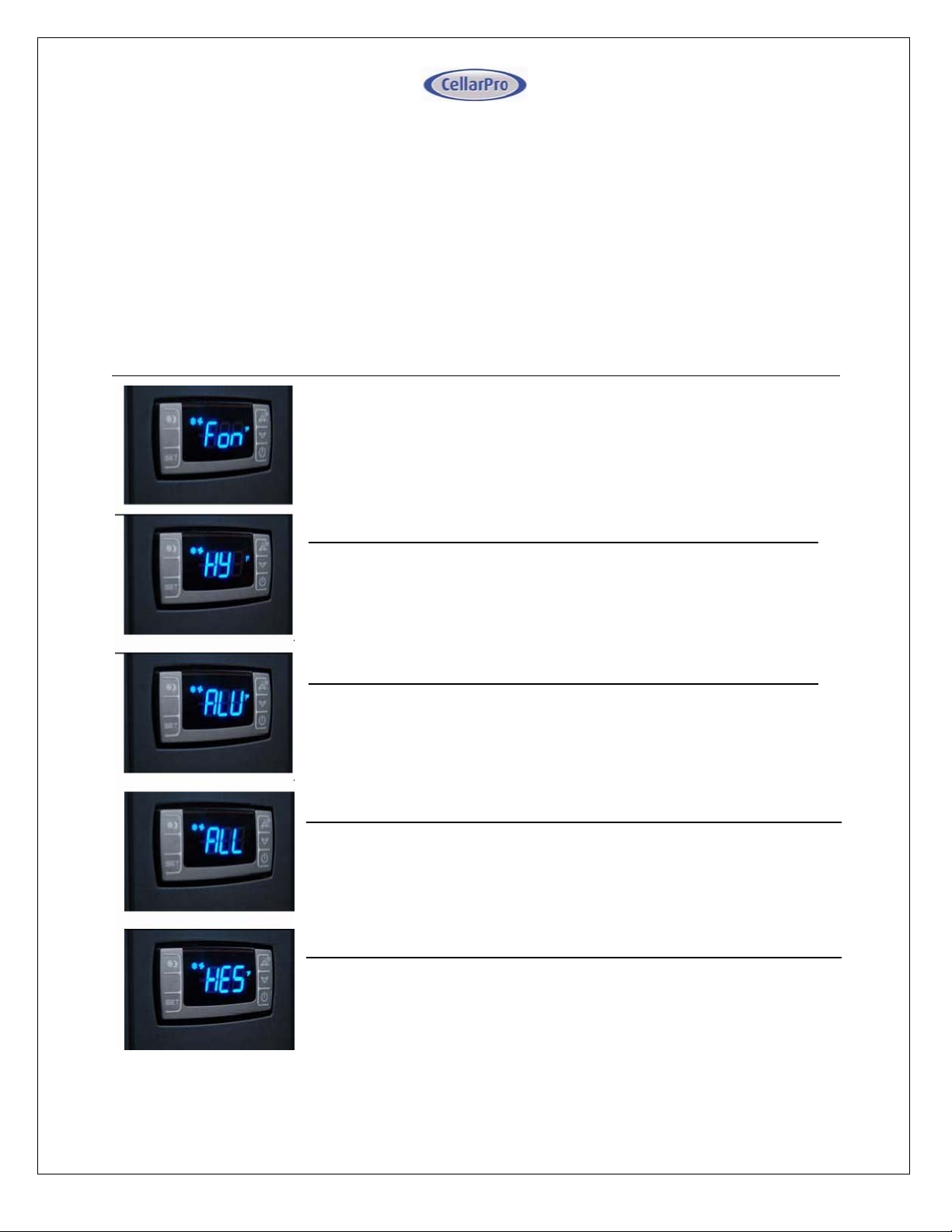

Advanced Operation

CellarPro cooling systems can be programmed with advanced settings to achieve more
control over conditions inside the cellar. Conditions like humidity, the Temperature
Differential, and alarm settings all can be modified for custom applications. To access
the advanced settings, do the following:

Press the “Set” button and the “Down” button together at the same time, and hold for
three seconds. Then, use the “Up” or “Down” button to scroll to the following screen:

HUMIDITY: The factory preset for this setting is “3”.
If the humidity inside the cellar is too low, press the “Set” button,

then use the “Up” button until the desired setting is reached.
The recommended range for this setting is 0-6.

TEMPERATURE DIFFERENTIAL: The factory preset for this
setting is “4”.

This setting determines the Temperature Differential and
therefore the temperature at which the cooling unit will cycle on.
The recommended range for this setting is 4 or 5.

HIGH TEMPERATURE ALARM: The factory preset for this
setting is “70”.

This setting designates the High temperature inside the cellar at
which the alarm is triggered. We recommend leaving this setting
at the factory preset.

LOW TEMPERATURE ALARM: The factory preset for this
setting is “45”.

This setting designates the Low temperature inside the cellar at
which the alarm is triggered. We recommend leaving this setting
at the factory preset.

ENERGY SAVINGS MODE DIFFERENTIAL: The factory preset
for this setting is “4”.

This setting controls the Temperature Differential for the Energy
Savings Mode. The recommended range for this setting is 2-4.

32

IV. Troubleshooting

Alarms

The cooling unit has both an audible notification and a visual alarm indicator (shown in
“red” on the control panel) that are activated when an alarm is triggered. Please note:
the temperature alarms (HA and LA) are disabled during the first 23 hours of operation
after the cooling unit is plugged in and/or turned on.

The control panel also will flash a code for each alarm, as follows:

Alarm What it means What to do

P1 Probe 1, which senses the

temperature inside the cellar
and controls the on/off cycles
of the cooling unit, has failed

HA The temperature inside the

cellar is too warm (above
70°F for more than 1 hour)

LA The temperature of the cellar

is too cold
(below 45°F)

The cooling unit enters a timed
auto- cycle mode until Probe 1 is
repaired or replaced. In this
mode, the cooling unit will turn on
for 12 minutes and off for 8
minutes.

Please call CellarPro at

877.726.8496 to repair or replace
Probe 1

Check if the cellar has a leak
Check if door was left open
Lower the ambient temperatures

Raise the Minimum Set Point to
60°F

Raise the ambient temperature

HA2 The temperature of the

condenser is too high (above
140°F)

LA2 The ambient temperature at

the condenser coil is too cold

33

Raise the Minimum Set Point
Increase the FON setting

Contact CellarPro at

877.726.8496

General Conditions



Cooling Unit Runs Constantly

Improper installation, inadequate insulation, or a cellar that is too large will
cause the cooling unit to run continuously and be difficult to troubleshoot.

The cooling unit is designed to turn on when the air temperature in the cellar rises
ABOVE the Minimum Set Point + Temperature Differential, and turn off when the air
temperature falls below the Minimum Set Point. For example, if the Minimum Set
Point is 58°F and the Temperature Differential is 4°F, the cooling unit will turn above
62°F and turn off below 58° F. In this example, the average temperature inside the
cellar will be 60° F.

When bottles are first loaded in the cellar, the cooling unit will run continuously (even
up to a week) until the temperature inside the cellar falls below the Set Point.

Hot weather conditions, insufficient ventilation and/or dirty condenser filters may
cause the cooling unit to run continuously. To reduce cycle times,

1. Remove any obstructions to air flow to or from the unit

2. Check to make sure the condenser filter is clean

3. Increase the supply of cool air to the space outside the condenser coils, using a
fan, ducting or an exhaust system to remove heat from the space.

4. Raise the Minim um Set Point on the cooling unit



Cooling Unit Is Producing Large Amounts of Condensate or is Dripping

The cooling unit is designed to remove excess moisture from inside the cellar, which
collects in the drip pan of the cooling unit and is channeled outside the cooling unit.
Excess moisture can occur when the cooling unit runs constantly, when the Minimum
Set Point is too low and/or when the cellar doesn’t have a good seal from the outside
environment. To eliminate excess condensation, do the following:

1. Ensure the condensate overflow drain line is not blocked, that the drain line is
trapped and the trap is filled with water.

2. Check that the cellar has airtight seals, including the door(s), light fixtures,
and all walls, ceiling and floor.

3. Raise the Minimum Set Point of the cooling unit.

4. Check to make sure the cellar has airtight seals, including the door(s), light
fixtures, and all walls, ceiling and floor.

34



The HA2 Alarm has been triggered

The cooling unit is designed to measure the temperature of the condenser coils and, if

°

the temperature exceeds 140

F for more than 2 hours, the HA2 alarm will display on

the control panel.
If this alarm happens when you first receive and start operating your CellarPro

cooling unit, check for appropriate installation and ventilation (Chapter II). Also,
make sure that there aren’t any obstructions to the intake and/or exhaust vents. If your
wine cabinet has a grill, remove the grill and/or any other obstructions above (top
vent) or behind (back vent) the cellar.

If the alarm happens in conjunction with hot ambient conditions, we recommend
doing the following:

1.

Raise the Minimum Set Point to 60°F until temperatures cool down

2.

Increase the FON setting

If the cooling unit has been operating for several months without any problems and the
alarm occurs, check the condenser filter and clean or replace if necessary.



The LA2 Alarm has been triggered

As noted above, the cooling unit is designed to measure the temperature of the
condenser coils and, if the temperature drops below a certain point, the LA2 alarm will
display on the control panel. Please contact CellarPro when the LA2 alarm has been
triggered.

 The Cooling Unit Won’t Turn On
The cooling system is programmed with a 3-Minute Delay at Startup to protect its

internal components.

35

Troubleshooting Issues – All Configurations

Issue Possible Causes Potential Solutions

No cooling: no refrigerant flow.
If the "snowflake" icon is

illuminated on the
temperature display control
and the compressor
running.

No power to
compressor

High pressure
safety shutdown
/ high discharge
pressure

Power supply to Condensing Unit interrupted.
Restore power.

Check for loose wires and reconnect.
Locate and correct source of high condensi ng

head pressure
Condenser fan not operating in ambient

temperatures above 90°F. Ensure that there is
power to the Condensing Unit.. Replace
condenser fan if necessary.

Dirty or obstructed condenser coil: clean a nd remove
all obstructions to airflow

Insufficient ventilation: reference Condensing
Unit installation guidelines for proper placement
and ambient temperature requirements. Correct
to ensure adequate air ventilation to and from the
Condensing Unit.

Intermittent
power to
compressor

No cooling: Evaporator fan
not blowing.

If the "fan" icon is illuminated
on the temperature display
control, the fan should be
blowing air.

Iced coil Insufficient number

No power to fan Power supply to Evaporator interrupted. Restore

Fan obstructed With power to unit disconnected, check the

Fan running but
not drawing air
through coil.

of defrosts

Low refrigerant
charge

Check for loose wires and secure.
Compressor cycling on internal thermal overload

protection. Replace start capacitor/relay
Faulty compressor. Consult factory

power.
Power supply to fan interrupted: loose wire.
Inspect for loose fan wiring and reconnect.

rotation of the blower fan. If fan does not spin
freely, inspect for and remove obstructions. If no
obstructions are found, the fan may need to be
replaced. Consult factory.
Fan short cycling: Make sure all housing panels
are attached to the unit. Replace missing panels.

Coil is blocked with ice. Refer to the "Iced coil"
section.

Turn system off and melt ice from coil. Decrease
the defrost interval from the default value of 16
hours by changing second level parameter "idF"
to a minimum setting of 4 hours. If this corrects
the problem, optimize the defrost frequency by
setting and observing the system at different set
points above “4” and below “16”..

Leak in system. Find and repair leak, recharge
system

Mal-functioning
expansion valve.

No airflow See "Evaporator fan not blowing" section

If expansion valve is faulty, replace.

36

Troubleshooting Issues – Split System Configuration Only

Issue Possible Causes Potential Solutions

No cooling: no refrigerant flow.
If the "snowflake" icon is

illuminated on the
temperature display control,
the optional liquid line
solenoid should be
energized and the
compressor running.

No power to liquid

solenoid valve coil

(valve control)

Solenoid coil
failure
(valve
control)

No power to
compressor

Power supply to Evaporator interrupted. Restore
power.
Power supply to solenoid coil interrupted: loose
wire. Inspect for loose fan wiring and reconnect.

When the Evaporator is powered on and off, a
distinct "click" should be heard indicating the
opening/closing of the solen oid valve. If n ot, the
solenoid coil may need to be replaced. Consult
factory.

Power supply to Condensing Unit interrupted.
Restore power.

Check for loose wires and reconnect.
Low pressure switch is open: make sure solenoid

is energized and condensing unit service valves
are open. Jumper out switch to check for a faulty
switch, and replace if necessary. Note that in
installations below 0°F this switch ma y re main
open. Valve Option only. Consult factory.
High pressure switch is open: make sur e
condensing unit service valves are open. If this
does not correct the problem, refer to the "High
Pressure Safety Shutdown" section.

High pressure
safety shutdown /
high discharge
pressure

Insufficient ventilation: reference Condensing

Intermittent power
to compressor

Locate and correct source of high condensi ng
head pressure:

Refrigeration line blockage
Condenser fan not operating in ambient

temperatures above 90°F. Ensure that there is
power to the Condensing Unit and verify the fan
cycling control settings (optional item). Replace
condenser fan and fan cycling control if

Unit installation guidelines for proper placement
and ambient temperature requirements. Correct
to ensure adequate air ventilation to and from the
Condensing Unit.
Improper refrigerant charge: inspect for over­charged system or non-condensibles in system.

Dirty or obstructed condenser coil: clean a nd
remove all obstructions to airflow.

Check for loose wires and secure.

Compressor cycling on internal thermal overload
protection. Replace start capacitor/relay
assembly

Compressor cycling on high pressure - see "High
pressure safety shutdown" section.

Faulty compressor. Consult factory.

37

Continued - Troubleshooting Issues – Split System Configuration Only

Issue Possible Causes Potential Solutions

No cooling: Evaporator fan
not blowing.

If the "fan" icon is illuminated
on the temperature display
control, the fan should be
blowing air.

Iced coil Insufficient number

No power to fan Power supply to Evaporator interrupted. Restore

power.
Power supply to fan interrupted: loose wire.
Inspect for loose fan wiring and reconnect.

Fan obstructed With power to unit disconnected, check the

rotation of the blower fan. If fan does not spin
freely, inspect for and remove obstructions. If no
obstructions are found, the fan may need to be

replaced. Consult factory.
Fan running but
not drawing air
through coil.

of defrosts

Low refrigerant
charge

Mal-functioning
thermostatic
expansion valve.

No airflow See "Evaporator fan not blowing" section

Fan short cycling: Make sure all housing panels

are attached to the unit. Replace missing panels.

Coil is blocked with ice. Refer to the "Iced coil"

section.

Turn system off and melt ice from coil. Decrease

the defrost interval from the default value of 16

hours by changing second level parameter "idF"

to a minimum setting of 4 hours. If this corrects

the problem, optimize the defrost frequency by

setting and observing the system at different set

points above “4” and below “16” to ensure the

system is configured for maximum run time.

System charged incorrectly. Review process and

correct.

Leak in system. Find and repair leak, recharge

system.

Incorrect superheat setting: determine superheat

and adjust. If expansion valve is faulty, replace.

Expansion valve bulb not located correctly -

review installation instructions and correct.

Liquid flashing at the expa nsion valv e inlet. See

"High liquid line pressure drop" section.

Insufficient liquid sub­cooling

Low refrigerant
charge

High liquid line
pressure drop

System charged incorrectly. Review process and

correct.

Leak in system. Find and repair leak, recharge

system.

Check for plugged filter drier and replace if

necessary.

Inspect pipe routing for proper piping practices

and correct.

Liquid line picking up too much ambient heat -

may need to insulate.

38

V. Limited Warranty

For five years from the date of original delivery, your CellarPro warranty covers the
internal compressor if it proves to be defective in materials or workmanship. In
addition, for two years from the date of original delivery, your CellarPro warranty
covers all parts and labor to repair or replace any components in the wine cooling
unit that prove to be defective in materials or workmanship. The warranty will not be
activated until the Support and Data Service Sheet has been completed and
submitted to CellarPro. The warranty period starts from the time of purchase,
regardless of the time of activation.

Under the terms of this warranty, CellarPro will repair or replace the original cooling
unit with a new or refurbished cooling unit and, once replaced, the original
cooling unit must be returned to CellarPro.

All service provided by CellarPro under the above warranty must be performed by a
designated repair center, unless otherwise specified by CellarPro. Purchaser is
responsible for shipping the cooling unit to and from CellarPro or to and from a
designated repair facility, and for removing and reinstalling the cooling unit from the
wine cellar.

The limited warranty applies only to cooling units purchased from the factory or an
authorized dealer. Damage caused by others or by any cause beyond the control of
CellarPro, shall not be considered defects in material or workmanship and are not
covered by the warranty. The limited warranty does not cover any parts or labor to
correct any defect caused by negligence, commercial use, accident, or improper use,
maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY
ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE
WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF
LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH
OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER
EXPRES, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may also have other legal rights, which vary
from state to state.

To receive parts and/or service and the name of a CellarPro designated repair facility
nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by
calling us at 1.877.726.8496.

39






**IMPORTANT**

INSTALLERS MUST FILL OUT THIS SHEET AND FAX TO

707.794.8005 OR SCAN / EMAIL TO [email protected]

TO ACTIVATE THE WARRANTY.

Installing CellarPro Split Systems requires an experienced professional and adherence to industry practices which
are described in the manual. To activate the warranty, the cooling unit must be installed properly. In order for us to
assess and approve the installation, the installing technician must complete the page below. The page can be faxed
to 707.794.8005 or emailed to [email protected]. We will contact you once we receive and review this sheet.

Technician Name
System Information

Customer Name R-134a system charge lb.
Condensing Unit Model #
Condensing Unit Serial #
Evaporator Model #
Evaporator Serial #
Power to Condensing Unit (Check One) ___ From Evaporator ___ From External Source



Tech Phone

Piping Information

Line-set length – ft.
Liquid line diameter – OD
Suction line diameter - OD

Operational Data

Take the following measurements during a normal refrigeration cycle, once the cellar has pulled down to
the set-point temperature. Make sure the compressor is running when recording the data.

Evaporator Comment

Air temperature at Evaporator coil inlet/outlet
Evaporator fan speed (High / Med / Low)

°F/°F 8-10°F TD

Evaporator power supply voltage & amps

Condensing Unit

Air temperature at Condenser coil inlet & outlet
Condenser fan status (ON / OFF)
Suction pressure at suction service valve
Suction temperature at suction service valve
Liquid pressure at liquid service valve
Liquid temperature at liquid service valve
Condensing Unit power supply voltage & amps

40

V & A

°F/°F 20-30°F TD

PSIG 25-35 PSIG
°F 20°F Superheat Min.
PSIG 105-180 PSIG
°F 10-20°F Subcooling
V & A

103-127 V – check

nameplate amps

103-127 V – check

nameplate amps
