C O N G R A T U L A T I O N S !
Thank you for purchasing a new CellarPro cooling system.
Please take a minute to read through this Owner’s Manual before you unpack,
install and turn on your Cooling Unit.
If you have any questions about your new cooling unit, it is likely that you will find the
answers in this Owner’s Manual. We also have more information on our
website, including the latest version of the Owner’s Manual, at
www.cellarpro.com/customerservice .
If you still have questions, please don’t hesitate to contact your dealer or CellarPro
directly. We can be reached during normal business hours at 707.794.8000. You also
may contact us anytime via email at [email protected].
Contact Information:
CellarPro Cooling Systems
531 Mercantile Drive
Cotati, CA 94931
707.794.8000
Email: [email protected]
Website: www.cellarprocoolingsystems.com
IMPORTANT WARRANTY INFORMATION FOR YOUR SPLIT SYSTEM
Make sure to activate your warranty by having the installing technician complete
the Support and Data Service Sheet at the end of this Owner’s Manual. Once
completed, please fax to us at 707.794.8005, or scan and email to us at
Once we receive the completed Sheet, we'll review the data to make sure the cooling
system is installed properly.
YOUR WARRANTY WILL NOT BE ACTIVATED UNTIL WE RECEIVE THE
COMPLETED CHECKLIST AND INSTALLATION ISSUES (IF ANY) HAVE BEEN
RESOLVED. If the unit malfunctions, we cannot assist you unless/until we receive the
completed checklist. If the unit is damaged because of improper installation, repair
services will be provided on a time and materials basis.
Page 3
Table of Contents
I. Package Contents 4
II. Specifications, Cut Sheets, and Cellar Construction 5
III. Installation Instructions 10
IV. Operating Instructions 27
V. Troubleshooting 34
VI. Limited Warranty 38
VII. Support and Data Service Sheet 39
3
Page 4
I. Package Contents
3000S, 4000S
BOX 1:
DESCRIPTION
EVAPORATOR
TOP MOUNTING BRACKET
SIDE MOUNTING BRACKET
WALL MOUNTING SCREWS
DRAIN TUBING
OWNERS MANUAL
CORK TAPE
DRAIN KNOCKOUT SNAP BUSHING
SIGHT GLASS
FILTER DRIER
BOX 2:
DESCRIPTION
CONDENSING UNIT
QTY
1
2
2
16
10 FT.
1
1 FT.
1
1
1
QTY
1
BOX 3 (OPTIONAL):
DESCRIPTION
CONDENSING UNIT OUTDOOR COVER
COVER ASSEMBLY HARDWARE
3000Sh, 4000Sh, 6000S, 8000S
BOX 1:
DESCRIPTION
EVAPORATOR
REAR WALL MOUNTING BRACKET
WALL MOUNTING SCREWS
DRAIN TUBING
OWNERS MANUAL
CORK TAPE
DRAIN KNOCKOUT SNAP BUSHING
HOLE PLUGS FOR ANCHOR BOLTS
SIGHT GLASS
FILTER DRIER
BOX 2:
DESCRIPTION
CONDENSING UNIT
QTY
1 SET
1 SET
QTY
1
2
6
10 FT.
1
2 FT.
1
2
1
1
QTY
1
BOX 3 (OPTIONAL):
DESCRIPTION
CONDENSING UNIT OUTDOOR COVER
4
QTY
1 SET
Page 5
II. Specifications, Cut Sheets and Cellar Construction
Evaporator
Model
3000S
3000Sh
4000S
4000Sh
6000S
8000S
Dimensions
W x D x H (inches)
16.6 x 12.6 x 22.1
(incl. mounting brackets)
30.4 x 14.4 x 13.2
(incl. mounting bracket)
16.6 x 12.6 x 22.1
(incl. mounting brackets)
30.4 x 14.4 x 13.2
(incl. mounting bracket)
30.4 x 14.4 x 13.2
(incl. mounting bracket)
46.4 x 14.4 x 13.2
(incl. mounting bracket)
Weight
(lbs.)
Running Amps
(with fan on “high”)
40 6.2
63 6.2
42 8.9
65 8.9
68 13.1
85 15.4
Model
3000S,
3000Sh
4000S,
4000Sh
Condensing unit - Indoor
Dimensions
W x D x H (inches)
Weight
(lbs.)
13.5 x 18.9 x 9.1 42
13.5 x 18.9 x 10.3 45 76
Condensing unit - Outdoor
Dimensions
W x D x H (inches)
19.4 x 23.3 x 18.8
Weight
(lbs.)
(with cover)
6000S 13.9 x 18.9 x 11.9 54 85
8000S 16.8 x 20.8 x 14 76 107
73
5
Page 6

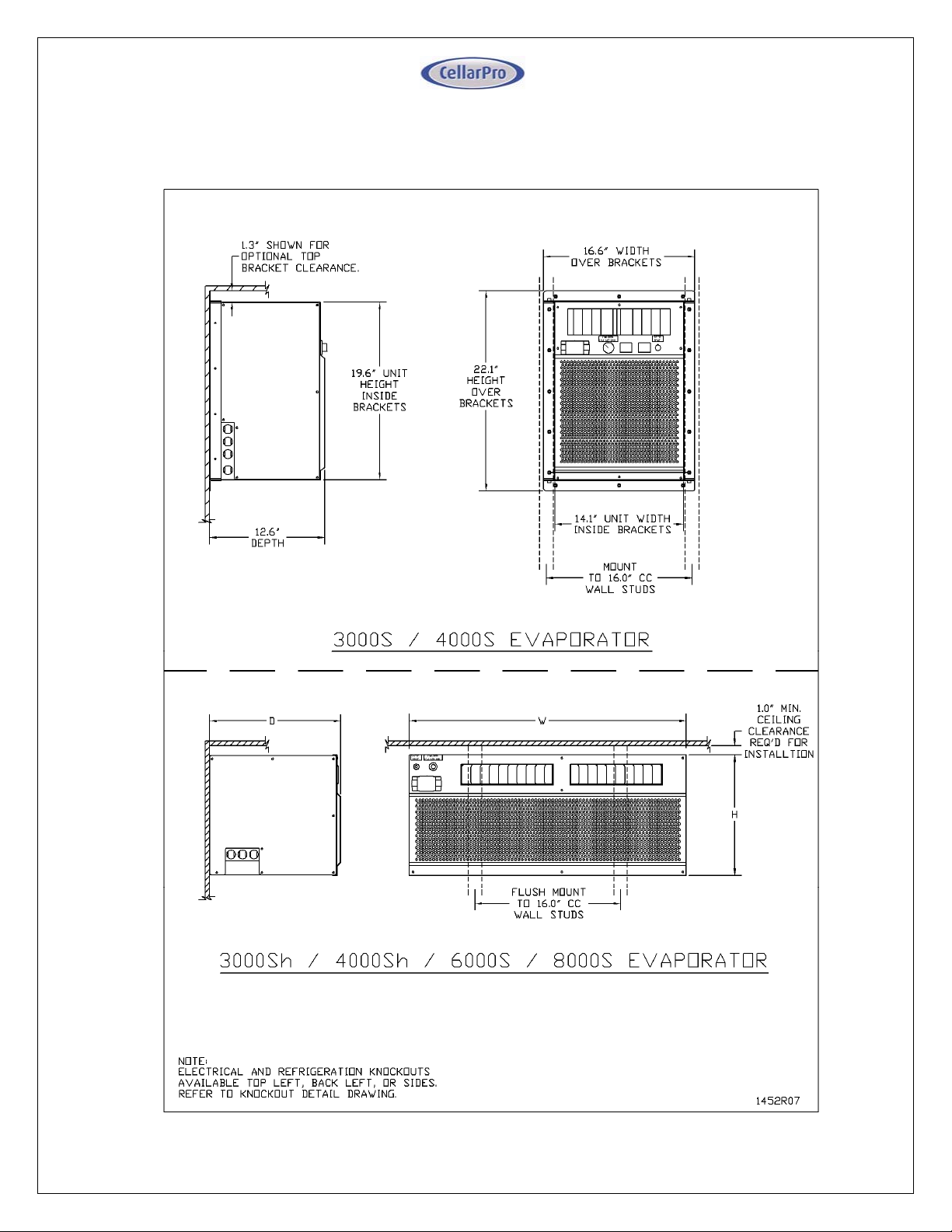

Evaporator Cut Sheets
6
Page 7

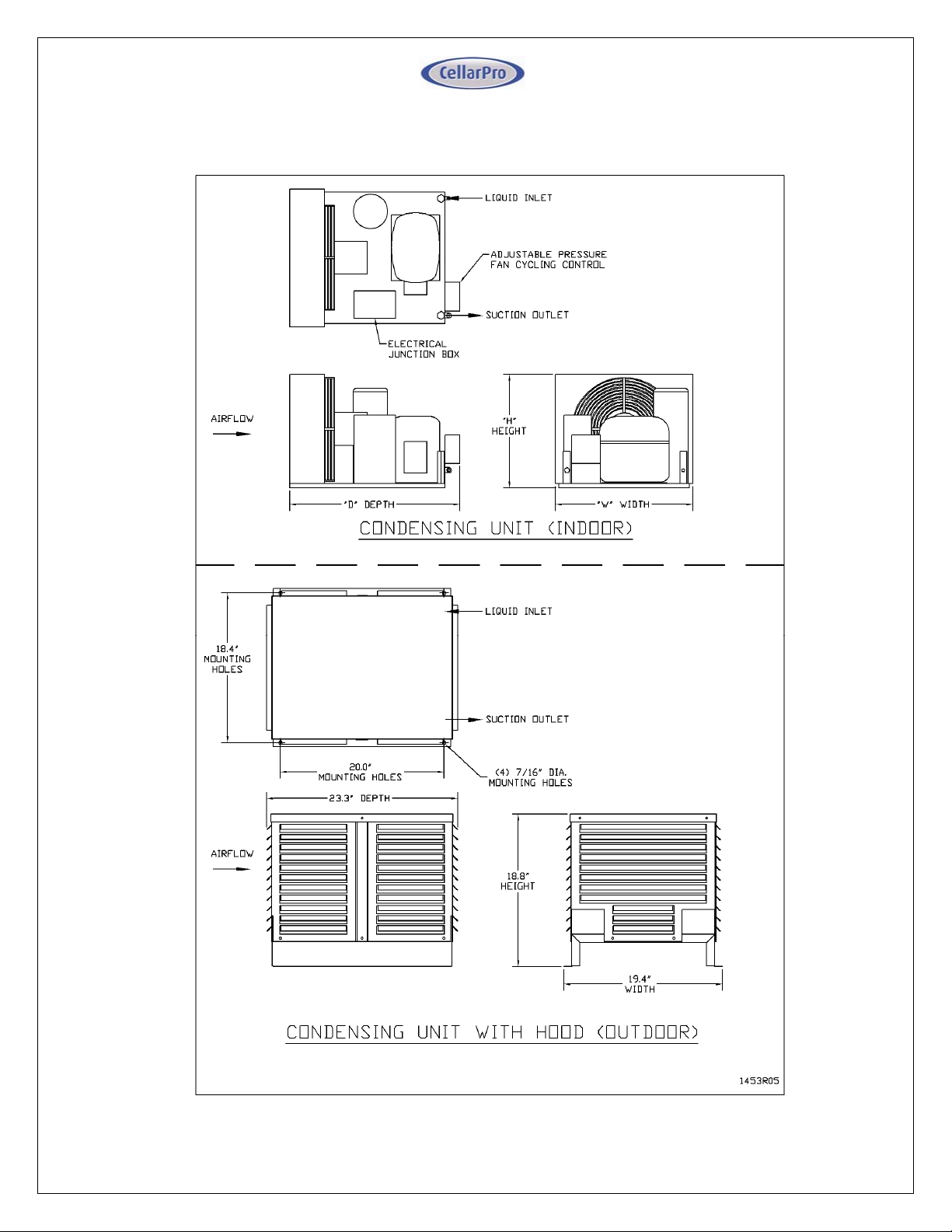

Condensing Unit Cut Sheets
7
Page 8
Insulation

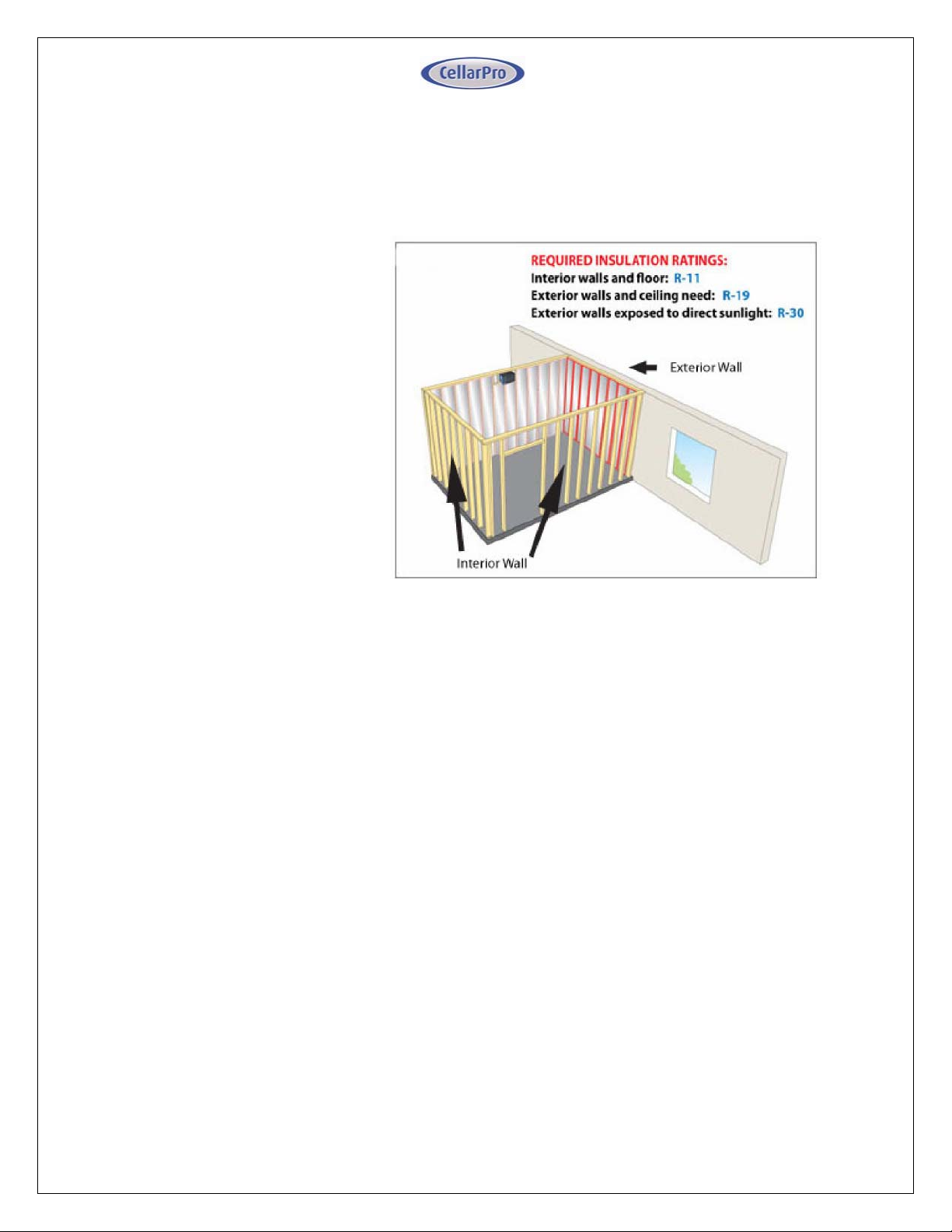

CellarPro cooling units are designed to be installed inside wine cellars that have
proper insulation, moisture barriers and an airtight seal from the environment
outside the cellar. Interior walls and floor should have a minimum of R-11
insulation, and a vapor barrier
on the warm side of the
insulation. The ceiling should
have a minimum of R-19
insulation and a vapor barrier
on the warm side of the
insulation. Doors also should
be insulated and tightly
sealed with weather
stripping around the
perimeter of the door.
Surface-mounted fixtures
are recommended over
recessed lighting, which can
allow air to leak into the
cellar.
It is important that all walls,
joints, doors and windows, electrical outlets and/or switches, pipes, vents and
light fixtures be sealed to prevent air and moisture from entering the cellar. If there is
a leak in the cellar, the cooling unit will build up excess condensation.
We strongly recommend that the overflow drain line (shipped loose with the cooling
unit) be connected to the overflow drain (as shown in the installation section). In
addition, we recommend turning on the electric heating element to burn off excess
condensate that accumulates in the stainless steel pan during the initial cooling of
the cellar and during high run-times, as well as in high-humidity environments.
Fan Speeds
Your fan speed setting will depend on the thermal load on the wine cellar, and
the resulting BTU that is required to cool and maintain your wine cellar at the
desired temperature.
Ventilation
Adequate ventilation is critically important for the proper operation of your
CellarPro cooling unit.
8
Page 9
Outside the Cellar
Condensing unit Air Exhaust. Condensing units create significant hot air which
must be exhausted into an appropriately-sized space in order for the heat to
dissipate. If the space is constrained and/or too small, the heat will not dissipate.
In this event, the cooling unit will be forced to re-circulate its hot air exhaust
and/or the static pressure will back up the cooling unit. If this happens, the
cooling unit’s ability to create cold air inside the cellar will be compromised.
Condenser Air Intake. The condenser coils require access to cool air in order for
the cooling unit to produce cold air. In addition, the cooling unit must be installed
so that, after its installation, the condenser coils are accessible for periodic
cleaning.
The Condensing unit cannot be ducted.
Inside the Cellar
Evaporator Air Intake
.
When the warm air passes across the evaporator coils,
heat is removed from the air, and the resulting cold air is exhausted into the cellar.
To ensure proper airflow, minimum clearance of 12” is required in front of the
cooling unit.
Evaporator Air Exhaust.
Cold air is exhausted at the top front of the cooling unit.
Because CellarPro cooling units are located at the highest point inside wine
cellars, the cold air exhaust eventually will drop to the bottom of the cellar. To
ensure proper airflow and reduce temperature stratification inside the cellar, the
space in front of the cold air discharge should be clear of any obstructions,
including wine bottles, wine racks, etc.
Ducting. Cold air exhaust and return (from the evaporator) can be ducted with
our front duct hood up to 50 equivalent feet using 8” diameter insulated ducting,
or 100 equivalent feet with an auxiliary inline fan. Our front duct kit is compatible
exclusively with our 3000S and 4000S cooling units. If you’d like to duct one of
our larger cooling units, please consider our AH6500 and AH8500 cooling units.
Before attaching the front duct hoods, remove the front grill (if present) from the
front of cooling unit.
We also offer a remote control panel kit that can be installed remotely (up to 10
feet) from the cooling unit, either inside or outside the cellar, and a bottle probe
(10 foot cord) that can be plugged into the cooling unit.
9
Page 10
III. Installation Instructions
Installation Instructions
Split System piping and wiring must be installed by a qualified Refrigeration
Technician in accordance with local and national code requirements.
Condensing Unit Installation
Indoor and Outdoor Units
The unit is designed to operate in temperatures ranging from 0°F to 110°F. A
compressor heater (sold separately) is required for temperatures below 40°F.
Indoor Units
Condensing units can be installed remotely from the cellar in an area protected
from direct exposure to moisture and sunlight.
The area must have suitable ventilation to maintain an ambient temperature of
110°F or less.
If the area does not have adequate ventilation, a vent fan should be added to
supply fresh air to the space (suggested 600CFM).
A minimum of 12" of open air space is required in front of the condenser coils.
Indoor units can be installed with the optional outdoor hood if additional
mechanical protection is desired.
A minimum of 12" of open air space around the perimeter of the outdoor hood
is required.
Outdoor Units
Condensing units must be installed with the outdoor hood if the unit will be
located outdoors.
A minimum of 12" of open air space around the perimeter of the outdoor hood
is required.
Evaporator Unit Installation
As warm air rises to the top of the cellar, the cooling unit pulls the warm air
through the evaporator coil and removes the heat from the warm air. Once
cooled, the cold air is discharged from the front of the cooling unit and circulates
through the cellar. Therefore, we recommend mounting the evaporator as close
to the ceiling as possible inside the cellar.
10
Page 11

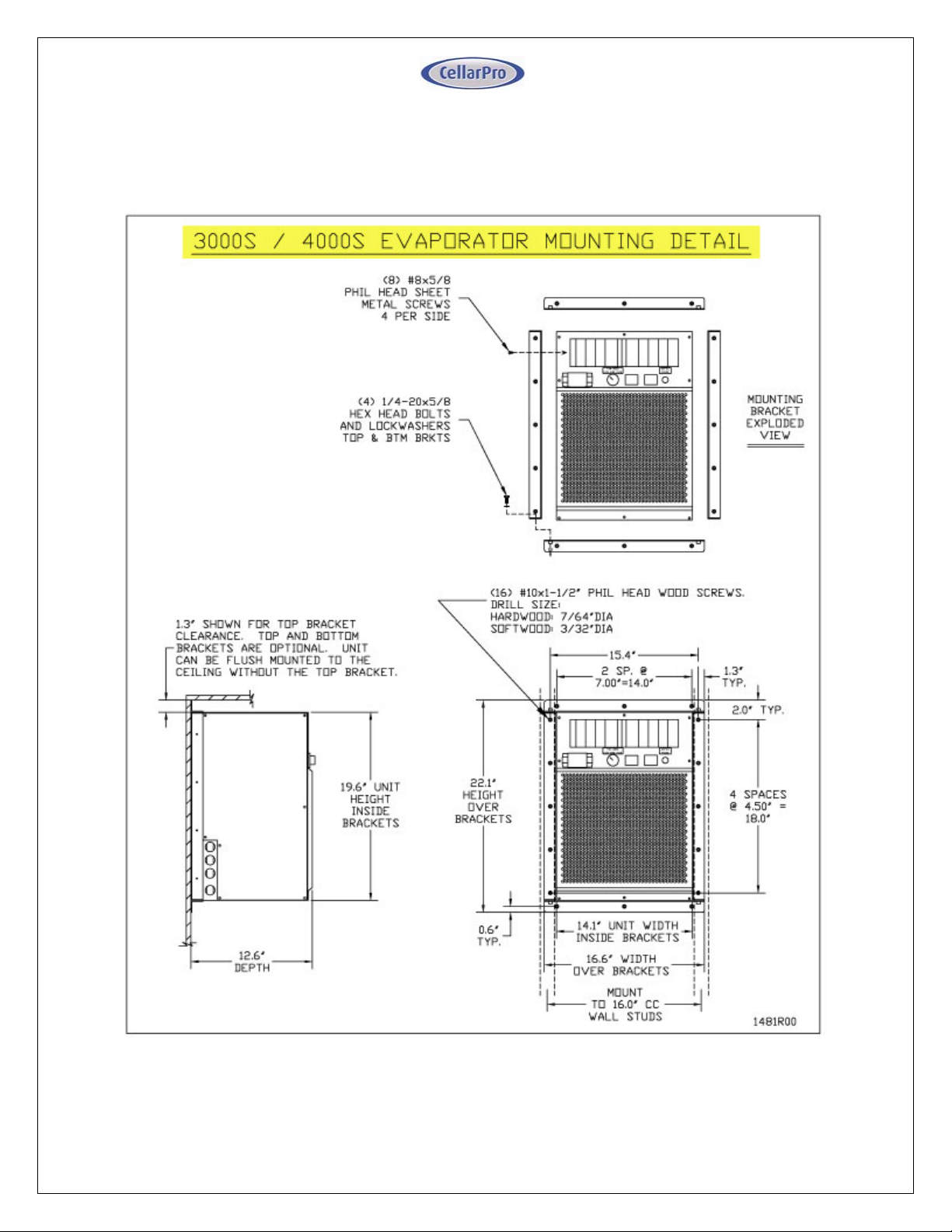

3000S / 4000S
Side mounting brackets are provided for mounting the evaporator flush to a wall
inside the cellar. Optional top and bottom brackets (non-load bearing) are
available upon request.
11
Page 12

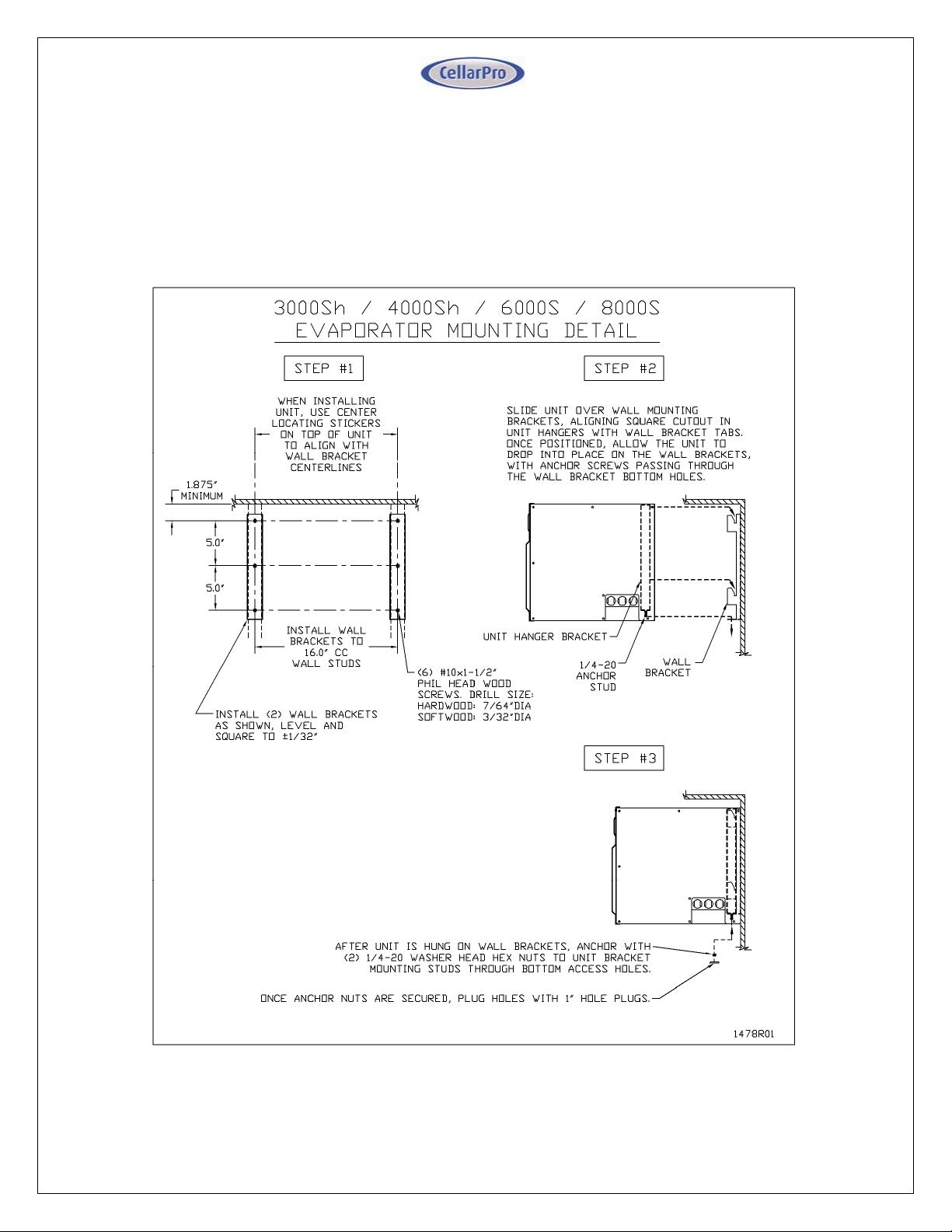

3000Sh / 4000Sh / 6000S / 8000S
Wall hangers are used to mount these split systems. First, wall brackets are
attached to the wall, and then the evaporator slides onto the brackets. After the
evaporator is installed, two bottom nuts must be installed on the recessed anchor
studs.
12
Page 13

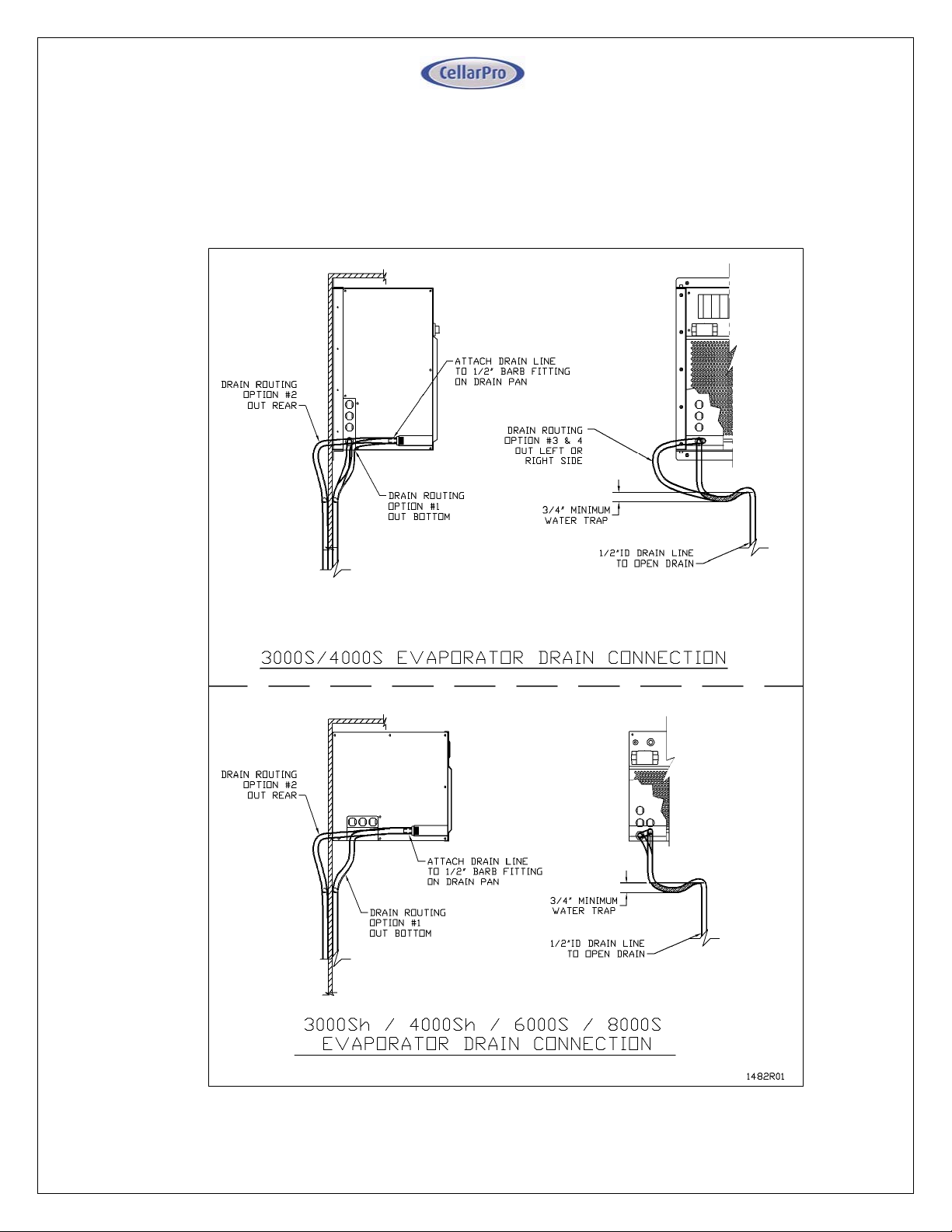

Condensate Drain Line
The condensate drain line should drop, then rise (but stay below the height of the
fitting), and then drop again into a drain or bucket. Then, fill the trap with water. The
condensate trap will allow any excess moisture inside the Evaporator to
overcome the static pressure and flow out of the drain line.
13
Page 14
Power Supply Requirements
Option A: Dual Power / Valve Control
EVAPORATOR CONDENSING UNIT
SPLIT
SYSTEM
MODEL MCA
FAN AMPS @ 115V/60HZ POWER INPUT WATTS
UNIT AMPS @
115V/60HZ
HIGH MED LOW HIGH MED LOW MCA LRA WATTS
POWER
INPUT
3000S/Sh 1.3 1.0 0.8
4000S/Sh 1.7 1.4 1.1
6000S
2.6 2.1 1.7 1.4 214 168 140 13.5 53.0 922
3.5 2.8 2.2 1.9 318 244 214 15.4 51.0 1028
8000S
NOTES:
1) Separate 115V / 60HZ power supplies are required for the Evaporator and the Condensing Unit.
2) A 15 amp circuit breaker is recommended for all Evaporator models.
3) A 15 amp dedicated circuit breaker (non GFI) is recommended for 3000S/Sh and 4000S/Sh Condensing Units
4) A 20 amp dedicated circuit breaker (non GFI) is recommended for the 6000S Condensing Unit.
5) A 25 amp dedicated circuit breaker (non GFI) is recommended for the 8000S Condensing Unit.
0.7 107 84 70 6.4 28.2 442
1.0 159 122 107 9.2 40.0 591
Option B: Single Power / Electronic Control
SINGLE 115V 60HZ POWER SUPPLY TO/FROM
EVAPORATOR
SPLIT
SYSTEM
MODEL MCA
3000S/Sh 7.4 28.0
4000S/Sh 10.6
6000S
8000S
NOTES:
1) A 15 amp dedicated circuit breaker (non GFI) is recommended for 3000S/Sh and 4000S/Sh systems.
2) A 25 amp dedicated circuit breaker (non GFI) is recommended for 6000S and 8000S systems.
SYSTEM AMPS POWER INPUT WATTS
LRA HIGH MED LOW
549 526 512
40.0 750 713 698
15.6 53.0 1136 1090 1062
18.2 51.0 1346 1272 1242
14
Page 15

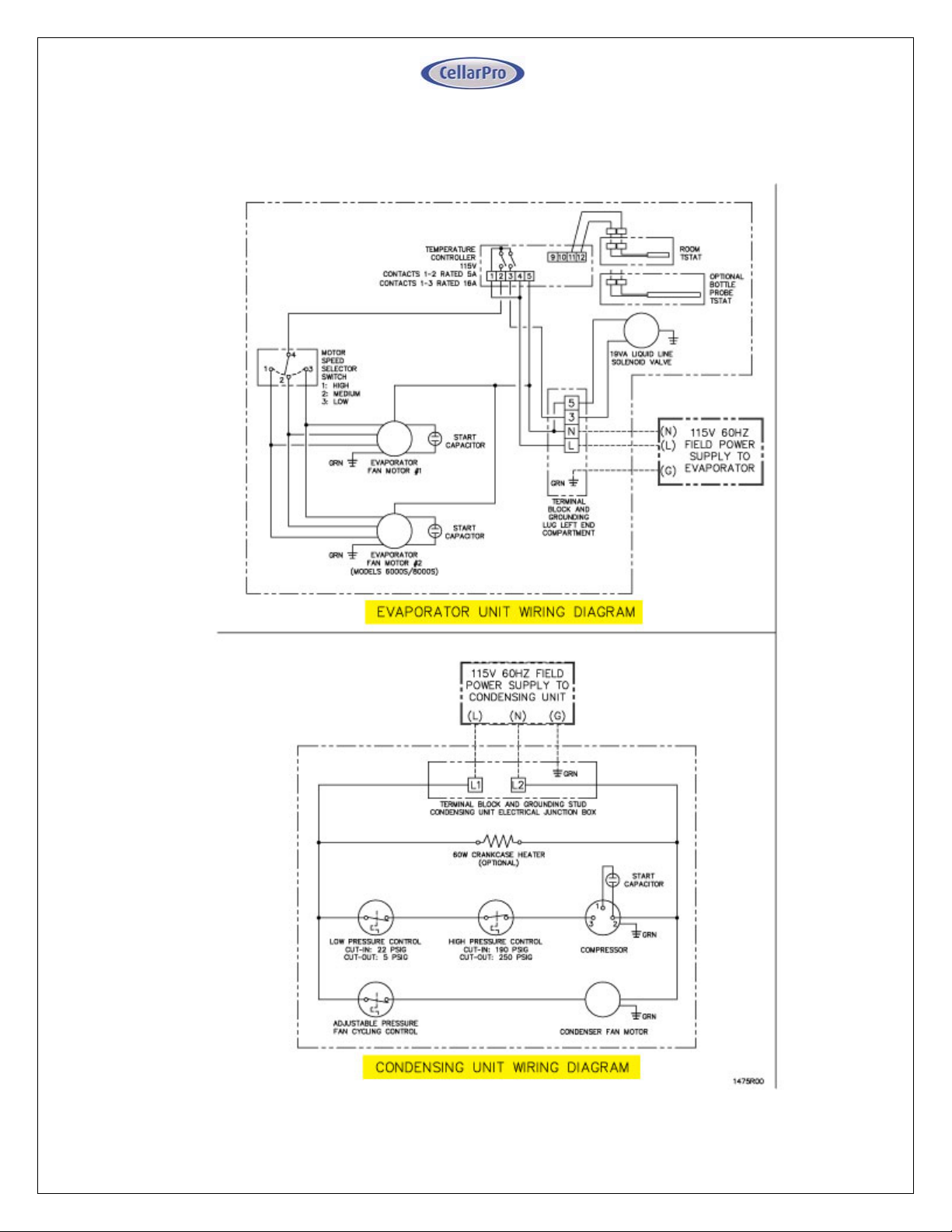

System Wiring – Option A: Dual Power / Valve Control
Under this configuration the Evaporator and Condensing units are separately
powered, and the Condensing unit turns on and off based on suction pressure, as
follows:
The Evaporator includes a factory installed liquid line solenoid valve
(LLSV), which is controlled by the Evaporator temperature controller. The
Condensing unit is controlled by a low pressure switch which reacts to the
suction pressure and senses whether the LLSV is open or closed.
When the Evaporator temperature set-point is reached and the Evaporator
turns off, the LLSV closes, causing the system to pump down until the low
pressure switch shuts off the Condensing unit.
When the Evaporator turns on, the LLSV opens, causing the suction
pressure to rise and activate the Condensing unit.
Field power wiring is connected to both the Evaporator and Condensing units, no
interconnecting wiring is needed between the Evaporator and Condensing unit.
Evaporator Field Power Wiring:
Connect line lead to Evaporator terminal "L"
Connect neutral lead to Evaporator terminal "N"
Connect power ground to grounding lug on Evaporator
Condensing Unit Field Power Wiring:
Connect line lead to Condensing unit terminal "L1"
Connect neutral lead to Condensing unit terminal "L2"
Connect power ground to grounding lug on Condensing unit.
15
Page 16

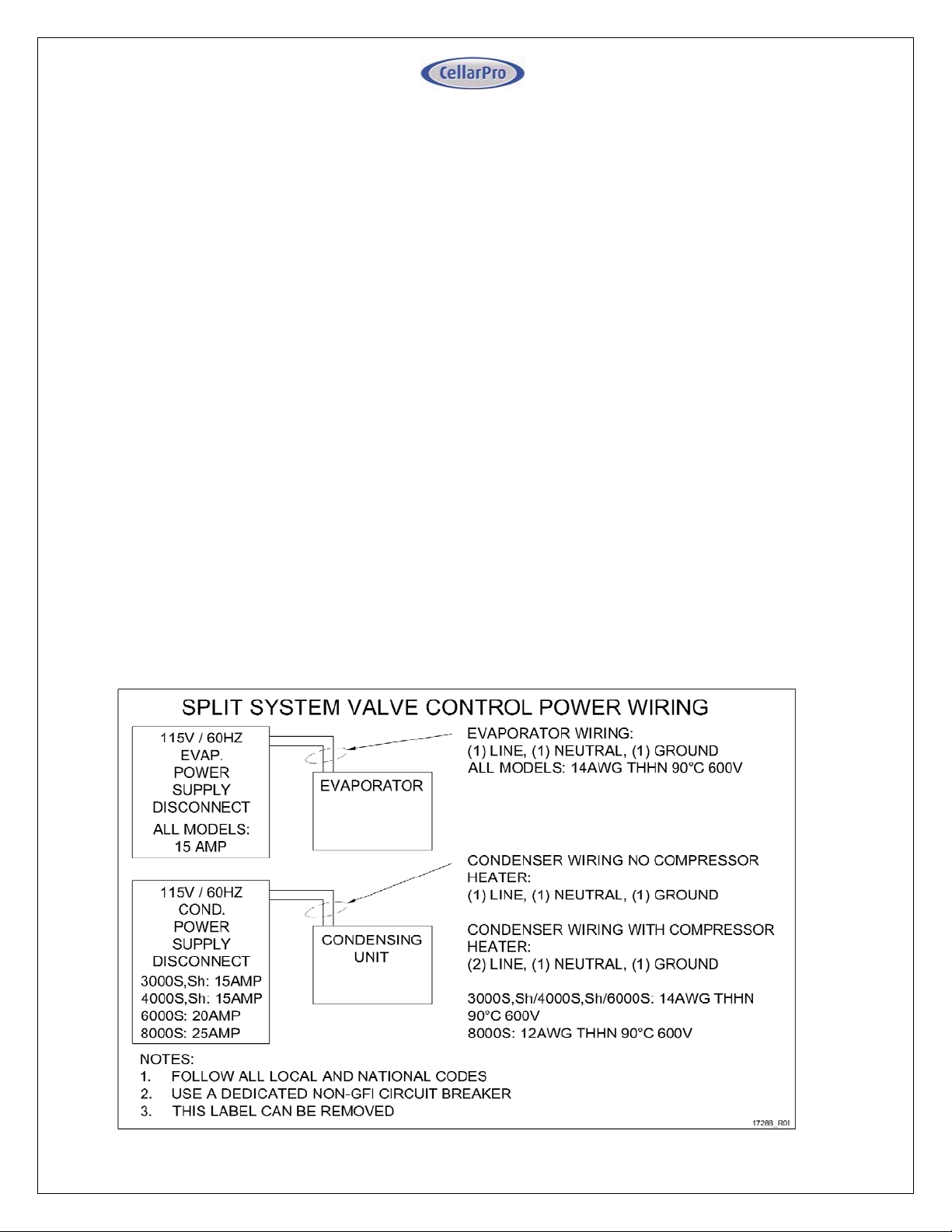

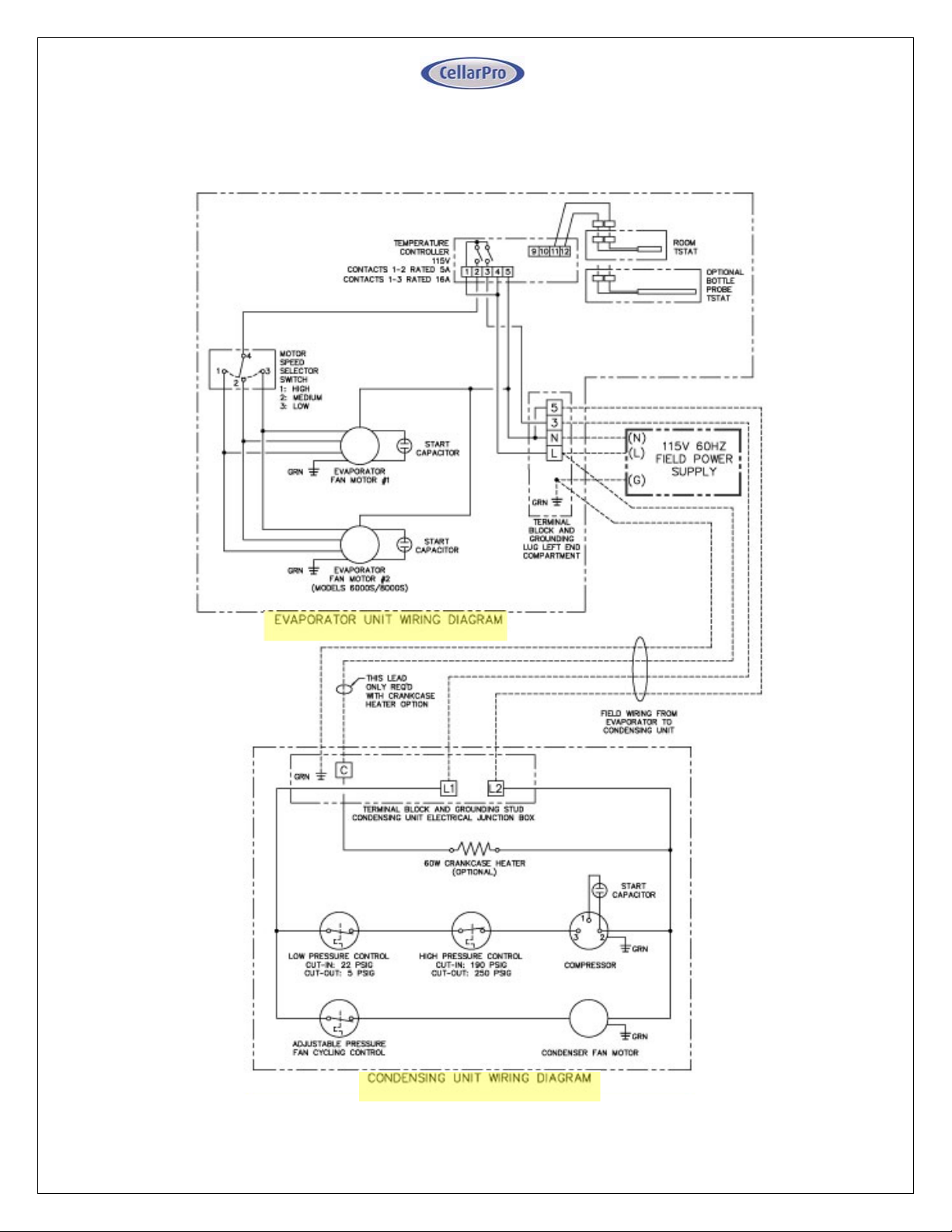

Wiring Diagram – Option A: Dual Power / Valve Control
16
Page 17
System Wiring – Option B: Single Power / Electronic Control
Under this configuration, only the Evaporator is powered by the Field Power
Wiring, as follows:
Connect line lead to Evaporator terminal "L"
Connect neutral lead to Evaporator terminal "N"
Connect power ground to grounding lug on Evaporator
The Condensing Unit is powered by connecting it to the Evaporator, is follows:
"3" on the Evaporator to "L1" on the Condensing unit
"5" on the Evaporator to "L2" on the Condensing unit
Ground lug on the Evaporator to the grounding stud on the Condensing unit.
With optional crankcase heater: Run a separate lead connecting “L” on
Evaporator to “C” on Condensing Unit.
17
Page 18

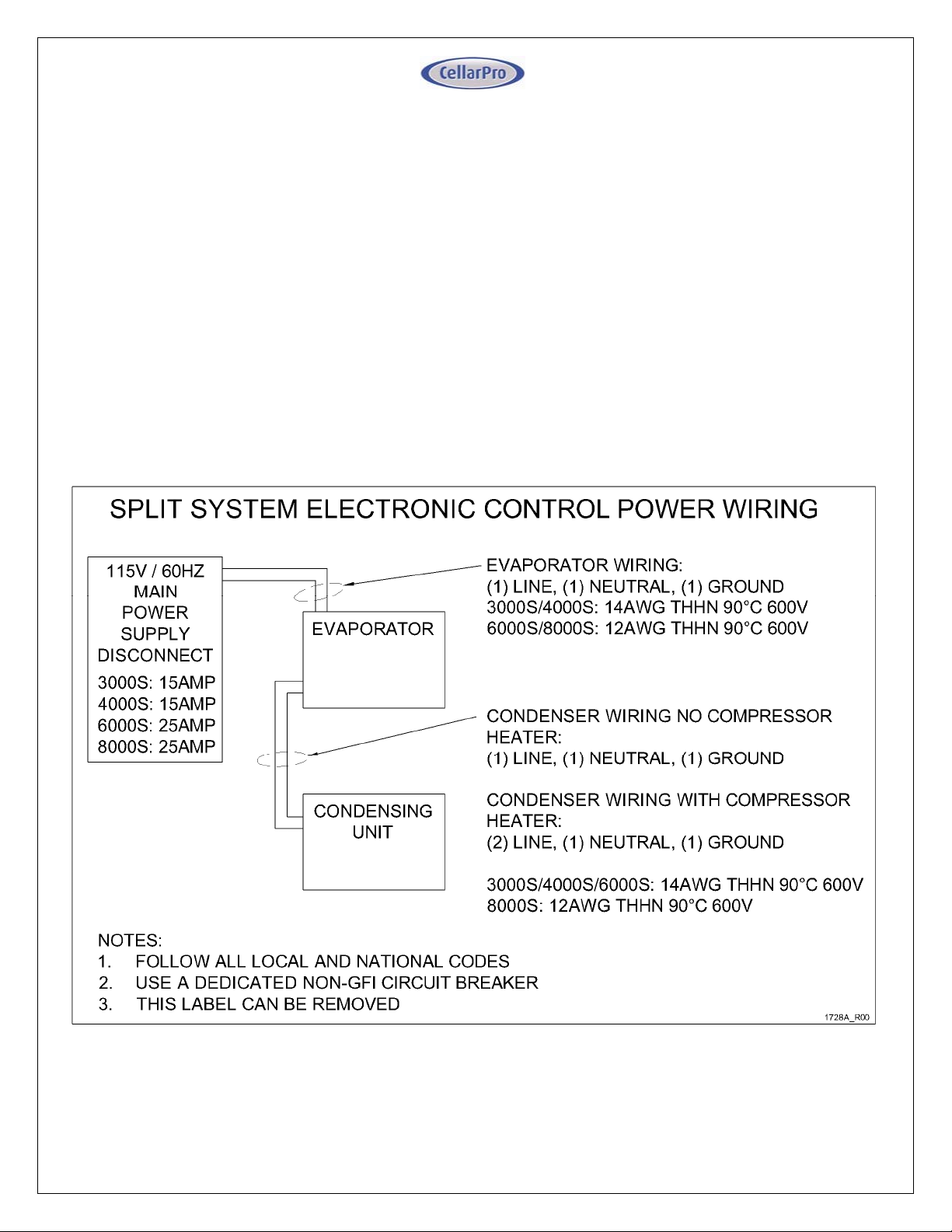

Wiring Diagram – Option B: Single Power / Electronic Control
18
Page 19
Installing Refrigeration Lines

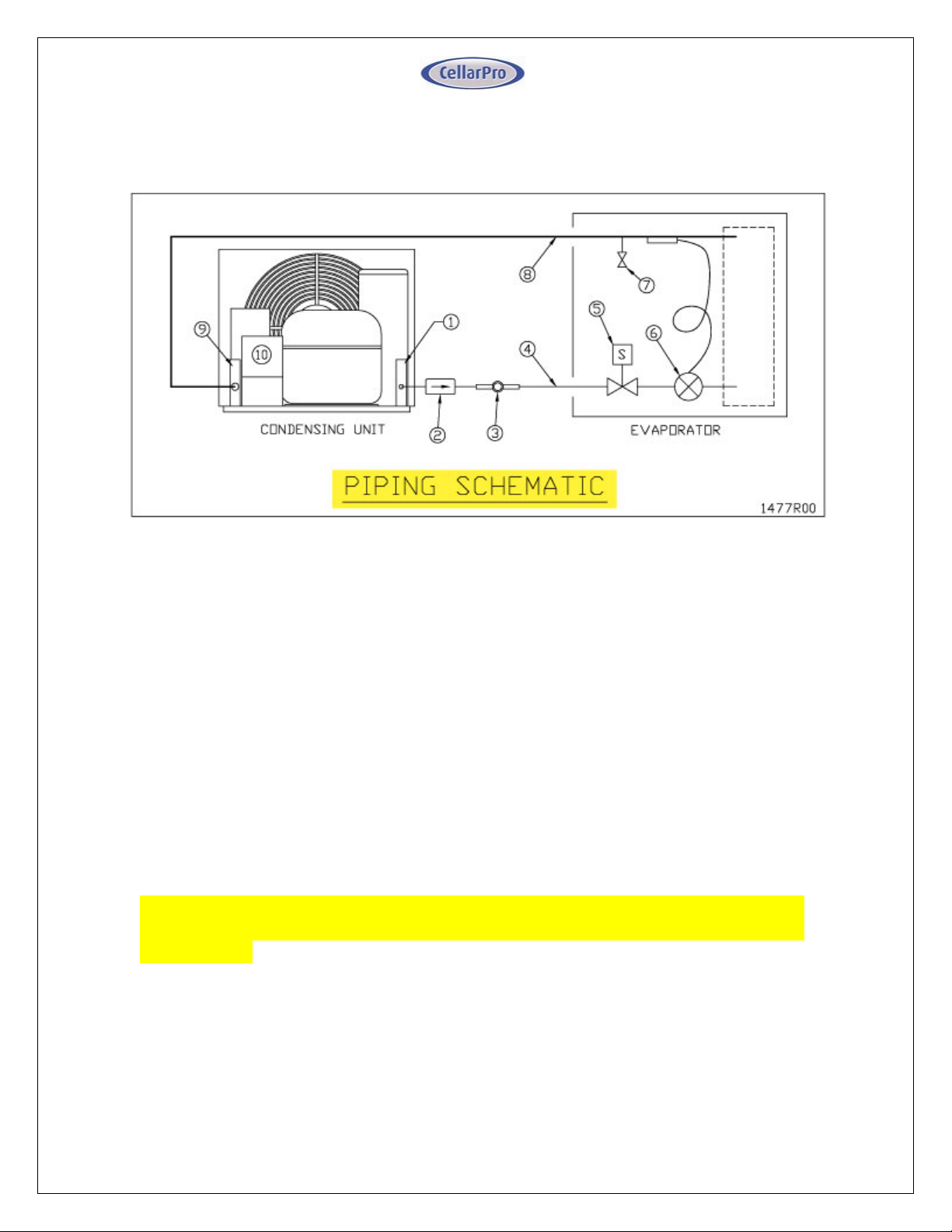

The Evaporator and Condensing units should be piped according to the following
piping schematic:
Piping Legend
1. The 3/8"ODS liquid service valve is located on the Condensing unit.
2. Hermetic liquid line filter drier (shipped loose). Install with the directional flow
arrow as shown.
3. Liquid line sight glass with moisture indicator (shipped loose).
4. Liquid line refrigeration piping in accordance with Line Sizing Chart.
5. Factory installed liquid line solenoid valve (normally closed) (Dual
Power/Valve Control configurations only).
6. Factory installed thermostatic expansion valve. Bulb must be attached to a
horizontal run of the suction line after brazing the field suction connection,
and insulated with the supplied cork tape.
7. Factory installed suction service valve to use for setting expansion valve
superheat.
8. Insulated suction line refrigeration piping (refer to Line Sizing Chart below).
9. 5/8"ODS suction service valve located on Condensing unit.
10. Fan cycling control
WHEN BRAZING COPPER TUBING TO THE SERVICE VALVES, USE 95/5 SOLDER AND SOLDERING
FLUX.DONOTUSESILVERSOLDERBECAUSEITREQUIRESHIGHERHEATTHATWILLDAMAGETHE
SERVICEVALVES.
Line Sizing Chart
Refer to the Line Sizing Chart below for selecting the appropriate tubing size for
the length of the piping run. Note that the recommended line size may not match
the connection ports on the Condensing unit and the Evaporator. Refrigeration
grade fittings must be supplied by the installing technician to make the necessary
19
Page 20
transitions. Transitions should be made as close to the unit as possible.
Suction line routing must be designed to ensure oil return to the Condensing unit.
Split System Line Sizing Chart
Suction Line Size by Length ("ODS)
Minimum
Liquid Line
Size ("ODS)
Up to 100
Model
3000S/Sh 1/4 1/2 1/2 1/2 1/2
4000S/Sh 3/8 1/2 1/2 1/2 1/2
6000S 3/8 1/2 1/2 5/8 5/8
feet
Suction Line
Insulation
Thickness
(in)
Up to 25 feet
Over 25 feet
up to 50 feet
Over 50 feet
up to 100 feet
8000S 3/8 5/8 5/8 5/8 7/8
Notes:
1) Line lengths are expressed in equivalent feet = actual run length + fitting allowances.
2) Chart includes allowances for Condensing Unit Service Valves, Filter Drier, and Sight Glass.
3) Use only dehydrated refrigeration service tubing and refrigeration grade fittings.
4) Install refrigeration piping in accordance with local codes and ASHRAE guidelines.

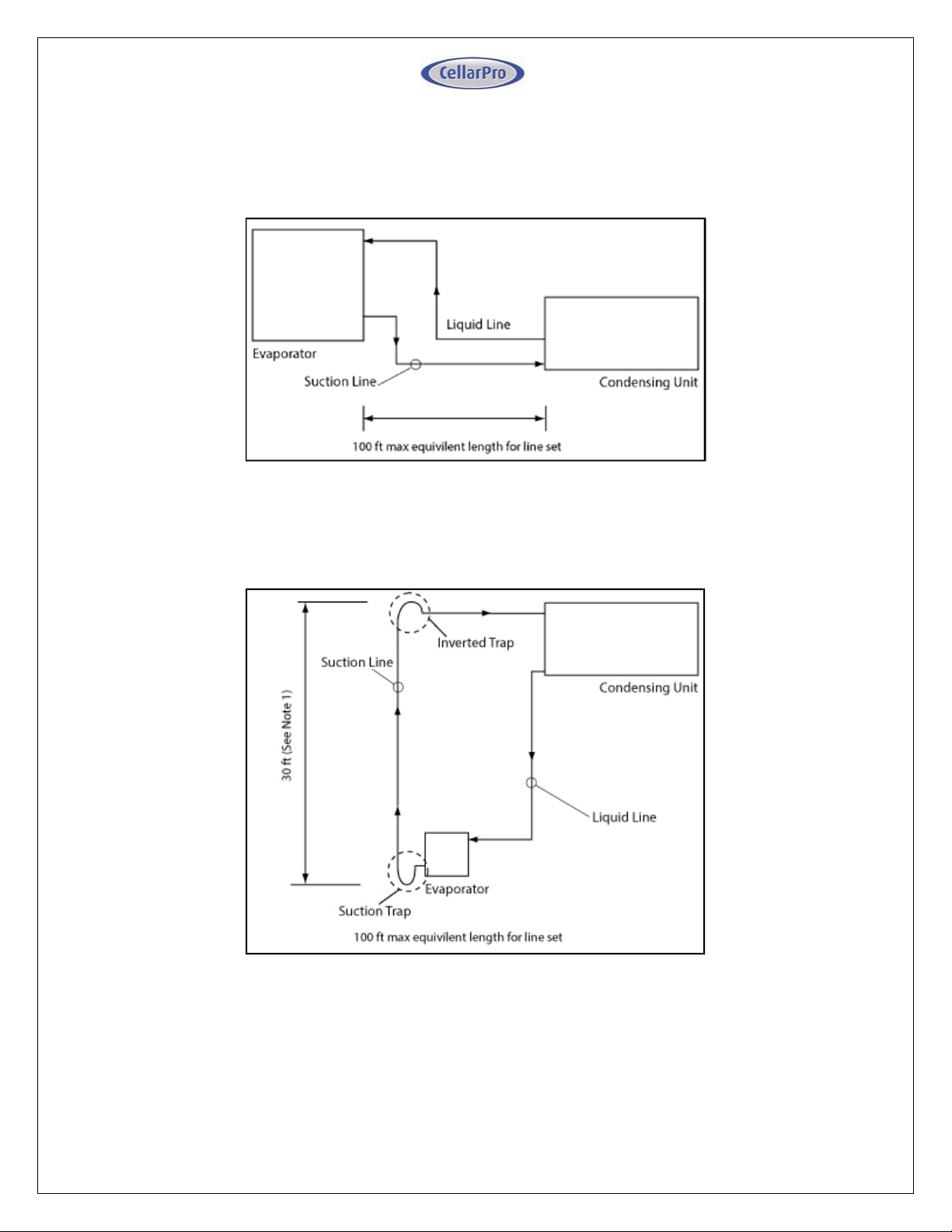

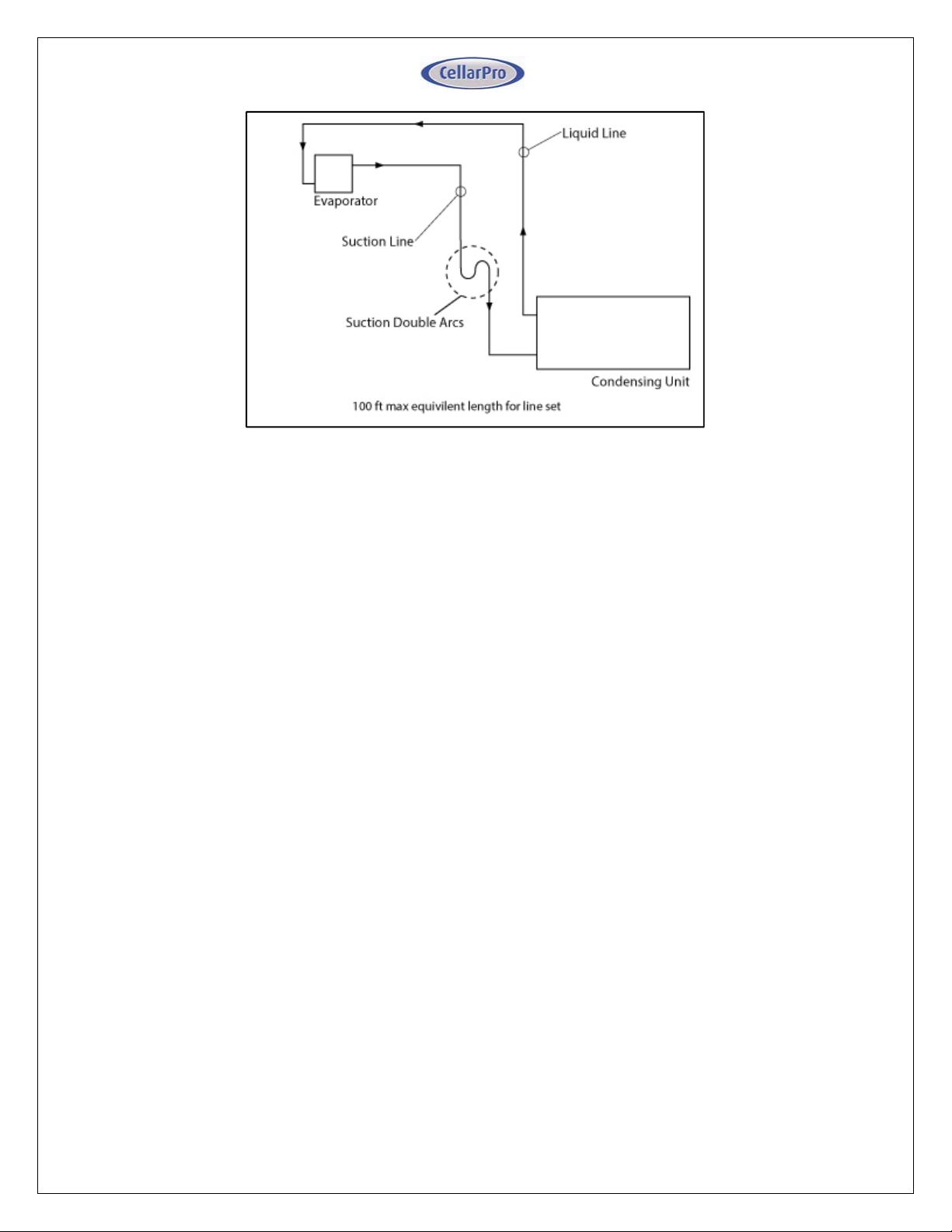

Vertical Piping Guidelines
Piping runs should be kept as short and compact as possible. Low-lying areas
(oil “traps”) where oil can accumulate should be avoided. Refer to the following
guidelines with regards to the vertical placement of the evaporator and
condensing units:
20
Page 21
1. When the evaporator and condensing unit are located on the same level,
arrange the suction line slightly downward to the condensing unit, as
follows:
2. When the evaporator is located below the condensing unit, a suction trap
must be installed at the evaporator, and an inverted trap must be installed at
the condensing unit, for proper oil return, as follows:
3. When the evaporator is located above the condensing unit, the suction
line must be laid out with double arcs in the form of oil traps above and below.
This is done using a U-shaped arc at the lower end and a P-shaped arc at the
upper end of the vertical riser, as follows:
21
Page 22
Evacuation, Leak Detection, and Charging
Once the piping is installed, the following steps should be performed to ensure a
dry and leak-free system:
1. The Condensing unit is pre-charged with compressor oil. To avoid moisture
contamination of the oil, do not leave the service valves open to atmosphere
for more than 15 minutes.
2. Open the liquid and suction service valves on the condensing unit.
3. a. Dual Power Source / Valve Control: Supply power to the Evaporator only
- DO NOT connect power to the Condensing unit. Turn on the
temperature controller, which will energize and open the liquid line
solenoid valve. Verify the solenoid is powered as indicated by the
compressor icon ("snowflake") on the temperature controller display.
b. Not applicable
4. Pressurize the system to a maximum of 150PSIG of dry nitrogen. Mark the
pressure and hold for a minimum of 1 hour. If the pressure holds, proceed to
the next step, otherwise locate and repair the leak and repeat this step.
5. Evacuate the system to a minimum of 500 microns. If the vacuum is
achieved, proceed to the next step, otherwise locate and repair the leak and
repeat from step 4.
6. Disconnect the vacuum pump, but leave the system under vacuum. Use a
charging scale to accurately weigh in the refrigerant. Charge liquid R-134a
refrigerant through the liquid service valve according to the charge pounds
indicated in the "System R-134a Charge Guidelines" chart below. Additional
refrigerant may need to be added, as detailed in the next step. DO NOT USE
REFRIGERANT WITH ADDITIVES.
22
Page 23
7. Warm the bottom shell of the compressor above the ambient temperature for
30 minutes to drive excess refrigerant out of the compressor oil. Connect
power to the Evaporator and Condensing unit, and activate the system.
Check that the sight glass is clear when the compressor is running. The
condensing temperature must be above 105°F (135.0 PSIG) when inspecting
for a clear sight glass. In a low ambient environment, it may be necessary to
block off the condenser air intake to force the condensing temperature higher.
If the sight glass is not clear, slowly add vapor refrigerant though the suction
service valve.
8. With a clear sight glass, adjust the superheat on the thermostatic expansion
valve to 10°F +/- 2°F, as measured at the suction access valve located in the
Evaporator.
9. Once the superheat is adjusted, ensure the condenser face airflow is
unrestricted and allow the system to balance for 30 minutes.
10. Check the suction superheat at the compressor using the access port on the
suction service valve. A minimum superheat of 20°F is required at this
location. If it is below 20°F, recheck the thermostatic expansion valve
superheat and increase as necessary to ensure a 20°F superheat at the
compressor.
11. Adjust the fan cycling control (located on the Condensing unit) so that the
condenser fan cuts-out at approximately 90°F (104.5 PSIG), and cuts-in at
120°F (171.0 PSIG). Verify pressures with valve manifold gauges at startup.
23
Page 24
Installation Tips and Guidelines
When brazing copper tubing to the service valves, use 95/5 solder and
soldering flux. Do not use silver solder because it requires higher heat that
will damage the service valves.
Make sure all electrical connections are secure.
Inspect Evaporator and Condensing unit fans to confirm airflow. There
shouldn’t be any excessive vibration, noise or obstructions to airflow.
Observe system pressures during charging and initial operation and keep note
of them as they will be required for the Service and Support Data Sheet which
initiates the warranty.
Continue charging until system has sufficient refrigerant for proper operation.
Do not overcharge or use refrigerant with additives.
Remember that bubbles in a sight glass may be caused by a restriction as well
as a shortage of refrigerant.
Do not leave unit unattended until the system has reached normal operating
conditions.
Make sure all access valve caps are in place and tight.
Make sure liquid and suction service valves are properly back-seated and
tighten valve packing if necessary.
Make sure the condenser fan cuts-in at 171 PSIG and cuts-out at 104.5 PSIG.
24
Page 25
g
System R-134a Charge Guidelin es
System R-134a Charge G ui delines
Actual
Line
Length
(ft) 3000S/Sh 4000S/Sh 6000S 8000S
5 1.38 1.65 2.31 3.71
10 1.46 1.85 2.51 3.92
15 1.54 2.05 2.71 4.12
20 1.61 2.25 2.93 4.32
25 1.69 2.45 3.13 4.53
30 1.77 2.65 3.34 4.73
35 1.85 2.85 3.54 4.93
40 1.93 3.05 3.74 5.14
45 2.01 3.25 3.95 5.44
50 2.09 3.45 4.15 5.65
55 2.16 3.65 4.36 5.86
60 2.24 3.85 4.56 6.08
65 2.32 4.05 4.76 6.29
70 2.40 4.25 4.97 6.51
75 2.48 4.45 5.17 6.72
80 2.56 4.65 5.37 6.93
85 2.64 4.85 5.58 7.15
90 2.71 5.05 5.78 7.36
Note:
1) Actual charge may vary - follow charging instructions
detailed under Item 6 in the section titled
Leak Detection, a nd Chargi ng
2) Lines sized according to Line Sizing Chart assumin
line length plus 10 equivalent feet for fittings losses.
System Charge (lbs) by Model #
Evacua tion,
(above).
Ducting for the Evaporator (3000S and 4000S Models)
Cold air exhaust and return (from the evaporator) can be ducted with our front
duct hood up to 50 equivalent feet using 8” diameter insulated ducting, or 100
equivalent feet with an auxiliary inline fan. Our front duct kit is compatible
exclusively with our 3000S and 4000S cooling units. If you’d like to duct one of
our larger cooling units, please consider our AH6500 and AH8500 cooling units.
Before attaching the front duct hoods, remove the front grill (if present) from the
front of cooling unit.
25
Page 26
We also offer a remote control panel kit that can be installed remotely (up to 10
feet) from the cooling unit, either inside or outside the cellar, and a bottle probe
(10 foot cord) that can be plugged into the cooling unit.

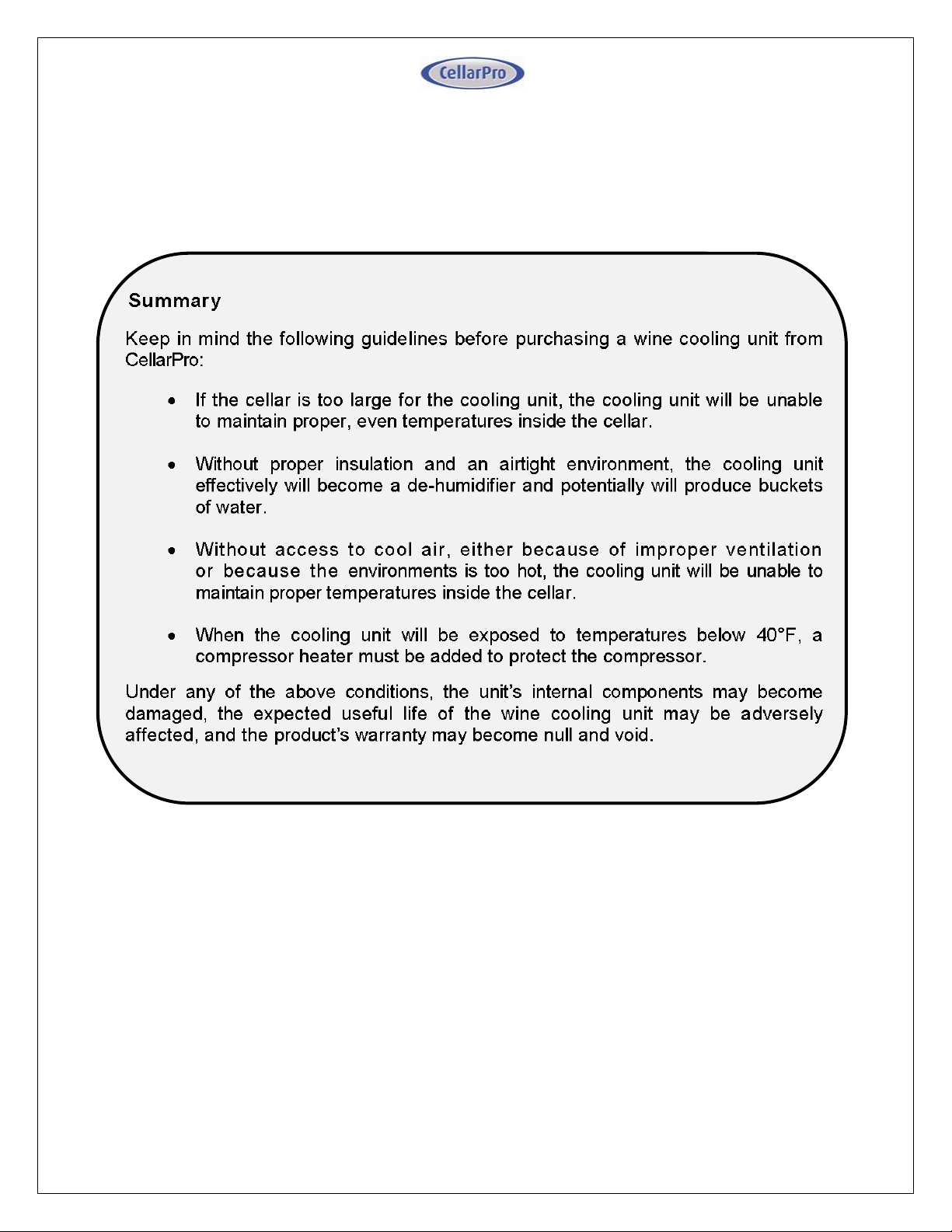

Summary
Keep in mind the following guidelines before purchasing a wine cooling unit from
CellarPro:
If the cellar is too large for the cooling unit, the cooling unit will be unable
to maintain proper, even temperatures inside the cellar.
Without proper insulation and an airtight environment, the cooling unit
effectively will become a de-humidifier and potentially will produce buckets
of water.
Without access to cool air, either because of improper ventilation
or beca u se t he environments is too hot, the cooling unit will be unable to
maintain proper temperatures inside the cellar.
When the cooling unit will be exposed to temperatures below 40°F, a
compressor heater must be added to protect the compressor.
Under any of the above conditions, the unit’s internal components may become
damaged, the expected useful life of the wine cooling unit may be adversely
affected, and the product’s warranty may become null and void.
26
Page 27
IV. Operating Instructions
Overview
CellarPro cooling units are designed to maintain optimal conditions for wine storage
and aging. These conditions include steady, cool temperatures, high humidity,
minimal vibration and light, and clean air.
The settings on your CellarPro cooling unit have been preset and optimized by the
factory. Before changing any settings below, we recommend waiting 14 days to
allow the cooling unit to “break in.”
The cooling unit is designed to cool the cellar gently without stripping moisture out of
the cellar environment. Therefore, it is not uncommon for the cooling unit to run
nonstop for up to a week initially, depending on the temperature inside the cellar, the
size of the cellar, and the temperature of the ambient environment. Once the cellar
has reached equilibrium, it is normal for the cooling unit to run as much as 75
percent of the time.
CellarPro cooling units are designed to maintain optimal temperatures for storing and
aging fine wine. CellarPro cooling units are not designed to maintain temperatures
for serving wine, which tend to be much colder than storage temperatures, especially
serving temperatures for white and sparkling wines.
CellarPro cooling units must be used, stored, moved and/or shipped in the
upright posi tion. Be careful when turning the unit on its side. The unit NEVER
should be turned upside down.
Temperature Control
CellarPro cooling units are designed to turn “on” when the air temperature passing over
the evaporator coils inside the cellar exceeds the Minimum Set Point plus the
Temperature Differential, and turn “off” when the temperature drops below the
°
Minimum Set Point. For example, if the Minimum Set Point is 58
Temperature Differential is 4
temperature rises above 62
°
F, the cooling unit will turn on when the
°
F inside the cellar, and it will turn off when the
F and the
temperature falls below 58°F. In this example, the average temperature inside the
cellar will be 60°F.
Basic Operation
The cooling system is programmed with a 3-Minute Delay at Startup to protect its
internal components. The temperature inside the cellar can be increased or
decreased by changing the Minimum Set Point as described later in this chapter. If
the cooling unit runs too much, you can raise the Minimum Set Point to reduce the
cycle “on” time. Most wine collectors store their wine in the range of 55 - 60°F.
CellarPro cooling units are designed to maintain appropriate levels of humidity,
ranging from 50 to 70 percent, inside wine cellars. In order to increase or decrease
27
Page 28
humidity inside the cellar, the
Fon
setting can be changed as described in the
“Advanced Operation” section later in this chapter.
Switch Instructions

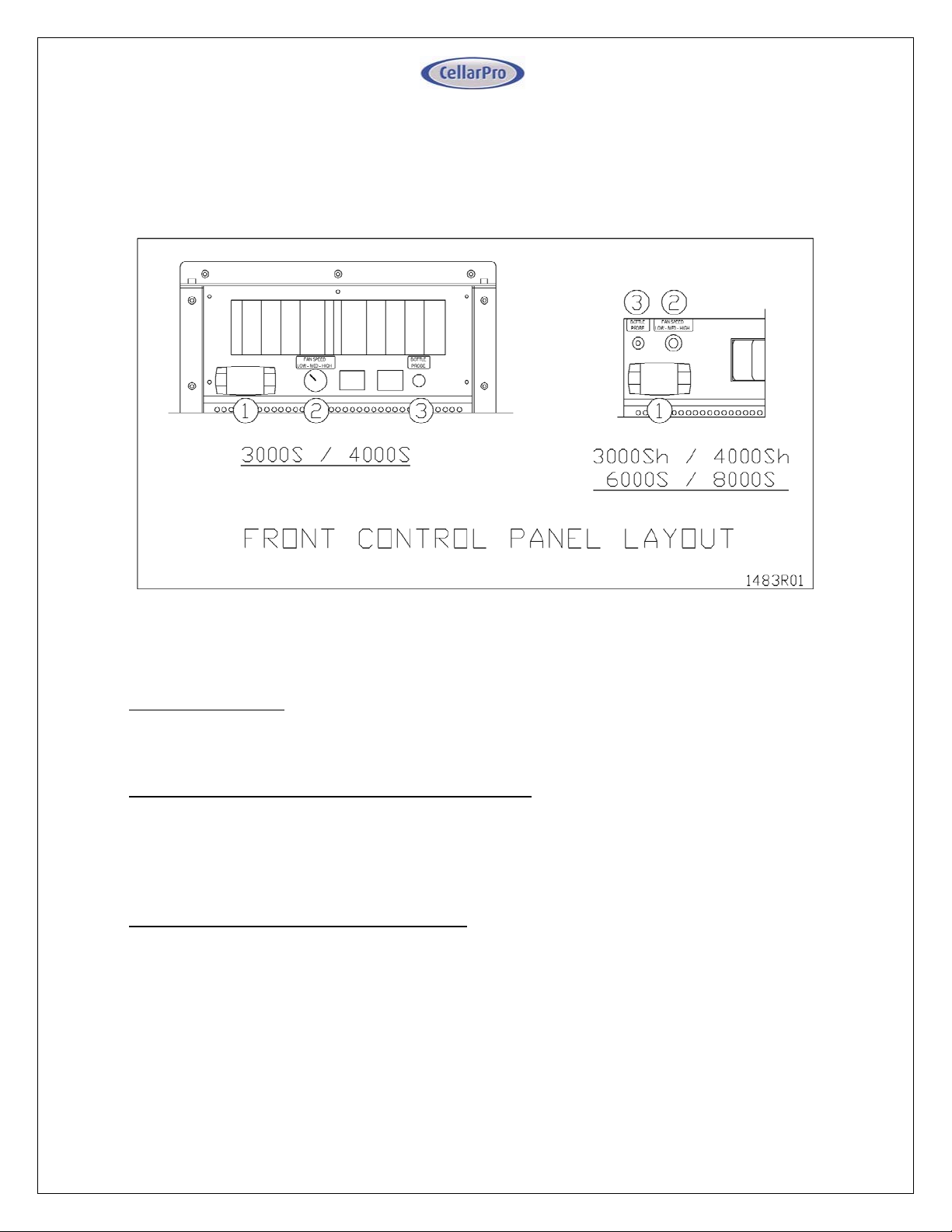

(1) Control Panel: Maintains desired cellar environment. Factory settings are
optimized for peak performance. Controller is described in detail in the following
section.
(2) Fan Speed Selector Switch (Low/Med/High): The cooling unit fans operate on 3
speed settings: Low, Medium, and High. For optimum sound and energy efficiency,
select the lowest fan speed that will maintain the desired cellar temperature. High
speed is recommended for initial cellar pull down, exteme temperature conditions
and ducted installations.
(3) Bottle Probe Jack (Bottle Probe): Plug in the remote bottle probe (sold
separately) to control the cellar by liquid temperature rather than air temperature
inside the cellar. Disconnecting the probe will automatically return the control to air
temperature. When using a bottle probe, the Temperature Differential will need to
be adjusted to 1 as shown in the “Advanced Operation” instructions below.
28
Page 29

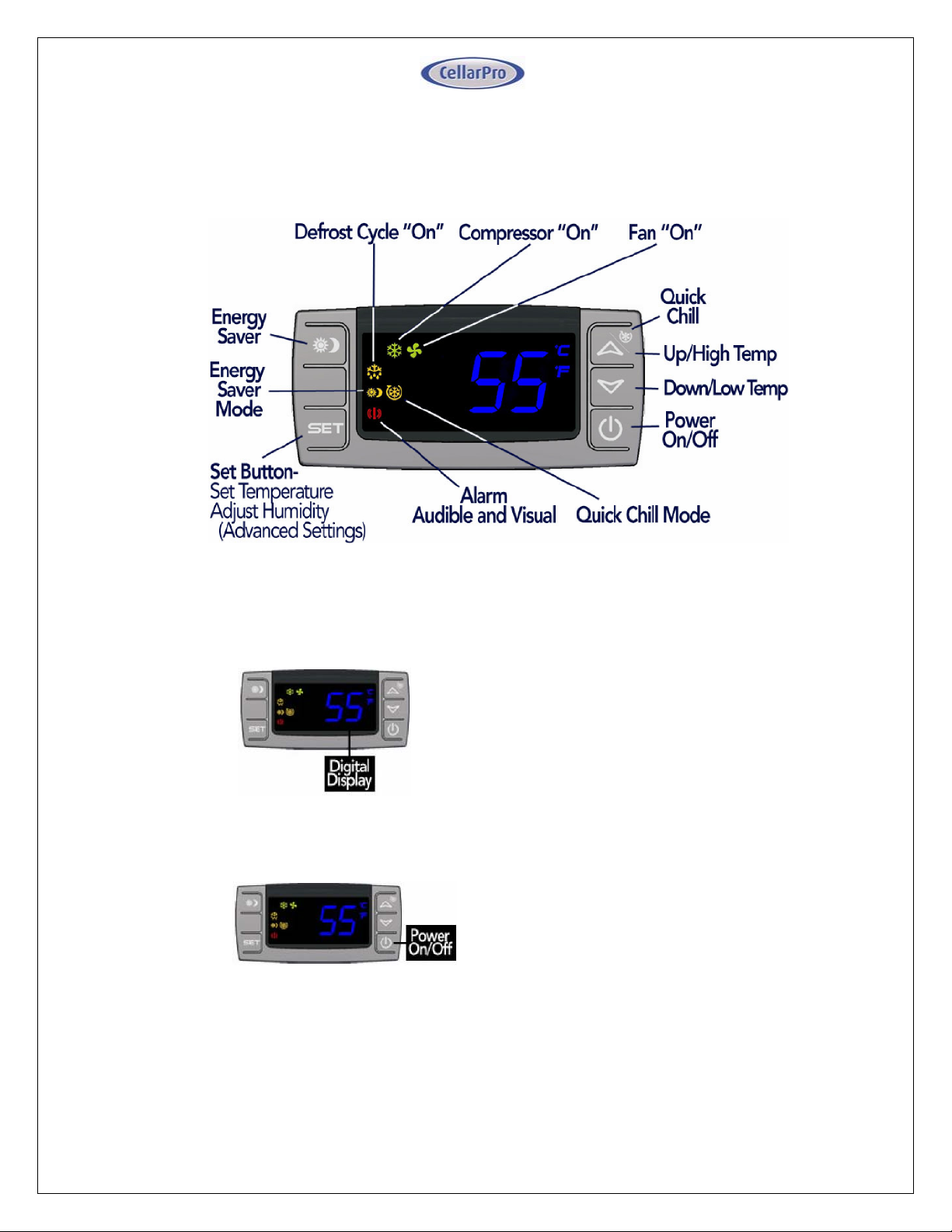

Control Panel Instructions*
Digital Display
Power “On” / “Off”
* Remote display/control instructions are included following this section.
The temperature displayed on the control
indicates the real-time air temperature as
measured by Probe 1 (P1) located behind
the front grill of the cooling unit.
Press “Power On/Off” to turn the unit on
and off.
When the “Compressor On” indicator
light is on, the Compressor is running.
When the “Fan On” indicator light is on,
the Fan is running.
The cooling system is programmed with a 3-
Minute Delay at Sta rtup to protect its internal
components.
29
Page 30

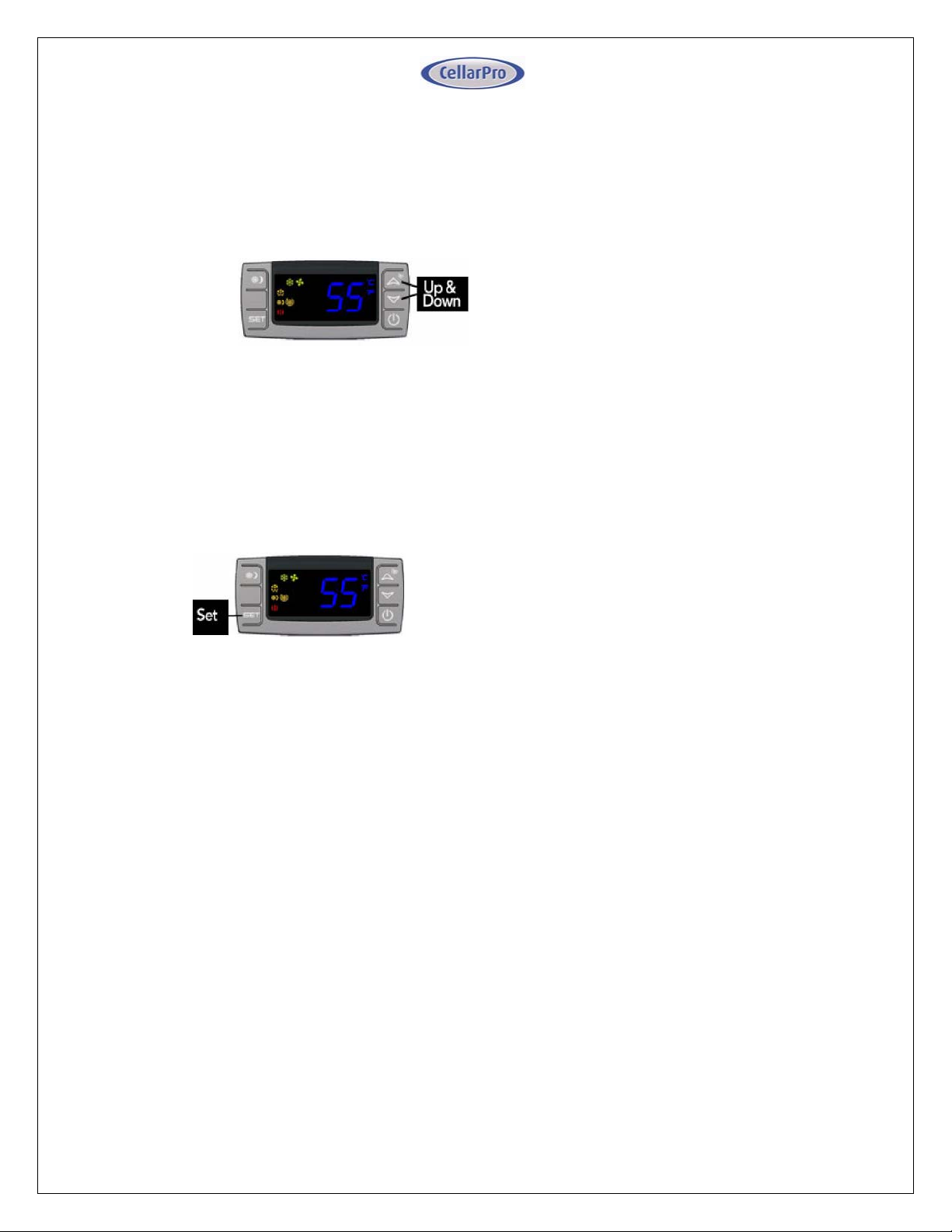

Up and Down Buttons
Set Button
To view the “High Temp” recorded by the
cooling unit, press the “Up” button once.
To view the “Low Temp” recorded by the
cooling unit, press the “Down” button once.
To reset the “High Temp” or “Low Temp”,
press the “Set” button for three seconds
while “Hi” or “Lo” is displayed. “RST” will
blink three times to indicate confirmation.
The cooling unit is factory preset with a
Minimum Set Point of 58°F and a
Temperature Differential of 4°F. This
means that the cooling unit will turn on
when the display rises above 62°F (58°F +
4°F), and turn off when the display falls
below 58°F. In this example, the average
temperature inside the cellar will be 60°F.
To view the Minimum Set Point, press the
“Set” button for one second.
To change the Minimum Set Point,
Press the “Set” button for three
seconds until °F” blinks
Press “Up” or “Down” button
Press “Set” button to confirm
The “Set” temperature will blink three times
to indicate confirmation
The recommended Minimum Set Point
range is 53 - 60°F. To change the
Temperature Differential, see “Advanced
Operation” later in this chapter.
30
Page 31

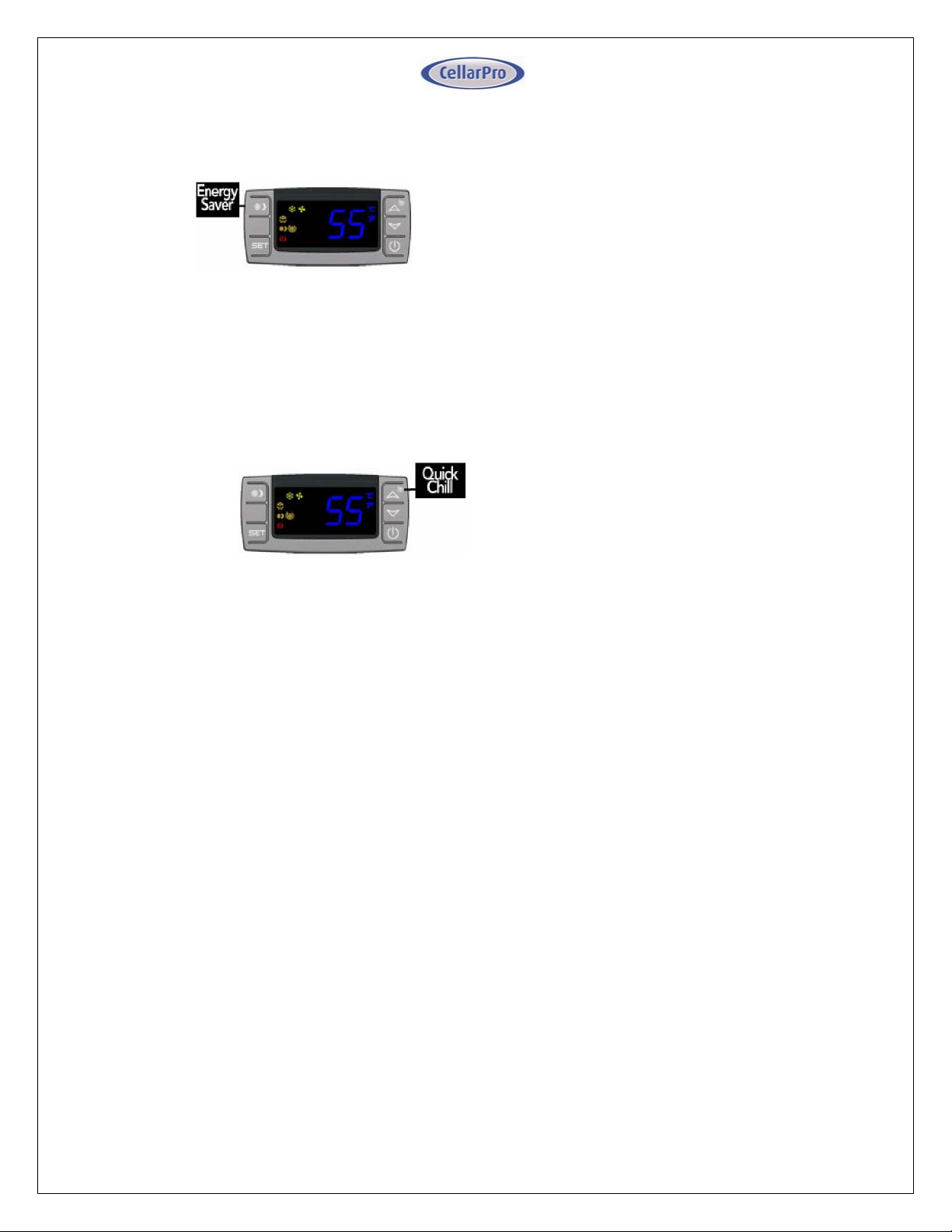

Energy Saver Button
To activate and deactivate the “Energy
Saver” mode, press the “Energy Saver”
button.
The “Energy Saver” indicator light will turn
on when the cooling unit is in “Energy
Saver” mode.
In “Energy Saver” mode, the Minimum Set
Point increases 4°F and the Temperature
Differential is unchanged.
Quick Chill Button
To activate the “Quick Chill” mode,
press the “Up” / “Quick Chill” button for
three seconds.
To deactivate “Quick Chill”, press “Quick
Chill” button for three seconds again.
The “Quick Chill” indicator light will turn
on when the cooling unit is in “Quick Chill”
mode.
In the “Quick Chill” mode, the cooling
unit will run continuously for 6 hours (or
until the intake temperature registers 50°F).
This mode is useful after loading “warm”
bottles in a cellar
31
Page 32

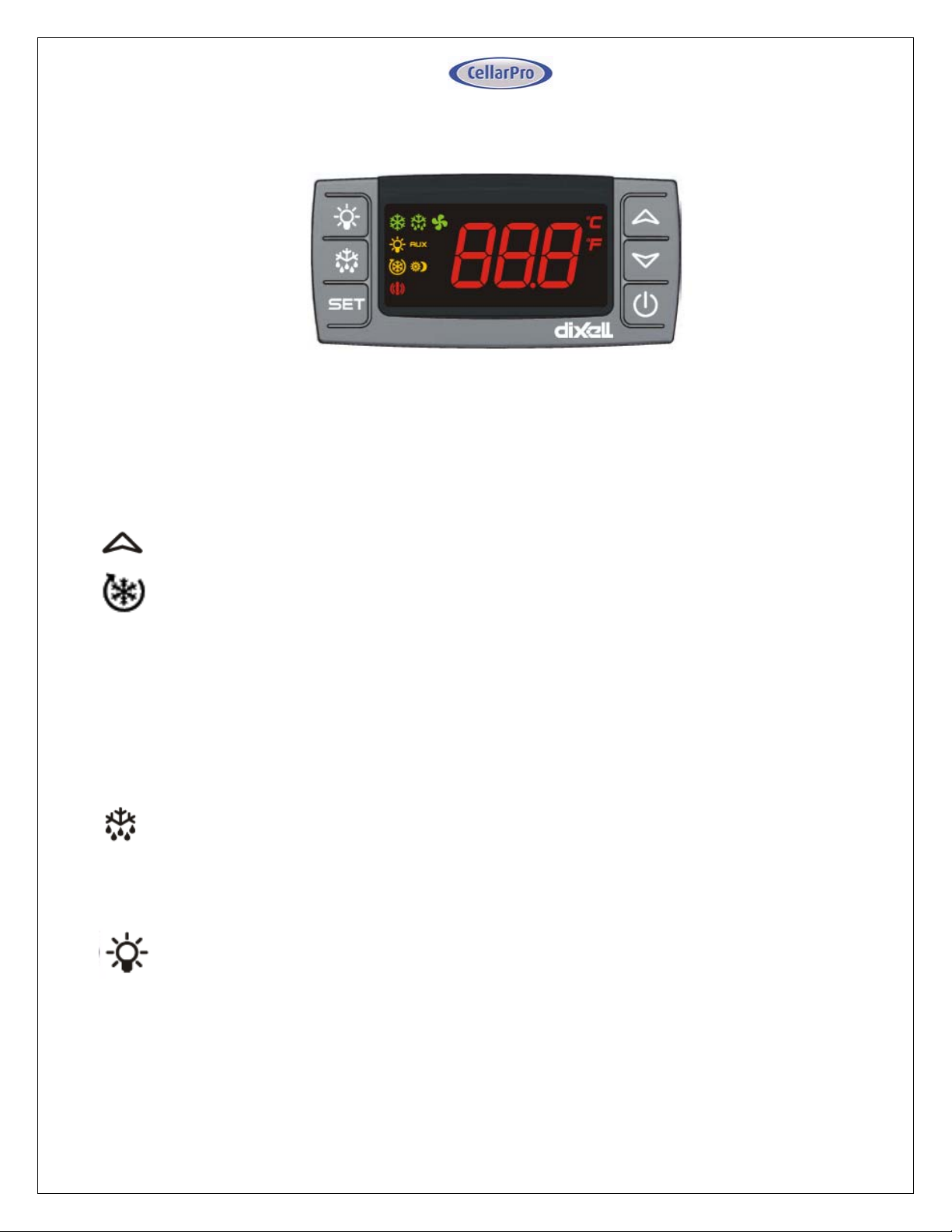

Remote Control / Display Instructions
Digital Display The temperature displayed on the control is red instead of blue.
Quick Chill
Button
Auto Defrost
Mode
Button
Icon
To activate the “Quick Chill” mode, press the “Up” button for three seconds
To deactivate “Quick Chill”, press the “Up” button for three seconds again
The “Quick Chill” indicator (Row 3) light will turn on when the cooling unit is
in “Quick Chill” mode,
In the “Quick Chill” mode, the cooling unit will run continuously for 6 hours
(or until the unit reaches set point.). This mode is useful after loading “warm”
bottles in the cabinet.
The cooling unit has a factory default defrost cycle that initiates every 16
hours for 20 minutes. When the cooling unit is in auto-defrost mode, the
“Defrost” Indicator light (Top row) will turn on, and the evaporator fan will
run.
Manual Defrost Hold the defrost button in for 3 seconds to initiate a manual defrost. The
Light
“Defrost” Indicator light (Top row) will turn on for a 20 minute defrost cycle.
The light button function is disabled, however pressing it will turn on/off the
light indicator on the display (2nd row).
Energy Saver
The remote display is not configured with an Energy Saver mode. The set
point can be raised manually for periods where energy savings is desired.
32
Page 33

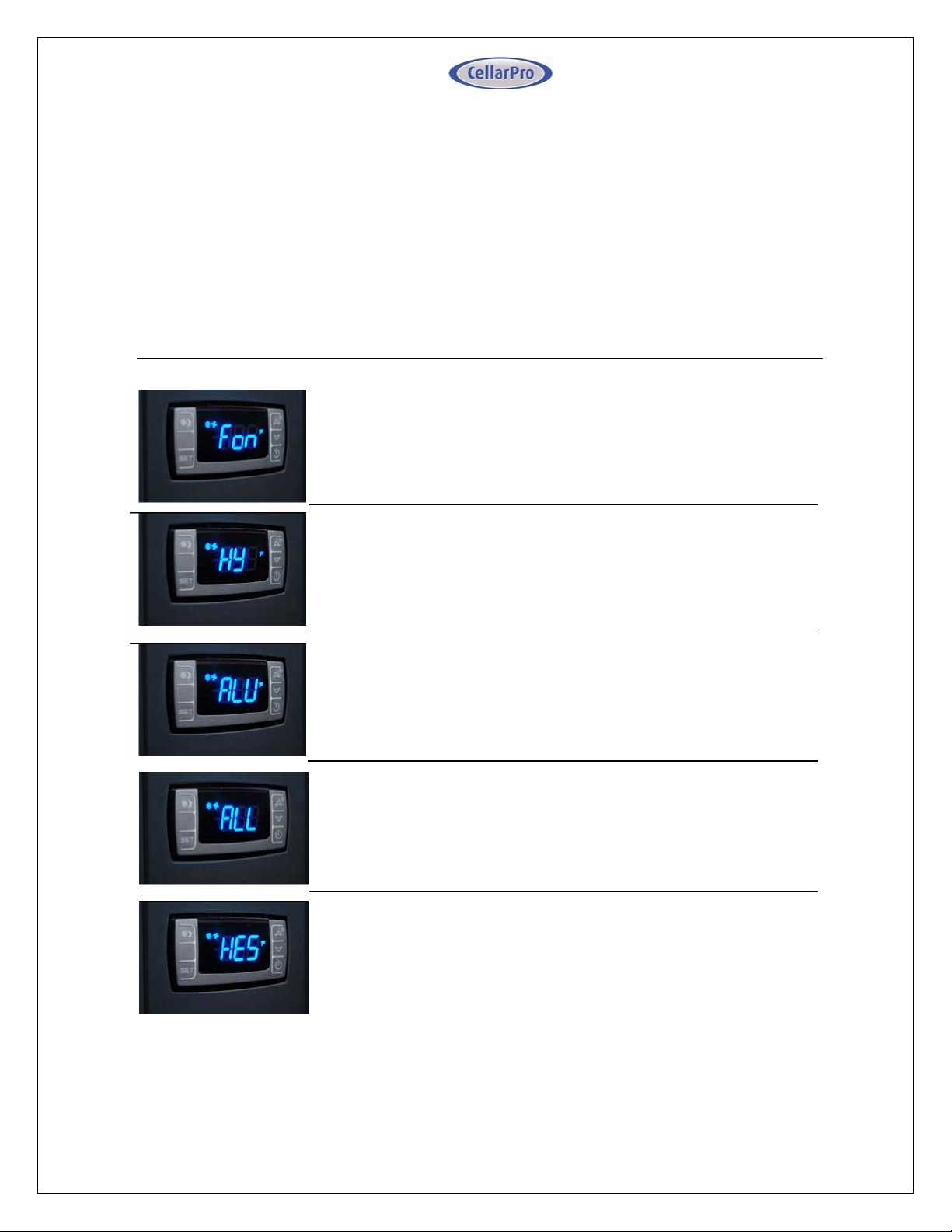

Advanced Operation
CellarPro cooling systems can be programmed with advanced settings to
achieve more control over conditions inside the cellar. Conditions like
humidity, the Temperature Differential, and alarm settings all can be
modified for custom applications. To access the advanced settings, do the
following:
Press the “Set” button and the “Down” button together at the same time, and
hold for three seconds. Then, use the “Up” or “Down” button to scroll to the
following screen:
HUMIDITY: The factory preset for this setting is “3”.
If the humidity inside the cellar is too low, press the “Set”
button, then use the “Up” button until the desired setting is
reached. The recommended range for this setting is 0-6.
TEMPERATURE DIFFERENTIAL: The factory preset for this
setting is “4”.
This setting determines the Temperature Differential and
therefore the temperature at which the cooling unit will
cycle on. The recommended range for this setting is 4 or 5.
HIGH TEMPERATURE ALARM: The factory preset for this
setting is “70”.
This setting designates the High temperature inside the
cellar at which the alarm is triggered. We recommend
leaving this setting at the factory preset.
LOW TEMPERATURE ALARM: The factory preset for this
setting is “45”.
This setting designates the Low temperature inside the cellar
at which the alarm is triggered. We recommend leaving this
setting at the factory preset.
ENERGY SAVINGS MODE DIFFERENTIAL: The factory preset
for this setting is “4”.
This setting controls the Temperature Differential for the
Energy Savings Mode. The recommended range for this
setting is 2-4.
33
Page 34
V. Troubleshooting
Improper installation, inadequate insulation, or a cellar that is too large will
cause the cooling unit to run continuously and be difficult to troubleshoot.
The cooling unit is designed to turn on when the air temperature in the cellar rises
ABOVE the Minimum Set Point + Temperature Differential, and turn off when the air
temperature falls below the Minimum Set Point. For example, if the Minimum Set
Point is 58°F and the Temperature Differential is 4°F, the cooling unit will turn above
62°F and turn off below 58° F. In this example, the average temperature inside the
cellar will be 60°F.
Cooling Unit Runs Constantly
When bottles are first loaded in the cellar, the cooling unit will run continuously (even
up to a week) until the temperature inside the cellar falls below the Set Point.
Hot weather conditions, insufficient ventilation and/or dirty condenser filters may
cause the cooling unit to run continuously. To reduce cycle times,
1. Remove any obstructions to air flow to or from the unit
2. Check to make sure the condenser filter is clean
3. Increase the supply of cool air to the space outside the condenser coils, using a
fan, ducting or an exhaust system to remove heat from the space.
4. Raise the Minimum Set Point on the cooling unit
Cooling Unit Is Dripping
The cooling unit is designed to remove excess moisture from inside the cellar, which
collects in the drip pan of the cooling unit and is evaporated by the condensate
heater. Excess moisture can occur when the cooling unit runs constantly, when the
Minimum Set Point is too low and/or when the cellar doesn’t have a good seal from the
outside environment. To eliminate overflow, do the following:
1. Ensure the condensate overflow drain line is not blocked, that the drain line is
trapped and the trap is filled with water.
2. Check that the cellar has airtight seals, including the door(s), light fixtures, and all
walls, ceiling and floor.
3. Raise the Minimum Set Point of the cooling unit.
The Cooling Unit Won’t Turn On
The cooling system is programmed with a 3-Minute Delay at Startup to protect its
internal components.
34
Page 35
Other Troubleshooting Issues
Issue Possible Causes Potential Solutions
No cooling: no refrigerant
flow.
If the "snowflake" icon is
illuminated on the
temperature display
control, the liquid line
solenoid should be
energized and the
compressor running.
No power to liquid
solenoid valve coil
Power supply to solenoid coil interrupted: loose
Solenoid coil
failure
No power to
compressor
Check for loose wires and reconnect.
Low pressure switch is open: make sure solenoid
High pressure switch is open: make sure
Power supply to Evaporator interrupted. Restore
power.
wire. Inspect for loose fan wiring and reconnect.
When the Evaporator is powered on and off, a
distinct "click" should be heard indicating the
opening/closing of the solenoid valve. If not, the
solenoid coil may need to be replaced. Consult
factory.
Power supply to Condensing Unit interrupted.
Restore power.
is energized and condensing unit service valves
are open. Jumper out switch to check for a faulty
switch, and replace if necessary. Note that in
installations below 0°F this switch may remain
open. Consult factory.
condensing unit service valves are open. If this
does not correct the problem, refer to the "High
Pressure Safety Shutdown" section.
High pressure
safety shutdown /
high discharge
pressure
Refrigeration line blockage
Condenser fan not operating in ambient
(Cont.) High
pressure safety
shutdown / high
discharge
pressure
Improper refrigerant charge: inspect for over-
Dirty or obstructed condenser coil: clean and
Intermittent power
to compressor
Compressor cycling on internal thermal overload
Compressor cycling on high pressure - see "High
Faulty compressor. Consult factory.
Locate and correct source of high condensing
head pressure:
temperatures above 90°F. Ensure that there is
power to the Condensing Unit and verify the fan
cycling control settings. Replace condenser fan
and fan cycling control if necessary.
Insufficient ventilation: reference Condensing
Unit installation guidelines for proper placement
and ambient temperature requirements. Correct
to ensure adequate air ventilation to and from the
Condensing Unit.
charged system or non-condensibles in system.
remove all obstructions to airflow.
Check for loose wires and secure.
protection. Replace start capacitor/relay assembl
pressure safety shutdown" section.
35
Page 36
Issue Possible Causes Potential Solutions
No cooling: Evaporator
fan not blowing.
If the "fan" icon is
illuminated on the
temperature display
control, the fan should be
blowing air.
Iced coil Insufficient number
Low refrigerant
Leak in system. Find and repair leak, recharge
Mal-functioning
Expansion valve bulb not located correctly -
Liquid flashing at the expansion valve inlet. See
No airflow See "Evaporator fan not blowing" section
No power to fan Power supply to Evaporator interrupted. Restore
power.
Power supply to fan interrupted: loose wire.
Inspect for loose fan wiring and reconnect.
Fan obstructed With power to unit disconnected, check the
rotation of the blower fan. If fan does not spin
freely, inspect for and remove obstructions. If no
obstructions are found, the fan may need to be
replaced. Consult factory.
Fan running but
not drawing air
through coil.
Coil is blocked with ice. Refer to the "Iced coil"
of defrosts
charge
thermostatic
expansion valve.
Fan short cycling: Make sure all housing panels
are attached to the unit. Replace missing panels.
section.
Turn system off and melt ice from coil. Decrease
the defrost interval from the default value of 16
hours by changing second level parameter "idF"
to a minimum setting of 4 hours. If this corrects
the problem, optimize the defrost frequency by
setting and observing the system at different set
points above “4” and below “16” to ensure the
system is configured for maximum run time.
System charged incorrectly. Review process and
correct.
system.
Incorrect superheat setting: determine superheat
and adjust. If expansion valve is faulty, replace.
review installation instructions and correct.
"High liquid line pressure drop" section.
Insufficient liquid subcooling
Leak in system. Find and repair leak, recharge
High liquid line
Inspect pipe routing for proper piping practices
Liquid line picking up too much ambient heat -
Low refrigerant
charge
pressure drop
System charged incorrectly. Review process and
correct.
system.
Check for plugged filter drier and replace if
necessary.
and correct.
may need to insulate.
36
Page 37
Maintenance
The condenser coils on the Condensing unit will collect dust, dirt and lint over time. If
the condenser coils become clogged, the cooling unit will not have proper airflow
and its performance and longevity will be compromised. The condenser coils
themselves also can be cleaned with a vacuum cleaner – ideally with a brush
attachment to loosen dust caught between the fins.
Alarms
The cooling unit has both an audible notification and a visual alarm indicator (shown in
“red” on the control panel) that are activated when an alarm is triggered.
Please note
:
the temperature alarms (HA and LA) are disabled during the first 23 hours of operation
after the cooling unit is plugged in and/or turned on.
The control panel also will flash a code for each alarm, as follows:
Alarm What it means What to do
P1 Probe 1, which senses the
temperature inside the cellar and
controls the on/off cycles of the
cooling unit, has failed
HA The temperature inside the cellar
is too warm (above 70°F for more
than 1 hour)
LA The temperature of the cellar is
too cold
(below 45°F)
HA2 The temperature of the condenser
is too high (above 140°F)
LA2 The ambient temperature at the
condenser coil is too cold
The cooling unit enters a timed autocycle mode until Probe 1 is repaired or
replaced. In this mode, the cooling unit
will turn on for 12 minutes and off for 8
minutes.
Please call CellarPro at 877.726.8496
to repair or replace Probe 1
Check if the cellar has a leak
Check if door was left open
Lower the ambient temperatures
Raise the Minimum Set Point to 60°F
Raise the ambient temperature
Raise the Minimum Set Point
Increase the FON setting
Contact CellarPro at 877.726.8496
37
Page 38
V I . Limited Warranty
For five years from the date of original delivery, your CellarPro warranty covers the
internal compressor if it proves to be defective in materials or workmanship. In
addition, for two years from the date of original delivery, your CellarPro warranty
covers all parts and labor to repair or replace any components in the wine cooling
unit that prove to be defective in materials or workmanship. The warranty will not be
activated until the Support and Data Service Sheet has been completed and
submitted to CellarPro. The warranty period starts from the time of purchase,
regardless of the time of activation.
Under the terms of this warranty, CellarPro will repair or replace the original cooling
unit with a new or refurbished cooling unit and, once replaced, the original
cooling unit must be ret urned to CellarPro.
All service provided by CellarPro under the above warranty must be performed by a
designated repair center, unless otherwise specified by CellarPro. Purchaser is
responsible for shipping the cooling unit to and from CellarPro or to and from a
designated repair facility, and for removing and reinstalling the cooling unit from the
wine cellar.
The limited warranty applies only to cooling units purchased from the factory or an
authorized dealer. Damage caused by others or by any cause beyond the control of
CellarPro, shall not be considered defects in material or workmanship and are not
covered by the warranty. The limited warranty does not cover any parts or labor to
correct any defect caused by negligence, commercial use, accident, or improper use,
maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY
ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE
WARRANTIES OR UNDER AN Y W ARRANTY ARISING BY OPERATION OF
LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH
OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER
EXPRES, IMPLIED OR STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may also have other legal rights, which vary
from state to state.
To receive parts and/or service and the name of a CellarPro designated repair facility
nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by
calling us at 1.877.726.8496.
38
Page 39
**IMPORTANT**
INSTALLERS MUST FILL OUT THIS SHEET AND FAX TO
707.794.8005 OR SCAN / EMAIL TO [email protected]
TO ACTIVATE THE WARRANTY.
Installing CellarPro Split Systems requires an experienced professional and adherence to industry practices which
are described in the manual. To activate the warranty, the cooling unit must be installed properly. In order for us to
assess and approve the installation, the installing technician must complete the page below. The page can be faxed
to 707.794.8005 or emailed to [email protected]. We will contact you once we receive and review this sheet.
Technician Name
System Information
Customer Name R-134a system charge lb.
Condensing Unit Model #
Condensing Unit Serial #
Evaporator Model #
Evaporator Serial #
Power to Condensing Unit (Check One) ___ From Evaporator ___ From External Source
Tech Phone
Piping Information
Line-set length – ft.
Liquid line diameter – OD
Suction line diameter - OD
Operational Data
Take the following measurements during a normal refrigeration cycle, once the cellar has pulled down to
the set-point temperature. Make sure the compressor is running when recording the data.
Evaporator Comment
Air temperature at Evaporator coil inlet/outlet
Evaporator fan speed (High / Med / Low)
°F/°F 8-10°F TD
Evaporator power supply voltage & amps
Condensing Unit
Air temperature at Condenser coil inlet & outlet
Condenser fan status (ON / OFF)
Suction pressure at suction service valve
Suction temperature at suction service valve
Liquid pressure at liquid service valve
Liquid temperature at liquid service valve
Condensing Unit power supply voltage & amps
39
V & A
°F/°F 20-30°F TD
PSIG 25-35 PSIG
°F 20°F Superheat Min.
PSIG 105-180 PSIG
°F 10-20°F Subcooling
V & A
103-127 V – check
nameplate amps
103-127 V – check
nameplate amps
Loading...
