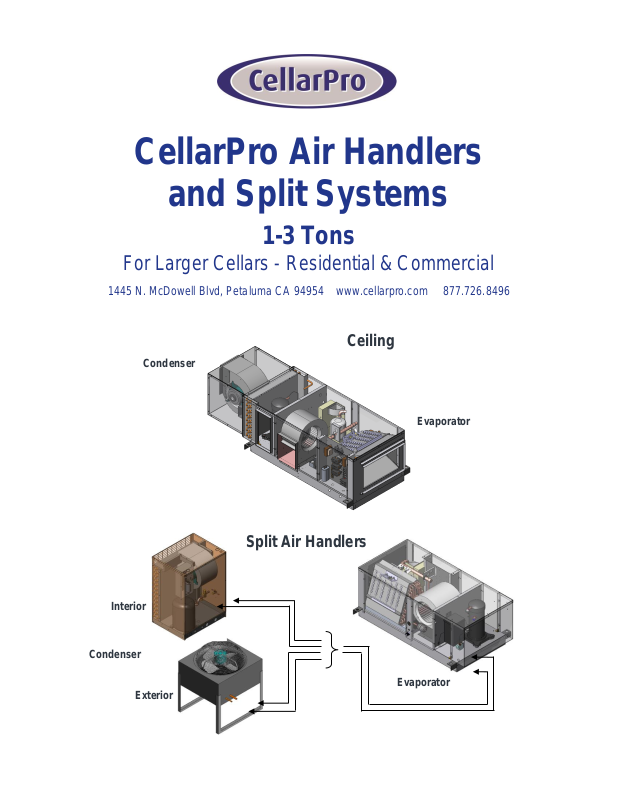

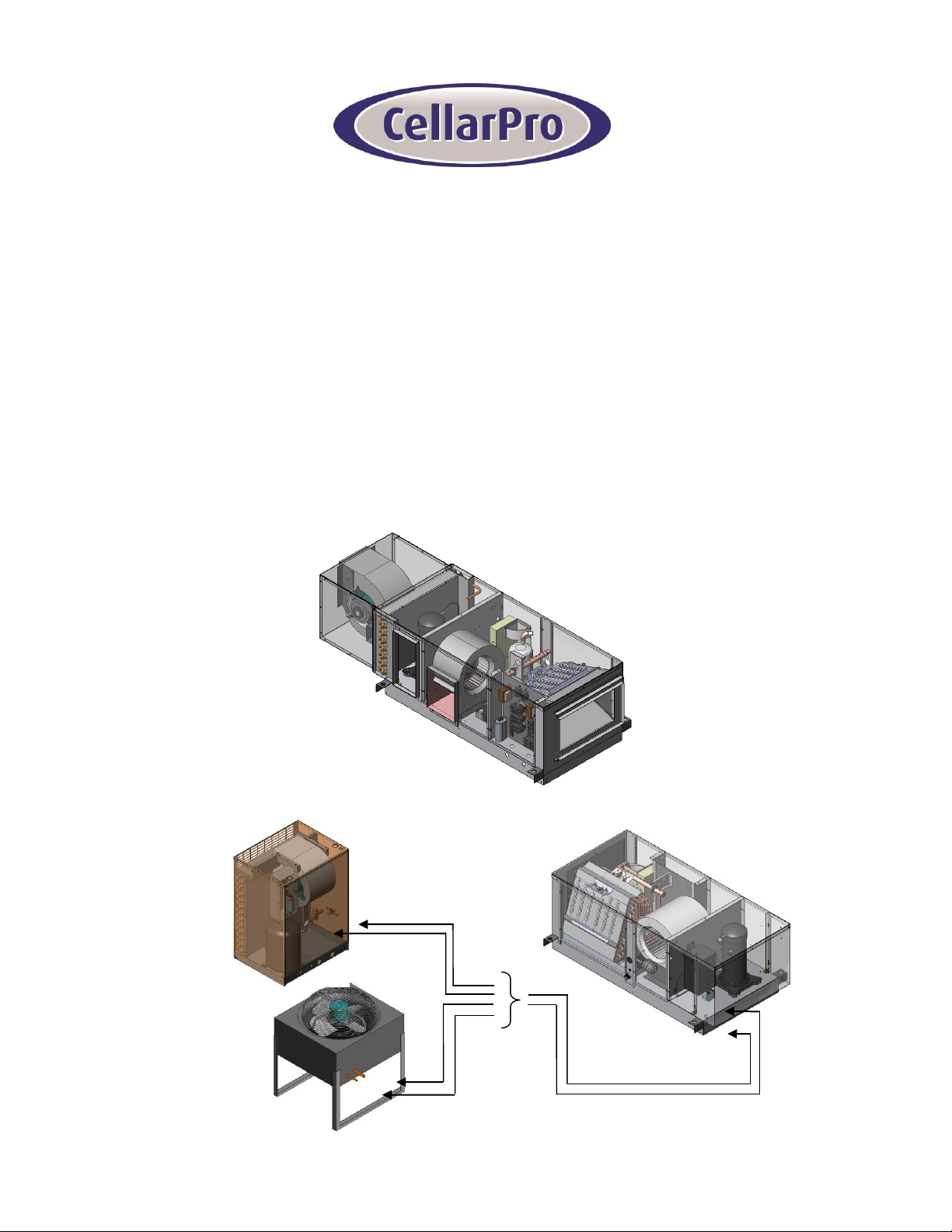

Page 1
CellarPro Air Handlers
and Split Systems
1-3 Tons
For Larger Cellars - Residential & Commercial
1445 N. McDowell Blvd, Petaluma CA 94954 www.cellarpro.com 877.726.8496
Ceiling
Condenser
Split Air Handlers
Evaporator
Interior
Exterior
Evaporator
Condenser
Page 2
2

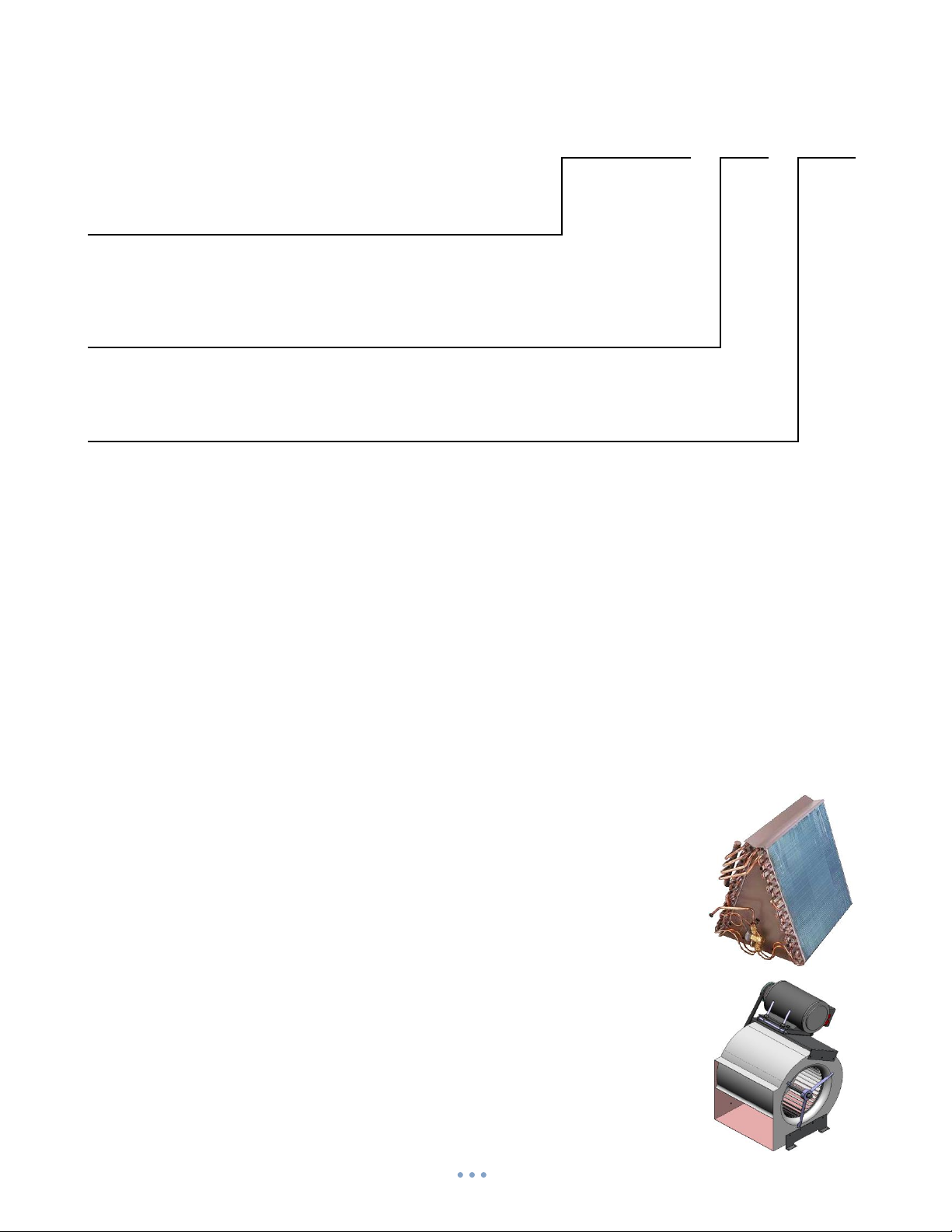

CellarPro Product Nomenclature – Larger Systems
AH
-
36 - SC
Cabinet Configuration / Size
AH
=
Air Handler
Nominal Cooling Capacity (BTU)
18
=
18,000 BTU / 1.5 Ton
24
=
24,000 BTU / 2 Ton
30
=
30,000 BTU / 2.5 Ton
36
=
36,000 BTU / 3 Ton
Method of Cooling / Configuration
SC
=
Self-Contained Air Cooled
1 To 3 Ton
Si
=
Remote Condenser - Interior
1 To 3 Ton
Sx
=
Remote Condenser - Exterior
1 To 3 Ton
Our larger cellar systems use the same approach of optimizing compressor size, fin spacing and coil size,
and blower air fan. The goal is to minimize impact on humidity, handle higher loads, yet keep consistent
temperatures. We offer a wide array of modifications, such as networkable controller, humidifier,
and heater.
Cabinet
The housing is manufactured from aluminum for light weight, corrosion resistance and aesthetics. The
cabinet is structurally reinforced throughout to provide a stable and secure platform for the components.
The evaporator section is insulated with high density, 4 lb thermal and acoustical insulation and sealed with
self-extinguishing gasket material. Panels are fastened with quick release hardware to simplify internal
access.
A-Frame Coil
The unit has a large face area coil to increase cooling efficiency and reduce power
consumption. The copper tube, aluminum fin coil is mounted in a stainless steel
condensate pan with a condensate safety switch to guards against condensate
overflow.
Blower and Blower Motor
Our units incorporate a blower and motor in a draw-thru configuration for even air
distribution across the coil. The large blower runs at a low rpm to minimize air noise
and motor horse power consumption. The blower assembly is mounted to an
internal chamber to further reduce noise levels.
CellarPro Standard Design Features
Page 3
3

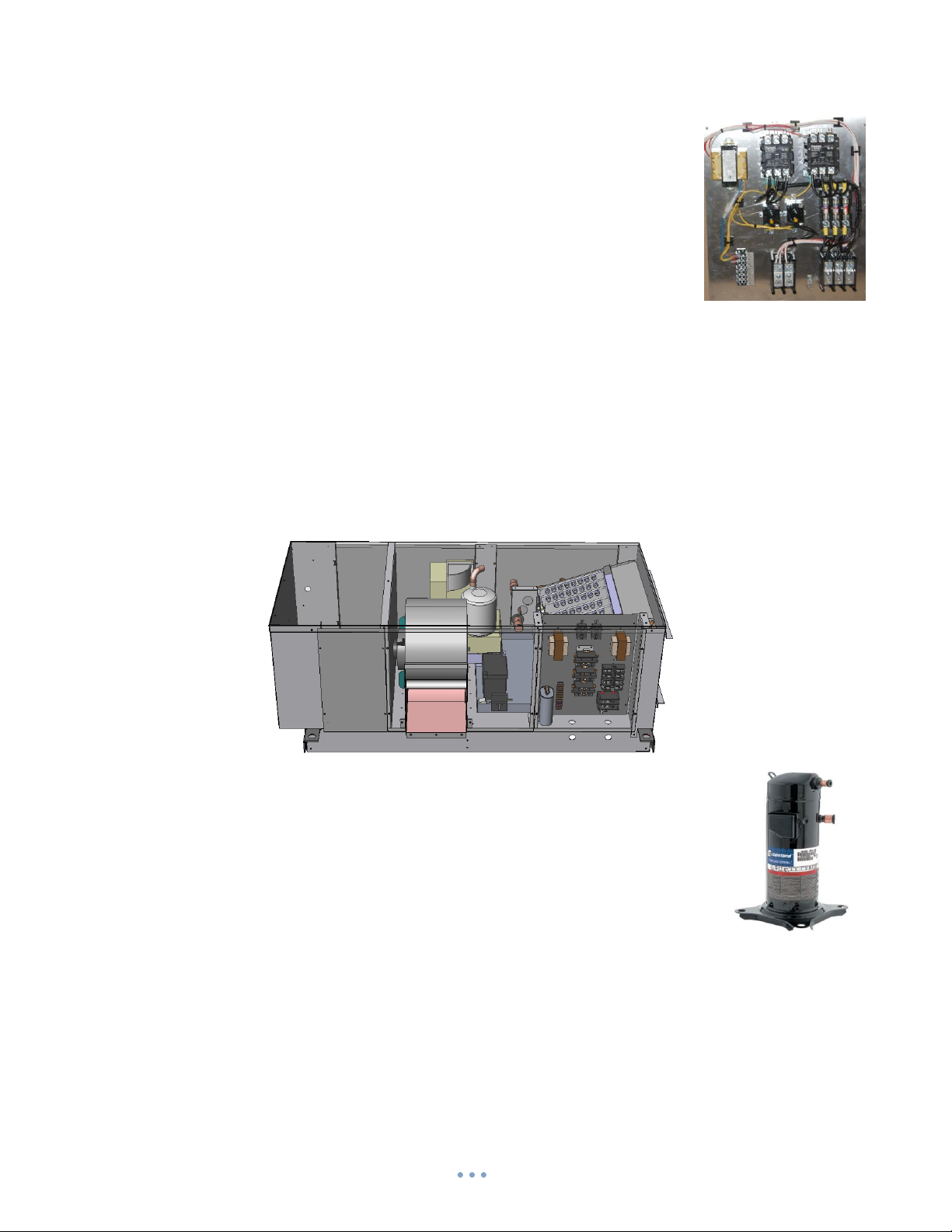

Electrical System
The electrical system has a Class 2, 24 VAC control circuit, all necessary
contactors, fuses and/or circuit breakers for full operation. 24 VAC field
connections and high voltage connections are provided through separate
termination blocks in the electric box.
Refrigeration System
The system includes all necessary components for safe and reliable operation. Easily accessible
components include: thermal expansion valve, sight glass with moisture indicator, high and low pressure
safety switches, refrigeration service access ports, and refrigerant drier/strainer.
Self-contained units are evacuated and shipped with a full refrigerant charge.
Split systems include a refrigerant pump-down solenoid to prevent liquid slugging. Units are evacuated
and charged with dry nitrogen.
Compressor
All systems incorporate scroll compressors for high reliability, high efficiency and
low noise. Compressors are mounted on vibration isolators to minimize noise
transmission to the cabinet.
Ducted System
The system is available in three air patterns: ducted return and supply, ducted return and “free” air
discharge, or “free” return and ducted discharge. “Free” air is possible on the condenser side only.
CellarPro Standard Design Features
Page 4
4

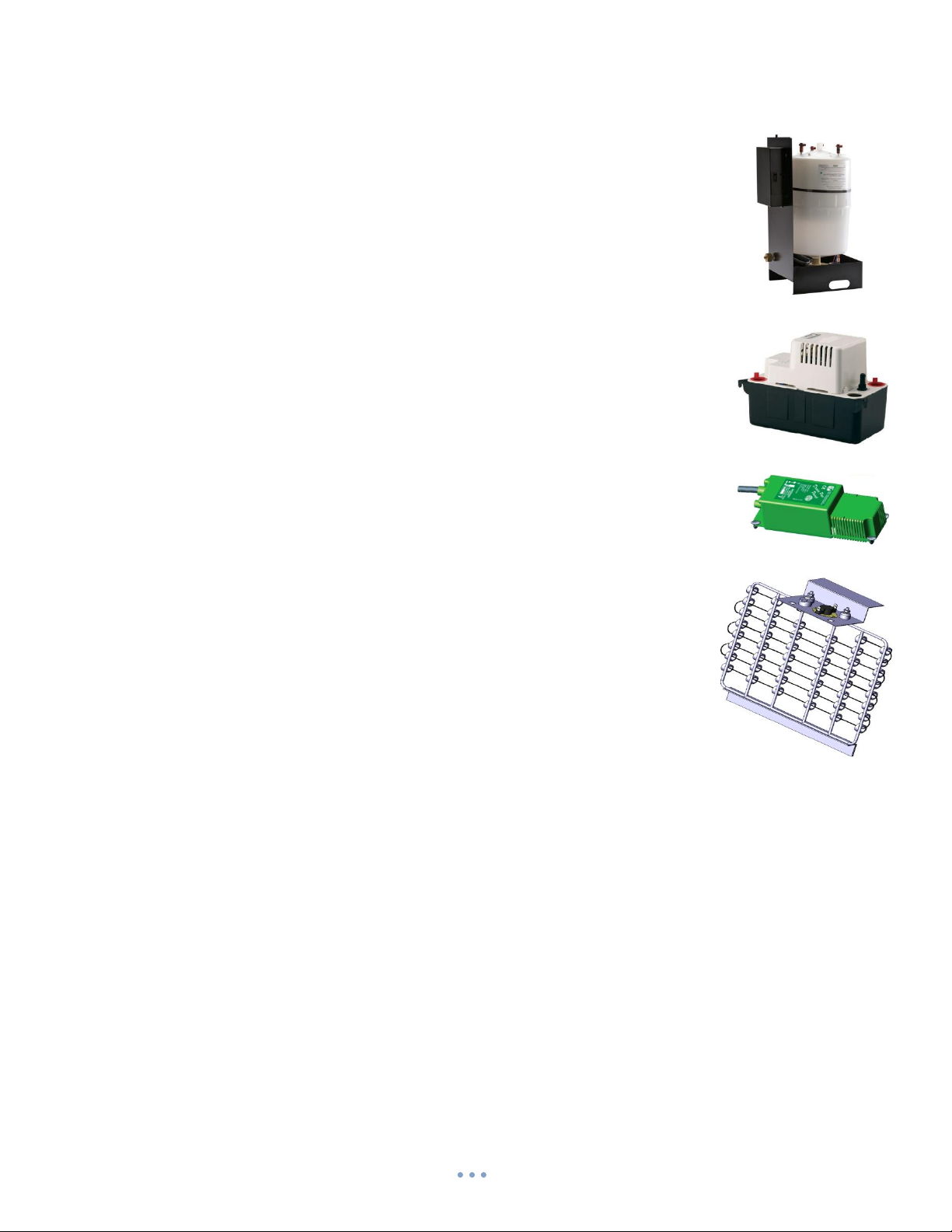

CellarPro Optional Features
Electrode Canister Humidifier
Integrated inside the unit, the humidifier provides humidification to your cellar. An
optional electrode canister is available providing state-of-the-art humidity control.
The humidifier senses cylinder current draw, automatically flushing and filling the
cylinder to control the mineral content of the water and humidity output. The output
is field adjustable from 1 to 5 lbs/hr. A “Change Cylinder” light alerts service
personnel when the humidifier output requires service.
Electric Heat/Reheat
Electric reheat is designed to offset the cooling effect of the dehumidification
cycle; electric heat provides resistance heat regardless of the dehumidification
cycle. The unit incorporates a factory installed, wired and tested nichrome wire
heater. The heater has low voltage thermal safety cutouts with automatic reset
and a second power line fuse link (over-temperature) safety device for each bank
of heat.
Condensate Pump options
External: The condensate pump is factory mounted, wired and integrated into the
moisture removal system of the unit. In the event the condensate pump cannot
remove the water fast enough, an emergency shut-off switch locks out the
compressor and humidifier until the condensate pump has emptied its sump.
Internal: The condensate pump is factory mounted in the stainless steel
condensate pan, wired and integrated into the moisture removal system of the unit.
In the event the condensate pump cannot remove the water fast enough, an
emergency shut-off switch locks out the compressor and humidifier until the
condensate pump has emptied its sump.
Page 5
5

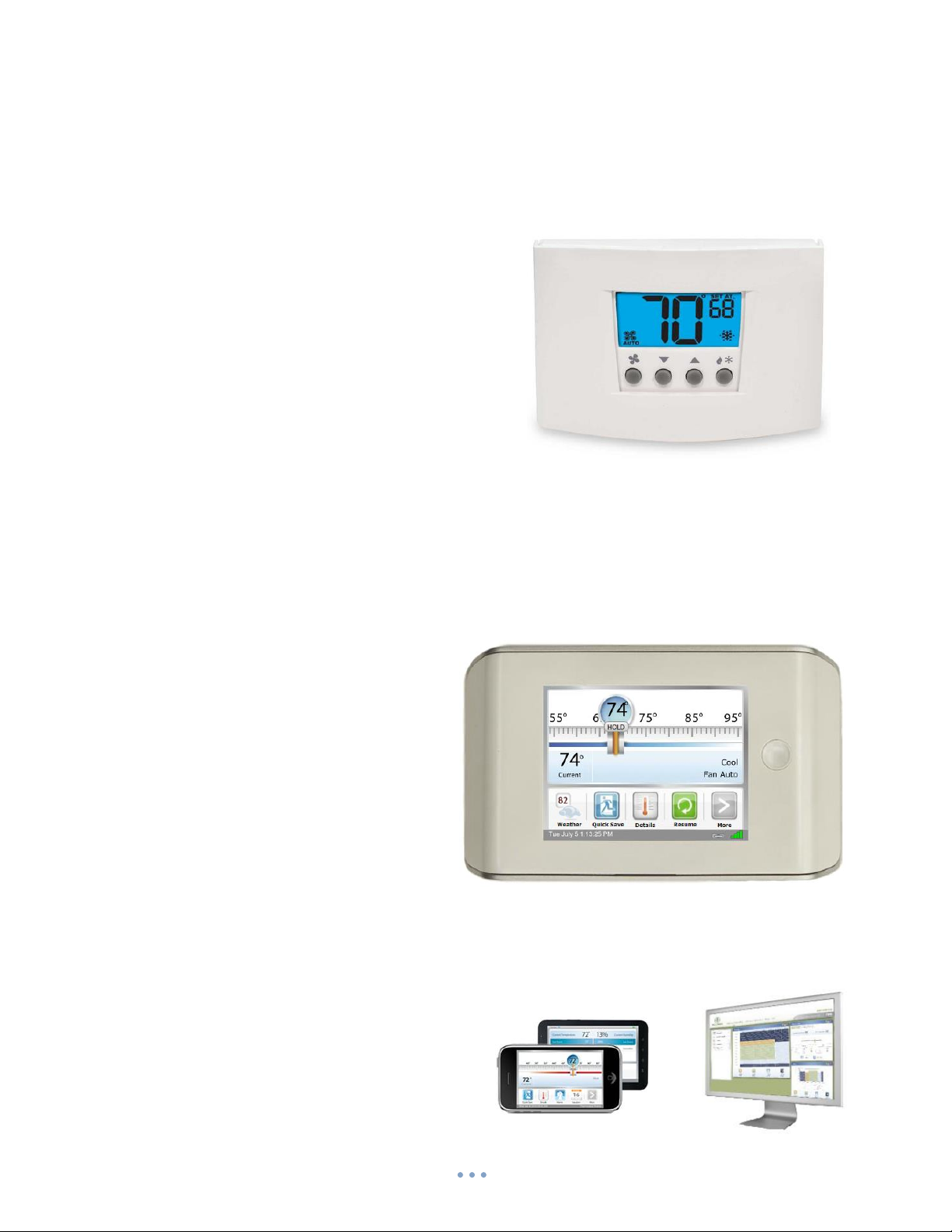

Electronic Thermostat / Humidistat
Our standard temperature and humidity controller incorporates temperature and humidity control in an
attractive, wall mounted unit. This line powered, backlit system incorporates several salient features:
Manual override
7 day programming
Programmable Fan
Adjustable Differential
Compressor Short Cycle Protection
Air Filter Monitor
4 Hour reserve for settings
Status Indicators
Humidification in heat or air circulation modes
Hidden Service Level
Condensation Control
Internet Accessible Thermostat / Humidistat
We also offer a networkable temperature and humidity controller, which incorporates temperature and
humidity control in an attractive, wall mounted unit. This line powered, backlit system incorporates
several salient features:
Internet Connectivity For Monitoring, Management and Configuration Capability (requires secure
customer internet access)
Personalized Web Portal
Smart Phone Apps Available
Simple Program Editing
Set Up Alerts and Service Reminders
Manage Vacations / Building Shutdowns
Change Your Preferences
Easy Installation
Backlit Graphic LCD display
Energy Star Compliant
FCC Class B Compliant
Adjustable Differential
Compressor Short Cycle Protection
E-Mail or Text Messaging
View Reports of How Your HVAC System Is Performing
View Your Program for The Day or The Week On One Screen
Manage Multiple Thermostats From One Web Portal With No Annual Fee
Independent Humidify and Dehumidify Control In Cooling and Heating Modes
Alarms
Air Filter Monitor
Over/Under Temperature Alarm
High Humidity Alarm
Customer Selected Contact Closure
CellarPro Optional Features
Smart Phone Apps
Personalized Web Portal
Page 6
6

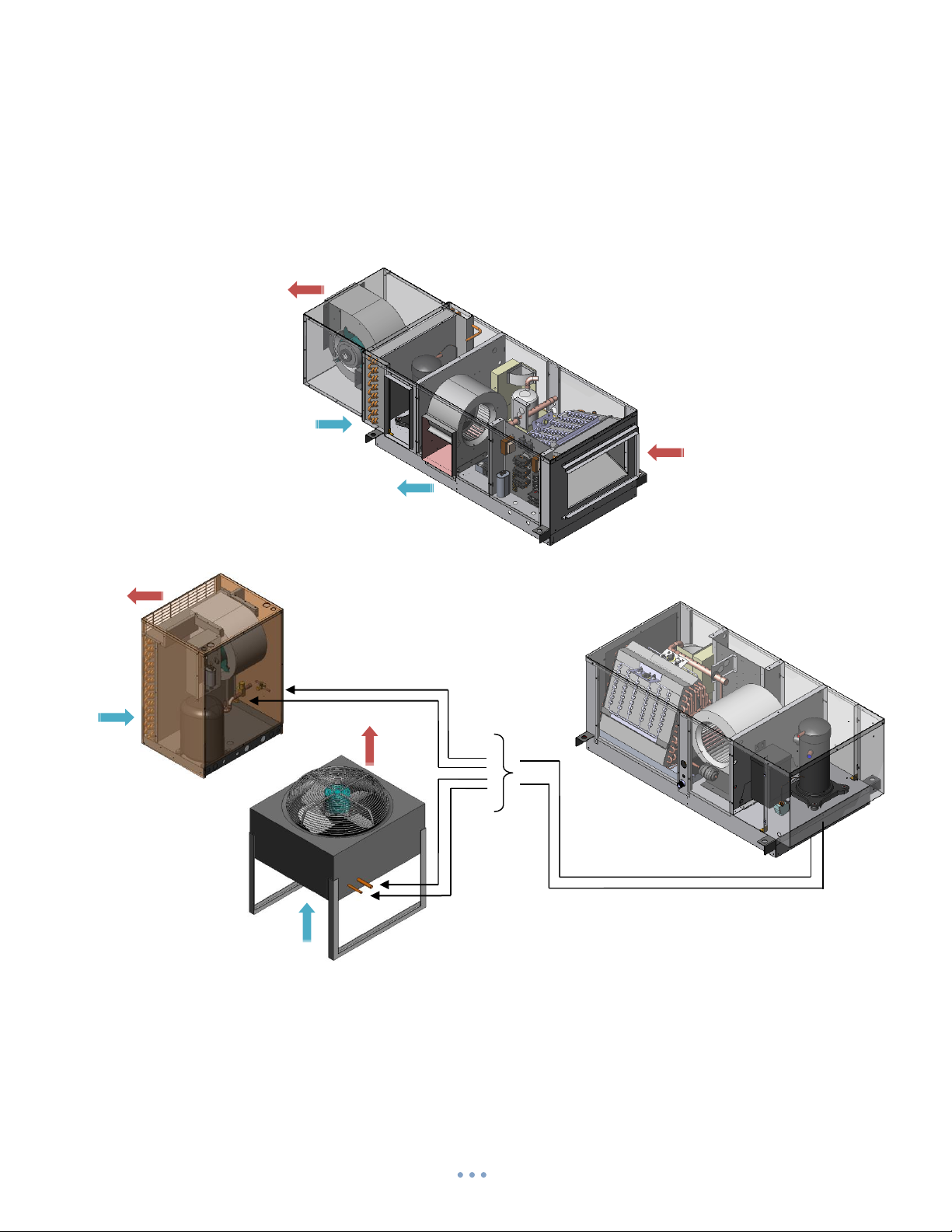

Self-Contained
1 To 3 Tons
Condenser
Configuration Options and Airflow
Split Air Handlers
1 To 3 Tons
Evaporator
Interior
Exterior
Page 7
7

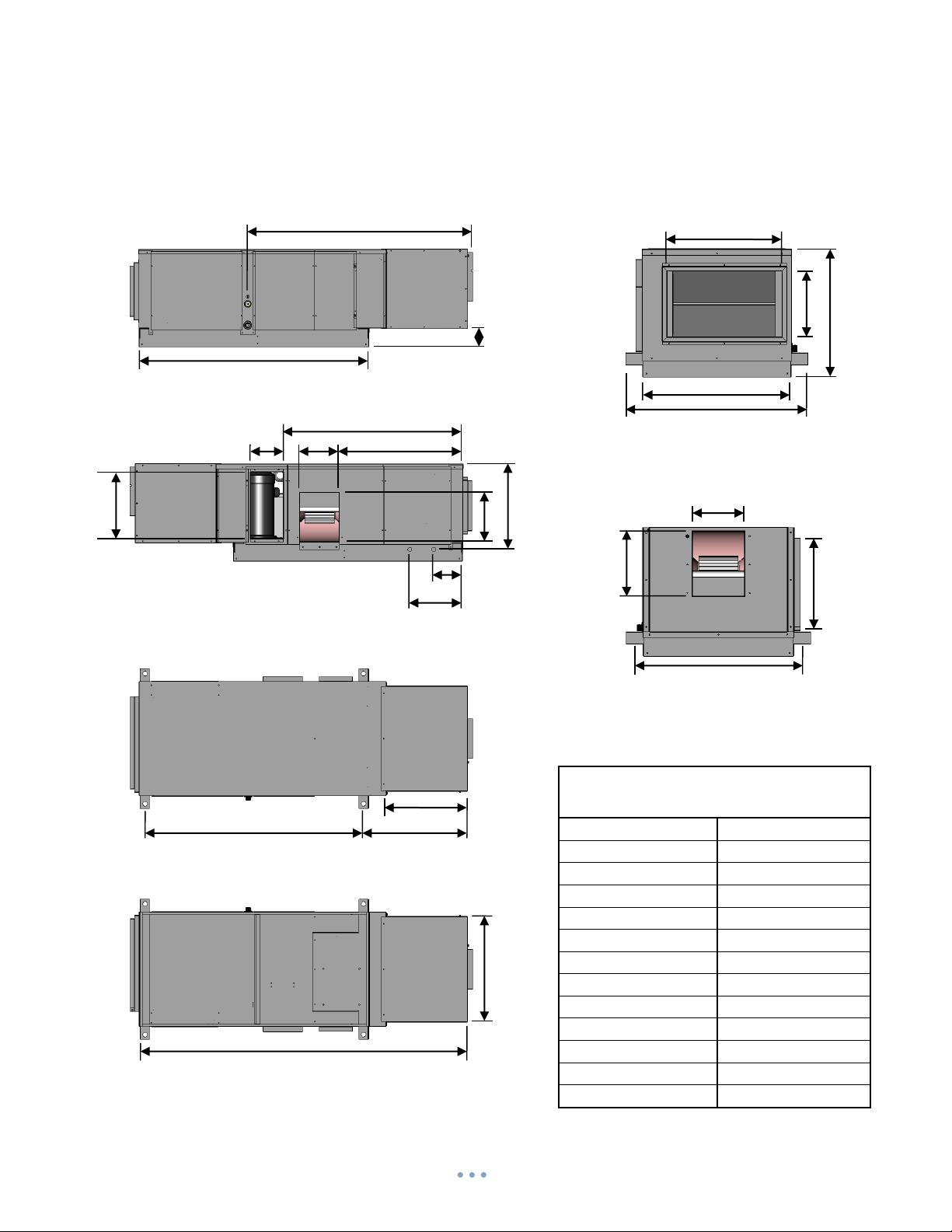

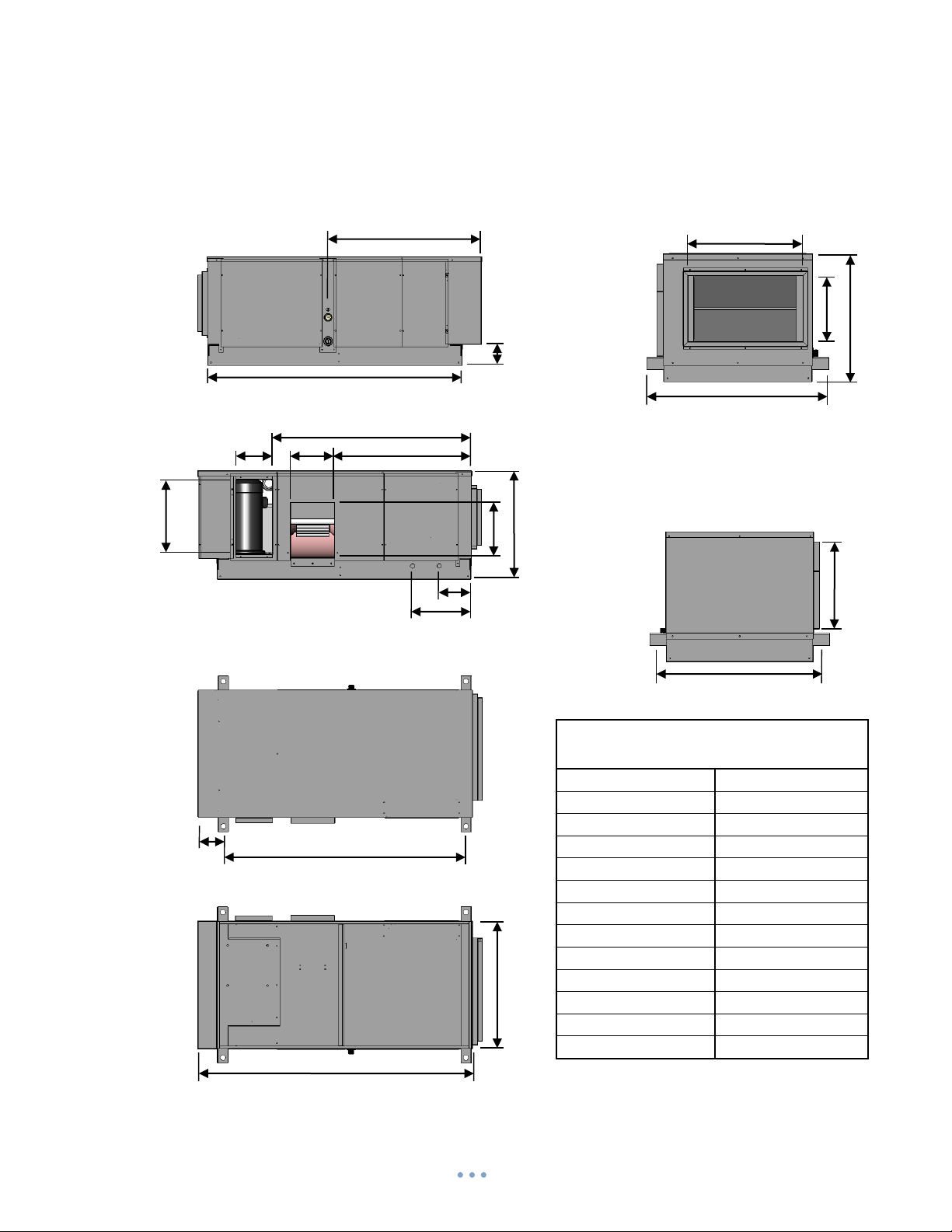

Dimension Data in Inches
Self Contained
A
68.4
N 29.1 B 22.2
O 24 C 45.5
P 8.3 D 21.6
Q 23.1 E 16.8
R 12
F
19.9
S 11.5 G 5.0
T 27.1 H 11
U 10.6 I 47.75
V 16.5
J
5.5
W 14.4
K
8.4
X 11
L
37.7
Y 25.7 M 45.6
Z 14.4
T
S W R
N
O Q X
V
A
B
C
D
E H G F U
P
L
K
Y
I J M
Dimensional Data
Self-Contained Configuration
Z
Page 8
8

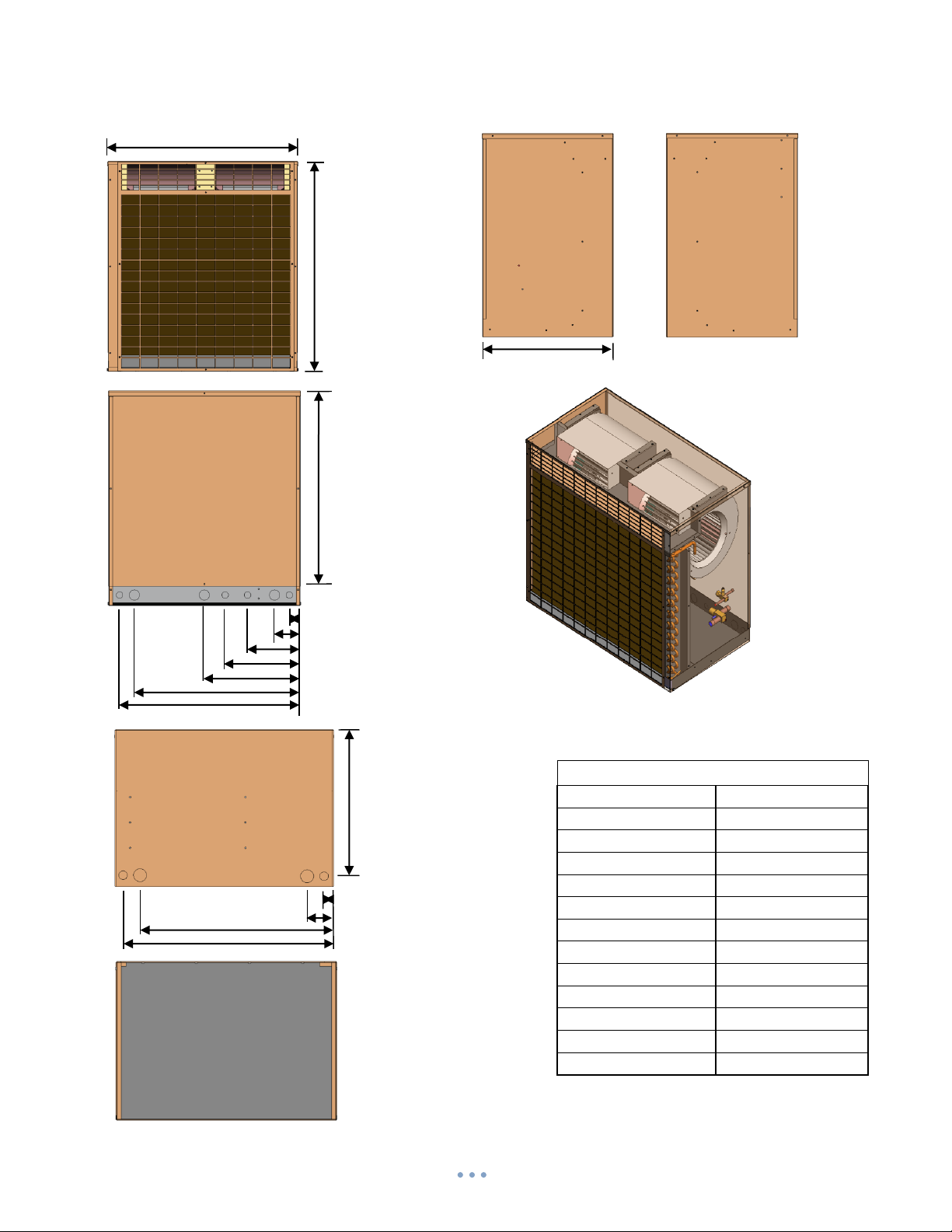

Dimension Data In Inches
Split Evaporator - Ducted
A
68.4
N 5.5 B 22.2
O 27.8
C
45.5
P 16.5 D 6.1
Q 11.0
E
23.1
R 23.1 F 5
S 29.1
G
11.0
T 14.4
H
10.6
U 27.1 I 8.4
V 14.4
J
37.7
W K 8.3
X L 25.7
Y M 47.75
Z
U
T
S
R Q P
A
B
D
C
G
F
E
H I J K L
M N O
V
Dimensional Data
Split Evaporator - Ducted Configuration
Page 9
9
Air Cooled, Self-Contained System (Sc)
Cooling Capacity
18
24
30
36
55⁰F Cellar Temperature
Total Capacity
15,000
17,500
23,500
26,250
Blower Information
18
24
30
36
Evaporator Blower
CFM Free
Discharge
750
800
1,200
1,400
Motor HP
1/6
1/4
1/2
1/2
Condenser Blower
CFM @ 0.3" ESP
1,000
1,200
1,400
1,600
HP
1/2
1/2
1/2
1/2
Coil Information
18
24
30
36
Evaporator Coil
A-Frame
Copper Tube Aluminum Fin
Rows
2 2 2
2
Face Area
3.2
3.2
3.7
3.7
Face Velocity, fpm
234.0
250.0
324.0
378.0
Fins Per Inch
14
14
14
14
Condensing Coil
Slab
Copper Tube Aluminum Fin
Rows
2 2 2
2
Face Area
3.2
3.2
3.7
3.7
Face Velocity, fpm
234.0
250.0
324.0
378.0
Fins Per Inch
16
16
16
16
Compressor Data
18
24
30
36
208-230/1/60
Nominal
Horsepower
1.5 HP
2 HP
2.5 HP
3 HP
Type
Scroll
Scroll
Scroll
Scroll
Total Heat
Rejection
25,750
31,160
38,980
43,800
Standard
All Units
Digital T-Stat (7 Day Programmable)
Yes
Vibration Mounts Hanging Mounts
Yes
Duct Flange Connection
Yes
Stainless Steel Condensate Drain Connection
1" ID
Page 10
10
Cooling Capacity
18
24
30
36
55⁰F Cellar Temperature
Total Capacity
15,000
17,500
23,500
26,250
Blower Information
18
24
30
36
Evaporator Blower
CFM Free
Discharge
750
800
1,200
1,400
Motor HP
1/6
1/4
1/2
1/2
Coil Information
18
24
30
36
Evaporator Coil
A-Frame
Copper Tube Aluminum Fin
Rows
2 2 2
2
Face Area
3.2
3.2
3.7
3.7
Face Velocity, fpm
234.0
250.0
324.0
378.0
Fins Per Inch
14
14
14
14
Model Number
THDC-18
THDC-24
THDC-30
THDC-36
Compressor Data
18
24
30
36
208-230/1/60
Nominal
Horsepower
1.5 HP
2 HP
2.5 HP
3 HP
Type
Scroll
Scroll
Scroll
Scroll
Total Heat
Rejection
25,750
31,160
38,980
43,800
Split System – Indoor (Si)
Page 11
11
Cooling Capacity
18
24
30
36
BTU / H @ 125⁰F Condensing
55⁰F Cellar Temperature
Total Capacity
15,000
17,500
23,500
26,250
Blower Information
18
24
30
36
Evaporator Blower
CFM Free
Discharge
750
800
1,200
1,400
Motor HP
1/6
1/4
1/2
1/2
Coil Information
18
24
30
36
Evaporator Coil
A-Frame
Copper Tube Aluminum Fin
Rows
2 2 2
2
Face Area
3.2
3.2
3.7
3.7
Face Velocity, fpm
234.0
250.0
324.0
378.0
Fins Per Inch
14
14
14
14
Model Number
ACC-023
ACC-032
ACC-032
ACC-
049
95⁰F Ambient, Fan Cycling Control Standard
Compressor Data
18
24
30
36
208-230/1/60
Nominal
Horsepower
1.5 HP
2 HP
2.5 HP
3 HP
Type
Scroll
Scroll
Scroll
Scroll
Total Heat
Rejection
25,750
31,160
38,980
43,800
Remote Air Cooled System – Split System (Sx)
Page 12
12
208-230/1/60
18
24
30
36
Compressor
RLA
9.6
10.9
12.8
14.7
FLA
7.1
8.3
11.7
12.8
Cooling Only
FLA
9.8
12.1
16.1
16.7
MCA
15.6
18.3
21.8
24.2
MOP
25.2
29.2
34.6
38.9
Re-Heat Option
FLA
30.1
36.5
40.5
41.0
MCA
35.9
42.7
46.2
48.6
MOP
45.5
53.6
59.0
63.3
Humidification
Option
FLA
17.9
20.2
24.2
24.8
MCA
23.7
26.5
29.9
32.3
MOP
33.3
37.4
42.7
47.0
All Options
FLA
17.9
20.2
40.5
41.0
MCA
23.7
26.5
46.2
48.6
MOP
33.3
37.4
59.0
63.3
Humidification
All Units
Electrode Canister
Steam Output, lbs / hr
1-5 lbs/hr
Power Consumption
1.7 kW / 8.1 amps
Inlet Water Connection
1/4
Weight
2.5 lbs.
Condensate Pump
All Units
Internal
Tube Connection
3/8 OD
Factory Installed
Yes
Mesh Filter
Yes
Foot Head / Gal-Hour
5' / 3.75 10' / 3.0
Reservoir
N/A
Weight lbs
1.5
AMPS
0.33
External
Tube Connection
1" OD
Factory Installed
Yes
Mesh Filter
N/A
Foot Head / Gal-Hour
5' / 55 10' / 38
Reservoir
N/A
Weight lbs
1.5
AMPS
0.89
Electrical Data
Page 13
13
A
B
C
D E F
G
H I J
K
L
M
N
O
P
Dimension Data In Inches
A N B
O C
P D
Q E
R F
S G
T
H U I
V J
W K
X L
Y M
Z
Indoor Split Condenser -
1 To 2.5 Ton Dimensional Data
AH30 Series
Dual Blower System View
AH18-24 Are Single Blower
Page 14
14
Model
SEER
BTU
AH18
12
18,800
AH24
12
24,300
AH30
12
30,000
Electrical
Voltage
AWG Wire
FLA
MCA
Max Fuse
AH18
208-230/1/60
10
AMP
AH24
208-230/1/60
8
AMP
AH30
208-230/1/60
6
AMP
Model
Blower
Discharge
Weight
Compressor
Liquid / Vapor
AH18
Single - Top
185 lbs.
Scroll
3/8" / 3/4"
AH24
Single - Top
195 lbs.
Scroll
3/8" / 3/4"
AH30
Dual - Top
195 lbs.
Scroll
3/8" / 3/4"
Electrical
Motor Amps
Motor HP
Compressor
RLA
Compressor
LRA
AH18
4.3
.25
AH24
4.3
.25
AH30
4.3
.25
Standard Design Features
• High Efficiency Scroll Compressor • Advanced Coil Design
• Over Sized Direct Drive Blowers • Two Screw Blower Slide Out
• Powder Coated Cabinet • Non Corrosive Hardware
• CNC Punched Safety Screen / Powder •Coat Powder Coated Cabinet
Accepted For Use
City of New York
Department of Buildings
MEA 85-04-E
Listing # E112295
Complies with
UL 1995
Heating & Cooling Equipment
Page 15
15
Configuration
Diagram
A B C D E
F
Weight
(lbs.)
AH18
ACC-01
1
12-1/2"
28"
25-9/16"
13-3/4"
26-5/8"
26-
13/16"
86
AH24
ACC-02
1
12-1/2"
28"
25-9/16"
13-3/4"
26-5/8"
26-
13/16"
86
AH30
ACC-03
1
14-3/8"
33"
30-9/16"
15-5/8"
31-5/8"
31-
13/16"
116
AH36
ACC-03
1
14-3/8"
33"
30-9/16"
15-5/8"
31-5/8"
31-
13/16"
116
MCA On All 15 AMPS
Fan Data
AH18
ACC-01 1 18"
3020
AH24
ACC-02 1 18"
2840
AH30
ACC-03 1 22"
4450
AH36
ACC-03 1 22"
4450
MCA On All 15 AMPS
Motor Data
AeroSys Configuration
RPM
HP
208-230/1/60
208-230/3/60
460/3/60
AH18
ACC-01
1140
1/3
3.2
1.8
0.9
AH24
ACC-02
1140
1/3
3.2
1.8
0.9
AH30
ACC-03
1140
1/3
3.2
1.8
0.9
AH36
ACC-03
1140
1/3
3.2
1.8
0.9

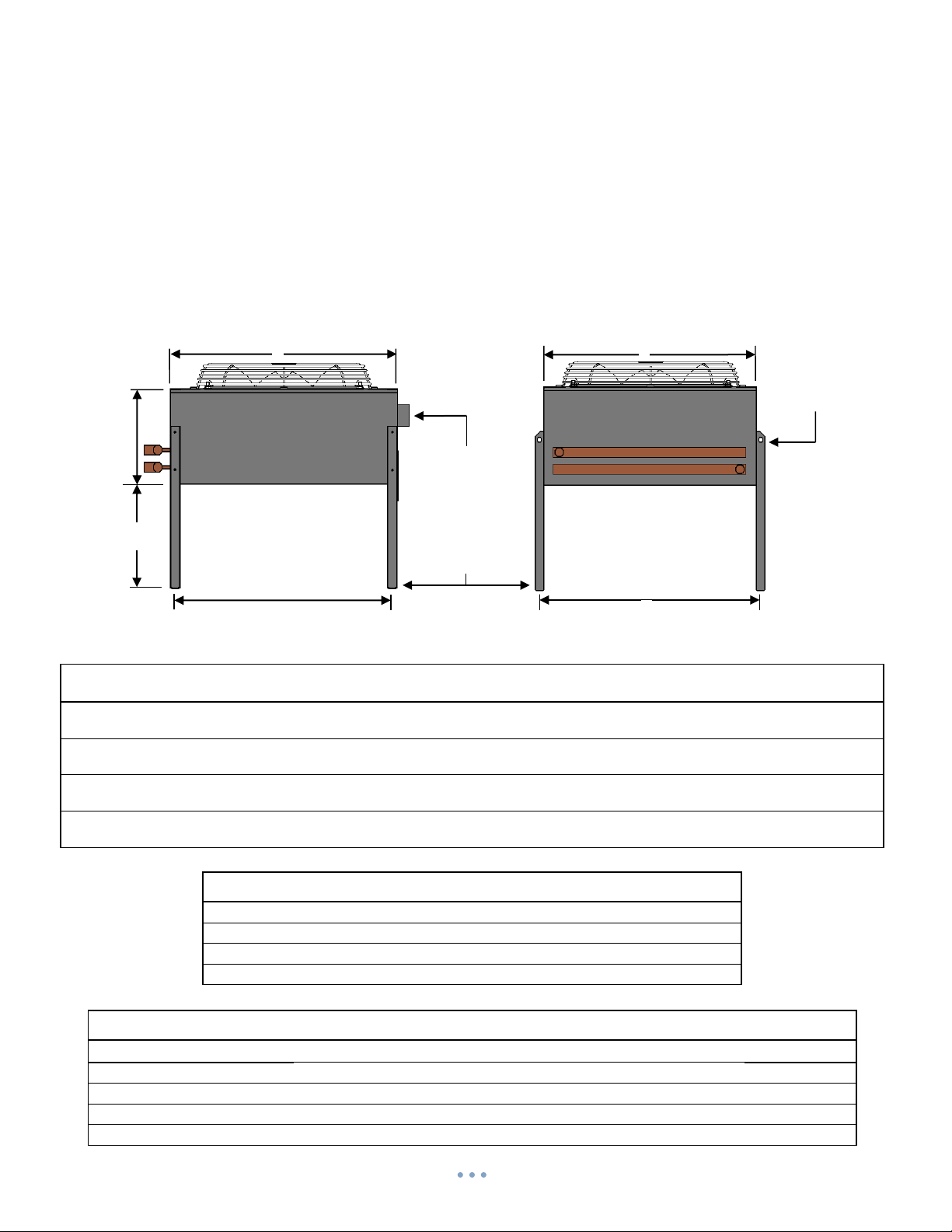

Exterior Dimensional Data
Condenser for Split Systems
Vertical Discharge
9/16”
Diameter
Lifting Holes
Electrical
Box
B
15”
A E F
C
9/16”
Diameter
Mounting Holes
Loading...
