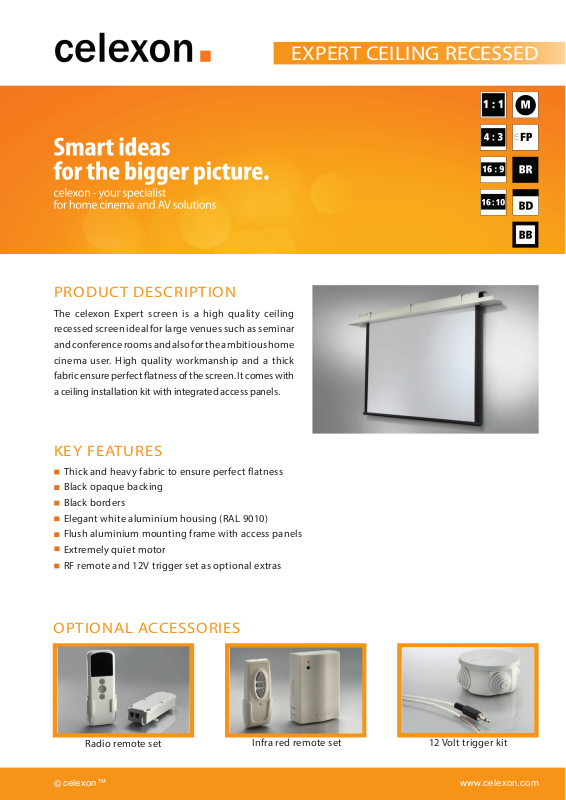

PRODUCT DESCRIPTION

The celexon Expert screen is a high quality ceiling

recessed screen ideal for large venues such as seminar

and conference rooms and also for the ambitious home

cinema user. High quality workmanship and a thick

fabric ensure perfect  atness of the screen. It comes with

a ceiling installation kit with integrated access panels.

EXPERT CEILING RECESSED

KEY FEATURES

Thick and heavy fabric to ensure perfect flatness

Black opaque backing

Black borders

Elegant white aluminium housing (RAL 9010)

Flush aluminium mounting frame with access panels

Extremely quiet motor

RF remote and 12V trigger set as optional extras

OPTIONAL ACCESSORIES

celexon™

©

Radio remote set

Infra red remote set

12 Volt trigger kit

www.celexon.com

TECHNICAL DATA

EXPERT CEILING RECESSED

Format

Product

description

160 x 160 cm 160 x 160 cm - 4 cm / 5 cm / 5 cm 179 x 11 x 9 cm 15 kg 4260094731457

1 : 1

180 x 180 cm 180 x 180 cm - 4 cm / 5 cm / 5 cm 199 x 11 x 9 cm 16 kg 4260094731464

200 x 200 cm 200 x 200 cm - 4 cm / 5 cm / 5 cm 219 x 11 x 9 cm 17 kg 4260094731471

250 x 250 cm 250 x 250 cm - 4 cm / 5 cm / 5 cm 269 x 11 x 9 cm 19 kg 4260094731488

160 x 120 cm 160 x 120 cm - 4 cm / 5 cm / 5 cm 179 x 11 x 9 cm 15 kg 4260094731396

180 x 135 cm 180 x 135 cm - 4 cm / 5 cm / 5 cm 199 x 11 x 9 cm 16 kg 4260094731402

4 : 3

200 x 150 cm 200 x 150 cm - 4 cm / 5 cm / 5 cm 219 x 11 x 9 cm 17 kg 4260094731419

220 x 165 cm 220 x 165 cm - 4 cm / 5 cm / 5 cm 239 x 11 x 9 cm 18 kg 4260094731426

250 x 190 cm 250 x 190 cm - 4 cm / 5 cm / 5 cm 269 x 11 x 9 cm 19 kg 4260094731433

300 x 225 cm 300 x 225 cm - 4 cm / 5 cm / 5 cm 319 x 11 x 9 cm 21 kg 4260094731440

160 x 90 cm 160 x 90 cm 30 cm 4 cm / 5 cm / 5 cm 179 x 11 x 9 cm 15 kg 4260094731495

180 x 101 cm 180 x 101 cm 30 cm 4 cm / 5 cm / 5 cm 199 x 11 x 9 cm 16 kg 4260094731501

16 : 9

200 x 112 cm 200 x 112 cm 30 cm 4 cm / 5 cm / 5 cm 219 x 11 x 9 cm 17 kg 4260094731518

220 x 124 cm 220 x 124 cm 30 cm 4 cm / 5 cm / 5 cm 239 x 11 x 9 cm 18 kg 4260094731525

250 x 140 cm 250 x 140 cm 30 cm 4 cm / 5 cm / 5 cm 269 x 11 x 9 cm 19 kg 4260094731532

300 x 169 cm 300 x 169 cm 30 cm 4 cm / 5 cm / 5 cm 319 x 11 x 9 cm 21 kg 4260094731549

160 x 100 cm 160 x 100 cm 40 cm 4 cm / 5 cm / 5 cm 179 x 11 x 9 cm 15 kg 4260094732768

180 x 112 cm 180 x 112 cm 40 cm 4 cm / 5 cm / 5 cm 199 x 11 x 9 cm 16 kg 4260094732775

200 x 125 cm 200 x 125 cm 40 cm 4 cm / 5 cm / 5 cm 219 x 11 x 9 cm 17 kg 4260094732782

16 : 10

220 x 137 cm 220 x 137 cm 40 cm 4 cm / 5 cm / 5 cm 239 x 11 x 9 cm 18 kg 4260094732799

250 x 156 cm 250 x 156 cm 40 cm 4 cm / 5 cm / 5 cm 269 x 11 x 9 cm 19 kg 4260094732805

280 x 175 cm 280 x 175 cm 40 cm 4 cm / 5 cm / 5 cm 299 x 11 x 9 cm 21 kg 4260094732829

300 x 187 cm 300 x 187 cm 40 cm 4 cm / 5 cm / 5 cm 319 x 11 x 9 cm 21 kg 4260094732812

* this is the black weighted bar

Viewing area

W x H

Black drop

Black border

↓* / ← / →

Housing

dimensions

W x H x D

Weight Part number

The dimensions provi ded are the mean values of the production uni ts. Very slight deviation s may be possib le. Due to continuous technical

imp rovements, we rese rve t he right to change design and specifications wi thout pr ior notice.

Received from your celexon reseller:

Key

Black border –

Black border –

Format 1:1 Format 2,35:1 Format 4:3 Format 16:9 Format 16:10

surround

bottom/sides

Black border –

top/sides

Black border

– sides

Black drop Black rear

Ceiling recessed

possible

Front

projection

Rear

projection

Manual Mobile Motorised

RF remote

control

IR remote

control
