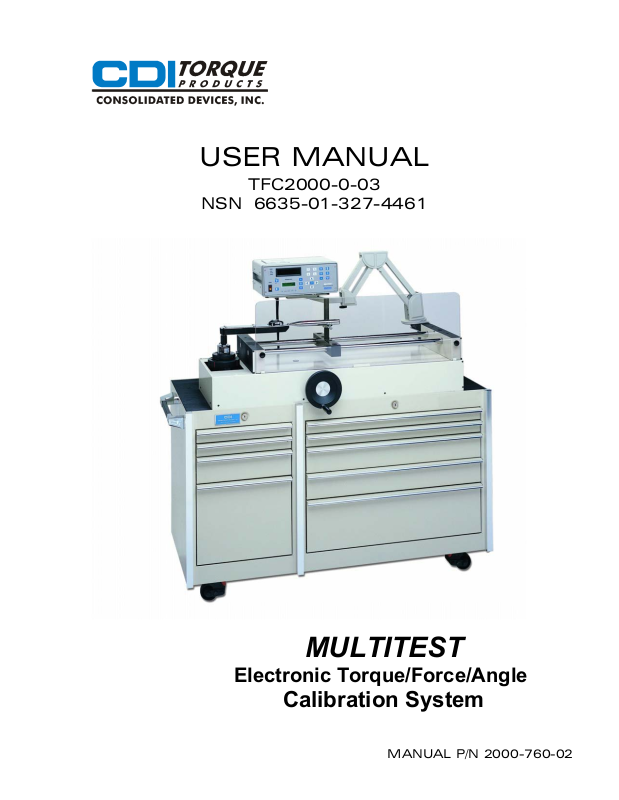

USER MANUAL

TFC2000-0-03

NSN 6635-01-327-4461

MULTITEST

Electronic Torque/Force/Angle

Calibration System

MANUAL P/N 2000-760-02

19220 San Jose Avenue • City of Industry, California 91748-1497
[phone] / [phone] • Office Fax [phone] • Sales Fax [phone]
Visit our website at: www.cditorque.com

CDI ENGINEERING TECHNICAL SHEET

Subject: TFC 2000 CALIBRATOR WITH MULTITEST (2000-610-02)
Accuracy and usable range of transducer

Transducers supplied with Multitest System have a calibration range defined

from 10% to 100% of Full Scale [FS].
Accuracy is as indicated in the Certificate of Calibration unless otherwise
stated.

Issued by: David Duvan, V.P. of Engineering
Date issued: May 24, 2006

Suggested Transducer Calibration Check Points, Bars, Hangers and Weights

for 2500-400-02 (Multiple Transducer Assembly, 0.25% Accuracy)

Bar Hanger Calibration Check Weights to Add Total

Range

40 - 400 in oz 5" 1 /2 lb 1 40.0 in oz 40 in oz none 1/2 lb

5" 1/2 lb 2 80.0 in oz 80 in oz 1/2 lb 1 lb

Length Weight Points Points (n) = more than 1 We ight

5" 1/2 lb 3 160. 0 in oz 1 60 i n oz 1/2 lb, 1 lb 2 lb
5" 1/2 lb 4 240 .0 in oz 240 in oz 1/2 lb, (2 ) 1 l b 3 lb
5" 1/2 lb 5 400 .0 in oz 400 in oz 1/2 lb, (2 ) 2 l b 5 lb

3.75 - 50 in lb

10 - 15 0 in lb

30 - 400 in lb 10" 1/2 lb 30 in lb 1/2 lb, 2 lb 3 lb

5" 1/2 l b
5" 1/2 lb 1 5.0 in l b 5.0 in lb 1/2 l b 1 lb
5" 1/2 l b 2 10.0 in lb 10 in lb 1/2 lb, 1 lb 2 lb
5" 1/2 l b 3 20.0 in lb 20 in lb 1/2 lb , 1 lb, 2 l b 4 lb
5" 1/2 l b 4 30.0 i n lb 30 in l b 1/2 lb , 1 lb, (2) 2 lb 6 lb

5" 1/2 lb 5 50.0 in lb 50 in lb 1/2 lb, 1 lb, (4) 2 lb 10 lb

5" 1/2 lb 10 in lb 1/2 lb, 1 lb 2 lb
5" 1/2 lb 1 1 5. 0 in l b 15 in lb 1/2 l b, 2 lb 3 lb
5" 1/2 lb 2 30.0 in lb 30 in lb 1/2 lb, 1 lb, (2) 2 lb 6 lb
5" 1/2 lb 3 60.0 in lb 60 in lb 1/2 lb, 1 lb, (2) 5 lb 12 lb
5" 1/2 lb 4 90.0 in lb 90 in lb 1/2 lb, 2 lb, (3) 5 lb 18 lb
5" 1/2 lb 5 150.0 in lb 150 in lb 1/2 lb, ( 2) 2 lb, (5) 5 lb 30 lb

10" 1/ 2 lb 1 40.0 in lb 40 in lb 1/2 lb, 1 lb, 2 lb 4 lb
10" 1/ 2 lb 2 80.0 in lb 80 in lb 1/2 lb, 2 lb, 5 lb 8 lb
10" 1/ 2 lb 3 160.0 in lb 160 in lb 1/2 lb, (3) 5 lb 16 lb
10" 1/ 2 lb 4 240.0 in lb 240 in lb 1/2 lb,1 lb, 2 lb, (4 ) 5 lb 24 lb
10" 1/ 2 lb 5 400.0 in lb 400 in lb 1/2 lb,1 lb (4) 2 lb, (6) 5 lb 40 lb

3.75 in l b

4 oz

0.75 lb

Amendment for Multitest Loader Manual: May 24, 2006

Table of Contents

MULTITEST Indicator Manual .................................................................................................... 1

Torque Tester/Calibrator Manual .............................................................................................. 2

Low Torque Station Manual .......................................................................................................... 3

Force Testing Manual ................................................................................................................... 4

Maintenance Instructions ............................................................................................................. 5

Table of Contents

Safety Information ...................................................................................................................... I

Introduction ............................................................................................................................ 1-1

Functional Description and Specifications ............................................................................ 2-1

Functional Descriptions ............................................................................................................. 2-1

MULTITEST Torque Calibration System ............................................................................... 2-1

2000-610-02 Indicator ......................................................................................................... 2-3

Front Panel ................................................................................................................... 2-3

Rear Panel (Input/Output) ............................................................................................. 2-7

Torque/Force Transducers ............................................................................................. 2-9

Specifications .......................................................................................................................... 2-11

MULTITEST Torque Calibration System

2000-610-02 Indicator .................................................................................................. 2-11

Torque/Force Transducers ............................................................................................ 2-13

2000-600-02 Manual Loader Specifications .................................................................. 6-10

Setup and Programming .......................................................................................................... 3-1

MULTITEST Torque Calibration System Setup .................................................................... 3-1

Setting Up the MULTITEST System .............................................................................. 3-2

2000-610-02 Indicator Controls ..............................................................................................3-3

Powering the Equipment ......................................................................................................3-4

4-in-1 Transducer Select ................................................................................................ 3-4

Programming Setup ..............................................................................................................3-5

Setting up Date and Time ..............................................................................................3-5

Setting Up High and Low Limits Alert .............................................................................. 3-6

Programming AUTO CLEAR .......................................................................................... 3-7

DATA LIST Memory ........................................................................................................3-9

Setting Up Printer/PC Ports ................................................................................................ 3-11

Selecting Printer/PC Ports ............................................................................................ 3-11

Setting Up Serial Communications ................................................................................ 3-12

Encoders ............................................................................................................................ 3-13

Setting Up Angle Encoders .......................................................................................... 3-13

Setting Up Torque-Angle Measurement Modes .................................................................. 3-15

Setting Up the Torque/Angle Algorithm ..........................................................................3-15

Setting Angle Only Measurements ................................................................................ 3-16

...................................................................... 2-11

Using the MULTITEST System ................................................................................................4-1

Testing Torque Wrenches and Drivers ..................................................................................4-1

Selecting a Transducer ..................................................................................................4-1

Installing a Transducer ....................................................................................................4-1

Dial and Bending Beam Torque Wrenches and Screwdrivers ..........................................4-2

Adjustable or Preset “Click” Wrenches and Screwdrivers ................................................4-3

Testing Power Tools ..............................................................................................................4-5

Non-Impact Tools ............................................................................................................4-5

Measuring Force, Compression and Tension ..................................................................4-7

Displaying Statistical Analysis ..............................................................................................4-8

Displaying Statistical Analysis on LCD ............................................................................ 4 -9

Printing Statistical Analysis .......................................................................................... 4-10

Displaying or Downloading Data List ............................................................................ 4-11

Displaying Data List on LCD ........................................................................................ 4-11

i

Table of Contents

Downloading Data List to Printer .................................................................................. 4-11

Downloading Data List to Personal Computer .............................................................. 4-12

How to Use Analog Output (Rear Panel BNC Connector) .............................................. 4-13

Measuring Torque and Angle .............................................................................................. 4-14

Torque Only .................................................................................................................. 4-14

Angle Only .................................................................................................................... 4-15

Torque-Angle Algorithm ................................................................................................ 4-16

Calibration ................................................................................................................................ 5-1

Calibration Equipment .......................................................................................................... 5-1

Mounting Details ............................................................................................................ 5-2

Quick Check ........................................................................................................................ 5-5

Torque/Force Calibrations ....................................................................................................5-8

Torque/Force Transducer Calibration ..............................................................................5-8

2000-610-02 Indicator Torque/Force Calibration ............................................................ 5-11

Gravitational Effects ............................................................................................................ 5-13

Correction Factors on Test Weights .............................................................................. 5-13

Gravitational Charts ...................................................................................................... 5-13

2000-600-02 Motorized Loader ................................................................................................ 6-1

Application ............................................................................................................................6-1

Functional Description .......................................................................................................... 6-2

Torque Tester/Calibrator .................................................................................................. 6-3

2000-600-02 Manual Loader ............................................................................................6-3

Loader Rear Panel Controls ............................................................................................6-6

Ball Handle Adaptor ........................................................................................................6-7

4-in-1 Transducer (Accessory) ........................................................................................6-8

Extension Arm (Accessory) ............................................................................................ 6-9

Types of Loader Testing ...................................................................................................... 6-13

Torque Driver Testing .................................................................................................... 6-13

Torque Multiplier Testing .............................................................................................. 6-13

Force Testing ..................................................................................................................... 6-14

Accessories ..............................................................................................................................A-1

MULTITEST System Components and Inventory Control ...................................................... A-2

Optional Transducers and Accessories ................................................................................A-3

Calibration Accessories ........................................................................................................ A-5

ii

Table of Illustrations

Functional Description and Specifications ............................................................................ 2- 1

Figure 2-1: MULTITEST Torque Calibration Torque T e s t e r / C a l ibrator ............................. 2-1

Figure 2-2: Roll Cabinet Drawer Layout ............................................................................. 2-2

Figure 2-3: 2000-610-02 Front Panel ................................................................................. 2-3

Figure 2-4: Maximum Range Display ................................................................................. 2-4

Figure 2-5: 2000-610-02 Rear Panel ................................................................................. 2-7

Setup and Programming .......................................................................................................... 3-1

Figure 3-1: MULTITEST Torque Calibration System Set-up ................................................. 3-1

Figure 3-2: Indicator Controls .............................................................................................. 3-3

Figure 3-3: Date and Time Display ......................................................................................3 -5

Figure 3-4: AUTO CLEAR, STORE, SEND Display ..............................................................3-7

Figure 3-5: RECALL Data Display ........................................................................................3-9

Figure 3-6: RECALL Data Display ........................................................................................3-9

Figure 3-7: Encoder Count Display .................................................................................... 3-14

Figure 3-8: Clamping Torque Display ................................................................................ 3-15

Figure 3-9: Edit Angle Display .......................................................................................... 3-16

Using the MULTITEST System ................................................................................................. 4-1

Figure 4-1: Power Tool Test Setup ......................................................................................4- 6

Figure 4-2: Statistical Analysis Display ................................................................................4- 9

Figure 4-3: Value Display .................................................................................................... 4-9

Figure 4-4: Sample Statistical Data Printout ...................................................................... 4-10

Figure 4-5: Data Download Display .................................................................................... 4-11

Figure 4-6: Angle Mode Display ........................................................................................ 4-15

Calibration ................................................................................................................................ 5-1

Figure 5-1: 2000-610-02 Indicator Calibration Fixture ..........................................................5-1

Figure 5-2: Single Low Torque Transducer Mounting Detail ................................................5-2

Figure 5-3: Single High Torque Transducer Mounting Detail ................................................5-3

Figure 5-4: 4-in-1 Transducer Mounting Detail ....................................................................5 -4

2000-600-02 Manual Loader ..................................................................................................... 6-1

Figure 6-1: 2000-600-02 Manual Loader ............................................................................... 6-3

Figure 6-2: 2000-600-02 Manual Loader, Exploded View ...................................................... 6-4

Figure 6-3: 2000- 600-02 Manual L oader Rear Pane l Controls ............................................ 6-6

Figure 6-4: Ball Handle Adaptor ......................................................................................... 6-7

Figure 6-5: 4-in - 1 T r a n s d u c e r o n 2000-600-02 Manual Loader ........................................... 6-8

Figure 6-6: 2000-600-02 Manual Loader Extension Arm .................................................... 6 -9

Accessories ..............................................................................................................................A-1

Figure A-1: Roll Cabinet Drawer Arrangement ....................................................................A-1

iii

iv

Using this Manual

This manual contains instructions for use and setup of the
MULTITEST T o rq u e C a li b r a t i o n System. A table of contents and a
table of illustrations are provided to make this manual easy to
use.

Some of the information shown in text or illustrations is obtained
using optional equipment.

Conventions

This section contains a list of conventions used in text.

Check Note

A check note provides additional information about the subject
in the preceding paragraph.

Example:

System capabilities include, data storage, retrieval,
statistical analysis and automatic downloading to a
printer or computer.

Chapter References

Additional information in text is referenced by chapter number
and section name.

Example:

Equipment Damage

The possibility of damage to vehicle or equipment is introduced
by a signal word indicating this condition.

Example:

IMPORTANT

The connector on single transducer cables contains
the EEPROM calibration memory chip. Never
attempt to remove the connector from the
transducer. It is installed with a permanent
adhesive. Or covered with shrink tubing.

For testing procedures refer to Chapter 4—Using the
MULTITEST System.

v

Using This Manual

Safety Messages

! DANGER

▲

! WARNING

▲

! CAUTION

▲

Safety messages are provided to help prevent personal injury
and equipment damage. All safety messages are introduced by
a signal word indicating the hazard level. The types of safety

messages are:

Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury
to the operator or to bystanders.

Indicates a potential hazard which, if not avoided,
could result in death or serious injury to the
operator or to bystanders.

Indicates a potential hazard which, if not avoided,
may result in minor or moderate injury to the
operator or to bystanders.

WARNING

The three-part message panel, used with safety messages,
uses three different type styles to further define the potential
hazard:

• Normal type states the hazard,

• Bold type states how to avoid the hazard, and

• Italic type states the possible consequences of not avoiding
the hazard.

Some safety messages contain visual symbols with signal
words.

Example:

Flying particles can discharge when applying torque.

• Users and bystanders must wear safety goggles.

• Always wear safety goggles when applying torque.

Flying particles can cause injury.

vi

Safety Information

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety and operating
instructions for CDI MULTITEST Torque c a l ib ratio n system.
Refer to the information in this manual often for safe operation.

Read All Instructions

Read, understand and follow all safety messages and
instructions in this manual and on the test equipment. Safety
messages in this section of the manual contain a signal word, a
three-part message, and, in some instances, an icon.

The signal word indicates the level of hazard in a situation:

• Danger indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury to the
operator or bystanders.

• Warning indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury to the
operator or bystanders.

• Caution indicates a potentially hazardous situation which, if
not avoided, may result in moderate or minor injury to the
operator or bystanders.

The three-part message uses three different type styles to
further define the potential hazard.

• Normal type states the hazard.

• Bold type states how to avoid the hazard.

• Italic type states the possible consequences of not avoiding
the hazard.

An icon, when present, gives a graphical description of the
potential hazard.

SAVE THESE INSTRUCTIONS

I

Safety Information

WARNING

WARNING

Risk of electric shock and fire.

• For indoor use only. Do not expose charger to
rain or snow. Do not use in damp locations.

• Replace defective cord immediately. Return to
qualified service center for replacement.

Electric shock or fire can cause injury.

Flying particles can discharge when applying torque.

• Users and bystanders must wear safety goggles.

• Always wear safety goggles when applying torque.

• Do not use this equipment with the power off.
Always turn on the indicator and loader so the
torque and load values are indicated on the
display. The safety relays only work when the
power is on.

Flying particles can cause injury.

WARNING

WARNING

Risk of entanglement.

• When starting power tools, check for obstacles
near your hand and anticipate the reaction force
by gripping the tool firmly.

• Do not wear loose clothing and jewelry while
operating a power tool. Loose clothes and jewelry
can be caught in moving parts.

• Keep body parts away from rotating parts.

• Wear a protective hair covering to contain long
hair and prevent contact with moving parts.

• Do not overreach. Keep proper footing and
balance at all times.

Entanglement can cause injury.

Improper use can cause breakage.

• Read instructions before operating.

• Follow manufacturer’s instructions, safety
precautions, and specifications when operating
tools.

Broken equipment can cause injury.

II

WARNING

Safety Information

• Make sure all components, including, adaptors,
extensions, drivers and sockets are rated to
match or exceed the torque or load being applied.

• Be sure the capacity of the MULTITEST system
matches or exceeds each application before
performing a procedure.

• Do not use the MULTITEST system if it makes
unusual noises, has loose parts, or shows any
other sign of damage. Have repairs performed at
an Authorized Service Center before use.

• Do not use chipped, cracked, or damaged sockets
and accessories.

• Do not remove any labels. Replace any damaged
la bel.

• Follow good, professional tool practices:
— Pull on a wrench handle—do not push—and

adjust stance to prevent a possible fall.

— Do not use extensions, such as a pipe, on a

wrench handle.

• When using ratchets, make sure the direction
lever is fully engaged in the correct position.

• Never attempt to test an impact tool on this
instrument.

• Always position the 40" arm over the front of the
stand as shown. Never extend the test arm
behind the stand. The stand will tip over when
weights are applied.

• Always be alert to the potential for personal injury
that may be caused by excessive torque
applications, careless handling of heavy weights,
and out-of-balance or unsafe weight distribution.

III

Safety Information

IV

Introduction

The MULTITEST Indicator is a laboratory grade instrument that
provides TORQUE, FORCE and ANGLE of rotation
measurements and set-able alert functions. Although designed
as an integral component of the MULTITEST Torque Calibration
System, it can also be used independently in many laboratory
and industrial applications. The MULTITEST In dicato r features
versatile date acquisition capabilities including measurement
storage, retrieval, statistical analysis and automatic
downloading to the built-in printer or external printer/computer.
A remote computer COM port is available for PC interfacing.

Used with precision torque/force transducers, the MULTITEST
Indicator provides high speed monitoring of static or dynamic
torque, force or angle inputs. Torque/force transducers,
purchased separately, are available in ranges from 15-200 in oz,
to 200-2000 ft lb, and provide system readings with an
accuracy of +/- 0.25% of indicated value, or better. A special
memory chip is built into each torque/force transducer that
identifies its range and maintains its calibration between any
other MULTITEST Indicator with an accuracy of + / - 0.5%. The
indicator and its transducers may be calibrated by using
accessory precision bars and certified weights.

1

The indicator features a bright red alpha-numeric LED display
for readout of torque in ft lb, in lb, in oz, Nm, dNm, cNm, mkg
and cmkg, or force in ounces, pounds, Newtons, decaNewtons,
kiloponds (kilograms) or grams, depending upon the transducer
in use.

Angle measurement, calibration, statistical analysis and set-up
functions are reported on a 2-line by 16-character 5x8 dot
matrix, backlighted LCD, display. A Torque-Angle mode can be
set up for precision fastener installation monitoring. The
MULTITEST Indicator uses X4 quadrature logic that takes
advantage of maximum resolution from industry standard
bidirectional rotary encoders.

1-1

Introduction

Set-up and calibration programming is entered on front panel
membrane keys. HIGH and LOW torque limits are adjustable to
give an audible alert. The user selects TRACK mode to display
torque values as they are applied, PEAK HOLD or POWER
TOOL modes to display the highest torque value applied, or
FIRST PEAK mode which captures the torque output at the
“click” of a set-able wrench or driver. CLEAR, STORE and
PRINT functions can be set up for automatic or manual
operation.

The indicator stores and recalls up to 3000 torque/force
readings and does statistical analysis on them for downloading
to printer or computer. The statistical report (print out) includes
a simple histogram for process monitoring. True RS-232 serial
printer and separate RS-232 computer COM ports are at the
back of the unit.

The MULTITEST Indicator operates from the AC power line and
is switch selectable for either 120VAC or 220 VAC, 50–60 Hz.
Its integral switching power supply is UL listed. A hard-wired
lithium battery keeps the internal memory and date-time clock
operating for up to 10 years.

The information in this manual is general. Operational features,
procedures and specifications may change without notice. CDI
makes no claims as to the suitability of this information for
diverse user applications.

1-2

Functional

2
Description and
Specifications

The MULTITEST Torque Calibration System is comprised of an
Indicator, Mechanical Loader, Roll Cabinet, Transducers and a
variety of optional equipment specified by the user.

Functional Descriptions

MULTITEST Torque Calibration System

A

B

C

D

Figure 2-1 MULTITEST Torque Calibration System

A — Indicator

The MULTITEST Indicator monitors and displays the torque
applied.

2-1

Functional Description and Specifications

B — Transducer (Accessory)

The loader accepts all MULTITEST series single transducers
directly. Use a 2000-500-02 adaptor kit to mount the optional
2000-400-02 4-in-1 transducer. For additional information refer
to Appendix A–Accessories.

C — Loader

Use the 2000-600-02 Manual Loader for testing and calibrating
all torque wrenches, drivers, torque multipliers, non-impact
pneumatic and electric nut runners. It can also be mounted
on a fixture for testing and calibrating cable tensiometers and
compression or tension gauges. Loader components are:

• Indicator Stand

• Safety Shield

• Hand Crank

• Transducer Mounting

D — Roll Cabinet

The roll cabinet features nine heavy duty drawers with ball
bearing slides, locking wheels and drawer locks. MULTITEST
accessories are stored in the roll cabinet which is fitted with
foam inserts for easy inventory control. The nine drawers are
assigned and arranged as shown in Figure 2-2 .

2-2

Figure 2-2: Roll Cabinet Drawer Layout

Functional Description and Specifications

MULTITEST Indicator

This section describes the major hardware components of the
MULTITEST Indicator, including:

• Front Panel

• Rear Panel (Input/Output)

• MULTITEST Torque/Force Transducers

Front Panel

B

A

C D

E

F

G

Figure 2-3: 2000-610-02 Front Panel

A — MULTITEST Torque/Force Display

TORQUE or FORCE displays on a bright red alphanumeric
LED, with 0.55" high characters in selected engineering UNITs.

• (+) = Clockwise torque or force

• (-) = Counter clockwise torque or force

B — Range LED Torque or Force Limit Indicators

• Red—OVER (Input exceeds 110% of transducer range)

• Green—WITHIN (Input is within transducer range)

• Yellow—UNDER (Input is below transducer range)

C — Power Switch

D — Mode Select LEDs

• Red—TORQUE

• Green—FORCE

E — MODE Function LEDs

• Green—TRACK

• Red—PEAK HOLD

• Yellow—POWER TOOL

• Red—FIRST PEAK

• Green—ANGLE

2-3

Functional Description and Specifications

F — Maximum Range Display

Figure 2-4: Maximum Range Display

Two line by 16 character 5x8 dot-matrix LCD display that
shows:

• Maximum transducer range in the selected UNITS of measure
on the upper line,

• Statistical mean of all measurements in memory on the lower
line, left, and

• The number of the present data memory location on the lower
line, right.

This display also is used to indicate:

• ANGLE, in degrees, CW=(+), CCW=(-) of rotation,

• Prompt CALibration mode,

• Programming of angle encoder,

• Printer protocol,

• RECALL display of data list and STATistical analysis, and

• Set up for:

— DATE/TIME clock,
— AUTO/MANUAL CLEAR, STORE and SEND, and
— HIGH and LOW torque/force limits.

2-4

Functional Description and Specifications

G — Front Panel Membrane Function Keys

SELECT

MODE

UNIT

ANGLE

RESET

ZERO
TARE

DIGIT

Toggles between TORQUE and FORCE measurement modes.

Selects TRACK, PEAK HOLD, POWER TOOL, FIRST PEAK
and ANGLE modes.

display:Selects following units on LCD
Torque units in: Nm, dNm, cNm, mkg, cmkg, lb ft, in lb, in oz,
or
Force units in: N, dN, kp, gf, lbf, oz

Manually resets ANGLE display on LCD at any time.

Manually resets ZERO TARE.

Selects LED or LCD digit to right (blinking) for setup and
programming. Shift for printer and angle encoder programming.

DIGIT

ENTER

VALUE

VALUE

Selects LED or LCD digit to left (blinking) for setup and
programming. Shift for printer and angle encoder programming.

Terminates calibration and program modes. Returns to 4-in-1
transducer scan.

Increments selected digit during calibration and program modes.
Scrolls statistical analysis display.

Decrements selected digit during calibration and program
modes. Scrolls statistical analysis display.

2-5

Functional Description and Specifications

CAL

DATE

TIME

SET

HIGH

SET

LOW

STORE

DATA

RECALL

DATA

STAT

Opens and terminates calibration mode.

Edits DATE/TIME programming function.

Sets up high torque/force limit preset. Set up angle preset in
torque-angle mode.

Sets up low torque/force limit preset. Set up clamping torque
preset in torque-angle mode.

Stores present measurement to memory.

Recalls memory data to display.

Sends all memory data, statistical analysis and histogram to
printer/port.

SEND

AUTO
SEND

AUTO

CLEAR

MANUAL

CLEAR

Sends data list with or without date-time stamp to computer
printer. Sets up serial protocol function.

Sets up CLEAR, STORE, and SEND modes function.

Manually clears display in PEAK, FIRST PEAK, POWER TOOL
and ANGLE modes. Sets up memory clear options in RECALL
mode.

2-6

Functional Description and Specifications

A

B

C

GDE

F

Rear Panel (Input/Output)

The MULTITEST Indicator rear panel is shown in Figure 2-5.

11

10

12

VOLTAGE

SELECT

SOLENOID

CONTROL

TRANSDUCER INPUT

Figure 2-5: 2000-610-02 Rear Panel

ANALOG
OUTPUT

PRINTER SELECTOR

INTERNAL EXTERNAL

OPTIONAL PRINTER PORT

A — SOLENOID CONTROL (Hirose RM15TRD-12S)

PIN FUNCTION

10 Loader Relay Common
11 Loader Relay CCW Limit
12 Loader Relay CW Limit

B — ANALOG OUTPUT (BNC)

Analog output provides a voltage level output that is directly
proportional to transducer input, from -1.8V (full scale counter
clockwise) to +1.8V (full scale clockwise). Zero offset +/-100
mV. Linearity +/-1% of reading. Maximum load = 5 Ma.

FUSE

3.15 A

When using the 4-in-1 transducer, zero output
fluctuates until one of the transducers is scan selected
by applying 5% of full scale torque.

C — PRINTER SELECTOR

The INTERNAL/EXTERNAL switch disables the built-in printer.

2-7

Functional Description and Specifications

5

9

5

9

1

6

1

6

19 1

37

20

D — PRINTER PORT (DB-9P)

PI N FUNCTION

2 Receive
3 Transmit
5 Ground

E — OPTIONAL (DB-9P)

PI N FUNCTION

2 Receive
3 Transmit
5 Ground

F — TRANSDUCER INPUT (DB-37S)

PI N FUNCTION

1 not used
2 ground
3 smart chip - bit 2
4 smart chip - bit 0
5 single xducer (-) signal
6 single xducer (+) signal
7 ground
8 4-in-1 xducer (-) signal 2
9 4-in-1 xducer (+) signal 2
10 ground
11 4-in-1 xducer (-) signal 4
12 4-in-1 xducer (+) signal 4
13 4-in-1 xducer LED 2
14 4-in-1 xducer LED 4
15 loader relay CW limit
16 rotary encoder signal A
17 rotary encoder signal B
18 ground
19 bridge excitation (+3V)
20 not used
21 smart chip - bit 3
22 smart chip - bit 1
23 ground
24 ground
25 4-in-1 xducer (-) signal 1
26 4-in-1 xducer (+) signal 1
27 ground
28 4-in-1 xducer (-) signal 3
29 4-in-1 xducer (+) signal 3
30 no transducer
31 4-in-1 xducer LED 1
32 4-in-1 xducer LED 3
33 loader relay CCW limit
34 loader relay common
35 Vcc (+5V@100 ma. max)
36 ground
37 bridge excitation (+3V)

2-8

G — VOLTAGE SELECT

Switch for selecting either 120VAC or 220VAC, 50-60 Hz.

Functional Description and Specifications

MULTITEST Torque/Force Transducers

MULTITEST torque/force transducers provide industry standard
internal square drives. They feature a full bridge strain-gauge
@ 350 Ohms nominal. Full range output is 1500 µE, 9mV,
(3mV/V @ 3.0V excitation).

Torque/force transducers use a built-in EEPROM memory chip
that stores range identification and calibration factors.
Calibration of transducers is accomplished using precision
torque bars and certified weights. For additional information,
refer to Chapter 5—Calibration .

After a transducer is calibrated, it provides +/-0.5% system
accuracy with any MULTITEST Indicator. If the transducer and
indicator are calibrated together, the system accuracy increases
to +/-0.25%.

Transducer Dimensions/Transducer Indicator Torque Range
and Force Range

Torque Force

Stock No. Range Drive Range Height Diameter Weight

2000-5-02 15-200 in oz 1/4" Ext. 3.9 in 3.0 in 1.5 lb

2000-6-02 4-50 in lb 1/4" Ext. 3.9 in 3.0 in 1.5 lb

2000-65-02 15-150 in lb 1/4" Ext. 3.9 in 3 .0 in 1.5 lb

2000-7-02 30-400 in lb 3/8" Ext. 33.3 lbf 4.1 in 3.0 in 3.0 lb

2000-8-02 80-1000 in lb 3/8" Ext. 83.3 lbf 4.1 in 3.0 in 3 lb

2000-10-02 10-125 ft lb 1/2" Ext. 125 lbf 4.25 in 4.0 in 5 lb

2000-11-02 20-250 ft lb 1/2" Ext. 250 lbf 4.25 in 4.0 in 5 lb

2000-12-02 60-600 ft lb 3/4" Ext. 600 lbf 4.25 in 4.0 in 5 lb

2000-13-02 100-1000 ft lb 1" Internal 1000 lbf 5.5 in 6.1 in 24 lb

2000-14-02 200-2000 ft lb 1" Internal 2000 lbf 5.5 in 6.1 in 24 lb

2000-400-02 4-50 in lb 1/4" Ext. H2.6-W5.0-L10.0 in 6 lb

(4-in-1) 30-400 in lb 3/8" Ext.

80-1000 in lb 3/8" Ext.

20-250 ft lb 1/2" Ext.

Calibration also results in a specified display resolution on the
MULTITEST Indicator. Display resolution is dependent on the
type of transducer being used. The following table shows
display resolutions for the specified transducer with the force
arm.

2-9

Functional Description and Specifications

Display Resolution for Transducers in Force Mode

N dN lbf ozf kp gf

2000-7-02 .03 .3 .007 .1 .003 3

2000-8-02 .08 .8 .02 .3 .008 8

2000-10-02 .1 1 .02 .4 .01 10

2000-11-02 .2 2 .05 .8 .02 n/a

2000-12-02 .5 5 .12 2 .05 n/a

2000-13-02 .9 9 .2 3 .1 n/ a

2000-14-02 1.8 1 8 .4 6 .2 n/a

Display Resolution for Transducers in Torque Mode

mkg cmkg ft lb in lb in oz Nm dNm cNm

2000-5-02 .00003 . 003 .0002 .00 2 .04 .0003 .003 .03

2000-6-02 .00 01 .01 .0008 .01 .2 .001 .03 . 3

2000-65-02 .0003 .03 .002 .03 .5 .003 .03 .3

2000-7-02 .001 .1 .006 .08 1.2 .009 .09 . 9

2000-8-02 .002 .2 .016 .2 3.2 .02 .2 2

2000-10-02 .004 .4 .03 .3 5 .03 .3 3

2000-11-02 .007 .7 .05 .6 10 .07 .7 7

2000-12-02 .0161 1.6 .12 1.4 n/a .16 1.6 16

2000-13-02 .03 3 .2 3 n/a .3 2.7 n / a

2000-14-02 .05 5 .4 5 n/a .5 5 n/a

2000-400-02 .0001 .01 .0008 .01 .2 .001 .03 . 3

(4-in-1) .001 .1 . 006 .08 1.2 .009 .09 .9

.002 .2 .0 16 .2 3.2 .02 .2 2

.007 .7 .05 .6 10 .07 .7 7

2-10

MULTITEST torque/force transducers can withstand an overload
of 110% of full range. The MULTITEST Indicator alarms, (audible
beep and display "OVER" red LED) at 110% of rated capacity.

To protect the tool under MULTITEST Indic a t o r or serve as a
fastener installation, torque preset alert, the MULTITEST
produces a constant audible tone when the input torque/force
exceeds the SET LOW limit. It then produces a pulsating tone
when the input torque/force exceeds the SET HIGH limit.

The MULTITEST Indicator ignores inputs less than 0.1% of full
range in TRACK mode, 2% in PEAK HOLD mode, 7% in FIRST
PEAK and POWER TOOL modes. With the 4-in-1 transducer,
the MULTITEST System ignores inputs less than 2% of full
range after scan select.

Functional Description and Specifications

Specifications

MULTITEST Torque Calibration System

System Accuracy

±0.25% of reading @ 25°C
(Indicator and transducer calibrated together)

MULTITEST Transducers used with, but not calibrated
to, another MULTITEST Indicator provide a system
accuracy of ±0.5% of reading @ 25°C.

Temperature Drift

+0.03%/°C (+0.017%/°F)

Angle Precision

Bi-directional rotary encoder pulses/revolution X4

2000-610-02 Indicator

Display Accuracy

±0.05% of reading @ 25°C

Temperature

Operating Temperature

10 to 32°C (50 to 90°F)

Storage

-20 to 50°C (-2 to 122°F)

Humidity

Up to 90%, Non-condensing

Temperature Drift

+0.011%/°C, (+0.006%/°F)

Dimensions

Width 16.5"

Height 6.25"
Depth* 14.5"

*Includes handle, feet, printer and connectors

Weight

13.5 lbs

Power Supply

UL approved, 120VAC/220VAC, 50-60 Hz
Amperage, 3.15 amps

2-11

Functional Description and Specifications

Data Storage/Recall w/Date Time Stamp

3,000 measurements

Statistical Analysis

Max, Min, Range, Mean, Sigma N, Sigma, Cp, Cpk

%Error, -NoGo, +NoGo.
Histogram: Lower Set Limit, Upper Set Limit, 10 Divisions

Printer/Computer Serial Output Port

Serial Communications

RS-232 (true)

300—19.2K Baud
8 data bits

1 stop bit

no parity

Computer Serial COM Port

RS-232 (True)
300—19.2K Baud

OPTIONAL

Analog Output

+(CW)/-(CCW) 1.8V at transducer full range linearity
±1% of reading

Loader Control Relays

Two, normally open, Form A, rated 12VDC @ 1/2A close contact
at 110% CW or CCW of torque/force transducer range.

For additional information refer to Transducer and
Sy stem specifications.

Display Capacity

(16 bit A/D), 8 digits, ±32,000 counts

Units of Measurement

Torque

ft lb, in lb, in oz, Nm, dNm, cNm, mkg and cmkg

Force

lbf, ozf, N, dN, kp, and gf

Angle

degrees

Torque/Force Resolution

Refer to transducer-indicator range and display resolution tables
in Functional Description of this chapter.

2-12

Angle Resolution

Bi-directional, X4 quadrature logic

Functional Description and Specificatons

Torque/Force Transducers

Accuracy

±0.2% of reading @ 25°C, within specified range, when used as
prescribed with the 2000-610-02 Loader.

Range and Resolution

Refer to transducer-indicator range and display resolution tables
in Functional Description of this chapter.

Temperature

Operating Temperature

10 to 32°C (50 to 90°F)

Storage

-20 to 50°C (-2 to 122°F)

Humidity

Up to 90% non-condensing

Temperature Drift

+0.02%/°C (+.011%/°F)

MULTITEST Manual Loader Specifications

Input Torque (Hand Crank)

8 ft lb maximum

Output Torque

2000 ft lb ±20 degrees rotation maximum

Power Requirements (Safety solenoids)

115/230VAC ±10%, @ 50- 60 Hz

Physical Dimensions

Wi dth

45"

Height

50"

Depth

24"

Weight (including 2000-100-02 roll cab)

1500 lbs

Optional Calibration Fixturing (Load bars and weights)

±0.05% accuracy

2-13
