CD 292606 User Manual

globalindustrial.ca

Distribucion Industrial Globales S DE RL DE CF

User's manual Manual del usuario Manuel de l'utilisateur

Customer Service

US: 1-800-645-2986

Servicio de atención al Cliente

México: 01.800.681.6940

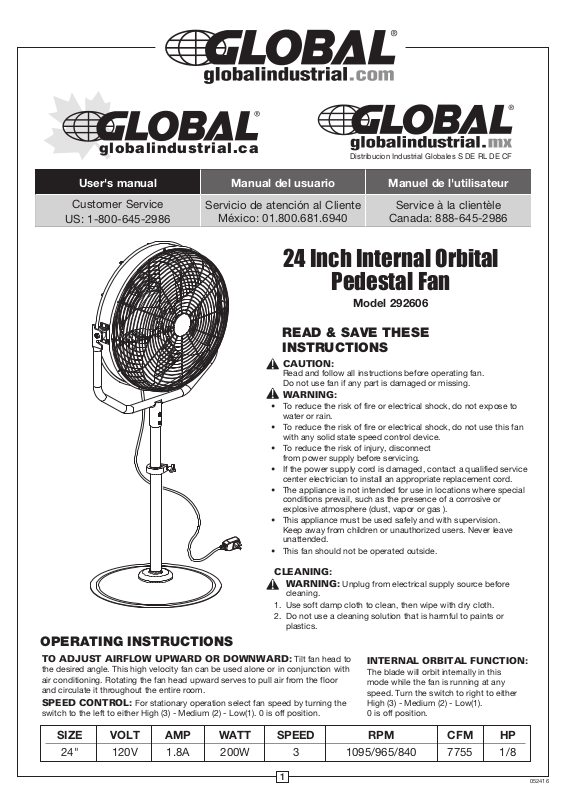

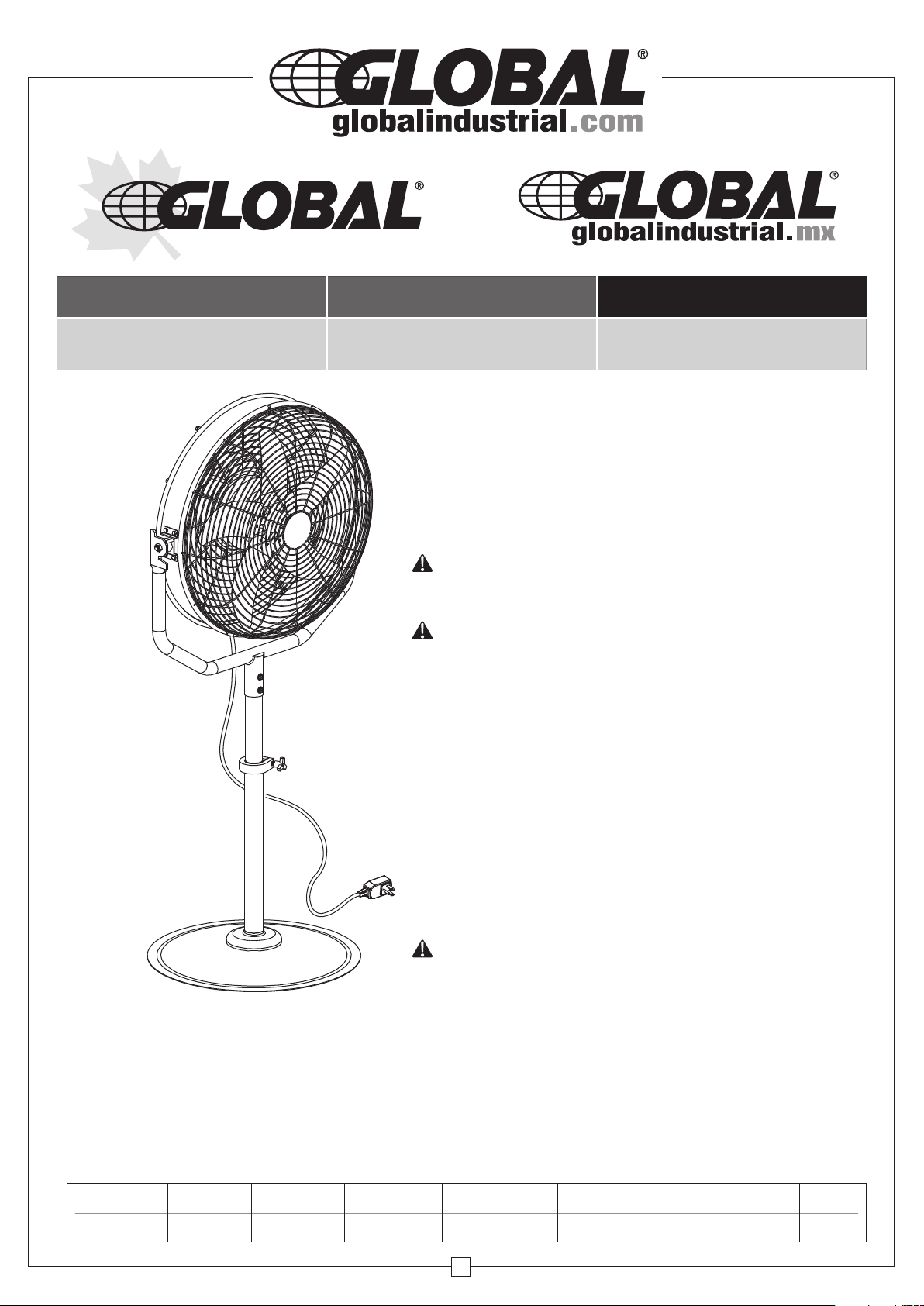

24 Inch Internal Orbital

Pedestal Fan

Model 292606

READ & SAVE THESE
INSTRUCTIONS

CAUTION:

Read and follow all instructions before operating fan.
Do not use fan if any part is damaged or missing.

WARNING:

• To reduce the risk of fire or electrical shock, do not expose to
water or rain.

• To reduce the risk of fire or electrical shock, do not use this fan
with any solid state speed control device.

• To reduce the risk of injury, disconnect
from power supply before servicing.

• If the power supply cord is damaged, contact a qualified service
center electrician to install an appropriate replacement cord.

• The appliance is not intended for use in locations where special
conditions prevail, such as the presence of a corrosive or
explosive atmosphere (dust, vapor or gas ).

• This appliance must be used safely and with supervision.
Keep away from children or unauthorized users. Never leave
unattended.

• This fan should not be operated outside.

Service à la clientèle

Canada: 888-645-2986

CLEANING:

WARNING: Unplug from electrical supply source before

cleaning.

1. Use soft damp cloth to clean, then wipe with dry cloth.

2. Do not use a cleaning solution that is harmful to paints or
plastics.

OPERATING INSTRUCTIONS

TO ADJUST AIRFLOW UPWARD OR DOWNWARD: Tilt fan head to

the desired angle. This high velocity fan can be used alone or in conjunction with
air conditioning. Rotating the fan head upward serves to pull air from the floor
and circulate it throughout the entire room.

SPEED CONTROL: For stationary operation select fan speed by turning the

switch to the left to either High (3) - Medium (2) - Low(1). 0 is off position.

SIZE VOLT AMP WATT SPEED RPM CFM HP

24" 120V 1.8A 200W 3 1095/965/840 7755 1/8

1

INTERNAL ORBITAL FUNCTION:

The blade will orbit internally in this
mode while the fan is running at any
speed. Turn the switch to right to either
High (3) - Medium (2) - Low(1).
0 is off position.

052416

24 Inch Internal Orbital

Pedestal Fan

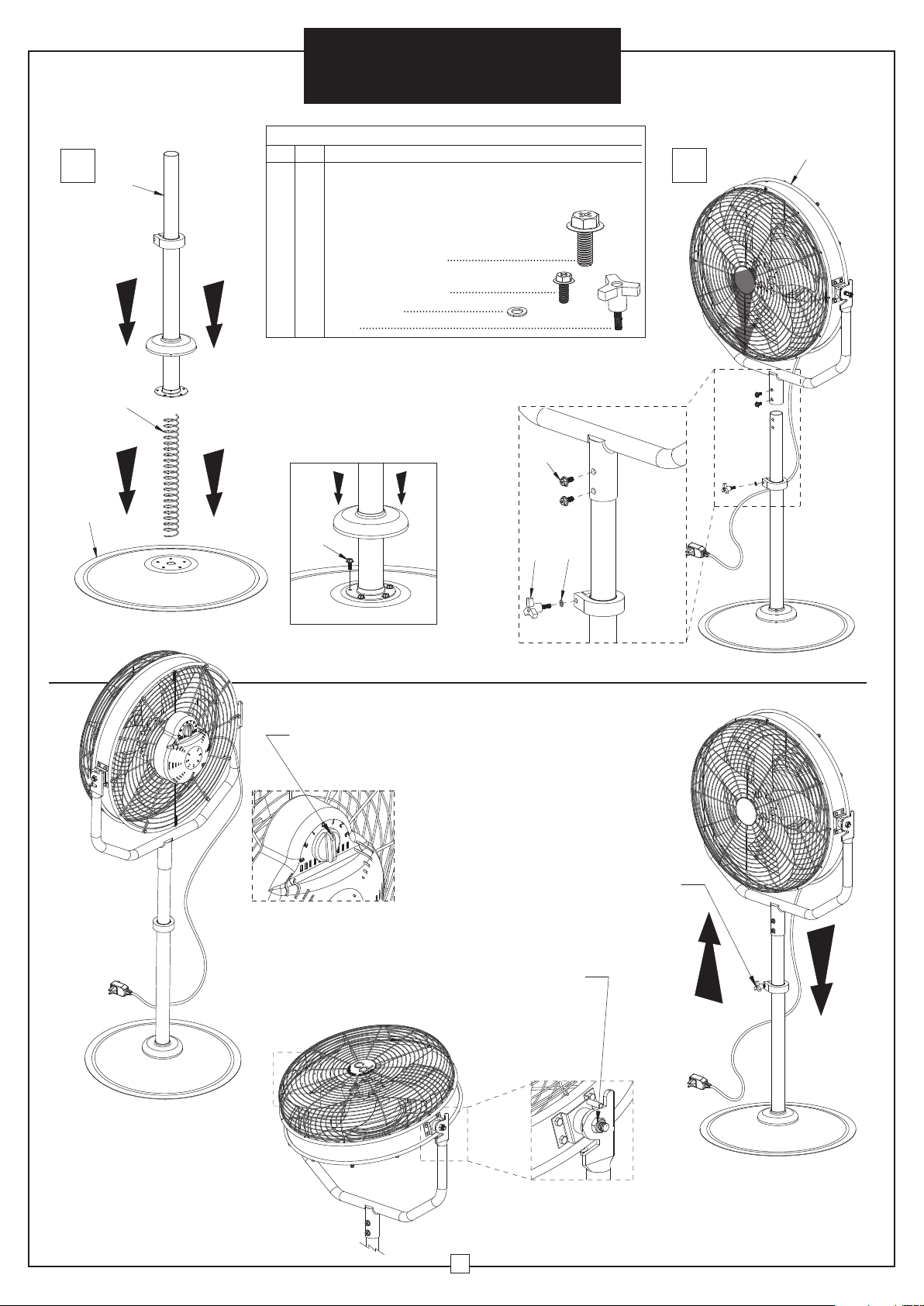

Assembly Instructions

1

CONTENTS

Ref. Qty. Description

1

2

3

1 1 Shaft Assembly
2 1 Spring
3 1 Base
4 1 Motor Head Assembly

H1 5 M6 x 1.0 x 12mm Lg. Hex

Phillips Serrated Flange Nut

H2 2 M8 x 1.25 x12mm Lg. Hex

Phillips Serrated Flange Nut
H3 1 Plain Washer
H4 1 Knob

H1

H2

H4 H3

2

4

Speed and oscillating
selector switch

TO TILT FAN HEAD
Loosen nuts on both sides

and rotate fan head left or
right, then retighten nuts.

Height Adjustment Knob

2
