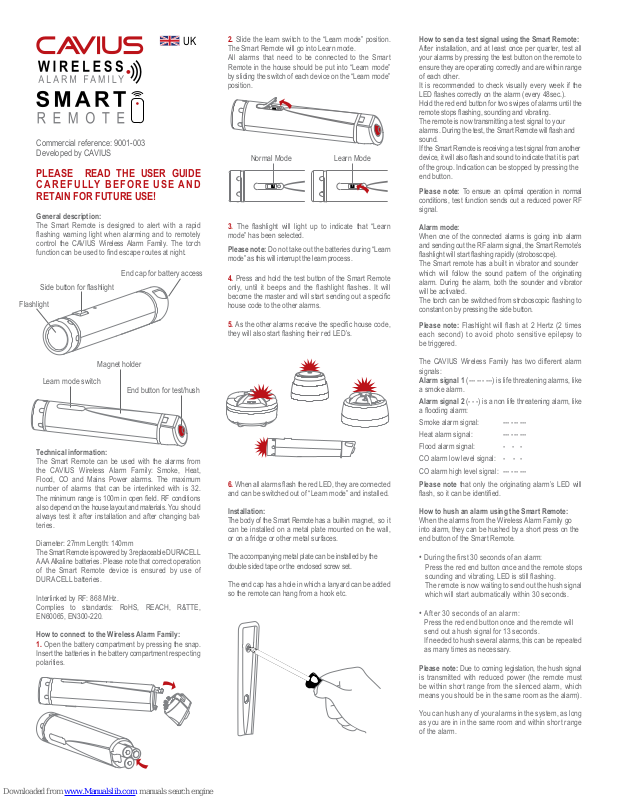

Commercial reference: 9001-003
Developed by CAVIUS
PLEASE READ THE USER GUIDE
CAREFULLY BEFORE USE AND
RETAIN FOR FUTURE USE!
General description:
The Smart Remote is designed to alert with a rapid
ashing warning light when alarming and to remotely
control the CAVIUS Wireless Alarm Family. The torch
function can be used to nd escape routes at night.
End cap for battery access
Side button for ashlight
Flashlight
UK
2. Slide the learn switch to the “Learn mode” position.
The Smart Remote will go into Learn mode.
All alarms that need to be connected to the Smart
Remote in the house should be put into “Learn mode”
by sliding the switch of each device on the “Learn mode”
position.
Normal Mode Learn Mode
3. The ashlight will light up to indicate that “Learn
mode” has been selected.
Please note: Do not take out the batteries during “Learn
mode” as this will interrupt the learn process.
4. Press and hold the test button of the Smart Remote
only, until it beeps and the flashlight flashes. It will
become the master and will start sending out a specic
house code to the other alarms.
5. As the other alarms receive the specic house code,
they will also start ashing their red LED’s.
How to send a test signal using the Smart Remote:
After installation, and at least once per quarter, test all
your alarms by pressing the test button on the remote to
ensure they are operating correctly and are within range
of each other.
It is recommended to check visually every week if the
LED ashes correctly on the alarm (every 48sec.).
Hold the red end button for two swipes of alarms until the
remote stops ashing, sounding and vibrating.
The remote is now transmitting a test signal to your
alarms. During the test, the Smart Remote will ash and
sound.
If the Smart Remote is receiving a test signal from another
device, it will also ash and sound to indicate that it is part
of the group. Indication can be stopped by pressing the
end button.
Please note: To ensure an optimal operation in normal
conditions, test function sends out a reduced power RF
signal.
Alarm mode:
When one of the connected alarms is going into alarm
and sending out the RF alarm signal, the Smart Remote’s
ashlight will start ashing rapidly (stroboscope).
The Smart remote has a built in vibrator and sounder
which will follow the sound pattern of the originating
alarm. During the alarm, both the sounder and vibrator
will be activated.
The torch can be switched from stroboscopic ashing to
constant on by pressing the side button.
Please note: Flashlight will ash at 2 Hertz (2 times
each second) to avoid photo sensitive epilepsy to
be triggered.
Magnet holder
Learn mode switch
End button for test/hush
Technical information:
The Smart Remote can be used with the alarms from
the CAVIUS Wireless Alarm Family: Smoke, Heat,
Flood, CO and Mains Power alarms. The maximum
number of alarms that can be interlinked with is 32.
The minimum range is 100m in open eld. RF conditions
also depend on the house layout and materials. You should
always test it after installation and after changing batteries.
Diameter: 27mm Length: 140mm
The Smart Remote is powered by 3 replaceable DURACELL
AAA Alkaline batteries. Please note that correct operation
of the Smart Remote device is ensured by use of
DURACELL batteries.
Interlinked by RF: 868 MHz.
Complies to standards: RoHS, REACH, R&TTE,
EN60065, EN300-220.
How to connect to the Wireless Alarm Family:
1. Open the battery compartment by pressing the snap.
Insert the batteries in the battery compartment respe cting
polarities.
6. When all alarms ash the red LED, they are connected
and can be switched out of “Learn mode” and installed.
Installation:
The body of the Smart Remote has a built-in magnet , so it
can be installed on a metal plate mounted on the wall,
or on a fridge or other metal surfaces.
The accompanying metal plate can be installed by the
double sided tape or the enclosed screw set.
The end cap has a hole in which a lanyard can be added
so the remote can hang from a hook etc.
The CAVIUS Wireless Family has two different alarm
signals:
Alarm signal 1 (--- --- ---) is life threatening alarms, like
a smoke alarm.
Alarm signal 2 (- - -) is a non life threatening alarm, like
a ooding alarm:
Smoke alarm signal: --- --- ---
Heat alarm signal: --- --- ---
Flood alarm signal: - - -
CO alarm low level signal: - - -
CO alarm high level signal: --- --- ---
Please note that only the originating alarm’s LED will
ash, so it can be identied.
How to hush an alarm using the Smart Remote:
When the alarms from the Wireless Alarm Family go
into alarm, they can be hushed by a short press on the
end button of the Smart Remote.
• During the rst 30 seconds of an alarm:
Press the red end button once and the remote stops
sounding and vibrating, LED is still ashing.
The remote is now waiting to send out the hush signal
which will start automatically within 30 seconds.
• After 30 seconds of an alarm:
Press the red end button once and the remote will
send out a hush signal for 13 seconds.
If needed to hush several alarms, this can be repeated
as many times as necessary.
Please note: Due to coming legislation, the hush signal
is transmitted with reduced power (the remote must
be within short range from the silenced alarm, which
means you should be in the same room as the alarm).
You can hush any of your alarms in the system, as long
as you are in in the same room and within short range
of the alarm.
You can go from room to room and hush the alarms by
short press till you nd the originating alarm (the one that
ash), then check the cause of alarm.
All the others devices will be silenced too.
Low battery signal:
When the battery is starting its end of life, a short beep
will sound out every 48 seconds for 30 days.
Only the device affected by the low battery will beep, no
other connected devices will sound.
It is safe to change batteries in the Smart Remote
without going through the learn process again – it will
not forget the codes during the battery change process.
Batteries replacement:
You can access the 3 x AAA batteries by removing the
end cap.
Replace the batteries respecting polarities. Always test the
Smart Remote after battery replacement.
Caution: There is a risk of explosion if the batteries are
replaced by an incorrect type.
Dispose of used batteries according to local environ mental
regulations.
Maintenance & troubleshooting:
If the Smart Remote does not work when the test/hush
button is pushed, the probable cause is faulty batteries
which must be replaced. Please refer to troubleshooting
at www.cavius.com.
How the Smart Remote is behaving:
When the remote is:
• Receiving a signal from an alarm: vibrating, sounding
and LED is ashing.
• Waiting to send a hush signal during the first 30
seconds of an alarm: LED is ashing.
• Sending a hush signal: quick vibration, sounding and
LED is ashing - for 13 seconds.
• Receiving a test signal: quick vibration and LED is
ashing
The CE mark afxed to this product conrms its compliance
with the European Directives which apply to the product.
If you hush an alarm other than the source of the alarm,
the remaining alarms will still sound.
Flashlight:
The ashlight can be activated by pressing the side button. By pressing again you turn off the light.
Please note: The light will go out automatically after 5
minutes.
All Rights reserved: CAVIUS Aps assumes no responsibility
for any errors, which may appear in this manual. Furthermore, CAVIUS Aps reserves the right to alter the hard ware,
software, and/or specications detailed herein at any time
without notice, and CAVIUS Aps does not make any commitment to update the information contained here in. All the
trademarks listed herein are owned by their respective owners.
Copyright © CAVIUS Aps.
Developed by CAVIUS Aps Julsøvej 16, DK-8600
Manufactured in P.R.C.
126894 rev2
