Caterpillar M314 Technical Specifications

Download
Page 1

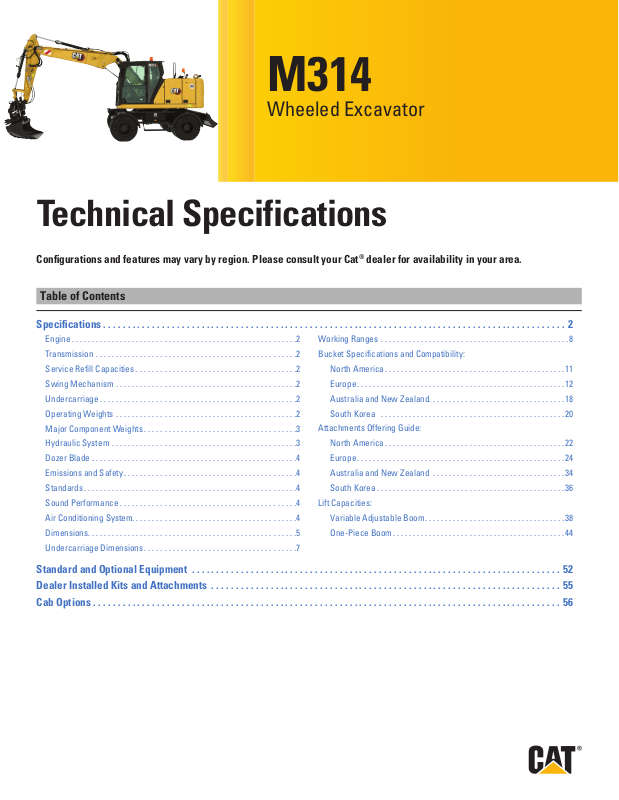

M314
Wheeled Excavator

Technical Specifications

Congurations and features may vary by region. Please consult your Cat® dealer for availability in your area.

Table of Contents

Specications ..............................................................................................2
Bucket Specifications and Compatibility:

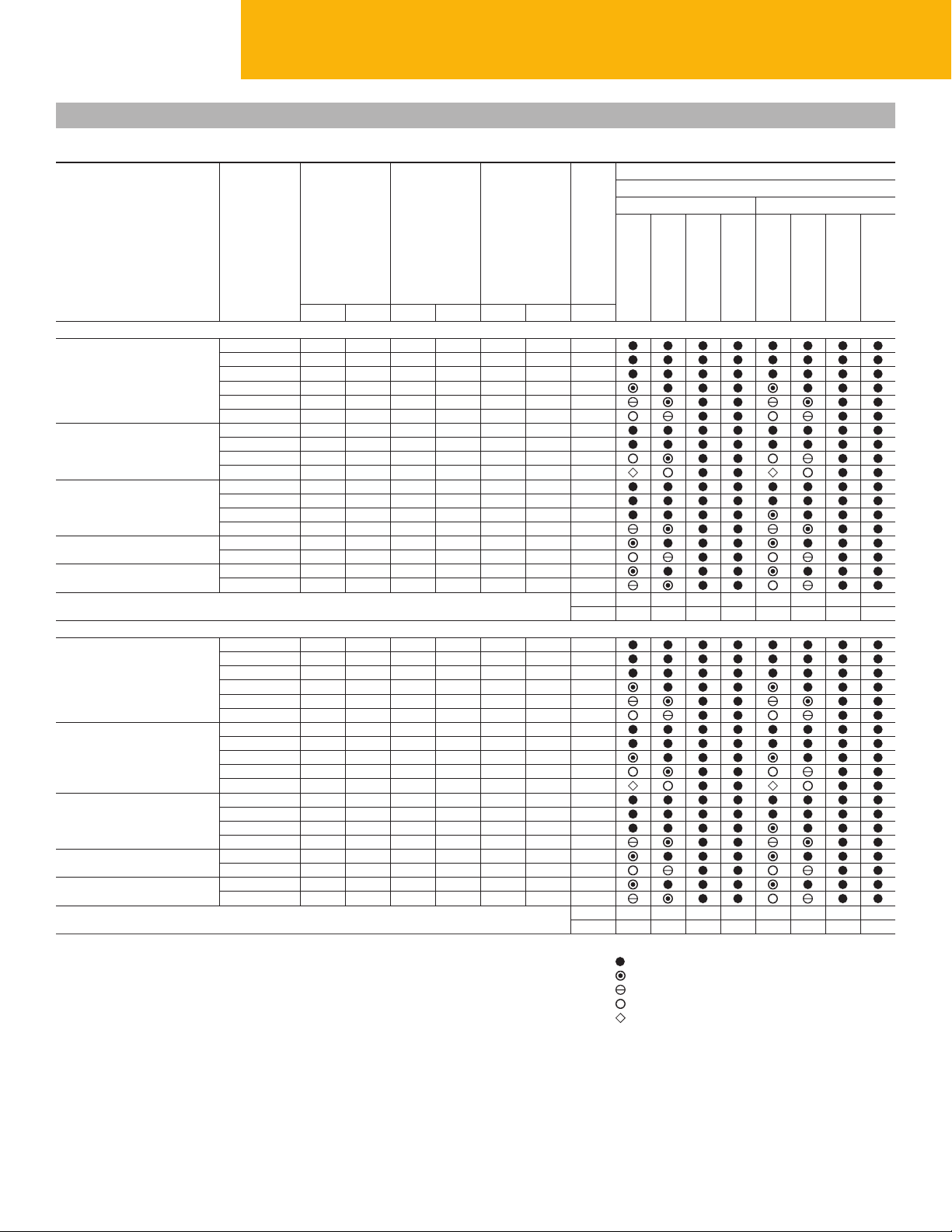

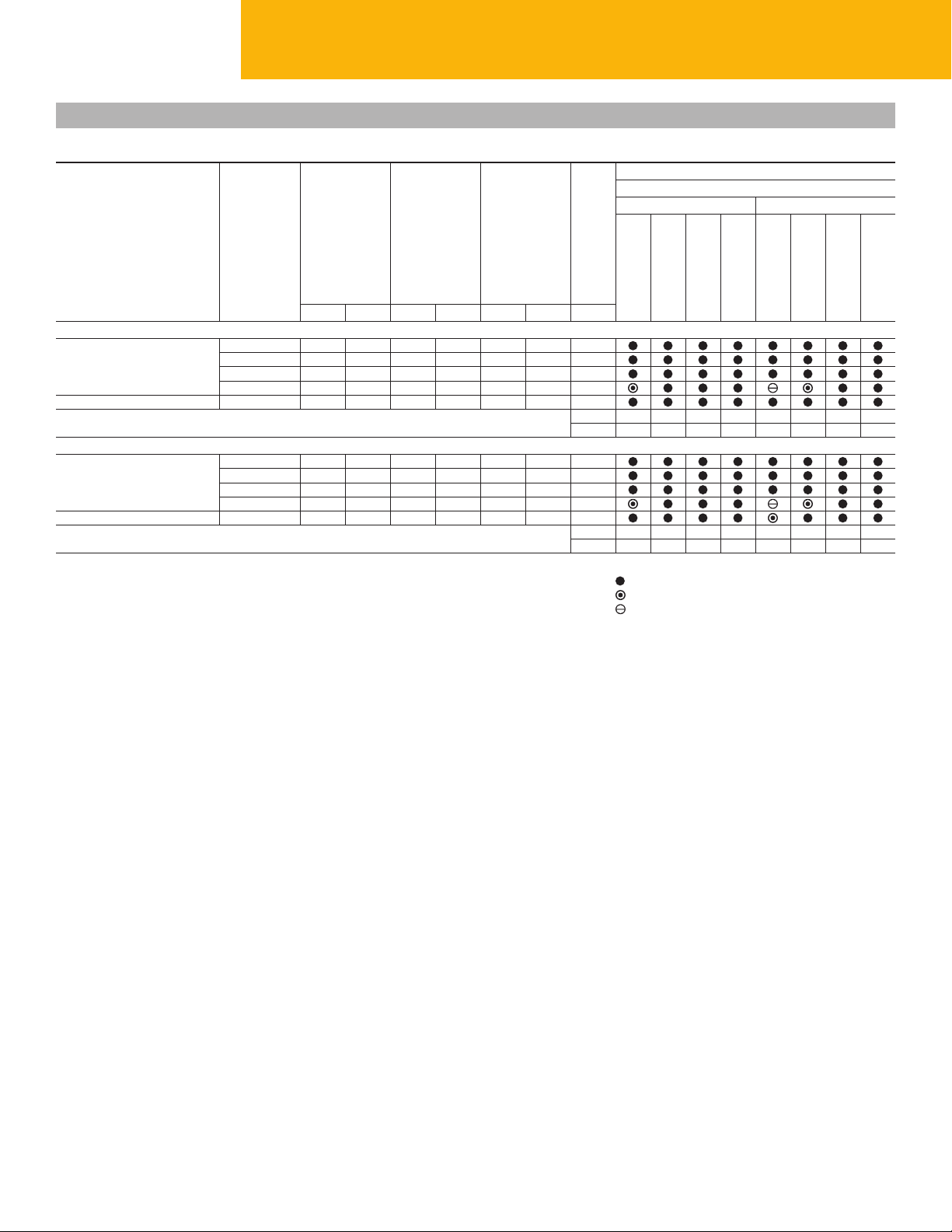

Attachments Offering Guide:
South Korea ...............................................36
Lift Capacities:
Standard and Optional Equipment ...........................................................................52
Dealer Installed Kits and Attachments .......................................................................55
Cab Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Page 2
M314 Wheeled Excavator Specifications
Engine
Engine Model Cat® C3.6
Engine Power
ISO 14396:2002 100 kW 134 hp
ISO 14396:2002 (metric) 136 hp (PS)
Net Power
ISO 9249:2007 95 kW 127 hp
ISO 9249:2007 (metric) 129 hp (PS)
Bore 98 mm 3.9 in
Stroke 120 mm 5 in
Displacement 3.6 L 221 in
Number of Cylinders 4
• Meets U.S. EPA Tier 4 Final, EU Stage V, and Korea Tier 4 Final emission standards.
• Net power advertised is the power available at the ywheel when engine is equipped with fan, air cleaner, CEM exhaust gas aftertreatment, alternator, and cooling fan running at intermediatespeed.
• Rated speed 2,000 rpm.
3
Transmission
Forward/Reverse
1st Gear 9 km/h 5.6 mph
2nd Gear 37 km/h 23 mph
Creeper Speed
1st Gear 5 km/h 3.1 mph
2nd Gear 15 km/h 9.3 mph
Drawbar Pull 73 kN 16,411 lbf
Maximum Gradeability (15 000 kg/33,070 lb)
52.5%
Service Refill Capacities
Fuel Tank (total capacity) 295 L 77.9 gal
Diesel Exhaust Fluid Tank 20 L 5.3 gal
Cooling System 20 L 5.3 gal
Engine Oil 9 L 2.4 gal
Hydraulic Tank 90 L 23.8 gal
Hydraulic System (including tank) 220 L 58.1 gal
Rear Axle Housing (differential) 11.2 L 3 gal
Front Steering Axle (differential) 9 L 2.4 gal
Final Drive (each) 2.4 L 0.6 gal
Powershift Transmission 2.5 L 0.7 gal
Swing Mechanism
Maximum Swing Speed 9.1 rpm
Maximum Swing Torque 39.0 kN·m 28,860 lbf-ft
Undercarriage
Ground Clearance 335 mm 1'1"
Maximum Steering Angle 35°
Oscillation Axle Angle 8.5 ±°
Minimum Turning Radius
Outside of Tire 6250 mm 20'6"
Outside of Tire (plastic fender) 7450 mm 24'5"
End of VA Boom 7000 mm 23'0"
End of One-Piece Boom 4650mm(15'3'')
End of One-Piece Boom 4400mm(14'5")
8000 mm 26'3"
6700 mm 22'0"
Operating Weights*
Minimum 14 600 kg 32,190 lb
Maximum 18 000 kg 39,680 lb
Typical Congurations
Variable Adjustable Boom**
Rear Blade Only 15 250 kg 33,620 lb
Rear Blade/Bucket Rest Front 15 550 kg 34,280 lb
Rear Outrigger/Front Blade 16 200 kg 35,710 lb
Front and Rear Outriggers 16 500 kg 36,380 lb
One-Piece Boom**
Rear Blade Only 14 800 kg 32,630 lb
Rear Blade/Bucket Rest Front 15 100 kg 33,290 lb
Rear Outrigger/Front Blade 15 750 kg 34,720 lb
Front and Rear Outriggers 16 050 kg 35,380 lb
** Operating weight includes full fuel tank, operator, 500kg(1,102lb)
bucket and dual pneumatic tires. Weight varies depending on conguration.
** Typical congurations include a 2200 mm (7'3") stick and a
210kg (463 lb) quick coupler.
2
Page 3
M314 Wheeled Excavator Specifications
Major Component Weights
Booms (including VA and stick cylinder, pins and standard hydrauliclines)
Variable Adjustable Boom 5028mm(16'6")
One-Piece Boom 4650 mm (15'3'') 1410 kg 3,110 lb
One-Piece Boom 4400 mm (14'5'')
Sticks (including cylinder, bucket linkage, pins and standard hydrauliclines)
Stick 2200 mm (7'3") 630 kg 1,390 lb
Stick 2500 mm (8'2") 620 kg 1,370 lb
Drop Nose Stick (nobucketlinkage) 2900 mm (9'6")
Counterweight 3300 kg 7,280 lb
Undercarriage (including axles, standard tires and steps)
Rear Blade 4100 kg 9,040 lb
Rear Blade/Bucket Rest Front 4400 kg 9,700 lb
Rear Blade/Front Outrigger 5050 kg 11,130 lb
Rear Outrigger/Front Blade 5050 kg 11,130 lb
Rear Outrigger/Front Outrigger 5350 kg 11,790 lb
Set of Tires
Standard Dual Tires 9-20 840 kg 1,850 lb
Standard Dual Tires 10-20 810 kg 1,790 lb
Solid Rubber Tires 10-20 1810 kg 3,990 lb
Buckets (without linkage)
CW Bucket GD 1200 mm (47"),
3
(0.99 yd3), Advansys™
0.76m
Pin-On Bucket GD 1200 mm (47"),
3
(0.99 yd3), Advansys
0.76 m
Quick Couplers
CW20 210 kg 460 lb
Pin Grabber 190 kg 420 lb
1860 kg 4,100 lb
1
1400 kg 3,090 lb
380 kg 840 lb
510 kg 1,120 lb
500 kg 1,100 lb
Hydraulic System
Maximum Pressure – Implement Circuit
Normal 35 000 kPa 5,076 psi
Heavy Lift 37 000 kPa 5,366 psi
Travel Circuit 35 000 kPa 5,076 psi
Maximum Pressure – Auxiliary Circuit
High Pressure 35 000 kPa 5,076 psi
Medium Pressure 17 000 kPa 2,466 psi
Swing Mechanism 35 500 kPa 5,149 psi
Maximum Flow
Implements 270 L/min 71.3 gal/min
Travel Circuit 200 L/min 52.8 gal/min
Auxiliary Circuit
High Pressure 250 L/min 66.0 gal/min
Medium Pressure 62 L/min 16.4 gal/min
Swing Mechanism 83 L/min 21.9 gal/min
Cylinders
Boom Cylinder (VA) – Bore 105 mm 4"
Boom Cylinder (VA) – Stroke 906 mm 3'0"
VAB Cylinder – Bore 130 mm 5"
VAB Cylinder – Stroke 753 mm 2'6"
Boom Cylinder (one-piece) – Bore 105 mm 4"
Boom Cylinder (one-piece) – Stroke 932 mm 3'1"
Stick Cylinder – Bore 110 mm 4"
Stick Cylinder – Stroke 1147 mm 3'9"
Bucket Cylinder – Bore 95 mm 4"
Bucket Cylinder – Stroke 939 mm 3'1"
1
South Korea Only
3
Page 4
M314 Wheeled Excavator Specifications
Dozer Blade
Blade Type Radial
Width 2540 mm 8'4"
Blade Roll-Over Height 540 mm 1'9"
Blade Total Height 580 mm 1'11"
Maximum Lowering Depth fromGround
Maximum Raising Height aboveGround
120 mm 5"
475 mm 1'7"
Emissions and Safety
Engine Emissions Tier 4 Final andStage V
Vibration Levels
Maximum Hand/Arm (ISO 5349-2001)
Maximum Whole Body (ISO/TR 25398:2006)
Seat Transmissibility Factor (ISO 7096:2000-spectral class EM5)
<2.5 m/s² <8.2
<0.5 m/s² <1.6
<0.7
Standards
Brakes ISO 3450:2011
Cab (ROPS) ISO 12117-2:2008
FOPS (Falling Object Protective Structure) (optional top/front guards)
Cab/Sound Levels Meets appropriate
ISO 10262:1998 Level II
standards as listed below
Sound Performance
Operator Sound
2000/14/EC 70 dB(A)
Spectator Sound
2000/14/EC 100 dB(A)
• Operator Sound – The operator sound level is measured according to the procedures specied in 2000/14/EC, for a cab offered by Caterpillar, when properly installed and maintained and tested with the door and windows closed.
• Exterior Sound – The labeled spectator sound power level is measured according to the test procedures and conditions specied in 2000/14/EC.
• Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained for doors/ windows open) for extended periods or in noisy environment(s).
• Blue Angel Certied
Air Conditioning System
The air conditioning system on this machine contains the uorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 kg of refrigerant, which has a CO2 equivalent of 1.144 metric tonnes.
4
Page 5
M314 Wheeled Excavator Specifications
3
7
8
10
9
21

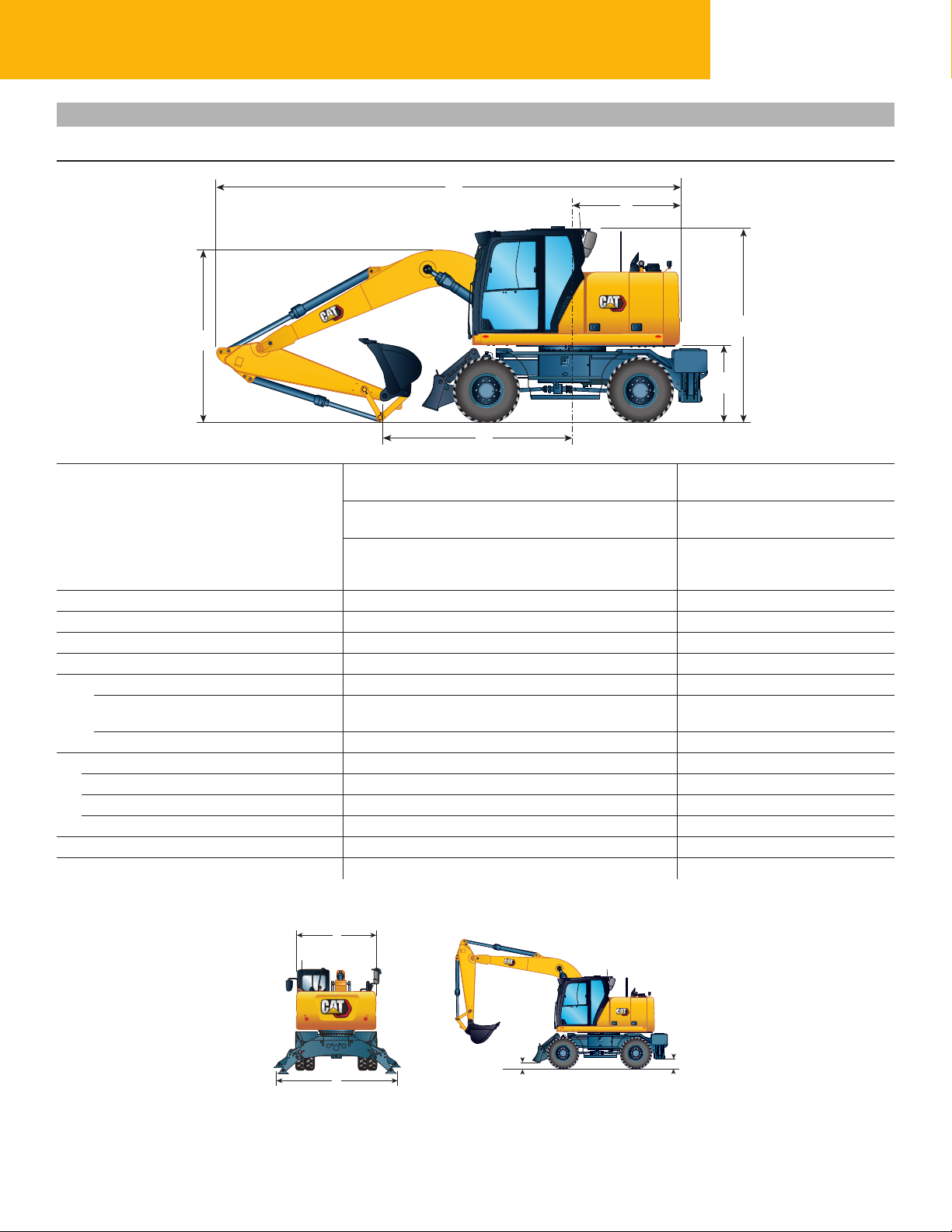

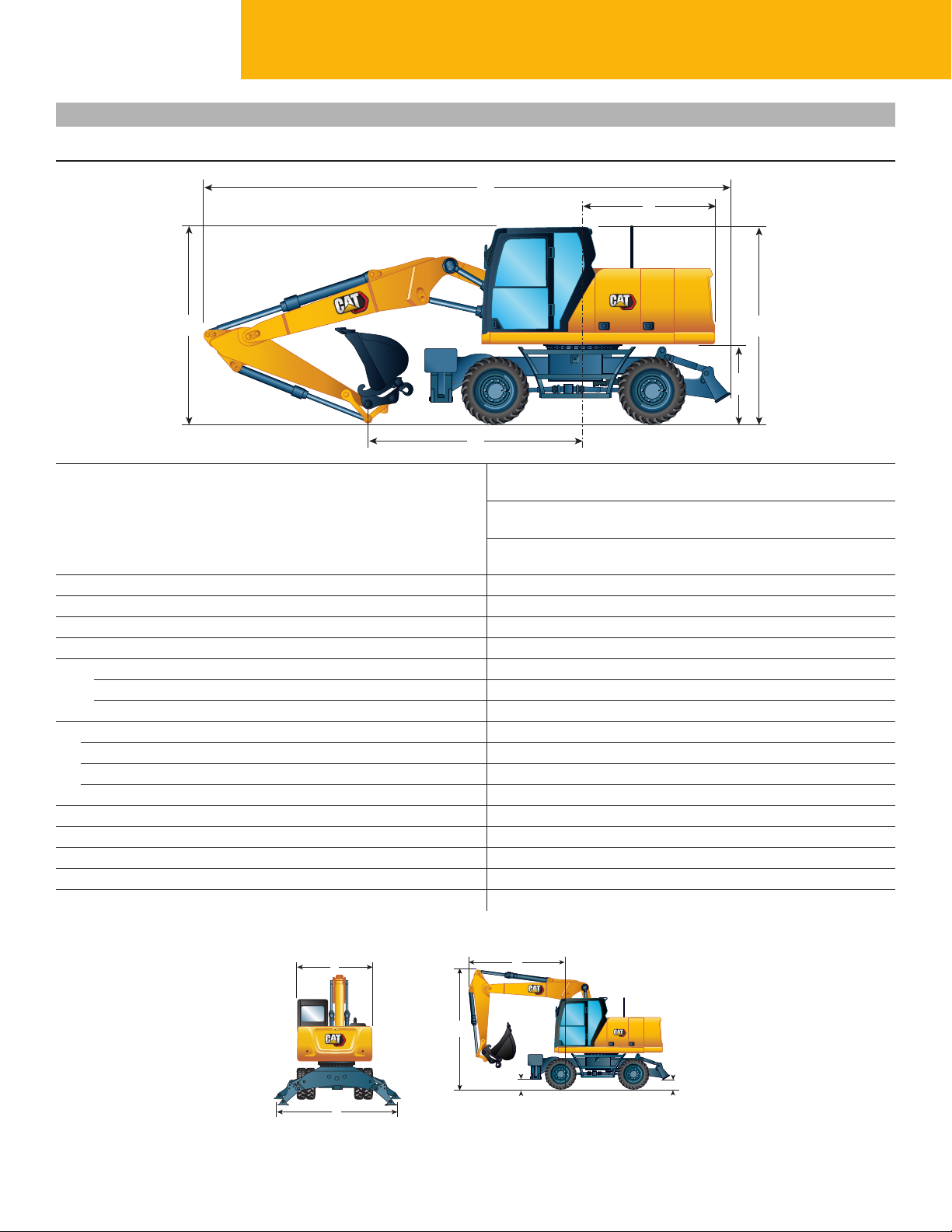

Dimensions
All dimensions are approximate. Values are with 10.00-20 dual pneumatic tires.
2
4
1
6
5
Boom Options Variable Adjustable Boom
5028 mm (16'6")
Stick Options Bucket Linkage Bucket Linkage Drop Nose*
2200 mm (7'3") 2500 mm (8'2") 2900 mm (9'6")
Shipping Height with Falling Object Guard and Handrails Lowered
1
(highest point between Boom and Cab)
Shipping Length 8210 mm (26'11") 8210 mm (26'11") 8190 mm (26'10")
2
Support Point 3450 mm (11'4") 3280 mm (10'9") 3545 mm (11'8")
3
Tail Swing Radius 2150 mm (7'1") 2150 mm (7'1") 2150 mm (7'1")
4
Counterweight Clearance 1260 mm (4'2") 1260 mm (4'2") 1260 mm (4'2")
5
Cab Height
6
No Falling Object Guard, Handrails Lowered 3153 mm (10'4") 3153 mm (10'4") 3153 mm (10'4")
With Falling Object Guard 3315 mm (10'11") 3315 mm (10'11") 3315 mm (10'11")
Overall Machine Width
Width with Outriggers on Ground 3680 mm (12'1") 3680 mm (12'1") 3680 mm (12'1")
Width with Outriggers Up 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4")
Width with Blade 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4")
Width with Outriggers Fully Down 3645 mm (12'0") 3645 mm (12'0") 3645 mm (12'0")
7
Upperframe Width 2480 mm (8'2") 2480 mm (8'2") 2480 mm (8'2")
8
Roading Position
Steering Wheel to Linkage in Roading Position 2630 mm (8'8") 2600 mm (8'6") —
9
Height in Roading Position 3980 mm (13'1") 3980 mm (13'1") —
10
3315 mm (10'11") 3315 mm (10'11") 3315 mm (10'11")
*Without bucket linkage.
20
5
Page 6
M314 Wheeled Excavator Specifications
7
8
21
Dimensions
All dimensions are approximate. Values are with 10.00-20 dual pneumatic tires.
2
4
1
6
5
3
Boom Options One-Piece Boom One-Piece Boom
4650 mm (15'3") 4400 (14'5")
Stick Options Bucket Linkage Bucket Linkage Drop Nose* Bucket Linkage
2200 mm (7'3") 2500 mm (8'2") 2900 mm (9'6") 2200 mm (7'3") 2500 mm (8'2")
Shipping Height with Falling Object Guard
1
and Handrails Lowered (highest point betweenBoomand Cab)
Shipping Length 7770 mm (25'6'') 7800 mm (25'7'') 7890 mm (25'11'') 7470 mm (24'6'') 7500 mm (24'7'')
2
Support Point 2800 mm (9'2'') 2590 mm (8'6'') 2870 mm (9'5'') 2420 mm (7'11'') 2180 mm (7'2'')
3
Tail Swing Radius 2150 mm (7'1") 2150 mm (7'1") 2150 mm (7'1") 2150 mm (7'1") 2150 mm (7'1")
4
Counterweight Clearance 1260 mm (4'2") 1260 mm (4'2") 1260 mm (4'2") 1260 mm (4'2") 1260 mm (4'2")
5
Cab Height
6
No Falling Object Guard, HandrailsLowered
With Falling Object Guard 3315 mm (10'11") 3315 mm (10'11") 3315 mm (10'11") 3315 mm (10'11") 3315 mm (10'11")
Overall Machine Width
Width with Outriggers on Ground 3680 mm (12'1") 3680 mm (12'1") 3680 mm (12'1") 3680 mm (12'1") 3680 mm (12'1")
Width with Outriggers Up 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4")
Width with Blade 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4")
Width with Outriggers Fully Down 3645 mm (12'0") 3645 mm (12'0") 3645 mm (12'0") 3645 mm (12'0") 3645 mm (12'0")
7
Upperframe Width 2480 mm (8'2") 2480 mm (8'2") 2480 mm (8'2") 2480 mm (8'2") 2480 mm (8'2")
8
3315 mm (10'11'') 3315 mm (10'11'') 3315 mm (10'11'') 3315 mm (10'11'') 3315 mm (10'11'')
3153 mm (10'4") 3153 mm (10'4") 3153 mm (10'4") 3153 mm (10'4") 3153 mm (10'4")
*Without bucket linkage.
6
20
Page 7
M314 Wheeled Excavator Specifications
19
8
7
1211
11
20
11

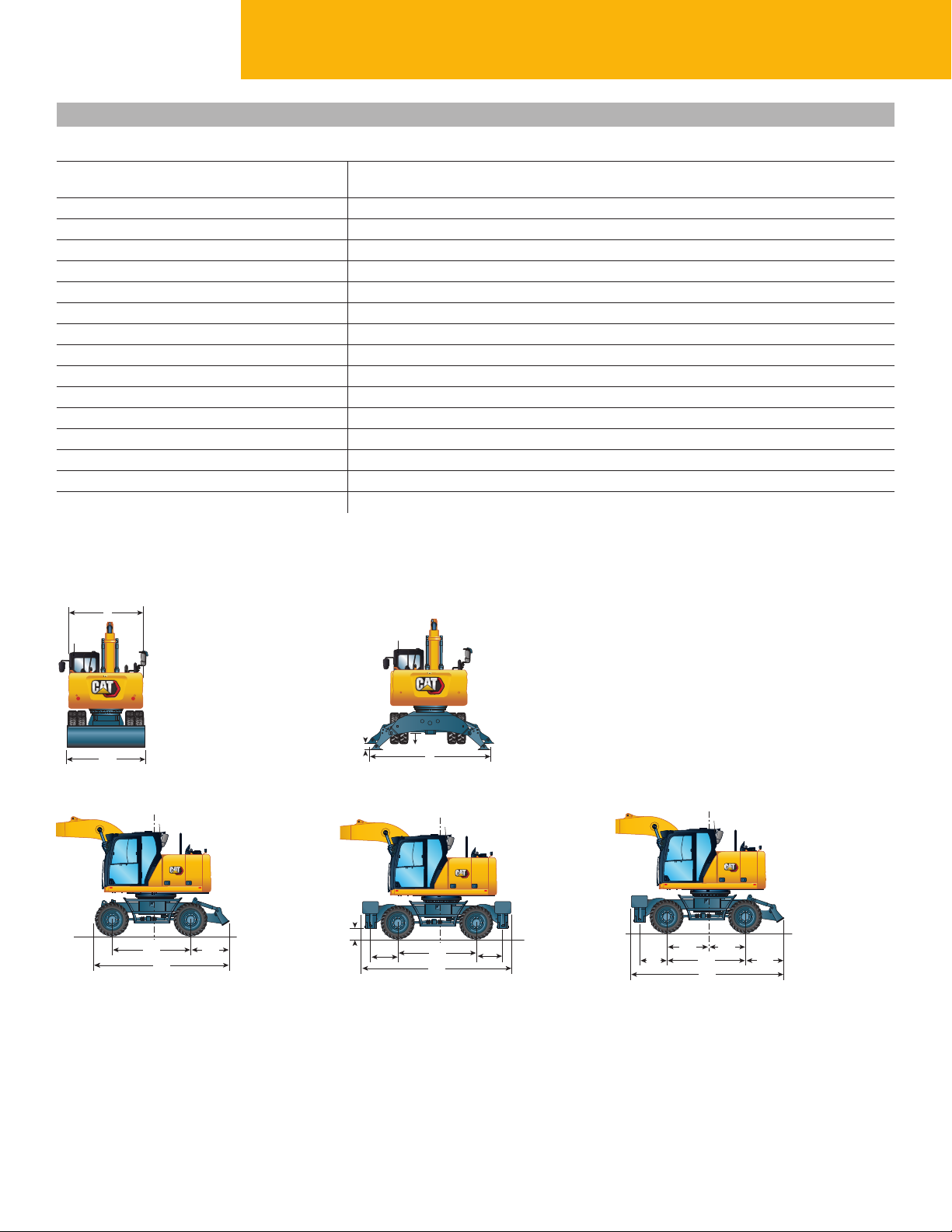

Undercarriage Dimensions
All dimensions are approximate. Values are with 10.00-20 dual pneumatic tires.
Undercarriage
Overall Undercarriage Length 4310 mm (14'2") 4920 mm (16'2") 4920 mm (16'2") 4755 mm (15'7") 4545 mm (14'11'')
11
Wheel Base 2500 mm (8'2") 2500 mm (8'2") 2500 mm (8'2") 2500 mm (8'2") 2800 mm (9'2")
12
Swing to Rear Axle 1100 mm (3'7") 1100 mm (3'7") 1100 mm (3'7") 1100 mm (3'7") 1100 mm (3'7")
13
Swing to Front Axle 1400 mm (4'7") 1400 mm (4'7") 1400 mm (4'7") 1400 mm (4'7") 1700 mm (5'7'')
14
Rear Axle to Rear Outrigger (mid) — — 830 mm (2'9") 830 mm (2'9") —
15
Front Axle to Front Outrigger (mid) — 875 mm (2'10") — 875 mm (2'10") —
16
Rear Axle to Blade (end) 1270 mm (4'2") 1270 mm (4'2") — — 1270 mm (4'2")
17
Front Axle to Blade (end) — — 1270 mm (4'2") — —
Maximum Outrigger Depth — 110 mm (4") 110 mm (4") 110 mm (4") —
18
Blade Width 2540 mm (8'4") 2540 mm (8'4") 2540 mm (8'4") — 2540 mm (8'4")
19
Maximum Blade Depth 120 mm (5") 120 mm (5") 120 mm (5") — 120 mm (5")
Ground Clearance
Outrigger Clearance — 335 mm (1'1") 335 mm (1'1") 335 mm (1'1") 335 mm (1'1")
20
Blade Clearance 475 mm (1'7") 475 mm (1'7") 475 mm (1'7") 475 mm (1'7") 475 mm (1'7")
21
Axle Clearance 360 mm (1'2") 360 mm (1'2") 360 mm (1'2") 360 mm (1'2") 360 mm (1'2")
22
1
South Korea Only
Rear Blade
* Maximum tire clearance
with outriggerfullydown
Rear Blade/
FrontOutrigger
Rear Outrigger/
Front Blade
Rear Outrigger/ Front Outrigger
Rear Blade/
Front Bucket Rest
1
16
22
12
15
16
12
1314
17
18
Undercarriage with dozer only Undercarriage with 2 sets of outriggers Undercarriage with 1 set of outriggers and dozer
1212 17
7
Page 8
M314 Wheeled Excavator Specifications
05101520253035 Feet
Feet
Meters
2200 mm (7'3")
05101520253035 Feet
Feet
Meters
2900 mm (9'6")

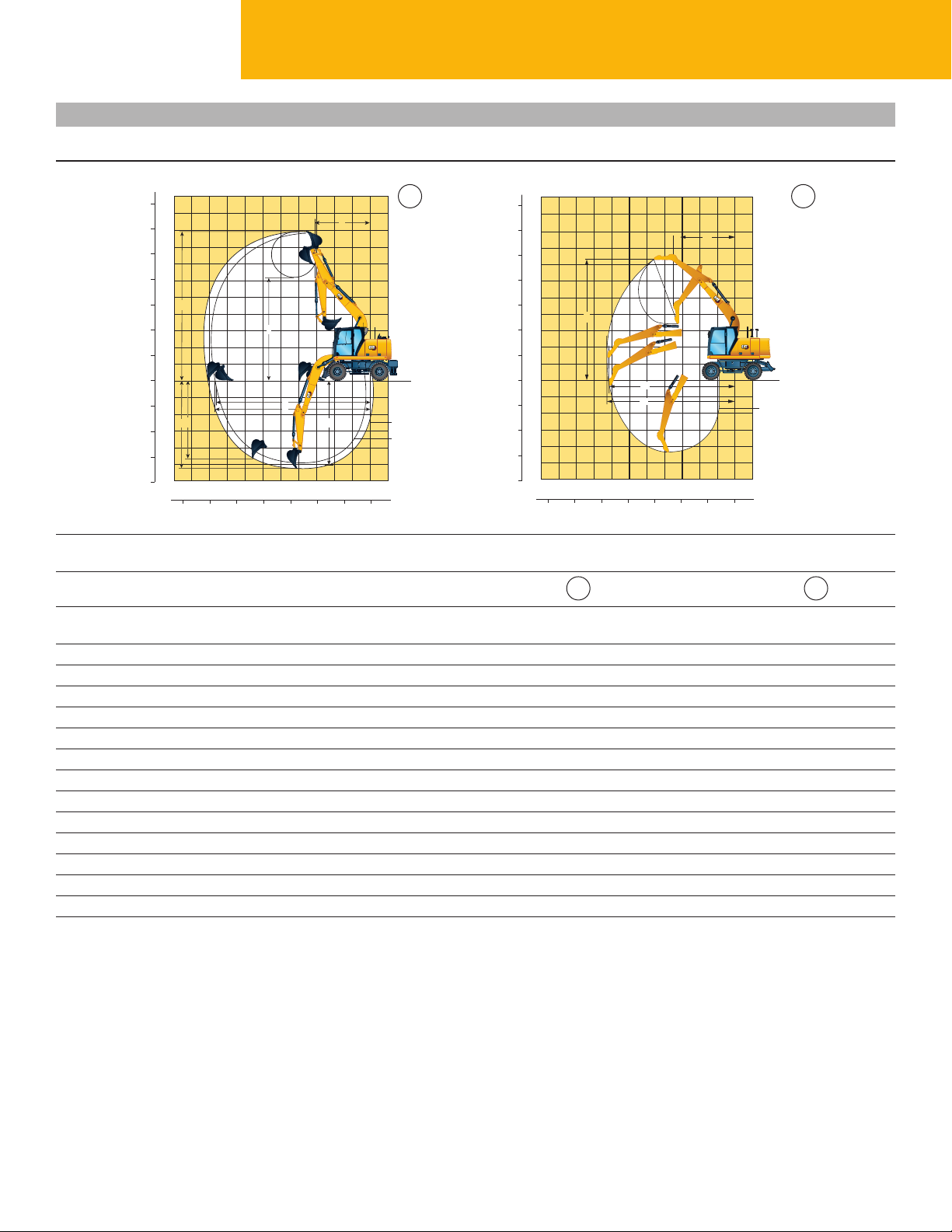

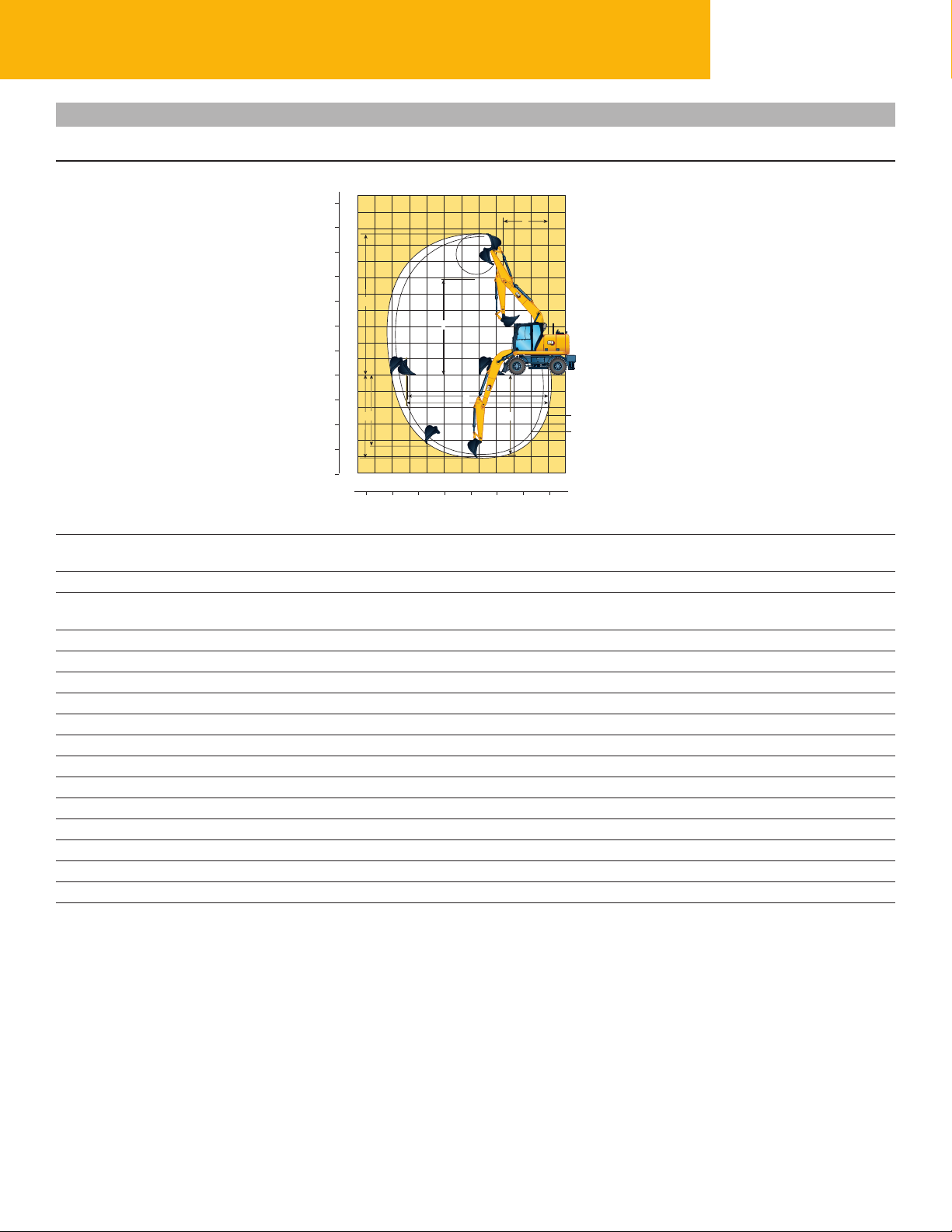

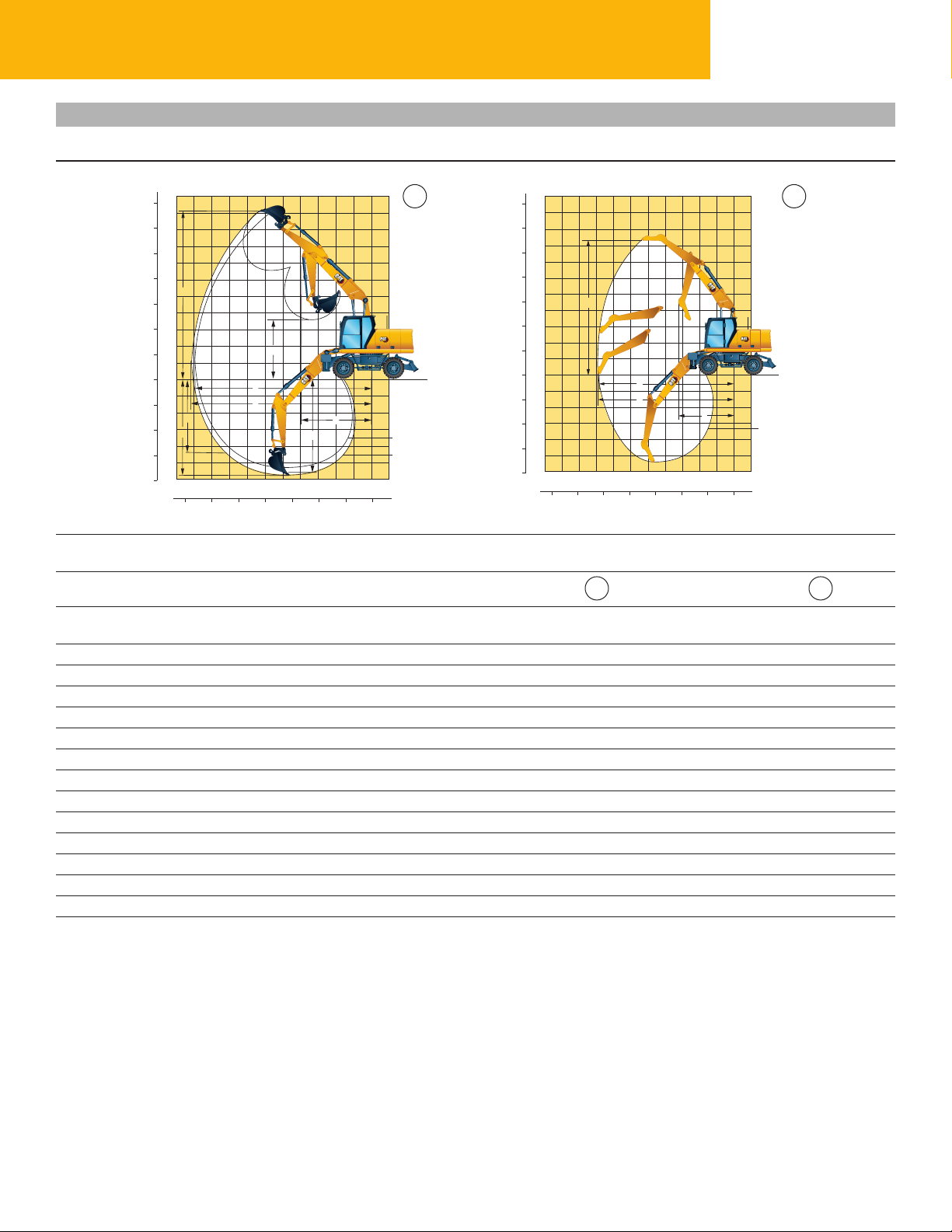

Working Ranges
All dimensions are approximate. Values are with 10.00-20 dual pneumatic tires.
11
35
10
30
9
8
25
7
20
6
1
5
15
4
10
3
2
5
1
0
0
1
5
2
4
3
10
3
4
15
5
6
20
11 –1
2
7
6
5
1
8
2500 mm (8'2")
012345678910
Meters
11
35
10
30
9
8
25
7
20
6
5
15
4
10
3
2
5
1
0
0
1
5
2
3
10
4
15
5
6
20
1
7
6
11 –1
8
012345678910
Meters
Boom Option Variable Adjustable Boom
5028 mm (16'6")
1 2
Stick Options Bucket Linkage Bucket Linkage Drop Nose
2200 mm (7'3") 2500 mm (8'2") 2900 mm (9'6")
Digging Height 9780 mm (32'1") 10 020 mm (32'10") 8530 mm (28'0")
1
Dump Height 7010 mm (23'0") 7240 mm (23'9") —
2
Digging Depth 5290 mm (17'4") 5580 mm (18'4") 4510 mm (14'9")
3
Vertical Wall Digging Depth 4250 mm (13'11") 4580 mm (15'0") —
4
Depth 2.5 m (8'2") in Straight Clean-Up 5170 mm (17'0") 5480 mm (18'0") —
5
Reach 8830 mm (29'0") 9120 mm (29'11") 7920 mm (26'0")
6
Reach at Ground Level 8650 mm (28'5") 8940 mm (29'4") 7720 mm (25'4")
7
Minimum Front Linkage Radius 2600 mm (8'6") 2700 mm (8'10") 3450 mm (11'4")
8
Bucket Forces (ISO) 105 kN (23,605 lbf) 105 kN (23,605 lbf) —
Stick Forces (ISO) 71 kN (15,961 lbf) 65 kN (14,613 lbf) —
Bucket Type GD GD
Bucket Capacity 0.76 m³ (0.99 yd³) 0.76 m³ (0.99 yd³) —
Bucket Tip Radius (Pin-On) 1224 mm (4'0") 1224 mm (4'0") —
Bucket Tip Radius (QC) 1387 mm (4'7") 1387 mm (4'7") —
2
Range values are with dual pneumatic tires (10.00-20). A drop nose stick has no bucket linkage and working range dimensions refer to the stick nose pin. Range values are calculated with a GD bucket (CW-S) and CW-20S-D.4.N quick coupler with a tip radius of 1387 mm (4'7"). Force values are calculated with heavy lift on, a GD bucket (pin-on) and a tip radius of 1224 mm (4'0").
8
Page 9
M314 Wheeled Excavator Specifications
Feet
Meters
2200 mm (7'3")
2500 mm (8'2")
05101520253035 Feet
Feet
Meters
2900 mm (9'6")
Working Ranges
All dimensions are approximate. Values are with 10.00-20 dual pneumatic tires.
11
35
10
30
9
8
25
7
20
6
5
15
1
4
10
3
2
5
1
0
0
1
5
2
3
4
3
10
4
15
5
6
20
11 –1
2
7 6
8
5
012345678910
Meters
05101520253035 Feet
1
11
35
10
30
9
8
25
7
20
6
5
15
4
10
3
2
5
1
0
0
1
5
2
3
10
4
15
5
6
20
11 –1
1
7
6
8
012345678910
Boom Option One-Piece Boom
4650 mm (14'5")
1 2
Stick Options Bucket Linkage Bucket Linkage Drop Nose
2200 mm (7'3") 2500 mm (8'2") 2900 mm (9'6")
Digging Height 8760 mm (28'9'') 8940 mm (29'4'') 7320 mm (24'0'')
1
Dump Height 6030 mm (19'9'') 6210 mm (20'4'') —
2
Digging Depth 4950 mm (16'3") 5250 mm (17'3'') —
3
Vertical Wall Digging Depth 4290 mm (14'1'') 4650 mm (15'3'') —
4
Depth 2.5 m (8'2") in Straight Clean-Up 4730 mm (15'6'') 5050 mm (16'7'') —
5
Reach 8380 mm (27'6'') 8660 mm (28'5'') 7410 mm (24'4'')
6
Reach at Ground Level 8190 mm (26'10'') 8470 mm (27'9'') 7200 mm (23'7'')
7
Minimum Front Linkage Radius 2710 mm (8'11'') 2670 mm (8'9'') 3560 mm (11'8'')
8
Bucket Forces (ISO) 105 kN (23,605 lbf) 105 kN (23,605 lbf) —
Stick Forces (ISO) 71 kN (15,961 lbf) 65 kN (14,613 lbf) —
Bucket Type GD GD
Bucket Capacity 0.76 m³ (0.99 yd³) 0.76 m³ (0.99 yd³) —
Bucket Tip Radius (Pin-On) 1224 mm (4'0") 1224 mm (4'0") —
Bucket Tip Radius (QC) 1387 mm (4'7") 1387 mm (4'7") —
2
Meters
Range values are with dual pneumatic tires (10.00-20). A drop nose stick has no bucket linkage and working range dimensions refer to the stick nose pin. Range values are calculated with a GD bucket (CW-S) and CW-20S-D.4.N quick coupler with a tip radius of 1387 mm (4'7"). Force values are calculated with heavy lift on, a GD bucket (pin-on) and a tip radius of 1224 mm (4'0").
9
Page 10
M314 Wheeled Excavator Specifications
05101520253035 Feet
Feet
Meters
Working Ranges
All dimensions are approximate. Values are with 10.00-20 dual pneumatic tires.
11
35
10
30
9
8
25
7
20
6
5
15
1
4
10
3
2
5
1
0
0
1
5
2
4
3
3
10
4
15
5
6
20
11 –1
2
7 6
8
5
012345678910
2500 mm (8'2")
2200 mm (7'3")
Meters
Boom Option One-Piece Boom
4400 mm (14'5")
1
Stick Options Bucket Linkage Bucket Linkage
2200 mm (7'3") 2500 mm (8'2")
Digging Height 8430 mm (27'8'') 8610 mm (28'3'')
1
Dump Height 5720 mm (18'9'') 5900 mm (19'4'')
2
Digging Depth 4780 mm (15'8'') 5090 mm (16'8'')
3
Vertical Wall Digging Depth 3980 mm (13'1'') 4340 mm (14'3'')
4
Depth 2.5 m (8'2") in Straight Clean-Up 4560 mm (15'0'') 4880 mm (16'0'')
5
Reach 8100 mm (26'7'') 8380 mm (27'6'')
6
Reach at Ground Level 7900 mm (25'11'') 8190 mm (26'10'')
7
Minimum Front Linkage Radius 2610 mm (8'7'') 2570 mm (8'5'')
8
Bucket Forces (ISO) 105 kN (23,605 lbf) 105 mm (23,605 lbf)
Stick Forces (ISO) 71 kN (15,961 lbf) 65 kN (14,613 lbf)
Bucket Type GD GD
Bucket Capacity 0.76 m³ (0.99 yd³) 0.76 m³ (0.99 yd³)
Bucket Tip Radius (Pin-On) 1224 mm (4'0") 1224 mm (4'0")
Bucket Tip Radius (QC) 1387 mm (4'7") 1387 mm (4'7")
1
South Korea Only Range values are with dual pneumatic tires (10.00-20). A drop nose stick has no bucket linkage and working range dimensions refer to the stick nose pin. Range values are calculated with a GD bucket (CW-S) and CW-20S-D.4.N quick coupler with a tip radius of 1387 mm (4'7"). Force values are calculated with heavy lift on, a GD bucket (pin-on) and a tip radius of 1224 mm (4'0").
10
Page 11
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – North America
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
Variable Adjustable Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
General Duty (GD) 312 450 18 0.20 0.27 278 614 100
312 600 24 0.31 0.40 320 706 100 312 750 30 0.41 0.54 369 815 100 312 900 36 0.53 0.69 425 936 100 312 1050 42 0.65 0.84 468 1,031 100 312 1200 48 0.76 1.00 508 1,119 100
General Duty (GD) – Wide Tip 312 450 18 0.27 0.36 317 700 100
312 600 24 0.41 0.53 372 821 100 312 900 36 0.71 0.92 478 1,053 100 312 1050 42 0.86 1.13 530 1,168 100
Severe Duty (SD) 312 600 24 0.31 0.40 374 825 90
312 750 30 0.41 0.54 434 957 90 312 900 36 0.53 0.69 495 1,091 90 312 1050 42 0.65 0.84 541 1,192 90
Ditch Cleaning (DC) 312 1200 48 0.57 0.74 388 855 100
312 1500 60 0.74 0.97 455 1,003 100
Ditch Cleaning Tilt (DCT) 312 1200 48 0.48 0.63 563 1,240 100
312 1500 60 0.57 0.75 646 1,424 100
With Cat Pin Grabber Coupler
General Duty (GD) 312 450 18 0.20 0.27 278 614 100
312 600 24 0.31 0.40 320 706 100 312 750 30 0.41 0.54 369 815 100 312 900 36 0.53 0.69 425 936 100 312 1050 42 0.65 0.84 468 1,031 100 312 1200 48 0.76 1.00 508 1,119 100
General Duty (GD) – Wide Tip 312 450 18 0.27 0.36 317 700 100
312 600 24 0.41 0.53 372 821 100 312 750 30 0.55 0.72 425 936 100 312 900 36 0.71 0.92 478 1,053 100 312 1050 42 0.86 1.13 530 1,168 100
Severe Duty (SD) 312 600 24 0.31 0.40 374 825 90
312 750 30 0.41 0.54 434 957 90 312 900 36 0.53 0.69 495 1,091 90 312 1050 42 0.65 0.84 541 1,192 90
Ditch Cleaning (DC) 312 1200 48 0.57 0.74 388 855 100
312 1500 60 0.74 0.97 455 1,003 100
Ditch Cleaning Tilt (DCT) 312 1200 48 0.48 0.63 563 1,240 100
312 1500 60 0.57 0.75 646 1,424 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1468 1696 2826 3465 1396 1612 2679 3280 lb 3,237 3,740 6,230 7,638 3,077 3,554 5,906 7,230
kg 1268 1497 2626 3265 1196 1412 2479 3080 lb 2,796 3,299 5,790 7,198 2,637 3,113 5,466 6,790
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
X Not Recommended
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
11
Page 12
M314 Wheeled Excavator Specifications

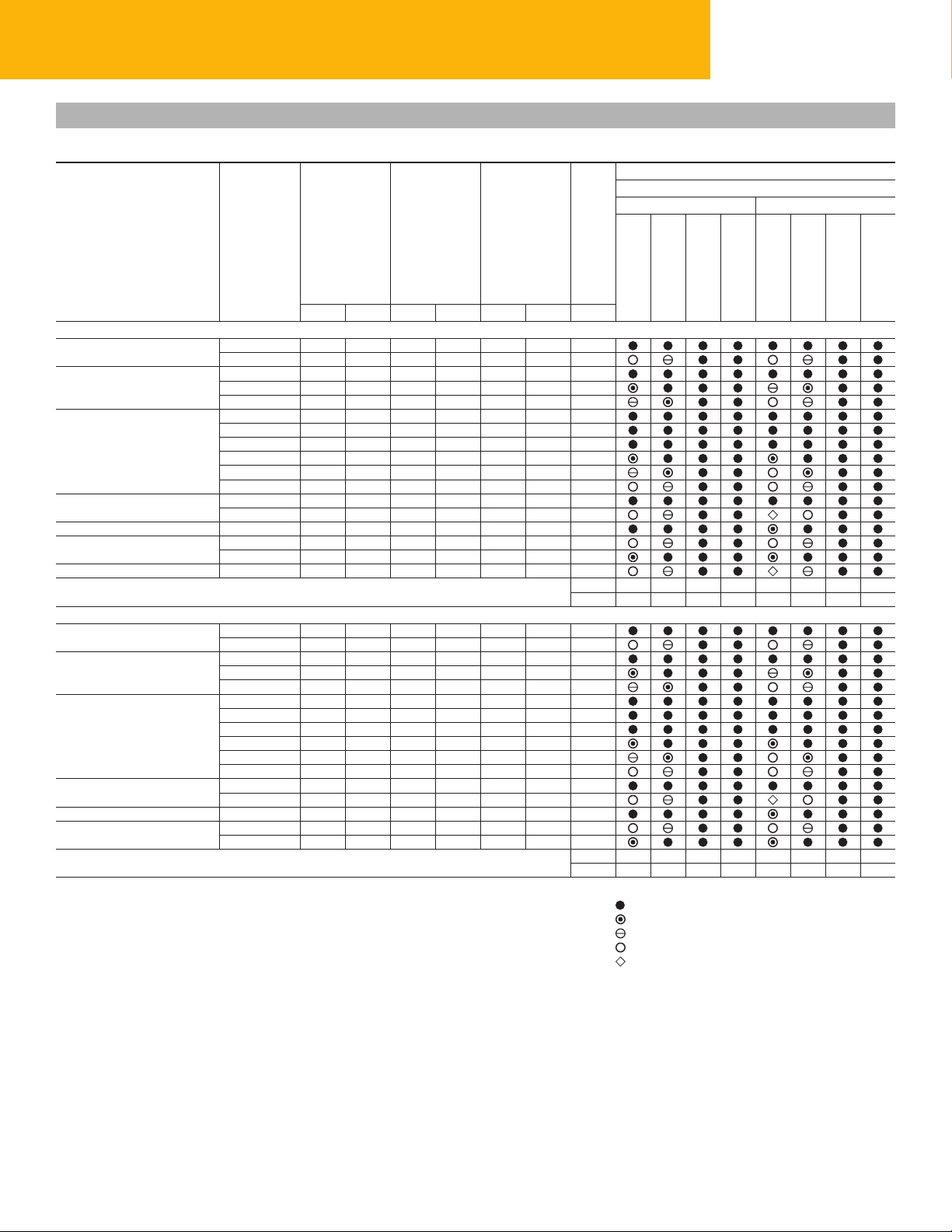

Bucket Specifications and Compatibility – Europe
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
Variable Adjustable Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
Utility Duty (UD) 312 600 24 0.31 0.40 327 722 100
312 1200 48 0.76 1.00 515 1,134 100
General Duty (GD) 312 600 24 0.31 0.40 317 699 100
312 1000 39 0.60 0.78 439 969 100 312 1100 43 0.68 0.89 474 1,046 100
General Duty (GD) (No Adjuster) 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100 312 750 30 0.41 0.54 358 790 100 312 900 36 0.53 0.69 426 939 100 312 1050 42 0.65 0.84 479 1,055 100 312 1200 48 0.76 1.00 519 1,143 100
Heavy Duty (HD) 312 450 18 0.20 0.27 289 637 100
312 1200 48 0.76 0.99 533 1,174 100 Severe Duty (SD) 312 900 36 0.53 0.69 475 1,047 90 Ditch Cleaning (DC) 312 1800 72 0.68 0.89 540 1,191 100
312 1800 71 0.57 0.74 421 928 100 Ditch Cleaning Tilt (DCT) 312 1800 72 0.60 0.78 724 1,597 100
With Cat Pin Grabber Coupler
Utility Duty (UD) 312 600 24 0.31 0.40 327 722 100
312 1200 48 0.76 1.00 515 1,134 100 General Duty (GD) 312 600 24 0.31 0.40 317 699 100
312 1000 39 0.60 0.78 439 969 100
312 1100 43 0.68 0.89 474 1,046 100 General Duty (GD) (No Adjuster) 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100
312 750 30 0.41 0.54 358 790 100
312 900 36 0.53 0.69 426 939 100
312 1050 42 0.65 0.84 479 1,055 100
312 1200 48 0.76 1.00 519 1,143 100 Heavy Duty (HD) 312 450 18 0.20 0.27 289 637 100
312 1200 48 0.76 0.99 533 1,174 100 Severe Duty (SD) 312 900 36 0.53 0.69 475 1,047 90 Ditch Cleaning (DC) 312 1800 72 0.68 0.89 540 1,191 100
312 1800 71 0.57 0.74 421 928 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1468 1696 2826 3465 1396 1612 2679 3280 lb 3,237 3,740 6,230 7,638 3,077 3,554 5,906 7,230
kg 1268 1497 2626 3265 1196 1412 2479 3080 lb 2,796 3,299 5,790 7,198 2,637 3,113 5,466 6,790
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
12
Page 13
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Europe (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
Variable Adjustable Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
With CW20 Coupler
General Duty (GD) CW20 600 24 0.31 0.40 344 758 100
CW20 900 36 0.53 0.69 426 940 100
CW20 1100 43 0.68 0.89 487 1,073 100 Heavy Duty (HD) CW20 1200 48 0.76 1.00 526 1,159 100 General Duty (GD) Leveling Edge CW20 690 27 0.40 0.52 410 904 100
CW20 790 31 0.47 0.61 452 997 100
CW20 996 39 0.63 0.83 515 1,135 100
CW20 1184 47 0.80 1.05 601 1,324 100 X X Ditch Cleaning (DC) CW20 1800 72 0.68 0.89 516 1,138 100
CW20 1800 72 0.90 1.18 554 1,221 100 X X
With CW20S Coupler
General Duty (GD) CW20S 450 18 0.20 0.26 302 666 100
CW20S 500 20 0.24 0.31 311 686 100 CW20S 600 24 0.31 0.40 330 728 100 CW20S 750 30 0.41 0.54 377 832 100 CW20S 900 36 0.53 0.69 426 940 100 CW20S 1000 39 0.60 0.78 451 995 100 CW20S 1100 43 0.68 0.89 487 1,073 100 CW20S 1200 48 0.76 1.00 516 1,137 100
Heavy Duty (HD) CW20S 500 20 0.24 0.31 321 708 100
CW20S 1200 48 0.76 1.00 526 1,160 100 Ditch Cleaning (DC) CW20S 1800 72 0.68 0.89 457 1,008 100 Ditch Cleaning Tilt (DCT) CW20S 1800 72 0.60 0.78 732 1,614 100 X
Pin-On, TRS10 CW20
Grading – General Duty 312 1600 63 0.76 0.99 571 1,259 100 X X
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with coupler (payload + bucket)
Maximum load with coupler (payload + bucket)
Maximum load with pin-on (payload + bucket)
kg 1263 1491 2621 3260 1191 1407 2474 3075 lb 2,785 3,288 5,778 7,186 2,626 3,102 5,454 6,778
kg 1285 1513 2643 3282 1213 1429 2496 3097 lb 2,833 3,336 5,827 7,235 2,674 3,150 5,503 6,827
kg 923 1151 2281 2920 851 1067 2134 2735 lb 2,035 2,538 5,029 6,437 1,876 2,352 4,704 6,029
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
X Not Recommended
Four stabilizers
lowered
Free on wheels
X X
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
13
Page 14
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Europe (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
Variable Adjustable Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On, TRS10 CW20S
Grading – General Duty 312 1500 59 0.65 0.85 528 1,164 100 X Trenching – General Duty 312 540 21 0.37 0.48 336 740 100
Pin-On, TRS10 S60
Grading – Heavy Duty 312 1500 59 0.52 0.68 511 1,127 100
312 1500 59 0.65 0.85 535 1,179 100 X X 312 1600 63 0.75 0.98 576 1,270 100 X X X
Trenching – Heavy Duty 312 540 21 0.33 0.43 320 706 100
With CW20S, TRS10 CW20S
Grading – Heavy Duty 312 1500 59 0.65 0.85 528 1,164 100 X X Trenching – Heavy Duty 312 540 21 0.37 0.48 336 740 100 X
With S60, TRS10 S60
Grading – Heavy Duty 312 1500 59 0.52 0.68 511 1,127 100 X
312 1500 59 0.65 0.85 535 1,179 100 X X X 312 1600 63 0.75 0.98 576 1,270 100 X X X X
Trenching – Heavy Duty 312 540 21 0.33 0.43 320 706 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 912 1140 2270 2909 840 1056 2123 2724 lb 2,011 2,514 5,004 6,413 1,852 2,328 4,680 6,004
kg 1041 1269 2399 3038 969 1185 2252 2853 lb 2,295 2,798 5,289 6,697 2,136 2,612 4,965 6,289
kg 719 947 2077 2716 647 863 1930 2531 lb 1,585 2,089 4,579 5,987 1,426 1,903 4,255 5,579
kg 881 1109 2239 2878 809 1025 2092 2693 lb 1,942 2,446 4,936 6,344 1,783 2,260 4,612 5,936
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
X Not Recommended
Four stabilizers
lowered
Free on wheels
X X
X X
X
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
14
Page 15
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Europe (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
4650 mm (15'3") One-Piece Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
Utility Duty (UD) 312 600 24 0.31 0.40 327 722 100
312 1200 48 0.76 1.00 515 1,134 100
General Duty (GD) 312 600 24 0.31 0.40 317 699 100
312 1000 39 0.60 0.78 439 969 100 312 1100 43 0.68 0.89 474 1,046 100 312 450 18 0.20 0.26 267 589 100 312 500 20 0.24 0.31 287 633 100 312 750 30 0.41 0.54 358 790 100 312 900 36 0.53 0.69 426 939 100 312 1050 42 0.65 0.84 479 1,055 100 312 1200 48 0.76 1.00 519 1,143 100
Heavy Duty (HD) 312 450 18 0.20 0.27 289 637 100
312 1200 1071 0.76 0.99 533 1,174 100 Severe Duty (SD) 312 900 36 0.53 0.69 475 1,047 90 Ditch Cleaning (DC) 312 1800 72 0.68 0.89 540 1,191 100
312 1800 71 0.57 0.74 421 928 100 Ditch Cleaning Tilt (DCT) 312 1800 72 0.60 0.78 724 1,597 100
With Cat Pin Grabber Coupler
Utility Duty (UD) 312 600 24 0.31 0.40 327 722 100
312 1200 48 0.76 1.00 515 1,134 100 General Duty (GD) 312 600 24 0.31 0.40 317 699 100
312 1000 39 0.60 0.78 439 969 100
312 1100 43 0.68 0.89 474 1,046 100 General Duty (GD) – ANZ 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100
312 750 30 0.41 0.54 358 790 100
312 900 36 0.53 0.69 426 939 100
312 1050 42 0.65 0.84 479 1,055 100
312 1200 48 0.76 1.00 519 1,143 100 Heavy Duty (HD) 312 450 18 0.20 0.27 289 637 100
312 1200 1071 0.76 0.99 533 1,174 100 Severe Duty (SD) 312 900 36 0.53 0.69 475 1,047 90 Ditch Cleaning (DC) 312 1800 72 0.68 0.89 540 1,191 100
312 1800 71 0.57 0.74 421 928 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1747 1993 3226 3931 1657 1889 3048 3707 lb 3,851 4,393 7,113 8,666 3,653 4,165 6,721 8,172
kg 1547 1793 3027 3731 1457 1689 2849 3507 lb 3,411 3,953 6,673 8,225 3,213 3,724 6,280 7,732
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3)
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
15
Page 16
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Europe (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
4650 mm (15'3") One-Piece Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
With CW20 Coupler
General Duty (GD) CW20 600 24 0.31 0.40 344 758 100
CW20 900 36 0.53 0.69 426 940 100
CW20 1100 43 0.68 0.89 487 1,073 100 Heavy Duty (HD) CW20 1200 48 0.76 1.00 526 1,159 100 General Duty (GD) Leveling Edge CW20 690 27 0.40 0.52 410 904 100
CW20 790 31 0.47 0.61 452 997 100
CW20 996 39 0.63 0.83 515 1,135 100
CW20 1184 47 0.80 1.05 601 1,324 100 Ditch Cleaning (DC) CW20 1800 72 0.68 0.89 516 1,138 100
CW20 1800 72 0.90 1.18 554 1,221 100
With CW20S Coupler
General Duty (GD) CW20S 450 18 0.20 0.26 302 666 100
CW20S 500 20 0.24 0.31 311 686 100 CW20S 600 24 0.31 0.40 330 728 100 CW20S 750 30 0.41 0.54 377 832 100 CW20S 900 36 0.53 0.69 426 940 100 CW20S 1000 39 0.60 0.78 451 995 100 CW20S 1100 43 0.68 0.89 487 1,073 100 CW20S 1200 48 0.76 1.00 516 1,137 100
Heavy Duty (HD) CW20S 500 20 0.24 0.31 321 708 100
CW20S 1200 48 0.76 1.00 526 1,160 100
Ditch Cleaning (DC) CW20S 1800 72 0.68 0.89 457 1,008 100
CW20S 2000 78 1.00 1.31 531 1,171 100
Ditch Cleaning Tilt (DCT) CW20S 1800 72 0.60 0.78 732 1,614 100
Pin-On, TRS10 CW20
Grading – General Duty 312 1600 63 0.76 0.99 571 1,259 100 X
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with coupler (payload + bucket)
Maximum load with coupler (payload + bucket)
Maximum load with pin-on (payload + bucket)
kg 1542 1788 3021 3726 1452 1684 2843 3502 lb 3,399 3,942 6,661 8,214 3,201 3,713 6,269 7,720
kg 1564 1810 3043 3748 1474 1706 2865 3524 lb 3,448 3,990 6,710 8,262 3,250 3,761 6,317 7,769
kg 1202 1448 2681 3386 1112 1344 2503 3162 lb 2,650 3,192 5,912 7,464 2,452 2,963 5,519 6,971
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
X Not Recommended
Four stabilizers
lowered
Free on wheels
X
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
16
Page 17
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Europe (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
4650 mm (15'3") One-Piece Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On, TRS10 CW20S
Grading – General Duty 312 1500 59 0.65 0.85 528 1,164 100 Trenching – General Duty 312 540 21 0.37 0.48 336 740 100
Pin-On, TRS10 S60
Grading – Heavy Duty 312 1500 59 0.52 0.68 511 1,127 100
312 1500 59 0.65 0.85 535 1,179 100 312 1600 63 0.75 0.98 576 1,270 100
Trenching – Heavy Duty 312 540 21 0.33 0.43 320 706 100
With CW20S, TRS10 CW20S
Grading – Heavy Duty 312 1500 59 0.65 0.85 528 1,164 100 X Trenching – Heavy Duty 312 540 21 0.37 0.48 336 740 100
With S60, TRS10 S60
Grading – Heavy Duty 312 1500 59 0.52 0.68 511 1,127 100
312 1500 59 0.65 0.85 535 1,179 100 X 312 1600 63 0.75 0.98 576 1,270 100 X X
Trenching – Heavy Duty 312 540 21 0.33 0.43 320 706 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1191 1437 2670 3375 1101 1333 2492 3151 lb 2,625 3,168 5,887 7,440 2,428 2,939 5,495 6,946
kg 1320 1566 2799 3504 1230 1462 2621 3280 lb 2,910 3,452 6,172 7,724 2,712 3,223 5,779 7,231
kg 998 1244 2477 3182 908 1140 2299 2958 lb 2,200 2,742 5,462 7,014 2,002 2,513 5,069 6,521
kg 1160 1406 2639 3344 1070 1302 2461 3120 lb 2,557 3,099 5,819 7,371 2,359 2,871 5,427 6,878
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
X Not Recommended
Four stabilizers
lowered
Free on wheels
X
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
17
Page 18
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Australia and New Zealand
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
Variable Adjustable Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
General Duty (GD) (No Adjuster) 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100 312 600 24 0.31 0.40 310 684 100 312 750 30 0.41 0.54 358 790 100 312 750 30 0.41 0.54 413 911 100 312 900 36 0.53 0.69 426 939 100 312 900 36 0.53 0.69 454 1,001 100 312 1050 42 0.65 0.84 479 1,055 100
Ditch Cleaning Tilt (DCT) 312 1500 60 0.74 0.98 704 1,553 100
312 1800 72 0.90 1.18 784 1,728 100 X X
With Cat Pin Grabber Coupler
General Duty (GD) (No Adjuster) 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100 312 600 24 0.31 0.40 310 684 100 312 750 30 0.41 0.54 358 790 100 312 750 30 0.41 0.54 413 911 100 312 900 36 0.53 0.69 426 939 100 312 900 36 0.53 0.69 454 1,001 100 312 1050 42 0.65 0.84 479 1,055 100
Ditch Cleaning Tilt (DCT) 312 1500 60 0.74 0.98 704 1,553 100
312 1800 72 0.90 1.18 784 1,728 100 X X
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1468 1696 2826 3465 1396 1612 2679 3280 lb 3,237 3,740 6,230 7,638 3,077 3,554 5,906 7,230
kg 1268 1497 2626 3265 1196 1412 2479 3080 lb 2,796 3,299 5,790 7,198 2,637 3,113 5,466 6,790
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
X Not Recommended
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
18
Page 19
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – Australia and New Zealand (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
4650 mm (15'3") One-Piece Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
General Duty (GD) – ANZ 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100 312 600 24 0.31 0.40 310 684 100 312 750 30 0.41 0.54 358 790 100 312 750 30 0.41 0.54 413 911 100 312 900 36 0.53 0.69 426 939 100 312 900 36 0.53 0.69 454 1,001 100 312 1050 42 0.65 0.84 479 1,055 100
Ditch Cleaning Tilt (DCT) 312 1500 60 0.74 0.98 704 1,553 100
312 1800 72 0.90 1.18 784 1,728 100
With Cat Pin Grabber Coupler
General Duty (GD) – ANZ 312 450 18 0.20 0.26 267 589 100
312 500 20 0.24 0.31 287 633 100 312 600 24 0.31 0.40 310 684 100 312 750 30 0.41 0.54 358 790 100 312 750 30 0.41 0.54 413 911 100 312 900 36 0.53 0.69 426 939 100 312 900 36 0.53 0.69 454 1,001 100 312 1050 42 0.65 0.84 479 1,055 100
Ditch Cleaning Tilt (DCT) 312 1500 60 0.74 0.98 704 1,553 100
312 1800 72 0.90 1.18 784 1,728 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1747 1993 3226 3931 1657 1889 3048 3707 lb 3,851 4,393 7,113 8,666 3,653 4,165 6,721 8,172
kg 1547 1793 3027 3731 1457 1689 2849 3507 lb 3,411 3,953 6,673 8,225 3,213 3,724 6,280 7,732
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3) 900 kg/m3 (1,500 lb/yd3)
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
19
Page 20
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – South Korea
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
Variable Adjustable Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
General Duty (GD) 312 450 18 0.20 0.27 278 614 100
312 600 24 0.31 0.40 317 699 100 312 1000 39 0.60 0.78 439 969 100 312 1200 48 0.76 1.00 504 1,110 100
Severe Duty (SD) 312 1050 42 0.65 0.85 554 1,221 90
With Cat Pin Grabber Coupler
General Duty (GD) 312 450 18 0.20 0.27 278 614 100
312 600 24 0.31 0.40 317 699 100 312 1000 39 0.60 0.78 439 969 100 312 1200 48 0.76 1.00 504 1,110 100
Severe Duty (SD) 312 1050 42 0.65 0.85 554 1,221 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1468 1696 2826 3465 1396 1612 2679 3280 lb 3,237 3,740 6,230 7,638 3,077 3,554 5,906 7,230
kg 1268 1497 2626 3265 1196 1412 2479 3080 lb 2,796 3,299 5,790 7,198 2,637 3,113 5,466 6,790
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3) 1200 kg/m3 (2,000 lb/yd3)
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
(continued on next page)
20
Page 21
M314 Wheeled Excavator Specifications
Bucket Specifications and Compatibility – South Korea (continued)
Contact your Cat dealer for special bucket requirements.
3300 kg (7,280 lb) Counterweight
4400 mm (14'5") One-Piece Boom
2200 mm (7'3") Stick 2500 mm (8'2") Stick
Width Capacity Weight Fill
Linkage
Pin-On (No Quick Coupler)
General Duty (GD) 312 450 18 0.20 0.27 278 614 100
312 600 24 0.31 0.40 317 699 100 312 1000 39 0.60 0.78 439 969 100 312 1200 48 0.76 1.00 504 1,110 100
Severe Duty (SD) – CCL 312 1050 42 0.65 0.85 554 1,221 90
With Cat Pin Grabber Coupler
General Duty (GD) 312 450 18 0.20 0.27 278 614 100
312 600 24 0.31 0.40 317 699 100 312 1000 39 0.60 0.78 439 969 100 312 1200 48 0.76 1.00 504 1,110 100
Severe Duty (SD) – CCL 312 1050 42 0.65 0.85 554 1,221 100
The above loads are in compliance with hydraulic excavator standard EN474-5:2006+A3:2013, they do not exceed 87% ofhydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.
Capacity based on ISO 7451.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for weight, dimensions, flows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
mm in m yd kg lb %
Maximum load with pin-on (payload + bucket)
Maximum load with coupler (payload + bucket)
kg 1856 2113 3414 4162 1757 1998 3216 3913 lb 4,091 4,658 7,526 9,176 3,873 4,406 7,091 8,628
kg 1656 1913 3214 3963 1557 1799 3017 3714 lb 3,651 4,218 7,086 8,736 3,432 3,965 6,651 8,187
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Maximum Material Density:
2100 kg/m3 (3,500 lb/yd3) 1800 kg/m3 (3,000 lb/yd3) 1500 kg/m3 (2,500 lb/yd3)
Four stabilizers
lowered
Free on wheels
Rear dozer blade
lowered
Front dozer and rear
stabilizer lowered
Four stabilizers
lowered
21
Page 22
M314 Wheeled Excavator Specifications
Attachments Offering Guide – North America
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match No Match 1800 kg/m3 (3000 lb/yd3) 1200 kg/m3 (2000 lb/yd3)
ü
PIN-ON ATTACHMENTS
Undercarriage Rear Outrigger/Front Blade Rear Blade/Front Outrigger Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable
Stick Length
Hammer H110 GC
H110 GC S
H110 S
H115 GC
H115 GC S
H115 S
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
Mulchers HM2615
Orange Peel Grapples GSH420-500
S3015
GSH420-600
GSH420-750
GSH520-500
GSH520-600
GSH520-750
2200 mm
(7'3")
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
2500 mm
(8'2")
2900 mm
(9'6")
2200 mm
(7'3")
2500 mm
(8'2")
2900 mm
(9'6")
PIN-ON ATTACHMENTS (continued)
Undercarriage Rear Outrigger/Front Outrigger Counterweight 3300 kg (7,280 lb) Boom Type Variable Adjustable Stick Length 2200 mm (7'3") 2500 mm (8'2") 2900 mm (9'6")
Hammer H110 GC
H110 GC S
H110 S
H115 GC
H115 GC S
H115 S
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
Mulchers HM2615
Orange Peel Grapples GSH420-500
S3015
GSH420-600
GSH420-750
GSH520-500
GSH520-600
GSH520-750
ü ü
ü ü
ü ü
ü ü
ü ü
ü ü
ü ü
ü ü
ü ü
(continued on next page)
22
Page 23
M314 Wheeled Excavator Specifications
Attachments Offering Guide – North America (continued)
Not all Attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match No Match
ü
CAT PIN GRABBER COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC
H110 GC S
H110 S
H115 GC S
H115 S
Compactors (VibratoryPlate) CVP75
Mulchers HM2615
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
23
Page 24
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match No Match 1800 kg/m3 (3000 lb/yd3) 1200 kg/m3 (2000 lb/yd3) 600 kg/m3 (1000 lb/yd3)
ü
PIN-ON ATTACHMENTS
Undercarriage Rear Outrigger/Front Blade Rear Blade/Front Outrigger Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
Orange Peel Grapples GSH420-500
G310 GC
S3015
GSH420-600
GSH420-750
GSH520-500
GSH520-600
GSH520-750
GSV520 GC-400
GSV520 GC-500
GSV520 GC-600
GSV520 GC-750
GSV520 GC-1250
GSV520-400
GSV520-500
GSV520-600
GSV520-750
GSV520-1250
2200 mm
(7'3")
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü
ü ü ü ü
ü ü ü ü
2500 mm
(8'2")
2900 mm
(9'6")
2200 mm
(7'3")
2500 mm
(8'2")
2900 mm
(9'6")
(continued on next page)
24
Page 25
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match No Match 1800 kg/m3 (3000 lb/yd3) 1200 kg/m3 (2000 lb/yd3) 600 kg/m3 (1000 lb/yd3)
ü
PIN-ON ATTACHMENTS (continued)
Undercarriage Rear Outrigger/Front Outrigger Rear Blade Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and
G310 GC
SortingGrapples
Mobile Scrap and
S3015
DemolitionShears
Compactors (Vibratory Plate) CVP75
Orange Peel Grapples GSH420-500
GSH420-600
GSH420-750
GSH520-500
GSH520-600
GSH520-750
GSV520 GC-400
GSV520 GC-500
GSV520 GC-600
GSV520 GC-750
GSV520 GC-1250
GSV520-400
GSV520-500
GSV520-600
GSV520-750
GSV520-1250
2200 mm
(7'3")
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü
ü ü ü ü
ü ü ü ü
2500 mm
(8'2")
2900 mm
(9'6")
2200 mm
(7'3")
2500 mm
(8'2")
2900 mm
(9'6")
(continued on next page)
25
Page 26
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
CAT PIN GRABBER COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Compactors (Vibratory Plate) CVP75
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü *ü* *ü*
ü ü ü ü
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
2200 mm
(7'3")
2500 mm
(8'2")
2200 mm
(7'3")
2500 mm
(8'2")
CW-20S DEDICATED COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
G310 GC
G314
G313 GC
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü *ü*
ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
2200 mm
(7'3")
2500 mm
(8'2")
2200 mm
(7'3")
(continued on next page)
2500 mm
(8'2")
26
Page 27
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
CW-20 DEDICATED COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
G310 GC
G314
G313 GC
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü *ü* *ü*
ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
2200 mm
(7'3")
2500 mm
(8'2")
2200 mm
(7'3")
2500 mm
(8'2")
S60 DEDICATED COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 S
H115 S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
G310 GC
G313 GC
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü *ü*
ü ü ü
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
2200 mm
(7'3")
2500 mm
(8'2")
2200 mm
(7'3")
(continued on next page)
2500 mm
(8'2")
27
Page 28
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
TRS10 WITH CW-20 ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable Stick Length 2200 mm (7'3") 2200 mm (7'3") 2200 mm (7'3")
Compactors (Vibratory Plate) CVP75
TRS10 WITH S60 ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
G210 GC
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
ü ü ü
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü *ü*
ü ü ü ü ü ü *ü*
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
Rear Blade/
FrontOutrigger
2500 mm
(8'2")
2200 mm
Rear Outrigger/ FrontOutrigger Rear Blade
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
(continued on next page)
28
Page 29
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match No Match 1800 kg/m3 (3000 lb/yd3) 1200 kg/m3 (2000 lb/yd3)
ü
PIN-ON ATTACHMENTS
Undercarriage Rear Outrigger/Front Blade Rear Blade/Front Outrigger Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type 4650 mm (15'3") One-Piece 4650 mm (15'3") One-Piece
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
Orange Peel Grapples GSH420-500
G312 GC
G313 GC
G314
S3015
S3015 Flat Top
GSH420-600
GSH420-750
GSH520-500
GSH520-600
GSH520-750
GSV520 GC-400
GSV520 GC-500
GSV520 GC-600
GSV520 GC-750
GSV520-400
GSV520-500
GSV520-600
GSV520-750
2200 mm
(7'3")
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
2500 mm
(8'2")
2900 mm
(9'6")
2200 mm
(7'3")
2500 mm
(8'2")
2900 mm
(9'6")
(continued on next page)
29
Page 30
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match No Match 1800 kg/m3 (3000 lb/yd3) 1200 kg/m3 (2000 lb/yd3)
ü
PIN-ON ATTACHMENTS (continued)
Undercarriage Rear Outrigger/Front Outrigger Rear Blade Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type 4650 mm (15'3") One-Piece 4650 mm (15'3") One-Piece
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
Orange Peel Grapples GSH420-500
G312 GC
G313 GC
G314
S3015
S3015 Flat Top
GSH420-600
GSH420-750
GSH520-500
GSH520-600
GSH520-750
GSV520 GC-400
GSV520 GC-500
GSV520 GC-600
GSV520 GC-750
GSV520-400
GSV520-500
GSV520-600
GSV520-750
2200 mm
(7'3")
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
ü ü ü ü
2500 mm
(8'2")
2900 mm
(9'6")
2200 mm
(7'3")
2500 mm
(8'2")
2900 mm
(9'6")
(continued on next page)
30
Page 31
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
CAT PIN GRABBER COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
G312 GC
G313 GC
G314
S3015
S3015 Flat Top
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
CW-20S DEDICATED COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
G312 GC
G313 GC
G314
S3015
S3015 Flat Top
Rear Outrigger/
FrontBlade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü*
ü ü ü ü
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
(continued on next page)
2500 mm
(8'2")
31
Page 32
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
CW-20 DEDICATED COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
G312 GC
G312 GC fixed CAN
G313 GC
G313 GC fixed CAN
G314
S3015
S3015 Flat Top
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü*
ü ü ü ü*
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
S60 DEDICATED COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
H110 S
H115 GC S
H115 S
Demolition and SortingGrapples
Mobile Scrap and DemolitionShears
Compactors (Vibratory Plate) CVP75
G312 GC
G313 GC
G314
S3015 Flat Top
Rear Outrigger/
FrontBlade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
(continued on next page)
2500 mm
(8'2")
32
Page 33
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Europe (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
TRS10 WITH CW-20S ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
H110 S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
G212 GC
G212 GC fixed CAN
G213 GC
G213 GC fixed CAN
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü*
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
2200 mm
(7'3")
One-Piece
2500 mm
(8'2")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
TRS10 WITH CW-20 ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
H110 S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
TRS10 WITH S60 ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC S
Demolition and SortingGrapples
Compactors (Vibratory Plate) CVP75
G212 GC
G212 GC fixed CAN
G213 GC
G213 GC fixed CAN
H110 S
G212 GC
G213 GC
Rear Outrigger/
FrontBlade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
Rear Outrigger/
4650 mm (15'3")
2200 mm
(7'3")
2500 mm
(8'2")
ü ü ü ü ü ü ü* ü*
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
FrontBlade
One-Piece
2500 mm
(8'2")
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü
ü ü ü ü ü ü ü ü*
ü ü ü ü ü ü ü ü
Rear Blade/
FrontOutrigger
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
FrontOutrigger
4650 mm (15'3")
2200 mm
(7'3")
2500 mm
Rear Blade/
One-Piece
2500 mm
(8'2")
(8'2")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
Rear Outrigger/ FrontOutrigger Rear Blade
4650 mm (15'3")
2200 mm
(7'3")
2500 mm
(8'2")
One-Piece
2500 mm
(8'2")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
4650 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
2500 mm
(8'2")
33
Page 34
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Australia and New Zealand
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
PIN-ON ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC
H110 GC S
H110 S
H115 GC
H115 GC S
H115 S
Mobile Scrap and DemolitionShears
Cat Pin Grabber Couplers
S3015
Working range front only No Match
ü*
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
CAT PIN GRABBER COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC
H110 GC S
H110 S
H115 GC S
H115 S
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger
2200 mm
(7'3")
(continued on next page)
2500 mm
(8'2")
34
Page 35
M314 Wheeled Excavator Specifications
Attachments Offering Guide – Australia and New Zealand (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
PIN-ON ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type 4650 mm (15'3") One-Piece 4650 mm (15'3") One-Piece 4650 mm (15'3") One-Piece
Stick Length
Hydraulic Hammers H110 GC
H110 GC S
H110 S
H115 GC
H115 GC S
H115 S
Demolition and Sorting Grapples G314
Mobile Scrap and DemolitionShears
S3015
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
CAT PIN GRABBER COUPLER ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type 4650 mm (15'3") One-Piece 4650 mm (15'3") One-Piece 4650 mm (15'3") One-Piece
Stick Length
Hydraulic Hammers H110 GC
H110 GC S
H110 S
H115 GC
H115 GC S
H115 S
Demolition and Sorting Grapples G314
Mobile Scrap and DemolitionShears
S3015
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
Rear Outrigger/ FrontOutrigger
2200 mm
(7'3")
2500 mm
(8'2")
35
Page 36
M314 Wheeled Excavator Specifications
Attachments Offering Guide – South Korea
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
PIN-ON ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb) Boom Type Variable Adjustable Variable Adjustable Variable Adjustable
Stick Length
Hydraulic Hammers H110 GC
H110 GC S
H115 GC
H115 GC S
Rear Outrigger/
FrontBlade
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
2200 mm
(7'3")
Rear Blade/
Front Bucket Rest
2500 mm
(8'2")
2200 mm
(7'3")
(continued on next page)
2500 mm
(8'2")
36
Page 37
M314 Wheeled Excavator Specifications
Attachments Offering Guide – South Korea (continued)
Not all attachments are available in all regions. Consult your Cat dealer for congurations available in your region.
Match
ü
PIN-ON ATTACHMENTS
Undercarriage Counterweight 3300 kg (7,280 lb) 3300 kg (7,280 lb) 3300 kg (7,280 lb)
Boom Type
Stick Length
Hydraulic Hammers H110 GC
H110 GC Side Mount
H110 GC S
H110 S
H115 GC
H115 GC Side Mount
H115 GC S
H115 S
Rear Outrigger/
FrontBlade
4400 mm (15'3")
One-Piece
2200 mm
(7'3")
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
ü ü ü ü ü ü
2500 mm
(8'2")
Rear Blade/
FrontOutrigger
4400 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
Rear Blade/
Front Bucket Rest
4400 mm (15'3")
One-Piece
2200 mm
(7'3")
2500 mm
(8'2")
37
Page 38
M314 Wheeled Excavator Specifications
Lift Capacities – Variable Adjustable Boom (5028 mm), 2200 mm Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *3800 *3800 3650 *3700 *3700 3600 Undercarriage: front empty – rear dozer – stabilized *3800 *3800 *3800 *3700 *3700 *3700
7500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *3800 *3800 *3800 *3700 *3700 *3700 Undercarriage: front stabilizer – rear stabilizer – stabilized *3800 *3800 *3800 *3700 *3700 *3700
Undercarriage: front empty – rear dozer – free on wheels *4750 4100 3750 *3300 2500 2250 *3100 2450 2250 Undercarriage: front empty – rear dozer – stabilized *4750 *4750 4150 *3300 *3300 2550 *3100 *3100 2500
6000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4750 *4750 *4750 *3300 *3300 *3300 *3100 *3100 *3100 Undercarriage: front stabilizer – rear stabilizer – stabilized *4750 *4750 *4750 *3300 *3300 *3300 *3100 *3100 *3100
Undercarriage: front empty – rear dozer – free on wheels *5200 3950 3550 3600 2500 2250 2850 1950 1750 Undercarriage: front empty – rear dozer – stabilized *5200 *5200 4000 3600 *4300 2550 2850 *2850 2000
4500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5200 *5200 *5200 *4300 *4300 3900 *2850 *2850 *2850 Undercarriage: front stabilizer – rear stabilizer – stabilized *5200 *5200 *5200 *4300 *4300 *4300 *2850 *2850 *2850
Undercarriage: front empty – rear dozer – free on wheels 5400 3600 3250 3500 2350 2150 2550 1700 1550 Undercarriage: front empty – rear dozer – stabilized 5400 *6000 3700 3500 *4550 2400 2550 *2850 1750
3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6000 *6000 5850 *4550 *4550 3750 *2850 *2850 2750 Undercarriage: front stabilizer – rear stabilizer – stabilized *6000 *6000 *6000 *4550 *4550 4550 *2850 *2850 *2850
Undercarriage: front empty – rear dozer – free on wheels 5100 3350 3000 3350 2250 2000 2450 1650 1450 Undercarriage: front empty – rear dozer – stabilized 5100 *6550 3400 3350 *4750 2300 2450 *3000 1650
1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6550 *6550 5550 *4750 *4750 3650 *3000 *3000 2650 Undercarriage: front stabilizer – rear stabilizer – stabilized *6550 *6550 *6550 *4750 *4750 4400 *3000 *3000 *3000
Undercarriage: front empty – rear dozer – free on wheels 4950 3200 2850 3250 2150 1950 2550 1650 1500 Undercarriage: front empty – rear dozer – stabilized 4950 *6350 3250 3250 *4650 2200 2500 *3300 1700
0 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6350 *6350 5400 *4650 *4650 3550 *3300 *3300 2750 Undercarriage: front stabilizer – rear stabilizer – stabilized *6350 *6350 *6350 *4650 *4650 4300 *3300 *3300 *3300
Undercarriage: front empty – rear dozer – free on wheels *6850 5950 5200 4950 3150 2850 3250 2150 1950 2850 1900 1700 Undercarriage: front empty – rear dozer – stabilized *6850 *6850 6050 4900 *5500 3250 3250 *3950 2200 2800 *3150 1900
–1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6850 *6850 *6850 *5500 *5500 5350 *3950 *3950 3550 *3150 *3150 3050 Undercarriage: front stabilizer – rear stabilizer – stabilized *6850 *6850 *6850 *5500 *5500 *5500 *3950 *3950 *3950 *3150 *3150 *3150
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. Lift capacity is calculated with VA cylinder completely extracted. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
mm
4510
6040
6890
7340
7450
7230
6670
38
Page 39
M314 Wheeled Excavator Specifications
Lift Capacities – Variable Adjustable Boom (16'6"), 7'3" Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *8,400 *8,400 *8,400 Undercarriage: front empty – rear dozer – stabilized *8,400 *8,400 *8,400
25 ft
Undercarriage: front dozer – rear stabilizer – stabilized *8,400 *8,400 *8,400 Undercarriage: front stabilizer – rear stabilizer – stabilized *8,400 *8,400 *8,400
Undercarriage: front empty – rear dozer – free on wheels *10,400 8,800 8,000 *6,800 5,600 5,100 Undercarriage: front empty – rear dozer – stabilized *10,400 *10,400 9,000 *6,800 *6,800 5,700
20 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,400 *10,400 *10,400 *6,800 *6,800 *6,800 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,400 *10,400 *10,400 *6,800 *6,800 *6,800
Undercarriage: front empty – rear dozer – free on wheels *11,300 8,500 7,700 7,800 5,300 4,900 *6,300 4,300 3,900 Undercarriage: front empty – rear dozer – stabilized *11,300 *11,300 8,600 7,800 *9,400 5,400 *6,300 *6,300 4,400
15 ft
Undercarriage: front dozer – rear stabilizer – stabilized *11,300 *11,300 *11,300 *9,400 *9,400 8,400 *6,300 *6,300 *6,300 Undercarriage: front stabilizer – rear stabilizer – stabilized *11,300 *11,300 *11,300 *9,400 *9,400 *9,400 *6,300 *6,300 *6,300
Undercarriage: front empty – rear dozer – free on wheels 11,700 7,800 7,100 7,500 5,100 4,600 5,600 3,800 3,400 Undercarriage: front empty – rear dozer – stabilized 11,600 *13,000 8,000 7,500 *9,900 5,200 5,600 *6,300 3,900
10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *13,000 *13,000 12,700 *9,900 *9,900 8,100 *6,300 *6,300 6,100 Undercarriage: front stabilizer – rear stabilizer – stabilized *13,000 *13,000 *13,000 *9,900 *9,900 9,800 *6,300 *6,300 *6,300
Undercarriage: front empty – rear dozer – free on wheels 11,000 7,200 6,500 7,200 4,800 4,400 5,400 3,600 3,200 Undercarriage: front empty – rear dozer – stabilized 11,000 *14,100 7,300 7,200 *10,300 4,900 5,400 *6,600 3,700
5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,100 *14,100 12,000 *10,300 *10,300 7,800 *6,600 *6,600 5,800 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,100 *14,100 *14,100 *10,300 *10,300 9,500 *6,600 *6,600 *6,600
Undercarriage: front empty – rear dozer – free on wheels 10,700 6,900 6,100 7,000 4,600 4,200 5,600 3,700 3,300 Undercarriage: front empty – rear dozer – stabilized 10,600 *13,800 7,000 7,000 *10,000 4,800 5,500 *7,300 3,800
0 ft
Undercarriage: front dozer – rear stabilizer – stabilized *13,800 *13,800 11,600 *10,000 *10,000 7,600 *7,300 *7,300 6,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *13,800 *13,800 *13,800 *10,000 *10,000 9,300 *7,300 *7,300 *7,300
Undercarriage: front empty – rear dozer – free on wheels *15,400 12,800 11,200 10,600 6,800 6,100 7,000 4,600 4,200 6,300 4,200 3,700 Undercarriage: front empty – rear dozer – stabilized *15,400 *15,400 13,000 10,600 *11,900 7,000 7,000 *8,500 4,700 6,200 *6,900 4,300
–5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *15,400 *15,400 *15,400 *11,900 *11,900 11,600 *8,500 *8,500 7,600 *6,900 *6,900 6,800 Undercarriage: front stabilizer – rear stabilizer – stabilized *15,400 *15,400 *15,400 *11,900 *11,900 *11,900 *8,500 *8,500 *8,500 *6,900 *6,900 *6,900
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. Lift capacity is calculated with VA cylinder completely extracted. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
ft
14.24
19.55
22.51
24.05
24.44
23.72
21.85
39
Page 40
M314 Wheeled Excavator Specifications
Lift Capacities – Variable Adjustable Boom (5028 mm), 2500 mm Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm 7500 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *4100 *4100 3750 *3100 *3100 *3100 Undercarriage: front empty – rear dozer – stabilized *4100 *4100 *4100 *3100 *3100 *3100
7500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4100 *4100 *4100 *3100 *3100 *3100 Undercarriage: front stabilizer – rear stabilizer – stabilized *4100 *4100 *4100 *3100 *3100 *3100
Undercarriage: front empty – rear dozer – free on wheels *4150 *4150 3800 *3700 2550 2350 *2650 2300 2100 Undercarriage: front empty – rear dozer – stabilized *4150 *4150 *4150 3700 *3700 2600 *2650 *2650 2300
6000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4150 *4150 *4150 *3700 *3700 *3700 *2650 *2650 *2650 Undercarriage: front stabilizer – rear stabilizer – stabilized *4150 *4150 *4150 *3700 *3700 *3700 *2650 *2650 *2650
Undercarriage: front empty – rear dozer – free on wheels *4750 4000 3650 3650 2550 2300 *2500 1850 1650 Undercarriage: front empty – rear dozer – stabilized *4750 *4750 4050 3650 *4200 2600 *2500 *2500 1850
4500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4750 *4750 *4750 *4200 *4200 3950 *2500 *2500 *2500 Undercarriage: front stabilizer – rear stabilizer – stabilized *4750 *4750 *4750 *4200 *4200 *4200 *2500 *2500 *2500
Undercarriage: front empty – rear dozer – free on wheels 5500 3700 3350 3550 2400 2200 2500 1700 1500 2450 1650 1500 Undercarriage: front empty – rear dozer – stabilized 5500 *5850 3750 3500 *4500 2450 2500 *3200 1700 2400 *2450 1650
3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5850 *5850 *5850 *4500 *4500 3800 *3200 *3200 2700 *2450 *2450 *2450 Undercarriage: front stabilizer – rear stabilizer – stabilized *5850 *5850 *5850 *4500 *4500 *4500 *3200 *3200 *3200 *2450 *2450 *2450
Undercarriage: front empty – rear dozer – free on wheels 5150 3400 3050 3400 2250 2050 2450 1650 1500 2350 1550 1400 Undercarriage: front empty – rear dozer – stabilized 5150 *6500 3450 3400 *4750 2300 2450 *3700 1650 2300 *2550 1600
1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6500 *6500 5600 *4750 *4750 3650 *3700 *3700 2650 *2550 *2550 2500 Undercarriage: front stabilizer – rear stabilizer – stabilized *6500 *6500 *6500 *4750 *4750 4450 *3700 *3700 3200 *2550 *2550 *2550
Undercarriage: front empty – rear dozer – free on wheels 5000 3250 2900 3300 2150 1950 2400 1600 1450 2400 1600 1450 Undercarriage: front empty – rear dozer – stabilized 4950 *6500 3300 3300 *4700 2250 2400 *3100 1650 2400 *2850 1650
0 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6500 *6500 5450 *4700 *4700 3550 *3100 *3100 2600 *2850 *2850 2600 Undercarriage: front stabilizer – rear stabilizer – stabilized *6500 *6500 *6500 *4700 *4700 4350 *3100 *3100 *3100 *2850 *2850 *2850
Undercarriage: front empty – rear dozer – free on wheels *6450 Undercarriage: front empty – rear dozer – stabilized *6450 *6450 6050 4900 *5750 3250 3250 *4200 2200 2650 *3100 1800
–1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6450 *6450 *6450 *5750 *5750 5400 *4200 *4200 3550 *3100 *3100 2900 Undercarriage: front stabilizer – rear stabilizer – stabilized *6450 *6450 *6450 *5750 *5750 *5750 *4200 *4200 *4200 *3100 *3100 *3100
Undercarriage: front empty – rear dozer – free on wheels *4200 3250 2900
–3000 mm
Undercarriage: front empty – rear dozer – stabilized *4200 *4200 3300 Undercarriage: front dozer – rear stabilizer – stabilized *4200 *4200 *4200 Undercarriage: front stabilizer – rear stabilizer – stabilized *4200 *4200 *4200
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. Lift capacity is calculated with VA cylinder completely extracted. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
5950 5200 4950 3200 2850 3250 2150 1950 2650 1750 1600
mm
4990
6390
7200
7630
7730
7530
6990
40
Page 41
M314 Wheeled Excavator Specifications
Lift Capacities – Variable Adjustable Boom (16'6"), 8'2" Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft 25 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *8,500 *8,500 8,000 *7,000 *7,000 *7,000 Undercarriage: front empty – rear dozer – stabilized *8,500 *8,500 *8,500 *7,000 *7,000 *7,000
25 ft
Undercarriage: front dozer – rear stabilizer – stabilized *8,500 *8,500 *8,500 *7,000 *7,000 *7,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *8,500 *8,500 *8,500 *7,000 *7,000 *7,000
Undercarriage: front empty – rear dozer – free on wheels *9,200 9,000 8,200 *7,500 5,500 5,000 *5,900 5,100 4,700 Undercarriage: front empty – rear dozer – stabilized *9,200 *9,200 9,100 *7,500 *7,500 5,600 *5,900 *5,900 5,200
20 ft
Undercarriage: front dozer – rear stabilizer – stabilized *9,200 *9,200 *9,200 *7,500 *7,500 *7,500 *5,900 *5,900 *5,900 Undercarriage: front stabilizer – rear stabilizer – stabilized *9,200 *9,200 *9,200 *7,500 *7,500 *7,500 *5,900 *5,900 *5,900
Undercarriage: front empty – rear dozer – free on wheels *10,400 8,600 7,800 7,900 5,400 5,000 *5,500 4,100 3,700 Undercarriage: front empty – rear dozer – stabilized *10,400 *10,400 8,800 7,900 *9,100 5,500 *5,500 *5,500 4,200
15 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,400 *10,400 *10,400 *9,100 *9,100 8,500 *5,500 *5,500 *5,500 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,400 *10,400 *10,400 *9,100 *9,100 *9,100 *5,500 *5,500 *5,500
Undercarriage: front empty – rear dozer – free on wheels 11,900 8,000 7,200 7,600 5,200 4,700 5,400 3,600 3,300 5,400 3,600 3,300 Undercarriage: front empty – rear dozer – stabilized 11,800 *12,600 8,100 7,600 *9,700 5,300 5,300 *5,400 3,700 5,300 *5,400 3,700
10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *12,600 *12,600 *12,600 *9,700 *9,700 8,200 *5,400 *5,400 *5,400 *5,400 *5,400 *5,400 Undercarriage: front stabilizer – rear stabilizer – stabilized *12,600 *12,600 *12,600 *9,700 *9,700 *9,700 *5,400 *5,400 *5,400 *5,400 *5,400 *5,400
Undercarriage: front empty – rear dozer – free on wheels 11,100 7,300 6,600 7,300 4,900 4,400 5,300 3,500 3,200 5,100 3,400 3,100 Undercarriage: front empty – rear dozer – stabilized 11,100 *14,000 7,500 7,300 *10,300 5,000 5,200 *7,300 3,600 5,100 *5,700 3,500
5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,000 *14,000 12,100 *10,300 *10,300 7,900 *7,300 *7,300 5,700 *5,700 *5,700 5,600 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,000 *14,000 *14,000 *10,300 *10,300 9,600 *7,300 *7,300 6,900 *5,700 *5,700 *5,700
Undercarriage: front empty – rear dozer – free on wheels 10,700 7,000 6,200 7,100 4,700 4,200 5,300 3,500 3,200 Undercarriage: front empty – rear dozer – stabilized 10,700 *14,000 7,100 7,100 *10,200 4,800 5,300 *6,200 3,600
0 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,000 *14,000 11,700 *10,200 *10,200 7,700 *6,200 *6,200 5,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,000 *14,000 *14,000 *10,200 *10,200 9,300 *6,200 *6,200 *6,200
Undercarriage: front empty – rear dozer – free on wheels *14,800 Undercarriage: front empty – rear dozer – stabilized *14,800 *14,800 13,000 10,600 *12,500 7,000 7,000 *9,000 4,700 5,900 *6,800 4,000
–5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,800 *14,800 *14,800 *12,500 *12,500 11,600 *9,000 *9,000 7,600 *6,800 *6,800 6,400 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,800 *14,800 *14,800 *12,500 *12,500 *12,500 *9,000 *9,000 *9,000 *6,800 *6,800 *6,800
Undercarriage: front empty – rear dozer – free on wheels *9,000 7,000 6,300 Undercarriage: front empty – rear dozer – stabilized *9,000 *9,000 7,200
–10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *9,000 *9,000 *9,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *9,000 *9,000 *9,000
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. Lift capacity is calculated with VA cylinder completely extracted. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
12,800 11,100 10,600 6,900 6,100 7,000 4,600 4,200 5,900 3,900 3,500
ft
15.85
20.73
23.52
25.00
25.36
24.70
22.90
41
Page 42
M314 Wheeled Excavator Specifications
Lift Capacities – Variable Adjustable Boom (5028 mm), 2900 mm Industrial Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm 7500 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *4200 *4200 4050 *3500 3400 3100 Undercarriage: front empty – rear dozer – stabilized *4200 *4200 *4200 *3500 *3500 3450
7500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4200 *4200 *4200 *3500 *3500 *3500 Undercarriage: front stabilizer – rear stabilizer – stabilized *4200 *4200 *4200 *3500 *3500 *3500
Undercarriage: front empty – rear dozer – free on wheels *4150 *4150 4050 3950 2800 2600 *3150 2400 2200 Undercarriage: front empty – rear dozer – stabilized *4150 *4150 *4150 3950 *4000 2850 *3150 *3150 2450
6000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4150 *4150 *4150 *4000 *4000 *4000 *3150 *3150 *3150 Undercarriage: front stabilizer – rear stabilizer – stabilized *4150 *4150 *4150 *4000 *4000 *4000 *3150 *3150 *3150
Undercarriage: front empty – rear dozer – free on wheels *4600 4250 3900 3900 2750 2550 2800 1950 1800 Undercarriage: front empty – rear dozer – stabilized *4600 *4600 4350 3900 *4250 2800 2800 *3100 2000
4500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4600 *4600 *4600 *4250 *4250 4200 *3100 *3100 3000 Undercarriage: front stabilizer – rear stabilizer – stabilized *4600 *4600 *4600 *4250 *4250 *4250 *3100 *3100 *3100
Undercarriage: front empty – rear dozer – free on wheels 5800 4000 3600 3750 2650 2400 2700 1900 1750 2550 1800 1650 Undercarriage: front empty – rear dozer – stabilized 5750 *5800 4050 3750 *4600 2700 2700 *3800 1950 2550 *3200 1800
3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5800 *5800 *5800 *4600 *4600 4050 *3800 *3800 2900 *3200 *3200 2750 Undercarriage: front stabilizer – rear stabilizer – stabilized *5800 *5800 *5800 *4600 *4600 *4600 *3800 *3800 3450 *3200 *3200 *3200
Undercarriage: front empty – rear dozer – free on wheels 5450 3700 3350 3650 2500 2300 2650 1850 1700 2450 1700 1550 Undercarriage: front empty – rear dozer – stabilized 5450 *6650 3750 3600 *4900 2550 2650 3950 1900 2450 *3400 1750
1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6650 *6650 5900 *4900 *4900 3900 *3950 *3950 2850 *3400 *3400 2650 Undercarriage: front stabilizer – rear stabilizer – stabilized *6650 *6650 *6650 *4900 *4900 4700 *3950 *3950 3400 *3400 *3400 3150
Undercarriage: front empty – rear dozer – free on wheels 5250 3500 3150 3500 2400 2200 2600 1800 1650 2500 1750 1600 Undercarriage: front empty – rear dozer – stabilized 5250 *6800 3550 3500 *5000 2450 2600 *3800 1850 2500 *3650 1750
0 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6800 *6800 5700 *5000 *5000 3800 *3800 *3800 2800 *3650 *3650 2700 Undercarriage: front stabilizer – rear stabilizer – stabilized *6800 *6800 *6800 *5000 *5000 4550 *3800 *3800 3350 *3650 *3650 3200
Undercarriage: front empty – rear dozer – free on wheels *7350 Undercarriage: front empty – rear dozer – stabilized *7350 *7350 6300 5150 *6300 3500 3450 *4650 2400 2700 *3500 1900
–1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *7350 *7350 *7350 *6300 *6300 5650 *4650 *4650 3750 *3500 *3500 2950 Undercarriage: front stabilizer – rear stabilizer – stabilized *7350 *7350 *7350 *6300 *6300 *6300 *4650 *4650 4500 *3500 *3500 *3500
Undercarriage: front empty – rear dozer – free on wheels *5000 3450 3100 3500 2400 2150 *3200 2250 2050
–3000 mm
Undercarriage: front empty – rear dozer – stabilized *5000 *5000 3500 3500 *3500 2450 *3200 *3200 2300 Undercarriage: front dozer – rear stabilizer – stabilized *5000 *5000 *5000 *3500 *3500 *3500 *3200 *3200 *3200 Undercarriage: front stabilizer – rear stabilizer – stabilized *5000 *5000 *5000 *3500 *3500 *3500 *3200 *3200 *3200
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. Lift capacity is calculated with VA cylinder completely extracted. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
6200 5450 5200 3400 3100 3450 2350 2150 2750 1850 1700
mm
5280
6620
7410
7820
7920
7720
7200
6260
42
Page 43
M314 Wheeled Excavator Specifications
Lift Capacities – Variable Adjustable Boom (16'6"), 9'6" Industrial Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft 25 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *9,200 *9,200 8,700 *7,800 7,800 7,200 Undercarriage: front empty – rear dozer – stabilized *9,200 *9,200 *9,200 *7,800 *7,800 *7,800
25 ft
Undercarriage: front dozer – rear stabilizer – stabilized *9,200 *9,200 *9,200 *7,800 *7,800 *7,800 Undercarriage: front stabilizer – rear stabilizer – stabilized *9,200 *9,200 *9,200 *7,800 *7,800 *7,800
Undercarriage: front empty – rear dozer – free on wheels *9,200 *9,200 8,700 8,500 6,000 5,600 *7,000 5,300 4,900 Undercarriage: front empty – rear dozer – stabilized *9,200 *9,200 *9,200 8,500 *8,500 6,100 *7,000 *7,000 5,400
20 ft
Undercarriage: front dozer – rear stabilizer – stabilized *9,200 *9,200 *9,200 *8,500 *8,500 *8,500 *7,000 *7,000 *7,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *9,200 *9,200 *9,200 *8,500 *8,500 *8,500 *7,000 *7,000 *7,000
Undercarriage: front empty – rear dozer – free on wheels *10,100 9,200 8,400 8,400 5,900 5,500 6,200 4,400 4,000 Undercarriage: front empty – rear dozer – stabilized *10,100 *10,100 9,300 8,400 *9,200 6,000 6,200 *6,800 4,500
15 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,100 *10,100 *10,100 *9,200 *9,200 9,000 *6,800 *6,800 6,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,100 *10,100 *10,100 *9,200 *9,200 *9,200 *6,800 *6,800 *6,800
Undercarriage: front empty – rear dozer – free on wheels 12,500 8,600 7,800 8,100 5,700 5,200 5,900 4,100 3,800 5,600 3,900 3,600 Undercarriage: front empty – rear dozer – stabilized 12,400 *12,600 8,700 8,100 *10,000 5,800 5,800 *8,200 4,200 5,600 *7,000 4,000
10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *12,600 *12,600 *12,600 *10,000 *10,000 8,700 *8,200 *8,200 6,300 *7,000 *7,000 6,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *12,600 *12,600 *12,600 *10,000 *10,000 *10,000 *8,200 *8,200 7,400 *7,000 *7,000 *7,000
Undercarriage: front empty – rear dozer – free on wheels 11,800 8,000 7,200 7,800 5,400 4,900 5,700 4,000 3,600 5,400 3,700 3,400 Undercarriage: front empty – rear dozer – stabilized 11,700 *14,300 8,100 7,800 *10,600 5,500 5,700 8,500 4,100 5,400 *7,500 3,800
5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,300 *14,300 12,800 *10,600 *10,600 8,400 *8,500 *8,500 6,100 *7,500 *7,500 5,800 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,300 *14,300 *14,300 *10,600 *10,600 10,100 *8,500 *8,500 7,300 *7,500 *7,500 6,900
Undercarriage: front empty – rear dozer – free on wheels 11,300 7,500 6,800 7,600 5,200 4,700 5,600 3,900 3,500 5,500 3,800 3,500 Undercarriage: front empty – rear dozer – stabilized 11,300 *14,800 7,700 7,600 *10,800 5,300 5,600 *8,200 4,000 5,500 *8,000 3,900
0 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,800 *14,800 12,300 *10,800 *10,800 8,200 *8,200 *8,200 6,000 *8,000 *8,000 5,900 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,800 *14,800 *14,800 *10,800 *10,800 9,800 *8,200 *8,200 7,200 *8,000 *8,000 7,100
Undercarriage: front empty – rear dozer – free on wheels *16,700 Undercarriage: front empty – rear dozer – stabilized *16,700 *16,700 13,600 11,100 *13,600 7,500 7,400 *10,000 5,200 6,000 *7,700 4,200
–5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *16,700 *16,700 *16,700 *13,600 *13,600 12,100 *10,000 *10,000 8,100 *7,700 *7,700 6,500 Undercarriage: front stabilizer – rear stabilizer – stabilized *16,700 *16,700 *16,700 *13,600 *13,600 *13,600 *10,000 *10,000 9,700 *7,700 *7,700 *7,700
Undercarriage: front empty – rear dozer – free on wheels *10,700 7,500 6,700 *7,300 5,100 4,700 *7,000 5,000 4,600 Undercarriage: front empty – rear dozer – stabilized *10,700 *10,700 7,600 *7,300 *7,300 5,300 *7,000 *7,000 5,100
–10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,700 *10,700 *10,700 *7,300 *7,300 *7,300 *7,000 *7,000 *7,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,700 *10,700 *10,700 *7,300 *7,300 *7,300 *7,000 *7,000 *7,000
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. Lift capacity is calculated with VA cylinder completely extracted. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
13,400 11,700 11,200 7,400 6,700 7,500 5,100 4,600 6,000 4,100 3,800
ft
16.86
21.49
24.21
25.62
25.98
25.33
23.59
20.41
43
Page 44
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (4650 mm), 2200 mm Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *4700 4100 3750 *3000 2950 2700 Undercarriage: front empty – rear dozer – stabilized *4700 *4700 4150 *3000 *3000 *3000
6000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4700 *4700 *4700 *3000 *3000 *3000 Undercarriage: front stabilizer – rear stabilizer – stabilized *4700 *4700 *4700 *3000 *3000 *3000
Undercarriage: front empty – rear dozer – free on wheels *5200 4000 3650 3650 2500 2300 *2800 2250 2050 Undercarriage: front empty – rear dozer – stabilized *5200 *5200 4050 3600 *4300 2550 *2800 *2800 2300
4500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5200 *5200 *5200 *4300 *4300 3900 *2800 *2800 *2800 Undercarriage: front stabilizer – rear stabilizer – stabilized *5200 *5200 *5200 *4300 *4300 *4300 *2800 *2800 *2800
Undercarriage: front empty – rear dozer – free on wheels 5500 3750 3400 3550 2450 2200 *2800 1950 1800 Undercarriage: front empty – rear dozer – stabilized 5500 *6000 3800 3550 *4700 2500 *2800 *2800 2000
3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6000 *6000 5950 *4700 *4700 3800 *2800 *2800 *2800 Undercarriage: front stabilizer – rear stabilizer – stabilized *6000 *6000 *6000 *4700 *4700 4600 *2800 *2800 *2800
Undercarriage: front empty – rear dozer – free on wheels 5250 3500 3150 3450 2300 2100 2750 1850 1700 Undercarriage: front empty – rear dozer – stabilized 5200 *6650 3550 3400 *4900 2350 2700 *3000 1900
1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6650 *6650 5700 *4900 *4900 3700 *3000 *3000 2950 Undercarriage: front stabilizer – rear stabilizer – stabilized *6650 *6650 *6650 *4900 *4900 4450 *3000 *3000 *3000
Undercarriage: front empty – rear dozer – free on wheels *5300 *5300 *5300 5050 3350 3000 3350 2250 2050 2850 1900 1750 Undercarriage: front empty – rear dozer – stabilized *5300 *5300 *5300 5050 *6600 3400 3350 *4750 2300 2800 *3450 1950
0 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5300 *5300 *5300 *6600 *6600 5500 *4750 *4750 3600 *3450 *3450 3050 Undercarriage: front stabilizer – rear stabilizer – stabilized *5300 *5300 *5300 *6600 *6600 *6600 *4750 *4750 4350 *3450 *3450 *3450
Undercarriage: front empty – rear dozer – free on wheels *7900 6150 5350 5050 3300 2950 3350 2250 2050 3250 2150 1950 Undercarriage: front empty – rear dozer – stabilized *7900 *7900 6200 5000 *5750 3350 3300 *3900 2300 3200 *3650 2200
–1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *7900 *7900 *7900 *5750 *5750 5450 *3900 *3900 3600 *3650 *3650 3500 Undercarriage: front stabilizer – rear stabilizer – stabilized *7900 *7900 *7900 *5750 *5750 *5750 *3900 *3900 *3900 *3650 *3650 *3650
Undercarriage: front empty – rear dozer – free on wheels *5100 *5100 *5100 *3700 3400 3050 *2900 *2900 2650 Undercarriage: front empty – rear dozer – stabilized *5100 *5100 *5100 *3700 *3700 3450 *2900 *2900 *2900
–3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5100 *5100 *5100 *3700 *3700 *3700 *2900 *2900 *2900 Undercarriage: front stabilizer – rear stabilizer – stabilized *5100 *5100 *5100 *3700 *3700 *3700 *2900 *2900 *2900
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
mm
5460
6400
6870
6990
6760
6150
5010
44
Page 45
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (15'3"), 7'3" Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *10,200 8,800 8,000 *6,700 6,700 6,100 Undercarriage: front empty – rear dozer – stabilized *10,200 *10,200 8,900 *6,700 *6,700 *6,700
20 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,200 *10,200 *10,200 *6,700 *6,700 *6,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,200 *10,200 *10,200 *6,700 *6,700 *6,700
Undercarriage: front empty – rear dozer – free on wheels *11,300 8,600 7,800 7,800 5,400 4,900 *6,200 5,000 4,600 Undercarriage: front empty – rear dozer – stabilized *11,300 *11,300 8,700 7,800 *8,700 5,500 *6,200 *6,200 5,100
15 ft
Undercarriage: front dozer – rear stabilizer – stabilized *11,300 *11,300 *11,300 *8,700 *8,700 8,400 *6,200 *6,200 *6,200 Undercarriage: front stabilizer – rear stabilizer – stabilized *11,300 *11,300 *11,300 *8,700 *8,700 *8,700 *6,200 *6,200 *6,200
Undercarriage: front empty – rear dozer – free on wheels 11,900 8,100 7,300 7,600 5,200 4,800 *6,200 4,300 3,900 Undercarriage: front empty – rear dozer – stabilized 11,800 *13,000 8,200 7,600 *10,200 5,300 *6,200 *6,200 4,400
10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *13,000 *13,000 12,800 *10,200 *10,200 8,200 *6,200 *6,200 *6,200 Undercarriage: front stabilizer – rear stabilizer – stabilized *13,000 *13,000 *13,000 *10,200 *10,200 9,900 *6,200 *6,200 *6,200
Undercarriage: front empty – rear dozer – free on wheels 11,300 7,500 6,800 7,400 5,000 4,600 6,000 4,100 3,700 Undercarriage: front empty – rear dozer – stabilized 11,200 *14,400 7,700 7,400 *10,600 5,100 6,000 *6,600 4,200
5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,400 *14,400 12,200 *10,600 *10,600 8,000 *6,600 *6,600 6,500 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,400 *14,400 *14,400 *10,600 *10,600 9,600 *6,600 *6,600 *6,600
Undercarriage: front empty – rear dozer – free on wheels *12,200 *12,200 11,500 10,900 7,200 6,500 7,200 4,800 4,400 6,200 4,200 3,800 Undercarriage: front empty – rear dozer – stabilized *12,200 *12,200 *12,200 10,900 *14,400 7,300 7,200 *10,300 5,000 6,200 *7,600 4,300
0 ft
Undercarriage: front dozer – rear stabilizer – stabilized *12,200 *12,200 *12,200 *14,400 *14,400 11,900 *10,300 *10,300 7,800 *7,600 *7,600 6,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *12,200 *12,200 *12,200 *14,400 *14,400 *14,400 *10,300 *10,300 9,400 *7,600 *7,600 *7,600
Undercarriage: front empty – rear dozer – free on wheels *17,200 13,200 11,500 10,800 7,100 6,400 7,200 4,800 4,400 7,100 4,800 4,400 Undercarriage: front empty – rear dozer – stabilized *17,200 *17,200 13,300 10,800 *12,400 7,300 7,200 *8,200 4,900 7,100 *8,100 4,900
–5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *17,200 *17,200 *17,200 *12,400 *12,400 11,800 *8,200 *8,200 7,800 *8,100 *8,100 7,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *17,200 *17,200 *17,200 *12,400 *12,400 *12,400 *8,200 *8,200 *8,200 *8,100 *8,100 *8,100
Undercarriage: front empty – rear dozer – free on wheels *10,900 *10,900 *10,900 *7,700 7,300 6,600 *6,300 *6,300 6,000 Undercarriage: front empty – rear dozer – stabilized *10,900 *10,900 *10,900 *7,700 *7,700 7,500 *6,300 *6,300 *6,300
–10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,900 *10,900 *10,900 *7,700 *7,700 *7,700 *6,300 *6,300 *6,300 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,900 *10,900 *10,900 *7,700 *7,700 *7,700 *6,300 *6,300 *6,300
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
ft
17.62
20.87
22.54
22.93
22.18
20.14
16.27
45
Page 46
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (4650 mm), 2500 mm Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *3100 *3100 *3100 Undercarriage: front empty – rear dozer – stabilized *3100 *3100 *3100
7500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *3100 *3100 *3100 Undercarriage: front stabilizer – rear stabilizer – stabilized *3100 *3100 *3100
Undercarriage: front empty – rear dozer – free on wheels *2600 *2600 2450 Undercarriage: front empty – rear dozer – stabilized *2600 *2600 *2600
6000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *2600 *2600 *2600 Undercarriage: front stabilizer – rear stabilizer – stabilized *2600 *2600 *2600
Undercarriage: front empty – rear dozer – free on wheels *4750 4050 3700 3700 2550 2350 *2450 2100 1950 Undercarriage: front empty – rear dozer – stabilized *4750 *4750 4100 3650 *4100 2600 *2450 *2450 2150
4500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4750 *4750 *4750 *4100 *4100 3950 *2450 *2450 *2450 Undercarriage: front stabilizer – rear stabilizer – stabilized *4750 *4750 *4750 *4100 *4100 *4100 *2450 *2450 *2450
Undercarriage: front empty – rear dozer – free on wheels *8800 7100 6300 5600 3800 3450 3600 2450 2250 *2450 1850 1700 Undercarriage: front empty – rear dozer – stabilized *8800 *8800 7200 5550 *5800 3850 3550 *4600 2500 *2450 *2450 1900
3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *8800 *8800 *8800 *5800 *5800 *5800 *4600 *4600 3850 *2450 *2450 *2450 Undercarriage: front stabilizer – rear stabilizer – stabilized *8800 *8800 *8800 *5800 *5800 *5800 *4600 *4600 *4600 *2450 *2450 *2450
Undercarriage: front empty – rear dozer – free on wheels 5300 3550 3200 3450 2350 2150 *2600 1750 1600 Undercarriage: front empty – rear dozer – stabilized 5300 *6600 3600 3450 *4850 2400 2600 *2600 1800
1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6600 *6600 5750 *4850 *4850 3750 *2600 *2600 *2600 Undercarriage: front stabilizer – rear stabilizer – stabilized *6600 *6600 *6600 *4850 *4850 4500 *2600 *2600 *2600
Undercarriage: front empty – rear dozer – free on wheels *5550 *5550 5350 5100 3350 3050 3350 2250 2050 2700 1800 1650 Undercarriage: front empty – rear dozer – stabilized *5550 *5550 *5550 5100 *6700 3450 3350 *4850 2300 2650 *2950 1850
0 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5550 *5550 *5550 *6700 *6700 5550 *4850 *4850 3650 *2950 *2950 2900 Undercarriage: front stabilizer – rear stabilizer – stabilized *5550 *5550 *5550 *6700 *6700 *6700 *4850 *4850 4400 *2950 *2950 *2950
Undercarriage: front empty – rear dozer – free on wheels *8550 6150 5350 5050 3300 3000 3350 2250 2050 3000 2050 1850 Undercarriage: front empty – rear dozer – stabilized *8550 *8550 6200 5050 *6000 3400 3300 *4200 2300 3000 *3600 2100
–1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *8550 *8550 *8550 *6000 *6000 5500 *4200 *4200 3600 *3600 *3600 3250 Undercarriage: front stabilizer – rear stabilizer – stabilized *8550 *8550 *8550 *6000 *6000 *6000 *4200 *4200 *4200 *3600 *3600 *3600
Undercarriage: front empty – rear dozer – free on wheels *5900 *5900 5500 *4250 3350 3050 *3050 2650 2400 Undercarriage: front empty – rear dozer – stabilized *5900 *5900 *5900 *4250 *4250
–3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *5900 *5900 *5900 *4250 *4250 *4250 *3050 *3050 *3050 Undercarriage: front stabilizer – rear stabilizer – stabilized *5900 *5900 *5900 *4250 *4250 *4250 *3050 *3050 *3050
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
3450 *3050 *3050 2700
mm
4210
5820
6700
7160
7270
7050
6470
5400
46
Page 47
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (15'3"), 8'2" Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *5,700 *5,700 5,600 Undercarriage: front empty – rear dozer – stabilized *5,700 *5,700 *5,700
20 ft
Undercarriage: front dozer – rear stabilizer – stabilized *5,700 *5,700 *5,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *5,700 *5,700 *5,700
Undercarriage: front empty – rear dozer – free on wheels *10,300 8,700 8,000 7,900 5,500 5,000 *5,400 4,700 4,300 Undercarriage: front empty – rear dozer – stabilized *10,300 *10,300 8,900 7,900 *8,700 5,600 *5,400 *5,400 4,800
15 ft
Undercarriage: front dozer – rear stabilizer – stabilized *10,300 *10,300 *10,300 *8,700 *8,700 8,500 *5,400 *5,400 *5,400 Undercarriage: front stabilizer – rear stabilizer – stabilized *10,300 *10,300 *10,300 *8,700 *8,700 *8,700 *5,400 *5,400 *5,400
Undercarriage: front empty – rear dozer – free on wheels *18,900 15,400 15,400 12,000 8,200 7,500 7,700 5,300 4,900 *5,400 4,100 3,700 Undercarriage: front empty – rear dozer – stabilized *18,900 *18,900 15,500 12,000 *12,600 8,400 7,700 *10,000 5,400 *5,400 *5,400 4,200
10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *18,900 *18,900 *18,900 *12,600 *12,600 *12,600 *10,000 *10,000 8,300 *5,400 *5,400 *5,400 Undercarriage: front stabilizer – rear stabilizer – stabilized *18,900 *18,900 *18,900 *12,600 *12,600 *12,600 *10,000 *10,000 9,900 *5,400 *5,400 *5,400
Undercarriage: front empty – rear dozer – free on wheels *11,100 *11,100 *11,100 11,400 7,600 6,900 7,500 5,100 4,600 *5,700 3,900 3,500 Undercarriage: front empty – rear dozer – stabilized *11,100 *11,100 *11,100 11,400 *14,300 7,800 7,400 *10,500 5,200 *5,700 *5,700 4,000
5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *11,100 *11,100 *11,100 *14,300 *14,300 12,400 *10,500 *10,500 8,000 *5,700 *5,700 *5,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *11,100 *11,100 *11,100 *14,300 *14,300 *14,300 *10,500 *10,500 9,700 *5,700 *5,700 *5,700
Undercarriage: front empty – rear dozer – free on wheels *12,800 *12,800 11,600 11,000 7,300 6,500 7,300 4,900 4,400 5,900 4,000 3,600 Undercarriage: front empty – rear dozer – stabilized *12,800 *12,800 *12,800 11,000 *14,500 7,400 7,200 *10,500 5,000 5,900 *6,500 4,100
0 ft
Undercarriage: front dozer – rear stabilizer – stabilized *12,800 *12,800 *12,800 *14,500 *14,500 11,900 *10,500 *10,500 7,800 *6,500 *6,500 6,400 Undercarriage: front stabilizer – rear stabilizer – stabilized *12,800 *12,800 *12,800 *14,500 *14,500 *14,500 *10,500 *10,500 9,500 *6,500 *6,500 *6,500
Undercarriage: front empty – rear dozer – free on wheels *18,600 13,200 11,600 10,900 7,100 6,400 7,200 4,800 4,400 6,700 4,500 4,100 Undercarriage: front empty – rear dozer – stabilized *18,600 *18,600 13,400 10,800 *13,000 7,300 7,200 *9,000 4,900 6,600 *7,900 4,600
–5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *18,600 *18,600 *18,600 *13,000 *13,000 11,800 *9,000 *9,000 7,800 *7,900 *7,900 7,200 Undercarriage: front stabilizer – rear stabilizer – stabilized *18,600 *18,600 *18,600 *13,000 *13,000 *13,000 *9,000 *9,000 *9,000 *7,900 *7,900 *7,900
Undercarriage: front empty – rear dozer – free on wheels *12,700 *12,700 11,800 *9,000 7,300 6,600 *6,600 5,900 5,300 Undercarriage: front empty – rear dozer – stabilized *12,700 *12,700 *12,700 *9,000 *9,000 7,400 *6,600 *6,600 6,000
–10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *12,700 *12,700 *12,700 *9,000 *9,000 *9,000 *6,600 *6,600 *6,600 Undercarriage: front stabilizer – rear stabilizer – stabilized *12,700 *12,700 *12,700 *9,000 *9,000 *9,000 *6,600 *6,600 *6,600
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
ft
18.83
21.88
23.46
23.85
23.13
21.19
17.59
47
Page 48
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (4650 mm), 2900 mm Industrial Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *3150 2800 2600 Undercarriage: front empty – rear dozer – stabilized *3150 *3150 2850
6000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *3150 *3150 *3150 Undercarriage: front stabilizer – rear stabilizer – stabilized *3150 *3150 *3150
Undercarriage: front empty – rear dozer – free on wheels 3900 2800 2550 *3100 2250 2100 Undercarriage: front empty – rear dozer – stabilized 3900 *4300 2850 *3100 *3100 2300
4500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *4300 *4300 4200 *3100 *3100 *3100 Undercarriage: front stabilizer – rear stabilizer – stabilized *4300 *4300 *4300 *3100 *3100 *3100
Undercarriage: front empty – rear dozer – free on wheels *8250 7550 6750 *5750 4050 3700 3800 2700 2500 2850 2000 1850 Undercarriage: front empty – rear dozer – stabilized *8250 *8250 7650 *5750 *5750 4150 3800 *4650 2750 2850 *3200 2050
3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *8250 *8250 *8250 *5750 *5750 *5750 *4650 *4650 4100 *3200 *3200 3050 Undercarriage: front stabilizer – rear stabilizer – stabilized *8250 *8250 *8250 *5750 *5750 *5750 *4650 *4650 *4650 *3200 *3200 *3200
Undercarriage: front empty – rear dozer – free on wheels 5600 3800 3450 3700 2550 2350 2750 1900 1750 Undercarriage: front empty – rear dozer – stabilized 5550 *6650 3900 3650 *5000 2650 2700 *3450 1950
1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *6650 *6650 6000 *5000 *5000 3950 *3450 *3450 2950 Undercarriage: front stabilizer – rear stabilizer – stabilized *6650 *6650 *6650 *5000 *5000 4700 *3450 *3450 3450
Undercarriage: front empty – rear dozer – free on wheels *7300 6450 5700 5350 3650 3300 3600 2500 2250 2800 1950 1800 Undercarriage: front empty – rear dozer – stabilized *7300 *7300 6550 5350 *7000 3700 3550 *5100 2550 2800 *4000 2000
0 mm
Undercarriage: front dozer – rear stabilizer – stabilized *7300 *7300 *7300 *7000 *7000 5800 *5100 *5100 3850 *4000 *4000 3000 Undercarriage: front stabilizer – rear stabilizer – stabilized *7300 *7300 *7300 *7000 *7000 *7000 *5100 *5100 4600 *4000 *4000 3550
Undercarriage: front empty – rear dozer – free on wheels *9550 6400 5650 5300 3550 3200 3550 2450 2250 3100 2150 1950 Undercarriage: front empty – rear dozer – stabilized *9550 *9550 6500 5250 *6550 3600 3500 *4700 2500 3100 *4050 2200
–1500 mm
Undercarriage: front dozer – rear stabilizer – stabilized *9550 *9550 *9550 *6550 *6550 5700 *4700 *4700 3800 *4050 *4050 3300 Undercarriage: front stabilizer – rear stabilizer – stabilized *9550 *9550 *9550 *6550 *6550 *6550 *4700 *4700 4550 *4050 *4050 3950
Undercarriage: front empty – rear dozer – free on wheels *7200 6500 5700 *5150 3550 3250 *3800 2700 2450 Undercarriage: front empty – rear dozer – stabilized *7200 *7200 6550 *5150 *5150 3650 *3800 *3800 2750
–3000 mm
Undercarriage: front dozer – rear stabilizer – stabilized *7200 *7200 *7200 *5150 *5150 *5150 *3800 *3800 *3800 Undercarriage: front stabilizer – rear stabilizer – stabilized *7200 *7200 *7200 *5150 *5150 *5150 *3800 *3800 *3800
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
mm
6000
6860
7310
7420
7200
6630
5600
48
Page 49
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (15'3"), 9'6" Industrial Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *7,000 6,300 5,800 Undercarriage: front empty – rear dozer – stabilized *7,000 *7,000 6,400
20 ft
Undercarriage: front dozer – rear stabilizer – stabilized *7,000 *7,000 *7,000 Undercarriage: front stabilizer – rear stabilizer – stabilized *7,000 *7,000 *7,000
Undercarriage: front empty – rear dozer – free on wheels 8,400 6,000 5,500 *6,800 5,000 4,600 Undercarriage: front empty – rear dozer – stabilized 8,400 *9,300 6,100 *6,800 *6,800 5,100
15 ft
Undercarriage: front dozer – rear stabilizer – stabilized *9,300 *9,300 9,000 *6,800 *6,800 *6,800 Undercarriage: front stabilizer – rear stabilizer – stabilized *9,300 *9,300 *9,300 *6,800 *6,800 *6,800
Undercarriage: front empty – rear dozer – free on wheels *17,700 16,300 14,500 *12,400 8,800 8,000 8,200 5,800 5,300 6,300 4,400 4,100 Undercarriage: front empty – rear dozer – stabilized *17,700 *17,700 16,500 *12,400 *12,400 8,900 8,200 *10,100 5,900 6,300 *7,000 4,500
10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *17,700 *17,700 *17,700 *12,400 *12,400 *12,400 *10,100 *10,100 8,800 *7,000 *7,000 6,700 Undercarriage: front stabilizer – rear stabilizer – stabilized *17,700 *17,700 *17,700 *12,400 *12,400 *12,400 *10,100 *10,100 *10,100 *7,000 *7,000 *7,000
Undercarriage: front empty – rear dozer – free on wheels 12,000 8,200 7,500 7,900 5,600 5,100 6,000 4,200 3,900 Undercarriage: front empty – rear dozer – stabilized 12,000 *14,400 8,400 7,900 *10,900 5,700 6,000 *7,600 4,300
5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *14,400 *14,400 13,000 *10,900 *10,900 8,500 *7,600 *7,600 6,500 Undercarriage: front stabilizer – rear stabilizer – stabilized *14,400 *14,400 *14,400 *10,900 *10,900 10,200 *7,600 *7,600 *7,600
Undercarriage: front empty – rear dozer – free on wheels *16,700 13,900 12,300 11,600 7,800 7,100 7,700 5,400 4,900 6,200 4,300 4,000 Undercarriage: front empty – rear dozer – stabilized *16,700 *16,700 14,100 11,500 *15,200 8,000 7,700 *11,100 5,500 6,100 *8,900 4,400
0 ft
Undercarriage: front dozer – rear stabilizer – stabilized *16,700 *16,700 *16,700 *15,200 *15,200 12,500 *11,100 *11,100 8,300 *8,900 *8,900 6,600 Undercarriage: front stabilizer – rear stabilizer – stabilized *16,700 *16,700 *16,700 *15,200 *15,200 *15,200 *11,100 *11,100 9,900 *8,900 *8,900 7,900
Undercarriage: front empty – rear dozer – free on wheels *20,700 13,800 12,200 11,400 7,600 6,900 7,600 5,300 4,800 6,800 4,700 4,300 Undercarriage: front empty – rear dozer – stabilized *20,700 *20,700 14,000 11,300 *14,200 7,800 7,600 *10,200 5,400 6,800 *8,900 4,800
–5 ft
Undercarriage: front dozer – rear stabilizer – stabilized *20,700 *20,700 *20,700 *14,200 *14,200 12,300 *10,200 *10,200 8,200 *8,900 *8,900 7,300 Undercarriage: front stabilizer – rear stabilizer – stabilized *20,700 *20,700 *20,700 *14,200 *14,200 *14,200 *10,200 *10,200 9,800 *8,900 *8,900 8,800
Undercarriage: front empty – rear dozer – free on wheels *15,500 13,900 12,300 *11,000 7,700 7,000 *8,300 6,000 5,500 Undercarriage: front empty – rear dozer – stabilized *15,500 *15,500 14,100 *11,000 *11,000 7,800 *8,300 *8,300 6,100
–10 ft
Undercarriage: front dozer – rear stabilizer – stabilized *15,500 *15,500 *15,500 *11,000 *11,000 *11,000 *8,300 *8,300 *8,300 Undercarriage: front stabilizer – rear stabilizer – stabilized *15,500 *15,500 *15,500 *11,000 *11,000 *11,000 *8,300 *8,300 *8,300
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
ft
19.42
22.41
23.95
24.34
23.62
21.72
18.24
49
Page 50
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (4400 mm), 2200 mm Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *4400 4200 3750 *3000 *3000 *3000
6000 mm
Undercarriage: front bucket rest – rear dozer – stabilized *4400 *4400 4250 *3000 *3000 *3000 Undercarriage: front empty – rear dozer – free on wheels *5250 4150 3700 *3250 2600 2300 *2800 2550 2250
4500 mm
Undercarriage: front bucket rest – rear dozer – stabilized *5250 *5250 4150 *3250 *3250 2600 *2800 *2800 2550 Undercarriage: front empty – rear dozer – free on wheels *9000 7300 6350 *6000 3900 3450 4500 2550 2250 *2850 2200 1950
3000 mm
Undercarriage: front bucket rest – rear dozer – stabilized *9000 *9000 7350 *6000 *6000 3950 4500 *4750 2550 *2850 *2850 2200 Undercarriage: front empty – rear dozer – free on wheels *5750 *5750 5650 *6700 3650 3250 4400 2450 2150 *3050 2050 1850
1500 mm
Undercarriage: front bucket rest – rear dozer – stabilized *5750 *5750 *5750 *6700 *6700 3700 4400 *4950 2450 *3050 *3050 2100 Undercarriage: front empty – rear dozer – free on wheels *7200 6400 5500 *6700 3500 3100 4350 2350 2100 *3500 2150 1900
0 mm
Undercarriage: front bucket rest – rear dozer – stabilized *7200 *7200 6400 *6700 *6700 3550 4300 *4750 2400 *3500 *3500 2150 Undercarriage: front empty – rear dozer – free on wheels *8200 6450 5500 *5800 3500 3050 *3900 2450 2150
–1500 mm
Undercarriage: front bucket rest – rear dozer – stabilized *8200 *8200 6450 *5800 *5800 3500 *3900 *3900 2450 Undercarriage: front empty – rear dozer – free on wheels *5000 *5000 *5000 *3250 *3250 3150 *3050 *3050 *3050
–3000 mm
Undercarriage: front bucket rest – rear dozer – stabilized *5000 *5000 *5000 *3250 *3250 *3250 *3050 *3050 *3050
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
mm
5090
6090
6590
6710
6470
5830
4600
Lift Capacities – One-Piece Boom (14'5"), 7'3" Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *9,300 9,000 8,100 *6,700 *6,700 *6,700
20 ft
Undercarriage: front bucket rest – rear dozer – stabilized *9,300 *9,300 9,100 *6,700 *6,700 *6,700 Undercarriage: front empty – rear dozer – free on wheels *11,400 8,900 7,900 *6,200 5,600 5,000
15 ft
Undercarriage: front bucket rest – rear dozer – stabilized *11,400 *11,400 9,000 *6,200 *6,200 5,700 Undercarriage: front empty – rear dozer – free on wheels *19,300 15,800 13,700 *13,000 8,500 7,500 9,700 5,500 4,900 *6,200 4,800 4,300
10 ft
Undercarriage: front bucket rest – rear dozer – stabilized *19,300 *19,300 15,800 *13,000 *13,000 8,500 9,700 *10,400 5,500 *6,200 *6,200 4,900 Undercarriage: front empty – rear dozer – free on wheels *14,000 *14,000 12,200 *14,500 7,900 7,000 9,500 5,300 4,700 *6,700 4,600 4,000
5 ft
Undercarriage: front bucket rest – rear dozer – stabilized *14,000 *14,000 *14,000 *14,500 *14,500 8,000 9,500 *10,700 5,300 *6,700 *6,700 4,600 Undercarriage: front empty – rear dozer – free on wheels *16,600 13,800 11,800 *14,500 7,600 6,700 9,300 5,100 4,500 *7,800 4,700 4,200
0 ft
Undercarriage: front bucket rest – rear dozer – stabilized *16,600 *16,600 13,800 14,500 *14,500 7,600 9,300 *10,300 5,100 *7,800 *7,800 4,700 Undercarriage: front empty – rear dozer – free on wheels *17,800 13,800 11,800 *12,500 7,500 6,600 *8,600 5,400 4,800
–5 ft
Undercarriage: front bucket rest – rear dozer – stabilized *17,800 *17,800 13,800 *12,500 *12,500 7,500 *8,600 *8,600 5,500 Undercarriage: front empty – rear dozer – free on wheels *10,600 *10,600 *10,600 *6,600 *6,600 *6,600
–10 ft
Undercarriage: front bucket rest – rear dozer – stabilized *10,600 *10,600 *10,600 *6,600 *6,600 *6,600
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
ft
16.40
19.85
21.59
22.01
21.23
19.09
14.93
50
Page 51
M314 Wheeled Excavator Specifications
Lift Capacities – One-Piece Boom (4400 mm), 2500 mm Stick
All values are in kg, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 3300 kg, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
3000 mm 4500 mm 6000 mm
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *4050 *4050 3850 *2600 *2600 *2600
6000 mm
Undercarriage: front bucket rest – rear dozer – stabilized *4050 *4050 *4050 *2600 *2600 *2600 Undercarriage: front empty – rear dozer – free on wheels *4650 4200 3750 *3600 2650 2350 *2450 2350 2100
4500 mm
Undercarriage: front bucket rest – rear dozer – stabilized *4650 *4650 4200 *3600 *3600 2650 *2450 *2450 2400 Undercarriage: front empty – rear dozer – free on wheels *8450 7500 6500 *5800 4000 3550 4550 2550 2300 *2450 2050 1850
3000 mm
Undercarriage: front bucket rest – rear dozer – stabilized *8450 *8450 7500 *5800 *5800 4000 4550 *4650 2600 *2450 *2450 2100 Undercarriage: front empty – rear dozer – free on wheels *7650 6750 5800 *6600 3750 3300 4450 2450 2200 *2600 1950 1750
1500 mm
Undercarriage: front bucket rest – rear dozer – stabilized *7650 *7650 6750 *6600 *6600 3750 4400 *4900 2500 *2600 *2600 2000 Undercarriage: front empty – rear dozer – free on wheels *7400 6450 5550 *6800 3550 3100 4350 2400 2100 *3000 2000 1800
0 mm
Undercarriage: front bucket rest – rear dozer – stabilized *7400 *7400 6500 *6800 *6800 3550 4350 *4850 2400 *3000 *3000 2050 Undercarriage: front empty – rear dozer – free on wheels *8850 6450 5500 *6050 3500 3050 *4100 2350 2100 *3800 2300 2050
–1500 mm
Undercarriage: front bucket rest – rear dozer – stabilized *8850 *8850 6450 *6050 *6050 3500 *4100 *4100 2400 *3800 *3800 2300 Undercarriage: front empty – rear dozer – free on wheels *5900 *5900 5650 *4050 3550 3150 *3250 3100 2700
–3000 mm
Undercarriage: front bucket rest – rear dozer – stabilized *5900 *5900 *5900 *4050 *4050 3550 *3250 *3250 3100
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
mm
5450
6400
6870
6990
6760
6150
5010
Lift Capacities – One-Piece Boom (14'5"), 8'2" Stick
All values are in lb, work tool: none, bucket cylinder and bucket linkage installed, counterweight: 7,280 lb, heavy lift function on.
Load at maximum reach (sticknose/bucket pin) Load over front Load over rear Load over side Load point height
10 ft 15 ft 20 ft
Undercarriage configuration
Undercarriage: front empty – rear dozer – free on wheels *8,800 *8,800 8,200 *5,800 *5,800 *5,800
20 ft
Undercarriage: front bucket rest – rear dozer – stabilized *8,800 *8,800 *8,800 *5,800 *5,800 *5,800 Undercarriage: front empty – rear dozer – free on wheels *10,100 9,100 8,100 *7,400 5,700 5,100 *5,400 5,300 4,700
15 ft
Undercarriage: front bucket rest – rear dozer – stabilized *10,100 *10,100 9,100 *7,400 *7,400 5,700 *5,400 *5,400 5,300 Undercarriage: front empty – rear dozer – free on wheels *18,100 16,200 14,100 *12,500 8,600 7,600 9,800 5,500 4,900 *5,400 4,600 4,100
10 ft
Undercarriage: front bucket rest – rear dozer – stabilized *18,100 *18,100 16,200 *12,500 *12,500 8,600 9,800 *10,100 5,600 *5,400 *5,400 4,600 Undercarriage: front empty – rear dozer – free on wheels *18,600 14,500 12,500 *14,300 8,000 7,100 9,600 5,300 4,700 *5,800 4,300 3,900
5 ft
Undercarriage: front bucket rest – rear dozer – stabilized *18,600 *18,600 14,600 *14,300 *14,300 8,100 9,500 *10,700 5,300 *5,800 *5,800 4,400 Undercarriage: front empty – rear dozer – free on wheels *17,100 13,900 11,900 14,600 7,700 6,700 9,400 5,100 4,600 *6,600 4,500 3,900
0 ft
Undercarriage: front bucket rest – rear dozer – stabilized *17,100 *17,100 13,900 14,600 *14,700 7,700 9,300 *10,500 5,200 *6,600 *6,600 4,500 Undercarriage: front empty – rear dozer – free on wheels *19,100 13,800 11,900 *13,100 7,500 6,600 *8,600 5,100 4,500 *8,400 5,100 4,500
–5 ft
Undercarriage: front bucket rest – rear dozer – stabilized *19,100 *19,100 13,900 *13,100 *13,100 7,600 *8,600 *8,600 5,100 *8,400 *8,400 5,100 Undercarriage: front empty – rear dozer – free on wheels *12,600 *12,600 12,100 *8,500 7,700 6,800 *7,000 6,900 6,100
–10 ft
Undercarriage: front bucket rest – rear dozer – stabilized *12,600 *12,600 *12,600 *8,500 *8,500 7,700 *7,000 *7,000 6,900
* Limited by hydraulic rather than tipping load.
Oscillating axle needs to be locked. Weight of all lifting accessories must be subtracted from the lifting capacities. All lift capacities calculated and rated per ISO 10567:2007. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Heavy Lift Function ON. Lifting capacities are based on the machine standing on a firm uniform supporting surface. The load point is the center line of the bucket pivot mounting pin on the stick. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.
Always refer to the appropriate Operation and Maintenance Manual for specific product information.
ft
17.62
20.87
22.51
22.93
22.18
20.14
16.27
51
Page 52
M314 Standard and Optional Equipment

Standard and Optional Equipment

Standard and optional equipment may vary. Consult your Cat dealer for details.
ENGINE
Cat C3.6 Single Turbo diesel engine (meets Tier 4 Final/Stage V emission standards)
Power mode selector
One-touch low idle with automatic engine speed control
Automatic engine idle shutdown
52° C (125° F) high-ambient coolingcapacity
Cold starting capability for –18° C (0° F)
Double element air lter with integratedprecleaner
Electric fuel priming pump
Engine driven fan with uid temperature controlled variable fan speed
Biodiesel capability up to B20
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
HYDRAULIC SYSTEM
Boom, stick and bucket drift reductionvalves
Boom/stick lowering check valves
Overload warning
Electronic main control valve
Automatic hydraulic oil warm up
Element type main hydraulic lter
One-slider joysticks
Two-slider joysticks
Advanced Tool Control (one/two way high-pressure ow)
Second high pressure auxiliary circuit (one/two way high-pressure ow)
Medium pressure auxiliary circuit (one/two way medium-pressure ow)
Heavy lift mode
Quick coupler circuit for Cat Pin Grabber and CW-type coupler
SmartBoom™
Ride control
Cat TRS support
Joystick steering
Separate dedicated swing pump
Automatic swing brake
Cat BIO HYDO Advanced biodegradable hydraulic oil
Adjustable hydraulic aggressiveness
Electronic pattern changer
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
(continued on next page)
52
Page 53
M314 Standard and Optional Equipment
Standard and Optional Equipment (continued)
Standard and optional equipment may vary. Consult your Cat dealer for details.
UNDERCARRIAGE AND STRUCTURES
All wheel drive
Automatic brake/axle lock
Creeper speed
Electronic swing and travel lock
Heavy-duty axles, advanced disc brake system and travel motor, adjustable braking force
Oscillating front axle, lockable, withremote greasing point
9.00-20.16 PR, dual tires
(1)
10.00-20 16 PR, dual tires
10.00-20, dual, solid rubber tires
Steps with tool box in undercarriage (leftand right)
Two-piece drive shaft
Two speed hydrostatic transmission
Rear blade (radial) undercarriage
Rear blade (radial) with bucket rest undercarriage
(1)
(2)
Rear blade (radial)/front outrigger undercarriage
Rear outrigger/front blade (radial) undercarriage
Rear outrigger/front outrigger undercarriage
Fenders, front and rear, synthetic
Fenders, front and rear, steel
Travel restraint bracket for grapple/clamshell
(3)
(3)
(1)
(2)
3300 kg (7275 lb) counterweight
(1)
Available in South Korea only.
(2)
Available in Europe only.
(3)
Not available in South Korea.
(4)
Available in Europe, Australia and New Zealand only.
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
BOOM, STICKS AND LINKAGES
4650 mm (15'3'') One-Piece Boom
4400 mm (14'5'') One-Piece Boom
(4)
(1)
5028 mm (16'6") Variable Adjustableboom
2200 mm (7'3") stick
2500 mm (8'2") stick
2900 mm (9'6") Drop Nose stick withoutbucket linkage
(2)
Bucket linkage, 312-family with liftingeye
Bucket linkage, 312-family without liftingeye
(2)
ELECTRICAL SYSTEM
LED lights on boom and cab
LED lights on chassis (left-hand, right-hand) and counterweight
Programmable time-delay LED workinglights
Roading and indicator lights, frontandrear
Maintenance free batteries
Centralized electrical disconnect switch
Electrical refueling pump
(1)
Available in South Korea only.
(2)
Available in Europe only.
(4)
Available in Europe, Australia and New Zealand only.
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
(continued on next page)
53
Page 54
M314 Standard and Optional Equipment
Standard and Optional Equipment (continued)
Standard and optional equipment may vary. Consult your Cat dealer for details.
SERVICE AND MAINTENANCE
Sampling ports for Scheduled Oil Sampling (S·O·S
Automatic lubrication system for implement and swing system*
SAFETY AND SECURITY
Rear and right-side-view cameras
360° visibility
Wide angle mirrors
Travel alarm
Signal/warning horn
Rotating beacon on cab and chassis
Cat Asset tracker
Neutral lever (lock out) for all controls
Ground-level accessible secondary engine shutoff switch in cab
Bluetooth
Anti-skid plate and countersunk bolts onservice platform
®
receiver
SM
)
Standard Optional
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
TECHNOLOGY
Cat Product Link™
Remote Flash capability
Remote Troubleshoot capability
Standard Optional
ü
ü
ü
54
Page 55

Dealer Installed Kits and Attachments

Attachments may vary. Consult your Cat dealer for details.
M314 Attachments
CAB
• 75 mm (3") retractable seat belt
SAFETY AND SECURITY
• Bluetooth key fob
GUARDS
• Falling object guard system (not compatible with cab light cover, rain protector)
• Mesh guard full front (not compatible with cab light cover, rain protector)
55
Page 56
M314 Cab Options

Cab Options

Cab structure meeting ISO 12117-2 ROPS (Rollover Protective Structure) standard
Heated seat with adjustable air suspension
Heated and cooled seat with semi-automatic adjustable air suspension
Height-adjustable console, innite with no tool
High-resolution 254 mm (10") LCD touchscreen monitor
Mechanical mirror
Electrical adjustable and heatable mirror
Automatic bi-level air conditioner
Jog dial and shortcut keys for monitor control
Keyless push-to-start engine control
51 mm (2") orange seat belt
Unfastened seat belt warning
Bluetooth integrated radio (including USB, aux port and microphone)
2 × 12V DC outlets
Document storage
Cup and bottle holders
Openable two-piece front window (laminated)
Fixed one-piece front window (P5A classied)
Parallel wiper with washer
Fixed glass skylight
LED dome lights
Foot illumination
Roller rear sunscreen
Rear window emergency exit
Washable oor mat
Beacon ready
FOGS “ready”
Vandal guards “ready”
Two LED cab lights
Rain visor
Deluxe Premium
X
X
X
X
X
X
Standard
Optional
X Not available
56
Page 57
For more complete information on Cat products, dealer services, andindustry solutions, visit us on the web atwww.cat.com
© 2021 Caterpillar All rights reserved
Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “PowerEdge” and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, aretrademarks ofCaterpillar and may not be used without permission.
AEXQ2743-03 (03-2021)
Replaces AEXQ2743-02
Build Number: 07A
(N Am, Eur, Aus-NZ, S Korea)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
