Page 1

Engine

Engine Model Cat®C4.4 ACERT™ Net Power 95 kW 127 hp

• Maximum power at 2,000 rpm

Weights

Operating Weight 14 000 kg (30,865 lb)

to 16 200 kg (35,715 lb)

Transmission

Maximum Travel Speed 37 km/h 23 mph

M313D

Wheel Excavator

Page 2

M313D Wheel Excavator

The D Series incorporates innovations for improved performance and versatility.

Increased lifting capacity, improved cycle times and ease of operation lead to increased productivity and lower operating costs.

Serviceability

For increased safety, all daily maintenance points are accessible from ground level. A centralized greasing system allows lubrication of critical points. pg. 12

✔

Versatility

Caterpillar offers a wide variety of factory-installed attachments that enhance performance and job site management. pg. 11

Operator Comfort

The totally redesigned operator station maximizes comfort while increasing safety. The available auto-weight adjusted air-suspension seat with heated and cooled ventilated cushions improves operator comfort. Safety is enhanced by the new color monitor and optional rear-mounted camera. pg. 6

✔

Hydraulics

The state of the art load-sensing hydraulic system combined with a separate dedicated swing pump provides fast cycle times, increased lift capacity and high bucket and stick forces. This combination maximizes your productivity in any job. pg. 5

✔

Engine

Caterpillar’s exclusive ACERT™ Technology surpasses the most stringent emissions requirements in the construction industry. The U.S. EPA Tier 3 compliant C4.4 offers increased performance and reliability while reducing fuel consumption and sound levels. pg. 4

✔

Page 3

✔ New Feature

Complete Customer Support

Your Cat®dealer offers a wide range of services that can be set up under a customer agreement when you purchase your equipment. Your dealer will help you choose a plan that can cover everything from machine and attachment selection to replacement. pg. 15

Environmentally Responsible Design

Helping to protect our environment, the engine has low operator and spectator sound levels, longer filter change intervals and is more fuel-efficient. pg. 14

✔

Work Tools

The combination of Caterpillar machines and work tools provide a total solution for any application. A variety of couplers, buckets, hammers, grapples, shears, multi-processors to name a few are offered to optimize your machine’s versatility. pg. 10

Booms and Sticks

Caterpillar®excavator booms and sticks are built for performance and long service life. The box section design provides the strength needed for even the toughest applications. Multiple boom and stick options allow you to pick the best match for your job. pg. 9

✔

Undercarriage

Various undercarriage configurations are available to provide the best solution for your work environment; these configurations can include a dozer blade and/or outriggers depending on your needs. pg. 8

Page 4

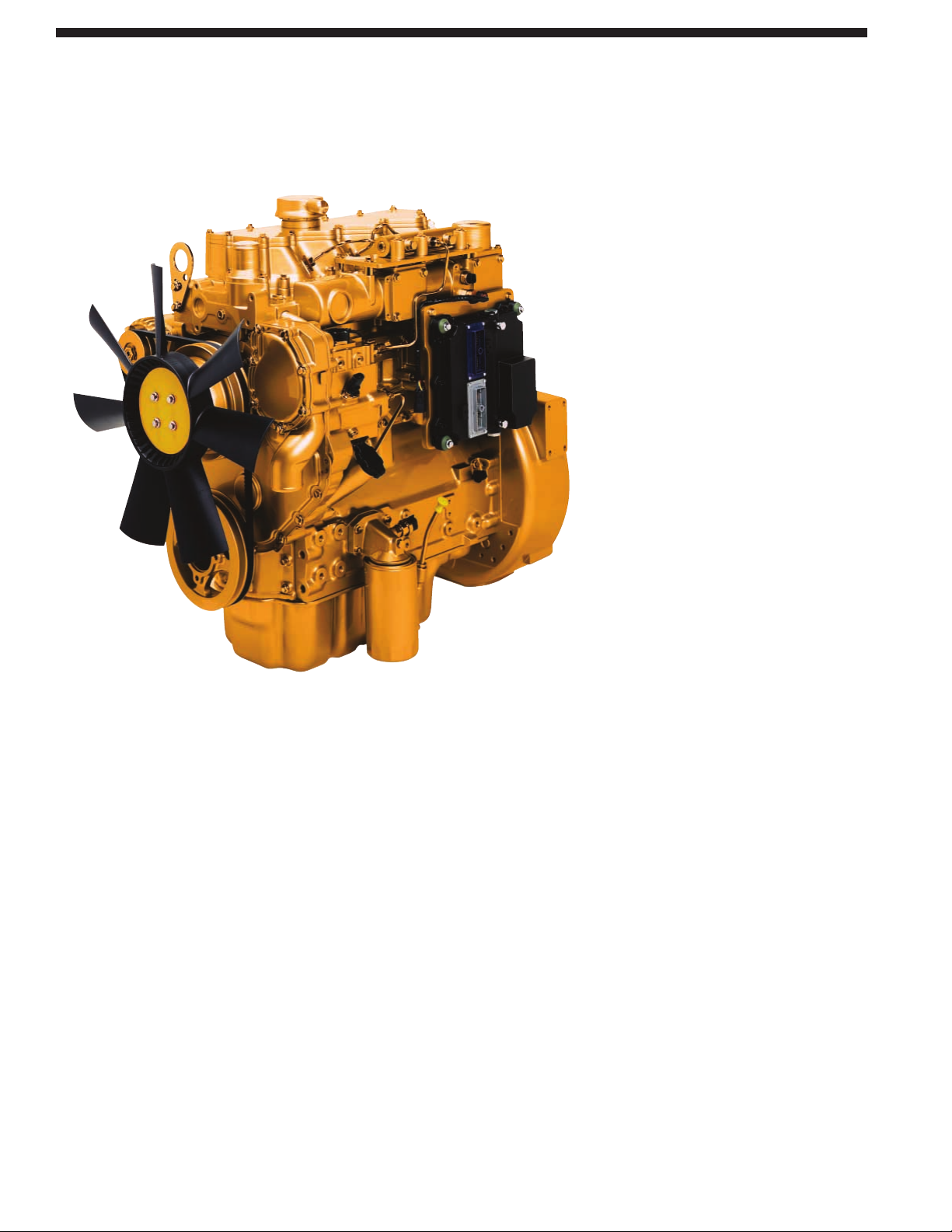

Powerful Performance. The Cat®C4.4 with ACERT™ Technology introduces a series of evolutionary, incremental improvements that provide breakthrough engine performance. The building blocks of ACERT Technology are fuel delivery, air management and electronic control. ACERT Technology optimizes engine performance while meeting U.S. EPA Tier 3 engine emission regulations. The Cat C4.4 engine in the M313D delivers a maximum gross power of 102 kW (136 hp) at a rated speed of 2,000 rpm. This is 12% more horsepower as compared to the 3054E in the M313C.

Low Fuel Consumption. The C4.4 is electronically controlled and uses the new Cat Common Rail Fuel System and fuel pump. This combination provides outstanding fuel consumption during both production and travel. When the system recognizes roading application the engine adjusts to the most efficient system operating point to save fuel without compromising road performance.

Low Noise, Low Vibration. The Cat C4.4 design improves operator comfort by reducing sound and vibration.

Cooling System. An electronically controlled, hydraulic motor drives a variable speed on-demand fan for engine coolant and hydraulic oil. The optimum fan speed is determined based on coolant and hydraulic oil temperature resulting in reduced fuel consumption and lower sound levels. The electronic engine control continuously compensates for the varying fan load, providing consistent net power, regardless of operating conditions.

One-Touch Low Idle Control.

The two-stage, one-touch Automatic Engine Speed Control reduces engine speed if no operation is performed, maximizing fuel efficiency and reducing sound levels.

Waste Handling Package. The Waste Handling Package has been specifically developed for Cat Wheel Excavators working in waste transfer stations or other extremely dusty applications. This option features the following:

• An automatic, hydraulic reversible fan that reverses airflow after a set interval, manually adjustable between 5 and 60 minutes with a switch located inside the cab.

• A special dense wire mesh cooling system hood further reduces radiator clogging.

• Two cyclone filters provide clean filtered air to the engine compartment, air cleaner, aftercooler and air conditioner condenser.

Engine

Built for power, reliability, low maintenance, excellent fuel economy and low emissions.

Page 5

Dedicated Swing Pump. A dedicated variable displacement piston pump and fixed displacement piston motor power the swing mechanism. This closed hydraulic circuit maximizes swing performance without reducing power to the other hydraulic functions, resulting in smoother combined movements.

Heavy Lift Mode. This mode maximizes lifting performance by boosting the lifting capability of the excavator by 7 percent. Heavy loads can be easily moved in the full working range of the machine, maintaining excellent stability.

Adjustable Hydraulic Sensitivity.

This function allows the operator to adjust the aggressiveness of the machine according to the application. For precision work, one of four different levels of aggressiveness can be pre-selected.

Proportional Auxiliary Hydraulics.

Versatility of the hydraulic system can be expanded to utilize a wide variety of hydraulic work tools using multiple valve options.

• The Multi-Combined Valve is the core of the Tool Control System, allowing the operator to select up to ten pre-programmed work tools from the monitor. These preset hydraulic parameters support either one-way or two-way flow. The joystick sliding switches allow modulated control of the work tool.

• A dedicated Hammer circuit is the best option for tools that require one-way flow only, and do not require the flexibility provided by the Multi-Combined Valve.

• The Medium Pressure Function Valve provides proportional flow that is ideal for tilting buckets or rotating tools.

• A new feature for the D-Series Wheel Excavators is the optional second High Pressure valve. In combination with the Multi-Combined Valve, it provides the possibility to operate the machine with work tools or in applications requiring a third auxiliary hydraulic function, such as a tilting/ rotating quick coupler.

Stick Regeneration Circuit. The stick regeneration circuit increases efficiency and helps increase controllability for higher productivity and lower operating costs.

Quick Coupler. The machine can be optionally equipped with a dedicated hydraulic circuit to operate hydraulic quick couplers.

Hydraulic Snubbers. Caterpillar integrates its cylinder snubber technology into all Wheel Excavator boom, stick and bucket cylinders. These snubbers help cushion shocks, reduce sound and increase cylinder life.

Caterpillar XT™-6 ES Hoses. Premium quality rubber, precision 4-ply wire reinforcement and exclusive reusable couplings are all unique features that deliver top performance and long life.

Hydraulics

Fast cycle times, increased lift capacity, and high bucket and stick forces combine to maximize your productivity in any job.

Page 6

The interior layout maximizes operator space, provides exceptional comfort and reduces operator fatigue.

Operator Comfort

Page 7

Interior Operator Station. Improved

visibility and ergonomics are some of the many new features of the D-Series Wheel Excavators. The pressurized operator station provides maximum space and is designed for simplicity and functionality. Frequently used switches are centralized and are situated on the right-hand switch console. The left-hand seat console controls dozer blade and/or outriggers, and is tiltable for easy access to the cab. The fully automatic climate control adjusts temperature and air flow for exceptional operator comfort. Other comfort features include a cigar lighter, ashtray, drink/bottle holder, magazine rack and integrated mobile phone holder.

Cab Construction. The exterior design uses thick steel tubing along the bottom perimeter of the cab, improving the resistance to fatigue and vibration. This design allows the falling object guards to be bolted directly to the cab. The cab shell is attached to the frame with rubber mounts that limit vibration and sound transmitted from the frame, substantially reducing interior noise levels.

Viewing Area. To maximize visibility, all glass is affixed directly to the cab, eliminating the use of window frames. Choice of fixed or easy-to-open split front windshield meets operator preference and application conditions.

• The 50/50 split front windshield allows both upper and lower portions to be stored in an overhead position and features the one-touch action release system.

• The 70/30 split front windshield stores the upper portion above the operator. The lower front windshield features a rounded design to maximize downward visibility and improves wiper coverage. Also features the one-touch action release system.

• The fixed front windshield comes with high impact resistant laminated glass.

• A unique large skylight without cross bar provides superb upward visibility. The retractable sunscreen blocks direct sunlight.

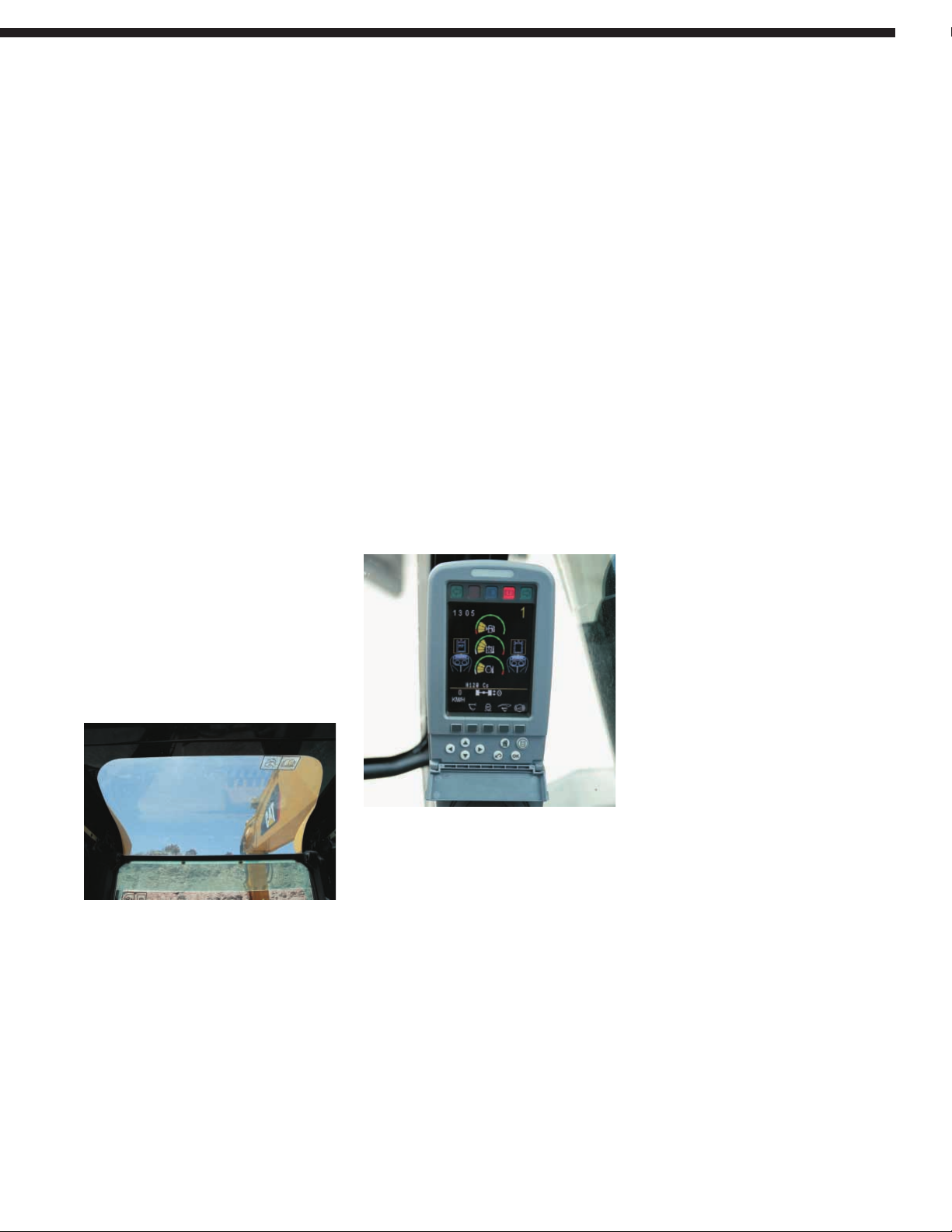

Monitor. The new compact color monitor displays information in local language that is easy to read and understanding. Functions include:

– 5 programmable “Quick Access” buttons for one-touch selection of favorite functions.

– Filter and oil change warnings are displayed when the number of hours reaches the maintenance interval.

– Tool select function allows the operator to select up to 10 pre-defined hydraulic work tools.

– Adjustable braking characteristics enable the operator to select three levels of travel motor retarder aggressiveness when releasing the travel pedal.

– Provides a rear camera view that is activated through the monitor menu. The optional camera is mounted on the counterweight.

New Deluxe Seat. The new optional deluxe seat, equipped with an active seat climate system, improves operator comfort. Cooled air flows through the seat cushions to reduce body perspiration. On cold days, a two-step seat heater keeps the operator warm and comfortable. The fully adjustable seat with adjustable lumbar support automatically adjusts to the driver’s weight providing a more relaxed and comfortable environment.

Heated Mirrors. Another new feature is electrically heated mirrors, increasing safety and visibility in cold conditions.

Wipers. The parallel wiper system maximizes visibility in poor weather conditions. The wiper virtually covers the entire front windshield, cleaning the operator’s immediate line of sight.

Lunch Box. A large, cooled storage compartment is located behind the operator’s seat. The compartment provides sufficient room to store items such as a lunch box. An optional cover secures the contents during machine operation.

Foot Pedals. Two-way pedals for travel and auxiliary circuits provide increased floor space, reducing the need to change positions. The foot pedal for auxiliary high-pressure circuit can be locked in the off position and used as a footrest for greater operator comfort.

Page 8

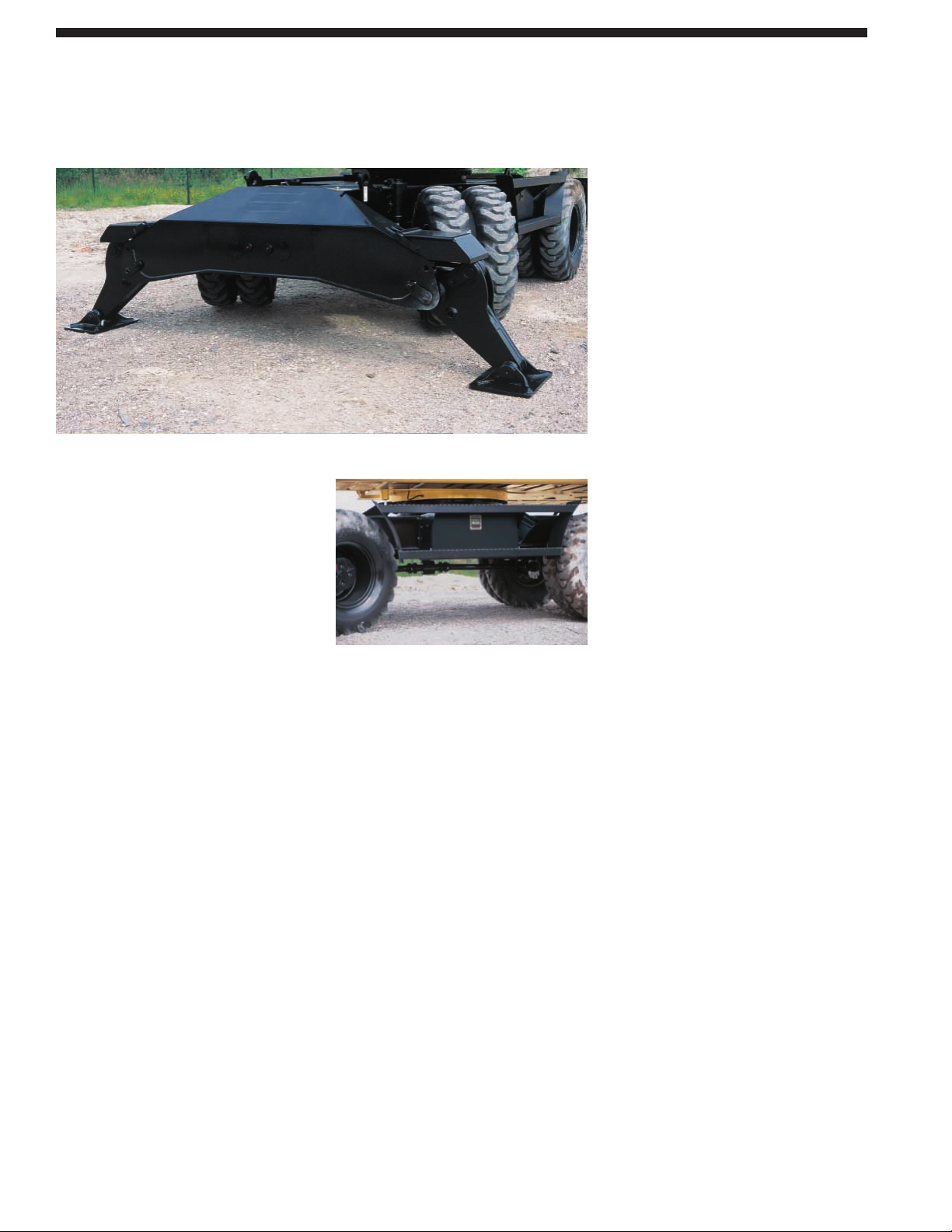

Heavy-Duty Axles and Stabilizers.

The D-Series Wheel Excavator undercarriage with pin on/bolt on design provides excellent flexibility, rigidity and long life. Effective hydraulic line routing, transmission protection and heavy-duty axles make the undercarriage perfect for wheel excavator applications. The front axle offers wide oscillating and steering angles. The transmission is mounted directly on the rear axle for protection and optimum ground clearance.

Advanced Disc Brake System. The disc brake system acts directly on the hub instead of the drive shaft to avoid planetary gear backlash. This solution eliminates the rocking effect associated with working free on wheels. The axle design lowers maintenance and lifetime costs. Oil change intervals are at 2,000 working hours, further reducing owner and operator costs.

Drive Line Concept. The rear mounted transmission and robust drive line design, delivers excellent ground clearance for all off-road applications.

Fenders. The optional fenders provide excellent coverage of the front and rear tires, protecting the machine from mud and dirt. Water cannot splash up on the wind screen or cooler. The fenders further protect the machine from stones and debris being thrown up by the tires, providing additional safety for the machine, other vehicles and personnel working close to the excavator.

Adjustable Travel Alarm. An adjustable travel alarm is available to warn people when the machine is moving. Three settings can be selected through the monitor.

• Auto mode – alarm will stop sounding immediately when the machine is no longer traveling, or has been sounding for an uninterrupted 10-second interval.

• Standard mode – alarm operates constantly during moving, with only manual cancellation.

• Off mode – Travel Alarm is disabled.

Undercarriage

Undercarriage and axle design provides maximum strength, flexibility and mobility on wheels.

Page 9

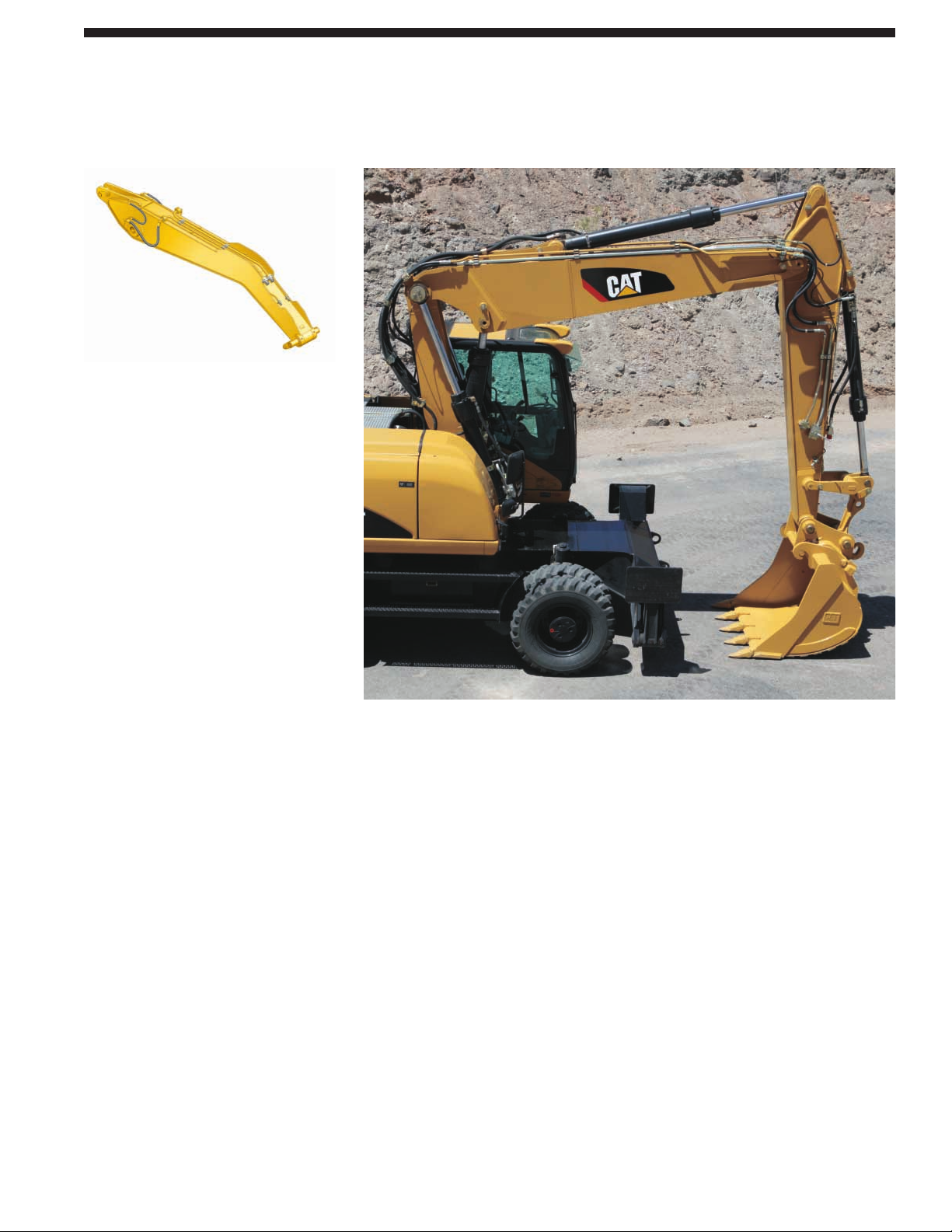

Industrial Stick

Sticks. Four different stick lengths are offered to match different application requirements:

• Short stick (2.0 m/6 ft 6 in) for maximum breakout force and lifting capability.

• Medium stick (2.4 m/7 ft 6 in) for greater crowd force and lift capacity.

• Long stick (2.6 m/8 ft 6 in) for greater depth and reach requirements.

• Industrial stick (3.1 m/10 ft 2 in) for use with free-swinging grapples in material handling and industrial applications.

Design. Booms and sticks are welded, box section structures with thick, multi-plate fabrications in high stress areas, for rugged performance and long service life.

Flexibility. The choice of two booms and four sticks provides the right balance of reach and digging forces for all applications.

One-Piece Boom. The one-piece boom fits best for all standard applications such as truck loading and digging. A unique straight section in the curve of the side plate reduces stress flow and helps increase boom life.

Variable Adjustable (VA) Boom.

The VA boom offers improved right side visibility and machine roading balance. When working in tight quarters or lifting heavy loads, the VA boom offers the best flexibility.

Offset Boom. The offset boom adds major advantages as well as a high level of versatility. The large offset dimensions (left 2460 mm (8 ft 1 in) and right 2760 mm (9 ft 1 in)) enable you to dig along walls, over obstacles, grade while driving and dig under laid pipe. This combination coupled with a tiltable ditch cleaning bucket allows you to operate a highly versatile machine.

Booms and Sticks

Designed for maximum flexibility to keep production high on all jobs.

Page 10

Work Tools. Caterpillar work tools are designed to function as an integral part of your excavator and to provide the best possible performance in your particular application. All work tools are performance-matched to Cat machines.

Quick Couplers. Quick Couplers enable the operator to simply release one work tool and connect to another, making your hydraulic excavator highly versatile. Productivity also increases, as a carrier no longer needs to be idle between jobs. Caterpillar offers hydraulic and spindle quick coupler versions.

Buckets. Caterpillar offers a wide range of specialized buckets, each designed and tested to function as an integral part of your excavator. Buckets feature the new Caterpillar K Series™ Ground Engaging Tools.

Hammers. Cat hammer series deliver very high blow rates, increasing the productivity of your tool carriers in demolition and construction applications. Wide oil flow acceptance ranges make the Caterpillar hammers suitable for a wide range of carriers and provide a system solution from one safe source.

Orange Peel Grapples. The Orange Peel Grapple is constructed of high-strength, wear-resistant steel, with a low and compact design that makes it ideal for dump clearance. There are several choices of tine and shell versions.

Multi-Grapples. The Multi-Grapple with unlimited left and right rotation is the ideal tool for stripping, sorting, handling and loading. The powerful closing force of the grab shells combined with fast opening/closing time ensures rapid cycle time which translates to more tons per hour.

Multi-Processors. Thanks to its single basic housing design, the Multi-Processor series of hydraulic demolition equipment makes it possible to use a range of jaw sets that can handle any demolition job. The Multi-Processor is the most versatile demolition tool on the market.

Vibratory Plate Compactors.

Cat compactors are performance-matched to Cat machines, and integrate perfectly with the Cat hammer line – brackets and hydraulic kits are fully interchangeable between hammers and compactors.

Shears. Cat shears provide superior and effective scrap processing, and are highly productive in demolition environments. Shears are compatible with a matching Cat excavator, and bolt-on brackets are available for either stick or boom-mounted options.

Work Tools

A wide variety of Work Tools help optimize machine performance. Purpose designed and built to Caterpillar’s high durability standards.

Page 11

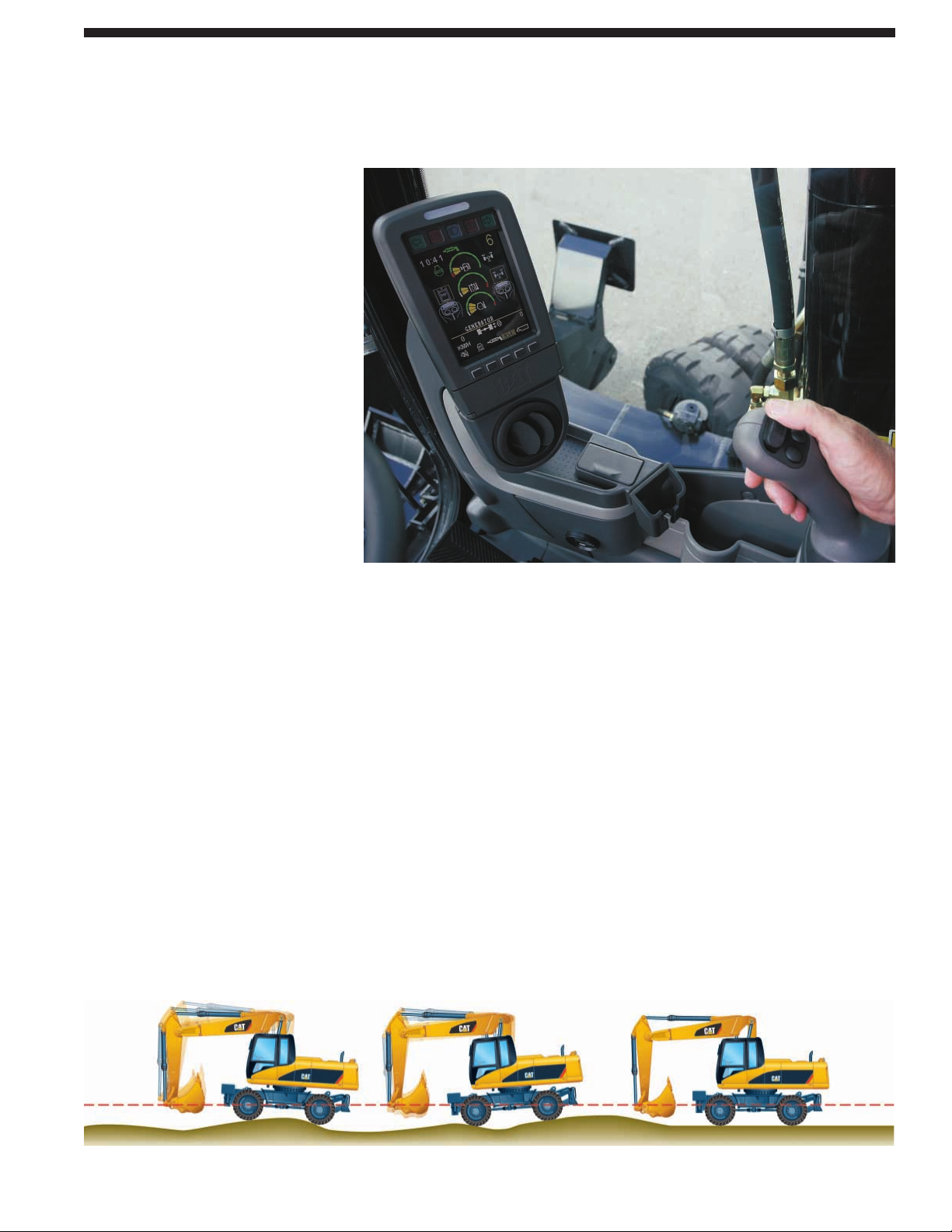

Joystick Steering. The unique joystick steering option enables an operator to reposition the machine while traveling in first gear by the use of the slider switch on the right joystick. This enables the operator to keep both hands on the joysticks while simultaneously moving the implements and traveling. The operator can do more precise work faster with increased safety around the machine.

Tool Control. The integrated Tool Control system allows the operator to select up to 10 pre-set combinations. This eliminates the need to re-set the hydraulic parameters each time a tool is changed. Individual flow and pressure can be programmed easily as well as one-way/two-way hydraulic functions. Each of the ten-programmed tools can even be given a specific name. The unique Cat proportional sliding switches and optional auxiliary pedal provide modulation to the tool to make precision work easy.

Ride Control. New for the D Series, the ride control system improves operator comfort and allows the machine to travel faster over rough terrain with improved ride quality for the operator. The ride control system features accumulators acting as shock absorbers to dampen the front part motion. Ride control can be activated through a button located on the soft switch panel in the cab.

Control Settings. There are 2 selectable control settings and one automatic travel setting. The new automatic travel mode is activated with a button in the right hand console. In this setting, the transmission will automatically shift up or down, depending on the speed conditions. The operator can choose the best power setting for both engine and hydraulic power versus fuel efficiency.

• Economy Mode – used for lifting, pipe setting, grading, slope finishing and precise work while reducing fuel consumption.

• Power Mode – used for normal truck loading and digging applications, trenching or hammer use.

• Travel Mode – automatically set when the travel pedal is actuated. It provides maximum speed and drawbar pull.

Product Link. Product Link can assist with Fleet Management to keep track of hours, location, security and product health. The machine is pre-wired to accept Product Link systems to be installed in the field. Product Link is also available as a factory installed attachment.

Machine Security. An optional Machine Security System is available from the factory. This system controls who can operate the machine when, and utilizes specific keys to prevent unauthorized machine use.

Versatility

A wide variety of optional factory-installed attachments are available to enhance performance and improve job site management.

Page 12

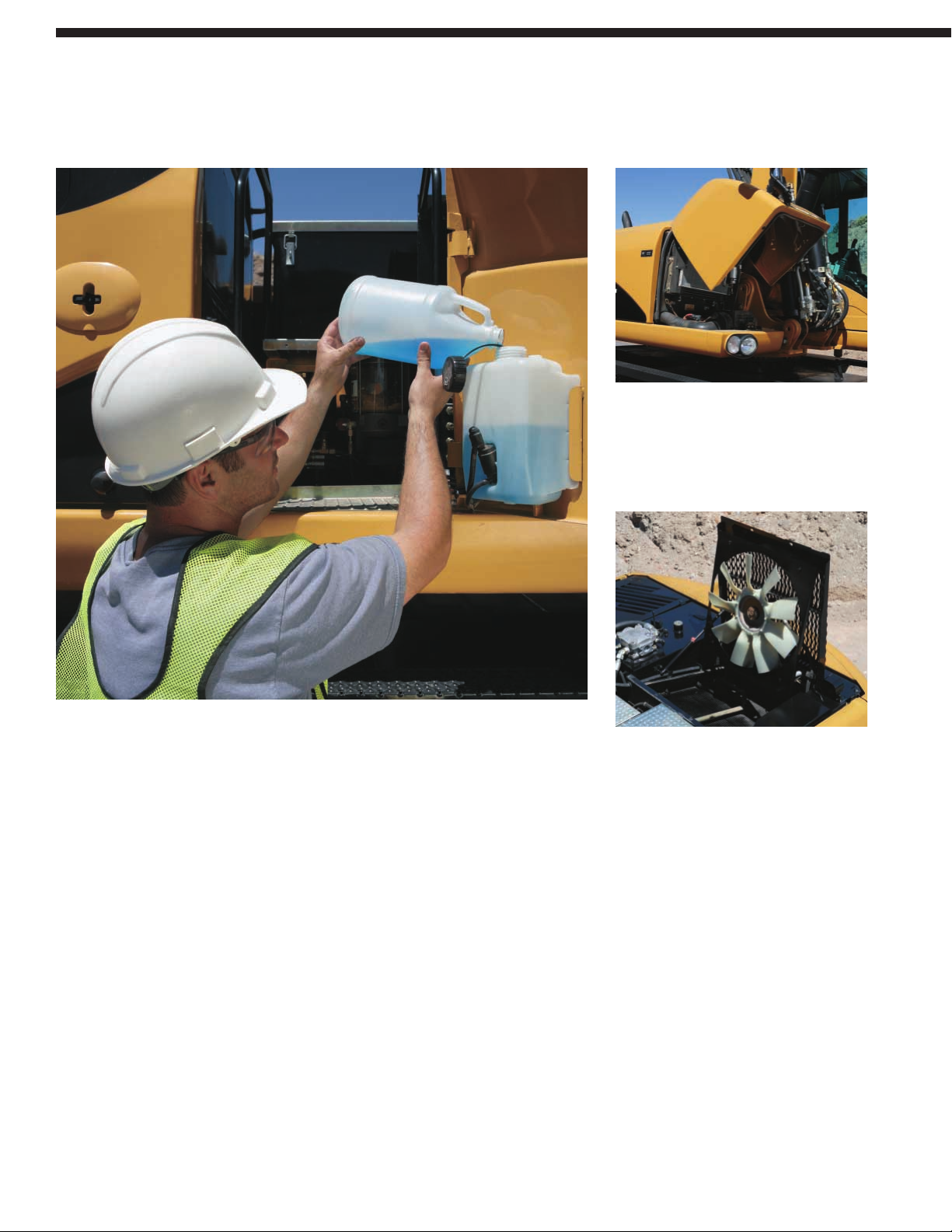

Ground Level Maintenance. Caterpillar designed its D-Series Wheel Excavators with the operator and service technician in mind. Gull-wing doors, with pneumatically-assisted lift cylinders, effortlessly lift up to allow critical maintenance to be performed quickly and efficiently while maintaining operator safety.

Extended Service Intervals.

The D-Series Wheel Excavator service and maintenance intervals have been extended to reduce machine service time, increase machine availability and reduce operating costs. Using S•O•S

Scheduled Oil Sampling analysis, hydraulic oil change intervals can be extended up to 4,000 hours. Engine coolant change intervals are 12,000 hours with Cat Extended Life Coolant.

Self-Monitoring System with AutoDiagnostics. The electronic engine and

machine controllers provide detailed diagnostic capability for the service technicians. The ability to store active and intermittent indicators simplifies problem diagnosis and reduces total repair time, resulting in improved machine availability and lower operating cost.

Engine Inspection. The engine can be accessed from both ground level and the upper structure. The longitudinal layout ensures that all daily inspection items can be accessed from ground level.

Front Compartment. The front compartment hood can be opened vertically, providing outstanding ground level access to the batteries, air-to-air after cooler, air conditioner condenser and the air cleaner filter.

Easy to Clean Coolers. Flat fins on all coolers reduce clogging, making it easier to remove debris. The main cooling fan and air conditioner condenser are both hinged for easier cleaning.

Swing-out Air Conditioner Condenser.

The Air Conditioning condenser swings out horizontally to allow complete cleaning on both sides as well as excellent access to the air-to-air after cooler.

Air Filter. Caterpillar air filters eliminate the use of service tools, reducing maintenance time. The air filter features a double-element construction with wall flow filtration in the main element and built-in mini-cyclone precleaners for superior cleaning efficiency. The air filters are constantly monitored for optimum performance. If airflow becomes restricted, a warning is displayed by the way of the in-cab monitor.

Simplified and easy maintenance save you time and money.

Serviceability

Page 13

Capsule Filter. The hydraulic return

filter, a capsule filter, prevents contaminants from entering the system when the hydraulic oil is changed.

Fuel Filters. Cat high efficiency fuel filters with a Stay-Clean Valve™ features a special media that removes more than 98 percent of particles, increasing fuel injector life. Both the primary and secondary fuel filters are located in the engine compartment and can be easily changed from ground level.

New Auto-Lube System. The new automatic lubrication system provides the optimal amount of grease to all the main lubrication points, including the bucket linkage. The lubrication interval can be adjusted through the monitor, and status messages for the auto-lube system are displayed.

Scheduled Oil Sampling. Caterpillar has specially developed S•O•SSMOil Sampling Analysis to help ensure better performance, longer life and increased customer satisfaction. This thorough and reliable early warning system detects traces of metals, dirt and other contaminants in your engine, axle and hydraulic oil. It can predict potential trouble avoiding costly failures. Your Caterpillar dealer can give you results and specific recommendations shortly after receiving your sample.

Engine Oil. Caterpillar engine oil is formulated to optimize engine life and performance. The specially formulated oil is more cost effective and increases engine oil change interval to 500 hours, providing industry leading performance and savings.

Water Separator. The D Series is equipped with a primary fuel filter with water separator located in the engine compartment. For ease of service, the water separator can be easily accessed from ground level.

Fuel Tank Drain. The durable, corrosion-free tank has a remote drain located at the bottom of the upper frame to remove water and sediment. The tank drain with hose connection allows simple, spill-free fluid draining.

Remote Greasing Blocks. For those hard to reach locations, greasing blocks have been provided to reduce maintenance time. One block is located in the engine compartment with two grease points for the swing bearing and front-end attachment. For the undercarriage, two remote blocks provide easy access for greasing the oscillating axle and, as an option, the dozer blade.

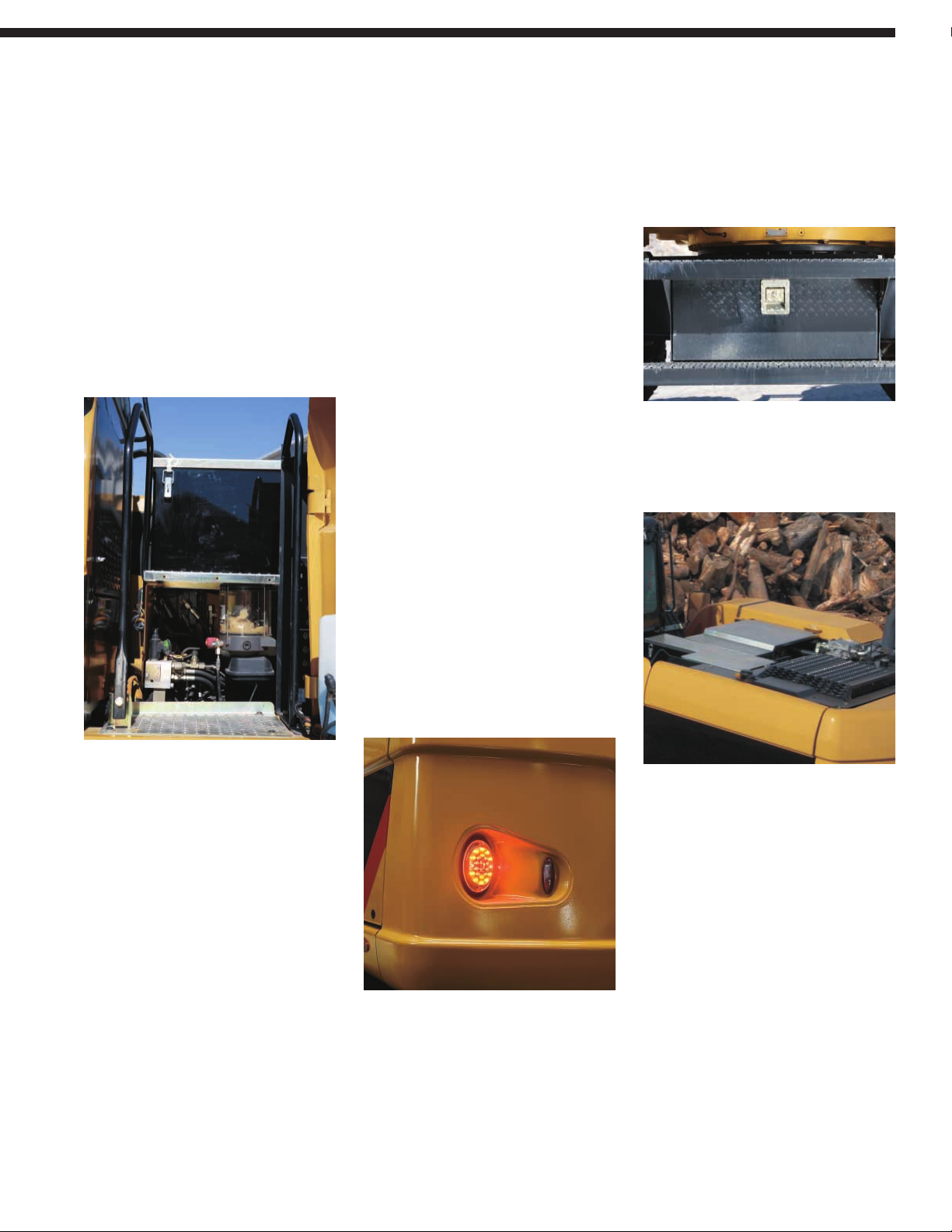

New LED Rear Lights. Optional Light Emitting Diode (LED) Rear Lights replace the standard lights, for increased visibility on the job site, higher durability and longer life.

Handrails and Steps. Large handrails and steps assist the operator in climbing on and off the machine.

Storage Box. There are two toolboxes integrated in the steps of the undercarriage. Additionally, there is a waterproof storage box integrated into the upper structure steps.

Anti-Skid Plate. They cover the top of the steps and upper structure to help prevent slipping during maintenance. The Anti-Skid plate reduces the accumulation of mud on the upper structure, improving the cleanliness and safety.

Page 14

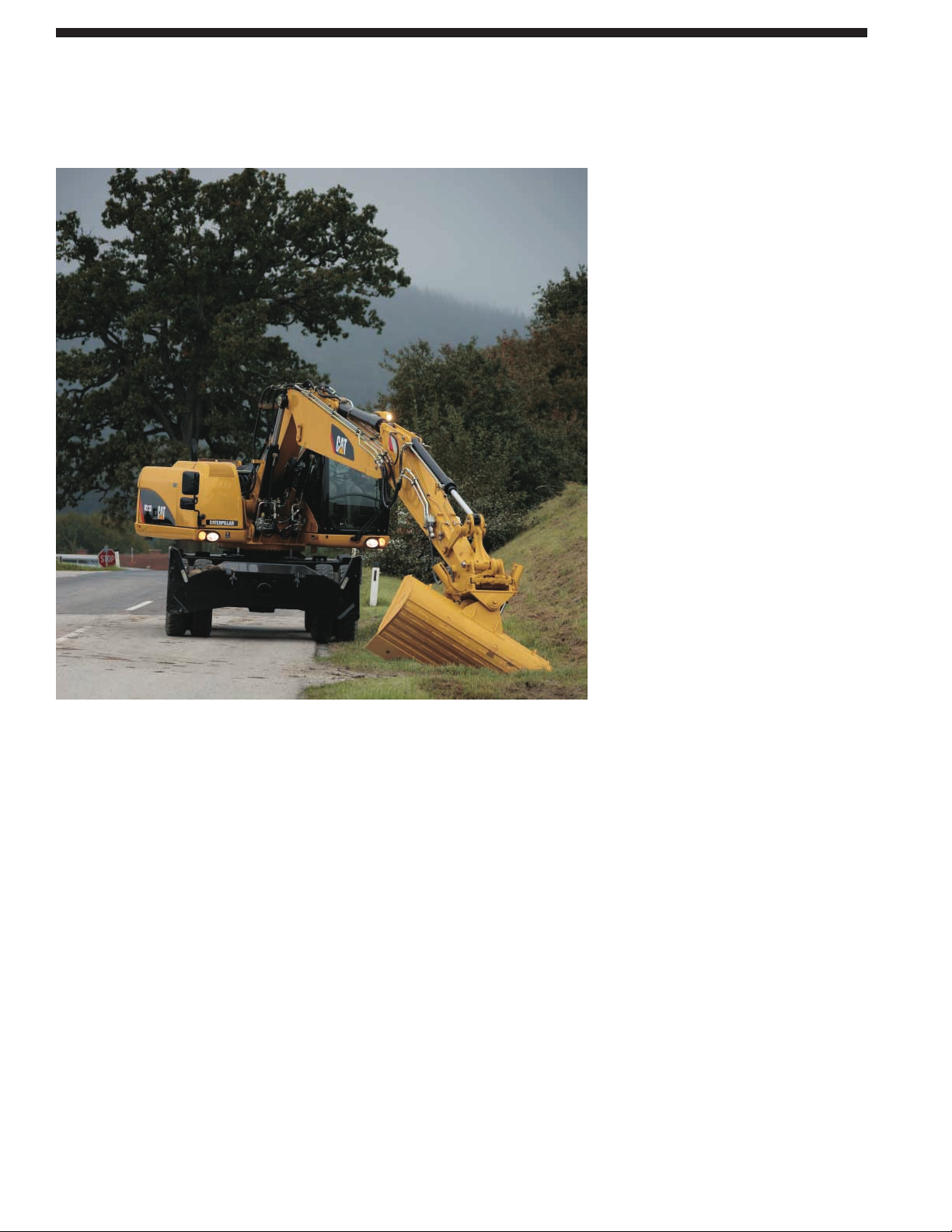

Fuel Efficiency. The D-Series Wheel Excavators are designed for outstanding performance with high fuel efficiency. This means more work done in a day, less fuel consumed and minimal impact on our environment.

Low Exhaust Emissions. The U.S. EPA Tier 3 compliant Cat C4.4 offers increased performance and reliability while reducing fuel consumption and sound levels.

Quiet Operation. Operator and spectator noise levels are extremely low as a result of the new variable speed fan and remote cooling system.

Biodegradable Hydraulic Oil.

The optional biodegradable hydraulic oil (HEES™) is formulated to provide excellent high-pressure and hightemperature characteristics, and is fully compatible with all hydraulic components. HEES is fully decomposed by soil or water microorganisms, providing a more environmentallysound alternative to mineral-based oils.

Fewer Leaks and Spills. Lubricant fillers and drains are designed to minimize spills. Cat O-Ring Face Seals, Cat XT™ Hose and hydraulic cylinders are all designed to help prevent fluid leaks that can reduce the machine performance and cause harm to the environment.

Longer Service Intervals. Working closely with your Caterpillar Dealer can help extend service intervals for engine oil, hydraulic oil, axle oil and coolant. Meaning fewer required fluids and fewer disposals, all adding up to lower operating costs.

Environmentally Responsible Design

The M313D helps build a better world and preserve the fragile environment.

Page 15

Product Support. You will find nearly all parts requirements at your local Caterpillar dealer parts counter. Cat dealers utilize a world-wide network to find in-stock parts to minimize your downtime. To save money use genuine Cat Reman parts. You will receive the same warranty and reliability as new products at a substantial cost savings.

Selection. Make detailed comparisons of the machines you are considering before you buy. How long do components last? What is the cost of preventive maintenance? Your Cat dealer can give you precise answers to these questions to make sure you operate your machines at the lowest cost.

Purchase. Consider the financing options available as well as day-to-day operating costs. This is also the time to look at dealer services that can be included in the cost of the machine to yield lower equipment and owning and operating costs over the long run.

Operation. Improving operating techniques can boost your profits. Your Cat dealer has videotapes, literature and other ideas to help you increase productivity, and Caterpillar offers certified operator training classes to help maximize the return on your machine investment.

Maintenance. More and more equipment buyers are planning for effective maintenance before buying equipment. Choose from your dealer’s wide range of maintenance services at the time you purchase your machine. Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as S•O•SSMFluid Analysis and Technical Analysis help you avoid unscheduled repairs.

Replacement. Repair, rebuild or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.

Services. Customer Service is critical today in every business. That’s why so many people buy Cat equipment. They know they are getting quality, reliability and performance backed-up with the best Customer Service. Your Caterpillar dealer offers a wide range of services that can be set up under a Customer Support Agreement. The dealer will help you choose a plan that can cover the whole machine including work tools, to help you getting the best out of your investment.

Complete Customer Support

Cat dealer services help you operate longer with lower costs.

Page 16

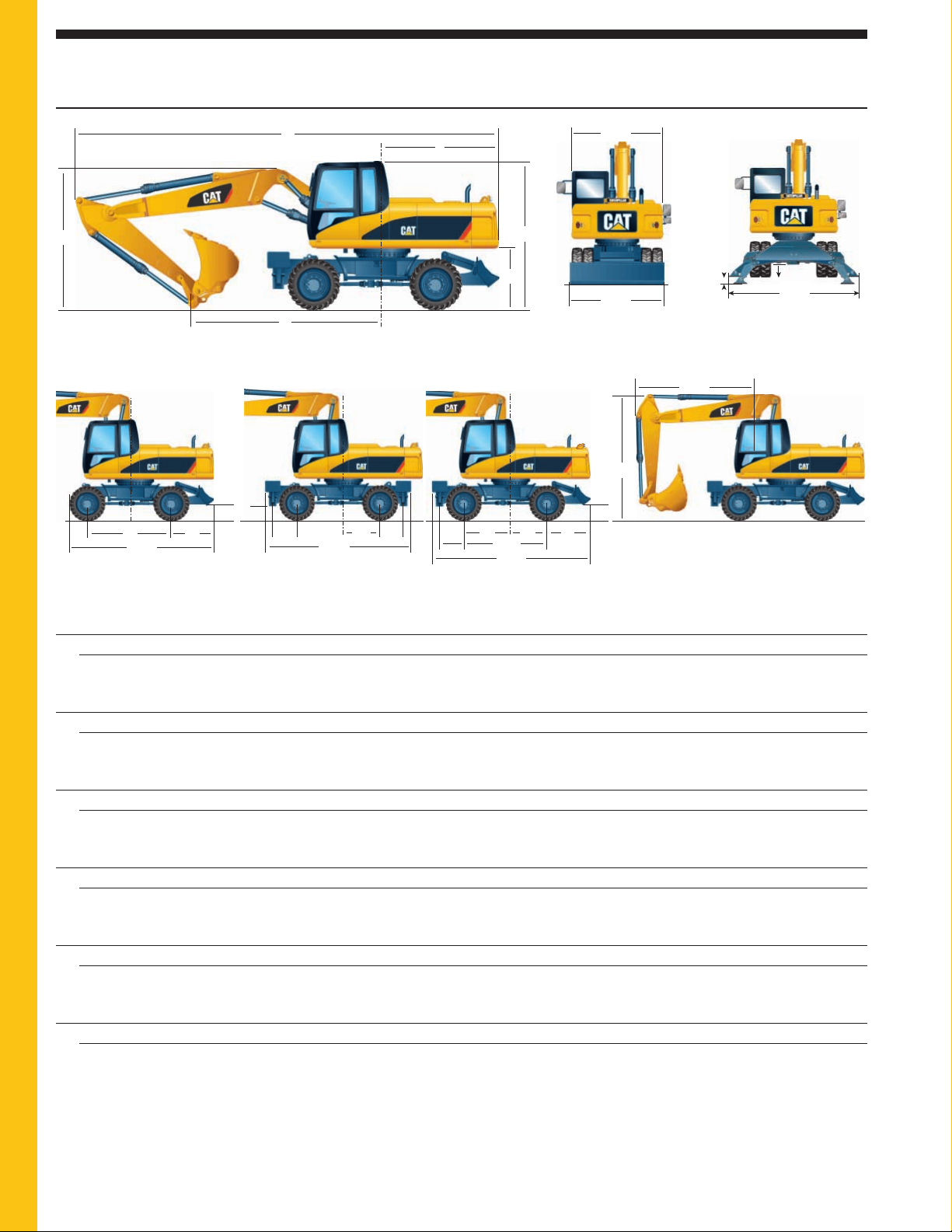

M313D Wheel Excavator specifications

Hydraulic System

Maximum Pressure

Implement circuit

normal 35 000 kPa 5,076 psi

heavy lift 37 500 kPa 5,439 psi Travel circuit 35 000 kPa 5,076 psi Auxiliary circuit

high pressure 35 000 kPa 5,076 psi

medium pressure 18 500 kPa 2,683 psi Swing mechanism 35 000 kPa 5,076 psi

Maximum flow

Implement/travel circuit 190 L/min 50 gal/min Auxiliary circuit

high pressure 190 L/min 50 gal/min

medium pressure 50 L/min 13 gal/min Swing mechanism 80 L/min 21 gal/min

Transmission

Maximum Travel Speed 37 km/h 23 mph 1st Gear, Forward/Reverse 9 km/h 5.6 mph 2nd Gear, Forward/Reverse 37 km/h 23 mph Creeper Speed (1st Gear) 3 km/h 2 mph Creeper Speed (2nd Gear) 13 km/h 8 mph Drawbar Pull 76 kN 17,085 lb Maximum Gradeability 58%

Service Refill Capacities

Fuel Tank Capacity 235 L 62 gal Cooling 26 L 7 gal Engine Crankcase 8 L 2.1 gal Rear Axle Housing (Differential) 11.2 L 3 gal Front Steering Axle (Differential) 9 L 2.4 gal Final Drive Final Drive 2.5 L 0.7 gal Powershift Transmission 2.4 L 0.7 gal Hydraulic Tank 95 L 25 gal Hydraulic System (including tank) 180 L 48 gal

Tires

Optional See Optional Equipment Standard 10.00-20 dual pneumatic

Engine

Engine Model Cat®C4.4 ACERT™ Net Power 95 kW 127 hp Gross Power 102 kW 137 hp ISO 9249 95 kW 127 hp EEC 80/1269 95 kW 127 hp Bore 105 mm 4.13 in Stroke 127 mm 5 in Displacement 4.4 L 269 in

Cylinders 4 Maximum Torque at 1,400 rpm 550 N·m 406 lb ft

• Maximum power at 2,000 rpm

Weights

Operating Weight 13 600 kg (29,985 lb)

to 15 800 kg (34,835 lb)

VA Boom

Rear dozer only 13 400 kg 29,542 lb Rear dozer, front outriggers 14 350 kg 31,636 lb Front and rear outriggers 14 650 kg 32,298 lb

One-Piece Boom

Rear dozer only 12 950 kg 28,550 lb Rear dozer, front outriggers 13 900 kg 30,644 lb Front and rear outriggers 14 200 kg 31,306 lb

Offset Boom

Rear dozer only 13 900 kg 30,644 lb Rear dozer, front outriggers 14 850 kg 32,739 lb

Front and rear outriggers 15 150 kg 33,400 lb Dozer Blade 750 kg 1,653 lb Outriggers 960 kg 2,116 lb Counterweight 2900 kg 6,393 lb

2.0 m (6'6") stick 370 kg 816 lb

2.3 m (7'6") stick 390 kg 860 lb

2.6 m (8'6") stick 440 kg 970 lb

2.9 m (9'6") Industrial stick 380 kg 838 lb

• Above weights are calculated with standard counterweight.

Heavy counterweight option adds 400 kg (882 lb).

Swing Mechanism

Swing Speed 10.5 rpm Swing Torque 35 kN·m 25,815 lb ft

Page 17

M313D Wheel Excavator specifications

Sound Performance

Performance Exterior sound power level

according to 2000/14/EC is 103 db(A)

Interior sound pressure level LpA is 72 db (A)

• When properly installed and maintained, the cab offered by Caterpillar, when tested with doors and windows closed according to ANSI/SAE J1166 OCT 98, meets OSHA and MSHA requirements for operator sound exposure limits in effect at time of manufacture.

• Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environment.

Standards

Brakes SAE J1026 APR 90 Cab/FOGS ISO 10262

Undercarriage

Ground Clearance 370 mm 15 in Maximum Steering Angle ± 35º Oscillating Axle Angle ± 9º

Standard Axle

Minimum Turning Radius 6.2 m 20 ft (Outside of tire)

Minimum Turning Radius 6.7 m 22 ft (End of VA boom)

Minimum Turning Radius 8.1 m 27 ft (End of One-piece boom)

Page 18

M313D Wheel Excavator specifications

Dimensions

All dimensions are approximate.

➤

2540 mm

➤

8'4"

** Maximum tire clearance with outrigger fully down.

4'7"

➤

2500 mm

8'2"

4965 mm

16'3"

➤

1100 mm

3'7"

➤

370 mm

**120 mm

2550 mm

➤

8'4"

4.7"

➤

1'3"

3665 mm

12'0"

Roading position with 2.3 m/7'6" stick

➤

1315 mm

➤

4'4"

➤

480 mm

1'7"

➤

3940 mm

12'11"

2850 mm

➤

9'4"

➤

Undercarriage with dozer only

2500 mm

➤

8'2"

4355 mm

14'3"

➤

1315 mm

➤

4'4"

➤

Undercarriage with 2 sets of outriggers

➤

480 mm

335 mm

1'7"

1'1"

➤

875 mm

➤

2'10"

➤

4725 mm

15'6"

➤

785 mm

1100 mm

➤➤

➤

2'7"

3'7"

Undercarriage with 1 set of outriggers and dozer

1400 mm

875 mm

➤

2'10"

➤

Stick Options Industrial Stick

2.0 m (6'6") 2.3 m (7'6") 2.6 m (8'6") 2.9 m (9'6")

mm ft/in mm ft/in mm ft/in mm ft/in

1 Shipping Height

VA Boom 3120 10'3" 3120 10'3" 3120 10'3" 3120 10'3" One-piece Boom 3120 10'3" 3120 10'3" 3120 10'3" 3120 10'3" Offset Boom 3120 10'3" 3120 10'3"

2 Shipping Length

VA Boom 8310 27'3" 8300 27'3" 8290 27'2" 8130 26'8" One-piece Boom 8090 26'7" 8080 26'6" 8090 26'7" 7950 26'1" Offset Boom 8300 27'3" 8300 27'3"

3 Support Point

VA Boom 3820 12'6" 3470 11'5" 3320 10'11" 3580 11'9" One-piece Boom 3480 11'5" 3120 10'3" 2950 9'8" 3170 10'5" Offset Boom 3820 12'6" 3460 11'4"

4 Tail Swing Radius

VA Boom 2050 6'9" 2050 6'9" 2050 6'9" 2050 6'9" One-piece Boom 2050 6'9" 2050 6'9" 2050 6'9" 2050 6'9" Offset Boom 2050 6'9" 2050 6'9"

5 Counterweight Clearance

VA Boom 1232 4'1" 1232 4'1" 1232 4'1" 1232 4'1" One-piece Boom 1232 4'1" 1232 4'1" 1232 4'1" 1232 4'1" Offset Boom 1232 4'1" 1232 4'1"

6 Cab Height

VA Boom 3120 10'3" 3120 10'3" 3120 10'3" 3120 10'3" One-piece Boom 3120 10'3" 3120 10'3" 3120 10'3" 3120 10'3" Offset Boom 3120 10'3" 3120 10'3"

Note: All dimensions are approximate and cab height is without Falling Object Guards.

Page 19

M313D Wheel Excavator specifications

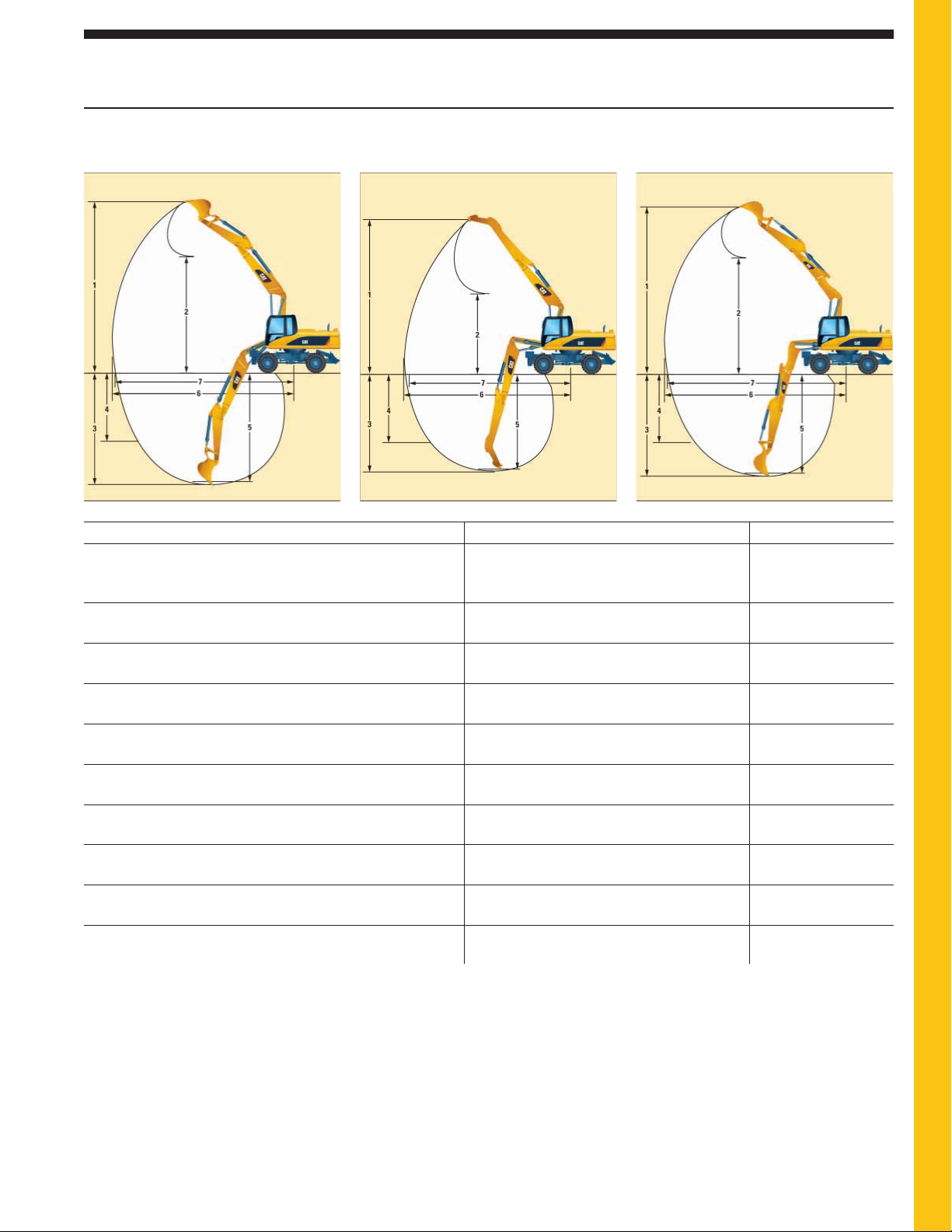

VA Boom, One-piece and Offset Boom Working Ranges

2.0 m (6'6"), 2.3 m (7'6"), 2.6 m (8'6"),

2.9 m (9'6") Sticks

VA Boom One-piece Boom Offset Boom

Stick Length 2.0 m (6'6") 2.3 m (7'6") 2.6 m (8'6") 2.9 m (9'6") 2.0 m (6'6") 2.3 m (7'6") 2.6 m (8'6") 2.9 m (9'6") 2.0 m (6'6") 2.3 m (7'6") 1 Digging Height 9670 mm 9820 mm 10 060 mm 8500 mm 8600 mm 8620 mm 8790 mm 7140 mm 9670 mm 9820 mm

(31'9") (32'3") (32'0") (27'11") (28'3") (28'4") (28'10") (23'5") (31'9") (32'3")

2 Dump Height 6900 mm 7060 mm 7290 mm 4020 mm 5910 mm 5970 mm 6140 mm 3160 mm 6900 mm 7060 mm

(22'8") (23'2") (23'11") (13'2") (19'5") (19'7") (20'2") (10'5") (22'8") (23'2")

3 Digging Depth 5160 mm 5450 mm 5750 mm 4670 mm 4990 mm 5290 mm 5590 mm 4500 mm 5160 mm 5450 mm

(16'11") (17'11") (18'11") (15'4") (16'5") (17'4") (18'4") (14'9") (16'11") (17'11")

4 Vertical Wall 3500 mm 3600 mm 3890 mm

Digging Depth (11'6") (11'10") (12'9") (11'2") (11'1") (12'1") (11'6") (11'10")

5 Depth 2.5 m (8'2") 4920 mm 5230 mm 5550 mm

Straight Clean-up (16'2") (17'2") (18'3") (15'7") (16'8") (17'8") (16'2") (17'2")

6 Reach 8670 mm 8920 mm 9210 mm 7910 mm 8420 mm 8660 mm 8950 mm 7610 mm 8670 mm 8920 mm

(28'6") (29'3") (30'3") (26'0") (27'8") (28'5") (29'5") (25'0") (28'6") (29'3")

7 Reach at 8490 mm 8740 mm 9030 mm 7710 mm 8230 mm 8480 mm 8770 mm 7400 mm 8490 mm 8740 mm

Ground Level (27'11") (28'8") (29'8") (25'4") (26'0") (27'10") (28'10") (24'4") (27'11") (28'8")

Bucket Forces 93 kN 93 kN 93 kN (ISO 6015) (20,906 lbf) (20,906 lbf) (20,906 lbf) (20,906 lbf) (20,906 lbf) (20,906 lbf) (20,906 lbf) (20,906 lbf)

Stick Forces 73 kN 67 kN 62 kN (ISO 6015) (16,410 lbf) (15,062 lbf) (13,938 lbf) (16,410 lbf) (15,062 lbf) (13,938 lbf) (16,410 lbf) (15,062 lbf)

* Industrial Stick has no bucket linkage. All dimensions refer to stick-nose.

Values 1-7 are calculated with bucket and quick coupler with a tip radius of 1552 mm (5'1").

Breakout force values are calculated with heavy lift on (no quick coupler) and a tip radius of 1405 mm (4'7").

2.0 m (6'6"), 2.3 m (7'6"), 2.6 m (8'6"),

2.9 m (9'6") Sticks 2.0 m (6'6"), 2.3 m (7'6") Sticks

Industrial Industrial

Stick* Stick*

N/A

3410 mm 3370 mm 3670 mm

4750 mm 5070 mm 5390 mm

93 kN 93 kN 93 kN

73 kN 67 kN 62 kN

N/A

3500 mm 3600 mm

4920 mm 5230 mm

93 kN 93 kN

73 kN 67 kN

Page 20

M313D Wheel Excavator specifications

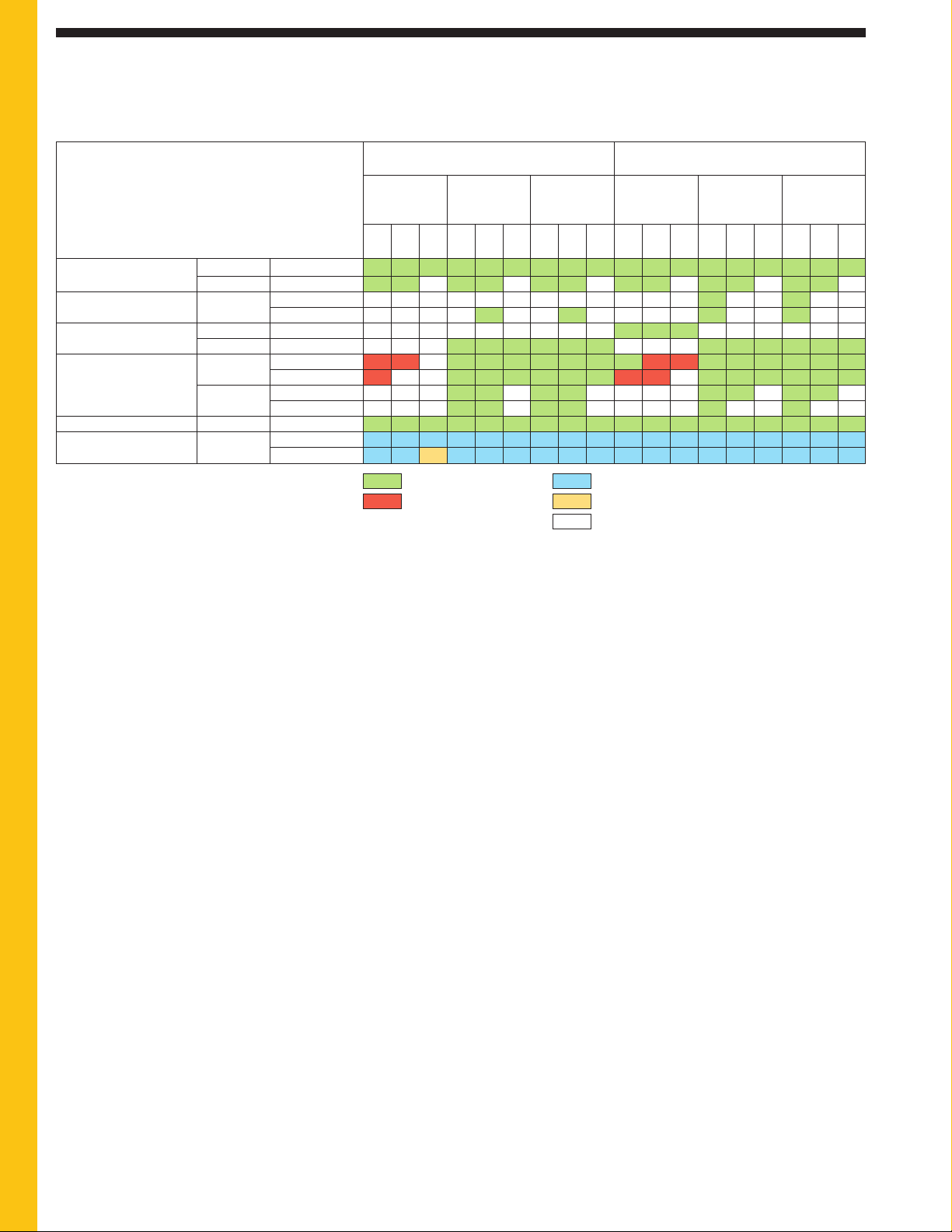

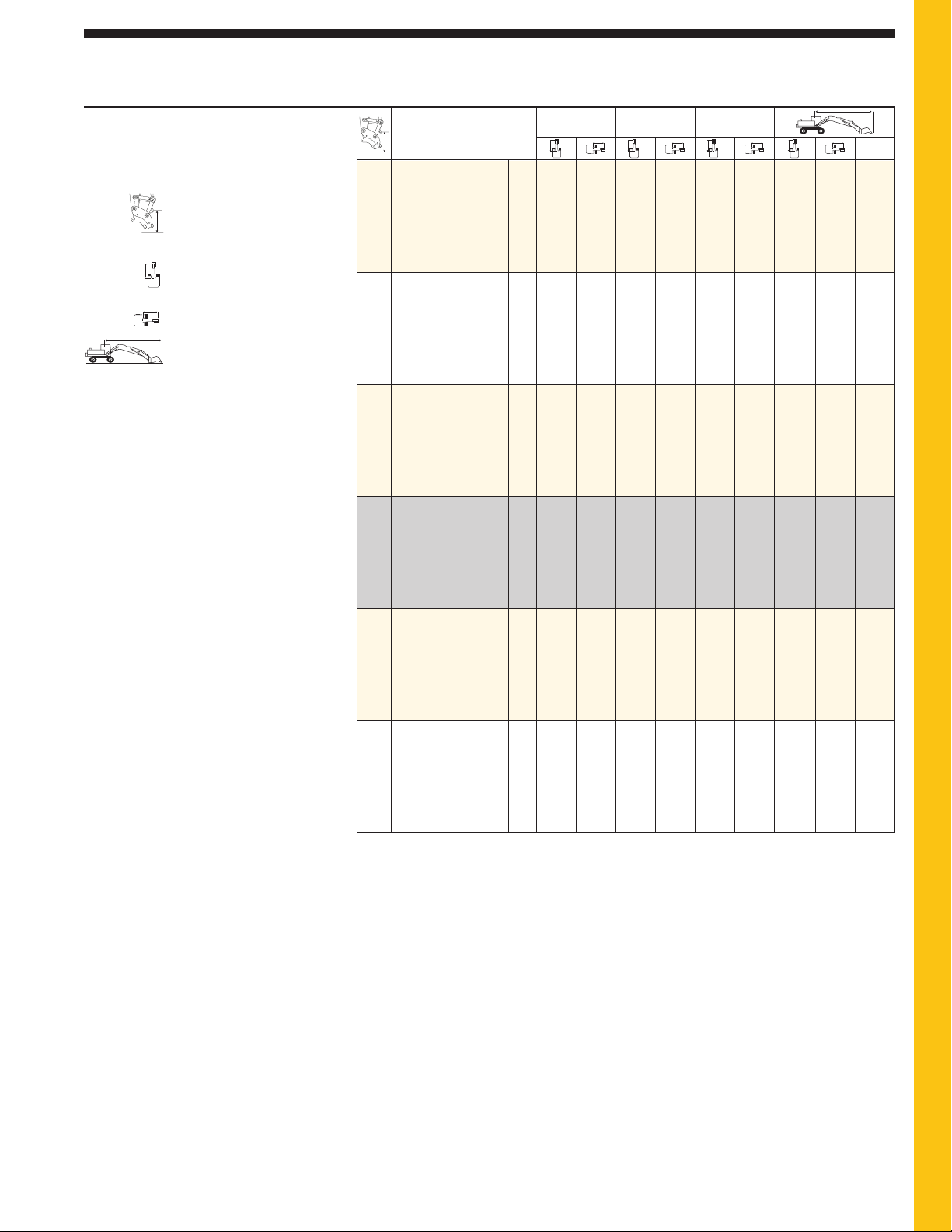

ork Tools Matching Guide

When choosing between various work tool models that can be installed onto the same machine configuration, consider work tool application, productivity requirements, and durability. Refer to work tool specifications for application recommendations and productivity information.

Variable adjustable boom One-piece boom

5020 mm (16'6") 4815 mm (15'10")

Dozer

lowered

Without quick coupler

Hammers

Multiprocessors MP15

360° rotatable Shears (boom mounted)

Sorting & R ×× × Demo Grapple

Compactors CVP75 Orange Peel Grapples

(4 tines)

• Not all work tools are available in all areas.

H100 H115 s ЧЧЧЧЧЧ

S320 S325

G315B

GSH9

Stick length (ft/in) 6'6" 7'6" 8'6" 6'6" 7'6" 8'6" 6'6" 7'6" 8'6" 6'6" 7'6" 8'6" 6'6" 7'6" 8'6" 6'6" 7'6" 8'6"

CC, PS CR, S ×××× ×× ×××× ×× ××

D ×

D ××× × ×××× × × R ××× × ×××× ×× ××

300 L (0.39 yd 400 L (0.5 yd

(mm) 2000 2300 2600 2000 2300 2600 2000 2300 2600 2000 2300 2600 2000 2300 2600 2000 2300 2600

ЧЧЧЧЧЧЧЧЧЧЧЧ ×× ××

ЧЧЧЧЧЧЧЧЧ ЧЧЧЧЧЧ ЧЧЧ ×××

)

360° Working Range Maximum Material density 1800 kg/m3(3,000 lb/yd3)

2 sets Dozer 2 sets Dozer

of stabilizer and stabilizer

lowered lowered

Dozer

lowered

Maximum Material density 1200 kg/m

Not Compatible

of stabilizer and stabilizer

lowered lowered

(2,000 lb/yd3)Over the front only

Page 21

M313D Wheel Excavator specifications

Bucket Specifications

Contact your Caterpillar dealer for special bucket requirements.

Pin-on Buckets

Width

Bucket Type mm in kg lb m

610 24 384 847 0.34 0.45 3 762 30 436 963 0.47 0.62 4

General Purpose

General Purpose Wide Tip 914 36 577 1274 0.76 0.99 5

Heavy Duty Rock 914 36 614 1355 0.61 0.8 5

Ditch Cleaning 1676 66 606 1338 1.06 1.38 0

Ditch Cleaning Tilt 1803 71 362 800 0.48 0.63 0

• All bucket recommendations are subject to material density.

• All data is subject to change without notice.

• Contact your Caterpillar dealer for bucket availability and specifications.

914 36 489 1080 0.61 0.8 5

991 39 411 908 0.54 0.7 5 1067 42 534 1179 0.78 1.02 5 1219 48 586 1294 0.88 1.15 6

610 24 445 983 0.44 0.58 3

762 30 506 1116 0.58 0.76 4

1067 42 581 1282 0.92 1.2 6 1219 48 704 1554 1.07 1.4 7

610 24 464 1025 0.34 0.45 3

762 30 539 1190 0.47 0.62 4

1067 42 668 1474 0.78 1.02 5

1219.2 48 743 1640 0.88 1.15 6 1524 60 572 1263 0.96 1.25 0

2007 79 424 935 0.54 0.7 0 1524 60 634 1400 0.67 0.87 0

2007 79 380 838 0.40 0.52 0

Weight

Capacity

(SAE)

No. of

Teeth

Page 22

M313D Wheel Excavator specifications

VA Boom – 2.0 m (6'6") stick

Stick

2.0 m (6'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *4400 3600 3400 2100

(Load over front) lb *9,700 7,940 7,500 4,630

Rear dozer down kg *4400 4100 *3600

(Load over rear) lb *9,700 9,040 *7,940

6.0 m Rear stab down kg *4400 *4400 *3600 3000

(20.0 ft) (Load over rear) lb *9,700 *9,700 *7,940 6,610

2 sets stab down kg *4400 *4400 *3600 *3600

(Load over front) lb *9,700 *9,700 *7,940 *7,940

Dozer and stab down kg *4400 *4400 *3600 *3600

(Load over front) lb *9,700 *9,700 *7,940 *7,940

Rear dozer up kg *4900 *4900 *5200 3500 3500 2200 *2300 1500

(Load over front) lb *10,800 *10,800 *11,460 7,720 7,720 4,850 *5,070 3,310

Rear dozer down kg *4900 *4900 *5200 4000 *4300 2500 *2300 1800

(Load over rear) lb *10,800 *10,800 *11,460 8,820 *9,480 5,510 *5,070 3,970

4.5 m Rear stab down kg *4900 *4900 *5200 4900 *4300 3100 *2300 2200 7.37 m

(15.0 ft) (Load over rear) lb *10,800 *10,800 *11,460 10,800 *9,480 6,830 *5,070 4,850 (24'2")

2 sets stab down kg *4900 *4900 *5200 *5200 *4300 *4300 *2300 *2300

(Load over front) lb *10,800 *10,800 *11,460 *11,460 *9,480 *9,480 *5,070 *5,070

Dozer and stab down kg *4900 *4900 *5200 *5200 *4300 3800 *2300 *2300

(Load over front) lb *10,800 *10,800 *11,460 *11,460 *9,480 8,380 *5,070 *5,070

Rear dozer up kg *7400 6200 5300 3400 3500 2200 *2200 1300

(Load over front) lb *16,310 13,670 11,690 7,500 7,720 4,850 *4,850 2,870

Rear dozer down kg *7400 7200 *6000 3900 *4500 2500 *2200 1600

(Load over rear) lb *16,310 15,870 *13,230 8,600 *9,920 5,510 *4,850 3,530

3.0 m Rear stab down kg *7400 *7400 *6000 4700 *4500 3100 *2200 1900 7.83 m

(10.0 ft) (Load over rear) lb *16,310 *16,310 *13,230 10,360 *9,920 6,830 *4,850 4,190 (25'8")

2 sets stab down kg *7400 *7400 *6000 *6000 *4500 4400 *2200 *2200

(Load over front) lb *16,310 *16,310 *13,230 *13,230 *9,920 9,700 *4,850 *4,850

Dozer and stab down kg *7400 *7400 *6000 5700 *4500 *3700 *2200 *2200

(Load over front) lb *16,310 *16,310 *13,230 12,570 *9,920 *8,160 *4,850 *4,850

Rear dozer up kg *8600 6100 5300 3400 3400 2100 2100 1300

(Load over front) lb *18,960 13,450 11,690 7,500 7,500 4,630 4,630 2,870

Rear dozer down kg *8600 7100 *6600 3900 *4700 2500 *2300 1500

(Load over rear) lb *18,960 15,650 *14,550 8,600 *10,360 5,510 *5,070 3,310

1.5 m Rear stab down kg *8600 *8600 *6600 4700 4600 3000 *2300 1900 7.94 m

(5.0 ft) (Load over rear) lb *18,960 *18,960 *14,550 10,360 10,140 6,610 *5,070 4,190 (26'1")

2 sets stab down kg *8600 *8600 *6600 *6600 *4700 4400 *2300 *2300

(Load over front) lb *18,960 *18,960 *14,550 *14,550 *10,360 9,700 *5,070 *5,070

Dozer and stab down kg *8600 *8600 *6600 5600 *4700 3700 *2300 *2300

(Load over front) lb *18,960 *18,960 *14,550 12,350 *10,360 8,160 *5,070 *5,070

Rear dozer up kg *10 200 5900 5300 3300 3300 2000 2200 1300

(Load over front) lb *22,490 13,010 11,690 7,280 7,280 4,410 4,850 2,870

Rear dozer down kg *10 200 7000 *6600 3800 *4800 2400 *2500 1500

(Load over rear) lb *22,490 15,430 *14,550 8,380 *10,580 5,290 *5,510 3,310

Rear stab down kg *10 200 8900 *6600 4700 4700 2900 *2500 1900 7.73 m

(Load over rear) lb *22,490 19,620 *14,550 10,360 10,360 6,390 *5,510 4,190 (25'4")

Ground

2 sets stab down kg *10 200 *10 200 *6600 *6600 *4800 4300 *2500 *2500

(Load over front) lb *22,490 *22,490 *14,550 *14,550 *10,580 9,480 *5,510 *5,510

Dozer and stab down kg *10 200 *10 200 *6600 5700 *4800 3600 *2500 2400

(Load over front) lb *22,490 *22,490 *14,550 12,570 *10,580 7,940 *5,510 5,290

Rear dozer up kg 10 400 5800 5200 3100 3200 1900 2500 1500

(Load over front) lb 22,930 12,790 11,460 6,830 7,060 4,190 5,510 3,310

Rear dozer down kg *10 800 6800 *6800 3600 *4500 2300 *2800 1700

(Load over rear) lb *23,810 14,990 *14,990 7,940 *9,920 5,070 *6,170 3,750

-1.5 m Rear stab down kg *10 800 8900 *6800 4500 *4500 2800 *2800 2200 7.15 m

(-5.0 ft) (Load over rear) lb *23,810 19,620 *14,990 9,920 *9,920 6,170 *6,170 4,850 (23'5")

2 sets stab down kg *10 800 *10 800 *6800 *6800 *4500 *4200 *2800 *2800

(Load over front) lb *23,810 *23,810 *14,990 *14,990 *9,920 *9,260 *6,170 *6,170

Dozer and stab down kg *10 800 *10 800 *6800 5600 *4500 3500 *2800 2700

(Load over front) lb *23,810 *23,810 *14,990 12,350 *9,920 7,720 *6,170 5,950

Rear dozer up kg 10 400 5700 5000 3000

(Load over front) lb 22,930 12,570 11,020 6,610

Rear dozer down kg *10 500 6800 *5600 3500

(Load over rear) lb *23,150 14,990 *12,350 7,720

-3.0 m Rear stab down kg *10 500 8800 *5600 4400

(-10.0 ft) (Load over rear) lb *23,150 19,400 *12,350 9,700

2 sets stab down kg *10 500 *10 500 *5600 *5600

(Load over front) lb *23,150 *23,150 *12,350 *12,350

Dozer and stab down kg *10 500 *10 500 *5600 5500

(Load over front) lb *23,150 *23,150 *12,350 12,130

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

m/ft

Page 23

M313D Wheel Excavator specifications

VA Boom – 2.3 m (7'6") stick

Stick

2.3 m (7'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *4000 3600 3500 2200

(Load over front) lb *8,820 7,940 7,720 4,850

Rear dozer down kg *4000 4000 *3600 2500

(Load over rear) lb *8,820 8,820 *7,940 5,510

6.0 m Rear stab down kg *4000 *4000 *3600 3100

(20.0 ft) (Load over rear) lb *8,820 *8,820 *7,940 6,830

2 sets stab down kg *4000 *4000 *3600 *3600

(Load over front) lb *8,820 *8,820 *7,940 *7,940

Dozer and stab down kg *4000 *4000 *3600 *3600

(Load over front) lb *8,820 *8,820 *7,940 *7,940

Rear dozer up kg *4000 *4000 *4600 3500 3500 2200 *2000 1400 7.65 m

(Load over front) lb *8,820 *8,820 *10,140 7,720 7,720 4,850 *4,410 3,090 (25'1")

Rear dozer down kg *4000 *4000 *4600 4000 *4100 2600 *2000 1700

(Load over rear) lb *8,820 *8,820 *10,140 8,820 *9,040 5,730 *4,410 3,750

4.5 m Rear stab down kg *4000 *4000 *4600 *4600 *4100 3100 *2000 *2000

(15.0 ft) (Load over rear) lb *8,820 *8,820 *10,140 *10,140 *9,040 6,830 *4,410 *4,410

2 sets stab down kg *4000 *4000 *4600 *4600 *4100 *4100 *2000 *2000

(Load over front) lb *8,820 *8,820 *10,140 *10,140 *9,040 *9,040 *4,410 *4,410

Dozer and stab down kg *4000 *4000 *4600 *4600 *4100 3800 *2000 *2000

(Load over front) lb *8,820 *8,820 *10,140 *10,140 *9,040 8,380 *4,410 *4,410

Rear dozer up kg *7900 6300 5300 3500 3500 2200 2300 1400 *2000 1300

(Load over front) lb *17,420 13,890 11,680 7,720 7,720 4,850 5,070 3,090 *4,410 2,870

Rear dozer down kg *7900 7200 *5800 4000 *4400 2600 3100 1600 *2000 1500

(Load over rear) lb *17,420 15,870 *12,790 8,820 *9,700 5,730 6,830 3,530 *4,410 3,310

3.0 m Rear stab down kg *7900 *7900 *5800 4800 *4400 3100 3100 2000 *2000 1800 8.08 m

(10.0 ft) (Load over rear) lb *17,420 *17,420 *12,790 10,580 *9,700 6,830 6,830 4,410 *4,410 3,970 (26'6")

2 sets stab down kg *7900 *7900 *5800 *5800 *4400 *4400 3100 3100 *2000 *2000

(Load over front) lb *17,420 *17,420 *12,790 *12,790 *9,700 *9,700 6,830 6,830 *4,410 *4,410

Dozer and stab down kg *7900 *7900 *5800 5700 *4400 3700 *3100 2500 *2000 *2000

(Load over front) lb *17,420 *17,420 *12,790 12,570 *9,700 8,160 *6,830 5,510 *4,410 *4,410

Rear dozer up kg *8800 6200 5200 3400 3500 2200 2300 1400 2000 1200

(Load over front) lb *19,400 13,670 11,460 7,500 7,720 4,850 5,070 3,090 4,410 2,650

Rear dozer down kg *8800 7100 *6500 3900 *4700 2500 3600 1600 *2000 1400

(Load over rear) lb *19,400 15,650 *14,330 8,600 *10,360 5,510 7,940 3,530 *4,410 3,090

1.5 m Rear stab down kg *8800 *8800 *6500 4700 4600 3100 3200 2000 *2000 1800 8.19 m

(5.0 ft) (Load over rear) lb *19,400 *19,400 *14,330 10,360 10,140 6,830 7,050 4,410 *4,410 3,970 (26'10")

2 sets stab down kg *8800 *8800 *6500 *6500 *4700 4400 *3700 3000 *2000 *2000

(Load over front) lb *19,400 *19,400 *14,330 *14,330 *10,360 9,700 *8,160 6,610 *4,410 *4,410

Dozer and stab down kg *8800 *8800 *6500 5600 *4700 3700 *3700 2500 *2000 *2000

(Load over front) lb *19,400 *19,400 *14,330 12,350 *10,360 8,160 *8,160 5,510 *4,410 *4,410

Rear dozer up kg *10 000 6000 5300 3300 3300 2100 2300 1300 2100 1200

(Load over front) lb *22,050 13,230 11,680 7,280 7,280 4,630 5,070 2,870 4,630 2,650

Rear dozer down kg *10 000 7100 *6600 3800 *4800 2400 *3000 1600 *2200 1400

(Load over rear) lb *22,050 15,650 *14,550 8,380 *10,580 5,290 *6,610 3,530 *4,850 3,090

Rear stab down kg *10 000 8900 *6600 4700 *4600 3300 *3000 2000 *2200 1800 7.98 m

(Load over rear) lb *22,050 19,620 *14,550 10,360 *10,140 7,280 *6,610 4,410 *4,850 3,970 (26'2")

Ground

2 sets stab down kg *10 000 *10 000 *6600 *6600 *4800 4400 *3000 3000 *2200 *2200

(Load over front) lb *22,050 *22,050 *14,550 *14,550 *10,580 9,700 *6,610 6,610 *4,850 *4,850

Dozer and stab down kg *10 000 *10 000 *6600 5700 *4800 3600 *3000 2500 *2200 *2200

(Load over front) lb *22,050 *22,050 *14,550 12,570 *10,580 7,940 *6,610 5,510 *4,850 *4,850

Rear dozer up kg 10 400 5800 5200 3200 3200 1900 2300 1400

(Load over front) lb 22,930 12,790 11,460 7,050 7,050 4,190 5,070 3,090

Rear dozer down kg *10 700 6900 *6700 3700 *4700 2300 *2500 1600

(Load over rear) lb *23,590 15,210 *14,770 8,160 *10,360 5,070 *5,510 3,530

-1.5 m Rear stab down kg *10 700 8900 *6700 4600 4600 2800 *2500 2000 7.43 m

(-5.0 ft) (Load over rear) lb *23,590 19,620 *14,770 10,140 10,140 6,170 *5,510 4,410 (24'4")

2 sets stab down kg *10 700 *10 700 *6700 *6700 *4700 4300 *2500 *2500

(Load over front) lb *23,590 *23,590 *14,770 *14,770 *10,360 9,480 *5,510 *5,510

Dozer and stab down kg *10 700 *10 700 *6700 5700 *4700 3500 *2500 *2500

(Load over front) lb *23,590 *23,590 *14,770 12,570 *10,360 7,720 *5,510 *5,510

Rear dozer up kg 10 400 5800 5000 3000

(Load over front) lb 22,930 12,790 11,020 6,610

Rear dozer down kg *10 900 6900 *6200 3500

(Load over rear) lb *24,030 15,210 *13,670 7,720

-3.0 m Rear stab down kg *10 900 8900 *6200 4400

(-10.0 ft) (Load over rear) lb *24,030 19,620 *13,670 9,700

2 sets stab down kg *10 900 *10 900 *6200 *6200

(Load over front) lb *24,030 *24,030 *13,670 *13,670

Dozer and stab down kg *10 900 *10 900 *6200 5500

(Load over front) lb *24,030 *24,030 *13,670 12,130

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

7.5 m

(25.0 ft)

m/ft

Page 24

M313D Wheel Excavator specifications

VA Boom – 2.6 m (8'6") stick

Stick

2.6 m (8'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *3500 3500 *3400 2200

(Load over front) lb *7,720 7,720 *7,500 4,850

Rear dozer down kg *3500 *3500 *3400 2600

(Load over rear) lb *7,720 *7,720 *7,500 5,730

6.0 m Rear stab down kg *3500 *3500 *3400 3100

(20.0 ft) (Load over rear) lb *7,720 *7,720 *7,500 6,830

2 sets stab down kg *3500 *3500 *3400 *3400

(Load over front) lb *7,720 *7,720 *7,500 *7,500

Dozer and stab down kg *3500 *3500 *3400 *3400

(Load over front) lb *7,720 *7,720 *7,500 *7,500

Rear dozer up kg 3900 3500 3500 2300 *2100 1400 *1700 1300

(Load over front) lb 8,600 7,720 7,720 5,070 *4,630 3,090 *3,750 2,870

Rear dozer down kg *3900 3900 *3900 2600 *2100 1700 *1700 1500

(Load over rear) lb *8,600 8,600 *8,600 5,730 *4,630 3,750 *3,750 3,310

4.5 m Rear stab down kg *3900 *3900 *3900 3100 *2100 2100 *1700 *1700 7.96 m

(15.0 ft) (Load over rear) lb *8,600 *8,600 *8,600 6,830 *4,630 4,630 *3,750 *3,750 (26'1")

2 sets stab down kg *3900 *3900 *3900 *3900 *2100 *2100 *1700 *1700

(Load over front) lb *8,600 *8,600 *8,600 *8,600 *4,630 *4,630 *3,750 *3,750

Dozer and stab down kg *3900 *3900 *3900 3800 *2100 *2100 *1700 *1700

(Load over front) lb *8,600 *8,600 *8,600 8,380 *4,630 *4,630 *3,750 *3,750

Rear dozer up kg *7600 6300 5300 3400 3500 2300 2300 1400 *1700 1200

(Load over front) lb *16,760 13,890 11,680 7,500 7,720 5,070 5,070 3,090 *3,750 2,650

Rear dozer down kg *7600 7200 *5600 3900 *4300 2600 *3500 1700 *1700 1400

(Load over rear) lb *16,760 15,870 *12,350 8,600 *9,480 5,730 *7,720 3,750 *3,750 3,090

3.0 m Rear stab down kg *7600 *7600 *5600 4700 *4300 3100 3300 2100 *1700 *1700 8.38 m

(10.0 ft) (Load over rear) lb *16,760 *16,760 *12,350 10,360 *9,480 6,830 7,280 4,630 *3,750 *3,750 (27'6")

2 sets stab down kg *7600 *7600 *5600 *5600 *4300 *4300 *3500 3100 *1700 *1700

(Load over front) lb *16,760 *16,760 *12,350 *12,350 *9,480 *9,480 *7,720 6,830 *3,750 *3,750

Dozer and stab down kg *7600 *7600 *5600 *5600 *4300 3700 *3500 *2500 *1700 *1700

(Load over front) lb *16,760 *16,760 *12,350 *12,350 *9,480 8,160 *7,720 *5,510 *3,750 *3,750

Rear dozer up kg *8600 6100 5200 3400 3500 2200 2300 1400 *1800 1100

(Load over front) lb *18,960 13,450 11,460 7,500 7,720 4,850 5,070 3,090 *3,970 2,430

Rear dozer down kg *8600 7100 *6300 3900 *4600 2500 3600 1600 *1800 1300

(Load over rear) lb *18,960 15,650 *13,890 8,600 *10,140 5,510 7,940 3,530 *3,970 2,870

1.5 m Rear stab down kg *8600 *8600 *6300 4700 *4600 3100 3200 2000 *1800 1700 8.48 m

(5.0 ft) (Load over rear) lb *18,960 *18,960 *13,890 10,360 *10,140 6,830 7,050 4,410 *3,970 3,750 (27'10")

2 sets stab down kg *8600 *8600 *6300 *6300 *4600 *4300 *3600 3000 *1800 *1800

(Load over front) lb *18,960 *18,960 *13,890 *13,890 *10,140 *9,480 *7,940 6,610 *3,970 *3,970

Dozer and stab down kg *8600 *8600 *6300 5600 *4600 3700 *3600 2500 *1800 *1800

(Load over front) lb *18,960 *18,960 *13,890 12,350 *10,140 8,160 *7,940 5,510 *3,970 *3,970

Rear dozer up kg *9800 6000 5200 3300 3400 2100 2300 1300 *1900 1100

(Load over front) lb *21,610 13,230 11,460 7,280 7,500 4,630 5,070 2,870 *4,190 2,430

Rear dozer down kg *9800 7100 *6500 3800 *4700 2400 *3500 1600 *1900 1300

(Load over rear) lb *21,610 15,650 *14,330 8,380 *10,360 5,290 *7,720 3,530 *4,190 2,870

Rear stab down kg *9800 8800 *6500 4700 4600 3000 3200 2000 *1900 1700 8.28 m

(Load over rear) lb *21,610 19,400 *14,330 10,360 10,140 6,610 7,050 4,410 *4,190 3,750 (27'2")

Ground

2 sets stab down kg *9800 *9800 *6500 *6500 *4700 4400 *3500 3000 *1900 *1900

(Load over front) lb *21,610 *21,610 *14,330 *14,330 *10,360 9,700 *7,720 6,610 *4,190 *4,190

Dozer and stab down kg *9800 *9800 *6500 5600 *4700 3600 *3500 2500 *1900 *1900

(Load over front) lb *21,610 *21,610 *14,330 12,350 *10,360 7,940 *7,720 5,510 *4,190 *4,190

Rear dozer up kg 10 200 5700 5200 3100 3200 2000 2100 1300

(Load over front) lb 22,490 12,570 11,460 6,830 7,050 4,410 4,630 2,870

Rear dozer down kg *10 600 6800 *6600 3700 *4800 2300 *2200 1500

(Load over rear) lb *23,370 14,990 *14,550 8,160 *10,580 5,070 *4,850 3,310

-1.5 m Rear stab down kg *10 600 8900 *6600 4600 4600 2800 *2200 1900 7.75 m

(-5.0 ft) (Load over rear) lb *23,370 19,620 *14,550 10,140 10,140 6,170 *4,850 4,190 (25'5")

2 sets stab down kg *10 600 *10 600 *6600 *6600 *4800 4300 *2200 *2200

(Load over front) lb *23,370 *23,370 *14,550 *14,550 *10,580 9,480 *4,850 *4,850

Dozer and stab down kg *10 600 *10 600 *6600 5700 *4800 3500 *2200 *2200

(Load over front) lb *23,370 *23,370 *14,550 12,570 *10,580 7,720 *4,850 *4,850

Rear dozer up kg 10 400 5700 5000 3000 3100 1900

(Load over front) lb 22,930 12,570 11,020 6,610 6,830 4,190

Rear dozer down kg *11 000 6800 *6600 3500 *3500 2200

(Load over rear) lb *24,250 14,990 *14,550 7,720 *7,720 4,850

-3.0 m Rear stab down kg *11 000 8800 *6600 4400 *3500 2800

(-10.0 ft) (Load over rear) lb *24,250 19,400 *14,550 9,700 *7,720 6,170

2 sets stab down kg *11 000 *11 000 *6600 *6600 *3500 *3500

(Load over front) lb *24,250 *24,250 *14,550 *14,550 *7,720 *7,720

Dozer and stab down kg *11 000 *11 000 *6600 5500 *3500 3400

(Load over front) lb *24,250 *24,250 *14,550 12,130 *7,720 7,500

Rear dozer up kg *6600 5600

(Load over front) lb *14,550 12,350

Rear dozer down kg *6600 *6600

(Load over rear) lb *14,550 *14,550

-4.5 m Rear stab down kg *6600 *6600

(-15.0 ft) (Load over rear) lb *14,550 *14,550

2 sets stab down kg *6600 *6600

(Load over front) lb *14,550 *14,550

Dozer and stab down kg *6600 *6600

(Load over front) lb *14,550 *14,550

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

7.5 m

(25.0 ft)

m/ft

Page 25

M313D Wheel Excavator specifications

One-piece Boom – 2.0 m (6'6") stick

Stick

2.0 m (6'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *4800 3400 3400 2200 *2100 1700

(Load over front) lb *10,580 7,500 7,500 4,850 *4,630 3,750

Rear dozer down kg *4800 3900 *4200 2500 *2100 1900

(Load over rear) lb *10,580 8,600 *9,260 5,510 *4,630 4,190

4.5 m Rear stab down kg *4800 *4800 *4200 3000 *2100 *2100 7.11 m

(15.0 ft) (Load over rear) lb *10,580 *10,580 *9,260 6,610 *4,630 *4,630 (23'4")

2 sets stab down kg *4800 *4800 *4200 *4200 *2100 *2100

(Load over front) lb *10,580 *10,580 *9,260 *9,260 *4,630 *4,630

Dozer and stab down kg *4800 *4800 *4200 3700 *2100 *2100

(Load over front) lb *10,580 *10,580 *9,260 8,160 *4,630 *4,630

Rear dozer up kg 5200 3200 3300 2100 *2100 1500

(Load over front) lb 11,460 7,060 7,280 4,630 *4,630 3,310

Rear dozer down kg *5700 3700 *4500 2400 *2100 1700

(Load over rear) lb *12,570 8,160 *9,920 5,290 *4,630 3,750

3.0 m Rear stab down kg *5700 4600 *4500 3000 *2100 *2100 7.58 m

(10.0 ft) (Load over rear) lb *12,570 10,140 *9,920 6,610 *4,630 *4,630 (24'10")

2 sets stab down kg *5700 *5700 *4500 4400 *2100 *2100

(Load over front) lb *12,570 *12,570 *9,920 9,700 *4,630 *4,630

Dozer and stab down kg *5700 *5700 *4500 3600 *2100 *2100

(Load over front) lb *12,570 *12,570 *9,920 7,940 *4,630 *4,630

Rear dozer up kg 5000 3000 3200 2000 *2100 1400

(Load over front) lb 11,020 6,610 7,060 4,410 *4,630 3,090

Rear dozer down kg *6500 3500 *4800 2300 *2100 1600

(Load over rear) lb *14,330 7,720 *10,580 5,070 *4,630 3,530

1.5 m Rear stab down kg *6500 4400 4600 2900 *2100 2000 7.70 m

(5.0 ft) (Load over rear) lb *14,330 9,700 10,140 6,390 *4,630 4,410 (25'3")

2 sets stab down kg *6500 *6500 *4800 4300 *2100 *2100

(Load over front) lb *14,330 *14,330 *10,580 9,480 *4,630 *4,630

Dozer and stab down kg *6500 5400 *4800 3500 *2100 *2100

(Load over front) lb *14,330 11,910 *10,580 7,720 *4,630 *4,630

Rear dozer up kg 4900 2900 3200 1900 *2300 1400

(Load over front) lb 10,800 6,390 7,060 4,190 *5,070 3,090

Rear dozer down kg *6700 3400 *4800 2200 *2300 1700

(Load over rear) lb *14,770 7,500 *10,580 4,850 *5,070 3,750

Rear stab down kg *6700 4200 4500 2800 *2300 2000 7.47 m

(Load over rear) lb *14,770 9,260 9,920 6,170 *5,070 4,410 (24'6")

Ground

2 sets stab down kg *6700 6600 *4800 4200 *2300 *2300

(Load over front) lb *14,770 14,550 *10,580 9,260 *5,070 *5,070

Dozer and stab down kg *6700 5300 *4800 3400 *2300 *2300

(Load over front) lb *14,770 11,690 *10,580 7,500 *5,070 *5,070

Rear dozer up kg *7900 5300 4800 2900 3200 1900 2600 1600

(Load over front) lb *17,420 11,690 10,580 6,390 7,060 4,190 5,730 3,530

Rear dozer down kg *7900 6300 *6100 3300 *4300 2200 *2700 1900

(Load over rear) lb *17,420 13,890 *13,450 7,280 *9,480 4,850 *5,950 4,190

-1.5 m Rear stab down kg *7900 *7900 *6100 4200 *4300 2800 *2700 2300 6.87 m

(-5.0 ft) (Load over rear) lb *17,420 *17,420 *13,450 9,260 *9,480 6,170 *5,950 5,070 (22'6")

2 sets stab down kg *7900 *7900 *6100 *6100 *4300 4200 *2700 *2700

(Load over front) lb *17,420 *17,420 *13,450 *13,450 *9,480 9,260 *5,950 *5,950

Dozer and stab down kg *7900 *7900 *6100 5300 *4300 3400 *2700 *2700

(Load over front) lb *17,420 *17,420 *13,450 11,690 *9,480 7,500 *5,950 *5,950

Rear dozer up kg *6200 5400 *4500 2900

(Load over front) lb *13,670 11,910 *9,920 6,390

Rear dozer down kg *6200 *6200 *4500 3400

(Load over rear) lb *13,670 *13,670 *9,920 7,500

-3.0 m Rear stab down kg *6200 *6200 *4500 4300

(-10.0 ft) (Load over rear) lb *13,670 *13,670 *9,920 9,480

2 sets stab down kg *6200 *6200 *4500 *4500

(Load over front) lb *13,670 *13,670 *9,920 *9,920

Dozer and stab down kg *6200 *6200 *4500 *4500

(Load over front) lb *13,670 *13,670 *9,920 *9,920

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

m/ft

Page 26

M313D Wheel Excavator specifications

One-piece Boom – 2.3 m (7'6") stick

Stick

2.3 m (7'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *2600 2200

(Load over front) lb *5,730 4,850

Rear dozer down kg *2600 2500

(Load over rear) lb *5,730 5,510

6.0 m Rear stab down kg *2600 *2600

(20.0 ft) (Load over rear) lb *5,730 *5,730

2 sets stab down kg *2600 *2600

(Load over front) lb *5,730 *5,730

Dozer and stab down kg *2600 *2600

(Load over front) lb *5,730 *5,730

Rear dozer up kg 3400 2200 *1800 1600

(Load over front) lb 7,500 4,850 *3,970 3,530

Rear dozer down kg *4000 2500 *1800 *1800

(Load over rear) lb *8,820 5,510 *3,970 *3,970

4.5 m Rear stab down kg *4000 3100 *1800 *1800 7.37 m

(15.0 ft) (Load over rear) lb *8,820 6,830 *3,970 *3,970 (24'2")

2 sets stab down kg *4000 *4000 *1800 *1800

(Load over front) lb *8,820 *8,820 *3,970 *3,970

Dozer and stab down kg *4000 3700 *1800 *1800

(Load over front) lb *8,820 8,160 *3,970 *3,970

Rear dozer up kg 5300 3300 3400 2100 *1800 1400

(Load over front) lb 11,690 7,280 7,500 4,630 *3,970 3,090

Rear dozer down kg *5500 3800 *4300 2400 *1800 1600

(Load over rear) lb *12,130 8,380 *9,480 5,290 *3,970 3,530

3.0 m Rear stab down kg *5500 4700 *4300 3000 *1800 *1800 7.82 m

(10.0 ft) (Load over rear) lb *12,130 10,360 *9,480 6,610 *3,970 *3,970 (25'8")

2 sets stab down kg *5500 *5500 *4300 *4300 *1800 *1800

(Load over front) lb *12,130 *12,130 *9,480 *9,480 *3,970 *3,970

Dozer and stab down kg *5500 *5500 *4300 3600 *1800 *1800

(Load over front) lb *12,130 *12,130 *9,480 7,940 *3,970 *3,970

Rear dozer up kg 5000 3000 3200 2000 *1900 1300

(Load over front) lb 11,020 6,610 7,060 4,410 *4,190 2,870

Rear dozer down kg *6400 3500 *4700 2300 *1900 1500

(Load over rear) lb *14,110 7,720 *10,360 5,070 *4,190 3,310

1.5 m Rear stab down kg *6400 4400 4600 2900 *1900 *1900 7.94 m

(5.0 ft) (Load over rear) lb *14,110 9,700 10,140 6,390 *4,190 *4,190 (25'1")

2 sets stab down kg *6400 *6400 *4700 4300 *1900 *1900

(Load over front) lb *14,110 *14,110 *10,360 9,480 *4,190 *4,190

Dozer and stab down kg *6400 5500 *4700 3500 *1900 *1900

(Load over front) lb *14,110 12,130 *10,360 7,720 *4,190 *4,190

Rear dozer up kg *4300 *4300 4900 2900 3200 1900 *2100 1300

(Load over front) lb *9,480 *9,480 10,800 6,390 7,060 4,190 *4,630 2,870

Rear dozer down kg *4300 *4300 *6700 3400 *4800 2200 *2100 1600

(Load over rear) lb *9,480 *9,480 *14,770 7,500 *10,580 4,850 *4,630 3,530

Rear stab down kg *4300 *4300 *6700 4200 4500 2800 *2100 1900 7.72 m

(Load over rear) lb *9,480 *9,480 *14,770 9,260 9,920 6,170 *4,630 4,190 (25'4")

Ground

2 sets stab down kg *4300 *4300 *6700 6600 *4800 4200 *2100 *2100

(Load over front) lb *9,480 *9,480 *14,770 14,550 *10,580 9,260 *4,630 *4,630

Dozer and stab down kg *4300 *4300 *6700 5300 *4800 3400 *2100 *2100

(Load over front) lb *9,480 *9,480 *14,770 11,690 *10,580 7,500 *4,630 *4,630

Rear dozer up kg *7900 5200 4800 2800 3100 1900 *2400 1500

(Load over front) lb *17,420 11,460 10,580 6,170 6,830 4,190 *5,290 3,310

Rear dozer down kg *7900 6200 *6300 3300 *4400 2200 *2400 1700

(Load over rear) lb *17,420 13,670 *13,890 7,280 *9,700 4,850 *5,290 3,750

-1.5 m Rear stab down kg *7900 *7900 *6300 4200 *4400 2800 *2400 2200 7.14 m

(-5.0 ft) (Load over rear) lb *17,420 *17,420 *13,890 9,260 *9,700 6,170 *5,290 4,850 (23'5")

2 sets stab down kg *7900 *7900 *6300 *6300 *4400 4200 *2400 *2400

(Load over front) lb *17,420 *17,420 *13,890 *13,890 *9,700 9,260 *5,290 *5,290

Dozer and stab down kg *7900 *7900 *6300 5300 *4400 3400 *2400 *2400

(Load over front) lb *17,420 *17,420 *13,890 11,690 *9,700 7,500 *5,290 *5,290

Rear dozer up kg *6900 5300 4900 2900

(Load over front) lb *15,210 11,690 10,800 6,390

Rear dozer down kg *6900 6400 *4900 3400

(Load over rear) lb *15,210 14,110 *10,800 7,500

-3.0 m Rear stab down kg *6900 *6900 *4900 4200

(-10.0 ft) (Load over rear) lb *15,210 *15,210 *10,800 9,260

2 sets stab down kg *6900 *6900 *4900 *4900

(Load over front) lb *15,210 *15,210 *10,800 *10,800

Dozer and stab down kg *6900 *6900 *4900 *4900

(Load over front) lb *15,210 *15,210 *10,800 *10,800

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

m/ft

Page 27

M313D Wheel Excavator specifications

One-piece Boom – 2.6 m (8'6") stick

Stick

2.6 m (8'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *3000 2200

(Load over front) lb *6,610 4,850

Rear dozer down kg *3000 2500

(Load over rear) lb *6,610 5,510

6.0 m Rear stab down kg *3000 *3000

(20.0 ft) (Load over rear) lb *6,610 *6,610

2 sets stab down kg *3000 *3000

(Load over front) lb *6,610 *6,610

Dozer and stab down kg *3000 *3000

(Load over front) lb *6,610 *6,610

Rear dozer up kg 3500 2200 *1600 1500

(Load over front) lb 7,720 4,850 *3,530 3,310

Rear dozer down kg *3800 2500 *1600 *1600

(Load over rear) lb *8,380 5,510 *3,530 *3,530

4.5 m Rear stab down kg *3800 3100 *1600 *1600 7.68 m

(15.0 ft) (Load over rear) lb *8,380 6,830 *3,530 *3,530 (25'2")

2 sets stab down kg *3800 *3800 *1600 *1600

(Load over front) lb *8,380 *8,380 *3,530 *3,530

Dozer and stab down kg *3800 3700 *1600 *1600

(Load over front) lb *8,380 8,160 *3,530 *3,530

Rear dozer up kg *7800 6100 *5200 3300 3400 2100 2300 1400 *1600 1300

(Load over front) lb *17,800 13,450 *11,460 7,280 7,500 4,630 5,070 3,090 *3,530 2,870

Rear dozer down kg *7800 7200 *5200 3800 *4200 2400 *2600 1700 *1600 1500

(Load over rear) lb *17,800 15,870 *11,460 8,380 *9,260 5,290 *5,730 3,750 *3,530 3,310

3.0 m Rear stab down kg *7800 *7800 *5200 4700 *4200 3000 *2600 2100 *1600 *1600 8.11 m

(10.0 ft) (Load over rear) lb *17,800 *17,800 *11,460 10,360 *9,260 6,610 *5,730 4,630 *3,530 *3,530 (26'7")

2 sets stab down kg *7800 *7800 *5200 *5200 *4200 *4200 *2600 *2600 *1600 *1600

(Load over front) lb *17,800 *17,800 *11,460 *11,460 *9,260 *9,260 *5,730 *5,730 *3,530 *3,530

Dozer and stab down kg *7800 *7800 *5200 *5200 *4200 3600 *2600 2500 *1600 *1600

(Load over front) lb *17,800 *17,800 *11,460 *11,460 *9,260 7,940 *5,730 5,510 *3,530 *3,530

Rear dozer up kg 5000 3000 3200 2000 2300 1400 *1600 1200

(Load over front) lb 11,020 6,610 7,060 4,410 5,070 3,090 *3,530 2,650

Rear dozer down kg *6200 3500 *4600 2300 *3200 1600 *1600 1400

(Load over rear) lb *13,670 7,720 *10,140 5,070 *7,060 3,530 *3,530 3,090

1.5 m Rear stab down kg *6200 4400 *4600 2900 *3200 2000 *1600 *1600 8.22 m

(5.0 ft) (Load over rear) lb *13,670 9,700 *10,140 6,390 *7,060 4,410 *3,530 *3,530 (27'0")

2 sets stab down kg *6200 *6200 *4600 4300 *3200 3000 *1600 *1600

(Load over front) lb *13,670 *13,670 *10,140 9,480 *7,060 6,610 *3,530 *3,530

Dozer and stab down kg *6200 5500 *4600 3500 *3200 2500 *1600 *1600

(Load over front) lb *13,670 12,130 *10,140 7,720 *7,060 5,510 *3,530 *3,530

Rear dozer up kg *4600 *4600 4800 2900 3100 1900 2300 1400 *1800 1200

(Load over front) lb *10,140 *10,140 10,580 6,390 6,830 4,190 5,070 3,090 *3,970 2,650

Rear dozer down kg *4600 *4600 *6700 3400 *4800 2200 *2600 1600 *1800 1500

(Load over rear) lb *10,140 *10,140 *14,770 7,500 *10,580 4,850 *5,730 3,530 *3,970 3,310

Rear stab down kg *4600 *4600 *6700 4200 4500 2800 *2600 2000 *1800 *1800 8.01 m

(Load over rear) lb *10,140 *10,140 *14,770 9,260 9,920 6,170 *5,730 4,410 *3,970 *3,970 (26'3")

Ground

2 sets stab down kg *4600 *4600 *6700 6600 *4800 4200 *2600 *2600 *1800 *1800

(Load over front) lb *10,140 *10,140 *14,770 14,550 *10,580 9,260 *5,730 *5,730 *3,970 *3,970

Dozer and stab down kg *4600 *4600 *6700 5300 *4800 3400 *2600 2500 *1800 *1800

(Load over front) lb *10,140 *10,140 *14,770 11,690 *10,580 7,500 *5,730 5,510 *3,970 *3,970

Rear dozer up kg *7400 5200 4800 2800 3100 1900 *2100 1400

(Load over front) lb *16,310 11,460 10,580 6,170 6,830 4,190 *4,630 3,090

Rear dozer down kg *7400 6200 *6400 3300 *4500 2200 *2100 1600

(Load over rear) lb *16,310 13,670 *14,110 7,280 *9,920 4,850 *4,630 3,530

-1.5 m Rear stab down kg *7400 *7400 *6400 4200 4400 2700 *2100 2000 7.46 m

(-5.0 ft) (Load over rear) lb *16,310 *16,310 *14,110 9,260 9,700 5,950 *4,630 4,410 (24'6")

2 sets stab down kg *7400 *7400 *6400 *6400 *4500 4100 *2100 *2100

(Load over front) lb *16,310 *16,310 *14,110 *14,110 *9,920 9,040 *4,630 *4,630

Dozer and stab down kg *7400 *7400 *6400 5200 *4500 3400 *2100 *2100

(Load over front) lb *16,310 *16,310 *14,110 11,460 *9,920 7,500 *4,630 *4,630

Rear dozer up kg *7500 5200 4800 2800 3100 1900

(Load over front) lb *16,540 11,460 10,580 6,170 6,830 4,190

Rear dozer down kg *7500 6300 *5200 3300 *3300 2200

(Load over rear) lb *16,540 13,890 *11,460 7,280 *7,280 4,850

-3.0 m Rear stab down kg *7500 *7500 *5200 4200 *3300 2800

(-10.0 ft) (Load over rear) lb *16,540 *16,540 *11,460 9,260 *7,280 6,170

2 sets stab down kg *7500 *7500 *5200 *5200 *3300 *3300

(Load over front) lb *16,540 *16,540 *11,460 *11,460 *7,280 *7,280

Dozer and stab down kg *7500 *7500 *5200 *5200 *3300 *3300

(Load over front) lb *16,540 *16,540 *11,460 *11,460 *7,280 *7,280

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

7.5 m

(25.0 ft)

m/ft

Page 28

M313D Wheel Excavator specifications

Offset Boom – 2.0 m (6'6") stick

Stick

2.0 m (6'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with additional 400 kg (882 lb) counterweight, Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *4400 3600 3300 2000

(Load over front) lb *9,700 7,940 7,280 4,410

Rear dozer down kg *4400 4100 *3400 2300

(Load over rear) lb *9,700 9,040 *7,500 5,070

6.0 m Rear stab down kg *4400 *4400 *3400 2900

(20.0 ft) (Load over rear) lb *9,700 *9,700 *7,500 6,390

2 sets stab down kg *4400 *4400 *3400 *3400

(Load over front) lb *9,700 *9,700 *7,500 *7,500

Dozer and stab down kg *4400 *4400 *3400 *3400

(Load over front) lb *9,700 *9,700 *7,500 *7,500

Rear dozer up kg *5100 5100 *5000 3500 3400 2100 *2200 1400

(Load over front) lb *11,240 11,240 *11,020 7,720 7,500 4,630 *4,850 3,090

Rear dozer down kg *5100 5100 *5000 4000 *4100 2400 *2200 1600

(Load over rear) lb *11,240 11,240 *11,020 8,820 *9,040 5,290 *4,850 3,530

4.5 m Rear stab down kg *5100 *5100 *5000 4800 *4100 3000 *2200 2100 7.37 m

(15.0 ft) (Load over rear) lb *11,240 *11,240 *11,020 10,580 *9,040 6,610 *4,850 4,630 (24'2")

2 sets stab down kg *5100 *5100 *5000 *5000 *4100 *4100 *2200 *2200

(Load over front) lb *11,240 *11,240 *11,020 *11,020 *9,040 *9,040 *4,850 *4,850

Dozer and stab down kg *5100 *5100 *5000 *5000 *4100 3700 *2200 *2200

(Load over front) lb *11,240 *11,240 *11,020 *11,020 *9,040 8,160 *4,850 *4,850

Rear dozer up kg *7200 6100 5200 3400 3400 2100 2100 1200

(Load over front) lb *15,870 13,450 11,460 7,500 7,500 4,630 4,630 2,650

Rear dozer down kg *7200 7100 *5700 3900 *4300 2400 *2100 1400

(Load over rear) lb *15,870 15,650 *12,570 8,600 *9,480 5,290 *4,630 3,090

3.0 m Rear stab down kg *7200 *7200 *5700 4700 *4300 3000 *2100 1800 7.83 m

(10.0 ft) (Load over rear) lb *15,870 *15,870 *12,570 10,360 *9,480 6,610 *4,630 3,970 (25'8")

2 sets stab down kg *7200 *7200 *5700 *5700 *4300 *4300 *2100 *2100

(Load over front) lb *15,870 *15,870 *12,570 *12,570 *9,480 *9,480 *4,630 *4,630

Dozer and stab down kg *7200 *7200 *5700 5500 *4300 3600 *2100 *2100

(Load over front) lb *15,870 *15,870 *12,570 12,130 *9,480 7,490 *4,630 *4,630

Rear dozer up kg *8400 6000 5100 3300 3300 2000 2000 1100

(Load over front) lb *18,520 13,230 11,240 7,280 7,280 4,410 4,410 2,430

Rear dozer down kg *8400 *6900 *6200 3800 *4500 2400 *2200 1300

(Load over rear) lb *18,520 *15,210 *13,670 8,380 *9,920 5,290 *4,850 2,870

1.5 m Rear stab down kg *8400 8400 *6200 4600 *4500 2900 *2200 1700 7.94 m

(5.0 ft) (Load over rear) lb *18,520 18,520 *13,670 10,140 *9,920 6,390 *4,850 3,750 (26'1")

2 sets stab down kg *8400 8400 *6200 *6200 *4500 *4200 *2200 *2200

(Load over front) lb *18,520 18,520 *13,670 *13,670 *9,920 *9,260 *4,850 *4,850

Dozer and stab down kg *8400 8400 *6200 5500 *4500 3600 *2200 *2200

(Load over front) lb *18,520 18,520 *13,670 12,130 *9,920 7,940 *4,850 *4,850

Rear dozer up kg 9800 5600 5200 3100 3200 1900 2000 1100

(Load over front) lb 21,610 12,350 11,460 6,830 7,060 4,190 4,410 2,430

Rear dozer down kg *9900 6700 *6300 3700 *4500 2200 *2400 1400

(Load over rear) lb *21,830 14,770 *13,890 8,160 *9,920 4,850 *5,290 3,090

Rear stab down kg *9900 8700 *6300 4600 *4500 2800 *2400 1800 7.72 m

(Load over rear) lb *21,830 19,180 *13,890 10,140 *9,920 6,170 *5,290 3,970 (25'4")

Ground

2 sets stab down kg *9900 *9900 *6300 *6300 *4500 4200 *2400 *2400

(Load over front) lb *21,830 *21,830 *13,890 *13,890 *9,920 9,260 *5,290 *5,290

Dozer and stab down kg *9900 *9900 *6300 5500 *4500 3500 *2400 2200

(Load over front) lb *21,830 *21,830 *13,890 12,130 *9,920 7,720 *5,290 4,850

Rear dozer up kg 10 200 5500 5000 3000 3000 1700 2300 1300

(Load over front) lb 22,490 12,130 11,020 6,610 6,610 3,750 5,070 2,870

Rear dozer down kg *10 400 6600 *6500 3500 *4300 2100 *2600 1600

(Load over rear) lb *22,930 14,550 *14,330 7,720 *9,480 4,630 *5,730 3,530

-1.5 m Rear stab down kg *10 400 8600 *6500 4400 *4300 2600 *2600 2000 7.14 m

(-5.0 ft) (Load over rear) lb *22,930 18,960 *14,330 9,700 *9,480 5,730 *5,730 4,410 (23'5")

2 sets stab down kg *10 400 *10 400 *6500 *6500 *4300 4100 *2600 *2600

(Load over front) lb *22,930 *22,930 *14,330 *14,330 *9,480 9,040 *5,730 *5,730

Dozer and stab down kg *10 400 *10 400 *6500 5500 *4300 3300 *2600 2500

(Load over front) lb *22,930 *22,930 *14,330 12,130 *9,480 7,280 *5,730 5,510

Rear dozer up kg *10 100 5400 4800 2800

(Load over front) lb *22,270 11,910 10,580 6,170

Rear dozer down kg *10 100 6500 *5300 3300

(Load over rear) lb *22,270 14,330 *11,690 7,280

-3.0 m Rear stab down kg *10 100 8600 *5300 4200

(-10.0 ft) (Load over rear) lb *22,270 18,960 *11,690 9,260

2 sets stab down kg *10 100 *10 100 *5300 *5300

(Load over front) lb *22,270 *22,270 *11,690 *11,690

Dozer and stab down kg *10 100 *10 100 *5300 *5300

(Load over front) lb *22,270 *22,270 *11,690 *11,690

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

m/ft

Page 29

M313D Wheel Excavator specifications

Offset Boom – 2.3 m (7'6") stick

Stick

2.3 m (7'6")

Load Point Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with additional 400 kg (882 lb) counterweight, Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *4100 3600 3400 2100

(Load over front) lb *9,040 7,940 7,500 4,630

Rear dozer down kg *4100 *4100 *3500 2400

(Load over rear) lb *9,040 *9,040 *7,720 5,290

6.0 m Rear stab down kg *4100 *4100 *3500 3000

(20.0 ft) (Load over rear) lb *9,040 *9,040 *7,720 6,610

2 sets stab down kg *4100 *4100 *3500 *3500

(Load over front) lb *9,040 *9,040 *7,720 *7,720

Dozer and stab down kg *4100 *4100 *3500 *3500

(Load over front) lb *9,040 *9,040 *7,720 *7,720

Rear dozer up kg *4200 *4200 *4700 3500 3400 2200 *1900 1300

(Load over front) lb *9,260 *9,260 *10,360 7,720 7,500 4,850 *4,190 2,870

Rear dozer down kg *4200 *4200 *4700 4000 *3900 2500 *1900 1500

(Load over rear) lb *9,260 *9,260 *10,360 8,820 *8,600 5,510 *4,190 3,310

4.5 m Rear stab down kg *4200 *4200 *4700 *4700 *3900 3100 *1900 *1900 7.64 m

(15.0 ft) (Load over rear) lb *9,260 *9,260 *10,360 *10,360 *8,600 6,830 *4,190 *4,190 (25'1")

2 sets stab down kg *4200 *4200 *4700 *4700 *3900 *3900 *1900 *1900

(Load over front) lb *9,260 *9,260 *10,360 *10,360 *8,600 *8,600 *4,190 *4,190

Dozer and stab down kg *4200 *4200 *4700 *4700 *3900 3700 *1900 *1900

(Load over front) lb *9,260 *9,260 *10,360 *10,360 *8,600 8,160 *4,190 *4,190

Rear dozer up kg *7600 6100 5200 3400 3400 2200 2200 1300 *1900 1100

(Load over front) lb *16,760 13,450 11,460 7,500 7,500 4,850 4,850 2,870 *4,190 2,430

Rear dozer down kg *7600 7100 *5600 3900 *4200 2500 *3000 1500 *1900 1300

(Load over rear) lb *16,760 15,650 *12,350 8,600 *9,260 5,510 *6,610 3,310 *4,190 2,870

3.0 m Rear stab down kg *7600 *7600 *5600 4600 *4200 3100 *3000 1900 *1900 1700 8.08 m

(10.0 ft) (Load over rear) lb *16,760 *16,760 *12,350 10,140 *9,260 6,830 *6,610 4,190 *4,190 3,750 (26'6")

2 sets stab down kg *7600 *7600 *5600 *5600 *4200 *4200 *3000 2900 *1900 *1900

(Load over front) lb *16,760 *16,760 *12,350 *12,350 *9,260 *9,260 *6,610 6,390 *4,190 *4,190

Dozer and stab down kg *7600 *7600 *5600 *5600 *4200 3600 *3000 2400 *1900 *1900

(Load over front) lb *16,760 *16,760 *12,350 *12,350 *9,260 7,940 *6,610 5,290 *4,190 *4,190

Rear dozer up kg *8500 6000 5100 3300 3400 2100 2200 1200 1900 1100

(Load over front) lb *18,740 13,230 11,240 7,280 7,500 4,630 4,850 2,650 4,190 2,430

Rear dozer down kg *8500 6900 *6200 3800 *4500 2400 *3400 1500 *1900 1300

(Load over rear) lb *18,740 15,210 *13,670 8,380 *9,920 5,290 *7,500 3,310 *4,190 2,870

1.5 m Rear stab down kg *8500 *8500 *6200 4600 4500 3000 3100 1900 *1900 1600 8.18 m

(5.0 ft) (Load over rear) lb *18,740 *18,740 *13,670 10,140 9,920 6,610 6,830 4,190 *4,190 3,530 (26'10")

2 sets stab down kg *8500 *8500 *6200 *6200 *4500 *4200 *3400 2900 *1900 *1900

(Load over front) lb *18,740 *18,740 *13,670 *13,670 *9,920 *9,260 *7,500 6,390 *4,190 *4,190

Dozer and stab down kg *8500 *8500 *6200 5400 *4500 3600 *3400 2400 *1900 *1900

(Load over front) lb *18,740 *18,740 *13,670 11,910 *9,920 7,940 *7,500 5,290 *4,190 *4,190

Rear dozer up kg 9700 5800 5200 3200 3200 1900 2100 1200 1900 1100

(Load over front) lb 21,390 12,790 11,460 7,060 7,060 4,190 4,630 2,650 4,190 2,430

Rear dozer down kg *9800 6900 *6300 3700 *4500 2300 2900 1400 *2100 1300

(Load over rear) lb *21,610 15,210 *13,890 8,160 *9,920 5,070 6,390 3,090 *4,630 2,870

Rear stab down kg *9800 8700 *6300 4600 *4500 2800 *2900 1800 *2100 1700 7.98 m

(Load over rear) lb *21,610 19,180 *13,890 10,140 *9,920 6,170 *6,390 3,970 *4,630 3,750 (26'2")

Ground

2 sets stab down kg *9800 *9800 *6300 *6300 *4500 4300 *2900 2800 *2100 *2100

(Load over front) lb *21,610 *21,610 *13,890 *13,890 *9,920 9,480 *6,390 6,170 *4,630 *4,630

Dozer and stab down kg *9800 *9800 *6300 5500 *4500 3500 *2900 2300 *2100 *2100

(Load over front) lb *21,610 *21,610 *13,890 12,130 *9,920 7,720 *6,390 5,070 *4,630 *4,630

Rear dozer up kg 10 000 5500 5100 3000 3100 1800 2200 1200

(Load over front) lb 22,050 12,130 11,240 6,610 6,830 3,970 4,850 2,650

Rear dozer down kg *10 300 6600 *6400 3500 *4500 2100 *2400 1500

(Load over rear) lb *22,710 14,550 *14,110 7,720 *9,920 4,630 *5,290 3,310

-1.5 m Rear stab down kg *10 300 8600 *6400 4400 4400 2700 *2400 1900 7.42 m

(-5.0 ft) (Load over rear) lb *22,710 18,960 *14,110 9,700 9,700 5,950 *5,290 4,190 (24'4")

2 sets stab down kg *10 300 *10 300 *6400 *6400 *4500 *4100 *2400 *2400

(Load over front) lb *22,710 *22,710 *14,110 *14,110 *9,920 *9,040 *5,290 *5,290

Dozer and stab down kg *10 300 *10 300 *6400 5500 *4500 3300 *2400 *2400

(Load over front) lb *22,710 *22,710 *14,110 12,130 *9,920 7,280 *5,290 *5,290

Rear dozer up kg 10 200 5500 4800 2800

(Load over front) lb 22,490 12,130 10,580 6,170

Rear dozer down kg *10 600 6600 *5900 3300

(Load over rear) lb *23,370 14,550 *13,010 7,280

-3.0 m Rear stab down kg *10 600 8700 *5900 4200

(-10.0 ft) (Load over rear) lb *23,370 19,180 *13,010 9,260

2 sets stab down kg *10 600 *10 600 *5900 *5900

(Load over front) lb *23,370 *23,370 *13,010 *13,010

Dozer and stab down kg *10 600 *10 600 *5900 5300

(Load over front) lb *23,370 *23,370 *13,010 11,690

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

7.5 m

(25.0 ft)

m/ft

Page 30

M313D Wheel Excavator specifications

VA Boom Industrial Stick – 2.9 m (9'6") stick

Industrial Stick

2.9 m (9'6")

Load Point

Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *4100 3900 3800 2600

(Load over front) lb *9,040 8,600 8,380 5,730

Rear dozer down kg *4100 *4100 *4000 2900

(Load over rear) lb *9,040 *9,040 *8,820 6,400

6.0 m Rear stab down kg *4100 *4100 *4000 3400

(20.0 ft) (Load over rear) lb *9,040 *9,040 *8,820 7,500

2 sets stab down kg *4100 *4100 *4000 *4000

(Load over front) lb *9,040 *9,040 *8,820 *8,820

Dozer and stab down kg *4100 *4100 *4000 *4000

(Load over front) lb *9,040 *9,040 *8,820 *8,820

Rear dozer up kg *4600 3800 3800 2600 2700 1800

(Load over front) lb *10,140 8,380 8,380 5,730 5,950 3,970

Rear dozer down kg *4600 4300 *4300 2900 *3100 2000

(Load over rear) lb *10,140 9,480 *9,480 6,390 *6,840 4,410

4.5 m Rear stab down kg *4600 *4600 *4300 3400 *3100 2500 7.39 m

(15.0 ft) (Load over rear) lb *10,140 *10,140 *9,480 7,500 *6,840 5,510 (24'3")

2 sets stab down kg *4600 *4600 *4300 *4300 *3100 *3100

(Load over front) lb *10,140 *10,140 *9,480 *9,480 *6,840 *6,840

Dozer and stab down kg *4600 *4600 *4300 4100 *3100 3000

(Load over front) lb *10,140 *10,140 *9,480 9,040 *6,840 6,610

Rear dozer up kg *7300 6600 5600 3700 3800 2600 2700 1700 2500 1600

(Load over front) lb *16,100 14,550 12,350 8,160 8,380 5,730 5,950 3,750 5,510 3,530

Rear dozer down kg *7300 *7300 *5900 4300 *4600 2900 *3900 2000 *3200 1800

(Load over rear) lb *16,100 *16,100 *13,000 9,480 *10,140 6,400 *8,600 4,410 *7,050 3,970

3.0 m Rear stab down kg *7300 *7300 *5900 5100 *4600 3400 3600 2400 *3200 2200 7.80 m

(10.0 ft) (Load over rear) lb *16,100 *16,100 *13,000 11,240 *10,140 7,500 7,940 5,290 *7,050 4,850 (25'7")

2 sets stab down kg *7300 *7300 *5900 *5900 *4600 *4600 *3900 3400 *3200 *3200

(Load over front) lb *16,100 *16,100 *13,000 *13,000 *10,140 *10,140 *8,600 7,500 *7,050 *7,050

Dozer and stab down kg *7300 *7300 *5900 *5900 *4600 *4000 *3900 2900 *3200 2700

(Load over front) lb *16,100 *16,100 *13,000 *13,000 *10,140 *8,820 *8,600 6,390 *7,050 5,950

Rear dozer up kg *9400 6500 5500 3700 3800 2500 2600 1700 2400 1600

(Load over front) lb *20,720 14,330 12,130 8,160 8,380 5,510 5,730 3,750 5,290 3,530

Rear dozer down kg *9400 7400 *6700 4200 *5000 2800 4000 1900 *3400 1800

(Load over rear) lb *20,720 16,310 *14,770 9,260 *11,020 6,170 8,820 4,190 *7,500 3,970

1.5 m Rear stab down kg *9400 9100 *6700 5000 4900 3400 3500 2300 3300 2100 7.90 m

(5.0 ft) (Load over rear) lb *20,720 20,060 *14,770 11,020 10,800 7,500 7,720 5,070 7,280 4,630 (25'11")

2 sets stab down kg *9400 *9400 *6700 *6700 *5000 *4600 *4000 3400 *3400 3100

(Load over front) lb *20,720 *20,720 *14,770 *14,770 *11,020 *10,140 *8,820 7,500 *7,500 6,840

Dozer and stab down kg *9400 *9400 *6700 5900 *5000 *4000 *4000 2800 *3400 2600

(Load over front) lb *20,720 *20,720 *14,770 13,000 *11,020 *8,820 *8,820 6,170 *7,500 5,730

Rear dozer up kg *10 400 6400 5600 3600 3700 2400 2600 1600 2500 1600

(Load over front) lb *22,930 14,110 12,350 7,940 8,160 5,290 5,730 3,530 5,510 3,530

Rear dozer down kg *10 400 7400 *6900 4100 *5100 2700 3900 1900 *3700 1800

(Load over rear) lb *22,930 16,310 *15,210 9,040 *11,240 5,950 8,600 4,190 *8,160 3,970

Rear stab down kg *10 400 9200 *6900 5000 4900 3300 3500 2300 3300 2200 7.71 m

(Load over rear) lb *22,930 20,280 *15,210 11,020 10,800 7,280 7,720 5,070 7,280 4,850 (25'4")

Ground

2 sets stab down kg *10 400 *10 400 *6900 *6900 *5100 4700 *3900 3300 *3700 3200

(Load over front) lb *22,930 *22,930 *15,210 *15,210 *11,240 10,360 *8,600 7,280 *8,160 7,050

Dozer and stab down kg *10 400 *10 400 *6900 5900 *5100 3900 *3900 2800 *3700 2700

(Load over front) lb *22,930 *22,930 *15,210 13,000 *11,240 8,600 *8,600 6,170 *8,160 5,950

Rear dozer up kg 10 600 6100 5500 3500 3500 2200 2700 1700

(Load over front) lb 23,370 13,450 12,130 7,720 7,720 4,850 5,950 3,750

Rear dozer down kg *11 100 7200 *7000 4000 *5200 2600 *3600 2000

(Load over rear) lb *24,470 15,870 *15,430 8,820 *11,460 5,730 *7,940 4,410

-1.5 m Rear stab down kg *11 100 9200 *7000 4900 4900 3100 *3600 2400 7.18 m

(-5.0 ft) (Load over rear) lb *24,470 20,280 *15,430 10,800 10,800 6,840 *7,940 5,290 (23'7")

2 sets stab down kg *11 100 *11 100 *7000 *7000 *5200 4600 *3600 3500

(Load over front) lb *24,470 *24,470 *15,430 *15,430 *11,460 10,140 *7,940 7,720

Dozer and stab down kg *11 100 *11 100 *7000 6000 *5200 3800 *3600 2900

(Load over front) lb *24,470 *24,470 *15,430 13,230 *11,460 8,380 *7,940 6,390

Rear dozer up kg 10 700 6000 5300 3300 3400 2200

(Load over front) lb 23,590 13,230 11,680 7,280 7,500 4,850

Rear dozer down kg *11 300 7100 *6900 3800 *3900 2500

(Load over rear) lb *24,910 15,650 *15,210 8,380 *8,600 5,510

-3.0 m Rear stab down kg *11 300 9100 *6900 4700 *3900 3000

(-10.0 ft) (Load over rear) lb *24,910 20,060 *15,210 10,360 *8,600 6,610

2 sets stab down kg *11 300 *11 300 *6900 *6900 *3900 *3900

(Load over front) lb *24,910 *24,910 *15,210 *15,210 *8,600 *8,600

Dozer and stab down kg *11 300 *11 300 *6900 5700 *3900 3700

(Load over front) lb *24,910 *24,910 *15,210 12,570 *8,600 8,160

Rear dozer up kg *6900 5800

(Load over front) lb *15,210 12,790

Rear dozer down kg *6900 6900

(Load over rear) lb *15,210 15,210

-4.5 m Rear stab down kg *6900 6900

(-15.0 ft) (Load over rear) lb *15,210 15,210

2 sets stab down kg *6900 *6900

(Load over front) lb *15,210 *15,210

Dozer and stab down kg *6900 6900

(Load over front) lb *15,210 15,210

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

7.5 m

(25.0 ft)

m/ft

Page 31

M313D Wheel Excavator specifications

One-piece Boom Industrial Stick – 2.9 m (9'6") stick

Industrial Stick

2.9 m (9'6")

Load Point

Height

Load Radius Over Front or Rear

Load Radius Over Side

Load at Maximum Reach

* Indicates that the load is limited by

hydraulic capacity rather than tipping capacity. Lift capacity ratings are based on SAE standard JISO 10567. Rated loads do not exceed 87% of hydraulic lifting capacity or 75% of tipping load.

• All lift capacities are calculated with Heavy Lift on.

• Oscillating axle must be locked.

• All values are calculated at the stick-nose.

3.0 m

Undercarriage configuration

Rear dozer up kg *3500 2500

(Load over front) lb *7,720 5,510

Rear dozer down kg *3500 2900

(Load over rear) lb *7,720 6,390

6.0 m Rear stab down kg *3500 3400

(20.0 ft) (Load over rear) lb *7,720 7,500

2 sets stab down kg *3500 *3500

(Load over front) lb *7,720 *7,720

Dozer and stab down kg *3500 *3500

(Load over front) lb *7,720 *7,720

Rear dozer up kg 3800 2500 2900 2000

(Load over front) lb 8,380 5,510 6,390 4,410

Rear dozer down kg *4100 2800 *3000 2200

(Load over rear) lb *9,040 6,170 *6,610 4,850

4.5 m Rear stab down kg *4100 3400 *3000 2600 7.06 m

(15.0 ft) (Load over rear) lb *9,040 7,500 *6,610 5,950 (23'2")

2 sets stab down kg *4100 *4100 *3000 *3000

(Load over front) lb *9,040 *9,040 *6,610 *6,610

Dozer and stab down kg *4100 *4100 *3000 *3000

(Load over front) lb *9,040 *9,040 *6,610 *6,610

Rear dozer up kg *5500 3600 3700 2400 2700 1800

(Load over front) lb *12,130 7,940 8,160 5,290 5,950 3,970

Rear dozer down kg *5500 4100 *4500 2700 *3100 2000

(Load over rear) lb *12,130 9,040 *9,920 5,950 *6,830 4,410

3.0 m Rear stab down kg *5500 5000 *4500 3300 *3100 2400 7.5 m

(10.0 ft) (Load over rear) lb *12,130 11,020 *9,920 7,280 *6,830 5,290 (24'7")

2 sets stab down kg *5500 *5500 *4500 *4500 *3100 *3100

(Load over front) lb *12,130 *12,130 *9,920 *9,920 *6,830 *6,830

Dozer and stab down kg *5500 *5500 *4500 4000 *3100 2900

(Load over front) lb *12,130 *12,130 *9,920 8,820 *6,830 6,390

Rear dozer up kg 5400 3400 3600 2300 2600 1700 2600 1700

(Load over front) lb 11,910 7,500 7,940 5,070 5,730 3,750 5,730 3,750

Rear dozer down kg *6600 3900 *4900 2600 *3800 1900 *3400 1900

(Load over rear) lb *14,550 8,600 *10,800 5,730 *8,380 4,190 *7,500 4,190

1.5 m Rear stab down kg *6600 4800 *4900 3200 3500 2300 *3400 2300 7.6 m

(5.0 ft) (Load over rear) lb *14,550 10,580 *10,800 7,060 7,720 5,070 *7,500 5,070 (24'11")

2 sets stab down kg *6600 *6600 *4900 4600 *3800 3300 *3400 3300

(Load over front) lb *14,550 *14,550 *10,800 10,140 *8,380 7,280 *7,500 7,280

Dozer and stab down kg *6600 5800 *4900 3800 *3800 2800 *3400 2800

(Load over front) lb *14,550 12,790 *10,800 8,380 *8,380 6,170 *7,500 6,170

Rear dozer up kg *6300 5600 5200 3200 3500 2200 2600 1700

(Load over front) lb *13,890 12,350 11,460 7,060 7,720 4,850 5,730 3,750

Rear dozer down kg *6300 *6300 *7100 3700 *5200 2500 *3900 1900

(Load over rear) lb *13,890 *13,890 *15,650 8,160 *11,460 5,510 *8,600 4,190

Rear stab down kg *6300 *6300 *7100 4600 4800 3100 3500 2300 7.4 m

(Load over rear) lb *13,890 *13,890 *15,650 10,140 10,580 6,830 7,720 5,070 (24'3")

Ground

2 sets stab down kg *6300 *6300 *7100 6900 *5200 4500 *3900 3400

(Load over front) lb *13,890 *13,890 *15,650 15,210 *11,460 9,920 *8,600 7,500

Dozer and stab down kg *6300 *6300 *7100 5600 *5200 3800 *3900 2800

(Load over front) lb *13,890 *13,890 *15,650 12,350 *11,460 8,380 *8,600 6,170

Rear dozer up kg *9100 5600 5100 3200 3400 2200 2900 1900

(Load over front) lb *20,060 12,350 11,240 7,060 7,500 4,850 6,390 4,190

Rear dozer down kg *9100 6600 *6800 3600 *5000 2500 *4100 2100

(Load over rear) lb *20,060 14,550 *14,990 7,940 *11,020 5,510 *9,040 4,630

-1.5 m Rear stab down kg *9100 8500 *6800 4500 4800 3100 3900 2600 6.85 m

(-5.0 ft) (Load over rear) lb *20,060 18,740 *14,990 9,920 10,580 6,830 8,600 5,730 (22'6")

2 sets stab down kg *9100 *9100 *6800 *6800 *5000 4400 *4100 3700

(Load over front) lb *20,060 *20,060 *14,990 *14,990 *11,020 9,700 *9,040 8,160

Dozer and stab down kg *9100 *9100 *6800 5600 *5000 3700 *4100 3100

(Load over front) lb *20,060 *20,060 *14,990 12,350 *11,020 8,160 *9,040 6,830

Rear dozer up kg *8100 5600 5100 3200

(Load over front) lb *17,860 12,350 11,240 7,060

Rear dozer down kg *8100 6700 *5700 3700

(Load over rear) lb *17,860 14,770 *12,570 8,160

-3.0 m Rear stab down kg *8100 *8100 *5700 4500

(-10.0 ft) (Load over rear) lb *17,860 *17,860 *12,570 9,920

2 sets stab down kg *8100 *8100 *5700 *5700

(Load over front) lb *17,860 *17,860 *12,570 *12,570

Dozer and stab down kg *8100 *8100 *5700 5600

(Load over front) lb *17,860 *17,860 *12,570 12,350

(10.0 ft)

4.5 m

(15.0 ft)

6.0 m

(20.0 ft)

7.5 m

(25.0 ft)

m/ft

Page 32

M313D Wheel Excavator specifications

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

Engine

Automatic engine speed control Automatic starting aid Cat C4.4 with ACERT™ Technology U.S. EPA Tier 3 Fuel filter Fuel/water separator with level indicator Muffler

Hydraulics

Cat XT™-6 ES hoses Heavy lift mode Load-Sensing Plus hydraulic system Manual work modes (economy, power) Oil cooler Separate swing pump Stick regeneration circuit

Undercarriage

Heavy-Duty axles with advanced travel motor with

adjustable braking force Oscillating front axle with remote greasing Pin-on design preparation for dozer blade and outriggers Tires, 10.00-20 16PR, dual Tool box in undercarriage Two-piece drive shaft Two-speed transmission with manual and automatic

gear shifting Undercarriage storage box

Other Equipment

Automatic swing brake Caterpillar Datalink and Electronic Technician capability Caterpillar Product Link Counterweight 2900 kg (6,393 lb) Door locks and caps locks with Caterpillar one-key

security system Mirrors, frame and cab S•O•SSMquick sampling valves for engine oil, hydraulic oil

and coolant

Operator Station

Adjustable armrests Ash tray with cigarette lighter (24 volt) Beverage cup/can holder Bolt-on FOGS capability Bottle holder Coat hook Floor mat, washable, with storage compartment Fully adjustable suspension seat Heater and defroster Joysticks Laminated front windshield Left side console, tiltable, with lock out for all controls Literature compartment behind seat Literature holder in right console Mobile phone holder Monitor and gauges with full color graphical display

Information and warning messages in local language Gauges for fuel level, engine coolant and hydraulic oil

temperature Filters/fluids change interval, working hour Indicators for headlights, turning signal, low fuel, engine

dial setting Clock with 10 day backup battery

Parking brake Parallel mounted top and bottom wiper and washer Positive filtered ventilation, pressurized cab Power supply, 12V-7A Rear window, emergency exit Retractable seat belt Seat with adjustable mechanical suspension Skylight Sliding door windows Steering column, tiltable Storage area suitable for a lunch box Sunshade for windshield and skylight

Electrical

Alternator, 75 amp Lights

Boom working light Cab interior Roading lights (two front, two rear)

Maintenance free batteries Main shut-off switch Signal/warning horn

Page 33

M313D Wheel Excavator specifications

Optional Equipment

Optional equipment may vary. Consult your Caterpillar dealer for details.

Operator Station

Adjustable hydraulic sensitivity Air conditioner, heater and defroster with automatic

climate control

Camera mounted on counterweight, displays through

cab monitor Falling objects guard Fixed cab riser 1200 mm (4 ft) Lid for storage compartment Radio

Radio, AM/FM stereo (24V)

Radio ready mounting (12 V or 24 V) at rear location

including speakers and 12 V converter

Seat

Adjustable high-back seat with mechanical suspension

Adjustable high-back seat with air suspension (vertical)

Adjustable high-back deluxe seat with headrest, air

suspension (horizontal and vertical), two-step seat heater, automatic weight adjustments, ventilated seat cushions, pneumatically adjustable lumbar support

Headrest Travel speed lock Vandalism guards Visor for rain protection Windshield

One-piece high impact resistant

50/50 split, openable

70/30 spilt, openable

Undercarriage

Dozer blade, front and/or rear mounted, with remote greasing Optional tires

Dual tires

10.00-20 dual solid rubber

Single tires

18-R 19.5 XF single

600/40-22.5 single Outriggers, front and/or rear mounted Second tool box for undercarriage Spacer rings for tires

Other Equipment

Auto-lube system for the implements and swing gear Cat Machine Security System Counterweight 3300 kg (7,275 lb) Custom paint Heated mirrors, frame and cab Joystick steering

Enables steering of the machine in first gear using the

sliding switch on joystick Lockable tool box in upper frame Ride control, for increased comfort while traveling and

working

Waste package with cyclone air pre-cleaner, reversible fan

with programmable time

Auxiliary Controls and Lines

Auxiliary boom and stick lines Anti-drift valves for bucket, stick, VA Boom and tool

control/multi-function circuits

Basic control circuits:

Single action

One-way, high pressure circuit, for hammering

application

Medium pressure

Two-way, medium pressure circuit, for rotating or

tilting of work tools

Tool control/multi function

One/two-way high pressure for hammer application

or opening and closing of a work tool

Programmable flow and pressure for up to 10 work

tools – selection via monitor

Second high pressure

Additional two-way, high pressure circuit, for tools

requiring a second high or medium pressure function

Quick coupler control Biodegradable hydraulic oil (synthetic ester based) Lowering control devices for boom and stick

Front Linkage

Booms

One-piece boom, 4.82 m (15 ft 10 in)

Offset boom, 5.02 m (16 ft 6 in)

Variable adjustable boom (two piece), 5.02 m (16 ft 6 in) Bucket linkage with diverter valve Sticks

2.0 m (6 ft 6 in) stick

2.3 m (7 ft 6 in) stick

2.6 m (8 ft 6 in) stick

2.9 m (9 ft 6 in) Industrial stick with drop nose

Electrical

Back-up alarm with three selectable modes Heavy-duty maintenance free batteries Refueling pump Roading lights, rear consisting of long life LED modules Rotating beacon on cab Working lights, cab mounted (front and rear)

Page 34

M313D Wheel Excavator specifications

Notes

Page 35

M313D Wheel Excavator specifications

Notes

Page 36

For more complete information on Cat products, dealer services,

and industry solutions, visit us on the web at www.cat.com

Printed in U.S.A.

Materials and specifications are subject to change without notice.

Featured machines in photos may include additional equipment.

See your Caterpillar dealer for available options.

CAT, CATERPILLAR, ACERT, HEES, their respective logos, “Caterpillar Yellow” and the

POWER EDGE trade dress, as well as corporate and product identity used herein,

are trademarks of Caterpillar and may not be used without permission.

AEHQ5753-01 (02-07)

Replaces AEHQ5753

M313D Wheel Excavator
