Page 1
Engine
Engine Model Cat®6.6 ACERT™
Gross Power – SAE J1995 147 kW 197 hp
Net Power – ISO 9249 134 kW 180 hp
• Caterpillar®engine with ACERT™ Technology –
EPA Tier 3, EU Stage III Compliant.
Buckets
Bucket Capacities 2.3 – 3.0 m
3
3.0 – 4.0 yd
3
Weights
Operating Weight 16 004 kg 35,273 lb
• For 2.5 m3(3.30 yd3) material handling bucket with
standard 20.5-R25 tires.
Operating Specifications
Static Tipping Load, Full Turn 9362 kg 20,633 lb
• For 2.5 m3(3.30 yd3) material handling bucket with
standard 20.5-R25 tires.
IT38H
Integrated
Toolcarrier
®
®
Page 2
2
IT38H Integrated Toolcarrier
Setting the standard for wheel loader productivity, durability, versatility and comfort.

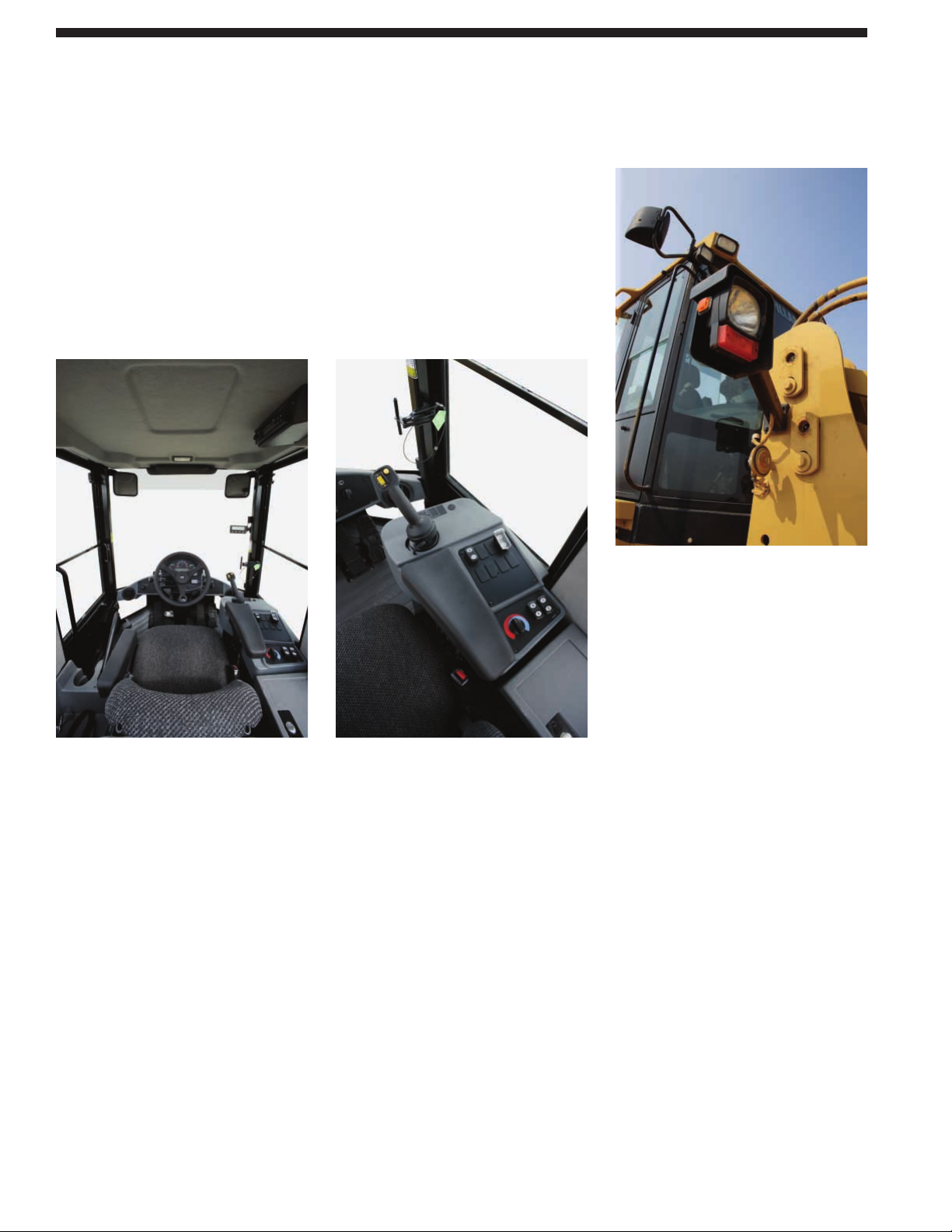

Operator Comfort
• Easy Entry and Exit
• Excellent Visibility
• Adjustable Machine Parameters to
Match Operator Preference pg. 14
✔
✔
Productivity
• Improved Cycle Times with LoadSensing Hydraulic System
• Locking Differentials Provide
Superior Tractive Effort in Poor
Underfoot Conditions
• Constant Net Horsepower through
the Operating Range pg. 8
✔
✔
Durability
• ACERT™ Technology Maintains
Performance, Efficiency and Durability
While Meeting Emissions Regulations
• Heavy Duty Components Stand Up
to All Operating Conditions
• Strong, Solid Structures Built to Last
pg. 6
✔
Reliability
• Proven Components and Technology
• Diagnostic Systems Monitor Product
Health to Ensure Reliability
• Unmatched Parts Availability
and Dealer Support pg. 4
Page 3
✔ New Feature
3

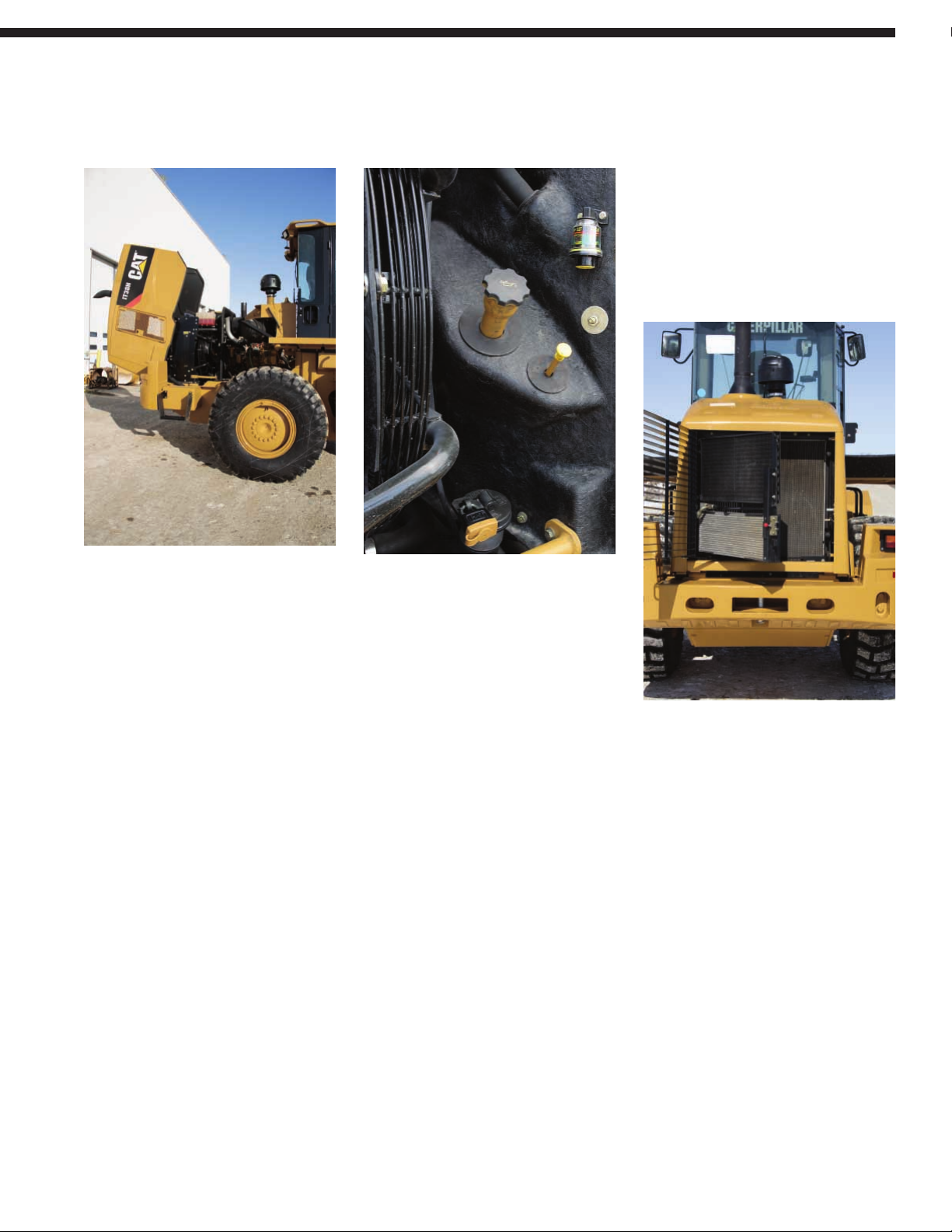

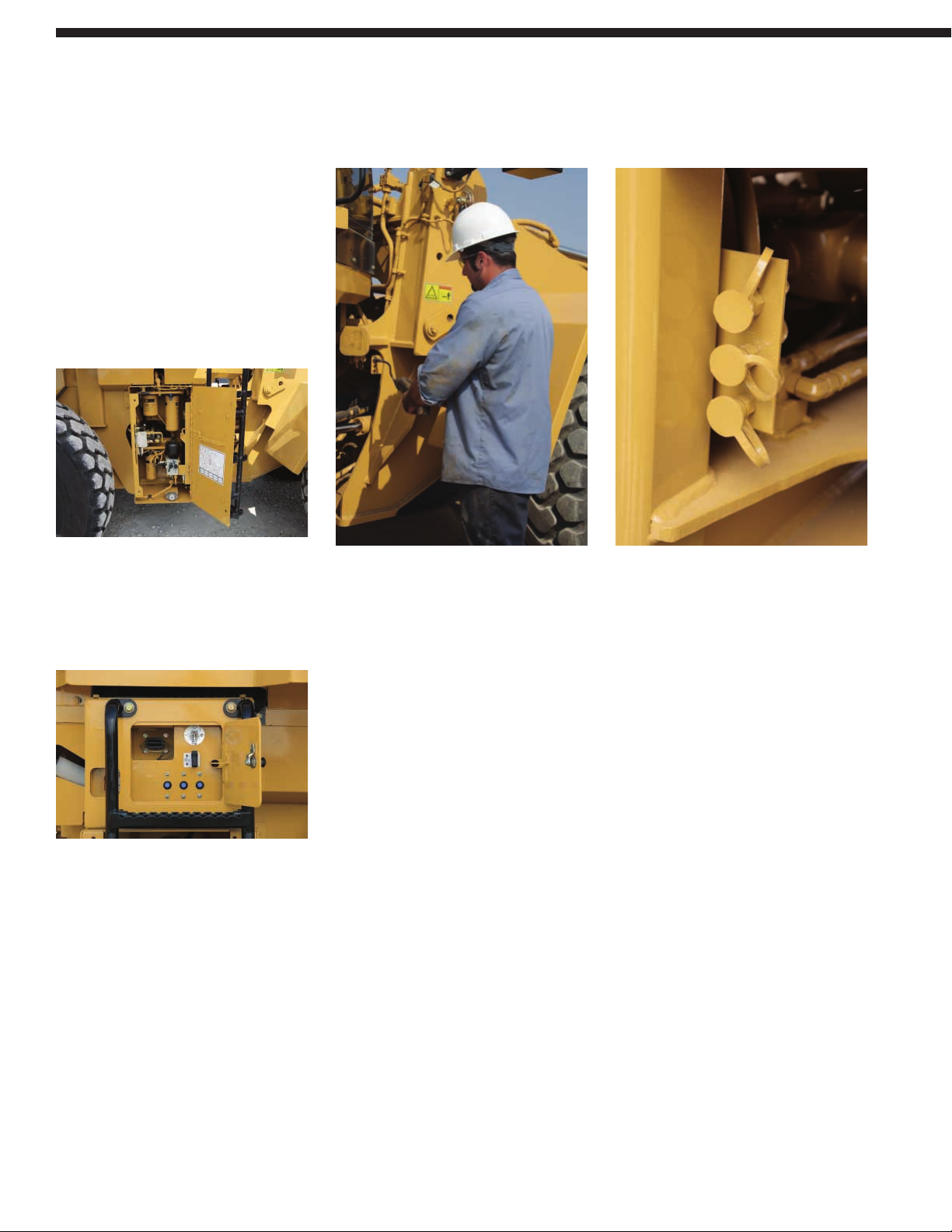

Serviceability
• Service Centers for Convenient
Maintenance
• Exceptional Ground-Level Access to
Service Points
• Monitoring Systems and Dealer Support
Reduce Unexpected Downtime pg. 12
✔
Owning and Operating Costs
• Superior Maintenance
• Electronic Systems Monitor Product
Health and Performance
• Complete Dealer Support pg. 10
Versatility
• Special Machine Arrangements
for Unique Applications
• Large Variety of Cat®Work Tools
pg. 9
Page 4
• Validated components and technology
• Electronic systems monitor vital
machine components
• Excellent uptime from the best
dealer support network in the industry
• Unmatched genuine Cat parts
availability
Proven Reliability. The IT38H features
many of the components designed and
proven in various Caterpillar products
– all contribute to the reliability of
the IT38H:
• Frames
• Axles
• Countershaft powershift
transmission
• Individual component cooling system
• Cab

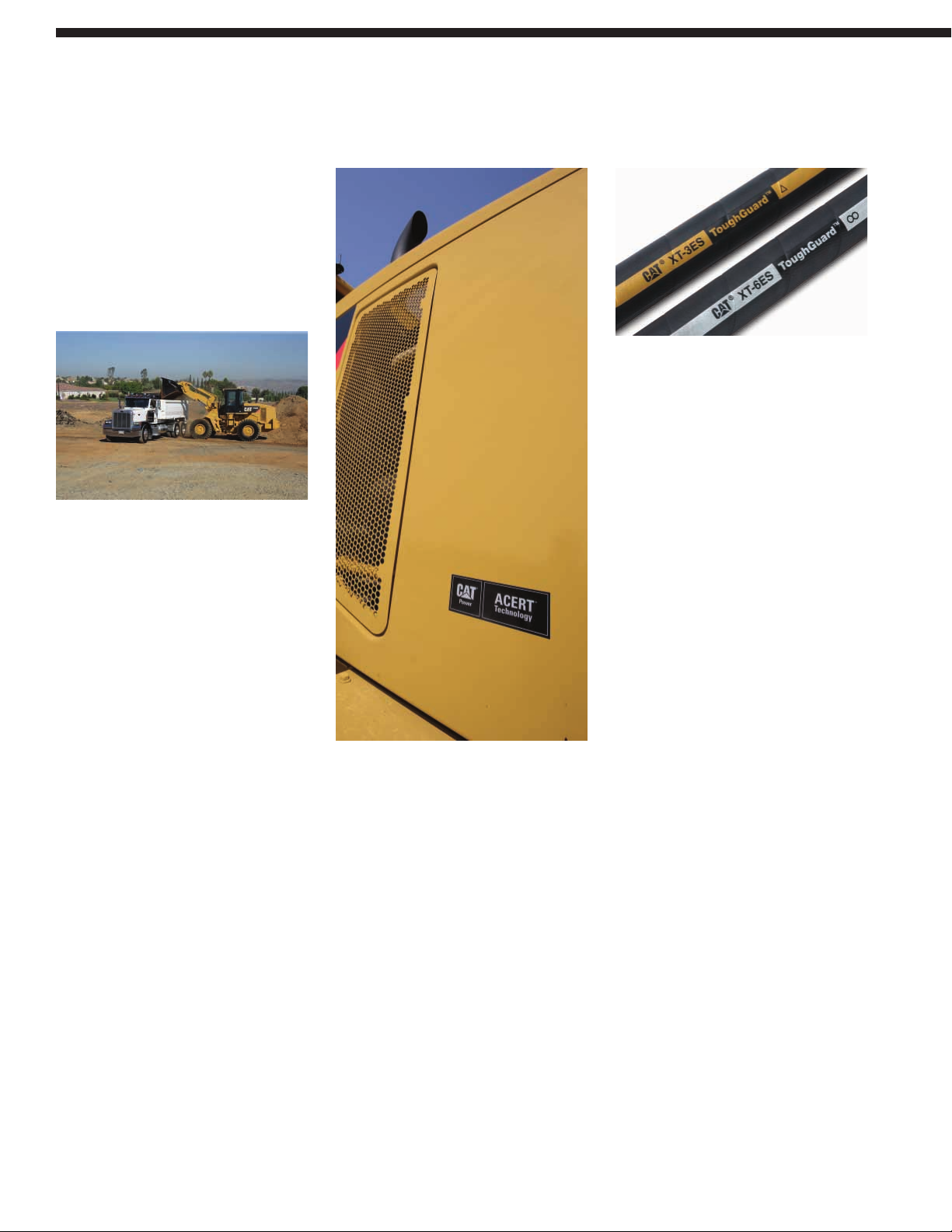

ACERT™ Technology. Since March 2003,
ACERT Technology has been proving
itself in on-highway trucks. More recently
it has proven itself again in field tests
of off-highway equipment.
This technology allows Cat engines
to meet durability and reliability
expectations without sacrificing
performance.
Caterpillar Designed Components.
Components used to build Cat Wheel
Loaders are designed and manufactured
to Caterpillar quality standards to
ensure maximum performance even
in extreme operating conditions.
Engine electronic control modules and
sensors are completely sealed against
moisture and dust. Deutsche connectors
and electrical wire braiding ensure that
electrical connections resist corrosion
and premature wear.
Hoses are engineered and manufactured
for high resistance to abrasion, excellent
flexibility and easy installation and
replacement.
Caterpillar
®
couplings use o-ring face
seals to provide positive sealing for
durable leak-free connections.
Heavy duty components reduce the risk
of leaks, corrosion and premature wear,
increasing uptime and helping to protect
the environment.
Monitoring Programs. Monitoring product
health is key to maintaining reliability
of any equipment. Many programs are
available on the IT38H to help you
track machine health.

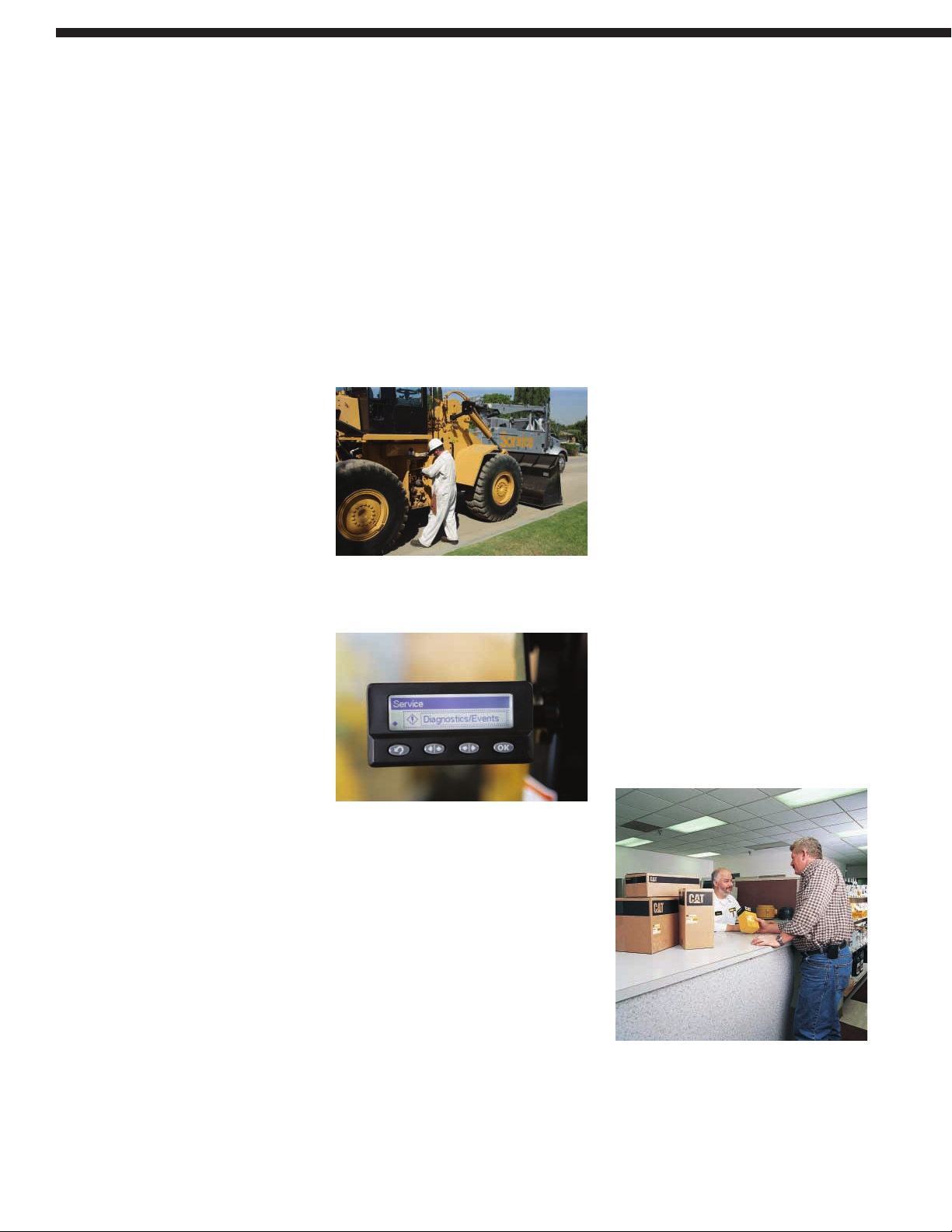

Caterpillar Messenger Display.
The IT38H is equipped with the
Caterpillar Messenger Display that
keeps watch over the health of your
loader while providing real-time
diagnostic feedback. In the event of
a system malfunction, Messenger will
provide the operator with a description
of the occurrence, and if serious enough,
sound an audible alarm in addition to
a flashing indicator light.
4
The Cat IT38H – Tested and Proven – Ready to Work
Reliability
Page 5
Product Link. Standard equipment on
the IT38H, this state-of-the art satellite
technology enables Caterpillar dealers
and customers to keep in touch with
their machines. The system provides
a two-way information flow between
machine on-board systems and Caterpillar
dealers/customers via the Cat Dealer
Website and EquipmentManager.
EquipmentManager. EquipmentManager
is a web-based application that uses key
indicators from your equipment such
as hours, location and diagnostic codes
and combines it with powerful tools
like mapping, maintenance and repair
scheduling, and troubleshooting
instructions. This application enables
quick identification of actions required
to maximize your equipment uptime
and control owning and operating costs.
S•O•SSMServices. Keep minor repairs
from becoming major ones and avoid
complete failures. By regularly taking
samples from the ports provided, your
Cat dealer tracks wear of components
and parts, oil performance, and oil
condition and uses that data to predict
wear-related problems before they
happen. Often a simple adjustment or
replacement of a part, based on S•O•S
SM
reports, can keep a small problem from
turning into a major repair – allowing
your machine to be running when you
need it, not waiting in the shop for service.
Dealer Support. The Caterpillar global
network of independently-owned dealers
is the best in the world at providing
support to keep your loader up and
running. Known for parts availability
and technical expertise, Cat dealers are
partners in your business.
Service Capabilities. Cat field service
technicians have the experience and
tools necessary to service your loader
on site. Field service trucks are fully
loaded with state-of-the-art tools and
diagnostic equipment as well as
specifications and schematics for every
Cat machine. Technical experts at the
dealership and Caterpillar are available
to provide assistance to field service
technicians when needed.
When on-site repair isn’t enough,
Cat dealerships are fully-equipped
to service your loader quickly.
Parts Availability. Caterpillar provides
an unsurpassed level of personalized
service for your wheel loader. With parts
distribution centers throughout the world,
most parts can be delivered in 24 hours.
Remanufactured Parts. Cat engines
and major components are designed to
be remanufactured and provide multiple
life cycles. The Cat Reman program
is more extensive than most rebuild
programs. Components are actually
remanufactured in the factory to
original specifications with necessary
product updates.
Strict reuse guidelines and unparalleled
quality control ensure that reman products
provide the reliability and durability
that you expect from Caterpillar.
Reman products are stocked in
distribution centers around the world
and are ready to install to minimize
downtime, maintain productivity
and profitability.
5
Page 6
• ACERT™ Technology maintains
engine performance, efficiency and
durability while reducing emissions
• Heavy duty components withstand
all operating conditions
• Strong, solid structures are built
to last

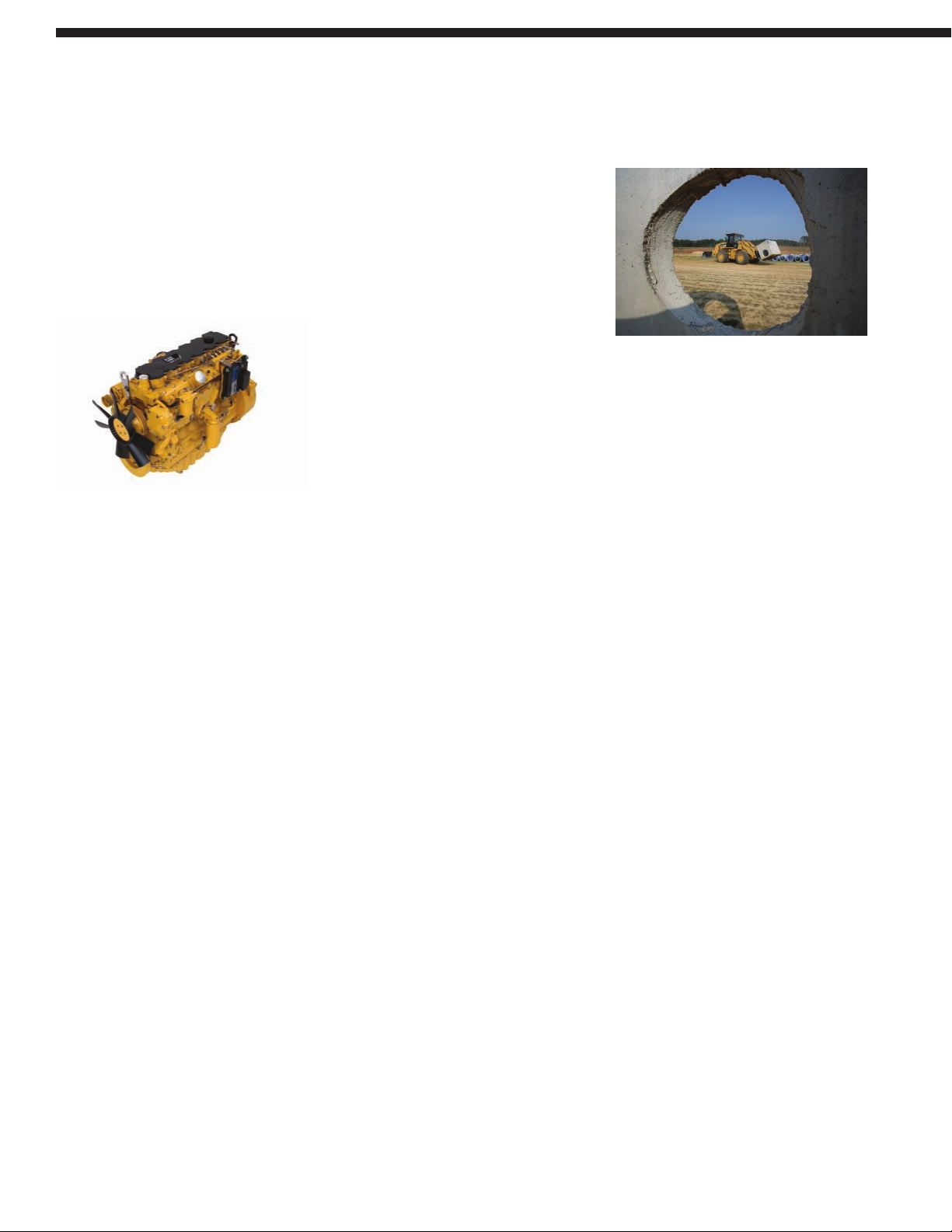

Cat C6.6 ACERT. The Cat C6.6 is a
6.6 L (403 in3) displacement, in-line
six cylinder engine. The C6.6 utilizes
ACERT Technology, a series of
Caterpillar engineered innovations that
provides advanced electronic control,
precise fuel delivery and refined air
management, resulting in outstanding
performance and lower emissions.
The C6.6 with ACERT Technology
offers a compact design with big, heavy
duty engine features for outstanding
durability, reliability and performance.
The C6.6 incorporates a new cross flow
cylinder head design, 4 valve head and
an ADEM™ A4 electronic controller.
The C6.6 also features a proven cylinder
block, pistons and crankshaft.
Electronic Control ADEM™ A4.
The Advanced Diesel Engine
Management – Electronic Control
Module consistently monitors important
engine conditions and functions. It uses
sensors throughout the engine to regulate
fuel delivery and all other engine systems
that require input to manage load and
performance. The ADEM A4 controller
is the brain behind engine responsiveness,
self-diagnosis, controlling emissions
and fuel economy.
Air Management. Air management
is a key concept in optimizing engine
performance and controlling emissions.
Engines must breathe clean cool air in
order to perform. To aid this, the C6.6
uses a turbocharger fitted with a smart
waste gate to give precise and reliable
control of the boost pressure. A new
cross-flow design in the cylinder head
facilitates air movement, while tighter
tolerances between the piston and
cylinder wall reduce blow by gases.
Fuel System. Through multiple injection
fuel delivery, fuel is introduced in the
combustion chamber in a number
of precisely controlled microbursts.
Injecting fuel in this way allows for
precise shaping of the combustion cycle
while reducing engine sound levels
Fuel Pump. The C6.6 uses an oillubricated high-pressure fuel pump
to feed a common fuel rail. By using
an oil-lubricated fuel pump, the C6.6
has been designed to be more tolerant
of alternative fuels.
Fuel Priming Pump. An electrical fuel
priming pump is located between the fuel
tank and the combined water separator/
primary fuel filter. The electric priming
pump eliminates the need to pre-fill or
manually prime filters after a change,
thus reducing contamination and
improving injector life.
Engine Idle Management. The Engine
Idle Management System (EIMS)
maximizes fuel efficiency and provides
flexibility in managing idle speeds
for specific application requirements.
Four idle control speeds are available.
Powershift Transmission. The IT38H
continues to use powershift transmission
technology proven on previous series.
The countershaft powershift transmission
features heavy-duty components to
handle the toughest applications.
Built-in electronic controls enhance
productivity and durability.
Control Throttle Shifting. Control Throttle
Shifting regulates engine speed during
high-energy directional and gear changes
for smoother shifting and longer
component life.
Electronic Clutch Pressure Control.
Electronic Clutch Pressure Control
(ECPC) system modulates clutches
individually to improve shift quality,
component life and operator comfort.
Adjustment is simplified with all
solenoid valves externally mounted
on top of the transmission housing.

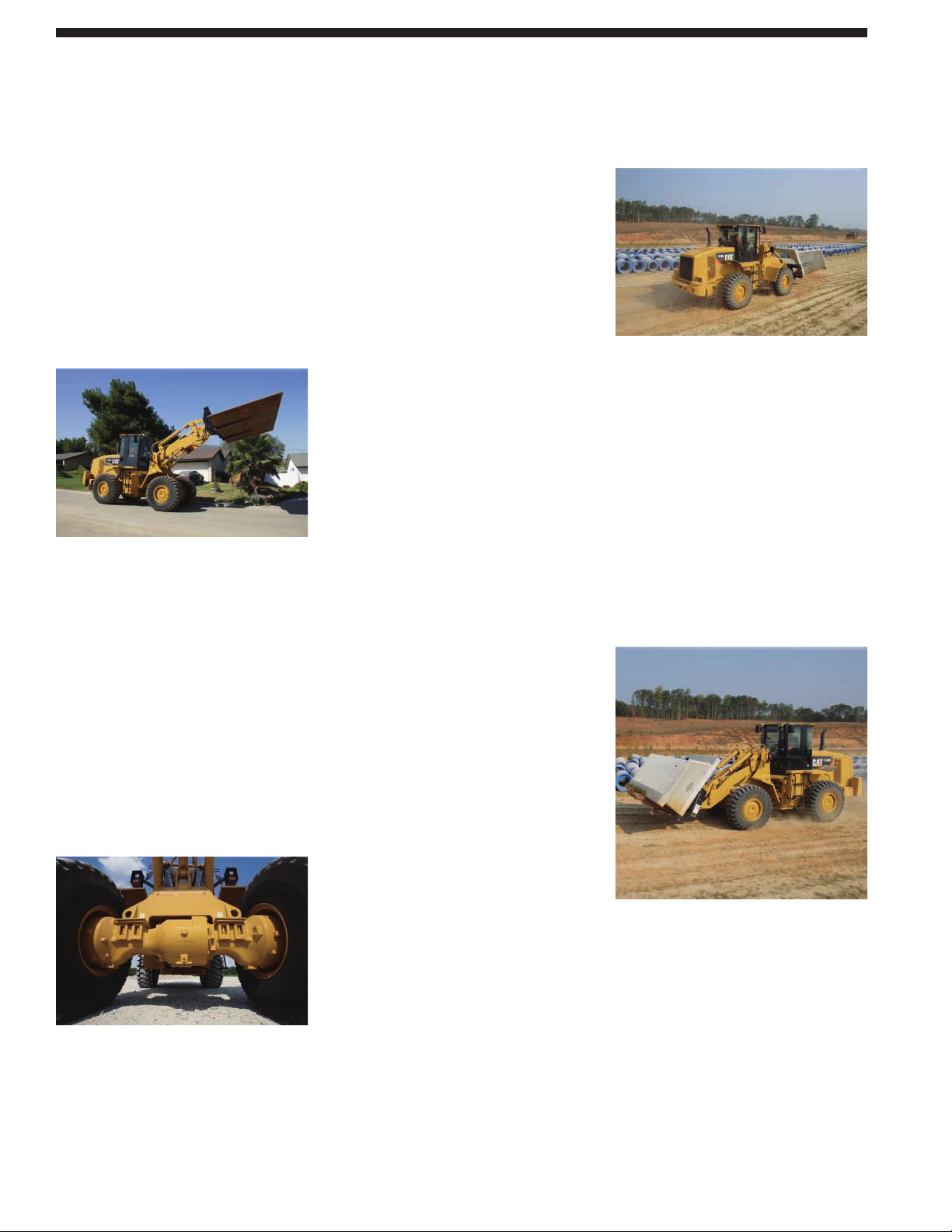

Axles. The IT38H axles are designed by
Caterpillar for durability in all operating
conditions. The front axle is rigidly
mounted to the frame to support the
weight of the wheel loader and withstand
internal torque loads as well as external
forces encountered throughout operation.
The rear axle is designed to allow
±12° oscillation. All four wheels remain
on the ground over uneven terrain
providing excellent stability
and traction.
6
Built Strong and Tough
Durability
Page 7

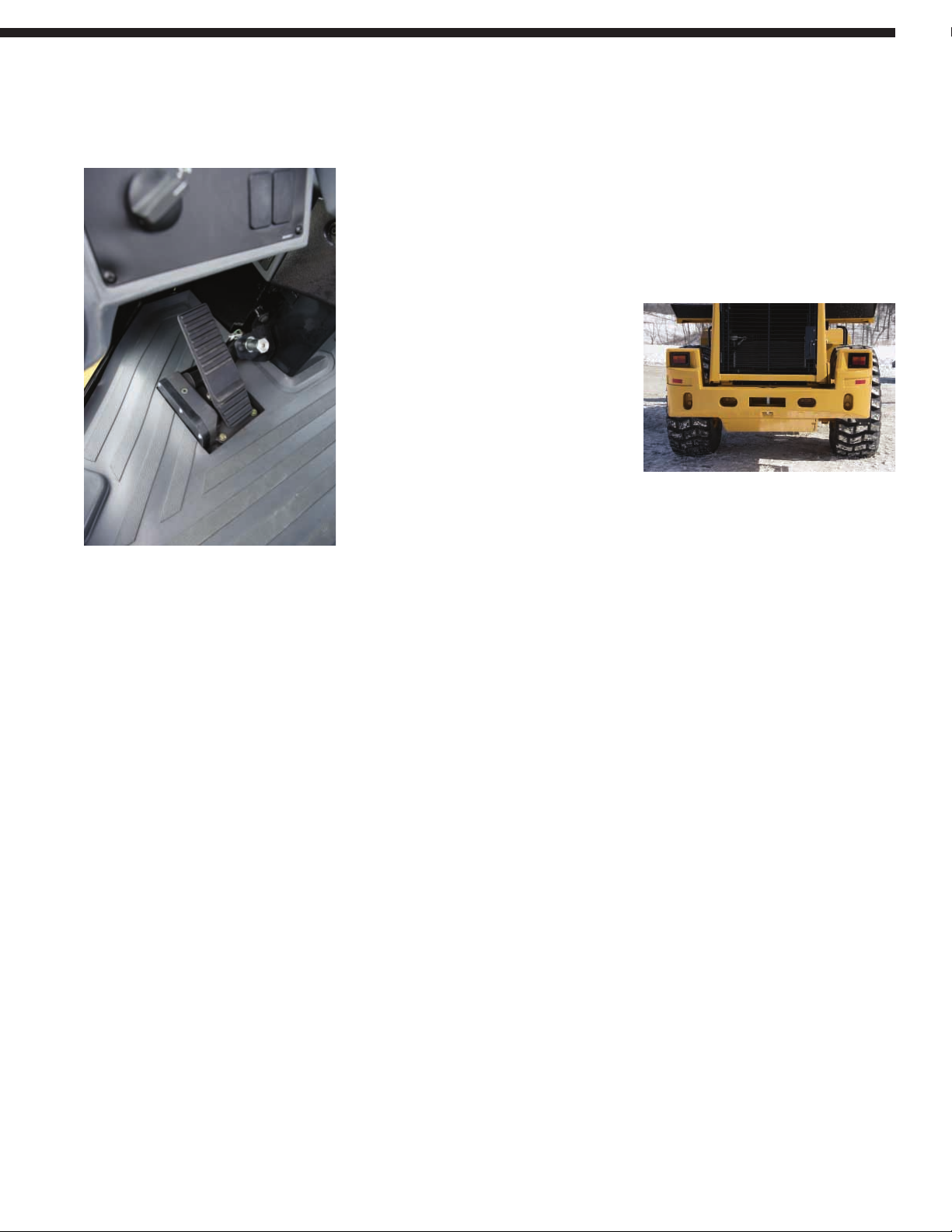

Integrated Braking System. The Cat
exclusive Integrated Braking System
reduces axle oil temperatures and
improves transmission neutralizer
smoothness. IBS has a direct impact
on durability of the axles and brakes
especially in applications involving
long distances and/or heavy braking.
Radiator. Brazed aluminum construction
provides a stronger joint for maximum
durability and resistance to leaks.
The 6-fins-per-inch design decreases
the chance of blockage and plugging.
Structures. The articulated frame design
of the IT38H features a durable plate
engine frame and four plate loader
tower that is robotically welded.
Robotic welding creates frame joints
with deep plate penetration welds and
excellent fusion for maximum strength
and durability.
Engine End Frame (EEF). The IT38H
uses a proven solid plate engine end
frame which provides a strong, rigid
structure that resists twisting and evenly
distributes impact loads. The result is an
extremely solid mounting platform for
the engine, transmission, axle, ROPS
and other accessories.
Hitch. The distance between the upper
and lower hitch plates is an important
contributor to machine performance and
component life. The Caterpillar hitch
design provides excellent load distribution
and bearing life. Both the upper and
lower hitch pins pivot on double tapered
roller bearings – improving durability
by distributing both vertical and
horizontal loads over a larger surface
area. The wide opening also provides
excellent service access.
Non-Engine End Frame (NEEF).
The non-engine end frame provides a
solid mounting base for the front axle,
lift arms and lift cylinders. The fabricated,
four-plate loader tower absorbs the
forces associated with loading, twisting
and material handling.
Counterweight. The one-piece
counterweight is integrated into the
IT38H design and provides added
protection for the lights by incorporating
them into the top of the structure.
8-Bar Linkage. This linkage provides
parallel lift to keep the load level
throughout the lift cycle – particularly
important when using forks. Parallel lift
allows the operator to concentrate on
placing the load, instead of retaining it.
Visibility to the work tool is excellent.
7
Page 8
• Hydraulics are easy to control with
low effort
• Differential locks provide maximum
traction in varying underfoot
conditions
• Constant net horsepower across
various applications
• Standard and optional features that
maximize productivity
Load Sensing Hydraulics. The IT38H
features a load sensing hydraulic system
that supplies flow and pressure for the
implements only upon demand, and
only in the amounts necessary to
perform the needed work thus providing
a more efficient loader.
With the new S3PC Priority Proportional
Pressure Compensation Valve, implement
control is improved over the previous
system – raise/lower and rack back/dump
can be operated simultaneously.
Operators will notice enhanced ease
of operation, more rimpull into the pile
as well as an increase in lift force.
New! Differential Lock. Maximize
productivity with the new hydraulic
locking front differential. This standard
feature provides operators with the
confidence to maneuver through poor
underfoot conditions with ‘on the fly’
engagement.
A Caterpillar exclusive, the optional
automatic front/rear locking differential
collects input from sensors throughout
the loader and adapts tractive effort to
meet operating requirements.
Constant Net Horsepower. On many
competitive machines, gross horsepower
is constant, meaning that net engine
power available for actual work will vary
based on demands made from parasitic
sources, such as air conditioning or
cooling fans.
The Cat C6.6 engine is electronically
configured to provide constant net
horsepower at full parasitic load
enhancing productivity and improving
fuel efficiency.
On-Demand Fan. With electronic control
of the variable speed on-demand fan,
temperature levels of the engine
coolant, transmission oil, hydraulic oil
and air inlet manifold are constantly
monitored. This data is used to control
and maintain fan speed at the level
necessary to maintain normal system
temperatures. Controlled fan speed
improves fuel efficiency, lowers noise
levels and reduces radiator plugging.
Isolated Cooling System. The IT38H
cooling system is isolated from the
engine compartment by a non-metallic
shield. The hydraulically driven,
variable speed fan draws in clean
air from the rear of the machine and
exhausts it out the sides and top of
the hood. The end results are optimal
cooling efficiency, increased fuel
efficiency, less radiator plugging
and reduced operator sound levels.
Countershaft Powershift Transmission.
The electronic countershaft powershift
transmission with automatic shift
capability is designed and built by
Caterpillar. The very responsive, fullpower speed and directional changes
provide excellent cycle times
and productivity.
Fuel Economy Mode. Match transmission
shifting patterns to machine application
requirements. The Fuel Economy Mode
(within Messenger) provides operators
with the ability to choose between three
different shift modes in order to maximize
shift quality and fuel efficiency.
Ride Control. The optional Ride Control
System improves ride, performance and
load retention when traveling over rough
terrain. Operators gain confidence
moving at higher speeds in load and
carry operations decreasing cycle times
and increasing productivity.
8
Productivity
Work Smart and Move More
Page 9
• A variety of buckets and work tools
for many applications
Work Tools and Quick Couplers.
A variety of buckets and work tools
are available from the factory or from
your Caterpillar dealer to customize
the IT38H for your operation.
Quick Couplers. Quick Couplers provide
unmatched versatility for wheel loaders.
The hydraulic model allows an operator
to change attachments in seconds without
leaving the cab.
Material Handling Buckets. The Material
Handling Bucket is a flat-floor bucket
used for handling stockpiled materials
such as aggregates or other easy-to-load
materials requiring moderate breakout
force.
Coal Buckets. Coal Buckets maximize
productivity in loading and stockpiling
coal and other materials of similar density.
Waste Buckets. Waste Buckets are
designed for long life in the harsh world
of refuse applications. This high-capacity
bucket is well-suited for loading, sorting
and other transfer station work.
Woodchip and Clean-Up Buckets.
Woodchip and Clean-up Buckets are
available for forestry and millyard
applications.
Multi-Purpose Buckets. Multi-Purpose
Buckets have a unique four-way action
that can load, strip topsoil, bulldoze,
clamp pipe or large chunks of concrete,
clean up debris, and many other tasks.
Side Dump Buckets. Side Dump
Buckets dump both to the front and to
the side of the machine, an advantage
when working in tight quarters, such
as street work, tunnel construction
and building levees.
Angle Blades. Angle Blades allow
the IT38H to sidecast soil, plow snow,
pioneer roads and move debris as
well as rocks.
Angle Brooms. Angle Brooms are ideal
for clearing debris from parking lots,
industrial plants, millyards and streets.
Special Application Brooms. Special
Application Brooms. Special Application
Brooms are built to handle tough
sweeping situations found in sewer
and pipeline applications.
Snow Removal. Quick Reversing
Action Plows are ideal for clearing
snow on roads, airports runways and
large parking lots. V-plows penetrate
drifts and throw snow both directions
to quickly clear a path trough heavy
accumulations.

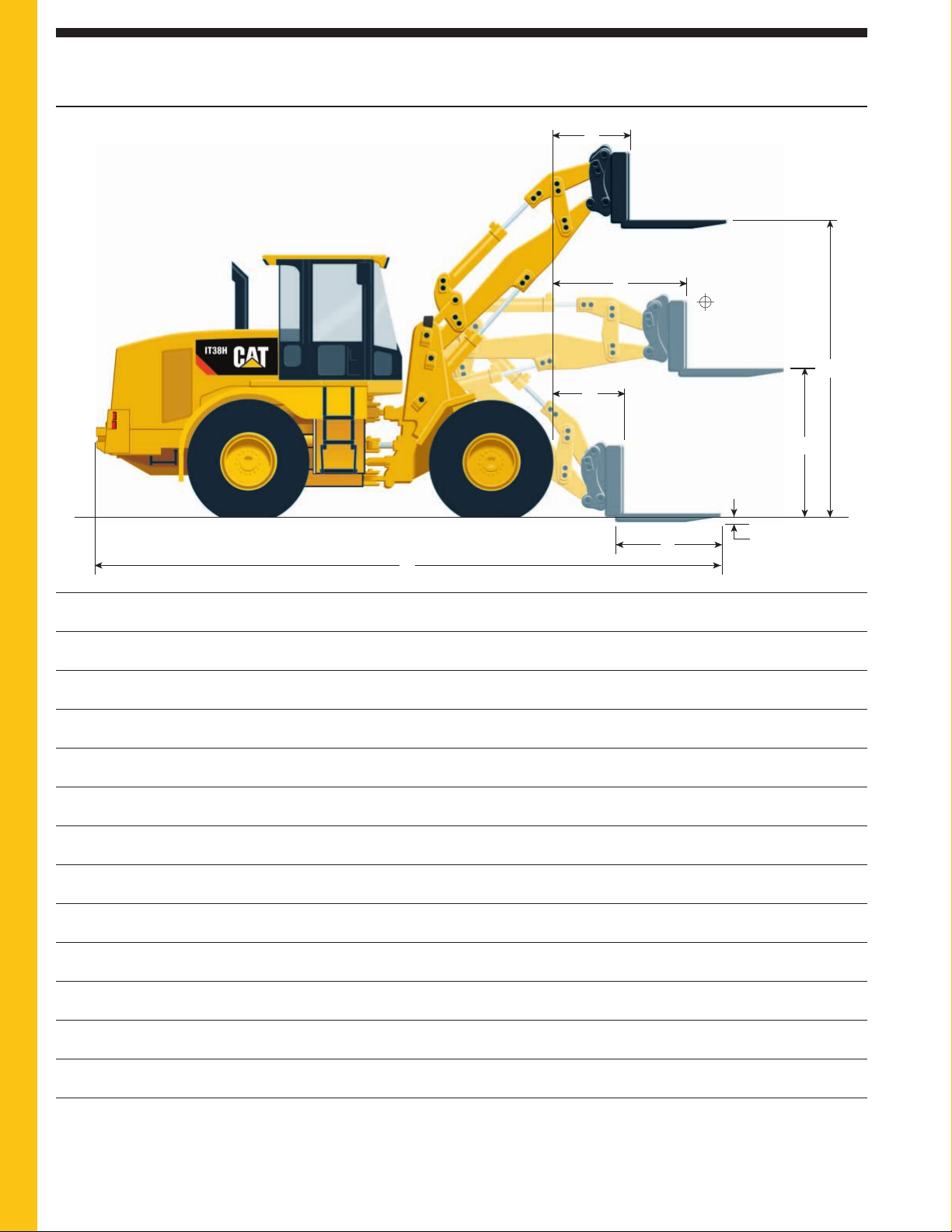

Forks. Logging, Millyard and Pallet
Forks are available for forestry and
material handling applications.
Loader Rakes. Loader Rakes are
durable, high-capacity tools for land
clearing and site clean up. Rakes are
available with or without top clamps.
Material Handling Arms. Material
Handling Arms move pipe, concrete
blocks, highway dividers and other
construction materials quickly
and precisely.
Ground Engaging Tools (GET).
Several GET options are available from
Caterpillar for IT38H buckets. Reversible
bolt on cutting edges (BOCE) as well
as bolt on teeth and segments provide
maximum performance in various
materials.
9
Versatility
Built for Your Operation
Page 10
• Sight gauges, grouped maintenance
points, easy engine access, ecology
drains, maintenance-free batteries –
all simplify daily maintenance
• Electronic monitoring systems track
product health to avoid unscheduled
costly repairs
• Unsurpassed parts availability
reduces downtime
• Excellent resale value provided
by genuine Cat quality, outstanding
dealer service and unmatched dealer
support programs
• Caterpillar Financial Services and
Cat dealers understand your business
Engine Idle Management System.
The Engine Idle Management System
(EIMS) maximizes fuel efficiency
and provides flexibility in managing
idle speeds for specific application
requirements. Four idle control speeds
are available.
Hibernate Mode. Idle speed drops after
a preset time to provide lower fuel
consumption, reduced sound levels
and lower emissions.
Work Mode. Adjustable working idle
speeds according to customer preference
and operating conditions.
Warm-Up Mode. Keep the engine at a
consistent temperature in cold conditions.
Low Voltage Mode. Prevent battery
drain due to high electrical loads from
attachments and accessories.
Maintenance. Proper maintenance
of your wheel loader can help control
expenses and lower your owning and
operating costs. The IT38H provides
unmatched serviceability by offering:
• Hydraulic service center
• Electric service center
• Airborne debris-resistant, swing-out
grill provides more efficient airflow
• Well-protected, easily visible sight
gauges
• Ground level maintenance points
• Easy access to engine compartment
• Ecology drains for simple and clean
fluid drainage
• Brake wear indicators for ease
of inspection
• Maintenance-free batteries
• Extended oil and filter change
intervals
Monitoring Systems. Monitoring product
health simplifies maintenance planning
and reduces costs.
Messenger. Messenger offers the comfort
of providing real-time, visual feedback
on engine and machine operating
conditions. It displays information
on diagnostic codes, maintenance
and system parameters.
Product Link. With Product Link
customers and dealers can remotely
obtain machine diagnostics. The system
provides updates on service meter
hours, machine health and equipment
location.
EquipmentManager. EquipmentManager
uses key indicators from equipment such
as hours, location and diagnostic codes
and combines them with powerful tools
like mapping, maintenance and repair
scheduling as well as troubleshooting
instructions. This application enables
quick identification of actions required
to maximize equipment uptime and
control owning and operation costs.
Machine Security System. Stolen
equipment equates to lost production
and increased costs. Eliminate machine
theft and unauthorized usage with the
Cat Machine Security System (MSS).
MSS is integrated into the machine’s
electronic system and can protect most
brands of equipment by requiring a
uniquely coded key to start the machine.
S
•O•
S Services. Managing component
life and machine availability decreases
downtime while improving your
productivity and efficiency.
S•O•S Services can help you do that.
Regular fluid sampling is used to track
what is going on inside the equipment.
Wear-related problems are predictable
and easily and quickly repairable.
Maintenance can be done according
to your schedule, resulting in increased
uptime and flexibility in maintenance
and repair before failure.
10
The IT38H – Best Value for Your Operation
Owning and Operating Costs
Page 11
Parts Availability. Caterpillar provides
an unsurpassed level of personalized
service for your wheel loader. With parts
distribution centers worldwide, most
parts can be delivered in 24 hours.
Easy access to parts reduces downtime.
Resale Value. Owning quality equipment
is a very important factor in maintaining
resale value. Cat not only supplies quality
equipment but also provides product
and dealer support to maintain the
reliability and durability of your machine.
Customer Support Agreements.
A Customer Support Agreement (CSA)
is any arrangement between you and
your Cat dealer that helps you lower
your total cost per unit of production.
CSAs are flexible, allowing them to be
tailored to your business. They can range
from simple Preventive Maintenance Kits
to sophisticated Total Cost Performance
Guarantees. Having a CSA with your
Cat dealer allows you more time to do
what you do best – run your business.
Caterpillar Equipment Training Solutions.
A thorough understanding of machine
systems and a high level of skill in
operation helps achieve maximum
efficiency and improves return on
investment. Caterpillar Equipment
Training Solutions programs help
provide operators with high levels
of proficiency and confidence.
Contact your Cat Dealer for more
information on Caterpillar Equipment
Training Solutions programs.
Caterpillar Financial Services
Corporation. Cat Financial understands
your business, your industry and the
challenges you face. That’s why they
can provide payment plans to fit your
unique needs – and to help you achieve
your goals.
11
Page 12
• Grouped service points and sight
gauges for easy daily maintenance
• Convenient access to engine
compartment for excellent
serviceability
• Swing-out grill and cooling cores
for easy cleaning
• Electronic systems to monitor
product health
Hydraulic Service Center. Transmission
and hydraulic oil filters are located in
the Hydraulic Service Center, behind
the hinged, right-side access ladder.
The hydraulic oil tank can be drained
from this location using the access port.
Electric Service Center. A lockable
compartment located just below the
left side access platform contains key
electrical components such as the
remote jump-start receptacle, battery
disconnect switch, circuit breakers and
hood actuation switch. The maintenance
free batteries are conveniently located
under the electric service center.
New! Multi-piece Axle. With the
introduction of Caterpillar’s new multipiece axles, service brakes and final
drives are located outboard and provide
easy access when service is required.
Ground Level Grease Points.
Grease fittings are grouped throughout
the machine thus facilitating easy
lubrication of vital components.
S
•O•
S SERVICES. Sampling valves on
the IT38H allow quick access to engine,
transmission and hydraulic oils for
S•O•S analysis. Oil change intervals
and other services can be optimized
according to your work schedule,
reducing downtime and managing
expenses.
Remote Pressure Taps. Pressure taps for
key systems are grouped and centrally
located throughout the machine and
help facilitate quick diagnostics.
Brake Wear Indicators. Axles are
equipped with standard brake wear
indicators, allowing a technician to
easily determine when it is necessary
to service the brakes.
Sight Gauges. Well-protected, yet easily
visible sight gauges for the transmission,
hydraulic oil and radiator coolant allow
easy daily checks while reducing the
risk of contaminants entering the systems.
12
Easy to Maintain – Easy to Service
Serviceability
Page 13
Engine Compartment Access. A single
mechanical lift cylinder with manual
back-up opens the hood. The tilting
hood provides excellent access to the
engine and cooling compartments and
if necessary, the entire hood can be
removed with the built-in lift points.
With the hood closed, quick checks of
the engine oil level, coolant site gauge
and air inlet indicator can be completed
through the side service door.
Ecology Drains. Engine, transmission
and hydraulic oils can be easily drained
with standard-equipment ecology drains.
An axle oil ecology drain is optional.
Electric Priming Pump. An electric fuel
priming pump located on the primary
fuel filter base eliminates the need to
pre-fill or manually prime filters after a
change, eliminating engine contamination.
Cooling System. Cooling system
access for clean-out and maintenance
is outstanding. The perforated and
corrugated grill minimizes debris
build-up and swings out for easy
cleaning and access to the cooling cores.
The full-width air conditioning
condenser and oil cooler cores swing
out 45° to allow easy cleaning of the
rear radiator face. An access panel
located on the right side of the radiator
support structure provides access to the
front face of the radiator and ATAAC
cores for easy cleaning.
Complete Customer Support. Cat field
service technicians have the experience
and tools necessary to service your
loader on site. Technical experts at the
dealership and Caterpillar can provide
additional assistance to field service
technicians as needed.
When on-site repair isn’t enough, Cat
dealerships are fully equipped to service
your loader quickly.
13
Page 14
• Comfortable operation
• Excellent visibility
• Easy entry and exit
• Low effort steering
Operating Environment. The IT38H
provides operators with a comfortable
operating environment with generous
storage space and excellent visibility.
Seat. The durable seat adjusts 6-ways
to accommodate all sized operators.
The seat features an automotive style
lumbar support for maximum comfort.
The Cat C-500 Series Comfort airsuspension seat is optional as is a
heated backrest and seat cushion.
Implement Pod. The newly restyled
implement pod provides superior comfort
through the full length adjustable
armrest. Standard transmission F-N-R
switch allows operators to keep their
hand on the implement control levers
while making directional shifts.
An optional joystick with integrated
F-N-R switch is available and replaces
the lift and tilt levers.
Visibility. The IT38H offers excellent
visibility to the front and rear of the
machine. Distortion-free flat glass
stretches to the floor of the cab for
excellent visibility to the bucket.
Wet-arm wipers on both front and back
keep the windows clean in any condition.
Rear Vision Camera. An optional
rear vision camera is available to
clearly monitor movement behind
the wheel loader.
Lighting Packages. In addition to
the standard roading lights, optional
lighting packages are available for lowlight applications. Optional auxiliary
halogen or High Intensity Discharge
(HID) cab lights provide exceptional
lighting for night work. A rotating
beacon is available as a safety feature.
Entry and Exit. A ladder with aggressive
tread pattern keeps debris build-up to a
minimum. The ladder is at a 5° forward
incline for easy entry and exit.
The main cab door opens a full
180° and latches in place to allow safe
navigation to the rear of the machine.
The right side door opens 10°, or
completely for secondary exit simply
by pulling a pin. A full-length ladder
on the right side facilitates safe exit
if needed.
SAFETY.CAT.COM™.
14
Operator Comfort
Work Comfortably and Efficiently
Page 15
15
IT38H Integrated Toolcarrier specifications
Transmission
Forward 1 8.1 km/h 5 mph
Forward 2 14.6 km/h 9.1 mph
Forward 3 25.5 km/h 15.8 mph
Forward 4 43.2 km/h 26.8 mph
Reverse 1 8.1 km/h 5 mph
Reverse 2 14.6 km/h 9.1 mph
Reverse 3 25.5 km/h 15.8 mph
• Maximum travel speeds with empty bucket and 20.5-R25 tires.
Hydraulic System
Steering System Pump Type Piston
Hydraulic Cycle Time – Raise 5.0 seconds
Hydraulic Cycle Time – Dump 2.0 seconds
Hydraulic Cycle Time – Lower, 2.7 seconds
Empty, Float Down
Hydraulic Cycle Time – Total 9.7 seconds
Pilot System – Pump Output 295 L/min 77.9 gal/min
• Implement System (Standard), Piston Pump – Rated at
2,100 rpm and 6900 kPa (1,000 psi).
• Cycle time with rated payload.
Brakes
Brakes Meets required standards
• Meet OSHA, SAE J1473 Oct90 and ISO 3450-1985 standards.
Axles
Front Fixed front
Rear Oscillating ±12°
Maximum Single-Wheel 420 mm 17 in
Rise and Fall
Engine
Engine Model Cat®6.6 ACERT™
Gross Power – SAE J1995 147 kW 197 hp
Net Power – ISO 9249 134 kW 180 hp
Net Power – SAE J1349 133 kW 178 hp
Net Power – 80/1269/EEC 134 kW 180 hp
Peak Torque (Net) @ 1,400 rpm 840 N·m 620 ft-lb
Total Torque Rise 38 %
Bore 105 mm 4.1 in
Stroke 127 mm 5 in
Displacement 6.6 L 402.8 in
3
• Caterpillar engine with ACERT™ Technology – EPA Tier 3,
EU Stage III Compliant.
• These ratings apply at 2,100 rpm when tested under the
specified standard conditions.
• Rating for net power advertised based on power available
when the engine is equipped with alternator, air cleaner,
muffler and on-demand hydraulic fan drive at maximum
fan speed.
Weights
Operating Weight 16 004 kg 35,273 lb
• For 2.5 m3(3.30 yd3) material handling bucket with standard
20.5-R25 tires.
Buckets
Bucket Capacities 2.3 – 3.0 m33.0 – 4.0 yd
3
Maximum Bucket Capacity 3 m
3
4 yd
3
Operating Specifications
Static Tipping Load, Full Turn 9362 kg 20,633 lb
Breakout Force 126 kN 28,185 lb
• For 2.5 m3(3.30 yd3) material handling bucket with standard
20.5-R25 tires.
Page 16
16
IT38H Integrated Toolcarrier specifications
Service Refill Capacities
Fuel Tank – Standard 247 L 65.3 gal
Cooling System 36 L 9.5 gal
Crankcase 17.4 L 4.6 gal
Transmission 43 L 11.4 gal
Differentials and Final Drives – Front 57 L 15.1 gal
Differentials and Final Drives – Rear 53 L 14 gal
Hydraulic Tank 89 L 23.5 gal
Tires
Tires Choose from a variety
of tires to match your
application
• Choice of:
20.5R25 XTLA L2 Radial
20.5R25 XHA L3 Radial
20.5R25 GP2B L3 Radial
20.5R25 HRL L3 Radial
20.5R25 RL-2+ L3 Radial
650/65R-25 XLD L3 Radial (Low Profile)
20.5-25 SRG LD L3 Bias (16 PLY)
20.5-25 SRG LD L3 Bias (20 PLY)
20.5-25 RM 99 L3 Bias
• NOTE: In certain applications (such as load and carry)
the loader’s productive capabilities might exceed the tires’
tonnes-km/h (ton-mph) capabilities. Caterpillar recommends
that you consult a tire supplier to evaluate all conditions
before selecting a tire model. Other special tires are
available on request.
Cab
ROPS/FOPS Meets SAE and
ISO standards
• Caterpillar cab with Integrated Rollover Protective Structure
(ROPS) is standard in North America and Europe.
• ROPS meets SAE J1040 APR88 and ISO 3471:1994 criteria.
• Falling Objects Protective Structure (FOPS) meets SAE J231
Jan81 and ISO 3449:1992 Level II criteria.
• The operator sound pressure level measured according
to the procedures specified in ISO 6394:1998 is 75 dB(A) for
the cab offered by Caterpillar when properly installed and
maintained and tested with the doors and windows closed.
• Hearing protection may be needed when operating with an
open operator station and cab (when not properly maintained
or doors/windows open) for extended periods or in noisy
environment.
• The sound power level is 108 dB(A) measured according
to the dynamic test procedure and conditions specified in
ISO 6395:1998 for a standard machine configuration.
Page 17
17
IT38H Integrated Toolcarrier specifications

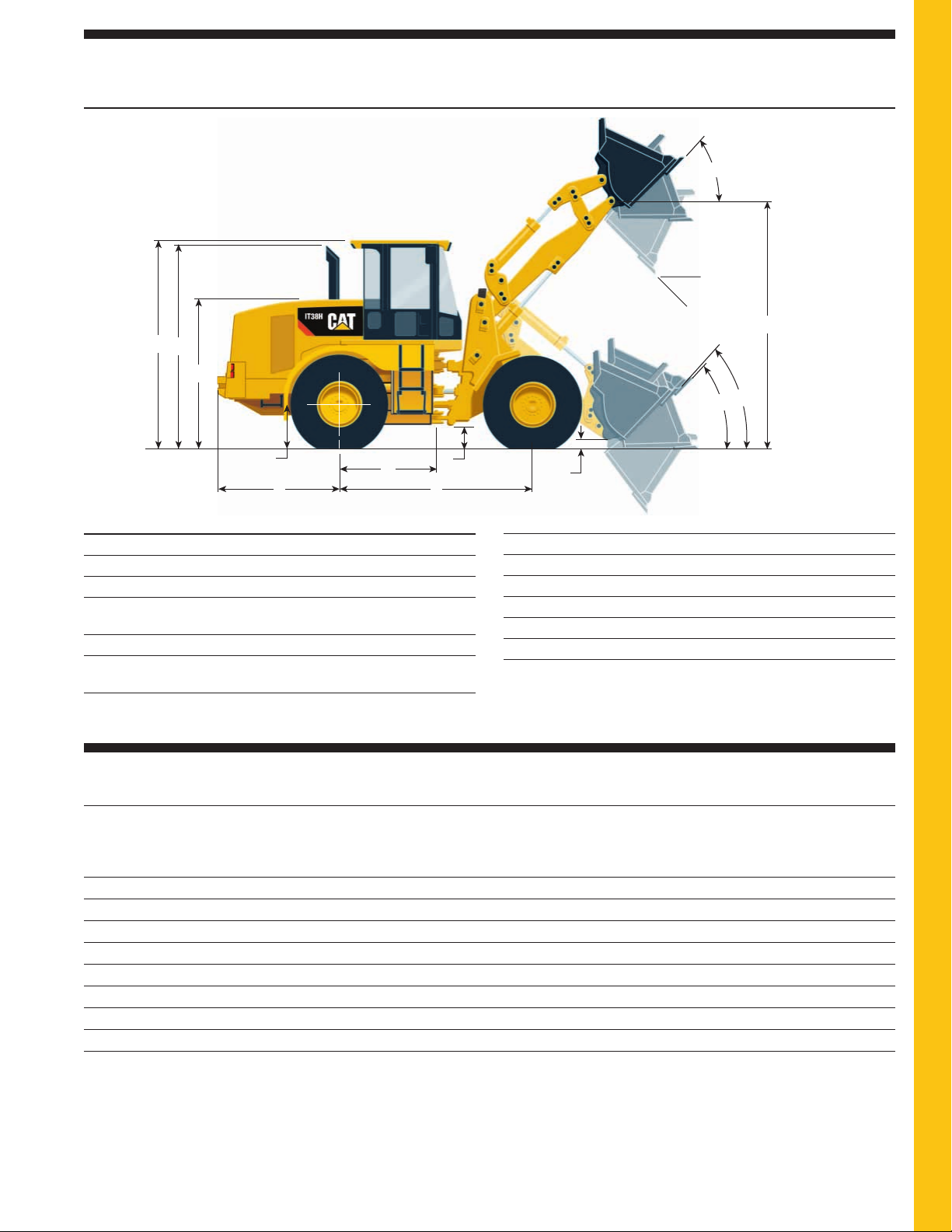

Dimensions
All dimensions are approximate and may vary with work tool.
Bucket used is 127-4920 with bolt-on edges.
Tires are 20.5R25 Michelin XHA.
1
2
3
11
10
13
5
12
14 4
9
8
67
1 Height to top of ROPS 3356 mm 11'0"
2 Height to top of exhaust pipe 3099 mm 10'2"
3 Height to top of hood 2415 mm 7'11"
4 Ground clearance 397 mm 1'3"
(see chart for other tires)
5 B-pin height @ maximum lift 3933 mm 12'10"
6 Center line of rear axle 1954 mm 6'4"
8 B-pin height @ carry position 235 mm 0'9"
9 Center line of rear axle to hitch 1510 mm 4'11"
10 Rack back @ maximum lift 45°
11 Dump angle @ maximum lift 45°
12 Rack back @ carry 46°
13 Rack back @ ground 48°
14 Height to center line of axle 688 mm 2'3"
to edge of counterweight
7 Wheelbase 3020 mm 9'10"
Tires
Tread width for all tires is 2020 mm (80")
20.5-R25 XTLA L2 Michelin 2603 102 –16 –1 –170 –376 –98 –217 –86 –189
20.5-R25 XHA L3 Michelin 2674 105 –0 –0 –0 –0 –0 –0 –0 –0
20.5 R25 GP2B L3 Goodyear 2619 103 +6 –0 –53 –116 –30 –67 –27 –58
20.5 R25 HRL L3 Goodyear 2618 103 +23 +1 –48 –107 –28 –62 –24 –54
20.5 R25 RL-2+ L3 Goodyear 2609 103 +12 –0 +13 +28 +7 +16 +6 +14
650/65R-25 XLD L3 Michelin 2733 108 –0 –0 +519 +1145 +301 +663 +262 +578
20.5-25 SRG LD L3 Firestone – 16 PLY 2558 101 +8 –0 –242 –533 –140 –308 –122 –268
20.5-25 SRG LD L3 Firestone – 20 PLY 2556 101 +11 –0 –174 –384 –101 –222 –88 –194
20.5-25 RM 99 L3 Pirelli 2540 100 +8 –0 –58 –129 –34 –74 –29 –65
Width over tires –
maximum
(loaded)
mm inches mm inches kg lb kg lb kg lb
Change in
vertical
dimensions
Change in
operating weight
without ballast
Change in
static tipping
load – straight
Change in
static tipping
load – articulated
Page 18
18
IT38H Integrated Toolcarrier specifications
Dimensions – Forks
All dimensions are approximate.
7
6
2
9
4
8
1
3
1 Fork Tine Length mm 1524 1524
in 60 60
2 Load Center mm 610 762
in 24 30
Tipping Load – Forks Level Straight kg 8866 8453
lb 19,540 18,631
Tipping Load – Forks Level Articulated kg 7680 7323
lb 16,926 16,140
Rated Load (SAE J1197) kg 3840 3662
lb 8,463 8,070
Rated Load (CEN 474-3 Firm and Level Ground) kg 6144 5859
lb 13,541 12,912
3 Maximum Overall Length mm 8345
ft/in 27'4"
4 Reach with Forks at Ground Level mm 1097
ft/in 3'7"
5 Ground to Top of Tine at Minimum Height and Fork Level mm 85
in 3
6 Reach with Arms Horizontal and Forks Level mm 1632
ft/in 5'4"
7 Reach with Fork at Maximum Height mm 903
ft/in 2'11"
8 Ground to Top of Tine with Arms Horizontal and Fork Level mm 1692
ft/in 5'6"
9 Ground to Top of Tine at Maximum Height and Fork Level mm 3545
ft/in 11'7"
Operating Weight kg 15 741
lb 34,693
5
Page 19
19
IT38H Integrated Toolcarrier specifications

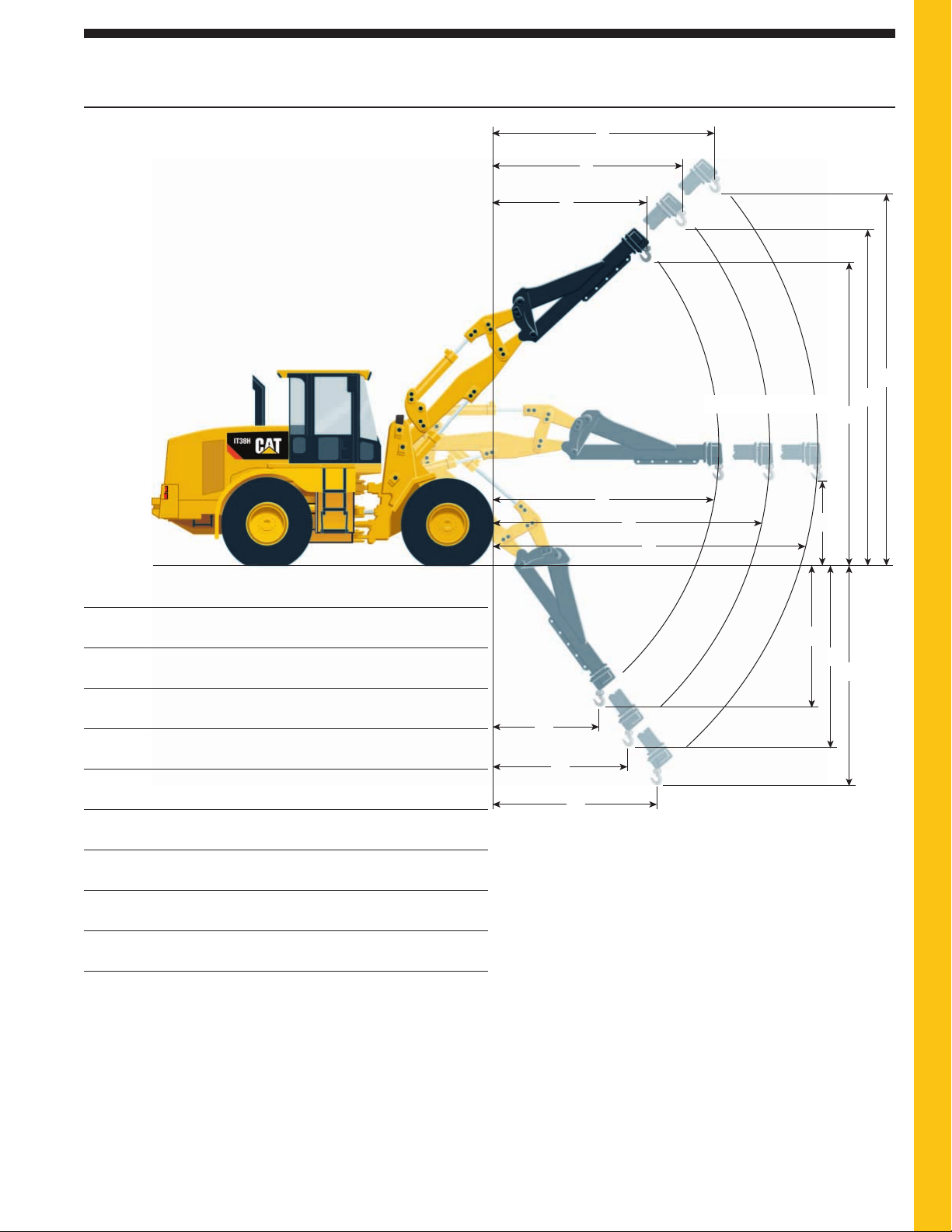

Dimensions – Material Handling Arm
All dimensions are approximate.
3
2
1
6
17 18 19
7
8
9
10
5
4
Mid-
MHA Position Retracted Position Extended
1, 2, 3 MHA Max Lift – mm 2445 3012 3580
Hook Reach ft/in 8'0" 9'10" 11'8"
4, 5, 6 MHA Max Lift – mm 5597 6161 6725
Hook Height ft/in 18'4" 20'2" 22'0"
7, 8, 9 MHA Level – mm 3769 4569 5369
Hook Reach ft/in 12'4" 14'11" 17'7"
10 MHA Level – mm 1857 1857 1857
Hook Height ft/in 6'1" 6'1" 6'1"
11, 12, 13 MHA Min Lift – mm 1809 2279 2749
Hook Reach ft/in 5'11" 7'5" 9'0"
14, 15, 16 MHA Min Lift – mm 1983 2630 3278
Hook Height ft/in 6'5" 8'4" 10'2"
17, 18, 19 Static Tipping kg 5261 4462 3869
Load, Articulated lb 11,594 9,833 8,527
17, 18, 19 Rated Load kg 2630 2231 1934
(SAE J1197) lb 5,797 4,917 4,263
Operating kg 15 514 15 514 15 514
Weight lb 34,192 34,192 34,192
14
15
16
11
12
13
Page 20
20
IT38H Integrated Toolcarrier specifications

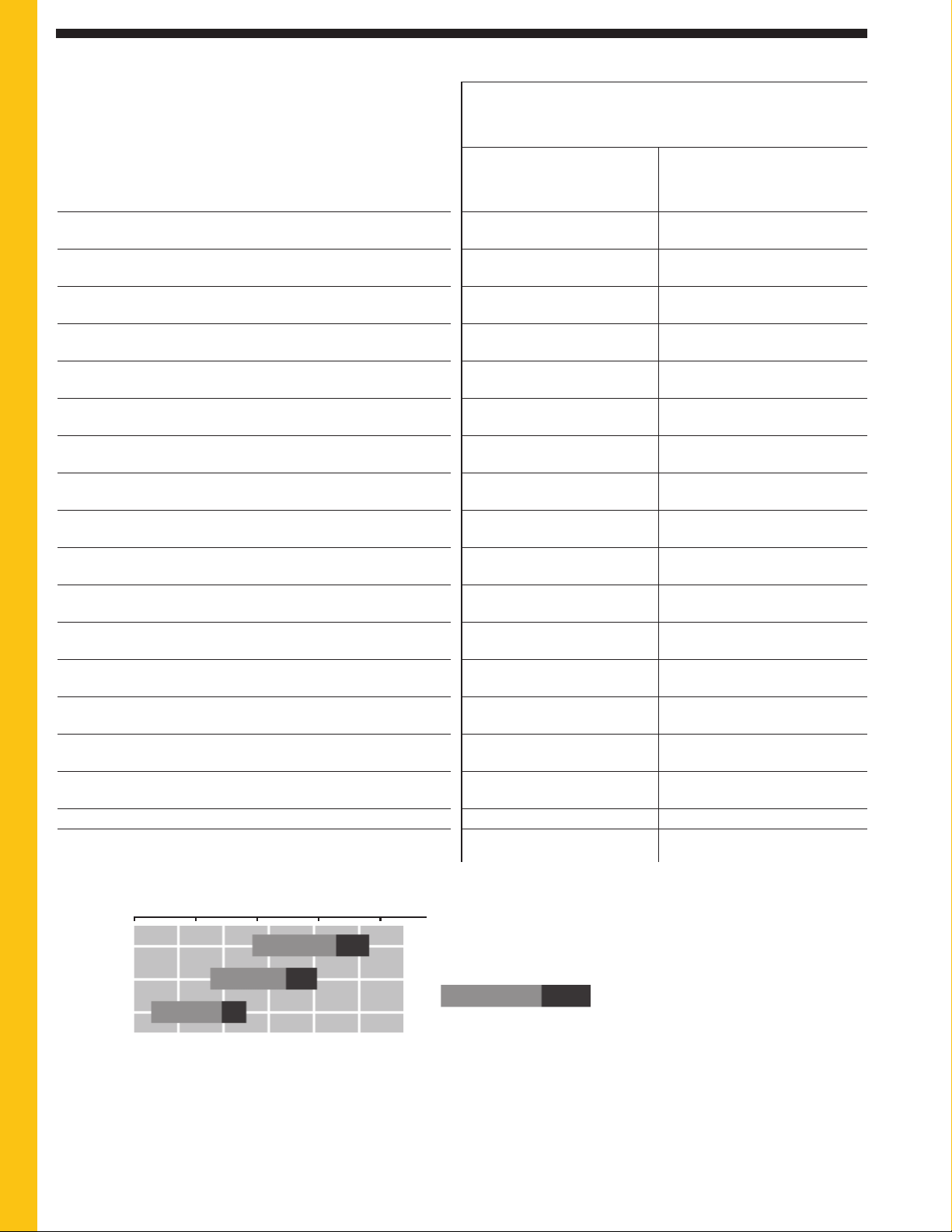

115% 100% 95%
% = Bucket Fill Factor
yd
3m3
3.30 2.5MH
3.00 2.3MH
3.65 2.8MH
1400
kg/m
3
1600 1800 2000 2200
2,500 2,750 3,000 3,250 3,500 3,750
lb/yd
3
Material Density
Pin-On Bucket Selection Guide
2.34 2.34 2.21 2.53 2.53 2.41
3.00 3.00 2.85 3.30 3.30 3.15
1.89 1.89 1.79 2.06 2.06 1.96
2.47 2.47 2.34 2.69 2.69 2.56
2708 2777 2777 2708 2777 2777
8'10" 9'1" 9'1" 8'10" 9'1" 9'1"
2805 2693 2693 2805 2693 2693
9'2" 8'10" 8'10" 9'2" 8'10" 8'10"
1152 1243 1243 1152 1243 1243
3'9" 4'0" 4'0" 3'9" 4'0" 4'0"
2475 2618 2618 2475 2618 2618
8'1" 8'7" 8'7" 8'1" 8'7" 8'7"
66 66 41 66 66 41
2.6" 2.6" 1.62" 2.6" 2.6" 1.62"
7543 7699 7699 7543 7699 7699
24'8" 25'3" 25'3" 24'8" 25'3" 25'3"
5119 5119 5119 5235 5235 5235
16'9" 16'9" 16'9" 17'2" 17'2" 17'2"
12 136 12 303 12 303 12 136 12 303 12 303
39'9" 40'4" 40'4" 39'9" 40'4" 40'4"
10 849 10 763 10 968 10 843 10 757 10 962
23,911 23,721 24,174 23,898 23,708 24,161
9371 9285 9478 9362 9275 9468
20,654 20,464 20,890 20,633 20,442 20,869
125.7 125.1 134.1 125.5 124.9 133.9
28,239 28,115 30,135 28,185 28,061 30,078
15 975 16043 15950 16 004 16 072 15 979
35,209 35,358 35,154 35,273 35,422 35,217
1611 1644 1644 1611 1644 1644
5'3" 5'4" 5'4" 5'3" 5'4" 5'4"
2802 2690 2690 2802 2690 2690
9'2" 8'9" 8'9" 9'2" 8'9" 8'9"
45.2 45.2 45.2 45.2 45.2 45.2
4806 4761 4861 4801 4756 4856
10,592 10,494 10,713 10,581 10,483 10,702
Rated capacity
Struck capacity
Width
Dump clearance at full lift and 45° discharge
Dump reach at full lift and 45° discharge
Reach with lift level arm, level tool
Digging depth
Overall length
Overall height with tool at full raise
Loader clearance circle with tool in carry position
Static tipping load, straight
Static tipping load, articulated
Breakout force
Operating weight
Reach at 2134 mm (7'0") height, 45° dumped
Clearance at full raise and dump, on stops
Dump angle at full raise and dump, on stops
Rated payload
m
3
yd
3
m
3
yd
3
mm
ft/in
mm
ft/in
mm
ft/in
mm
ft/in
mm
in
mm
ft/in
mm
ft/in
mm
ft/in
kg
lb
kg
lb
kN
lb
kg
lb
mm
ft/in
mm
ft/in
degrees
kg
lb
Operation Specifications
Material Handling Buckets
Bolt-on
edges
Teeth
and
segments Teeth
Bolt-on
edges
Teeth
and
segments Teeth
Page 21
21
IT38H Integrated Toolcarrier specifications
Bolt-on
edges
2.80 2.80 2.65
3.65 3.65 3.50
2.30 2.30 2.16
3.01 3.01 2.83
2708 2777 2777
8'10" 9'1" 9'1"
2733 2621 2621
8'11" 8'7" 8'7"
1224 1315 1315
4'0" 4'3" 4'3"
2577 2720 2720
8'5" 8'11" 8'11"
66 66 41
2.6" 2.6" 1.61"
7644 7800 7800
25'0" 25'7" 25'7"
5295 5295 5295
17'4" 17'4" 17'4"
12 196 12 364 12 364
40'0" 40'6" 40'6"
10 638 10 551 10 754
23,446 23,253 23,701
9175 9088 9279
20,222 20,029 20,452
114.9 114.3 122.0
25,817 25,691 27,417
16048 16115 16022
35,369 35,518 35,313
1647 1676 1676
5'4" 5'5" 5'5"
2730 2618 2618
8'11" 8'7" 8'7"
45.2 45.2 45.2
4705 4660 4759
10,370 10,272 10,488
Teeth
and
segments Teeth
Page 22
22
IT38H Integrated Toolcarrier specifications
Standard Equipment
Standard equipment may vary. Consult your Caterpillar dealer for details.
ELECTRICAL
Alarm, back-up, adjustable
Alternator, 24V/65A
Battery disconnect switch with removable key
Lighting:
Turn signals with flashing hazard function
Two halogen headlights with high/low beam
Parking lights
Two front and rear halogen work lights, cab mounted
Jumpstart receptacle
OPERATOR ENVIRONMENT
Air Conditioning
Bucket/Work tool lever lockout feature
Cab, ROPS/FOPS, pressurized and sound suppressed
Coat hook
Controls, lift and tilt functions
Radio ready including antenna, speakers, two 12V/5A
power outlets, includes cigar lighter
Electric horn, dual actuation (steering wheel, implement pod)
Sun Visor, Front
Cab heating with fresh air inlet and defrosting function
Messenger System
Monitoring and logging of machine data
Clock
Operator keypad
Axle oil temperature
Product Link Ready (optional in some regions)
Operator display, Gauges:
Engine coolant temperature
Fuel level
Hydraulic oil temperature
Speedometer
Gear indicator
Tachometer
Transmission oil temperature
Operator display, Warning Indicators:
Glow Plugs
Electrical, alternator output
Engine inlet manifold temperature
Engine oil pressure
Fuel pressure
Hydraulic oil temperature
Parking brake
Primary steering oil pressure
Service brake oil pressure
Transmission filter bypass
Axle oil temperature
Dual interior rearview mirrors
Dual exterior rearview mirrors
Interior operator lighting
Storage compartments
Lunchbox compartments
Beverage holder
Seat, KAB, cloth, adjustable
Seat belt, retractable, 51mm/2" wide
Adjustable steering column/wheel
Forward/Neutral/Reverse switch by implement controls
LH door with sliding window
RH sliding window and emergency exit
Windshield wipers, front and rear
Interval function for front and rear wipers
Windshield washers, front and rear
POWER TRAIN
Brakes, full hydraulic enclosed wet-disc
Brake wear indicators with Integrated Braking System (IBS)
Front axle with locking differential
Drive line, extreme service
Engine, Cat C6.6 ACERT and ATAAC technology,
electronically controlled
Fan, radiator, electronically controlled, hydraulically
driven, temperature sensing, on demand
Filters, fuel, primary/secondary
Fuel priming pump (Electric)
Fuel/Water separator
Monitoring System, Axle Oil Temperature
Muffler, sound suppressed
Radiator, unit core (6 fpi) with ATAAC
Starting aid (Glow Plugs)
Trans, neutralizer lockout in messenger
Torque converter
Transmission, countershaft, automatic power shift (4F/3R)
Variable Shift Control (VSC), messenger
OTHER STANDARD EQUIPMENT
Automatic bucket positioner
Counterweight
Couplings, Caterpillar O-ring face seal
Fenders, Extension, Platform, Rear
Guards, (bottom crankcase and fuel tank)
Hitch, drawbar with pin
Hood, non-metallic power tilting
Hoses, Caterpillar XT
Hydraulics, Load Sensing
Kickout, lift, automatic
Kickout, tilt, adjustable
Linkage, Z-bar, cast crosstube/tilt lever
Oil sampling valves
Remote Diagnostic Pressure Taps
Sight Gauges: Engine coolant, hydraulic oil
and transmission oil level
Steering, load sensing
Vandalism protection caplocks
Page 23
23
IT38H Integrated Toolcarrier specifications
Standard Equipment
Standard equipment may vary. Consult your Caterpillar dealer for details.
HYDRAULICS
Load sensing implement system, pressure sensing
Load sensing steering system
Two function hydraulic valve (lift and tilt)
Two lever operator implement controls
TIRES, RIMS, & WHEELS
A tire must be selected from the mandatory attachments
section. Base machine price includes an allowance based
on a premium radial tire.
ANTIFREEZE
Premixed 50% concentration of Extended Life Coolant
with freeze protection to –34° C (–29° F)
Optional Equipment
Optional equipment may vary. Consult your Caterpillar dealer for details.
Alternator, heavy-duty
Antifreeze, – 50° C (–58° F)
Autolube
Buckets and work tools
Bucket Ground Engaging Tools (GET) –
see Cat dealer for details
Camera, rear view
Coolant, extended life
Cooler, axle oil
Differential Lock, automatic front and rear
Drain, axle ecology
Ether Starting Aid
Fenders/Platforms, narrow
Fenders, roading
Guards, axle seal
Guard, front window, wide mesh
Guard, power train bolt-on
Guard, power train hinged
Guard, hitch area
Guard, front driveshaft
Guard, roading light, front and rear
Guard, tilt cylinder
Guard, transmission oil fill
Heater, engine coolant, 120- or 240-volt
High Lift, three-valve
High Lift, three-valve with hydraulic horizontal pin
quick coupler
Hydraulics, three or four-valve
Joystick control, two, three or four valve
Ladder, cable
Lights, auxiliary cab lights
Lights, high intensity discharge (HID)
Lights, warning beacon
Machine Security System
Mirrors, heated external
Open canopy
Precleaner , turbine
Precleaner , turbine/trash
Quick Coupler, hydraulic horizontal pin
Quick Coupler ready lines
Radio, AM/FM CD player
Ride Control
Seat, air suspension
Seat, heated air suspension
Seatbelt, 76 mm (3") wide
Seatbelt, 76 mm (3") wide (KAB)
Steering, secondary
Sunscreen, rear
Toolbox
Page 24
For more complete information on Cat products, dealer services
and industry solutions, visit us on the web at www.cat.com
© 2008 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Caterpillar dealer for available options.
CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow,”
and the POWER EDGE trade dress, as well as corporate and product identity used
herein, are trademarks of Caterpillar and may not be used without permission.
AEHQ5982-01 (6-08)
Replaces AEHQ5982
IT38H Integrated Toolcarrier
R
Loading...
